This document summarizes a presentation about the WiredTiger In-Memory storage engine for MongoDB compared to the standard WiredTiger B-Tree storage engine. The Percona Memory Engine can provide up to 1000 times faster performance for OLTP workloads and 10 times faster reads compared to WiredTiger by storing data entirely in memory instead of on disk. It uses WiredTiger's document-level locking and B-Tree structure but without disk access. Typical use cases for the in-memory engine include caching, session storage, and temporary collections. The presentation provides examples of how to configure and optimize the engine for different scenarios including replica sets, sharded clusters, and combining it with WiredTiger for persistence.

1. WiredTiger In-Memory
vs WiredTiger B-Tree
October, 5, 2016 — M¨ovenpick Hotel — Amsterdam
Sveta Smirnova

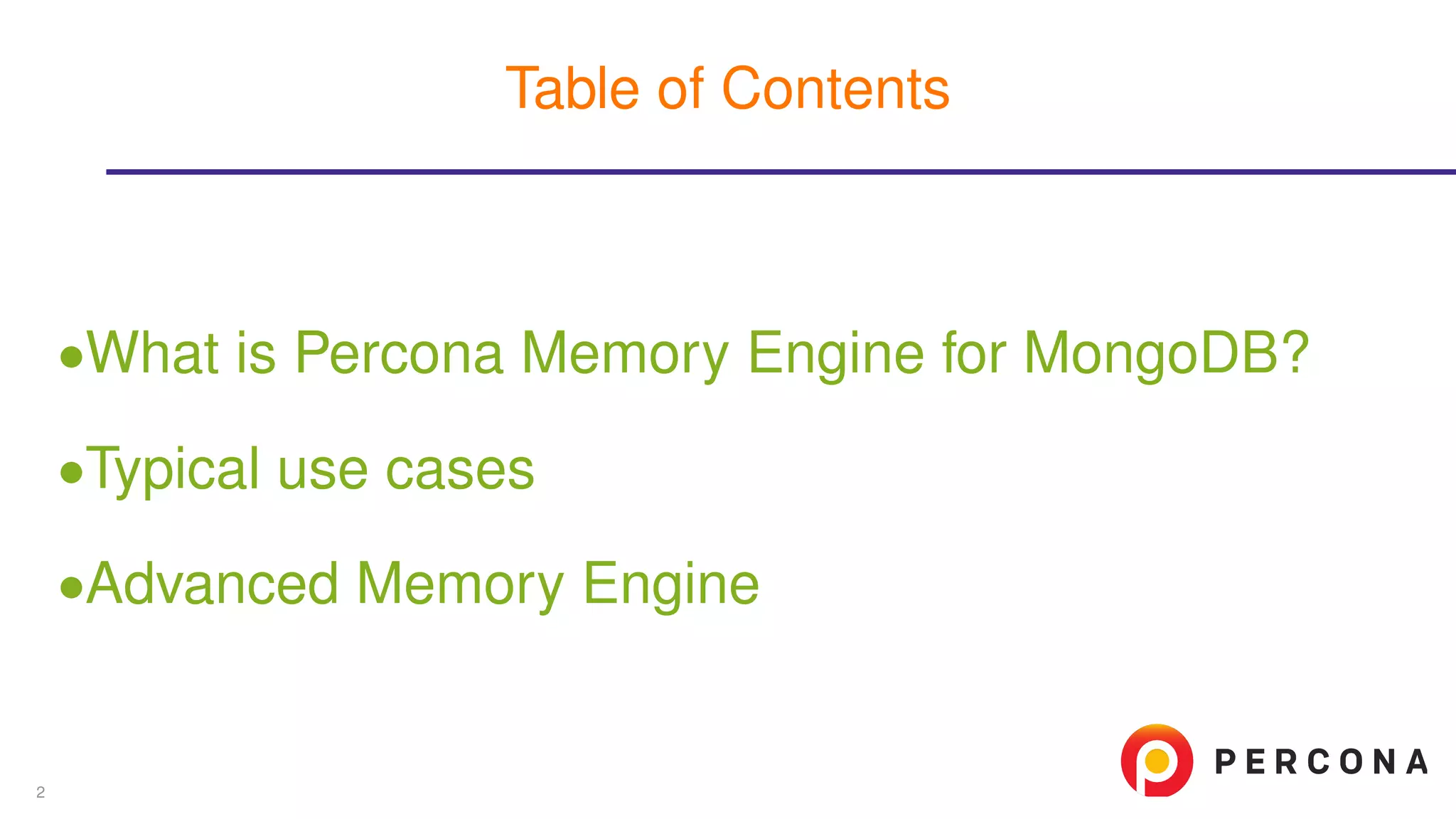

2. ∙What is Percona Memory Engine for MongoDB?
∙Typical use cases
∙Advanced Memory Engine
Table of Contents
2

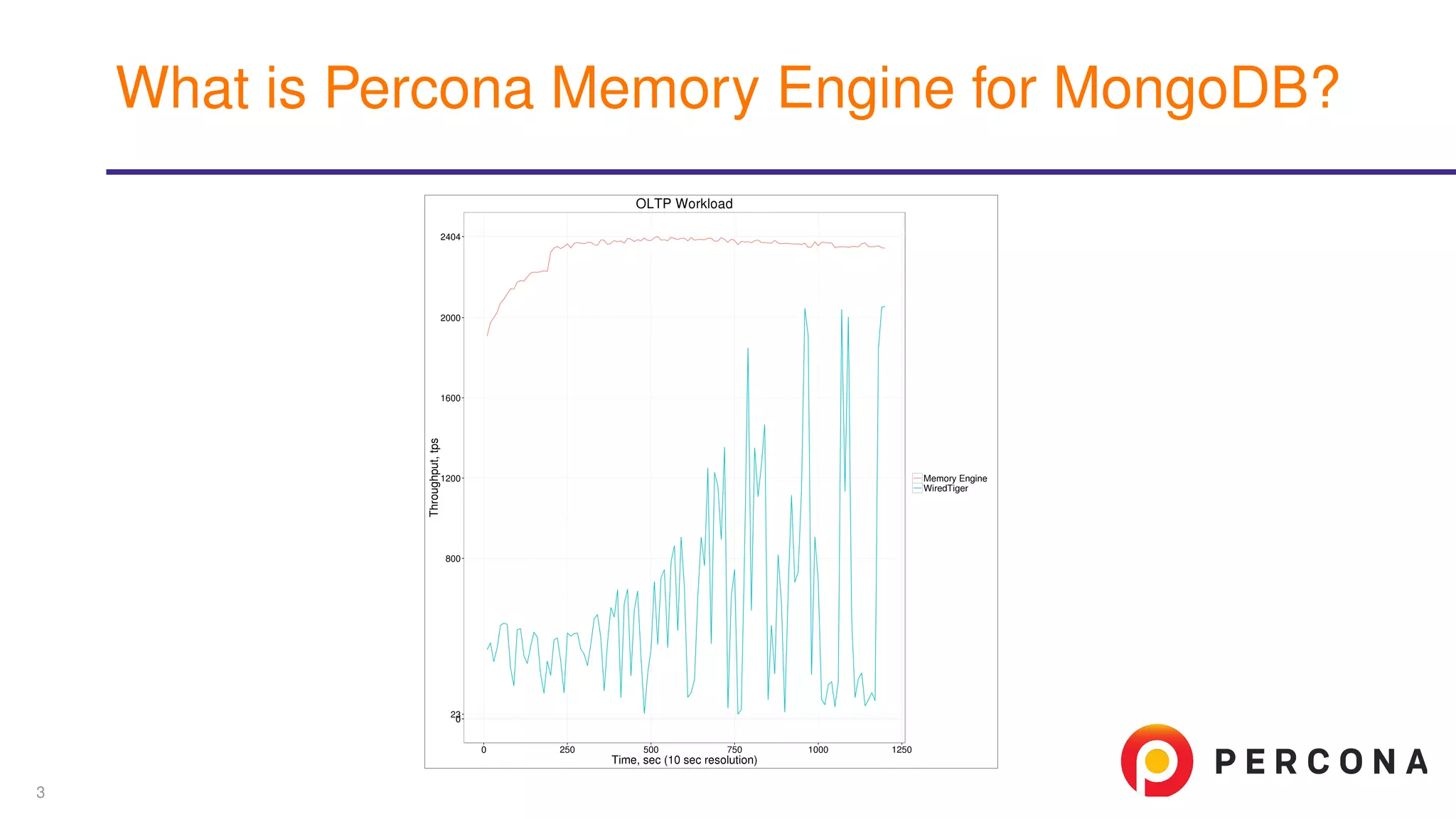

3. What is Percona Memory Engine for MongoDB?
3

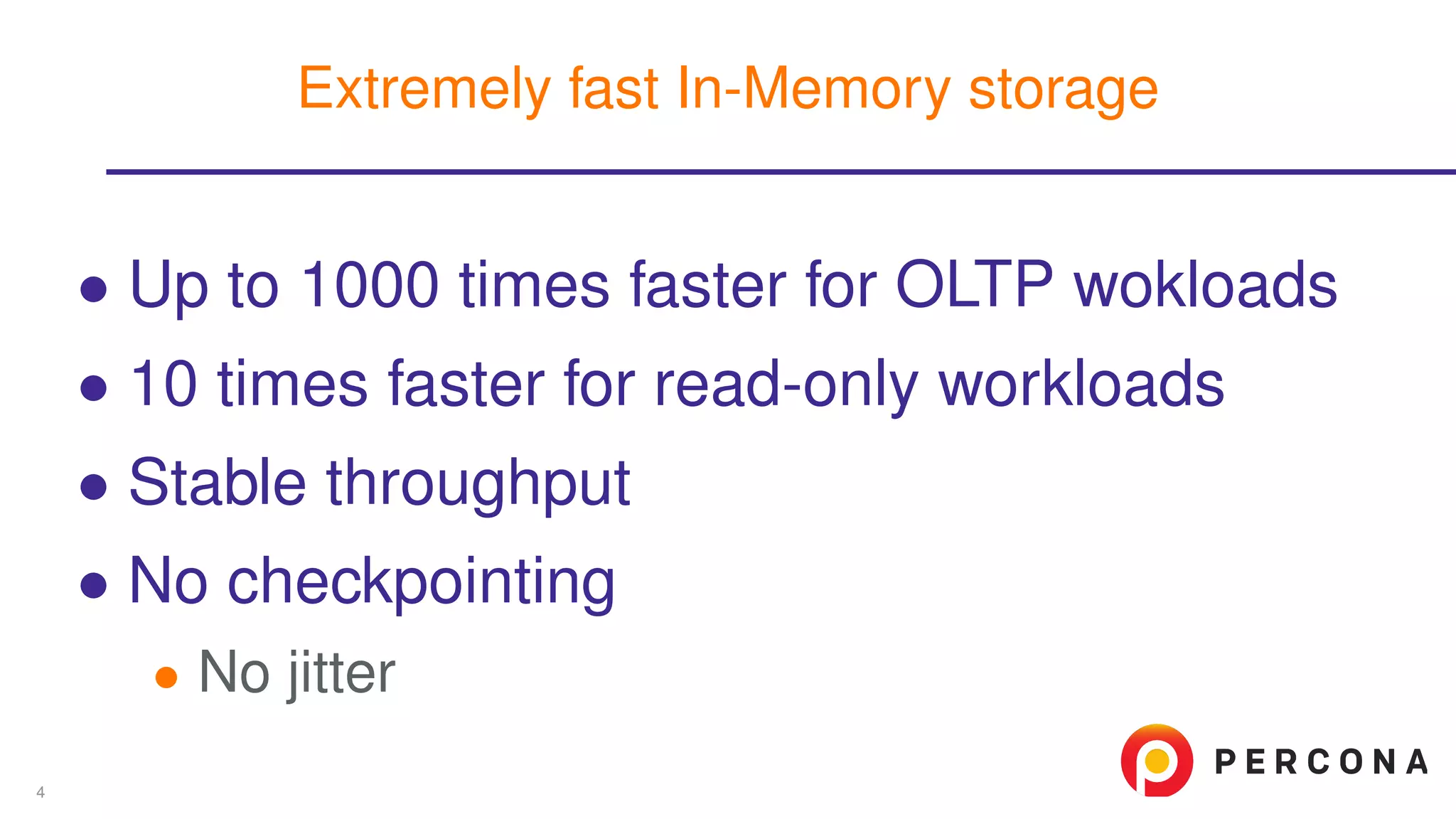

4. ∙ Up to 1000 times faster for OLTP wokloads
∙ 10 times faster for read-only workloads
∙ Stable throughput
∙ No checkpointing
∙ No jitter
Extremely fast In-Memory storage
4

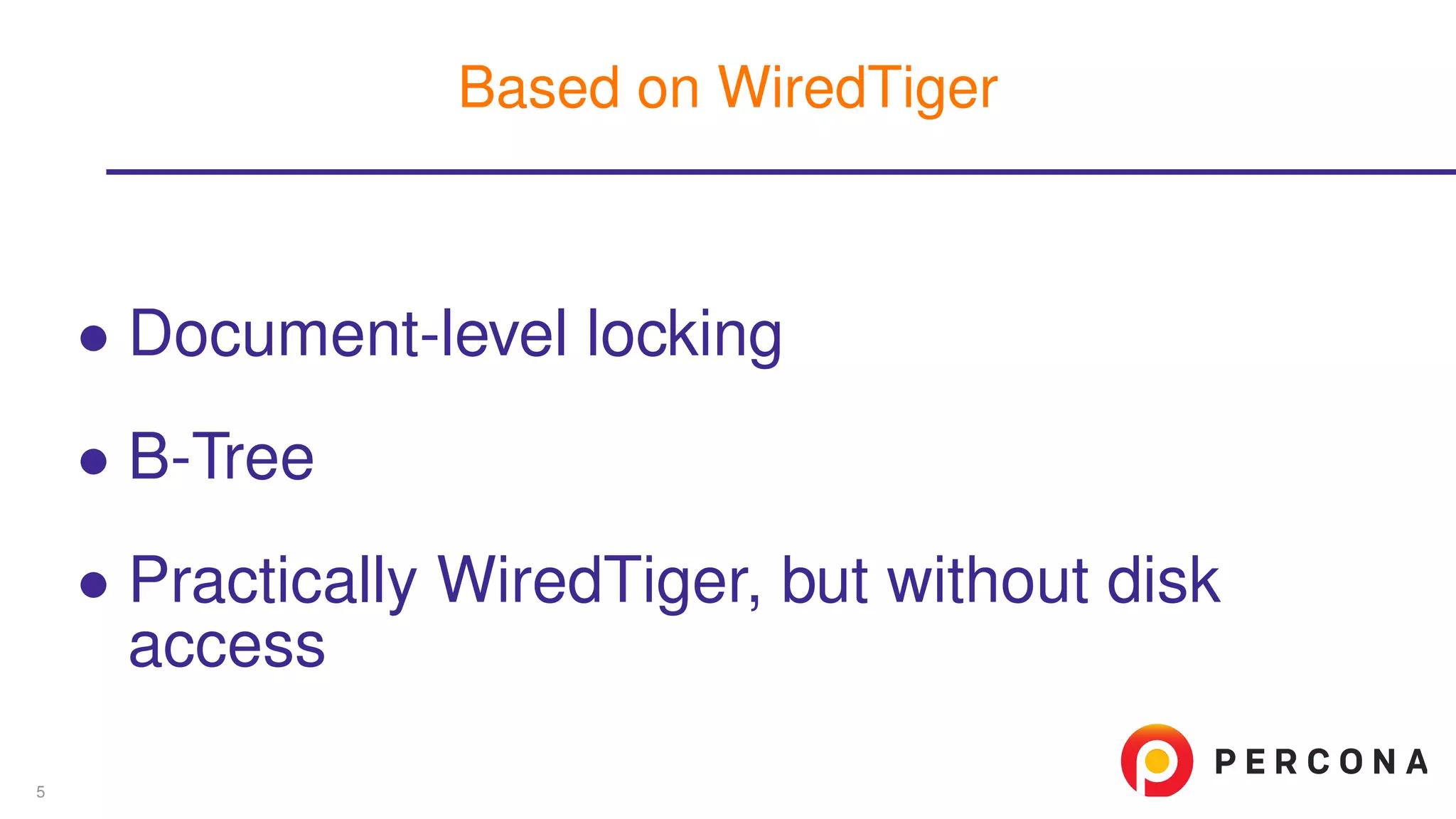

5. ∙ Document-level locking
∙ B-Tree
∙ Practically WiredTiger, but without disk
access
Based on WiredTiger
5

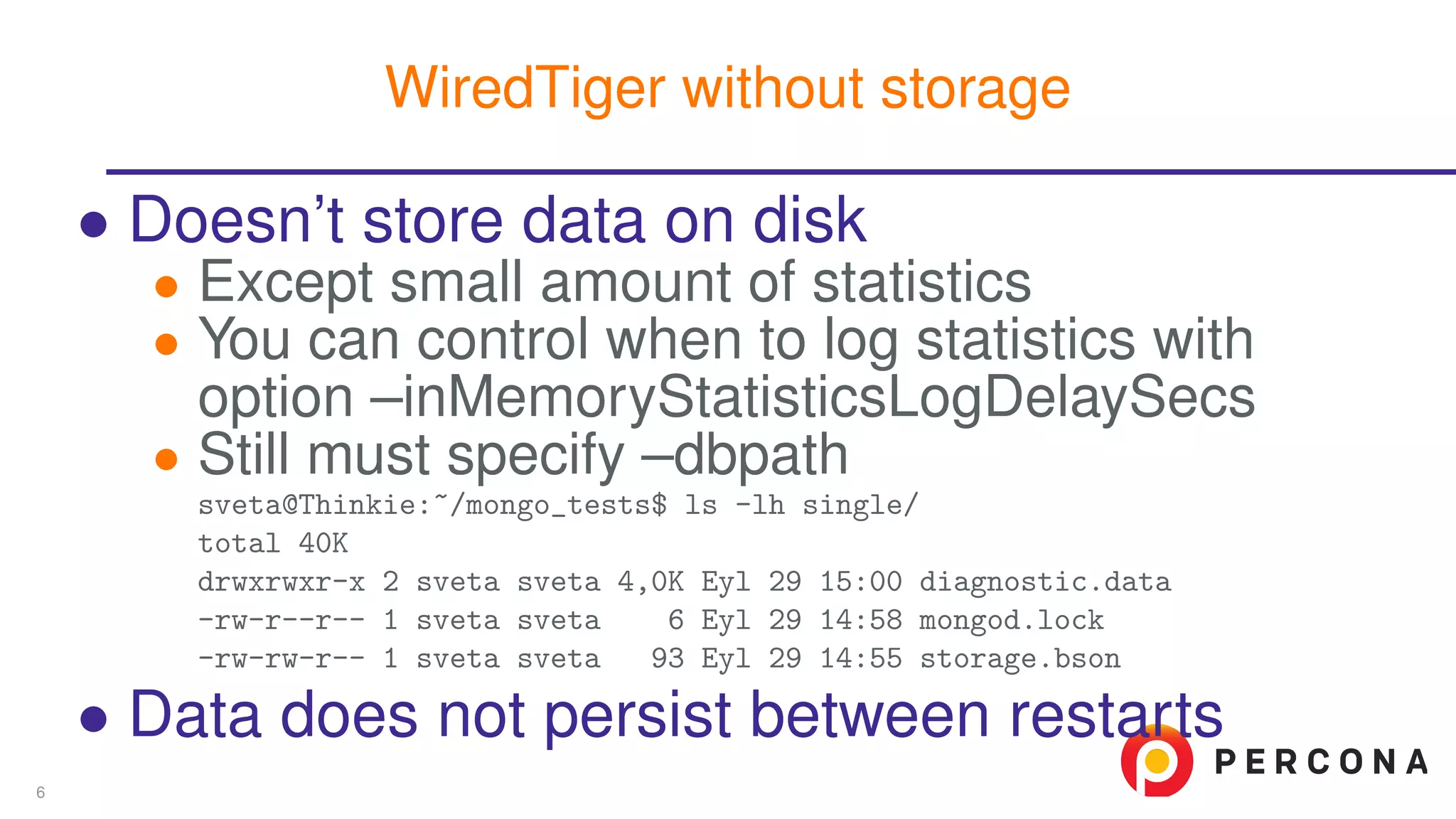

6. ∙ Doesn’t store data on disk
∙ Except small amount of statistics
∙ You can control when to log statistics with
option –inMemoryStatisticsLogDelaySecs
∙ Still must specify –dbpath
sveta@Thinkie:~/mongo_tests$ ls -lh single/
total 40K
drwxrwxr-x 2 sveta sveta 4,0K Eyl 29 15:00 diagnostic.data
-rw-r--r-- 1 sveta sveta 6 Eyl 29 14:58 mongod.lock
-rw-rw-r-- 1 sveta sveta 93 Eyl 29 14:55 storage.bson
∙ Data does not persist between restarts
WiredTiger without storage
6

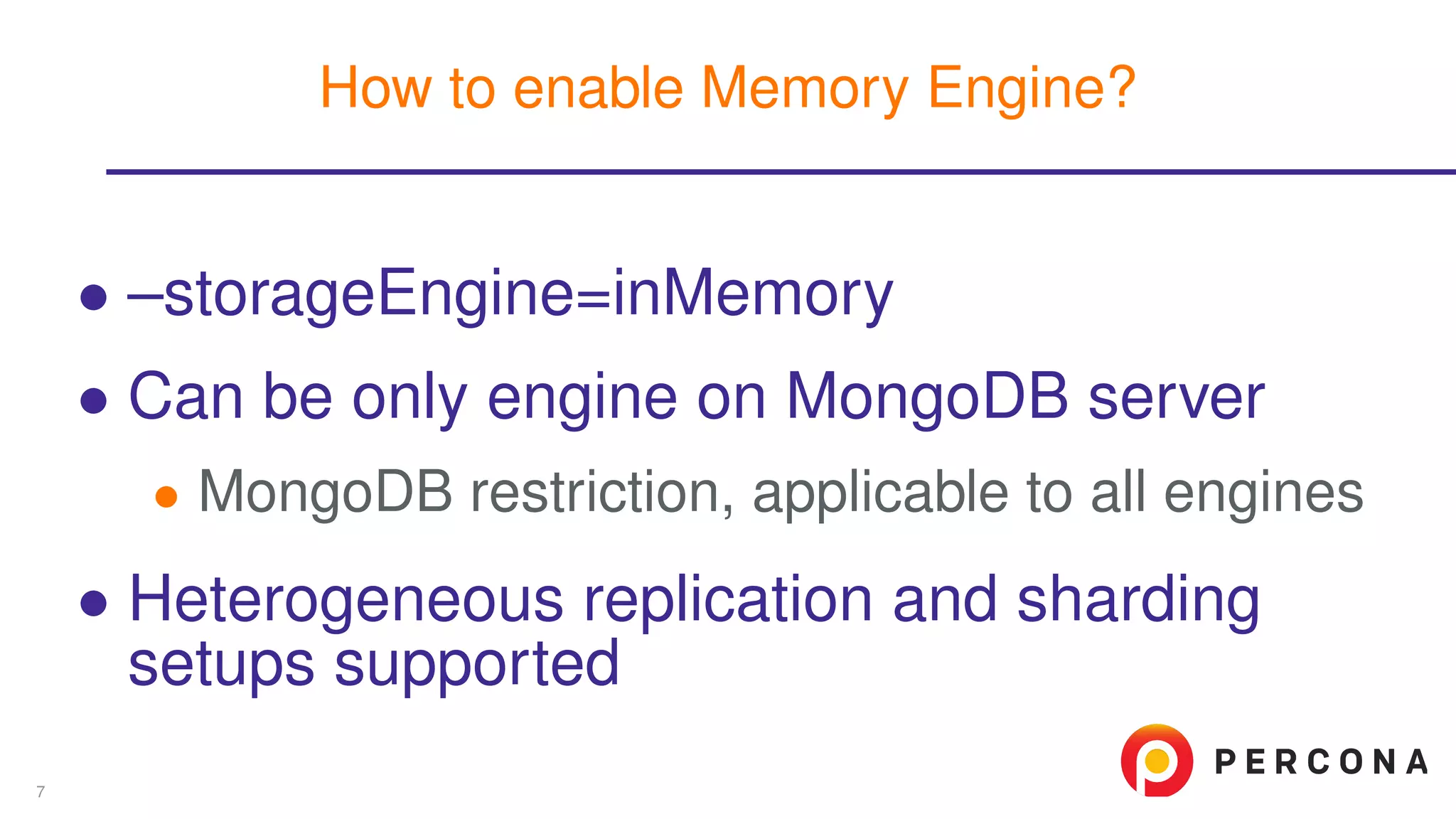

7. ∙ –storageEngine=inMemory
∙ Can be only engine on MongoDB server
∙ MongoDB restriction, applicable to all engines
∙ Heterogeneous replication and sharding
setups supported
How to enable Memory Engine?
7

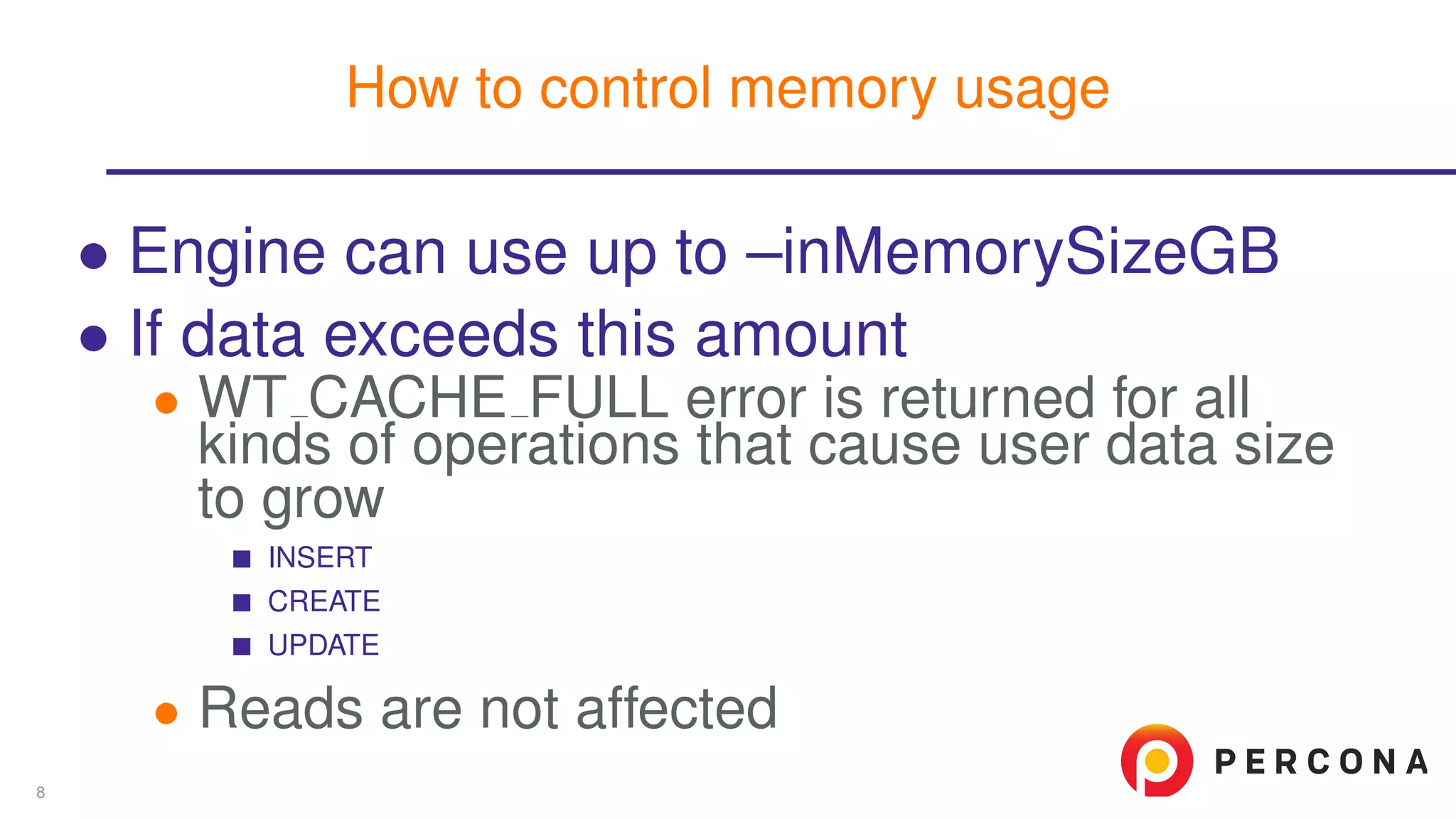

8. ∙ Engine can use up to –inMemorySizeGB
∙ If data exceeds this amount
∙ WT CACHE FULL error is returned for all
kinds of operations that cause user data size
to grow
INSERT
CREATE
UPDATE
∙ Reads are not affected
How to control memory usage
8

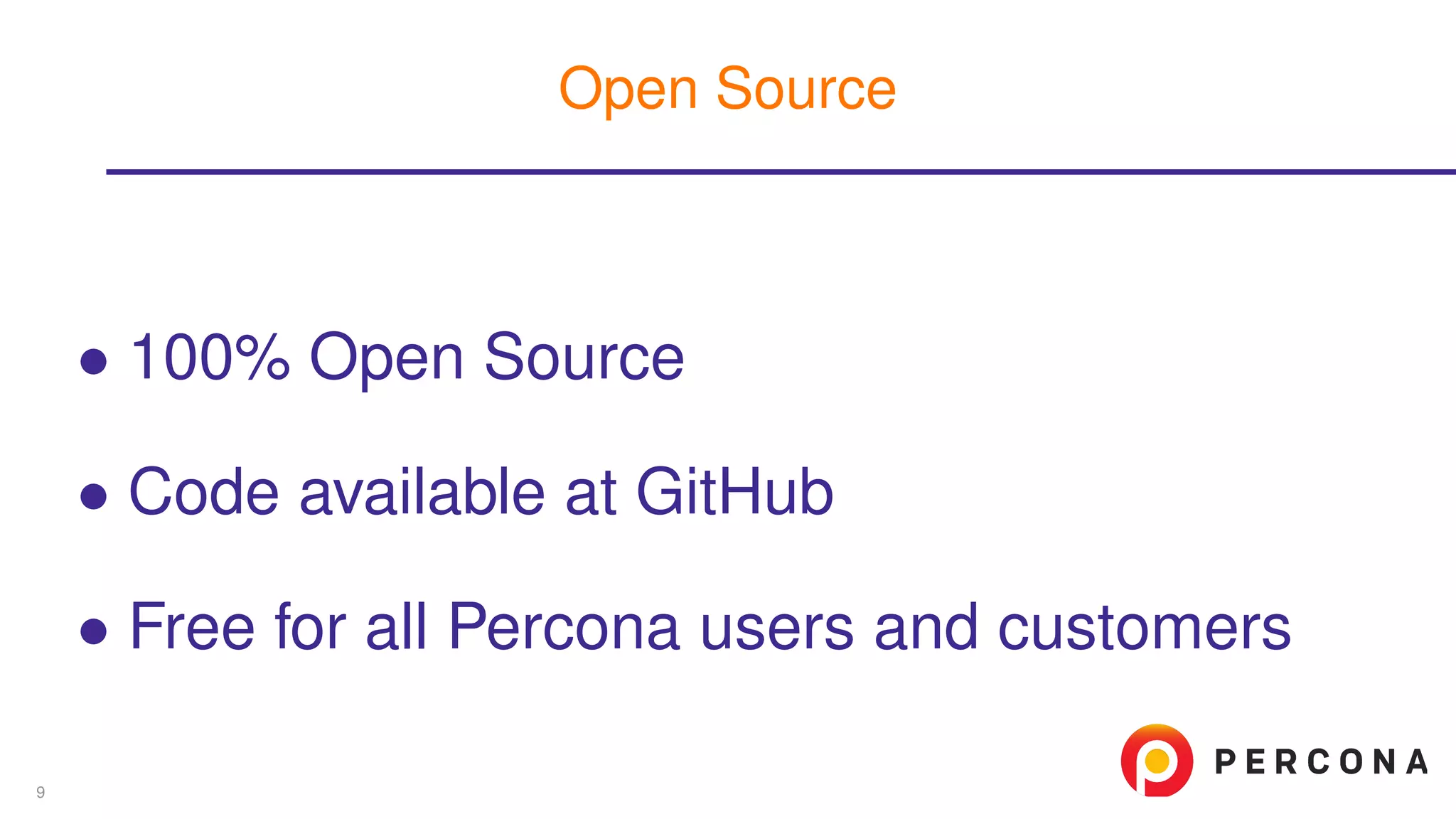

9. ∙ 100% Open Source
∙ Code available at GitHub
∙ Free for all Percona users and customers
Open Source
9

10. Typical use cases for Percona Memory Engine
10

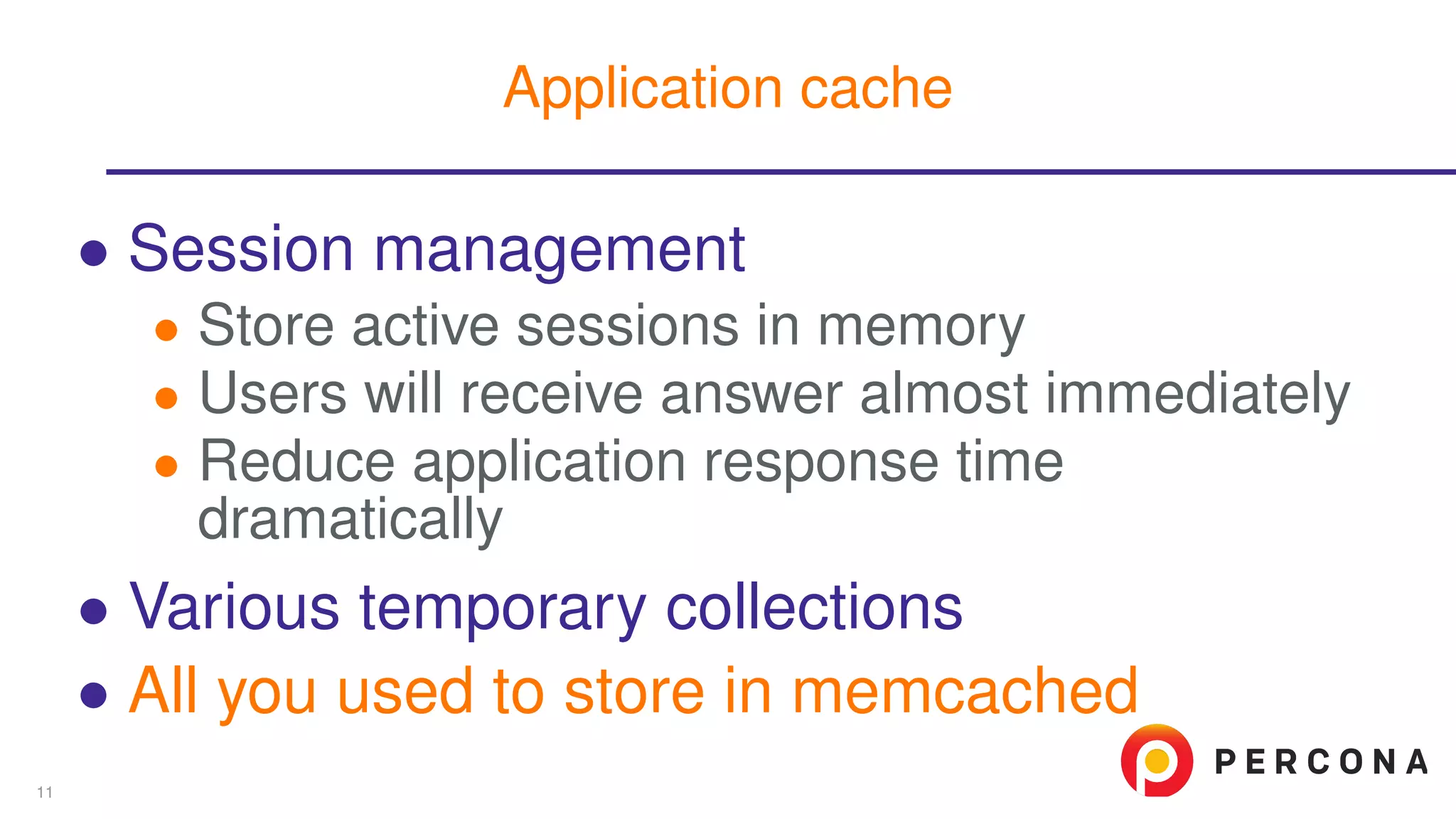

11. ∙ Session management
∙ Store active sessions in memory
∙ Users will receive answer almost immediately
∙ Reduce application response time
dramatically
∙ Various temporary collections
∙ All you used to store in memcached
Application cache
11

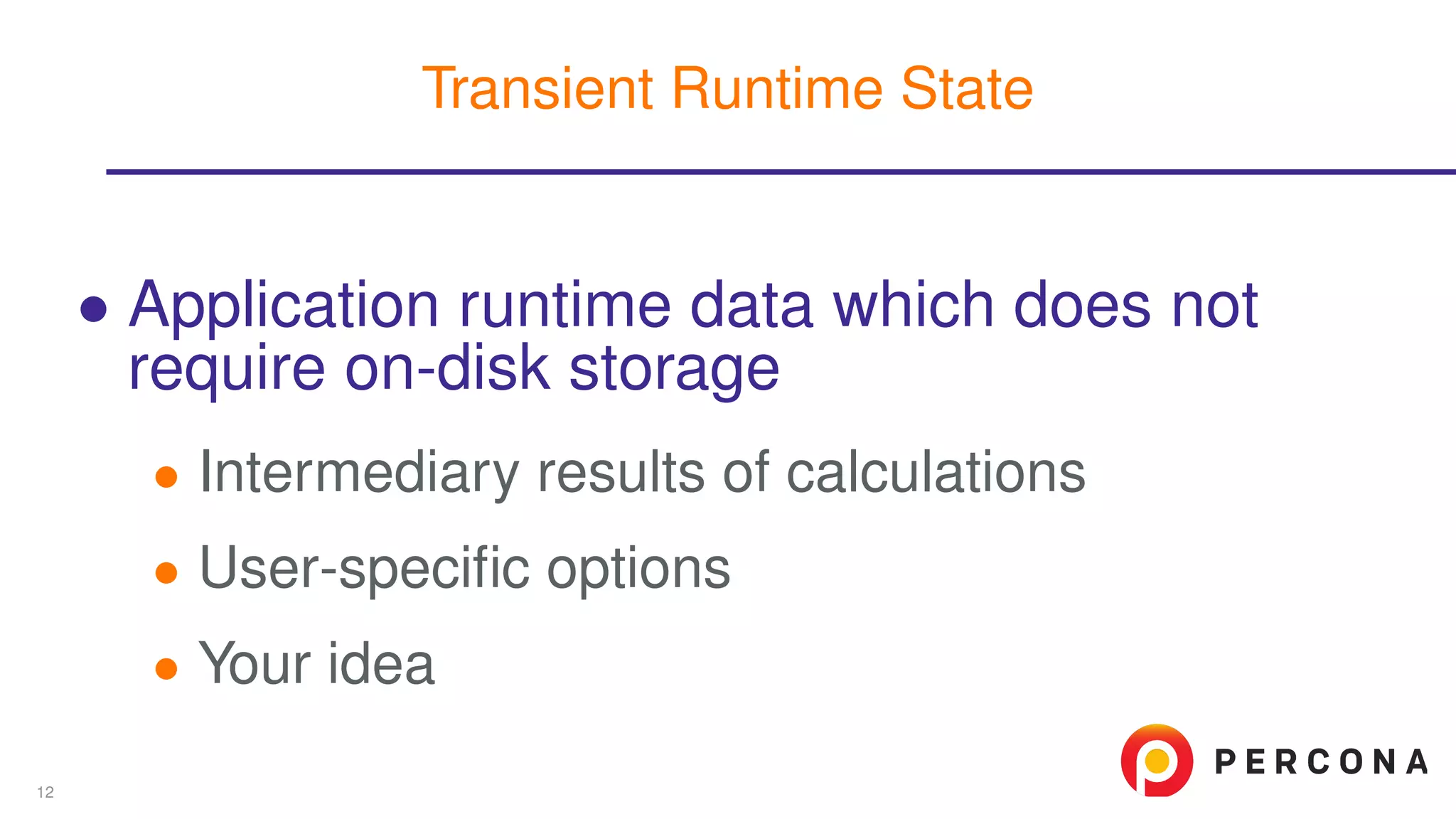

12. ∙ Application runtime data which does not
require on-disk storage
∙ Intermediary results of calculations
∙ User-specific options
∙ Your idea
Transient Runtime State
12

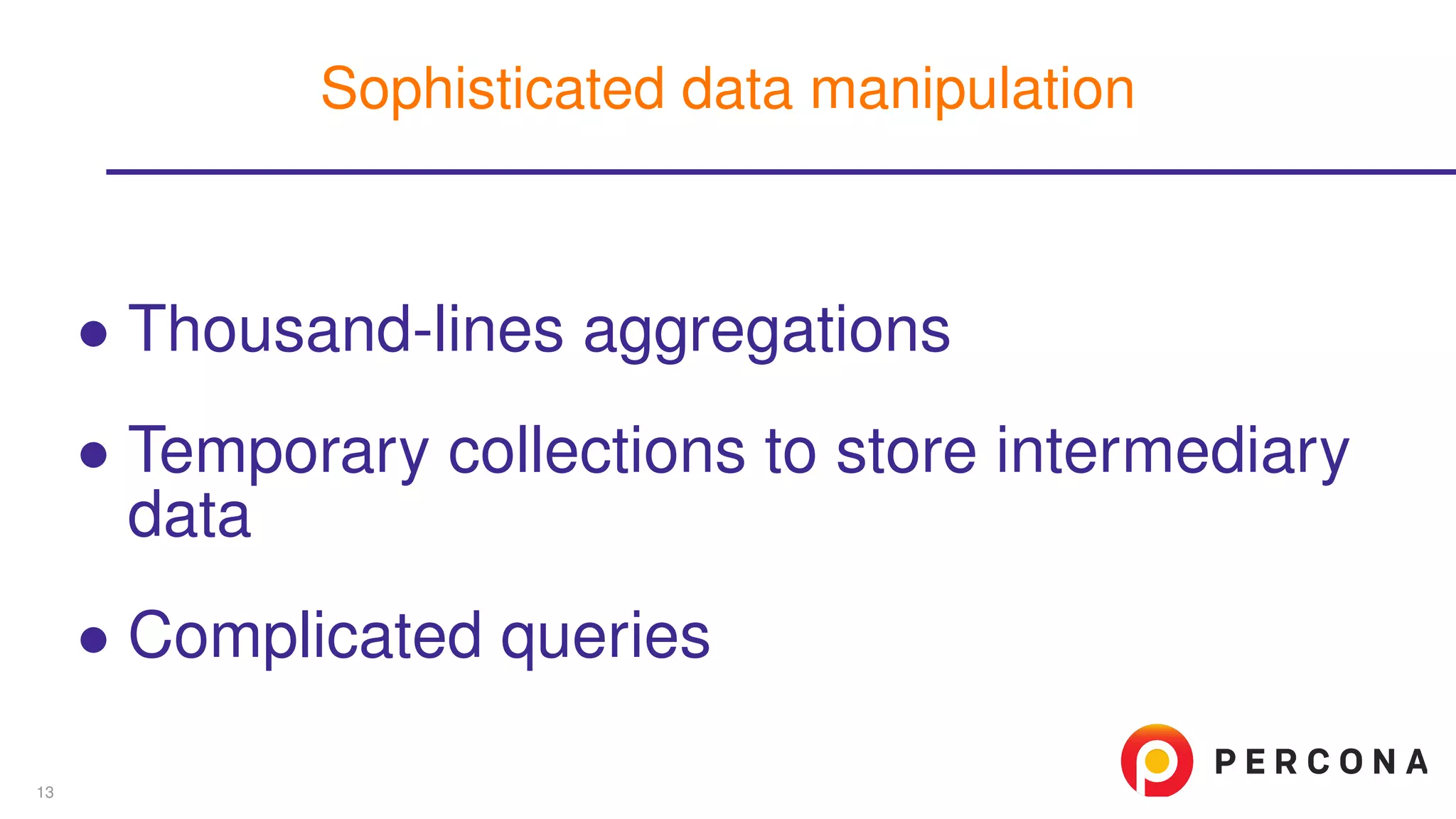

13. ∙ Thousand-lines aggregations
∙ Temporary collections to store intermediary
data
∙ Complicated queries
Sophisticated data manipulation
13

14. ∙ Large aggregations might be slow
∙ Especially if use many collections
∙ Often this is not avoidable
∙ To calculate number of distinct values you
need to read whole index
∙ Fast dedicated server is great solution
Real-Time Analytics
14

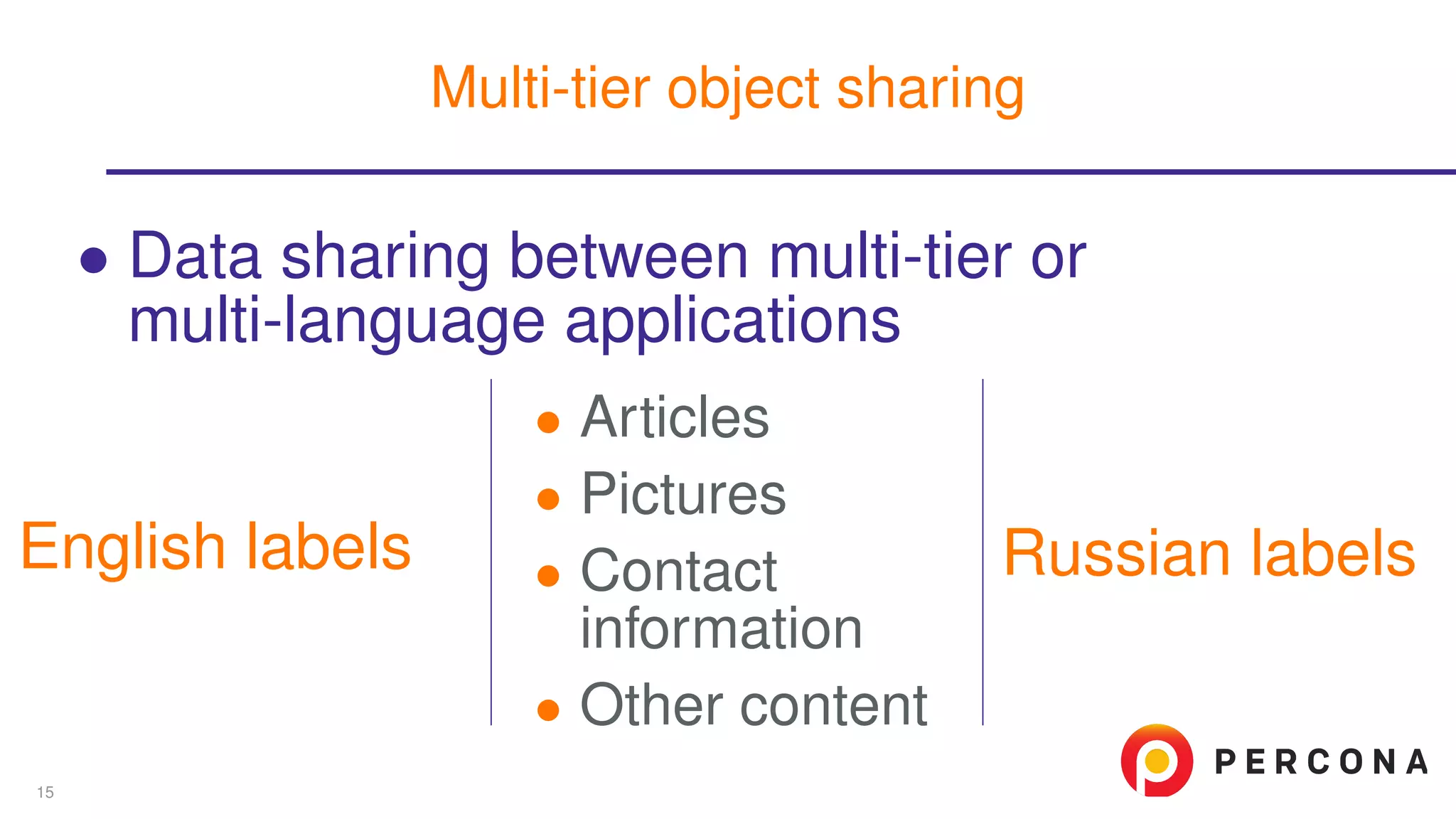

15. ∙ Data sharing between multi-tier or
multi-language applications
English labels
∙ Articles
∙ Pictures
∙ Contact
information
∙ Other content
Russian labels
Multi-tier object sharing
15

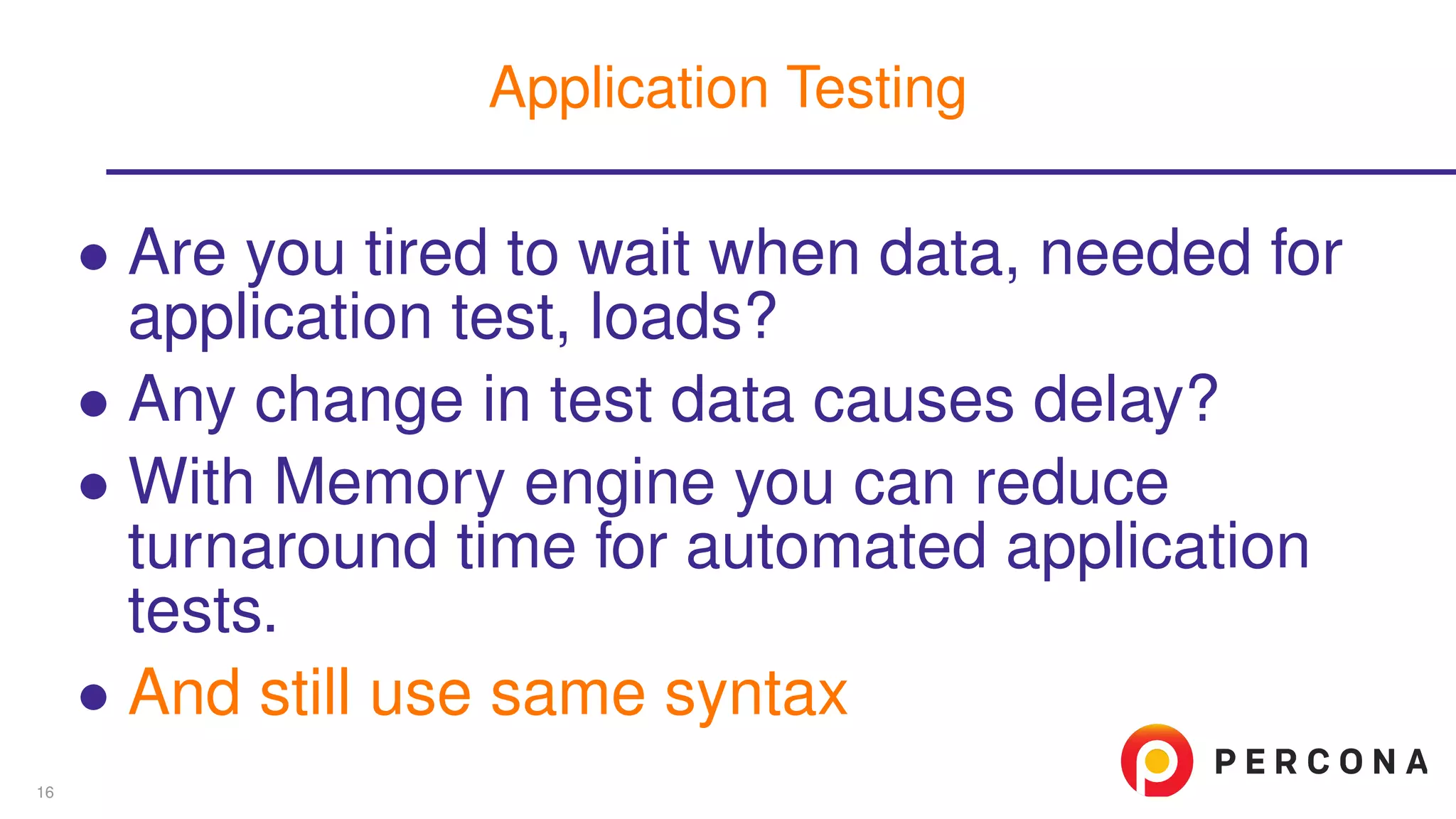

16. ∙ Are you tired to wait when data, needed for
application test, loads?
∙ Any change in test data causes delay?
∙ With Memory engine you can reduce
turnaround time for automated application
tests.
∙ And still use same syntax
Application Testing
16

17. Advanced Percona Memory Engine
17

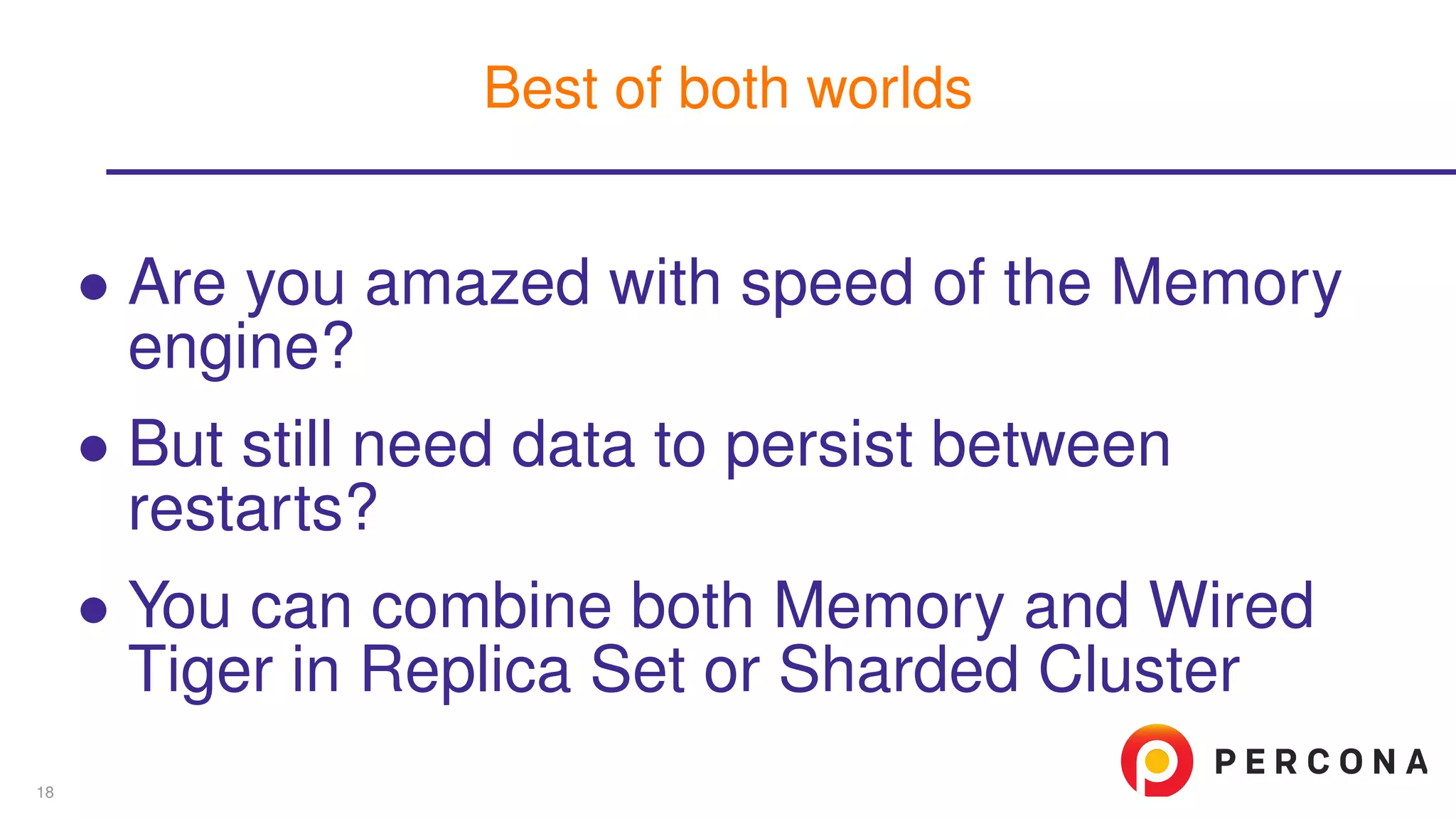

18. ∙ Are you amazed with speed of the Memory
engine?
∙ But still need data to persist between
restarts?
∙ You can combine both Memory and Wired
Tiger in Replica Set or Sharded Cluster
Best of both worlds
18

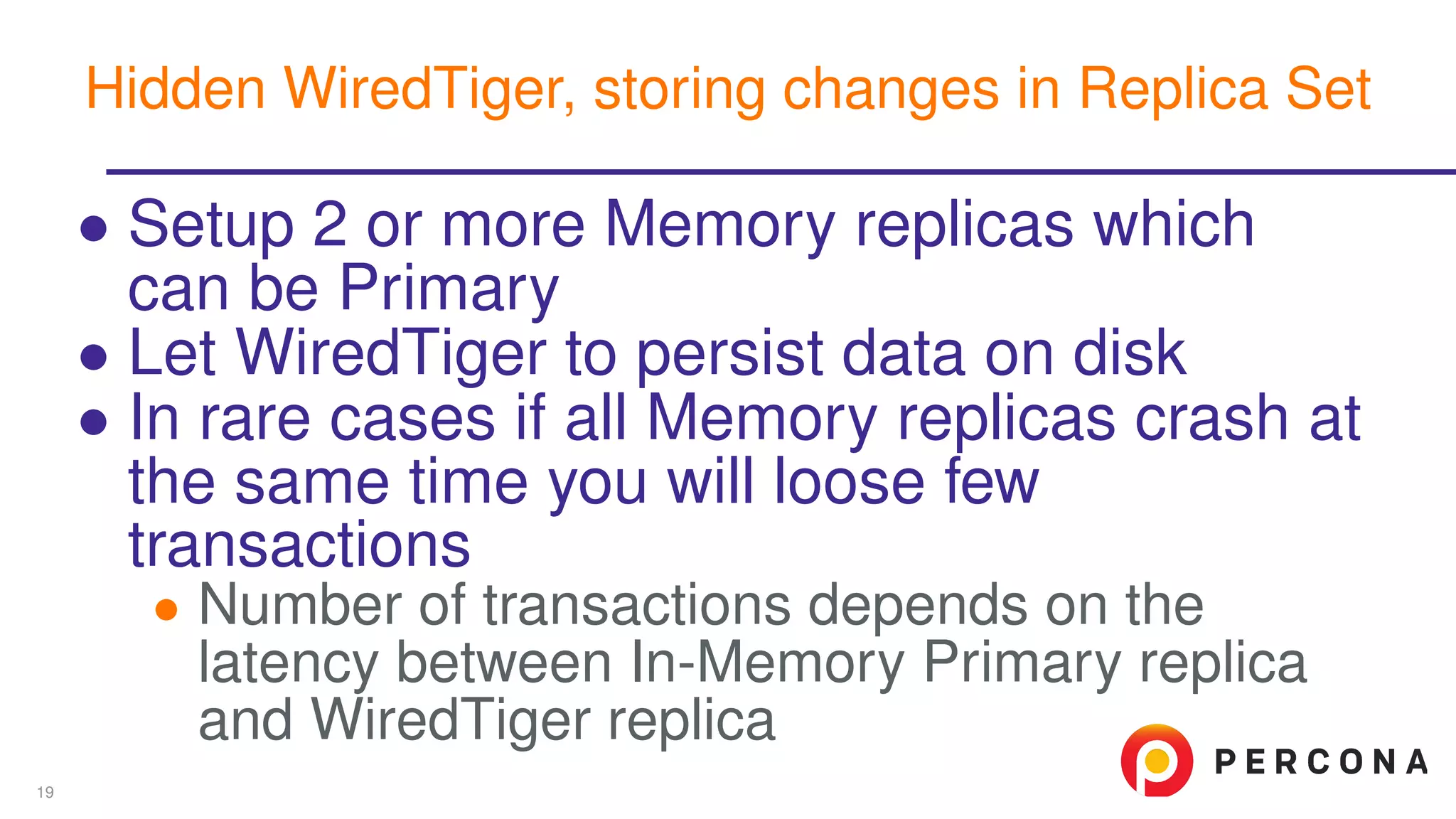

19. ∙ Setup 2 or more Memory replicas which
can be Primary
∙ Let WiredTiger to persist data on disk
∙ In rare cases if all Memory replicas crash at
the same time you will loose few
transactions
∙ Number of transactions depends on the
latency between In-Memory Primary replica
and WiredTiger replica
Hidden WiredTiger, storing changes in Replica Set
19

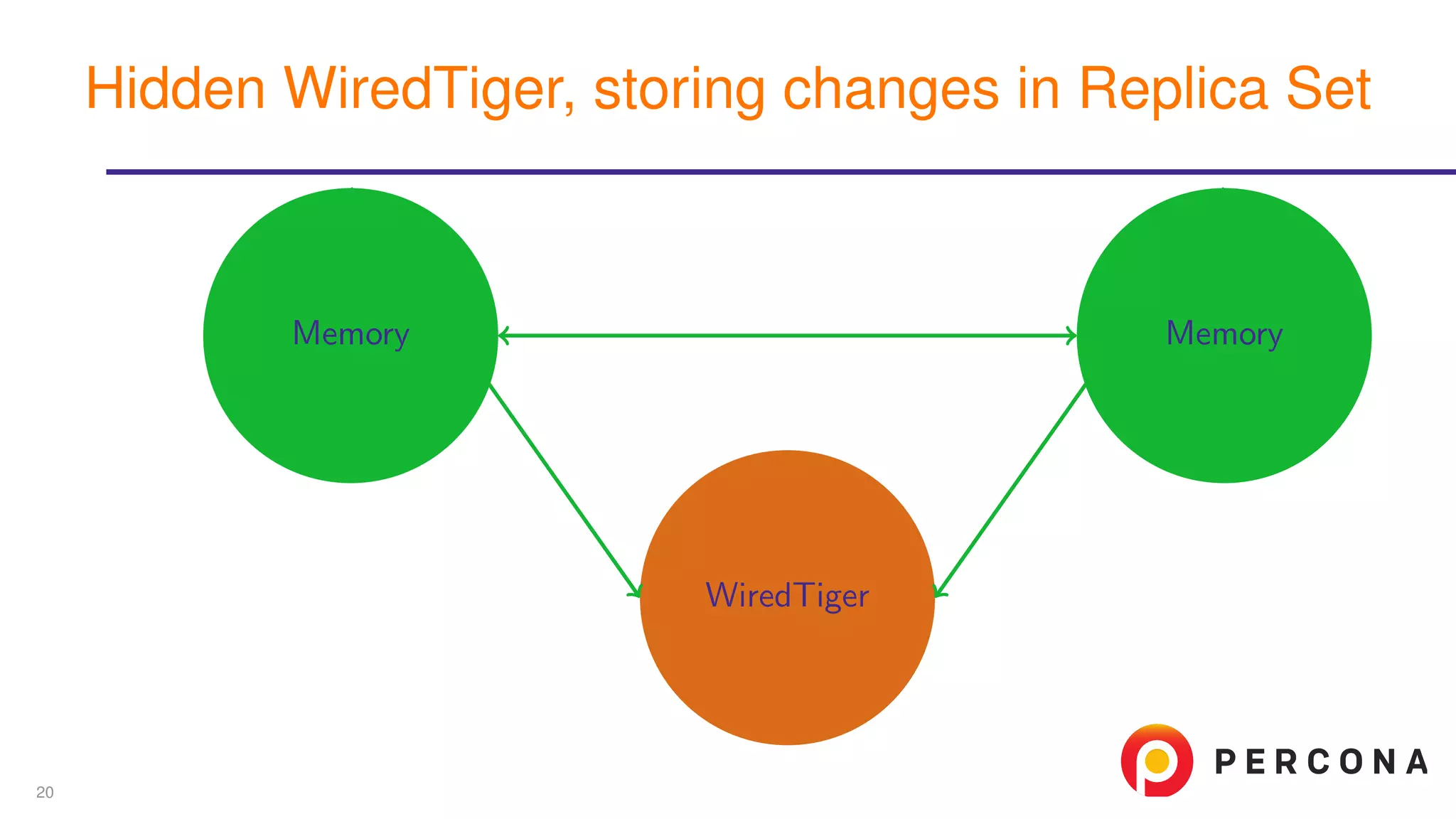

20. Memory
WiredTiger
Memory
Hidden WiredTiger, storing changes in Replica Set
20

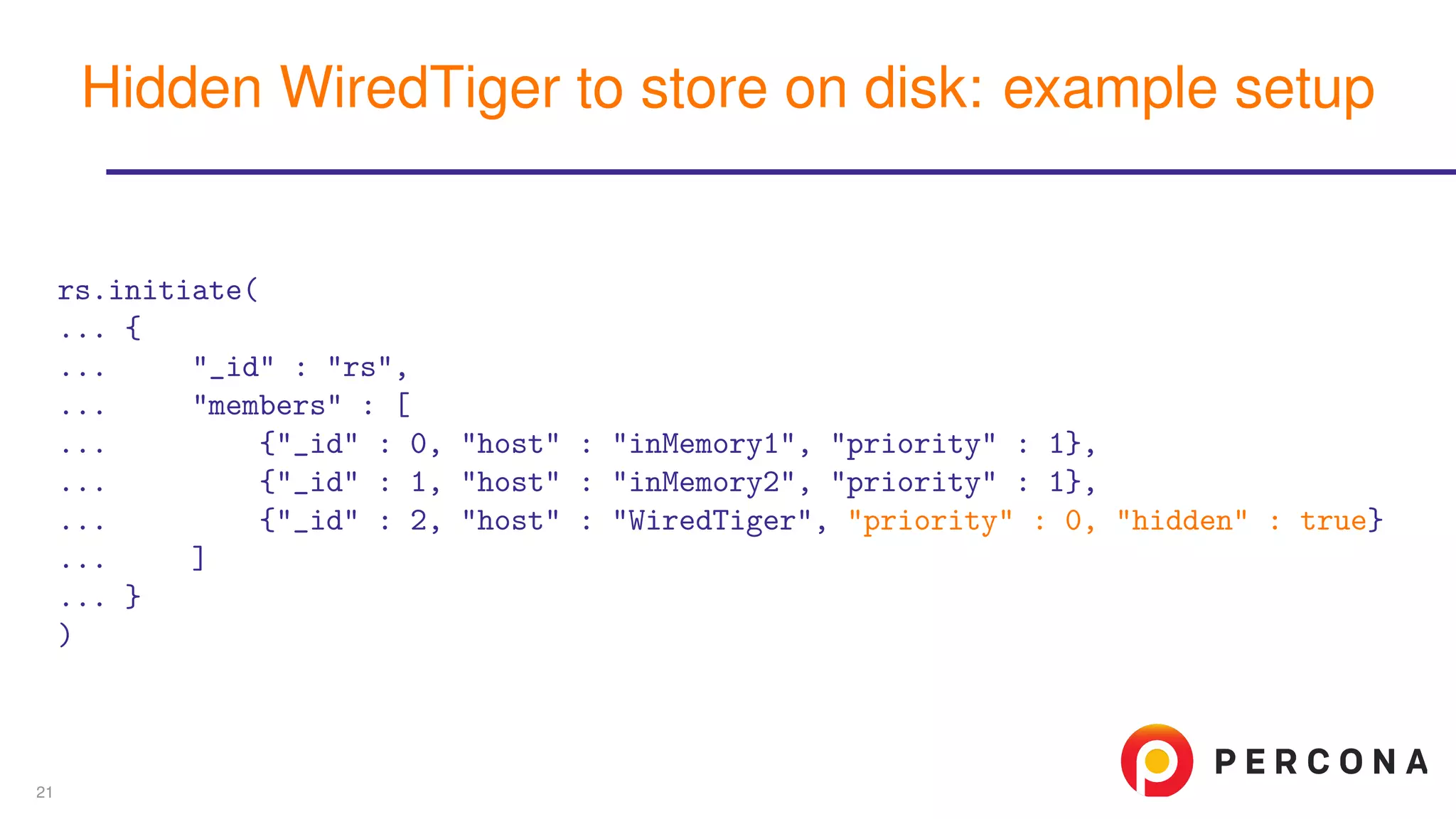

21. rs.initiate(
... {
... "_id" : "rs",
... "members" : [
... {"_id" : 0, "host" : "inMemory1", "priority" : 1},
... {"_id" : 1, "host" : "inMemory2", "priority" : 1},
... {"_id" : 2, "host" : "WiredTiger", "priority" : 0, "hidden" : true}
... ]
... }
)
Hidden WiredTiger to store on disk: example setup
21

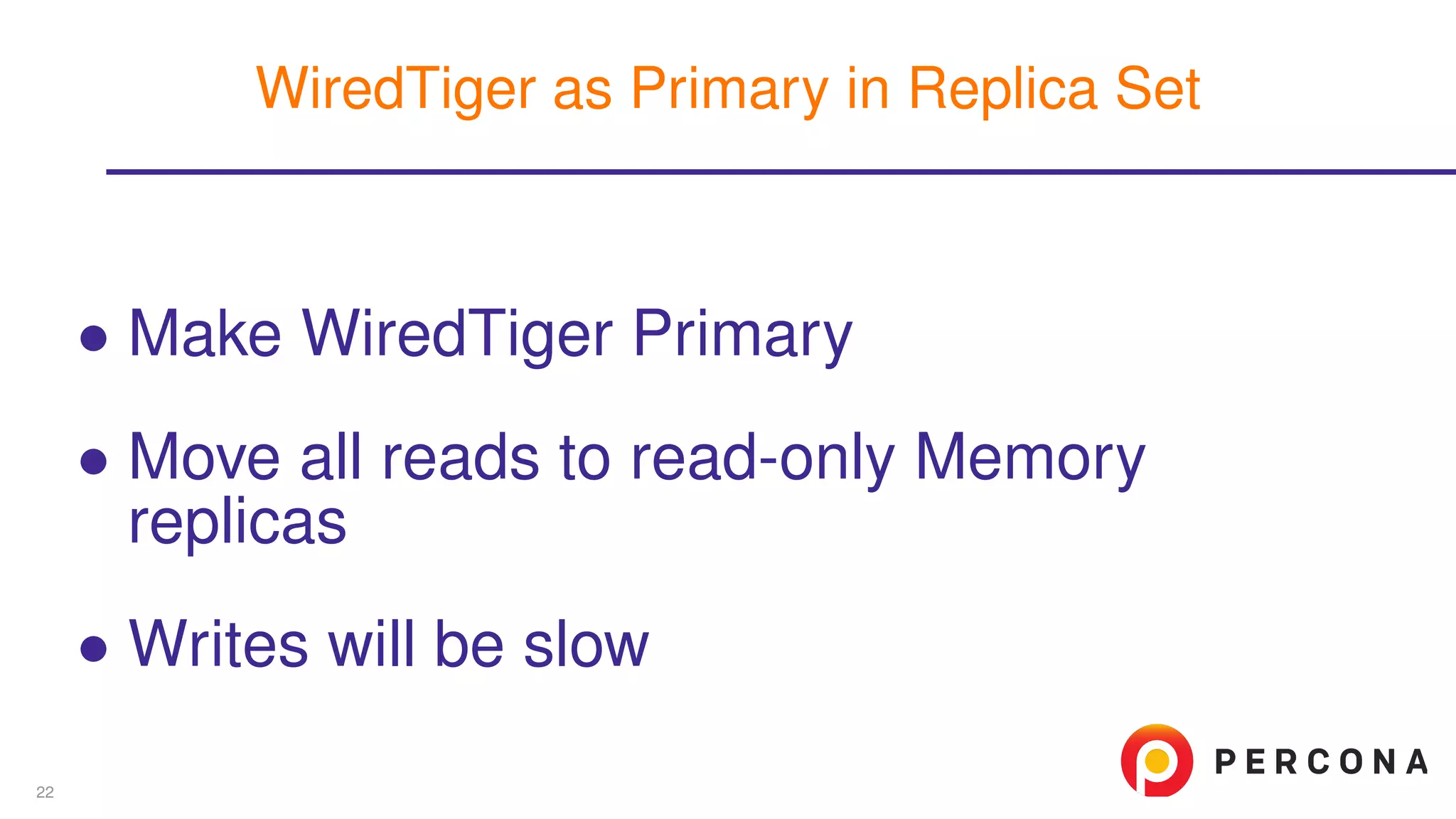

22. ∙ Make WiredTiger Primary
∙ Move all reads to read-only Memory
replicas
∙ Writes will be slow
WiredTiger as Primary in Replica Set
22

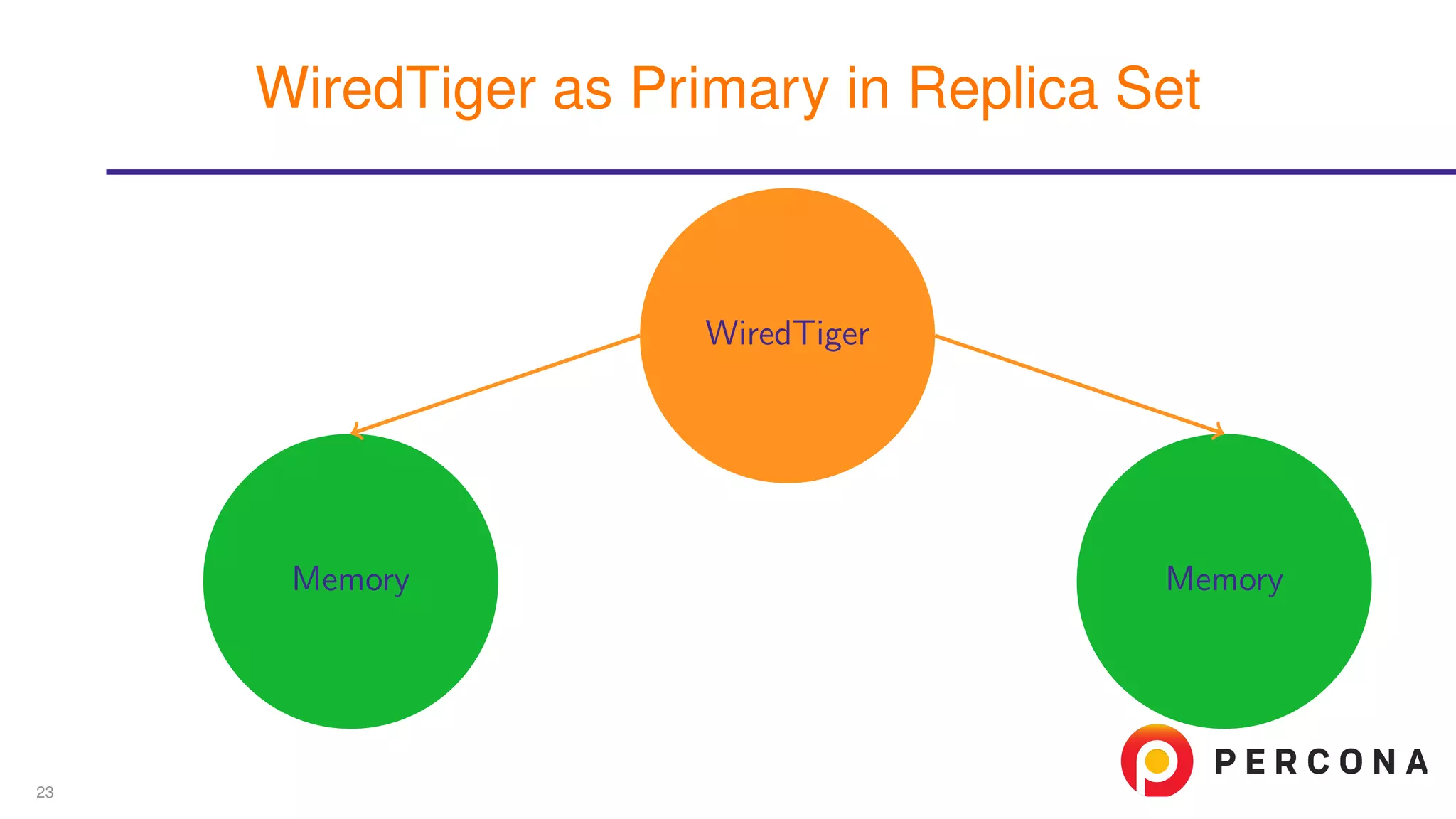

23. Memory
WiredTiger
Memory
WiredTiger as Primary in Replica Set
23

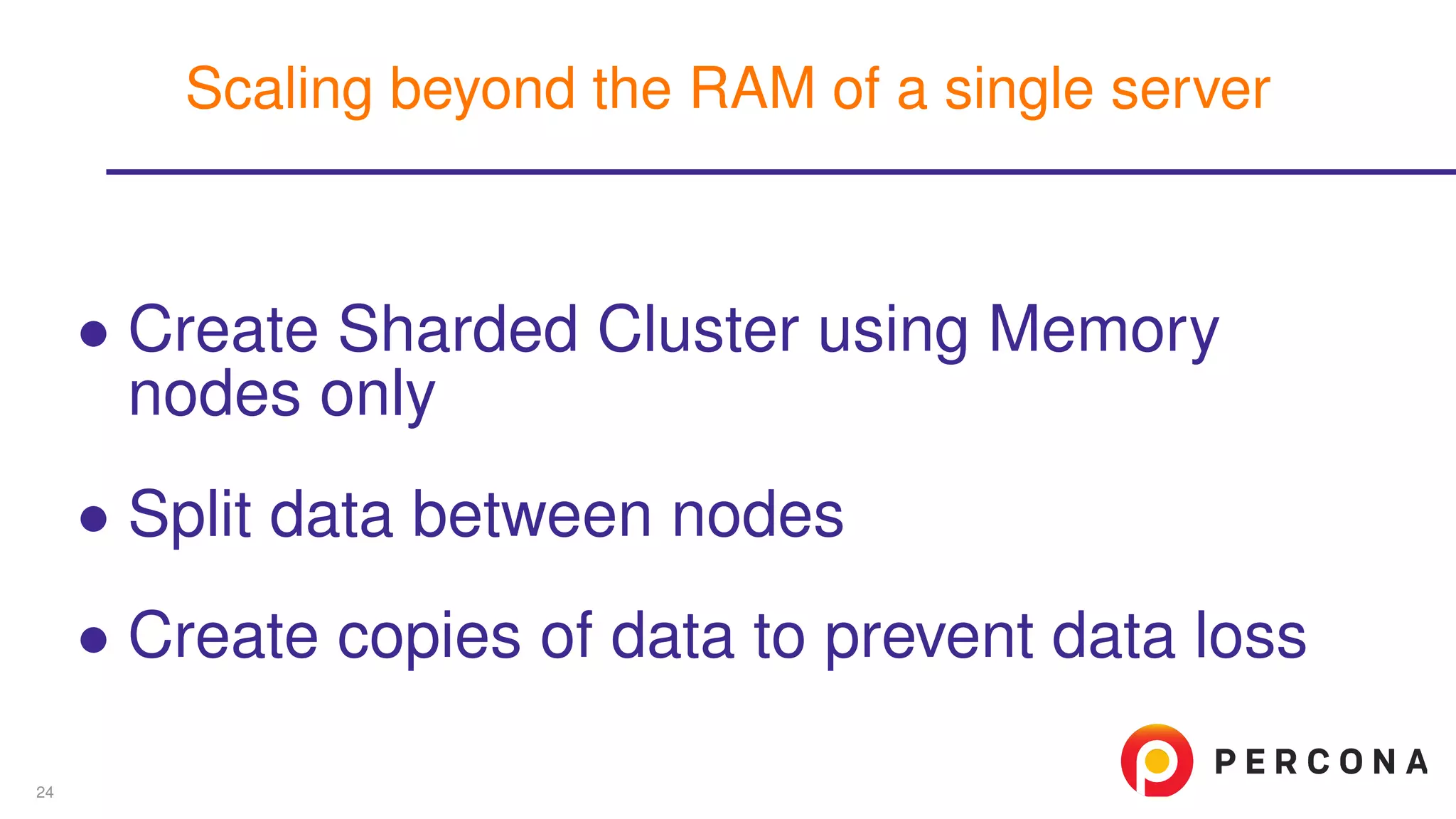

24. ∙ Create Sharded Cluster using Memory
nodes only
∙ Split data between nodes
∙ Create copies of data to prevent data loss
Scaling beyond the RAM of a single server
24

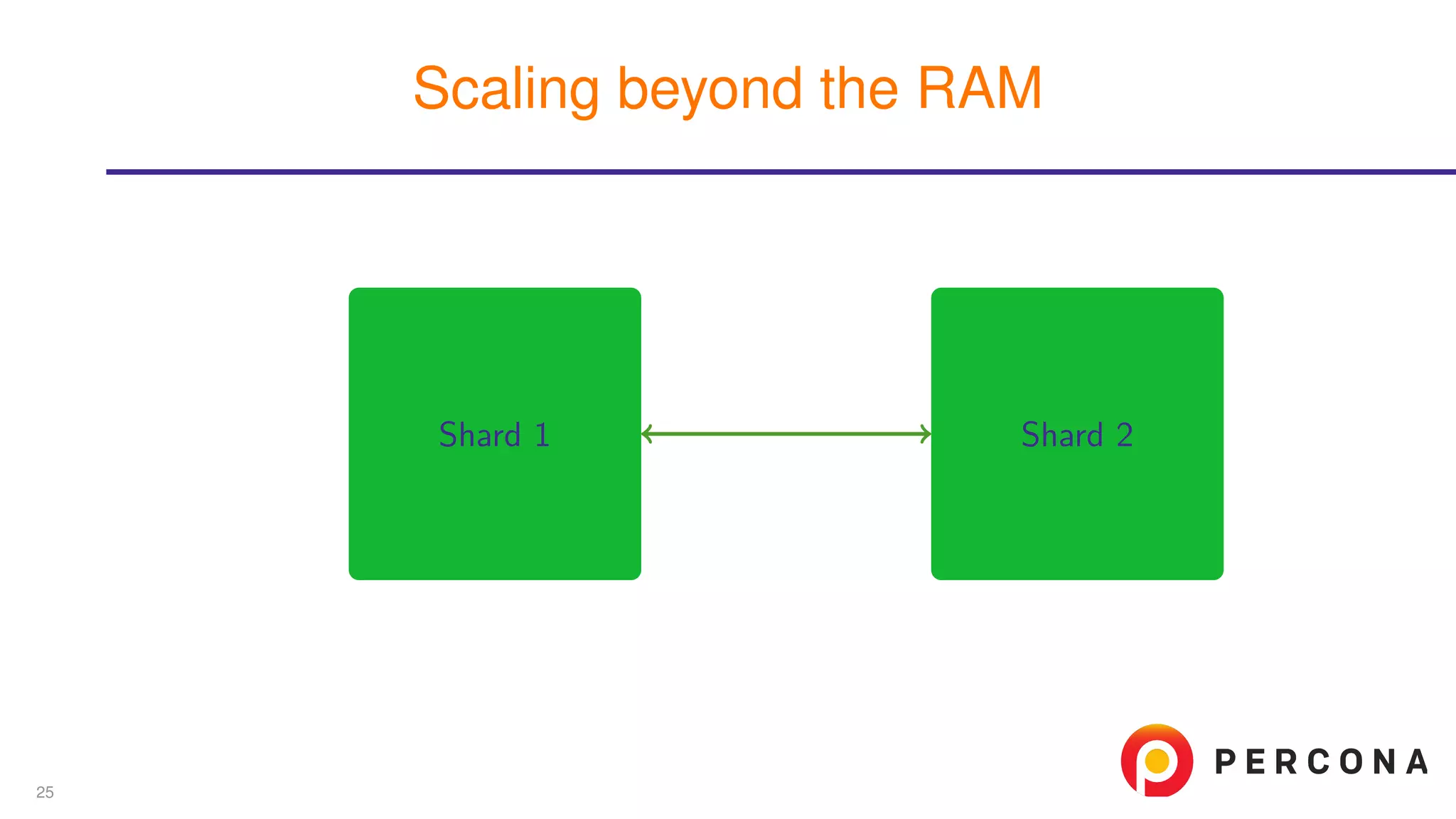

25. Shard 1 Shard 2
Scaling beyond the RAM
25

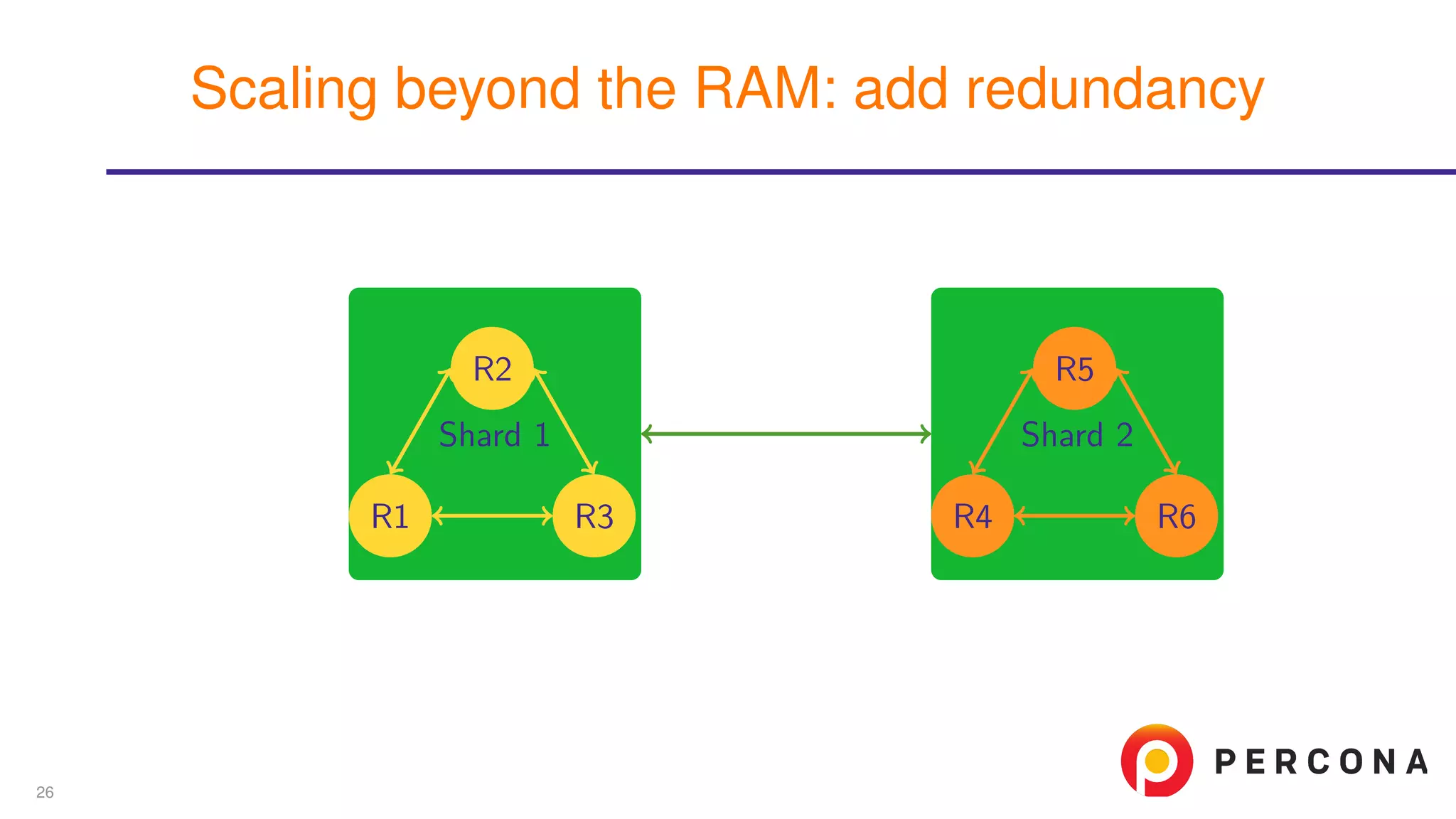

26. Shard 1 Shard 2
R1
R2
R3 R4
R5
R6
Scaling beyond the RAM: add redundancy
26

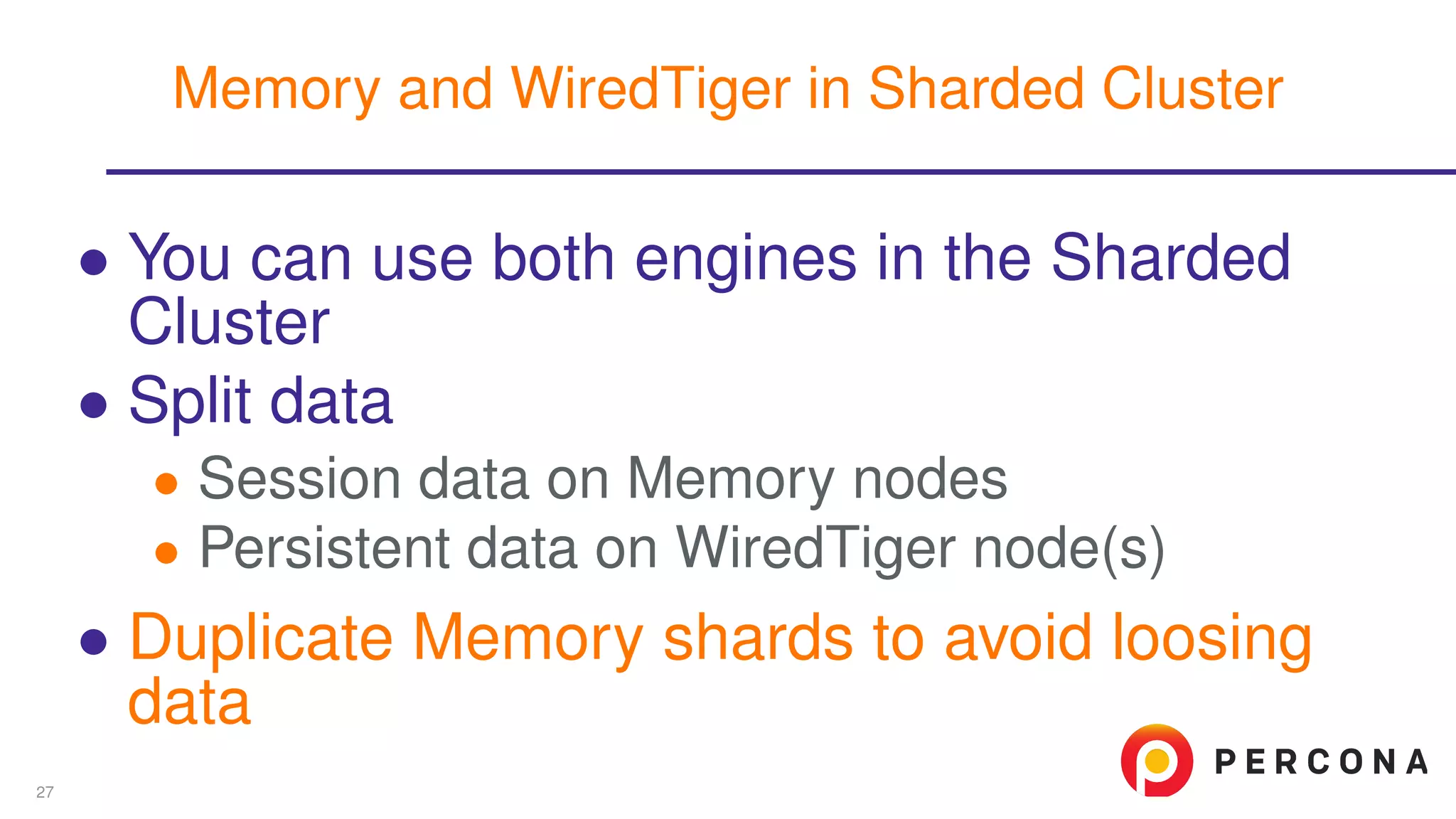

27. ∙ You can use both engines in the Sharded
Cluster
∙ Split data
∙ Session data on Memory nodes
∙ Persistent data on WiredTiger node(s)
∙ Duplicate Memory shards to avoid loosing
data
Memory and WiredTiger in Sharded Cluster
27

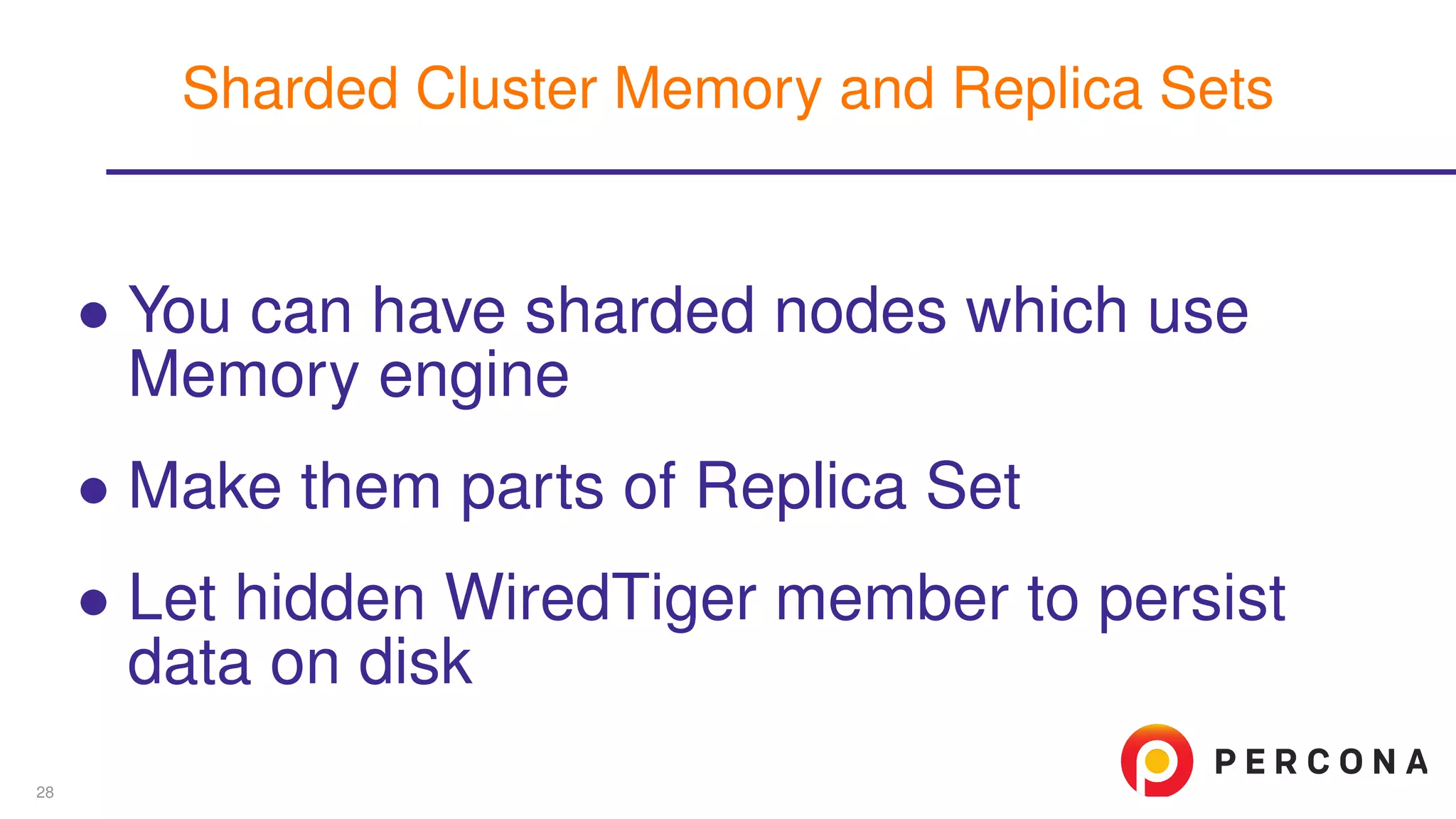

28. ∙ You can have sharded nodes which use
Memory engine
∙ Make them parts of Replica Set
∙ Let hidden WiredTiger member to persist
data on disk
Sharded Cluster Memory and Replica Sets
28

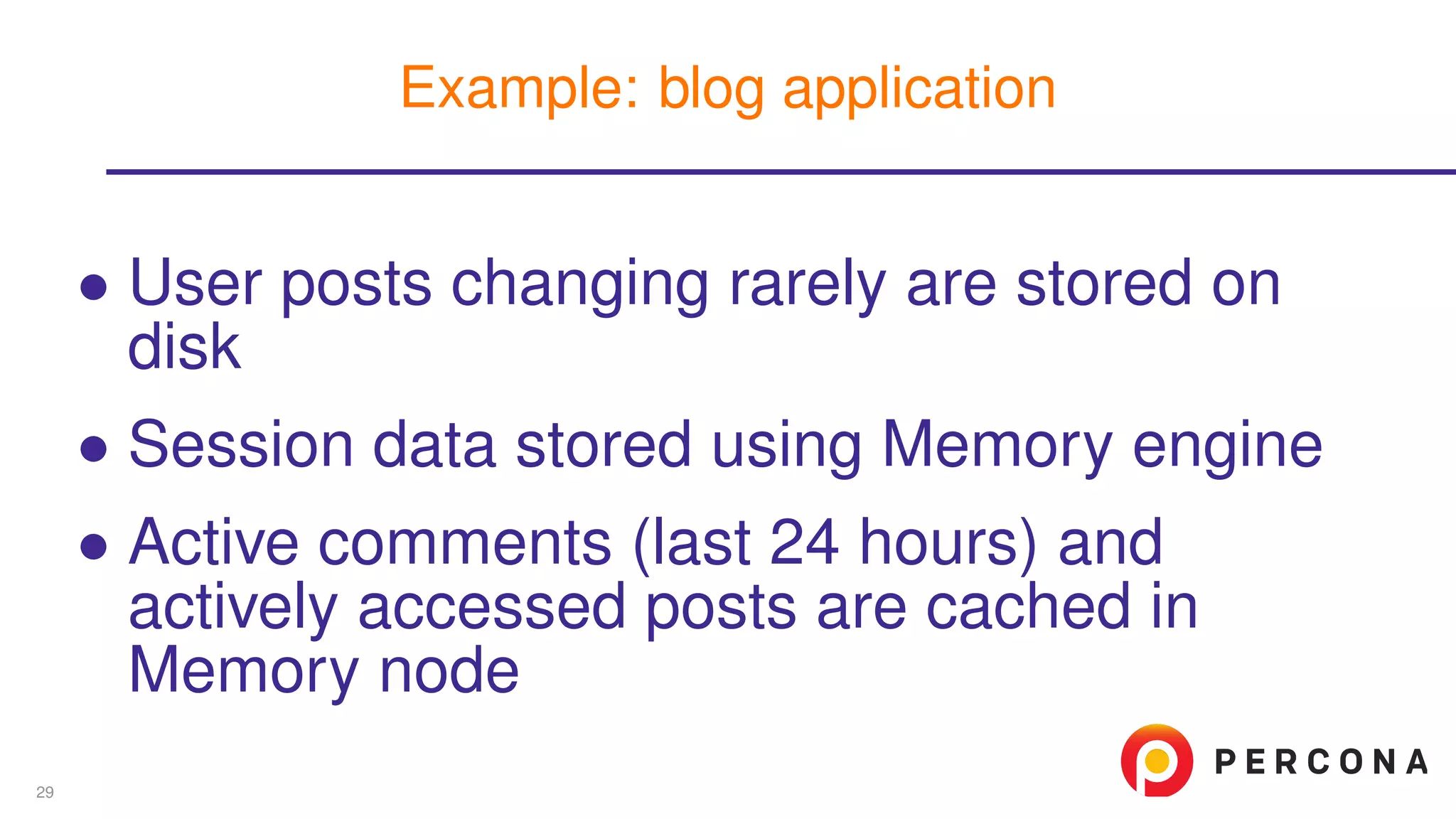

29. ∙ User posts changing rarely are stored on
disk
∙ Session data stored using Memory engine
∙ Active comments (last 24 hours) and
actively accessed posts are cached in
Memory node
Example: blog application
29

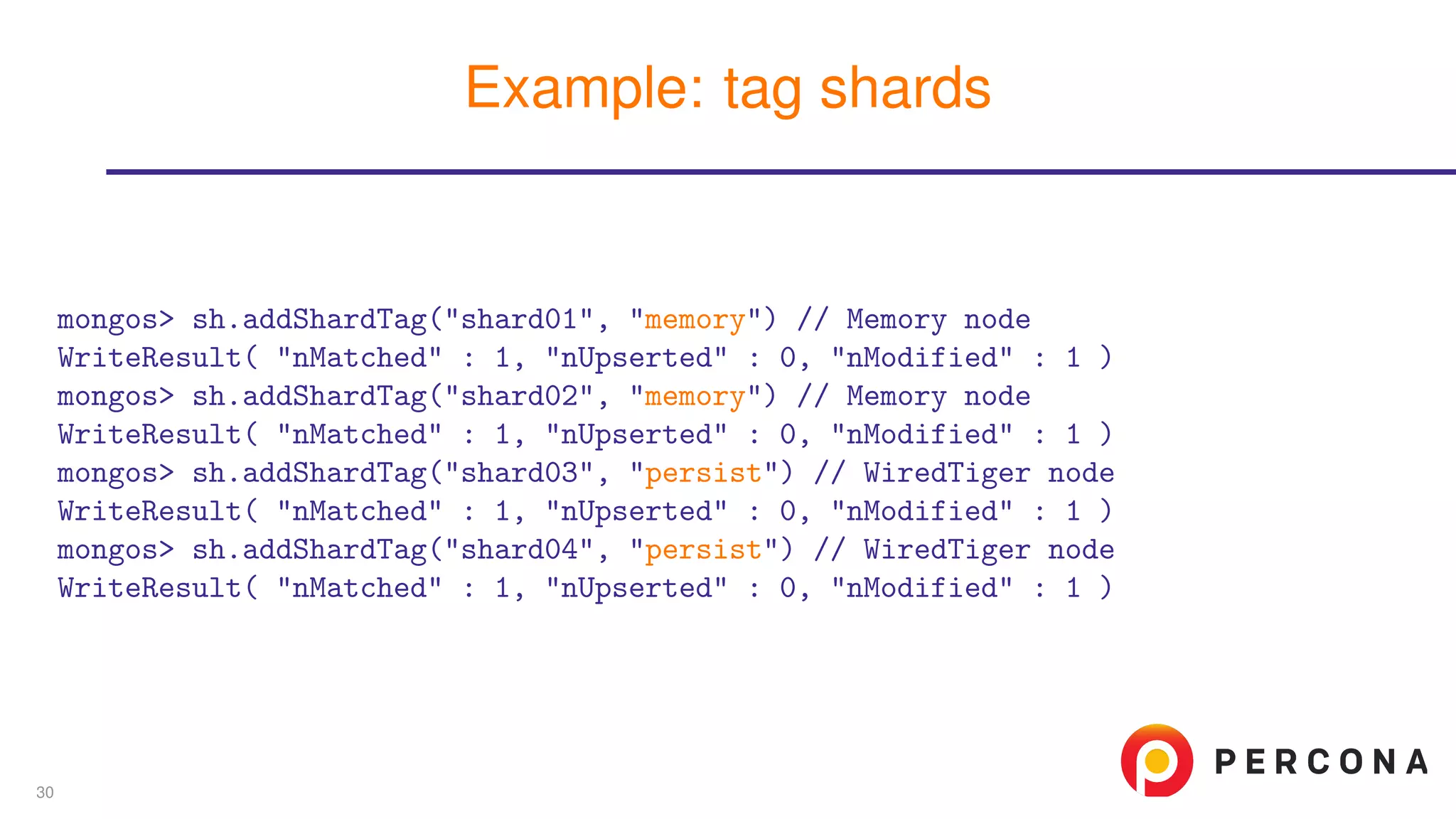

30. mongos> sh.addShardTag("shard01", "memory") // Memory node
WriteResult( "nMatched" : 1, "nUpserted" : 0, "nModified" : 1 )
mongos> sh.addShardTag("shard02", "memory") // Memory node
WriteResult( "nMatched" : 1, "nUpserted" : 0, "nModified" : 1 )
mongos> sh.addShardTag("shard03", "persist") // WiredTiger node
WriteResult( "nMatched" : 1, "nUpserted" : 0, "nModified" : 1 )
mongos> sh.addShardTag("shard04", "persist") // WiredTiger node
WriteResult( "nMatched" : 1, "nUpserted" : 0, "nModified" : 1 )
Example: tag shards
30

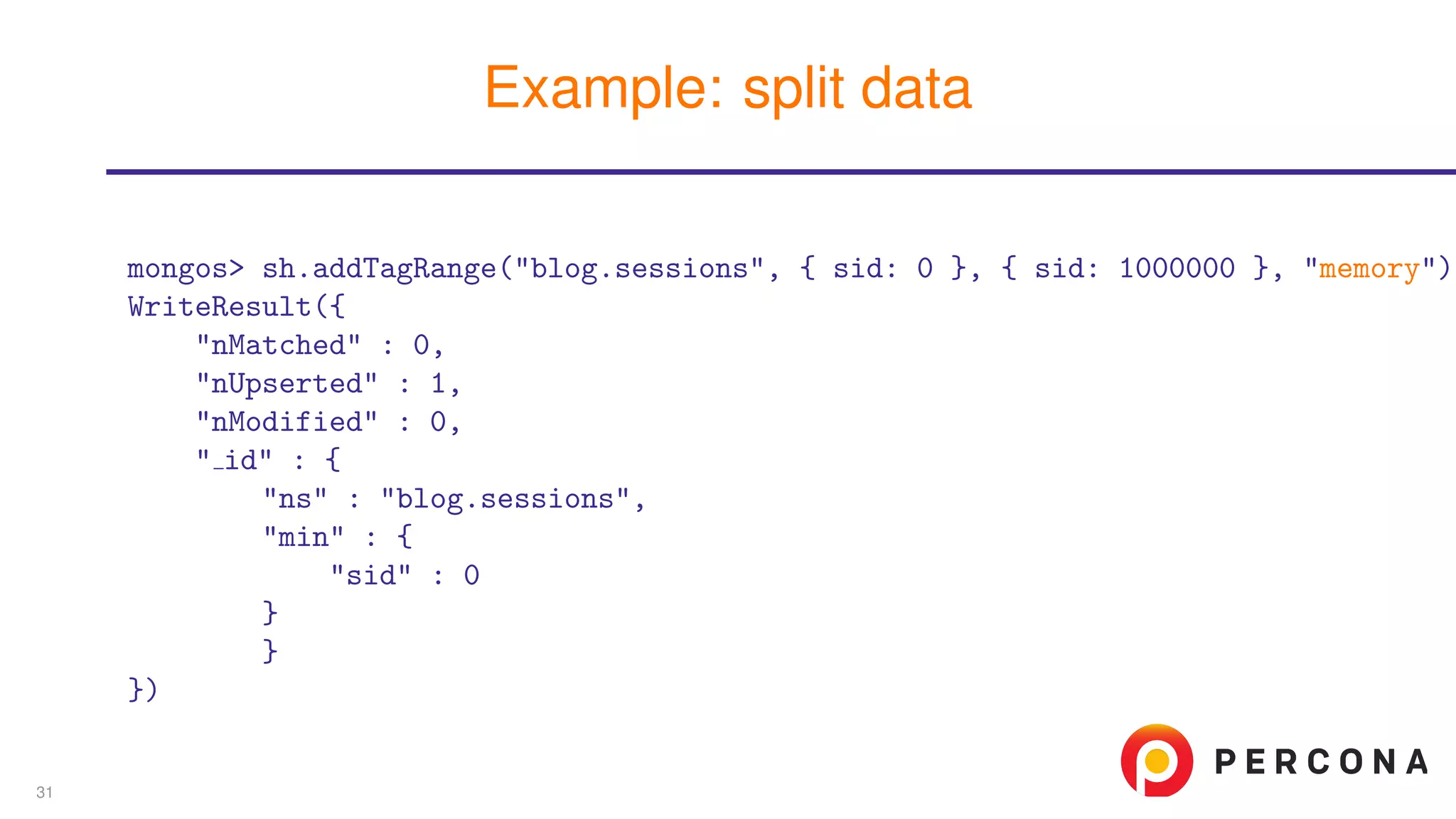

31. mongos> sh.addTagRange("blog.sessions", { sid: 0 }, { sid: 1000000 }, "memory")
WriteResult({
"nMatched" : 0,
"nUpserted" : 1,
"nModified" : 0,
" id" : {
"ns" : "blog.sessions",
"min" : {
"sid" : 0
}
}
})
Example: split data
31

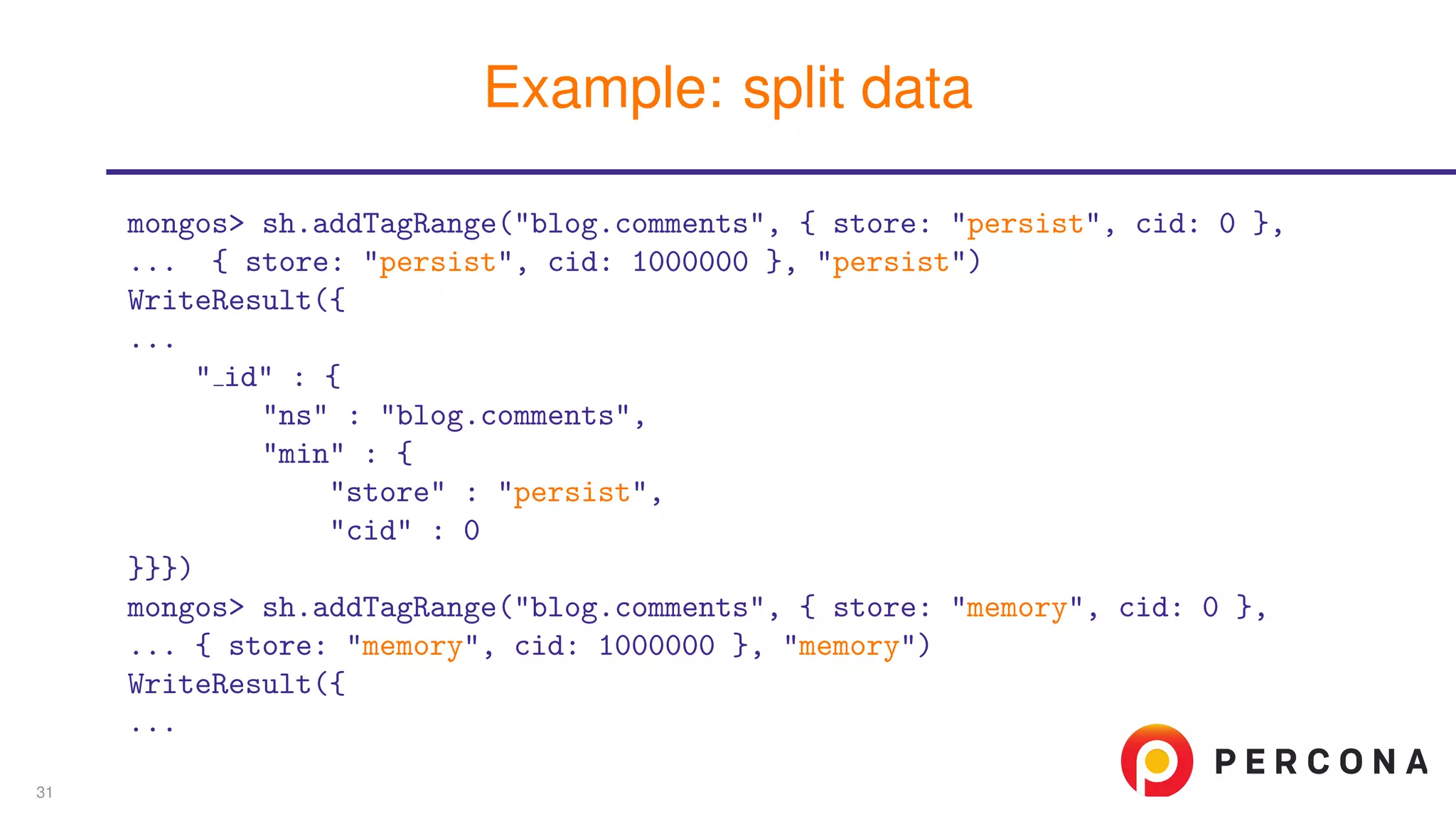

32. mongos> sh.addTagRange("blog.comments", { store: "persist", cid: 0 },
... { store: "persist", cid: 1000000 }, "persist")
WriteResult({
...
" id" : {
"ns" : "blog.comments",
"min" : {
"store" : "persist",
"cid" : 0
}}})
mongos> sh.addTagRange("blog.comments", { store: "memory", cid: 0 },
... { store: "memory", cid: 1000000 }, "memory")
WriteResult({
...
Example: split data
31

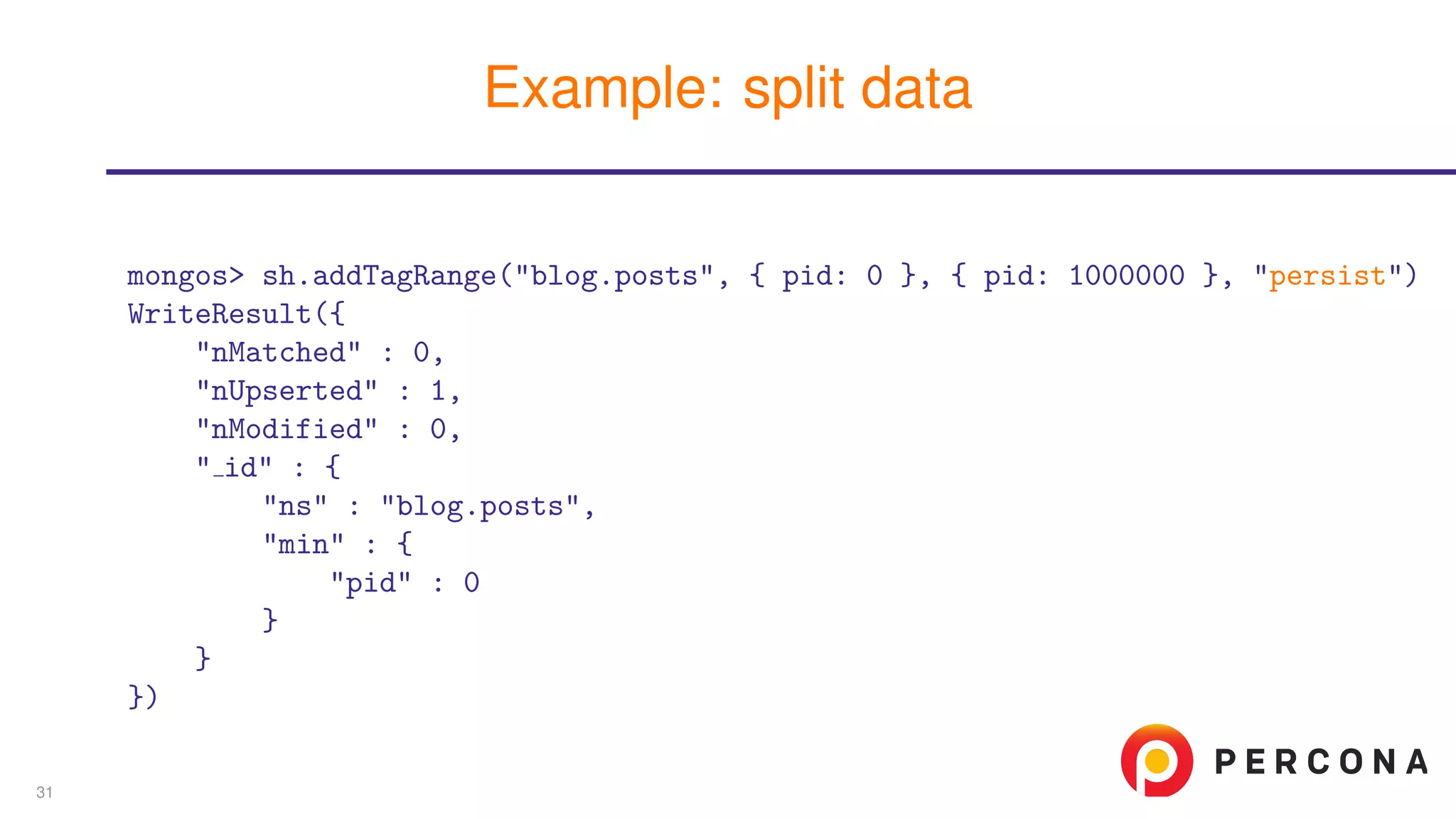

33. mongos> sh.addTagRange("blog.posts", { pid: 0 }, { pid: 1000000 }, "persist")
WriteResult({
"nMatched" : 0,
"nUpserted" : 1,
"nModified" : 0,
" id" : {
"ns" : "blog.posts",
"min" : {
"pid" : 0
}
}
})
Example: split data
31

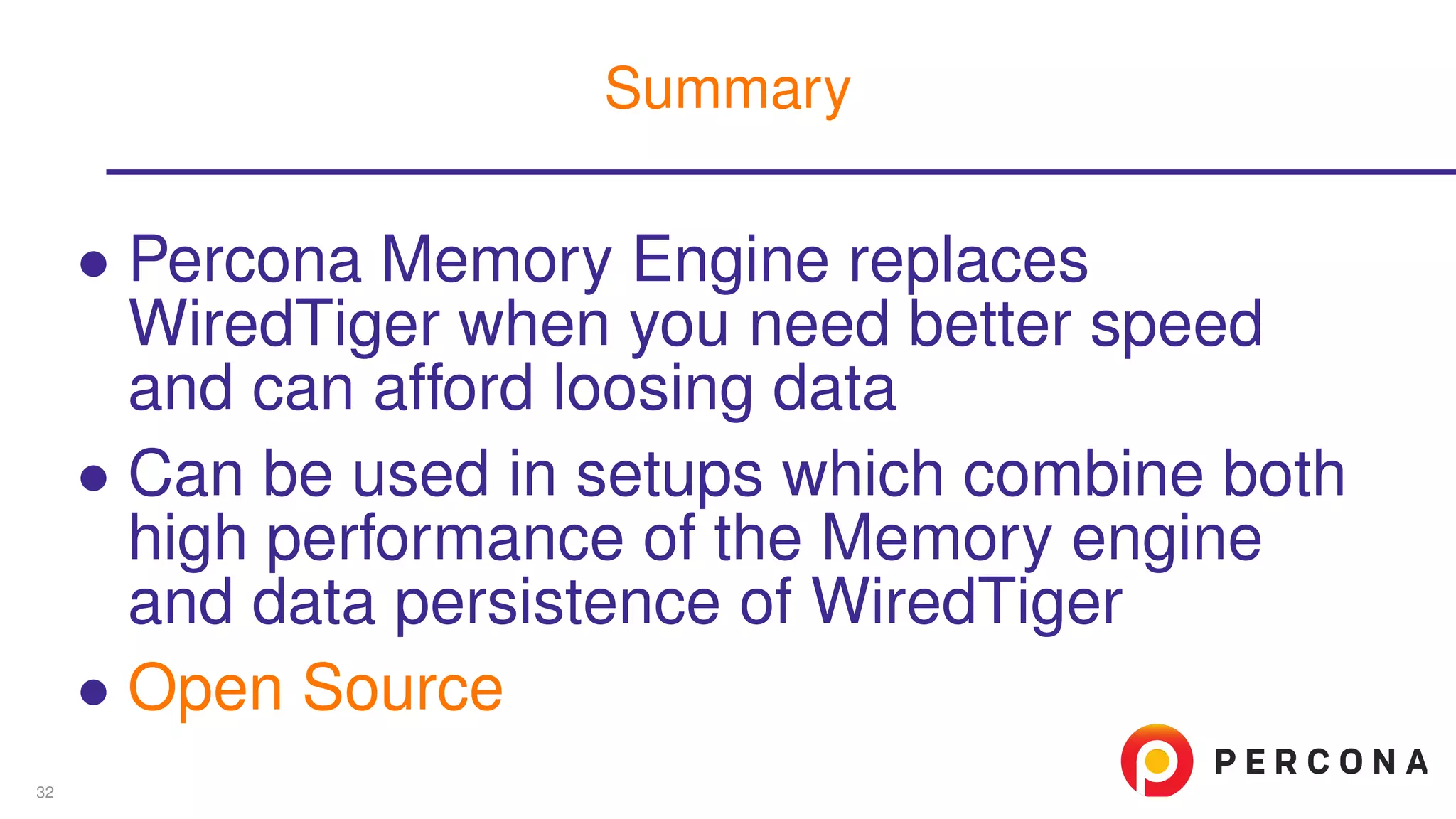

34. ∙ Percona Memory Engine replaces
WiredTiger when you need better speed
and can afford loosing data
∙ Can be used in setups which combine both
high performance of the Memory engine
and data persistence of WiredTiger
∙ Open Source
Summary
32

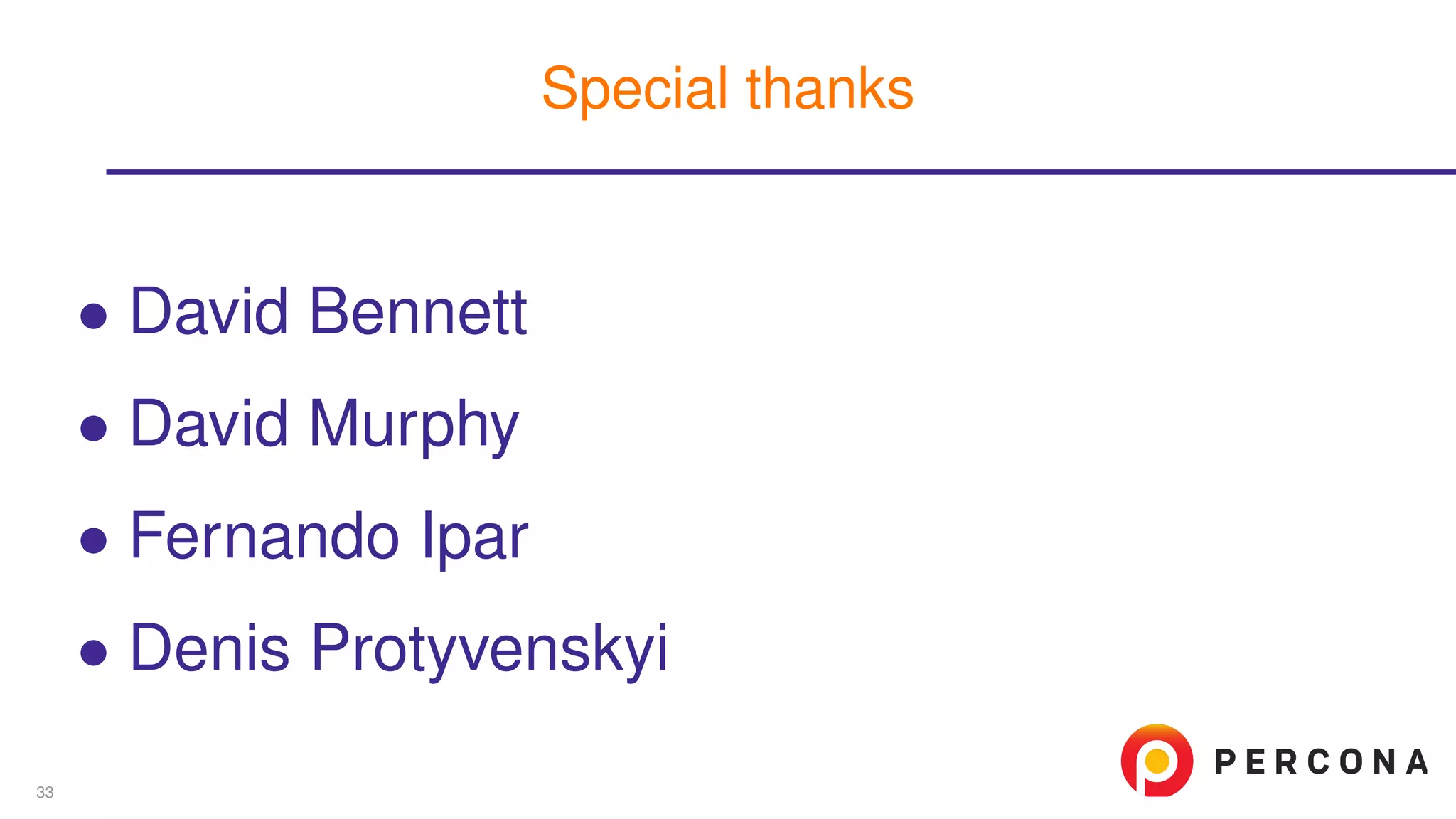

35. ∙ David Bennett
∙ David Murphy
∙ Fernando Ipar
∙ Denis Protyvenskyi
Special thanks
33

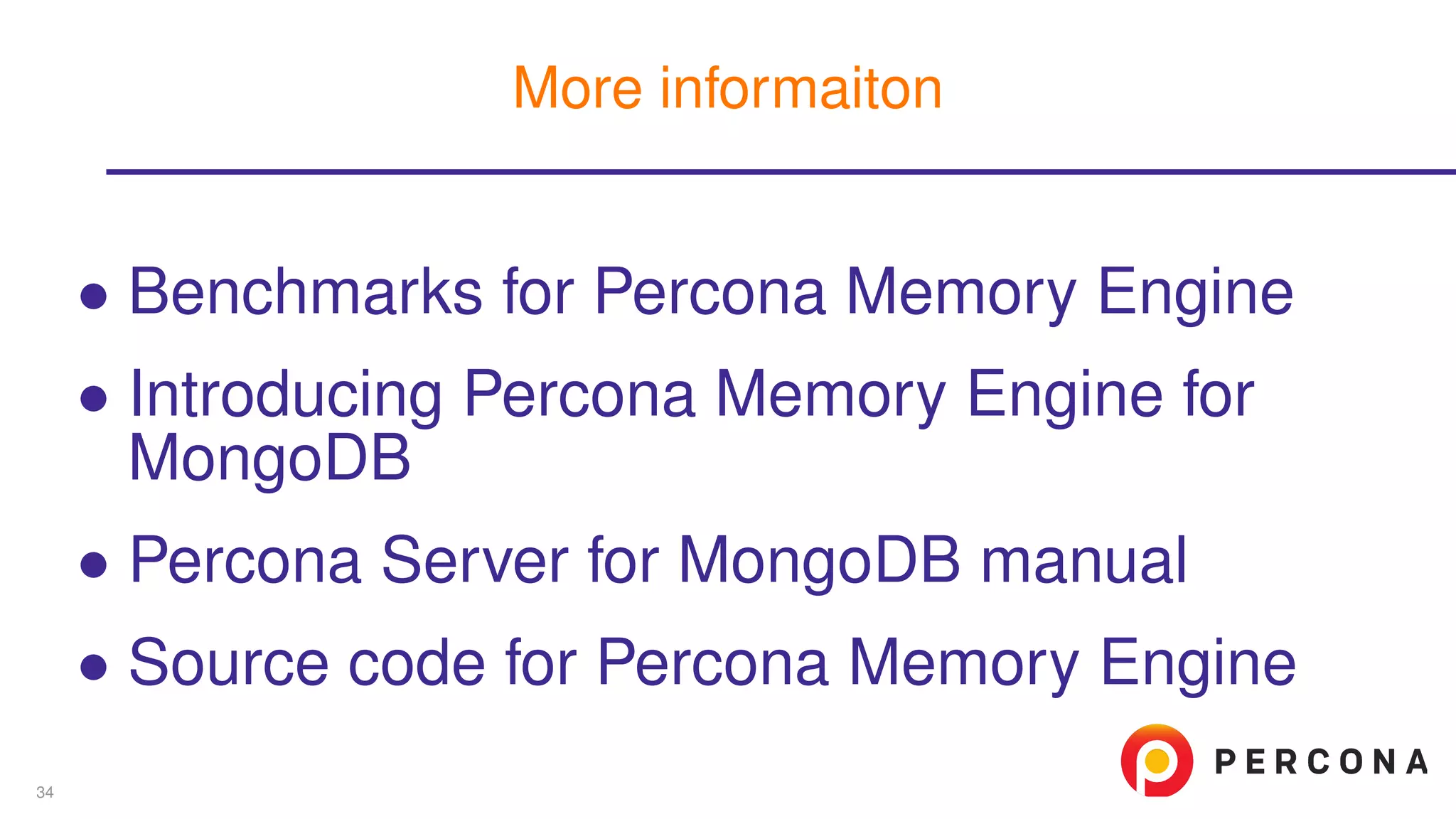

36. ∙ Benchmarks for Percona Memory Engine
∙ Introducing Percona Memory Engine for
MongoDB
∙ Percona Server for MongoDB manual
∙ Source code for Percona Memory Engine
More informaiton
34

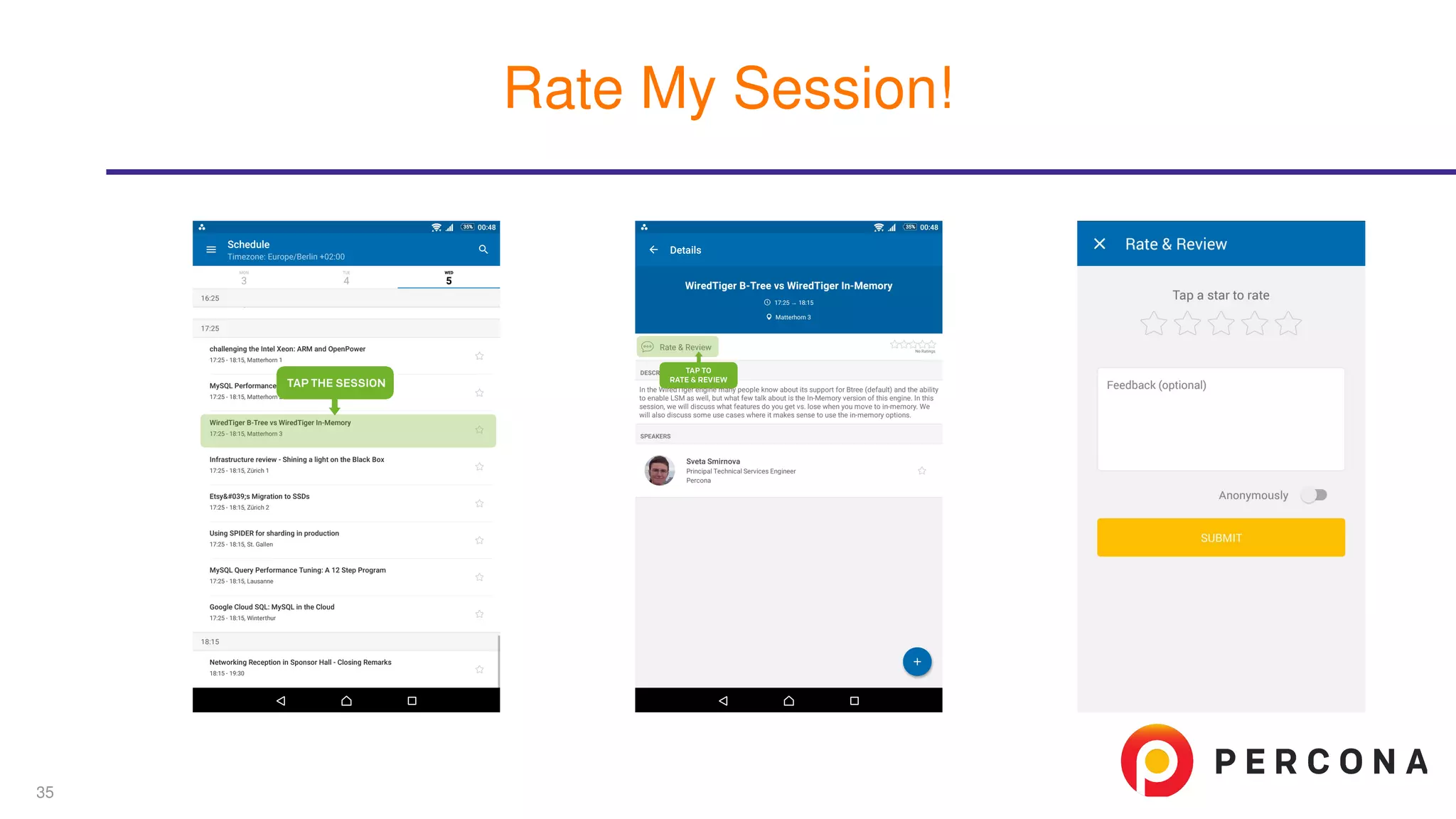

37. Rate My Session!
35

38. ???
Place for your questions
36

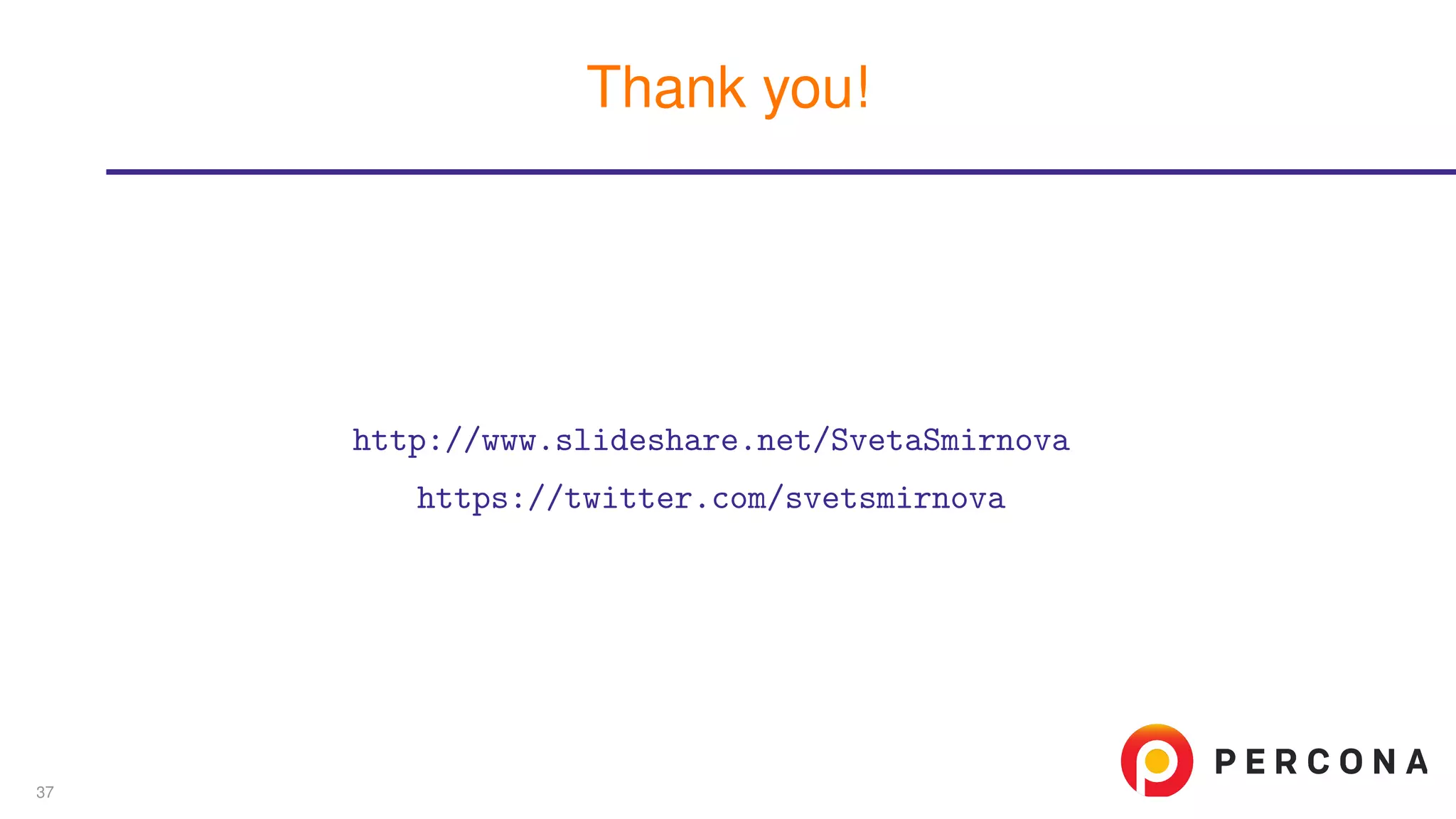

39. http://www.slideshare.net/SvetaSmirnova
https://twitter.com/svetsmirnova
Thank you!
37
