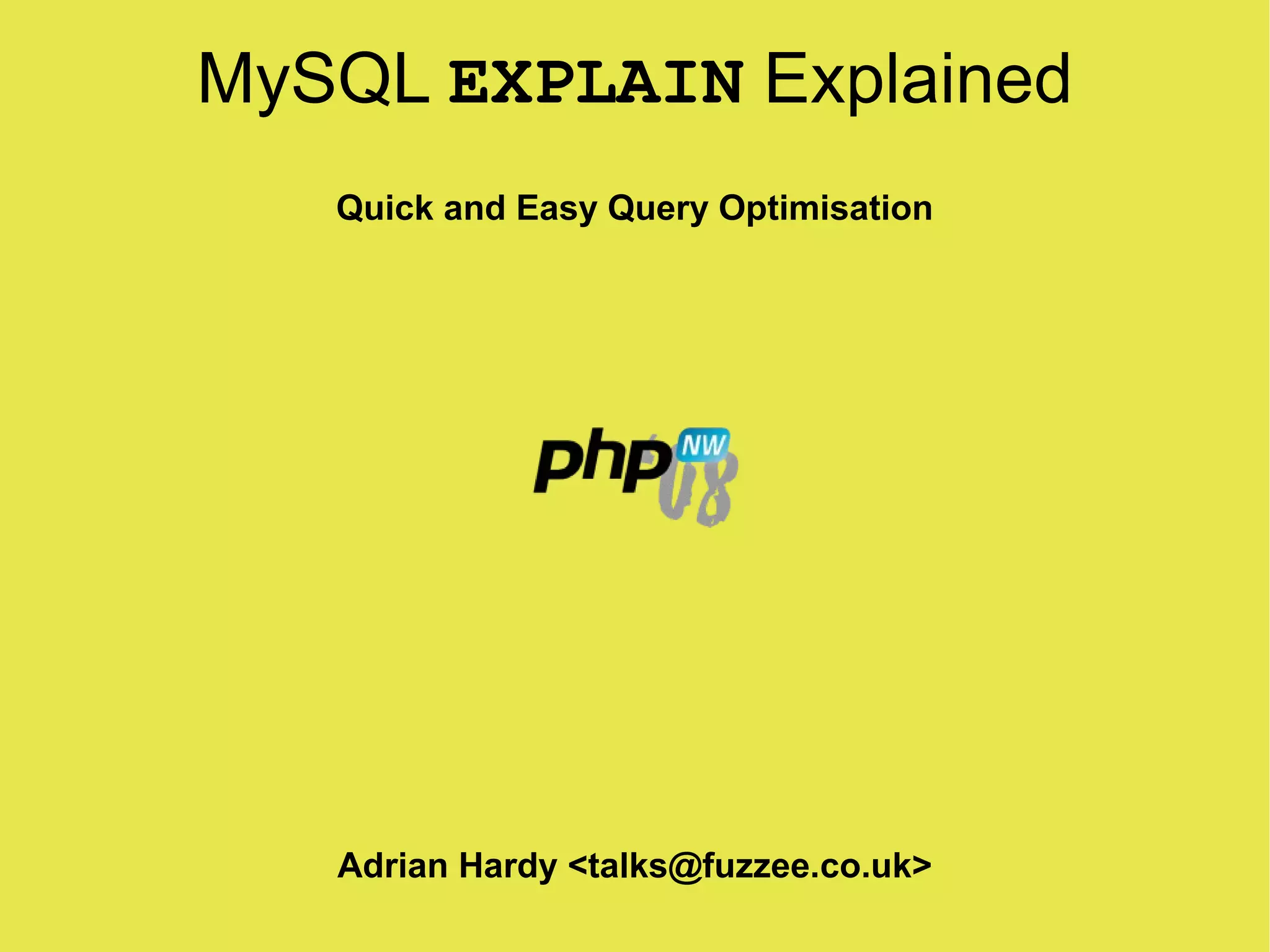

MySQL EXPLAIN Explained
Quick and Easy Query Optimisation

Adrian Hardy <talks@fuzzee.co.uk>

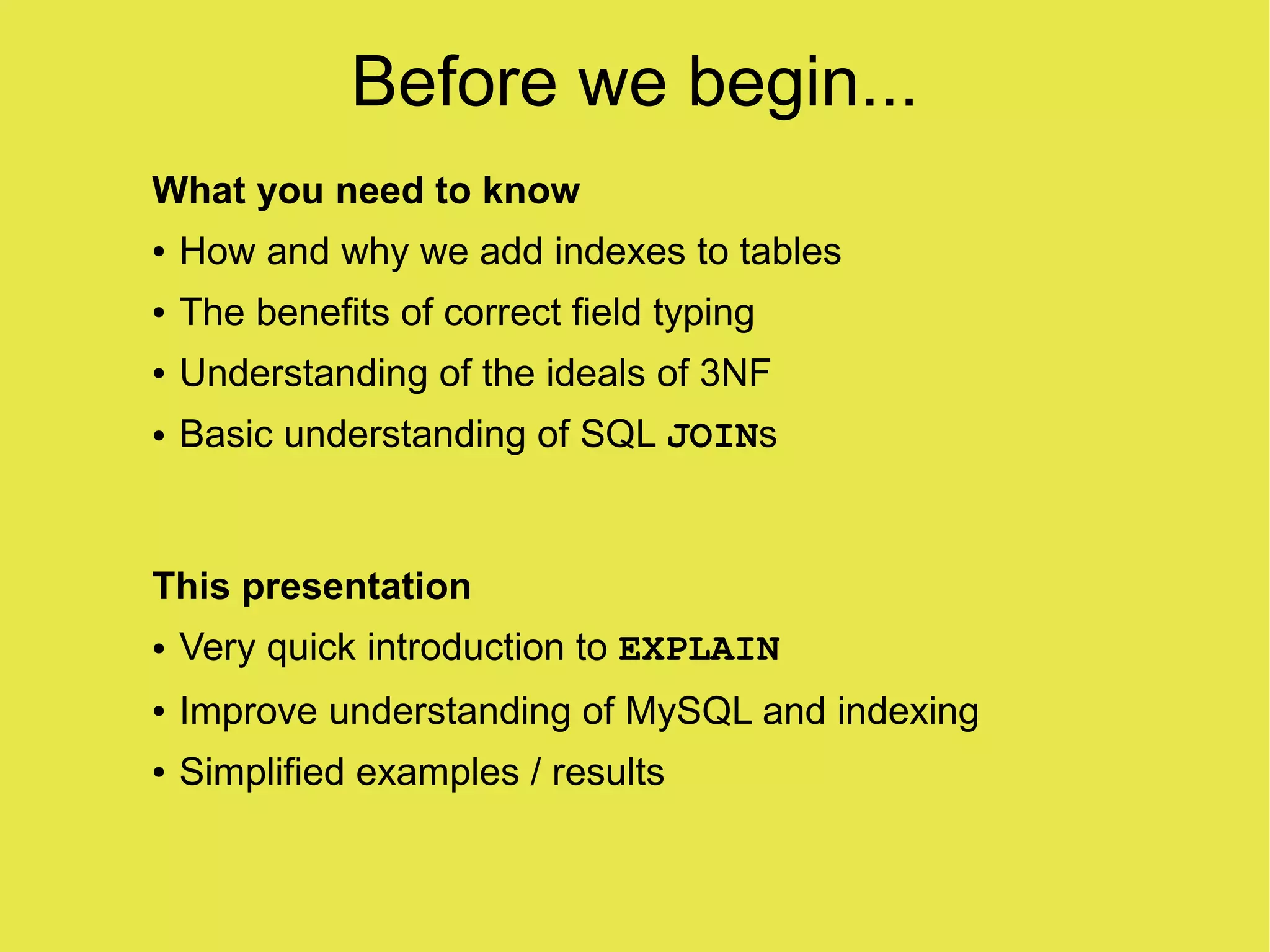

Before we begin...
What you need to know
How and why we add indexes to tables
●

The benefits of correct field typing
●

Understanding of the ideals of 3NF
●

Basic understanding of SQL JOINs
●

This presentation
Very quick introduction to EXPLAIN
●

Improve understanding of MySQL and indexing
●

Simplified examples / results
●

Introduction - Using MySQL EXPLAIN
Prefix a SELECT query with EXPLAIN
MySQL won't actually execute the query, just analyse it
●

EXPLAIN helps us understand how and when MySQL
●

will use indexes
EXPLAIN returns a table of data from which you identify
●

potential improvements
Optimise queries in three ways
●

Modify or create indexes
●

Modify query structure
●

Modify data structure
●

Optimised queries = faster results, lower server load...
●

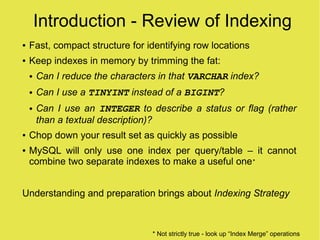

Introduction - Review of Indexing
Fast, compact structure for identifying row locations
●

Keep indexes in memory by trimming the fat:
●

Can I reduce the characters in that VARCHAR index?
●

Can I use a TINYINT instead of a BIGINT?
●

Can I use an INTEGER to describe a status or flag (rather
●

than a textual description)?
Chop down your result set as quickly as possible
●

MySQL will only use one index per query/table – it cannot
●

combine two separate indexes to make a useful one *

Understanding and preparation brings about Indexing Strategy

* Not strictly true - look up “Index Merge” operations

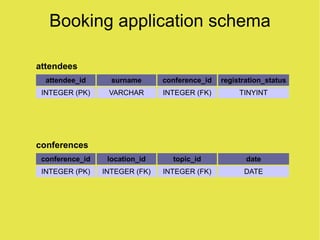

Booking application schema

attendees
attendee_id surname conference_id registration_status
INTEGER (PK) VARCHAR INTEGER (FK) TINYINT

conferences
conference_id location_id topic_id date
INTEGER (PK) INTEGER (FK) INTEGER (FK) DATE

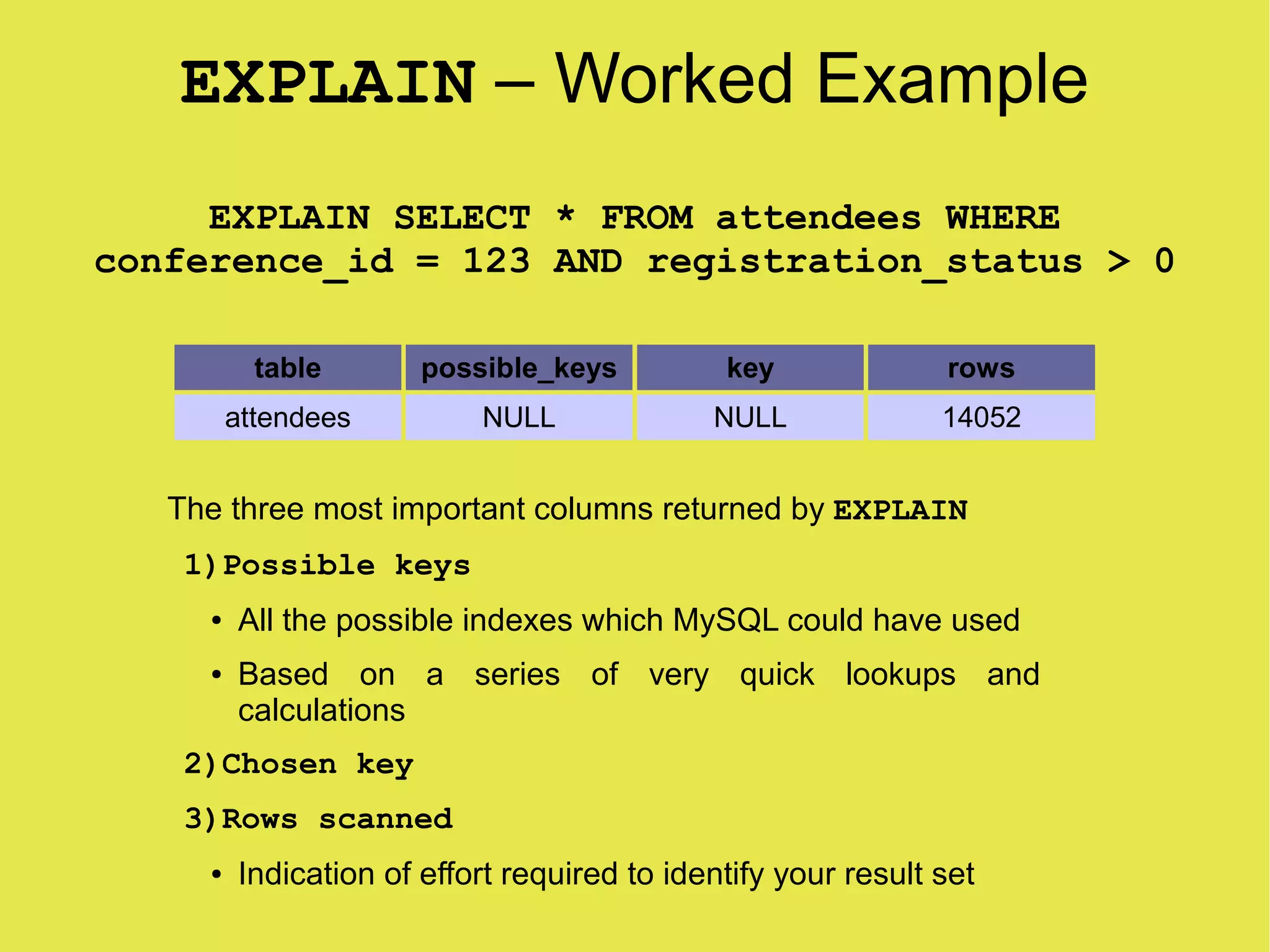

EXPLAIN – Worked Example
EXPLAIN SELECT * FROM attendees WHERE
conference_id = 123 AND registration_status > 0

table possible_keys key rows
attendees NULL NULL 14052

The three most important columns returned by EXPLAIN
1)Possible keys
All the possible indexes which MySQL could have used
●

Based on a series of very quick lookups and
●

calculations
2)Chosen key
3)Rows scanned
Indication of effort required to identify your result set
●

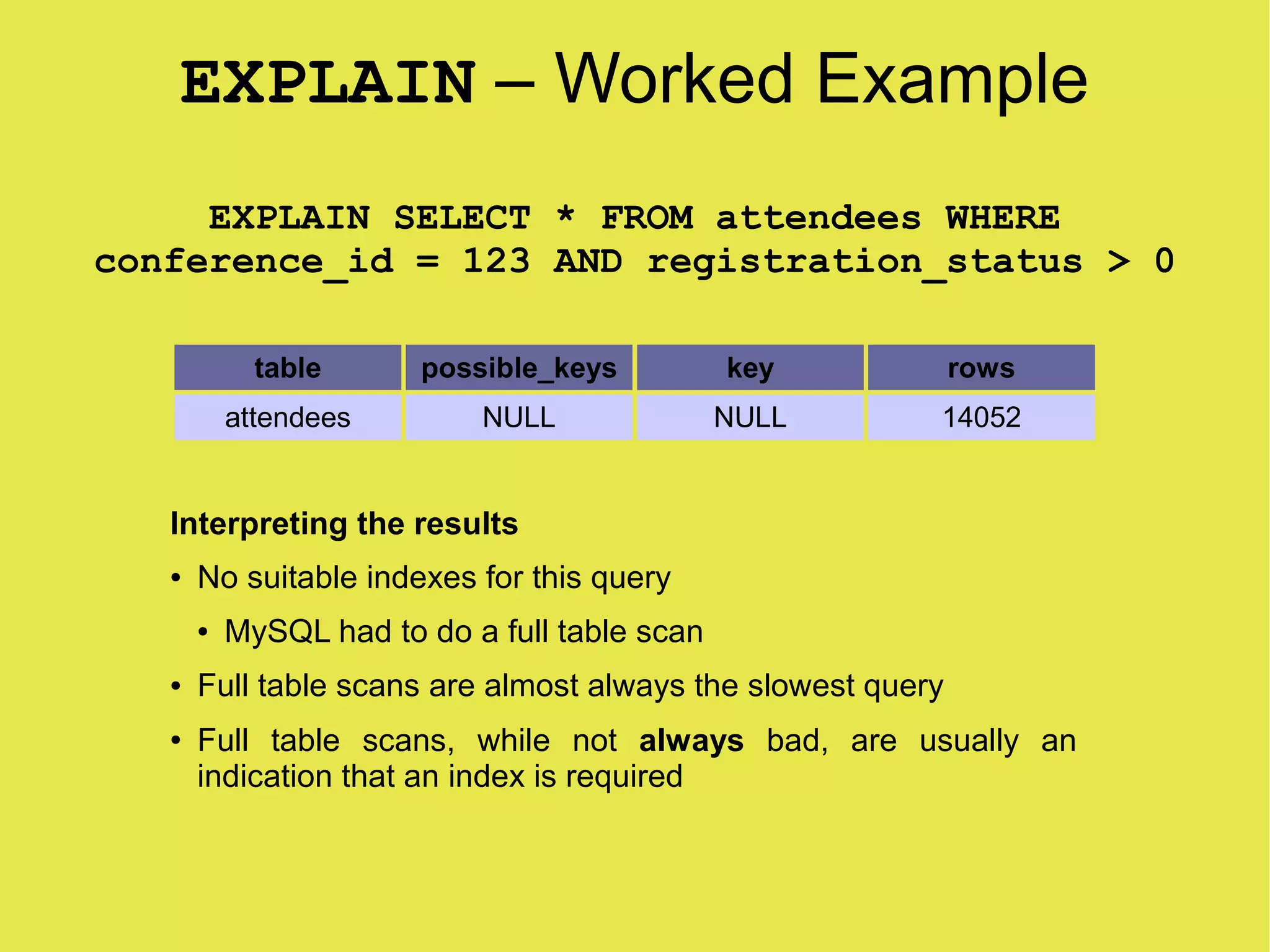

EXPLAIN SELECT * FROM attendees WHERE
conference_id = 123 AND registration_status > 0


Interpreting the results
No suitable indexes for this query
●

MySQL had to do a full table scan
●

Full table scans are almost always the slowest query
●

Full table scans, while not always bad, are usually an
●

indication that an index is required

ALTER TABLE ADD INDEX conf (conference_id);
ALTER TABLE ADD INDEX reg (registration_status);

EXPLAIN SELECT * FROM attendees WHERE conference_id
= 123 AND registration_status > 1;

attendees conf, reg conf 331

MySQL had two indexes to choose from, but discarded “reg”
●

“reg” isn't sufficiently unique
●

The spread of values can also be a factor (e.g when 99% of
●

rows contain the same value)
Index “uniqueness” is called cardinality
●

There is scope for some performance increase...
●

Lower server load, quicker response
●

ALTER TABLE ADD INDEX reg_conf_index
(registration_status, conference_id);

EXPLAIN SELECT * FROM attendees WHERE conference_id =
123 AND registration_status > 1;

reg, conf,
attendees reg_conf_index 204
reg_conf_index

reg_conf_index is a much better choice
●

Note that the other two keys are still available, just
●

not as effective
Our query is now served well by the new index
●

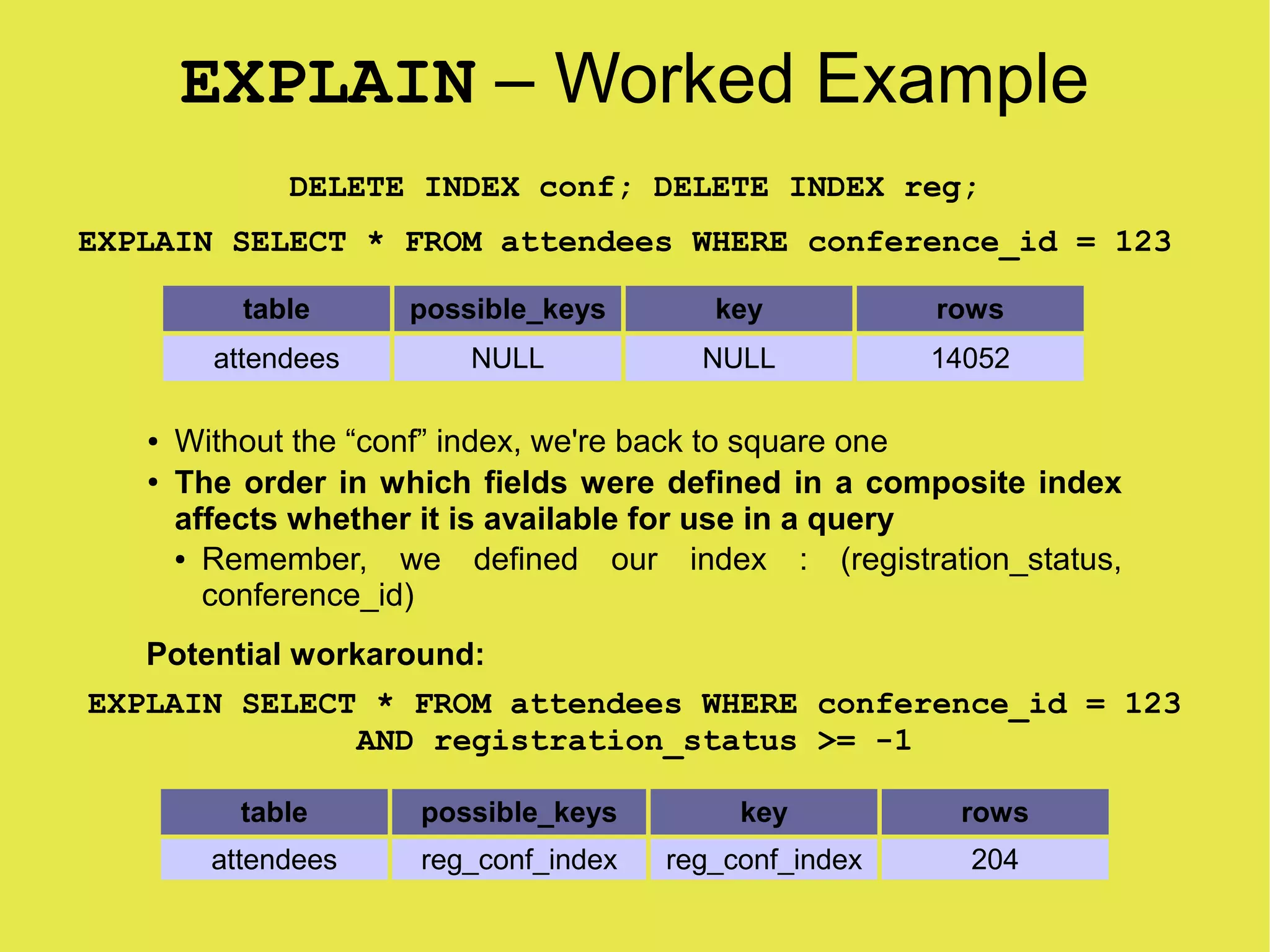

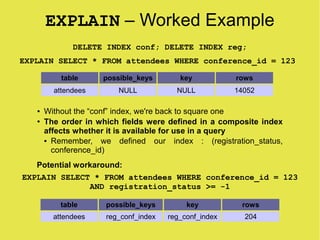

DELETE INDEX conf; DELETE INDEX reg;
EXPLAIN SELECT * FROM attendees WHERE conference_id = 123


Without the “conf” index, we're back to square one
●

The order in which fields were defined in a composite index
●

affects whether it is available for use in a query
● Remember, we defined our index : (registration_status,
conference_id)
Potential workaround:
AND registration_status >= -1

attendees reg_conf_index reg_conf_index 204

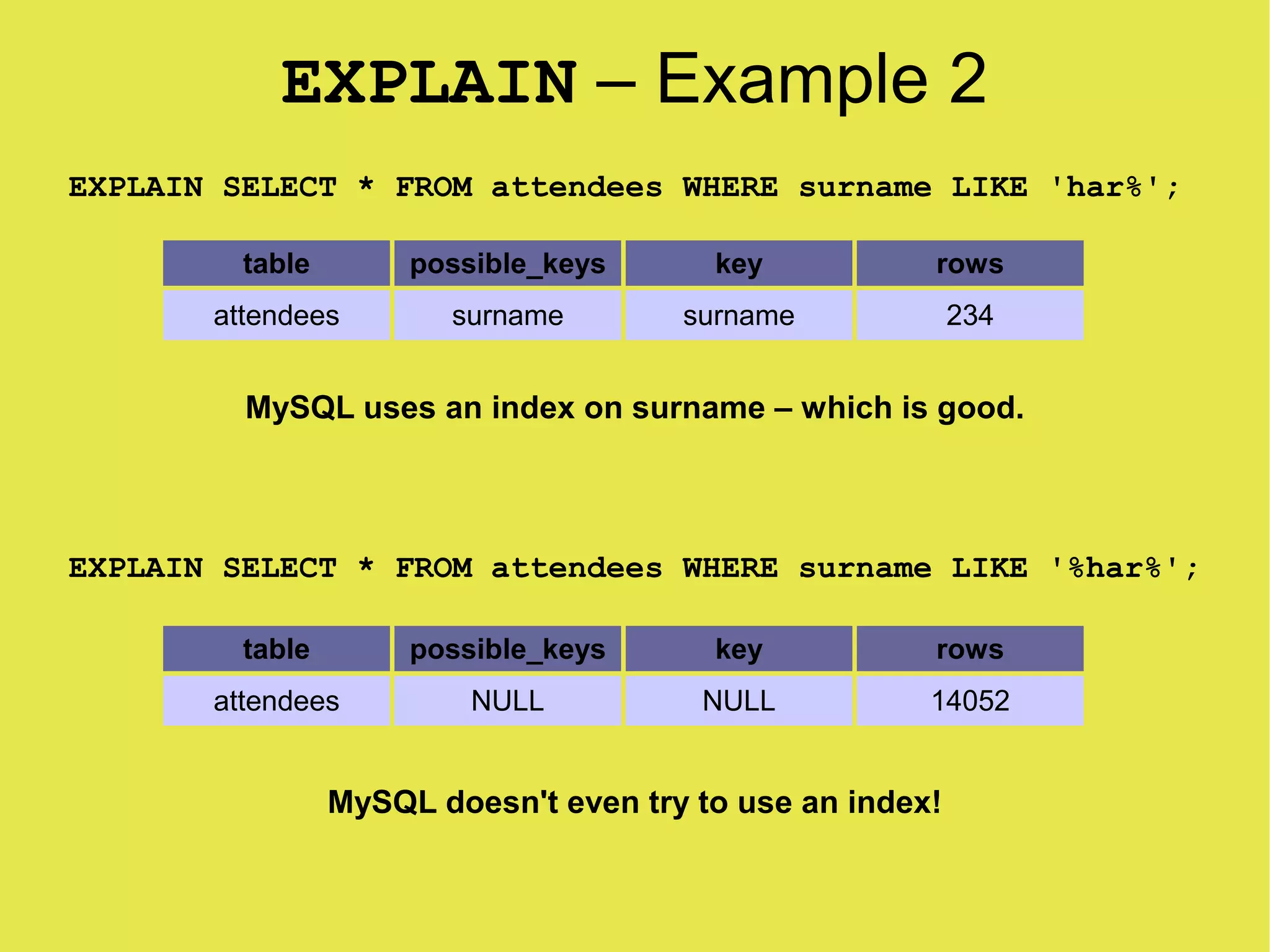

EXPLAIN – Example 2
EXPLAIN SELECT * FROM attendees WHERE surname LIKE 'har%';

attendees surname surname 234

MySQL uses an index on surname – which is good.

EXPLAIN SELECT * FROM attendees WHERE surname LIKE '%har%';


MySQL doesn't even try to use an index!

EXPLAIN SELECT * FROM conferences WHERE location_id = 2 OR
topic_id IN (4,6,1)

location_id,
conferences NULL 5043
topic_id

MySQL doesn't use an index, because of the OR

ALTER TABLE ADD INDEX location_topic (location_id,
topic_id);

EXPLAIN SELECT * FROM conferences WHERE location_id = 2
OR topic_id IN (4,6,1)

location_id,
conferences location_topic 15
topic_id,
location_topic

Full table scan avoided – could also use UNION (ALL) trick

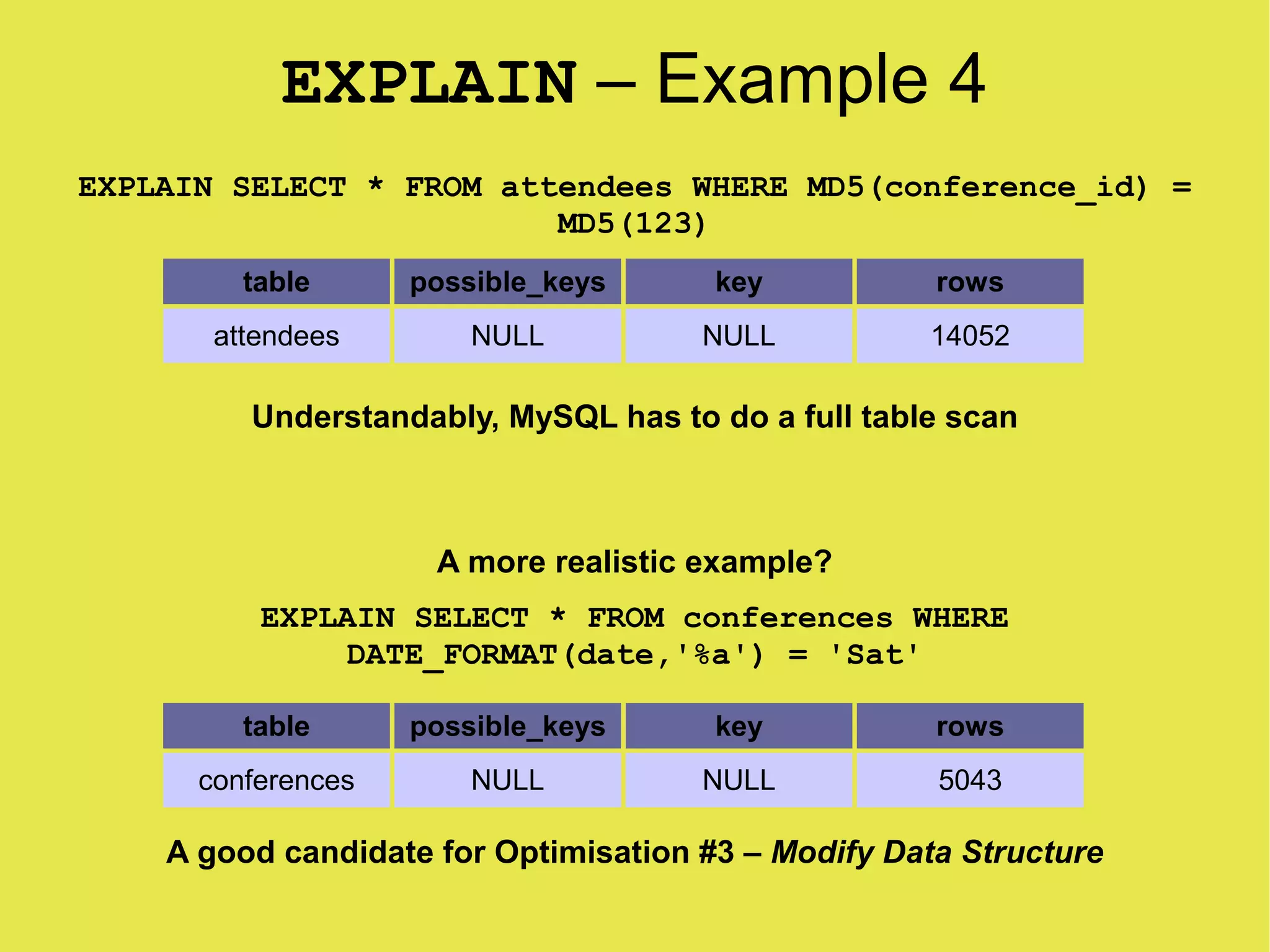

EXPLAIN SELECT * FROM attendees WHERE MD5(conference_id) =
MD5(123)

Understandably, MySQL has to do a full table scan

A more realistic example?
EXPLAIN SELECT * FROM conferences WHERE
DATE_FORMAT(date,'%a') = 'Sat'

conferences NULL NULL 5043

A good candidate for Optimisation #3 – Modify Data Structure

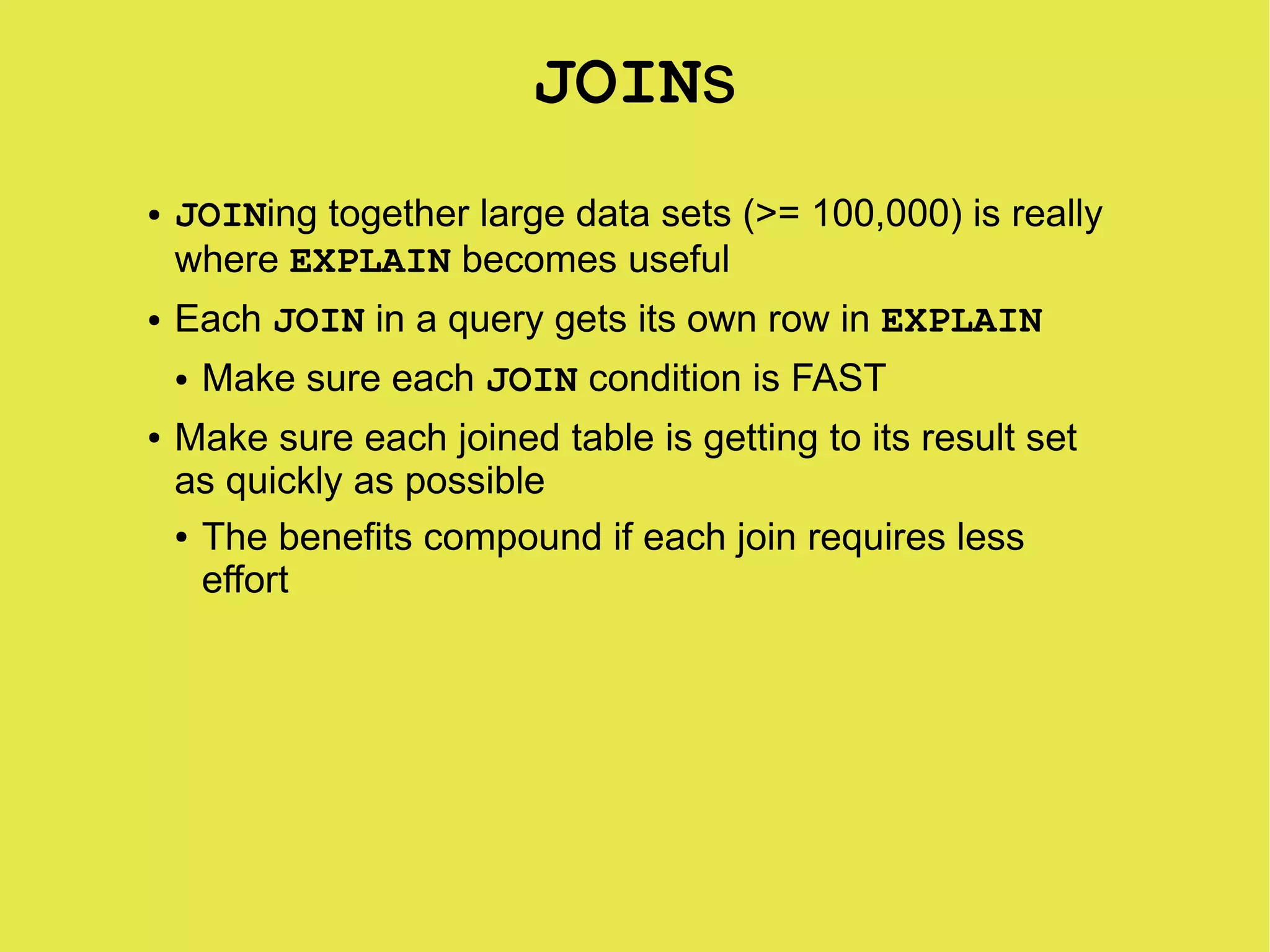

JOINs
JOINing together large data sets (>= 100,000) is really
●

where EXPLAIN becomes useful
Each JOIN in a query gets its own row in EXPLAIN
●

Make sure each JOIN condition is FAST
●

Make sure each joined table is getting to its result set
●

as quickly as possible
● The benefits compound if each join requires less

effort

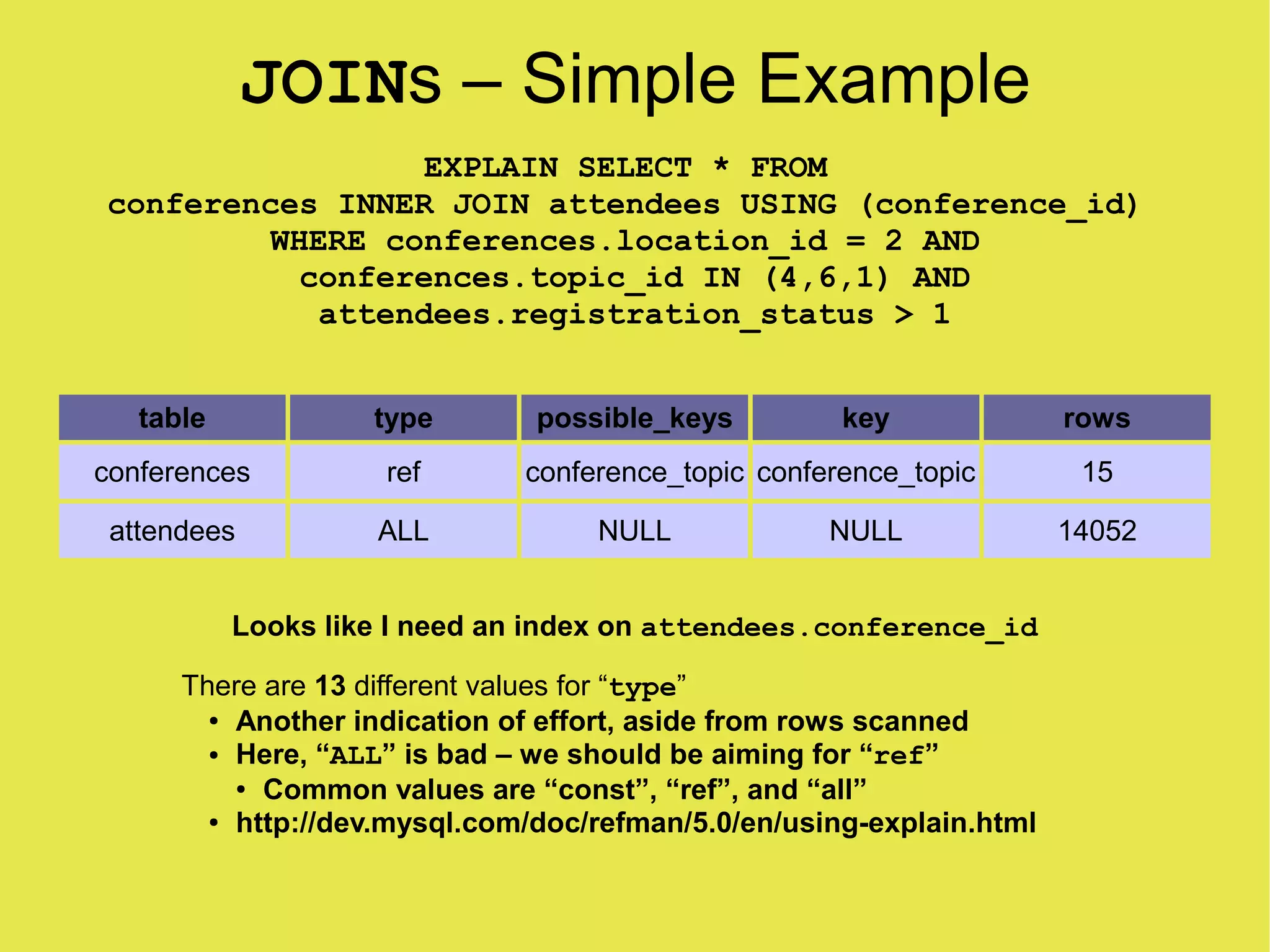

JOINs – Simple Example
EXPLAIN SELECT * FROM
conferences INNER JOIN attendees USING (conference_id)
WHERE conferences.location_id = 2 AND
conferences.topic_id IN (4,6,1) AND
attendees.registration_status > 1

table type possible_keys key rows
conferences ref conference_topic conference_topic 15

attendees ALL NULL NULL 14052

Looks like I need an index on attendees.conference_id

There are 13 different values for “type”
● Another indication of effort, aside from rows scanned

● Here, “ALL” is bad – we should be aiming for “ref”

● Common values are “const”, “ref”, and “all”

● http://dev.mysql.com/doc/refman/5.0/en/using-explain.html

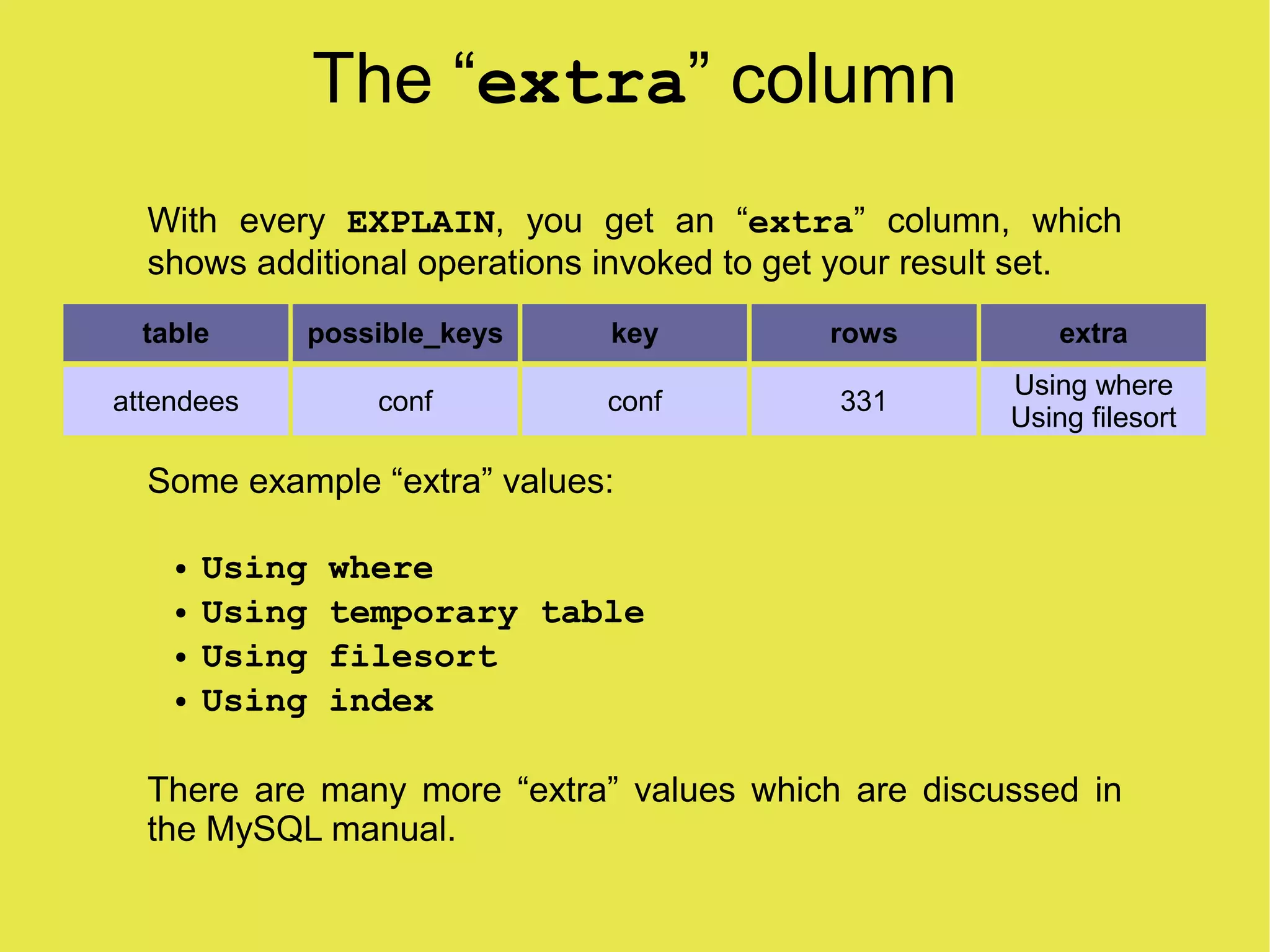

The “extra” column
With every EXPLAIN, you get an “extra” column, which
shows additional operations invoked to get your result set.
table possible_keys key rows extra
Using where
attendees conf conf 331
Using filesort

Some example “extra” values:

Using where
●

Using temporary table
●

Using filesort
●

Using index
●

There are many more “extra” values which are discussed in
the MySQL manual.

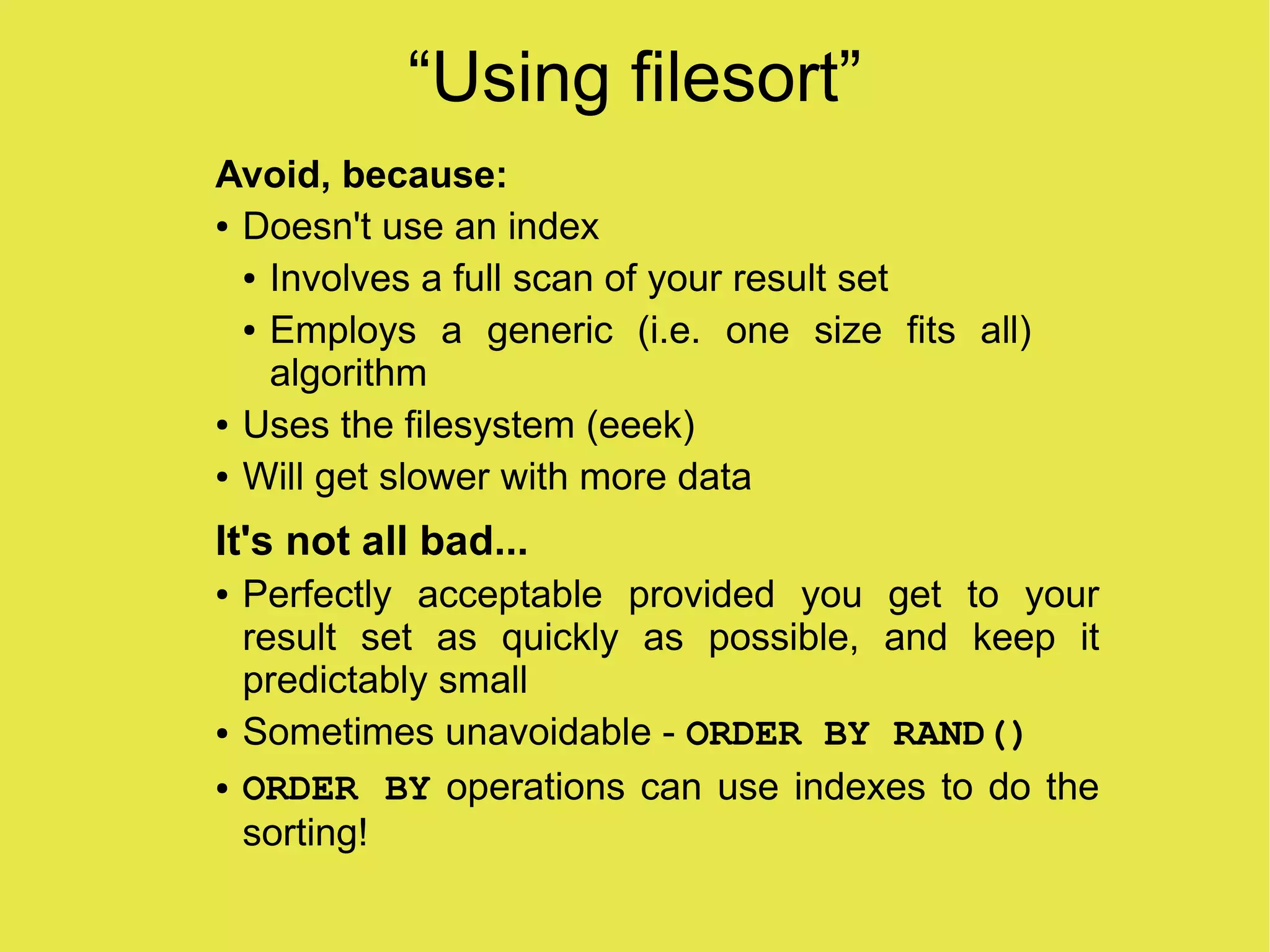

“Using filesort”
Avoid, because:
● Doesn't use an index

● Involves a full scan of your result set

● Employs a generic (i.e. one size fits all)

algorithm
● Uses the filesystem (eeek)

● Will get slower with more data

It's not all bad...
Perfectly acceptable provided you get to your
●

result set as quickly as possible, and keep it
predictably small
Sometimes unavoidable - ORDER BY RAND()
●

ORDER BY operations can use indexes to do the
●

sorting!

“Using filesort” – Example
ORDER BY surname
table possible_keys key rows Extra
attendees conference_id conference_id 331 Using filesort

MySQL is using an index, but it's sorting the results slowly

ALTER TABLE attendees ADD INDEX conf_surname (conference_id,
surname);
ORDER BY surname
conference_id,
attendees conf_surname 331
conf_surname

We've avoided a filesort

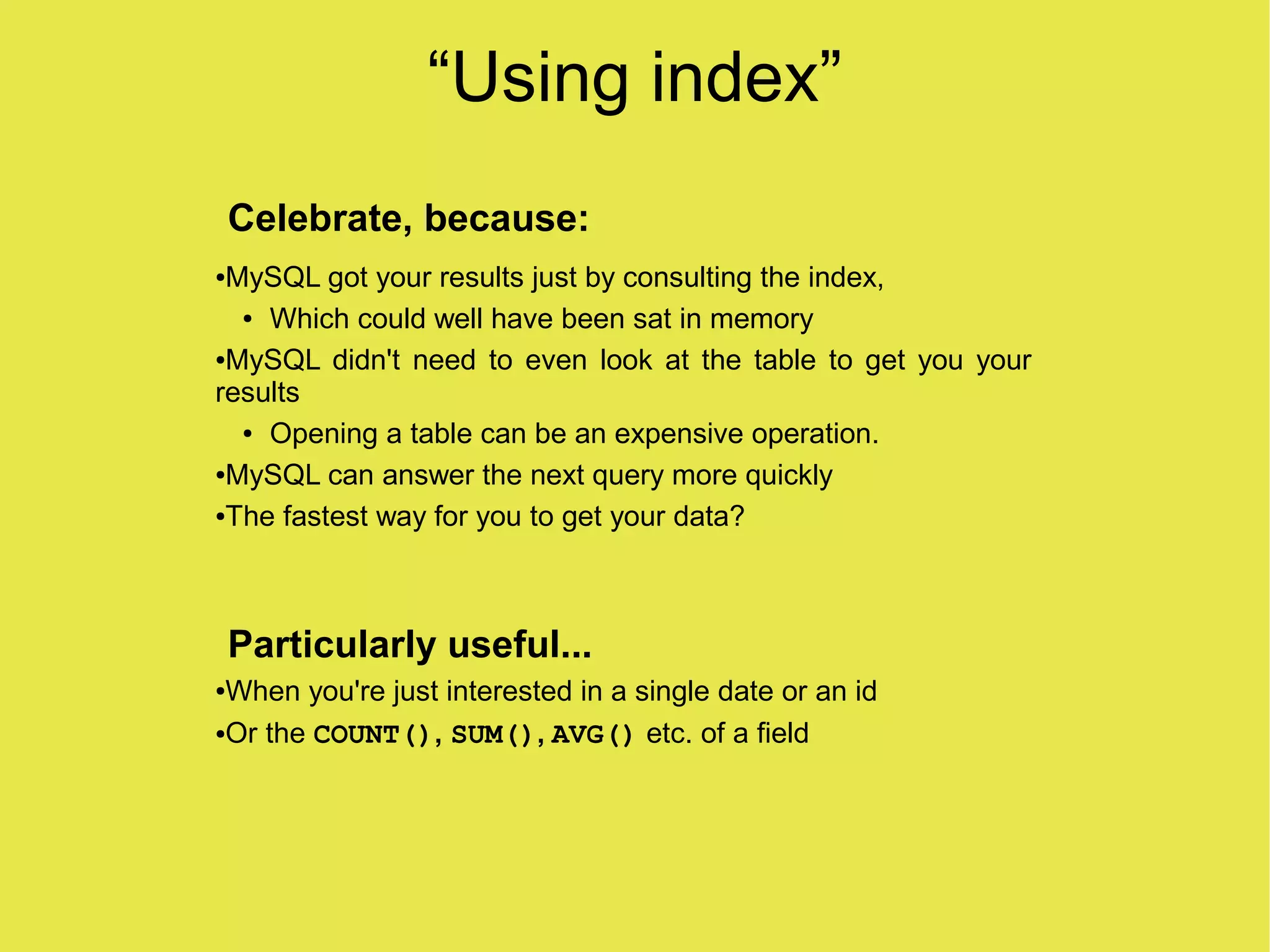

“Using index”
Celebrate, because:
MySQL got your results just by consulting the index,
●

● Which could well have been sat in memory

●MySQL didn't need to even look at the table to get you your

results
● Opening a table can be an expensive operation.

●MySQL can answer the next query more quickly

●The fastest way for you to get your data?

Particularly useful...
When you're just interested in a single date or an id
●

●Or the COUNT(), SUM(), AVG() etc. of a field

“Using index” – Example
EXPLAIN SELECT AVG(age) FROM attendees WHERE conference_id
= 123
attendees conference_id conference_id 331

Nothing is actually wrong with this query – it could just be quicker!

ALTER TABLE attendees ADD INDEX conf_age (conference_id,
age);
EXPLAIN SELECT AVG(age) FROM attendees WHERE conference_id
= 123
conference_id,
attendees conf_surname 331 Using index
conf_surname

Outside of caching, the fastest way to get your data *
*Not a guarantee

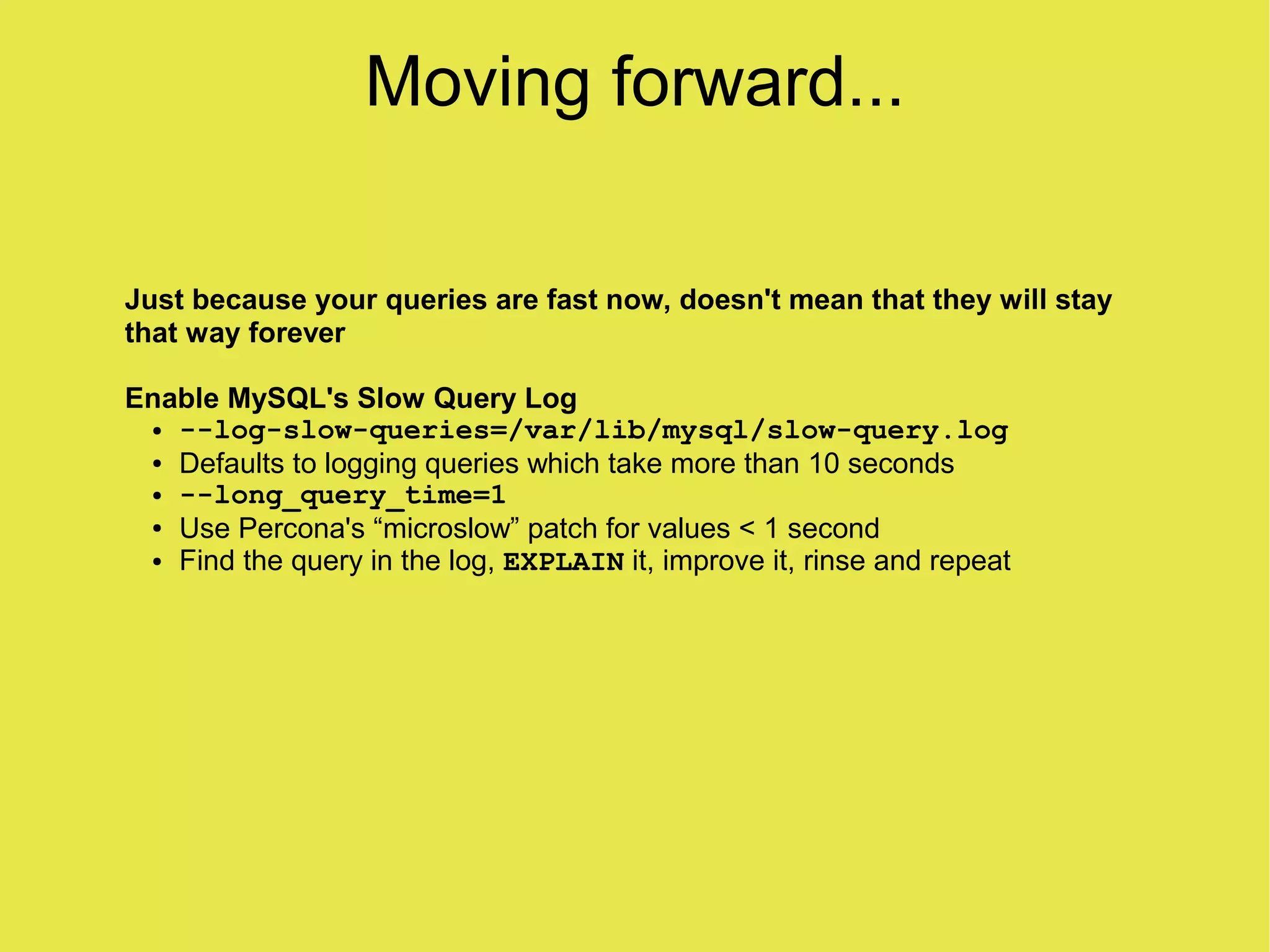

Moving forward...

Just because your queries are fast now, doesn't mean that they will stay
that way forever

Enable MySQL's Slow Query Log
● --log-slow-queries=/var/lib/mysql/slow-query.log

● Defaults to logging queries which take more than 10 seconds

● --long_query_time=1

● Use Percona's “microslow” patch for values < 1 second

● Find the query in the log, EXPLAIN it, improve it, rinse and repeat

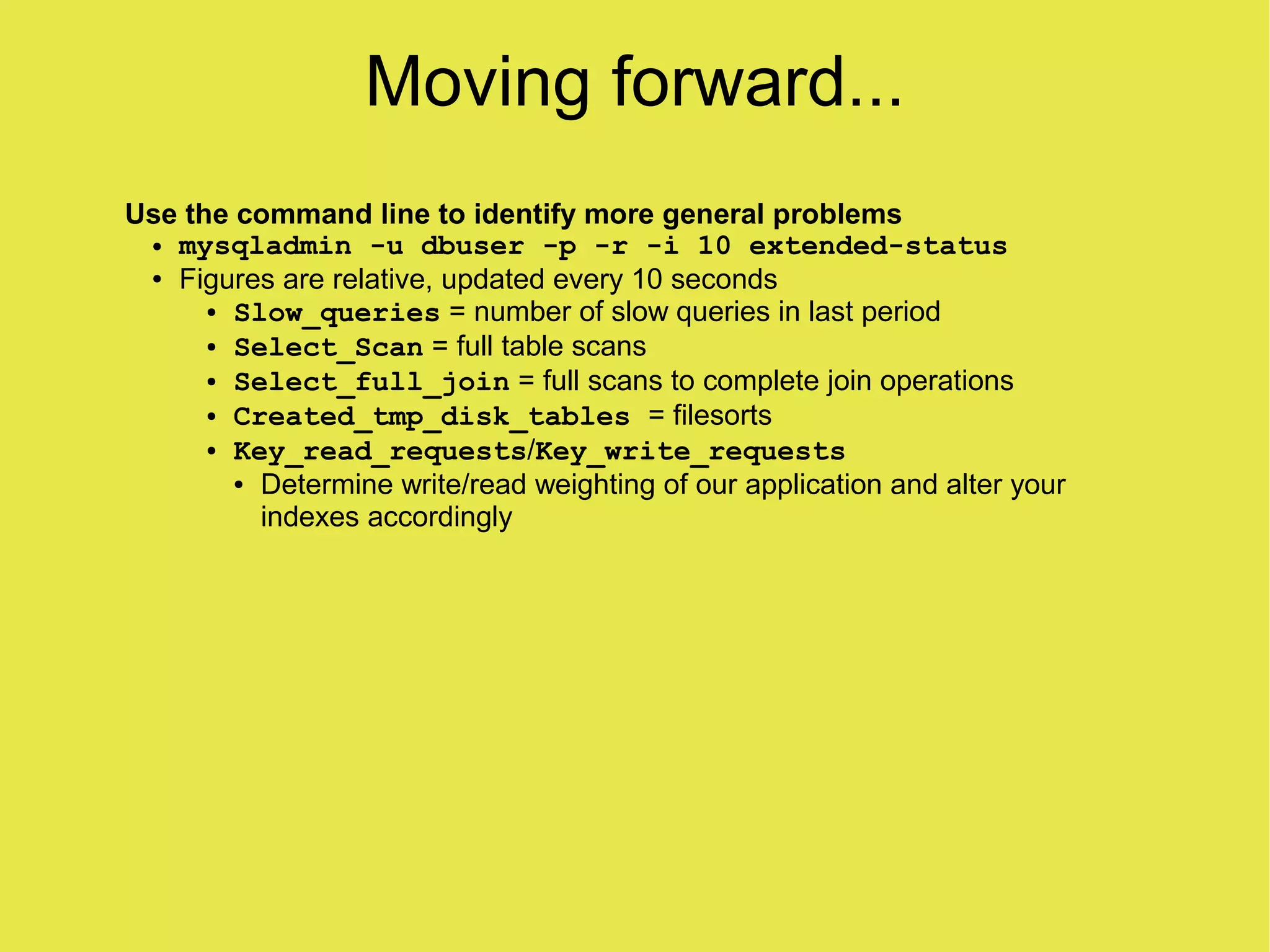

Moving forward...
Use the command line to identify more general problems
● mysqladmin -u dbuser -p -r -i 10 extended-status

● Figures are relative, updated every 10 seconds

● Slow_queries = number of slow queries in last period

● Select_Scan = full table scans

● Select_full_join = full scans to complete join operations

● Created_tmp_disk_tables = filesorts

● Key_read_requests/Key_write_requests

● Determine write/read weighting of our application and alter your

indexes accordingly

MySQL Resources

http://dev.mysql.com/doc/refman/5.0/en/using-explain.html
●

High Performance MySQL - Baron Schwartz
●

ISBN 0596101716
–

£20 (Money well spent)
–

http://www.mysqlperformanceblog.com
●

Regular posts
–
