Developers increasingly are building dynamic, interactive real-time applications on fast streaming data to extract maximum value from data in the moment. To do so requires a data pipeline, the ability to make transactional decisions against state, and an export functionality that pushes data at high speeds to long-term Hadoop analytics stores like Hortonworks Data Platform (HDP). This enables data to arrive in your analytic store sooner, and allows these analytics to be leveraged with radically lower latency. But successfully writing fast data applications that manage, process, and export streams of data generated from mobile, smart devices, sensors and social interactions is a big challenge. Join Hortonworks and VoltDB, an in-memory scale-out relational database that simplifies fast data application development, to learn how you can ingest large volumes of fast-moving, streaming data and process it in real time. We will also cover how developing fast data applications is simplified, faster - and delivers more value when built on a fast in-memory, scale-out SQL database.

1. VoltDB and Hortonworks Present:
Powering Fast Data and the Hadoop Ecosystem
with the New VoltDB V5.0
January 28, 2015

2. © 2015 VoltDB PROPRIETARY
OUR SPEAKERS
2
John Piekos,
VP Engineering,
VoltDB
Ajay Singh,
Director,
Technical Channels,
Hortonworks
John Hugg,
Software Engineer,
VoltDB

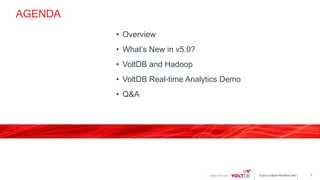

3. © 2015 VoltDB PROPRIETARY
AGENDA
• Overview
• What’s New in v5.0?
• VoltDB and Hadoop
• VoltDB Real-time Analytics Demo
• Q&A
3

4. © 2015 VoltDB PROPRIETARY

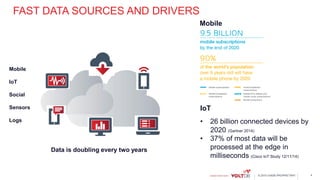

FAST DATA SOURCES AND DRIVERS
Mobile
IoT
Social
Sensors
Logs
Data is doubling every two years
• 26 billion connected devices by
2020 (Gartner 2014)
• 37% of most data will be
processed at the edge in
milliseconds (Cisco IoT Study 12/11/14)
Mobile
IoT
4

5. © 2015 VoltDB PROPRIETARY
PREDICTION
5
All businesses will compete on a new dimension – the ability to
make decisions “in the moment” on Fast Data.

6. © 2015 VoltDB PROPRIETARY

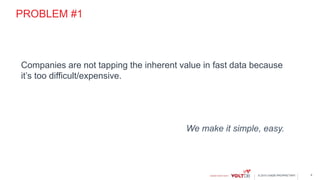

PROBLEM #1
6
Companies are not tapping the inherent value in fast data because
it’s too difficult/expensive.
We make it simple, easy.

7. © 2015 VoltDB PROPRIETARY

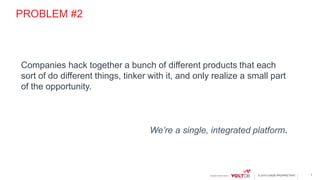

PROBLEM #2
7
Companies hack together a bunch of different products that each
sort of do different things, tinker with it, and only realize a small part
of the opportunity.
We’re a single, integrated platform.

8. © 2015 VoltDB PROPRIETARY
SOLUTION
8
VoltDB is a purpose-built database platform with the performance,
scale and capability to ingest, analyze and make decisions on fast
data in real time.

9. © 2015 VoltDB PROPRIETARY

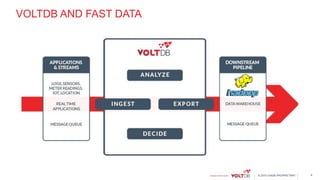

VOLTDB AND FAST DATA
9

10. © 2015 VoltDB PROPRIETARY

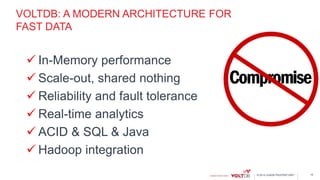

 In-Memory performance
 Scale-out, shared nothing
 Reliability and fault tolerance
 Real-time analytics
 ACID & SQL & Java
 Hadoop integration
10
VOLTDB: A MODERN ARCHITECTURE FOR
FAST DATA

11. WHAT’S NEW IN
VOLTDB V5.0
John Piekos
VP of Engineering

12. © 2015 VoltDB PROPRIETARY

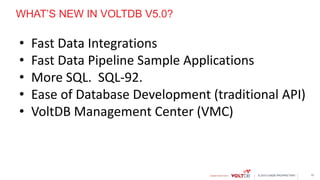

WHAT’S NEW IN VOLTDB V5.0?
• Fast Data Integrations
• Fast Data Pipeline Sample Applications
• More SQL. SQL-92.
• Ease of Database Development (traditional API)
• VoltDB Management Center (VMC)
12

13. © 2015 VoltDB PROPRIETARY

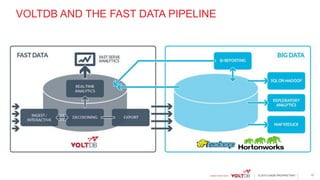

VOLTDB AND THE FAST DATA PIPELINE
13

14. © 2015 VoltDB PROPRIETARY
FAST DATA INTEGRATIONS - IMPORTERS
• Kafka Loader
• Subscribe to a Kafka topic and insert each message into a VoltDB
Table
• JDBC Loader
• Load a JDBC result set into a VoltDB Table
• Vertica Udx
• User-defined function to load Vertica result sets into a VoltDB
Table
• Apache Hive and Apache Pig
• Hadoop OutputFormat to load Hive and Pig result sets into VoltDB
14

15. © 2015 VoltDB PROPRIETARY
FAST DATA INTEGRATIONS - EXPORTERS
• HDFS Export
• Hadoop export via WebHDFS and HttpFS
• HTTP Export
• Delivery and Alerting via HTTP post/get
• Kafka Export, RabbitMQ Export
• Message queue delivery
• Export format configurable
• Avro, CSV, TSV, more coming…
15

16. © 2015 VoltDB PROPRIETARY

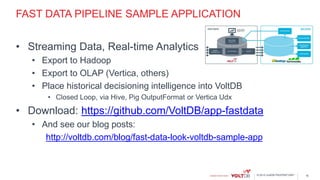

FAST DATA PIPELINE SAMPLE APPLICATION
• Streaming Data, Real-time Analytics
• Export to Hadoop
• Export to OLAP (Vertica, others)
• Place historical decisioning intelligence into VoltDB
• Closed Loop, via Hive, Pig OutputFormat or Vertica Udx
• Download: https://github.com/VoltDB/app-fastdata
• And see our blog posts:
http://voltdb.com/blog/fast-data-look-voltdb-sample-app
16

17. © 2015 VoltDB PROPRIETARY

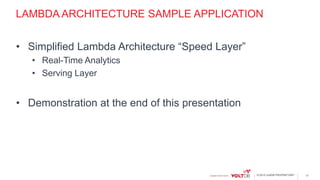

LAMBDA ARCHITECTURE SAMPLE APPLICATION
• Simplified Lambda Architecture “Speed Layer”
• Real-Time Analytics
• Serving Layer
• Demonstration at the end of this presentation
17

18. © 2015 VoltDB PROPRIETARY

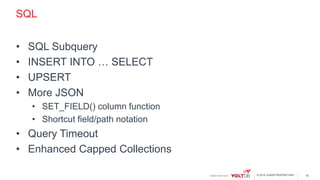

SQL
• SQL Subquery
• INSERT INTO … SELECT
• UPSERT
• More JSON
• SET_FIELD() column function
• Shortcut field/path notation
• Query Timeout
• Enhanced Capped Collections
18

19. © 2015 VoltDB PROPRIETARY

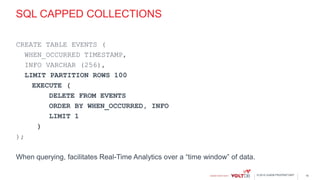

SQL CAPPED COLLECTIONS
CREATE TABLE EVENTS (
WHEN_OCCURRED TIMESTAMP,
INFO VARCHAR (256),
LIMIT PARTITION ROWS 100
EXECUTE (
DELETE FROM EVENTS
ORDER BY WHEN_OCCURRED, INFO
LIMIT 1
)
);
When querying, facilitates Real-Time Analytics over a “time window” of data.
19

20. © 2015 VoltDB PROPRIETARY

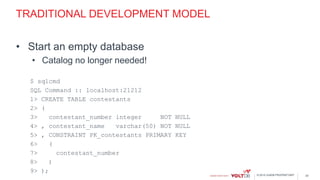

TRADITIONAL DEVELOPMENT MODEL
• Start an empty database
• Catalog no longer needed!
$ sqlcmd
SQL Command :: localhost:21212
1> CREATE TABLE contestants
2> (
3> contestant_number integer NOT NULL
4> , contestant_name varchar(50) NOT NULL
5> , CONSTRAINT PK_contestants PRIMARY KEY
6> (
7> contestant_number
8> )
9> );
20

21. © 2015 VoltDB PROPRIETARY
TRADITIONAL DEVELOPMENT MODEL (CONT)
• ALTER TABLE
• CREATE INDEX/PROCEDURE/ROLE/TABLE/VIEW
• DROP INDEX/PROCEDURE/TABLE/VIEW
• JDBC and ODBC driver
21

22. © 2015 VoltDB PROPRIETARY

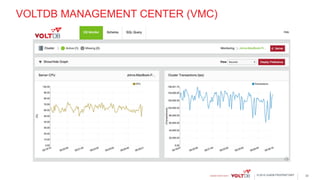

VOLTDB MANAGEMENT CENTER (VMC)
22

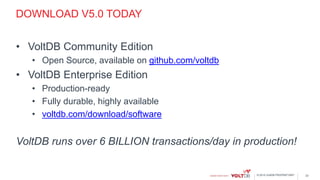

23. © 2015 VoltDB PROPRIETARY
DOWNLOAD V5.0 TODAY
• VoltDB Community Edition
• Open Source, available on github.com/voltdb
• VoltDB Enterprise Edition
• Production-ready
• Fully durable, highly available
• voltdb.com/download/software
VoltDB runs over 6 BILLION transactions/day in production!
23

24. HORTONWORKS
Ajay Singh
Hortonworks
Director of Technical Channels

25. Page25 Hortonworks Confidential 2014

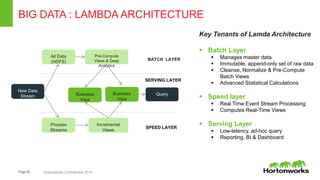

BIG DATA : LAMBDA ARCHITECTURE
Key Tenants of Lamda Architecture
 Batch Layer
 Manages master data
 Immutable, append-only set of raw data
 Cleanse, Normalize & Pre-Compute
Batch Views
 Advanced Statistical Calculations
 Speed layer
 Real Time Event Stream Processing
 Computes Real-Time Views
 Serving Layer
 Low-latency, ad-hoc query
 Reporting, BI & Dashboard
New Data
Stream
All Data
(HDFS)
Pre-Compute
Views & Deep
Analytics
Process
Streams
Incremental
Views
Business
View
Business
View
Query
SPEED LAYER
BATCH LAYER
SERVING LAYER

26. Page26 Hortonworks Confidential 2014

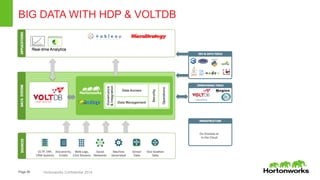

BIG DATA WITH HDP & VOLTDB

27. Page27 Hortonworks Confidential 2014

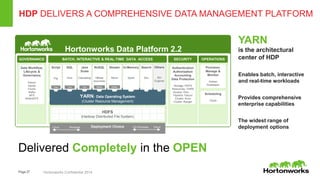

HDP DELIVERS A COMPREHENSIVE DATA MANAGEMENT PLATFORM
Hortonworks Data Platform 2.2
YARN: Data Operating System
(Cluster Resource Management)
1 ° ° ° ° ° ° °
° ° ° ° ° ° ° °
Script
Pig
SQL
Hive
TezTez
Java
Scala
Cascading
Tez
° °
° °
° ° ° ° °
° ° ° ° °
Others
ISV
Engines
HDFS
(Hadoop Distributed File System)
Stream
Storm
Search
Solr
NoSQL
HBase
Accumulo
Slider Slider
SECURITYGOVERNANCE OPERATIONSBATCH, INTERACTIVE & REAL-TIME DATA ACCESS
In-Memory
Spark
Provision,
Manage &
Monitor
Ambari
Zookeeper
Scheduling
Oozie
Data Workflow,
Lifecycle &
Governance
Falcon
Sqoop
Flume
Kafka
NFS
WebHDFS
Authentication
Authorization
Accounting
Data Protection
Storage: HDFS
Resources: YARN
Access: Hive, …
Pipeline: Falcon
Cluster: Knox
Cluster: Ranger
Deployment ChoiceLinux Windows On-Premises Cloud
YARN
is the architectural
center of HDP
Enables batch, interactive
and real-time workloads
Provides comprehensive
enterprise capabilities
The widest range of
deployment options
Delivered Completely in the OPEN

28. VOLTDB FAST DATA
DEMO
John Hugg
VoltDB Founding Engineering

29. © 2015 VoltDB PROPRIETARY
The Lambda Architecture
29

30. © 2015 VoltDB PROPRIETARY
LAMBDA OVERVIEW
• Batch processing is well understood and robust.
Latency is pretty horrific.
• Stream processing is immediate.
Complex and not as robust to hardware or user failure.
• Lambda Architecture says do both in parallel to
compensate.
Speed Layer & Batch Layer
30

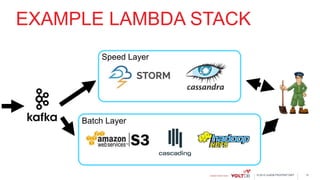

31. © 2015 VoltDB PROPRIETARY
EXAMPLE LAMBDA STACK
Speed Layer
Batch Layer
31

32. © 2015 VoltDB PROPRIETARY
EXAMPLE PROBLEM
32

33. © 2015 VoltDB PROPRIETARY
HOW MANY
PEOPLE
USED MY APP
TODAY?
33

34. © 2015 VoltDB PROPRIETARY
HOW MANY
UNIQUE
USERS
INTERACTED
WITH MY APP
TODAY?
34

35. © 2015 VoltDB PROPRIETARY

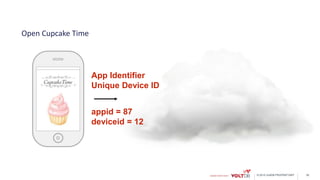

Open Cupcake Time
App Identifier
Unique Device ID
appid = 87
deviceid = 12
35

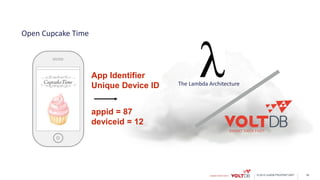

36. © 2015 VoltDB PROPRIETARY
Open Cupcake Time
App Identifier
Unique Device ID
appid = 87
deviceid = 12
The Lambda Architecture
36

37. © 2015 VoltDB PROPRIETARY
1 MILLION
APPID,DEVICEID
PAIRS PER SECOND
37

38. © 2015 VoltDB PROPRIETARY

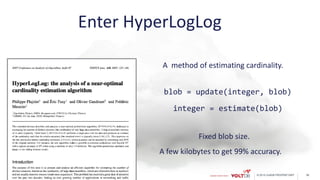

Enter HyperLogLog
A method of estimating cardinality.
blob = update(integer, blob)
integer = estimate(blob)
Fixed blob size.
A few kilobytes to get 99% accuracy.
38

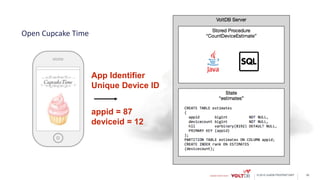

39. © 2015 VoltDB PROPRIETARY
Open Cupcake Time
App Identifier
Unique Device ID
appid = 87
deviceid = 12
39

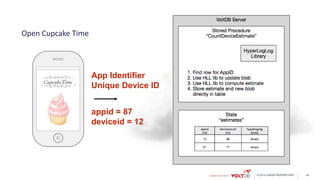

40. © 2015 VoltDB PROPRIETARY
Open Cupcake Time
App Identifier
Unique Device ID
appid = 87
deviceid = 12
40

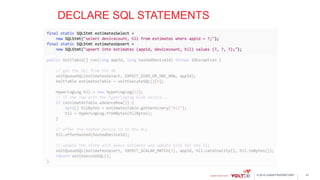

41. © 2015 VoltDB PROPRIETARY
DECLARE SQL STATEMENTS
41

42. © 2015 VoltDB PROPRIETARY

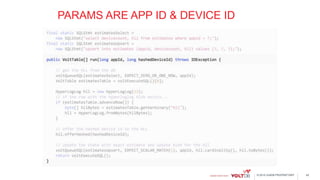

PARAMS ARE APP ID & DEVICE ID
42

43. © 2015 VoltDB PROPRIETARY

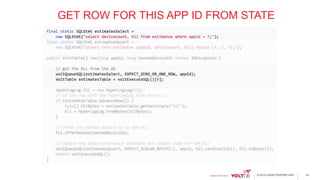

GET ROW FOR THIS APP ID FROM STATE
43

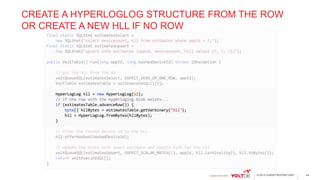

44. © 2015 VoltDB PROPRIETARY
CREATE A HYPERLOGLOG STRUCTURE FROM THE ROW
OR CREATE A NEW HLL IF NO ROW
44

45. © 2015 VoltDB PROPRIETARY

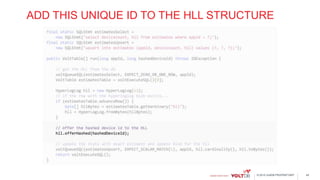

ADD THIS UNIQUE ID TO THE HLL STRUCTURE
45

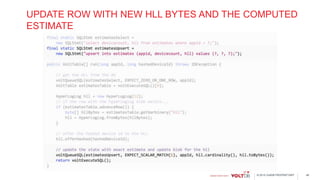

46. © 2015 VoltDB PROPRIETARY
UPDATE ROW WITH NEW HLL BYTES AND THE COMPUTED
ESTIMATE
46

47. © 2015 VoltDB PROPRIETARY
ADVANTAGES
47

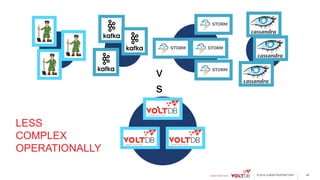

48. © 2015 VoltDB PROPRIETARY
LESS
COMPLEX
OPERATIONALLY
v
s
.
48

49. © 2015 VoltDB PROPRIETARY

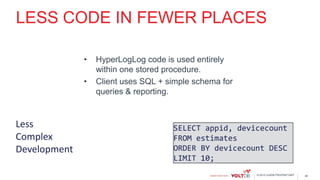

LESS CODE IN FEWER PLACES
• HyperLogLog code is used entirely
within one stored procedure.
• Client uses SQL + simple schema for
queries & reporting.
Less
Complex
Development
SELECT appid, devicecount
FROM estimates
ORDER BY devicecount DESC
LIMIT 10;
49

50. © 2015 VoltDB PROPRIETARY
DEMO
50

51. © 2015 VoltDB PROPRIETARY
THANK YOU!
51
