Thanks to sensors and the Internet of Things, industrial processes now generate a sea of data. But are you plumbing its depths to find the insight it contains, or are you just drowning in it? Now, Hortonworks and Seeq team to bring advanced analytics and machine learning to time-series data from manufacturing and industrial processes.

1. 1 © Hortonworks Inc. 2011–2018. All rights reserved.
Wade Salazar - Senior Solutions Engineer, Hortonworks
Analytics & Industrial Process Data

2. 2 © Hortonworks Inc. 2011–2018. All rights reserved.
OT / IT Convergence – Must Occur to Achieve Business Improvement
Source: IBM

3. 3 © Hortonworks Inc. 2011–2018. All rights reserved.

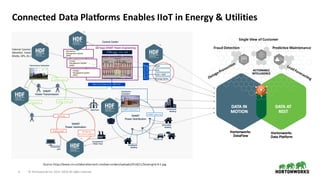

Connected Data Platforms Enables IIoT in Energy & Utilities
Source: https://www.cm-collaborative-tech.com/wp-content/uploads/2016/11/Smart-grid-A-1.jpg
Predictive MaintenanceFraud DetectionExternal Sources
(Weather, Social
Media, GPS, etc.)
Single View of Customer

4. 4 © Hortonworks Inc. 2011–2018. All rights reserved.

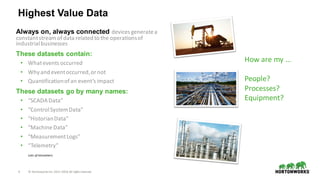

Highest Value Data
Always on, always connected devices generate a
constant stream of data related to the operations of
industrial businesses
These datasets contain:
• What events occurred
• Why and event occurred, or not
• Quantification of an event’s impact
These datasets go by many names:
• “SCADA Data”
• “Control System Data”
• “Historian Data”
• “Machine Data”
• “Measurement Logs”
• “Telemetry”
How are my …
People?
Processes?
Equipment?
Lots of misnomers

5. 5 © Hortonworks Inc. 2011–2018. All rights reserved.
Instrumentation
§ Commonly only output is
electrical signals
§ Integration with sensors
requires specialized
hardware
§ serial bus, or wireless are
increasingly available

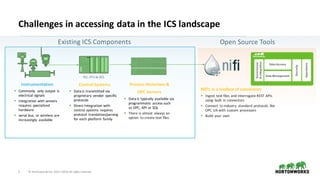

Challenges in accessing data in the ICS landscape
Control Systems
§ Data is transmitted via
proprietary vendor specific
protocols
§ Direct Integration with
control systems requires
protocol translation/parsing
for each platform family
Nifi’s is a toolbox of connectors
§ Ingest text files and interrogate REST APIs
using built in connectors
§ Connect to industry standard protocols like
OPC UA with custom processors
§ Build your own
Existing ICS Components
PLC, RTU & DCS
Open Source Tools
Governance
&Integration
Security
Operations
Data Access
Data Management
Process Historians &
OPC Servers
§ Data is typically available via
programmatic access such
as OPC, API or SQL
§ There is almost always an
option to create text files

6. 6 © Hortonworks Inc. 2011–2018. All rights reserved.

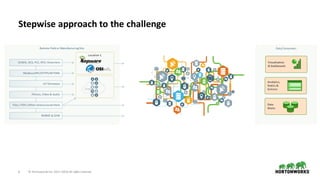

Stepwise approach to the challenge
Remote Field or Manufacturing Site
Location 1
Data Consumers
Data
Marts
Analytics,
Statics &
Science
Visualization
& Dashboards
RDBMS & EDW
Files / PDFs /Other Unstructured Data
Photos, Video & Audio
IoT Gateways
Modbus/OPC/HTTPS/WITSML
SCADA, DCS, PLC, RTU, Historians

7. 7 © Hortonworks Inc. 2011–2018. All rights reserved.
Data lakes address part of the problem
Field or Manufacturing Site
RDBMS & EDW
Files / PDFs /Other Unstructured Data
Photos, Video & Audio
IoT Gateways
Modbus/OPC/HTTPS/WITSML
SCADA, DCS, PLC, RTU, Historians
Location 1
Data Consumers
Data
Marts
Analytics,
Statics &
Science
Visualization
& Dashboards

8. 8 © Hortonworks Inc. 2011–2018. All rights reserved.

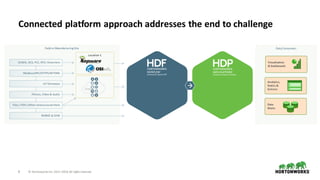

Connected platform approach addresses the end to challenge
Field or Manufacturing Site
Location 1
Data Consumers
Data
Marts
Analytics,
Statics &
Science
Visualization
& Dashboards
RDBMS & EDW
Files / PDFs /Other Unstructured Data
Photos, Video & Audio
IoT Gateways
Modbus/OPC/HTTPS/WITSML
SCADA, DCS, PLC, RTU, Historians

9. 9 © Hortonworks Inc. 2011–2018. All rights reserved.
Deployment Model for The Connected Data Platform
Field or Manufacturing Site Office or Datacenter
Central HDP Cluster
Central HDF Cluster
Location 1
Location n
Data Consumers
Data
Marts
Analytics,
Statics &
Science
Visualization
& Dashboards
RDBMS & EDW
Files / PDFs /Other Unstructured Data
Photos, Video & Audio
IoT Gateways
Modbus/OPC/HTTPS/WITSML
SCADA, DCS, PLC, RTU, Historians

10. 10 © Hortonworks Inc. 2011–2018. All rights reserved.

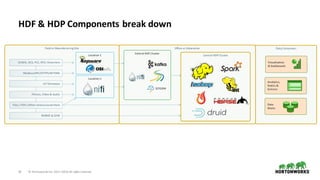

HDF & HDP Components break down
Field or Manufacturing Site Office or Datacenter
Central HDP Cluster
Central HDF Cluster
Location 1
Location n
Data Consumers
Data
Marts
Analytics,
Statics &
Science
Visualization
& Dashboards
RDBMS & EDW
Files / PDFs /Other Unstructured Data
Photos, Video & Audio
IoT Gateways
Modbus/OPC/HTTPS/WITSML
SCADA, DCS, PLC, RTU, Historians

11. 11 © Hortonworks Inc. 2011–2018. All rights reserved.

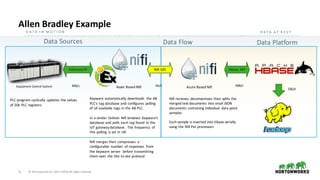

Ethernet/IP Nifi S2S Hbase API
PLC program cyclically updates the values
of 20k PLC registers
Kepware automatically downloads the AB
PLC’s tag database and configures polling
of all available tags in the AB PLC.
In a similar fashion Nifi browses Kepware’s
database and polls each tag found in the
IoT gateway database. The frequency of
this polling is set in nifi
Nifi merges then compresses a
configurable number of responses from
the kepware server before transmitting
them over the Site to site protocol
Nifi recieves, decompresses then splits the
merged text documents into small JSON
documents containing individual data point
samples
Each sample is inserted into Hbase serially
using the Nifi Put processors
kb/sMB/s MB/s
GB/d
Allen Bradley Example
Azure Based NifiAsset Based NifiEquipment Control System
D A T A I N M O T I O N D A T A A T R E S T
Data Sources Data Flow Data Platform

12. 12 © Hortonworks Inc. 2011–2018. All rights reserved.

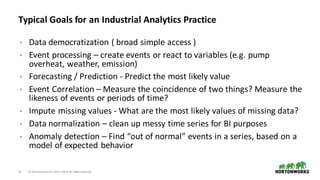

Typical Goals for an Industrial Analytics Practice
• Data democratization ( broad simple access )
• Event processing – create events or react to variables (e.g. pump
overheat, weather, emission)
• Forecasting / Prediction - Predict the most likely value
• Event Correlation – Measure the coincidence of two things? Measure the
likeness of events or periods of time?
• Impute missing values - What are the most likely values of missing data?
• Data normalization – clean up messy time series for BI purposes
• Anomaly detection – Find “out of normal” events in a series, based on a
model of expected behavior

13. 13 © Hortonworks Inc. 2011–2018. All rights reserved.
Questions? How can we
help you get started?
