HOW TO BUILD REAL-TIME STREAMING
ANALYTICS WITH AN IN-MEMORY, SCALE-OUT
SQL DATABASE
Ryan Betts, CTO
VoltDB
1

2. page© 2015 VoltDB PROPRIETARY
OUR SPEAKER
Ryan Betts
CTO at VoltDB
2

3. page
© 2015 VoltDB PROPRIETARY
page

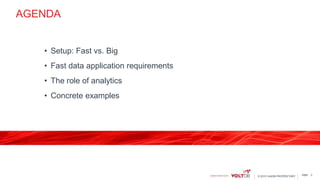

AGENDA
• Setup: Fast vs. Big
• Fast data application requirements
• The role of analytics
• Concrete examples
3

4. page© 2015 VoltDB PROPRIETARY

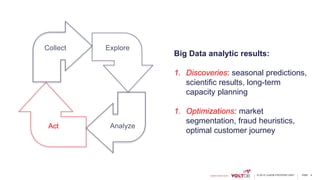

Collect Explore
AnalyzeAct
4
Big Data analytic results:
1. Discoveries: seasonal predictions,
scientific results, long-term
capacity planning
1. Optimizations: market
segmentation, fraud heuristics,
optimal customer journey

5. page© 2015 VoltDB PROPRIETARYEnterprise Apps
ETL
CRM ERP Etc.
Data Lake (HDFS)
BIG DATA
Non Relational
Processing
BI Reporting
Fast Operational
Database
FAST DATA
Export
Ingest /
Interactive
Real-time
Analytics
Fast Serve
Analytics
Decisioning
Data Warehouse
Columnar
Analytics OLAP
DATA ARCHITECTURE FOR FAST + BIG DATA

6. page© 2015 VoltDB PROPRIETARY 6

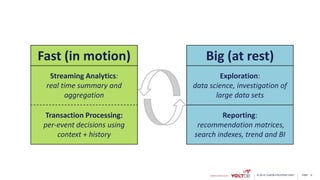

Fast (in motion)
Streaming Analytics:
real time summary and
aggregation
Transaction Processing:
per-event decisions using
context + history
Big (at rest)
Exploration:
data science, investigation of
large data sets
Reporting:
recommendation matrices,
search indexes, trend and BI

7. page© 2015 VoltDB PROPRIETARY
MODERN OLTP
7
1. Processing streams requires integrated access to state.
2. Using real time analytics requires a query interface.
3. Reacting to incoming events requires transactions.
State + Query + Transactions = OLTP
Fast
Streaming Analytics
Transaction Processing

8. page© 2015 VoltDB PROPRIETARY 8

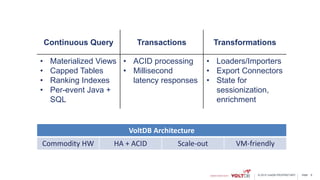

Continuous Query Transactions Transformations
• Materialized Views
• Capped Tables
• Ranking Indexes
• Per-event Java +
SQL
• ACID processing
• Millisecond
latency responses
• Loaders/Importers
• Export Connectors
• State for
sessionization,
enrichment
VoltDB Architecture
Commodity HW HA + ACID Scale-out VM-friendly

9. page© 2015 VoltDB PROPRIETARY

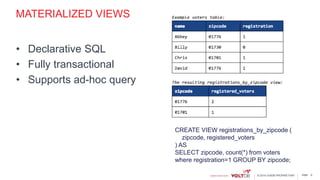

MATERIALIZED VIEWS
• Declarative SQL
• Fully transactional
• Supports ad-hoc query
9
CREATE VIEW registrations_by_zipcode (
zipcode, registered_voters
) AS
SELECT zipcode, count(*) from voters
where registration=1 GROUP BY zipcode;

10. page© 2015 VoltDB PROPRIETARY

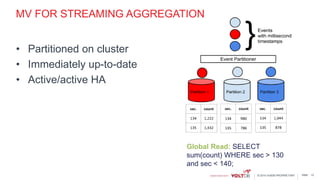

MV FOR STREAMING AGGREGATION
• Partitioned on cluster
• Immediately up-to-date
• Active/active HA
10
Global Read: SELECT
sum(count) WHERE sec > 130
and sec < 140;

11. page© 2015 VoltDB PROPRIETARY

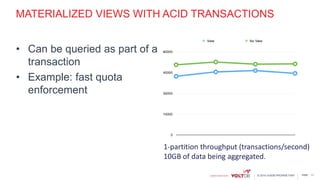

MATERIALIZED VIEWS WITH ACID TRANSACTIONS
• Can be queried as part of a
transaction
• Example: fast quota
enforcement
11
1-partition throughput (transactions/second)
10GB of data being aggregated.

12. page© 2015 VoltDB PROPRIETARY

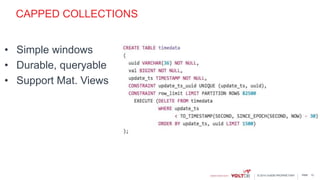

CAPPED COLLECTIONS
• Simple windows
• Durable, queryable
• Support Mat. Views
12

13. page© 2015 VoltDB PROPRIETARY

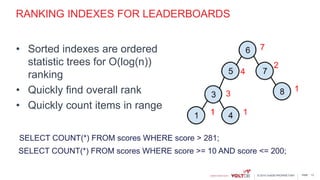

RANKING INDEXES FOR LEADERBOARDS
• Sorted indexes are ordered
statistic trees for O(log(n))
ranking
• Quickly find overall rank
• Quickly count items in range
13
SELECT COUNT(*) FROM scores WHERE score > 281;
SELECT COUNT(*) FROM scores WHERE score >= 10 AND score <= 200;

14. page© 2015 VoltDB PROPRIETARY

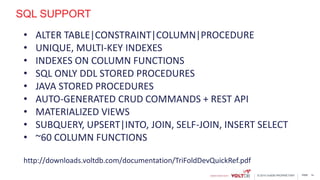

SQL SUPPORT
14
http://downloads.voltdb.com/documentation/TriFoldDevQuickRef.pdf
• ALTER TABLE|CONSTRAINT|COLUMN|PROCEDURE
• UNIQUE, MULTI-KEY INDEXES
• INDEXES ON COLUMN FUNCTIONS
• SQL ONLY DDL STORED PROCEDURES
• JAVA STORED PROCEDURES
• AUTO-GENERATED CRUD COMMANDS + REST API
• MATERIALIZED VIEWS
• SUBQUERY, UPSERT|INTO, JOIN, SELF-JOIN, INSERT SELECT
• ~60 COLUMN FUNCTIONS

15. page© 2015 VoltDB PROPRIETARY

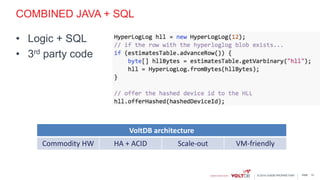

COMBINED JAVA + SQL
• Logic + SQL
• 3rd party code
15
VoltDB architecture
Commodity HW HA + ACID Scale-out VM-friendly

16. page© 2015 VoltDB PROPRIETARY

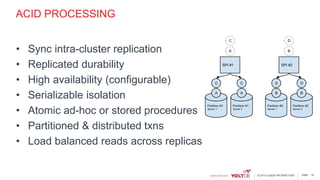

ACID PROCESSING
• Sync intra-cluster replication
• Replicated durability
• High availability (configurable)
• Serializable isolation
• Atomic ad-hoc or stored procedures
• Partitioned & distributed txns
• Load balanced reads across replicas
16

17. page© 2015 VoltDB PROPRIETARY

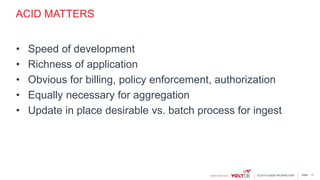

ACID MATTERS
• Speed of development
• Richness of application
• Obvious for billing, policy enforcement, authorization
• Equally necessary for aggregation
• Update in place desirable vs. batch process for ingest
17

18. page© 2015 VoltDB PROPRIETARY

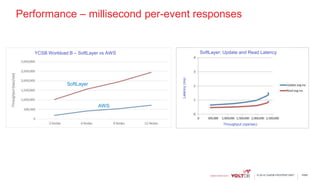

Performance – millisecond per-event responses
SoftLayer: Update and Read Latency
Latency(ms)
Throughput (ops/sec)
SoftLayer
AWS
YCSB Workload B – SoftLayer vs AWS

19. page© 2015 VoltDB PROPRIETARY

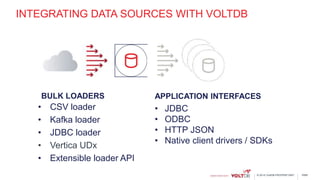

INTEGRATING DATA SOURCES WITH VOLTDB
• CSV loader
• Kafka loader
• JDBC loader
• Vertica UDx
• Extensible loader API
• JDBC
• ODBC
• HTTP JSON
• Native client drivers / SDKs
BULK LOADERS APPLICATION INTERFACES

20. page© 2015 VoltDB PROPRIETARY

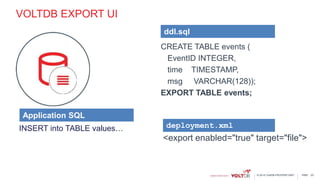

VOLTDB EXPORT UI
CREATE TABLE events (
EventID INTEGER,
time TIMESTAMP,
msg VARCHAR(128));
EXPORT TABLE events;
20
<export enabled="true" target="file">
ddl.sql
deployment.xmlINSERT into TABLE values…
Application SQL

21. page© 2015 VoltDB PROPRIETARY

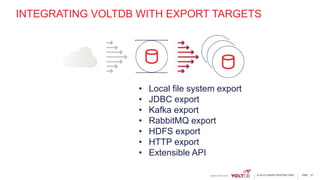

INTEGRATING VOLTDB WITH EXPORT TARGETS
21
• Local file system export
• JDBC export
• Kafka export
• RabbitMQ export
• HDFS export
• HTTP export
• Extensible API

22. page© 2015 VoltDB PROPRIETARY

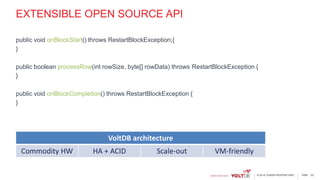

EXTENSIBLE OPEN SOURCE API
22
public void onBlockStart() throws RestartBlockException;{
}
public boolean processRow(int rowSize, byte[] rowData) throws RestartBlockException {
}
public void onBlockCompletion() throws RestartBlockException {
}
VoltDB architecture
Commodity HW HA + ACID Scale-out VM-friendly

23. page© 2015 VoltDB PROPRIETARY

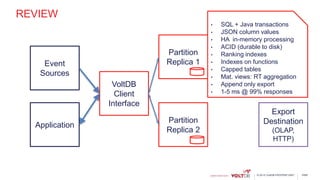

REVIEW
Application
Event
Sources
VoltDB
Client
Interface
Partition
Replica 1
Partition
Replica 2
Export
Destination
(OLAP,
HTTP)
• SQL + Java transactions
• JSON column values
• HA in-memory processing
• ACID (durable to disk)
• Ranking indexes
• Indexes on functions
• Capped tables
• Mat. views: RT aggregation
• Append only export
• 1-5 ms @ 99% responses

24. page© 2015 VoltDB PROPRIETARY

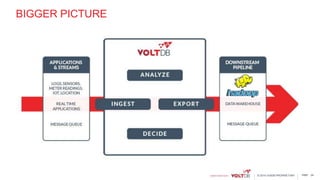

BIGGER PICTURE
24

25. page© 2015 VoltDB PROPRIETARY 25

26. page© 2015 VoltDB PROPRIETARY

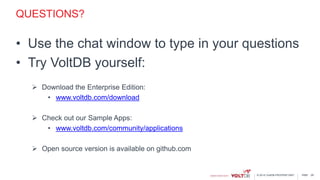

QUESTIONS?
• Use the chat window to type in your questions
• Try VoltDB yourself:
 Download the Enterprise Edition:
• www.voltdb.com/download
 Check out our Sample Apps:
• www.voltdb.com/community/applications
 Open source version is available on github.com
26
