The document discusses Virtual Design and Construction (VDC) as a method for simulating the architecture and assembly of building projects, aiming to reduce risks, improve efficiency, and control costs. It outlines the advantages of using VDC such as enhanced project planning, clash resolution, and accurate quantity take-offs, along with case studies demonstrating its effectiveness. The adoption of VDC and Building Information Modeling (BIM) is highlighted across various sectors, emphasizing a shift towards more transparent and efficient processes in construction.

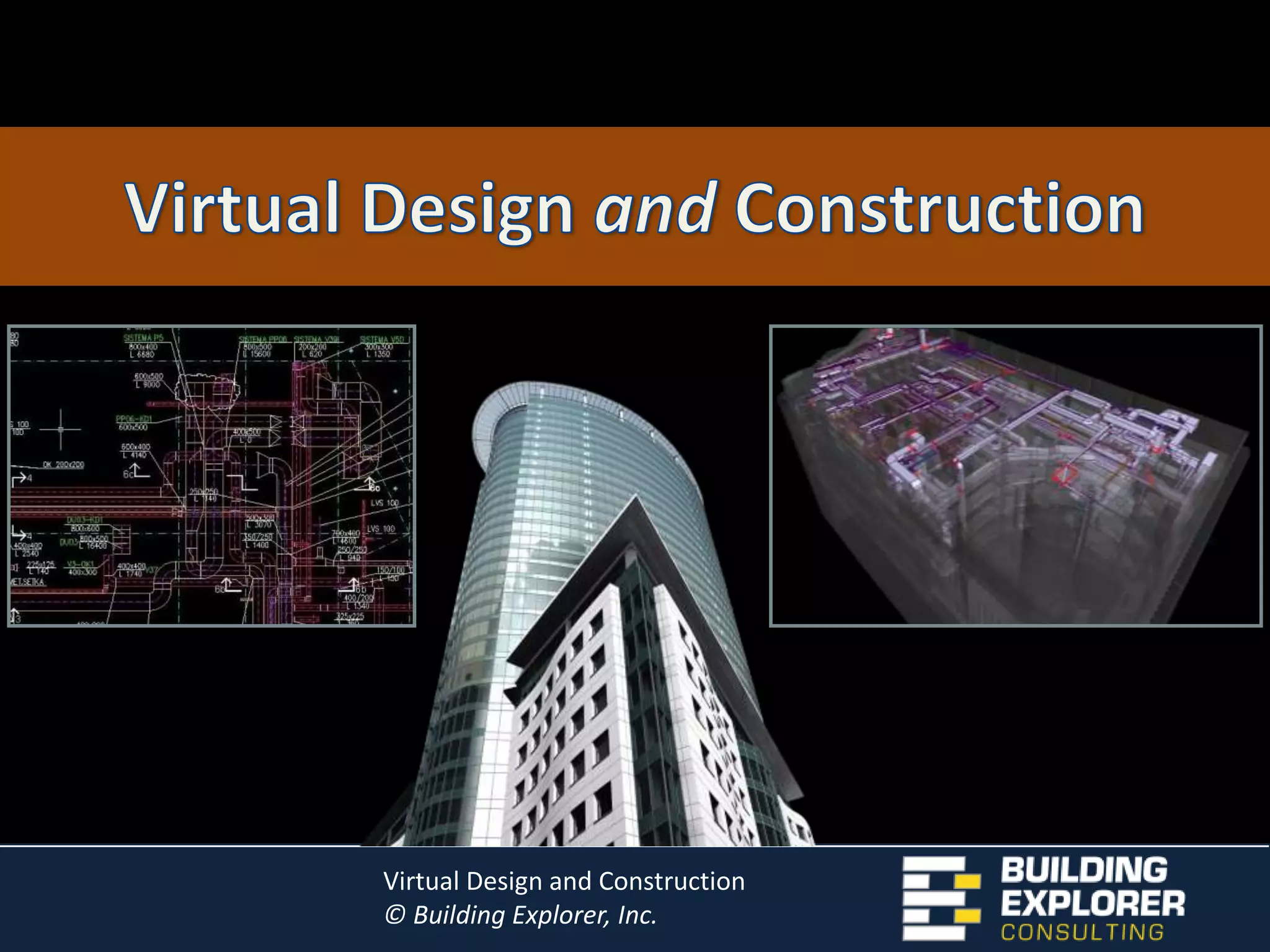

1. Virtual Design and Construction

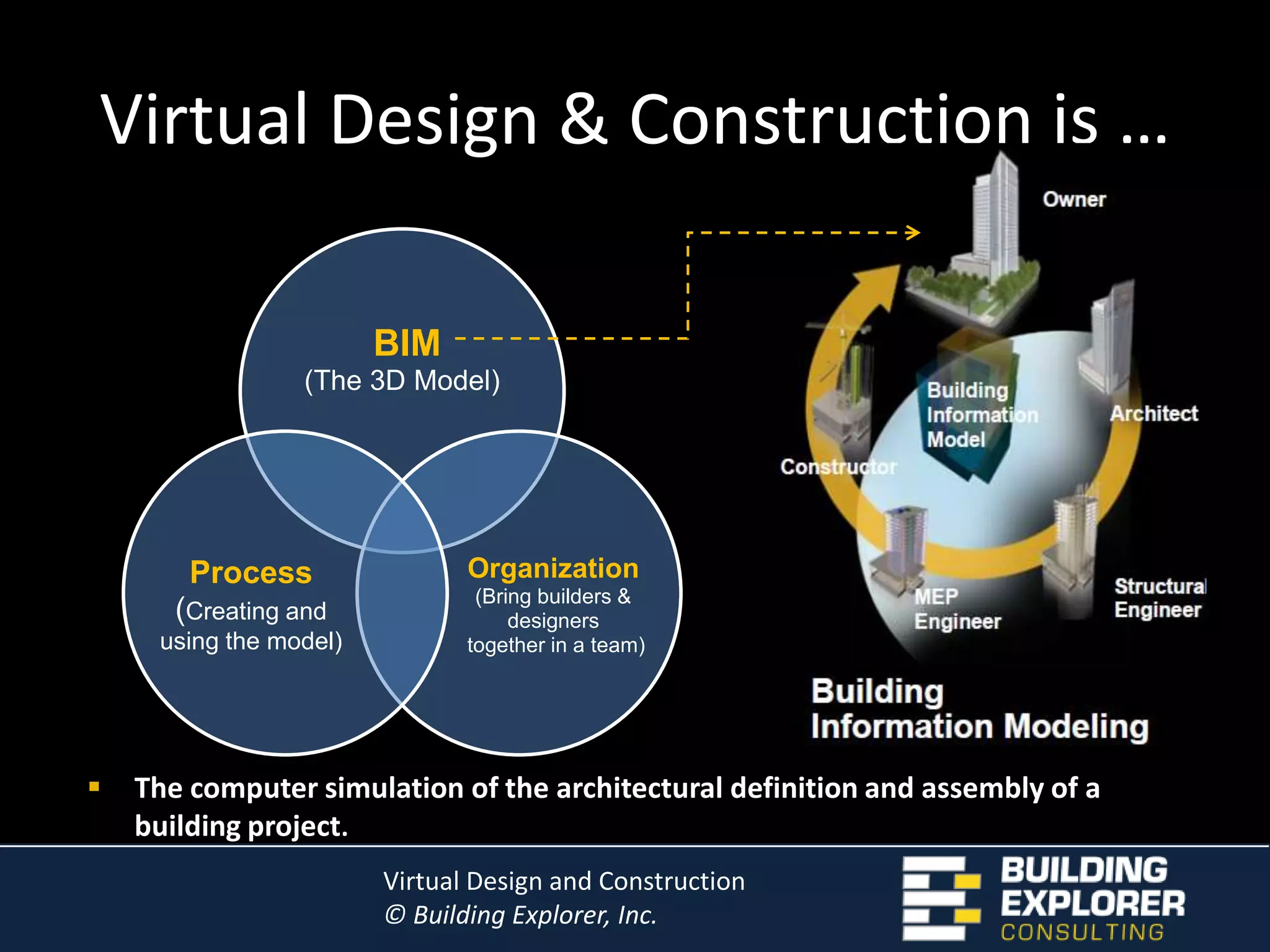

2. Virtual Design & Construction is …The computer simulation of the architectural definition and assembly of a building project. Virtual Design andConstructionBuild Prototype(s) and Analyze Best OptionBuild and ANALYZE a virtual model TWO…THREE times – Reduce project RISKPredict possible Logistical CONFLICTSBUILD Cheaper, Faster, Smarter

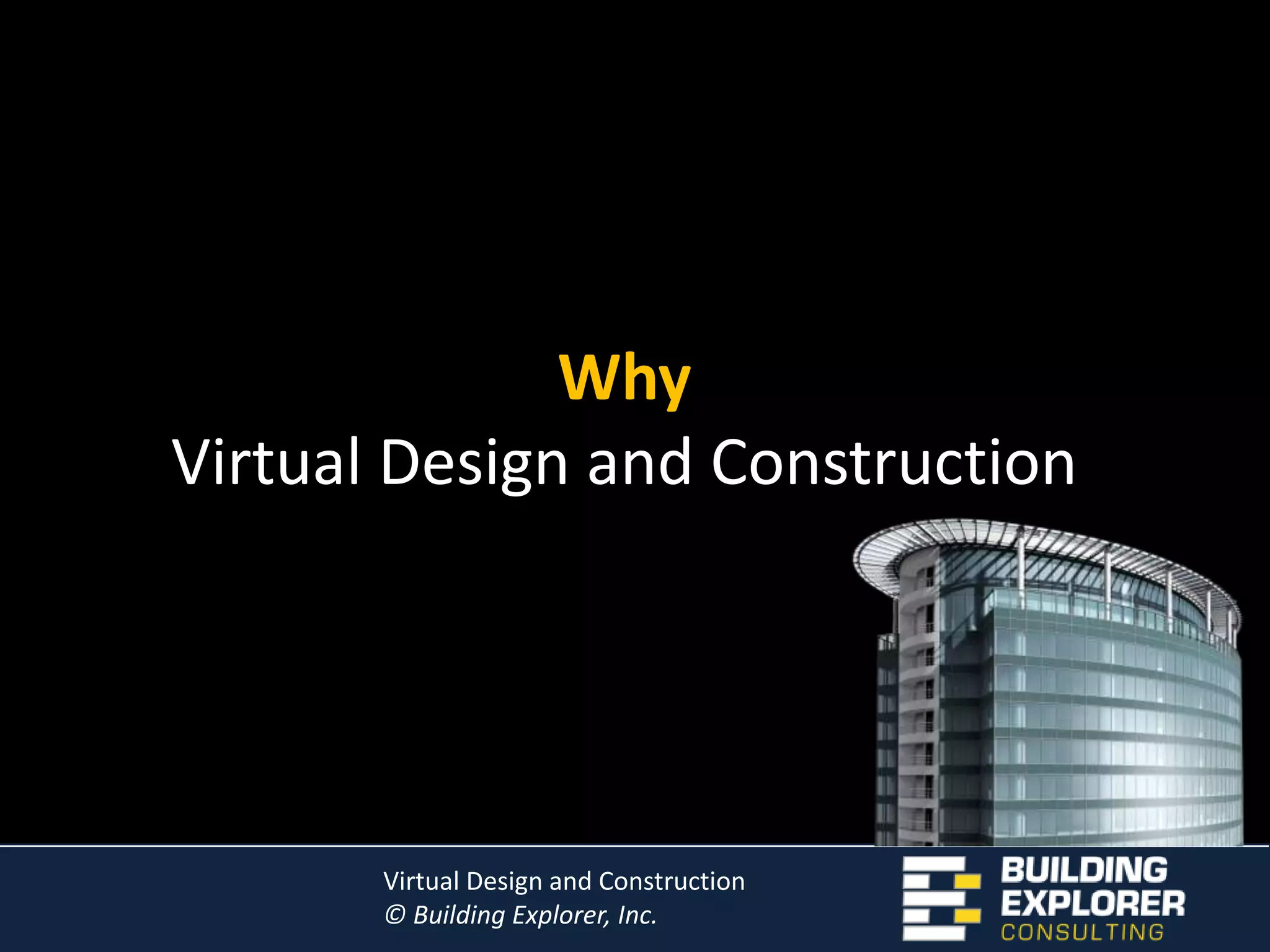

3. WhyVirtual Design and Construction

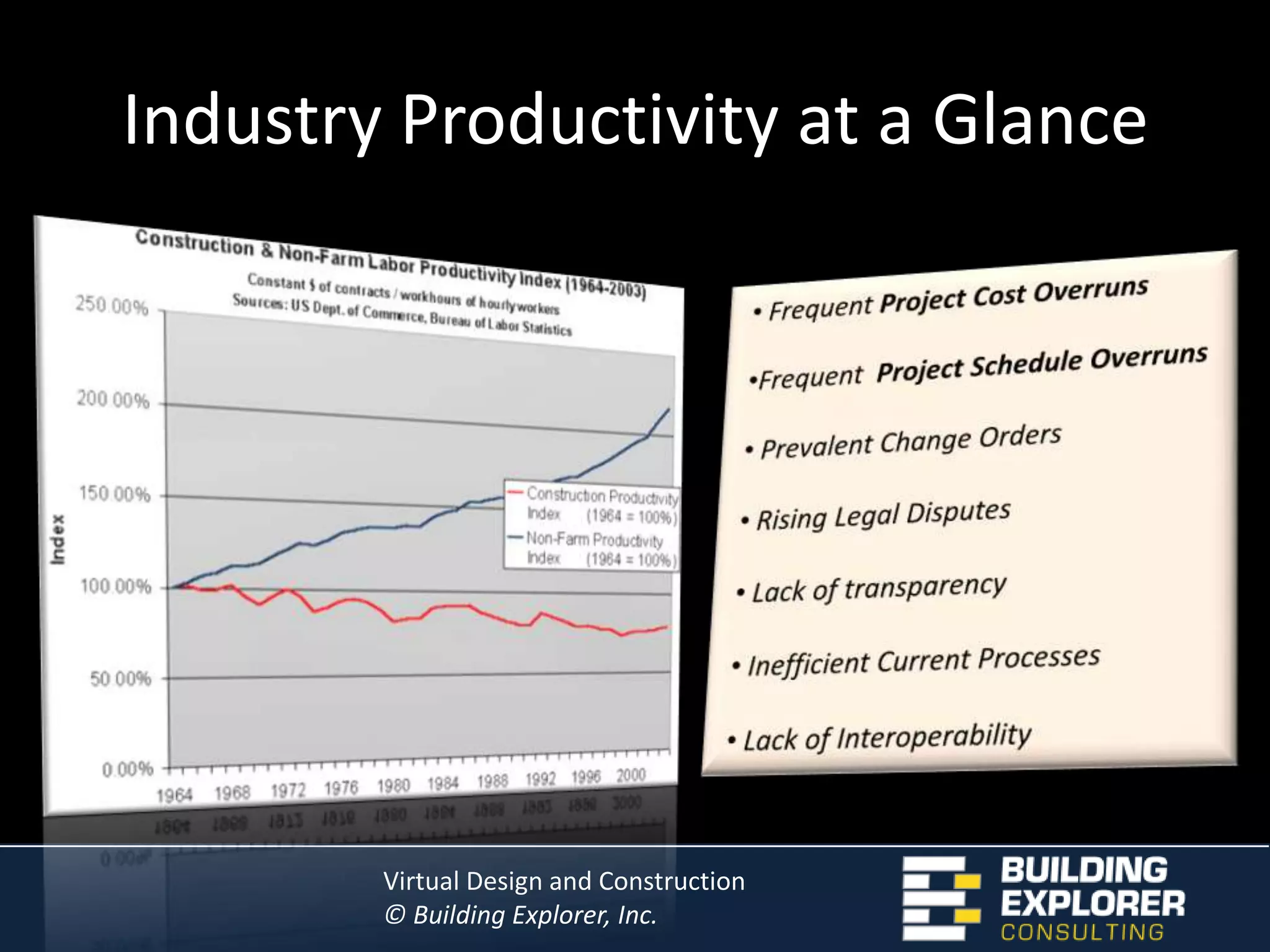

4. Industry Productivity at a Glance Frequent Project Cost Overruns

5. Frequent Project Schedule Overruns

6. Prevalent Change Orders

7. Rising Legal Disputes

8. Lack of transparency

9. Inefficient Current Processes

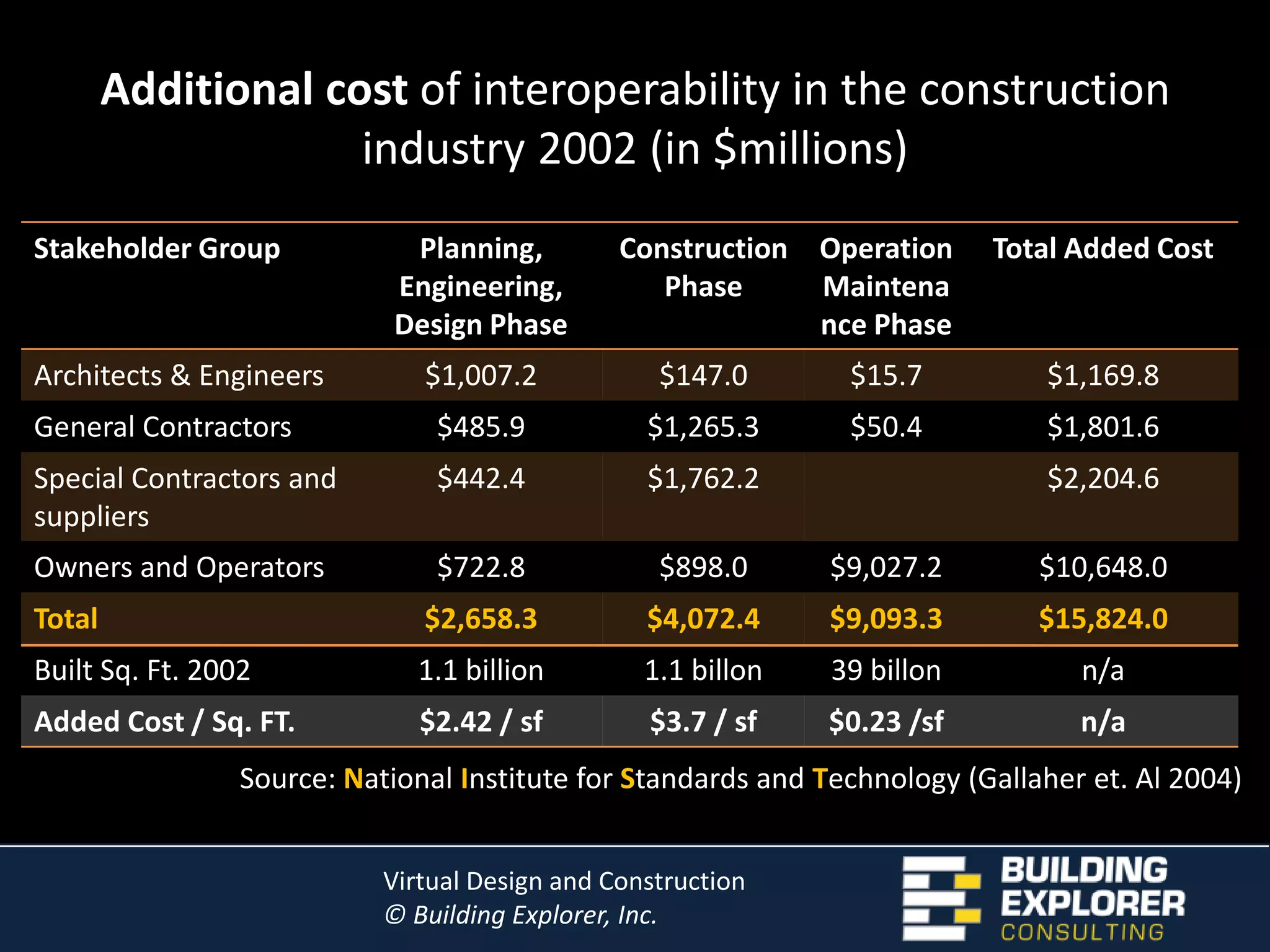

10. Lack of Interoperability Additional cost of interoperability in the construction industry 2002 (in $millions)Source: NationalInstitute for Standards and Technology (Gallaher et. Al 2004)

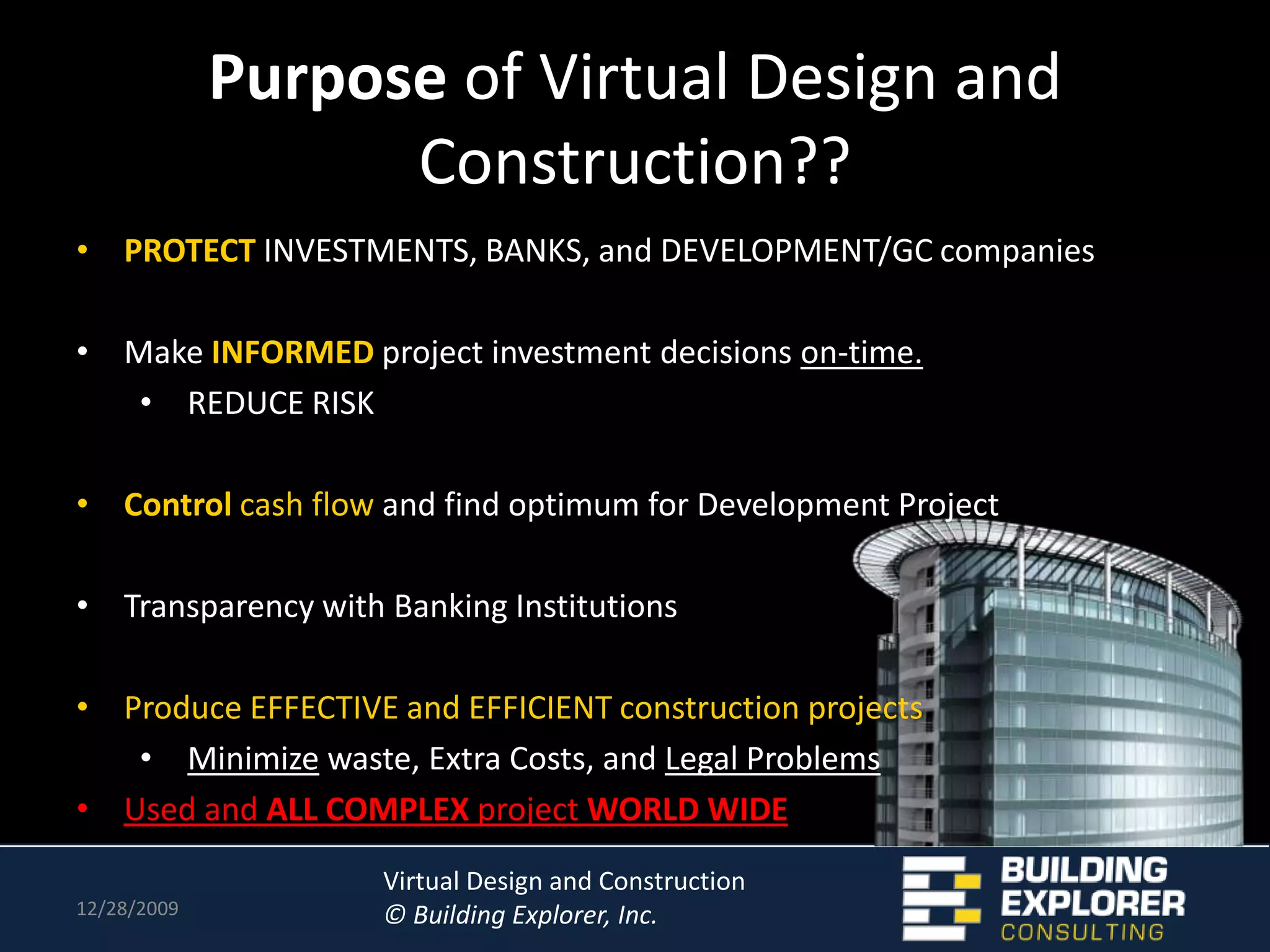

11. Purpose of Virtual Design and Construction??10/28/2009PROTECT INVESTMENTS, BANKS, and DEVELOPMENT/GC companies

12. Make INFORMED project investment decisions on-time.

13. REDUCE RISK

14. Control cash flow and find optimum for Development Project

15. Transparency with Banking Institutions

16. Produce EFFECTIVE and EFFICIENT construction projects

17. Minimize waste, Extra Costs, and Legal Problems

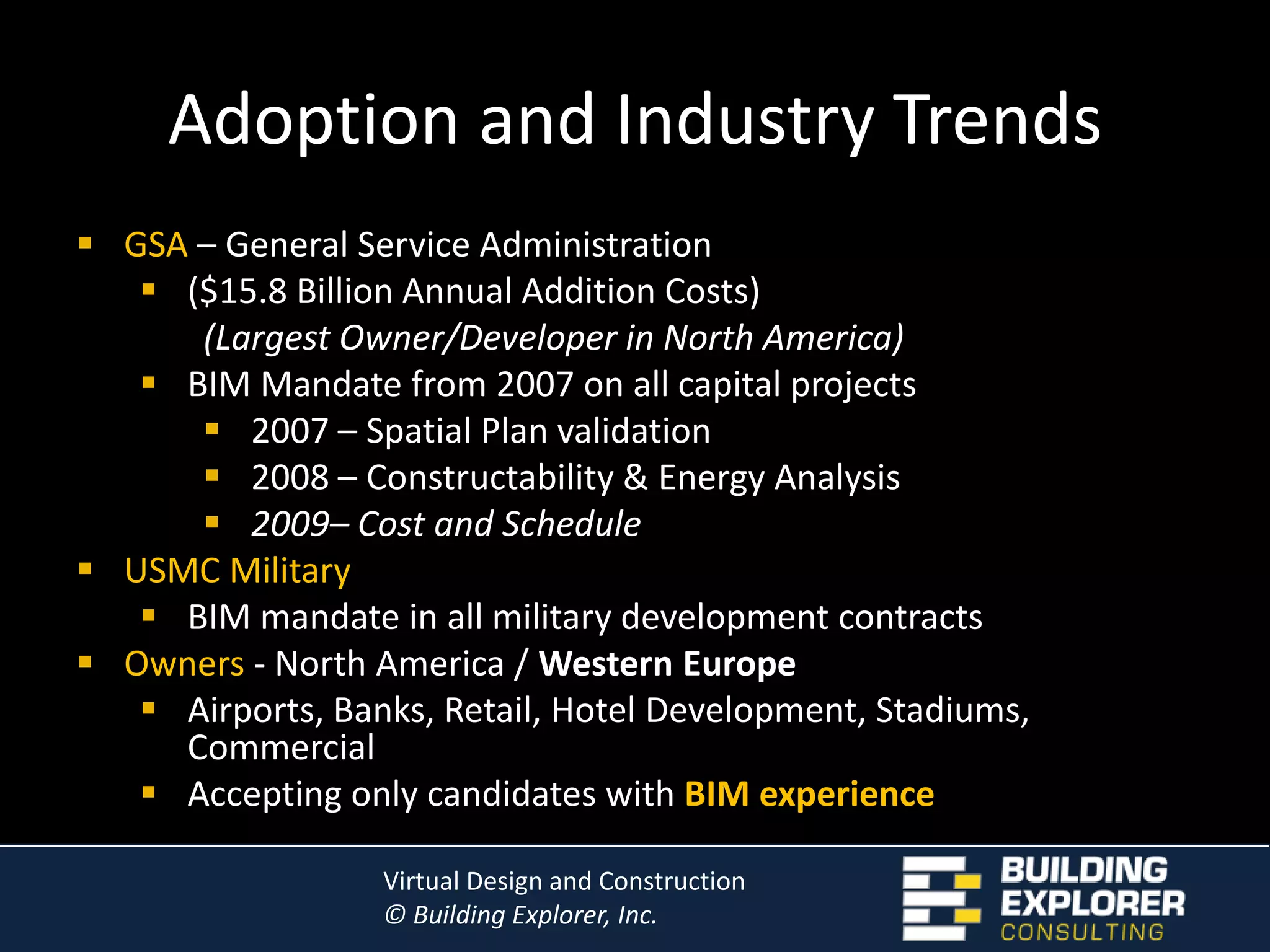

18. Used and ALL COMPLEX project WORLD WIDEAdoption and Industry TrendsGSA – General Service Administration

19. ($15.8 Billion Annual Addition Costs)(Largest Owner/Developer in North America)BIM Mandate from 2007 on all capital projects

20. 2007 – Spatial Plan validation

21. 2008 – Constructability & Energy Analysis

22. 2009– Cost and Schedule

23. USMC Military

24. BIM mandate in all military development contracts

25. Owners - North America / Western Europe

26. Airports, Banks, Retail, Hotel Development, Stadiums, Commercial

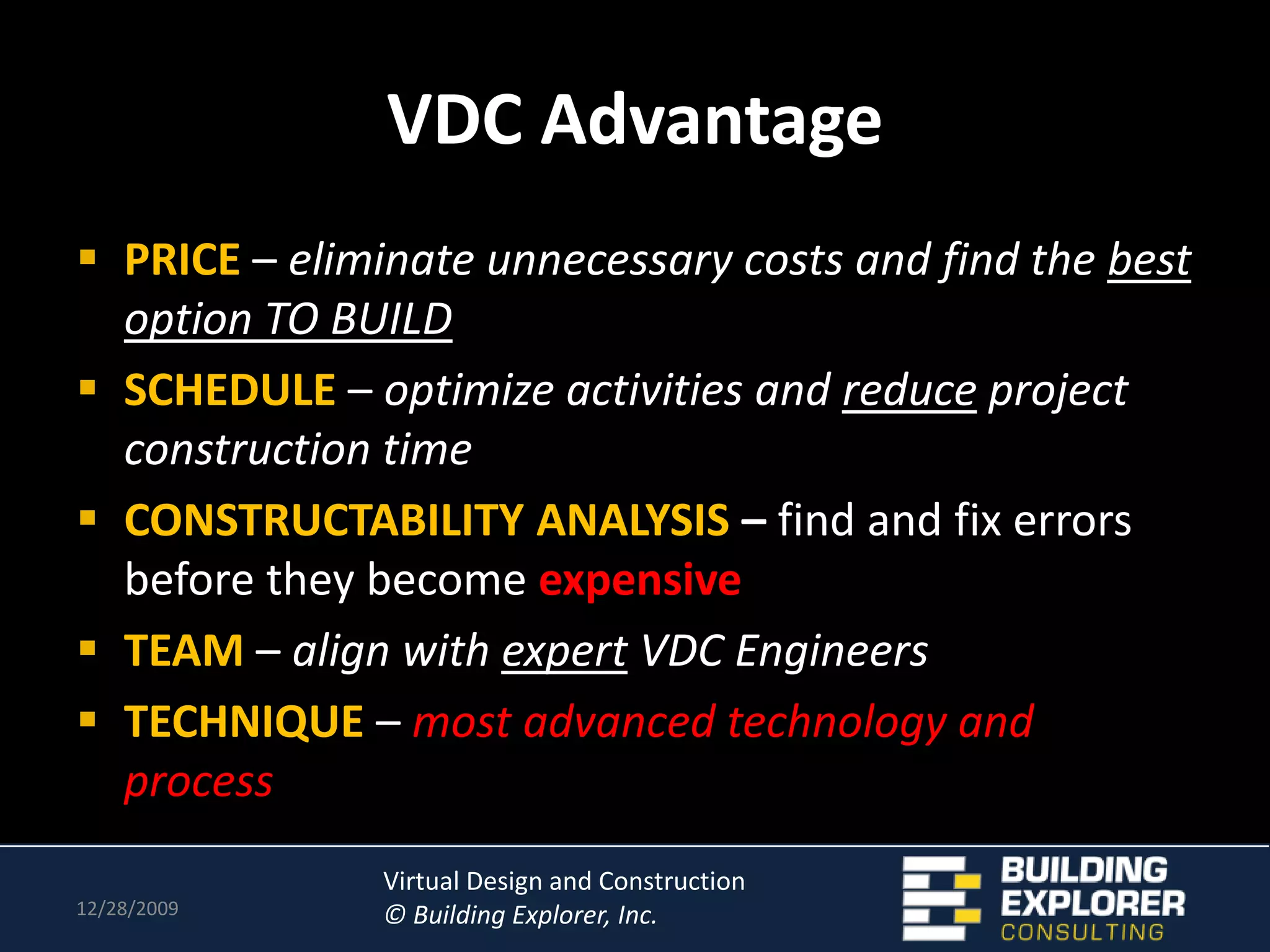

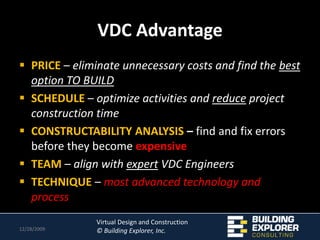

27. Accepting only candidates with BIM experienceVDC AdvantagePRICE – eliminate unnecessary costs and find the best option TO BUILDSCHEDULE – optimize activities and reduce project construction timeCONSTRUCTABILITY ANALYSIS – find and fix errors before they become expensiveTEAM – align with expert VDC EngineersTECHNIQUE – most advanced technology and process10/28/2009

28. VDC/BIM Case Study CONCEPTUAL ANALYSIS

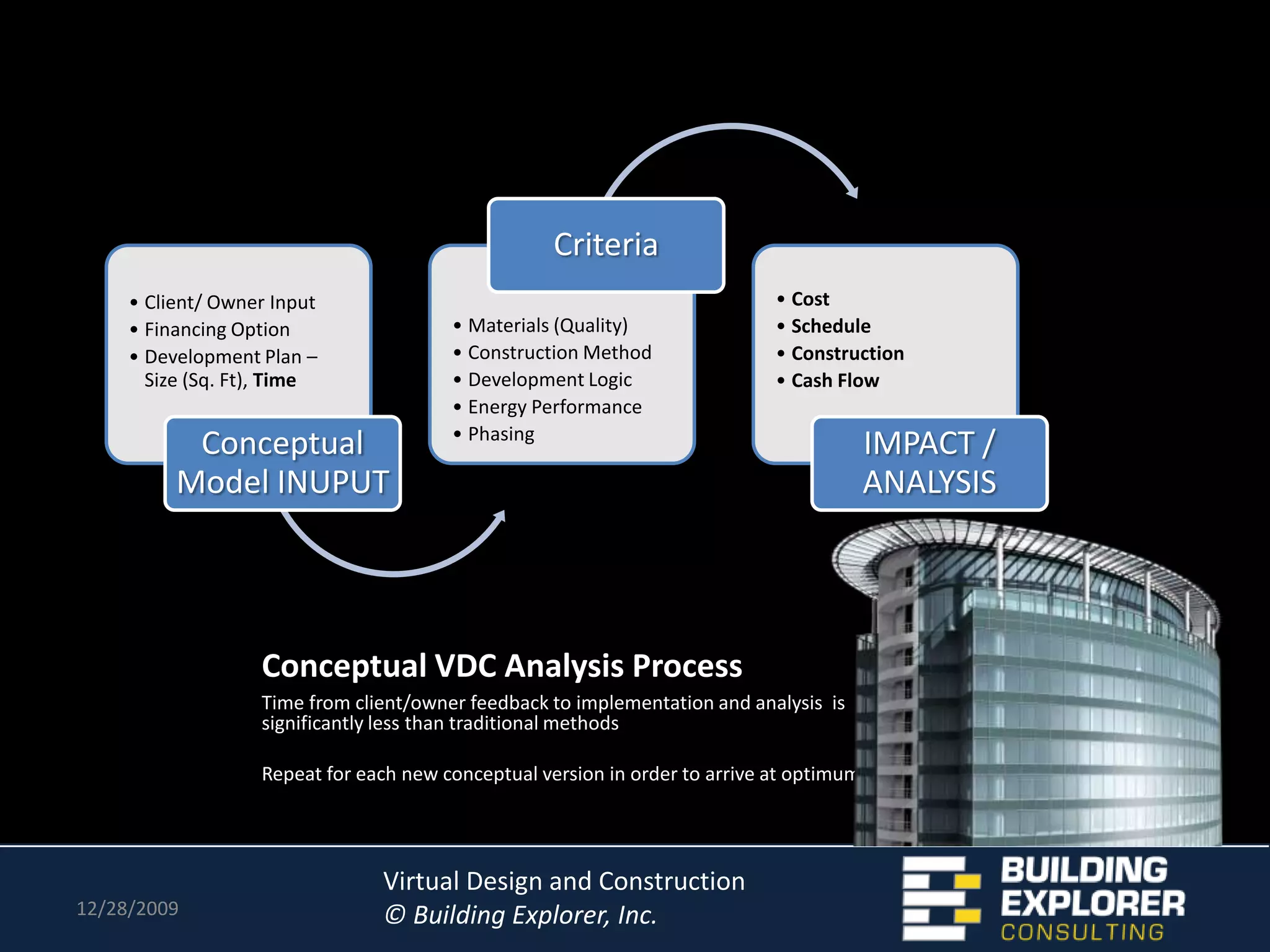

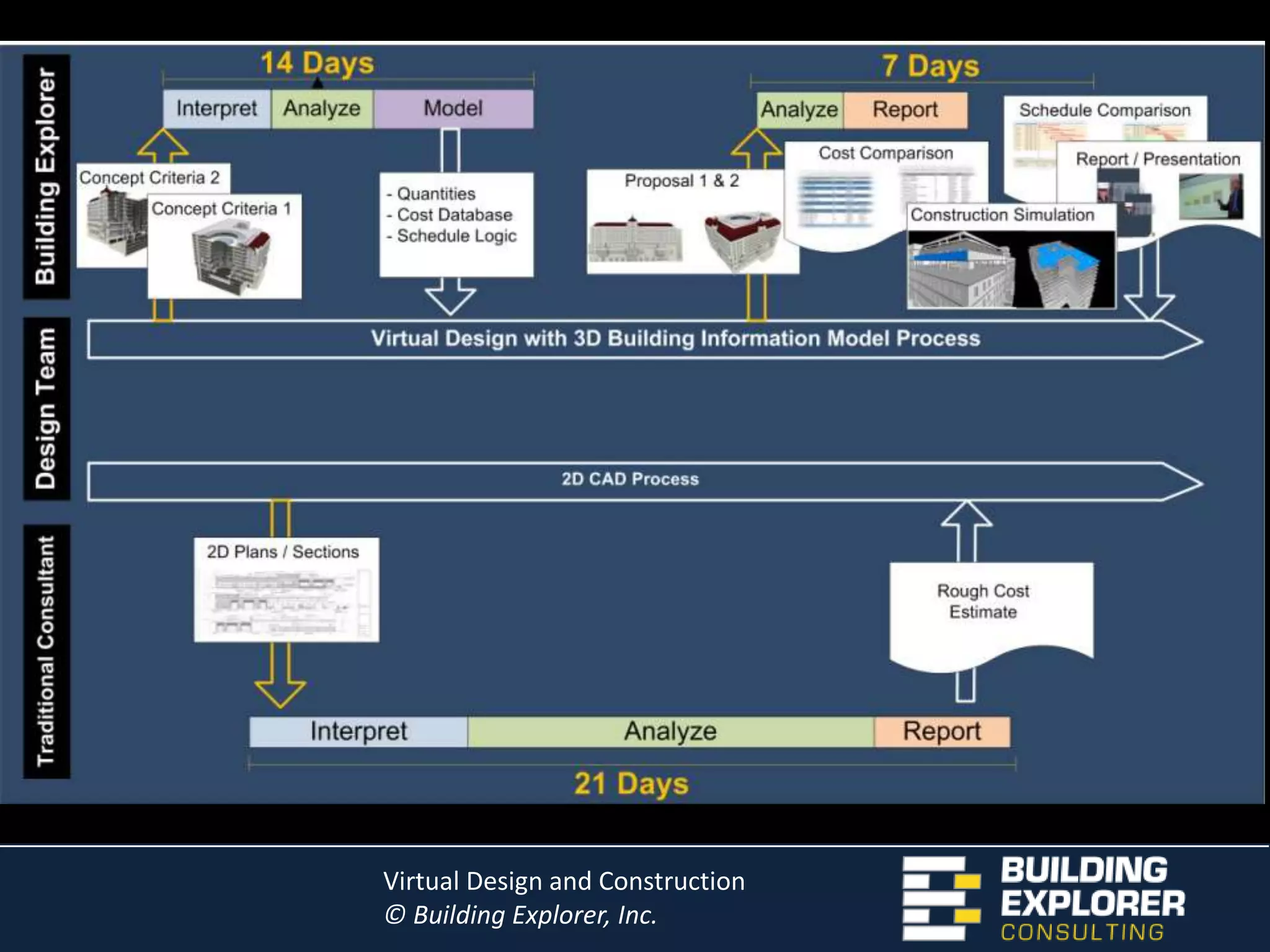

29. Conceptual VDC Analysis Process10/28/2009Time from client/owner feedback to implementation and analysis is significantly less than traditional methodsRepeat for each new conceptual version in order to arrive at optimum.

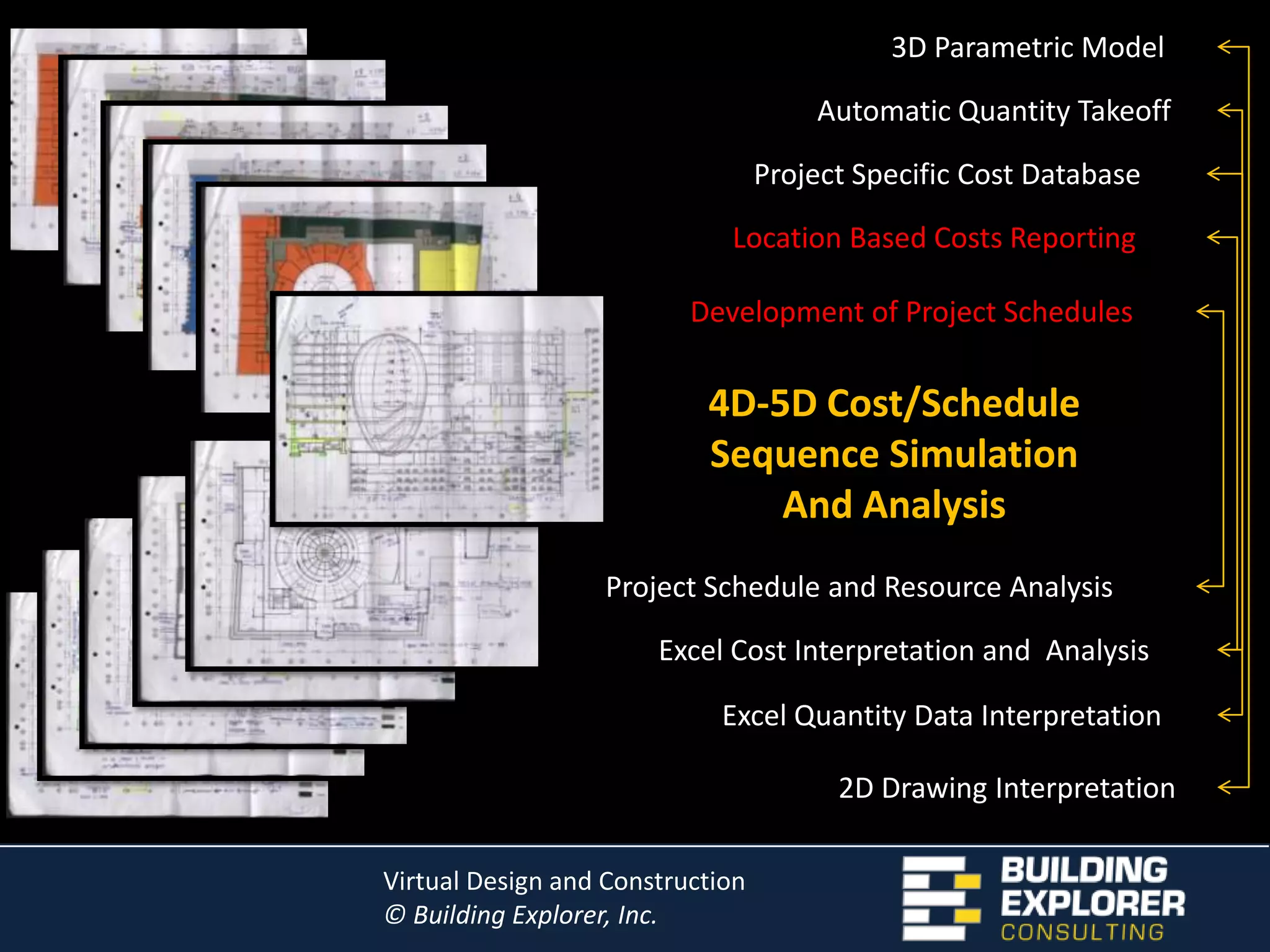

30. 3D Parametric ModelAutomatic Quantity TakeoffProject Specific Cost DatabaseLocation Based Costs ReportingDevelopment of Project Schedules4D-5D Cost/Schedule Sequence Simulation And AnalysisProject Schedule and Resource AnalysisExcel Cost Interpretation and AnalysisExcel Quantity Data Interpretation2D Drawing Interpretation

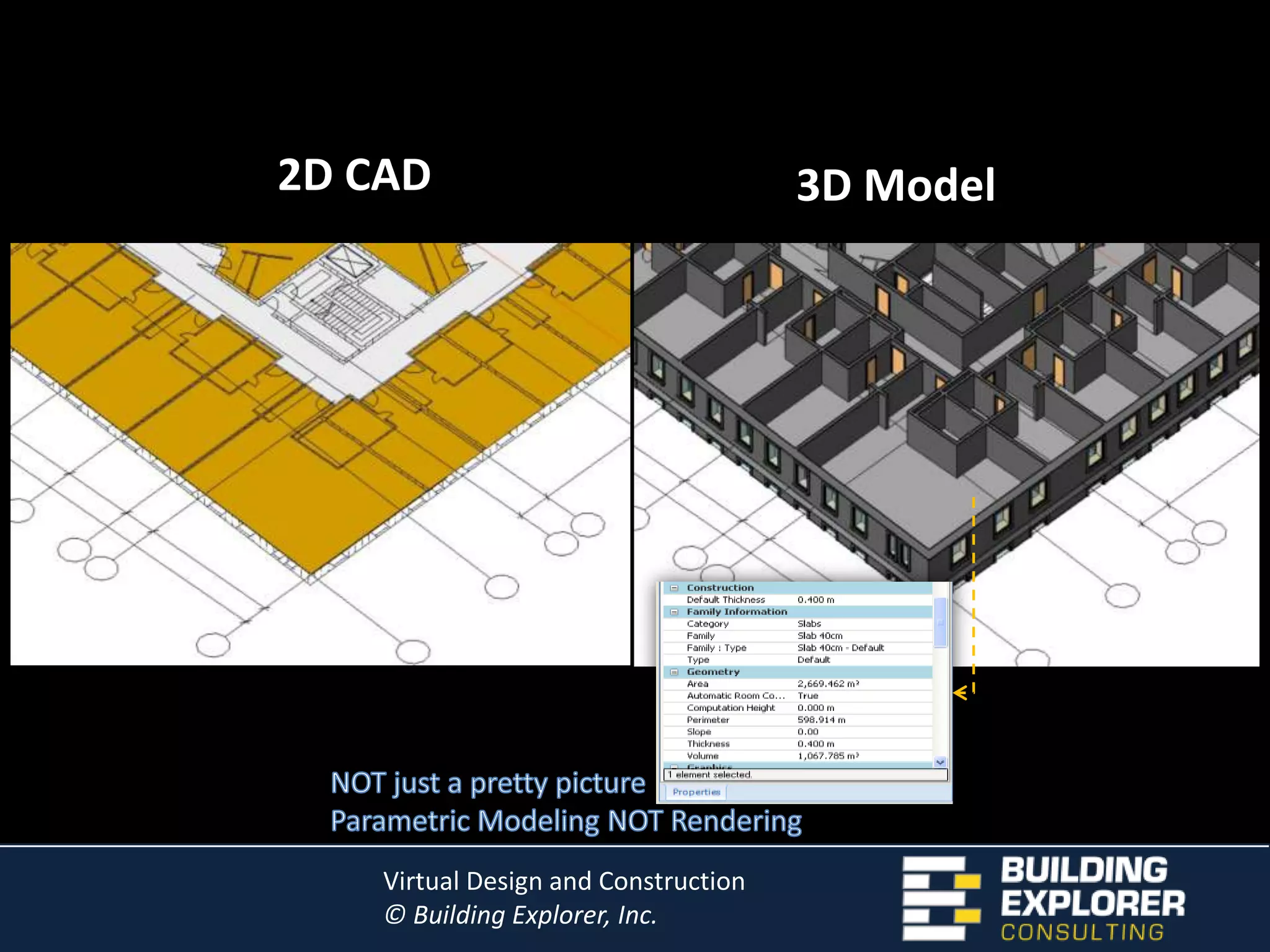

31. 2D CAD3D ModelNOT just a pretty pictureParametric Modeling NOT Rendering

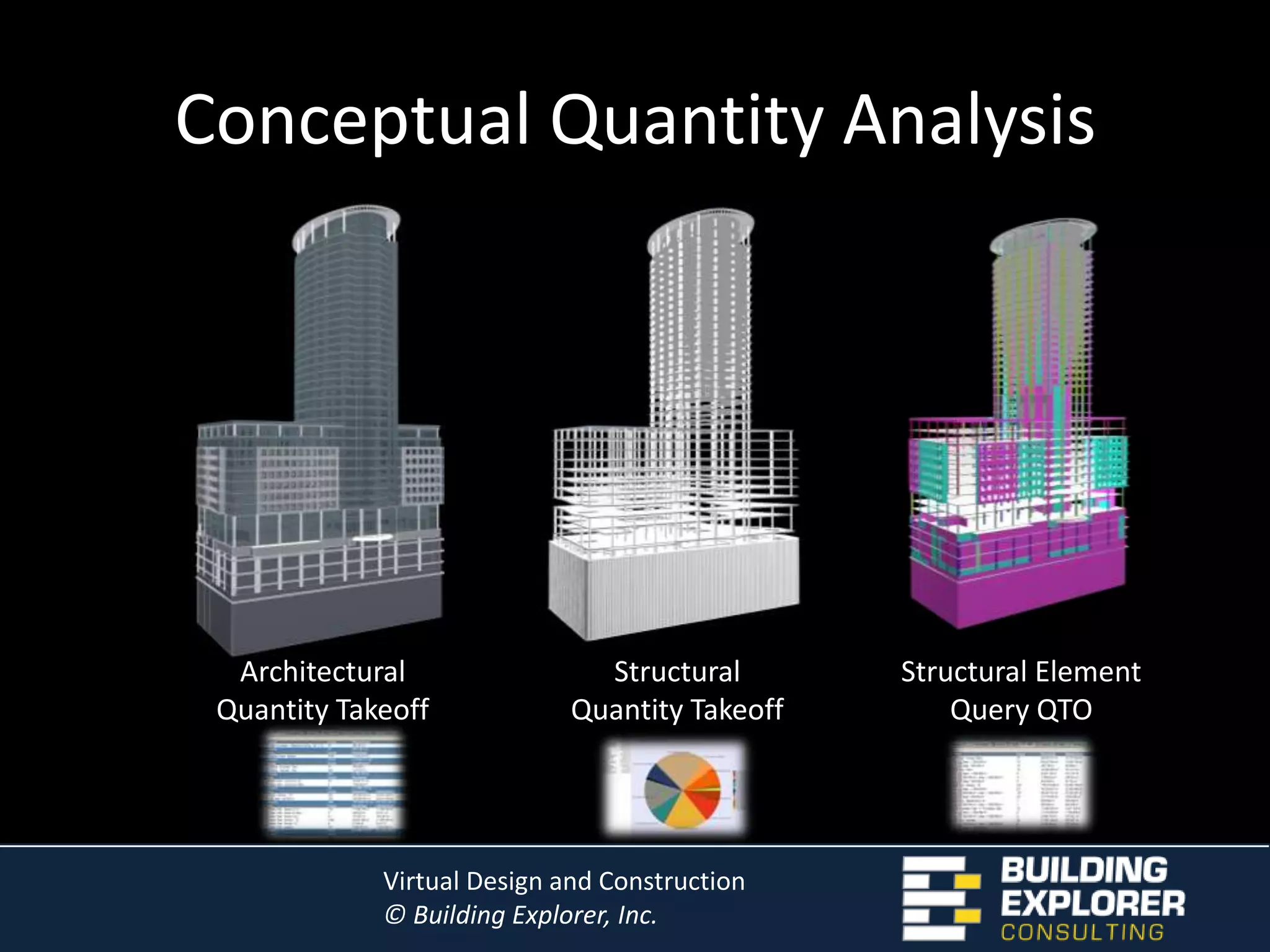

32. Conceptual Quantity AnalysisArchitecturalQuantity TakeoffStructuralQuantity TakeoffStructural Element Query QTO

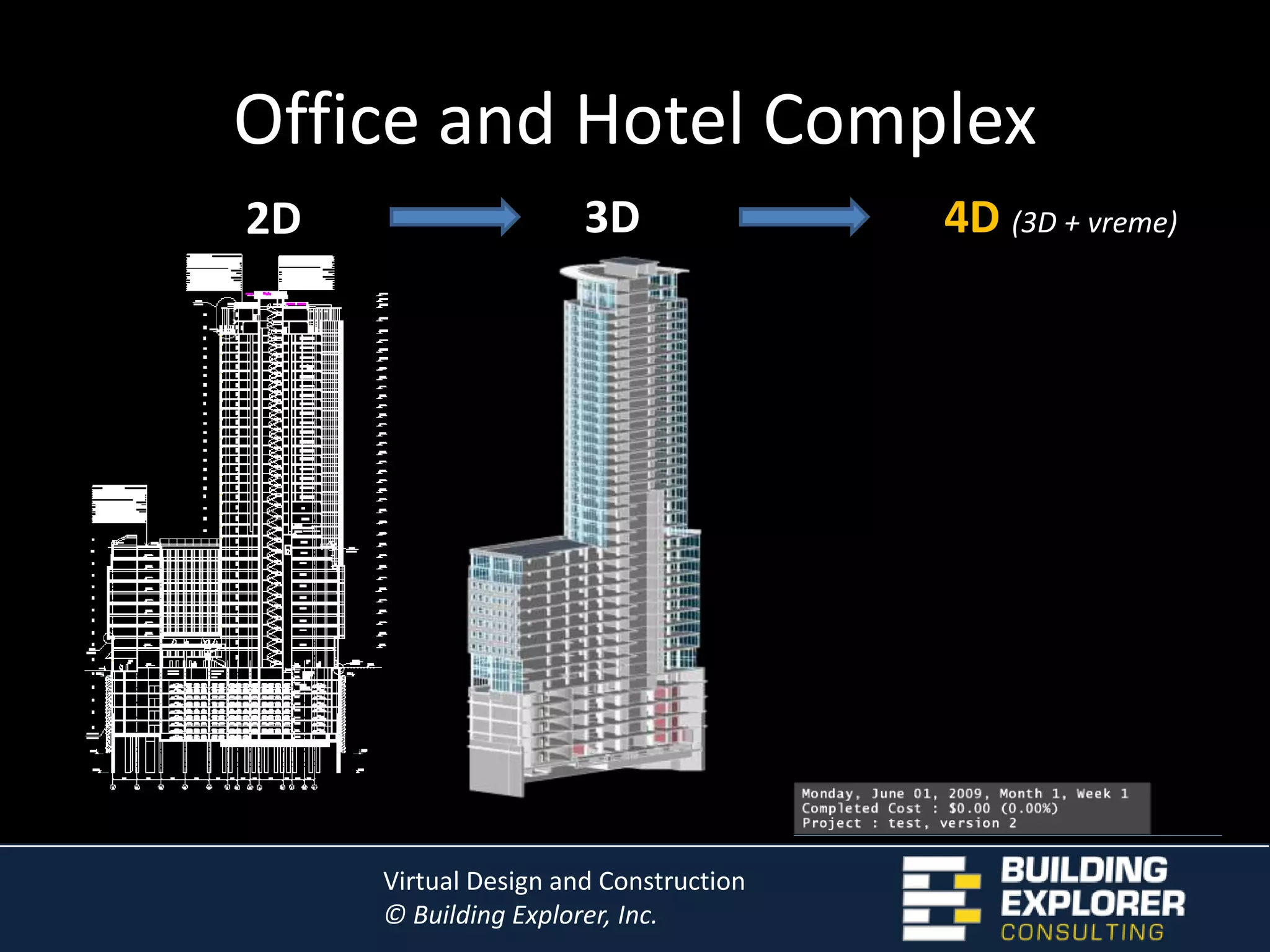

33. Office and Hotel Complex3D 4D(3D + vreme) 2D

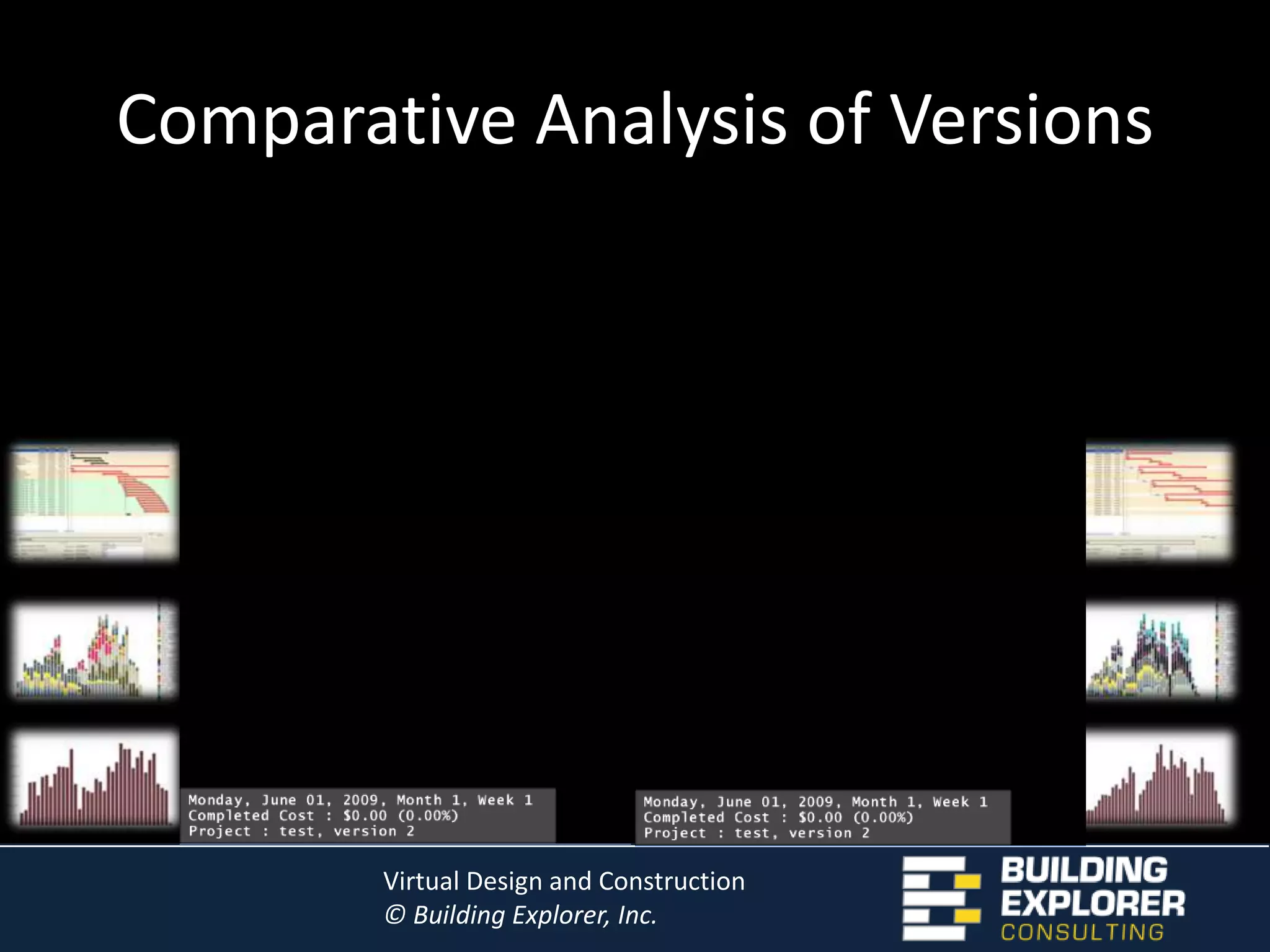

35. Comparative Analysis of Versions

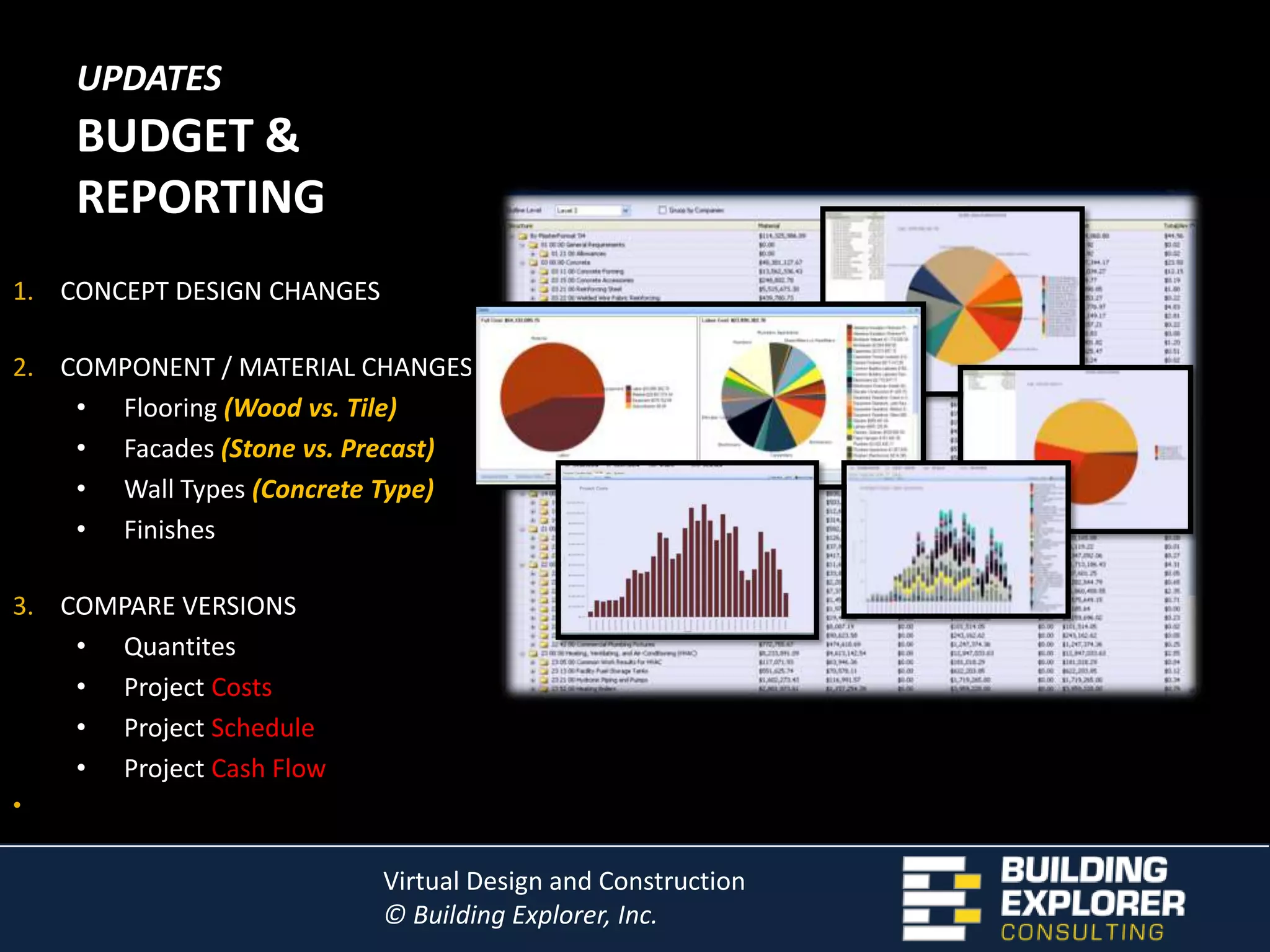

36. UPDATESBUDGET & REPORTINGCONCEPT DESIGN CHANGESCOMPONENT / MATERIAL CHANGESFlooring (Wood vs. Tile)

37. Facades (Stone vs. Precast)

38. Wall Types (Concrete Type)

39. FinishesCOMPARE VERSIONSQuantites

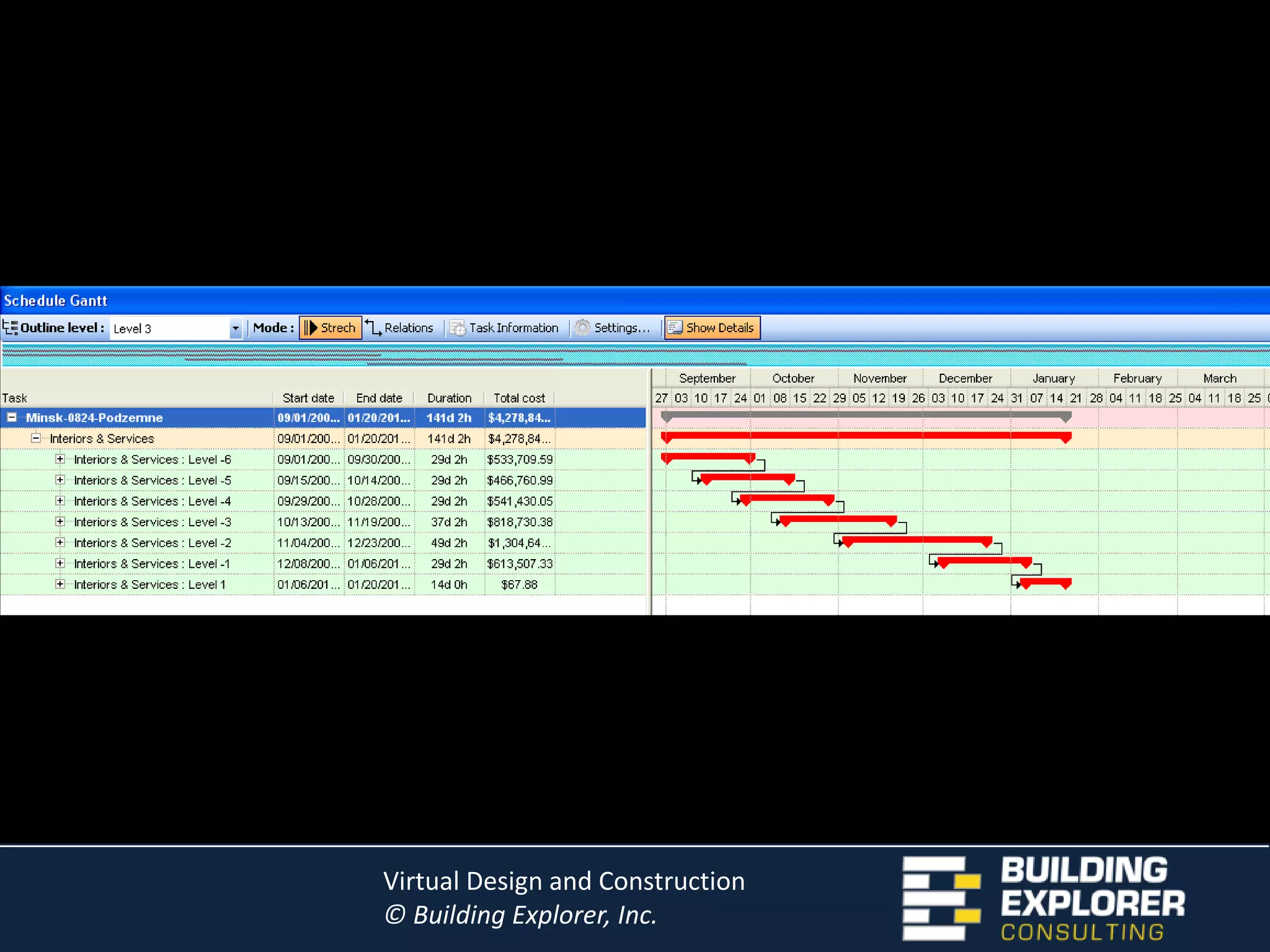

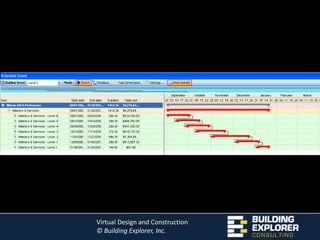

40. Project Costs

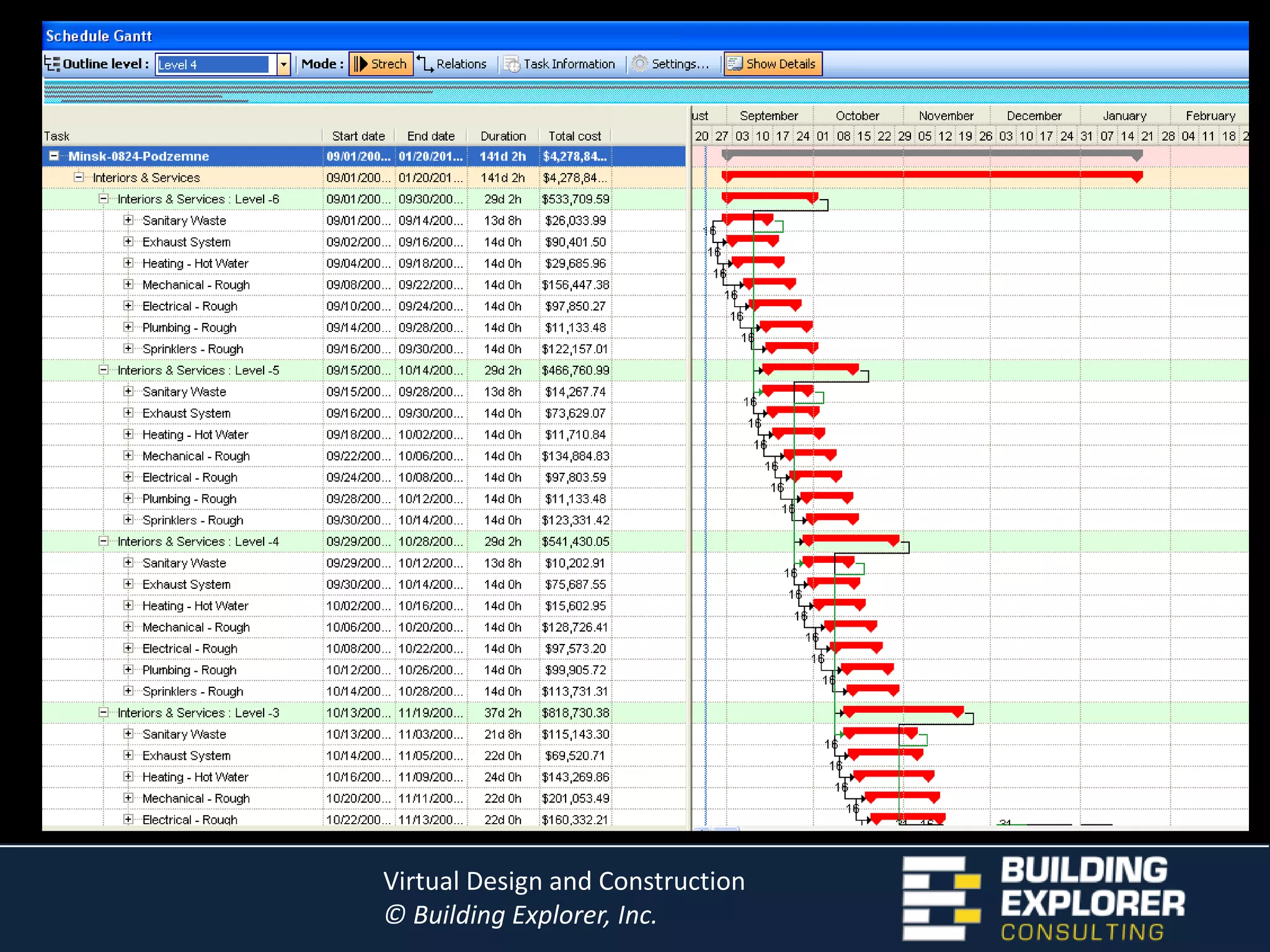

41. Project Schedule

42. Project CashFlowVDC/BIM Case Study DESIGN DEVELOPMENT ANALYSIS

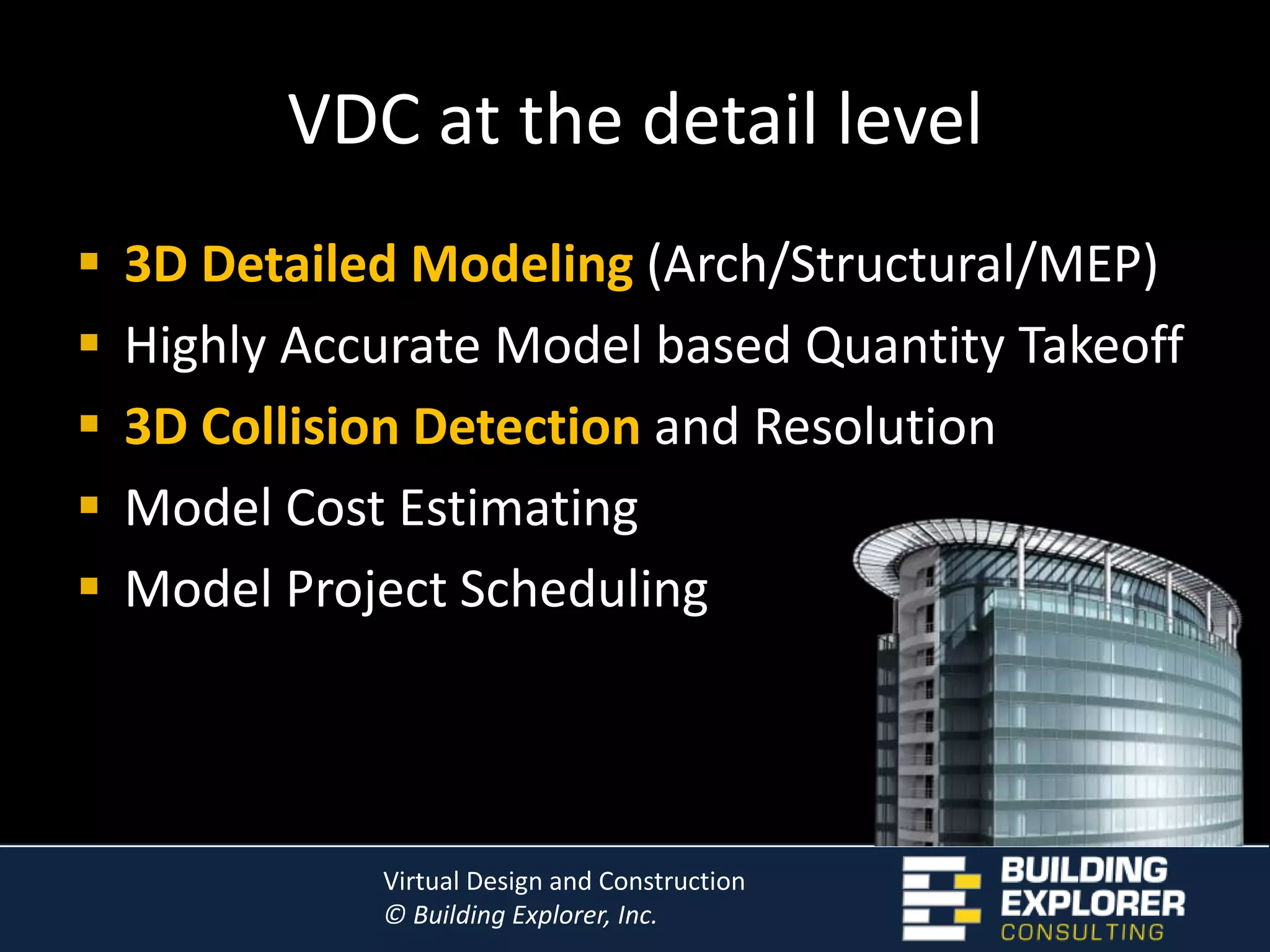

43. VDC at the detail level3D Detailed Modeling (Arch/Structural/MEP)Highly Accurate Model based Quantity Takeoff3D Collision Detection and ResolutionModel Cost EstimatingModel Project Scheduling

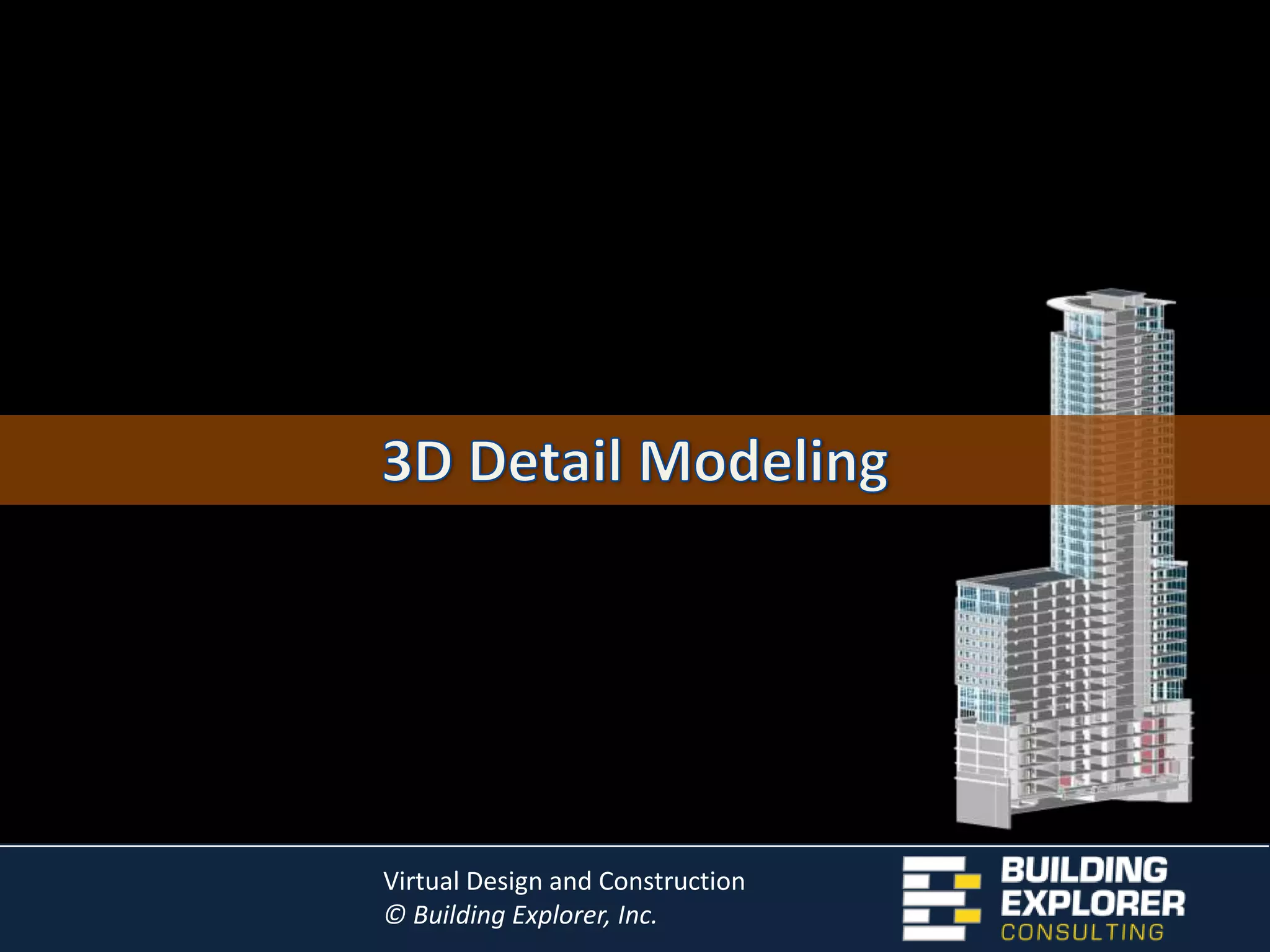

44. 3D Detail Modeling

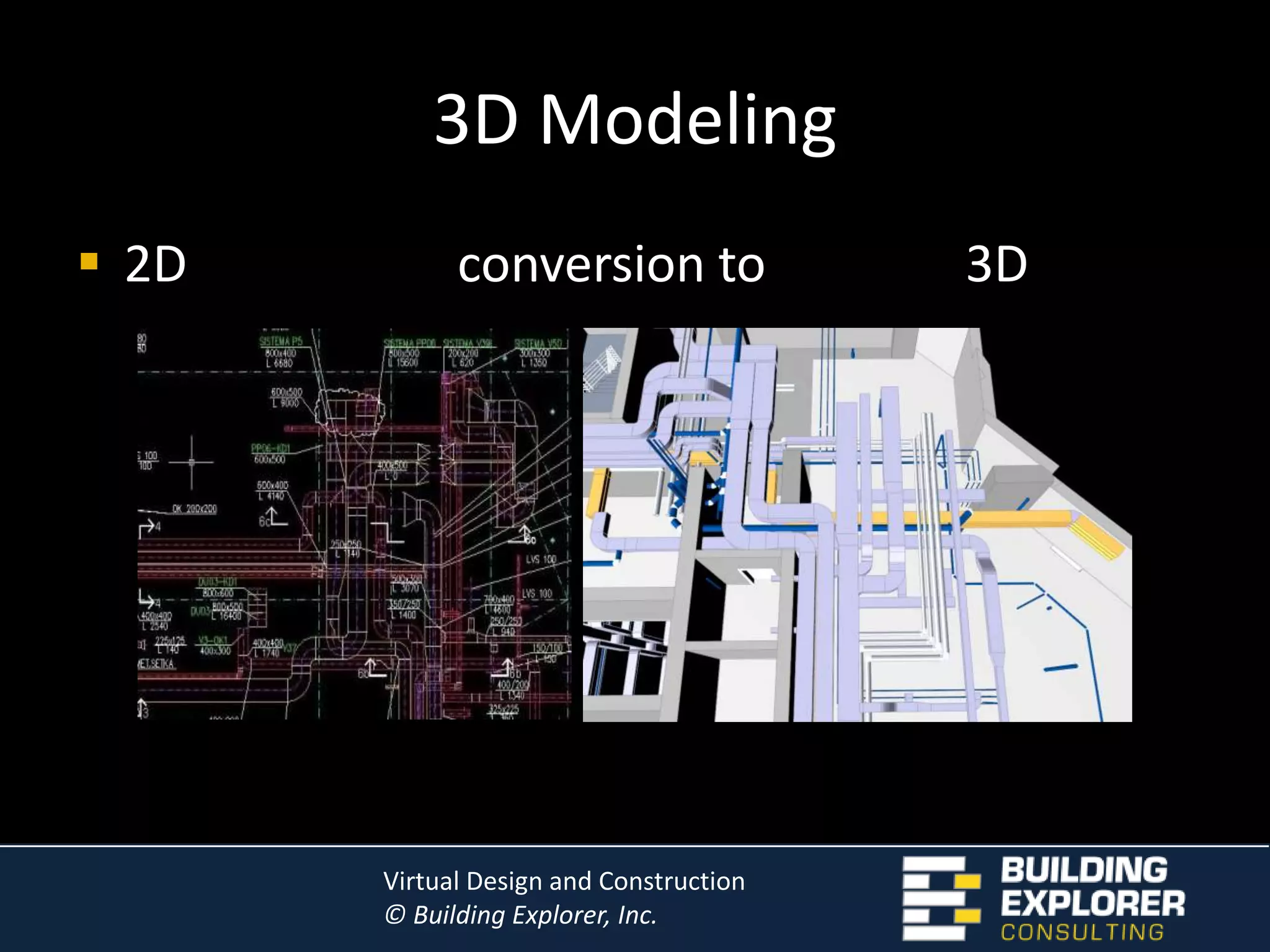

45. 3D Modeling2D conversion to 3D

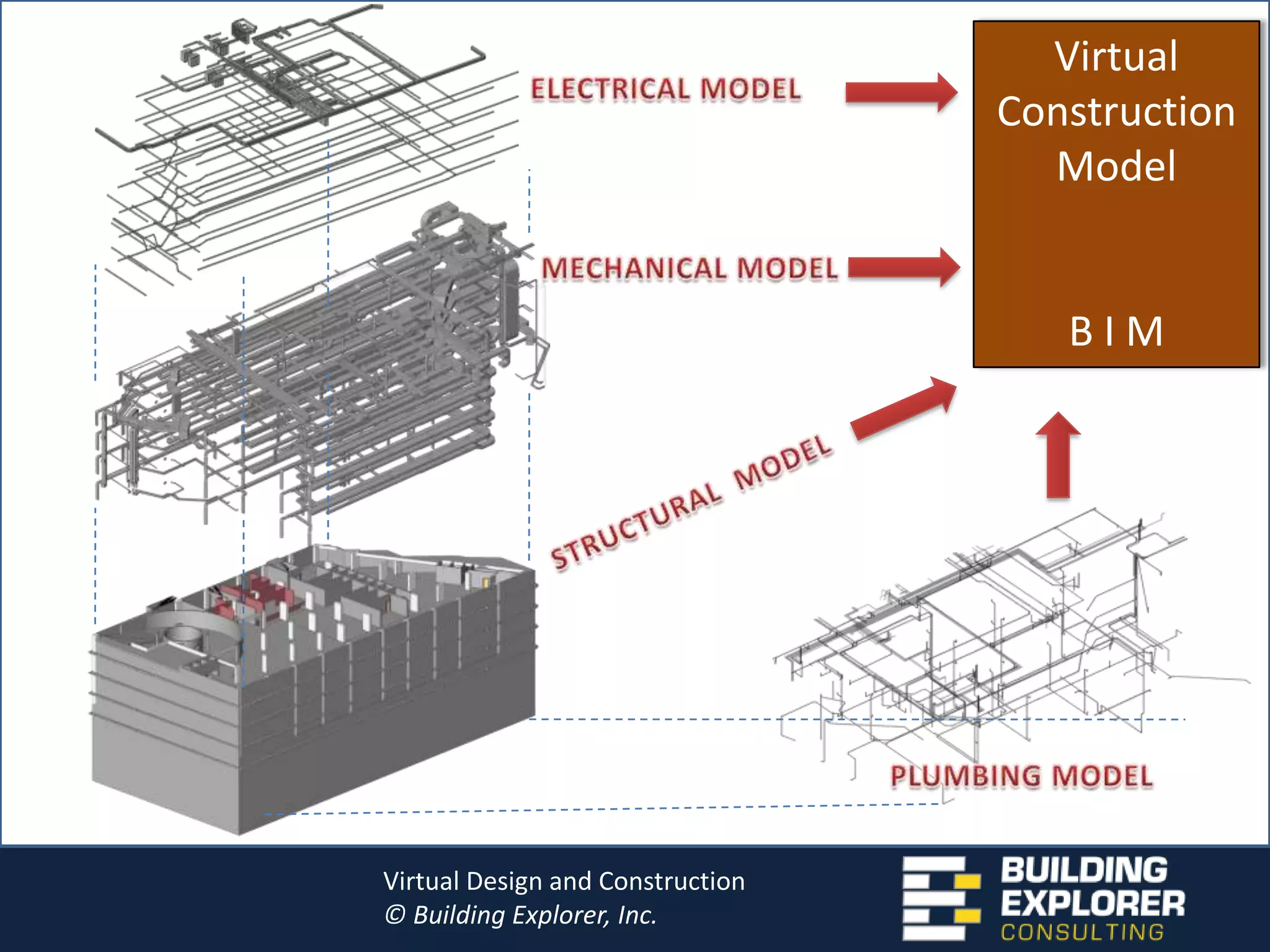

46. RDVirtual Construction ModelB I MELECTRICAL MODELMECHANICAL MODELSTRUCTURAL MODELPLUMBING MODEL

47. 3D Model Quantity Takeoff

48. Effective and Precise Quantity AnalysisConcrete Columns:Total: 521Volume: 1,070 m3Concrete Slabs:Total: 68 59,527 m2 22,993 m3

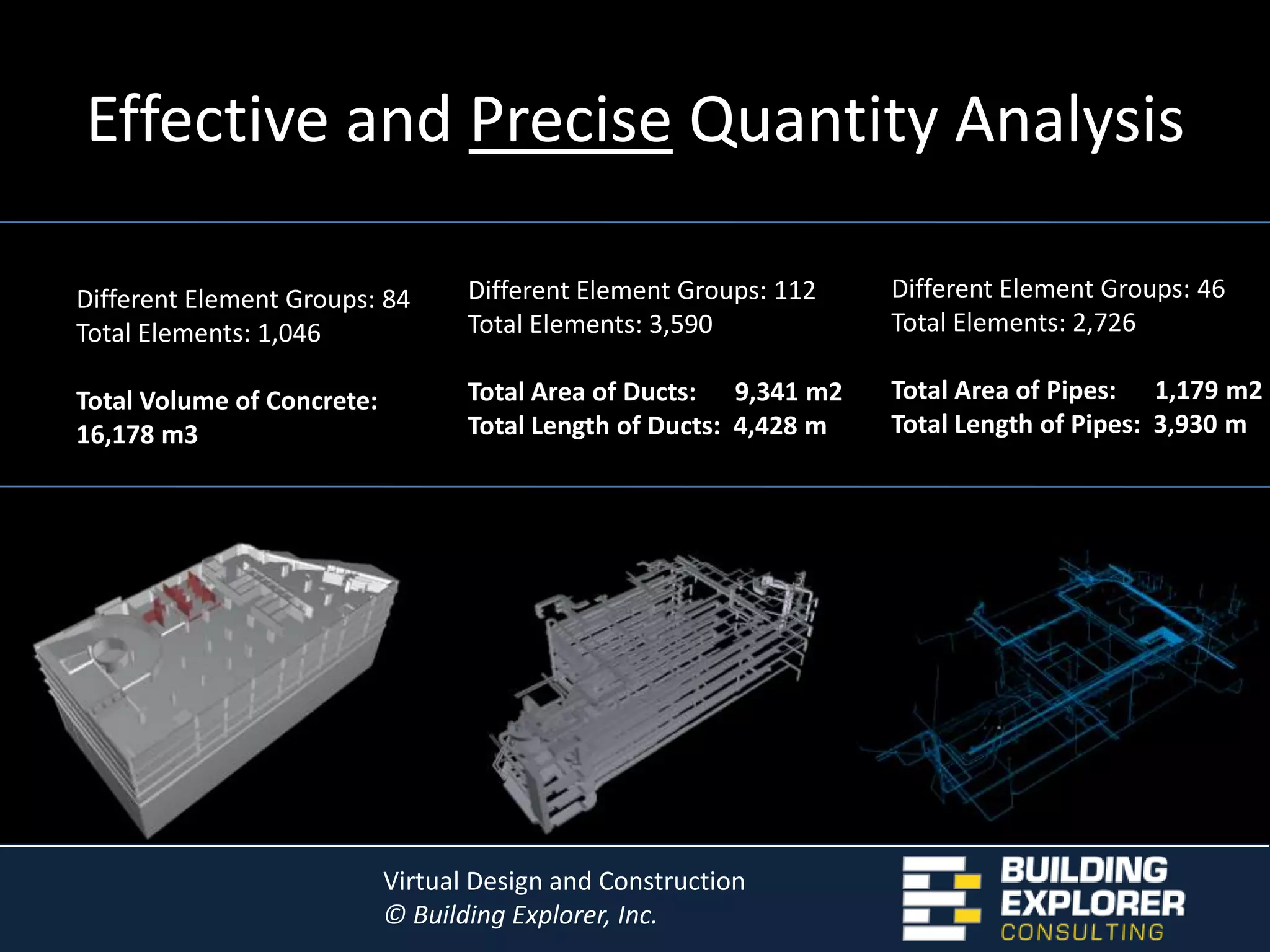

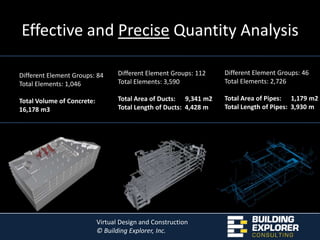

49. Effective and Precise Quantity AnalysisDifferent Element Groups: 46Total Elements: 2,726Total Area of Pipes: 1,179 m2Total Length of Pipes: 3,930 mDifferent Element Groups: 112Total Elements: 3,590Total Area of Ducts: 9,341 m2Total Length of Ducts: 4,428 mDifferent Element Groups: 84Total Elements: 1,046Total Volume of Concrete: 16,178 m3

50. 3D Collision Detection and Resolution

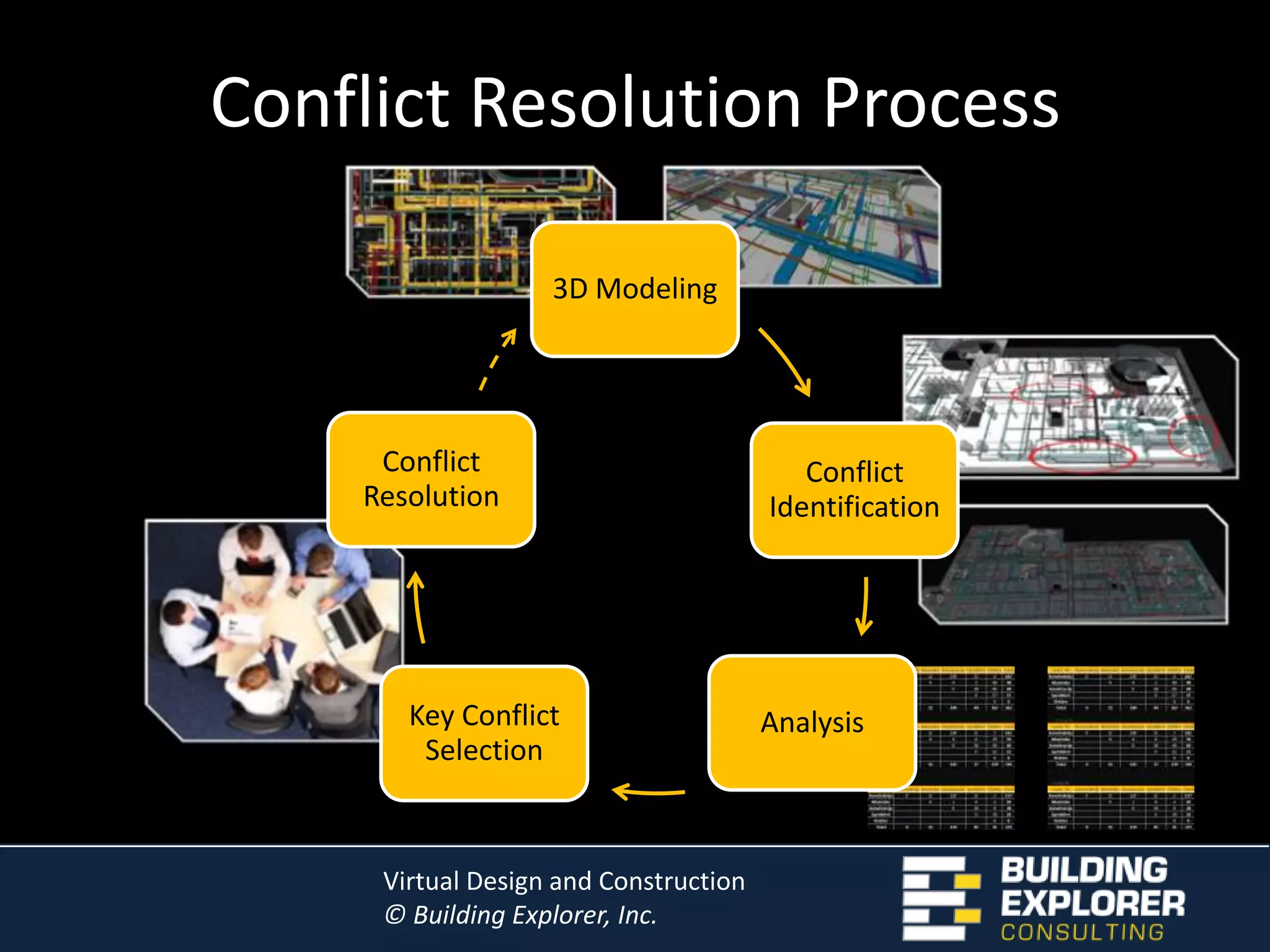

51. Conflict Resolution Process

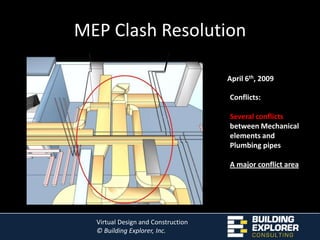

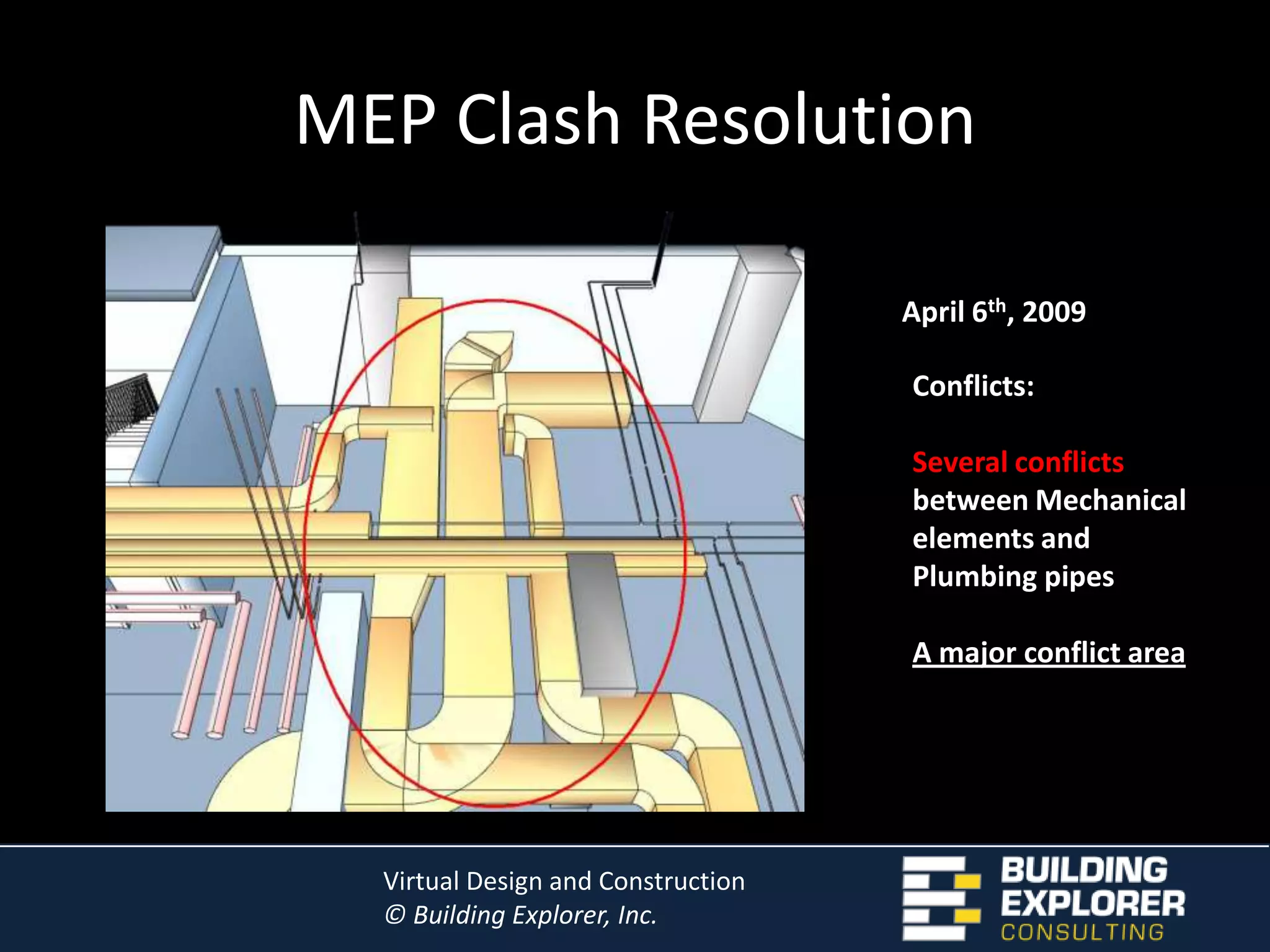

52. MEP Clash ResolutionApril 6th, 2009Conflicts:Several conflicts between Mechanical elements and Plumbing pipesA major conflict area

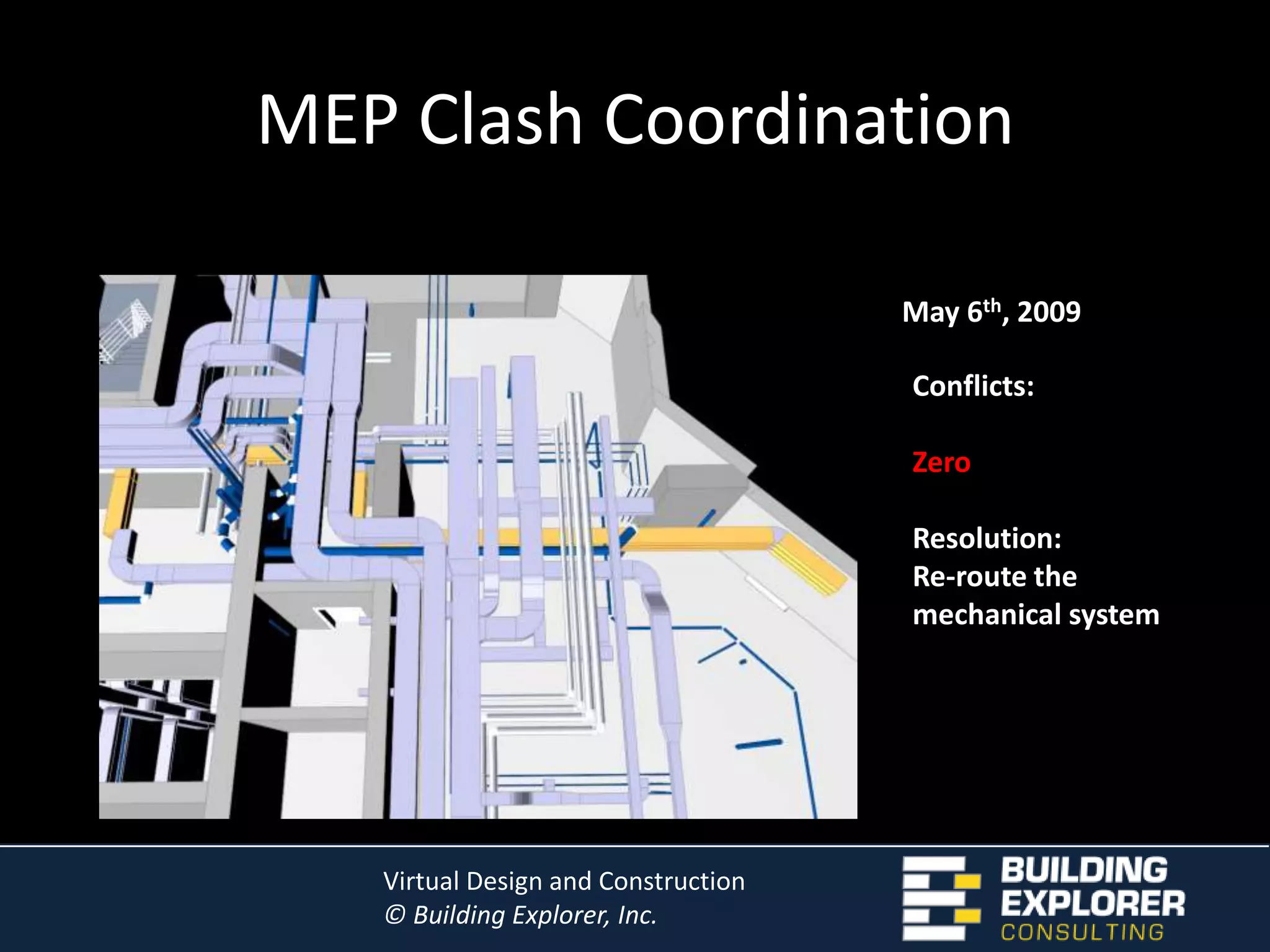

53. MEP Clash CoordinationMay 6th, 2009Conflicts:ZeroResolution:Re-route the mechanical system

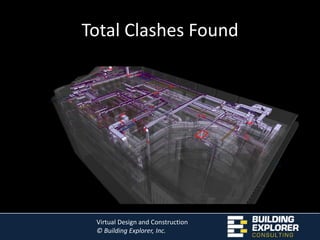

54. Total Clashes Found

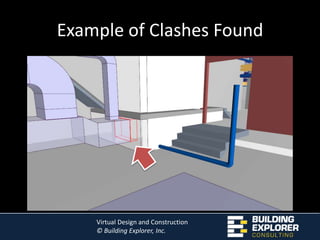

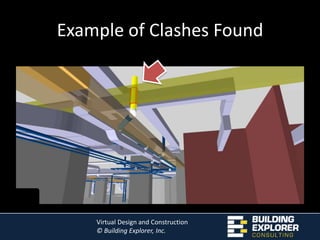

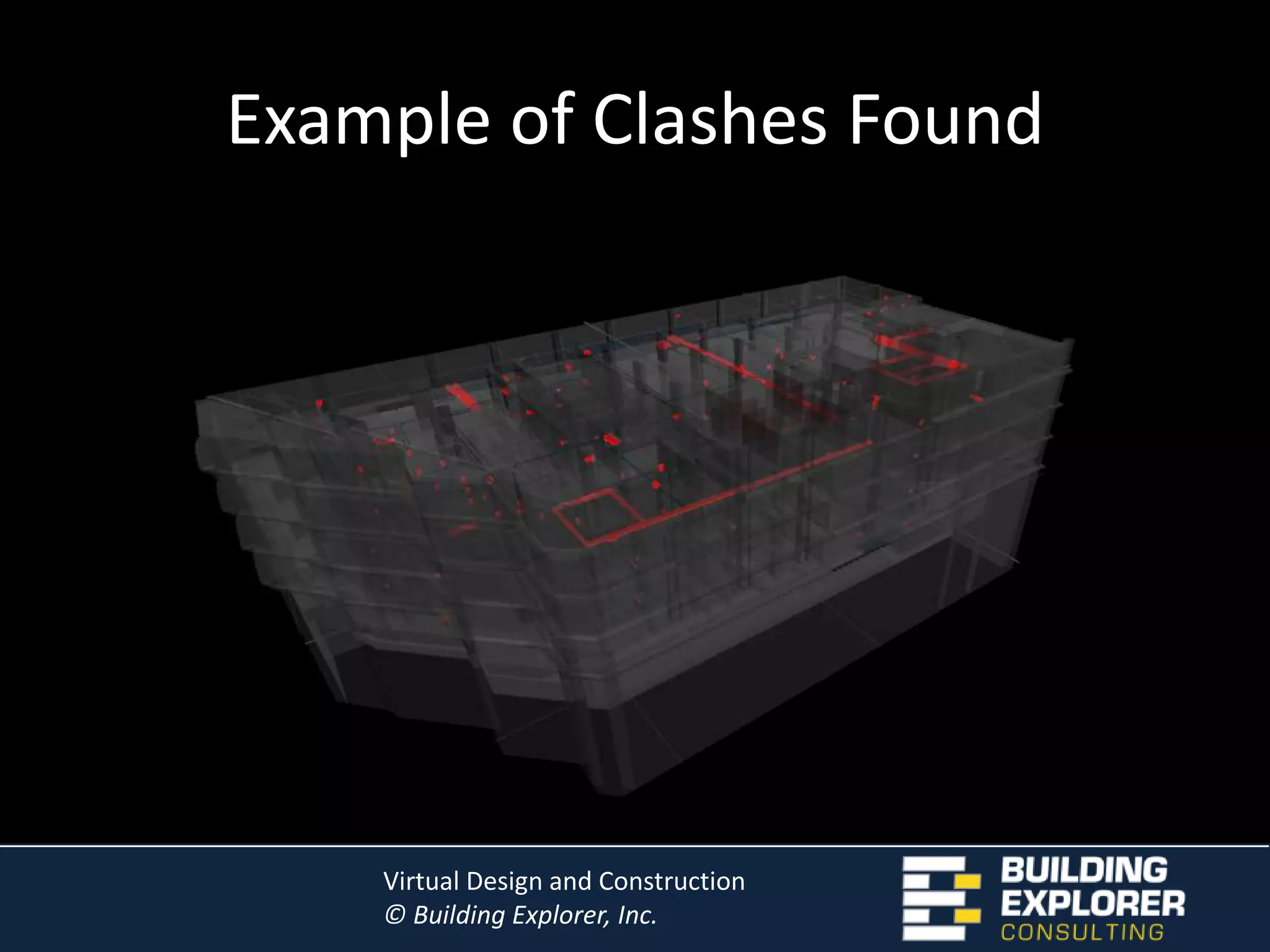

55. Example of Clashes Found

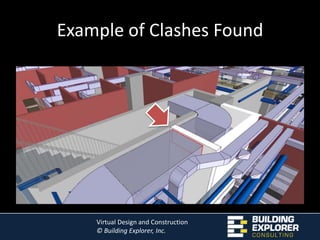

56. Example of Clashes Found

57. Example of Clashes Found

58. Example of Clashes Found

59. Walk through model

60. 5D = 3D + cost+ time3D Based Project Schedule

61. MEP Project Schedule

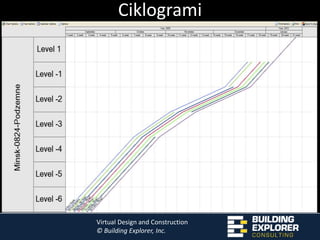

62. Ciklogrami

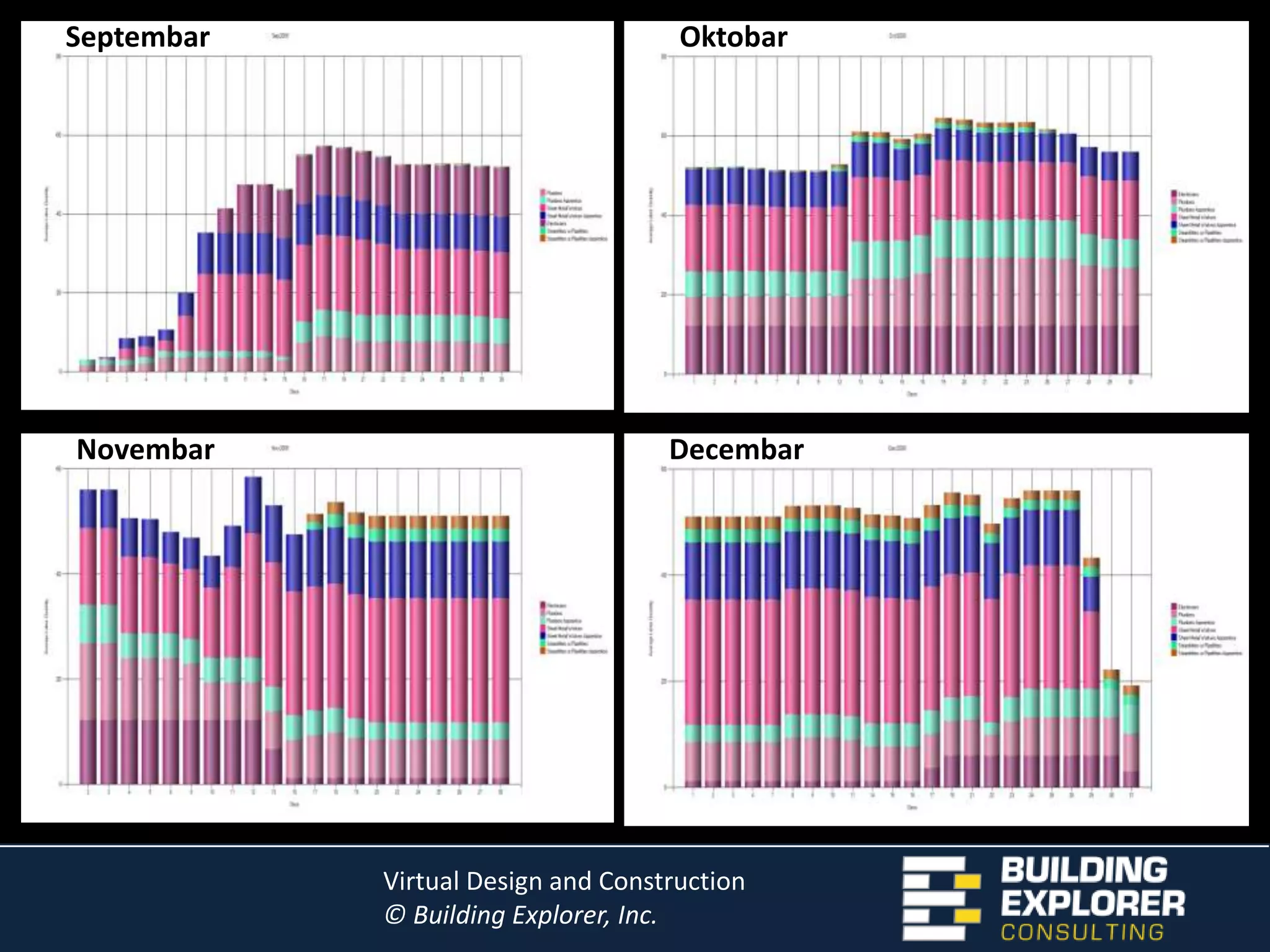

65. SeptembarOktobarNovembarDecembar

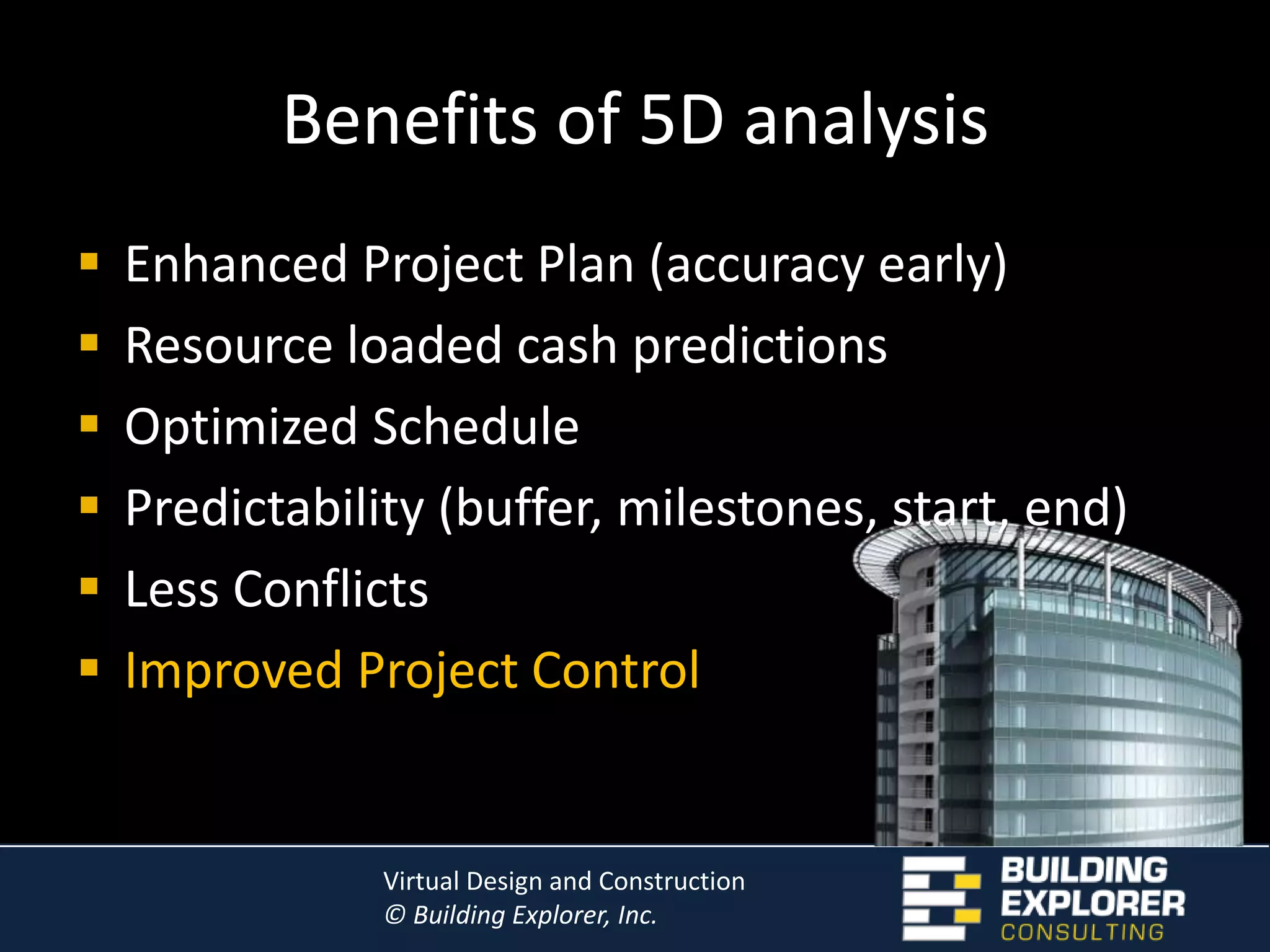

66. Benefits of 5D analysis Enhanced Project Plan (accuracy early)Resource loaded cash predictionsOptimized SchedulePredictability (buffer, milestones, start, end)Less ConflictsImproved Project Control

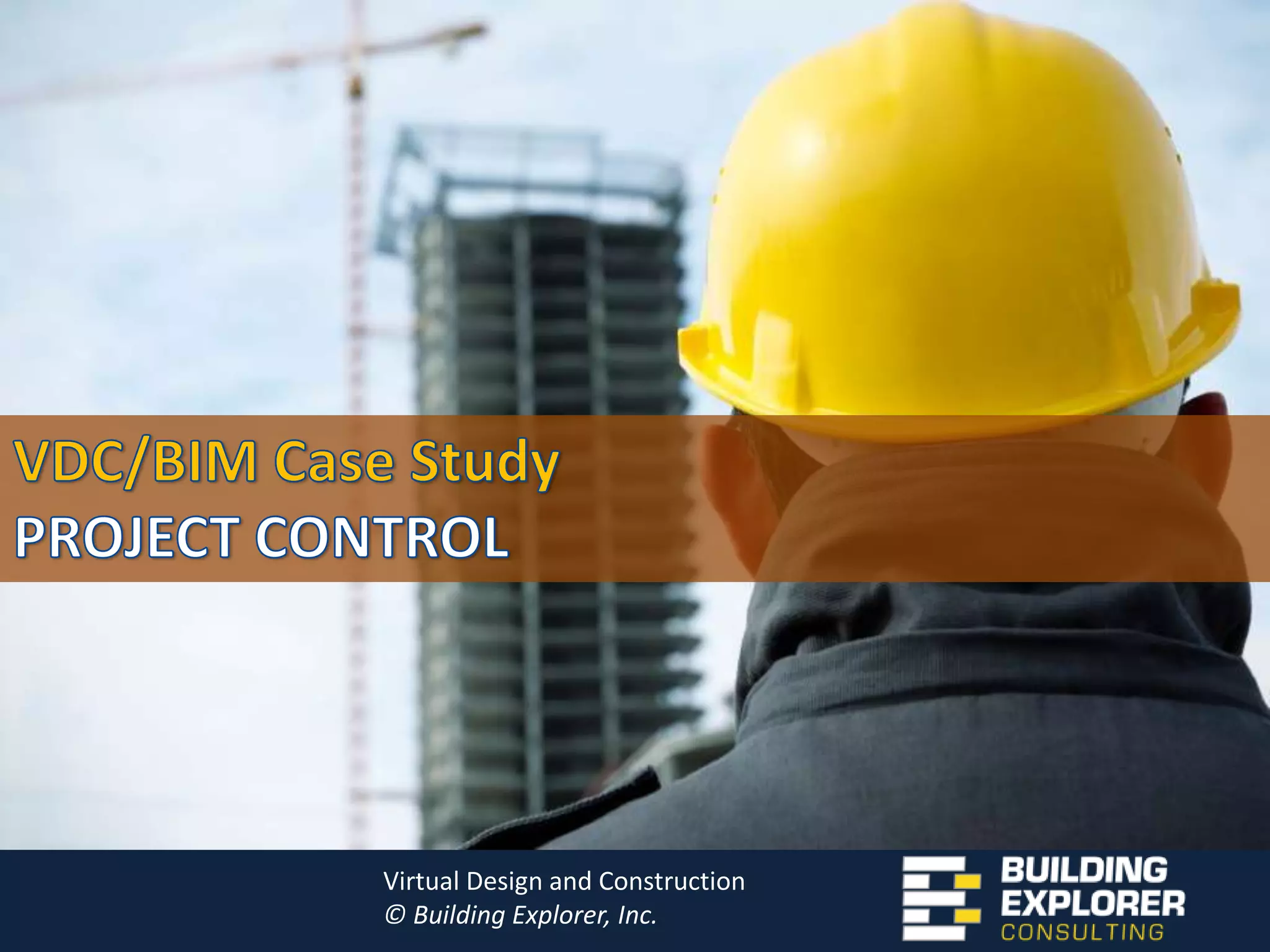

67. VDC/BIM Case Study PROJECT CONTROL

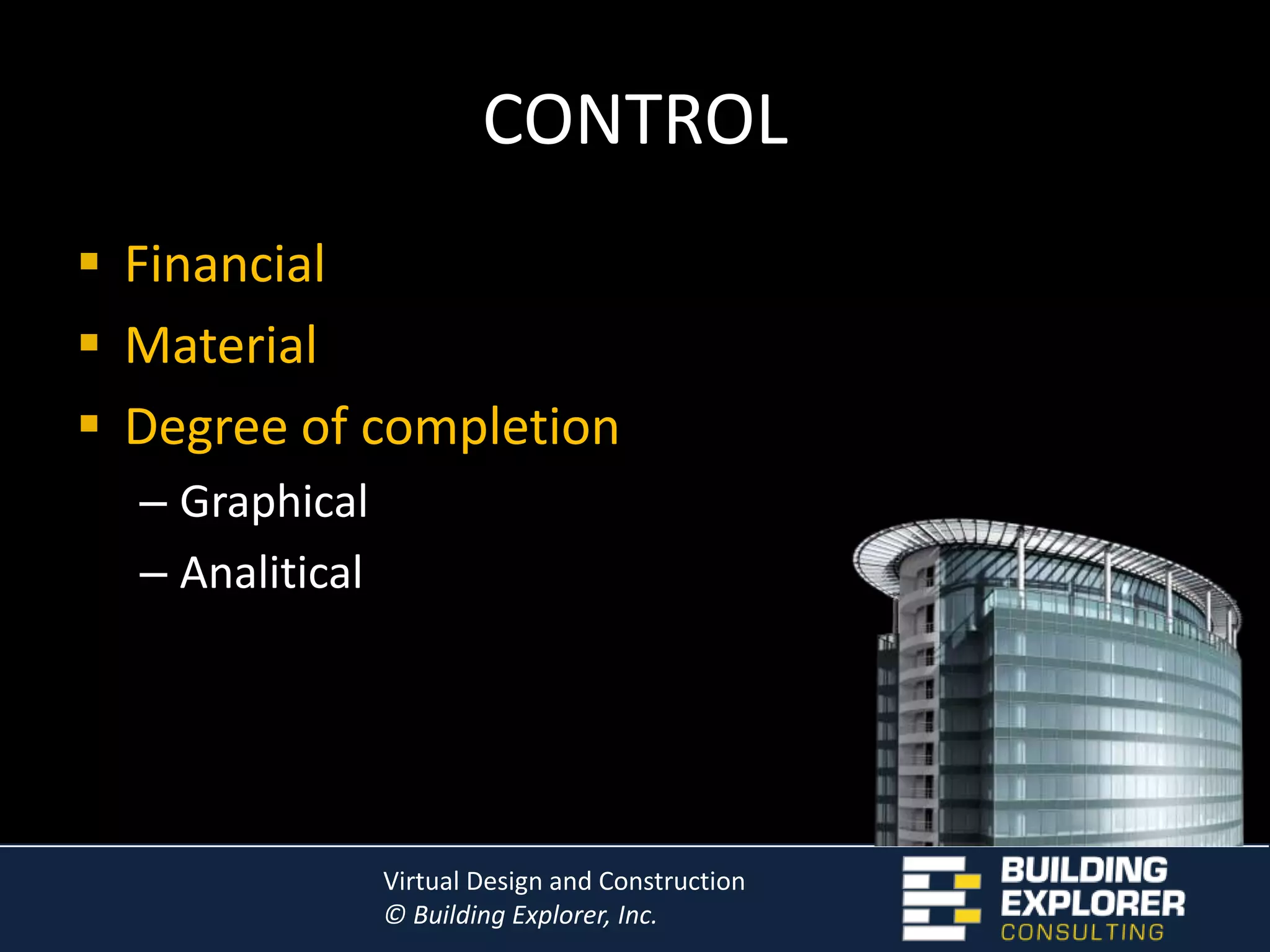

69. CONTROLFinancialMaterialDegree of completionGraphicalAnalitical

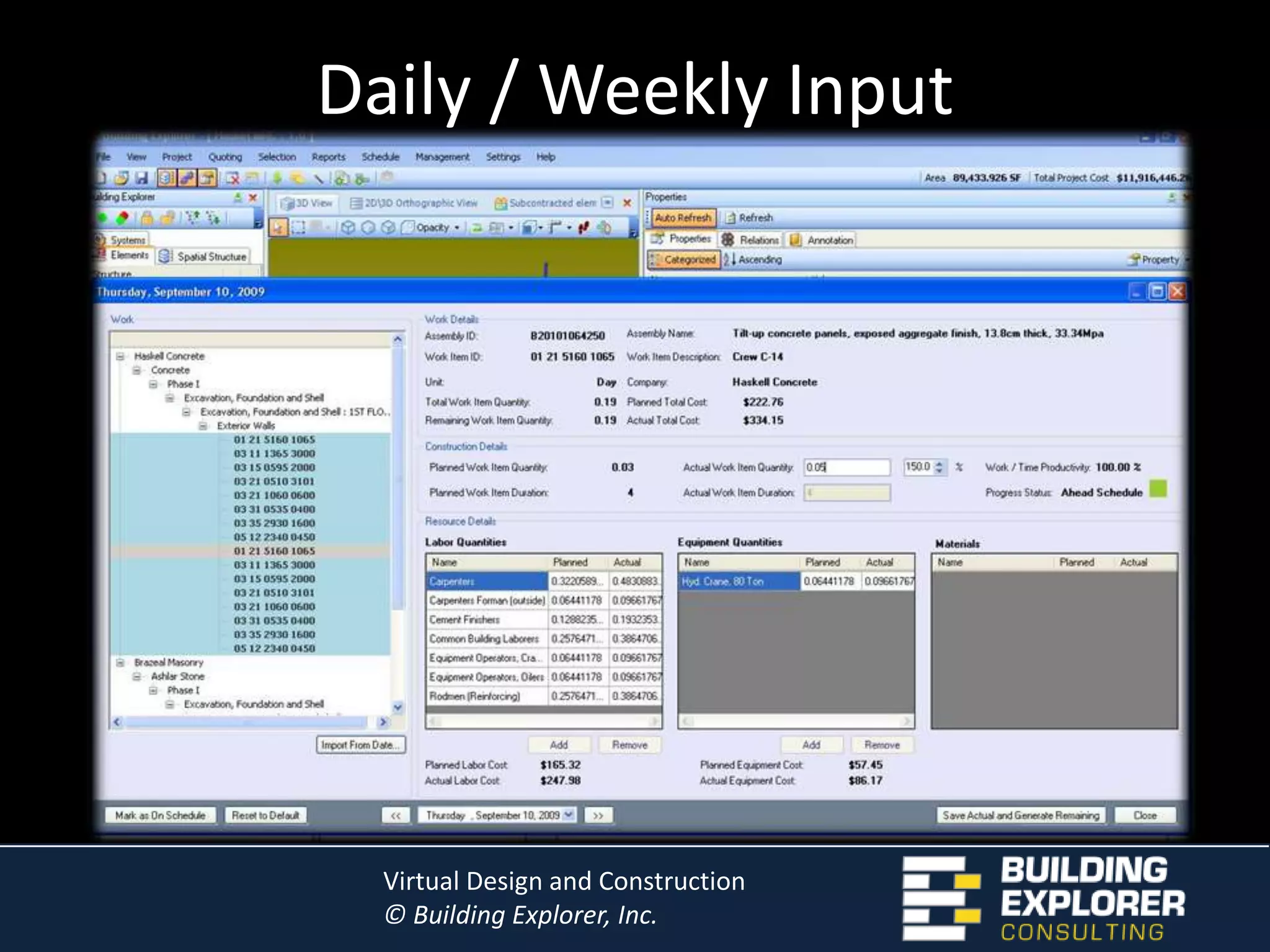

70. Daily / Weekly Input

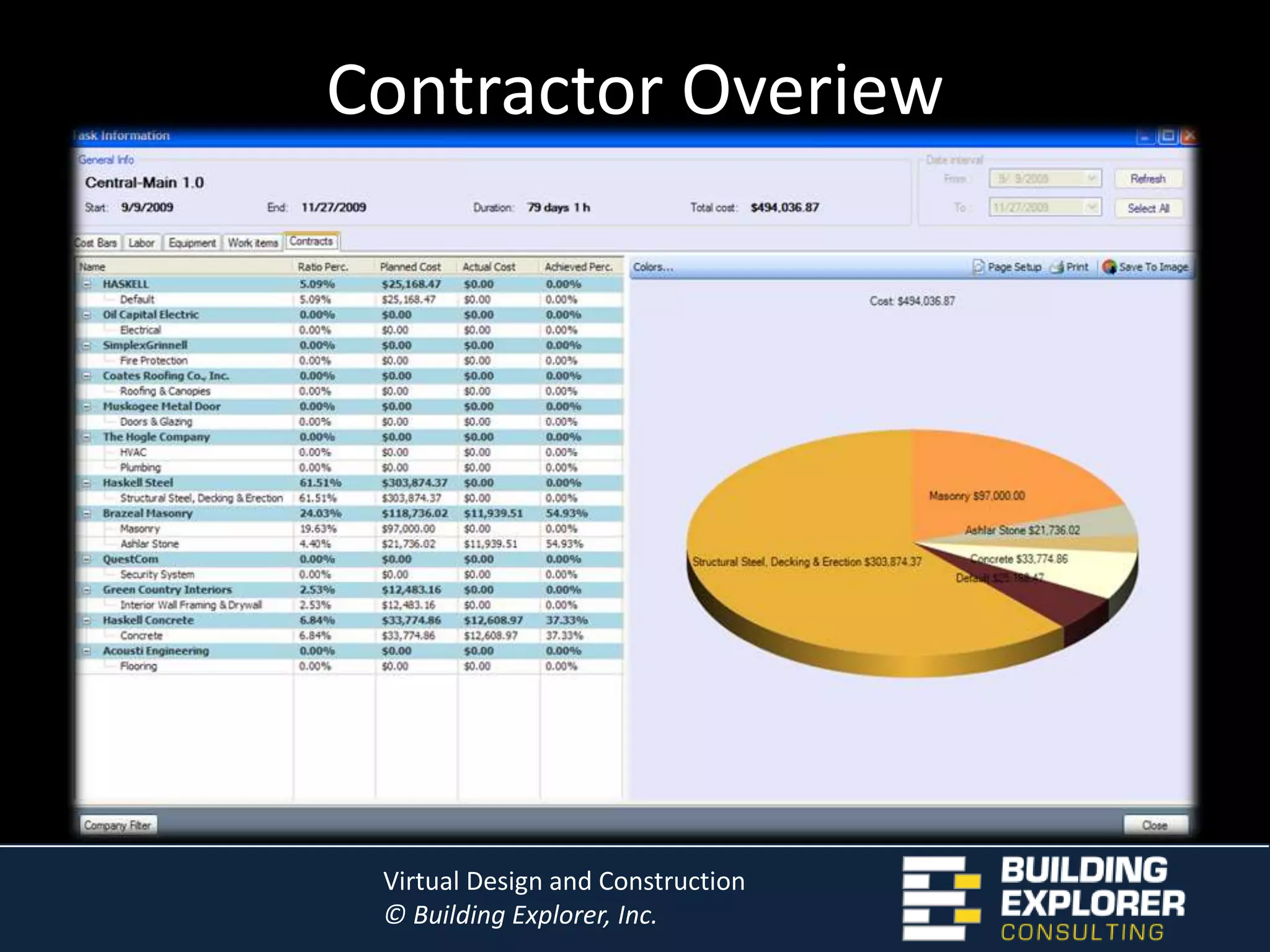

71. Contractor Overiew

72. Planned vs.Actual

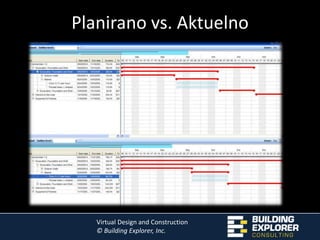

73. Planirano vs.Aktuelno

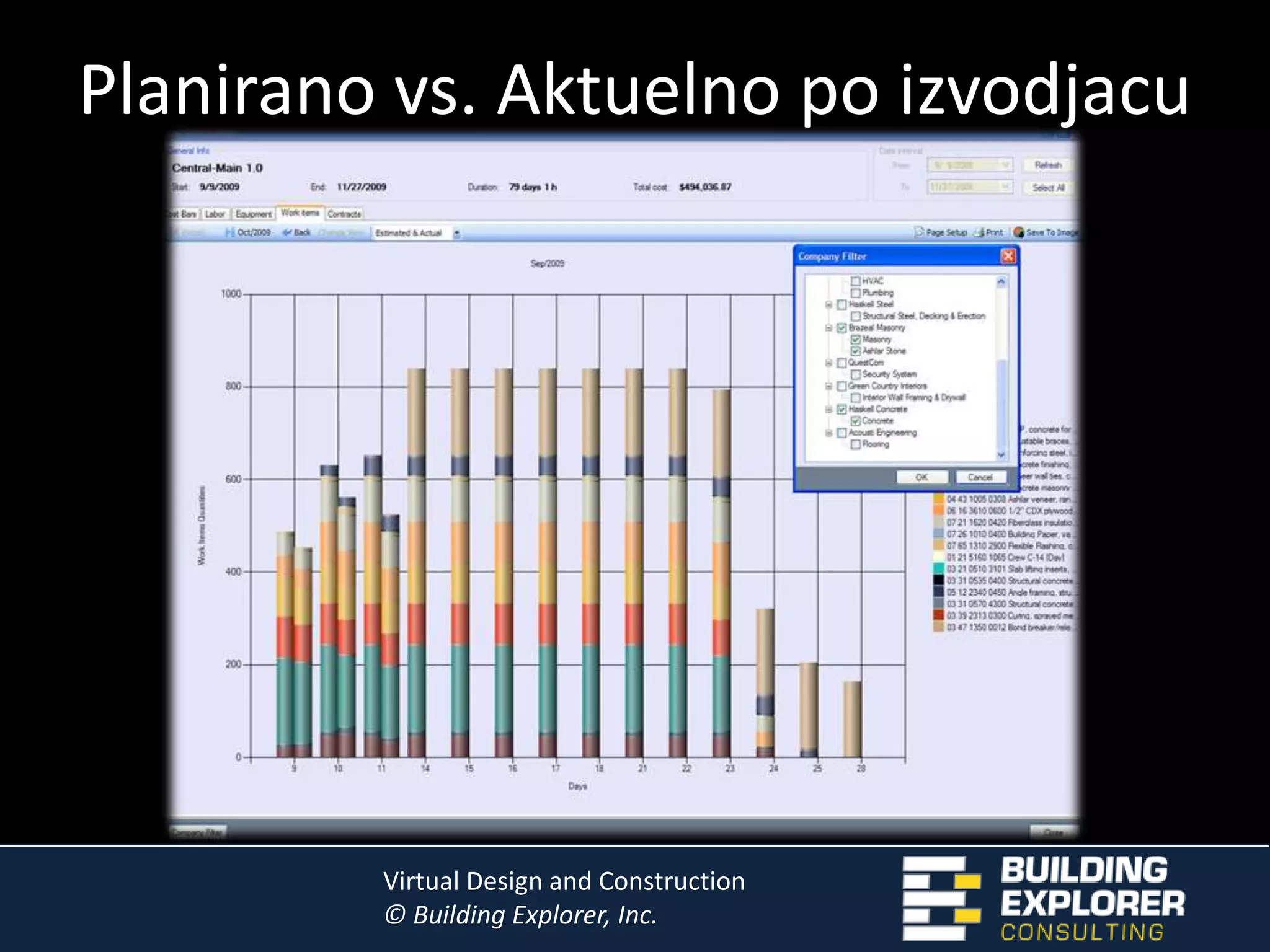

74. Planirano vs.Aktuelnopoizvodjacu
