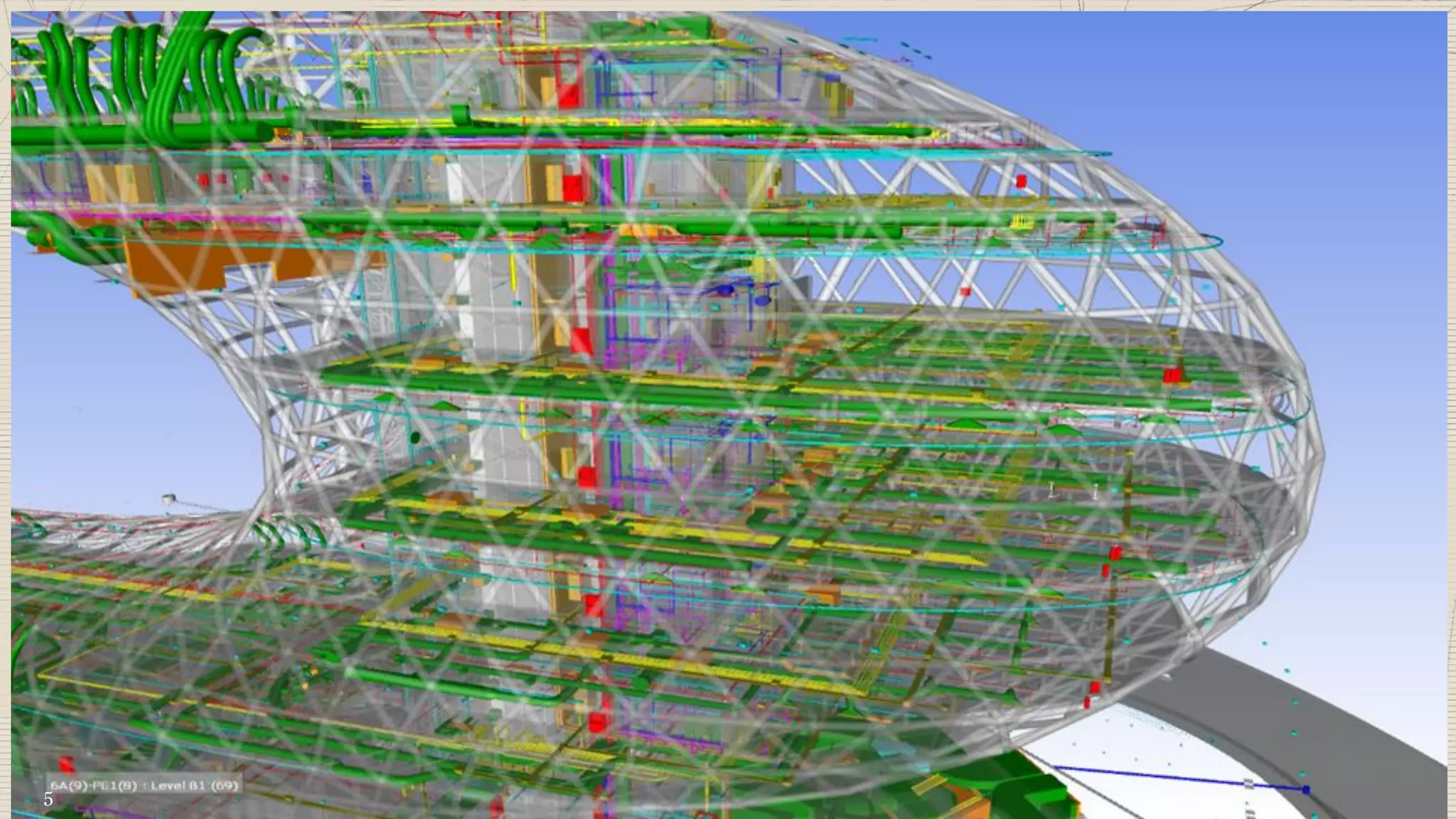

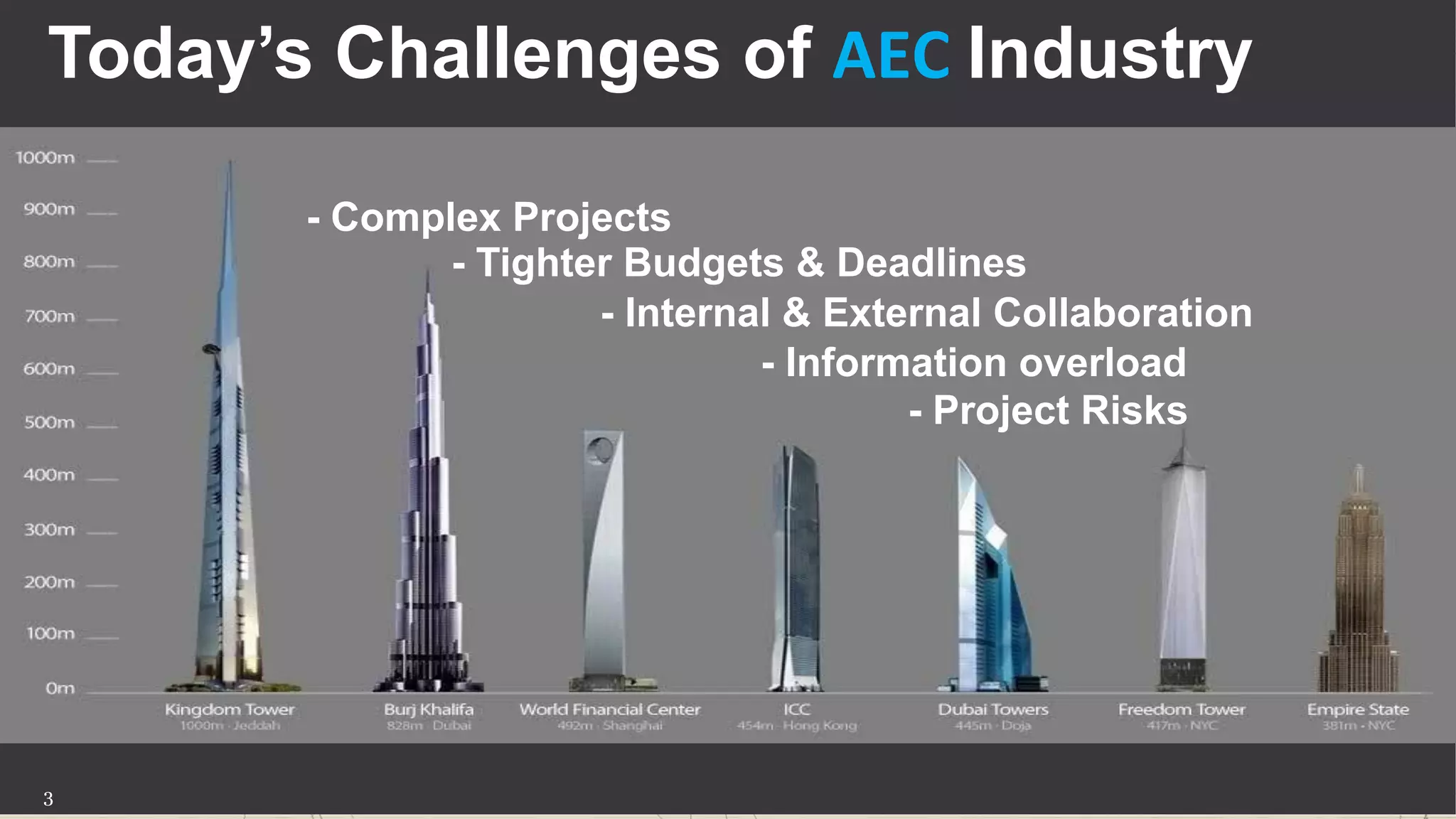

Building Information Modeling (BIM)
BIM is a process of generating and managing building data during its complete
lifecycle, from conceptual design through operation of the building

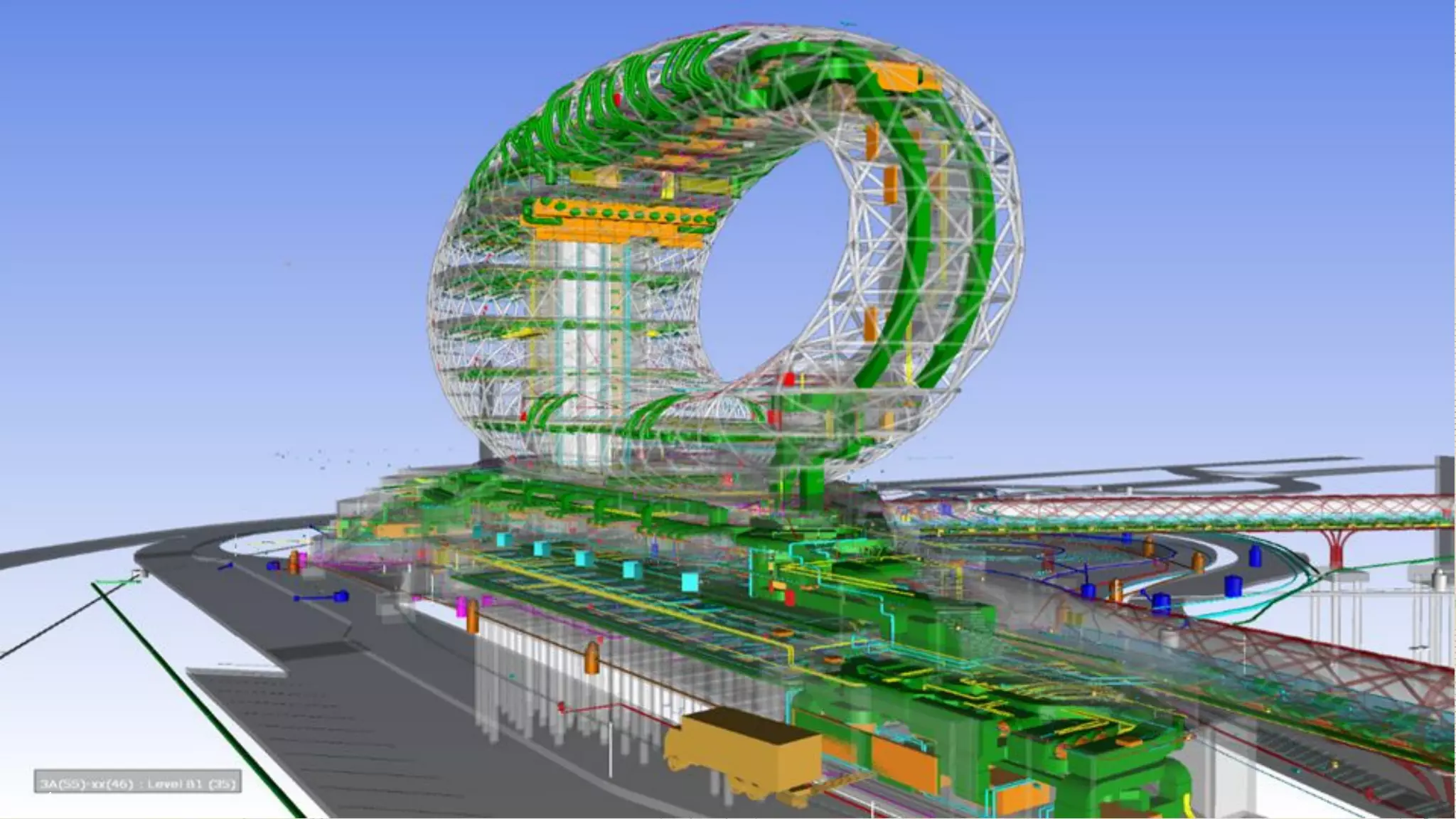

Building information modeling(BIM) is an integrated
workflow that enables architects, engineers, and
builders to explore a project digitally before it is built.
BIM is Evolution not Revolution
The creation and use of coordinated,
internally consistent, computable
information about a building project in
BIM is a modern technology and associated set of
processes to produce, communicate, and analyze
‘building models’…..

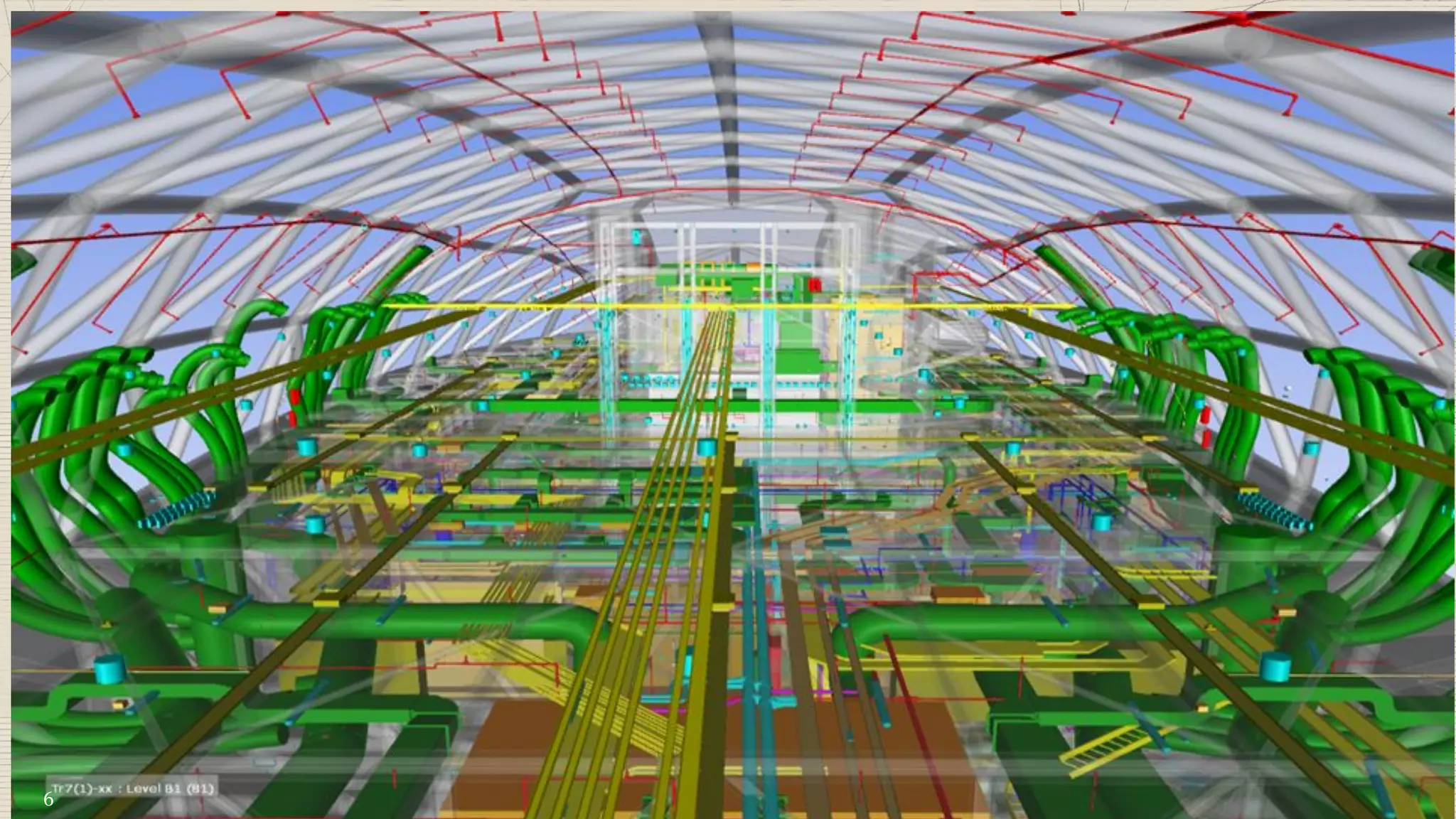

• ‘Digital representations’ of the building components that follow
parametric rules, which can be manipulated in an intelligent
fashion
• Carry ‘computable graphic and non‐redundant data attributes’
which are consistent, coordinated which can be viewed
On line BIM project execution by PLANNERLYStephen Au
BIM execution is a complex process that involve a lot of parties working together and responding instantly. How can we ensure the BIM tasks are closely aligning with construction schedule and able to deliver the right models for problem solving?
Top 5 trends reshaping the process of building information modelingNI BT
Building Information Modeling has already started to develop as a more great alternative to 3D CAD modeling. Along with the engineers and architects many stakeholders in the BIM process are taking the advantages. Check out the Top 5 Trends Reshaping the Process Of Building Information Modeling.
There are many definitions of BIM out there and all are accurate in most senses. BIM is an intelligent model-based process to create building model data that is essentially coordinated and computable and thus AEC professionals can more efficiently design, build and operate buildings and infrastructures. A true BIM model consists of the virtual equivalents of the actual building parts and pieces used to build a building which means a building can be “built” even before its physical realization through a virtual model.
The simplified electron and muon model, Oscillating Spacetime: The Foundation...RitikBhardwaj56
Discover the Simplified Electron and Muon Model: A New Wave-Based Approach to Understanding Particles delves into a groundbreaking theory that presents electrons and muons as rotating soliton waves within oscillating spacetime. Geared towards students, researchers, and science buffs, this book breaks down complex ideas into simple explanations. It covers topics such as electron waves, temporal dynamics, and the implications of this model on particle physics. With clear illustrations and easy-to-follow explanations, readers will gain a new outlook on the universe's fundamental nature.
Acetabularia Information For Class 9 .docxvaibhavrinwa19
Acetabularia acetabulum is a single-celled green alga that in its vegetative state is morphologically differentiated into a basal rhizoid and an axially elongated stalk, which bears whorls of branching hairs. The single diploid nucleus resides in the rhizoid.
How to Add Chatter in the odoo 17 ERP ModuleCeline George
In Odoo, the chatter is like a chat tool that helps you work together on records. You can leave notes and track things, making it easier to talk with your team and partners. Inside chatter, all communication history, activity, and changes will be displayed.
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...Levi Shapiro
Letter from the Congress of the United States regarding Anti-Semitism sent June 3rd to MIT President Sally Kornbluth, MIT Corp Chair, Mark Gorenberg
Dear Dr. Kornbluth and Mr. Gorenberg,
The US House of Representatives is deeply concerned by ongoing and pervasive acts of antisemitic
harassment and intimidation at the Massachusetts Institute of Technology (MIT). Failing to act decisively to ensure a safe learning environment for all students would be a grave dereliction of your responsibilities as President of MIT and Chair of the MIT Corporation.
This Congress will not stand idly by and allow an environment hostile to Jewish students to persist. The House believes that your institution is in violation of Title VI of the Civil Rights Act, and the inability or
unwillingness to rectify this violation through action requires accountability.
Postsecondary education is a unique opportunity for students to learn and have their ideas and beliefs challenged. However, universities receiving hundreds of millions of federal funds annually have denied
students that opportunity and have been hijacked to become venues for the promotion of terrorism, antisemitic harassment and intimidation, unlawful encampments, and in some cases, assaults and riots.
The House of Representatives will not countenance the use of federal funds to indoctrinate students into hateful, antisemitic, anti-American supporters of terrorism. Investigations into campus antisemitism by the Committee on Education and the Workforce and the Committee on Ways and Means have been expanded into a Congress-wide probe across all relevant jurisdictions to address this national crisis. The undersigned Committees will conduct oversight into the use of federal funds at MIT and its learning environment under authorities granted to each Committee.
• The Committee on Education and the Workforce has been investigating your institution since December 7, 2023. The Committee has broad jurisdiction over postsecondary education, including its compliance with Title VI of the Civil Rights Act, campus safety concerns over disruptions to the learning environment, and the awarding of federal student aid under the Higher Education Act.
• The Committee on Oversight and Accountability is investigating the sources of funding and other support flowing to groups espousing pro-Hamas propaganda and engaged in antisemitic harassment and intimidation of students. The Committee on Oversight and Accountability is the principal oversight committee of the US House of Representatives and has broad authority to investigate “any matter” at “any time” under House Rule X.
• The Committee on Ways and Means has been investigating several universities since November 15, 2023, when the Committee held a hearing entitled From Ivory Towers to Dark Corners: Investigating the Nexus Between Antisemitism, Tax-Exempt Universities, and Terror Financing. The Committee followed the hearing with letters to those institutions on January 10, 202
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Dr. Vinod Kumar Kanvaria
Exploiting Artificial Intelligence for Empowering Researchers and Faculty,
International FDP on Fundamentals of Research in Social Sciences
at Integral University, Lucknow, 06.06.2024
By Dr. Vinod Kumar Kanvaria
Thinking of getting a dog? Be aware that breeds like Pit Bulls, Rottweilers, and German Shepherds can be loyal and dangerous. Proper training and socialization are crucial to preventing aggressive behaviors. Ensure safety by understanding their needs and always supervising interactions. Stay safe, and enjoy your furry friends!
This presentation includes basic of PCOS their pathology and treatment and also Ayurveda correlation of PCOS and Ayurvedic line of treatment mentioned in classics.
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Introduction to AI for Nonprofits with Tapp NetworkTechSoup
Dive into the world of AI! Experts Jon Hill and Tareq Monaur will guide you through AI's role in enhancing nonprofit websites and basic marketing strategies, making it easy to understand and apply.
Biological screening of herbal drugs: Introduction and Need for
Phyto-Pharmacological Screening, New Strategies for evaluating
Natural Products, In vitro evaluation techniques for Antioxidants, Antimicrobial and Anticancer drugs. In vivo evaluation techniques
for Anti-inflammatory, Antiulcer, Anticancer, Wound healing, Antidiabetic, Hepatoprotective, Cardio protective, Diuretics and
Antifertility, Toxicity studies as per OECD guidelines

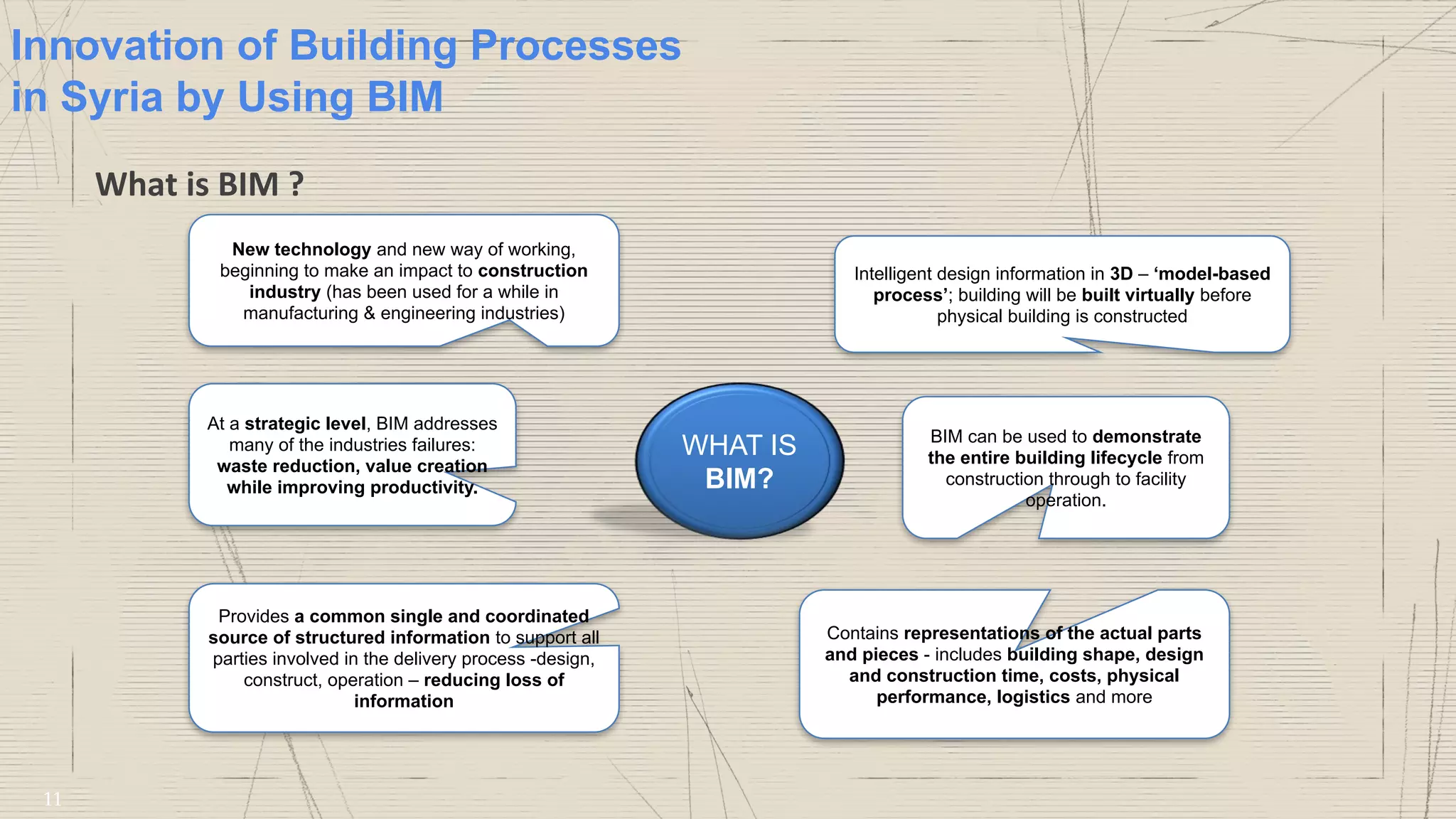

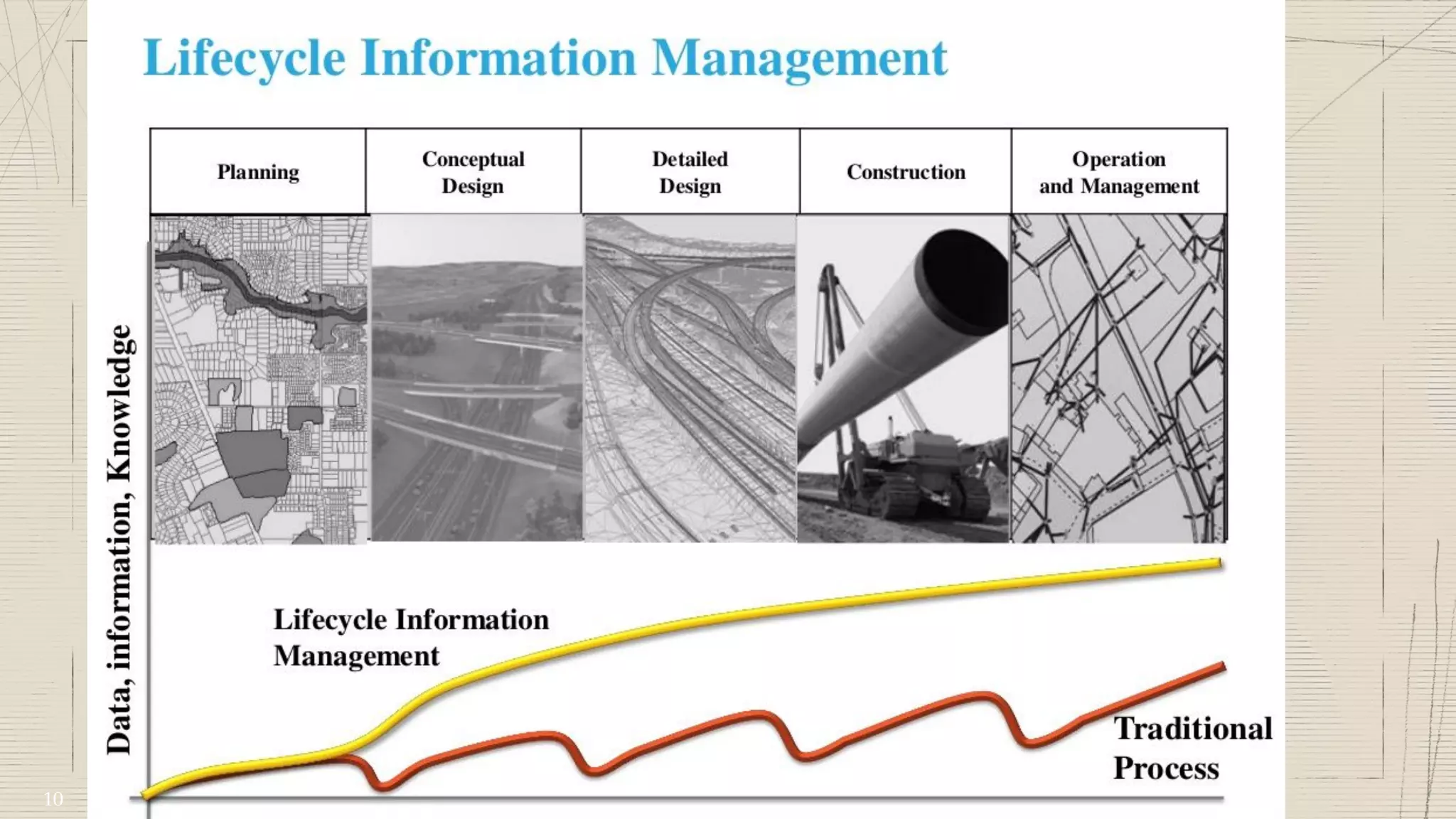

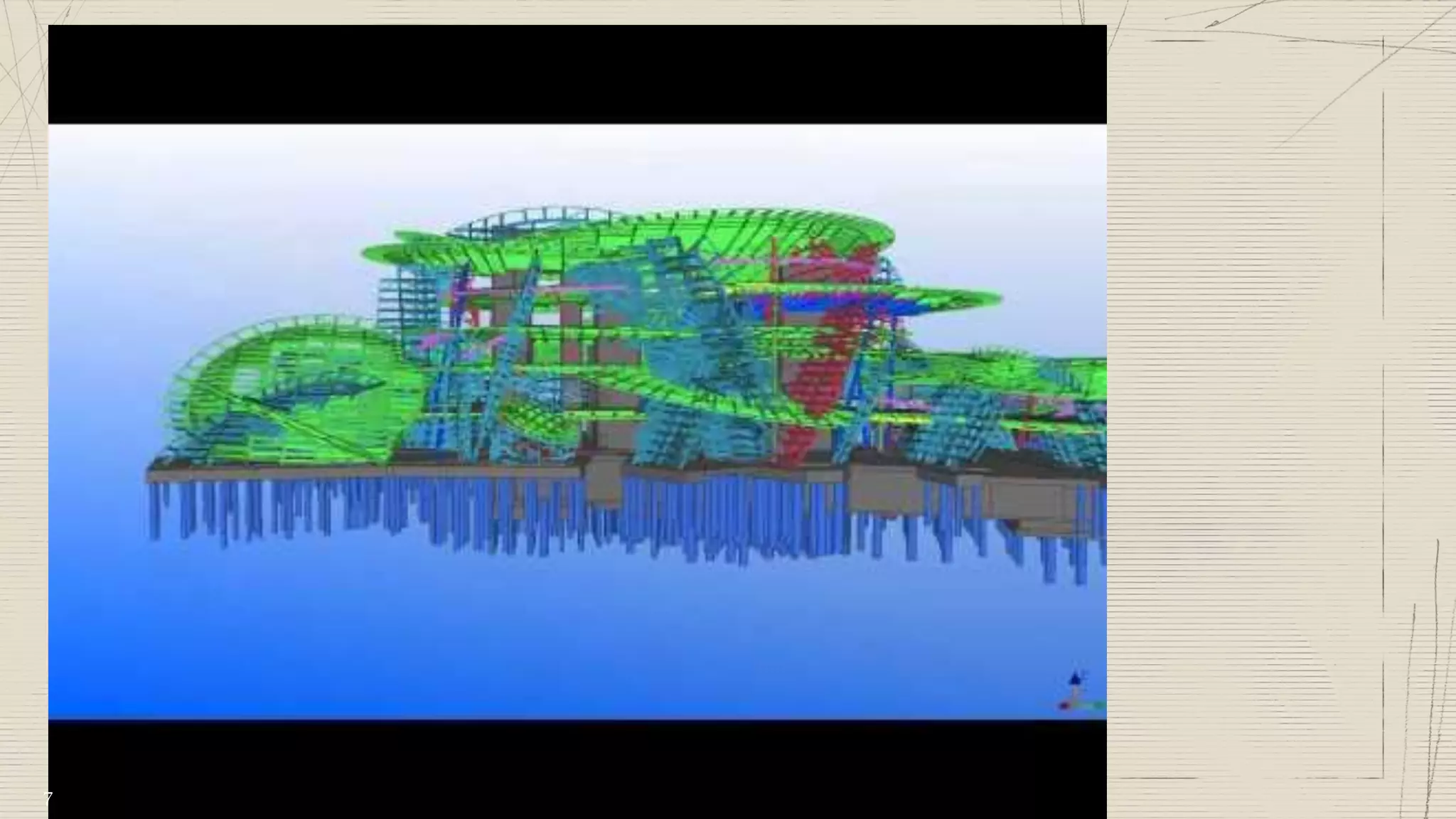

11. Innovation of Building Processes
in Syria by Using BIM
Intelligent design information in 3D – ‘model-based
process’; building will be built virtually before
physical building is constructed
New technology and new way of working,
beginning to make an impact to construction
industry (has been used for a while in
manufacturing & engineering industries)

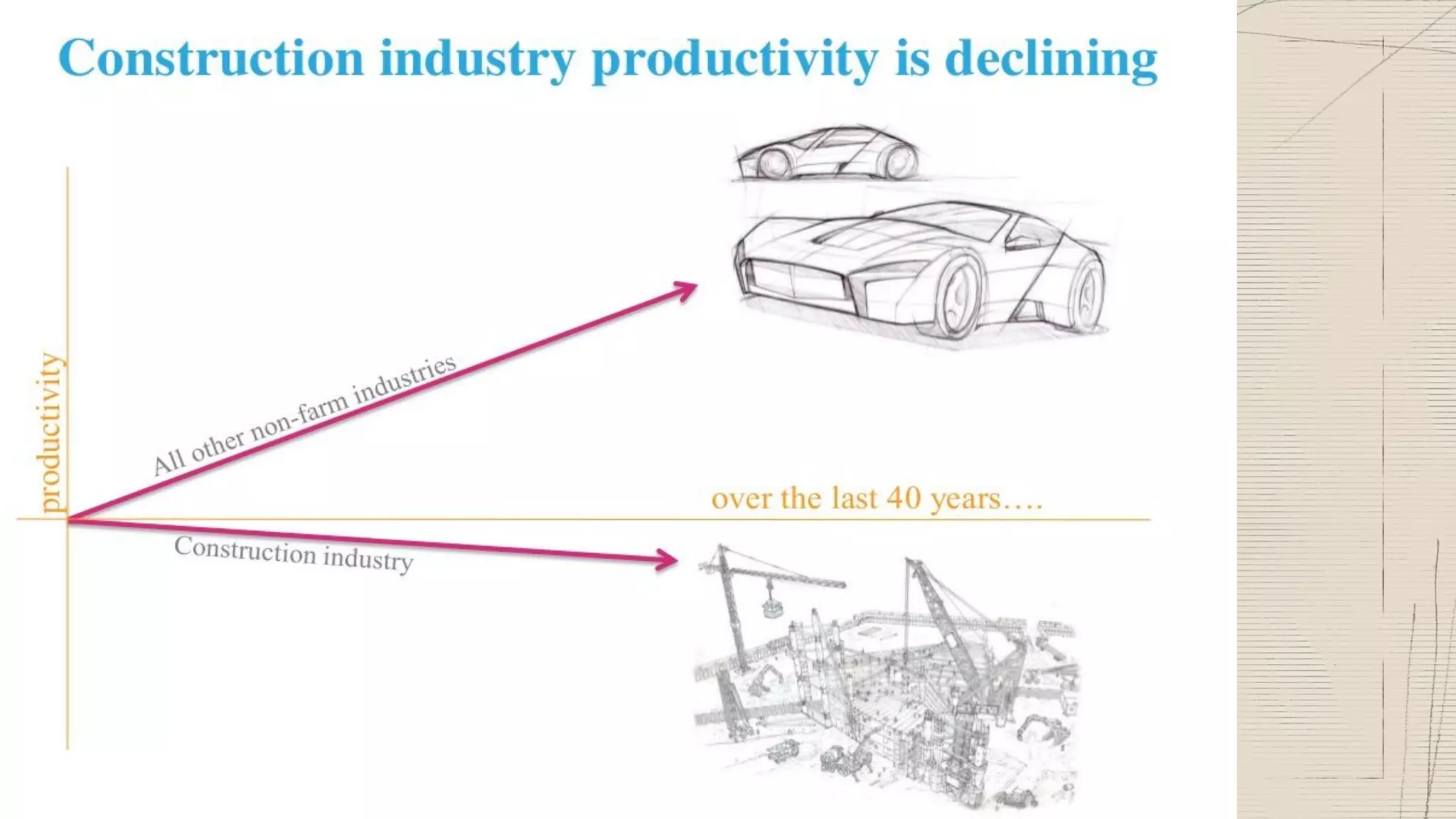

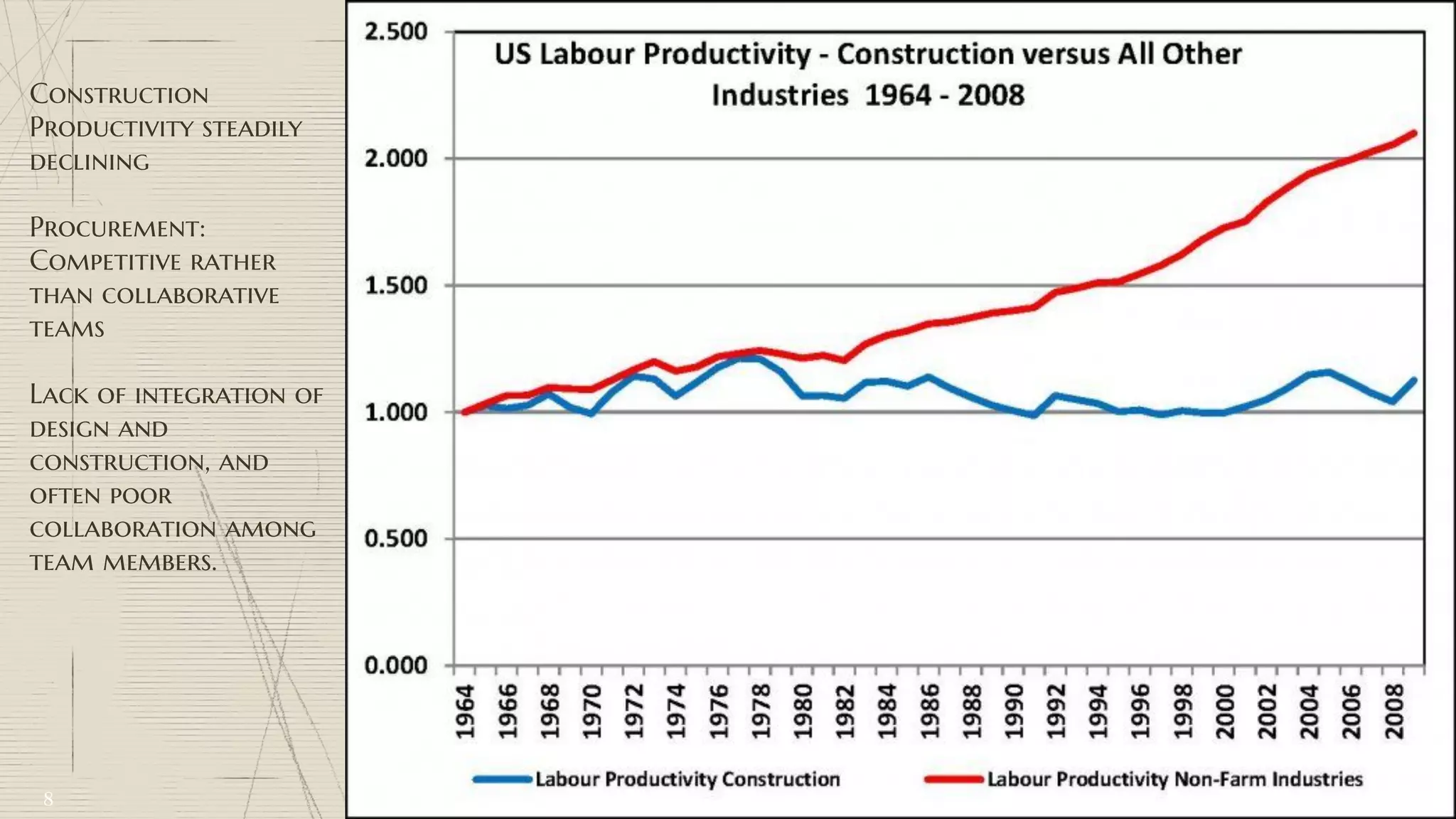

At a strategic level, BIM addresses
many of the industries failures:
waste reduction, value creation
while improving productivity.
Provides a common single and coordinated
source of structured information to support all
parties involved in the delivery process -design,
construct, operation – reducing loss of
information
BIM can be used to demonstrate
the entire building lifecycle from
construction through to facility
operation.
Contains representations of the actual parts
and pieces - includes building shape, design
and construction time, costs, physical
performance, logistics and more
WHAT IS
BIM?
What is BIM ?
11
12. What is BIM?

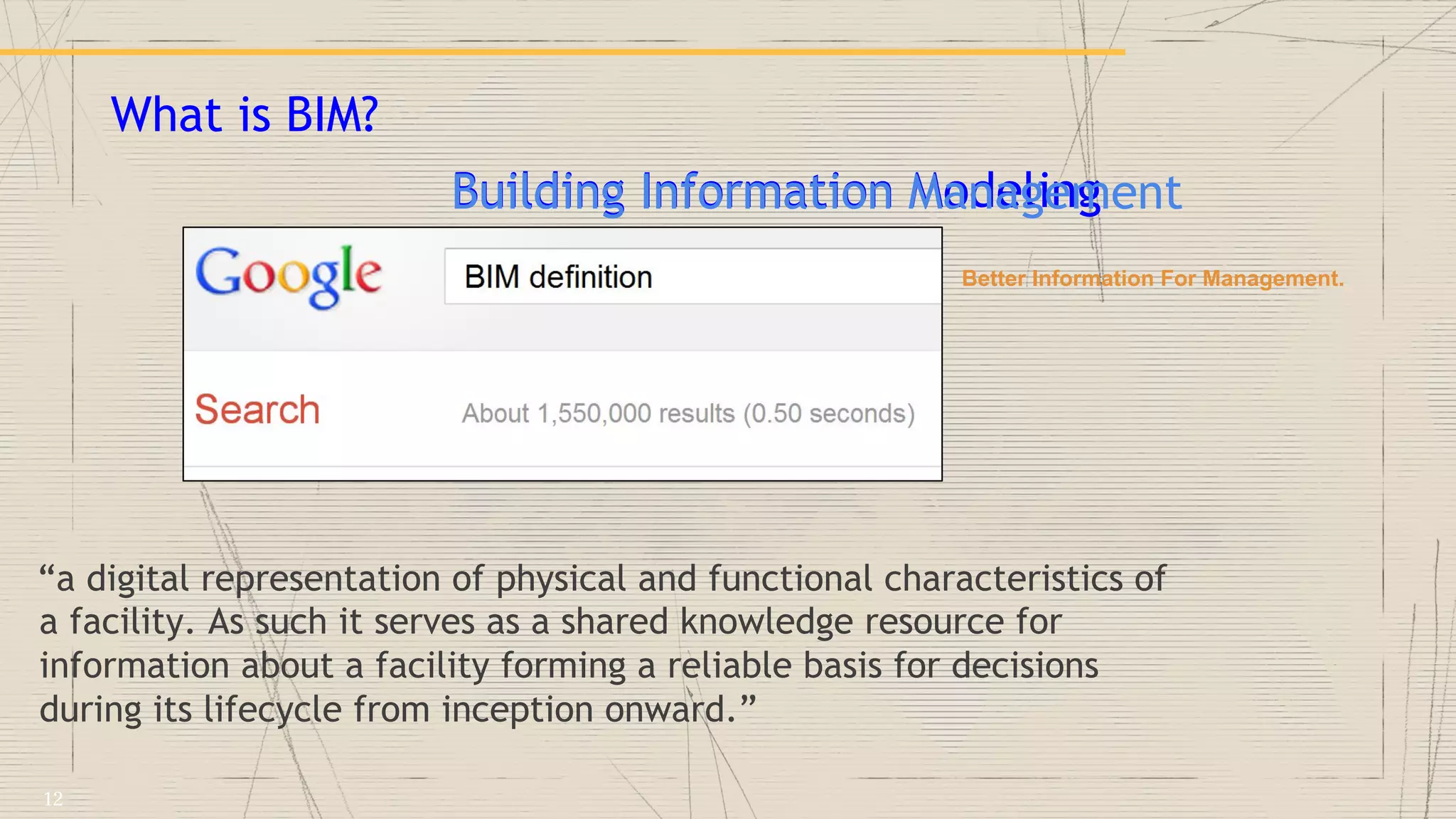

“a digital representation of physical and functional characteristics of
a facility. As such it serves as a shared knowledge resource for
information about a facility forming a reliable basis for decisions
during its lifecycle from inception onward.”
Building Information ModelingBuilding Information Management
Better Information For Management.
12

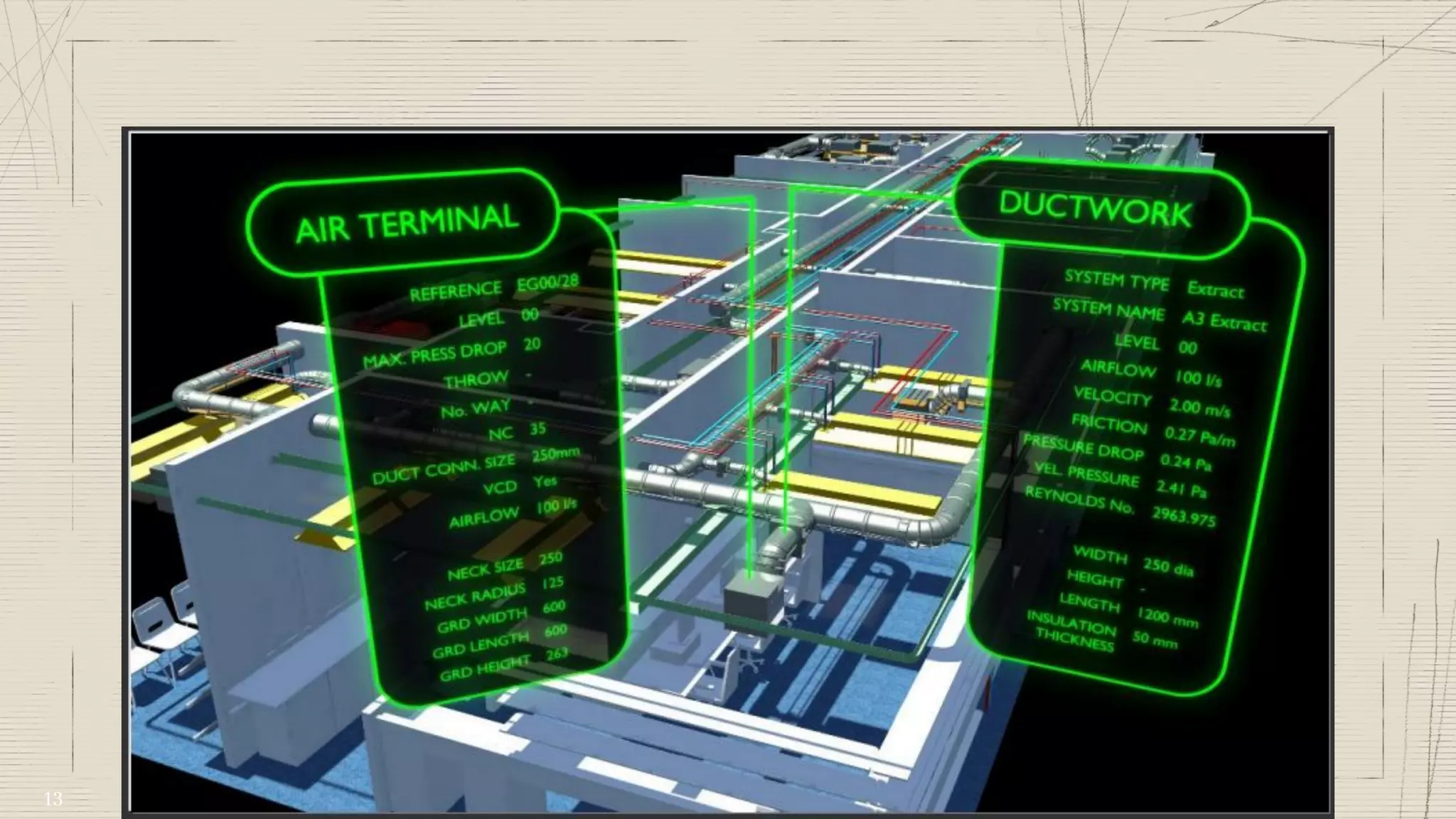

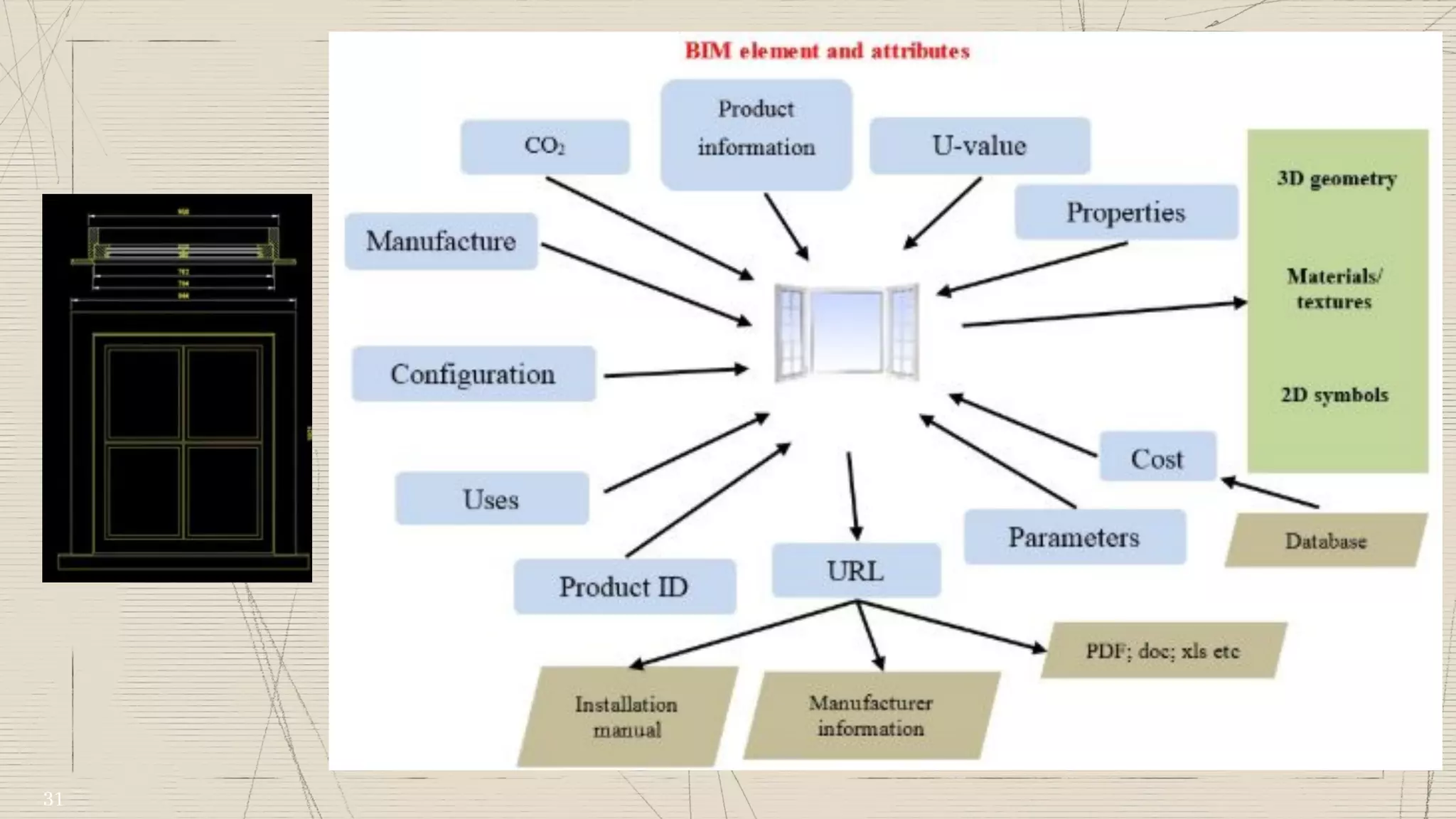

13. What is BIM? …Embedded
information (the i in BIM)
13

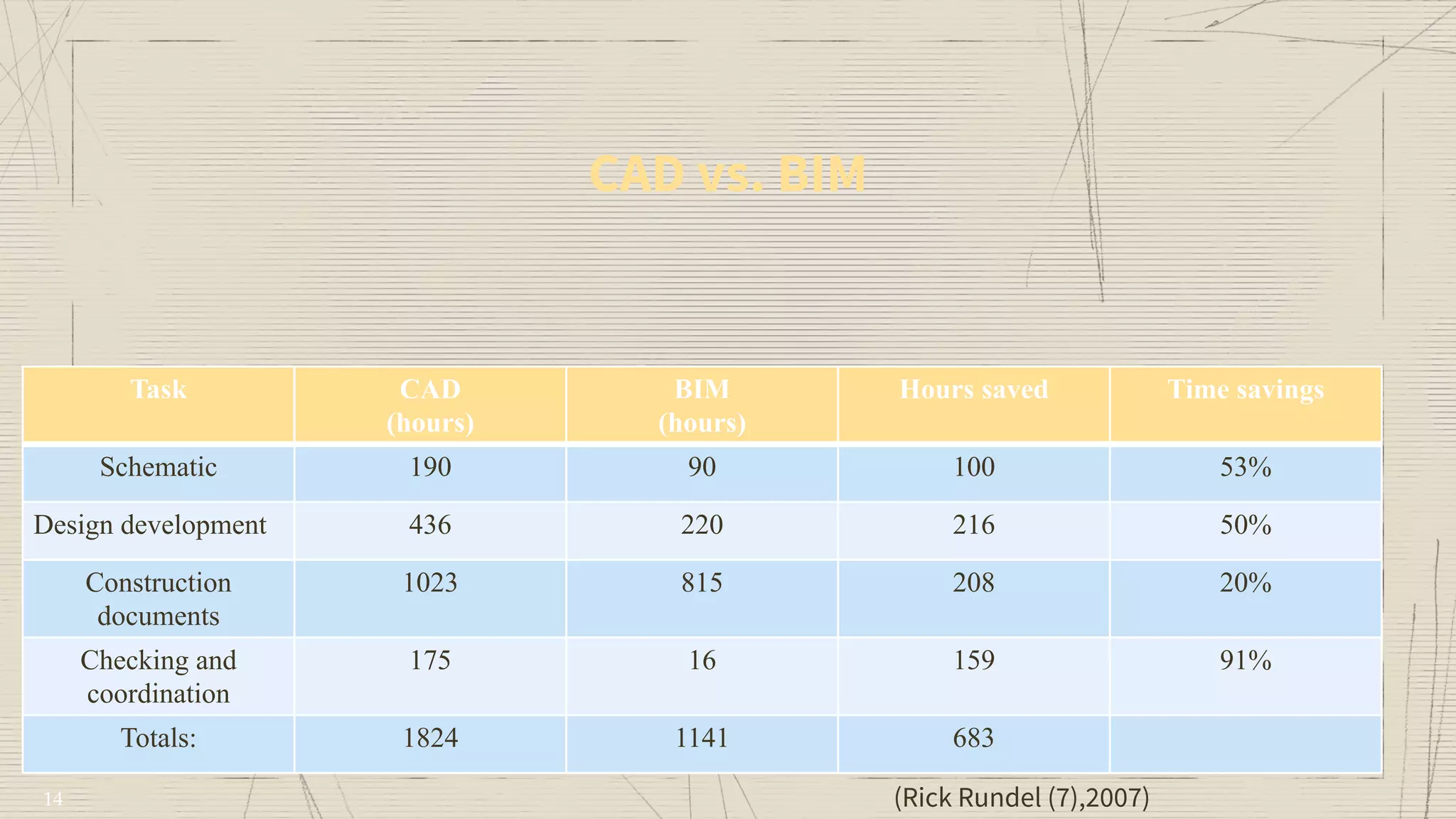

14. CAD vs. BIM
Task CAD
(hours)
BIM
(hours)
Hours saved Time savings

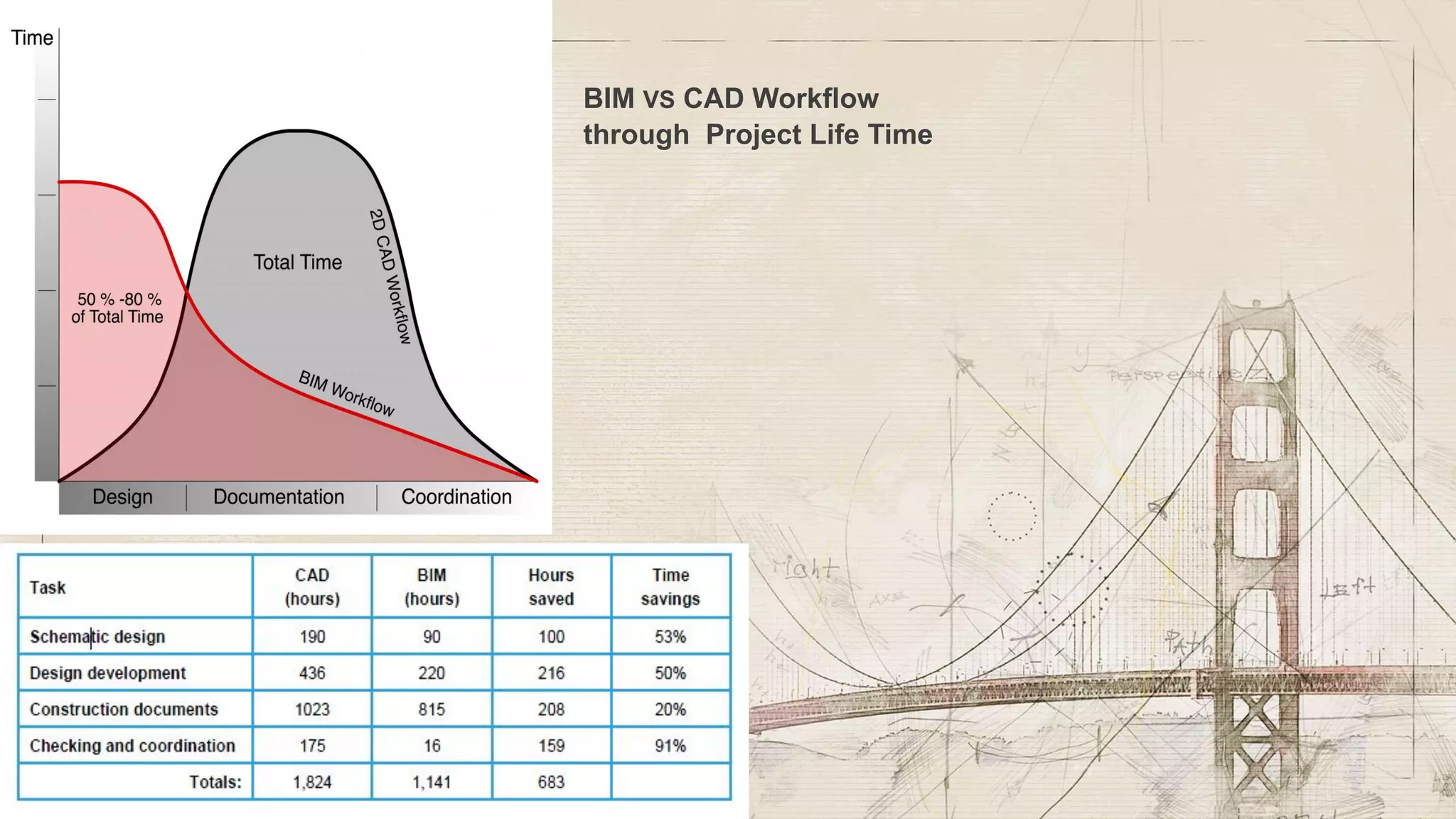

Schematic 190 90 100 53%
Design development 436 220 216 50%
Construction
documents
1023 815 208 20%
Checking and
coordination
175 16 159 91%
Totals: 1824 1141 683
(Rick Rundel (7),2007)14
15. WHAT IS BIM?
BUILDING INFORMATION MODELING
(BIM)
What is BIM ,, Building Information Modeling,,
15

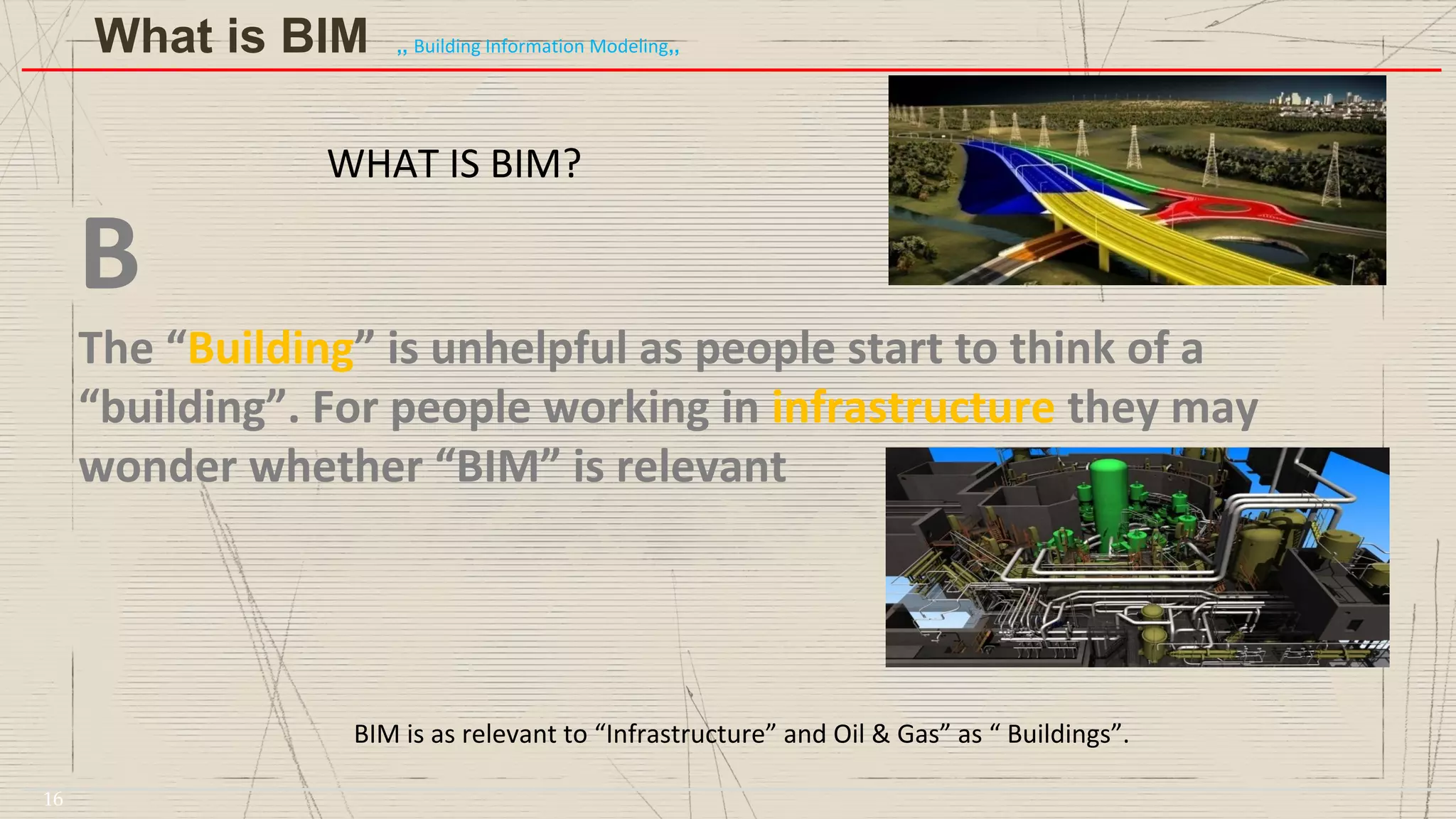

16. WHAT IS BIM?
B
The “Building” is unhelpful as people start to think of a
“building”. For people working in infrastructure they may
wonder whether “BIM” is relevant
BIM is as relevant to “Infrastructure” and Oil & Gas” as “ Buildings”.
What is BIM ,, Building Information Modeling,,
16

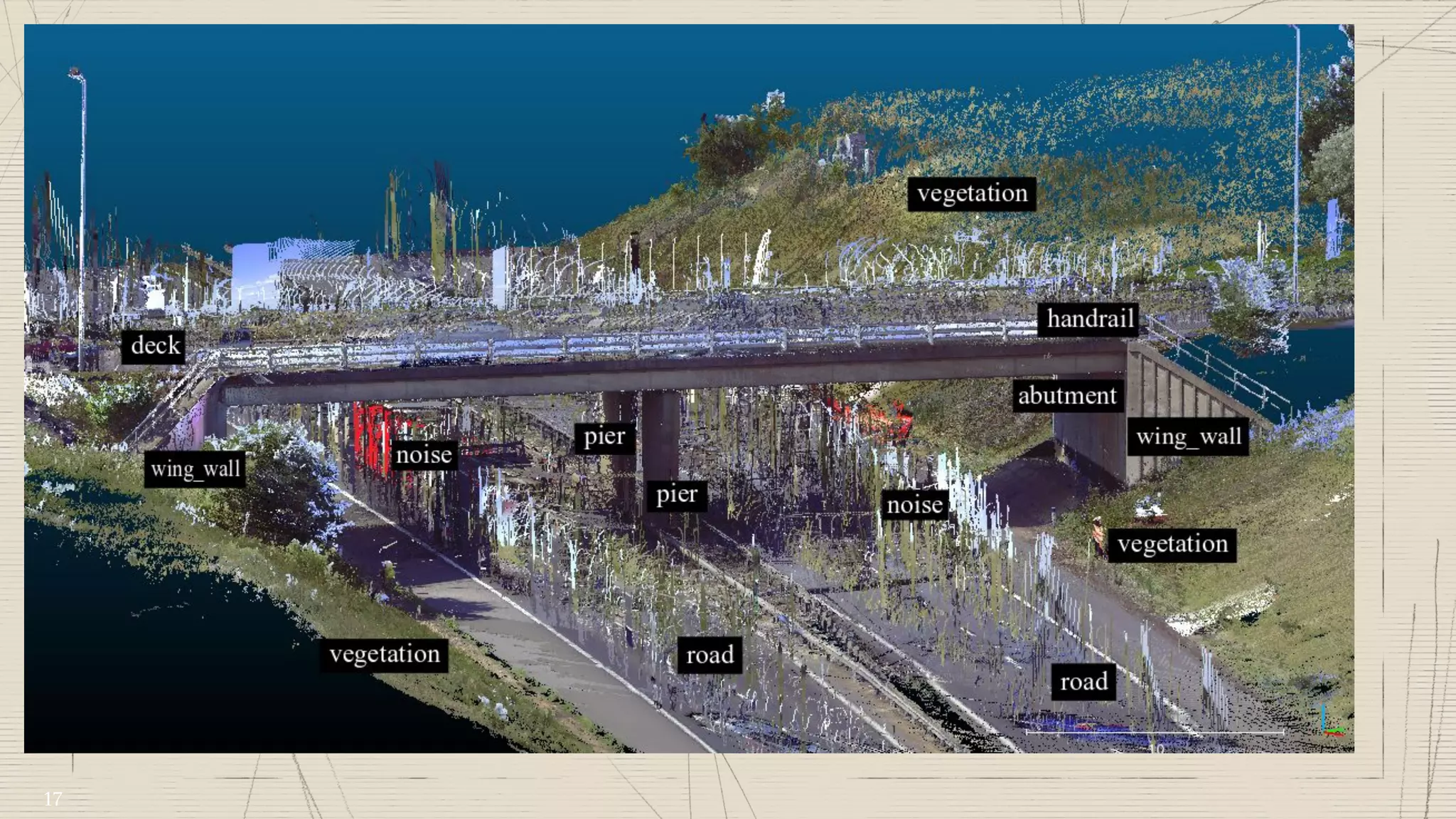

18. WHAT IS BIM?
I

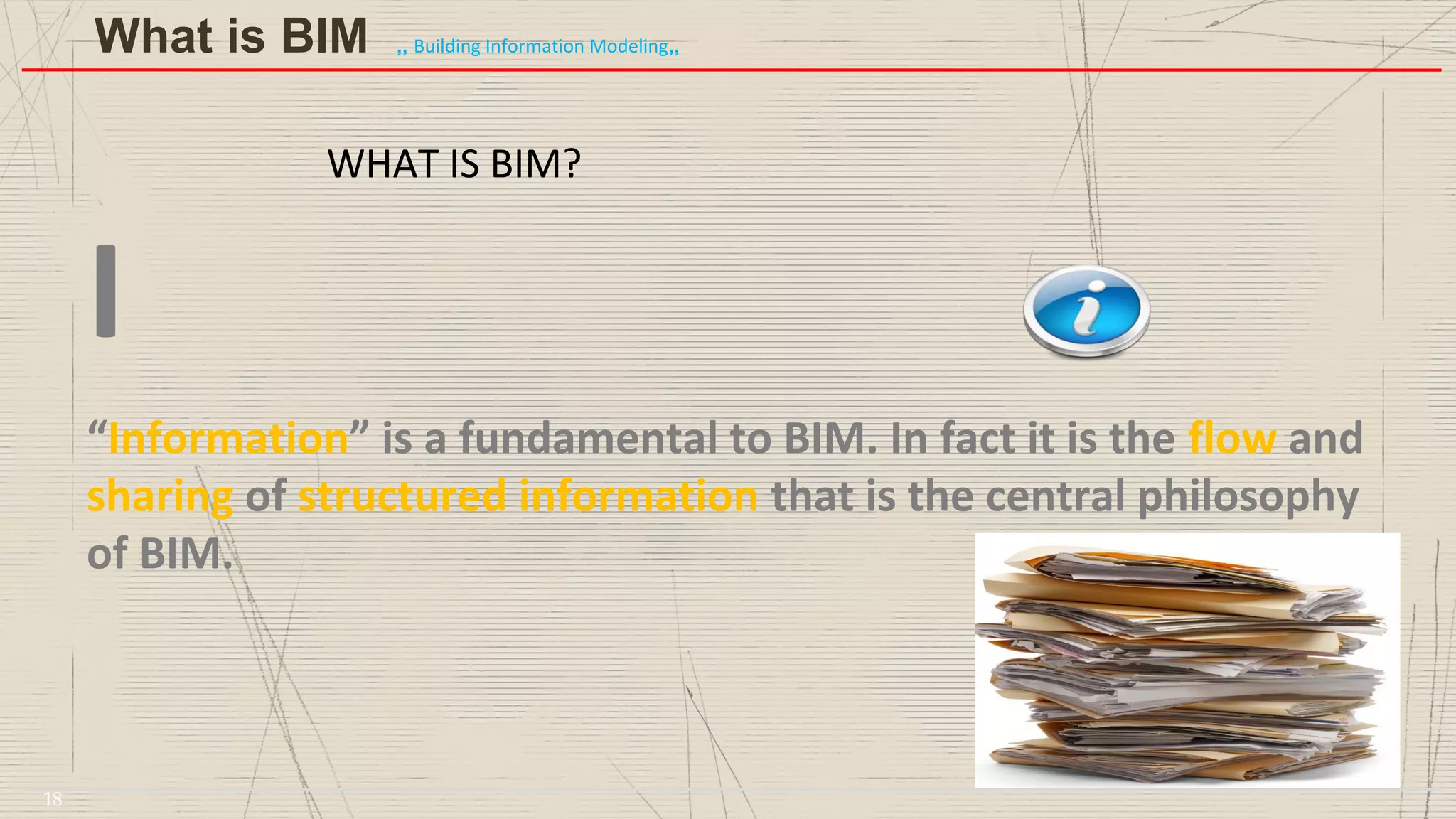

“Information” is a fundamental to BIM. In fact it is the flow and
sharing of structured information that is the central philosophy
of BIM.
What is BIM ,, Building Information Modeling,,
18

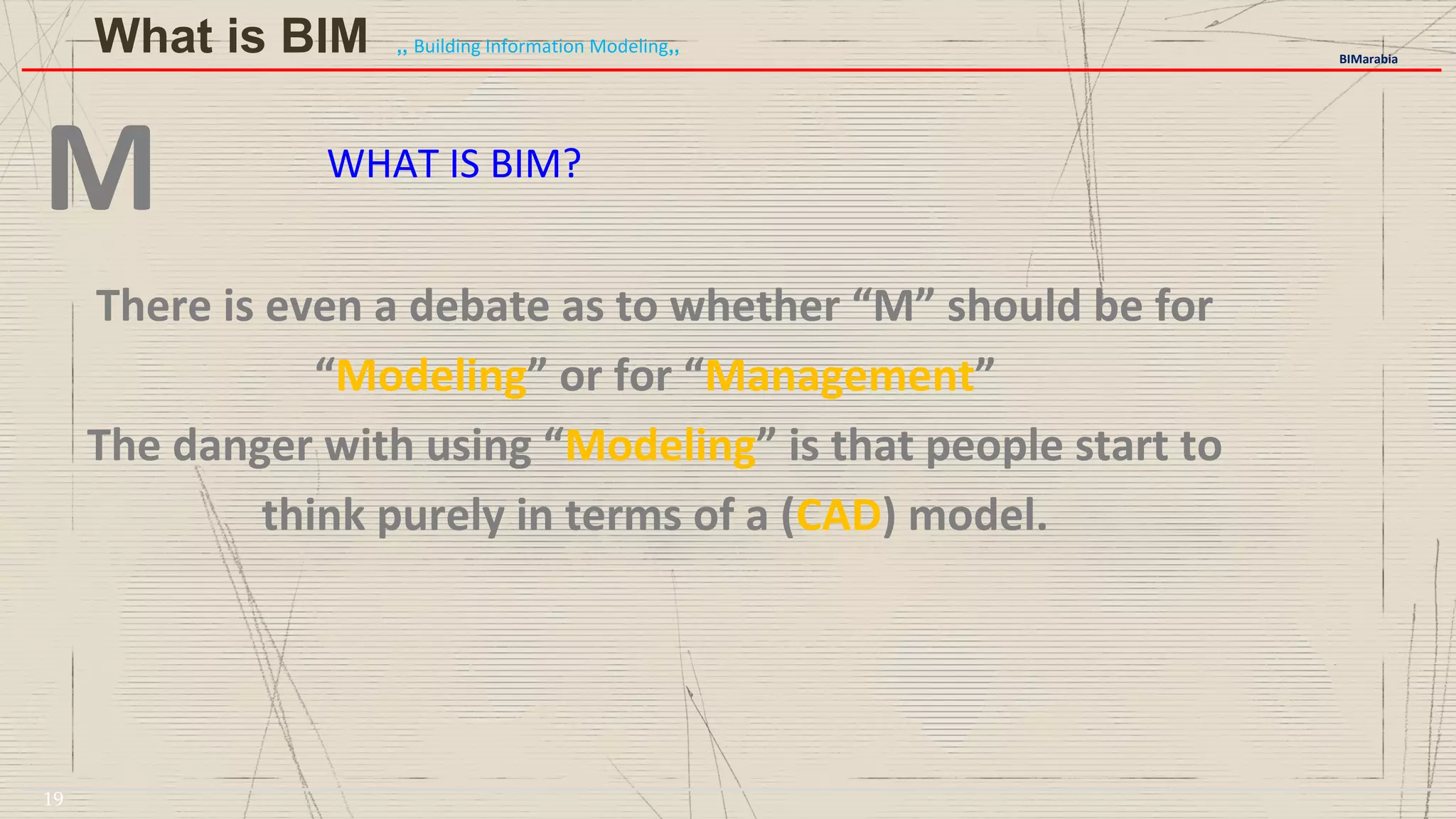

19. WHAT IS BIM?
M
There is even a debate as to whether “M” should be for
“Modeling” or for “Management”
The danger with using “Modeling” is that people start to
think purely in terms of a (CAD) model.
BIMarabia
What is BIM ,, Building Information Modeling,,
19

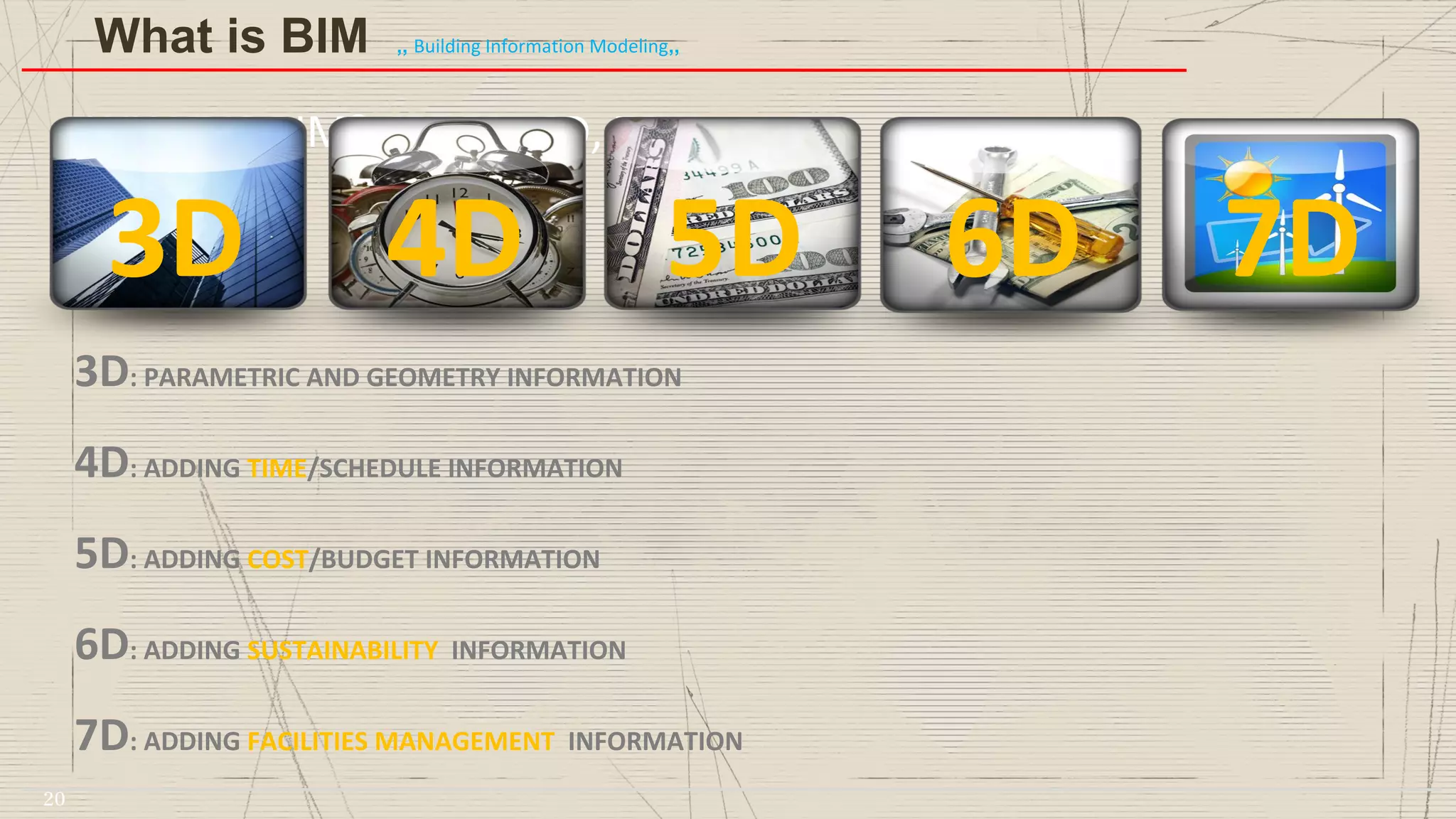

20. 3D: PARAMETRIC AND GEOMETRY INFORMATION

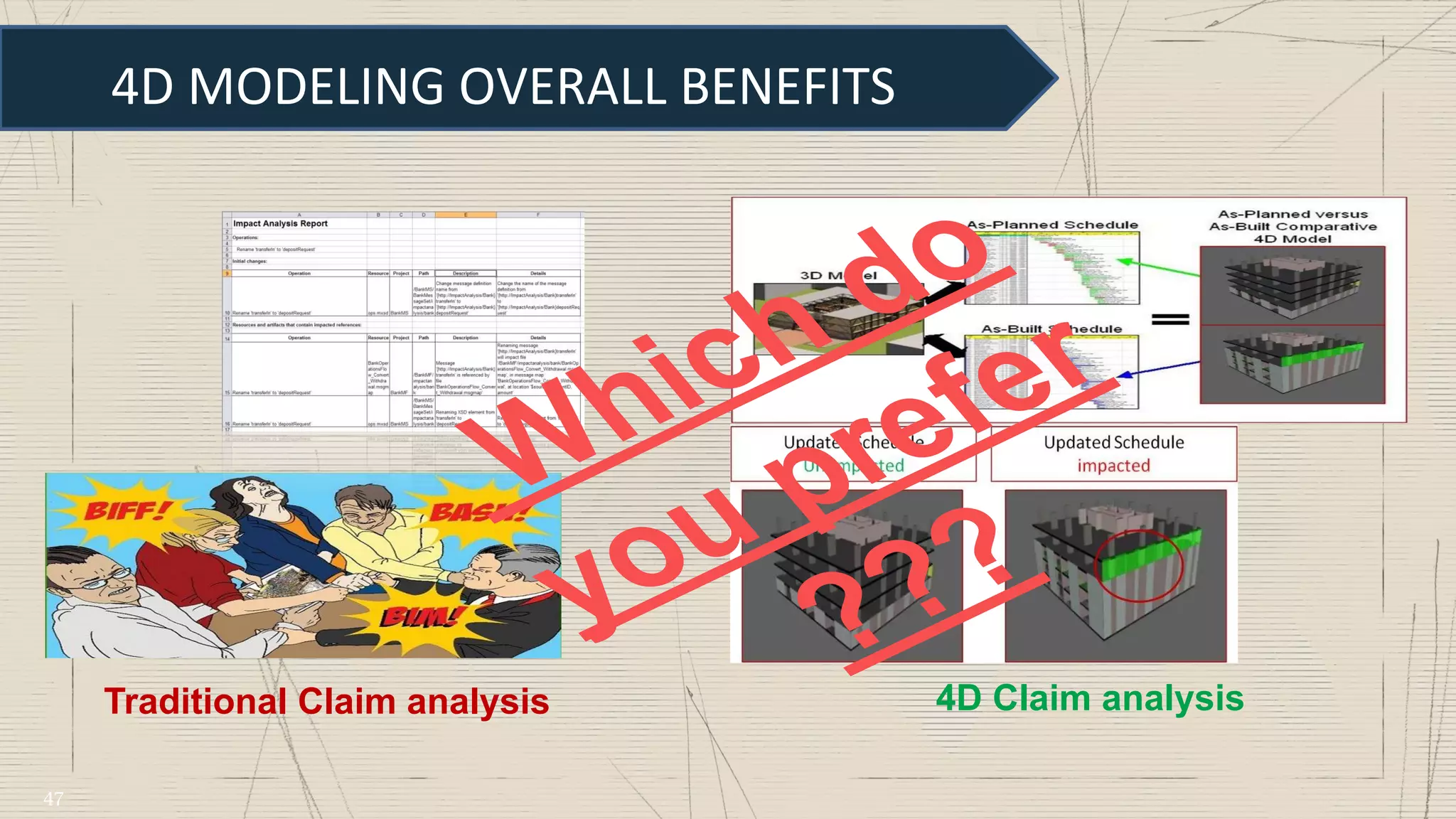

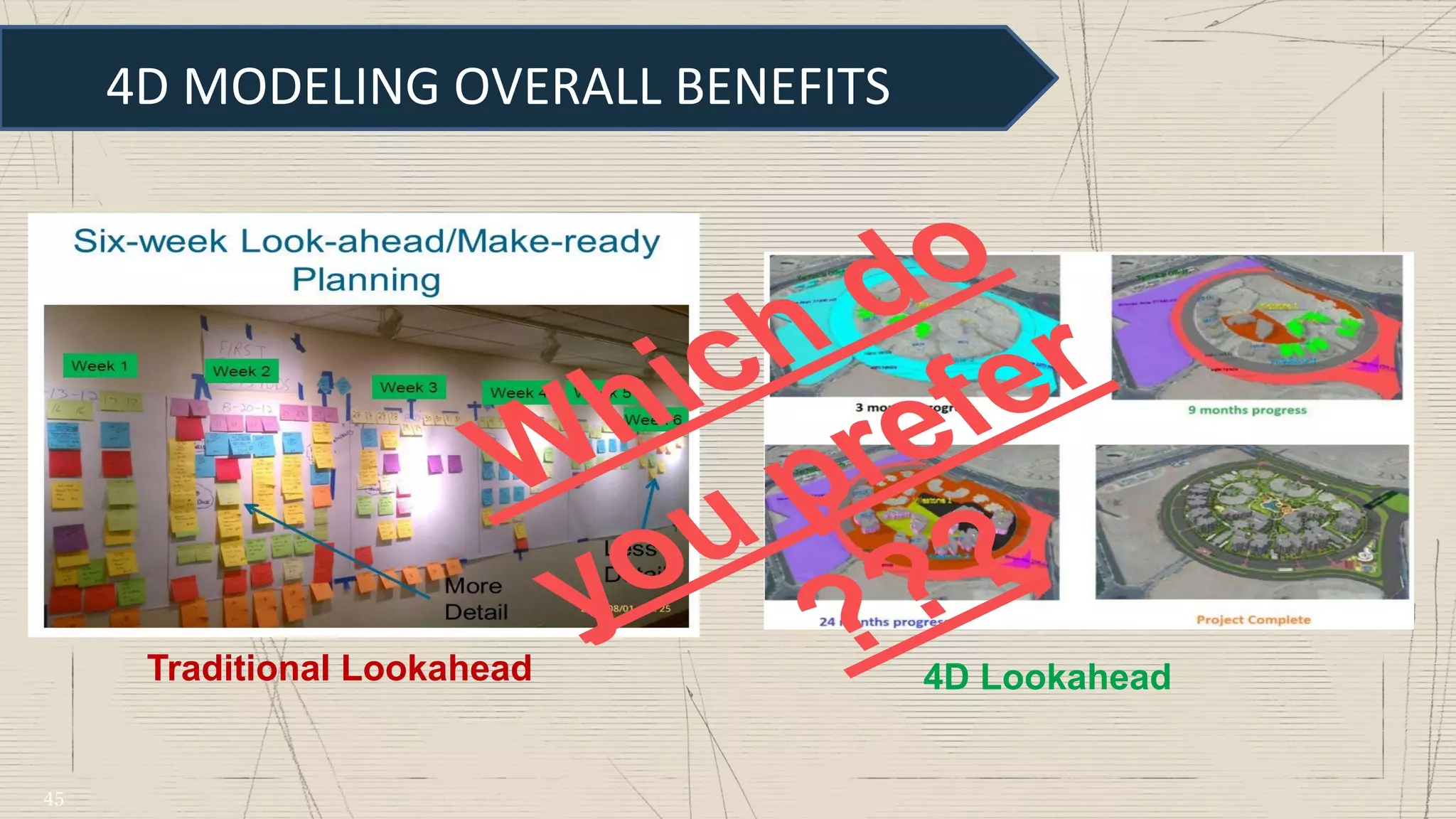

4D: ADDING TIME/SCHEDULE INFORMATION
5D: ADDING COST/BUDGET INFORMATION
6D: ADDING SUSTAINABILITY INFORMATION
7D: ADDING FACILITIES MANAGEMENT INFORMATION
WHAT IS BIM? 4D, 5D, 6D, 7D
6D4D3D 5D 7D
What is BIM ,, Building Information Modeling,,
20

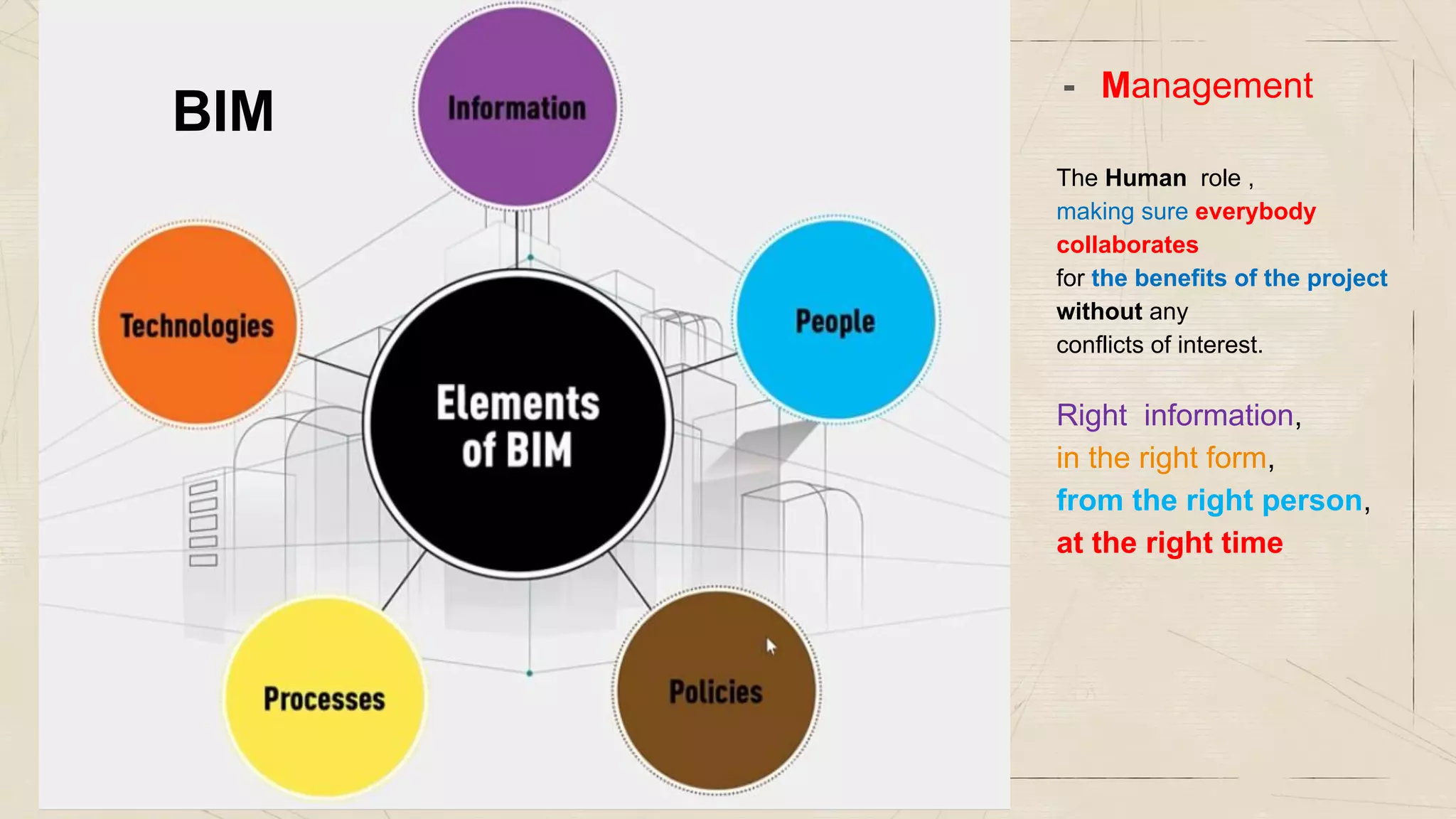

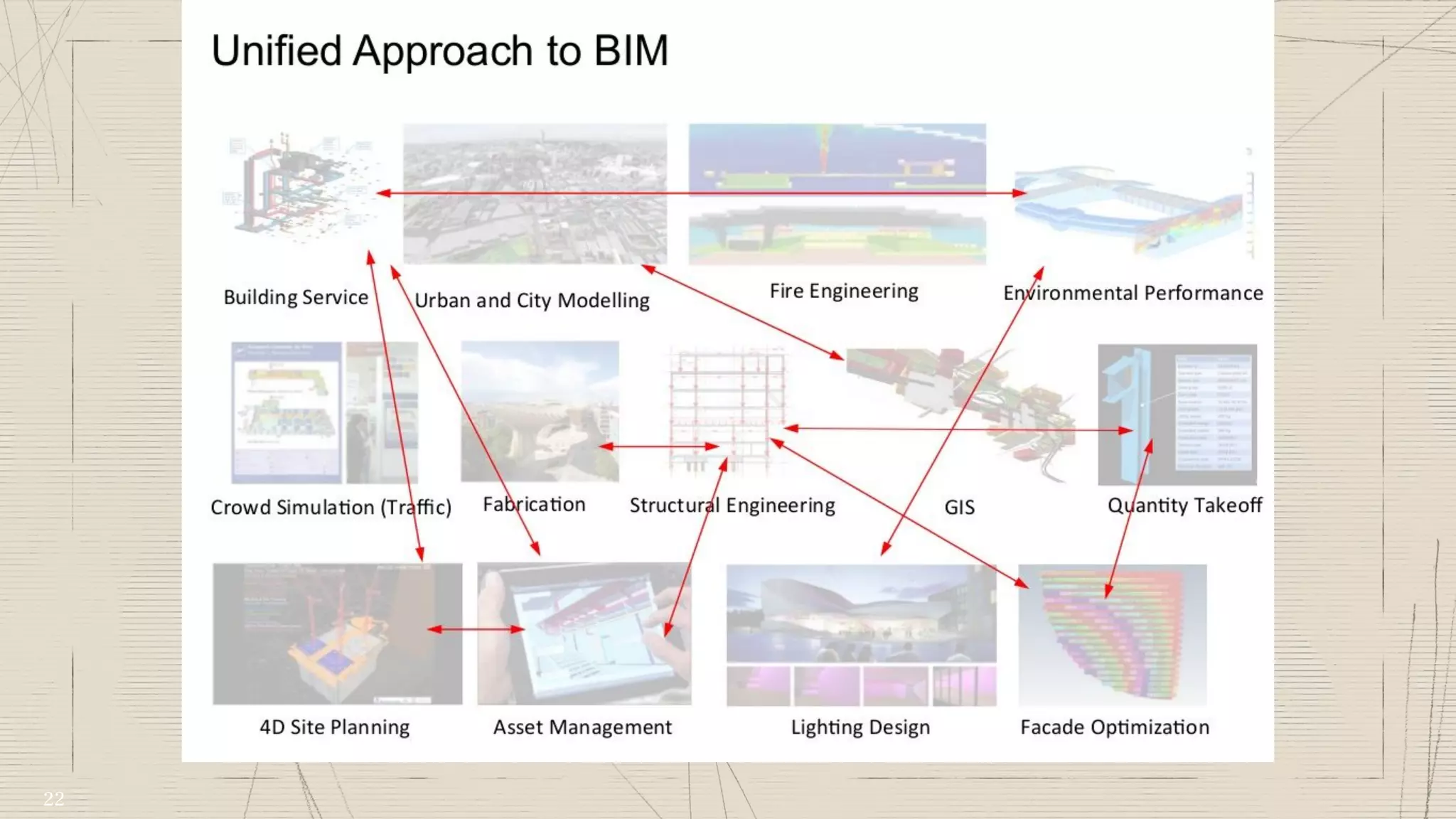

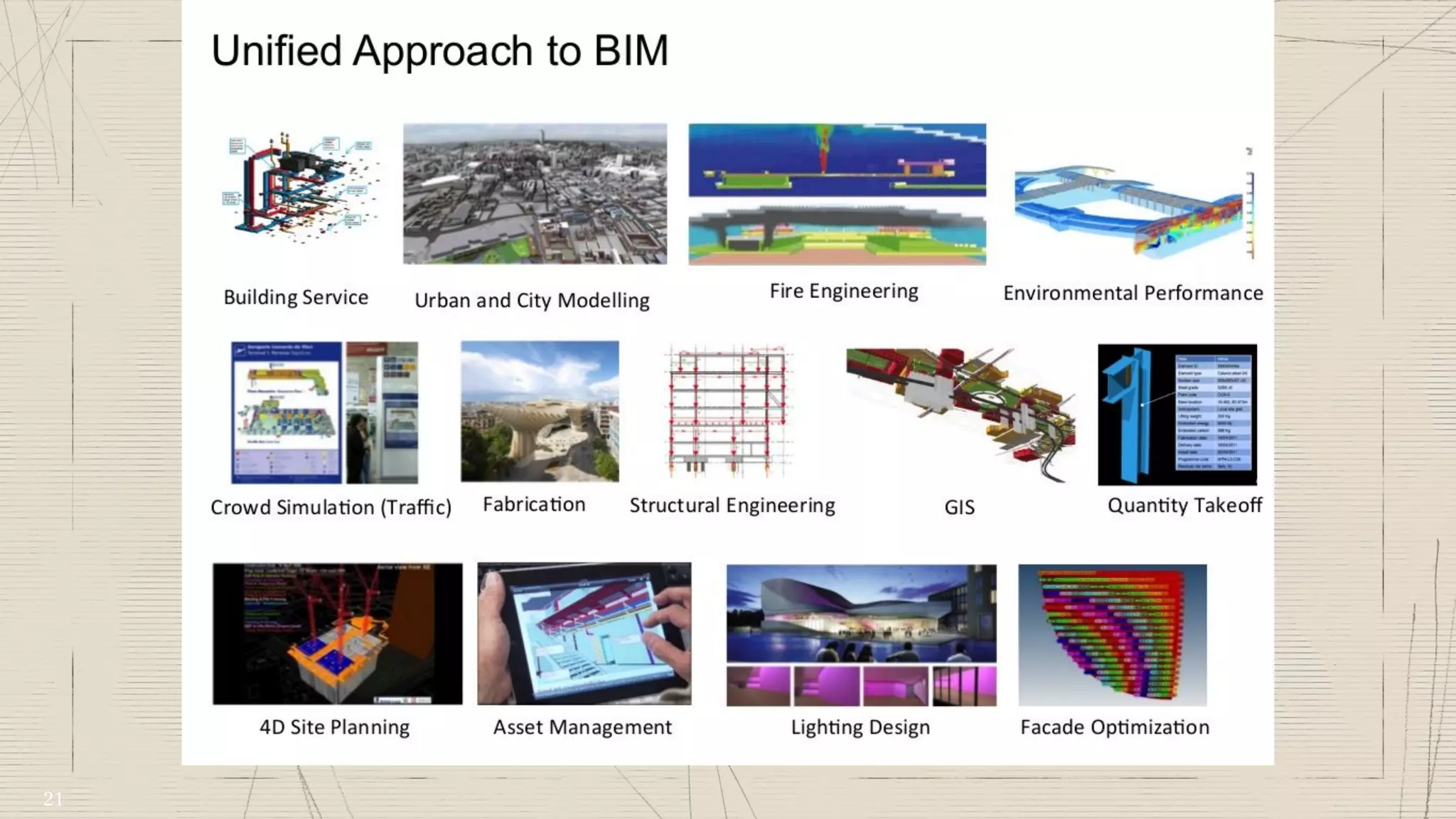

24. - Management
The Human role ,
making sure everybody
collaborates
for the benefits of the project
without any
conflicts of interest.
Right information,
in the right form,
from the right person,
at the right time
BIM

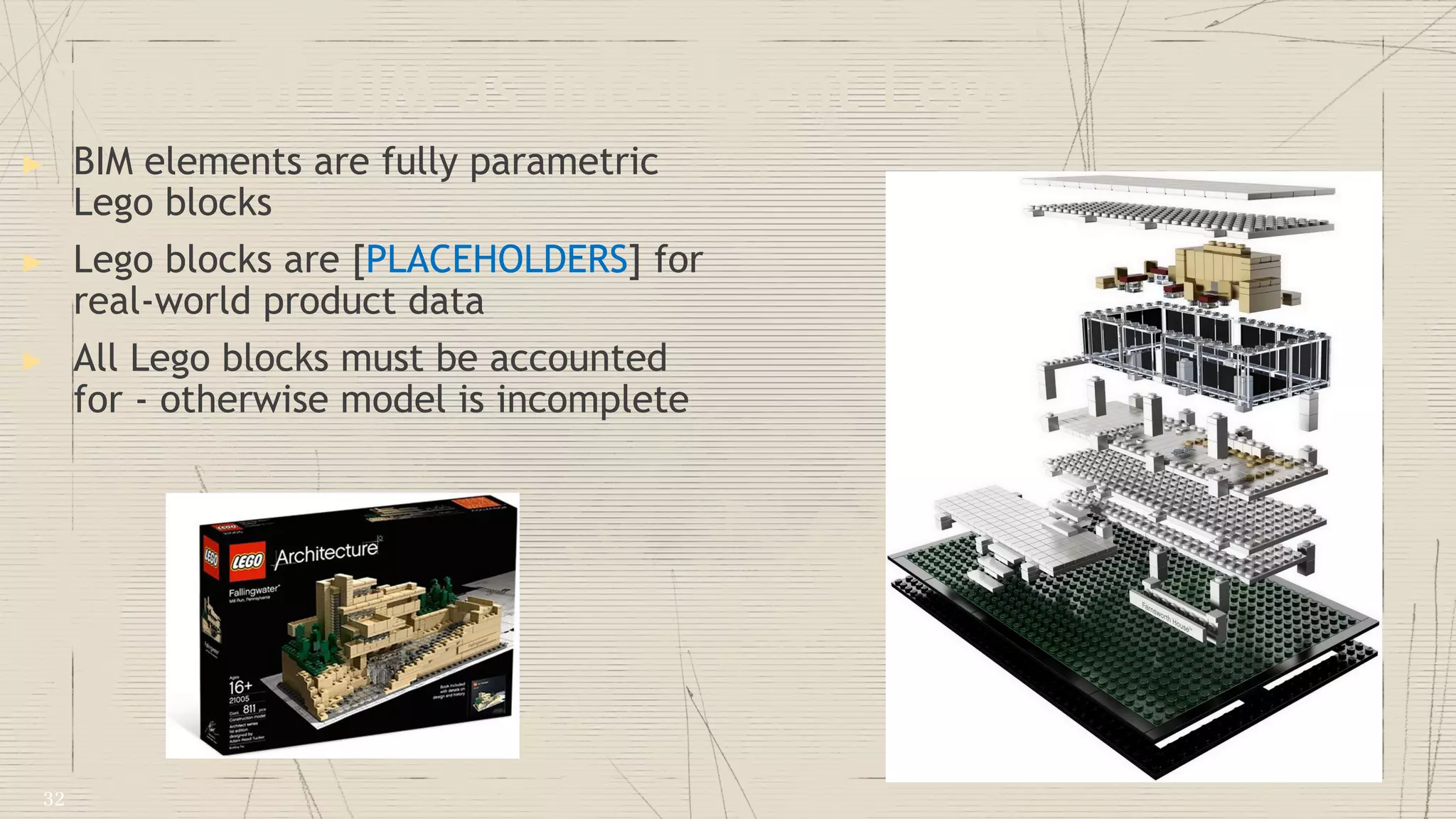

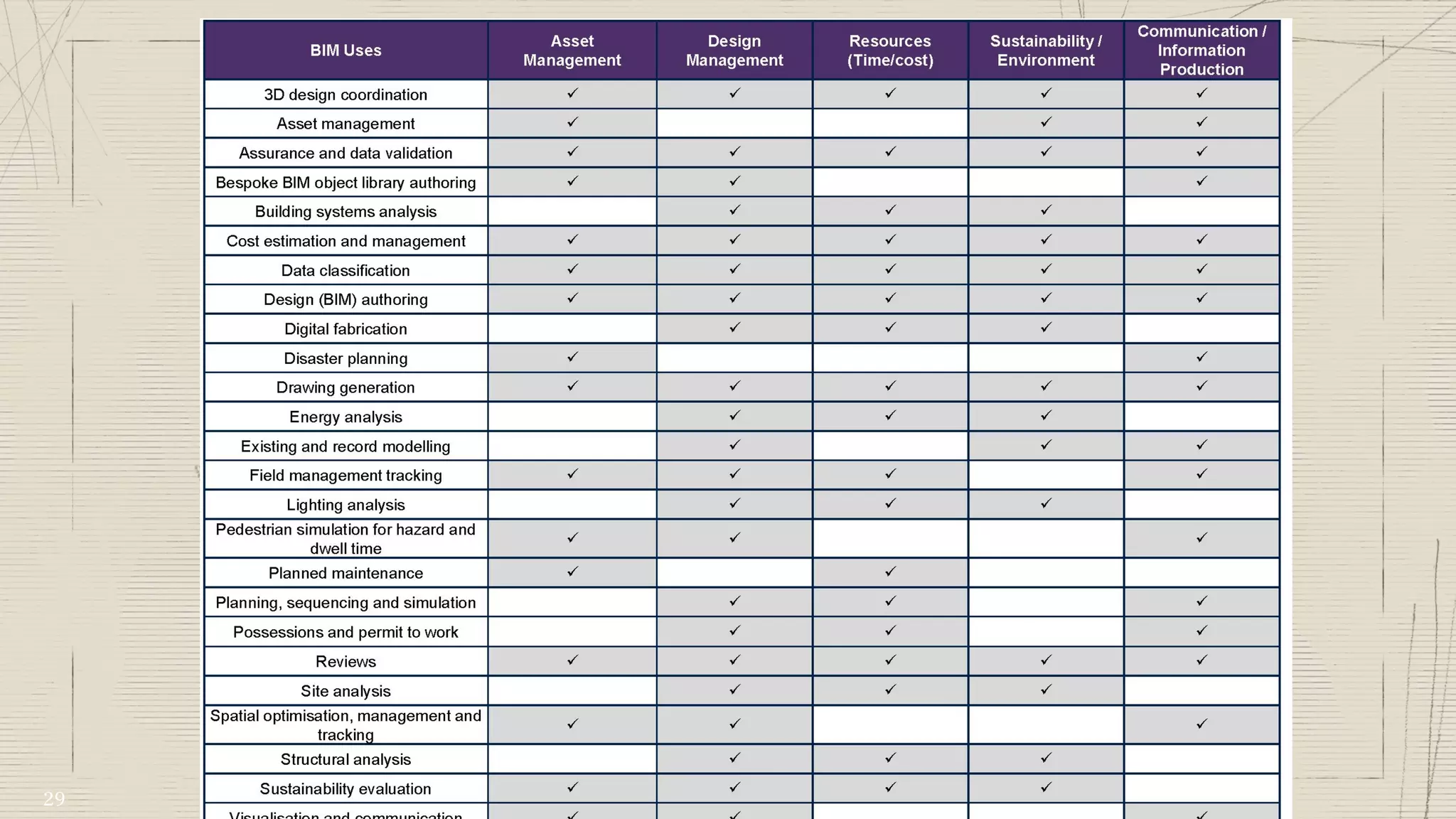

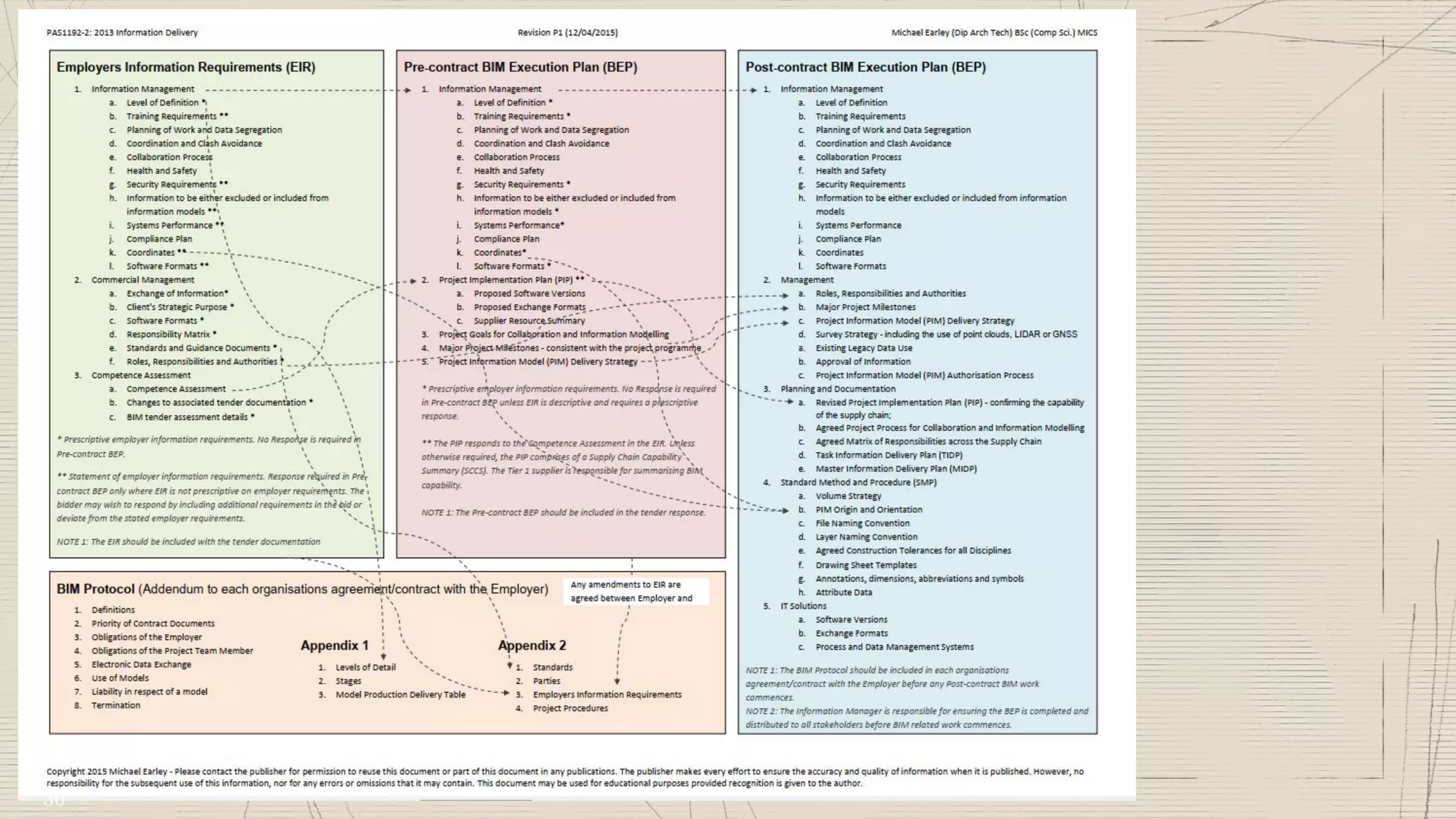

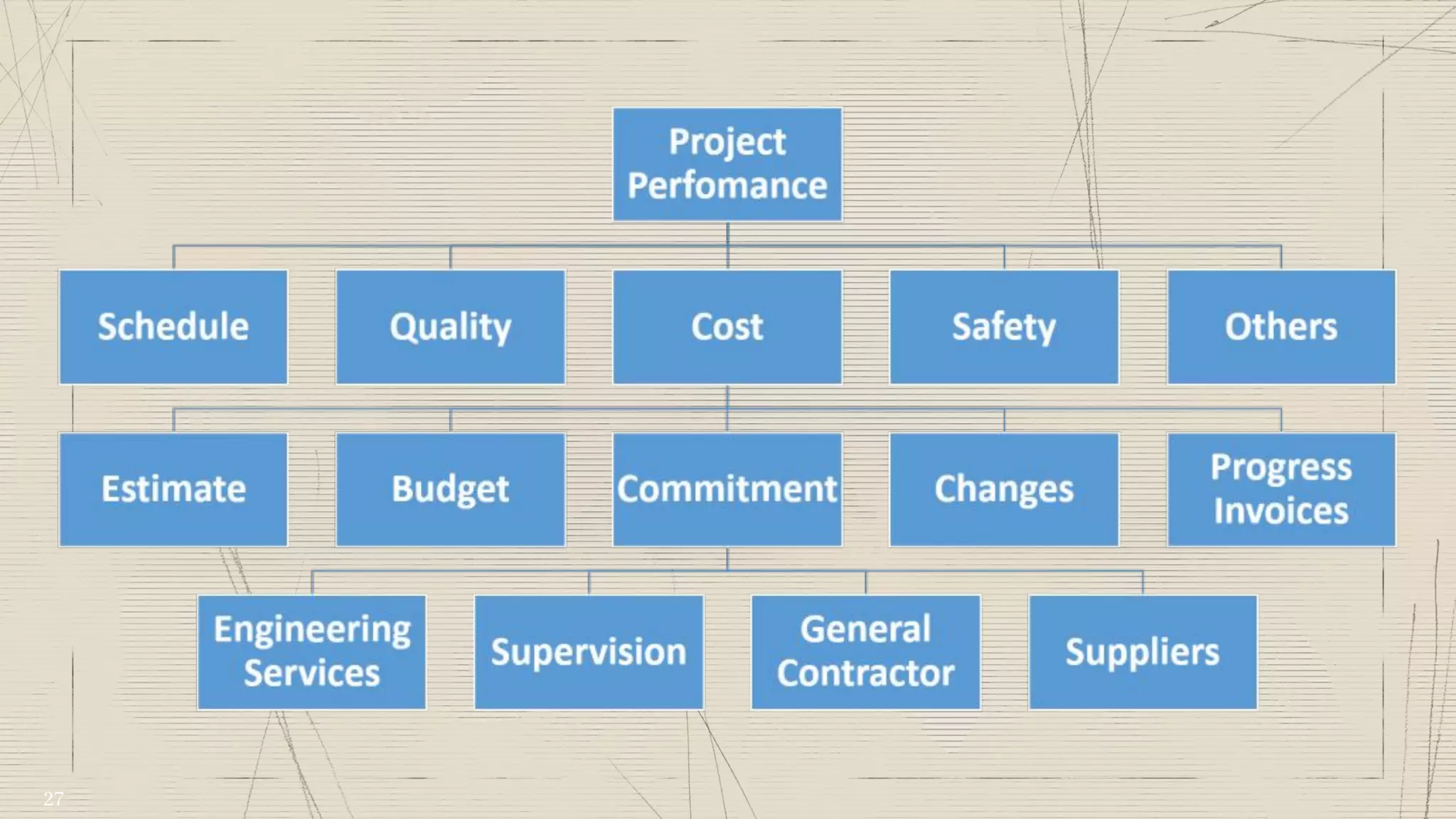

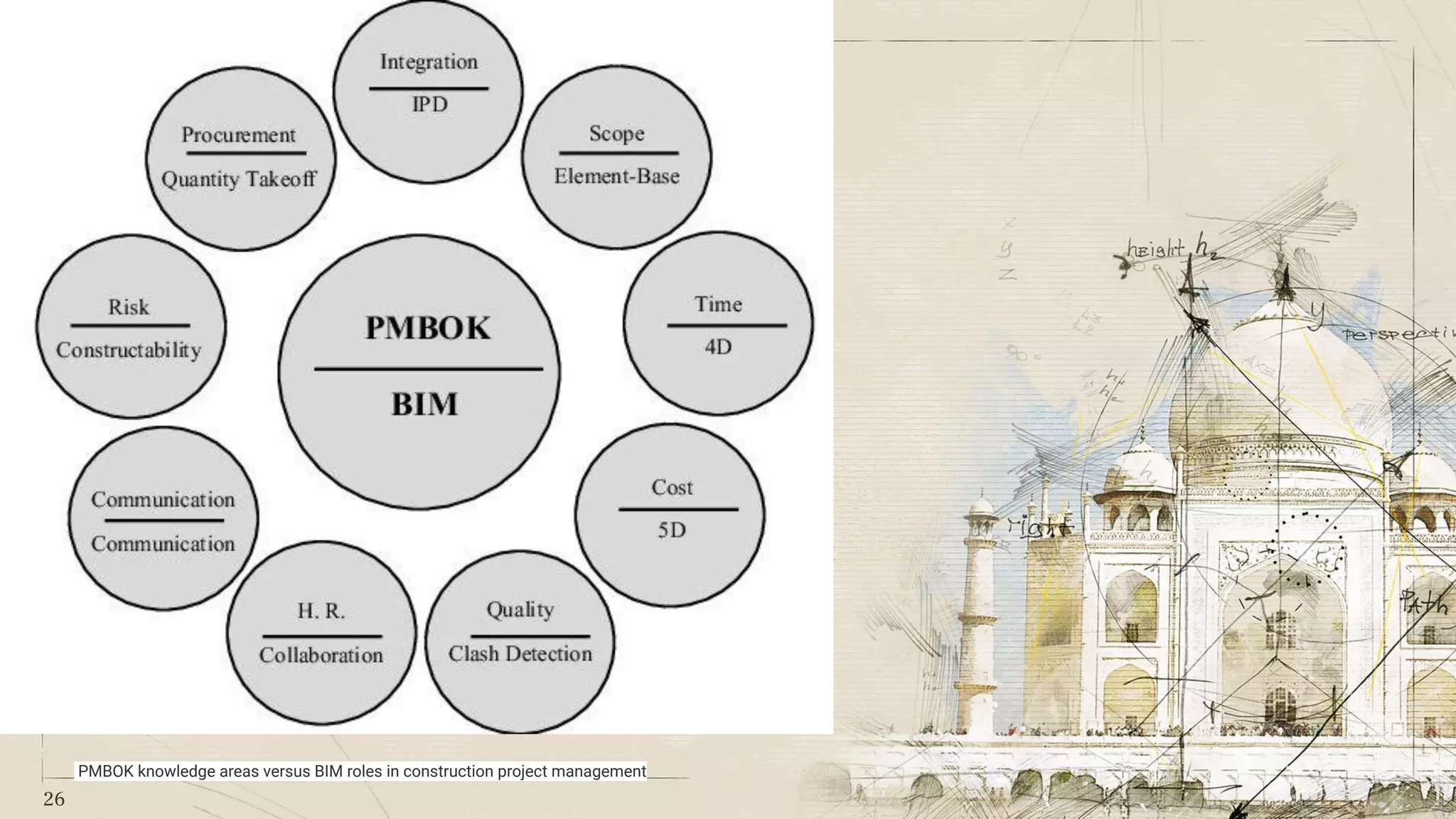

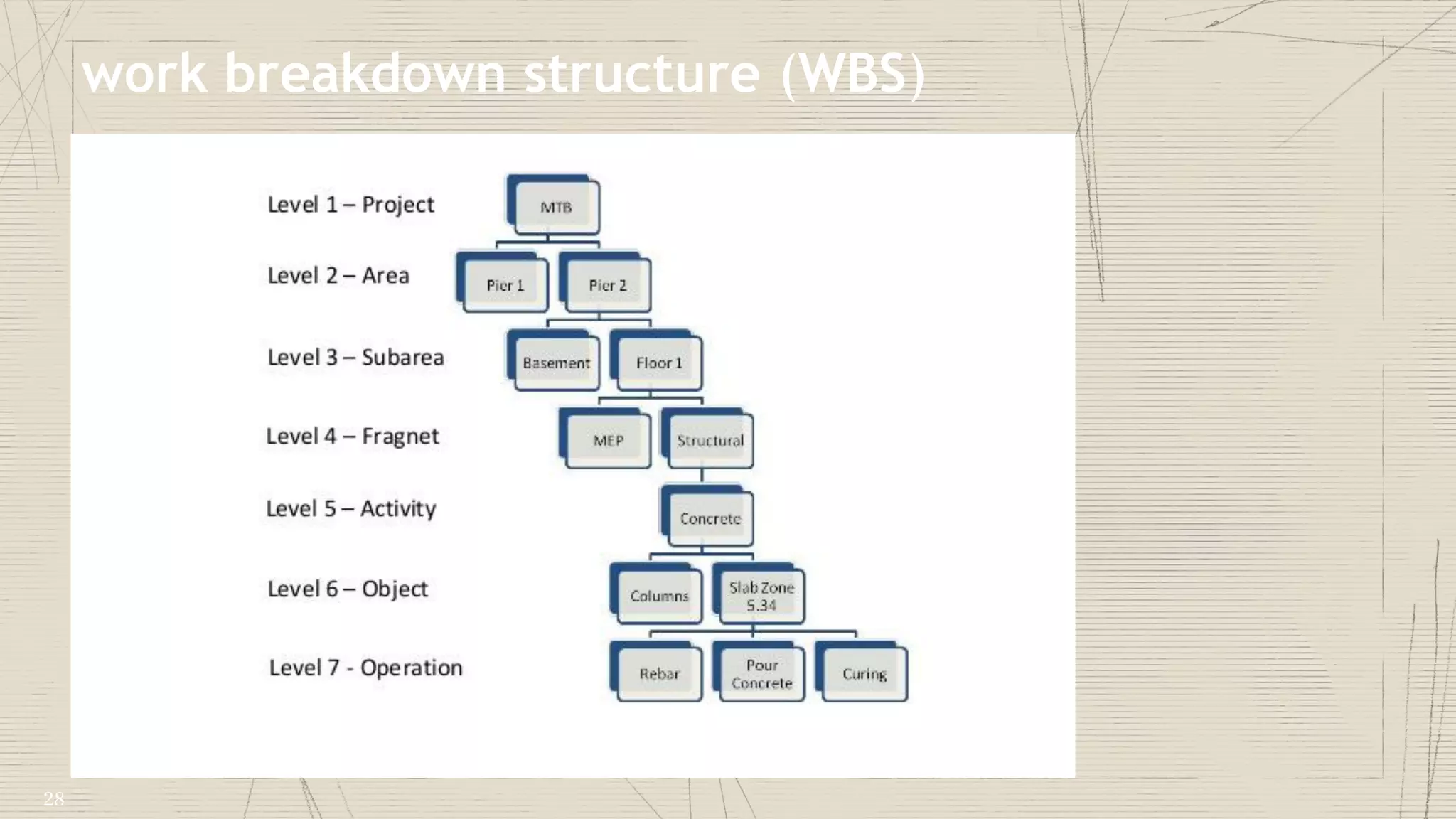

32. ▶ BIM elements are fully parametric
Lego blocks
▶ Lego blocks are [PLACEHOLDERS] for
real-world product data
▶ All Lego blocks must be accounted
for - otherwise model is incomplete
Think of BIM as intelligent Lego
32
33. ▶ Model is complete (No blocks missing)
All Lego blocks accounted for?
33

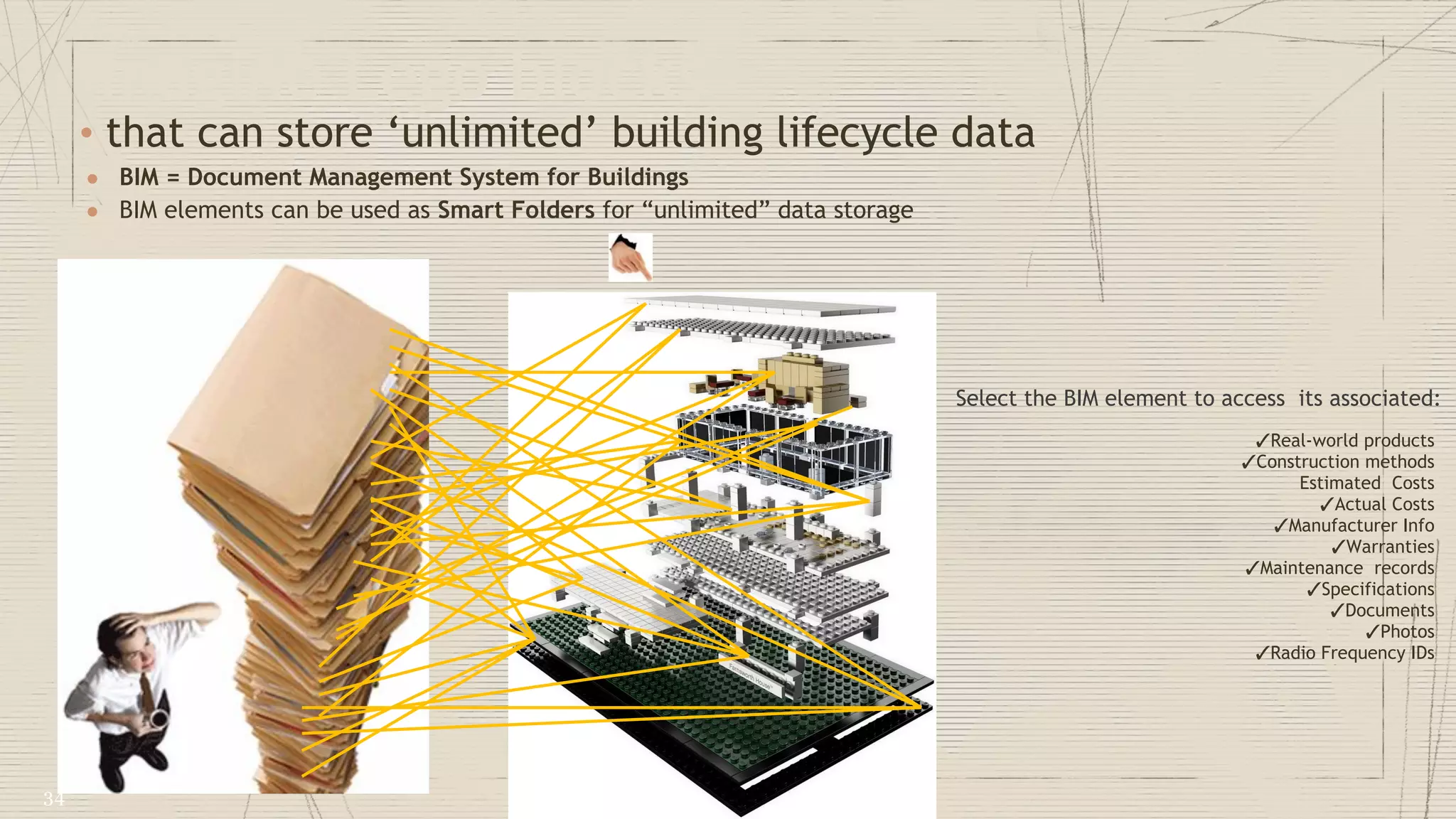

34. Select the BIM element to access its associated:
• that can store ‘unlimited’ building lifecycle data
● BIM = Document Management System for Buildings
● BIM elements can be used as Smart Folders for “unlimited” data storage
Imagine Lego blocks
✓Real-world products
✓Construction methods
Estimated Costs
✓Actual Costs
✓Manufacturer Info
✓Warranties
✓Maintenance records
✓Specifications
✓Documents
✓Photos
✓Radio Frequency IDs
34

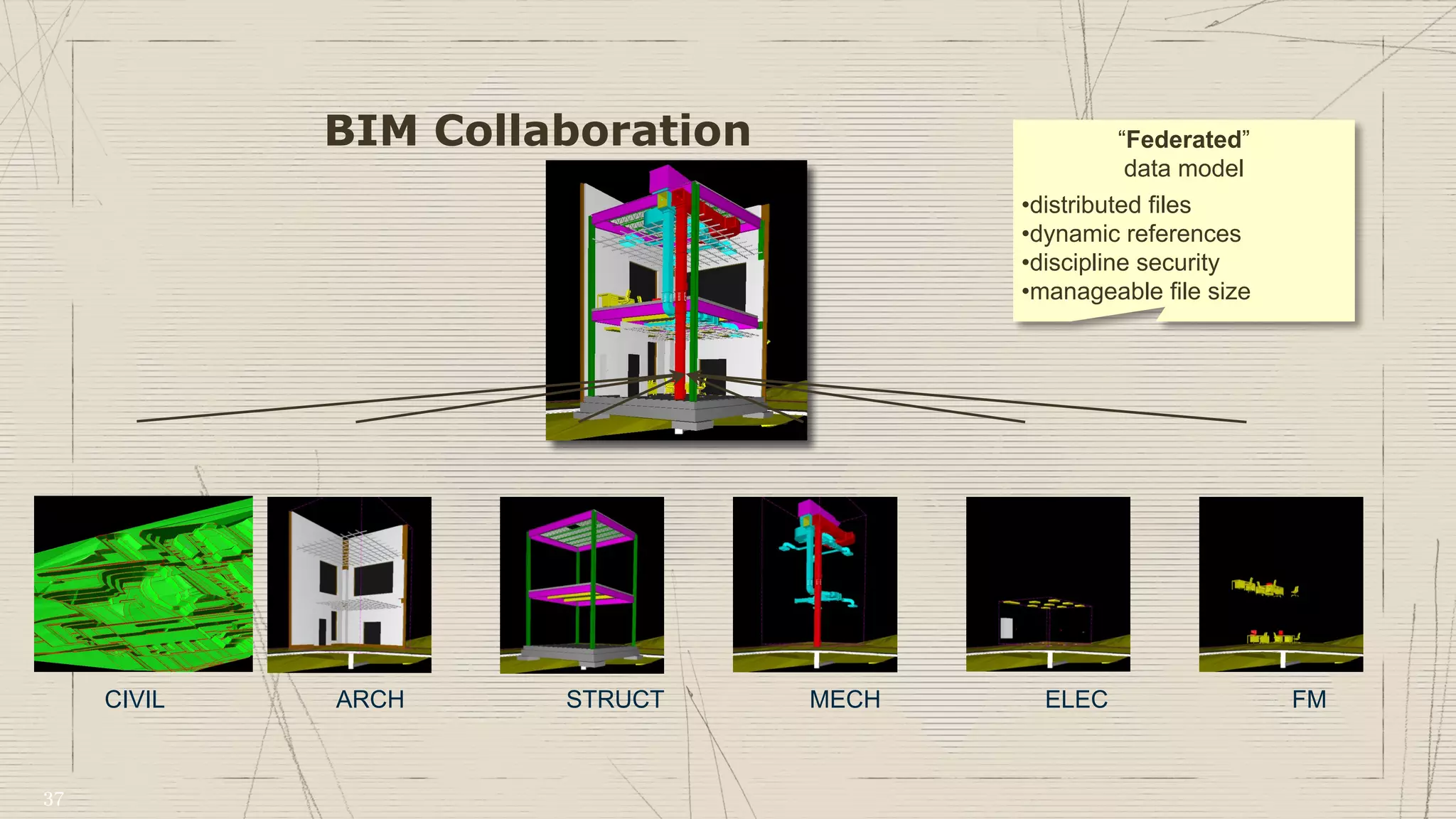

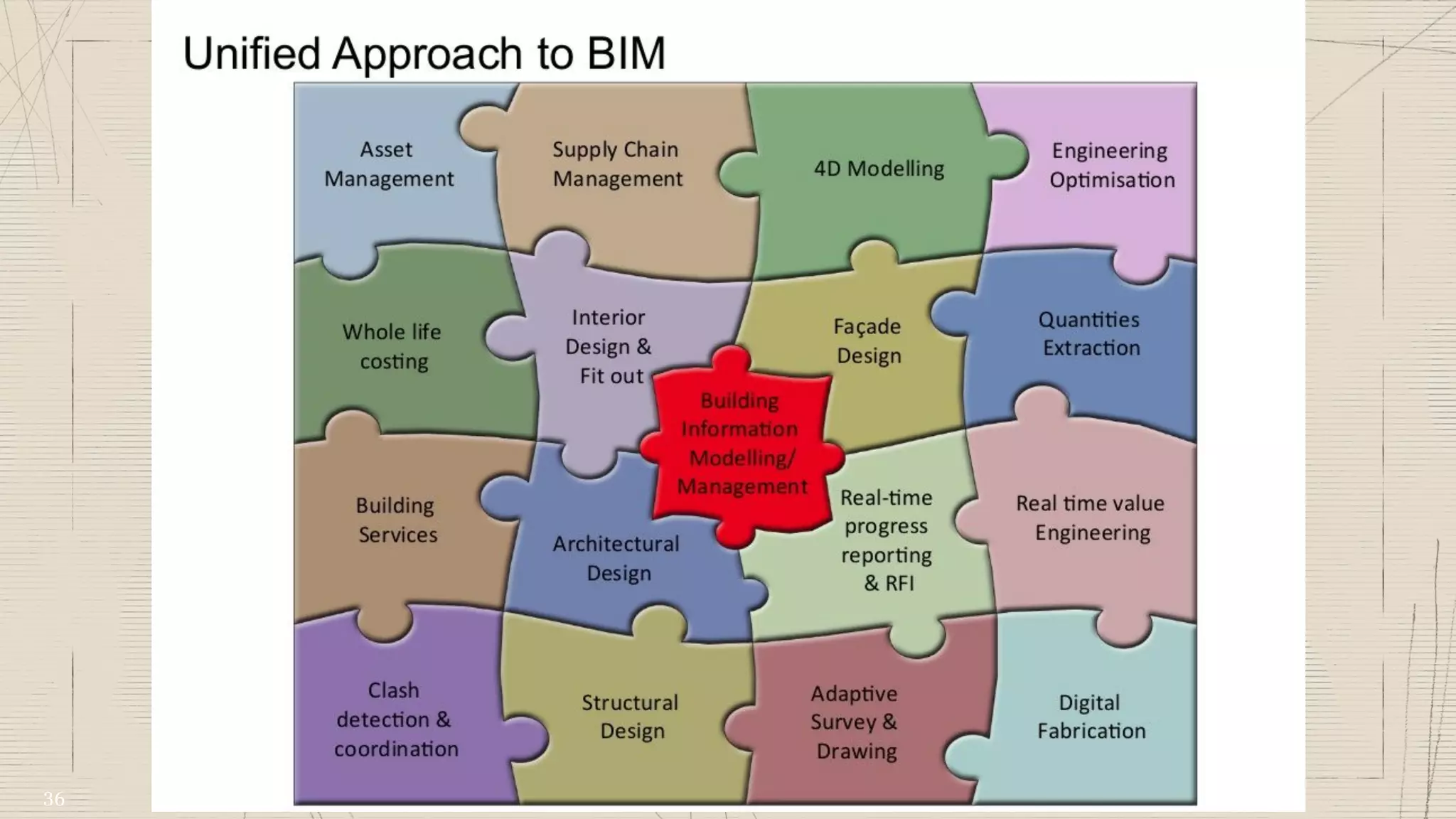

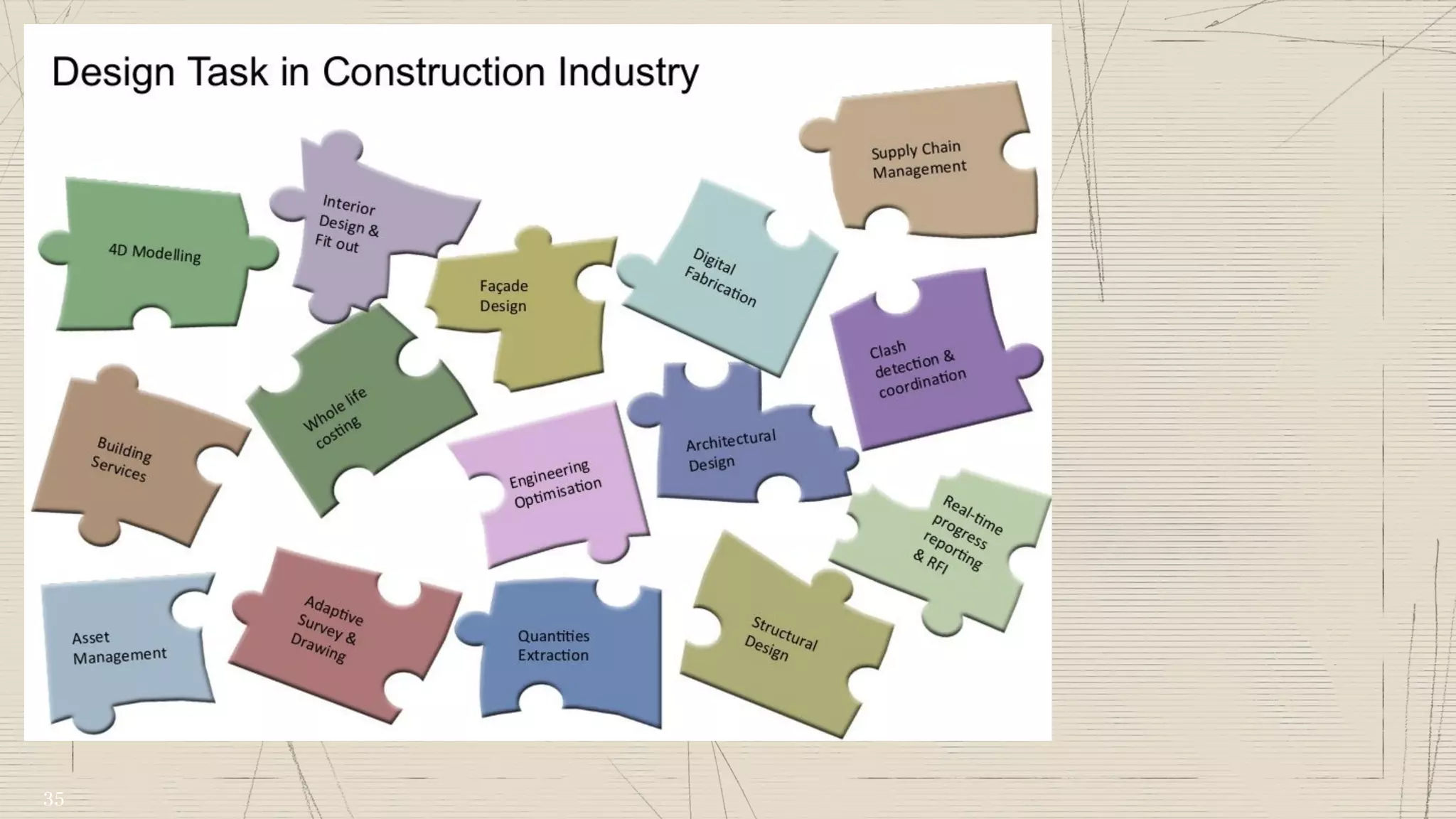

38. Design
team
Rest of your project
team
Document
Control
RFIs &
change
orders
Bidding &
Tenders
Workflows &
approvals
Commissioning Submittals Field
Inspections
Handover
Authoring tools Coordination tools

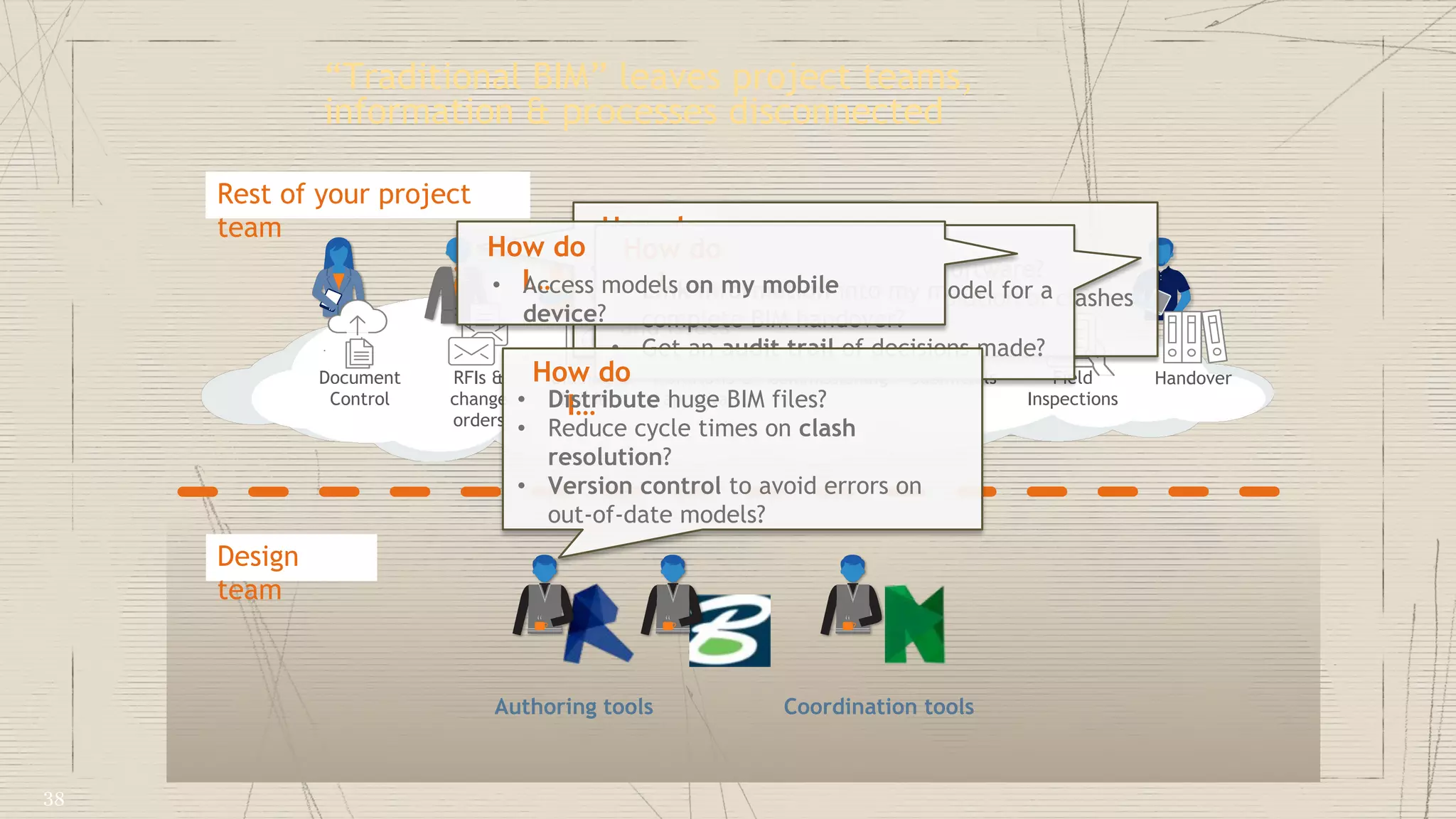

“Traditional BIM” leaves project teams,
information & processes disconnected
How do
I…• View models without special software?
• Link RFIs with objects for resolution of clashes
and issues
How do
I…• Link information into my model for a
complete BIM handover?
• Get an audit trail of decisions made?
How do
I…• Distribute huge BIM files?
• Reduce cycle times on clash
resolution?
• Version control to avoid errors on
out-of-date models?
How do
I…• Access models on my mobile
device?
38
39. Rest of your project
team
Coordination tools
Document
Control
RFIs &
change
orders
Bidding &
Tenders
Workflows &
approvals
Commissioning
Packages &
Deliverables
Field
Inspections
Handover
Document
Control
RFIs &
change
orders
Bidding &
Tenders
Workflows &
approvals
Commissioning Submittals Field
Inspections
Handover
Native model data
Open BIM, IFC, COBie
The Solution: Aconex “Connected BIM”…
Driving everyone project-wide to participate in BIM
Open
BIM
Handover
Design
team
BIM Collaboration
39

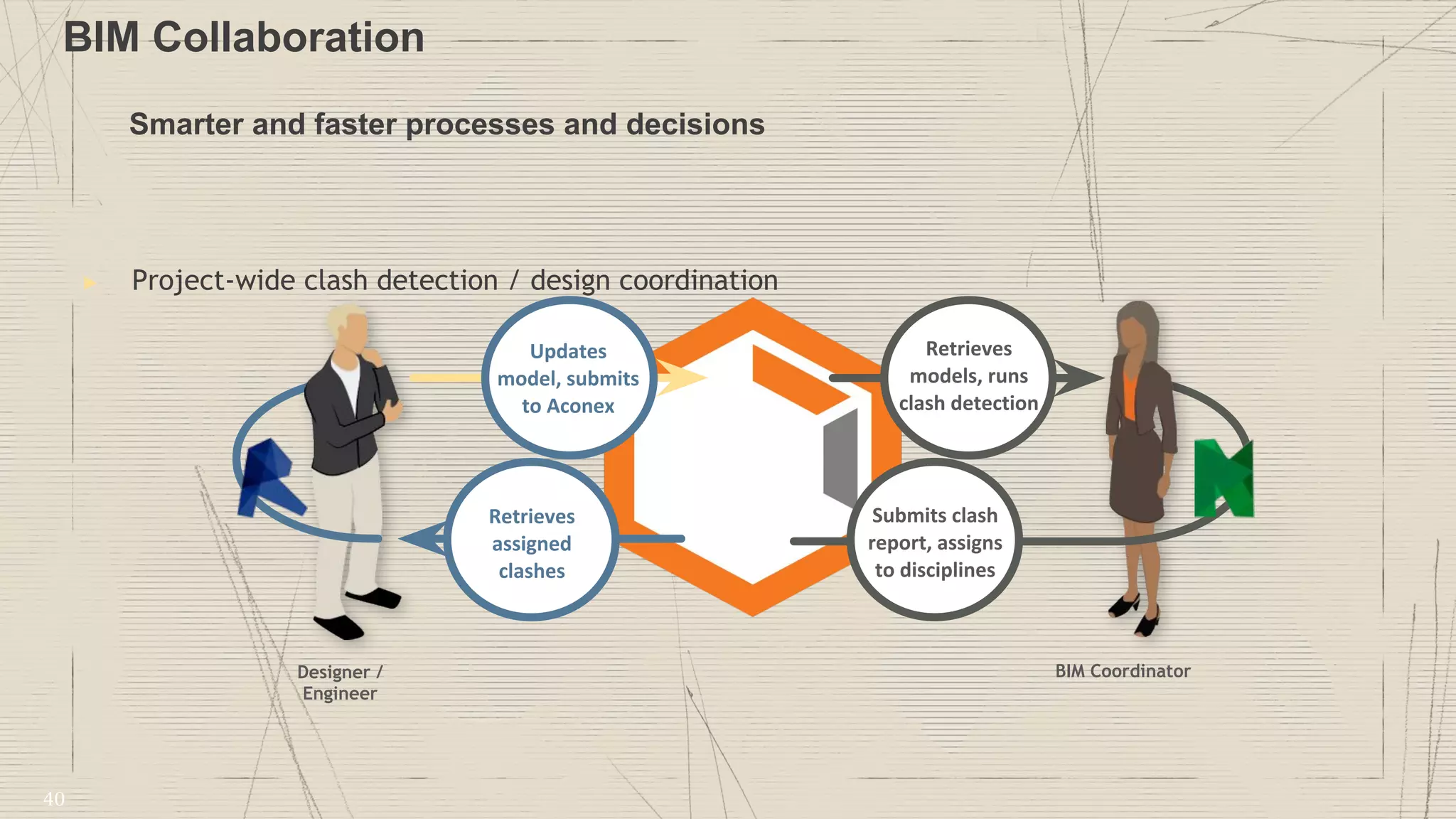

41. Finds issue
on site, checks
BIM model
Resolves issue
on site
Responds with instruction
Receives RFI,
clicks through
to BIM model
Reviews linked
information for
full context
Raises RFI

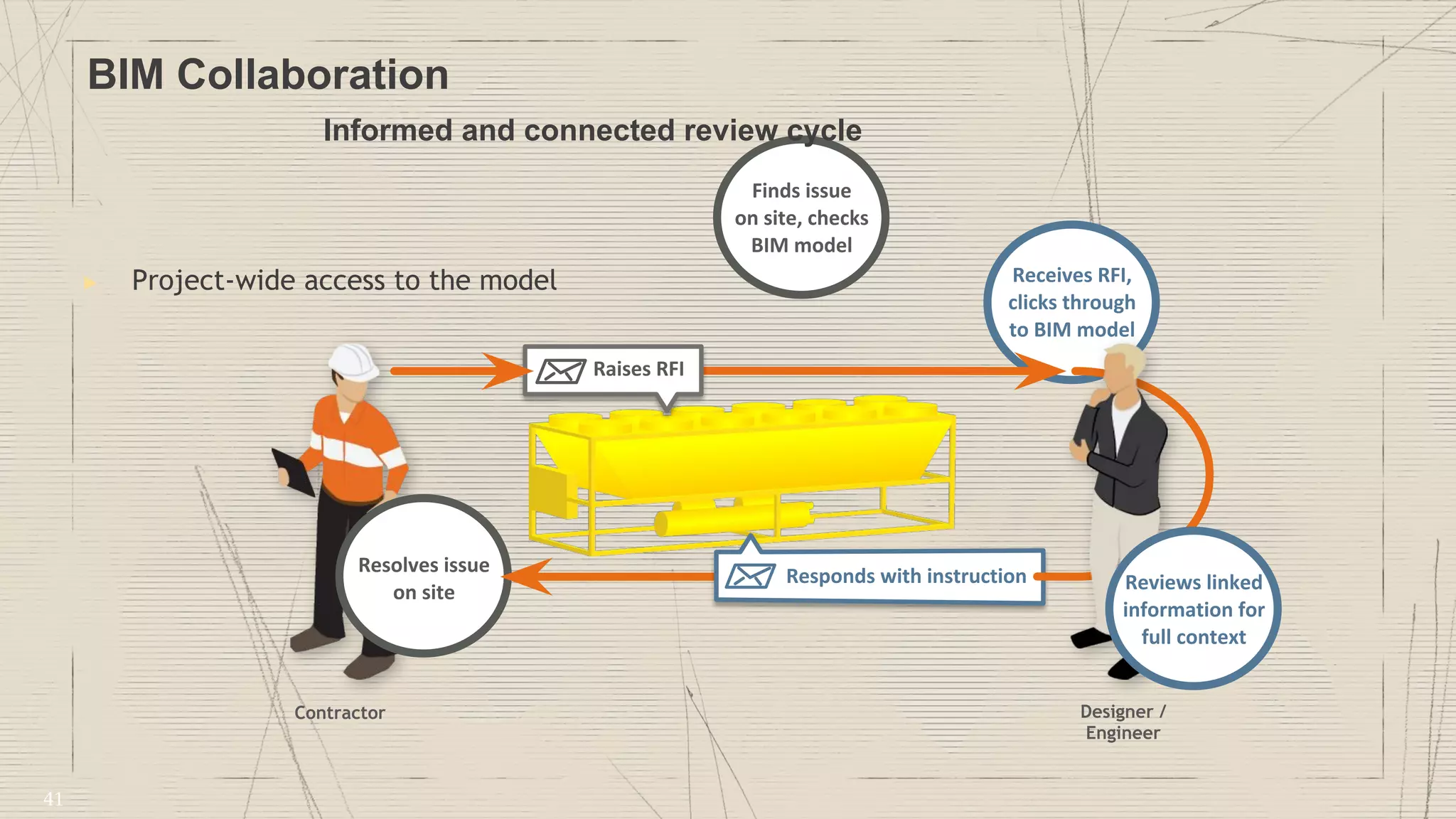

Informed and connected review cycle
▶ Project-wide access to the model
Contractor Designer /
Engineer
BIM Collaboration
41

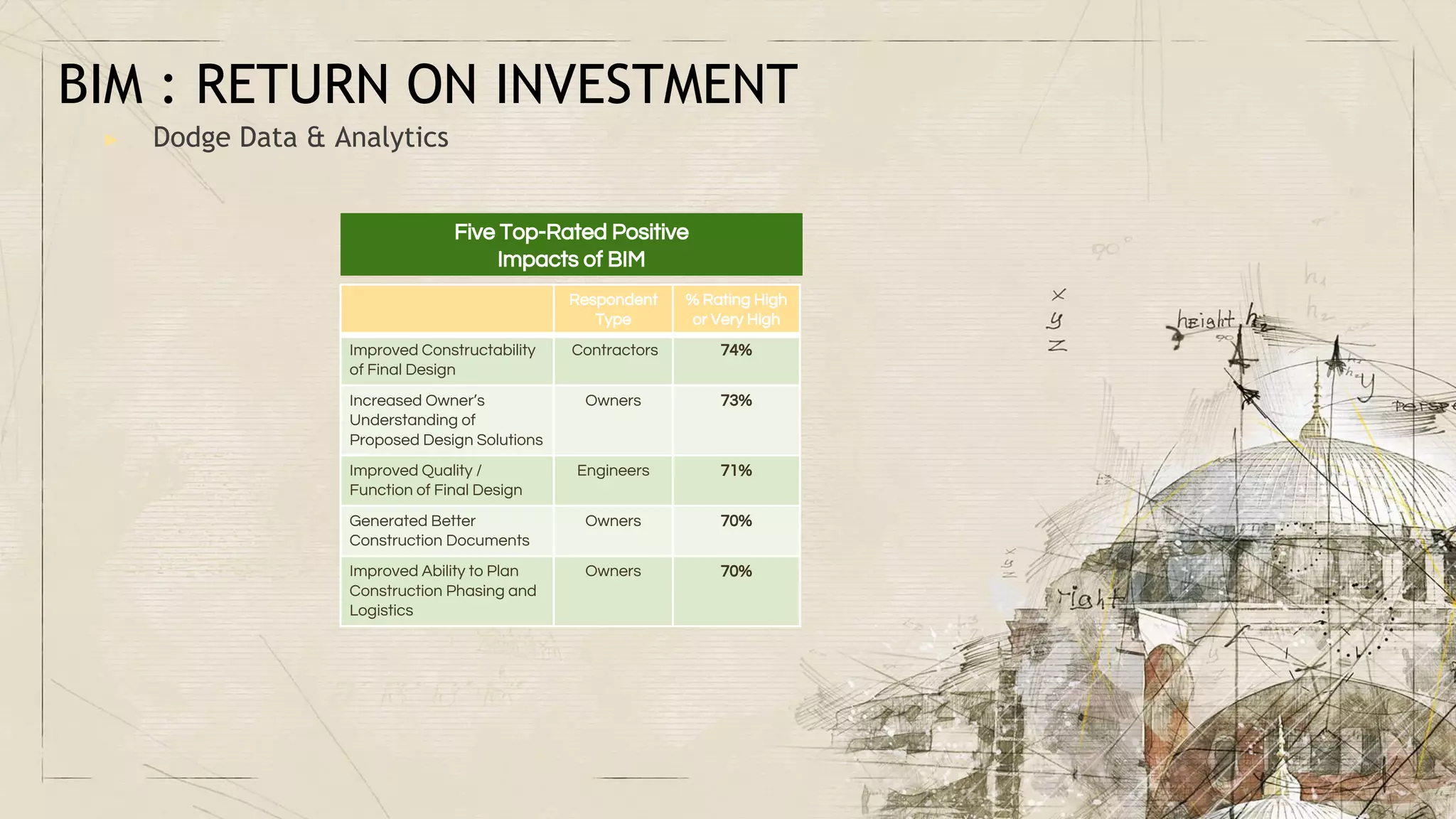

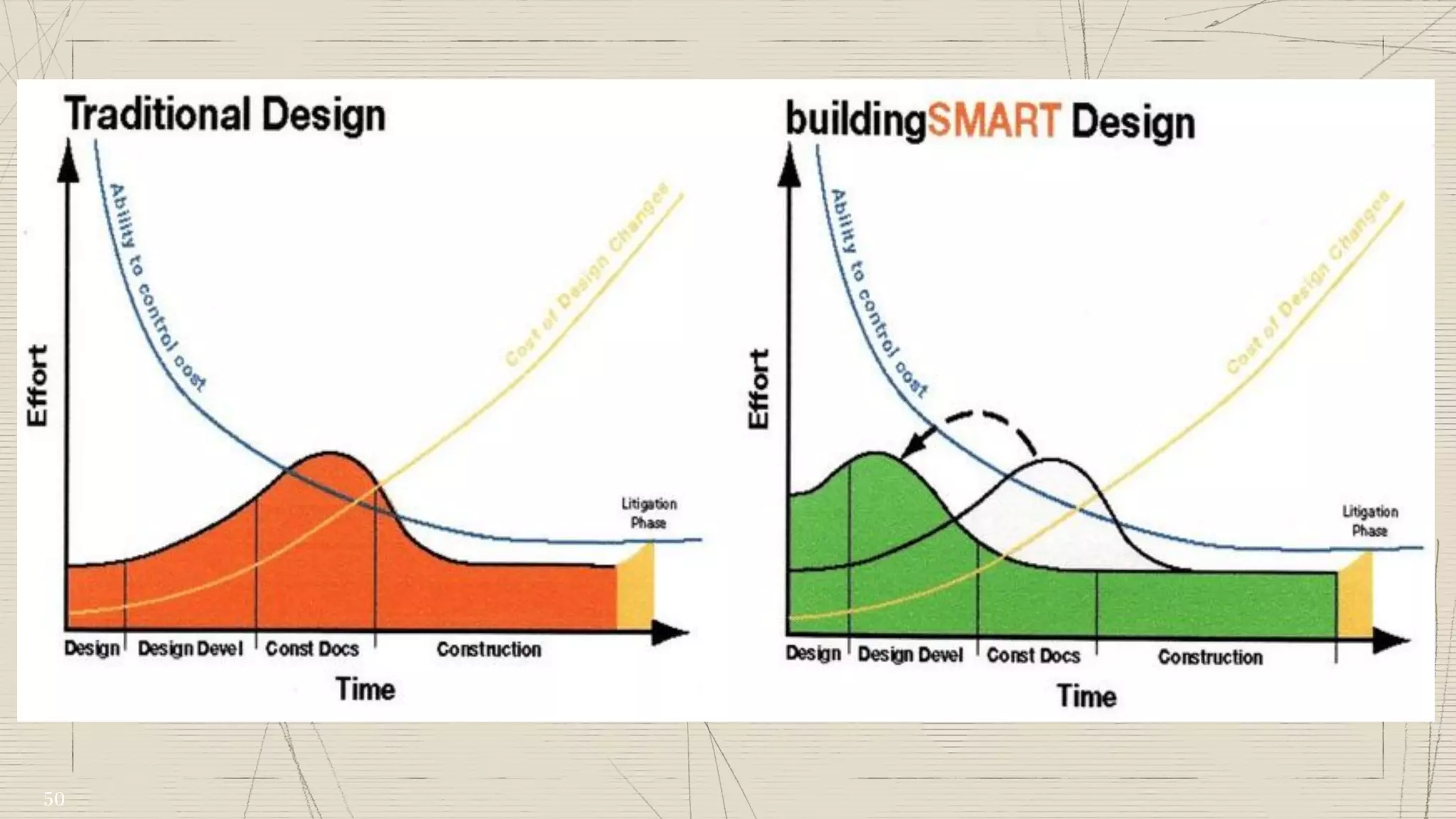

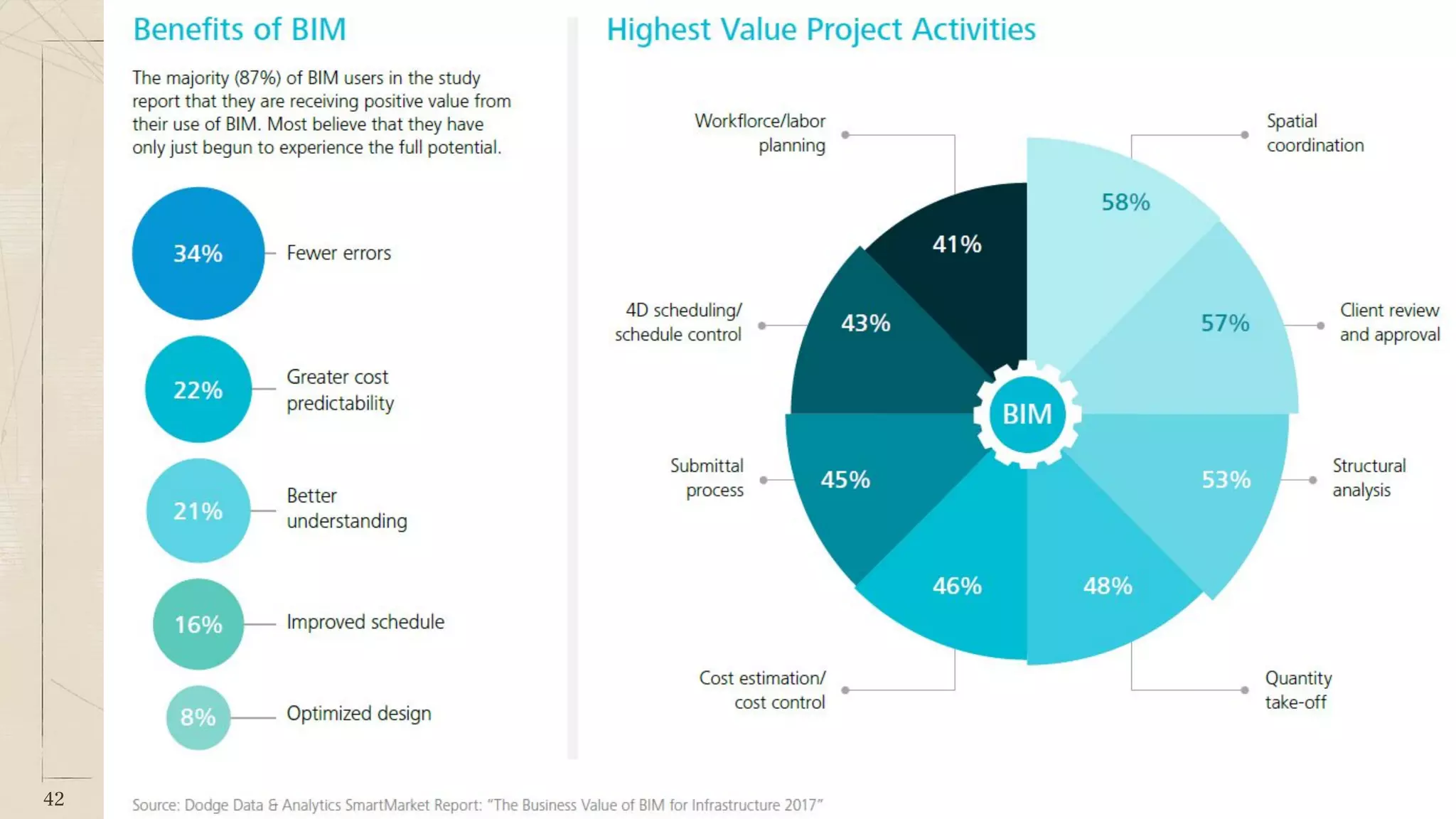

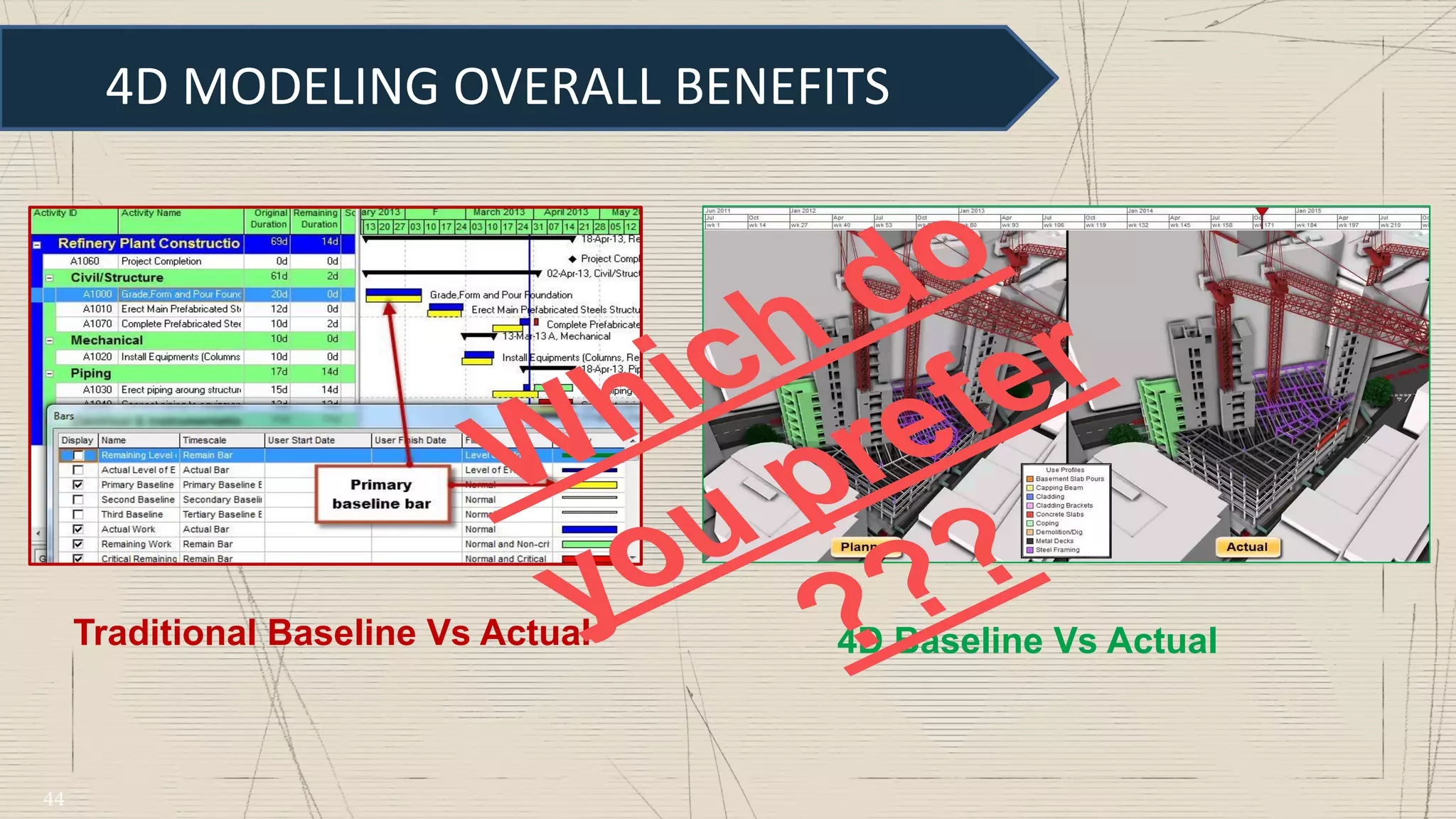

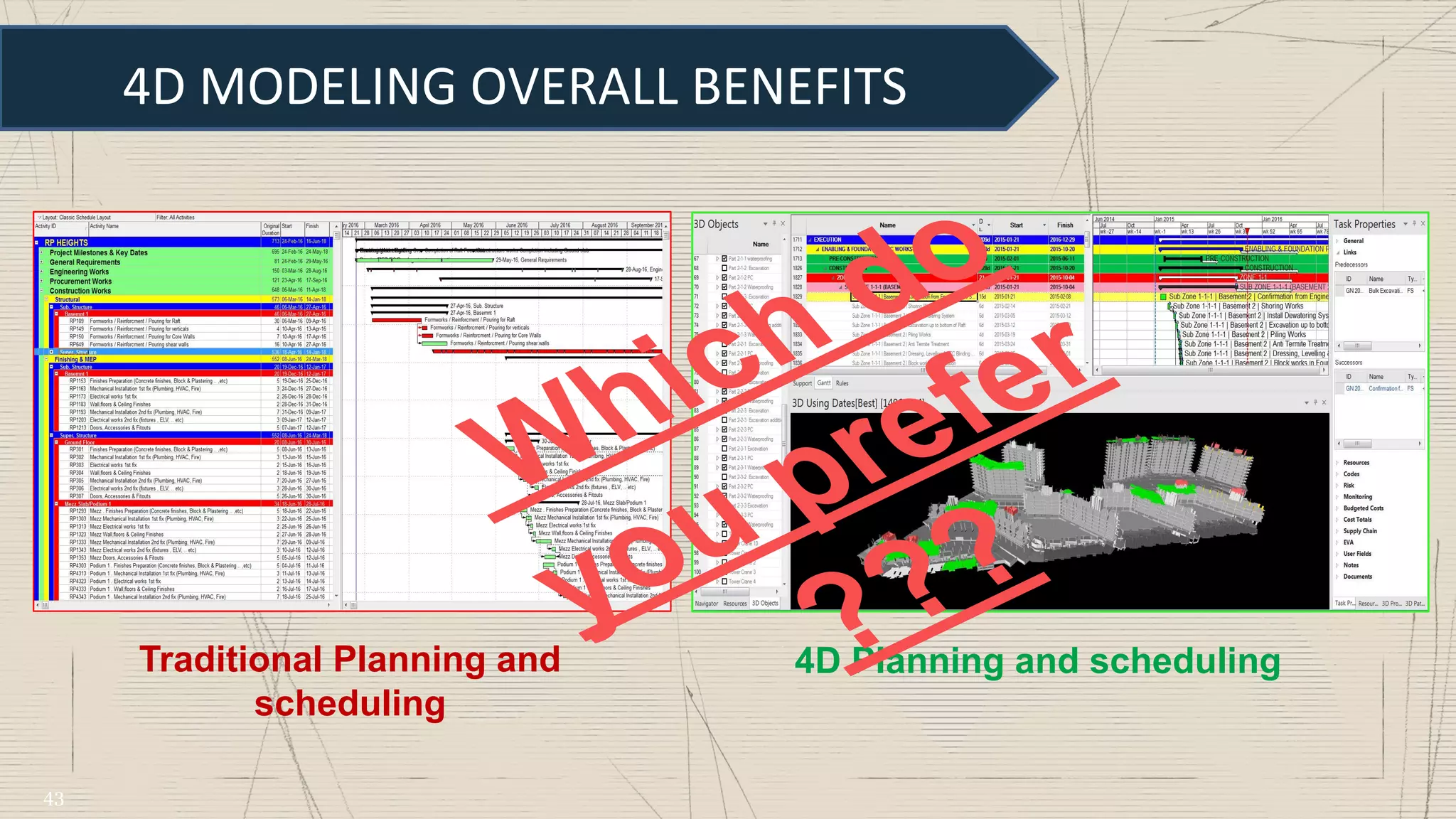

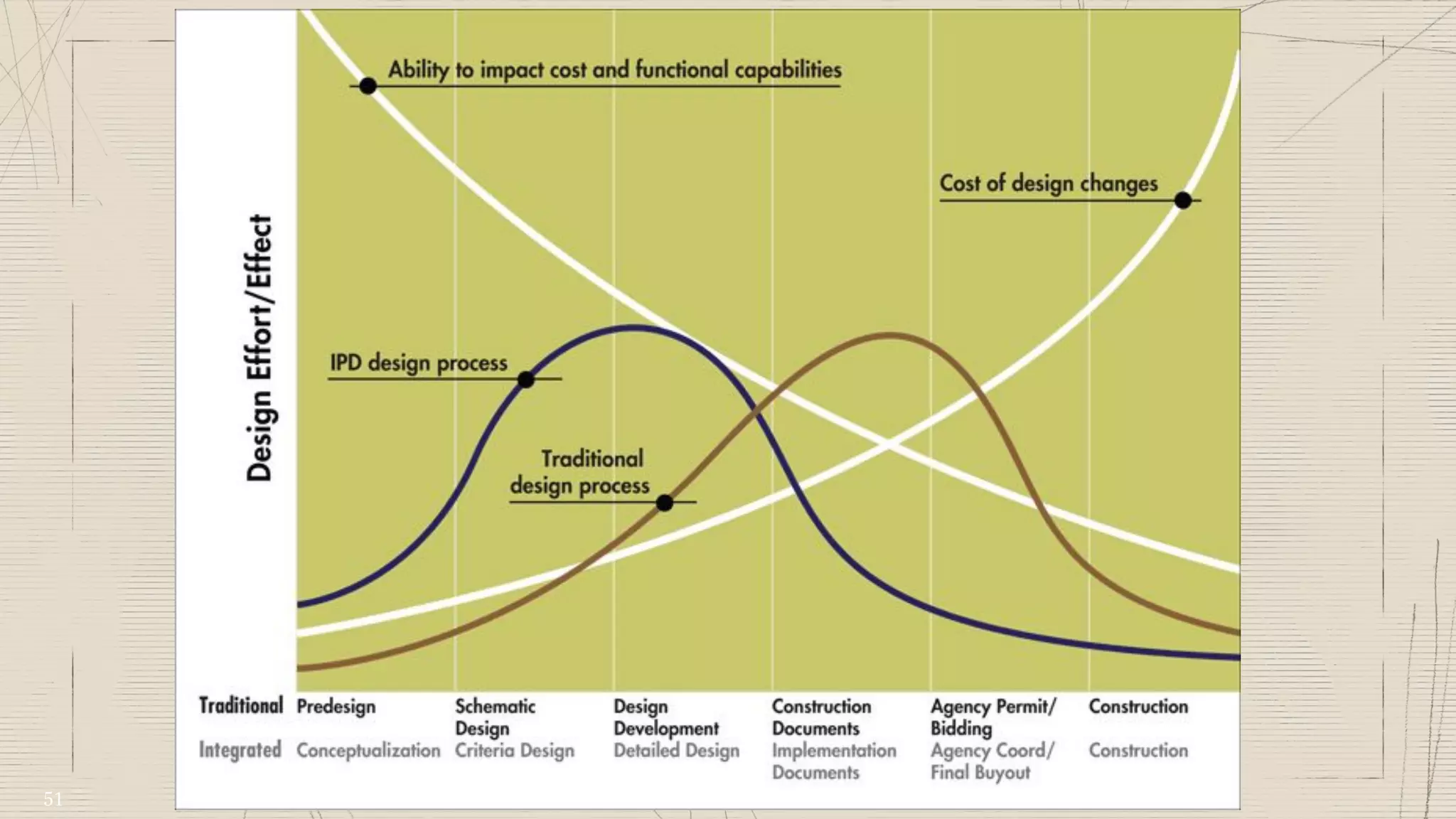

52. BIM : RETURN ON INVESTMENT
▶ Dodge Data & Analytics
Five Top-Rated Positive
Impacts of BIM
Respondent
Type
% Rating High
or Very High
Improved Constructability
of Final Design
Contractors 74%
Increased Owner’s
Understanding of
Proposed Design Solutions
Owners 73%
Improved Quality /
Function of Final Design
Engineers 71%
Generated Better
Construction Documents
Owners 70%
Improved Ability to Plan
Construction Phasing and
Logistics
Owners 70%
53. 53

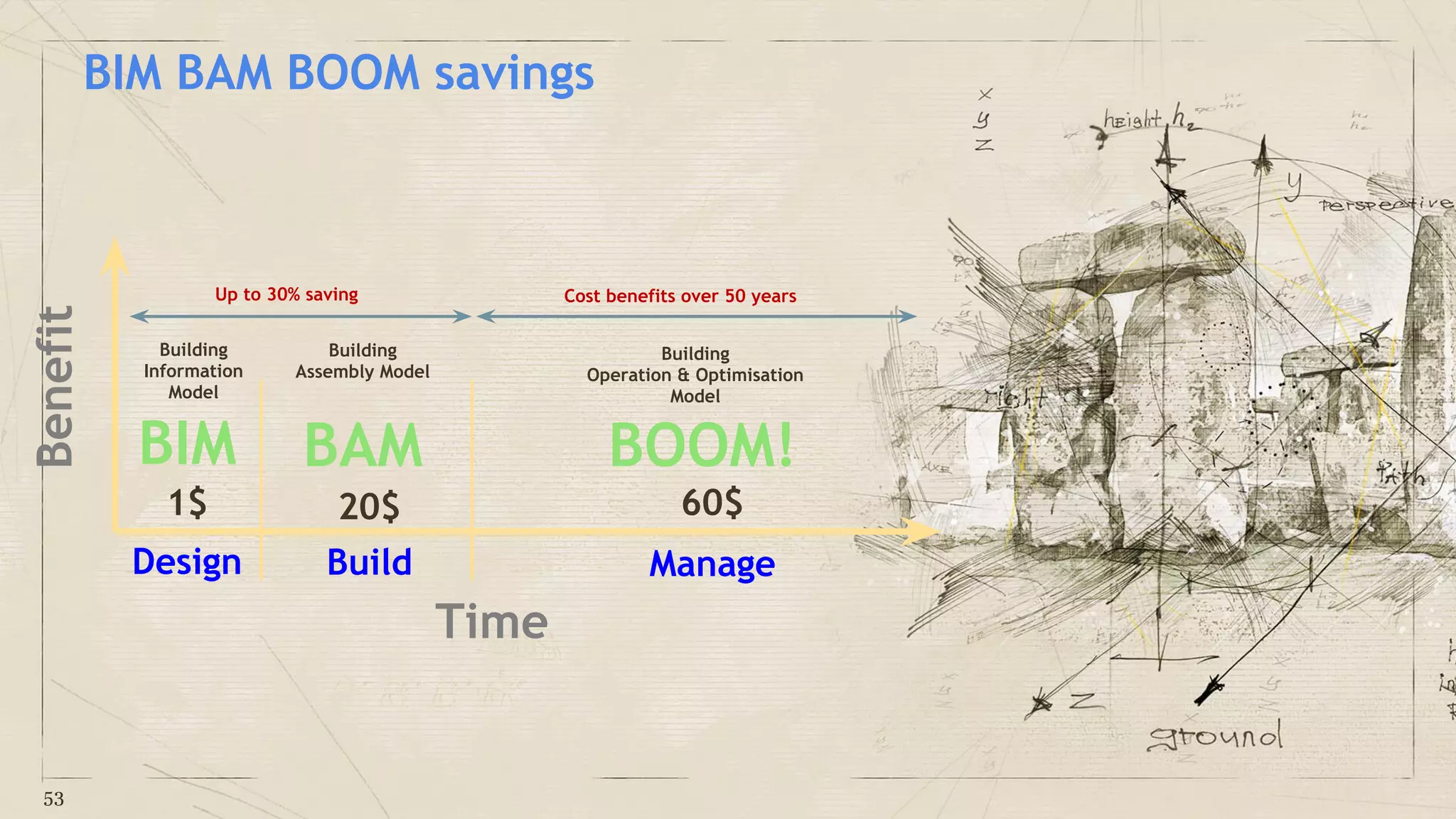

BIM BAM BOOM savings
Time
Benefit
Design Build Manage
1$ 20$ 60$
BIM
Building
Information
Model
BAM
Building
Assembly Model
BOOM!
Building
Operation & Optimisation
Model
Up to 30% saving Cost benefits over 50 years
53

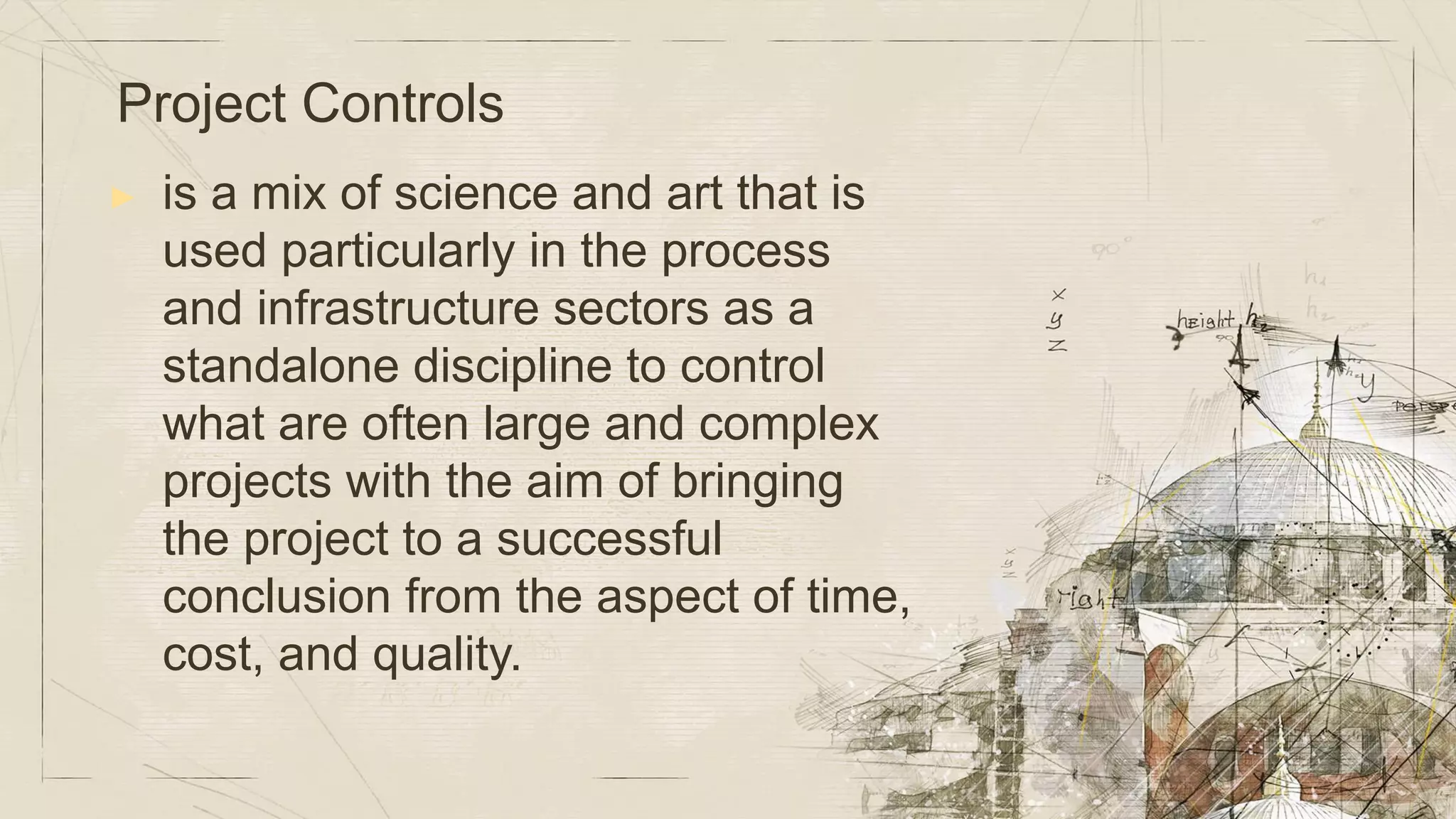

54. ▶ is a mix of science and art that is
used particularly in the process
and infrastructure sectors as a
standalone discipline to control
what are often large and complex
projects with the aim of bringing
the project to a successful
conclusion from the aspect of time,
cost, and quality.

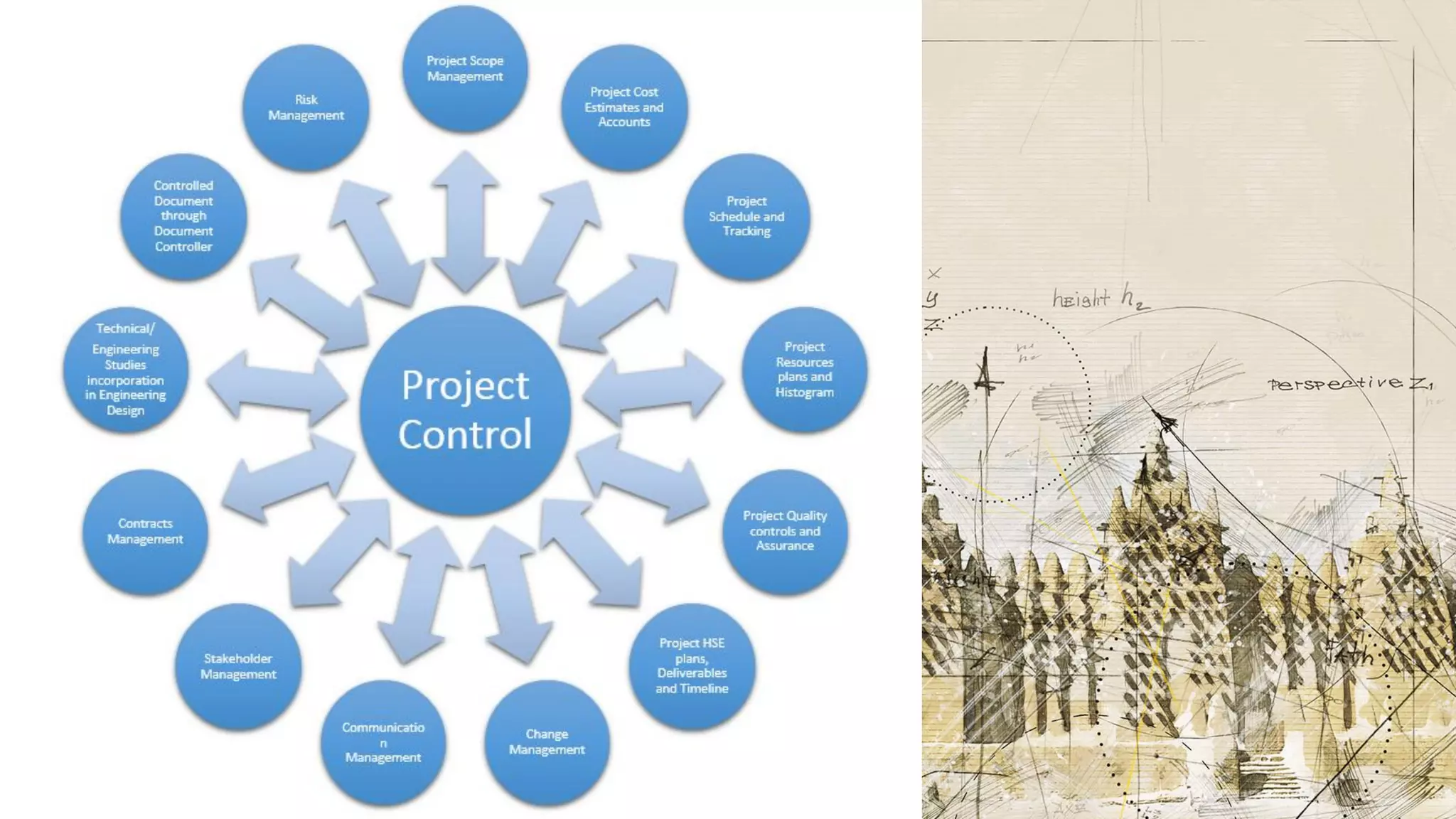

Project Controls
56. Decision making with incomplete information
• in BIM Right information, in the right form, from the right person, at the right time
56

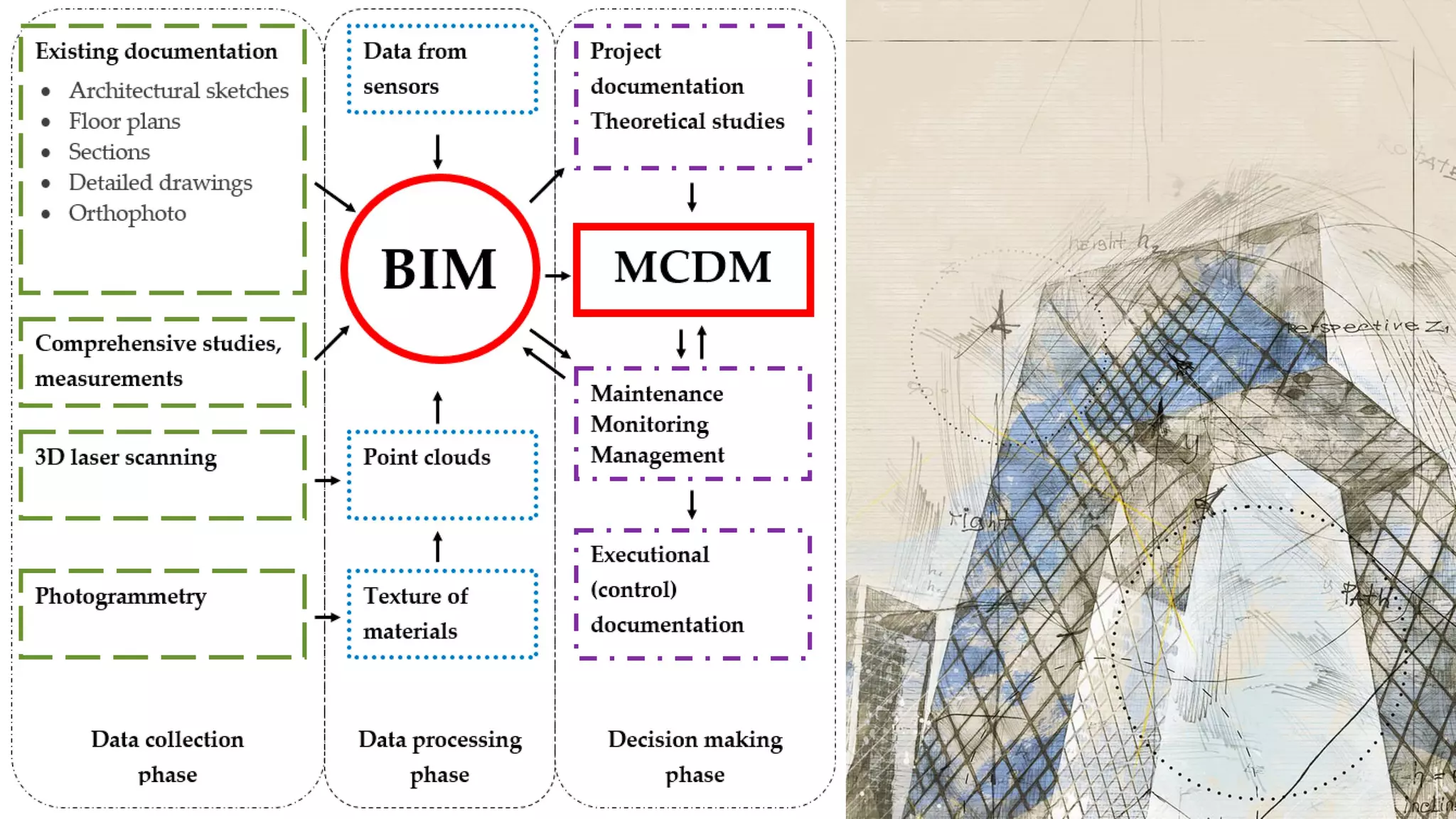

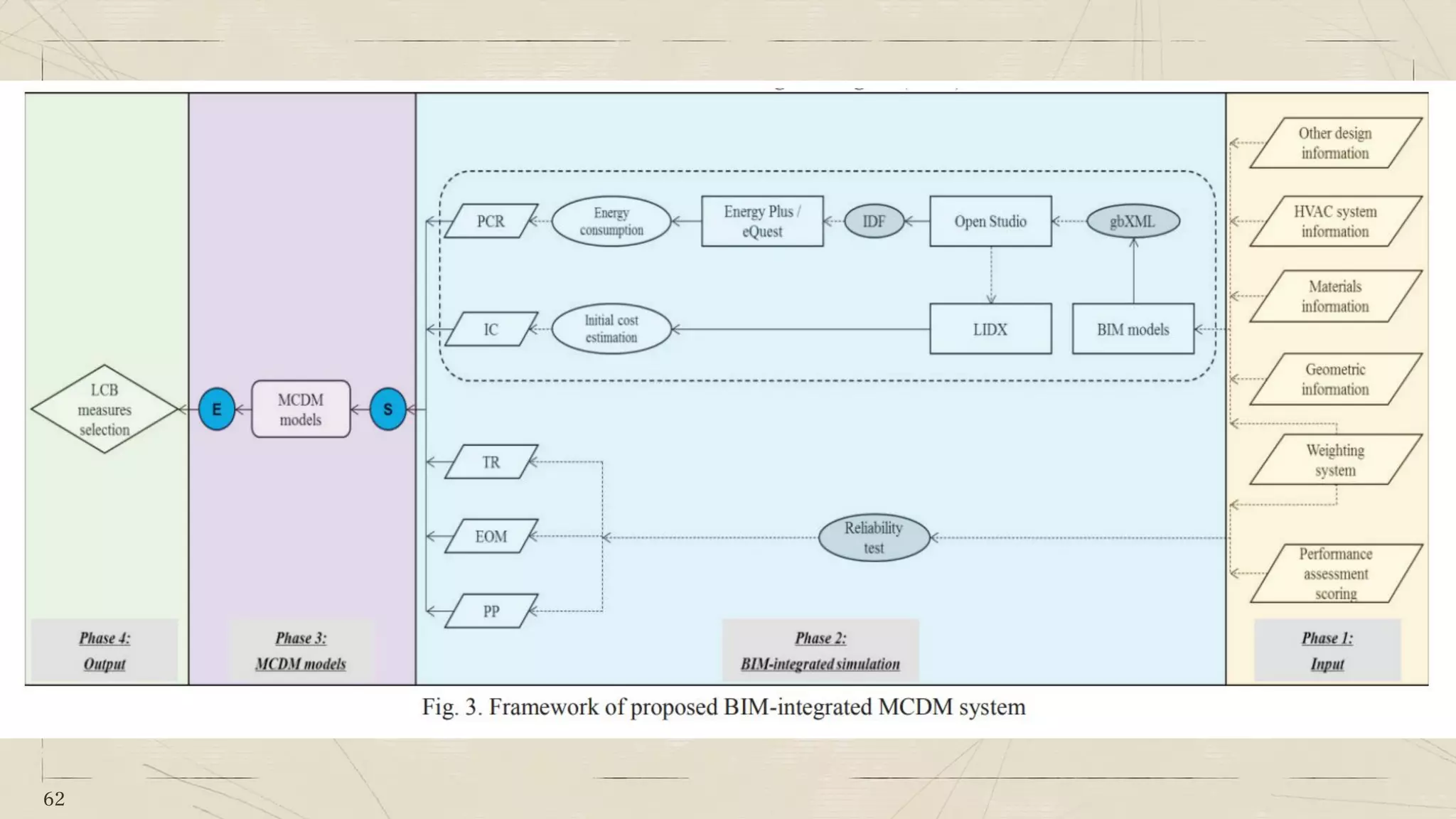

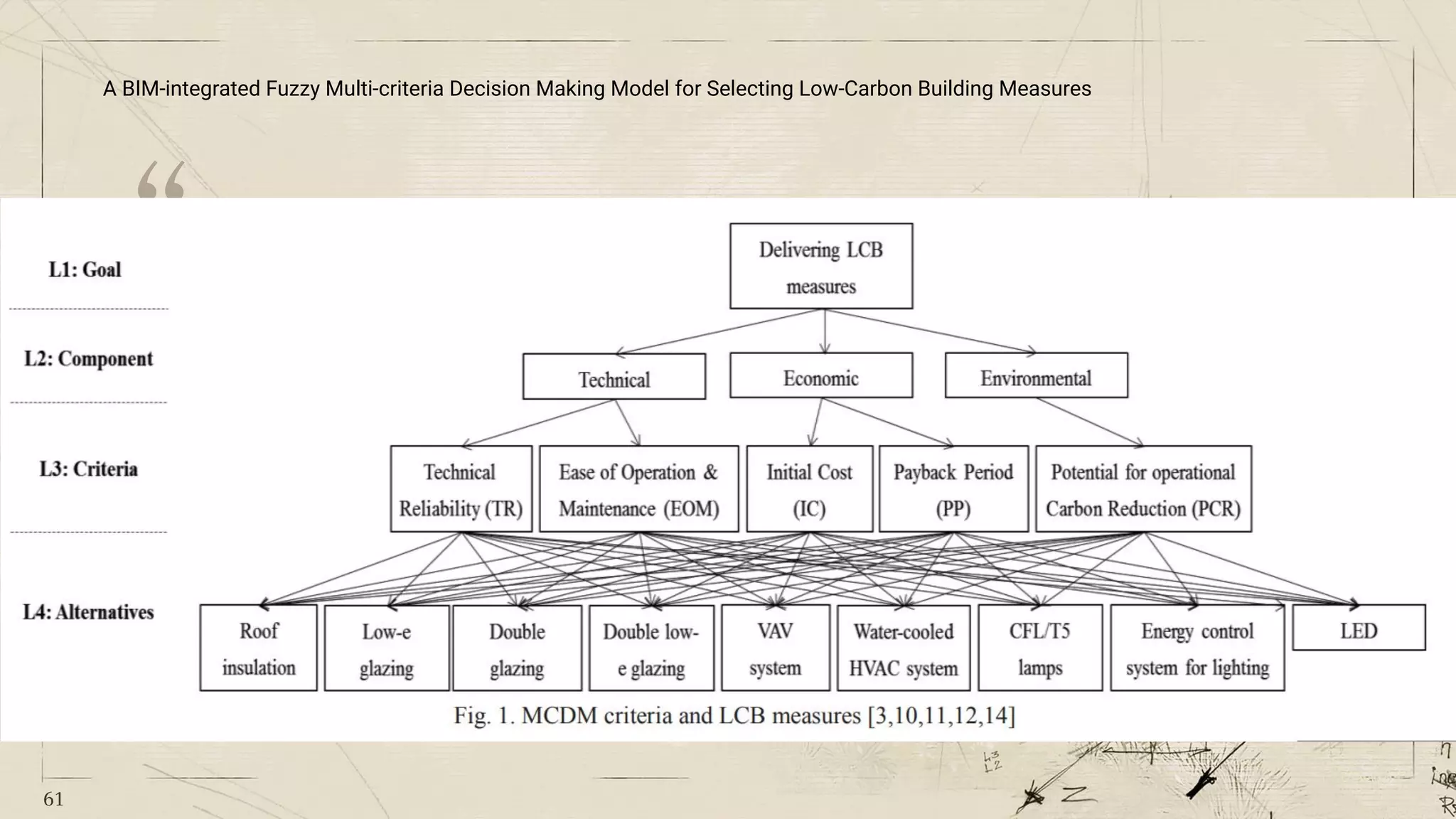

Multiple Criteria Decision Making (MCDM)

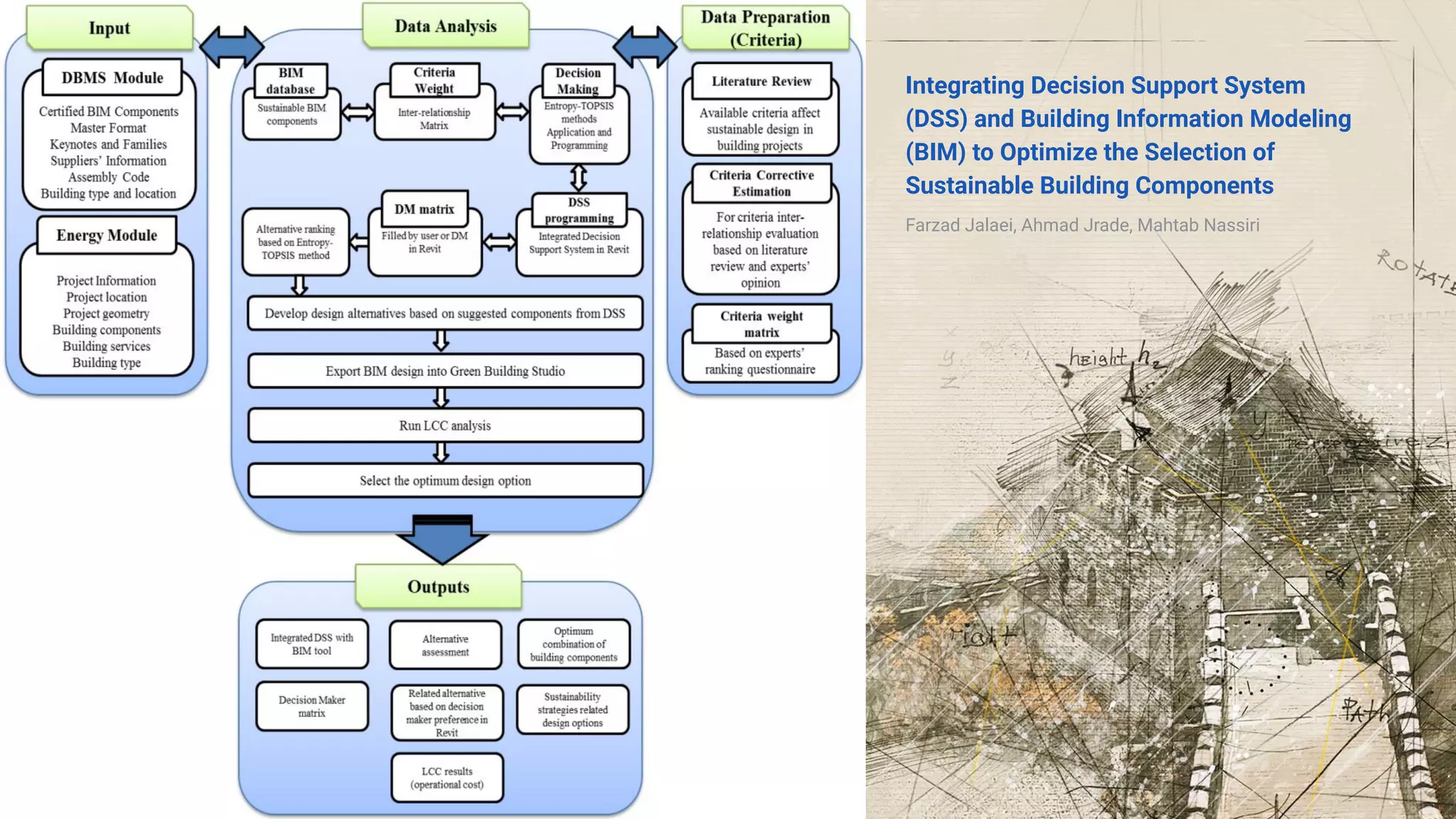

59. 59
Integrating Decision Support System
(DSS) and Building Information Modeling
(BIM) to Optimize the Selection of
Sustainable Building Components
Farzad Jalaei, Ahmad Jrade, Mahtab Nassiri

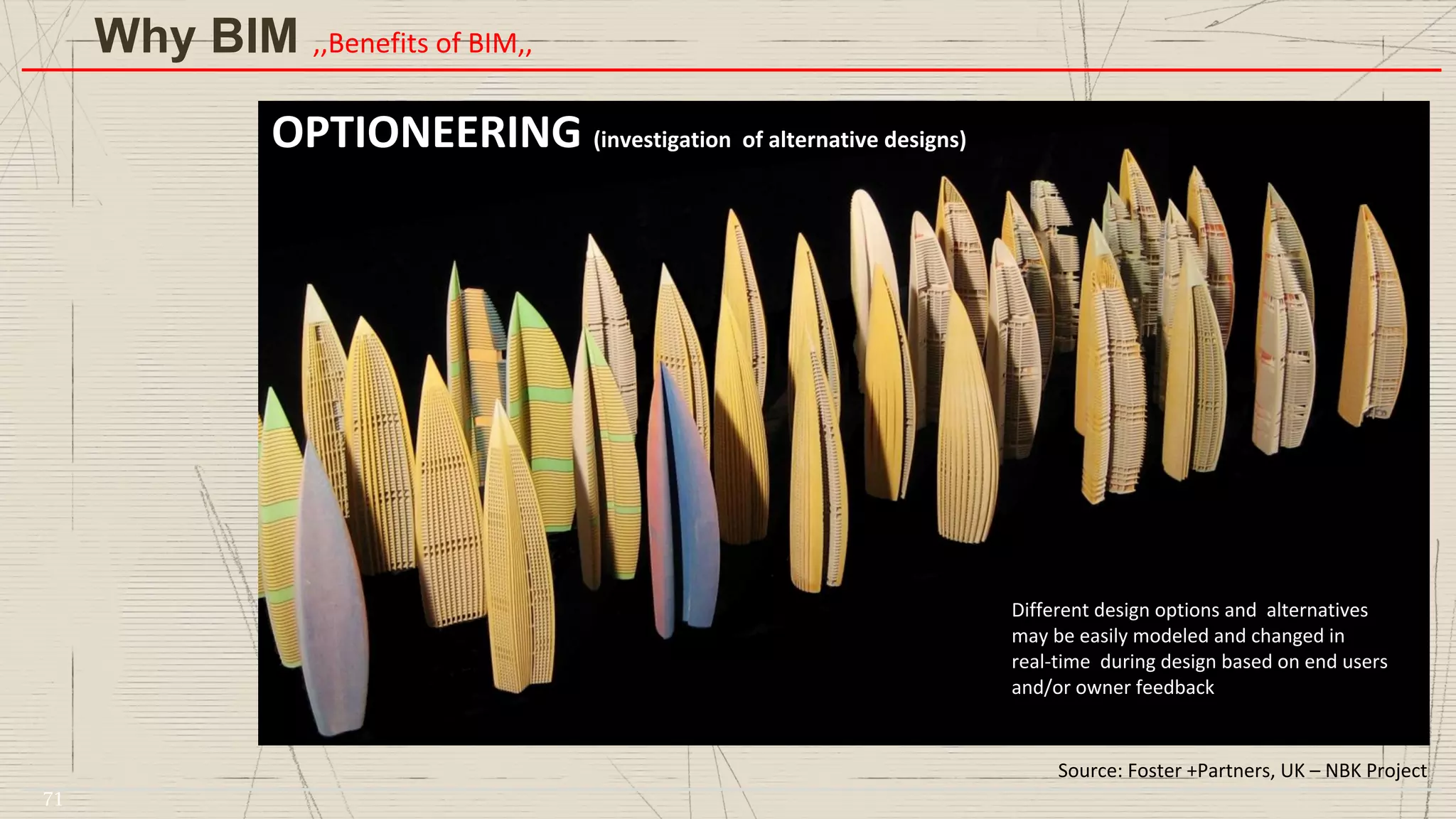

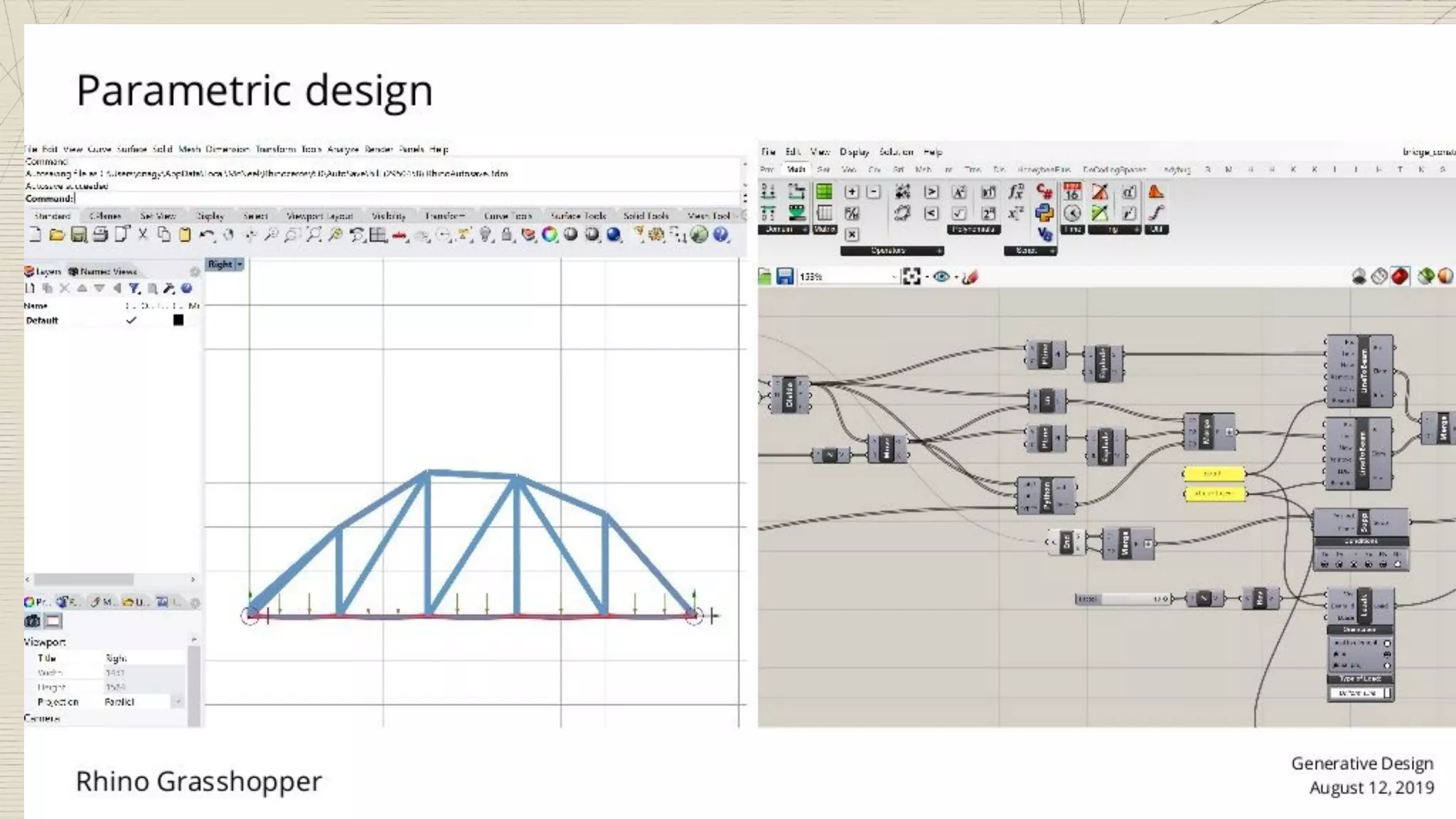

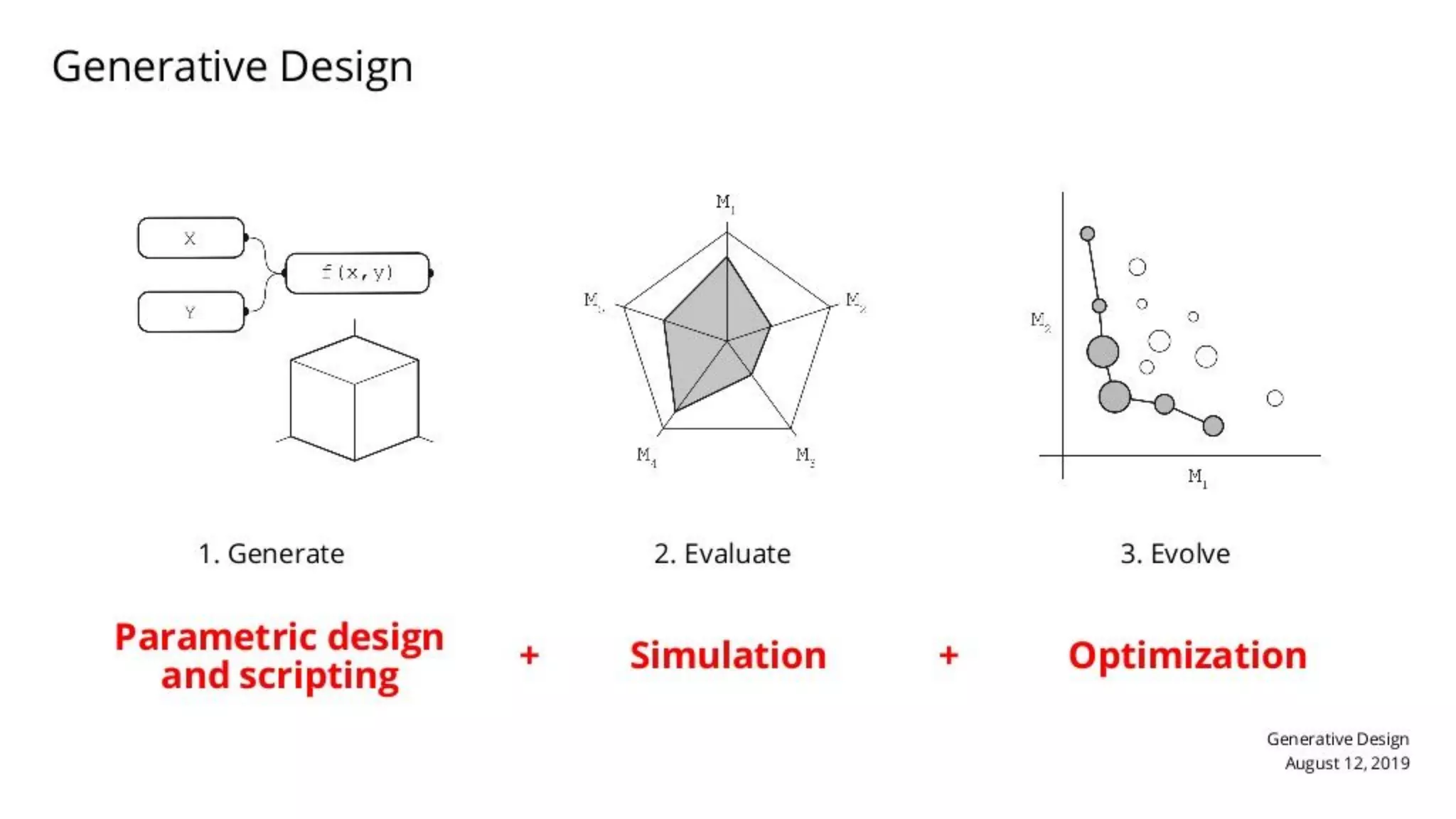

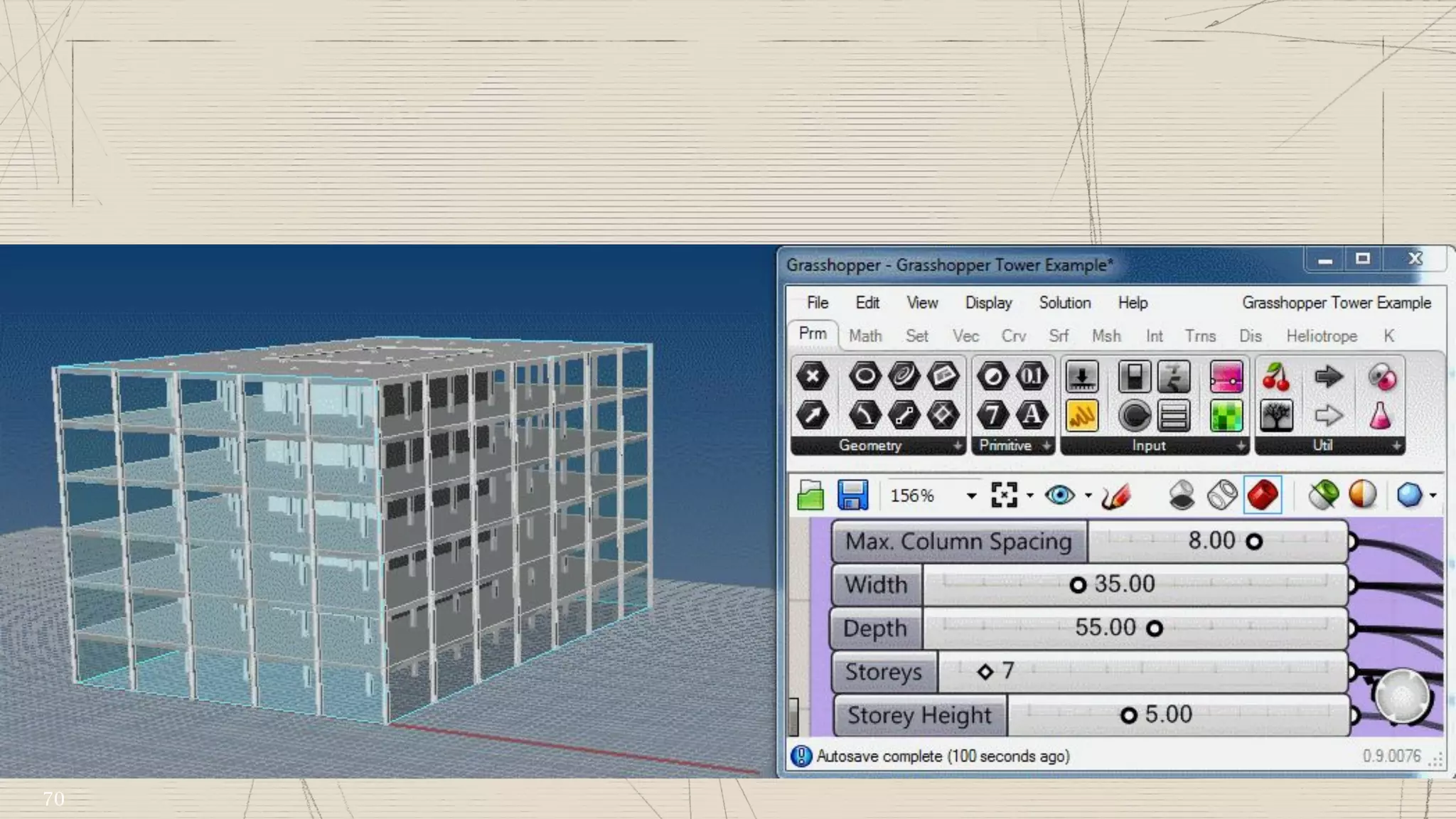

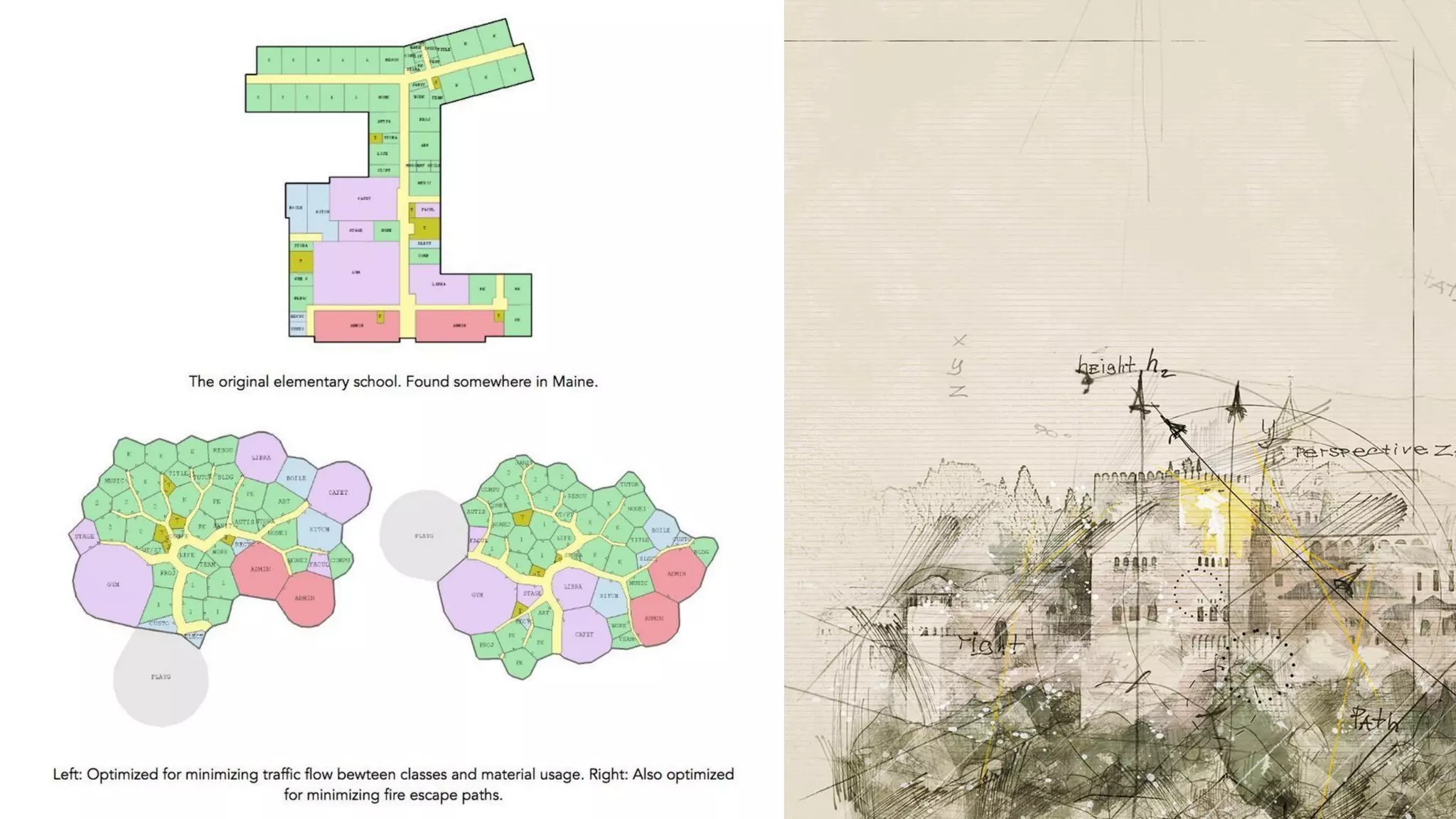

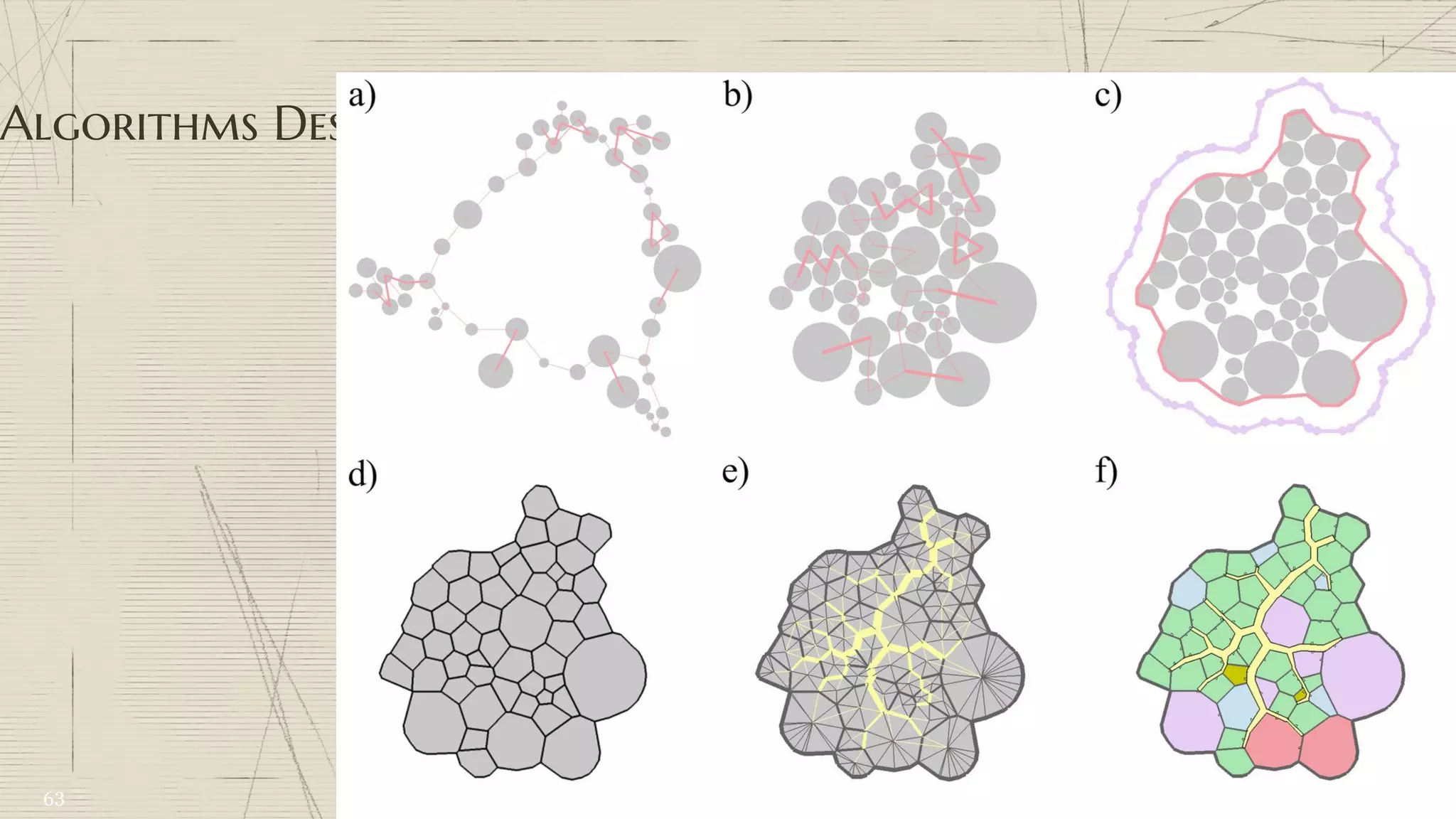

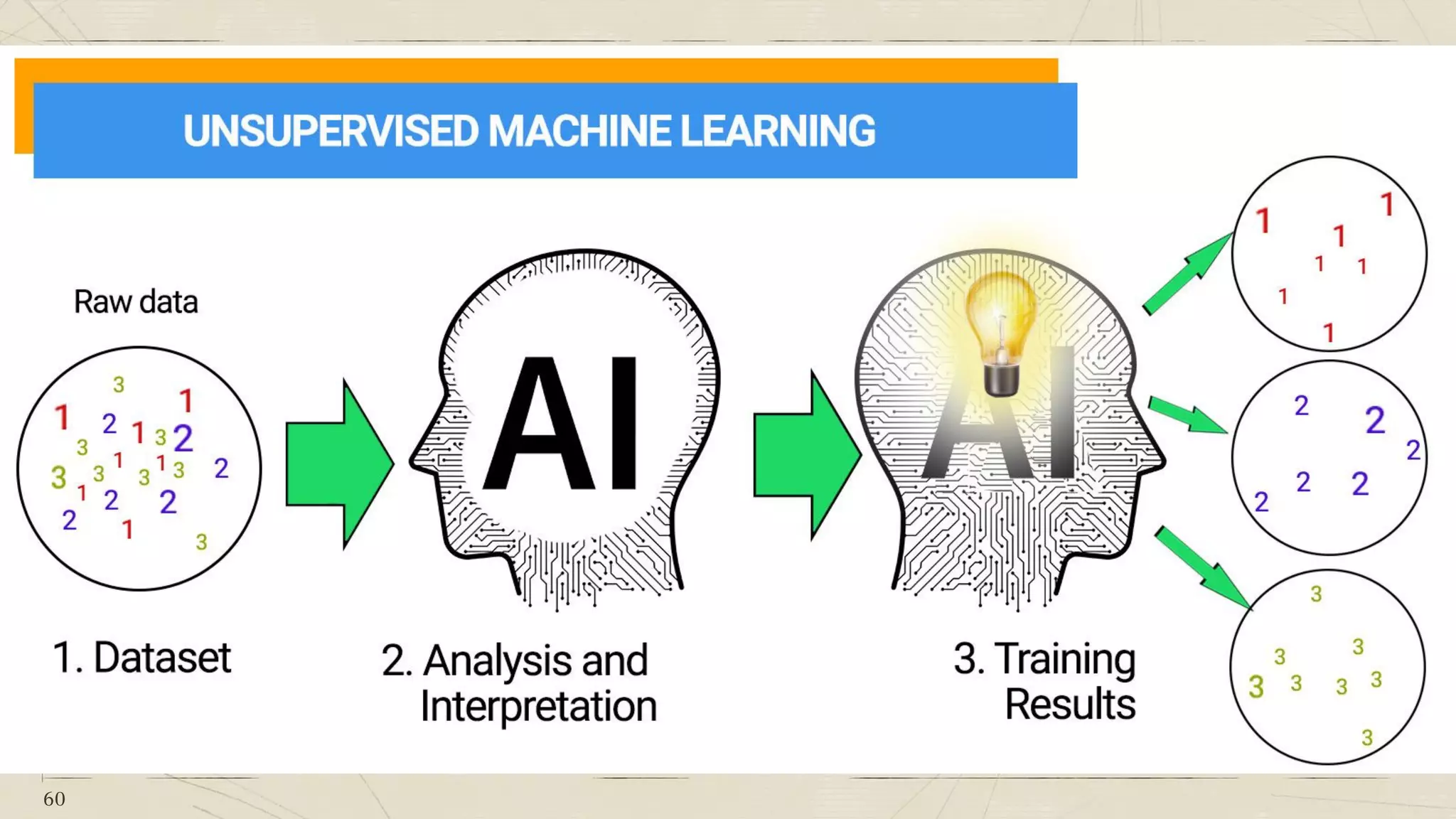

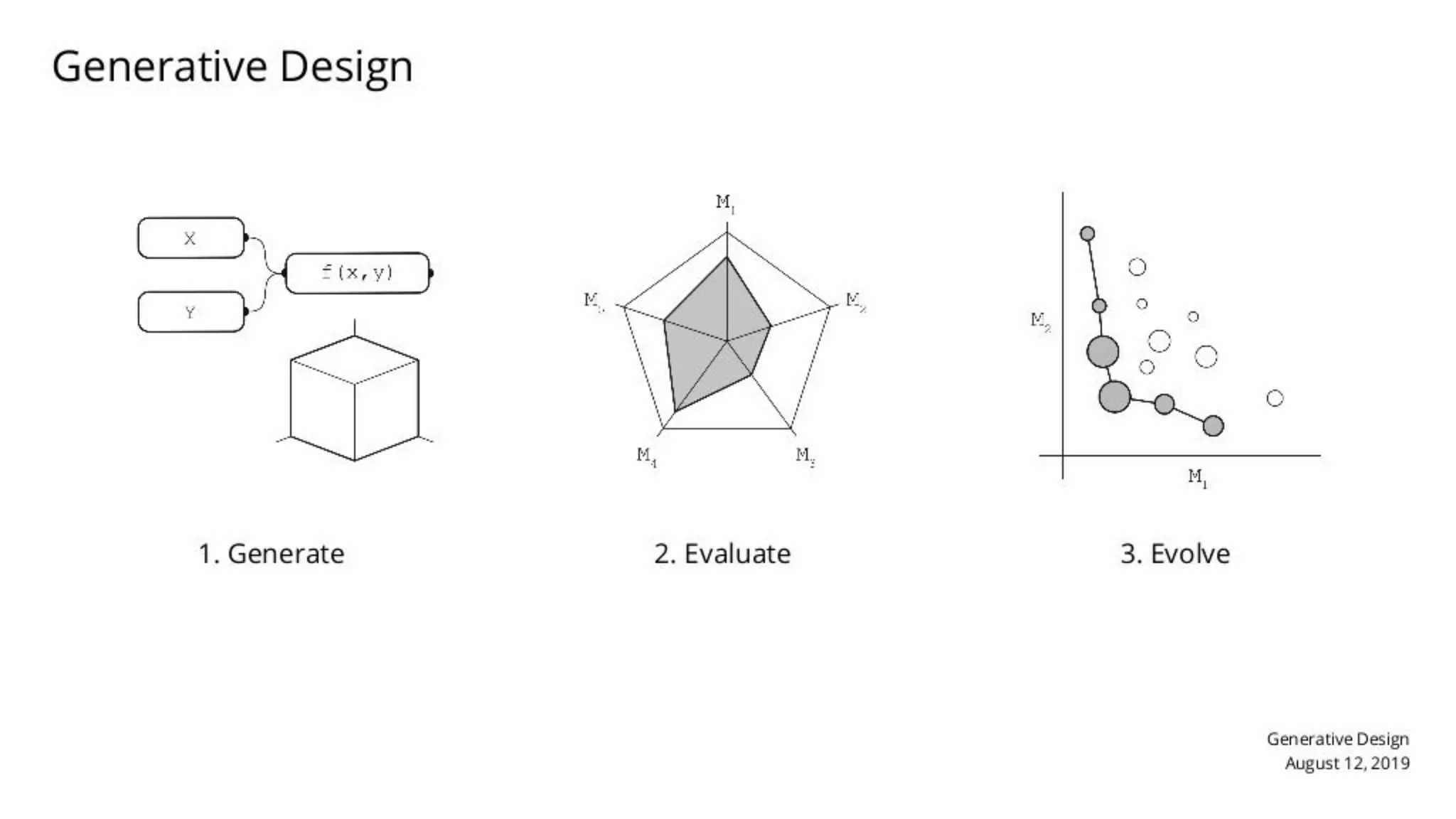

71. 3D Printing
Source: Foster +Partners, UK – NBK Project
Different design options and alternatives
may be easily modeled and changed in
real-time during design based on end users
and/or owner feedback

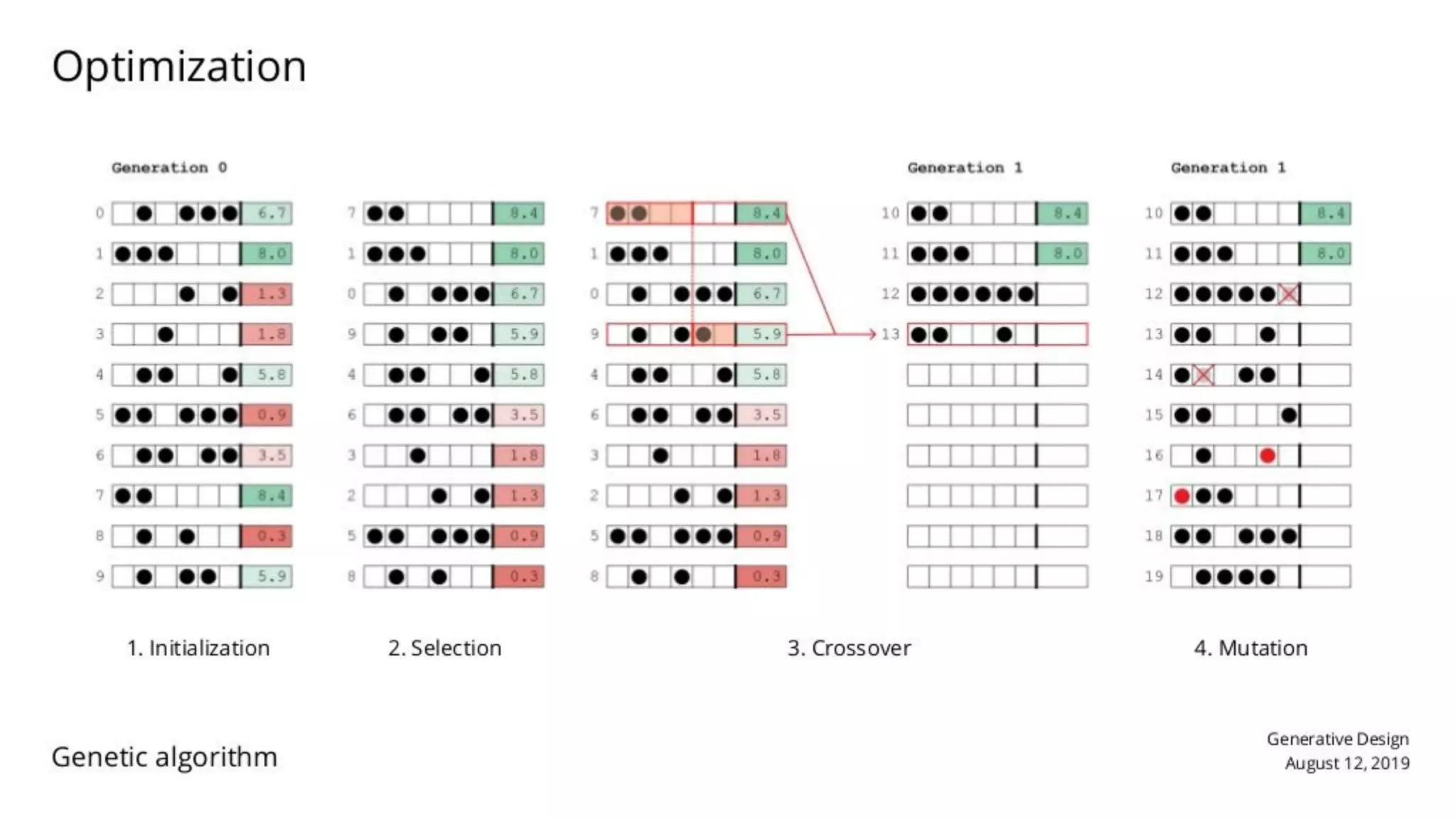

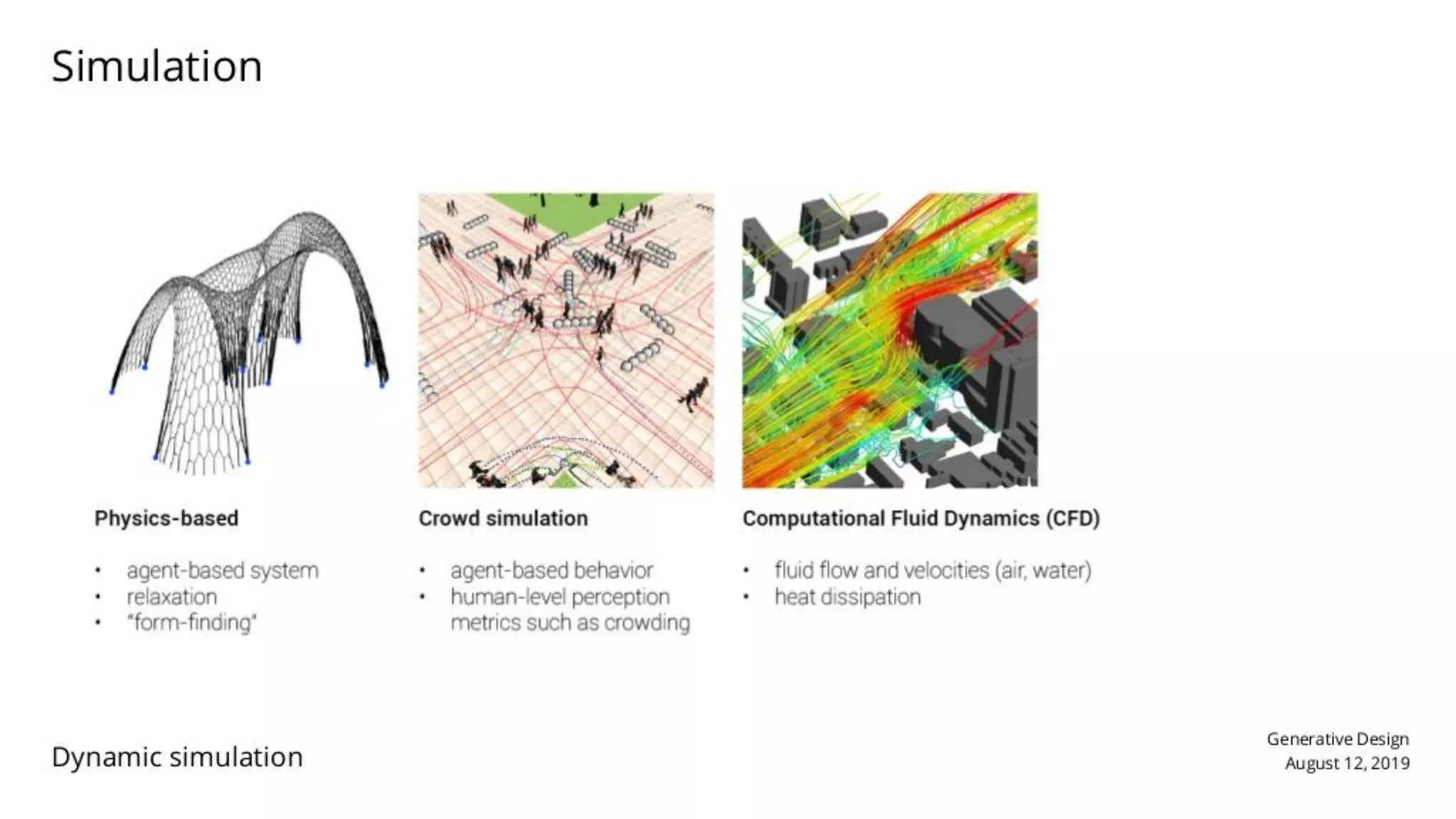

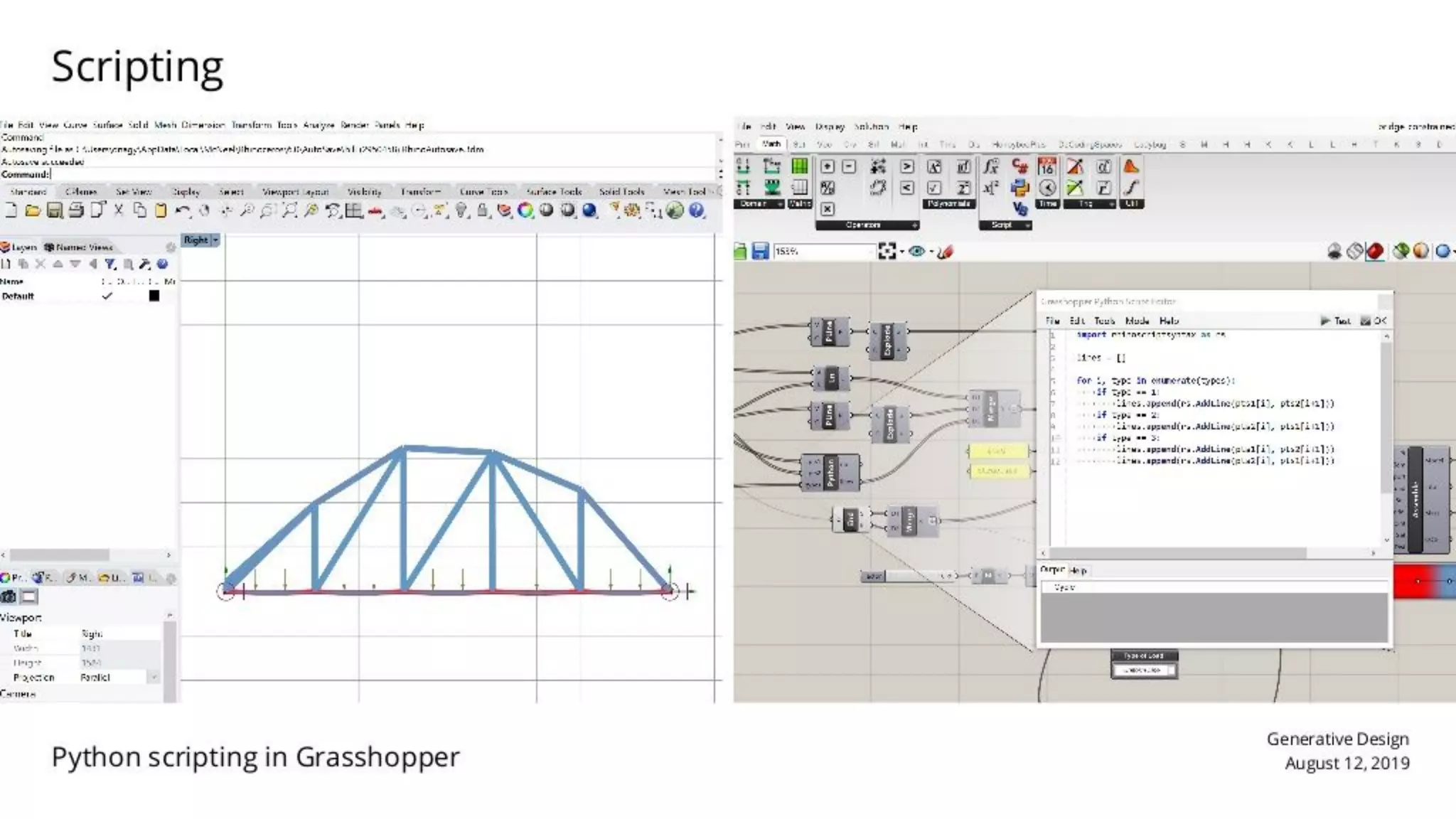

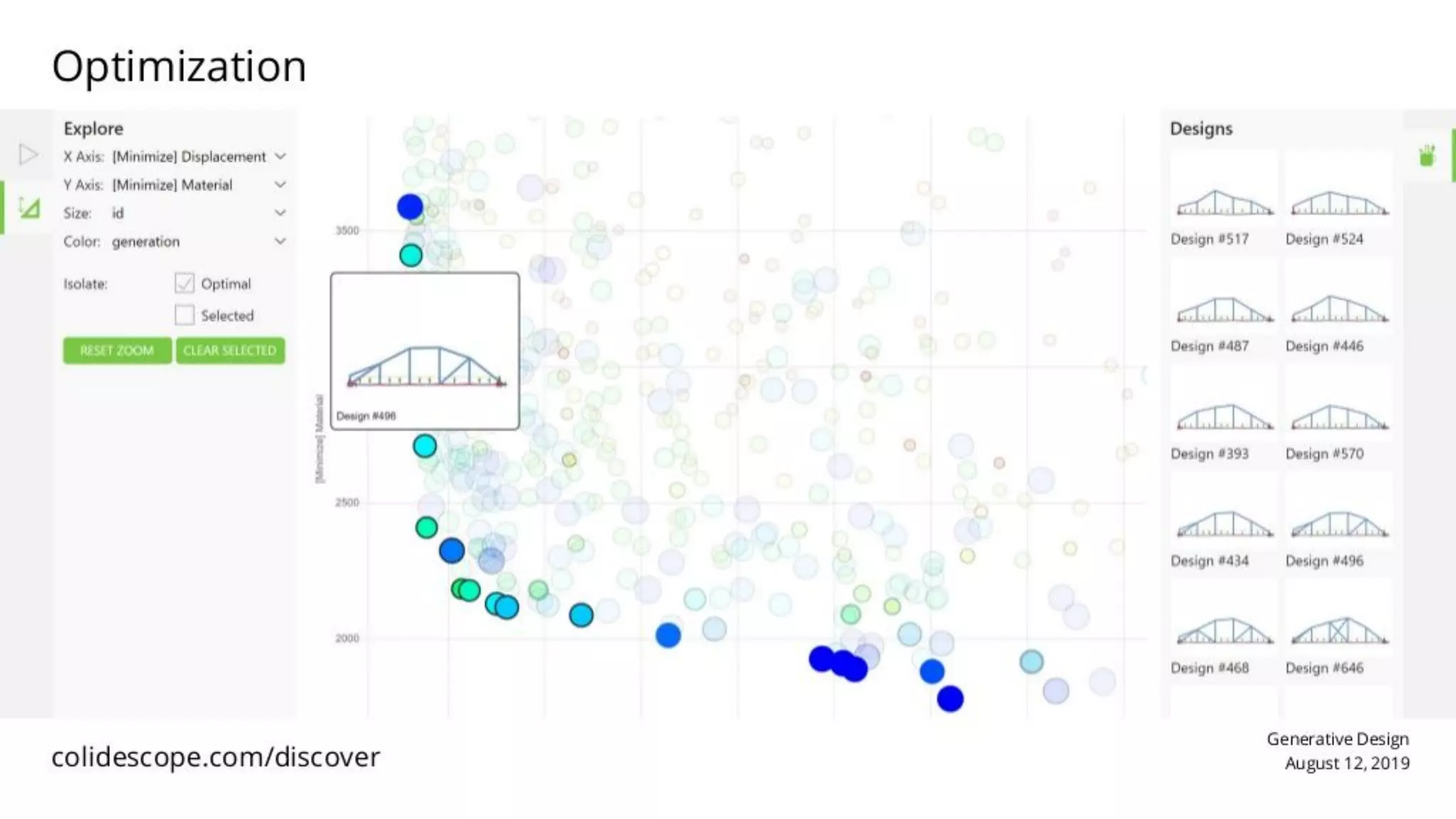

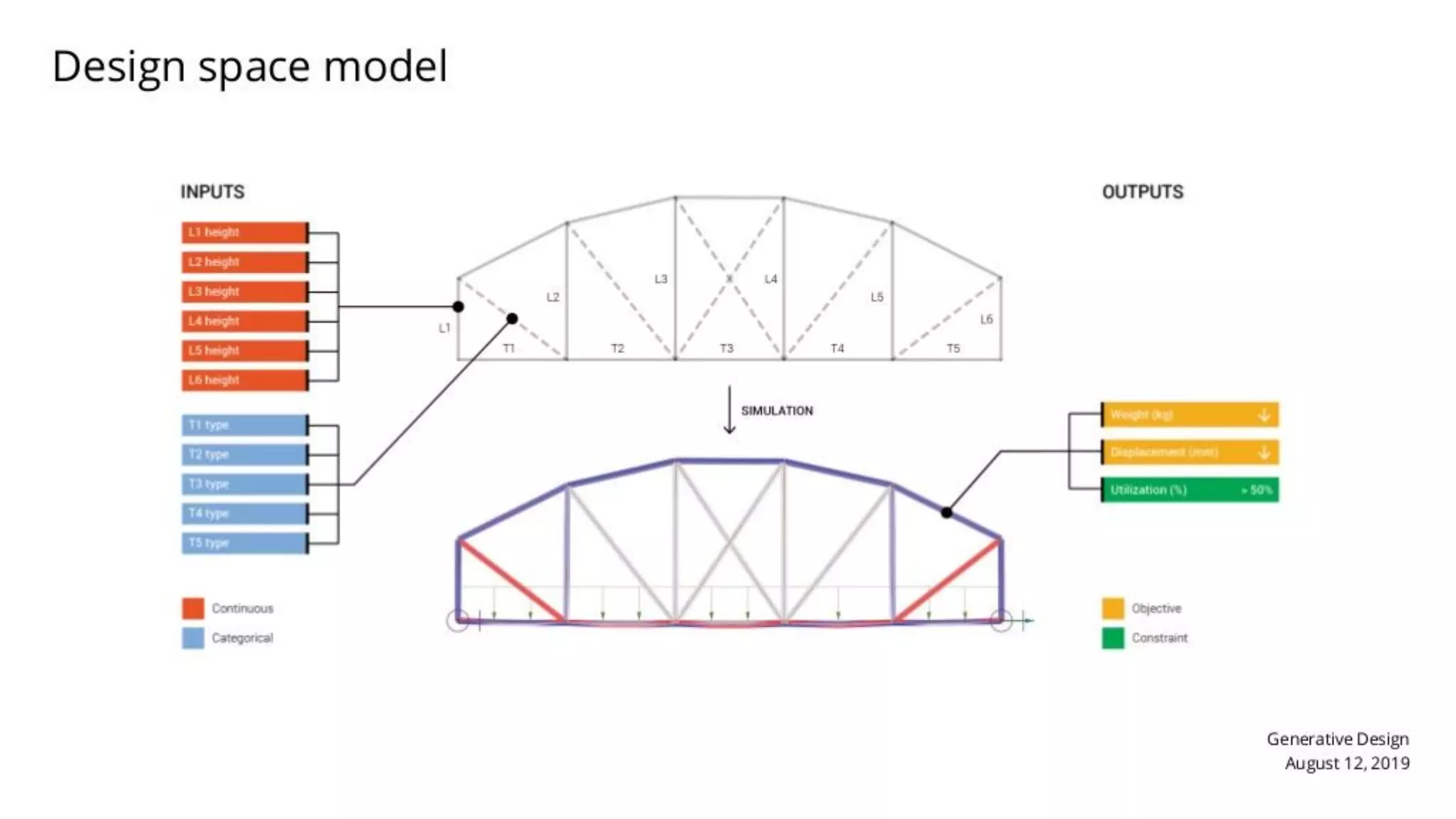

OPTIONEERING (investigation of alternative designs)

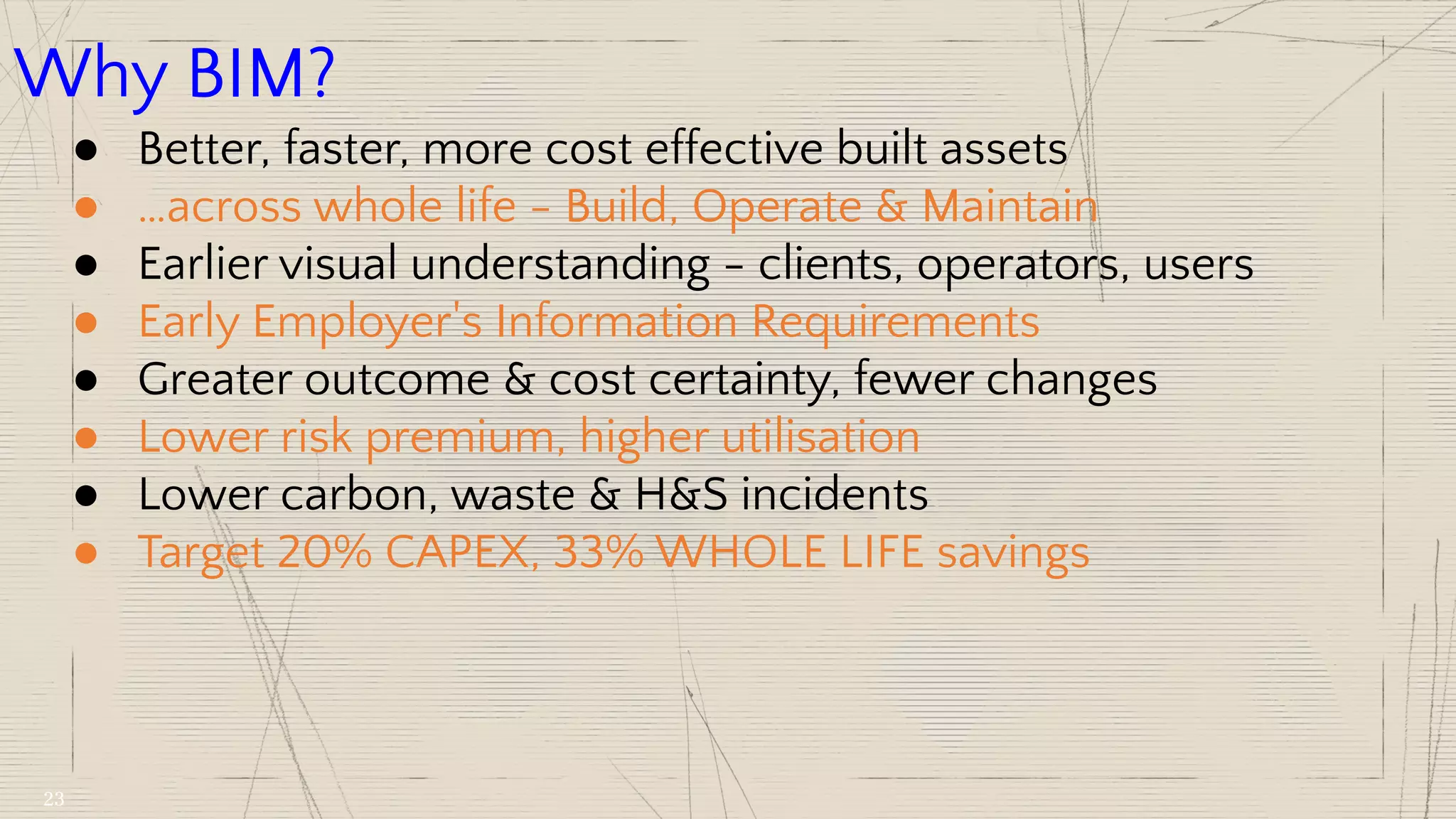

Why BIM ,,Benefits of BIM,,

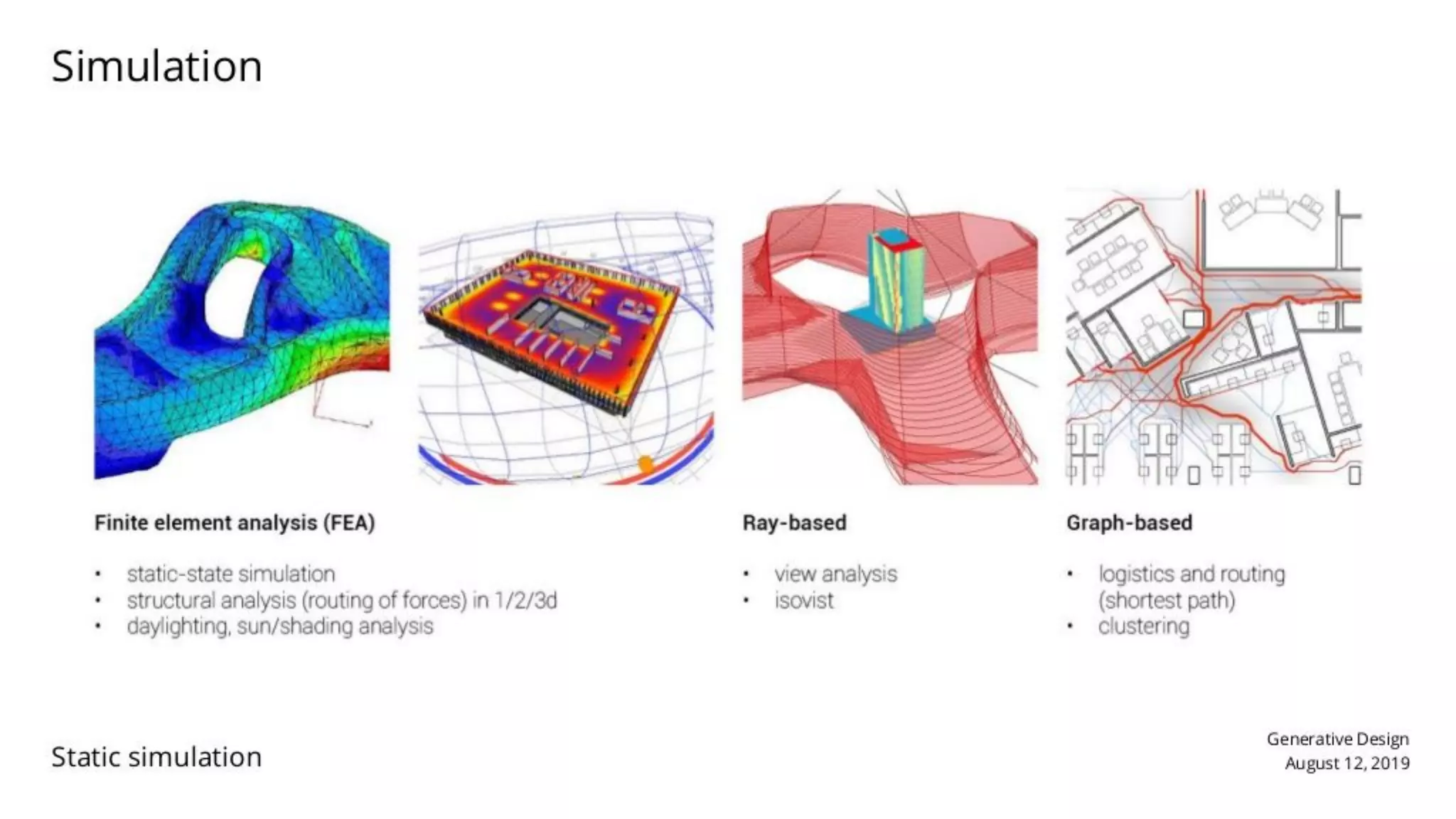

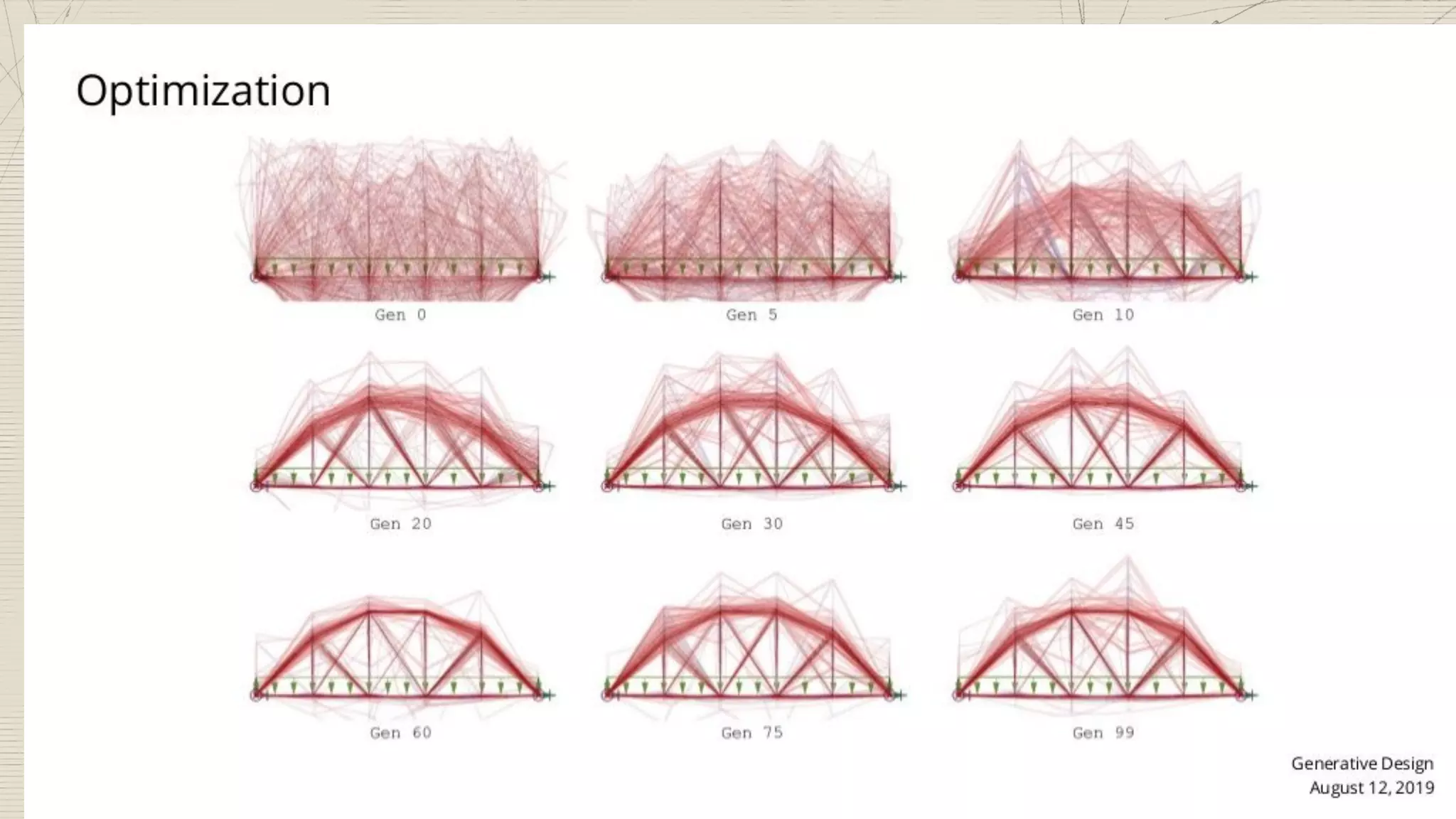

71
