The document outlines the various levels of Building Information Modeling (BIM) maturity, ranging from unmanaged CAD to fully integrated and collaborative systems, emphasizing the importance of achieving Level 2 BIM by 2016 as per government strategy. It discusses the benefits of a model-centric environment that enhances data exchange, coordination, and accessibility throughout the construction workflow, ultimately improving project quality and efficiency. Additionally, it addresses the roles of different departments in information management and the implications of technology advancements like augmented reality in construction design and execution.

1. Cesare Caoduro
BIM Manager

2. BIM Maturity Levels
Level 0
Unmanaged CAD, in 2D, with paper (or electronic paper) data
exchange.
Level 1
Managed CAD in 2D or 3D format with a collaborative tool
providing a common data environment with a standardised
approach to data structure and format. Commercial data will
be managed by standalone finance and cost management
packages with no integration.
Level 2
A managed 3D environment held in separate discipline 'BIM'
tools with data attached. Commercial data will be managed
by enterprise resource planning software and integrated by
proprietary interfaces or bespoke middleware. This level of
BIM may utilise 4D construction sequencing and/or 5D cost
information. The Government’s BIM Strategy Paper called for
the industry to achieve Level 2 BIM by 2016.
Level 3
A fully integrated and collaborative process enabled by 'web
services' and compliant with emerging Industry Foundation
Class (IFC) standards. This level of BIM will
utilise 4D construction sequencing, 5D cost information
and 6D project lifecycle management information.

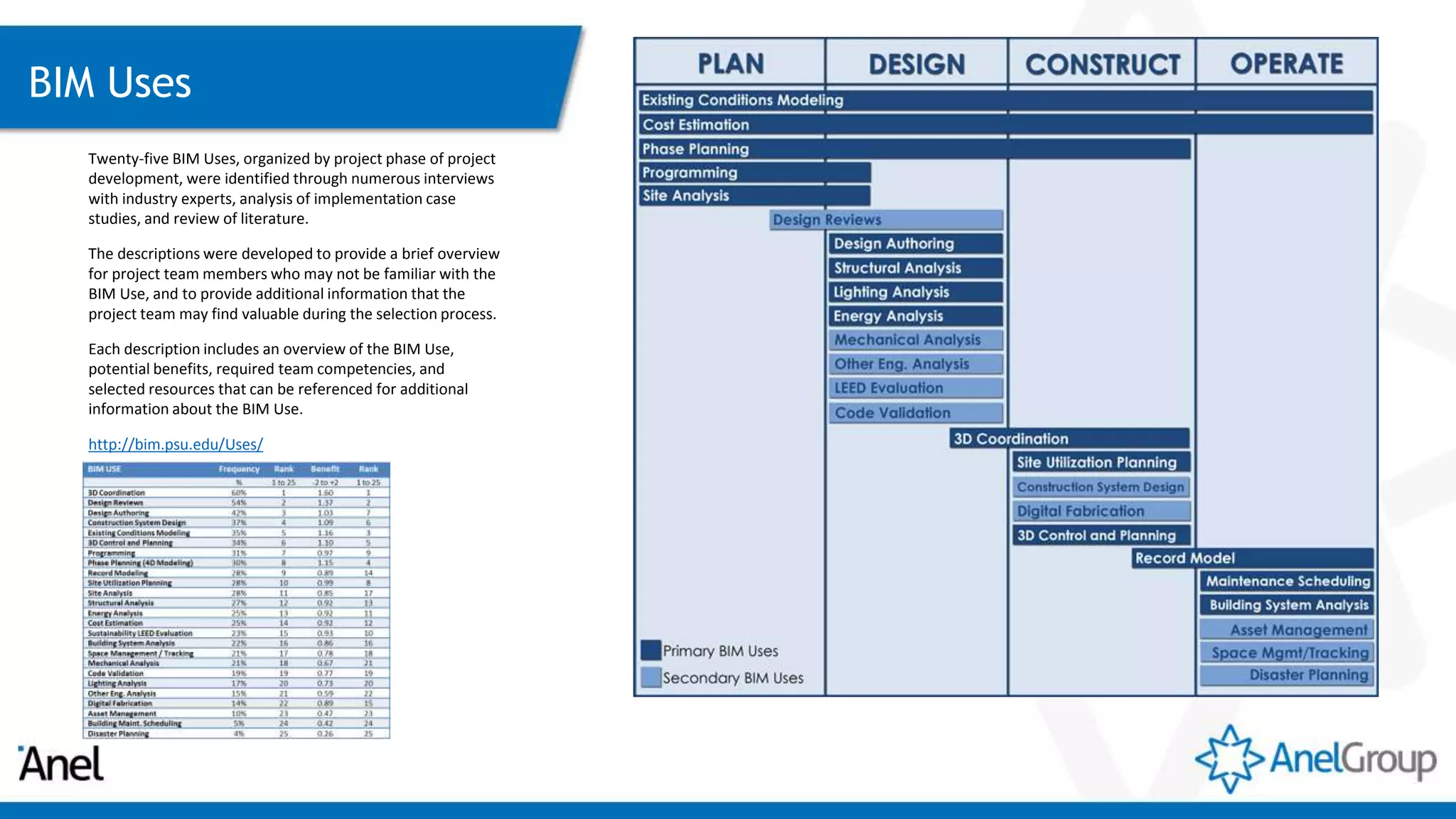

3. BIM Uses
Twenty-five BIM Uses, organized by project phase of project
development, were identified through numerous interviews
with industry experts, analysis of implementation case
studies, and review of literature.
The descriptions were developed to provide a brief overview
for project team members who may not be familiar with the
BIM Use, and to provide additional information that the
project team may find valuable during the selection process.
Each description includes an overview of the BIM Use,
potential benefits, required team competencies, and
selected resources that can be referenced for additional
information about the BIM Use.
http://bim.psu.edu/Uses/

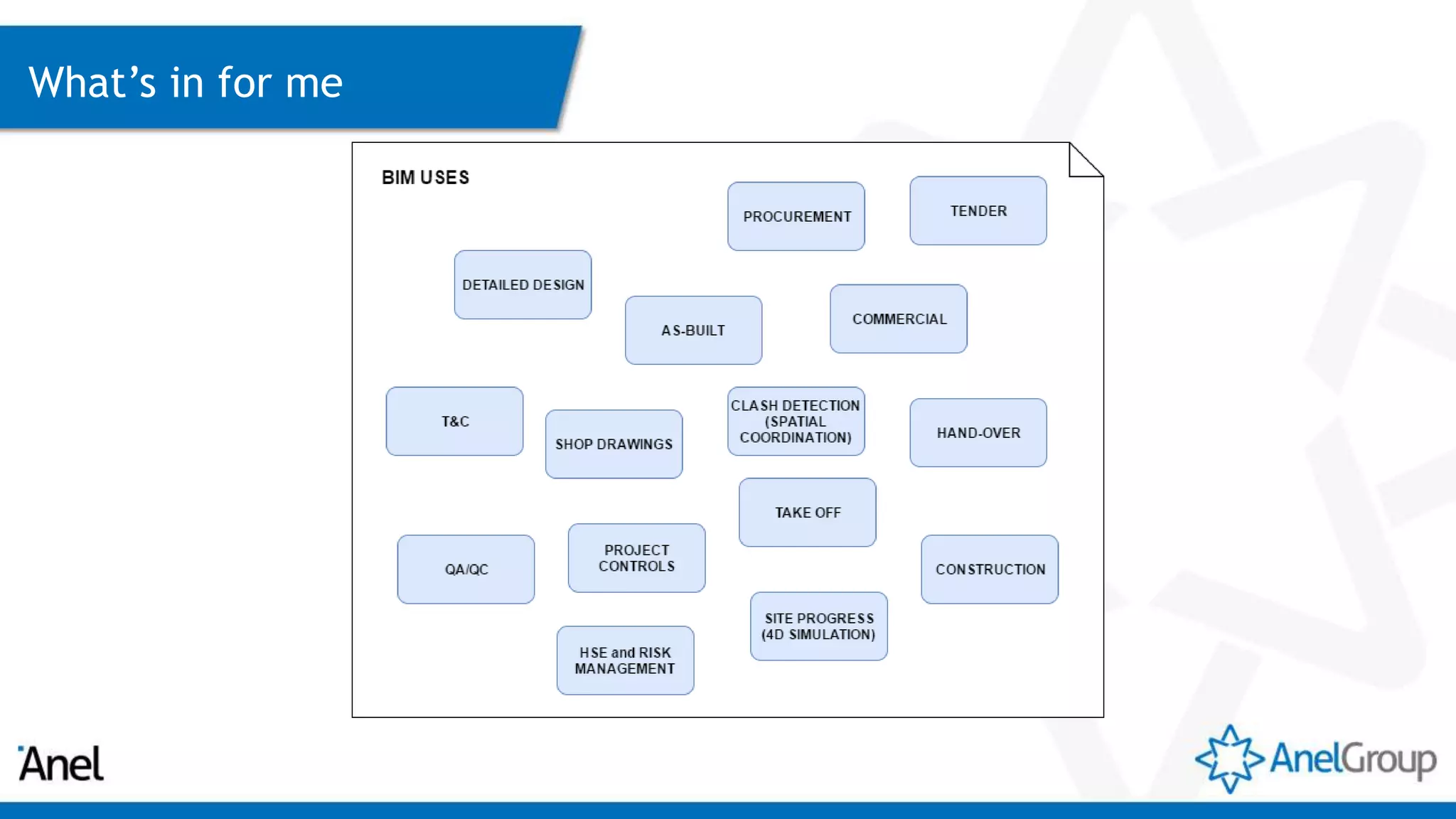

4. What’s in for me

5. What’s in for me

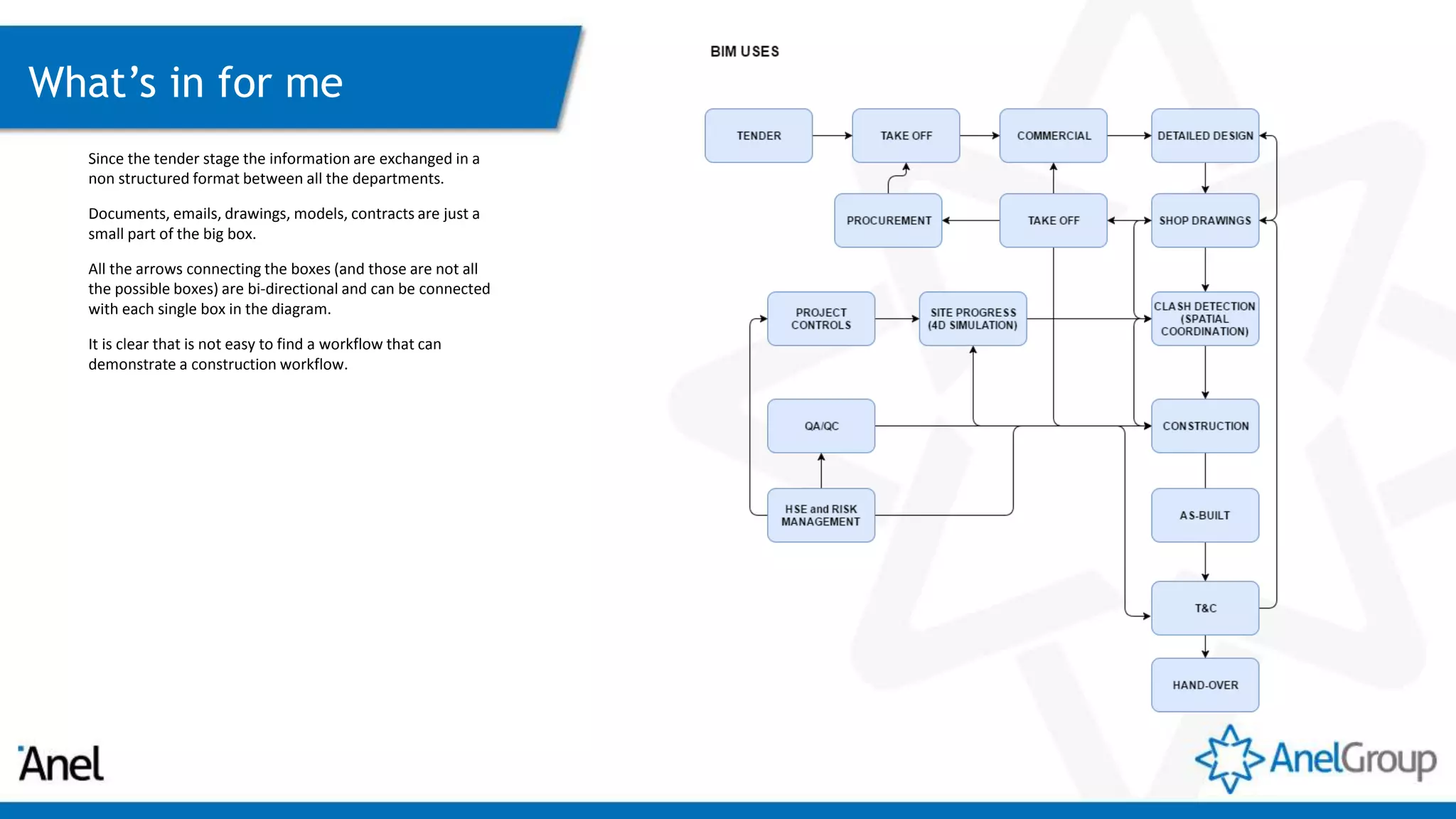

Since the tender stage the information are exchanged in a
non structured format between all the departments.
Documents, emails, drawings, models, contracts are just a
small part of the big box.
All the arrows connecting the boxes (and those are not all
the possible boxes) are bi-directional and can be connected
with each single box in the diagram.
It is clear that is not easy to find a workflow that can
demonstrate a construction workflow.

6. What if…

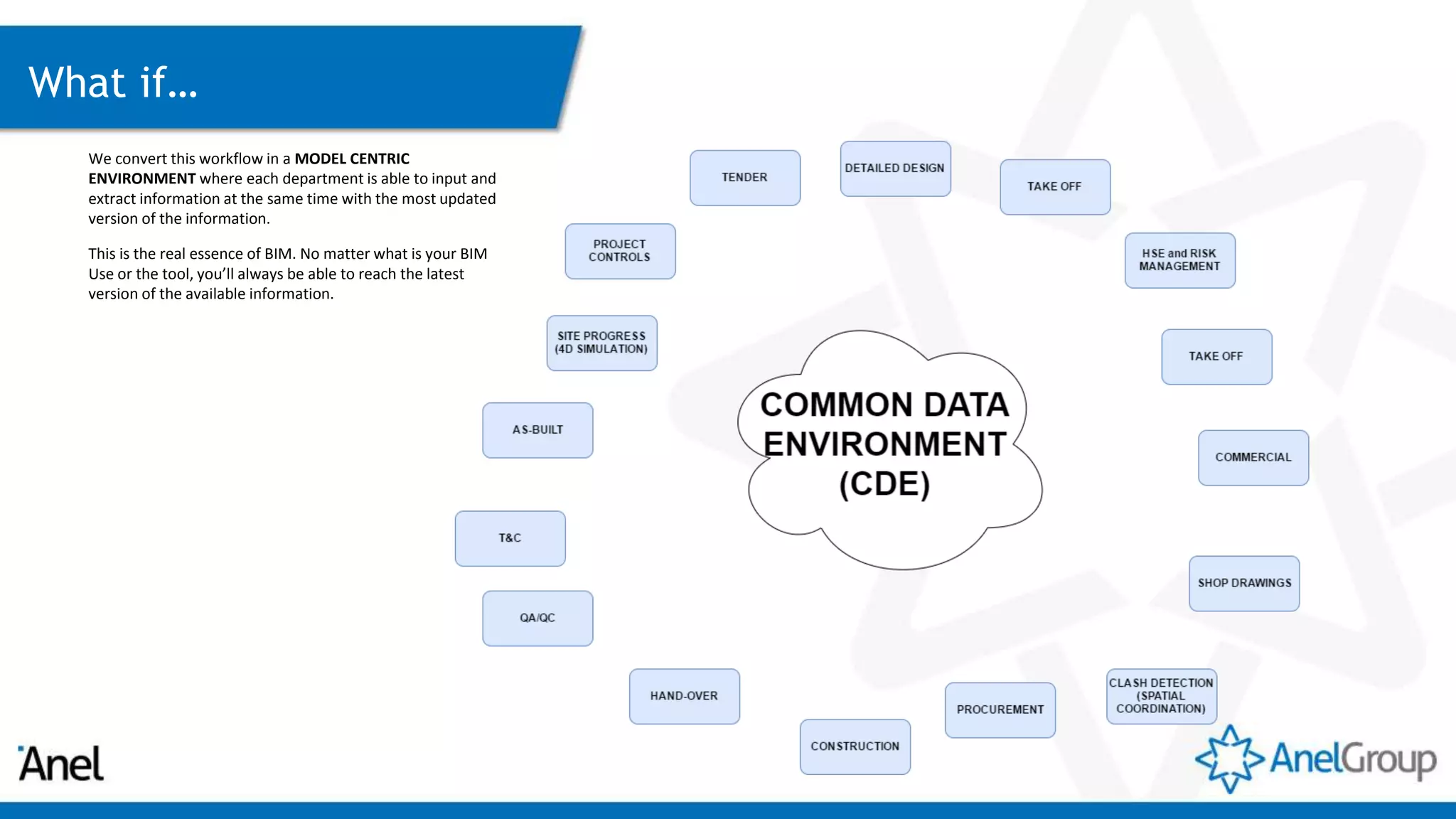

We convert this workflow in a MODEL CENTRIC
ENVIRONMENT where each department is able to input and
extract information at the same time with the most updated
version of the information.
This is the real essence of BIM. No matter what is your BIM
Use or the tool, you’ll always be able to reach the latest
version of the available information.

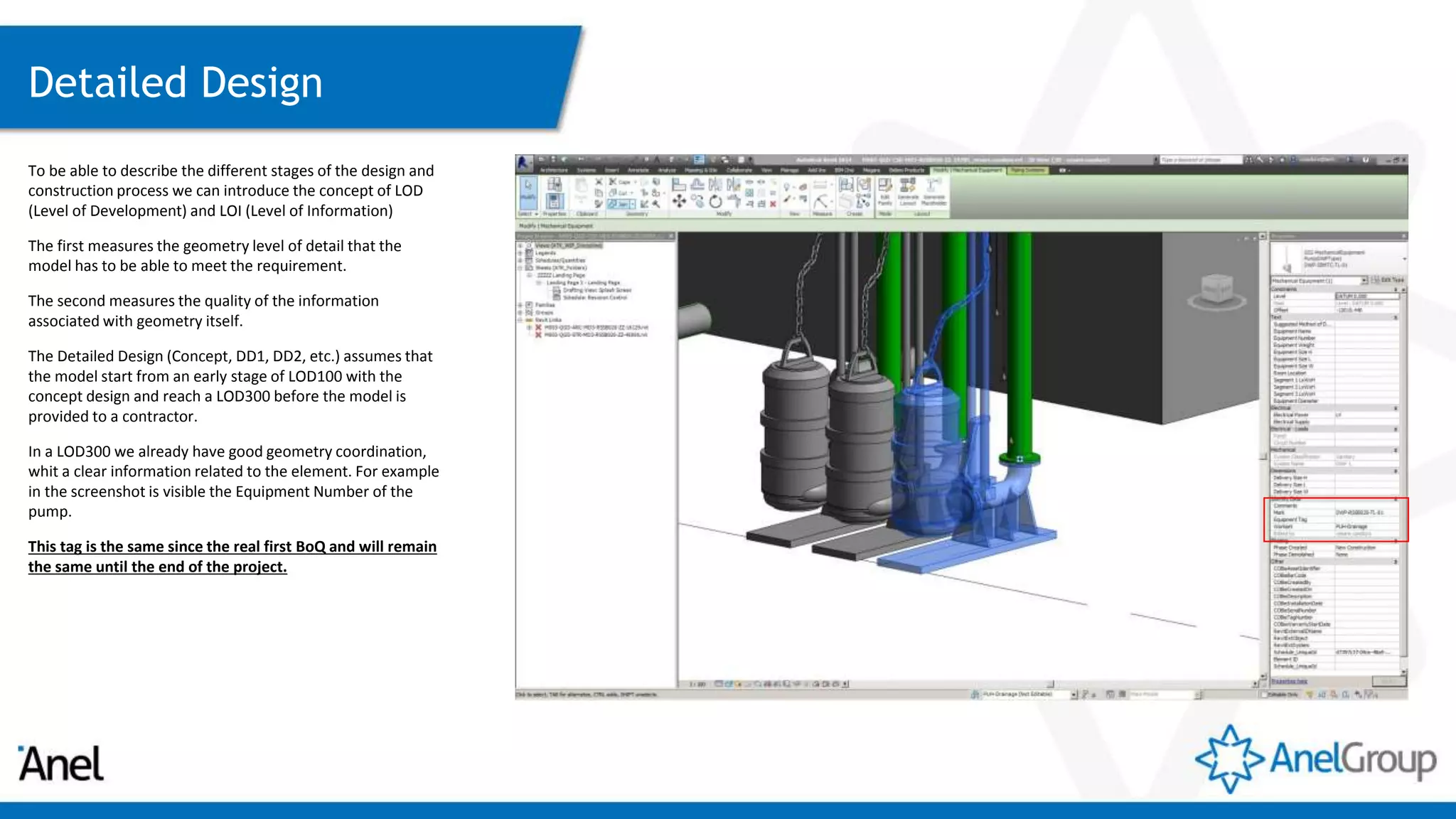

7. Detailed Design
To be able to describe the different stages of the design and
construction process we can introduce the concept of LOD
(Level of Development) and LOI (Level of Information)
The first measures the geometry level of detail that the
model has to be able to meet the requirement.
The second measures the quality of the information
associated with geometry itself.
The Detailed Design (Concept, DD1, DD2, etc.) assumes that
the model start from an early stage of LOD100 with the
concept design and reach a LOD300 before the model is
provided to a contractor.
In a LOD300 we already have good geometry coordination,
whit a clear information related to the element. For example
in the screenshot is visible the Equipment Number of the
pump.
This tag is the same since the real first BoQ and will remain
the same until the end of the project.

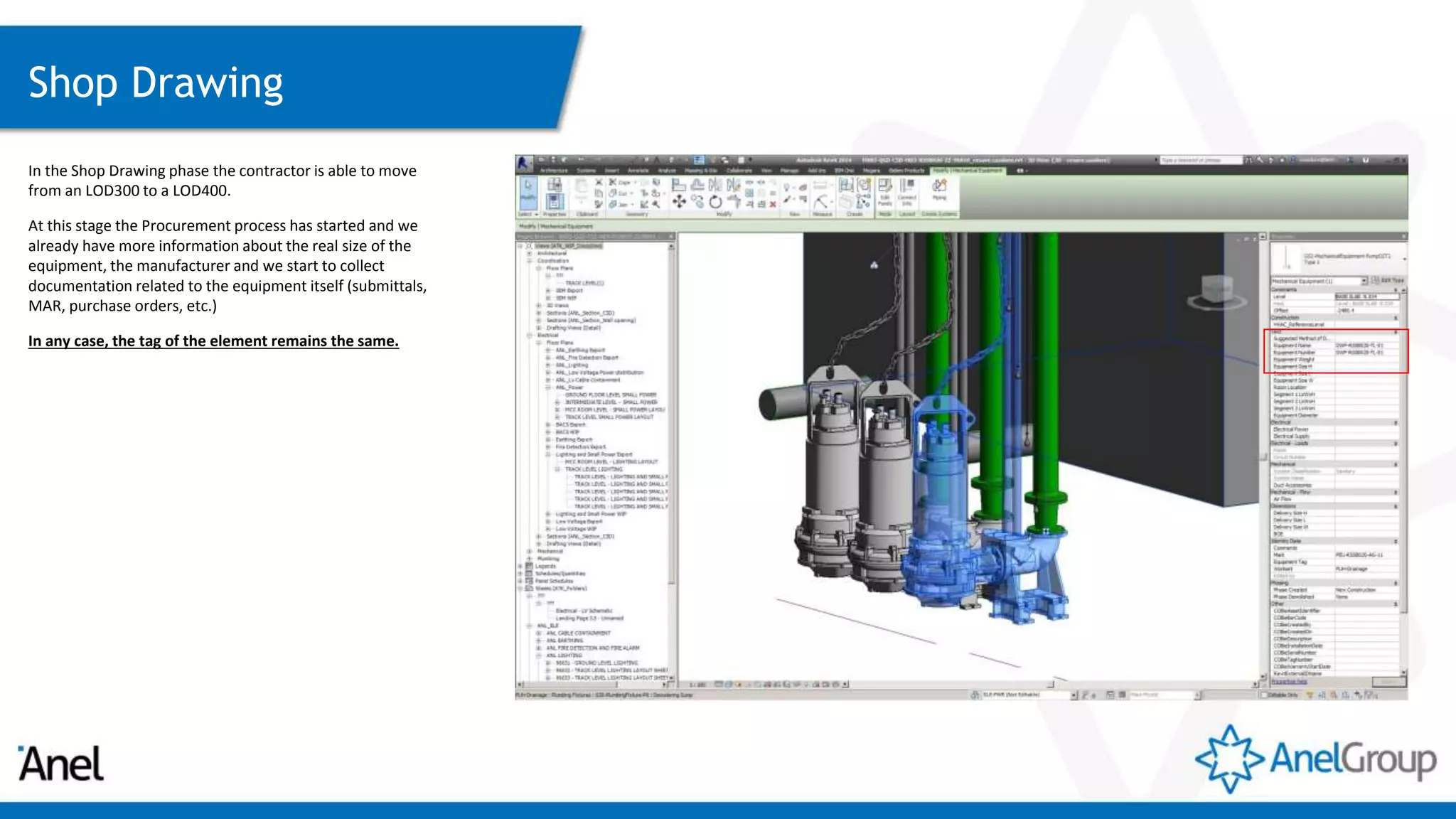

8. Shop Drawing
In the Shop Drawing phase the contractor is able to move
from an LOD300 to a LOD400.
At this stage the Procurement process has started and we
already have more information about the real size of the
equipment, the manufacturer and we start to collect
documentation related to the equipment itself (submittals,
MAR, purchase orders, etc.)
In any case, the tag of the element remains the same.

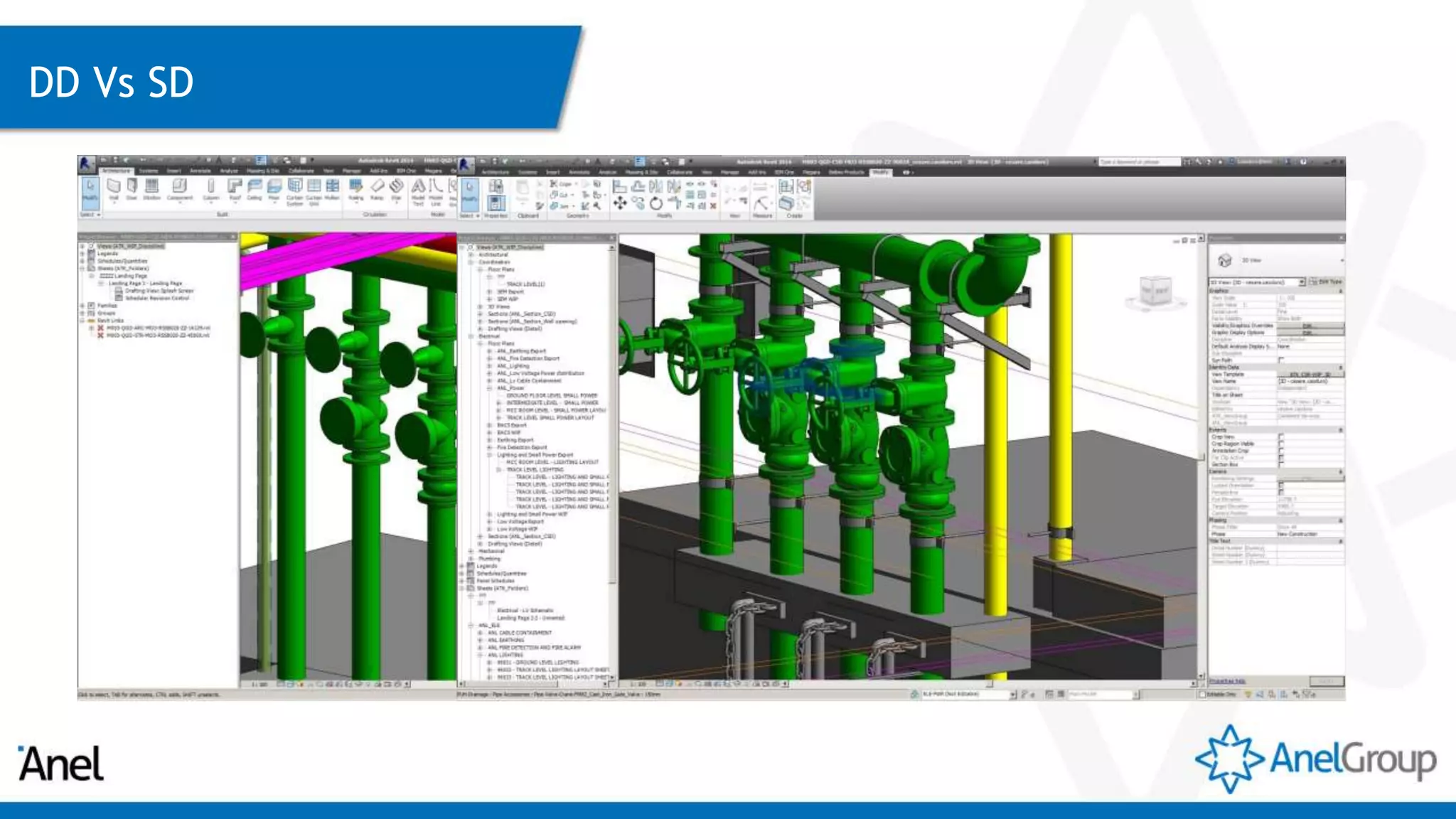

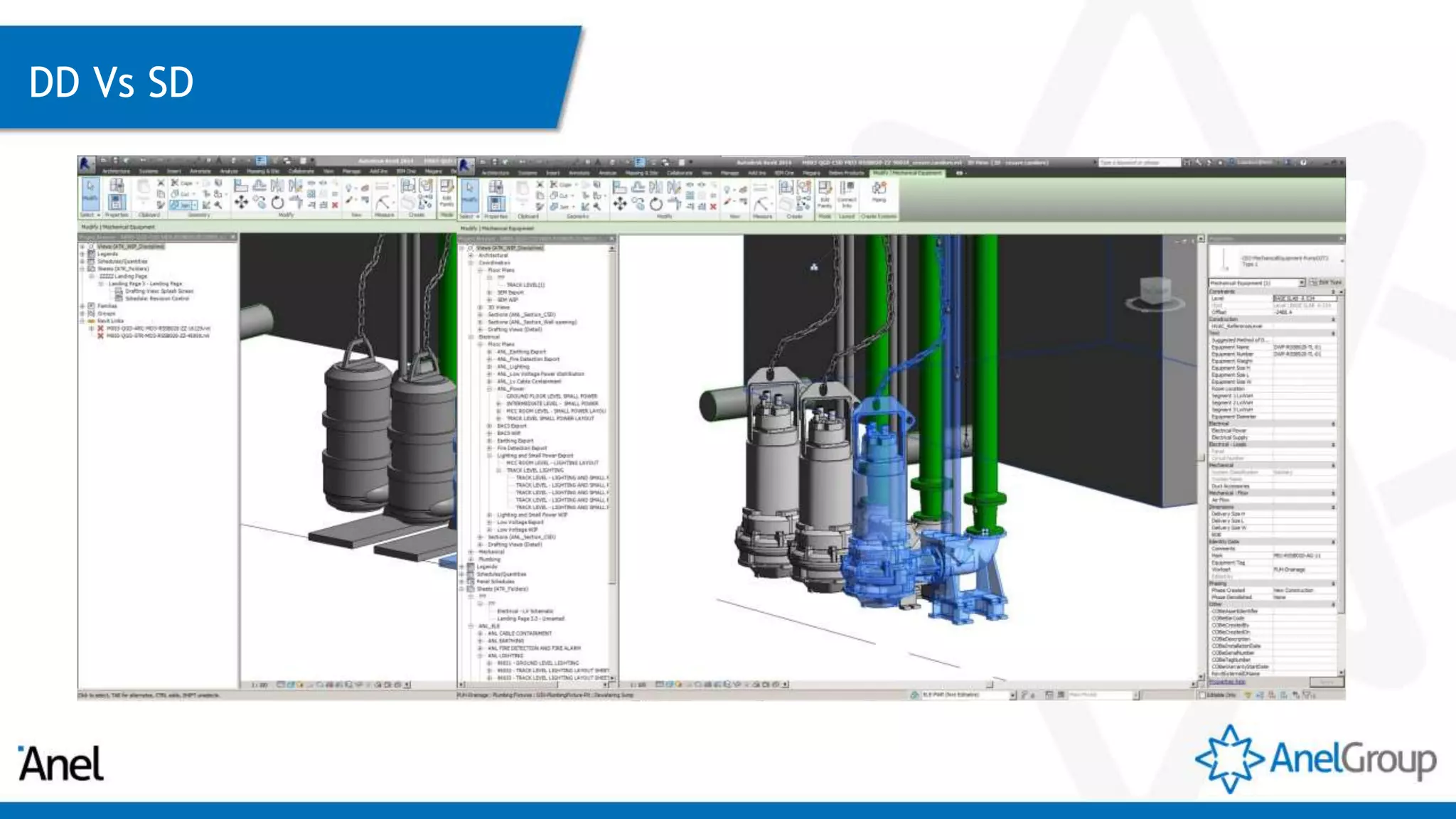

9. DD Vs SD

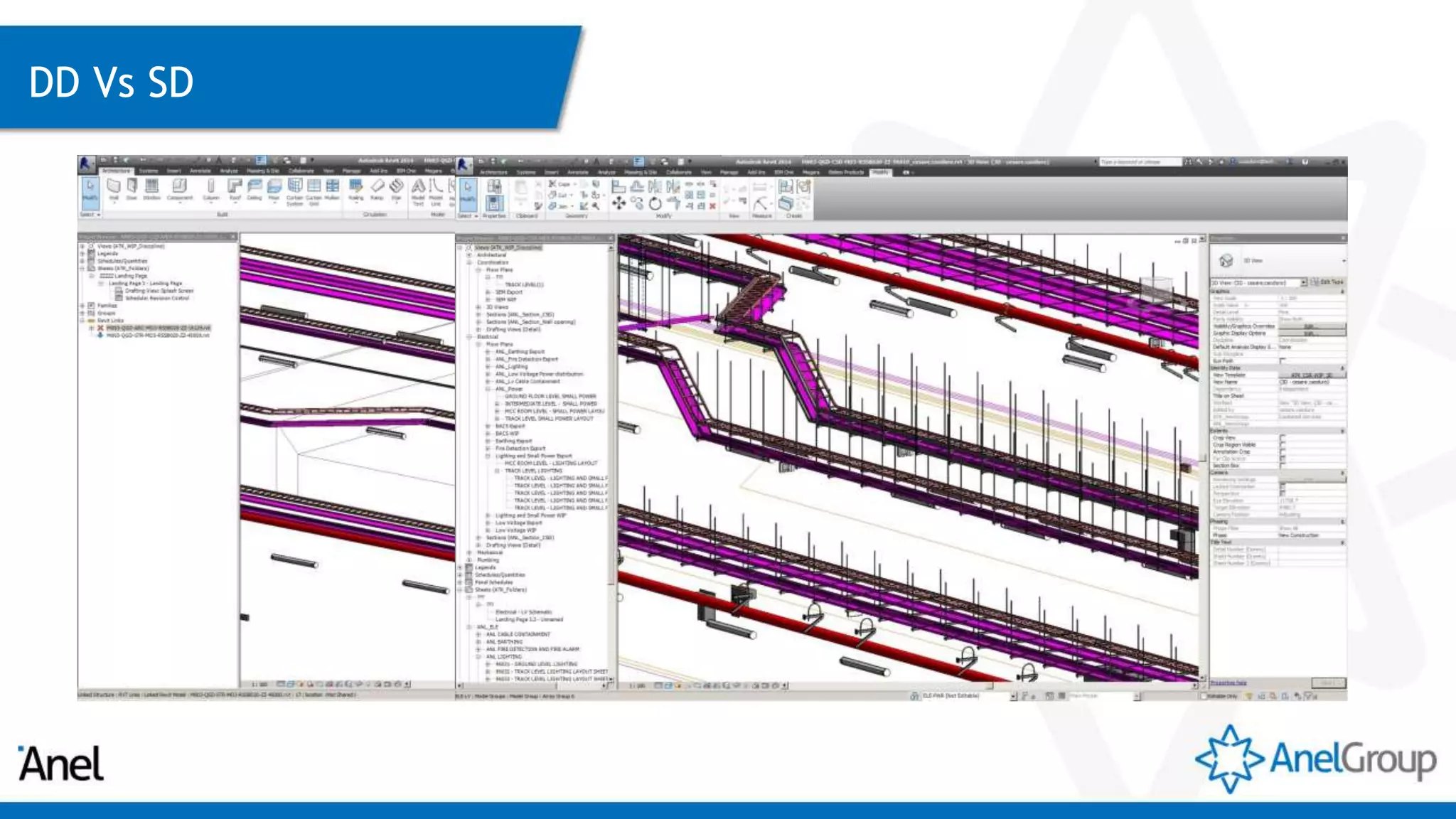

10. DD Vs SD

11. DD Vs SD

12. Cost Coordination

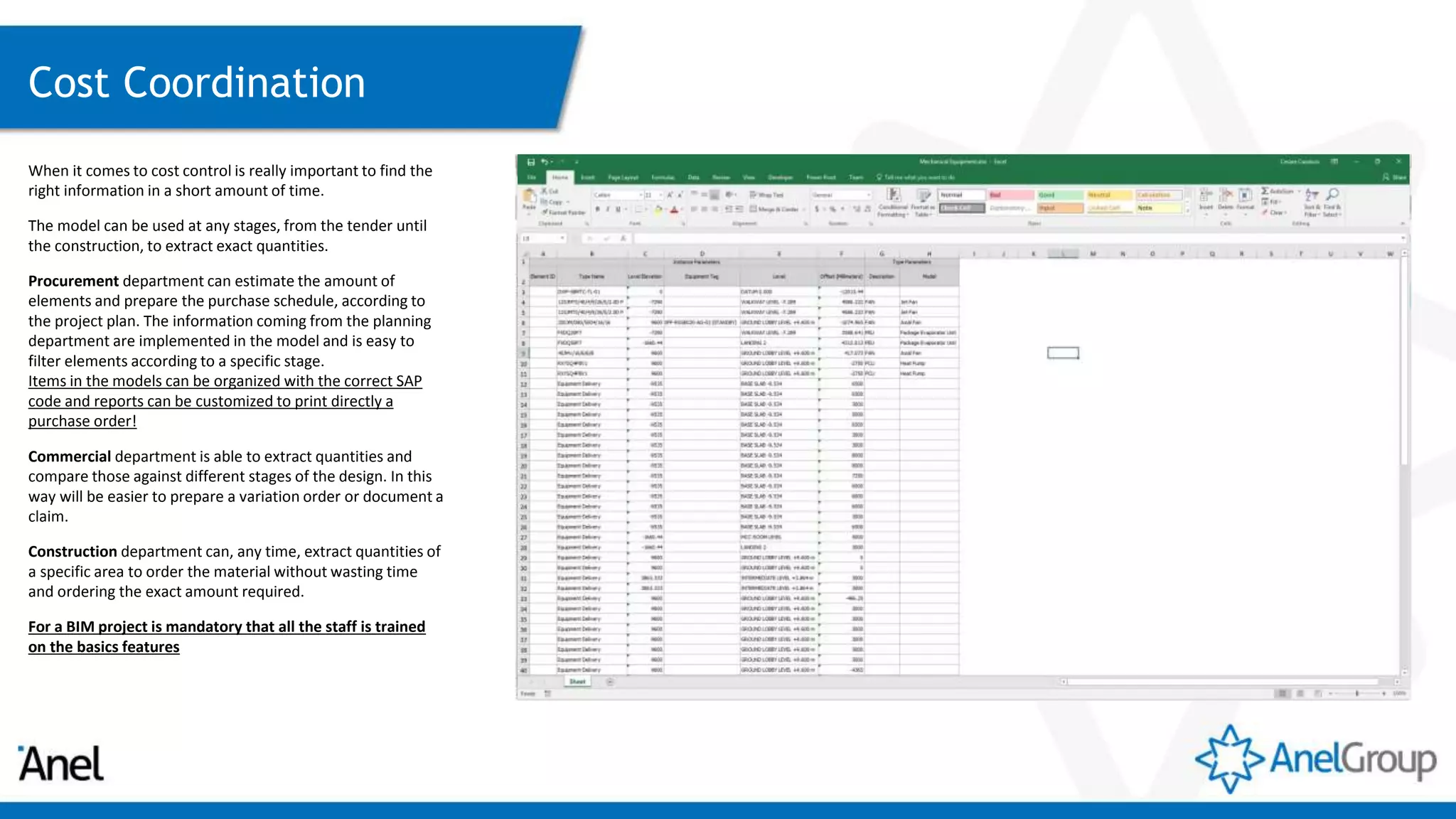

When it comes to cost control is really important to find the
right information in a short amount of time.
The model can be used at any stages, from the tender until
the construction, to extract exact quantities.
Procurement department can estimate the amount of
elements and prepare the purchase schedule, according to
the project plan. The information coming from the planning
department are implemented in the model and is easy to
filter elements according to a specific stage.
Items in the models can be organized with the correct SAP
code and reports can be customized to print directly a
purchase order!
Commercial department is able to extract quantities and
compare those against different stages of the design. In this
way will be easier to prepare a variation order or document a
claim.
Construction department can, any time, extract quantities of
a specific area to order the material without wasting time
and ordering the exact amount required.
For a BIM project is mandatory that all the staff is trained
on the basics features

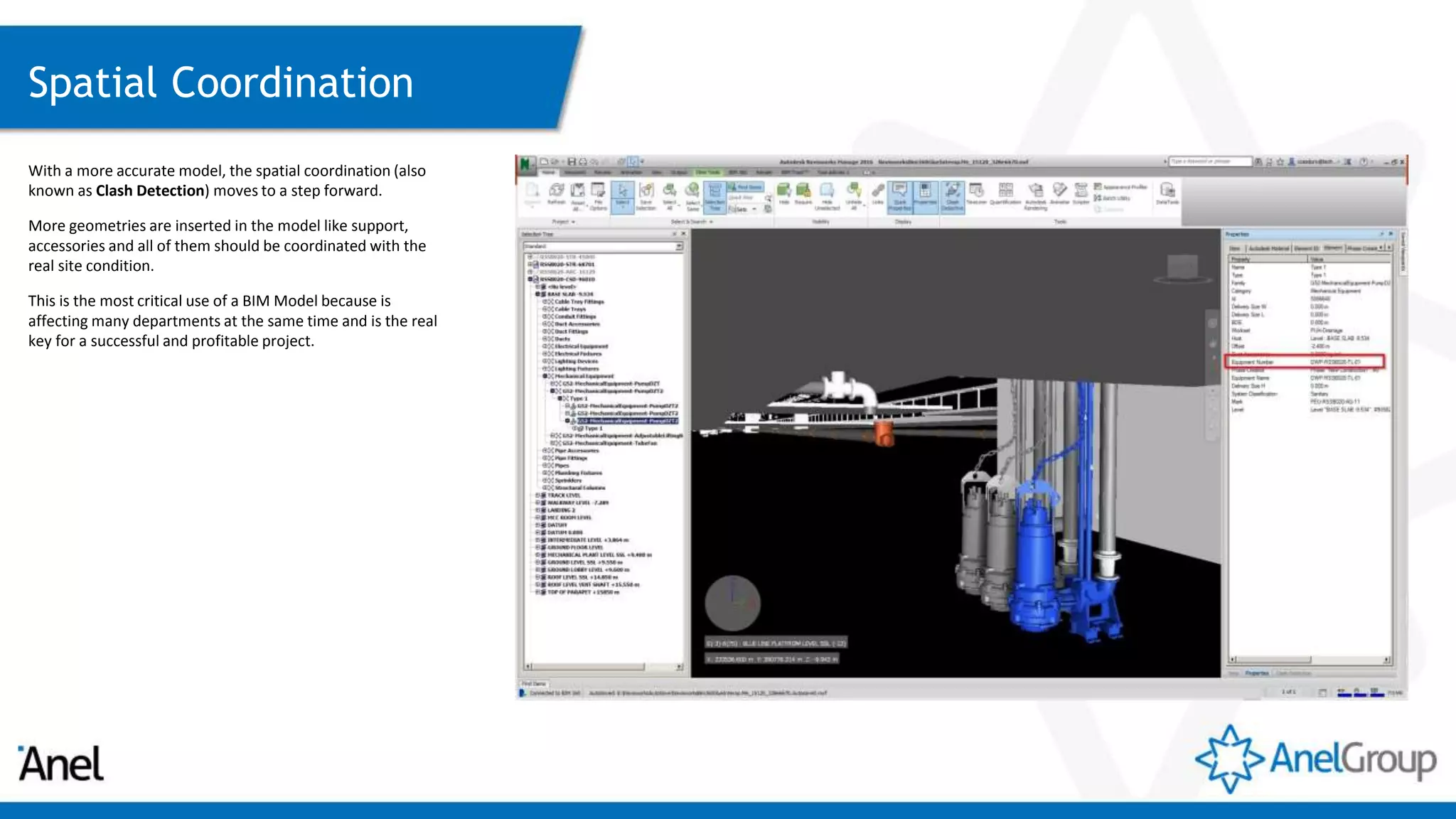

13. Spatial Coordination
With a more accurate model, the spatial coordination (also
known as Clash Detection) moves to a step forward.
More geometries are inserted in the model like support,
accessories and all of them should be coordinated with the
real site condition.
This is the most critical use of a BIM Model because is
affecting many departments at the same time and is the real
key for a successful and profitable project.

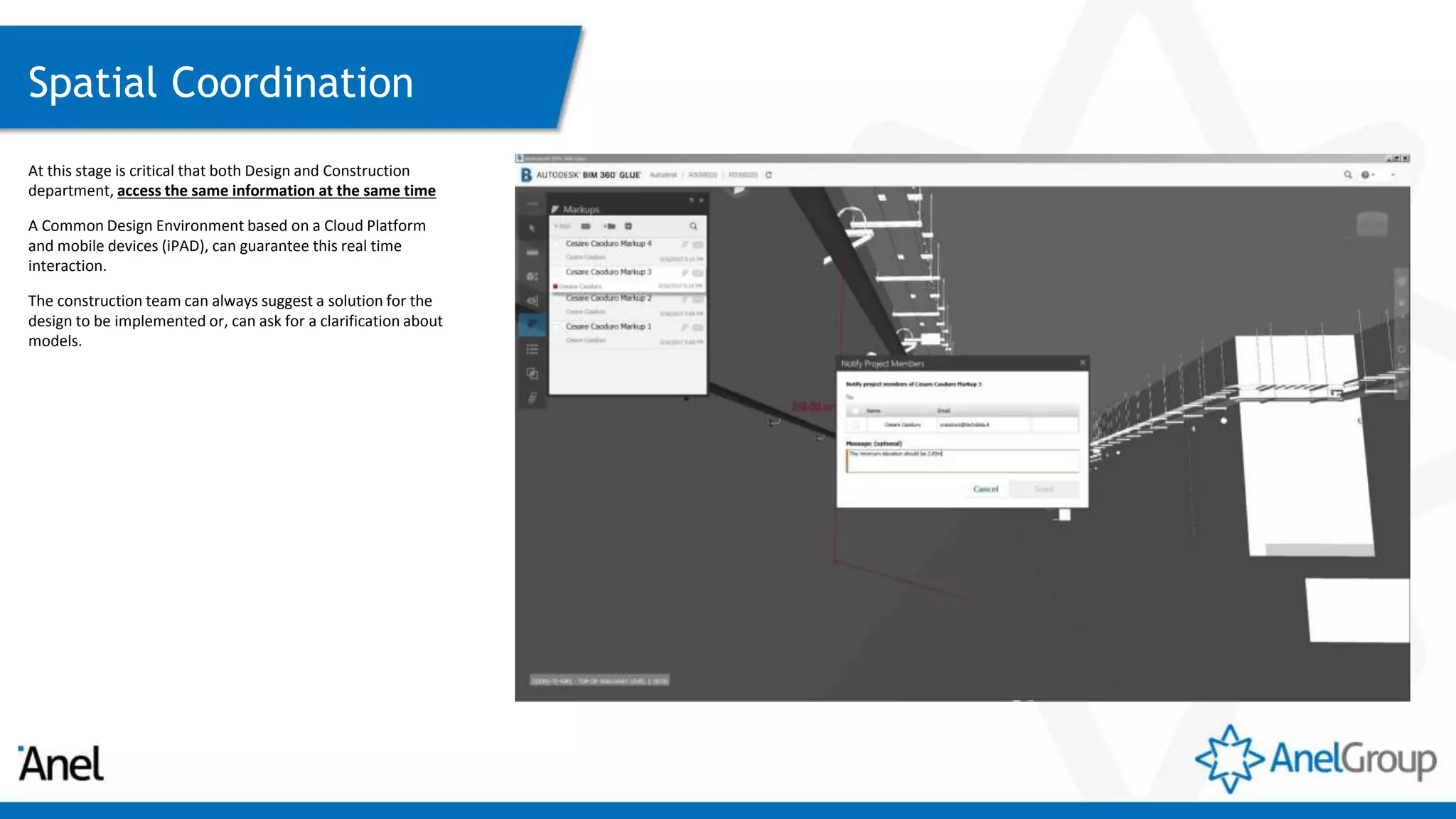

14. Spatial Coordination
At this stage is critical that both Design and Construction
department, access the same information at the same time
A Common Design Environment based on a Cloud Platform
and mobile devices (iPAD), can guarantee this real time
interaction.
The construction team can always suggest a solution for the
design to be implemented or, can ask for a clarification about
models.

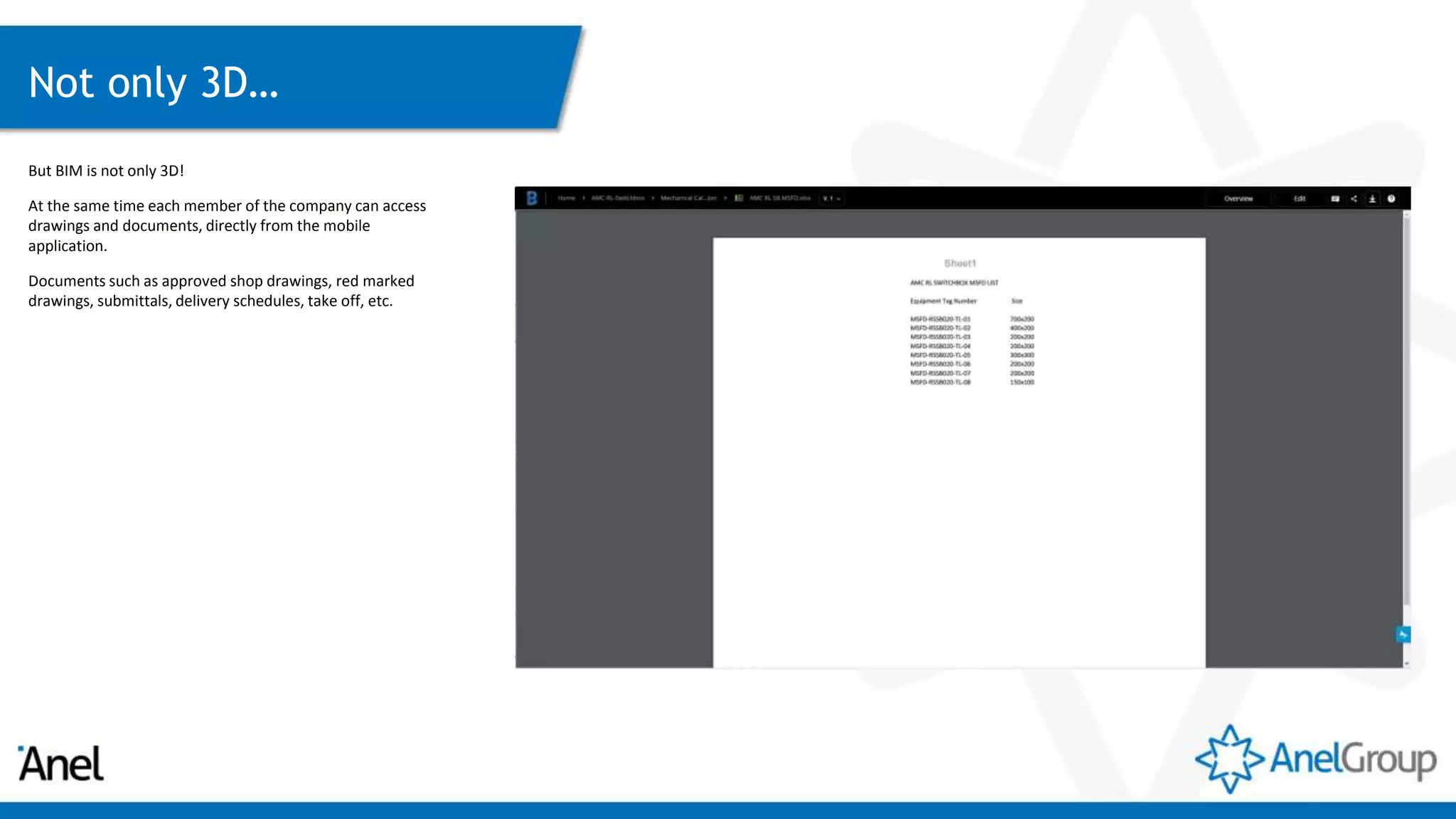

15. Not only 3D…
But BIM is not only 3D!
At the same time each member of the company can access
drawings and documents, directly from the mobile
application.
Documents such as approved shop drawings, red marked
drawings, submittals, delivery schedules, take off, etc.

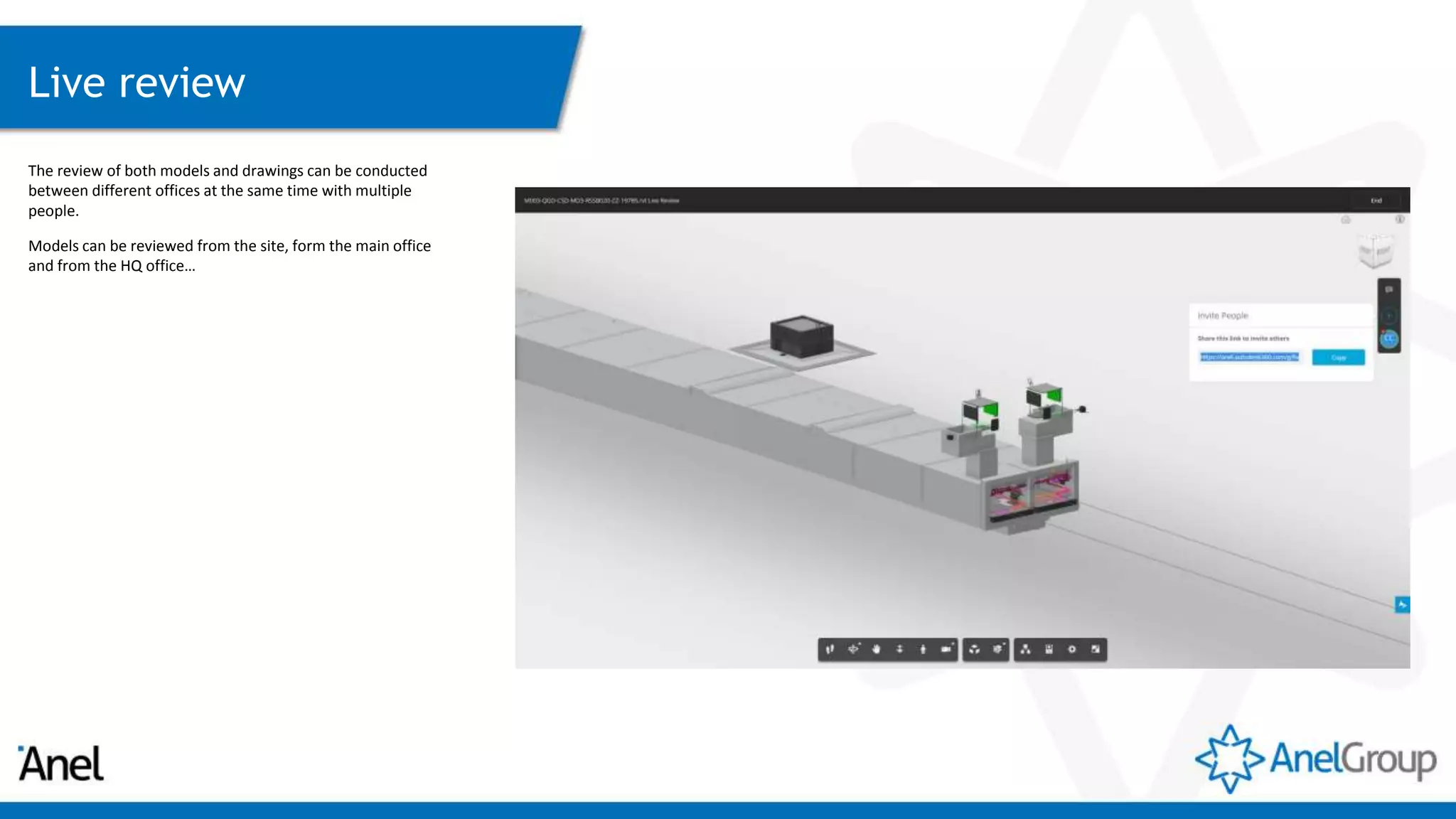

16. Live review
The review of both models and drawings can be conducted
between different offices at the same time with multiple
people.
Models can be reviewed from the site, form the main office
and from the HQ office…

17. Time coordination

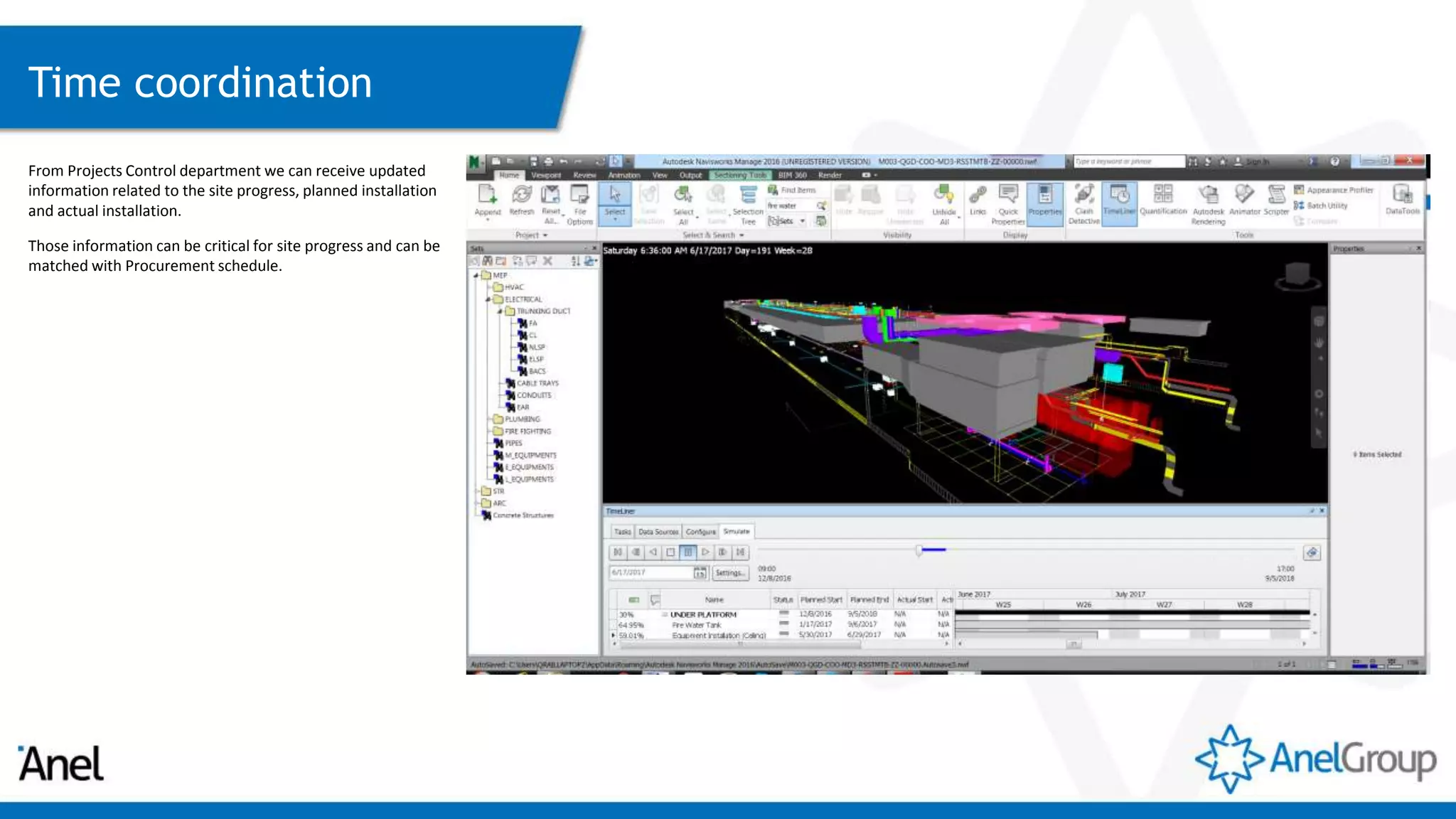

From Projects Control department we can receive updated
information related to the site progress, planned installation
and actual installation.
Those information can be critical for site progress and can be
matched with Procurement schedule.

18. Time coordination

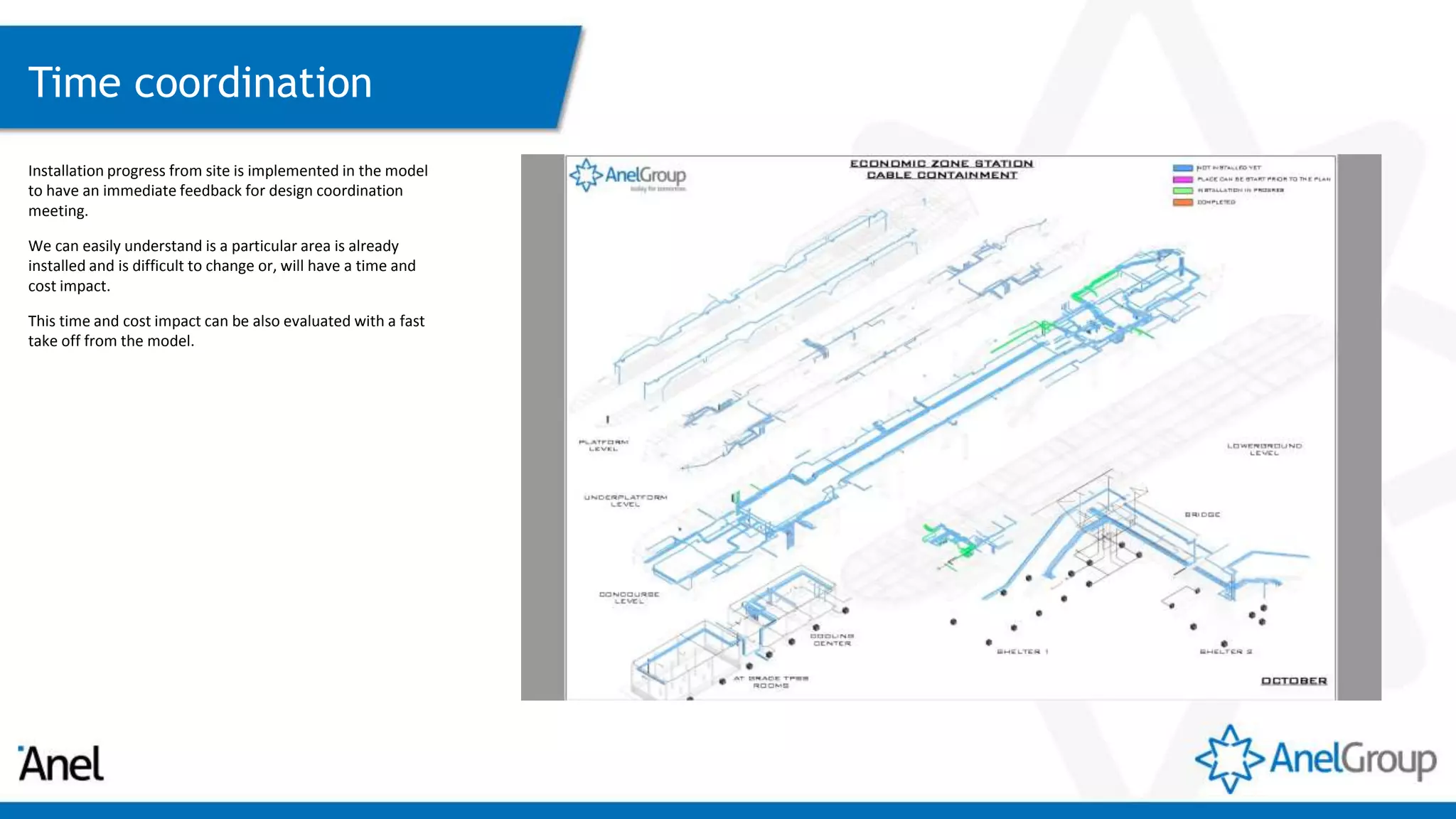

Installation progress from site is implemented in the model
to have an immediate feedback for design coordination
meeting.
We can easily understand is a particular area is already
installed and is difficult to change or, will have a time and
cost impact.
This time and cost impact can be also evaluated with a fast
take off from the model.

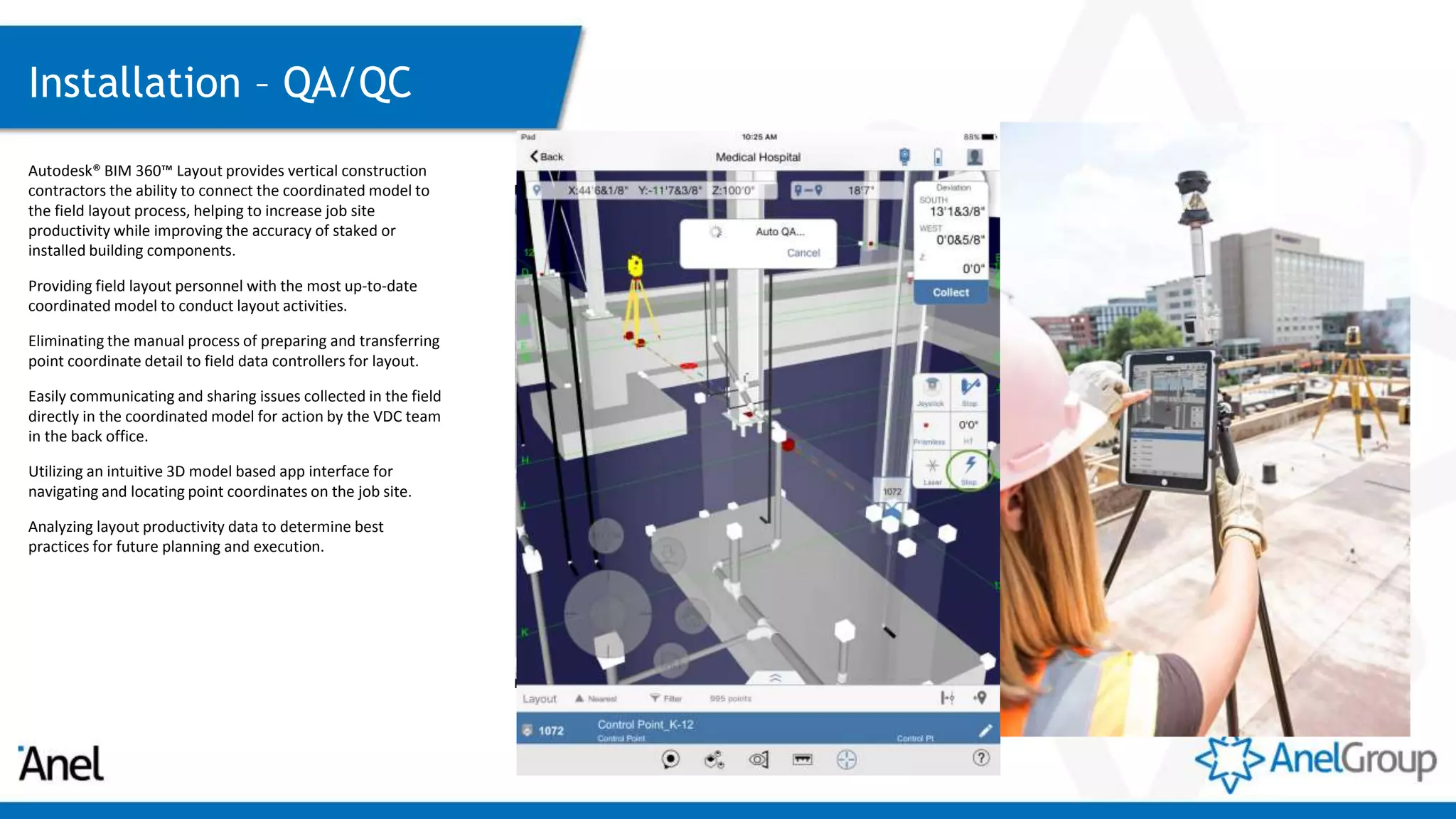

19. Installation – QA/QC
Autodesk® BIM 360™ Layout provides vertical construction
contractors the ability to connect the coordinated model to
the field layout process, helping to increase job site
productivity while improving the accuracy of staked or
installed building components.
Providing field layout personnel with the most up-to-date
coordinated model to conduct layout activities.
Eliminating the manual process of preparing and transferring
point coordinate detail to field data controllers for layout.
Easily communicating and sharing issues collected in the field
directly in the coordinated model for action by the VDC team
in the back office.
Utilizing an intuitive 3D model based app interface for
navigating and locating point coordinates on the job site.
Analyzing layout productivity data to determine best
practices for future planning and execution.

20. Installation and T&C
With still that number in our mind (DWP-RSSB020-TL-01) we
are ready to push those information to a next level.
The model is coordinated (95%), still there’re design changes
on going and the model will be recoordinated until the last
day but, something is already installed and should be tested.
There’re procedures, check lists, documents to be attached
and all those information are still available in a unique
environment and still accessible to all the staff memebers.

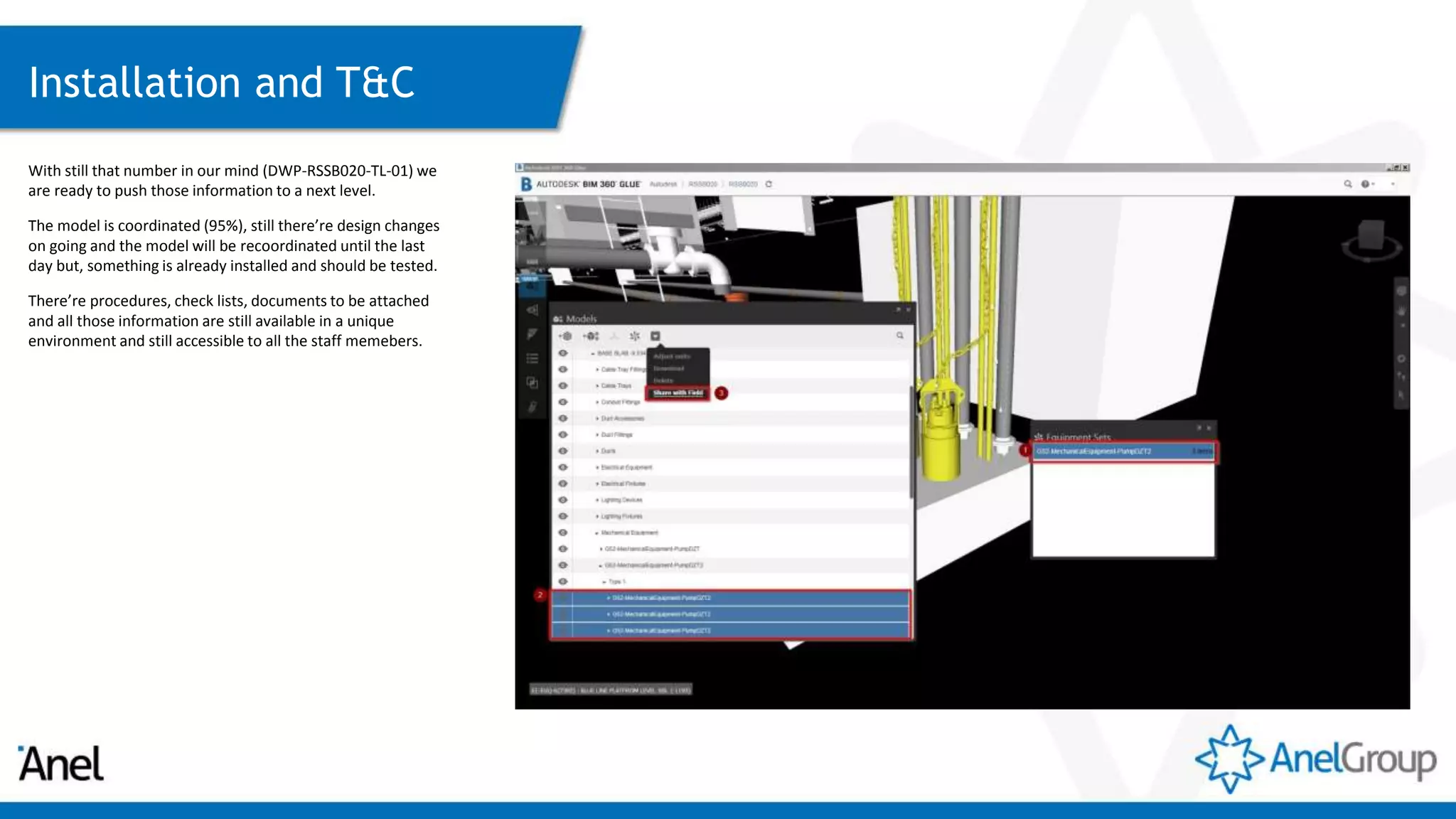

21. Installation and T&C

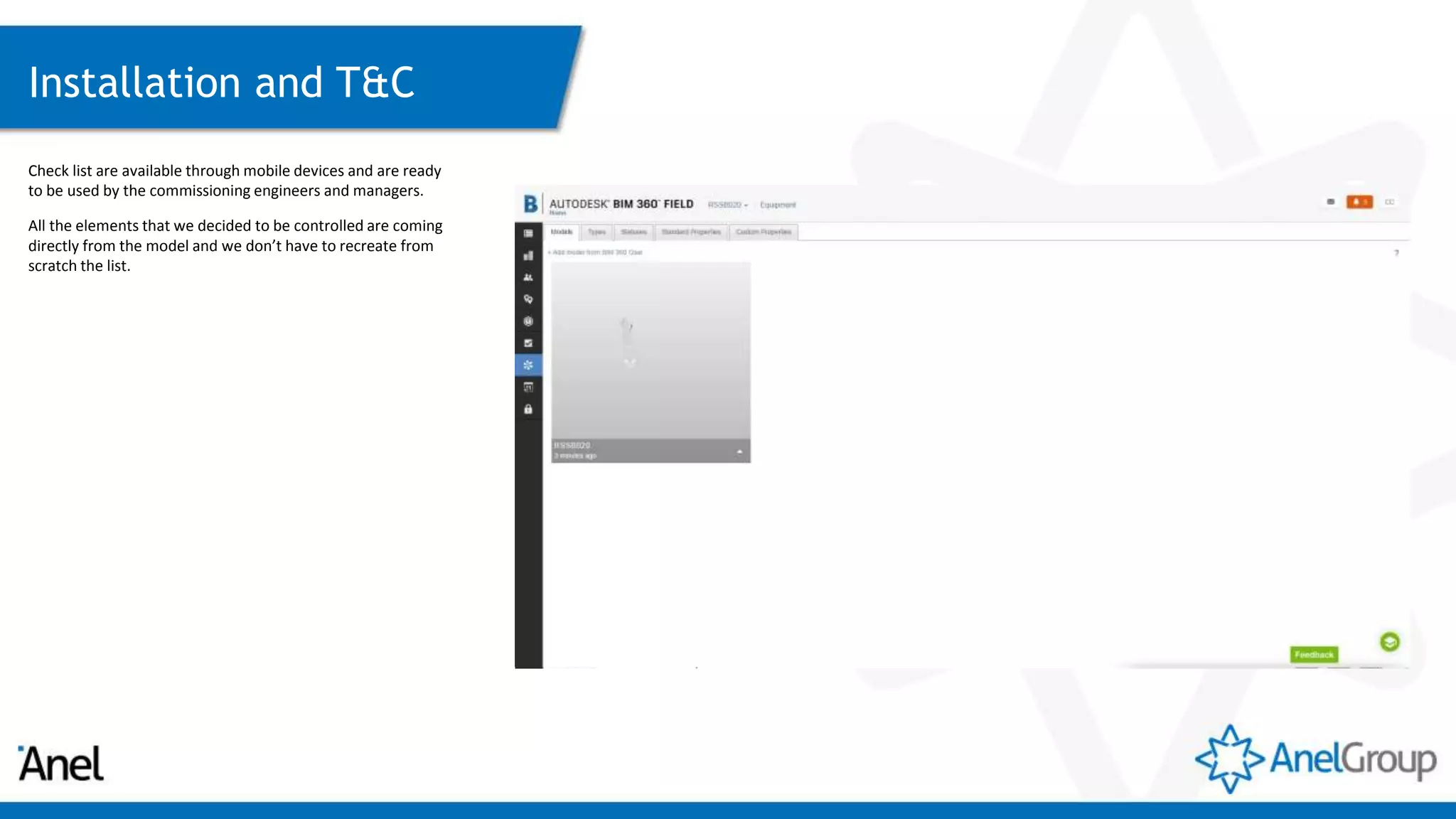

Check list are available through mobile devices and are ready
to be used by the commissioning engineers and managers.
All the elements that we decided to be controlled are coming
directly from the model and we don’t have to recreate from
scratch the list.

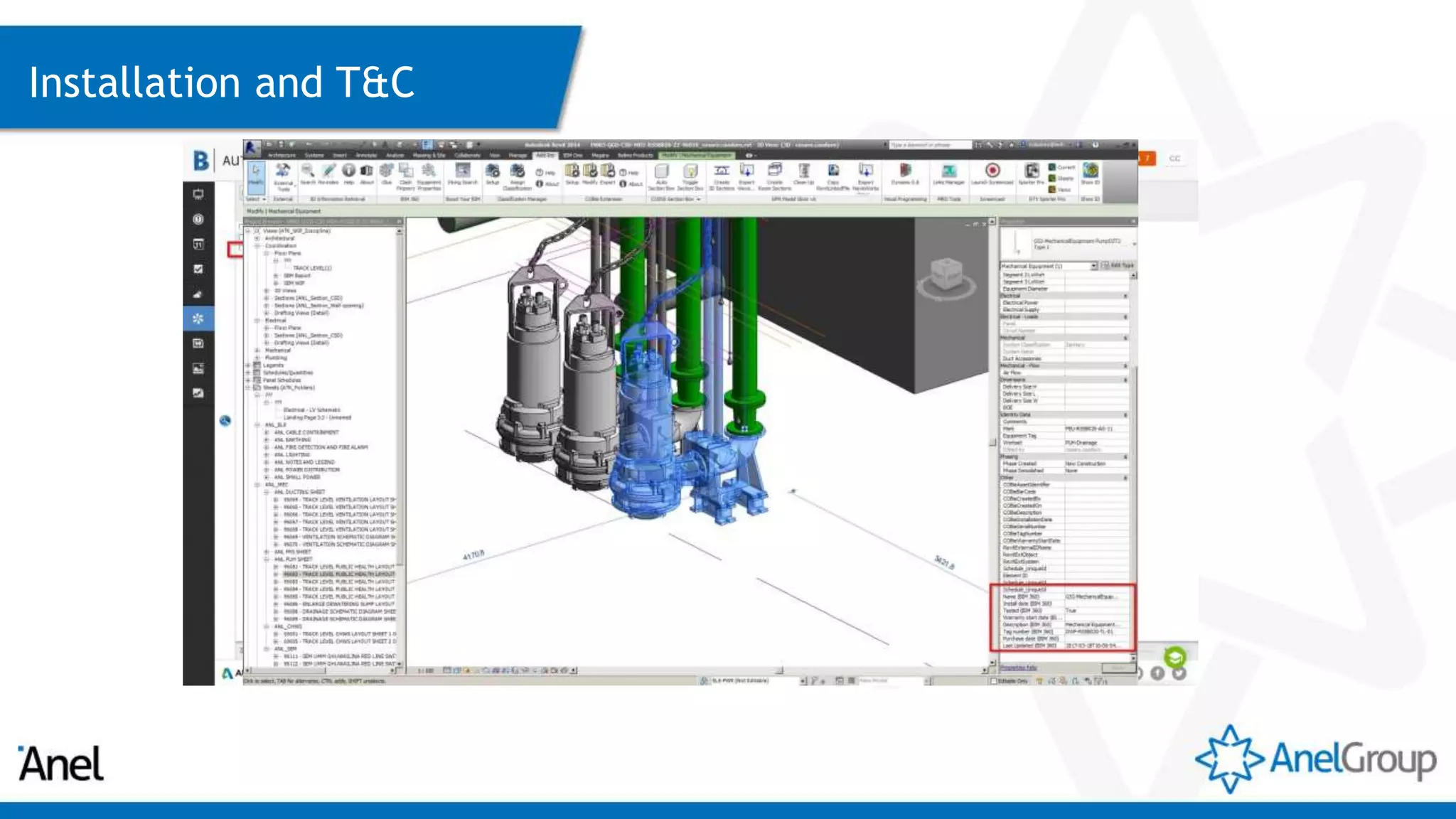

22. Installation and T&C

23. Design intent verification

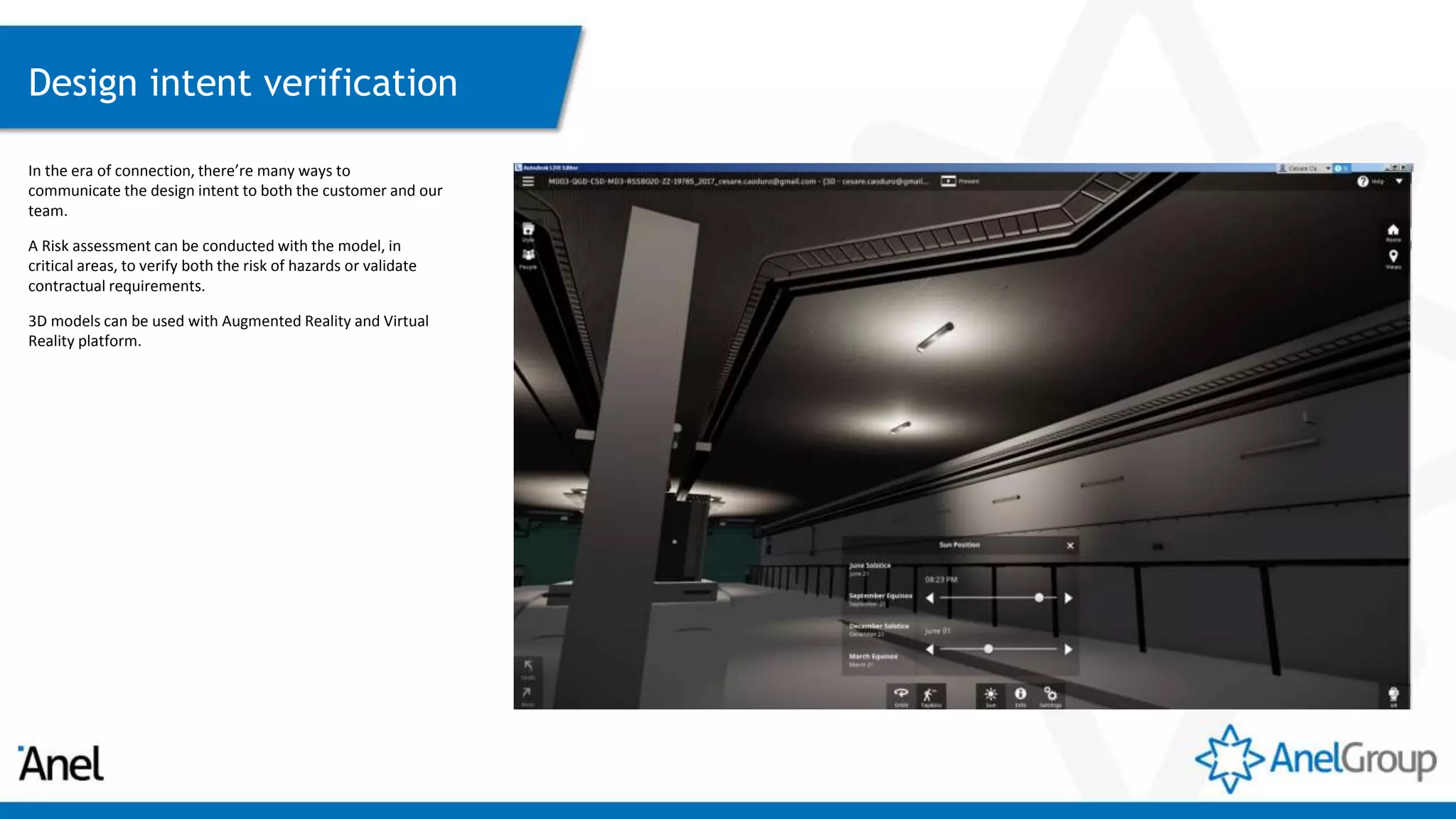

In the era of connection, there’re many ways to
communicate the design intent to both the customer and our
team.
A Risk assessment can be conducted with the model, in
critical areas, to verify both the risk of hazards or validate
contractual requirements.
3D models can be used with Augmented Reality and Virtual
Reality platform.

24. Design intent verification
New technologies are coming to the construction
market, especially related to Augmented Reality.
Microsoft Hololens, together with DAQRI has designed
a new Construction Helmet that can meet both safety
and technological requirements.
In this way the Construction Manager, Site Supervisors
and the Client are able to inspect the site before is
physically built.

25. O&M
After the completion of the project, the client will take
all the data collected during all the stages and input
those into a MMS (Maintenance Management
System).
There’re many ways to collect and use data using the
COBie spreadsheets or more professional platform like
EcoDomus and Drofus.
The idea is to have a centralized database connected
to a system able to guide the maintenance team
during their activities both planned and occasional.

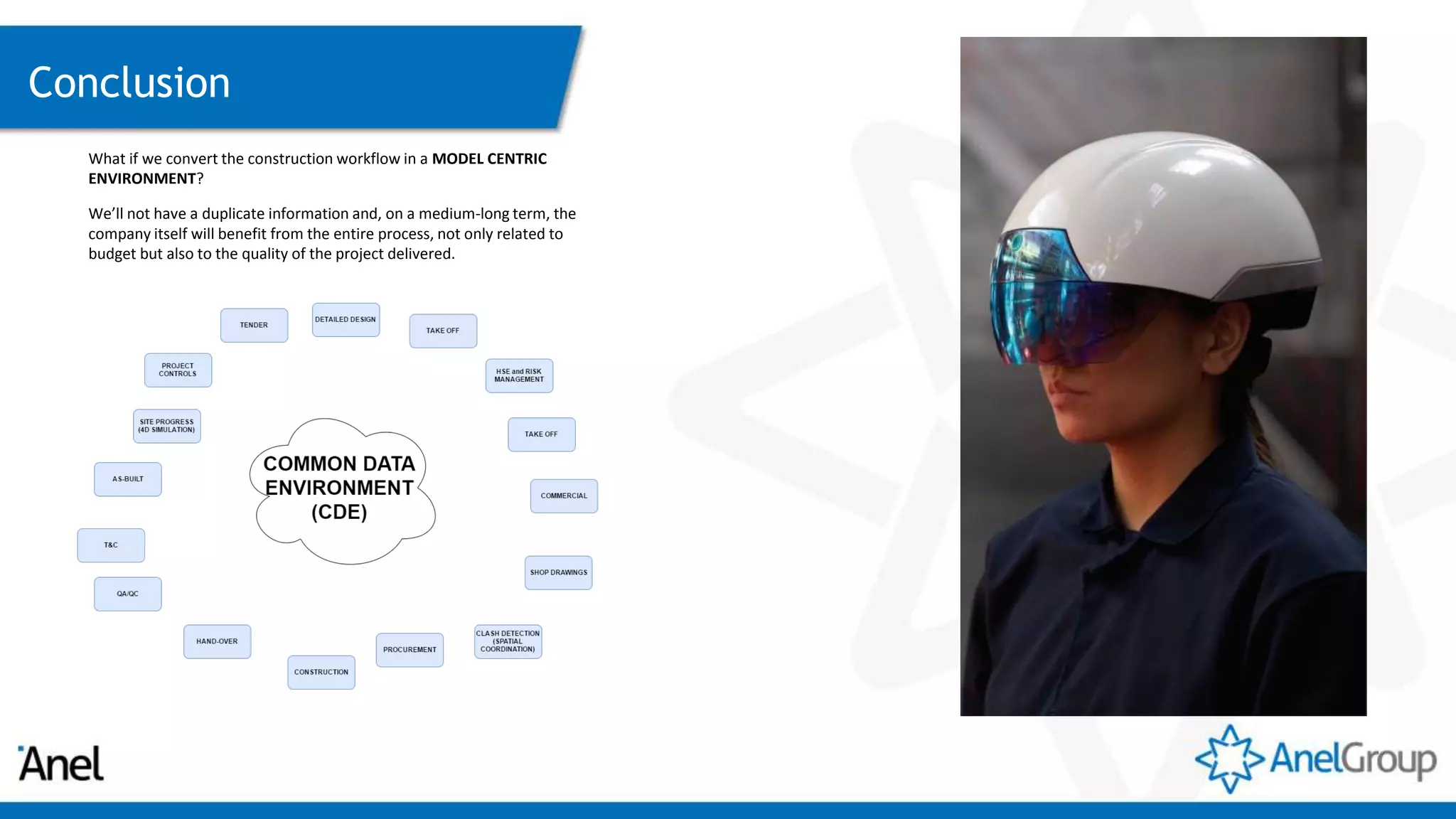

26. Conclusion
What if we convert the construction workflow in a MODEL CENTRIC
ENVIRONMENT?
We’ll not have a duplicate information and, on a medium-long term, the
company itself will benefit from the entire process, not only related to
budget but also to the quality of the project delivered.

27. Thank you!
S1-1 233340 390955.2 -4.018
S1-2 233338.9 390956.5 -4.018
S1-3 233337.9 390957.7 -4.018
S1-4 233336.9 390958.9 -4.018
S1-5 233336 390960.2 -4.019
S1-6 233335 390961.4 -4.021
S1-7 233334 390962.7 -4.024
S1-8 233333 390963.9 -4.028
S1-9 233332 390965.2 -4.033
S1-10 233331.1 390966.5 -4.039
S1-11 233330.1 390967.8 -4.045
S1-12 233329.2 390969 -4.053
S1-13 233328.3 390970.3 -4.062
S1-14 233327.3 390971.6 -4.072
S1-15 233326.4 390972.9 -4.083
S1-16 233325.5 390974.2 -4.095
S1-17 233324.6 390975.5 -4.107
S1-18 233323.7 390976.8 -4.121
S1-19 233322.8 390978.1 -4.136
S1-20 233321.9 390979.4 -4.152
S1-21 233321 390980.8 -4.168
S1-22 233320.1 390982.1 -4.186
S1-23 233319.2 390983.4 -4.204
S1-24 233318.4 390984.8 -4.224
S1-25 233317.5 390986.1 -4.245
S1-26 233316.7 390987.4 -4.266
S1-27 233315.8 390988.8 -4.289
S1-28 233315 390990.2 -4.313
S1-29 233314.2 390991.5 -4.337
S1-30 233313.4 390992.9 -4.363
S1-31 233312.6 390994.2 -4.389
S1-32 233311.8 390995.6 -4.418
S1-33 233311 390997 -4.445
S1-34 233310.2 390998.4 -4.475
S1-35 233309.4 390999.7 -4.505
S1-36 233308.6 391001.1 -4.535
S1-37 233307.8 391002.5 -4.565
S1-38 233307.1 391003.9 -4.595
S1-39 233306.3 391005.3 -4.625
S1-40 233305.6 391006.7 -4.655
S1-41 233304.9 391008.2 -4.685
S1-42 233304.1 391009.6 -4.715
S1-43 233303.4 391011 -4.744
S1-44 233302.7 391012.4 -4.774
S1-45 233302 391013.8 -4.805
S1-46 233301.3 391015.3 -4.834
S1-47 233300.6 391016.7 -4.865
S1-48 233299.9 391018.1 -4.894
S1-49 233299.2 391019.6 -4.924
S1-50 233298.6 391021 -4.954
S1-51 233297.9 391022.5 -4.984
S1-52 233297.3 391023.9 -5.013
S1-53 233296.6 391025.4 -5.044
S1-54 233296 391026.8 -5.075
S1-55 233295.3 391028.3 -5.104
S1-56 233294.7 391029.7 -5.134
S1-57 233294.1 391031.2 -5.164
S1-58 233293.5 391032.7 -5.195
S1-59 233292.9 391034.2 -5.224
S1-60 233292.3 391035.6 -5.255
S1-61 233291.7 391037.1 -5.283
S1-62 233291.2 391038.6 -5.314
S1-63 233290.6 391040.1 -5.344
S1-64 233290 391041.6 -5.374
S1-65 233289.5 391043.1 -5.404
S1-66 233288.9 391044.6 -5.434
S1-67 233288.4 391046 -5.464
S1-68 233287.9 391047.5 -5.494
S1-69 233287.4 391049.1 -5.523
S1-70 233286.8 391050.6 -5.553
S1-71 233286.3 391052.1 -5.583
S1-72 233285.8 391053.6 -5.613
S1-73 233285.4 391055.1 -5.644
S1-74 233284.9 391056.6 -5.674
S1-75 233284.4 391058.1 -5.704
S1-76 233283.9 391059.6 -5.734
S1-77 233283.5 391061.2 -5.763
S1-78 233283 391062.7 -5.794
S1-79 233282.6 391064.2 -5.823
S1-80 233282.2 391065.8 -5.854
S1-81 233281.8 391067.3 -5.883
S1-82 233281.3 391068.8 -5.913
S1-83 233280.9 391070.4 -5.943
S1-84 233280.5 391071.9 -5.973
S1-85 233280.2 391073.4 -6.003
S1-86 233279.8 391075 -6.033
S1-87 233279.4 391076.5 -6.063
S1-88 233279 391078.1 -6.092
S1-89 233278.7 391079.6 -6.123
S1-90 233278.3 391081.2 -6.153
S1-91 233278 391082.7 -6.183
S1-92 233277.7 391084.3 -6.213
S1-93 233277.3 391085.9 -6.243
S1-94 233277 391087.4 -6.273
S1-95 233276.7 391089 -6.302
S1-96 233276.4 391090.5 -6.333
S1-97 233276.1 391092.1 -6.362
S1-98 233275.9 391093.7 -6.392
S1-99 233275.6 391095.2 -6.422
S1-100 233275.3 391096.8 -6.452
S1-101 233275.1 391098.4 -6.482
S1-102 233274.8 391099.9 -6.512
S1-103 233274.6 391101.5 -6.543
S1-104 233274.3 391103.1 -6.572
S1-105 233274.1 391104.7 -6.603
S1-106 233273.9 391106.2 -6.632
S1-107 233273.7 391107.8 -6.662
S1-108 233273.5 391109.4 -6.692
S1-109 233273.3 391111 -6.723
S1-110 233273.1 391112.5 -6.752
S1-111 233273 391114.1 -6.782
S1-112 233272.8 391115.7 -6.812
S1-113 233272.6 391117.3 -6.842
S1-114 233272.5 391118.9 -6.872
S1-115 233272.4 391120.5 -6.902
S1-116 233272.2 391122 -6.932
S1-117 233272.1 391123.6 -6.962
S1-118 233272 391125.2 -6.992
S1-119 233271.9 391126.8 -7.022
S1-120 233271.8 391128.4 -7.052
S1-121 233271.7 391130 -7.081
S1-122 233271.6 391131.6 -7.112
S1-123 233271.6 391133.2 -7.142
S1-124 233271.5 391134.7 -7.171
S1-125 233271.4 391136.3 -7.201
S1-126 233271.4 391137.9 -7.231
S1-127 233271.4 391139.5 -7.261
S1-128 233271.3 391141.1 -7.291
S1-129 233271.3 391142.7 -7.321
S1-130 233271.3 391144.3 -7.351
S1-131 233271.3 391145.9 -7.381
S1-132 233271.3 391147.5 -7.411
S1-133 233271.3 391149.1 -7.441
S1-134 233271.3 391150.6 -7.472
S1-135 233271.4 391152.2 -7.501
S1-136 233271.4 391153.8 -7.531
S1-137 233271.5 391155.4 -7.561
S1-138 233271.5 391157 -7.591
S1-139 233271.6 391158.6 -7.621
S1-140 233271.7 391160.2 -7.651
S1-141 233271.7 391161.8 -7.681
S1-142 233271.8 391163.4 -7.711
S1-143 233271.9 391164.9 -7.741
S1-144 233272 391166.5 -7.771
S1-145 233272.2 391168.1 -7.801
S1-146 233272.3 391169.7 -7.83
S1-147 233272.4 391171.3 -7.861
S1-148 233272.6 391172.9 -7.89
S1-149 233272.7 391174.5 -7.921
S1-150 233272.9 391176 -7.951
S1-151 233273 391177.6 -7.981
S1-152 233273.2 391179.2 -8.011
S1-153 233273.4 391180.8 -8.04
S1-154 233273.6 391182.4 -8.07
S1-155 233273.8 391183.9 -8.1
S1-156 233274 391185.5 -8.13
S1-157 233274.2 391187.1 -8.16
S1-158 233274.4 391188.7 -8.19
S1-159 233274.7 391190.2 -8.22
S1-160 233274.9 391191.8 -8.25
S1-161 233275.2 391193.4 -8.28
S1-162 233275.4 391194.9 -8.31
S1-163 233275.7 391196.5 -8.341
S1-164 233276 391198.1 -8.37
S1-165 233276.2 391199.6 -8.4
S1-166 233276.5 391201.2 -8.43
S1-167 233276.8 391202.8 -8.46
S1-168 233277.1 391204.3 -8.489
S1-169 233277.5 391205.9 -8.52
S1-170 233277.8 391207.4 -8.55
S1-171 233278.1 391209 -8.58
S1-172 233278.5 391210.5 -8.61
S1-173 233278.8 391212.1 -8.639
S1-174 233279.2 391213.6 -8.67
S1-175 233279.5 391215.2 -8.699
S1-176 233279.9 391216.7 -8.73
S1-177 233280.3 391218.3 -8.759
S1-178 233280.7 391219.8 -8.789
S1-179 233281.1 391221.4 -8.819
S1-180 233281.5 391222.9 -8.849
S1-181 233281.9 391224.4 -8.88
S1-182 233282.3 391226 -8.909
S1-183 233282.8 391227.5 -8.94
S1-184 233283.2 391229 -8.969
S1-185 233283.7 391230.5 -8.999
S1-186 233284.1 391232.1 -9.028
S1-187 233284.6 391233.6 -9.059
S1-188 233285.1 391235.1 -9.089
S1-189 233285.6 391236.6 -9.119
S1-190 233286 391238.1 -9.149
S1-191 233286.5 391239.6 -9.179
S1-192 233287 391241.2 -9.209
S1-193 233287.6 391242.7 -9.239
S1-194 233288.1 391244.2 -9.269
S1-195 233288.6 391245.7 -9.299
S1-196 233289.1 391247.2 -9.329
S1-197 233289.7 391248.7 -9.359
S1-198 233290.3 391250.1 -9.389
S1-199 233290.8 391251.6 -9.418
S1-200 233291.4 391253.1 -9.448
S1-201 233292 391254.6 -9.479
S1-202 233292.6 391256.1 -9.508
S1-203 233293.1 391257.5 -9.538
S1-204 233293.7 391259 -9.568
S1-205 233294.4 391260.5 -9.598
S1-206 233295 391262 -9.628
S1-207 233295.6 391263.4 -9.658
S1-208 233296.2 391264.9 -9.688
S1-209 233296.9 391266.3 -9.718
S1-210 233297.5 391267.8 -9.748
S1-211 233298.2 391269.2 -9.778
S1-212 233298.9 391270.7 -9.808
S1-213 233299.5 391272.1 -9.838
S1-214 233300.2 391273.5 -9.868
S1-215 233300.9 391275 -9.898
S1-216 233301.6 391276.4 -9.928
S1-217 233302.3 391277.8 -9.958
S1-218 233303 391279.3 -9.988
S1-219 233303.7 391280.7 -10.018
S1-220 233304.5 391282.1 -10.047
S1-221 233305.2 391283.5 -10.078
S1-222 233305.9 391284.9 -10.107
S1-223 233306.7 391286.3 -10.138
S1-224 233307.4 391287.7 -10.167
S1-225 233308.2 391289.1 -10.197
S1-226 233309 391290.5 -10.227
S1-227 233309.8 391291.9 -10.257
S1-228 233310.6 391293.2 -10.287
S1-229 233311.4 391294.6 -10.317
S1-230 233312.2 391296 -10.347
S1-231 233313 391297.4 -10.378
S1-232 233313.8 391298.7 -10.408
S1-233 233314.6 391300.1 -10.437
S1-234 233315.4 391301.4 -10.467
S1-235 233316.3 391302.8 -10.497
S1-236 233317.1 391304.1 -10.527
S1-237 233318 391305.5 -10.557
S1-238 233318.8 391306.8 -10.587
S1-239 233319.7 391308.1 -10.617
S1-240 233320.6 391309.5 -10.647
S1-241 233321.5 391310.8 -10.677
S1-242 233322.4 391312.1 -10.707
S1-243 233323.3 391313.4 -10.737
S1-244 233324.2 391314.7 -10.767
S1-245 233325.1 391316 -10.797
S1-246 233326 391317.3 -10.826
S1-247 233326.9 391318.6 -10.857
S1-248 233327.9 391319.9 -10.887
S1-249 233328.8 391321.2 -10.917
S1-250 233329.7 391322.5 -10.946
S1-251 233330.7 391323.8 -10.976
S1-252 233331.7 391325 -11.007
S1-253 233332.6 391326.3 -11.036
S1-254 233333.6 391327.5 -11.066
S1-255 233334.6 391328.8 -11.096
S1-256 233335.6 391330 -11.126
S1-257 233336.6 391331.3 -11.156
S1-258 233337.6 391332.5 -11.186
S1-259 233338.6 391333.7 -11.217
S1-260 233339.6 391335 -11.246
S1-261 233340.6 391336.2 -11.276
S1-262 233341.6 391337.4 -11.306
S1-263 233342.7 391338.6 -11.336
S1-264 233343.7 391339.8 -11.366
S1-265 233344.7 391341 -11.396
S1-266 233345.8 391342.2 -11.426
S1-267 233346.9 391343.4 -11.456
S1-268 233347.9 391344.6 -11.486
S1-269 233349 391345.7 -11.516
S1-270 233350.1 391346.9 -11.546
S1-271 233351.2 391348.1 -11.576
S1-272 233352.3 391349.2 -11.606
S1-273 233353.4 391350.4 -11.636
S1-274 233354.5 391351.5 -11.666
S1-275 233355.6 391352.7 -11.696
S1-276 233356.7 391353.8 -11.726
S1-277 233357.8 391354.9 -11.755
S1-278 233358.9 391356 -11.786
S1-279 233360.1 391357.2 -11.816
S1-280 233361.2 391358.3 -11.845
S1-281 233362.4 391359.4 -11.876
S1-282 233363.5 391360.5 -11.905
S1-283 233364.7 391361.5 -11.935
S1-284 233365.8 391362.6 -11.965
S1-285 233367 391363.7 -11.995
S1-286 233368.2 391364.8 -12.025
S1-287 233369.4 391365.8 -12.055
S1-288 233370.5 391366.9 -12.086
S1-289 233371.7 391368 -12.115
S1-290 233372.9 391369 -12.145
S1-291 233374.1 391370 -12.175
S1-292 233375.3 391371.1 -12.205
S1-293 233376.6 391372.1 -12.235
S1-294 233377.8 391373.1 -12.265
S1-295 233379 391374.1 -12.295
S1-296 233380.2 391375.1 -12.325
S1-297 233381.5 391376.1 -12.355
S1-298 233382.7 391377.1 -12.385
S1-299 233384 391378.1 -12.415
S1-300 233385.2 391379.1 -12.445
S1-301 233386.5 391380.1 -12.475
S1-302 233387.7 391381 -12.505
S1-303 233389 391382 -12.535
S1-304 233390.3 391382.9 -12.564
S1-305 233391.6 391383.9 -12.594
S1-306 233392.9 391384.8 -12.624
S1-307 233394.1 391385.7 -12.654
S1-308 233395.4 391386.7 -12.684
S1-309 233396.7 391387.6 -12.714
S1-310 233398 391388.5 -12.744
S1-311 233399.4 391389.4 -12.774
S1-312 233400.7 391390.3 -12.805
S1-313 233402 391391.2 -12.834
S1-314 233403.3 391392.1 -12.864
S1-315 233404.6 391392.9 -12.894
S1-316 233406 391393.8 -12.924
S1-317 233407.3 391394.7 -12.954
S1-318 233408.6 391395.5 -12.984
S1-319 233410 391396.4 -13.014
S1-320 233411.3 391397.2 -13.044
S1-321 233412.7 391398 -13.074
S1-322 233414.1 391398.8 -13.104
S1-323 233415.4 391399.7 -13.134
S1-324 233416.8 391400.5 -13.164
S1-325 233418.2 391401.3 -13.194
S1-326 233419.6 391402.1 -13.224
S1-327 233420.9 391402.8 -13.253
S1-328 233422.3 391403.6 -13.283
S1-329 233423.7 391404.4 -13.313
S1-330 233425.1 391405.2 -13.344
S1-331 233426.5 391405.9 -13.373
S1-332 233427.9 391406.7 -13.404
S1-333 233429.3 391407.4 -13.433
S1-334 233430.7 391408.1 -13.463
S1-335 233432.1 391408.9 -13.493
S1-336 233433.6 391409.6 -13.523
S1-337 233435 391410.3 -13.554
S1-338 233436.4 391411 -13.583
S1-339 233437.8 391411.7 -13.613
S1-340 233439.3 391412.4 -13.643
S1-341 233440.7 391413.1 -13.673
S1-342 233442.2 391413.7 -13.703
S1-343 233443.6 391414.4 -13.732
S1-344 233445 391415 -13.76
S1-345 233446.5 391415.7 -13.788
S1-346 233448 391416.3 -13.814
S1-347 233449.4 391417 -13.839
S1-348 233450.9 391417.6 -13.864
S1-349 233452.3 391418.2 -13.887
S1-350 233453.8 391418.8 -13.91
S1-351 233455.3 391419.4 -13.932
S1-352 233456.8 391420 -13.952
S1-353 233458.2 391420.6 -13.973
S1-354 233459.7 391421.2 -13.992
S1-355 233461.2 391421.8 -14.01
S1-356 233462.7 391422.4 -14.027
S1-357 233464.2 391422.9 -14.043
S1-358 233465.7 391423.5 -14.059
S1-359 233467.2 391424.1 -14.073
S1-360 233468.6 391424.6 -14.087
S1-361 233470.1 391425.2 -14.1
S1-362 233471.6 391425.7 -14.111
S1-363 233473.1 391426.3 -14.122
S1-364 233474.6 391426.8 -14.132
S1-365 233476.1 391427.3 -14.141
S1-366 233477.7 391427.9 -14.149
S1-367 233479.2 391428.4 -14.156
S1-368 233480.7 391428.9 -14.162
S1-369 233482.2 391429.4 -14.168
S1-370 233483.7 391429.9 -14.172
S1-371 233485.2 391430.4 -14.176
S1-372 233486.7 391430.9 -14.178
S1-373 233488.2 391431.5 -14.18
S1-374 233489.7 391432 -14.181
S1-375 233491.3 391432.5 -14.18
S1-376 233492.8 391433 -14.179
S1-377 233494.3 391433.4 -14.178
S1-378 233495.8 391433.9 -14.175
S1-379 233497.3 391434.4 -14.171
S1-380 233498.9 391434.9 -14.166
S1-381 233500.4 391435.4 -14.161
S1-382 233501.9 391435.9 -14.154
S1-383 233503.4 391436.4 -14.147
S1-384 233505 391436.9 -14.14
S1-385 233506.5 391437.4 -14.131
S1-386 233508 391437.8 -14.123
S1-387 233509.5 391438.3 -14.116
S1-388 233511.1 391438.8 -14.108
S1-389 233512.6 391439.3 -14.1
S1-390 233514.1 391439.8 -14.092
S1-391 233515.6 391440.3 -14.084
S1-392 233517.2 391440.7 -14.076
S1-393 233518.7 391441.2 -14.068
S1-394 233520.2 391441.7 -14.06
S1-395 233521.7 391442.2 -14.052
S1-396 233523.3 391442.7 -14.044
S1-397 233524.8 391443.2 -14.036
S1-398 233526.3 391443.7 -14.028
S1-399 233527.8 391444.1 -14.02
S1-400 233529.4 391444.6 -14.012
S1-401 233530.9 391445.1 -14.004
S1-402 233532.4 391445.6 -13.996
S1-403 233533.9 391446.1 -13.988
S1-404 233535.5 391446.6 -13.981
S1-405 233537 391447 -13.973
S1-406 233538.5 391447.5 -13.965
S1-407 233540 391448 -13.957
S1-408 233541.6 391448.5 -13.949
S1-409 233543.1 391449 -13.941
S1-410 233544.6 391449.5 -13.933
S1-411 233546.1 391449.9 -13.925
S1-412 233547.7 391450.4 -13.917
S1-413 233549.2 391450.9 -13.909
S1-414 233550.7 391451.4 -13.902
S1-415 233552.2 391451.9 -13.894
S1-416 233553.8 391452.4 -13.886
S1-417 233555.3 391452.9 -13.878
S1-418 233556.8 391453.3 -13.87
S1-419 233558.3 391453.8 -13.862
S1-420 233559.9 391454.3 -13.854
S1-421 233561.4 391454.8 -13.846
S1-422 233562.9 391455.3 -13.838
S1-423 233564.4 391455.8 -13.83
S1-424 233566 391456.2 -13.823
S1-425 233567.5 391456.7 -13.815
S1-426 233569 391457.2 -13.807
S1-427 233570.5 391457.7 -13.799
S1-428 233572.1 391458.2 -13.791
S1-429 233573.6 391458.7 -13.783
S1-430 233575.1 391459.1 -13.775
S1-431 233576.6 391459.6 -13.767
S1-432 233578.2 391460.1 -13.759
S1-433 233579.7 391460.6 -13.751
S1-434 233581.2 391461.1 -13.744
S1-435 233582.7 391461.6 -13.736
S1-436 233584.3 391462 -13.728
S1-437 233585.8 391462.5 -13.72
S1-438 233587.3 391463 -13.712
S1-439 233588.8 391463.5 -13.704
S1-440 233590.4 391464 -13.696
S1-441 233591.9 391464.5 -13.688
S1-442 233593.4 391465 -13.68
S1-443 233594.9 391465.4 -13.673
S1-444 233596.5 391465.9 -13.665
S1-445 233598 391466.4 -13.657
S1-446 233599.5 391466.9 -13.649
S1-447 233601 391467.4 -13.641
S1-448 233602.6 391467.9 -13.633
S1-449 233604.1 391468.3 -13.625
S1-450 233605.6 391468.8 -13.617
S1-451 233607.1 391469.3 -13.609
S1-452 233608.7 391469.8 -13.601
S1-453 233610.2 391470.3 -13.594
S1-454 233611.7 391470.8 -13.586
S1-455 233613.2 391471.2 -13.578
S1-456 233614.8 391471.7 -13.57
S1-457 233616.3 391472.2 -13.562
S1-458 233617.8 391472.7 -13.554
S1-459 233619.3 391473.2 -13.546
S1-460 233620.9 391473.7 -13.538
S1-461 233622.4 391474.1 -13.53
S1-462 233623.9 391474.6 -13.522
S1-463 233625.4 391475.1 -13.514
S1-464 233627 391475.6 -13.506
S1-465 233628.5 391476.1 -13.497
S1-466 233630 391476.6 -13.486
S1-467 233631.5 391477.1 -13.475
S1-468 233633.1 391477.5 -13.463
S1-469 233634.6 391478 -13.45
S1-470 233636.1 391478.5 -13.437
S1-471 233637.6 391479 -13.422
S1-472 233639.2 391479.5 -13.406
S1-473 233640.7 391480 -13.39
S1-474 233642.2 391480.4 -13.373
S1-475 233643.7 391480.9 -13.355
S1-476 233645.3 391481.4 -13.336
S1-477 233646.8 391481.9 -13.316
S1-478 233648.3 391482.4 -13.296
S1-479 233649.8 391482.9 -13.275
S1-480 233651.4 391483.3 -13.252
S1-481 233652.9 391483.8 -13.23
S1-482 233654.4 391484.3 -13.205
S1-483 233655.9 391484.8 -13.18
S1-484 233657.5 391485.3 -13.155
S1-485 233659 391485.8 -13.129
S1-486 233660.5 391486.2 -13.101
S1-487 233662 391486.7 -13.073
S1-488 233663.6 391487.2 -13.044
S1-489 233665.1 391487.7 -13.014
S1-490 233666.6 391488.2 -12.983
S1-491 233668.1 391488.7 -12.952
S1-492 233669.7 391489.2 -12.919
S1-493 233671.2 391489.6 -12.886
S1-494 233672.7 391490.1 -12.852
S1-495 233674.2 391490.6 -12.817
S1-496 233675.8 391491.1 -12.781
S1-497 233677.3 391491.6 -12.745
S1-498 233678.8 391492.1 -12.707
S1-499 233680.3 391492.5 -12.669
S1-500 233681.8 391493 -12.63
S1-501 233683.4 391493.5 -12.592
S1-502 233684.9 391494 -12.554
S1-503 233686.4 391494.5 -12.515
S1-504 233687.9 391495 -12.477
S1-505 233689.5 391495.4 -12.438
S1-506 233691 391495.9 -12.4
S1-507 233692.5 391496.4 -12.362
S1-508 233694 391496.9 -12.323
S1-509 233695.6 391497.4 -12.285
S1-510 233697.1 391497.9 -12.246
S1-511 233698.6 391498.3 -12.208
S1-512 233700.1 391498.8 -12.169
S1-513 233701.7 391499.3 -12.131
S1-514 233703.2 391499.8 -12.093
S1-515 233704.7 391500.3 -12.054
S1-516 233706.2 391500.8 -12.016
S1-517 233707.8 391501.2 -11.977
S1-518 233709.3 391501.7 -11.939
S1-519 233710.8 391502.2 -11.901
S1-520 233712.3 391502.7 -11.862
S1-521 233713.9 391503.2 -11.824
S1-522 233715.4 391503.7 -11.786
S1-523 233716.9 391504.2 -11.747
S1-524 233718.4 391504.6 -11.709
S1-525 233720 391505.1 -11.67
S1-526 233721.5 391505.6 -11.632
S1-527 233723 391506.1 -11.593
S1-528 233724.5 391506.6 -11.555
S1-529 233726.1 391507.1 -11.517
S1-530 233727.6 391507.5 -11.479
S1-531 233729.1 391508 -11.44
S1-532 233730.6 391508.5 -11.401
S1-533 233732.2 391509 -11.363
S1-534 233733.7 391509.5 -11.325
S1-535 233735.2 391510 -11.287
S1-536 233736.7 391510.4 -11.248
S1-537 233738.3 391510.9 -11.21
S1-538 233739.8 391511.4 -11.172
S1-539 233741.3 391511.9 -11.133
S1-540 233742.8 391512.4 -11.095
S1-541 233744.4 391512.9 -11.056
S1-542 233745.9 391513.3 -11.018
S1-543 233747.4 391513.8 -10.98
S1-544 233748.9 391514.3 -10.941
S1-545 233750.5 391514.8 -10.903
S1-546 233752 391515.3 -10.864
S1-547 233753.5 391515.8 -10.826
S1-548 233755 391516.2 -10.788
S1-549 233756.6 391516.7 -10.749
S1-550 233758.1 391517.2 -10.71
S1-551 233759.6 391517.7 -10.672
S1-552 233761.1 391518.2 -10.634
S1-553 233762.7 391518.7 -10.596
S1-554 233764.2 391519.2 -10.557
S1-555 233765.7 391519.6 -10.519
S1-556 233767.2 391520.1 -10.48
S1-557 233768.8 391520.6 -10.442
S1-558 233770.3 391521.1 -10.404
S1-559 233771.8 391521.6 -10.365
S1-560 233773.3 391522.1 -10.327
S1-561 233774.8 391522.5 -10.288
S1-562 233776.4 391523 -10.25
S1-563 233777.9 391523.5 -10.212
S1-564 233779.4 391524 -10.174
S1-565 233780.9 391524.5 -10.135
S1-566 233782.5 391525 -10.097
S1-567 233784 391525.4 -10.058
S1-568 233785.5 391525.9 -10.02
S1-569 233787 391526.4 -9.982
S1-570 233788.6 391526.9 -9.943
S1-571 233790.1 391527.4 -9.905
S1-572 233791.6 391527.9 -9.866
S1-573 233793.1 391528.3 -9.828
S1-574 233794.7 391528.8 -9.789
S1-575 233796.2 391529.3 -9.751
S1-576 233797.7 391529.8 -9.712
S1-577 233799.2 391530.3 -9.674
S1-578 233800.8 391530.8 -9.636
S1-579 233802.3 391531.3 -9.597
S1-580 233803.8 391531.7 -9.559
S1-581 233805.3 391532.2 -9.52
S1-582 233806.9 391532.7 -9.482
S1-583 233808.4 391533.2 -9.444
S1-584 233809.9 391533.7 -9.405
S1-585 233811.4 391534.2 -9.367
S1-586 233813 391534.6 -9.328
S1-587 233814.5 391535.1 -9.29
S1-588 233816 391535.6 -9.252
S1-589 233817.5 391536.1 -9.214
S1-590 233819.1 391536.6 -9.175
S1-591 233820.6 391537.1 -9.137
S1-592 233822.1 391537.5 -9.098
S1-593 233823.6 391538 -9.06
S1-594 233825.2 391538.5 -9.021
S1-595 233826.7 391539 -8.983
S1-596 233828.2 391539.5 -8.945
S1-597 233829.7 391540 -8.907
S1-598 233831.3 391540.4 -8.868
S1-599 233832.8 391540.9 -8.83
S1-600 233834.3 391541.4 -8.792
S1-601 233835.8 391541.9 -8.753
S1-602 233837.4 391542.4 -8.714
S1-603 233838.9 391542.9 -8.676
S1-604 233840.4 391543.3 -8.637
S1-605 233841.9 391543.8 -8.6
S1-606 233843.5 391544.3 -8.561
S1-607 233845 391544.8 -8.522
S1-608 233846.5 391545.3 -8.484
S1-609 233848 391545.8 -8.446
S1-610 233849.6 391546.3 -8.407
S1-611 233851.1 391546.7 -8.369
S1-612 233852.6 391547.2 -8.331
S1-613 233854.1 391547.7 -8.292
S1-614 233855.7 391548.2 -8.254
S1-615 233857.2 391548.7 -8.216
S1-616 233858.7 391549.2 -8.177
S1-617 233860.2 391549.6 -8.139
S1-618 233861.7 391550.1 -8.1
S1-619 233863.3 391550.6 -8.062
S1-620 233864.8 391551.1 -8.022
S1-621 233866.3 391551.6 -7.981
S1-622 233867.9 391552.1 -7.941
S1-623 233869.4 391552.6 -7.901
S1-624 233870.9 391553 -7.861
S1-625 233872.4 391553.5 -7.821
S1-626 233873.9 391554 -7.78
S1-627 233875.5 391554.5 -7.74
S1-628 233877 391555 -7.699
S1-629 233878.5 391555.5 -7.658
S1-630 233880 391556 -7.618
S1-631 233881.6 391556.5 -7.578
S1-632 233883.1 391557 -7.537
S1-633 233884.6 391557.5 -7.497
S1-634 233886.1 391558 -7.456
S1-635 233887.7 391558.5 -7.416
S1-636 233889.2 391559 -7.375
S1-637 233890.7 391559.5 -7.335
S1-638 233892.2 391560 -7.295
S1-639 233893.7 391560.6 -7.255
S1-640 233895.2 391561.1 -7.215
S1-641 233896.8 391561.6 -7.174
S1-642 233898.3 391562.2 -7.134
S1-643 233899.8 391562.7 -7.093
S1-644 233901.3 391563.2 -7.052
S1-645 233902.8 391563.8 -7.012
S1-646 233904.3 391564.3 -6.973
S1-647 233905.8 391564.9 -6.932
S1-648 233907.3 391565.5 -6.891
S1-649 233908.8 391566 -6.851
S1-650 233910.3 391566.6 -6.81
S1-651 233911.8 391567.2 -6.769
S1-652 233913.3 391567.8 -6.729
S1-653 233914.8 391568.4 -6.689
S1-654 233916.3 391569 -6.649
S1-655 233917.8 391569.6 -6.608
S1-656 233919.3 391570.2 -6.568
S1-657 233920.8 391570.8 -6.528
S1-658 233922.2 391571.4 -6.49
S1-659 233923.7 391572.1 -6.452
S1-660 233925.2 391572.7 -6.413
S1-661 233926.7 391573.3 -6.375
S1-662 233928.1 391574 -6.336
S1-663 233929.6 391574.7 -6.298
S1-664 233931.1 391575.3 -6.26
S1-665 233932.5 391576 -6.221
S1-666 233934 391576.7 -6.183
S1-667 233935.4 391577.4 -6.144
S1-668 233936.9 391578.1 -6.106
S1-669 233938.3 391578.8 -6.068
S1-670 233939.8 391579.5 -6.029
S1-671 233941.2 391580.2 -5.991
S1-672 233942.6 391580.9 -5.952
S1-673 233944.1 391581.7 -5.914
S1-674 233945.5 391582.4 -5.875
S1-675 233946.9 391583.2 -5.837
S1-676 233948.3 391583.9 -5.799
S1-677 233949.8 391584.7 -5.76
S1-678 233951.2 391585.5 -5.722
S1-679 233952.6 391586.2 -5.683
S1-680 233954 391587 -5.645
S1-681 233955.4 391587.8 -5.607
S1-682 233956.8 391588.6 -5.568
S1-683 233958.2 391589.4 -5.53
S1-684 233959.6 391590.2 -5.492
S1-685 233961 391591 -5.453
S1-686 233962.3 391591.9 -5.415
S1-687 233963.7 391592.7 -5.377
S1-688 233965.1 391593.5 -5.338
S1-689 233966.5 391594.4 -5.3
S1-690 233967.8 391595.2 -5.262
S1-691 233969.2 391596.1 -5.223
S1-692 233970.5 391596.9 -5.184
S1-693 233971.9 391597.8 -5.146
S1-694 233973.2 391598.7 -5.108
S1-695 233974.6 391599.6 -5.069
S1-696 233975.9 391600.5 -5.031
S1-697 233977.3 391601.4 -4.993
S1-698 233978.6 391602.3 -4.955
S1-699 233979.9 391603.2 -4.916
S1-700 233981.2 391604.1 -4.878
S1-701 233982.5 391605 -4.839
S1-702 233983.9 391605.9 -4.801
S1-703 233985.2 391606.9 -4.763
S1-704 233986.5 391607.8 -4.724
S1-705 233987.8 391608.8 -4.686
S1-706 233989.1 391609.7 -4.647
S1-707 233990.4 391610.7 -4.609
S1-708 233991.6 391611.7 -4.571
S1-709 233992.9 391612.6 -4.532
S1-710 233994.2 391613.6 -4.494
S1-711 233995.5 391614.6 -4.455
S1-712 233996.7 391615.6 -4.417
S1-713 233998 391616.6 -4.378
S1-714 233999.2 391617.6 -4.34
S1-715 234000.5 391618.6 -4.301
S1-716 234001.7 391619.6 -4.263
S1-717 234003 391620.7 -4.225
S1-718 234004.2 391621.7 -4.187
S1-719 234005.4 391622.7 -4.148
S1-720 234006.7 391623.8 -4.11
S1-721 234007.9 391624.8 -4.071
S1-722 234009.1 391625.9 -4.034
S1-723 234010.3 391626.9 -3.997
S1-724 234011.5 391628 -3.962
S1-725 234012.7 391629.1 -3.927
S1-726 234013.9 391630.1 -3.894
S1-727 234015.1 391631.2 -3.86
S1-728 234016.3 391632.3 -3.828
S1-729 234017.5 391633.4 -3.797
S1-730 234018.6 391634.5 -3.766
S1-731 234019.8 391635.6 -3.736
S1-732 234021 391636.7 -3.707
S1-733 234022.1 391637.8 -3.679
S1-734 234023.3 391639 -3.652
S1-735 234024.4 391640.1 -3.625
S1-736 234025.5 391641.2 -3.6
S1-737 234026.7 391642.4 -3.575
S1-738 234027.8 391643.5 -3.552
S1-739 234028.9 391644.7 -3.529
S1-740 234030 391645.8 -3.507
S1-741 234031.2 391647 -3.486
S1-742 234032.3 391648.2 -3.465
S1-743 234033.4 391649.3 -3.446
S1-744 234034.5 391650.5 -3.427
S1-745 234035.5 391651.7 -3.409
S1-746 234036.6 391652.9 -3.392
S1-747 234037.7 391654.1 -3.376
S1-748 234038.8 391655.3 -3.361
S1-749 234039.8 391656.5 -3.347
S1-750 234040.9 391657.7 -3.333
S1-751 234041.9 391658.9 -3.321
S1-752 234043 391660.2 -3.309
S1-753 234044 391661.4 -3.298
S1-754 234045.1 391662.6 -3.29
S1-755 234046.1 391663.8 -3.282
S1-756 234047.1 391665.1 -3.275
S1-757 234048.1 391666.3 -3.27
S1-758 234049.2 391667.6 -3.265
S1-759 234050.2 391668.8 -3.262
S1-760 234051.2 391670.1 -3.258
S1-761 234052.2 391671.4 -3.256
S1-762 234053.1 391672.6 -3.255
S1-763 234054.1 391673.9 -3.255
S1-764 234055.1 391675.2 -3.254
S1-765 234056.1 391676.5 -3.256
S1-766 234057 391677.8 -3.258
S1-767 234058 391679.1 -3.26
S1-768 234058.9 391680.4 -3.262
S1-769 234059.9 391681.7 -3.264
