Bim overview
1) Building Information Modeling (BIM) is a process that generates and manages building data throughout the lifecycle of a construction project using 3D modeling software. 2) BIM allows all project stakeholders to visualize, simulate, and coordinate designs in real-time, improving productivity in design and construction. 3) BIM provides greater project insight through analysis of costs, schedules, and constructability which enables prompt response to changes and more efficient processes.
More Related Content
Bim overview
- 1.
- 2. BIM is asymptom of Building Information Modeling, it is the process of generating & managing building data during it’s life cycle. BIM uses three-dimensional, real- time & dynamic building modeling software to increase productivity in design & construction processes. 2

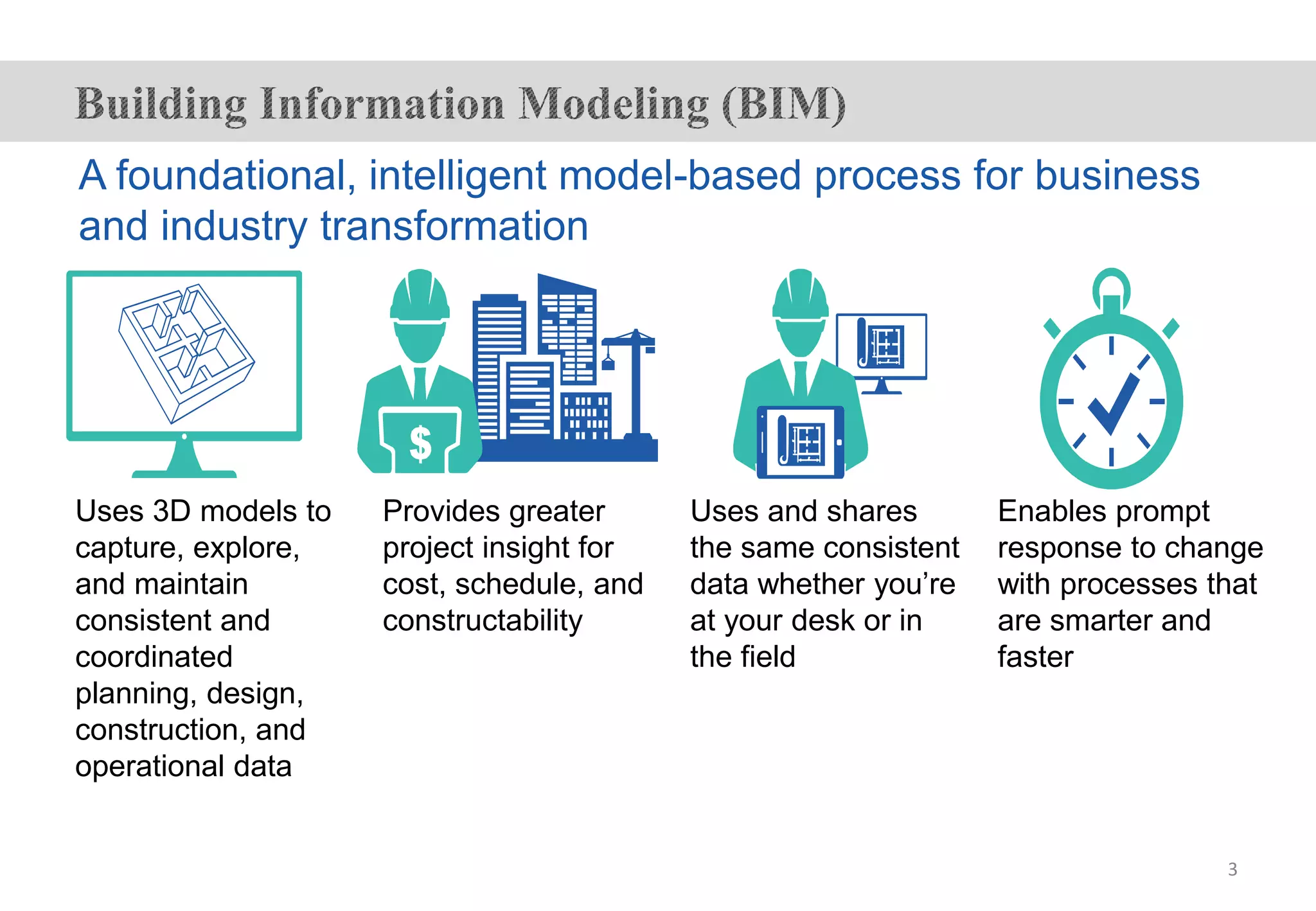

- 3. A foundational, intelligentmodel-based process for business and industry transformation Uses 3D models to capture, explore, and maintain consistent and coordinated planning, design, construction, and operational data Provides greater project insight for cost, schedule, and constructability Uses and shares the same consistent data whether you’re at your desk or in the field Enables prompt response to change with processes that are smarter and faster 3

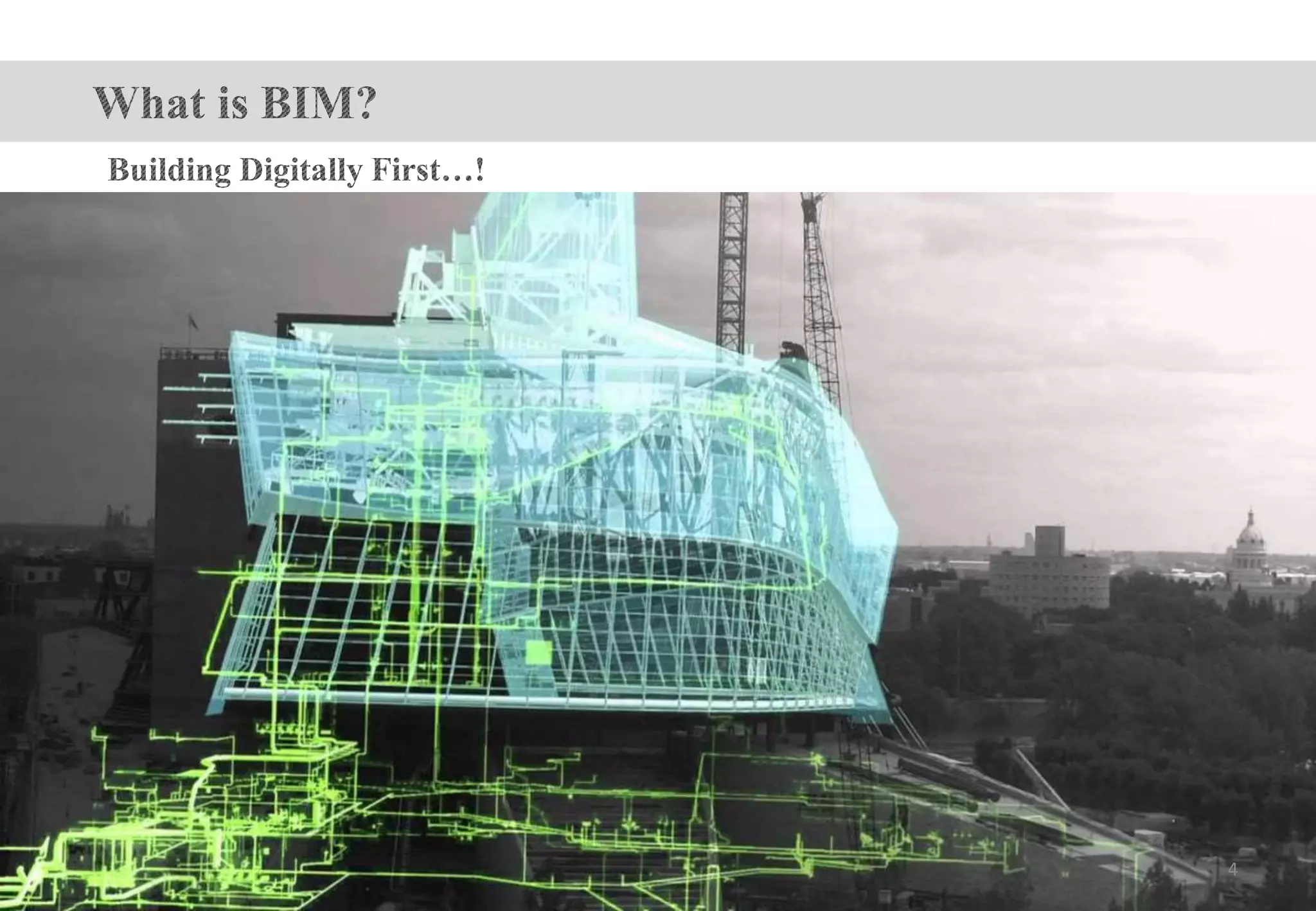

- 4.

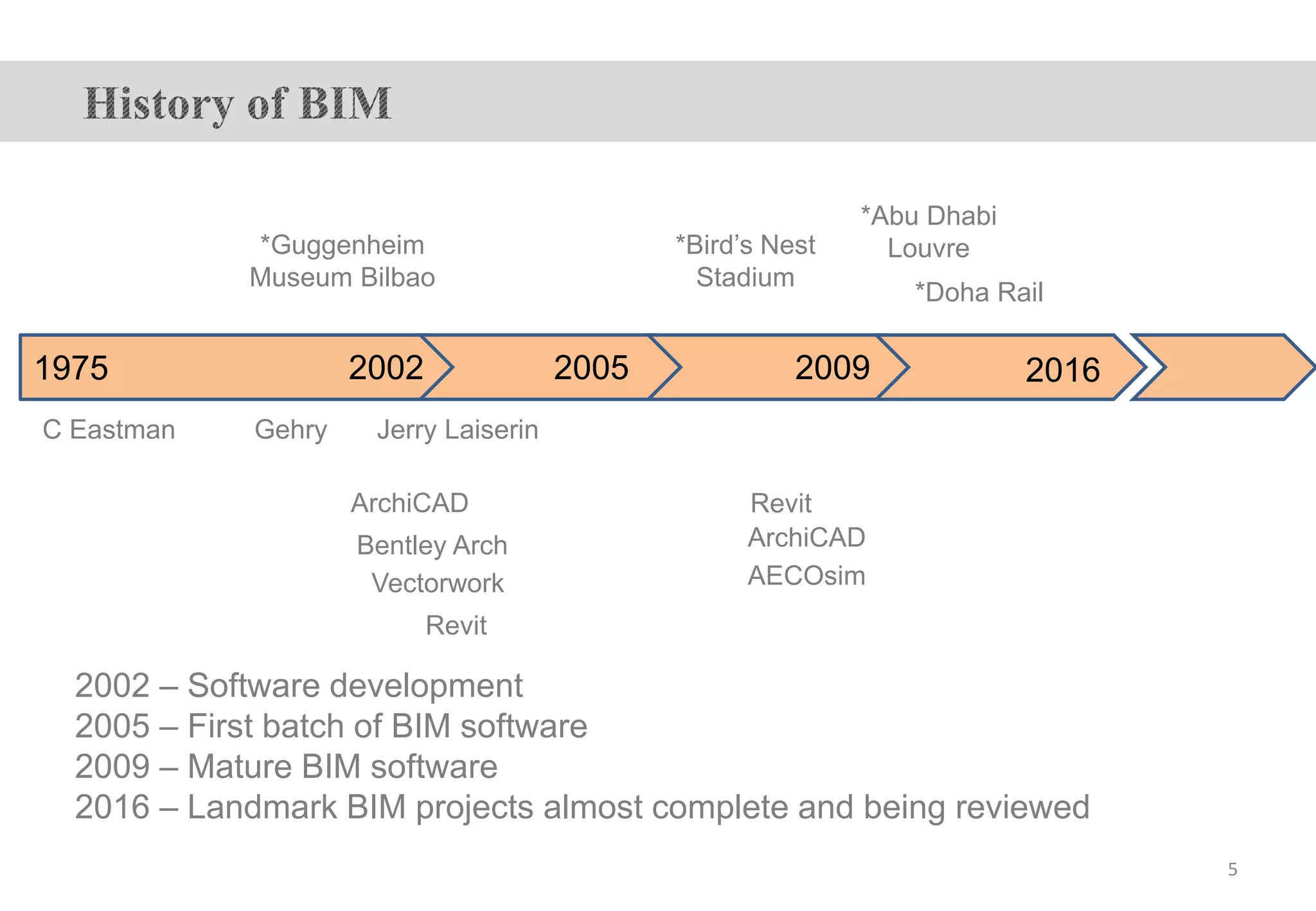

- 5. 1975 2002 20052009 2016 *Guggenheim Museum Bilbao *Bird’s Nest Stadium C Eastman Jerry LaiserinGehry Revit ArchiCAD Bentley Arch Revit ArchiCAD AECOsim 2002 – Software development 2005 – First batch of BIM software 2009 – Mature BIM software 2016 – Landmark BIM projects almost complete and being reviewed Vectorwork *Abu Dhabi Louvre *Doha Rail 5

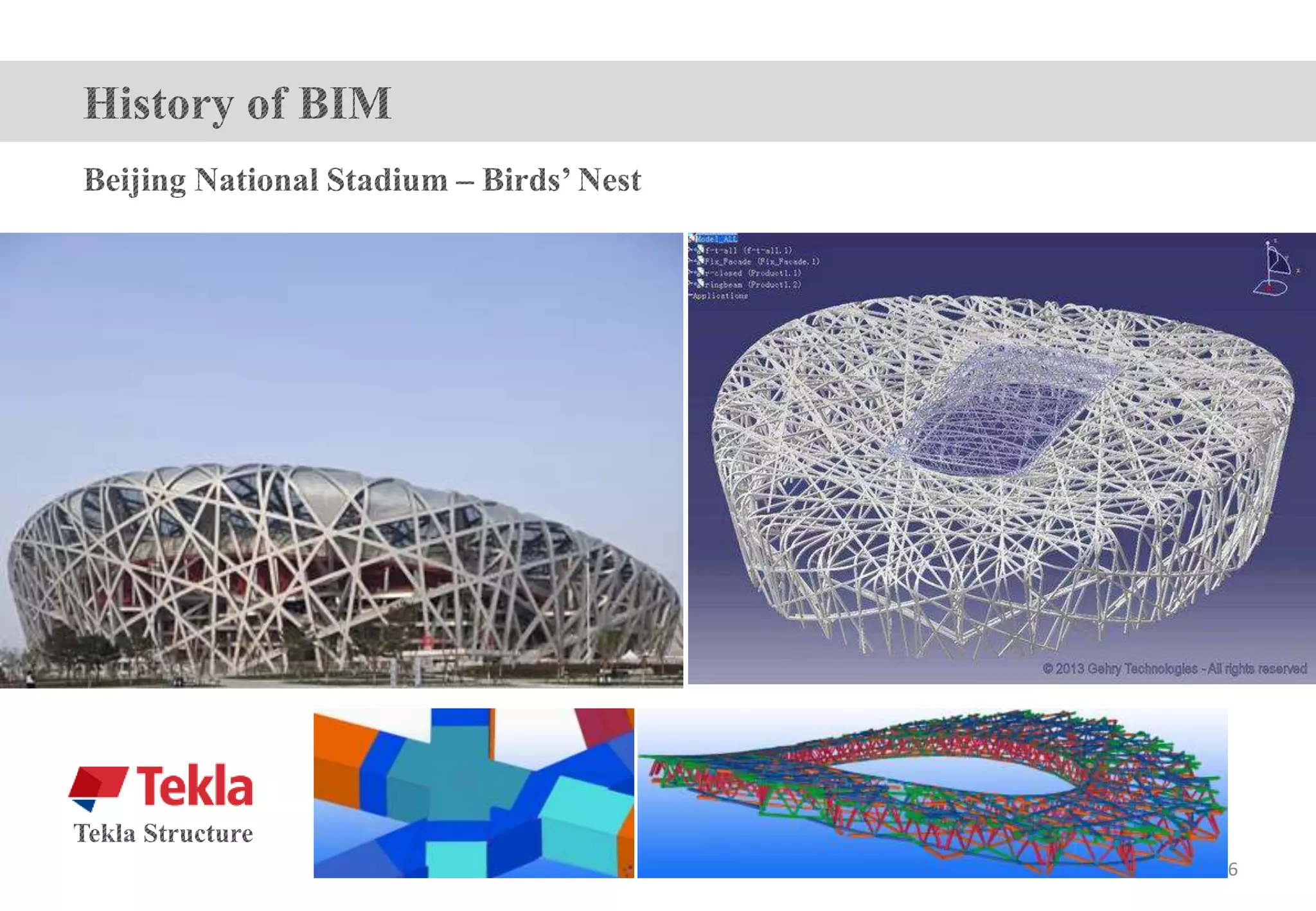

- 6.

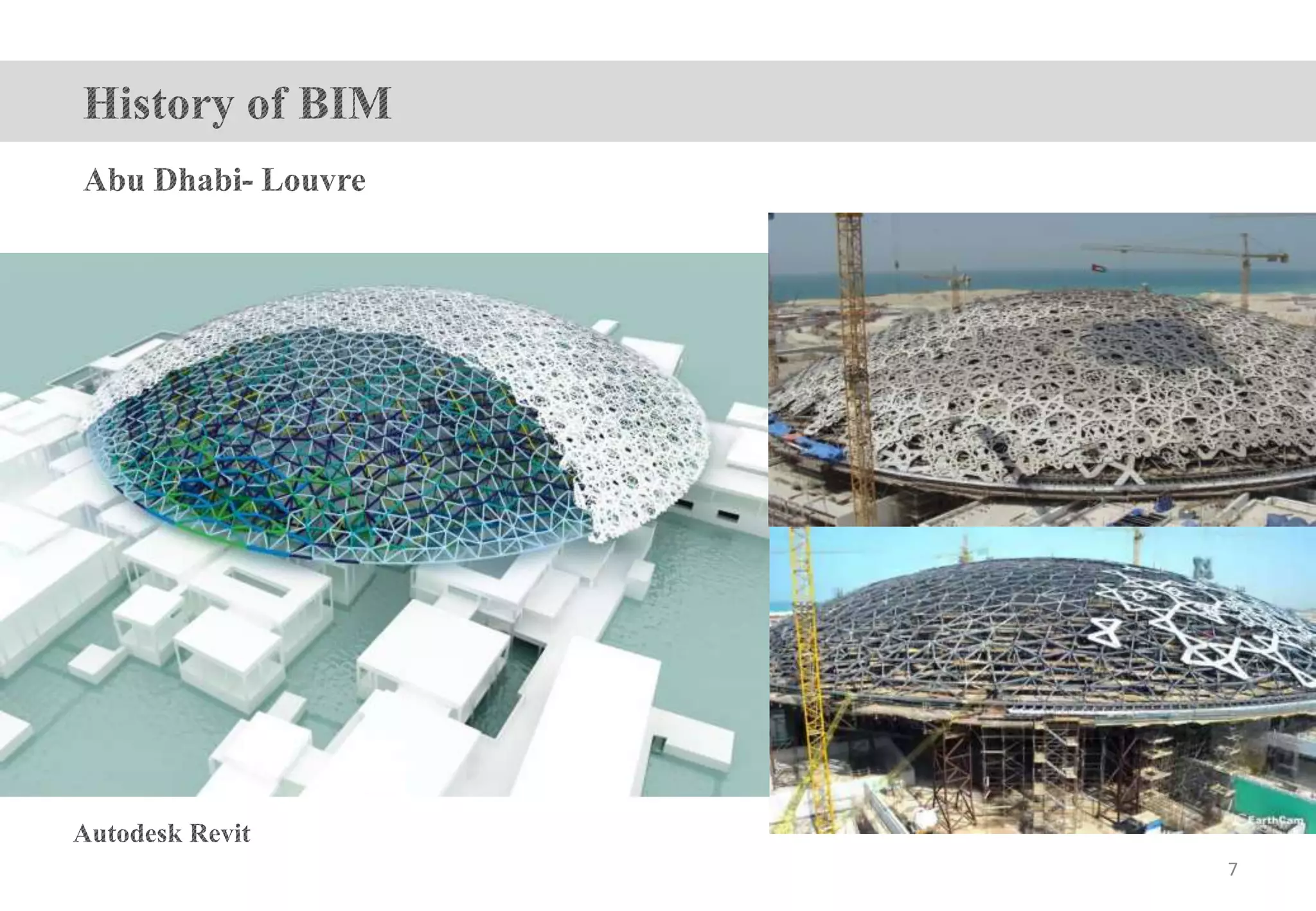

- 7.

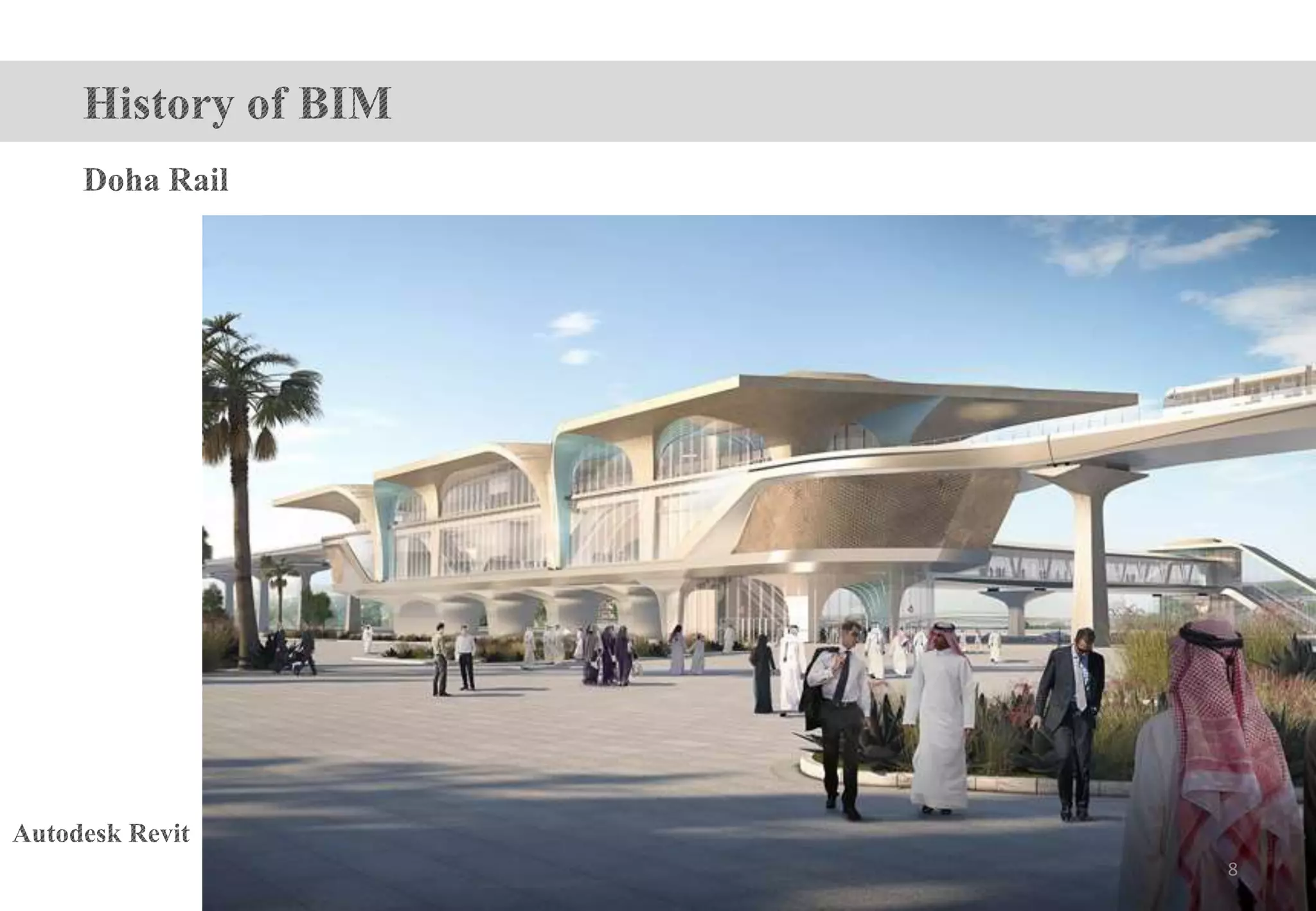

- 8.

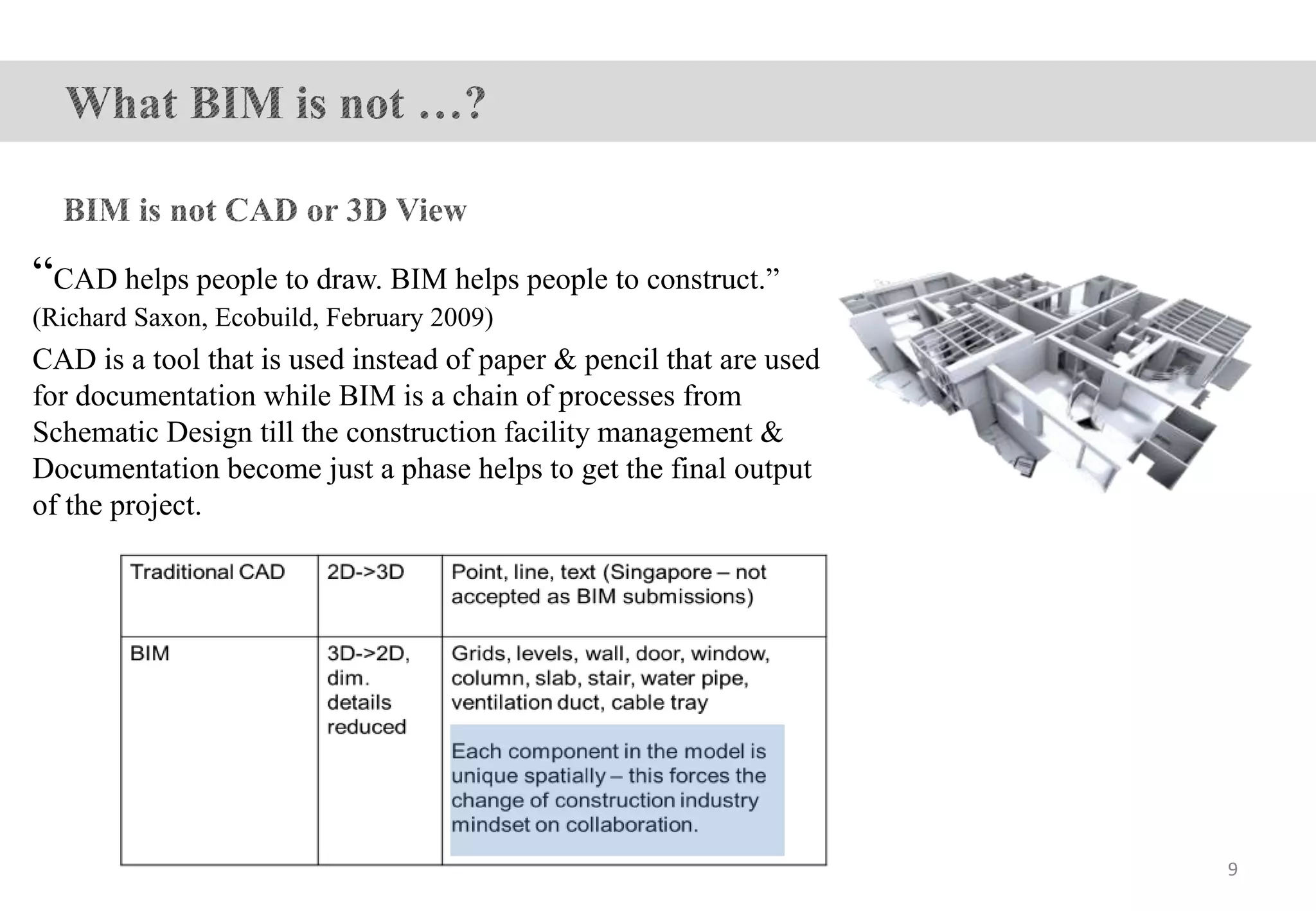

- 9. “CAD helps peopleto draw. BIM helps people to construct.” (Richard Saxon, Ecobuild, February 2009) CAD is a tool that is used instead of paper & pencil that are used for documentation while BIM is a chain of processes from Schematic Design till the construction facility management & Documentation become just a phase helps to get the final output of the project. 9

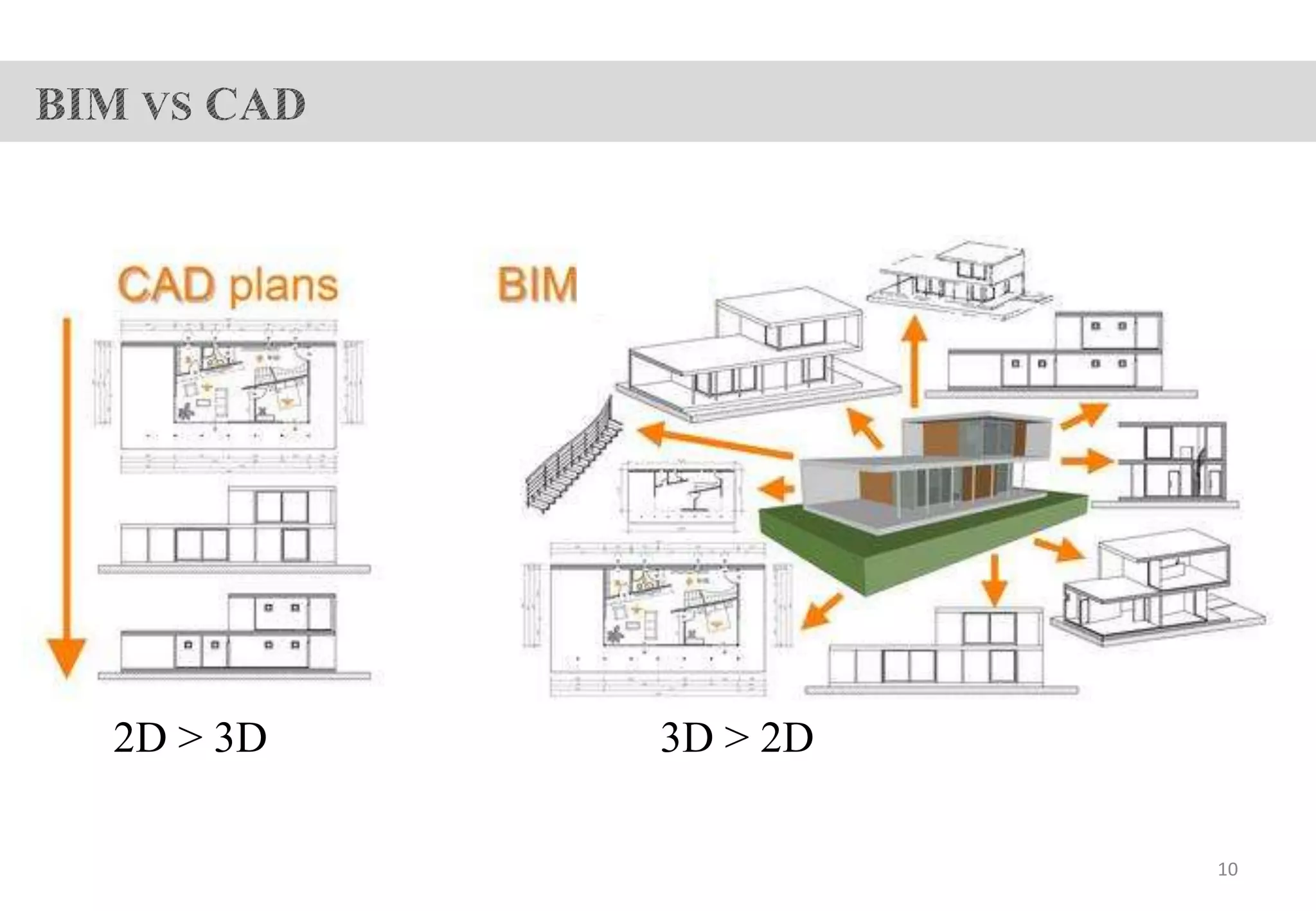

- 10. 2D > 3D3D > 2D 10

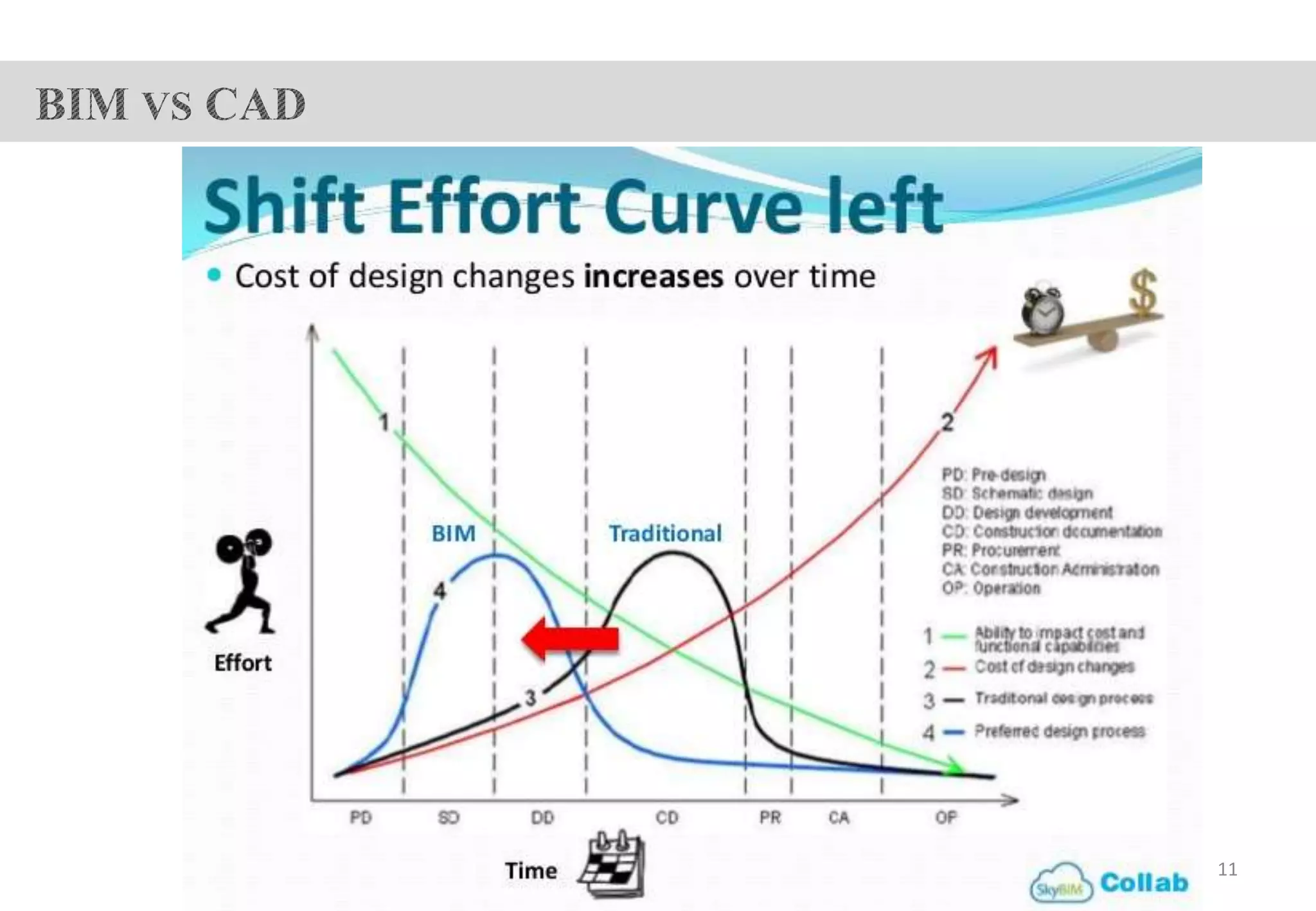

- 11.
- 12.
- 13.
- 14.

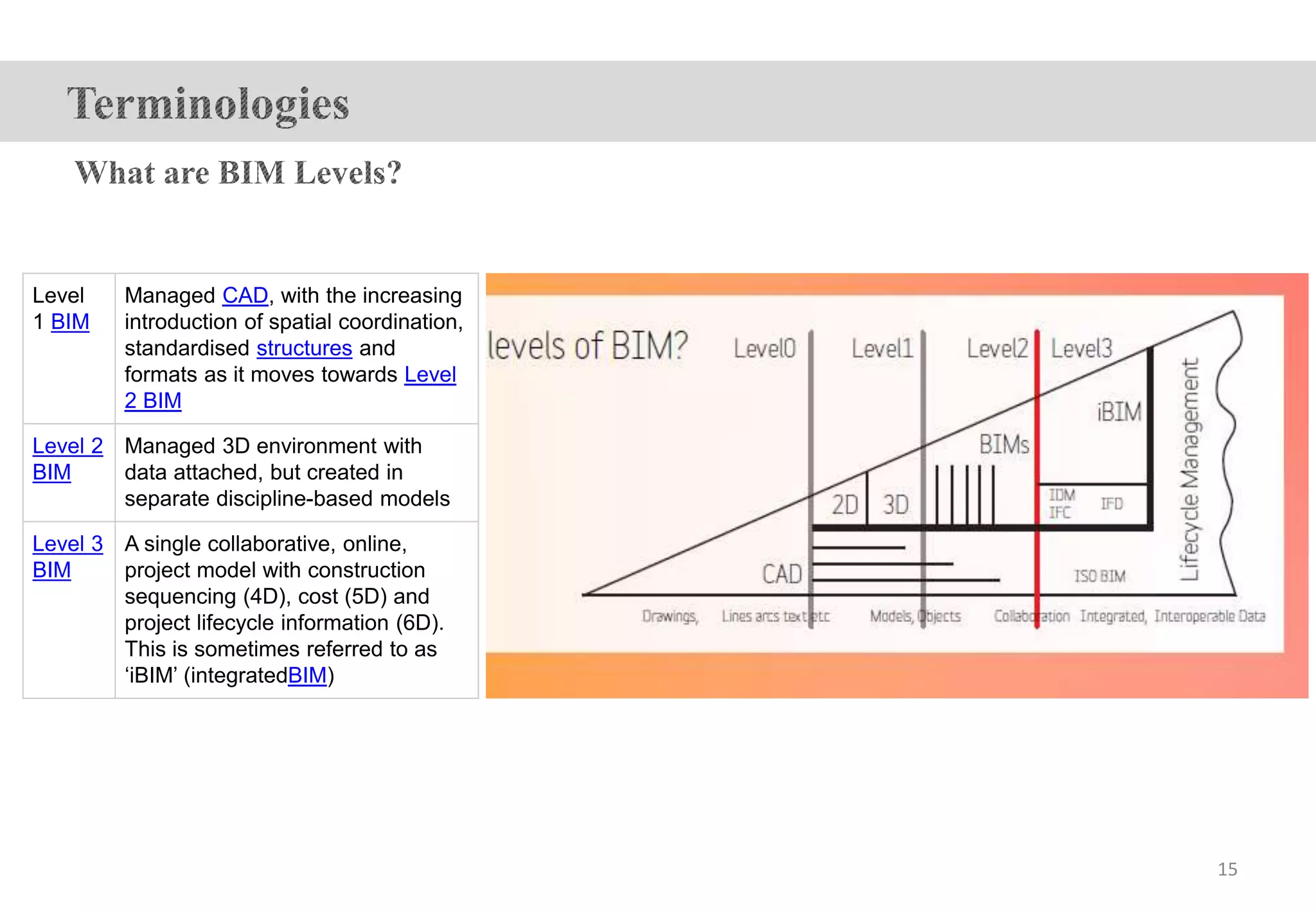

- 15. Level 1 BIM Managed CAD,with the increasing introduction of spatial coordination, standardised structures and formats as it moves towards Level 2 BIM Level 2 BIM Managed 3D environment with data attached, but created in separate discipline-based models Level 3 BIM A single collaborative, online, project model with construction sequencing (4D), cost (5D) and project lifecycle information (6D). This is sometimes referred to as ‘iBIM’ (integratedBIM) 15

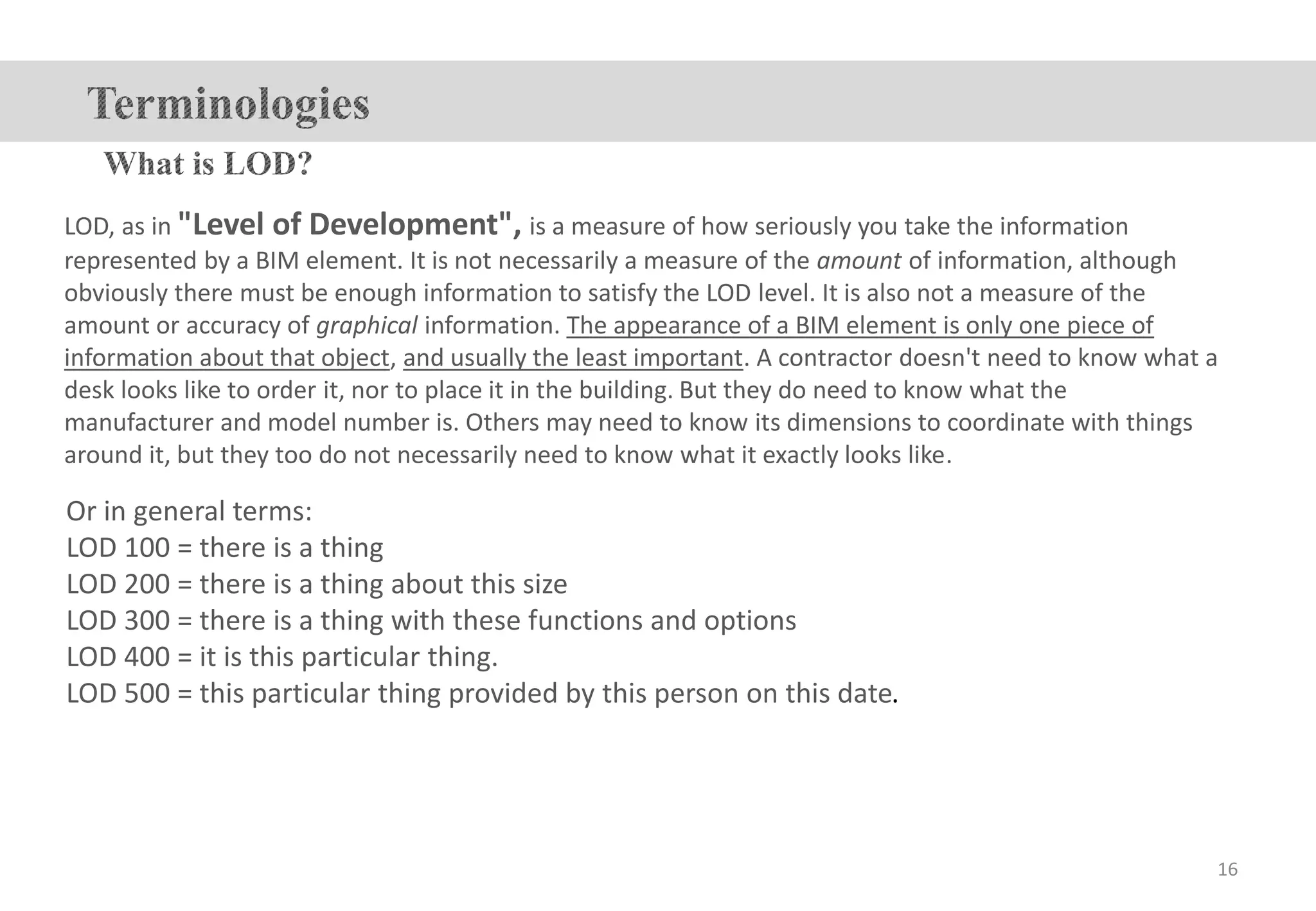

- 16. LOD, as in"Level of Development", is a measure of how seriously you take the information represented by a BIM element. It is not necessarily a measure of the amount of information, although obviously there must be enough information to satisfy the LOD level. It is also not a measure of the amount or accuracy of graphical information. The appearance of a BIM element is only one piece of information about that object, and usually the least important. A contractor doesn't need to know what a desk looks like to order it, nor to place it in the building. But they do need to know what the manufacturer and model number is. Others may need to know its dimensions to coordinate with things around it, but they too do not necessarily need to know what it exactly looks like. Or in general terms: LOD 100 = there is a thing LOD 200 = there is a thing about this size LOD 300 = there is a thing with these functions and options LOD 400 = it is this particular thing. LOD 500 = this particular thing provided by this person on this date. 16

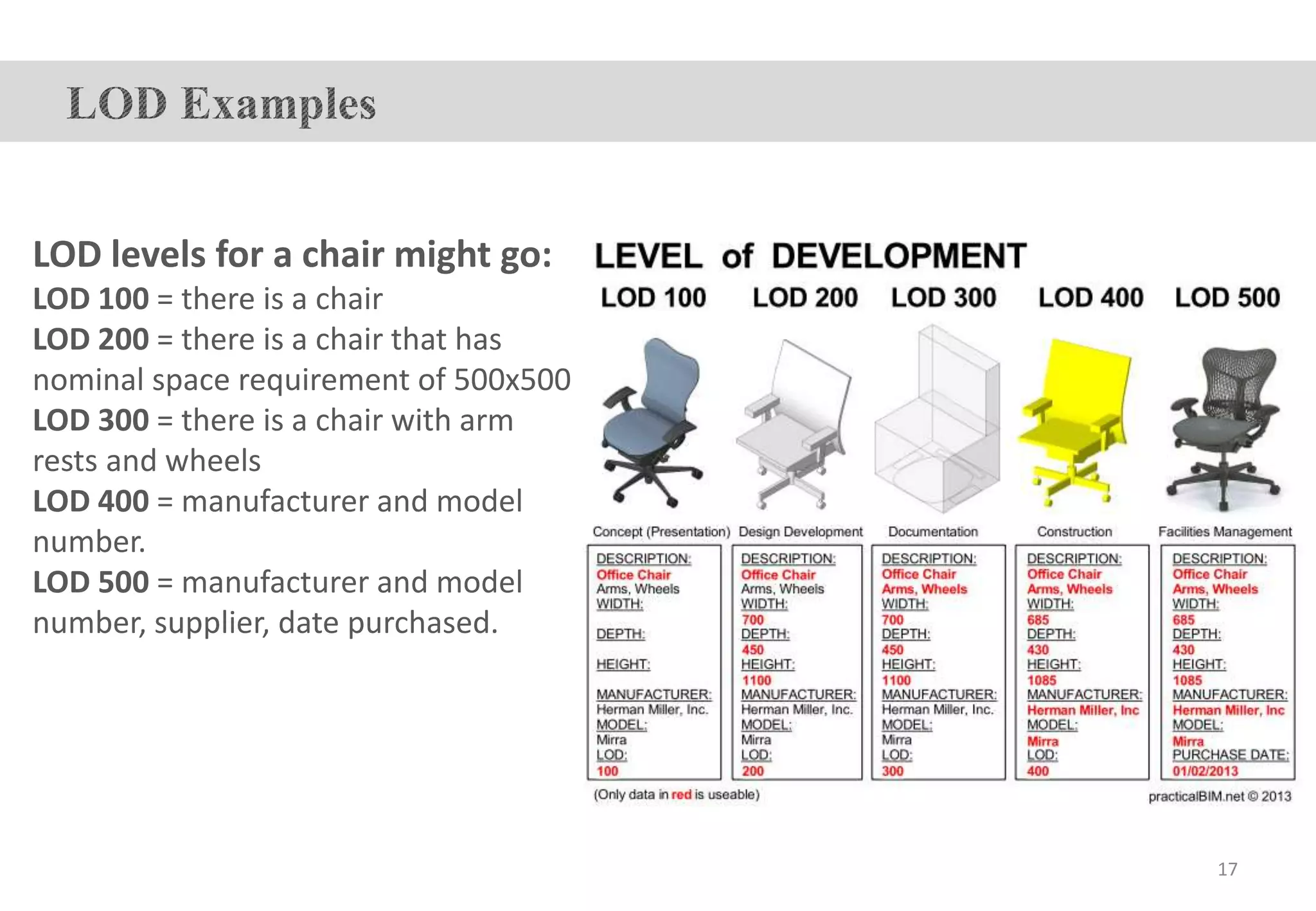

- 17. LOD levels fora chair might go: LOD 100 = there is a chair LOD 200 = there is a chair that has nominal space requirement of 500x500 LOD 300 = there is a chair with arm rests and wheels LOD 400 = manufacturer and model number. LOD 500 = manufacturer and model number, supplier, date purchased. 17

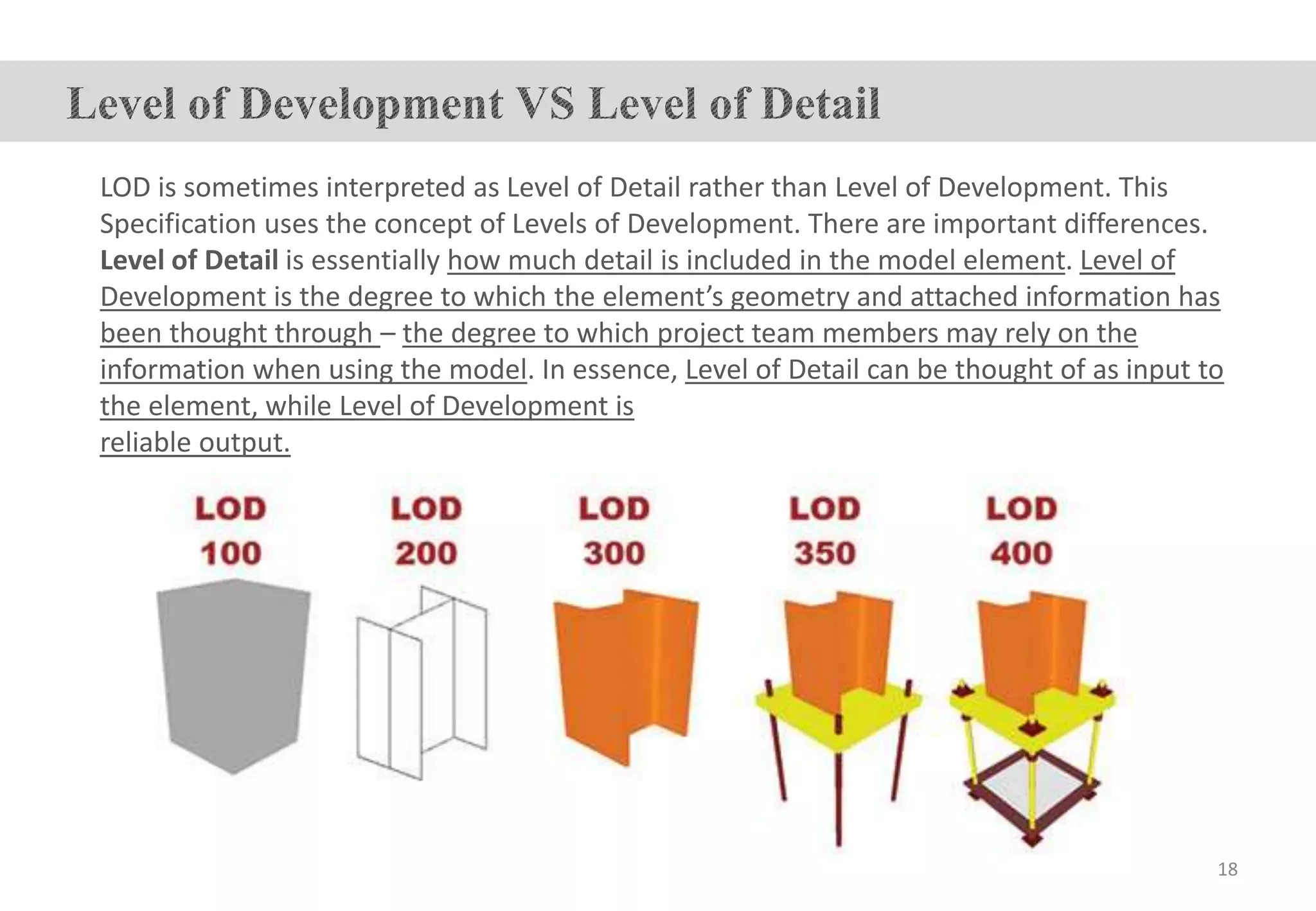

- 18. LOD is sometimesinterpreted as Level of Detail rather than Level of Development. This Specification uses the concept of Levels of Development. There are important differences. Level of Detail is essentially how much detail is included in the model element. Level of Development is the degree to which the element’s geometry and attached information has been thought through – the degree to which project team members may rely on the information when using the model. In essence, Level of Detail can be thought of as input to the element, while Level of Development is reliable output. 18
- 19. Fully computable, reliableinformation no checking or re-keying of data “The end-to-end stream of BIM data will help unify the industry's supply chains, freeing construction from its craft origins, transforming it into a modern, sophisticated branch of the manufacturing industry.” Ray Crotty (2011) The Impact of Building Information Modelling 19
- 20. “BIM Implementation willchange the dynamics & behaviours of the design-construction supply chain, unlocking new, more efficient & collaborative ways of working.” (Francais Maude, Minister of state for Trade and Investment) 20
- 21.

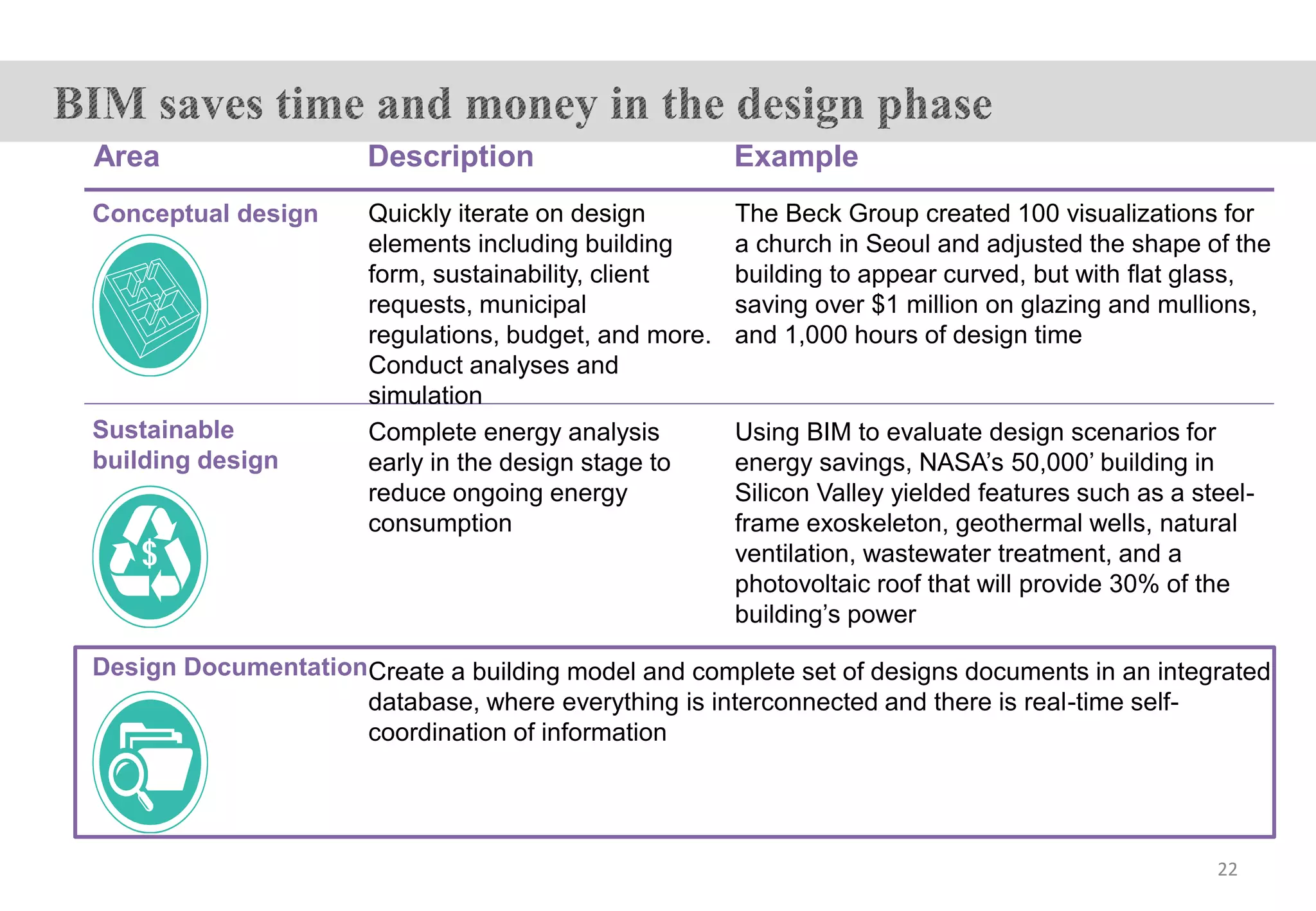

- 22. Area Conceptual design Sustainable building design Createa building model and complete set of designs documents in an integrated database, where everything is interconnected and there is real-time self- coordination of information Description Example Quickly iterate on design elements including building form, sustainability, client requests, municipal regulations, budget, and more. Conduct analyses and simulation The Beck Group created 100 visualizations for a church in Seoul and adjusted the shape of the building to appear curved, but with flat glass, saving over $1 million on glazing and mullions, and 1,000 hours of design time Complete energy analysis early in the design stage to reduce ongoing energy consumption Using BIM to evaluate design scenarios for energy savings, NASA’s 50,000’ building in Silicon Valley yielded features such as a steel- frame exoskeleton, geothermal wells, natural ventilation, wastewater treatment, and a photovoltaic roof that will provide 30% of the building’s power Design Documentation 22
- 23. Area Description Example Generalconstruction Pre-fabrication, modular construction Links project planning to construction planning and simulation, as well as visualization during construction and digital fabrication Enhances project communication and collaboration among teams Create more accurate cost estimates Deliver more projects on time and within budget Contractor Robins and Morton used BIM to design and construct an Augusta, Maine hospital. Due to greater collaboration, the project was completed ten months ahead of schedule and returned approximately US$20 million in value-added savings. Extract information from BIM to pre-fabricate building components to improve project schedule, reduce cost, improve site safety, and produce greener construction practices by reducing material waste J.C. Cannistraro used BIM and pre- fabrication to upgrade the central utility plant for University of Massachusetts's Boston campus helping to minimize installation time of a new HVAC system and hangers 23
- 24. Area Description Examples Lifecyclecosts Reuse building models and data to better manage facility operations Analyze data-rich models to optimize resources and reduce waste and lower lifetime maintenance and operation costs Use intelligent 3D models to help manage space and perform spatial validation for tenant chargebacks Shanghai Tower Construction & Development Co. Ltd. used BIM not only to design and build, but also to inform operations of their super high-rise tower. STC&D plans to use BIM for emergency and property management going forward. The Government Services Administration (GSA) is creating a database of its 3D models to inform O&M and future projects. Additional software leveraging the 3D models will use its data for security, updates, analysis, and reporting. 24
- 25. © 2014 Autodesk UsingBIM: Improves building quality Significantly reduces building lifecycle costs Better understand design projects from beginning to end Optimizes operational efficiencies Increases occupancy and use rates Transparency EfficiencyQuality BIM 25

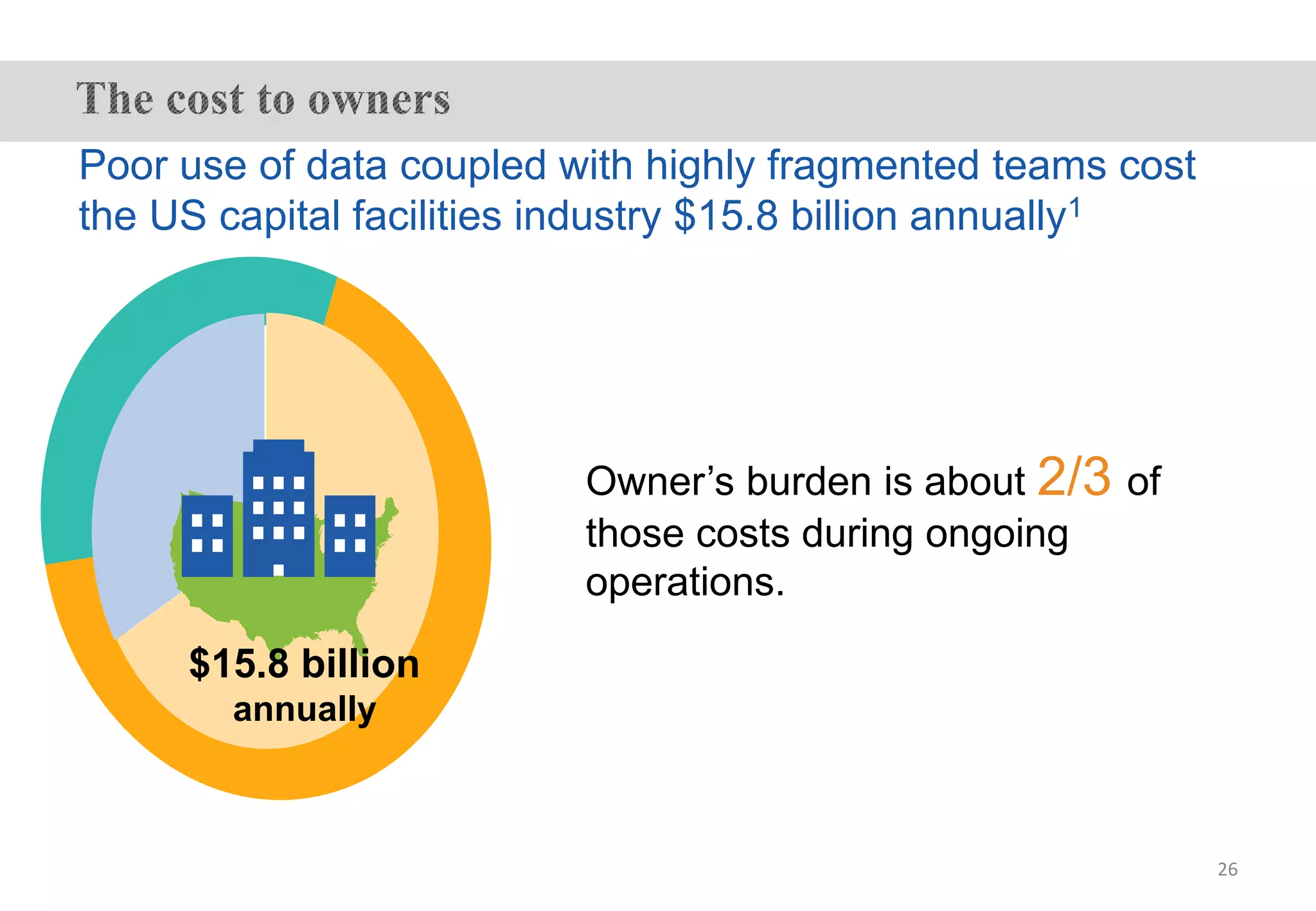

- 26. Owner’s burden isabout 2/3 of those costs during ongoing operations. Poor use of data coupled with highly fragmented teams cost the US capital facilities industry $15.8 billion annually1 $15.8 billion annually 26

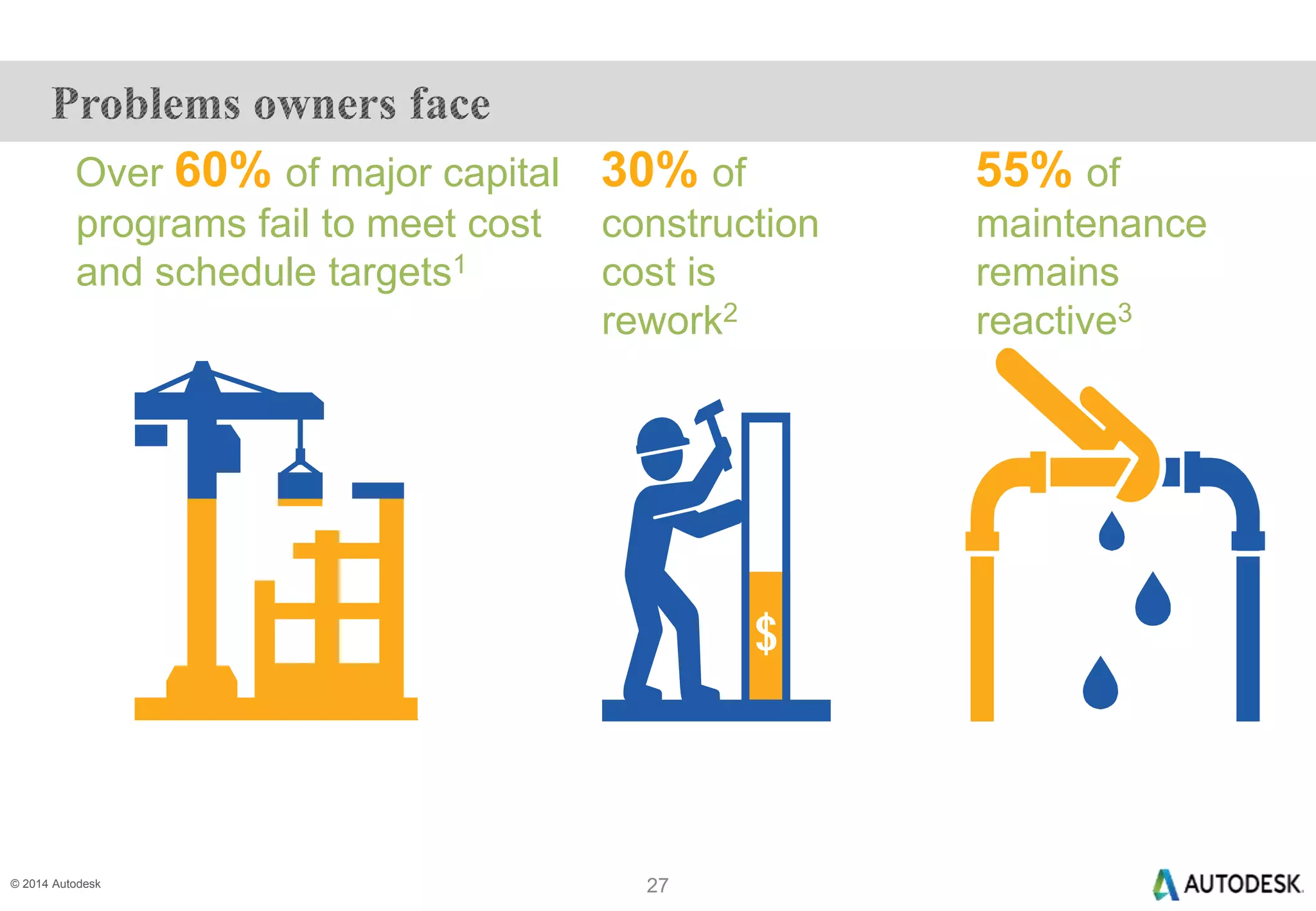

- 27. © 2014 Autodesk 30%of construction cost is rework2 Over 60% of major capital programs fail to meet cost and schedule targets1 55% of maintenance remains reactive3 27

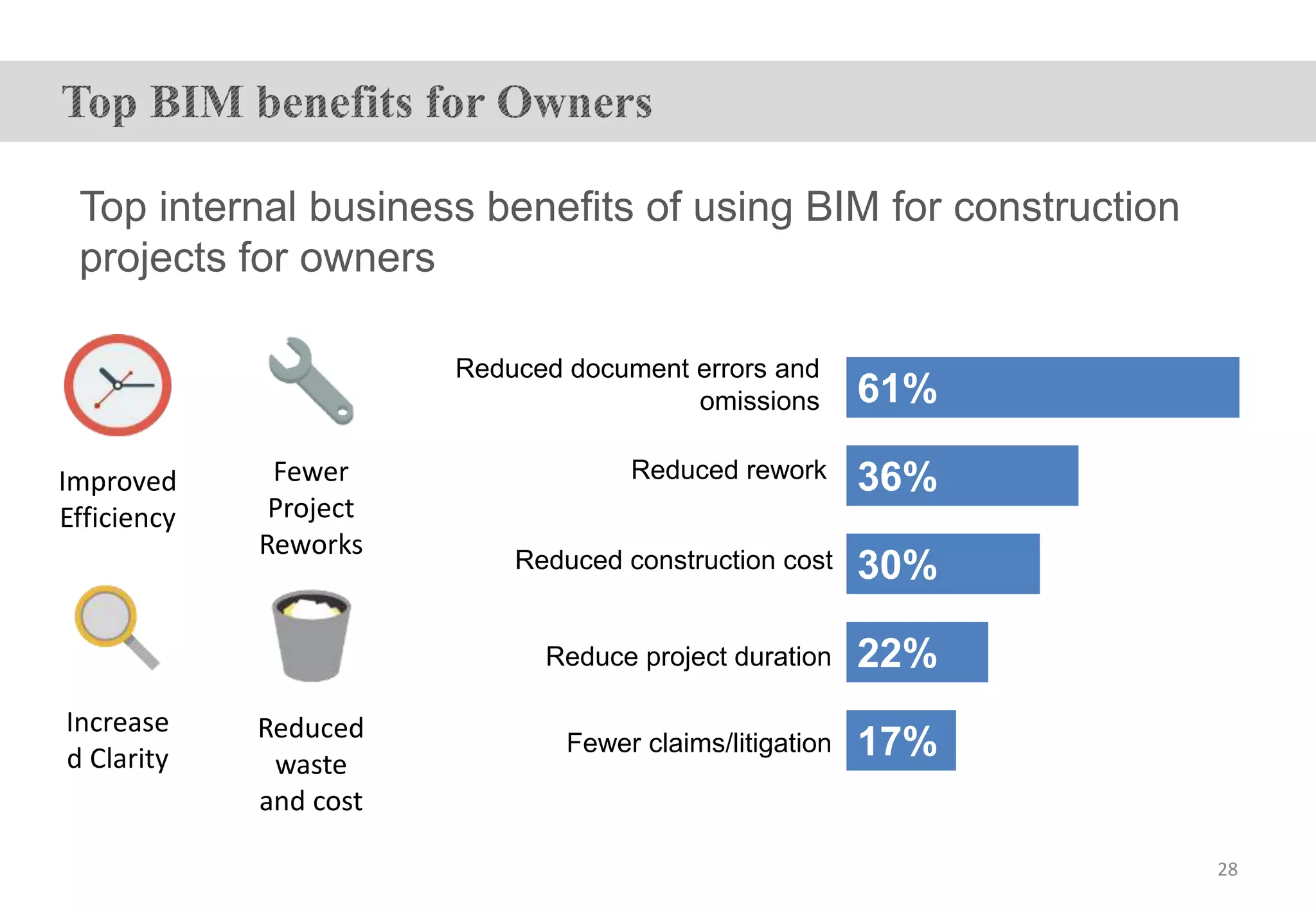

- 28. 17% 22% 30% 36% 61% Reduced document errorsand omissions Reduced rework Reduced construction cost Reduce project duration Fewer claims/litigation Top internal business benefits of using BIM for construction projects for owners Improved Efficiency Increase d Clarity Fewer Project Reworks Reduced waste and cost 28
- 29.
- 30. High / VeryHigh BIM Implementation Levels (by Country) 30

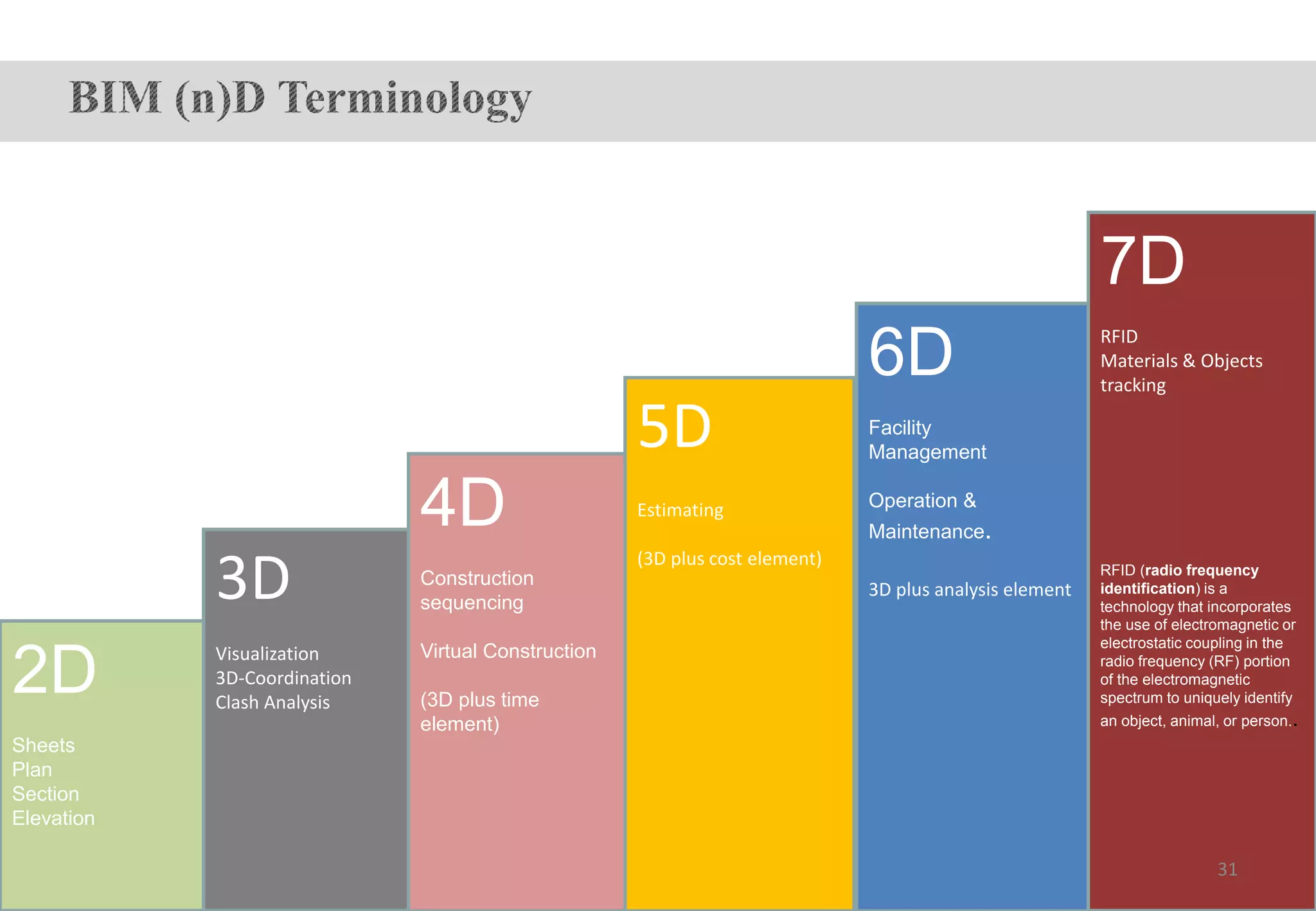

- 31. 3D Visualization 3D-Coordination Clash Analysis 4D Construction sequencing Virtual Construction (3Dplus time element) 5D Estimating (3D plus cost element) 2D Sheets Plan Section Elevation 7D RFID Materials & Objects tracking RFID (radio frequency identification) is a technology that incorporates the use of electromagnetic or electrostatic coupling in the radio frequency (RF) portion of the electromagnetic spectrum to uniquely identify an object, animal, or person.. 6D Facility Management Operation & Maintenance. 3D plus analysis element 31

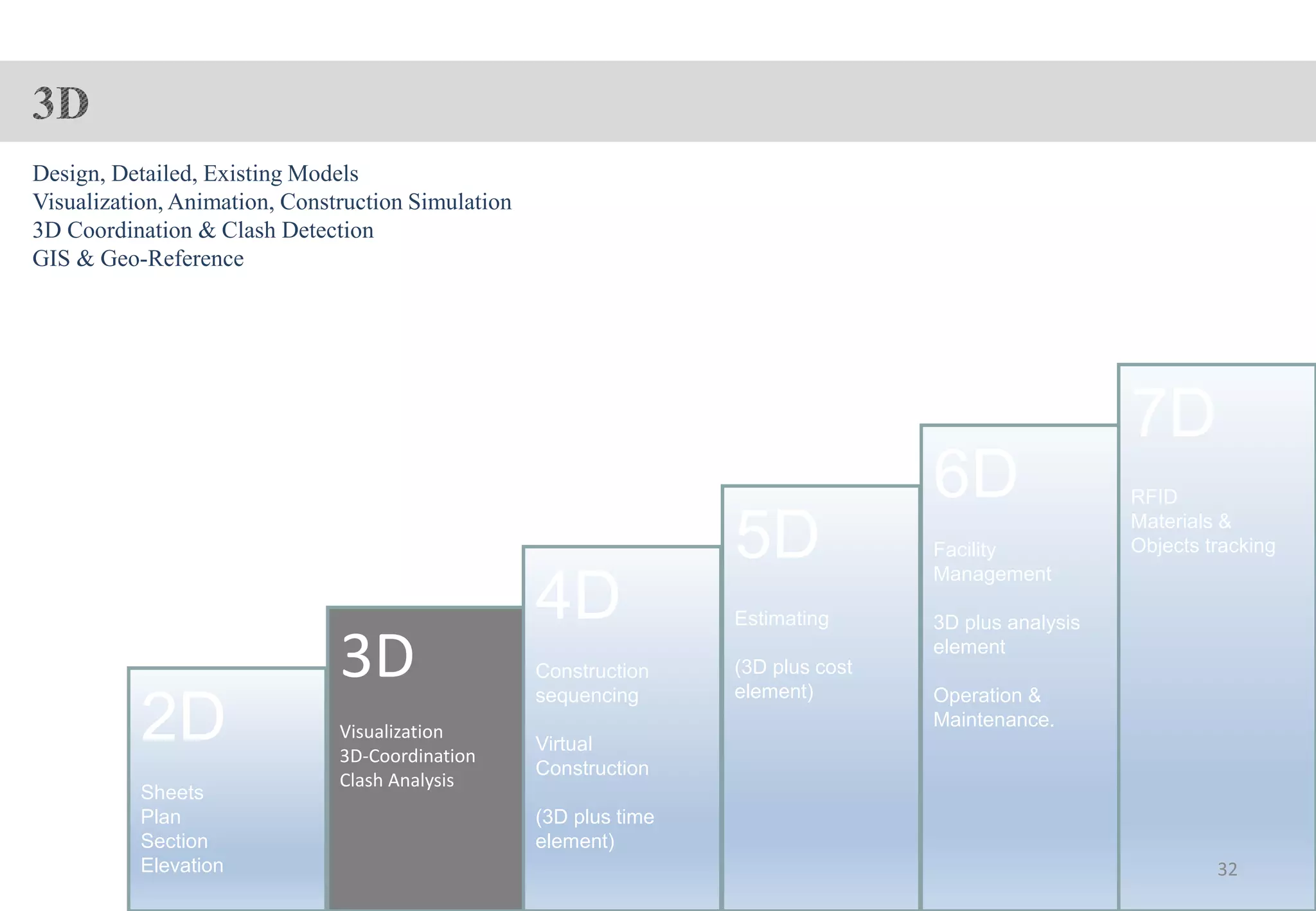

- 32. 3D Visualization 3D-Coordination Clash Analysis 4D Construction sequencing Virtual Construction (3D plustime element) 5D Estimating (3D plus cost element) 2D Sheets Plan Section Elevation 6D Facility Management 3D plus analysis element Operation & Maintenance. 7D RFID Materials & Objects tracking Design, Detailed, Existing Models Visualization, Animation, Construction Simulation 3D Coordination & Clash Detection GIS & Geo-Reference 32
- 33.
- 34.

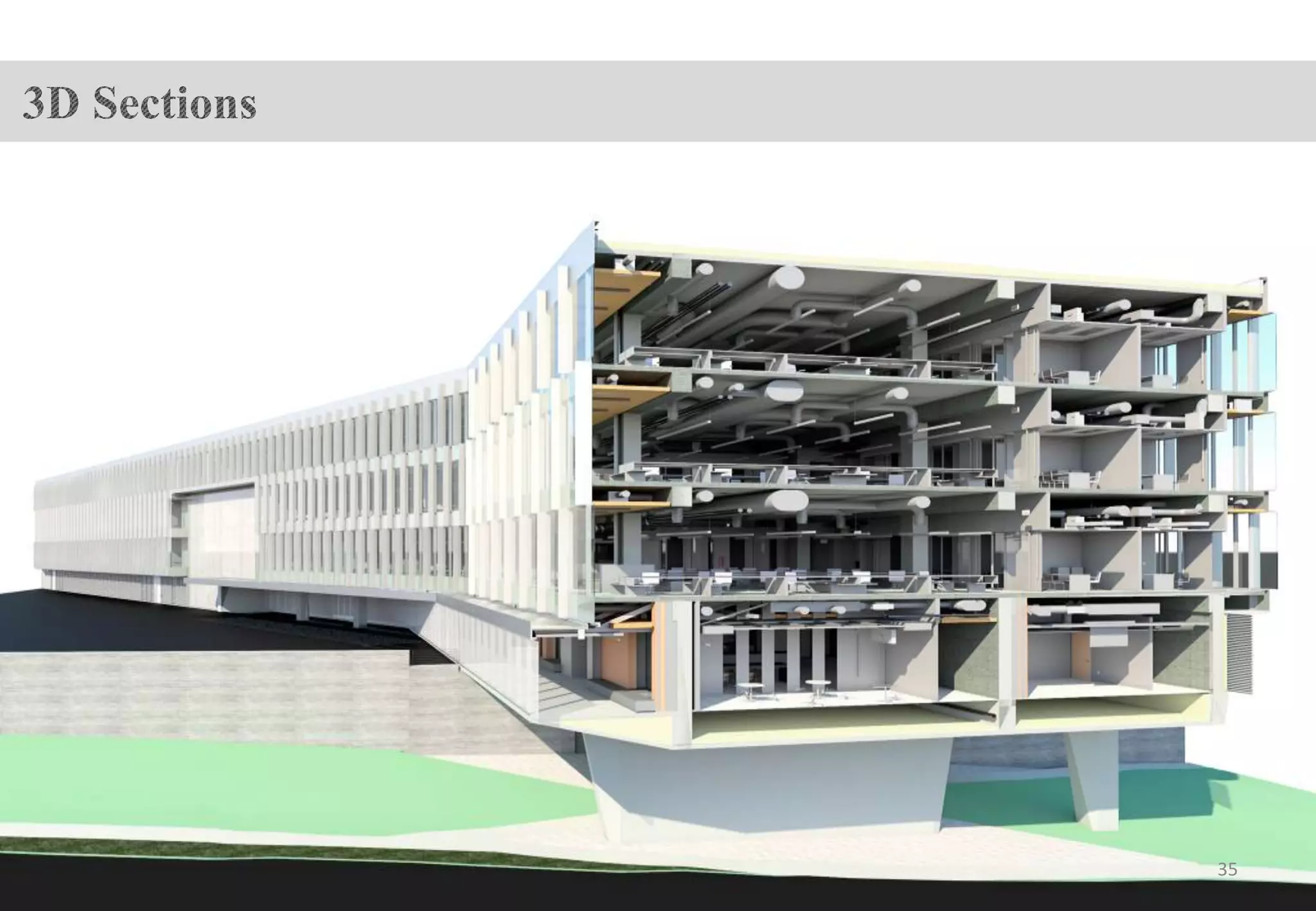

- 35.
- 36.
- 37.
- 38.
- 39.

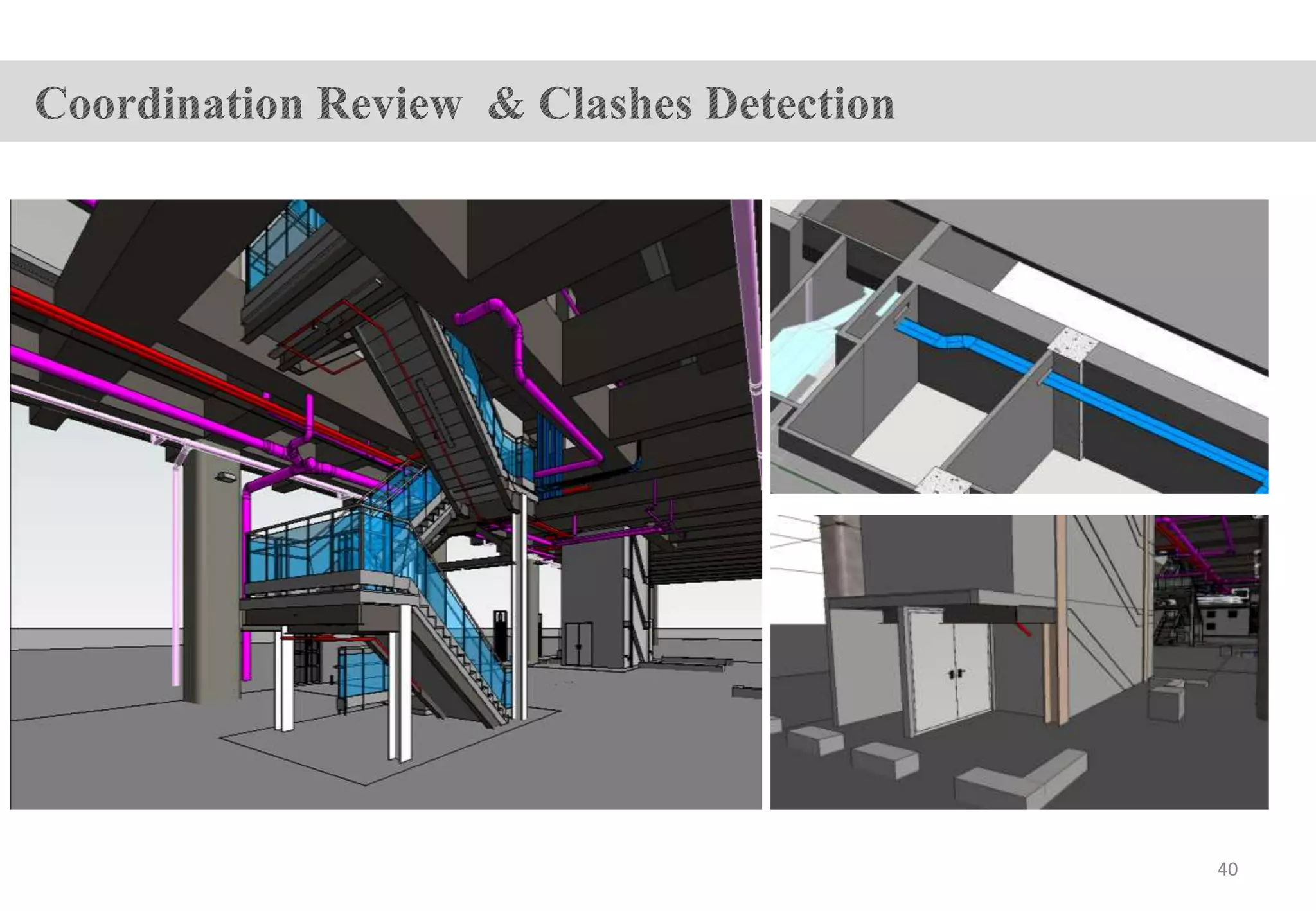

- 40.

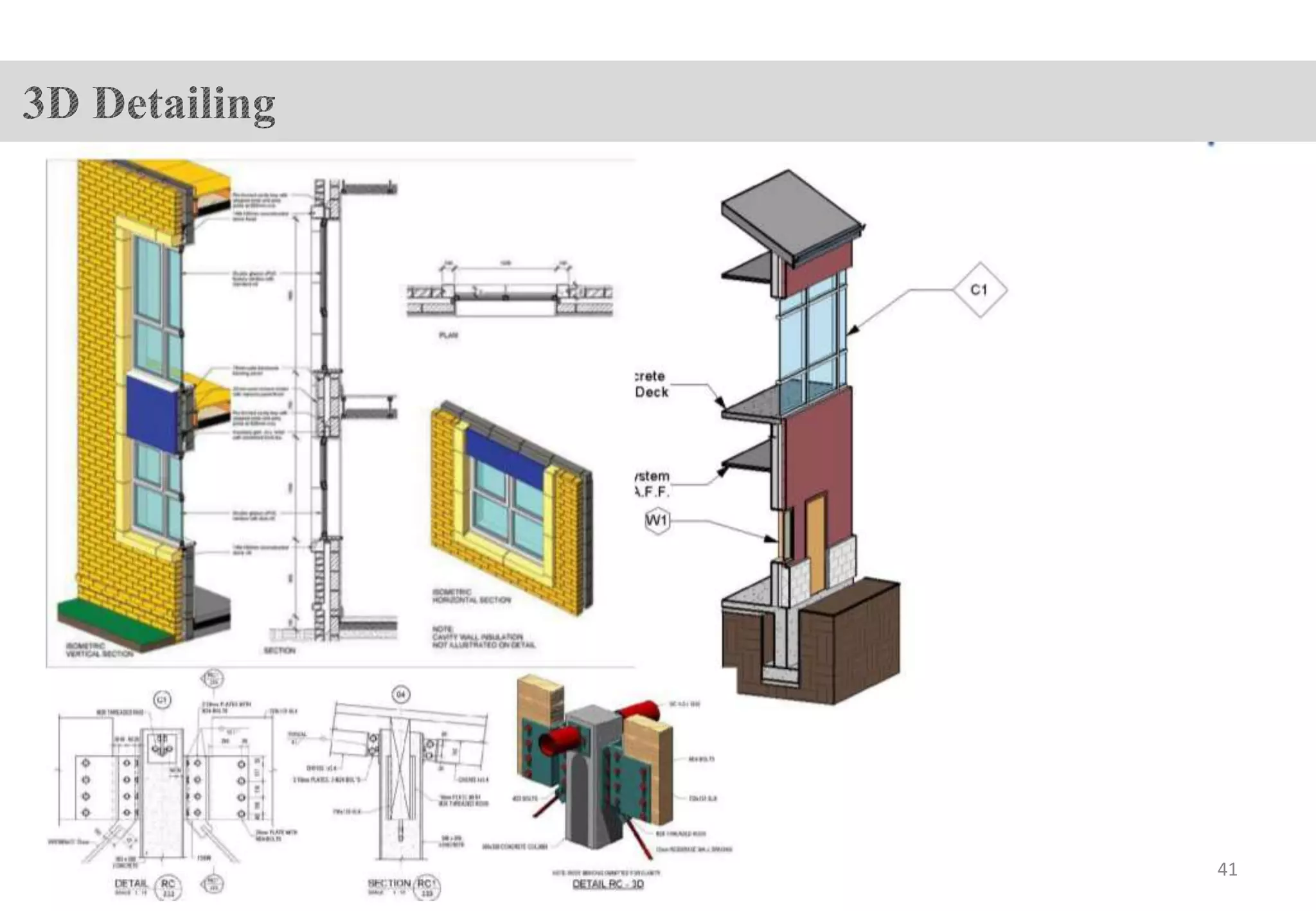

- 41.
- 42.

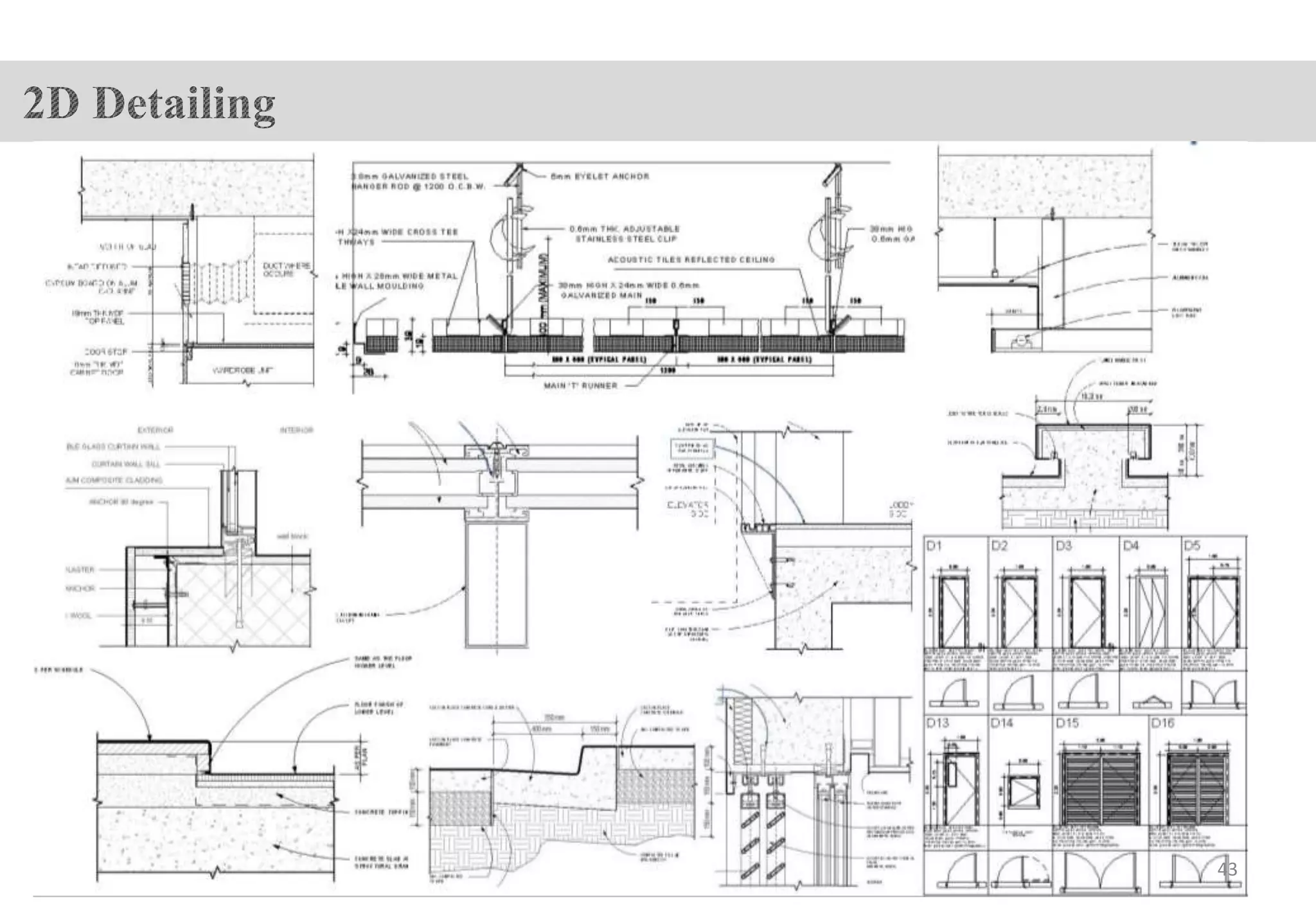

- 43.

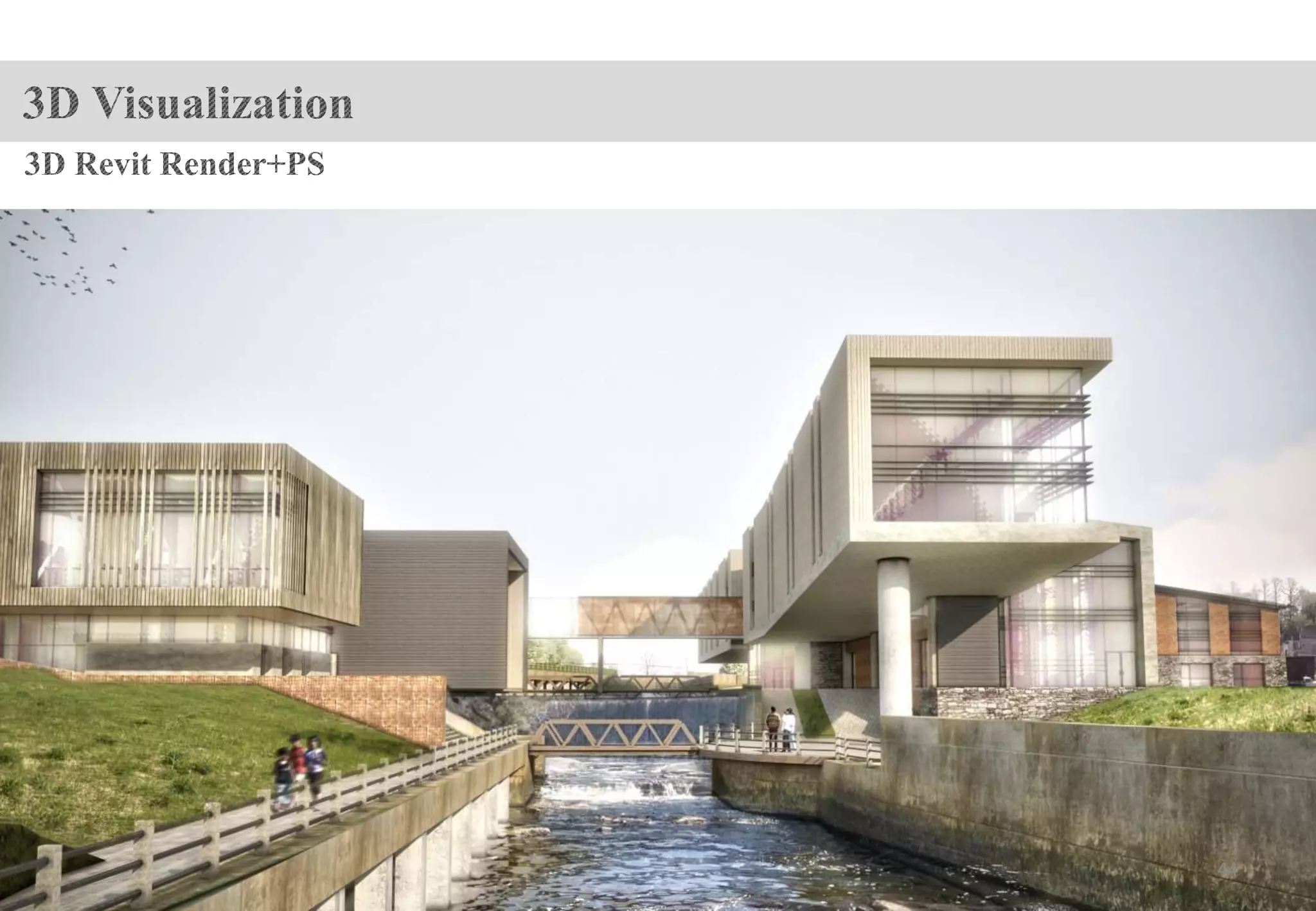

- 44.
- 45.
- 46.
- 47. 3D Visualization 3D-Coordination Clash Analysis 4D Construction sequencing Virtual Construction (3D plustime element) 5D Estimating (3D plus cost element) 2D Sheets Plan Section Elevation BIM, an acronym for 4D Building Information Modeling and a term widely used in the CAD industry, refers to the intelligent linking of individual 3D CAD components or assemblies with time- or schedule-related information. The use of the term 4D is intended to refer to the fourth dimension: time, i.e. 4D is 3D plus schedule (time). The construction of the 4D models enables the various participants (from architects, designers, contractors to owners) of a construction project, to visualize the entire duration of a series of events and display the progress of construction activities through the lifetime of the project. This BIM-centric approach towards project management technique has a very high potential to improve the project management and delivery of construction project, of any size or complexity. 6D Facility Management 3D plus analysis element Operation & Maintenance. 7D RFID Materials & Objects tracking 47

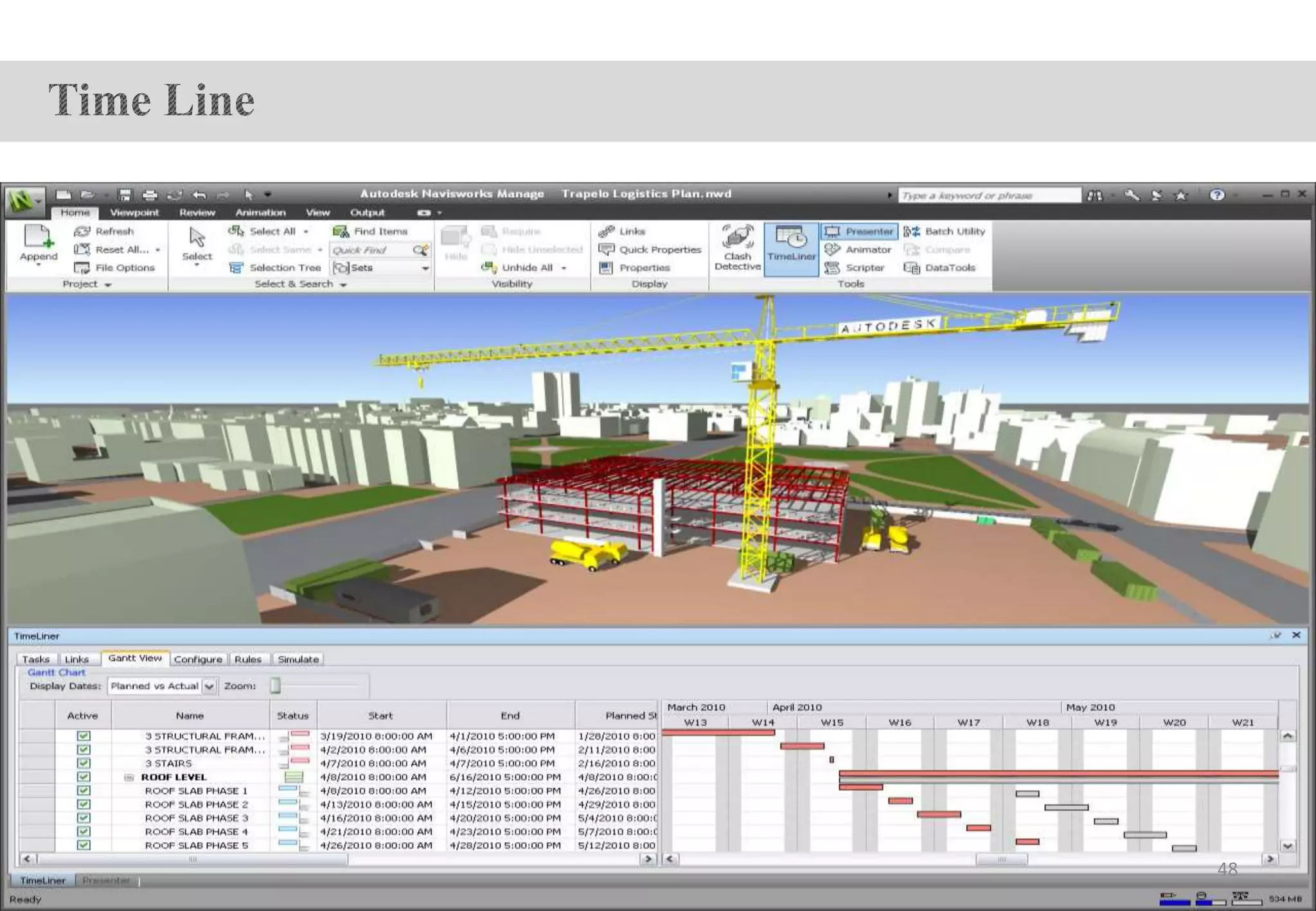

- 48.
- 49. 3D Visualization 3D-Coordination Clash Analysis 4D Construction sequencing Virtual Construction (3D plustime element) 5D Estimating (3D plus cost element) 6D 7D 2D Sheets Plan Section Elevation BIM, an acronym for 5D Building Information Modeling, is a term used in the CAD and construction industries, and refers to the intelligent linking of individual 3D CAD components or assemblies with schedule (time - 4D BIM) constraints and then with cost-related information. The creation of 5D models enables the various participants (from architects, designers, contractors to owners) of a construction project to visualize the progress of construction activities and its related costs over time. This BIM-centric project management technique has potential to improve management and delivery of projects of any size or complexity. 49

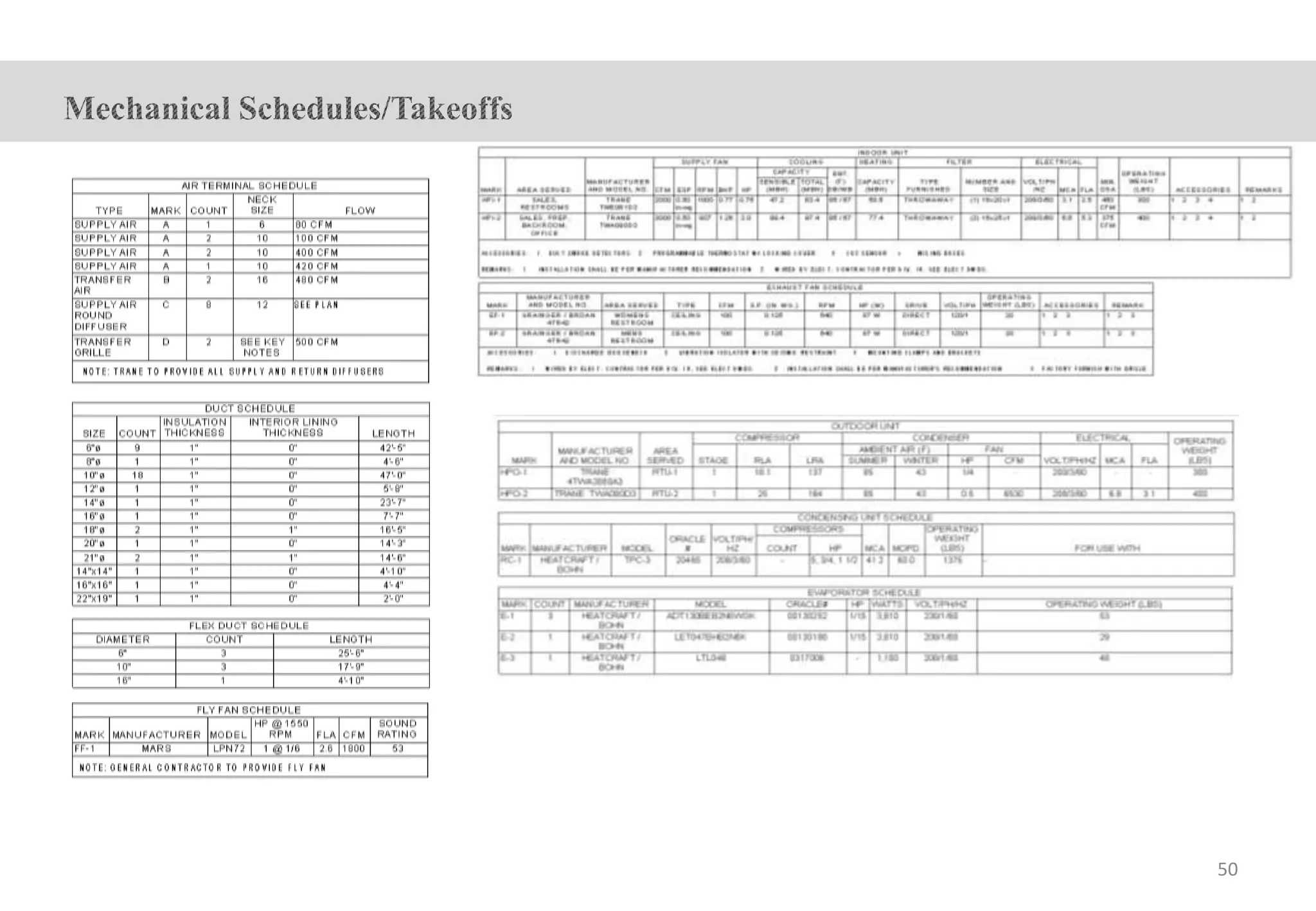

- 50.

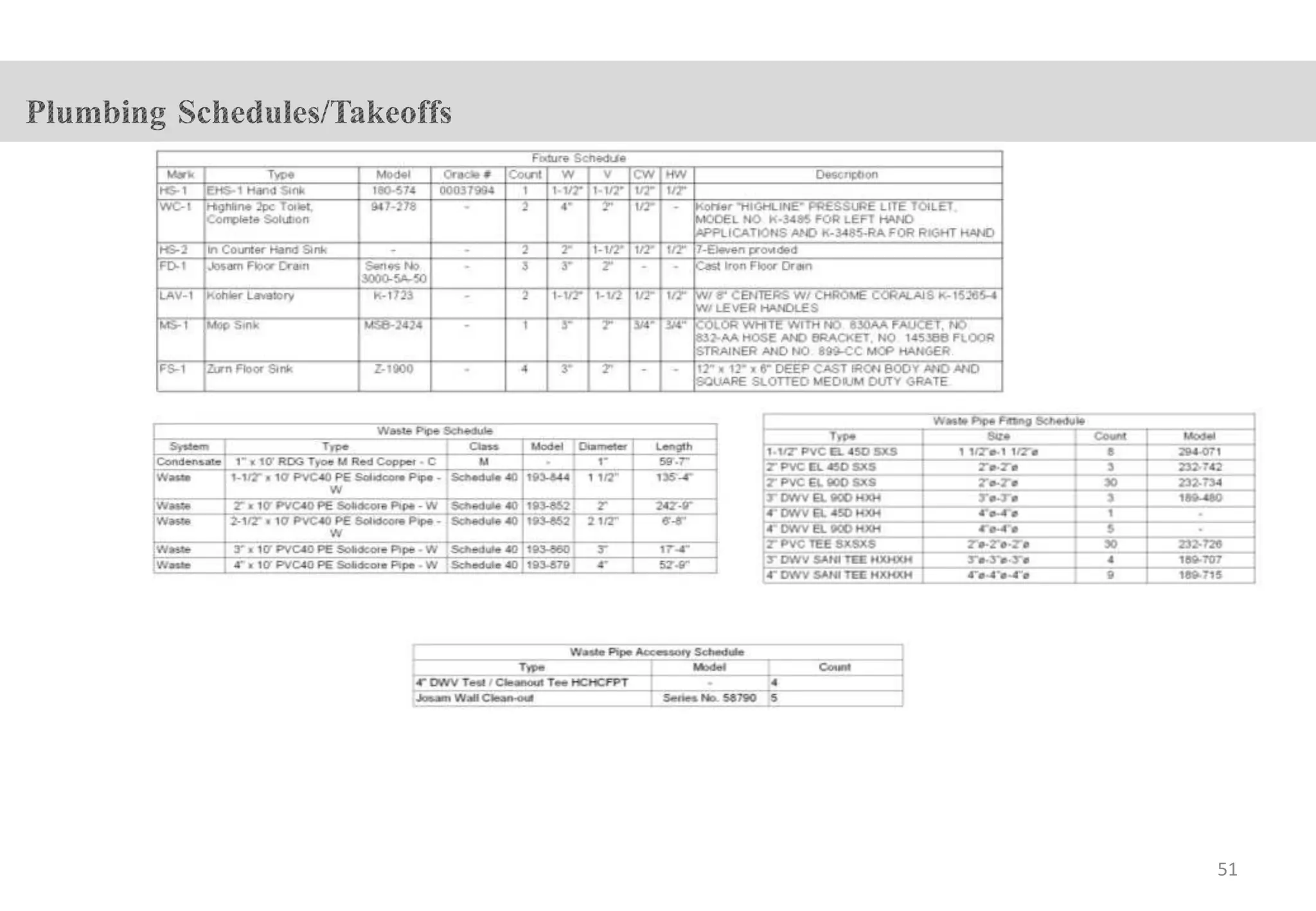

- 51.
- 52.

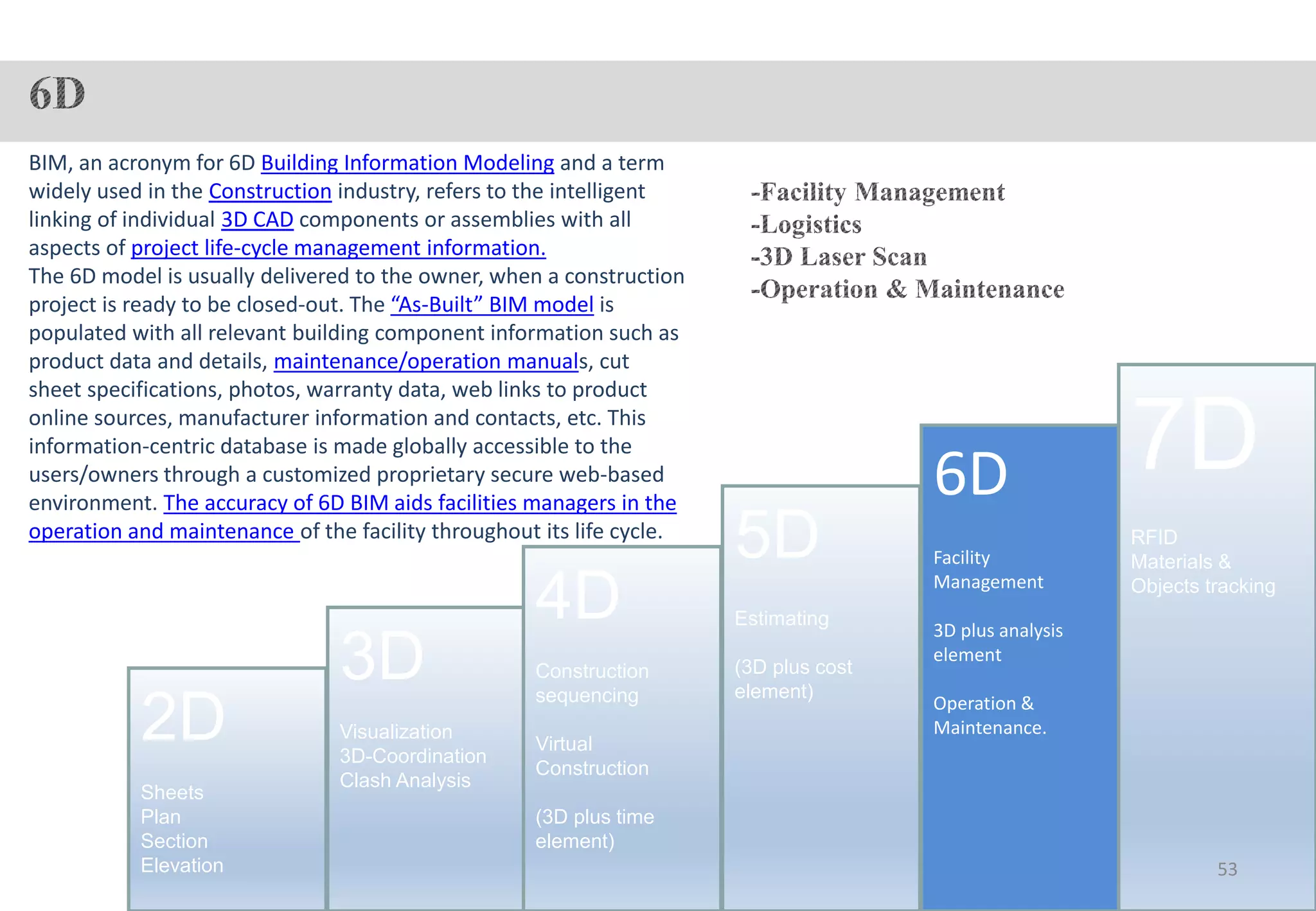

- 53. 3D Visualization 3D-Coordination Clash Analysis 4D Construction sequencing Virtual Construction (3D plustime element) 5D Estimating (3D plus cost element) 6D Facility Management 3D plus analysis element Operation & Maintenance. 7D RFID Materials & Objects tracking 2D Sheets Plan Section Elevation BIM, an acronym for 6D Building Information Modeling and a term widely used in the Construction industry, refers to the intelligent linking of individual 3D CAD components or assemblies with all aspects of project life-cycle management information. The 6D model is usually delivered to the owner, when a construction project is ready to be closed-out. The “As-Built” BIM model is populated with all relevant building component information such as product data and details, maintenance/operation manuals, cut sheet specifications, photos, warranty data, web links to product online sources, manufacturer information and contacts, etc. This information-centric database is made globally accessible to the users/owners through a customized proprietary secure web-based environment. The accuracy of 6D BIM aids facilities managers in the operation and maintenance of the facility throughout its life cycle. 53

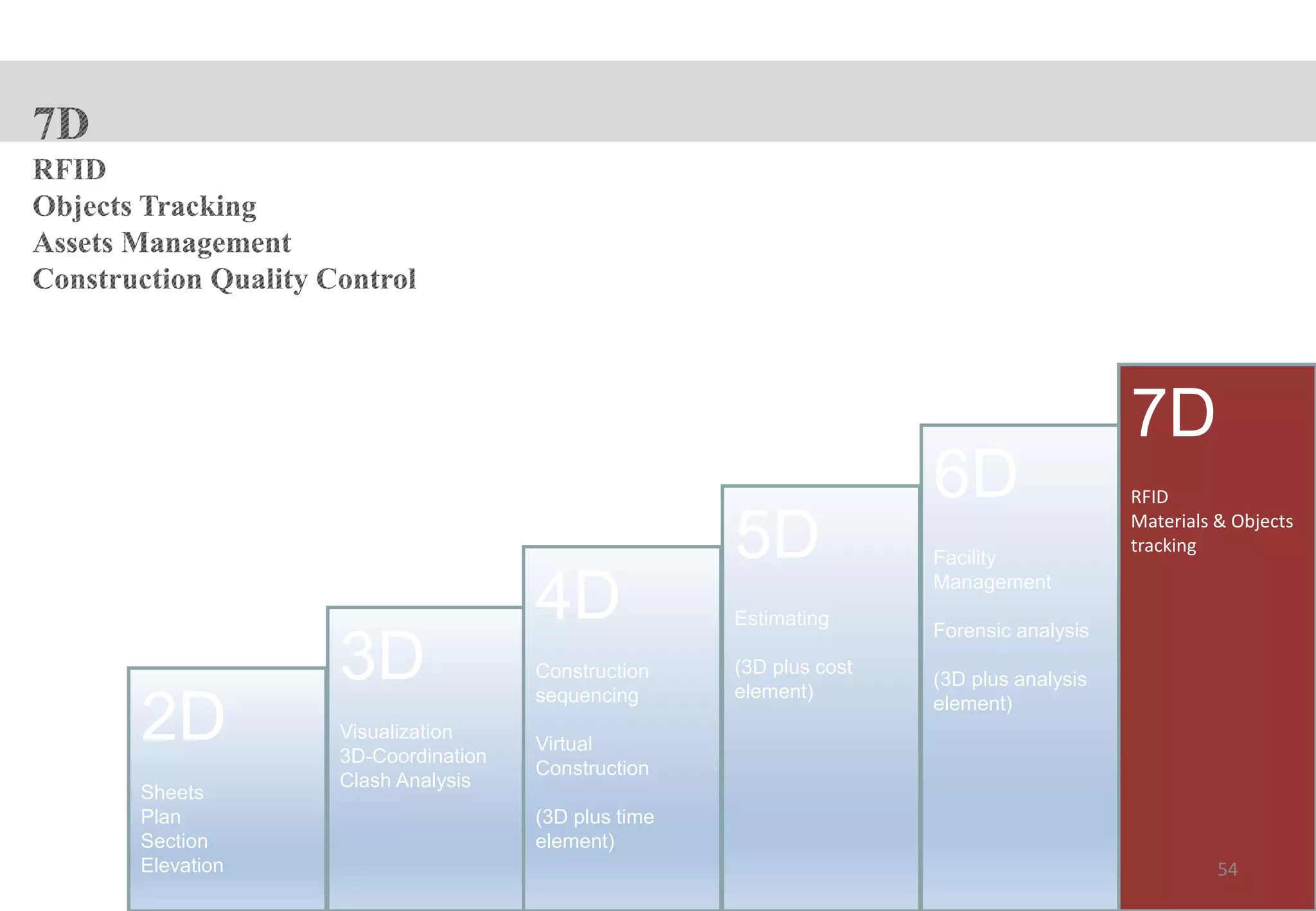

- 54. 3D Visualization 3D-Coordination Clash Analysis 4D Construction sequencing Virtual Construction (3D plustime element) 5D Estimating (3D plus cost element) 6D Facility Management Forensic analysis (3D plus analysis element) 7D RFID Materials & Objects tracking 2D Sheets Plan Section Elevation 54

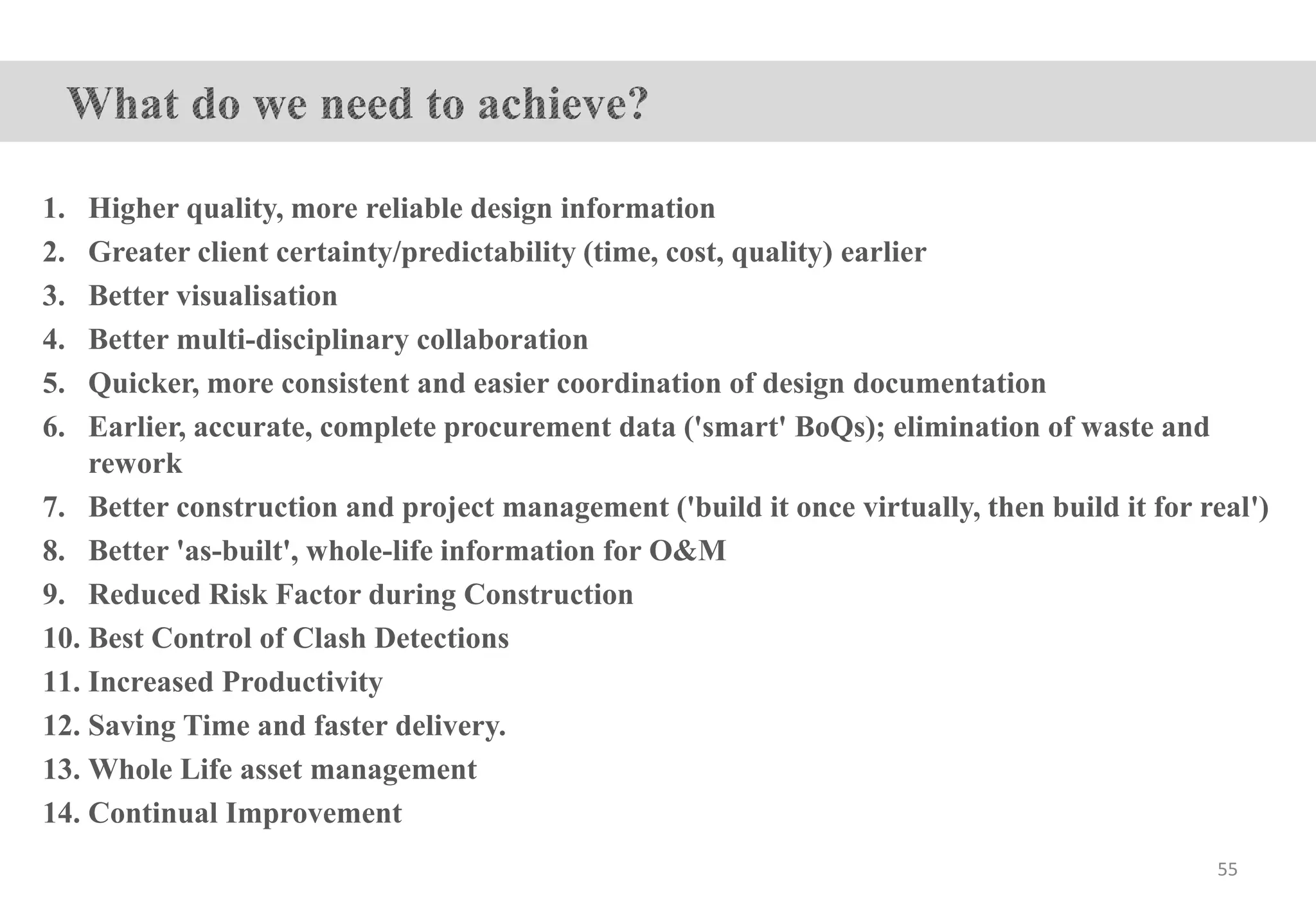

- 55. 1. Higher quality,more reliable design information 2. Greater client certainty/predictability (time, cost, quality) earlier 3. Better visualisation 4. Better multi-disciplinary collaboration 5. Quicker, more consistent and easier coordination of design documentation 6. Earlier, accurate, complete procurement data ('smart' BoQs); elimination of waste and rework 7. Better construction and project management ('build it once virtually, then build it for real') 8. Better 'as-built', whole-life information for O&M 9. Reduced Risk Factor during Construction 10. Best Control of Clash Detections 11. Increased Productivity 12. Saving Time and faster delivery. 13. Whole Life asset management 14. Continual Improvement 55

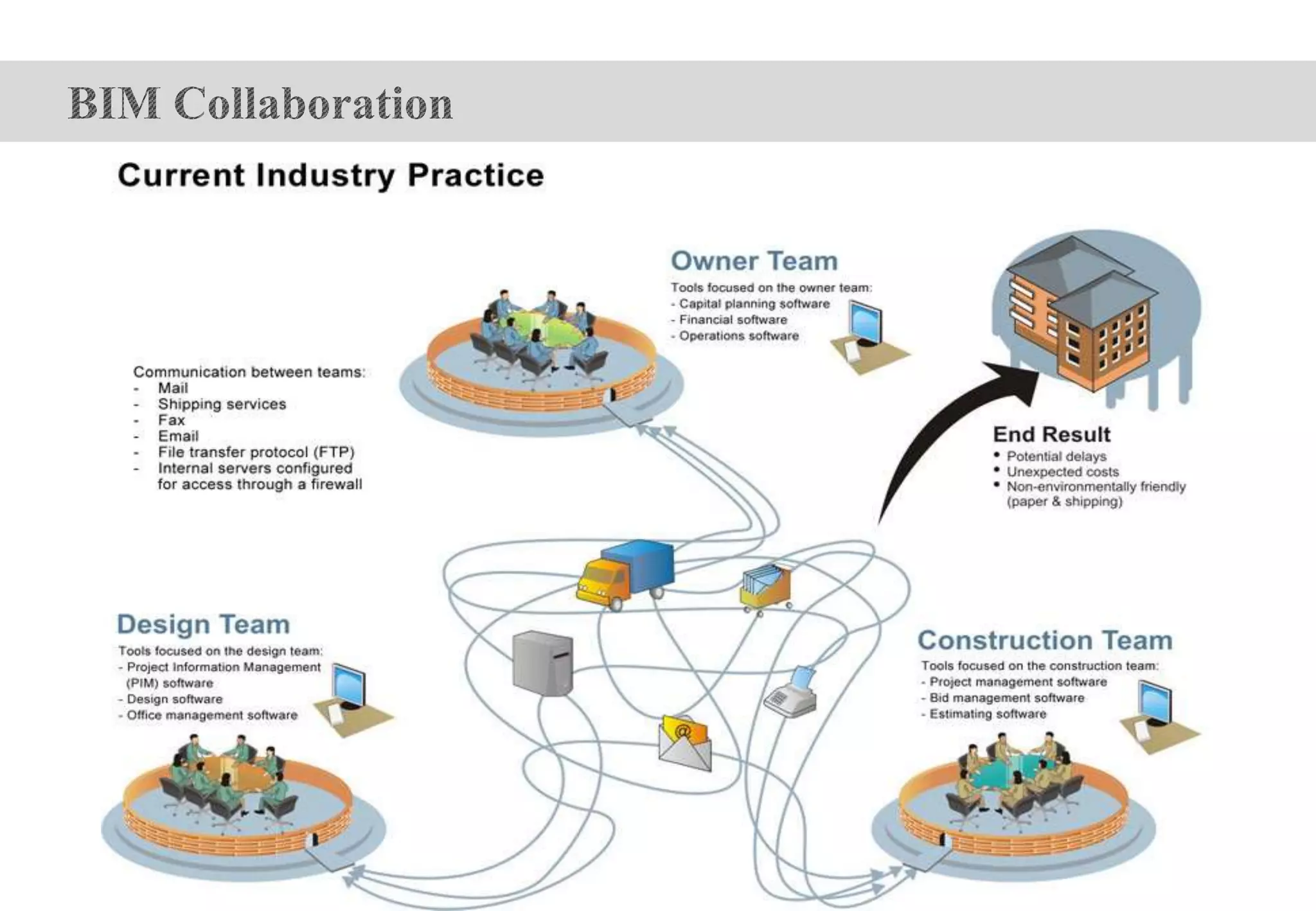

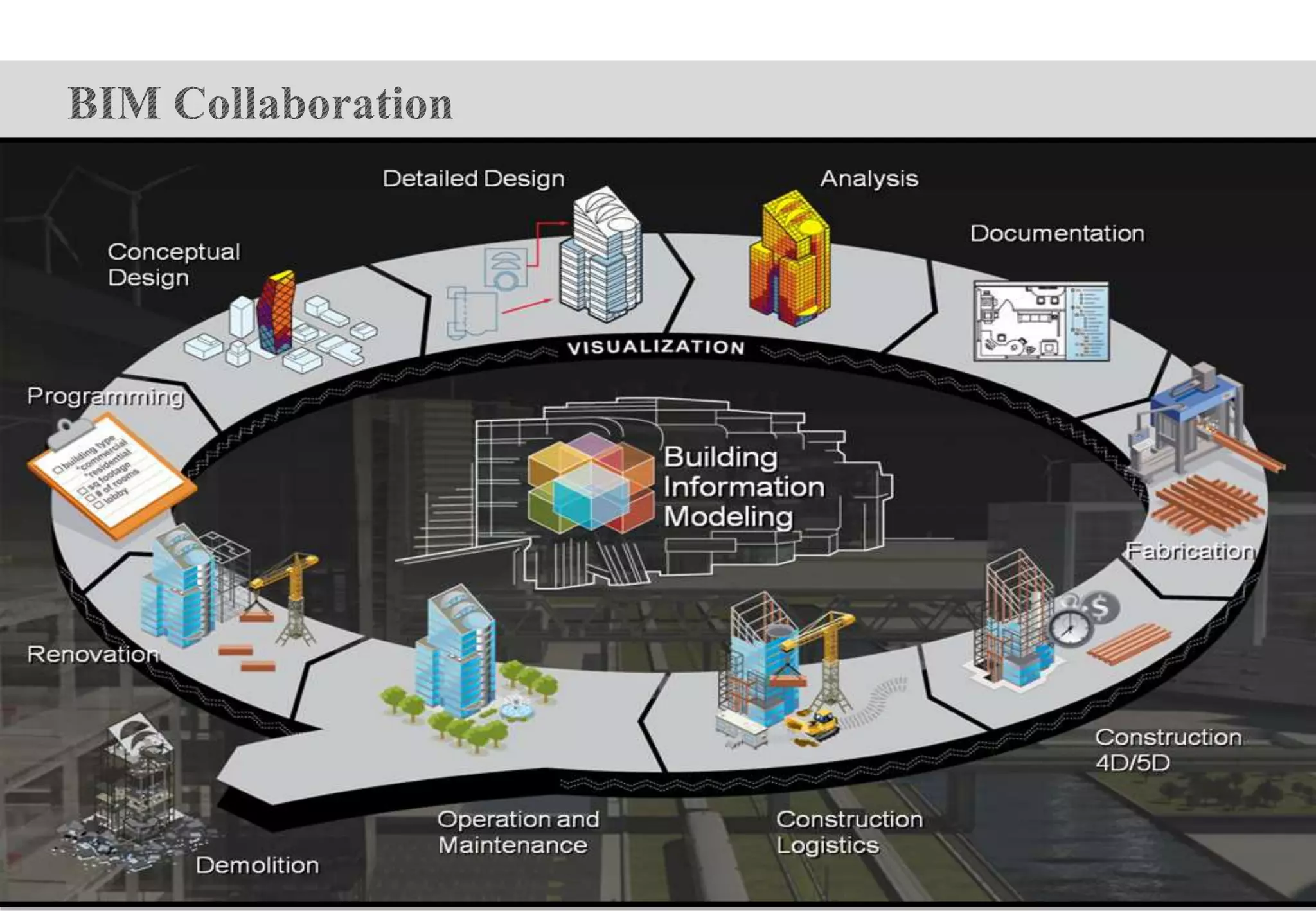

- 59. Design team Rest ofyour project team Document Control RFIs & change orders Bidding & Tenders Workflows & approvals Commissioning Submittals Field Inspections Handover Authoring tools Coordination tools “Traditional BIM” leaves project teams, information & processes disconnected How do I… • View models without special software? • Link RFIs with objects for resolution of clashes and issues How do I… • Link information into my model for a complete BIM handover? • Get an audit trail of decisions made? How do I… • Distribute huge BIM files? • Reduce cycle times on clash resolution? • Version control to avoid errors on out-of- date models? How do I… • Access models on my mobile device?
- 60. Rest of yourproject team Coordination tools Document Control RFIs & change orders Bidding & Tenders Workflows & approvals Commissioning Packages & Deliverables Field Inspections Handover Document Control RFIs & change orders Bidding & Tenders Workflows & approvals Commissioning Submittals Field Inspections Handover Native model data Open BIM, IFC, COBie The Solution: Aconex “Connected BIM”… Open BIM Handover Design team

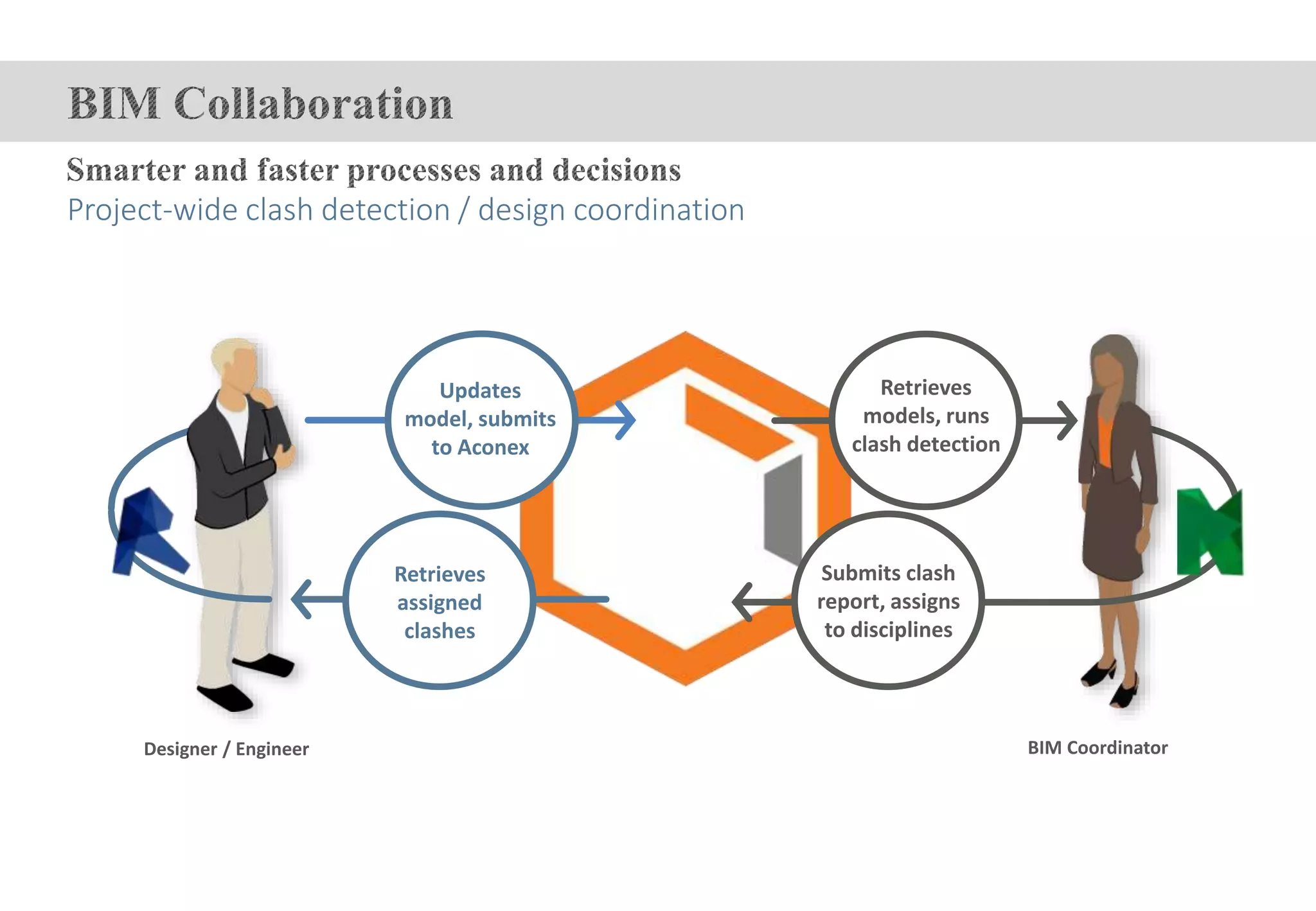

- 61. Updates model, submits to Aconex Retrieves models,runs clash detection Submits clash report, assigns to disciplines Retrieves assigned clashes Project-wide clash detection / design coordination Designer / Engineer BIM Coordinator
- 62. Finds issue on site,checks BIM model Resolves issue on site Responds with instruction Receives RFI, clicks through to BIM model Reviews linked information for full context Raises RFI Project-wide access to the model Contractor Designer / Engineer

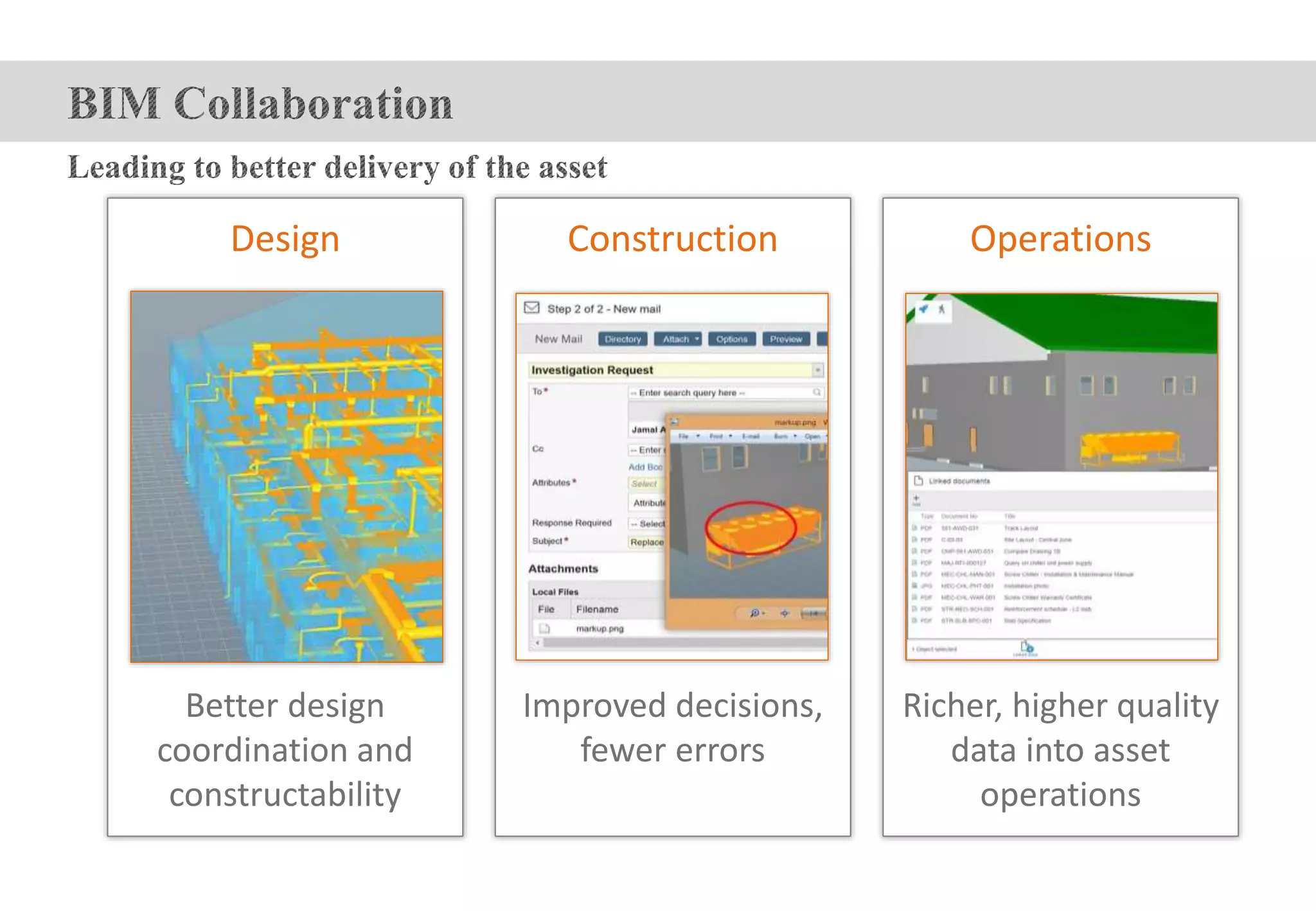

- 63. Better design coordination and constructability Construction Improveddecisions, fewer errors Operations Richer, higher quality data into asset operations Design

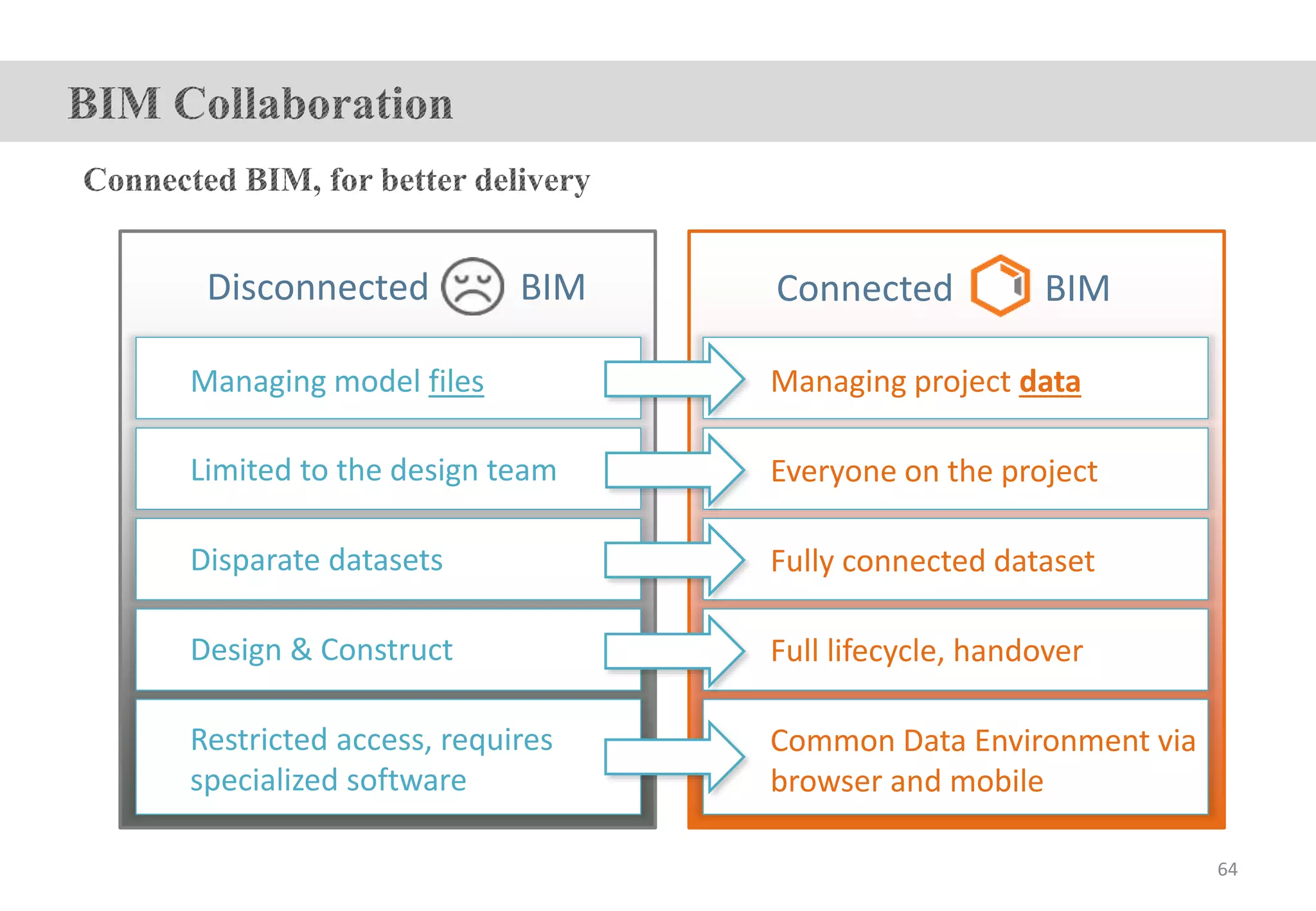

- 64. Managing model filesManaging project data Disconnected BIM Limited to the design team Everyone on the project Disparate datasets Fully connected dataset Design & Construct Full lifecycle, handover Restricted access, requires specialized software Common Data Environment via browser and mobile Connected BIM 64

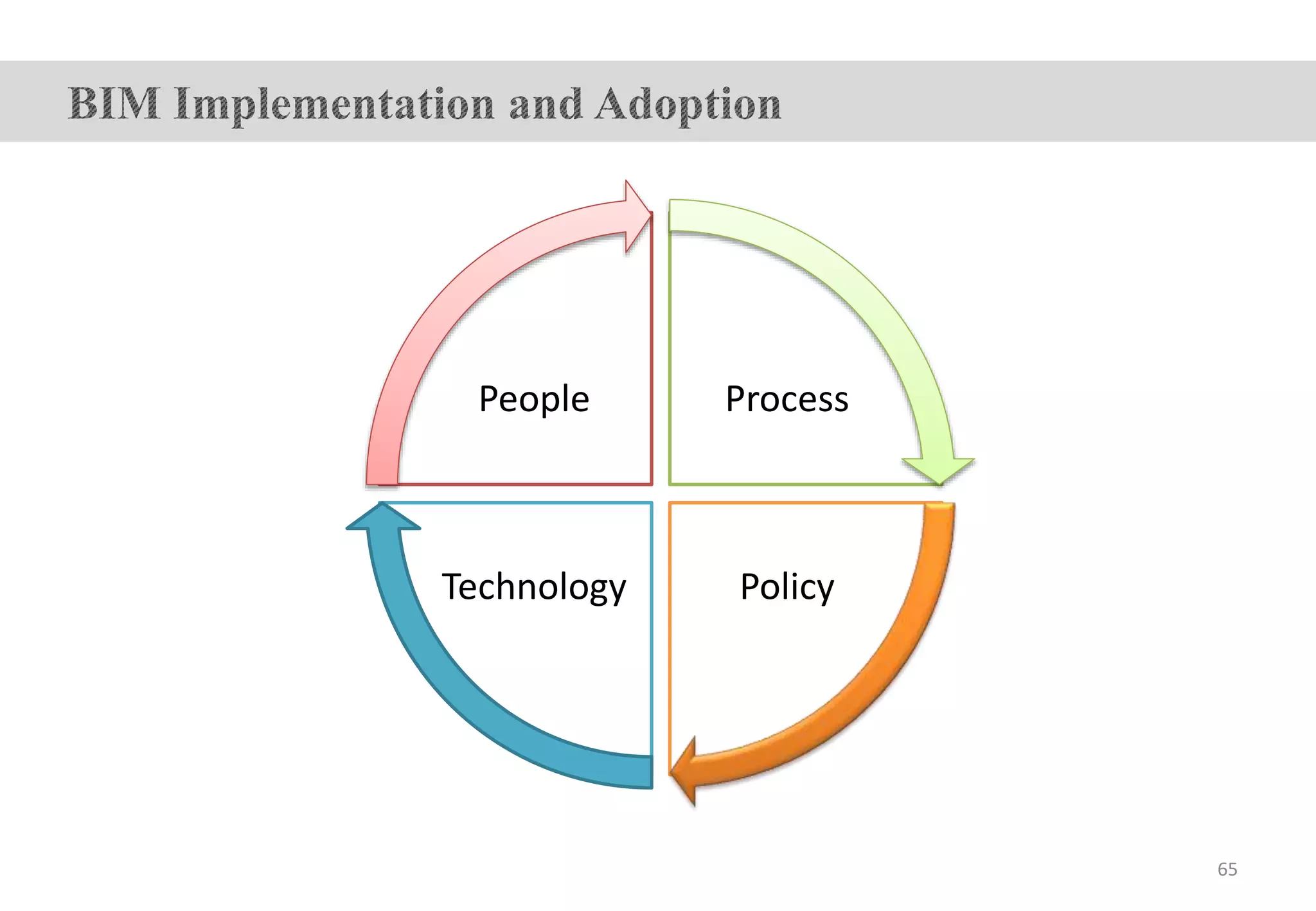

- 65.

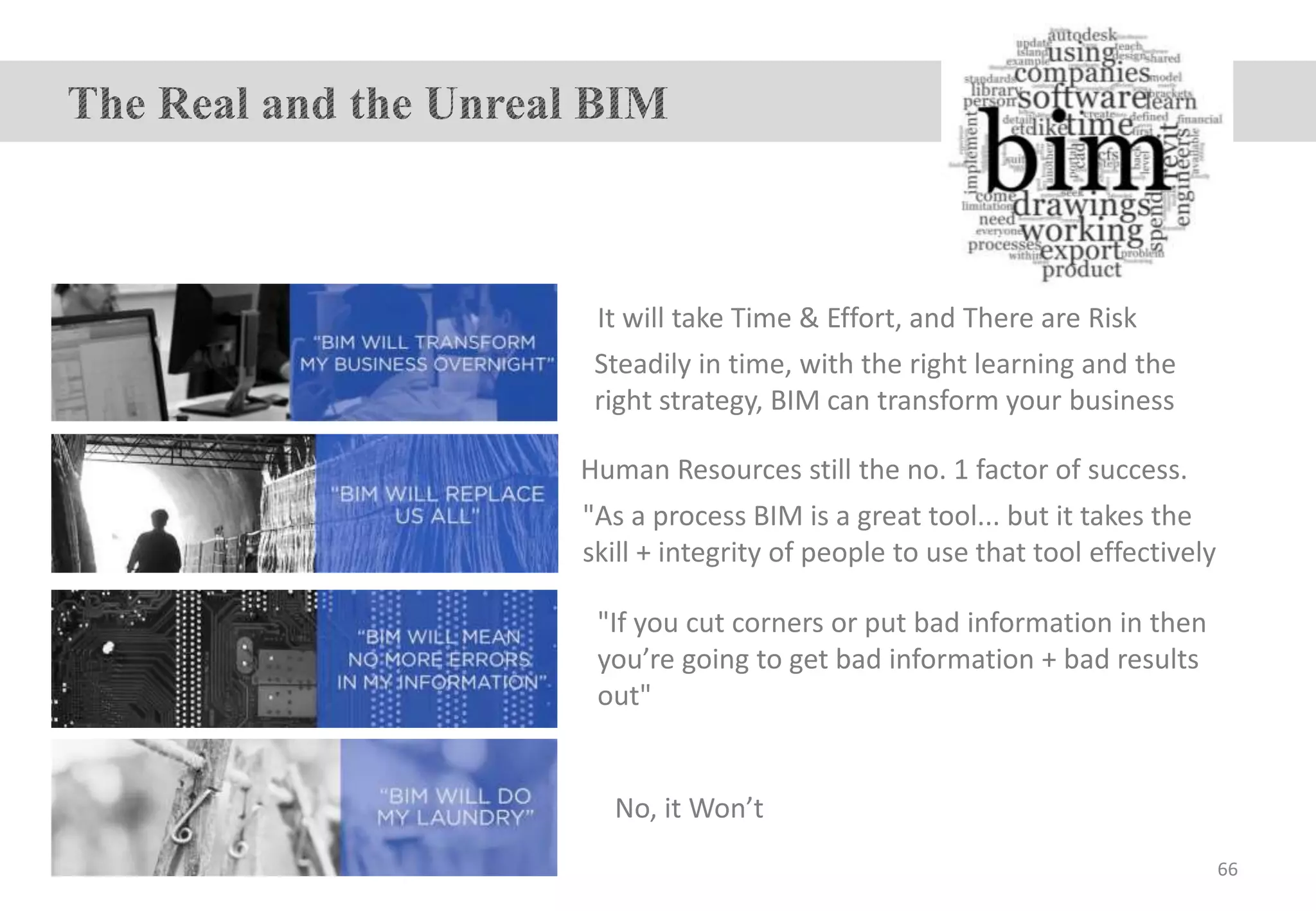

- 66. "If you cutcorners or put bad information in then you’re going to get bad information + bad results out" Human Resources still the no. 1 factor of success. It will take Time & Effort, and There are Risk No, it Won’t "As a process BIM is a great tool... but it takes the skill + integrity of people to use that tool effectively Steadily in time, with the right learning and the right strategy, BIM can transform your business 66
- 67.
- 68. Go Slow andsteady 68
- 69.

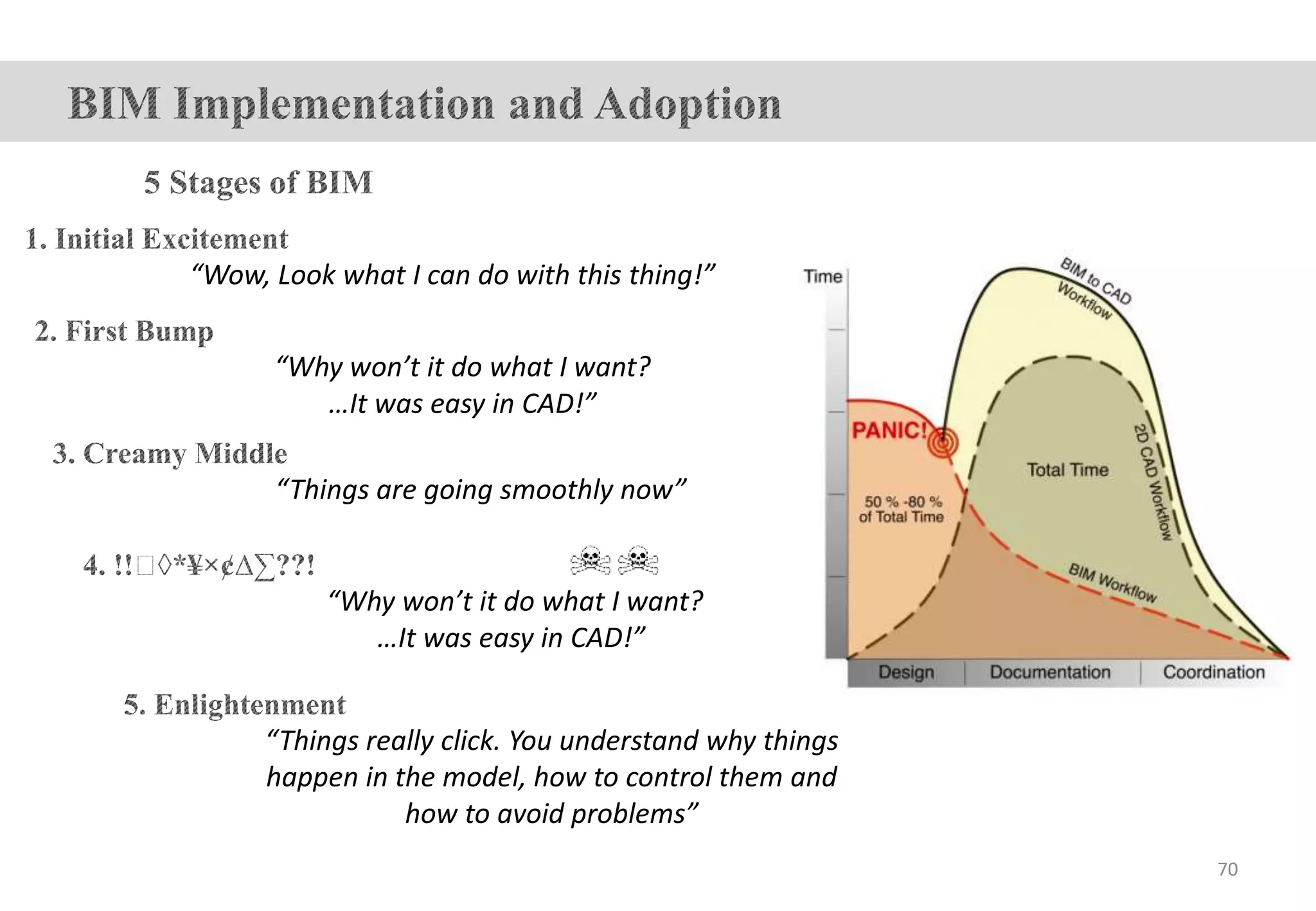

- 70. “Wow, Look whatI can do with this thing!” “Why won’t it do what I want? …It was easy in CAD!” “Things are going smoothly now” “Why won’t it do what I want? …It was easy in CAD!” “Things really click. You understand why things happen in the model, how to control them and how to avoid problems” 70

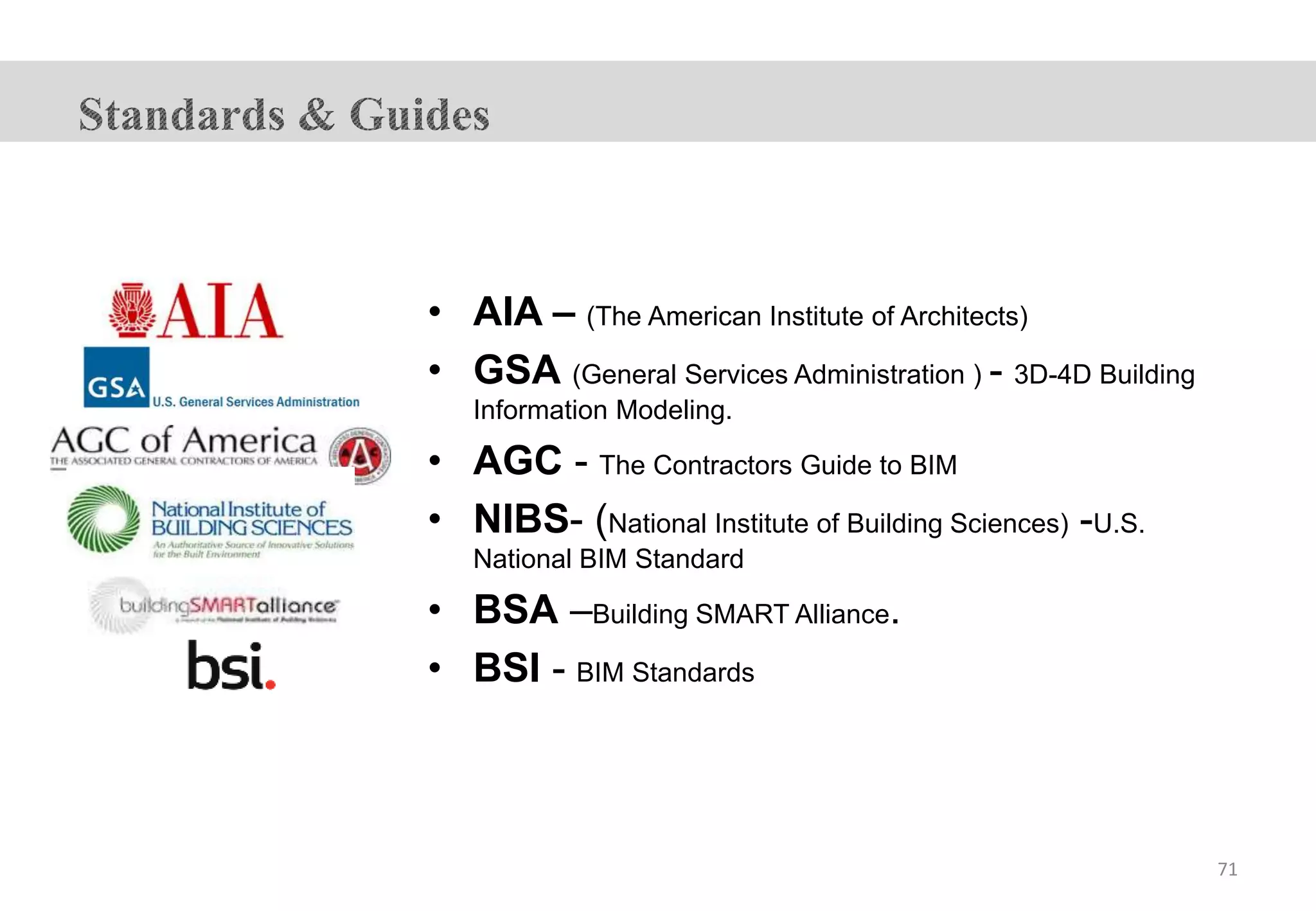

- 71. • AIA –(The American Institute of Architects) • GSA (General Services Administration ) - 3D-4D Building Information Modeling. • AGC - The Contractors Guide to BIM • NIBS- (National Institute of Building Sciences) -U.S. National BIM Standard • BSA –Building SMART Alliance. • BSI - BIM Standards 71
- 72. Adopting BIM An Architect’sPerspective 7 May 2014 London South Bank University BIM: an overview Paul Wilkinson BA PHD DipPR(CAM) MCIPR director, pwcom.co.uk Ltd BIM Process adoption for integrated design and Construction 15th September 2015 Waleed Eliwa BIM Consultant BIM By Mathew Miller BIM By Jacqueline Greiner How BIM can accelerate project-wide review cycles Aconex Steve Fox Manager | BIM Consultant BC: BIM Consulting How BIM Can Improve Decisions and Reduce Errors Aconex Matt Abeles Co Founder | Managing Director BUILTWORLDS Autodesk White Papers BIM -LOD Level of Development _ Sustainability Workshop *Internet open source essays and journals Pictures, graphs and tables…etc. belong to their original owners 72
- 74.
Editor's Notes
- #4 Building Information Modeling (BIM) is a process that begins with the creation of an intelligent 3D model to capture, explore, and maintain planning, design, construction, and operational data in order to better inform decision making for building and infrastructure projects. The information in the model remains coordinated and consistent an Create and use a data-rich 3D model to improve how buildings and infrastructure are planned, designed, built, and managed. Provides greater project insight on things like cost, schedule, and constructability Share and use the same consistent data whether you’re at your desk or in the field Respond quickly to change with processes that are smarter and faster Model is available for simulation, analysis, collaboration, and communication throughout the lifecycle of the project.

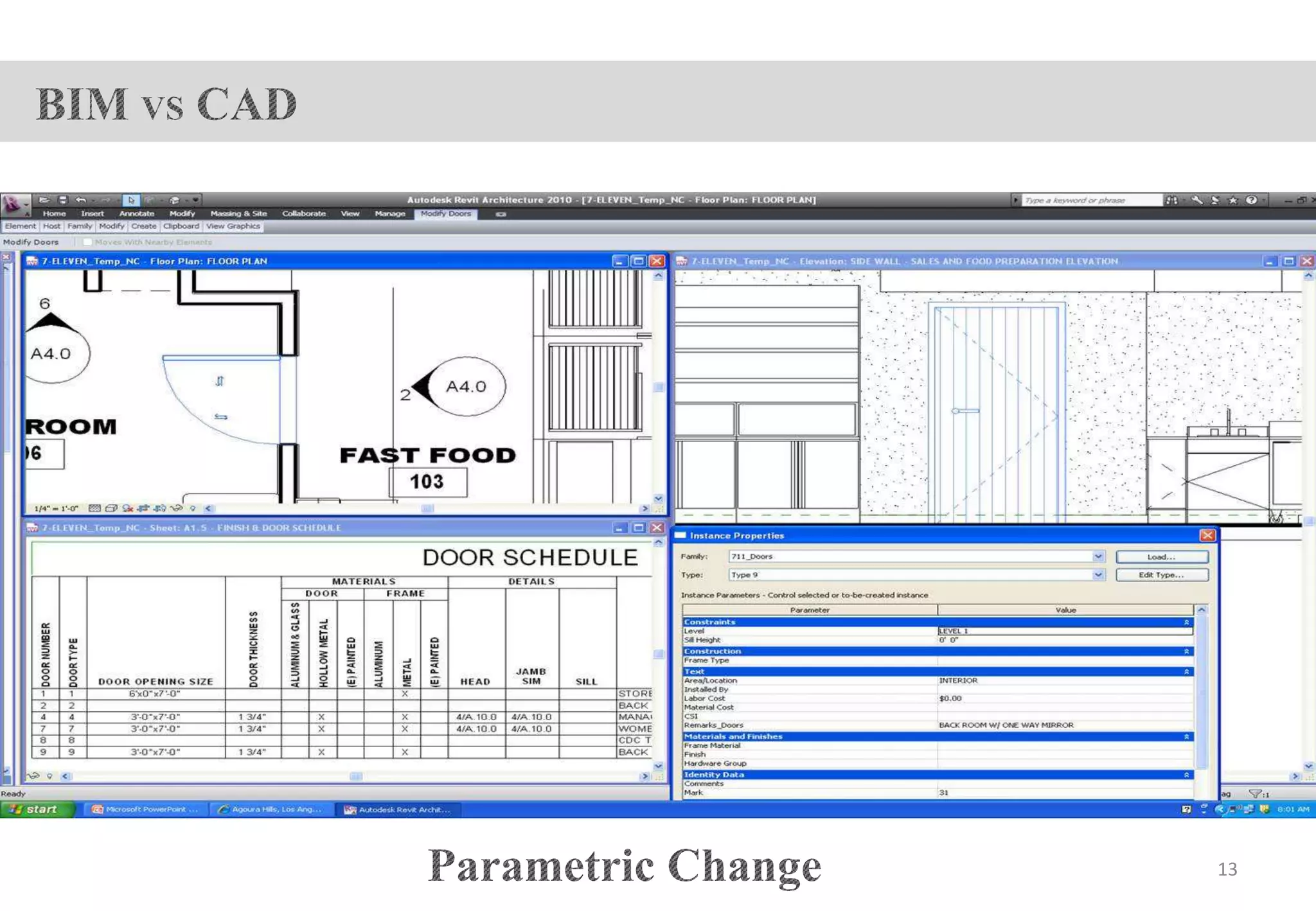

- #13 Productivity comparison between two similar projects. Lott+Barber Architects, Georgia, USA.
- #16 Level 0 BIM In its simplest form, level 0 effectively means no collaboration. 2D CAD drafting only is utilized, mainly for Production Information (RIBA Plan of Work 2013 stage 4). Output and distribution is via paper or electronic prints, or a mixture of both. The majority of the industry is already well ahead of this now (source: NBS National BIM Report 2014). Level 1 BIM This typically comprises a mixture of 3D CAD for concept work, and 2D for drafting of statutory approval documentation and Production Information. CAD standards are managed to BS 1192:2007, and electronic sharing of data is carried out from a common data environment (CDE), often managed by the contractor. This is the level at which many organizations are currently operating, although there is no collaboration between different disciplines – each publishes and maintains its own data. Level 2 BIM This is distinguished by collaborative working – all parties use their own 3D CAD models, but not necessarily working on a single, shared model. The collaboration comes in the form of how the information is exchanged between different parties – and is the crucial aspect of this level. Design information is shared through a common file format, which enables any organization to be able to combine that data with their own in order to make a federated BIM model, and to carry out interrogative checks on it. Hence any CAD software that each party used must be capable of exporting to one of the common file formats such as IFC (Industry Foundation Class) or COBie (Construction Operations Building Information Exchange). This is the method of working that has been set as a minimum target by the UK government for all work on public-sector work, by 2016. Level 3 BIM Currently seen as the holy grail, this represents full collaboration between all disciplines by means of using a single, shared project model which is held in a centralized repository. All parties can access and modify that same model, and the benefit is that it removes the final layer of risk for conflicting information. This is known as ‘Open BIM’. Current nervousness in the industry around issues such as copyright and liability are intended to be resolved – the former by means of robust appointment documents and software originator/read/write permissions, and the latter by shared-risk procurement routes such as partnering. The CIC BIM Protocol makes provision for these. Update - The UK government reasserted its commitment to Level 3 BIM as part of the Budget announced in March 2016. Read more. Looking further ahead, it is highly probable that collaborative working practices will ultimately filter through to the private sector ...

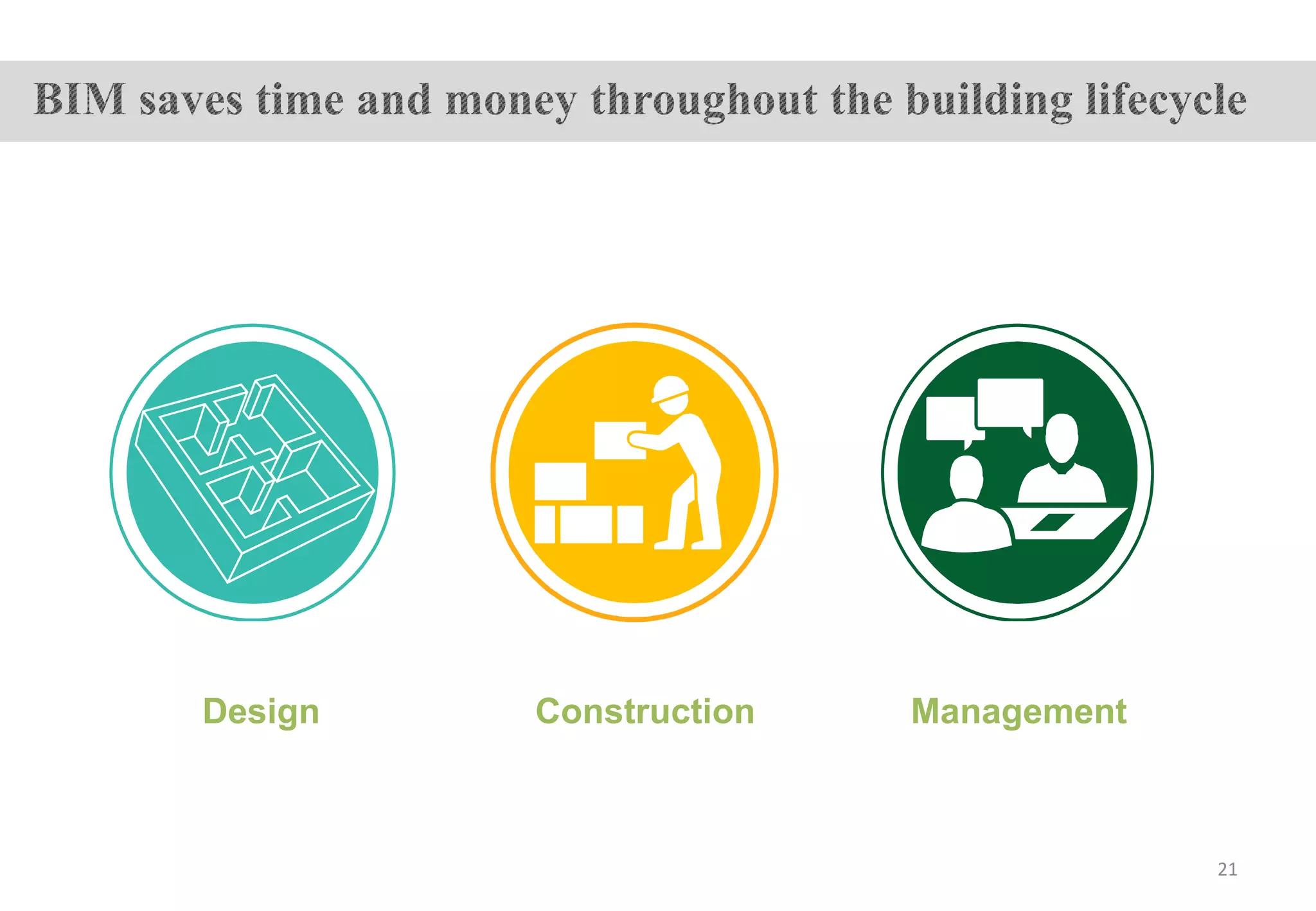

- #22 BIM saves time and money throughout all phases of design, construction, and ongoing property management.
- #23 Let’s review some examples of how BIM can help the design process run smoother and faster.
- #24 Here are some examples of BIM at work in the construction phase.
- #25 Finally, here are some examples of how BIM saves time and money in the management phase of a project – often the phase most closely associated with owners.
- #26 BIM allows owners to take control and harness the power of the Era of Connection. BIM increases transparency, quality, and efficiency so owners can: Improve building quality Significantly reduce building lifecycle costs Better understand design projects from beginning to end Optimize operational efficiencies Increase occupancy and use rates
- #27 Owners shoulder 2/3 of the ongoing operating cost (estimated at $15.8 billion annually) that are a result of poor data and highly fragmented teams. 1 Michael P. Gallaher, Alan C. O’Connor, John L. Dettbarn, Jr., and Linda T. Gilday, “Cost Analysis of Inadequate Interoperability in the U.S. Capital Facilities Industry”, August 2004
- #28 Owners face several challenges when trying to contain costs and deliver on schedule. 1 Independent Project Analysis Institute 2 Rethinking Construction, John Egan 3 US Department of Energy, Operations and Maintenance Best Practices Guide, August 2010.
- #29 A McGraw-Hill survey found that owners enjoy a reduction in document errors and omissions; rework; costs; project duration; and claims. Source: McGraw-Hill Construction, 2012
- #68 It’s better for organizations to start slowly with BIM adoption to ensure the best chance of success. Instead of deploying it across the board, a firm should use BIM on just a few handpicked projects, carefully and deliberately, to give team members a taste. If done well, pretty soon everyone wants to be on a BIM project, and expanding BIM across the organization becomes an organic process. In economics, the 'J curve' refers to the trend of a country's trade balance following a devaluation or depreciation under a certain set of assumptions.
- #69 It’s better for organizations to start slowly with BIM adoption to ensure the best chance of success. Instead of deploying it across the board, a firm should use BIM on just a few handpicked projects, carefully and deliberately, to give team members a taste. If done well, pretty soon everyone wants to be on a BIM project, and expanding BIM across the organization becomes an organic process. In economics, the 'J curve' refers to the trend of a country's trade balance following a devaluation or depreciation under a certain set of assumptions.

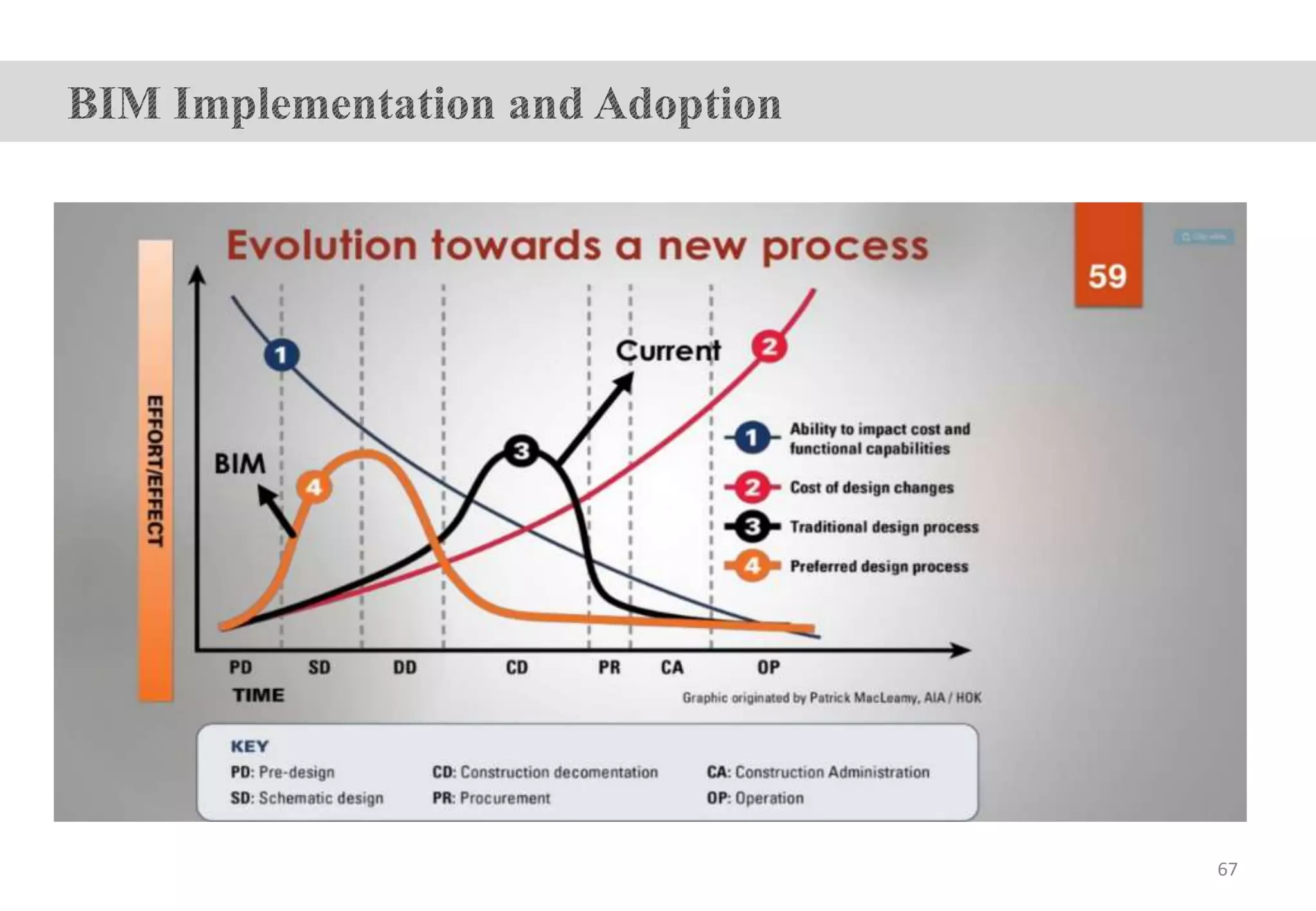

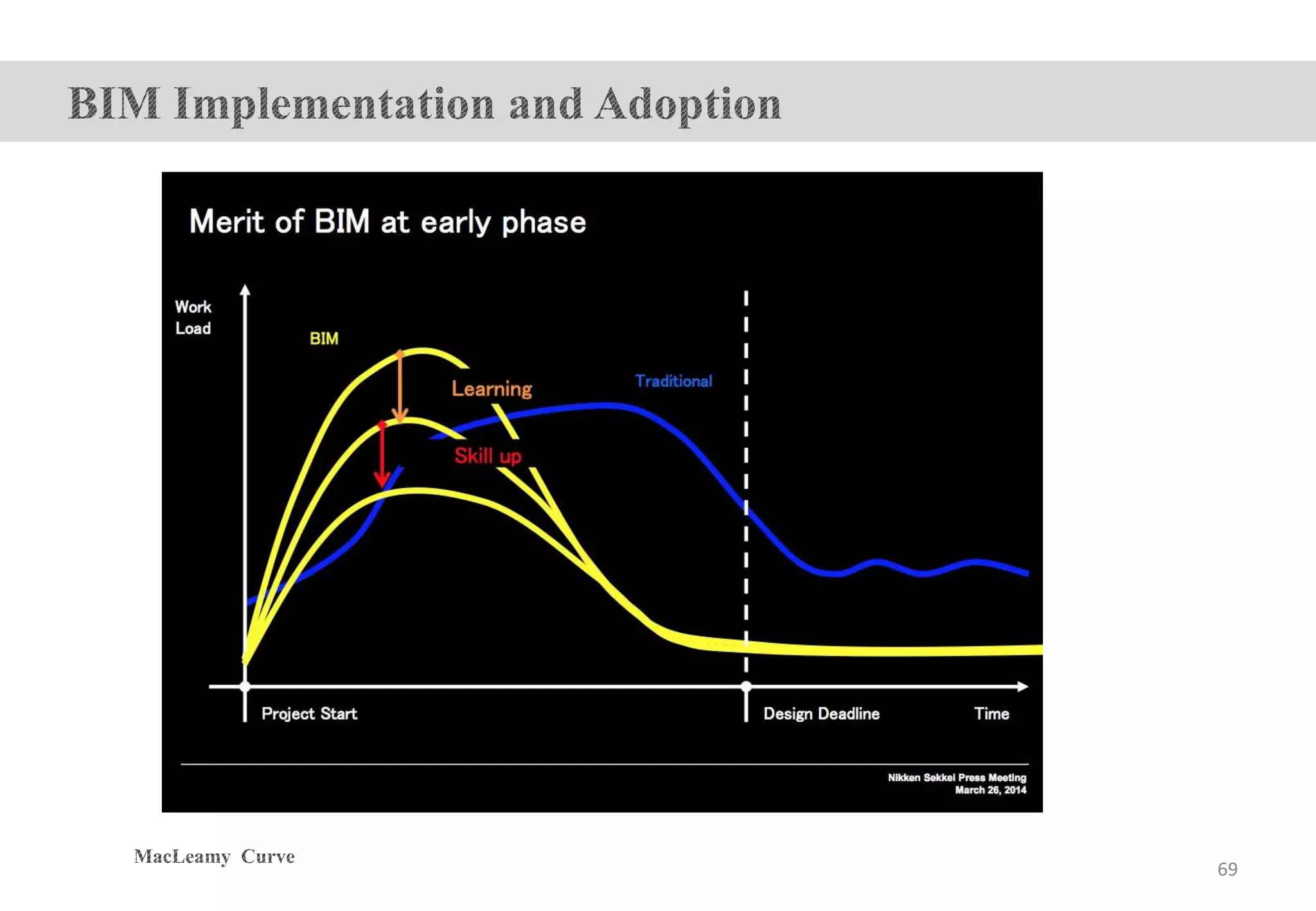

- #70 MacLeamy Curve is named after HOK principle Patrick MacLeamy
