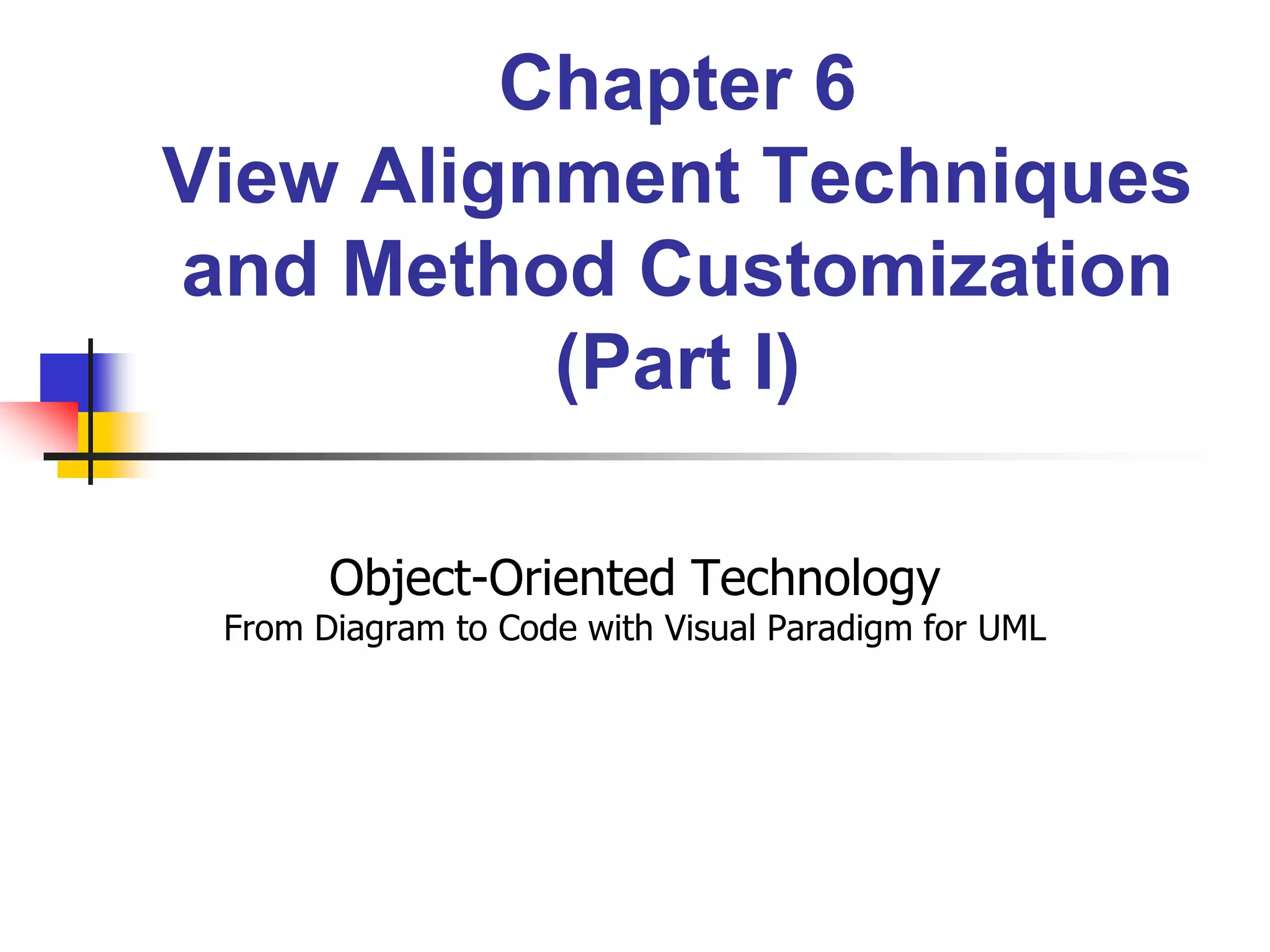

Chapter 6
View Alignment Techniques
and Method Customization
(Part I)
Object-Oriented Technology
From Diagram to Code with Visual Paradigm for UML
2
Objectives
 After you have read this chapter, you should be able
to
 Appreciate the benefits of using a method for
software development.
 Understand the limitations of current software
development methods.
 Understand the framework of View Alignment
Techniques.
 Apply the View Alignment Techniques to
customize and create a method.
 Use the Activity Analysis Approach effectively for
developing workflow-oriented and activity
intensive software systems.
3

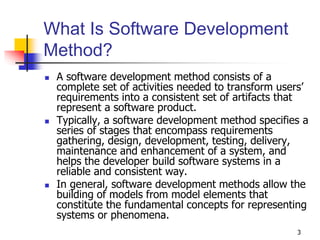

What Is Software Development
Method?
 A software development method consists of a
complete set of activities needed to transform users’
requirements into a consistent set of artifacts that
represent a software product.
 Typically, a software development method specifies a
series of stages that encompass requirements
gathering, design, development, testing, delivery,
maintenance and enhancement of a system, and
helps the developer build software systems in a
reliable and consistent way.
 In general, software development methods allow the
building of models from model elements that
constitute the fundamental concepts for representing
systems or phenomena.
4
Components of Software
Development Methods (cont’d)
 Representation. A set of recommended
representation (notation), e.g., the Unified Modeling
Language (UML)) consisting of one or more forms of
a notation that can be used to model both the
structure of the initial problem (requirements) and
the intended solution, using one or more viewpoints
(models) and different levels of abstraction.
 Process. It provides a framework from which a
comprehensive plan for software development should
be established. This development plan consists of a
specific ordered set of tasks aimed at producing
software solutions, e.g. Unified Process.
5
Components of Software
Development Methods (cont’d)
 Techniques. They are heuristics, guidelines and
procedures that help designers develop the software
development plan for their project. In other words,
they help customize the process framework for the
system being developed, such as defining the order
of tasks to be carried out within the process,
selecting the models and their perspective to be
focused at the optimum level of abstraction.
6
Components of Software
Development Methods
 A software development method primarily comprises
three components:
 a process,
 a representation system or a modeling notation, and
 techniques, heuristics, steps or procedures
7
Why Traditional Software
Methods Didn’t Work Miracles?
 There is no universal method that can be
readily applied to all problems in any
circumstances without the need for
customization.
 Demarco points out that to ensure success
the project team should tailor the method to
needs of the individual project rather than
attempt force-fitting the project into the
Methodology.
 Spolsky’s story
8
Hurdles in Applying the
Object-oriented Approach
 The UML provides an extremely rich set of
notations for representing systems. Booch
suggests that 80% of software projects use
only about 20% of the UML notation.
 To the designer, it would be rather difficult to
decide which subset of UML notation should
be used for the project at hand.
9
Hurdles in Applying the Object-
oriented Approach (cont’d)
Use Case Diagram
Class Diagram
Component Diagram
Object Diagram
Activity Diagram
State Diagram
Deployment Diagram
Collaboration
Diagram
Sequence Diagram
Models
10

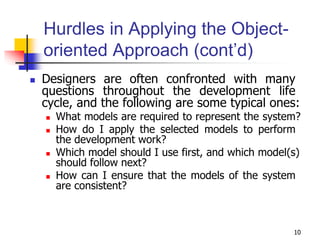

Hurdles in Applying the Object-
oriented Approach (cont’d)
 Designers are often confronted with many
questions throughout the development life
cycle, and the following are some typical ones:
 What models are required to represent the system?
 How do I apply the selected models to perform
the development work?
 Which model should I use first, and which model(s)
should follow next?
 How can I ensure that the models of the system
are consistent?
11

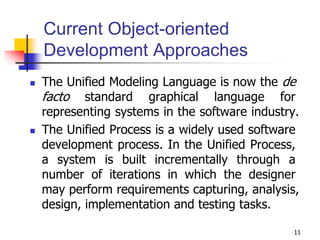

Current Object-oriented
Development Approaches
 The Unified Modeling Language is now the de
facto standard graphical language for
representing systems in the software industry.
 The Unified Process is a widely used software
development process. In the Unified Process,
a system is built incrementally through a
number of iterations in which the designer
may perform requirements capturing, analysis,
design, implementation and testing tasks.
12
Unified Process
 The iterations are divided into four
phases: inception, elaboration,
construction and transition
13
Unified Process (cont’d)

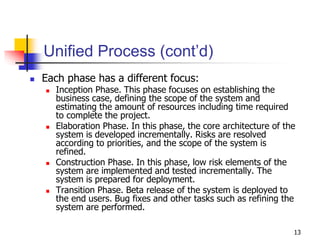

 Each phase has a different focus:
 Inception Phase. This phase focuses on establishing the
business case, defining the scope of the system and
estimating the amount of resources including time required
to complete the project.
 Elaboration Phase. In this phase, the core architecture of the
system is developed incrementally. Risks are resolved
according to priorities, and the scope of the system is
refined.
 Construction Phase. In this phase, low risk elements of the
system are implemented and tested incrementally. The
system is prepared for deployment.
 Transition Phase. Beta release of the system is deployed to
the end users. Bug fixes and other tasks such as refining the
system are performed.
14

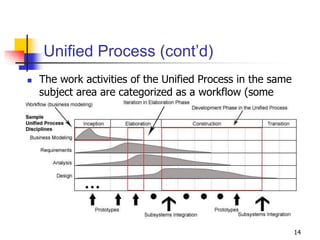

Unified Process (cont’d)
 The work activities of the Unified Process in the same
subject area are categorized as a workflow (some
authors call it a discipline).
15
Techniques
 As mentioned earlier, the techniques part is the most difficult
component of the entire software development method.
 Jacobson considers that teamwork should be the thing that glues
the representation and process components together but offers
very little details on how we can customize or create a method
to solve our problem.
 Nonetheless, he does provide some hints on which model(s)
should be used in each workflow.
 Each of these models associated with a workflow is elaborated
by a sub-figure indicating the types of diagrams likely to be used.
16

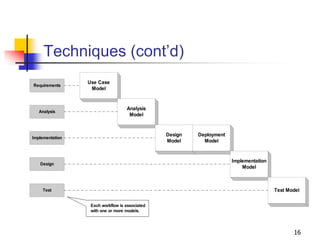

Techniques (cont’d)
Use Case
Model
Requirements
Analysis
Design
Implementation
Test
Each workflow is associated
with one or more models.
Analysis
Model
Design
Model
Deployment
Model
Implementation
Model
Test Model
17
Techniques (cont’d)
Use Case
Model
Analysis
Model
Implementation
Model
Test Model
Deployment
Model
Design
Model
Sequence Diagram
Use Case Diagram
State Diagram
Activity Diagram
Collaboration Diagram
Component
Diagram
Deployment
Diagram
Class
Diagram
Object
Diagram
18
Techniques (cont’d)
Use Case
Model
Analysis
Model
Implementation
Model
Test Model
Deployment
Model
Design
Model
Object DiagramClass Diagram
Sequence Diagram
Collaboration Diagram
State Diagram
Activity Diagram
Use Case
Diagram
Component
Diagram
Deployment
Diagram
19

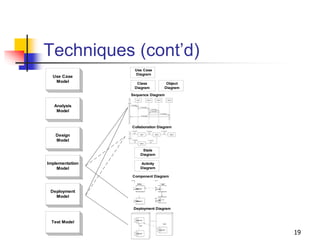

Techniques (cont’d)
Class
Diagram
Object
Diagram
Use Case
Diagram
Use Case
Model
Analysis
Model
Implementation
Model
Test Model
Deployment
Model
Design
Model
State
Diagram
Activity
Diagram
Sequence Diagram
Collaboration Diagram
Component Diagram
Deployment Diagram
20
Techniques (cont’d)
 Despite these hints, little clue is provided on the
selection of the right model (UML diagram) to start
with and the order in which these models (UML
diagrams) should be developed.
 Still don’t know how to develop the required UML
models.
21
Traceability and Models
Consistency
 Another frequently asked question in developing
models is “how do we ensure the models we have
created are consistent?”
 <<trace>> is one of the often used stereotypes in
Rambaugh, Booch and Jacobson’s publication entitled
The Unified Software Development Process.
 Jacobson emphasizes many times in this book on the
traceability between a model and its subsequent
realization models, but there is little hint as to how
we can actually ensure traceability among the models.
22
Traceability and Models
Consistency (cont’d)
Analysis Model Design Model
<<trace>> <<trace>>
Use Case Use Case
use case realizations
23
Need for Method Customization
 There is no universally applicable design method.
 There are many different factors that would affect
our design decisions:
 the competence and skill levels and the prior experience of
the software development team
 different application domains also require different focuses
or impose special constraints
 lifecycle factors: time to market, expected life span, planned
future releases
 technological factors: programming languages, development
tools, databases, middleware, communication, distribution,
etc.

More Related Content

What's hot

Architectural styles and patterns
Architectural styles and patternsArchitectural styles and patterns
Architectural styles and patterns
Himanshu

Software Configuration Management (SCM)
Software Configuration Management (SCM)Software Configuration Management (SCM)
Software Configuration Management (SCM)
Nishkarsh Gupta

Formal Approaches to SQA.pptx
Formal Approaches to SQA.pptxFormal Approaches to SQA.pptx
Formal Approaches to SQA.pptx
KarthigaiSelviS3

Software requirements specification
Software requirements specificationSoftware requirements specification
Software requirements specification
lavanya marichamy

Software architecture design ppt
Software architecture design pptSoftware architecture design ppt
Software architecture design ppt
farazimlak

Language and Processors for Requirements Specification
Language and Processors for Requirements SpecificationLanguage and Processors for Requirements Specification
Language and Processors for Requirements Specification
kirupasuchi1996

Structured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and DesignStructured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and Design
Motaz Saad

Ch6 architectural design
Ch6 architectural designCh6 architectural design
Ch6 architectural design
software-engineering-book

software requirement specification
software requirement specificationsoftware requirement specification
software requirement specification
maliksiddique1

Use Case Modeling
Use Case ModelingUse Case Modeling
Use Case Modeling
Venkat Srinivasan

Requirement specification (SRS)
Requirement specification (SRS)Requirement specification (SRS)
Requirement specification (SRS)
kunj desai

CS8592 Object Oriented Analysis & Design - UNIT II
CS8592 Object Oriented Analysis & Design - UNIT IICS8592 Object Oriented Analysis & Design - UNIT II
CS8592 Object Oriented Analysis & Design - UNIT II
pkaviya

Introduction to Software Engineering
Introduction to Software EngineeringIntroduction to Software Engineering
Introduction to Software Engineering
Majane Padua

Architecture Description Languages
Architecture Description LanguagesArchitecture Description Languages
Architecture Description Languages
Henry Muccini

Quality attributes in software architecture
Quality attributes in software architectureQuality attributes in software architecture
Quality attributes in software architecture
Gang Tao

Ch16-Software Engineering 9
Ch16-Software Engineering 9Ch16-Software Engineering 9
Ch16-Software Engineering 9
Ian Sommerville

Software Quality Metrics
Software Quality MetricsSoftware Quality Metrics
Software Quality Metrics
Mufaddal Nullwala

Software Engineering - Ch11
Software Engineering - Ch11Software Engineering - Ch11
Software Engineering - Ch11
Siddharth Ayer

Use Case Diagram
Use Case DiagramUse Case Diagram
Use Case Diagram
Kumar

Ch1 introduction
Ch1 introductionCh1 introduction
Ch1 introduction
software-engineering-book


What's hot (20)

Architectural styles and patterns
Architectural styles and patternsArchitectural styles and patterns
Architectural styles and patterns

Software Configuration Management (SCM)
Software Configuration Management (SCM)Software Configuration Management (SCM)
Software Configuration Management (SCM)

Formal Approaches to SQA.pptx
Formal Approaches to SQA.pptxFormal Approaches to SQA.pptx
Formal Approaches to SQA.pptx

Software requirements specification
Software requirements specificationSoftware requirements specification
Software requirements specification

Software architecture design ppt
Software architecture design pptSoftware architecture design ppt
Software architecture design ppt

Language and Processors for Requirements Specification
Language and Processors for Requirements SpecificationLanguage and Processors for Requirements Specification
Language and Processors for Requirements Specification

Structured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and DesignStructured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and Design

Ch6 architectural design
Ch6 architectural designCh6 architectural design
Ch6 architectural design

software requirement specification
software requirement specificationsoftware requirement specification
software requirement specification

Use Case Modeling
Use Case ModelingUse Case Modeling
Use Case Modeling

Requirement specification (SRS)
Requirement specification (SRS)Requirement specification (SRS)
Requirement specification (SRS)

CS8592 Object Oriented Analysis & Design - UNIT II
CS8592 Object Oriented Analysis & Design - UNIT IICS8592 Object Oriented Analysis & Design - UNIT II
CS8592 Object Oriented Analysis & Design - UNIT II

Introduction to Software Engineering
Introduction to Software EngineeringIntroduction to Software Engineering
Introduction to Software Engineering

Architecture Description Languages
Architecture Description LanguagesArchitecture Description Languages
Architecture Description Languages

Quality attributes in software architecture
Quality attributes in software architectureQuality attributes in software architecture
Quality attributes in software architecture

Ch16-Software Engineering 9
Ch16-Software Engineering 9Ch16-Software Engineering 9
Ch16-Software Engineering 9

Software Quality Metrics
Software Quality MetricsSoftware Quality Metrics
Software Quality Metrics

Software Engineering - Ch11
Software Engineering - Ch11Software Engineering - Ch11
Software Engineering - Ch11

Use Case Diagram
Use Case DiagramUse Case Diagram
Use Case Diagram

Ch1 introduction
Ch1 introductionCh1 introduction
Ch1 introduction


Viewers also liked

çAnkırı pegasus ucuz uçak bileti telefon
çAnkırı pegasus ucuz  uçak bileti telefonçAnkırı pegasus ucuz  uçak bileti telefon
çAnkırı pegasus ucuz uçak bileti telefon
hasan ahmet

Letter Writing invitation-letter
Letter Writing invitation-letterLetter Writing invitation-letter
Letter Writing invitation-letter
JIGAR MAKHIJA

Høyre presentasjon
Høyre presentasjonHøyre presentasjon
Høyre presentasjon
Einar Fauske

Communication skills
Communication skillsCommunication skills
Communication skills
JIGAR MAKHIJA

Digiculturidad
DigiculturidadDigiculturidad
Digiculturidad
harveymosquera

MLC Cover Report V8b PDF
MLC Cover Report V8b PDFMLC Cover Report V8b PDF
MLC Cover Report V8b PDF
Peter Troniseck

MY RESUME
MY RESUMEMY RESUME
MY RESUME
Carrie Kamiya

INNOVATIVE COMMUNICATION STRATEGY
INNOVATIVE COMMUNICATION STRATEGYINNOVATIVE COMMUNICATION STRATEGY
INNOVATIVE COMMUNICATION STRATEGY
Soumajit Nag

Kabaddi
KabaddiKabaddi
Kabaddi
Sanjiv Gogoi

OpenMinTeD - Repositories in the centre of new scientific knowledge
OpenMinTeD - Repositories in the centre of new scientific knowledgeOpenMinTeD - Repositories in the centre of new scientific knowledge
OpenMinTeD - Repositories in the centre of new scientific knowledge
openminted_eu

Ppt 3d arrow process data flow network diagram powerpoint template business t...
Ppt 3d arrow process data flow network diagram powerpoint template business t...Ppt 3d arrow process data flow network diagram powerpoint template business t...
Ppt 3d arrow process data flow network diagram powerpoint template business t...
SlideTeam.net

Eliptic Partial DIfferential Equation
Eliptic Partial DIfferential EquationEliptic Partial DIfferential Equation
Eliptic Partial DIfferential EquationFajar Perdana

Universal pitch deck template by PitchStock.com
Universal pitch deck template by PitchStock.comUniversal pitch deck template by PitchStock.com
Universal pitch deck template by PitchStock.com
PitchStock

Els assignment presentation
Els assignment presentationEls assignment presentation
Els assignment presentation
rainnie290

Tort reflective journal
Tort reflective journalTort reflective journal
Tort reflective journal
rainnie290


Viewers also liked (15)

çAnkırı pegasus ucuz uçak bileti telefon
çAnkırı pegasus ucuz  uçak bileti telefonçAnkırı pegasus ucuz  uçak bileti telefon
çAnkırı pegasus ucuz uçak bileti telefon

Letter Writing invitation-letter
Letter Writing invitation-letterLetter Writing invitation-letter
Letter Writing invitation-letter

Høyre presentasjon
Høyre presentasjonHøyre presentasjon
Høyre presentasjon

Communication skills
Communication skillsCommunication skills
Communication skills

Digiculturidad
DigiculturidadDigiculturidad
Digiculturidad

MLC Cover Report V8b PDF
MLC Cover Report V8b PDFMLC Cover Report V8b PDF
MLC Cover Report V8b PDF

MY RESUME
MY RESUMEMY RESUME
MY RESUME

INNOVATIVE COMMUNICATION STRATEGY
INNOVATIVE COMMUNICATION STRATEGYINNOVATIVE COMMUNICATION STRATEGY
INNOVATIVE COMMUNICATION STRATEGY

Kabaddi
KabaddiKabaddi
Kabaddi

OpenMinTeD - Repositories in the centre of new scientific knowledge
OpenMinTeD - Repositories in the centre of new scientific knowledgeOpenMinTeD - Repositories in the centre of new scientific knowledge
OpenMinTeD - Repositories in the centre of new scientific knowledge

Ppt 3d arrow process data flow network diagram powerpoint template business t...
Ppt 3d arrow process data flow network diagram powerpoint template business t...Ppt 3d arrow process data flow network diagram powerpoint template business t...
Ppt 3d arrow process data flow network diagram powerpoint template business t...

Eliptic Partial DIfferential Equation
Eliptic Partial DIfferential EquationEliptic Partial DIfferential Equation
Eliptic Partial DIfferential Equation

Universal pitch deck template by PitchStock.com
Universal pitch deck template by PitchStock.comUniversal pitch deck template by PitchStock.com
Universal pitch deck template by PitchStock.com

Els assignment presentation
Els assignment presentationEls assignment presentation
Els assignment presentation

Tort reflective journal
Tort reflective journalTort reflective journal
Tort reflective journal


Similar to View Alignment Techniques

MODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICES
MODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICESMODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICES
MODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICES
ijseajournal

Jar chapter 1
Jar chapter 1Jar chapter 1
Comparing Various SDLC Models On The Basis Of Available Methodology
Comparing Various SDLC Models On The Basis Of Available MethodologyComparing Various SDLC Models On The Basis Of Available Methodology
Comparing Various SDLC Models On The Basis Of Available Methodology
IJMER

Waterfall model
Waterfall modelWaterfall model
Waterfall model
LPK Any Komputer

Ooad lab manual(original)
Ooad lab manual(original)Ooad lab manual(original)
Ooad lab manual(original)
dipenpatelpatel

THE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENT
THE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENTTHE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENT
THE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENT
ijseajournal

Mi0033 software engineering
Mi0033  software engineeringMi0033  software engineering
Mi0033 software engineering
smumbahelp

Chapter1
Chapter1Chapter1
Chapter1
Dang Tuan

Software Engineering
Software Engineering Software Engineering
Software Engineering
JayaKamal

Software models
Software modelsSoftware models
Software models
MOULA HUSSAIN KHATTHEWALE

Difference Between Agile And Waterfall Model
Difference Between Agile And Waterfall ModelDifference Between Agile And Waterfall Model
Difference Between Agile And Waterfall Model
Tammy Moncrief

software Processes
software Processessoftware Processes
software Processes
Seif Shaame

Unit 1 sepm process models
Unit 1 sepm process modelsUnit 1 sepm process models
Unit 1 sepm process models
KanchanPatil34

se02_SW_Process.ppt
se02_SW_Process.pptse02_SW_Process.ppt
se02_SW_Process.ppt
Nhân Công

System Development Life Cycle ( Sdlc )
System Development Life Cycle ( Sdlc )System Development Life Cycle ( Sdlc )
System Development Life Cycle ( Sdlc )
Jennifer Wright

‘O’ Model for Component-Based Software Development Process
‘O’ Model for Component-Based Software Development Process‘O’ Model for Component-Based Software Development Process
‘O’ Model for Component-Based Software Development Process
ijceronline

Software Process in Software Engineering SE3
Software Process in Software Engineering SE3Software Process in Software Engineering SE3
Software Process in Software Engineering SE3
koolkampus

Ch 02 s.e software process models 1
Ch 02 s.e software process models   1Ch 02 s.e software process models   1
Ch 02 s.e software process models 1
Badar Waseer

Ch01
Ch01Ch01
Ch01
蕭美蓮

4 sdlc and stlc
4 sdlc and stlc4 sdlc and stlc
4 sdlc and stlc
Chandra Maddigapu


Similar to View Alignment Techniques (20)

MODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICES
MODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICESMODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICES
MODEL DRIVEN WEB APPLICATION DEVELOPMENT WITH AGILE PRACTICES

Jar chapter 1
Jar chapter 1Jar chapter 1
Jar chapter 1

Comparing Various SDLC Models On The Basis Of Available Methodology
Comparing Various SDLC Models On The Basis Of Available MethodologyComparing Various SDLC Models On The Basis Of Available Methodology
Comparing Various SDLC Models On The Basis Of Available Methodology

Waterfall model
Waterfall modelWaterfall model
Waterfall model

Ooad lab manual(original)
Ooad lab manual(original)Ooad lab manual(original)
Ooad lab manual(original)

THE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENT
THE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENTTHE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENT
THE UNIFIED APPROACH FOR ORGANIZATIONAL NETWORK VULNERABILITY ASSESSMENT

Mi0033 software engineering
Mi0033  software engineeringMi0033  software engineering
Mi0033 software engineering

Chapter1
Chapter1Chapter1
Chapter1

Software Engineering
Software Engineering Software Engineering
Software Engineering

Software models
Software modelsSoftware models
Software models

Difference Between Agile And Waterfall Model
Difference Between Agile And Waterfall ModelDifference Between Agile And Waterfall Model
Difference Between Agile And Waterfall Model

software Processes
software Processessoftware Processes
software Processes

Unit 1 sepm process models
Unit 1 sepm process modelsUnit 1 sepm process models
Unit 1 sepm process models

se02_SW_Process.ppt
se02_SW_Process.pptse02_SW_Process.ppt
se02_SW_Process.ppt

System Development Life Cycle ( Sdlc )
System Development Life Cycle ( Sdlc )System Development Life Cycle ( Sdlc )
System Development Life Cycle ( Sdlc )

‘O’ Model for Component-Based Software Development Process
‘O’ Model for Component-Based Software Development Process‘O’ Model for Component-Based Software Development Process
‘O’ Model for Component-Based Software Development Process

Software Process in Software Engineering SE3
Software Process in Software Engineering SE3Software Process in Software Engineering SE3
Software Process in Software Engineering SE3

Ch 02 s.e software process models 1
Ch 02 s.e software process models   1Ch 02 s.e software process models   1
Ch 02 s.e software process models 1

Ch01
Ch01Ch01
Ch01

4 sdlc and stlc
4 sdlc and stlc4 sdlc and stlc
4 sdlc and stlc


More from JIGAR MAKHIJA

Php gd library
Php gd libraryPhp gd library
Php gd library
JIGAR MAKHIJA

Php pattern matching
Php pattern matchingPhp pattern matching
Php pattern matching
JIGAR MAKHIJA

Php cookies
Php cookiesPhp cookies
Php cookies
JIGAR MAKHIJA

Php functions
Php functionsPhp functions
Php functions
JIGAR MAKHIJA

Php sessions
Php sessionsPhp sessions
Php sessions
JIGAR MAKHIJA

Php server variables
Php server variablesPhp server variables
Php server variables
JIGAR MAKHIJA

Db function
Db functionDb function
Db function
JIGAR MAKHIJA

C++ version 1
C++  version 1C++  version 1
C++ version 1
JIGAR MAKHIJA

C++ Version 2
C++  Version 2C++  Version 2
C++ Version 2
JIGAR MAKHIJA

SAP Ui5 content
SAP Ui5 contentSAP Ui5 content
SAP Ui5 content
JIGAR MAKHIJA

Solution doc
Solution docSolution doc
Solution doc
JIGAR MAKHIJA

Overview on Application protocols in Internet of Things
Overview on Application protocols in Internet of ThingsOverview on Application protocols in Internet of Things
Overview on Application protocols in Internet of Things
JIGAR MAKHIJA

125 green iot
125 green iot125 green iot
125 green iot
JIGAR MAKHIJA

Msp430 g2 with ble(Bluetooth Low Energy)
Msp430 g2 with ble(Bluetooth Low Energy)Msp430 g2 with ble(Bluetooth Low Energy)
Msp430 g2 with ble(Bluetooth Low Energy)
JIGAR MAKHIJA

Embedded system lab work
Embedded system lab workEmbedded system lab work
Embedded system lab work
JIGAR MAKHIJA

Presentation on iot- Internet of Things
Presentation on iot- Internet of ThingsPresentation on iot- Internet of Things
Presentation on iot- Internet of Things
JIGAR MAKHIJA

Oracle
OracleOracle
Learn Japanese -Basic kanji 120
Learn Japanese -Basic kanji 120Learn Japanese -Basic kanji 120
Learn Japanese -Basic kanji 120
JIGAR MAKHIJA

Letters (complaints & invitations)
Letters (complaints & invitations)Letters (complaints & invitations)
Letters (complaints & invitations)
JIGAR MAKHIJA

Communication skills Revised PPT
Communication skills Revised PPTCommunication skills Revised PPT
Communication skills Revised PPT
JIGAR MAKHIJA


More from JIGAR MAKHIJA (20)

Php gd library
Php gd libraryPhp gd library
Php gd library

Php pattern matching
Php pattern matchingPhp pattern matching
Php pattern matching

Php cookies
Php cookiesPhp cookies
Php cookies

Php functions
Php functionsPhp functions
Php functions

Php sessions
Php sessionsPhp sessions
Php sessions

Php server variables
Php server variablesPhp server variables
Php server variables

Db function
Db functionDb function
Db function

C++ version 1
C++  version 1C++  version 1
C++ version 1

C++ Version 2
C++  Version 2C++  Version 2
C++ Version 2

SAP Ui5 content
SAP Ui5 contentSAP Ui5 content
SAP Ui5 content

Solution doc
Solution docSolution doc
Solution doc

Overview on Application protocols in Internet of Things
Overview on Application protocols in Internet of ThingsOverview on Application protocols in Internet of Things
Overview on Application protocols in Internet of Things

125 green iot
125 green iot125 green iot
125 green iot

Msp430 g2 with ble(Bluetooth Low Energy)
Msp430 g2 with ble(Bluetooth Low Energy)Msp430 g2 with ble(Bluetooth Low Energy)
Msp430 g2 with ble(Bluetooth Low Energy)

Embedded system lab work
Embedded system lab workEmbedded system lab work
Embedded system lab work

Presentation on iot- Internet of Things
Presentation on iot- Internet of ThingsPresentation on iot- Internet of Things
Presentation on iot- Internet of Things

Oracle
OracleOracle
Oracle

Learn Japanese -Basic kanji 120
Learn Japanese -Basic kanji 120Learn Japanese -Basic kanji 120
Learn Japanese -Basic kanji 120

Letters (complaints & invitations)
Letters (complaints & invitations)Letters (complaints & invitations)
Letters (complaints & invitations)

Communication skills Revised PPT
Communication skills Revised PPTCommunication skills Revised PPT
Communication skills Revised PPT


Recently uploaded

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Dr. Vinod Kumar Kanvaria

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student
NgcHiNguyn25

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17
Celine George

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
Priyankaranawat4

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf
WaniBasim

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM
Celine George

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory
Celine George

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT
simonomuemu

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie
Nicholas Montgomery

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology
paigestewart1632

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5
sayalidalavi006

Azure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHatAzure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHat
Scholarhat

বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdfবাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
eBook.com.bd (প্রয়োজনীয় বাংলা বই)

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method
Celine George

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx
adhitya5119

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Mohd Adib Abd Muin, Senior Lecturer at Universiti Utara Malaysia


Recently uploaded (20)

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5

Azure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHatAzure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHat

বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdfবাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx


View Alignment Techniques

  • 1. Chapter 6 View Alignment Techniques and Method Customization (Part I) Object-Oriented Technology From Diagram to Code with Visual Paradigm for UML
  • 2. 2 Objectives  After you have read this chapter, you should be able to  Appreciate the benefits of using a method for software development.  Understand the limitations of current software development methods.  Understand the framework of View Alignment Techniques.  Apply the View Alignment Techniques to customize and create a method.  Use the Activity Analysis Approach effectively for developing workflow-oriented and activity intensive software systems.
  • 3. 3 What Is Software Development Method?  A software development method consists of a complete set of activities needed to transform users’ requirements into a consistent set of artifacts that represent a software product.  Typically, a software development method specifies a series of stages that encompass requirements gathering, design, development, testing, delivery, maintenance and enhancement of a system, and helps the developer build software systems in a reliable and consistent way.  In general, software development methods allow the building of models from model elements that constitute the fundamental concepts for representing systems or phenomena.
  • 4. 4 Components of Software Development Methods (cont’d)  Representation. A set of recommended representation (notation), e.g., the Unified Modeling Language (UML)) consisting of one or more forms of a notation that can be used to model both the structure of the initial problem (requirements) and the intended solution, using one or more viewpoints (models) and different levels of abstraction.  Process. It provides a framework from which a comprehensive plan for software development should be established. This development plan consists of a specific ordered set of tasks aimed at producing software solutions, e.g. Unified Process.
  • 5. 5 Components of Software Development Methods (cont’d)  Techniques. They are heuristics, guidelines and procedures that help designers develop the software development plan for their project. In other words, they help customize the process framework for the system being developed, such as defining the order of tasks to be carried out within the process, selecting the models and their perspective to be focused at the optimum level of abstraction.
  • 6. 6 Components of Software Development Methods  A software development method primarily comprises three components:  a process,  a representation system or a modeling notation, and  techniques, heuristics, steps or procedures
  • 7. 7 Why Traditional Software Methods Didn’t Work Miracles?  There is no universal method that can be readily applied to all problems in any circumstances without the need for customization.  Demarco points out that to ensure success the project team should tailor the method to needs of the individual project rather than attempt force-fitting the project into the Methodology.  Spolsky’s story
  • 8. 8 Hurdles in Applying the Object-oriented Approach  The UML provides an extremely rich set of notations for representing systems. Booch suggests that 80% of software projects use only about 20% of the UML notation.  To the designer, it would be rather difficult to decide which subset of UML notation should be used for the project at hand.
  • 9. 9 Hurdles in Applying the Object- oriented Approach (cont’d) Use Case Diagram Class Diagram Component Diagram Object Diagram Activity Diagram State Diagram Deployment Diagram Collaboration Diagram Sequence Diagram Models
  • 10. 10 Hurdles in Applying the Object- oriented Approach (cont’d)  Designers are often confronted with many questions throughout the development life cycle, and the following are some typical ones:  What models are required to represent the system?  How do I apply the selected models to perform the development work?  Which model should I use first, and which model(s) should follow next?  How can I ensure that the models of the system are consistent?
  • 11. 11 Current Object-oriented Development Approaches  The Unified Modeling Language is now the de facto standard graphical language for representing systems in the software industry.  The Unified Process is a widely used software development process. In the Unified Process, a system is built incrementally through a number of iterations in which the designer may perform requirements capturing, analysis, design, implementation and testing tasks.
  • 12. 12 Unified Process  The iterations are divided into four phases: inception, elaboration, construction and transition
  • 13. 13 Unified Process (cont’d)  Each phase has a different focus:  Inception Phase. This phase focuses on establishing the business case, defining the scope of the system and estimating the amount of resources including time required to complete the project.  Elaboration Phase. In this phase, the core architecture of the system is developed incrementally. Risks are resolved according to priorities, and the scope of the system is refined.  Construction Phase. In this phase, low risk elements of the system are implemented and tested incrementally. The system is prepared for deployment.  Transition Phase. Beta release of the system is deployed to the end users. Bug fixes and other tasks such as refining the system are performed.
  • 14. 14 Unified Process (cont’d)  The work activities of the Unified Process in the same subject area are categorized as a workflow (some authors call it a discipline).
  • 15. 15 Techniques  As mentioned earlier, the techniques part is the most difficult component of the entire software development method.  Jacobson considers that teamwork should be the thing that glues the representation and process components together but offers very little details on how we can customize or create a method to solve our problem.  Nonetheless, he does provide some hints on which model(s) should be used in each workflow.  Each of these models associated with a workflow is elaborated by a sub-figure indicating the types of diagrams likely to be used.
  • 16. 16 Techniques (cont’d) Use Case Model Requirements Analysis Design Implementation Test Each workflow is associated with one or more models. Analysis Model Design Model Deployment Model Implementation Model Test Model
  • 17. 17 Techniques (cont’d) Use Case Model Analysis Model Implementation Model Test Model Deployment Model Design Model Sequence Diagram Use Case Diagram State Diagram Activity Diagram Collaboration Diagram Component Diagram Deployment Diagram Class Diagram Object Diagram
  • 18. 18 Techniques (cont’d) Use Case Model Analysis Model Implementation Model Test Model Deployment Model Design Model Object DiagramClass Diagram Sequence Diagram Collaboration Diagram State Diagram Activity Diagram Use Case Diagram Component Diagram Deployment Diagram
  • 19. 19 Techniques (cont’d) Class Diagram Object Diagram Use Case Diagram Use Case Model Analysis Model Implementation Model Test Model Deployment Model Design Model State Diagram Activity Diagram Sequence Diagram Collaboration Diagram Component Diagram Deployment Diagram
  • 20. 20 Techniques (cont’d)  Despite these hints, little clue is provided on the selection of the right model (UML diagram) to start with and the order in which these models (UML diagrams) should be developed.  Still don’t know how to develop the required UML models.
  • 21. 21 Traceability and Models Consistency  Another frequently asked question in developing models is “how do we ensure the models we have created are consistent?”  <<trace>> is one of the often used stereotypes in Rambaugh, Booch and Jacobson’s publication entitled The Unified Software Development Process.  Jacobson emphasizes many times in this book on the traceability between a model and its subsequent realization models, but there is little hint as to how we can actually ensure traceability among the models.
  • 22. 22 Traceability and Models Consistency (cont’d) Analysis Model Design Model <<trace>> <<trace>> Use Case Use Case use case realizations
  • 23. 23 Need for Method Customization  There is no universally applicable design method.  There are many different factors that would affect our design decisions:  the competence and skill levels and the prior experience of the software development team  different application domains also require different focuses or impose special constraints  lifecycle factors: time to market, expected life span, planned future releases  technological factors: programming languages, development tools, databases, middleware, communication, distribution, etc.

Editor's Notes

  1. 16/11/2001
