Video Coding Video Compression MIT 6.344, Spring 2004 John G. Apostolopoulos Streaming Media Systems Group Hewlett-Packard Laboratories japos@hpl.hp.com John G. Apostolopoulos April 22, 2004 Page 1

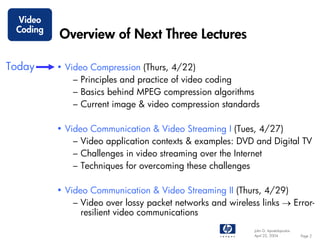

Video Coding Overview of Next Three Lectures Today • Video Compression (Thurs, 4/22) – Principles and practice of video coding – Basics behind MPEG compression algorithms – Current image & video compression standards • Video Communication & Video Streaming I (Tues, 4/27) – Video application contexts & examples: DVD and Digital TV – Challenges in video streaming over the Internet – Techniques for overcoming these challenges • Video Communication & Video Streaming II (Thurs, 4/29) – Video over lossy packet networks and wireless links → Error- resilient video communications John G. Apostolopoulos April 22, 2004 Page 2

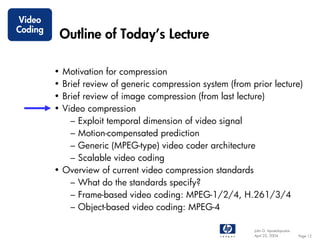

Video Coding Outline of Today’s Lecture • Motivation for compression • Brief review of generic compression system (from prior lecture) • Brief review of image compression (from last lecture) • Video compression – Exploit temporal dimension of video signal – Motion-compensated prediction – Generic (MPEG-type) video coder architecture – Scalable video coding • Overview of current video compression standards – What do the standards specify? – Frame-based video coding: MPEG-1/2/4, H.261/3/4 – Object-based video coding: MPEG-4 John G. Apostolopoulos April 22, 2004 Page 3

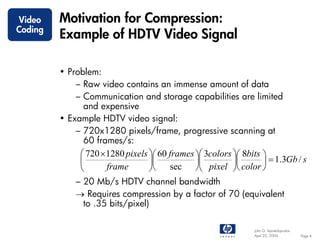

Video Motivation for Compression: Coding Example of HDTV Video Signal • Problem: – Raw video contains an immense amount of data – Communication and storage capabilities are limited and expensive • Example HDTV video signal: – 720x1280 pixels/frame, progressive scanning at 60 frames/s: ⎛ 720 × 1280 pixels ⎞⎛ 60 frames ⎞⎛ 3colors ⎞⎛ 8bits ⎞ ⎜ ⎟⎜ ⎟⎜ ⎟⎜ ⎟ = 1.3Gb / s ⎝ frame ⎠⎝ sec ⎠⎝ pixel ⎠⎝ color ⎠ – 20 Mb/s HDTV channel bandwidth → Requires compression by a factor of 70 (equivalent to .35 bits/pixel) John G. Apostolopoulos April 22, 2004 Page 4
Video Coding Achieving Compression • Reduce redundancy and irrelevancy • Sources of redundancy – Temporal: Adjacent frames highly correlated – Spatial: Nearby pixels are often correlated with each other – Color space: RGB components are correlated among themselves → Relatively straightforward to exploit • Irrelevancy – Perceptually unimportant information → Difficult to model and exploit John G. Apostolopoulos April 22, 2004 Page 5

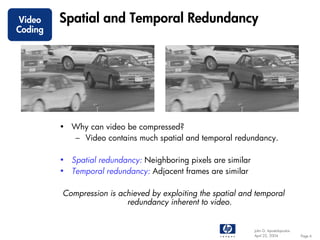

Video Spatial and Temporal Redundancy Coding • Why can video be compressed? – Video contains much spatial and temporal redundancy. • Spatial redundancy: Neighboring pixels are similar • Temporal redundancy: Adjacent frames are similar Compression is achieved by exploiting the spatial and temporal redundancy inherent to video. John G. Apostolopoulos April 22, 2004 Page 6
Video Coding Outline of Today’s Lecture • Motivation for compression • Brief review of generic compression system (from prior lecture) • Brief review of image compression (from last lecture) • Video compression – Exploit temporal dimension of video signal – Motion-compensated prediction – Generic (MPEG-type) video coder architecture – Scalable video coding • Overview of current video compression standards – What do the standards specify? – Frame-based video coding: MPEG-1/2/4, H.261/3/4 – Object-based video coding: MPEG-4 John G. Apostolopoulos April 22, 2004 Page 7
Video Coding Generic Compression System Original Compressed Signal Representation Binary Bitstream Quantization (Analysis) Encoding A compression system is composed of three key building blocks: • Representation – Concentrates important information into a few parameters • Quantization – Discretizes parameters • Binary encoding – Exploits non-uniform statistics of quantized parameters – Creates bitstream for transmission John G. Apostolopoulos April 22, 2004 Page 8

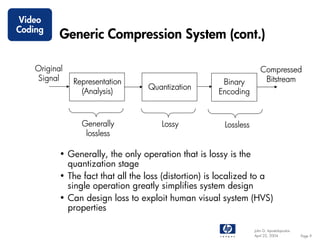

Video Coding Generic Compression System (cont.) Original Compressed Signal Representation Binary Bitstream Quantization (Analysis) Encoding Generally Lossy Lossless lossless • Generally, the only operation that is lossy is the quantization stage • The fact that all the loss (distortion) is localized to a single operation greatly simplifies system design • Can design loss to exploit human visual system (HVS) properties John G. Apostolopoulos April 22, 2004 Page 9
Video Coding Generic Compression System (cont.) Original Compressed Signal Bitstream Representation Binary Quantization (Analysis) Encoding Source Encoder Channel Reconstructed Signal Representation Inverse Binary (Synthesis) Quantization Decoding Source Decoder • Source decoder performs the inverse of each of the three operations John G. Apostolopoulos April 22, 2004 Page 10

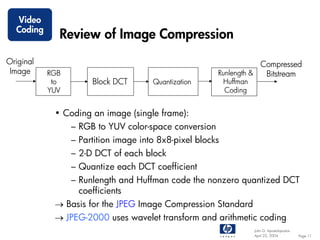

Video Coding Review of Image Compression Original Compressed Image RGB Runlength & Bitstream to Block DCT Quantization Huffman YUV Coding • Coding an image (single frame): – RGB to YUV color-space conversion – Partition image into 8x8-pixel blocks – 2-D DCT of each block – Quantize each DCT coefficient – Runlength and Huffman code the nonzero quantized DCT coefficients → Basis for the JPEG Image Compression Standard → JPEG-2000 uses wavelet transform and arithmetic coding John G. Apostolopoulos April 22, 2004 Page 11
Video Coding Outline of Today’s Lecture • Motivation for compression • Brief review of generic compression system (from prior lecture) • Brief review of image compression (from last lecture) • Video compression – Exploit temporal dimension of video signal – Motion-compensated prediction – Generic (MPEG-type) video coder architecture – Scalable video coding • Overview of current video compression standards – What do the standards specify? – Frame-based video coding: MPEG-1/2/4, H.261/3/4 – Object-based video coding: MPEG-4 John G. Apostolopoulos April 22, 2004 Page 12
Video Coding Video Compression • Video: Sequence of frames (images) that are related • Related along the temporal dimension – Therefore temporal redundancy exists • Main addition over image compression – Temporal redundancy → Video coder must exploit the temporal redundancy John G. Apostolopoulos April 22, 2004 Page 13

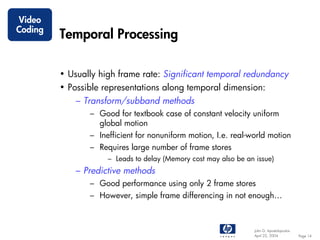

Video Coding Temporal Processing • Usually high frame rate: Significant temporal redundancy • Possible representations along temporal dimension: – Transform/subband methods – Good for textbook case of constant velocity uniform global motion – Inefficient for nonuniform motion, I.e. real-world motion – Requires large number of frame stores – Leads to delay (Memory cost may also be an issue) – Predictive methods – Good performance using only 2 frame stores – However, simple frame differencing in not enough… John G. Apostolopoulos April 22, 2004 Page 14

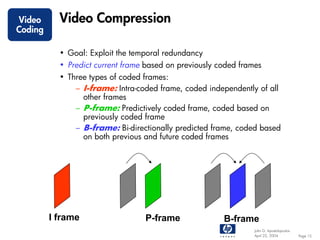

Video Video Compression Coding • Goal: Exploit the temporal redundancy • Predict current frame based on previously coded frames • Three types of coded frames: – I-frame: Intra-coded frame, coded independently of all other frames – P-frame: Predictively coded frame, coded based on previously coded frame – B-frame: Bi-directionally predicted frame, coded based on both previous and future coded frames I frame P-frame B-frame John G. Apostolopoulos April 22, 2004 Page 15
Video Temporal Processing: Coding Motion-Compensated Prediction • Simple frame differencing fails when there is motion • Must account for motion → Motion-compensated (MC) prediction • MC-prediction generally provides significant improvements • Questions: – How can we estimate motion? – How can we form MC-prediction? John G. Apostolopoulos April 22, 2004 Page 16

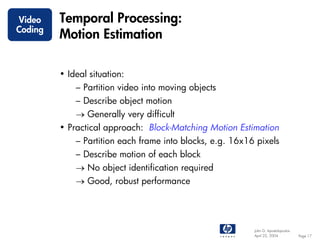

Video Temporal Processing: Coding Motion Estimation • Ideal situation: – Partition video into moving objects – Describe object motion → Generally very difficult • Practical approach: Block-Matching Motion Estimation – Partition each frame into blocks, e.g. 16x16 pixels – Describe motion of each block → No object identification required → Good, robust performance John G. Apostolopoulos April 22, 2004 Page 17

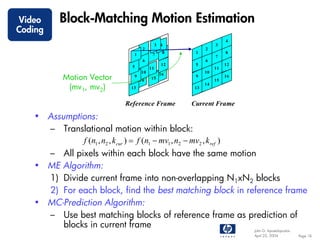

Video Block-Matching Motion Estimation Coding 4 3 4 3 2 2 1 7 8 1 8 7 6 6 5 12 5 12 11 11 10 10 Motion Vector 9 16 9 16 14 15 15 (mv1, mv2) 13 13 14 Reference Frame Current Frame • Assumptions: – Translational motion within block: f (n1 , n2 , kcur ) = f (n1 − mv1 , n2 − mv2 , k ref ) – All pixels within each block have the same motion • ME Algorithm: 1) Divide current frame into non-overlapping N1xN2 blocks 2) For each block, find the best matching block in reference frame • MC-Prediction Algorithm: – Use best matching blocks of reference frame as prediction of blocks in current frame John G. Apostolopoulos April 22, 2004 Page 18
Video Block Matching: Coding Determining the Best Matching Block • For each block in the current frame search for best matching block in the reference frame – Metrics for determining “best match”: MSE = ∑ ∑ [ f (n1, n2 , kcur ) − f (n1 − mv1, n2 − mv2 , kref )]2 ( n1 ,n2 )∈Block MAE = ∑ ∑ f (n1, n2 , kcur ) − f (n1 − mv1, n2 − mv2 , kref ) ( n1 ,n2 )∈Block – Candidate blocks: All blocks in, e.g., (± 32,±32) pixel area – Strategies for searching candidate blocks for best match – Full search: Examine all candidate blocks – Partial (fast) search: Examine a carefully selected subset • Estimate of motion for best matching block: “motion vector” John G. Apostolopoulos April 22, 2004 Page 19

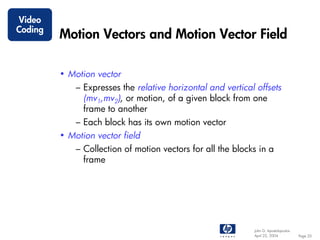

Video Coding Motion Vectors and Motion Vector Field • Motion vector – Expresses the relative horizontal and vertical offsets (mv1,mv2), or motion, of a given block from one frame to another – Each block has its own motion vector • Motion vector field – Collection of motion vectors for all the blocks in a frame John G. Apostolopoulos April 22, 2004 Page 20

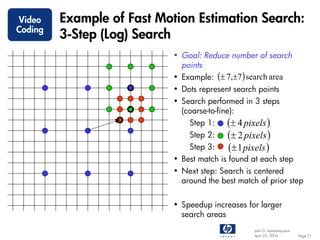

Video Example of Fast Motion Estimation Search: Coding 3-Step (Log) Search • Goal: Reduce number of search points • Example: (± 7,±7 ) search area • Dots represent search points • Search performed in 3 steps (coarse-to-fine): Step 1: (± 4 pixels ) Step 2: (± 2 pixels ) Step 3: (± 1 pixels ) • Best match is found at each step • Next step: Search is centered around the best match of prior step • Speedup increases for larger search areas John G. Apostolopoulos April 22, 2004 Page 21

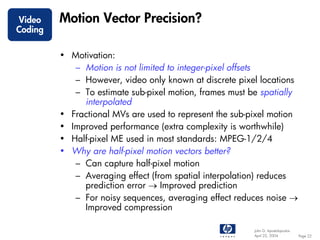

Video Motion Vector Precision? Coding • Motivation: – Motion is not limited to integer-pixel offsets – However, video only known at discrete pixel locations – To estimate sub-pixel motion, frames must be spatially interpolated • Fractional MVs are used to represent the sub-pixel motion • Improved performance (extra complexity is worthwhile) • Half-pixel ME used in most standards: MPEG-1/2/4 • Why are half-pixel motion vectors better? – Can capture half-pixel motion – Averaging effect (from spatial interpolation) reduces prediction error → Improved prediction – For noisy sequences, averaging effect reduces noise → Improved compression John G. Apostolopoulos April 22, 2004 Page 22
Video Practical Half-Pixel Motion Estimation Coding Algorithm • Half-pixel ME (coarse-fine) algorithm: 1) Coarse step: Perform integer motion estimation on blocks; find best integer-pixel MV 2) Fine step: Refine estimate to find best half-pixel MV a) Spatially interpolate the selected region in reference frame b) Compare current block to interpolated reference frame block c) Choose the integer or half-pixel offset that provides best match • Typically, bilinear interpolation is used for spatial interpolation John G. Apostolopoulos April 22, 2004 Page 23

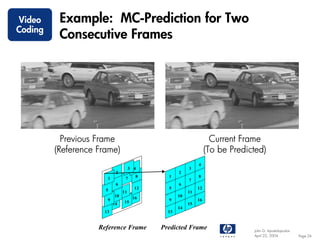

Video Example: MC-Prediction for Two Coding Consecutive Frames Previous Frame Current Frame (Reference Frame) (To be Predicted) 4 3 4 3 2 2 1 7 8 1 8 7 6 6 5 12 5 12 11 11 10 16 10 9 15 9 16 14 15 14 13 13 Reference Frame Predicted Frame John G. Apostolopoulos April 22, 2004 Page 24

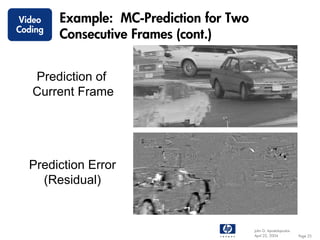

Video Example: MC-Prediction for Two Coding Consecutive Frames (cont.) Prediction of Current Frame Prediction Error (Residual) John G. Apostolopoulos April 22, 2004 Page 25

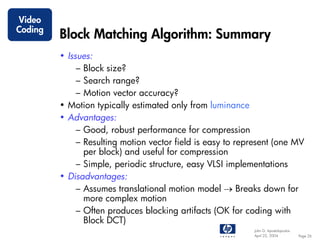

Video Coding Block Matching Algorithm: Summary • Issues: – Block size? – Search range? – Motion vector accuracy? • Motion typically estimated only from luminance • Advantages: – Good, robust performance for compression – Resulting motion vector field is easy to represent (one MV per block) and useful for compression – Simple, periodic structure, easy VLSI implementations • Disadvantages: – Assumes translational motion model → Breaks down for more complex motion – Often produces blocking artifacts (OK for coding with Block DCT) John G. Apostolopoulos April 22, 2004 Page 26
Video Bi-Directional MC-Prediction Coding 4 4 3 4 3 2 2 3 1 7 8 1 8 1 2 7 8 7 6 6 6 5 12 5 12 5 11 12 11 11 10 16 10 10 9 15 9 16 9 15 16 14 15 14 14 13 13 13 Previous Frame Current Frame Future Frame • Bi-Directional MC-Prediction is used to estimate a block in the current frame from a block in: 1) Previous frame 2) Future frame 3) Average of a block from the previous frame and a block from the future frame 4) Neither, i.e. code current block without prediction John G. Apostolopoulos April 22, 2004 Page 27

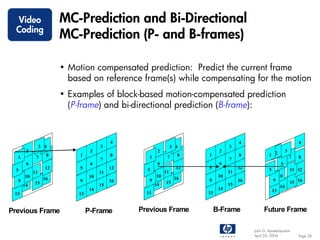

Video MC-Prediction and Bi-Directional Coding MC-Prediction (P- and B-frames) • Motion compensated prediction: Predict the current frame based on reference frame(s) while compensating for the motion • Examples of block-based motion-compensated prediction (P-frame) and bi-directional prediction (B-frame): 4 4 4 3 4 3 3 4 3 2 2 2 2 3 1 7 8 1 8 1 7 8 1 8 1 2 7 8 7 7 6 6 6 6 6 12 5 12 5 12 5 12 5 11 12 5 11 11 11 11 10 10 10 16 10 10 16 9 9 15 9 16 9 14 15 9 15 16 15 16 14 15 14 14 14 13 13 13 13 13 Previous Frame P-Frame Previous Frame B-Frame Future Frame John G. Apostolopoulos April 22, 2004 Page 28
Video Video Compression Coding • Main addition over image compression: – Exploit the temporal redundancy • Predict current frame based on previously coded frames • Three types of coded frames: – I-frame: Intra-coded frame, coded independently of all other frames – P-frame: Predictively coded frame, coded based on previously coded frame – B-frame: Bi-directionally predicted frame, coded based on both previous and future coded frames I frame P-frame B-frame John G. Apostolopoulos April 22, 2004 Page 29

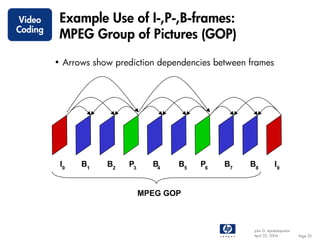

Video Example Use of I-,P-,B-frames: Coding MPEG Group of Pictures (GOP) • Arrows show prediction dependencies between frames I0 B1 B2 P3 B4 B5 P6 B7 B8 I9 MPEG GOP John G. Apostolopoulos April 22, 2004 Page 30

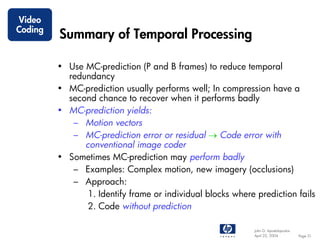

Video Coding Summary of Temporal Processing • Use MC-prediction (P and B frames) to reduce temporal redundancy • MC-prediction usually performs well; In compression have a second chance to recover when it performs badly • MC-prediction yields: – Motion vectors – MC-prediction error or residual → Code error with conventional image coder • Sometimes MC-prediction may perform badly – Examples: Complex motion, new imagery (occlusions) – Approach: 1. Identify frame or individual blocks where prediction fails 2. Code without prediction John G. Apostolopoulos April 22, 2004 Page 31
Video Coding Basic Video Compression Architecture • Exploiting the redundancies: – Temporal: MC-prediction (P and B frames) – Spatial: Block DCT – Color: Color space conversion • Scalar quantization of DCT coefficients • Zigzag scanning, runlength and Huffman coding of the nonzero quantized DCT coefficients John G. Apostolopoulos April 22, 2004 Page 32

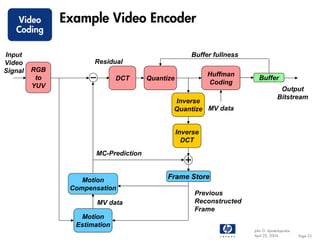

Video Example Video Encoder Coding Input Buffer fullness Video Residual Signal RGB Huffman to DCT Quantize Buffer Coding YUV Output Bitstream Inverse Quantize MV data Inverse DCT MC-Prediction Motion Frame Store Compensation Previous MV data Reconstructed Frame Motion Estimation John G. Apostolopoulos April 22, 2004 Page 33

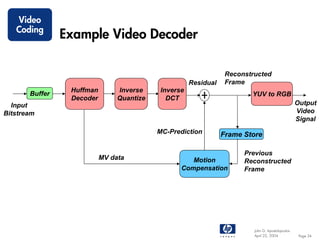

Video Coding Example Video Decoder Reconstructed Residual Frame Huffman Inverse Inverse Buffer YUV to RGB Decoder Quantize DCT Input Output Bitstream Video Signal MC-Prediction Frame Store Previous MV data Motion Reconstructed Compensation Frame John G. Apostolopoulos April 22, 2004 Page 34
Video Coding Outline of Today’s Lecture • Motivation for compression • Brief review of generic compression system (from prior lecture) • Brief review of image compression (from last lecture) • Video compression – Exploit temporal dimension of video signal – Motion-compensated prediction – Generic (MPEG-type) video coder architecture – Scalable video coding • Overview of current video compression standards – What do the standards specify? – Frame-based video coding: MPEG-1/2/4, H.261/3/4 – Object-based video coding: MPEG-4 John G. Apostolopoulos April 22, 2004 Page 35

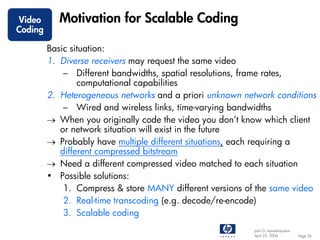

Video Motivation for Scalable Coding Coding Basic situation: 1. Diverse receivers may request the same video – Different bandwidths, spatial resolutions, frame rates, computational capabilities 2. Heterogeneous networks and a priori unknown network conditions – Wired and wireless links, time-varying bandwidths → When you originally code the video you don’t know which client or network situation will exist in the future → Probably have multiple different situations, each requiring a different compressed bitstream → Need a different compressed video matched to each situation • Possible solutions: 1. Compress & store MANY different versions of the same video 2. Real-time transcoding (e.g. decode/re-encode) 3. Scalable coding John G. Apostolopoulos April 22, 2004 Page 36

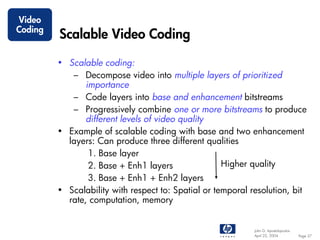

Video Coding Scalable Video Coding • Scalable coding: – Decompose video into multiple layers of prioritized importance – Code layers into base and enhancement bitstreams – Progressively combine one or more bitstreams to produce different levels of video quality • Example of scalable coding with base and two enhancement layers: Can produce three different qualities 1. Base layer 2. Base + Enh1 layers Higher quality 3. Base + Enh1 + Enh2 layers • Scalability with respect to: Spatial or temporal resolution, bit rate, computation, memory John G. Apostolopoulos April 22, 2004 Page 37

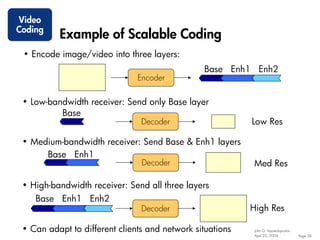

Video Coding Example of Scalable Coding • Encode image/video into three layers: Base Enh1 Enh2 Encoder • Low-bandwidth receiver: Send only Base layer Base Decoder Low Res • Medium-bandwidth receiver: Send Base & Enh1 layers Base Enh1 Decoder Med Res • High-bandwidth receiver: Send all three layers Base Enh1 Enh2 Decoder High Res • Can adapt to different clients and network situations John G. Apostolopoulos April 22, 2004 Page 38

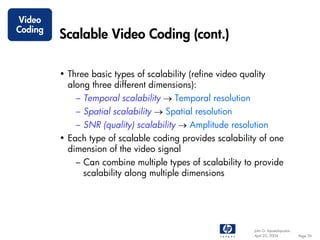

Video Coding Scalable Video Coding (cont.) • Three basic types of scalability (refine video quality along three different dimensions): – Temporal scalability → Temporal resolution – Spatial scalability → Spatial resolution – SNR (quality) scalability → Amplitude resolution • Each type of scalable coding provides scalability of one dimension of the video signal – Can combine multiple types of scalability to provide scalability along multiple dimensions John G. Apostolopoulos April 22, 2004 Page 39

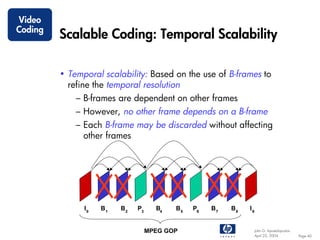

Video Coding Scalable Coding: Temporal Scalability • Temporal scalability: Based on the use of B-frames to refine the temporal resolution – B-frames are dependent on other frames – However, no other frame depends on a B-frame – Each B-frame may be discarded without affecting other frames I0 B1 B2 P3 B4 B5 P6 B7 B8 I9 MPEG GOP John G. Apostolopoulos April 22, 2004 Page 40
Video Coding Scalable Coding: Spatial Scalability • Spatial scalability: Based on refining the spatial resolution – Base layer is low resolution version of video – Enh1 contains coded difference between upsampled base layer and original video – Also called: Pyramid coding Enh layer Enc Dec ↓2 ↑2 ↑2 High-Res Original Video Video Dec Base layer Low-Res Enc Dec Video John G. Apostolopoulos April 22, 2004 Page 41

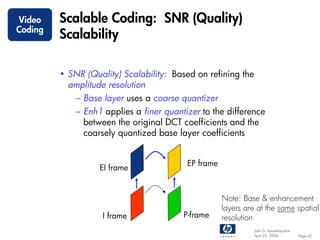

Video Scalable Coding: SNR (Quality) Coding Scalability • SNR (Quality) Scalability: Based on refining the amplitude resolution – Base layer uses a coarse quantizer – Enh1 applies a finer quantizer to the difference between the original DCT coefficients and the coarsely quantized base layer coefficients EP frame EI frame Note: Base & enhancement layers are at the same spatial I frame P-frame resolution John G. Apostolopoulos April 22, 2004 Page 42
Video Coding Summary of Scalable Video Coding • Three basic types of scalable video coding: – Temporal scalability – Spatial scalability – SNR (quality) scalability • Scalable coding produces different layers with prioritized importance • Prioritized importance is key for a variety of applications: – Adapting to different bandwidths, or client resources such as spatial or temporal resolution or computational power – Facilitates error-resilience by explicitly identifying most important and less important bits John G. Apostolopoulos April 22, 2004 Page 43
Video Coding Outline of Today’s Lecture • Motivation for compression • Brief review of generic compression system (from prior lecture) • Brief review of image compression (from last lecture) • Video compression – Exploit temporal dimension of video signal – Motion-compensated prediction – Generic (MPEG-type) video coder architecture – Scalable video coding • Overview of current video compression standards – What do the standards specify? – Frame-based video coding: MPEG-1/2/4, H.261/3/4 – Object-based video coding: MPEG-4 John G. Apostolopoulos April 22, 2004 Page 44
Video Coding Motivation for Standards • Goal of standards: – Ensuring interoperability: Enabling communication between devices made by different manufacturers – Promoting a technology or industry – Reducing costs John G. Apostolopoulos April 22, 2004 Page 45

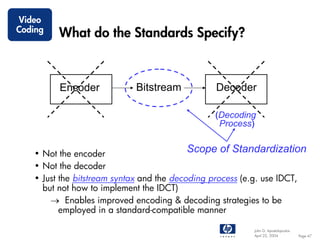

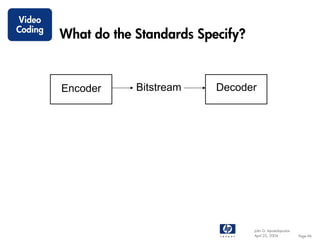

Video Coding What do the Standards Specify? Encoder Bitstream Decoder John G. Apostolopoulos April 22, 2004 Page 46
Video Coding What do the Standards Specify? Encoder Bitstream Decoder (Decoding Process) • Not the encoder Scope of Standardization • Not the decoder • Just the bitstream syntax and the decoding process (e.g. use IDCT, but not how to implement the IDCT) → Enables improved encoding & decoding strategies to be employed in a standard-compatible manner John G. Apostolopoulos April 22, 2004 Page 47

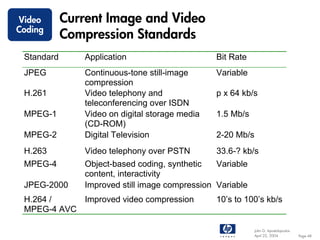

Video Current Image and Video Coding Compression Standards Standard Application Bit Rate JPEG Continuous-tone still-image Variable compression H.261 Video telephony and p x 64 kb/s teleconferencing over ISDN MPEG-1 Video on digital storage media 1.5 Mb/s (CD-ROM) MPEG-2 Digital Television 2-20 Mb/s H.263 Video telephony over PSTN 33.6-? kb/s MPEG-4 Object-based coding, synthetic Variable content, interactivity JPEG-2000 Improved still image compression Variable H.264 / Improved video compression 10’s to 100’s kb/s MPEG-4 AVC John G. Apostolopoulos April 22, 2004 Page 48

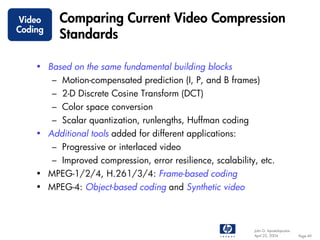

Video Comparing Current Video Compression Coding Standards • Based on the same fundamental building blocks – Motion-compensated prediction (I, P, and B frames) – 2-D Discrete Cosine Transform (DCT) – Color space conversion – Scalar quantization, runlengths, Huffman coding • Additional tools added for different applications: – Progressive or interlaced video – Improved compression, error resilience, scalability, etc. • MPEG-1/2/4, H.261/3/4: Frame-based coding • MPEG-4: Object-based coding and Synthetic video John G. Apostolopoulos April 22, 2004 Page 49

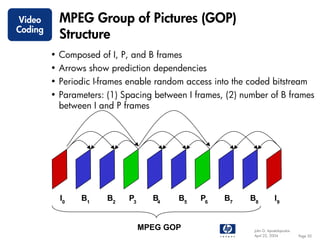

Video MPEG Group of Pictures (GOP) Coding Structure • Composed of I, P, and B frames • Arrows show prediction dependencies • Periodic I-frames enable random access into the coded bitstream • Parameters: (1) Spacing between I frames, (2) number of B frames between I and P frames I0 B1 B2 P3 B4 B5 P6 B7 B8 I9 MPEG GOP John G. Apostolopoulos April 22, 2004 Page 50
Video Coding MPEG Structure • MPEG codes video in a hierarchy of layers. The sequence layer is not shown. GOP Layer Picture Layer P B B P B B 4 8x8 DCT I 1 MV 8x8 DCT Block Macroblock Layer Slice Layer Layer John G. Apostolopoulos April 22, 2004 Page 51

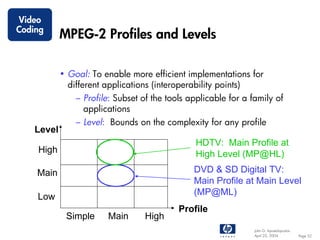

Video Coding MPEG-2 Profiles and Levels • Goal: To enable more efficient implementations for different applications (interoperability points) – Profile: Subset of the tools applicable for a family of applications – Level: Bounds on the complexity for any profile Level HDTV: Main Profile at High High Level (MP@HL) Main DVD & SD Digital TV: Main Profile at Main Level Low (MP@ML) Profile Simple Main High John G. Apostolopoulos April 22, 2004 Page 52

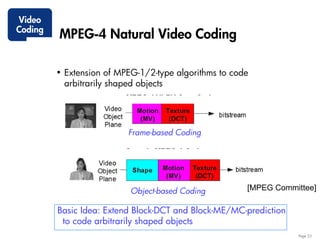

Video Coding MPEG-4 Natural Video Coding • Extension of MPEG-1/2-type algorithms to code arbitrarily shaped objects Frame-based Coding Object-based Coding [MPEG Committee] Basic Idea: Extend Block-DCT and Block-ME/MC-prediction to code arbitrarily shaped objects John G. Apostolopoulos April 22, 2004 Page 53

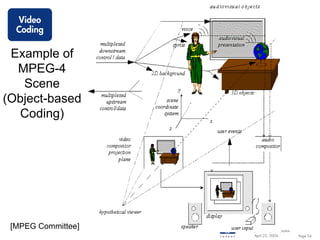

Video Coding Example of MPEG-4 Scene (Object-based Coding) [MPEG Committee] John G. Apostolopoulos April 22, 2004 Page 54

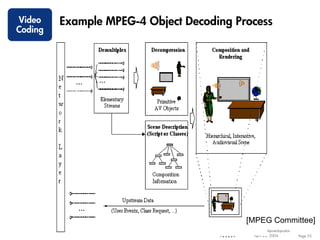

Video Example MPEG-4 Object Decoding Process Coding [MPEG Committee] John G. Apostolopoulos April 22, 2004 Page 55

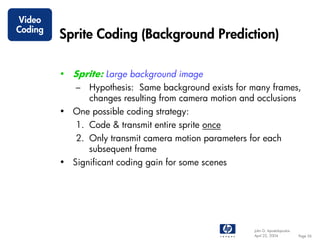

Video Coding Sprite Coding (Background Prediction) • Sprite: Large background image – Hypothesis: Same background exists for many frames, changes resulting from camera motion and occlusions • One possible coding strategy: 1. Code & transmit entire sprite once 2. Only transmit camera motion parameters for each subsequent frame • Significant coding gain for some scenes John G. Apostolopoulos April 22, 2004 Page 56

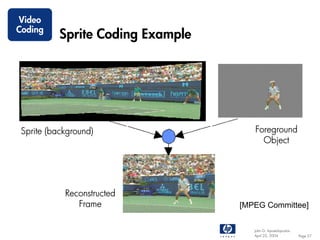

Video Coding Sprite Coding Example Sprite (background) Foreground Object Reconstructed Frame [MPEG Committee] John G. Apostolopoulos April 22, 2004 Page 57
Video Coding Review of Today’s Lecture • Motivation for compression • Brief review of generic compression system (from prior lecture) • Brief review of image compression (from last lecture) • Video compression – Exploit temporal dimension of video signal – Motion-compensated prediction – Generic (MPEG-type) video coder architecture – Scalable video coding • Overview of current video compression standards – What do the standards specify? – Frame-based video coding: MPEG-1/2/4, H.261/3/4 – Object-based video coding: MPEG-4 John G. Apostolopoulos April 22, 2004 Page 58

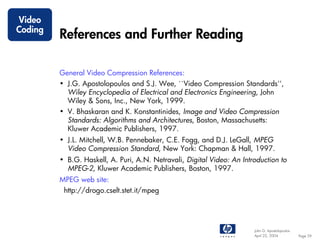

Video Coding References and Further Reading General Video Compression References: • J.G. Apostolopoulos and S.J. Wee, ``Video Compression Standards'', Wiley Encyclopedia of Electrical and Electronics Engineering, John Wiley & Sons, Inc., New York, 1999. • V. Bhaskaran and K. Konstantinides, Image and Video Compression Standards: Algorithms and Architectures, Boston, Massachusetts: Kluwer Academic Publishers, 1997. • J.L. Mitchell, W.B. Pennebaker, C.E. Fogg, and D.J. LeGall, MPEG Video Compression Standard, New York: Chapman & Hall, 1997. • B.G. Haskell, A. Puri, A.N. Netravali, Digital Video: An Introduction to MPEG-2, Kluwer Academic Publishers, Boston, 1997. MPEG web site: http://drogo.cselt.stet.it/mpeg John G. Apostolopoulos April 22, 2004 Page 59
