- 1. An introduction to VideoCompression Iain Richardson 20 June 2012 Slide 1
- 2. Agenda • 1. Whatis Video Compression? • 2. How does a video codec work? – - prediction – - transform + quantization – - coding – - examples • 3. Video compression standards – - H.264 – - HEVC • 4. Video compression patents • 5. Going further Slide 2
- 3. Agenda • 1. Whatis Video Compression? • 2. How does a video codec work? – - prediction – - transform + quantization – - coding – - examples • 3. Video compression standards – - H.264 – - HEVC • 4. Video compression patents • 5. Going further Slide 3

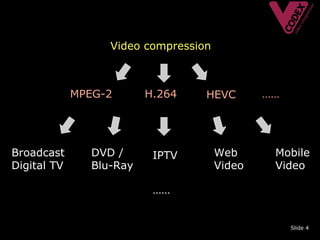

- 4. Video compression MPEG-2 H.264 HEVC …… Broadcast DVD / IPTV Web Mobile Digital TV Blu-Ray Video Video …… Slide 4
- 5. The need forvideo compression Original 2 hour movie: 1,800,000,000,000 bits =53 DVD disks COMPRESS =1 DVD disk Slide 5

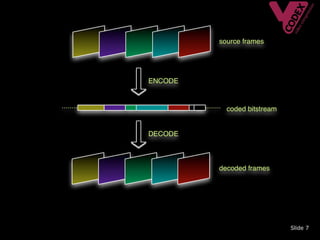

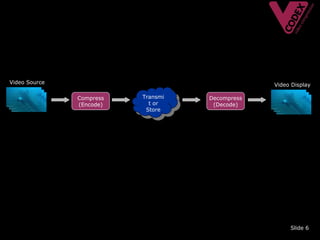

- 6. Video Source Video Display Compress Transmi Decompress (Encode) t or (Decode) Store Slide 6
- 7.

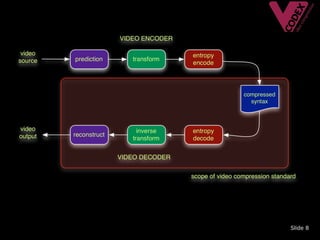

- 8.
- 9.
- 10. Agenda • 1. Whatis Video Compression? • 2. How does a video codec work? – - prediction – - transform + quantization – - coding – - examples • 3. Video compression standards – - H.264 – - HEVC • 4. Video compression patents • 5. Going deeper Slide 10

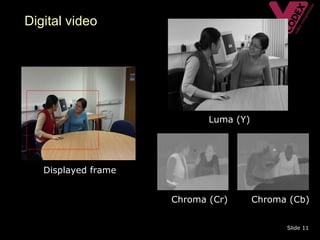

- 11. Digital video Luma (Y) Displayed frame Chroma (Cr) Chroma (Cb) Slide 11
- 12. Macroblock Slide 12

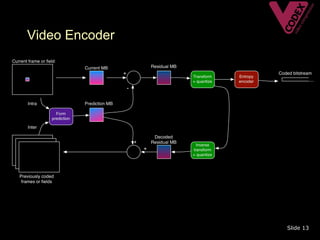

- 13. Video Encoder Slide 13

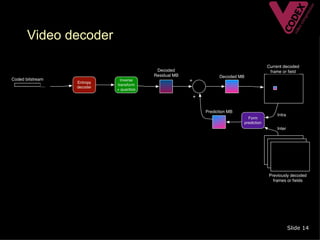

- 14. Video decoder Slide 14
- 15. Prediction Slide 15
- 16. Prediction Slide 16
- 17. Intra prediction Slide 17
- 18.

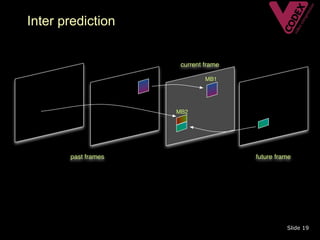

- 19. Inter prediction Slide 19

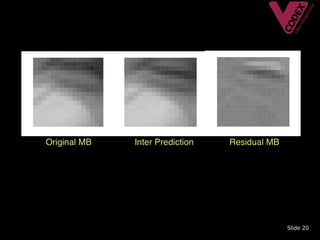

- 20.

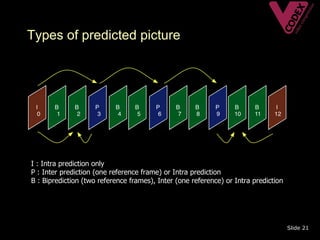

- 21. Types of predictedpicture I : Intra prediction only P : Inter prediction (one reference frame) or Intra prediction B : Biprediction (two reference frames), Inter (one reference) or Intra prediction Slide 21
- 22. Transform + Quantization Slide 22
- 23. Video Encoder Slide 23
- 24. Forward Transform Slide 24

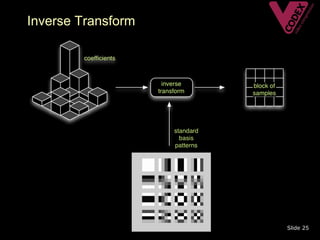

- 25. Inverse Transform Slide 25
- 26. Forward Quantize Slide 26

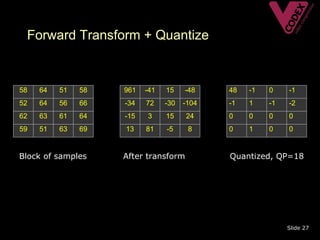

- 27. Forward Transform +Quantize 58 64 51 58 961 -41 15 -48 48 -1 0 -1 52 64 56 66 -34 72 -30 -104 -1 1 -1 -2 62 63 61 64 -15 3 15 24 0 0 0 0 59 51 63 69 13 81 -5 8 0 1 0 0 Block of samples After transform Quantized, QP=18 Slide 27

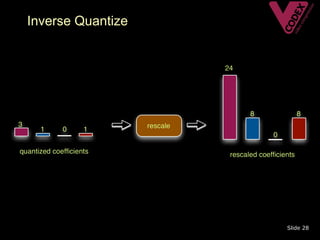

- 28. Inverse Quantize Slide 28
- 29. Inverse Transform Slide 29
- 30. 58 64 51 58 48 -1 0 -1 55 66 54 58 52 64 56 66 -1 1 -1 -2 54 62 58 63 62 63 61 64 0 0 0 0 61 59 61 62 59 51 63 69 0 1 0 0 60 55 65 67 Block of samples Quantized, QP=18 Rescaled + inverse transformed Slide 30
- 31. Entropy coding Slide 31
- 32. Video Encoder Slide 32

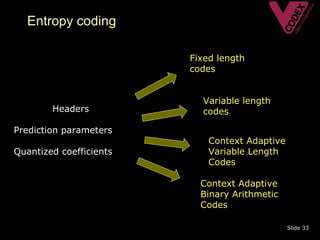

- 33. Entropy coding Fixed length codes Variable length Headers codes Prediction parameters Context Adaptive Quantized coefficients Variable Length Codes Context Adaptive Binary Arithmetic Codes Slide 33

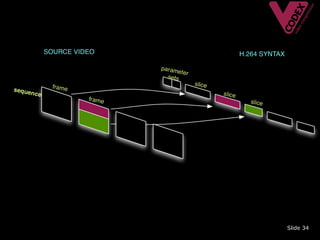

- 34.

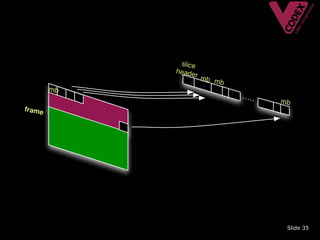

- 35.

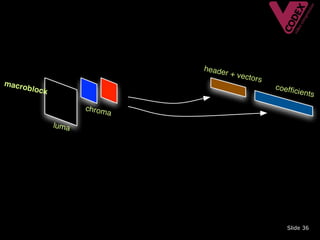

- 36.

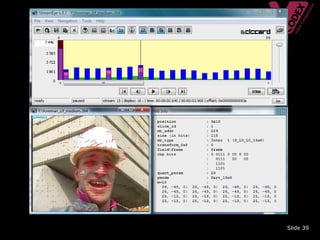

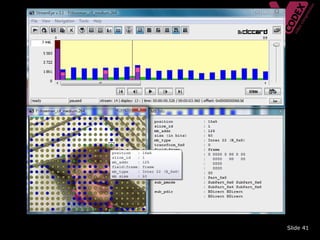

- 37. Examples Slide 37

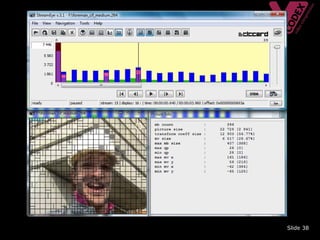

- 38.
- 39.

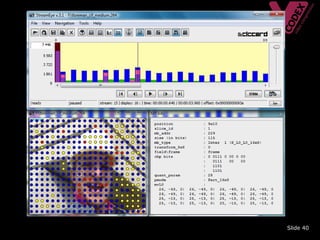

- 40.
- 41.

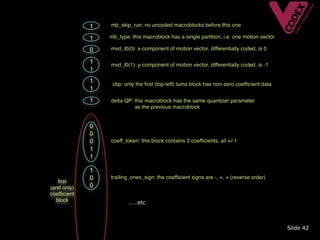

- 42. ……etc Slide 42
- 43. Agenda • 1. Whatis Video Compression? • 2. How does a video codec work? – - prediction – - transform + quantization – - coding – - examples • 3. Video compression standards – - H.264 – - HEVC • 4. Video compression patents • 5. Going deeper Slide 43
- 44. H.264 Advanced VideoCompression Slide 44

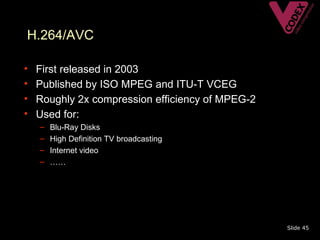

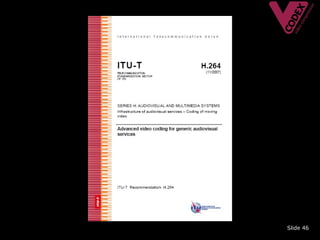

- 45. H.264/AVC • First released in 2003 • Published by ISO MPEG and ITU-T VCEG • Roughly 2x compression efficiency of MPEG-2 • Used for: – Blu-Ray Disks – High Definition TV broadcasting – Internet video – …… Slide 45
- 46.
- 47. High Efficiency VideoCompression (HEVC) Slide 47
- 48. HEVC • Under developmentby ISO MPEG and ITU-T VCEG • Roughly 2x compression efficiency of H.264 • Due for publication in 2013 Slide 48

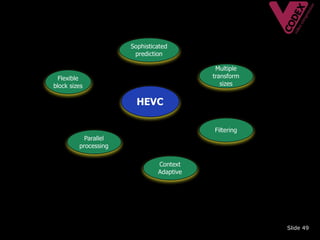

- 49.
- 50. Agenda • 1. Whatis Video Compression? • 2. How does a video codec work? – - prediction – - transform + quantization – - coding – - examples • 3. Video compression standards – - H.264 – - HEVC • 4. Video compression patents • 5. Going deeper Slide 50
- 51. Source: USPTO database Slide 51
- 52. Types of videocompression patent • Encoder • Decoder • Transport Slide 52

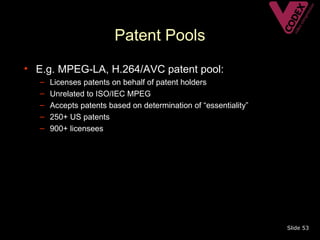

- 53. Patent Pools • E.g.MPEG-LA, H.264/AVC patent pool: – Licenses patents on behalf of patent holders – Unrelated to ISO/IEC MPEG – Accepts patents based on determination of “essentiality” – 250+ US patents – 900+ licensees Slide 53
- 54. Agenda • 1. Whatis Video Compression? • 2. How does a video codec work? – - prediction – - transform + quantization – - coding – - examples • 3. Video compression standards – - H.264 – - HEVC • 4. Video compression patents • 5. Going further Slide 54
- 55. To find outmore • http://www.itu.int - Download the H.264 standard • http://www.vcodex.com - Free tutorials • Follow me on Twitter: @onecodec Slide 55
