1. Truth, Deduction,
Computation
Lecture 4
Monoids
Vlad Patryshev
SCU
2013

2. See common pattern?
●
2+3==5; 0+n==n+0==n
●
6*7==42; 1*n==n*1==n
●
max(10, 100) == 100; max(Int.MinValue, x) == x
●
"ab"+"cd"=="abcd"; ""+"ef"=="ef"; "gh"+""=="gh"
●
List(1,2)+List(3,4)==List(1,2,3,4); Nil+List(5,6)==List
(5,6); List(7,8)+Nil==List(7,8)
●
Set(1,2,3)+Set(2,4)==Set(1,2,3,4); Set.Empty+Set(5,6)
==Set(5,6)

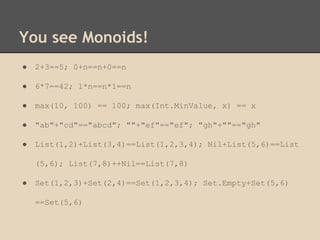

3. You see Monoids!
●
2+3==5; 0+n==n+0==n
●
6*7==42; 1*n==n*1==n
●
max(10, 100) == 100; max(Int.MinValue, x) == x
●
"ab"+"cd"=="abcd"; ""+"ef"=="ef"; "gh"+""=="gh"
●
List(1,2)+List(3,4)==List(1,2,3,4); Nil+List(5,6)==List
(5,6); List(7,8)++Nil==List(7,8)
●
Set(1,2,3)+Set(2,4)==Set(1,2,3,4); Set.Empty+Set(5,6)
==Set(5,6)

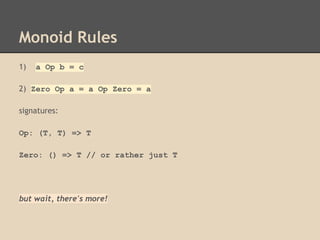

4. Monoid Rules
1)
a Op b = c
2) Zero Op a = a Op Zero = a
signatures:
Op: (T, T) => T
Zero: () => T // or rather just T
but wait, there's more!

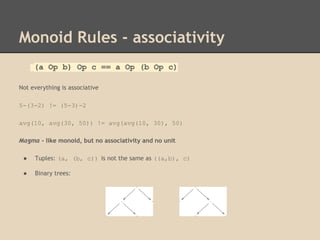

5. Monoid Rules - associativity
(a Op b) Op c == a Op (b Op c)
Not everything is associative
5-(3-2) != (5-3)-2
avg(10, avg(30, 50)) != avg(avg(10, 30), 50)
Magma - like monoid, but no associativity and no unit
●
Tuples: (a, (b, c)) is not the same as ((a,b), c)
●
Binary trees:

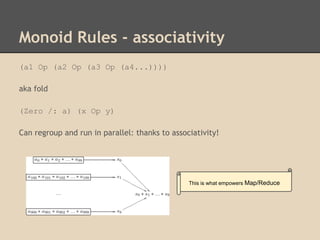

6. Monoid Rules - associativity
(a1 Op (a2 Op (a3 Op (a4...))))
aka fold
(Zero /: a) (x Op y)
Can regroup and run in parallel: thanks to associativity!
This is what empowers Map/Reduce

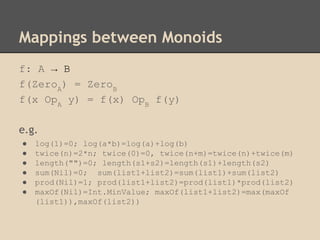

7. Mappings between Monoids
f: A → B
f(ZeroA) = ZeroB
f(x OpA y) = f(x) OpB f(y)
e.g.
●
●
●
●
●
●
log(1)=0; log(a*b)=log(a)+log(b)
twice(n)=2*n; twice(0)=0, twice(n+m)=twice(n)+twice(m)
length("")=0; length(s1+s2)=length(s1)+length(s2)
sum(Nil)=0; sum(list1+list2)=sum(list1)+sum(list2)
prod(Nil)=1; prod(list1+list2)=prod(list1)*prod(list2)
maxOf(Nil)=Int.MinValue; maxOf(list1+list2)=max(maxOf
(list1)),maxOf(list2))

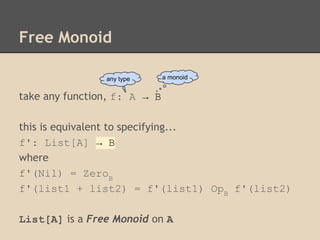

8. Free Monoid
any type
a monoid
take any function, f: A → B
this is equivalent to specifying...
f': List[A] → B
where
f'(Nil) = ZeroB
f'(list1 + list2) = f'(list1) OpB f'(list2)
List[A] is a Free Monoid on A

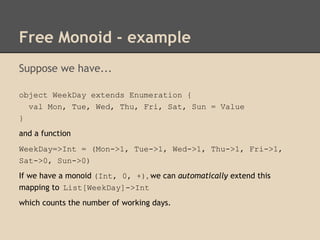

9. Free Monoid - example
Suppose we have...
object WeekDay extends Enumeration {
val Mon, Tue, Wed, Thu, Fri, Sat, Sun = Value
}
and a function
WeekDay=>Int = (Mon->1, Tue->1, Wed->1, Thu->1, Fri->1,
Sat->0, Sun->0)
If we have a monoid (Int, 0, +), we can automatically extend this
mapping to List[WeekDay]->Int
which counts the number of working days.

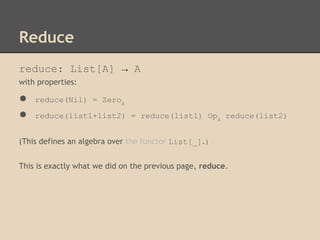

10. Reduce
reduce: List[A] → A
with properties:
●
●
reduce(Nil) = ZeroA
reduce(list1+list2) = reduce(list1) OpA reduce(list2)
(This defines an algebra over the functor List[_].)
This is exactly what we did on the previous page, reduce.

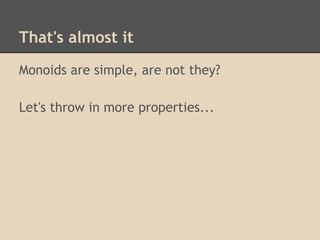

11. That's almost it
Monoids are simple, are not they?
Let's throw in more properties...

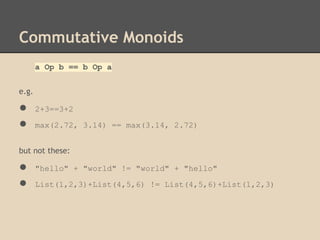

12. Commutative Monoids
a Op b == b Op a
e.g.
●
●
2+3==3+2
max(2.72, 3.14) == max(3.14, 2.72)
but not these:
●
●
"hello" + "world" != "world" + "hello"
List(1,2,3)+List(4,5,6) != List(4,5,6)+List(1,2,3)

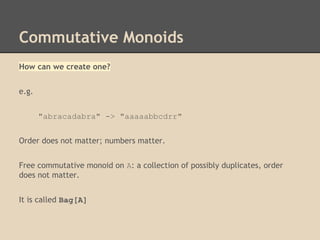

13. Commutative Monoids
How can we create one?
e.g.
"abracadabra" -> "aaaaabbcdrr"
Order does not matter; numbers matter.
Free commutative monoid on A: a collection of possibly duplicates, order
does not matter.
It is called Bag[A]

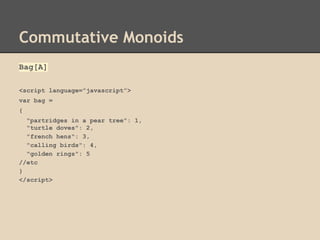

14. Commutative Monoids
Bag[A]
<script language=”javascript”>
var bag =
{
"partridges in a pear tree": 1,
"turtle doves": 2,
"french hens": 3,
"calling birds": 4,
"golden rings": 5
//etc
}
</script>

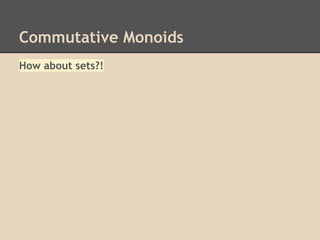

15. Commutative Monoids
How about sets?!

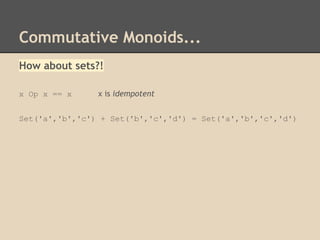

16. Commutative Monoids...
How about sets?!
x Op x == x
x is idempotent
Set('a','b','c') + Set('b','c','d') = Set('a','b','c','d')

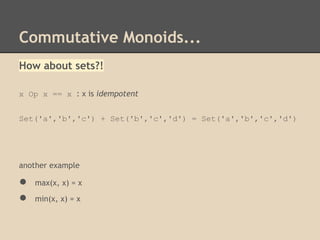

17. Commutative Monoids...
How about sets?!
x Op x == x : x is idempotent
Set('a','b','c') + Set('b','c','d') = Set('a','b','c','d')
another example
●
●
max(x, x) = x
min(x, x) = x

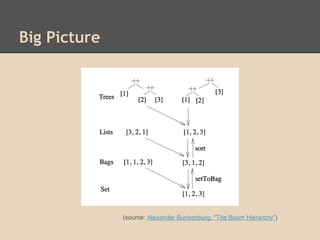

18. Big Picture
The Whole Picture
(source: Alexander Bunkenburg, "The Boom Hierarchy")

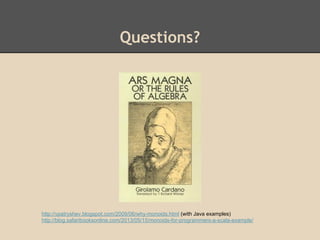

19. Questions?
http://vpatryshev.blogspot.com/2009/06/why-monoids.html (with Java examples)
http://blog.safaribooksonline.com/2013/05/15/monoids-for-programmers-a-scala-example/
