Transport layer protocols provide services like reliable data transfer and connection establishment between applications on networked devices. They address this need through protocols like TCP and UDP. TCP provides reliable, ordered data streams using mechanisms like three-way handshake, sequence numbers, acknowledgments, retransmissions, flow control via sliding windows, and connection termination handshaking. UDP provides simple datagram transmissions without reliability or flow control.

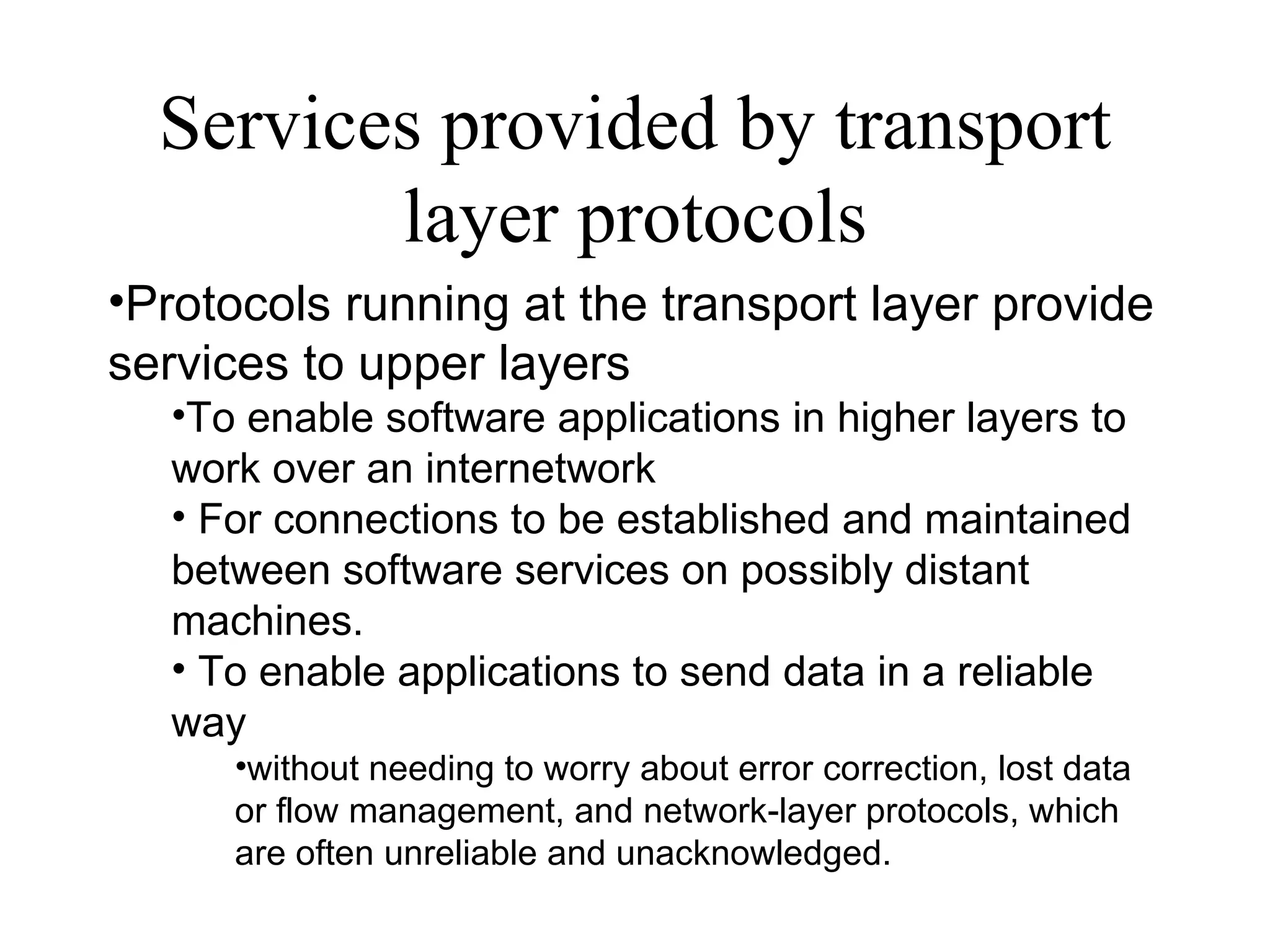

1. Services provided by transport layer protocols Protocols running at the transport layer provide services to upper layers To enable software applications in higher layers to work over an internetwork For connections to be established and maintained between software services on possibly distant machines. To enable applications to send data in a reliable way without needing to worry about error correction, lost data or flow management, and network-layer protocols, which are often unreliable and unacknowledged.

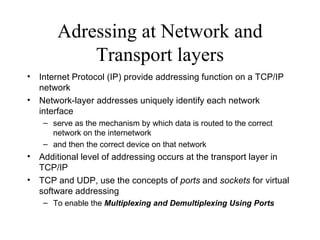

2. Adressing at Network and Transport layers Internet Protocol (IP) provide addressing function on a TCP/IP network Network-layer addresses uniquely identify each network interface serve as the mechanism by which data is routed to the correct network on the internetwork and then the correct device on that network Additional level of addressing occurs at the transport layer in TCP/IP TCP and UDP, use the concepts of ports and sockets for virtual software addressing To enable the Multiplexing and Demultiplexing Using Ports

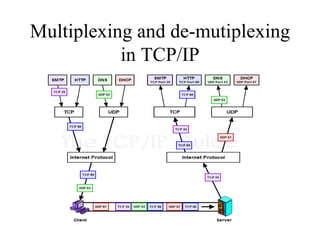

3. Multiplexing and de-mutiplexing in TCP/IP

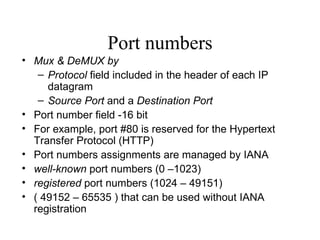

4. Port numbers Mux & DeMUX by Protocol field included in the header of each IP datagram Source Port and a Destination Port Port number field -16 bit For example, port #80 is reserved for the Hypertext Transfer Protocol (HTTP) Port numbers assignments are managed by IANA well-known port numbers (0 –1023) registered port numbers (1024 – 49151) ( 49152 – 65535 ) that can be used without IANA registration

5. Client server ports Well-known and registered port numbers are needed for server processes Client processes don't use well-known or registered ports The server must know the port number of client to send reply Each client process use temporary port number called an ephemeral port number . These port numbers are assigned in a pseudo-random way

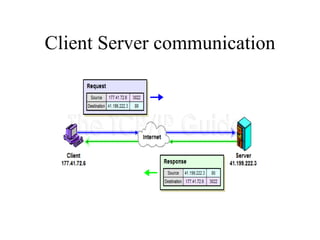

6. Client Server communication

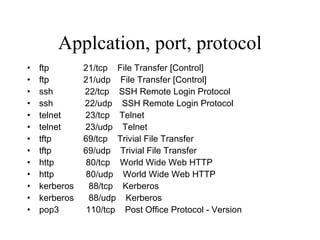

7. Applcation, port, protocol ftp 21/tcp File Transfer [Control] ftp 21/udp File Transfer [Control] ssh 22/tcp SSH Remote Login Protocol ssh 22/udp SSH Remote Login Protocol telnet 23/tcp Telnet telnet 23/udp Telnet tftp 69/tcp Trivial File Transfer tftp 69/udp Trivial File Transfer http 80/tcp World Wide Web HTTP http 80/udp World Wide Web HTTP kerberos 88/tcp Kerberos kerberos 88/udp Kerberos pop3 110/tcp Post Office Protocol - Version

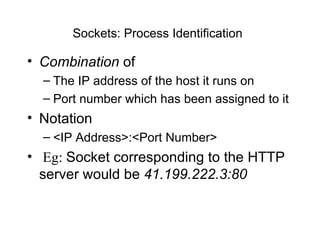

8. Sockets: Process Identification Combination of The IP address of the host it runs on Port number which has been assigned to it Notation <IP Address>:<Port Number> Eg: Socket corresponding to the HTTP server would be 41.199.222.3:80

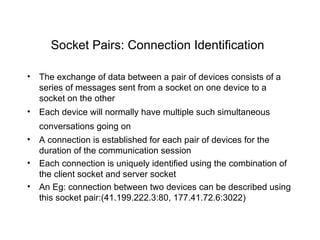

9. Socket Pairs: Connection Identification The exchange of data between a pair of devices consists of a series of messages sent from a socket on one device to a socket on the other Each device will normally have multiple such simultaneous conversations going on A connection is established for each pair of devices for the duration of the communication session Each connection is uniquely identified using the combination of the client socket and server socket An Eg: connection between two devices can be described using this socket pair:(41.199.222.3:80, 177.41.72.6:3022)

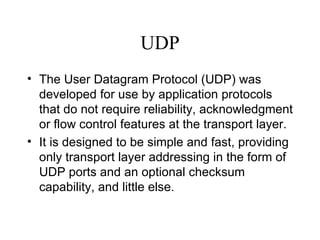

10. UDP The User Datagram Protocol (UDP) was developed for use by application protocols that do not require reliability, acknowledgment or flow control features at the transport layer. It is designed to be simple and fast, providing only transport layer addressing in the form of UDP ports and an optional checksum capability, and little else.

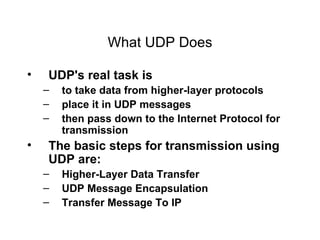

11. What UDP Does UDP's real task is to take data from higher-layer protocols place it in UDP messages then pass down to the Internet Protocol for transmission The basic steps for transmission using UDP are: Higher-Layer Data Transfer UDP Message Encapsulation Transfer Message To IP

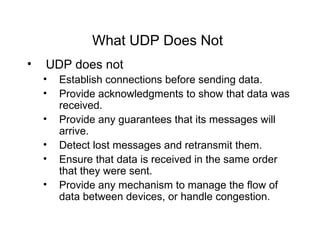

12. What UDP Does Not UDP does not Establish connections before sending data. Provide acknowledgments to show that data was received. Provide any guarantees that its messages will arrive. Detect lost messages and retransmit them. Ensure that data is received in the same order that they were sent. Provide any mechanism to manage the flow of data between devices, or handle congestion.

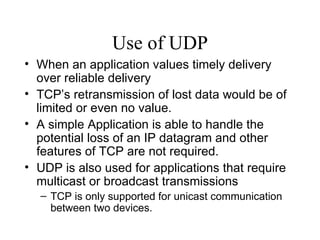

13. Use of UDP When an application values timely delivery over reliable delivery TCP’s retransmission of lost data would be of limited or even no value. A simple Application is able to handle the potential loss of an IP datagram and other features of TCP are not required. UDP is also used for applications that require multicast or broadcast transmissions TCP is only supported for unicast communication between two devices.

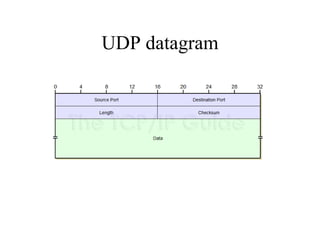

14. UDP datagram

15. UDP pseudo header

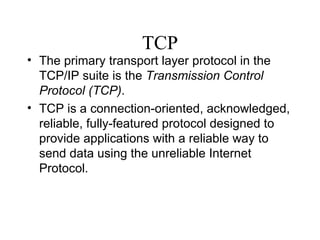

16. TCP The primary transport layer protocol in the TCP/IP suite is the Transmission Control Protocol (TCP) . TCP is a connection-oriented, acknowledged, reliable, fully-featured protocol designed to provide applications with a reliable way to send data using the unreliable Internet Protocol.

17. TCP It allows applications To send bytes of data as a stream of bytes Automatically packages them into appropriately-sized segments for transmission. It uses a special sliding window acknowledgment system To ensure that all data is received by its recipient To handle necessary retransmissions To provide flow control for connected devices to manage the rate at which data is sent.

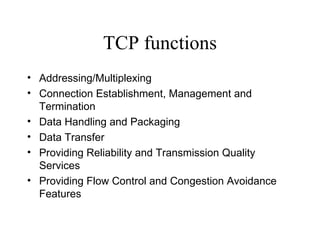

18. TCP functions Addressing/Multiplexing Connection Establishment, Management and Termination Data Handling and Packaging Data Transfer Providing Reliability and Transmission Quality Services Providing Flow Control and Congestion Avoidance Features

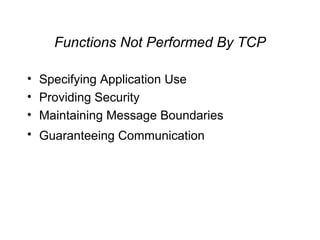

19. Functions Not Performed By TCP Specifying Application Use Providing Security Maintaining Message Boundaries Guaranteeing Communication

20. TCP Characteristics Connection-Oriented Bidrectional Multiply-Connected and Endpoint-Identified Reliable Acknowledged Stream-Oriented Data-Unstructured Data-Flow-Managed

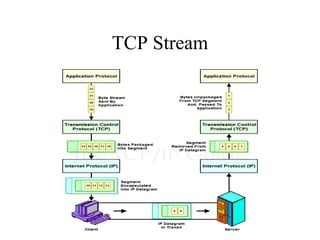

21. TCP Stream

22. TCP segment

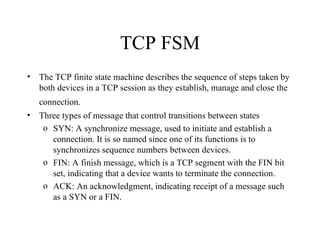

23. TCP FSM The TCP finite state machine describes the sequence of steps taken by both devices in a TCP session as they establish, manage and close the connection. Three types of message that control transitions between states SYN: A synchronize message, used to initiate and establish a connection. It is so named since one of its functions is to synchronizes sequence numbers between devices. FIN: A finish message, which is a TCP segment with the FIN bit set, indicating that a device wants to terminate the connection. ACK: An acknowledgment, indicating receipt of a message such as a SYN or a FIN.

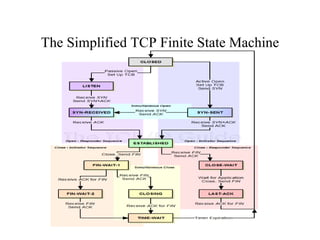

24. The Simplified TCP Finite State Machine

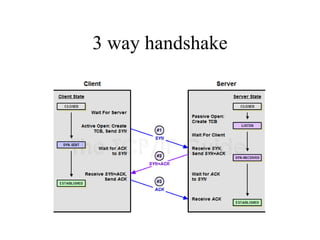

25. 3 way handshake

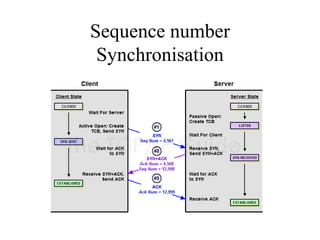

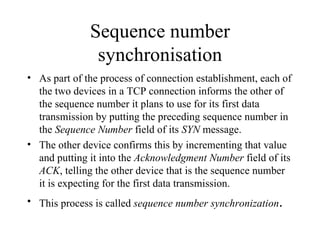

26. Sequence number synchronisation As part of the process of connection establishment, each of the two devices in a TCP connection informs the other of the sequence number it plans to use for its first data transmission by putting the preceding sequence number in the Sequence Number field of its SYN message. The other device confirms this by incrementing that value and putting it into the Acknowledgment Number field of its ACK , telling the other device that is the sequence number it is expecting for the first data transmission. This process is called sequence number synchronization .

27. Sequence number Synchronisation

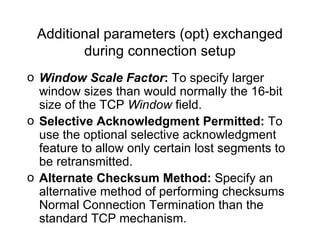

28. Additional parameters (opt) exchanged during connection setup Window Scale Factor : To specify larger window sizes than would normally the 16-bit size of the TCP Window field. Selective Acknowledgment Permitted: To use the optional selective acknowledgment feature to allow only certain lost segments to be retransmitted. Alternate Checksum Method: Specify an alternative method of performing checksums Normal Connection Termination than the standard TCP mechanism.

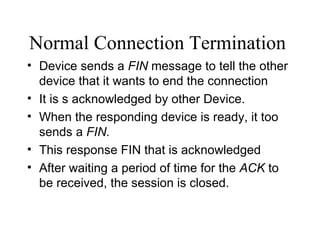

29. Normal Connection Termination Device sends a FIN message to tell the other device that it wants to end the connection It is s acknowledged by other Device. When the responding device is ready, it too sends a FIN. This response FIN that is acknowledged After waiting a period of time for the ACK to be received, the session is closed.

30. TCP close (connection termination)

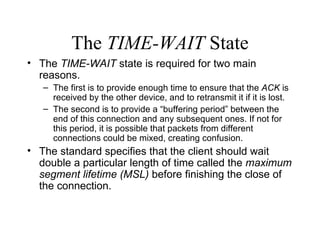

31. The TIME-WAIT State The TIME-WAIT state is required for two main reasons. The first is to provide enough time to ensure that the ACK is received by the other device, and to retransmit it if it is lost. The second is to provide a “buffering period” between the end of this connection and any subsequent ones. If not for this period, it is possible that packets from different connections could be mixed, creating confusion. The standard specifies that the client should wait double a particular length of time called the maximum segment lifetime (MSL) before finishing the close of the connection.

32. Transmission control block Since each connection is distinct, we must maintain data about each connection separately. TCP uses a special data structure for this purpose, called a transmission control block (TCB) . Each device maintains its own TCB for the connection. TCB contains all information about the connection, such as:- Two socket numbers that identify it Pointers to buffers where incoming and outgoing data are held. The TCB is also used to implement the sliding window mechanism. It holds variables that keep track of the number of bytes received and acknowledged, Bytes received and not yet acknowledged Current window size and so forth

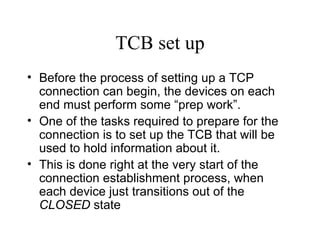

33. TCB set up Before the process of setting up a TCP connection can begin, the devices on each end must perform some “prep work”. One of the tasks required to prepare for the connection is to set up the TCB that will be used to hold information about it. This is done right at the very start of the connection establishment process, when each device just transitions out of the CLOSED state

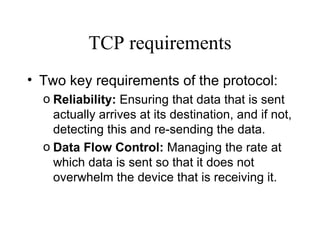

34. TCP requirements Two key requirements of the protocol: Reliability: Ensuring that data that is sent actually arrives at its destination, and if not, detecting this and re-sending the data. Data Flow Control: Managing the rate at which data is sent so that it does not overwhelm the device that is receiving it.

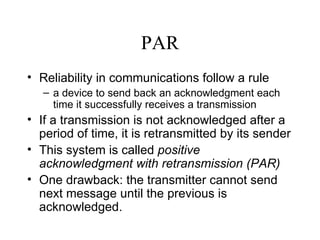

35. PAR Reliability in communications follow a rule a device to send back an acknowledgment each time it successfully receives a transmission If a transmission is not acknowledged after a period of time, it is retransmitted by its sender This system is called positive acknowledgment with retransmission (PAR) One drawback: the transmitter cannot send next message until the previous is acknowledged.

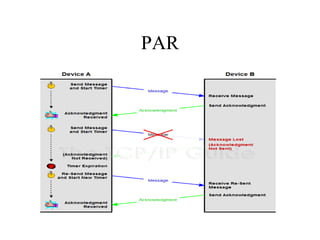

36. PAR

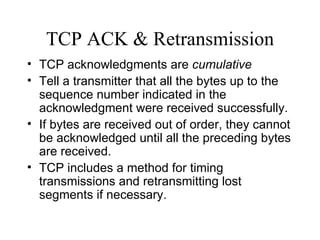

37. TCP ACK & Retransmission TCP acknowledgments are cumulative Tell a transmitter that all the bytes up to the sequence number indicated in the acknowledgment were received successfully. If bytes are received out of order, they cannot be acknowledged until all the preceding bytes are received. TCP includes a method for timing transmissions and retransmitting lost segments if necessary.

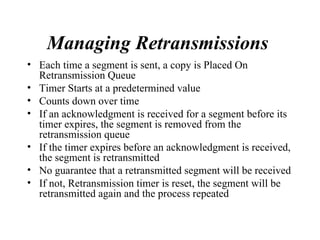

38. Managing Retransmissions Each time a segment is sent, a copy is Placed On Retransmission Queue Timer Starts at a predetermined value Counts down over time If an acknowledgment is received for a segment before its timer expires, the segment is removed from the retransmission queue If the timer expires before an acknowledgment is received, the segment is retransmitted No guarantee that a retransmitted segment will be received If not, Retransmission timer is reset, the segment will be retransmitted again and the process repeated

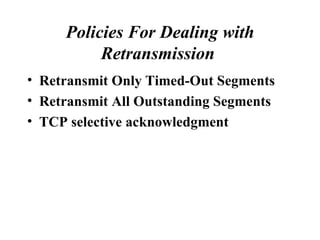

39. Policies For Dealing with Retransmission Retransmit Only Timed-Out Segments Retransmit All Outstanding Segments TCP selective acknowledgment

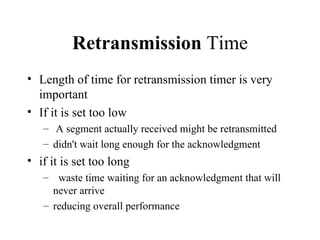

40. Retransmission Time Length of time for retransmission timer is very important If it is set too low A segment actually received might be retransmitted didn't wait long enough for the acknowledgment if it is set too long waste time waiting for an acknowledgment that will never arrive reducing overall performance

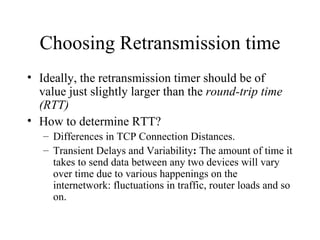

41. Choosing Retransmission time Ideally, the retransmission timer should be of value just slightly larger than the round-trip time (RTT) How to determine RTT? Differences in TCP Connection Distances. Transient Delays and Variability : The amount of time it takes to send data between any two devices will vary over time due to various happenings on the internetwork: fluctuations in traffic, router loads and so on.

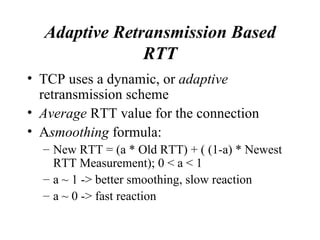

42. Adaptive Retransmission Based RTT TCP uses a dynamic, or adaptive retransmission scheme Average RTT value for the connection A smoothing formula: New RTT = (a * Old RTT) + ( (1-a) * Newest RTT Measurement); 0 < a < 1 a ~ 1 -> better smoothing, slow reaction a ~ 0 -> fast reaction

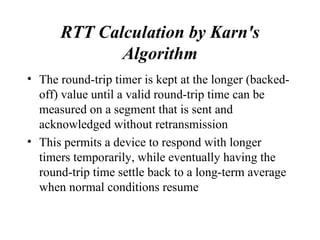

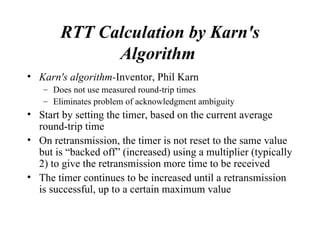

43. RTT Calculation by Karn's Algorithm Karn's algorithm- Inventor, Phil Karn Does not use measured round-trip times Eliminates problem of acknowledgment ambiguity Start by setting the timer, based on the current average round-trip time On retransmission, the timer is not reset to the same value but is “backed off” (increased) using a multiplier (typically 2) to give the retransmission more time to be received The timer continues to be increased until a retransmission is successful, up to a certain maximum value

44. RTT Calculation by Karn's Algorithm The round-trip timer is kept at the longer (backed-off) value until a valid round-trip time can be measured on a segment that is sent and acknowledged without retransmission This permits a device to respond with longer timers temporarily, while eventually having the round-trip time settle back to a long-term average when normal conditions resume

45. TCP sliding window A variation on the enhanced PAR system To support TCP’s stream orientation Each device keeps track of the status of the byte stream Dividing Data into four conceptual categories: Bytes sent and acknowledged Bytes sent but not yet acknowledged Bytes not yet sent but that can be sent immediately Bytes not yet sent that cannot be sent until the recipient signals that it is ready for them.

46. Data Stream categories

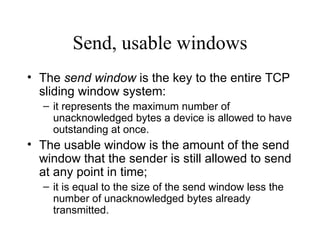

47. Send, usable windows The send window is the key to the entire TCP sliding window system: it represents the maximum number of unacknowledged bytes a device is allowed to have outstanding at once. The usable window is the amount of the send window that the sender is still allowed to send at any point in time; it is equal to the size of the send window less the number of unacknowledged bytes already transmitted.

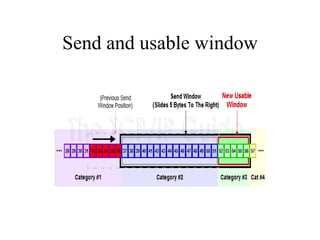

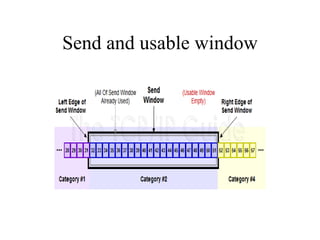

48. Send and usable window

49. Send and usable window

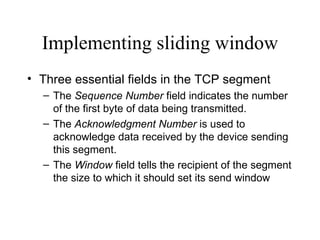

50. Implementing sliding window Three essential fields in the TCP segment The Sequence Number field indicates the number of the first byte of data being transmitted. The Acknowledgment Number is used to acknowledge data received by the device sending this segment. The Window field tells the recipient of the segment the size to which it should set its send window

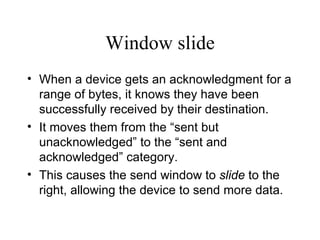

51. Window slide When a device gets an acknowledgment for a range of bytes, it knows they have been successfully received by their destination. It moves them from the “sent but unacknowledged” to the “sent and acknowledged” category. This causes the send window to slide to the right, allowing the device to send more data.

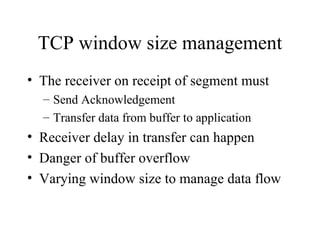

52. TCP window size management The receiver on receipt of segment must Send Acknowledgement Transfer data from buffer to application Receiver delay in transfer can happen Danger of buffer overflow Varying window size to manage data flow

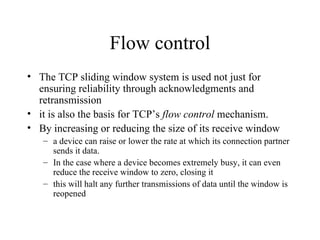

53. Flow control The TCP sliding window system is used not just for ensuring reliability through acknowledgments and retransmission it is also the basis for TCP’s flow control mechanism. By increasing or reducing the size of its receive window a device can raise or lower the rate at which its connection partner sends it data. In the case where a device becomes extremely busy, it can even reduce the receive window to zero, closing it this will halt any further transmissions of data until the window is reopened

54. Shrinking window

55. Silly window syndrome Sliding window mechanism does not ensure a min size of segment Shrinking window can result in inefficient transmission of small size segment

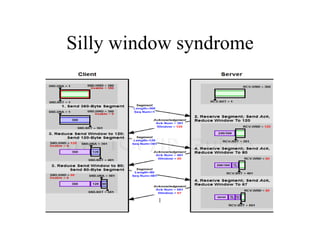

56. Silly window syndrome

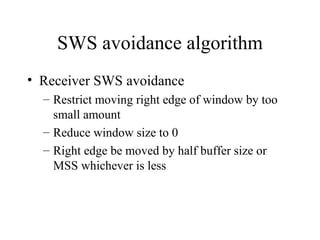

57. SWS avoidance algorithm Receiver SWS avoidance Restrict moving right edge of window by too small amount Reduce window size to 0 Right edge be moved by half buffer size or MSS whichever is less

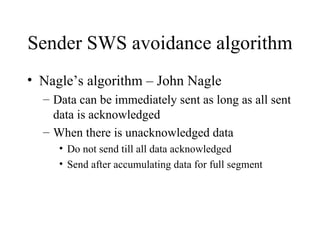

58. Sender SWS avoidance algorithm Nagle’s algorithm – John Nagle Data can be immediately sent as long as all sent data is acknowledged When there is unacknowledged data Do not send till all data acknowledged Send after accumulating data for full segment
