Interrupts allow a microcontroller to pause its current task and execute an interrupt service routine (ISR) in response to an event. Common events include timer overflows and external pin changes. Each interrupt has an associated flag bit and enable bit that allow the interrupt to be triggered and responded to. Timers can generate interrupts and also be used for pulse width modulation to create analog outputs from digital signals.

1. By/Ramadan Ahmed

3. What’s Interrupts ?

5. Basically events that require immediate attention by the
microcontroller.
An interrupt is a signal to the processor emitted by
hardware or software indicating an event that needs
immediate attention.
When an interrupt event occurs, the microcontroller pause
its current task and attend to the interrupt by executing
its corresponding Interrupt Service Routine (ISR) then
microcontroller returns to the task it had pause and
continue its normal operations.

6. Such an event may be:
 An peripheral device has finished the last task it was given
and is now ready for another. For example Timer may
generate interrupt after reaching the maximum possible
value.
 External Interrupt event on I/O Pin.
 An error from a peripheral.
You can think of it as a hardware-generated function
call.

7. ISR (Interrupt service routine)
 Piece of code that should be execute when an interrupt is triggered
 Should be deterministic and short as possible, as it usually set a flag
to a specific task indicating a certain event is happened, or save
small data in buffer.

9. REMEMBER
Global interrupt enabled bit MUST be enabled for
interrupts to be activated in the µC.
To Set global interrupt :
 sei();
To clear global interrupt :
 cli();

10. Interrupt Flags and Enabled bits in AVR µC
 Each interrupt is associated with two (2) bits, an Interrupt
Flag Bit and an Interrupt Enabled Bit. These bits are
located in the I/O registers associated with the specific
interrupt:
The interrupt enabled bit(IE): is used to enable or
disable a specific interrupt. Basically is tells the µC
whether or not it should respond to the interrupt if it is
triggered.
The interrupt flag bit (IF):is set whenever the
interrupt event occur, whether or not the interrupt is
enabled. And The flag is cleared when the ISR is
executed. So it is also called “Automatic Flag”.

11. Global interrupt
Interrupt flag
Interrupt enabled
Interrupt Request

12. RESET interrupt
 It active low
interrupt which
means it triggered
when low voltage (0
volt) is applied on
reset pin (number 9).

14. Timer is special register that can be 8-
16 bit so capable of holding from 0 to
255-65536
What differ it from any register that it
count up / down automatically at
predefined rate and this is Timer
Clock that doesn’t need CPU
intervention.
Timer Clock could be internal /
external

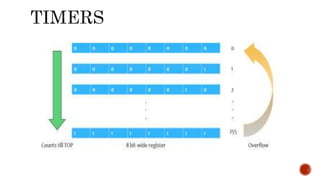

16. One of basic condition when Timer overflow( it means
timer counted up to its maximum value and return back to
zero).
In this situation it causes interrupt and if global interrupt
mask is enabled and timer interrupt enable so you have to
write ISR to handle the event of the overflow

17. Resolution:
 is the smallest period taken by timer to take one count we can
calculate it through formula
Resolution = (1/Frequency)
 If you using 1 MHZ for CPU Clock timer takes to count up till it
overflow 256 us
 So if microcontroller is clocked with 1MHz source, then 8 bit timer
will run with resolution:
Resolution=1/1MHz=1µs

18. In case you want to increase the time needed for specific
operation we use timer prescalar
Prescalar divide the clock frequency and produce timer
clock
Prescalar modes are
 No prescalar (Timer Clock).
 Clock/8.
 Clock/64.
 Clock/256.
 Clock/512.
 Clock/1024.
 NO clock.
Note
CPU Clock doesn’t affected by
reduction using prescalar.
It remain the same

19. Example for using prescalar :
 If you using 1 MHZ for CPU Clock without using prescalar timer
takes to count up till it overflow 256 µs
 But when you use prescalar 1024 timer takes to count up till it
overflow 0.26 sec
 It’s easy to know the time timer need to overflow if you know
Resolution.
Resolution = (1/Frequency)
 So if microcontroller is clocked with 1MHz source, then 8 bit timer
without prescaler will run with resolution:
Resolution=1/1MHz=1µs

20. So if timer take 256 counts to overflow then it takes :
T= Resolution * 256 = 1µs *256 = 256 µs
 And when we use 1024 as prescalar:
Resolution = 1024 / 1 MHZ = 1024µs
T = Resolution * 256 = 1024 * 256 = 0.256s

21. ATmega16/32 have 3 Timer/counter we have three
Timers/Counters each one with Separate Prescaler.
 Timer 0 - 8 bit timer.
 Timer 1 -16 bit timer.
 Timer 2 - 8 bit timer.
Timer also can be operated in 3 modes :
 Normal mode (Overflow).
 Pulse Width Modulation mode(PWM).
 Clear Timer Compare mode(CTC ).

22. Timer0
 Timer1 is an 16 bit timer/counter which can count from 0 to
0xFF (256).
 In the timer mode this peripheral uses an internal clock
signal.
 In the counter mode an external signal on PIN0 in PORTB.
 The timer can be operated either in the polling mode or in
the interrupt mode.

23.  Timer/Counter Control Register – TCCR0
 Bit 7 – FOC0: Force Output Compare
 The FOC0 bit is only active when the WGM00 bit specifies a non-
PWM mode.
 Bit 3, 6 – WGM01:0: Waveform Generation Mode

24.  Bit 5:4 – COM01:00 Compare Match Output Mode

25. Bit 2:0 – CS02:0: Clock Select

26. Timer/Counter Register – TCNT0
 This is where the 8-bit counter of the timer resides. The
value of the counter is stored here and it increases
automatically each clock cycle. Data can be both read/written
from this register. The initial value of the counter is set by
writing it.

27. Output Compare Register – OCR0
 The Output Compare Register contains an 8-bit value that is
continuously compared with the counter value (TCNT0). A match
can be used to generate an output compare interrupt, or to
generate a waveform output on the OC0 pin.

28. Timer/Counter Interrupt Mask Register –TIMSK
 TOIE0: Timer Overflow Interrupt Enable
 OCIE0: Output Compare Match Interrupt Enable

29.  Timer/Counter Interrupt Flag Register – TIFR
 TOV0:
 The bit TOV0 is set (one) when an overflow occurs in Timer/Counter0. TOV0 is
cleared by hardware when executing the corresponding interrupt handling
vector. When the SREG I-bit, TOIE0 (Timer/Counter0 Overflow Interrupt
Enable), and TOV0 are set (one), the Timer/Counter0 Overflow interrupt is
executed.
 OCF0
 The OCF0 bit is set (one) when a compare match occurs between the
Timer/Counter0 and the data in OCR0 – Output Compare Register0. OCF0 is
cleared by hardware when executing the corresponding interrupt handling
vector. When the I-bit in SREG, OCIE0 (Timer/Counter0 Compare Match
Interrupt Enable), and OCF0 are set (one), the Timer/Counter0 Compare Match
Interrupt is executed.

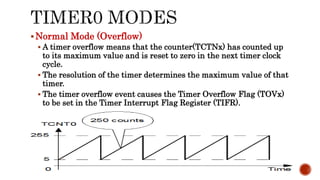

30. Normal Mode (Overflow)
 A timer overflow means that the counter(TCTNx) has counted up
to its maximum value and is reset to zero in the next timer clock
cycle.
 The resolution of the timer determines the maximum value of that
timer.
 The timer overflow event causes the Timer Overflow Flag (TOVx)
to be set in the Timer Interrupt Flag Register (TIFR).

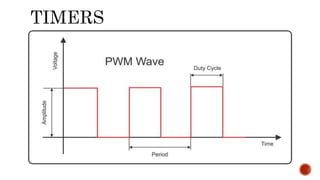

31. Pulse Width Modulation
 is the technique used to generate analogue signals from a
digital device like a MCU. Almost all modern MCUs have
dedicated hardware for PWM signal generation.
 A digital device, like a microcontroller can only generate two
levels on its output lines, HIGH=5v and LOW=0V.
 But what if we want to generate 2.5v or 3.1v or any voltage
between 0-5 volt output ?
 For these kinds of requirement, instead of generating a
constant DC voltage output we generate a square wave, which
has high = 5V and Low = 0v
 We will use the simplest timer, TIMER0 for PWM generation.

33.  Pulse Width Modulation
 The period (frequency) depends upon the prescaler settings. Now for PWM
generation from this count sequence we have a OCR0 (Output Compare Register
Zero Register). We can store any value between 0-255 in OCR0, say we store 64 in
OCR0 then it would appear in the graph as follows (the RED line).
 When the TIMER0 is configured for fast PWM mode, while up counting whenever
the value of TIMER0 counter (TCNT0 register) matches OCR0 register an output
PIN (OC0 PIN) is pulled low (0) and when counting sequence begin again from 0
it is SET again (pulled high=VCC).

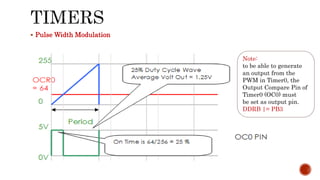

34.  Pulse Width Modulation
Note:
to be able to generate
an output from the
PWM in Timer0, the
Output Compare Pin of
Timer0 (OC0) must
be set as output pin.
DDRB |= PB3
