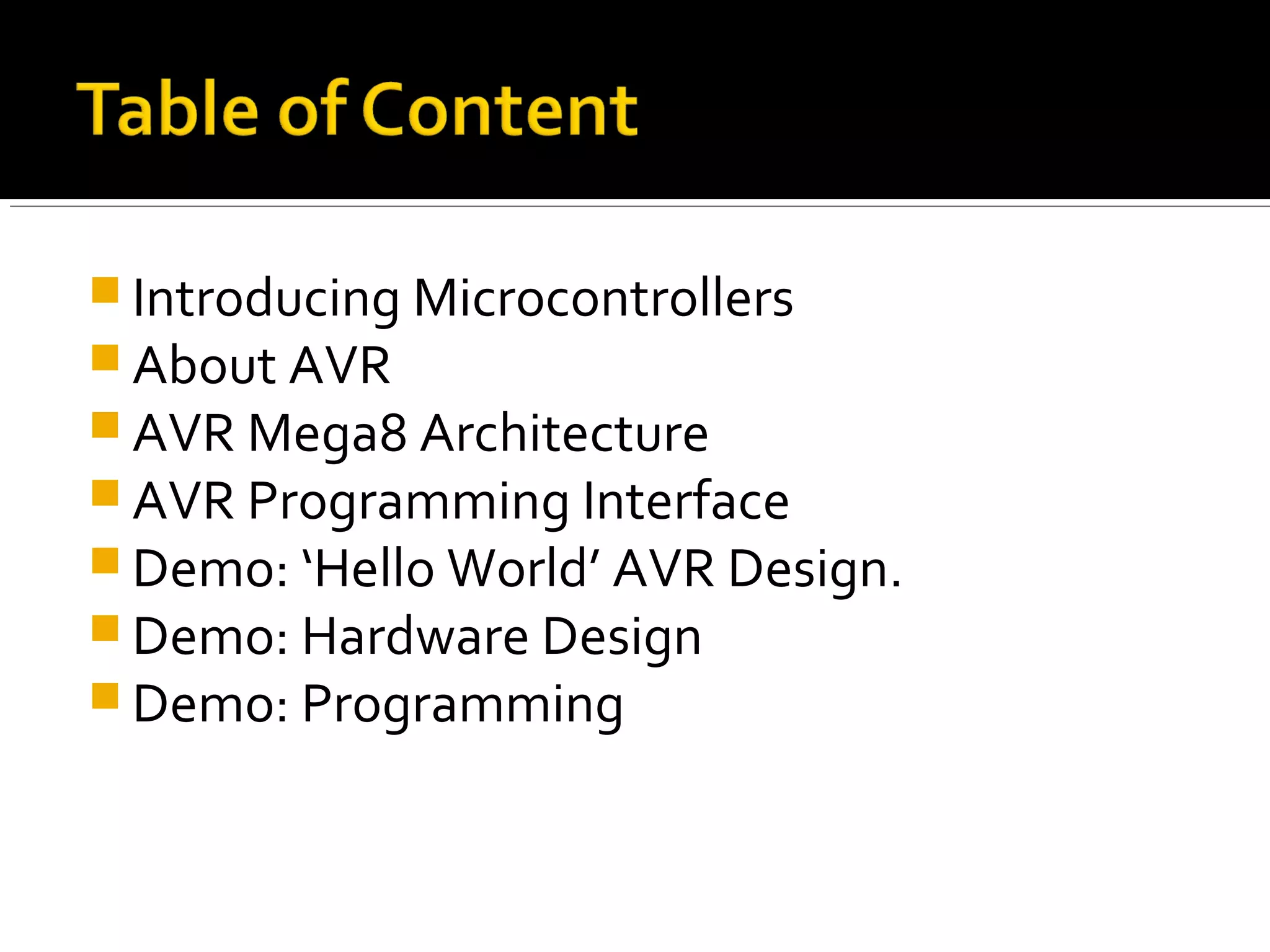

 Introducing Microcontrollers
 About AVR
 AVR Mega8 Architecture
 AVR Programming Interface
 Demo: ‘Hello World’ AVR Design.
 Demo: Hardware Design
 Demo: Programming
 A microprocessor is a central processing unit
  (CPU) on a single chip.
 When a microprocessor and associated
  support circuitry, peripheral I/O components
  and memory (program as well as data) were
  put together to form a small computer
  specifically for data acquisition and control
  applications, it was called a microcomputer.
 When the components that make a
 microcomputer were put together on a single
 chip of silicon, it was called the
 microcontroller.
A microcontroller
interfaces to
external devices
with a minimum of
external
components
 A recent white paper by Sun Microsystems claims that
  by the end of the decade, an average home will
  contain between 50 to 100 microcontrollers
  controlling digital phones, microwave ovens, VCRs,
  televisions sets and television remotes, dishwashers,
  home security systems, PDAs etc.
 An average car has about 15 processors; the 1999
  Mercedes S-class car has 63 microprocessors, while
  the 1999 BMW has 65 processors!
 Except perhaps the human body, microprocessors and
  microcontrollers have gotten into everything around
  us.
 RISC architecture with mostly fixed-length
  instruction, load-store memory access and 32
  general-purpose registers.
 A two-stage instruction pipeline that speeds
  up execution
 Majority of instructions take one clock cycle
 Up to 10-MHz clock operation
 Wide variety of on-chip peripherals, including
  digital I/O, ADC, EEPROM, Timer, UART, RTC
  timer, PWM etc
 Internal program and data memory.
 In-System programmable
 Available in 8-pin to 64-pin size to suit wide
  variety of applications
 Up to 12 times performance speedup over
  conventional CISC controllers.
 Wide operating voltage from 2.7V to 6.0V
 Simple architecture offers a small learning
  curve to the uninitiated.
 8-Kbyte self-
  programming Flash
  Program Memory
 1-Kbyte SRAM
 512 Byte EEPROM
 6 or 8 Channel 10-bit
  A/D-converter.
 Up to 16 MIPS
  throughput at 16 Mhz.
 2.7 - 5.5 Volt operation.
   The AVR chip has a built in interface, that enables you
    to write and read the content of the program flash and
    the built-in-EEPROM. This interface works serially and
    needs three signal lines:
     SCK: A clock signal that shifts the bits to be written to the
      memory into an internal shift register, and
     that shifts out the bits to be read from another internal
      shift register,
     MOSI: The data signal that sends the bits to be written to
      the AVR,
     MISO: The data signal that receives the bits read from the
      AVR.
   These three signal pins are internally connected to the
    programming machine only if you change the RESET pin
    to zero.
   Otherwise, during normal operation of the AVR, these
    pins are programmable I/O lines like all the others.
   If you like to use these pins for other purposes during
    normal operation, and for in-system-programming, you'll
    have to take care, that these two purposes do not
   conflict.
   Usually you then decouple these by resistors or by use of a
    multiplexer.
   What is necessary in your case, depends from your use of
    the pins in the normal operation mode.
 VTG: Target Voltage
 LED: indicates that the
  programmer is doing
  its job
   The purpose of this
    demo is:
     to design a simple AVR
      system                    Programmer
     Interface it to and LCD
      display
                                  AVR MCU
                                  AVR MCU
     Program it to display
      ‘Hello World’             LCD Display
                                 LCD Display
LCD Interface   AVR Port
RS              PORTC.2
RW              PORTC.3
E               PORTC.4
DATA            PORTD
 AVR Studio
 GCC
 AVRLibs
 PonyProg
 Include the following files in your project
   lcd.c
   global.h
   timer.h
   lcd.h
 Add a new c source file to your AVR Studio
  project.
 Type in the main function as shown below:
 Main()
{
  lcdInitHW();
  lcdInit();
  lcdGotoXY(0,4);
  lcdPrintData(“Hello Word!”, 11);
}
Developing an avr microcontroller system

Developing an avr microcontroller system

  • 2.
     Introducing Microcontrollers About AVR  AVR Mega8 Architecture  AVR Programming Interface  Demo: ‘Hello World’ AVR Design.  Demo: Hardware Design  Demo: Programming
  • 4.
     A microprocessoris a central processing unit (CPU) on a single chip.  When a microprocessor and associated support circuitry, peripheral I/O components and memory (program as well as data) were put together to form a small computer specifically for data acquisition and control applications, it was called a microcomputer.
  • 5.
     When thecomponents that make a microcomputer were put together on a single chip of silicon, it was called the microcontroller.
  • 6.
    A microcontroller interfaces to externaldevices with a minimum of external components
  • 7.
     A recentwhite paper by Sun Microsystems claims that by the end of the decade, an average home will contain between 50 to 100 microcontrollers controlling digital phones, microwave ovens, VCRs, televisions sets and television remotes, dishwashers, home security systems, PDAs etc.  An average car has about 15 processors; the 1999 Mercedes S-class car has 63 microprocessors, while the 1999 BMW has 65 processors!  Except perhaps the human body, microprocessors and microcontrollers have gotten into everything around us.
  • 9.
     RISC architecturewith mostly fixed-length instruction, load-store memory access and 32 general-purpose registers.  A two-stage instruction pipeline that speeds up execution  Majority of instructions take one clock cycle  Up to 10-MHz clock operation
  • 10.
     Wide varietyof on-chip peripherals, including digital I/O, ADC, EEPROM, Timer, UART, RTC timer, PWM etc  Internal program and data memory.  In-System programmable  Available in 8-pin to 64-pin size to suit wide variety of applications
  • 11.
     Up to12 times performance speedup over conventional CISC controllers.  Wide operating voltage from 2.7V to 6.0V  Simple architecture offers a small learning curve to the uninitiated.
  • 13.
     8-Kbyte self- programming Flash Program Memory  1-Kbyte SRAM  512 Byte EEPROM  6 or 8 Channel 10-bit A/D-converter.  Up to 16 MIPS throughput at 16 Mhz.  2.7 - 5.5 Volt operation.
  • 18.
    The AVR chip has a built in interface, that enables you to write and read the content of the program flash and the built-in-EEPROM. This interface works serially and needs three signal lines:  SCK: A clock signal that shifts the bits to be written to the memory into an internal shift register, and  that shifts out the bits to be read from another internal shift register,  MOSI: The data signal that sends the bits to be written to the AVR,  MISO: The data signal that receives the bits read from the AVR.
  • 19.
    These three signal pins are internally connected to the programming machine only if you change the RESET pin to zero.  Otherwise, during normal operation of the AVR, these pins are programmable I/O lines like all the others.  If you like to use these pins for other purposes during normal operation, and for in-system-programming, you'll have to take care, that these two purposes do not  conflict.  Usually you then decouple these by resistors or by use of a multiplexer.  What is necessary in your case, depends from your use of the pins in the normal operation mode.
  • 20.
     VTG: TargetVoltage  LED: indicates that the programmer is doing its job
  • 24.
    The purpose of this demo is:  to design a simple AVR system Programmer  Interface it to and LCD display AVR MCU AVR MCU  Program it to display ‘Hello World’ LCD Display LCD Display
  • 28.
    LCD Interface AVR Port RS PORTC.2 RW PORTC.3 E PORTC.4 DATA PORTD
  • 30.
     AVR Studio GCC  AVRLibs  PonyProg
  • 31.
     Include thefollowing files in your project  lcd.c  global.h  timer.h  lcd.h
  • 32.
     Add anew c source file to your AVR Studio project.  Type in the main function as shown below:
  • 33.
     Main() { lcdInitHW();  lcdInit();  lcdGotoXY(0,4);  lcdPrintData(“Hello Word!”, 11); }
