The document summarizes a student project presentation on implementing Banker's algorithm for deadlock avoidance. It includes: 1) An overview of Banker's algorithm and how it checks for safe states to avoid deadlock by dynamically evaluating resource requests. 2) Details on the data structures and parsing approach used to represent the banker's algorithm information and process resource requests. 3) A demonstration of the program loading sample data from a file, displaying the banker's algorithm information, and handling different user commands and error scenarios.

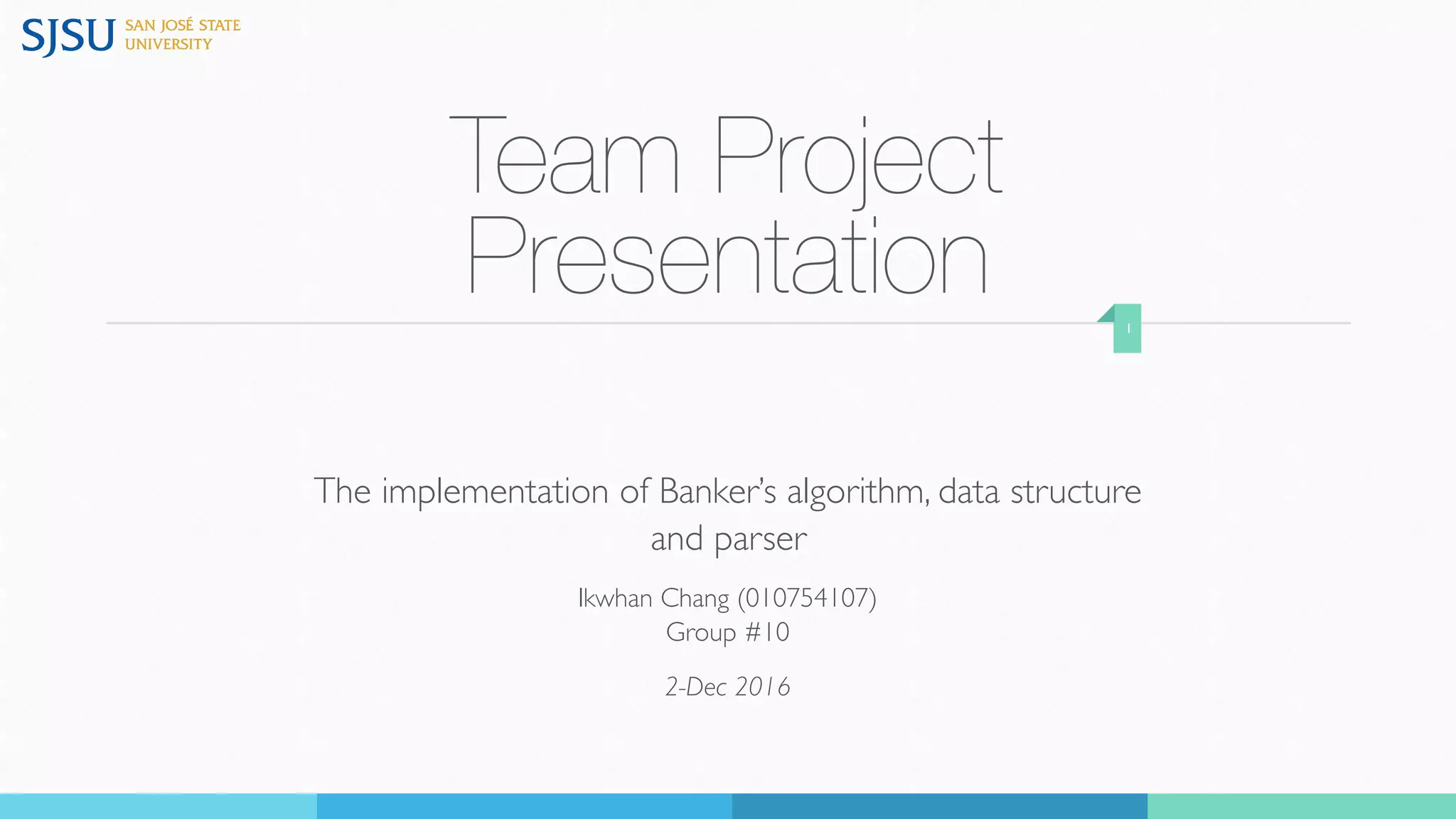

1. Team Project
Presentation
The implementation of Banker’s algorithm, data structure
and parser
Ikwhan Chang (010754107)
Group #10
2-Dec 2016
1

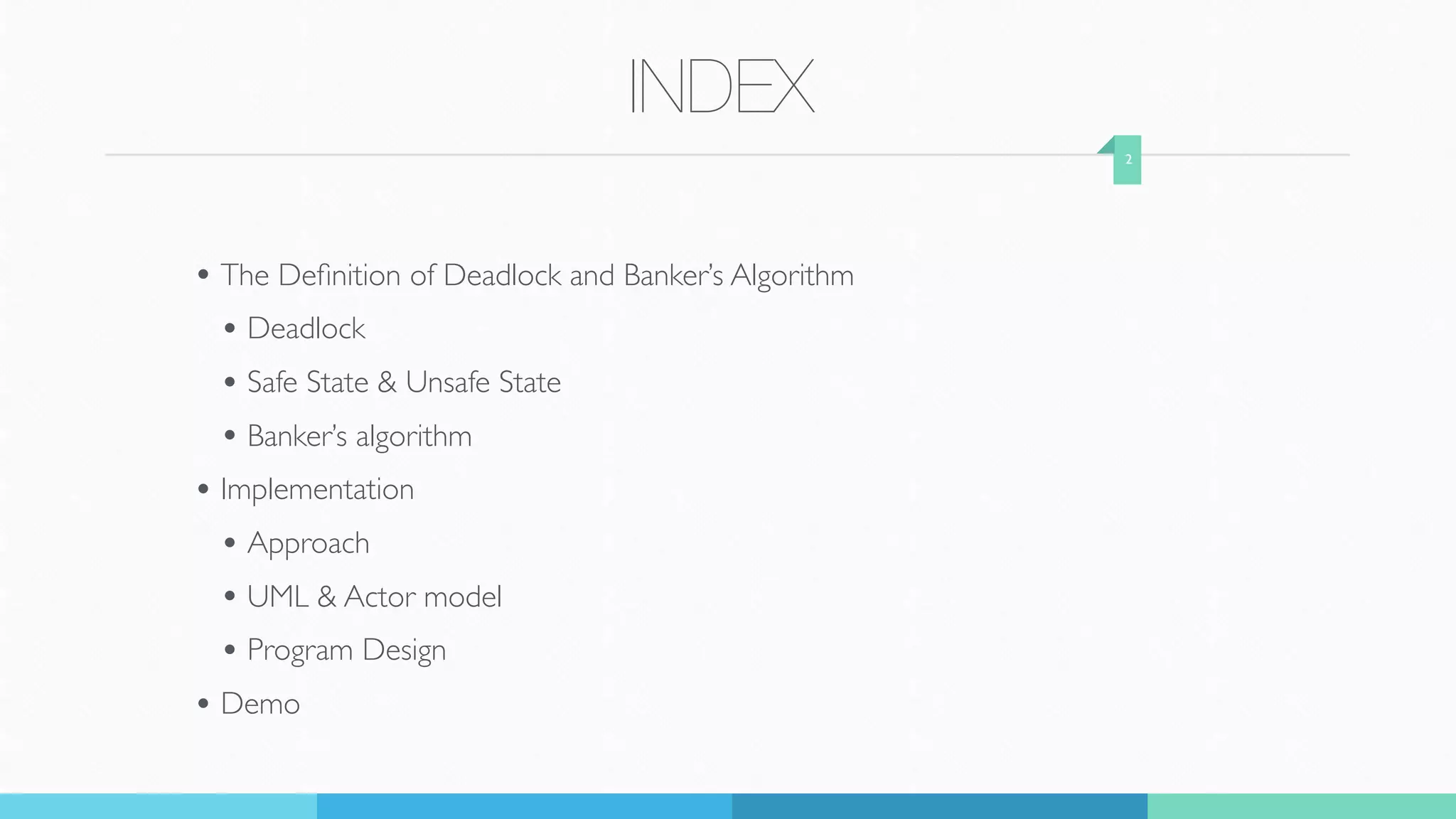

2. INDEX
• The Definition of Deadlock and Banker’s Algorithm
• Deadlock
• Safe State & Unsafe State
• Banker’s algorithm
• Implementation
• Approach
• UML & Actor model
• Program Design
• Demo
2

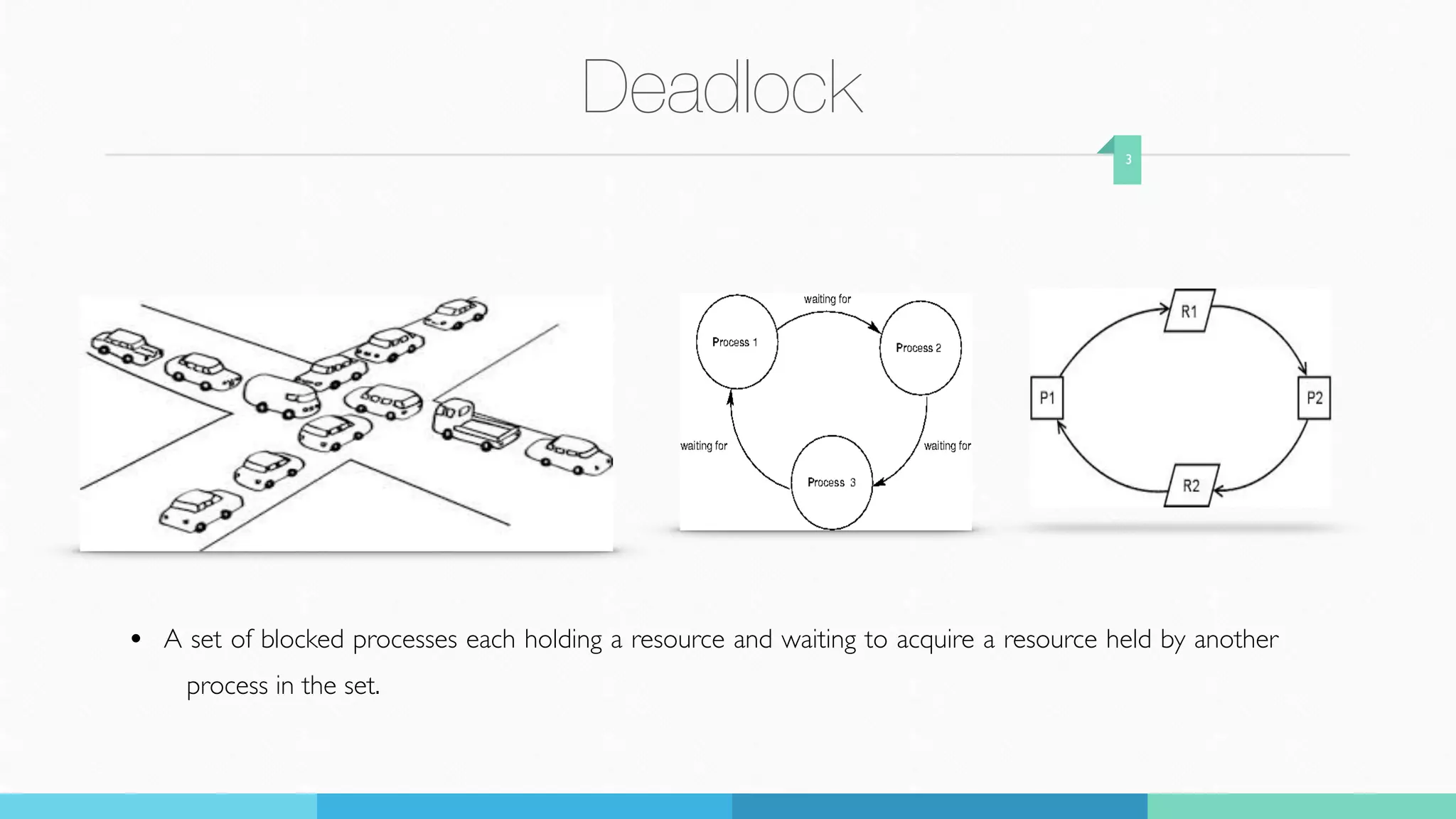

3. Deadlock
3

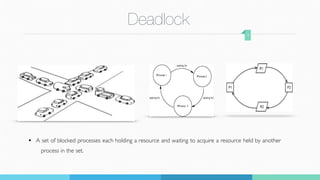

• A set of blocked processes each holding a resource and waiting to acquire a resource held by another
process in the set.

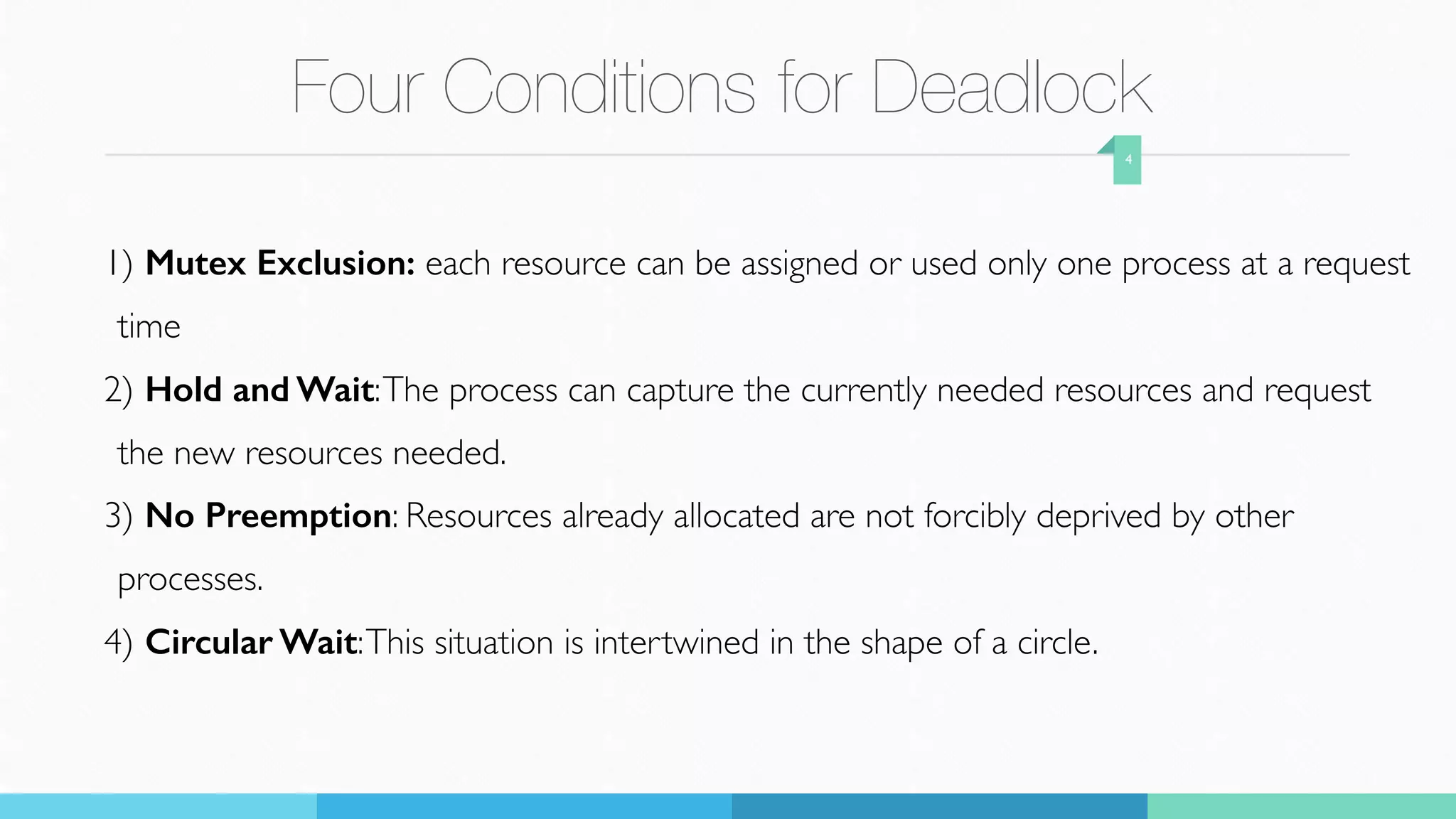

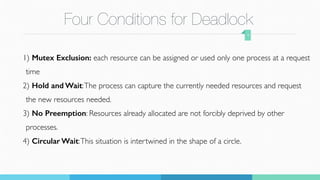

4. Four Conditions for Deadlock
1) Mutex Exclusion: each resource can be assigned or used only one process at a request
time
2) Hold and Wait:The process can capture the currently needed resources and request
the new resources needed.
3) No Preemption: Resources already allocated are not forcibly deprived by other
processes.
4) Circular Wait:This situation is intertwined in the shape of a circle.
4

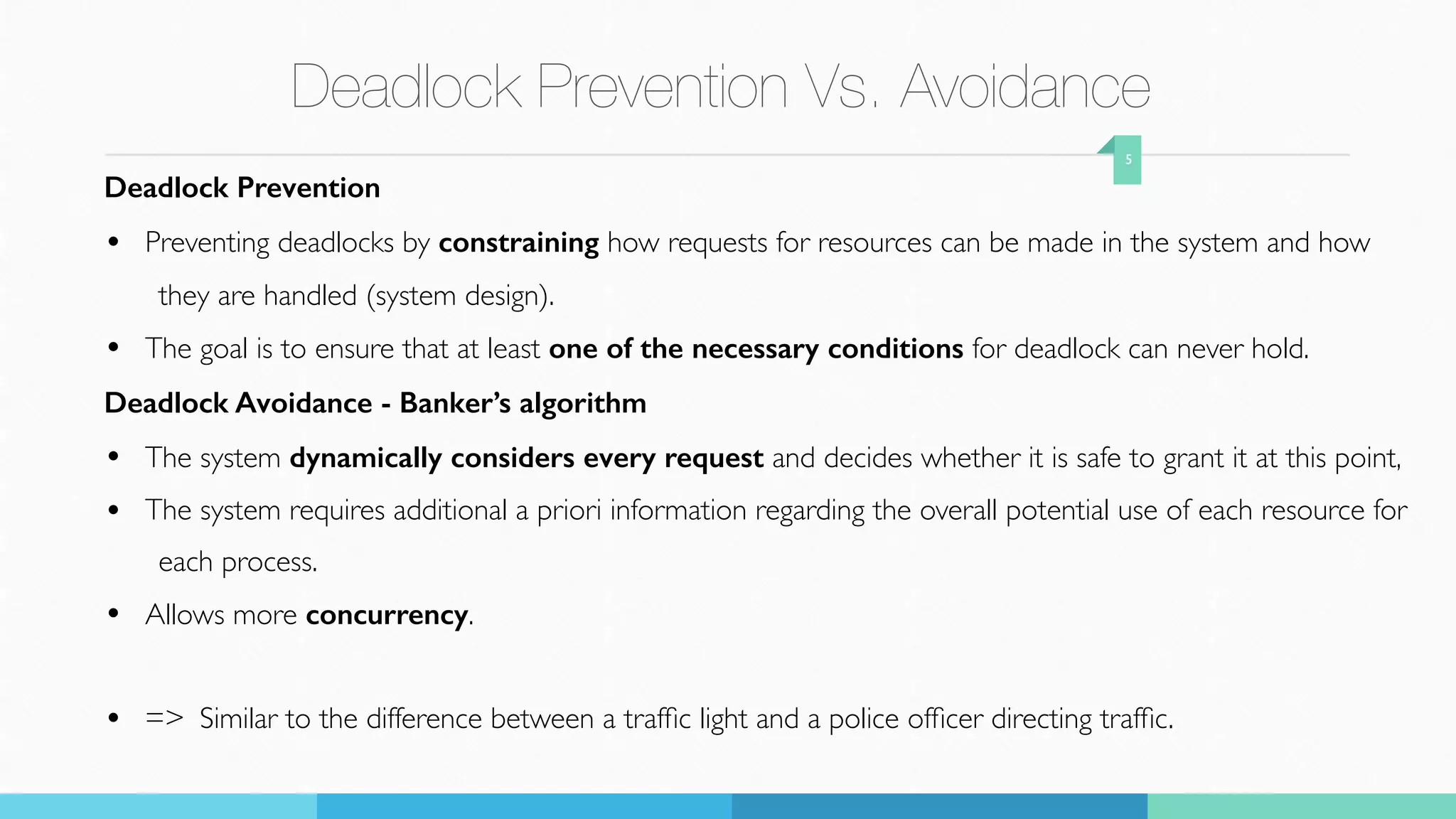

5. Deadlock Prevention Vs. Avoidance
Deadlock Prevention
• Preventing deadlocks by constraining how requests for resources can be made in the system and how
they are handled (system design).
• The goal is to ensure that at least one of the necessary conditions for deadlock can never hold.
Deadlock Avoidance - Banker’s algorithm
• The system dynamically considers every request and decides whether it is safe to grant it at this point,
• The system requires additional a priori information regarding the overall potential use of each resource for
each process.
• Allows more concurrency.
• => Similar to the difference between a traffic light and a police officer directing traffic.
5

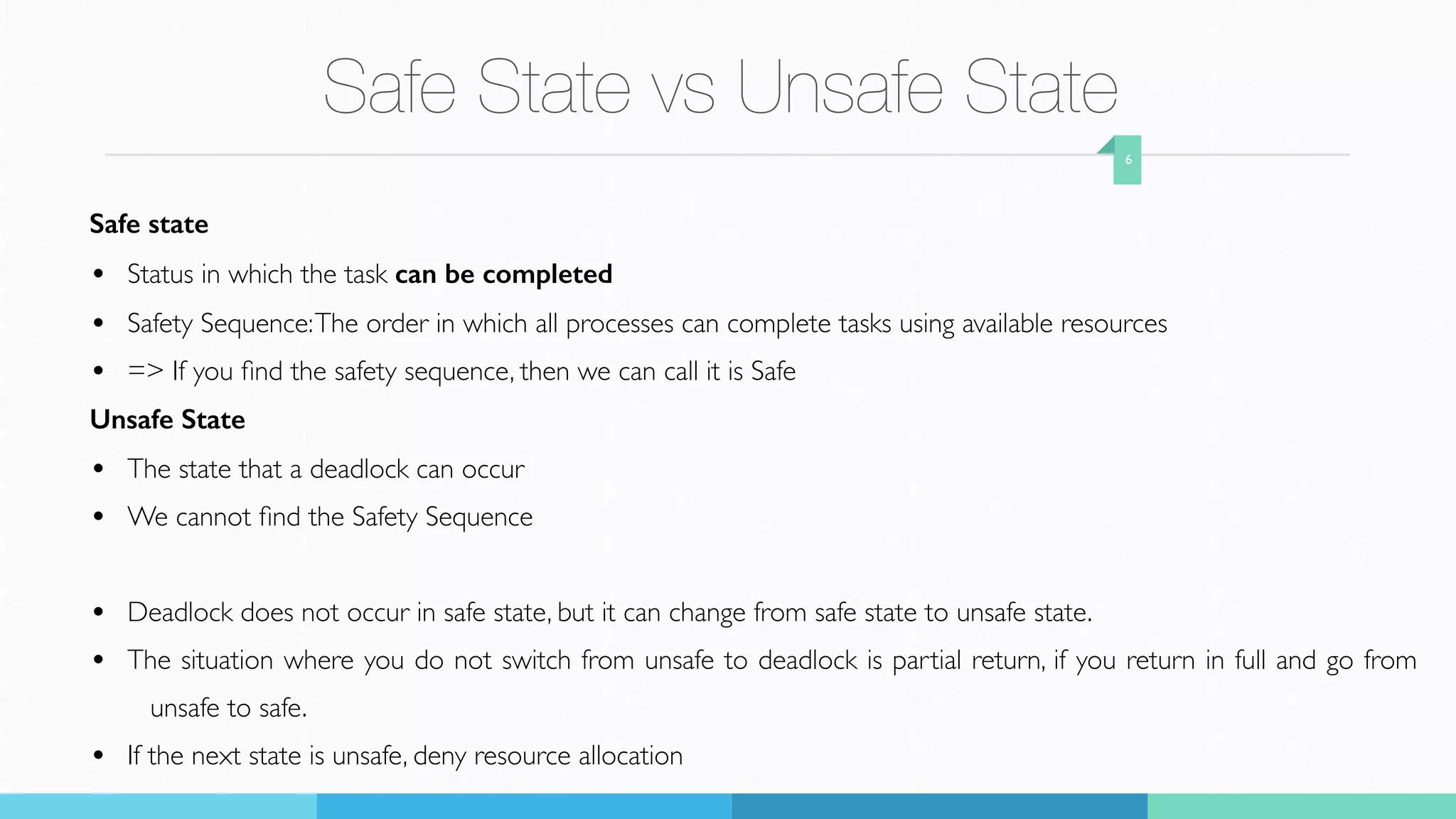

6. Safe State vs Unsafe State
Safe state
• Status in which the task can be completed
• Safety Sequence:The order in which all processes can complete tasks using available resources
• => If you find the safety sequence, then we can call it is Safe
Unsafe State
• The state that a deadlock can occur
• We cannot find the Safety Sequence
• Deadlock does not occur in safe state, but it can change from safe state to unsafe state.
• The situation where you do not switch from unsafe to deadlock is partial return, if you return in full and go from
unsafe to safe.
• If the next state is unsafe, deny resource allocation
6

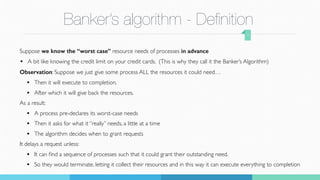

7. Banker’s algorithm - Definition
Suppose we know the “worst case” resource needs of processes in advance
• A bit like knowing the credit limit on your credit cards. (This is why they call it the Banker’s Algorithm)
Observation: Suppose we just give some process ALL the resources it could need…
• Then it will execute to completion.
• After which it will give back the resources.
As a result:
• A process pre-declares its worst-case needs
• Then it asks for what it “really” needs, a little at a time
• The algorithm decides when to grant requests
It delays a request unless:
• It can find a sequence of processes such that it could grant their outstanding need.
• So they would terminate. letting it collect their resources and in this way it can execute everything to completion
7

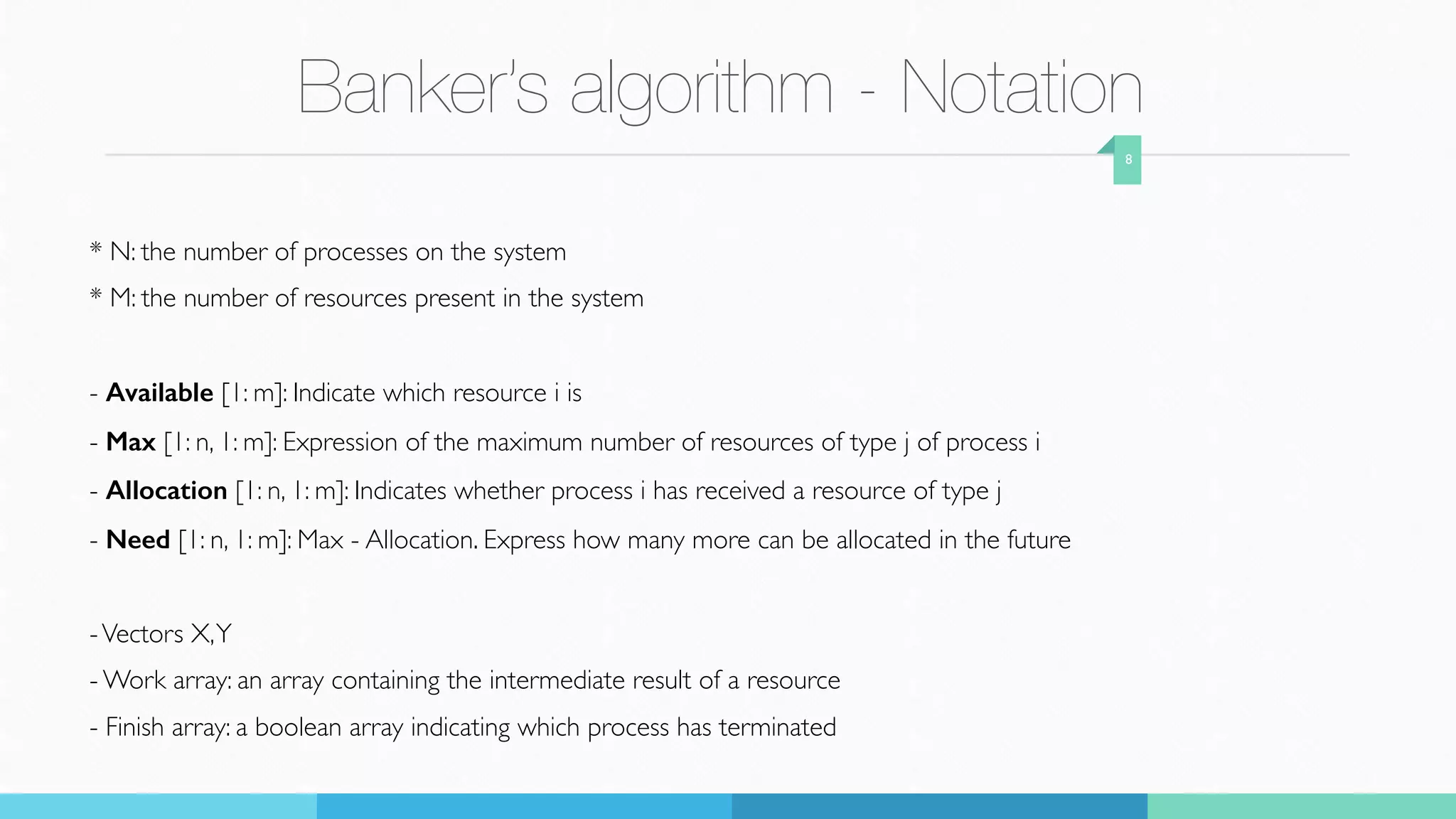

8. Banker’s algorithm - Notation
* N: the number of processes on the system
* M: the number of resources present in the system
- Available [1: m]: Indicate which resource i is
- Max [1: n, 1: m]: Expression of the maximum number of resources of type j of process i
- Allocation [1: n, 1: m]: Indicates whether process i has received a resource of type j
- Need [1: n, 1: m]: Max - Allocation. Express how many more can be allocated in the future
-Vectors X,Y
- Work array: an array containing the intermediate result of a resource
- Finish array: a boolean array indicating which process has terminated
8

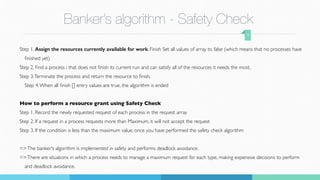

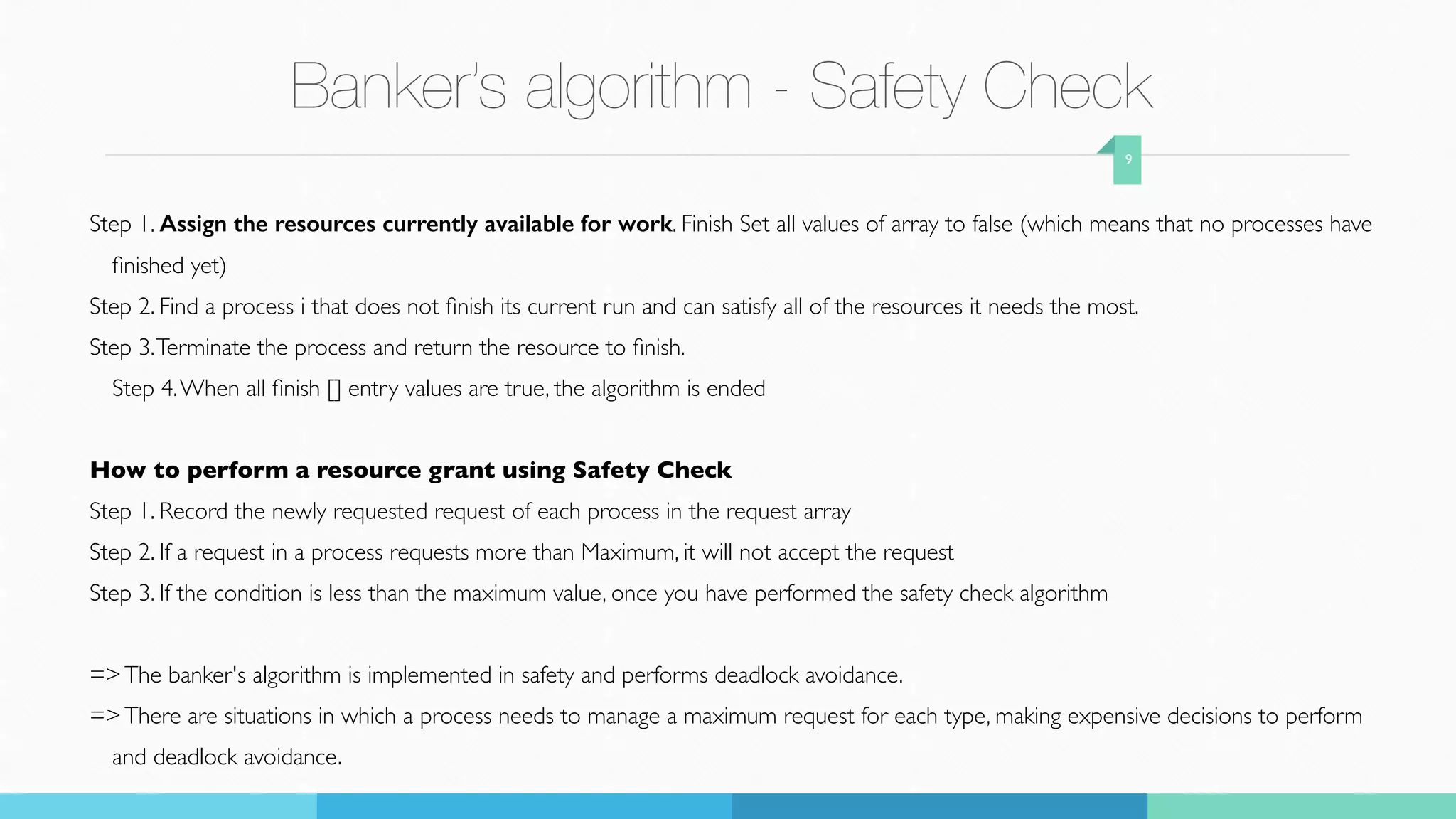

9. Banker’s algorithm - Safety Check
Step 1. Assign the resources currently available for work. Finish Set all values of array to false (which means that no processes have
finished yet)
Step 2. Find a process i that does not finish its current run and can satisfy all of the resources it needs the most.
Step 3.Terminate the process and return the resource to finish.
Step 4.When all finish [] entry values are true, the algorithm is ended
How to perform a resource grant using Safety Check
Step 1. Record the newly requested request of each process in the request array
Step 2. If a request in a process requests more than Maximum, it will not accept the request
Step 3. If the condition is less than the maximum value, once you have performed the safety check algorithm
=>The banker's algorithm is implemented in safety and performs deadlock avoidance.
=>There are situations in which a process needs to manage a maximum request for each type, making expensive decisions to perform
and deadlock avoidance.
9

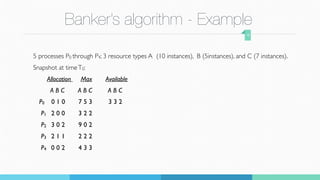

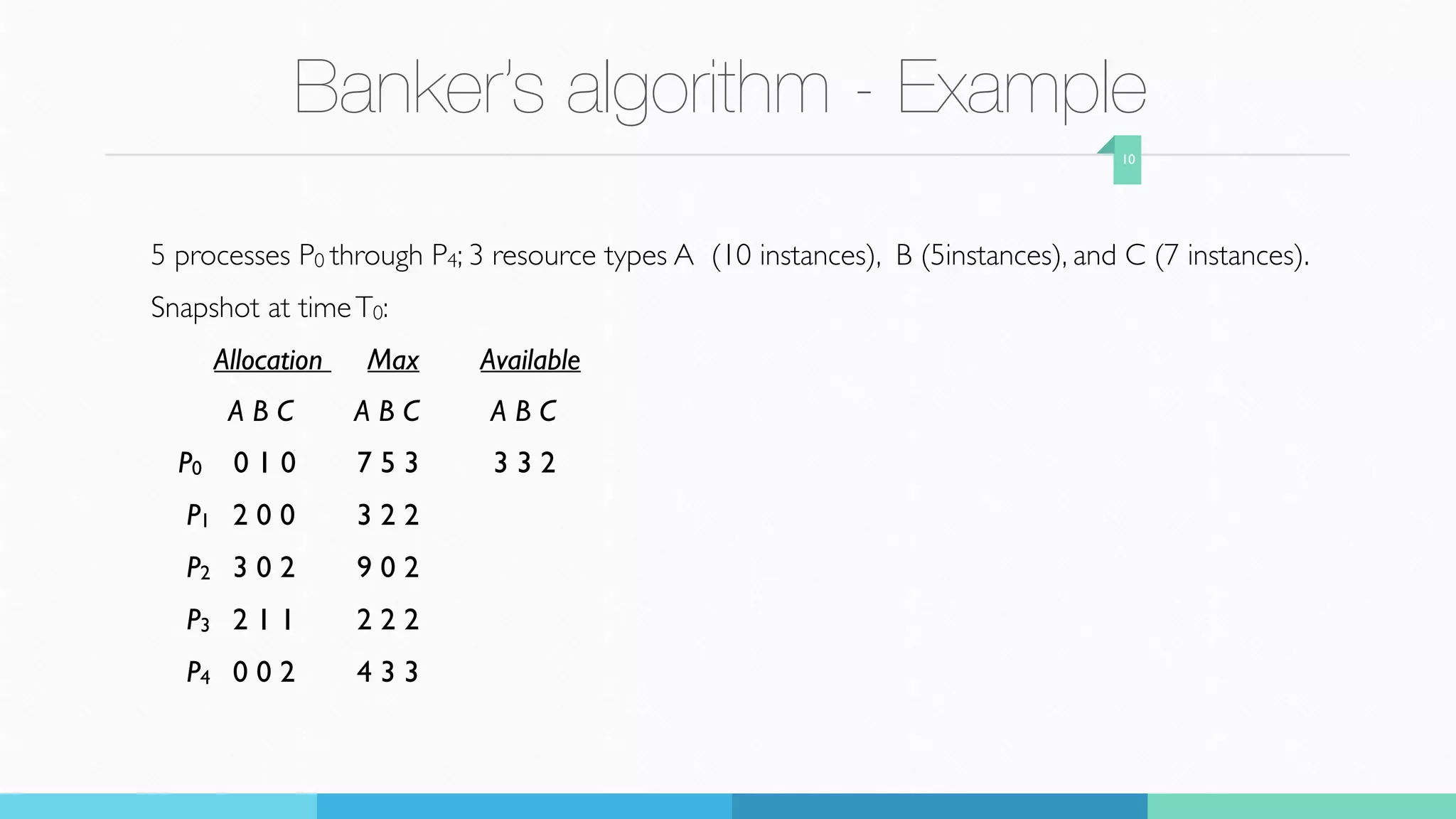

10. Banker’s algorithm - Example
10
5 processes P0 through P4; 3 resource types A (10 instances), B (5instances), and C (7 instances).
Snapshot at timeT0:
Allocation Max Available
A B C A B C A B C
P0 0 1 0 7 5 3 3 3 2
P1 2 0 0 3 2 2
P2 3 0 2 9 0 2
P3 2 1 1 2 2 2
P4 0 0 2 4 3 3

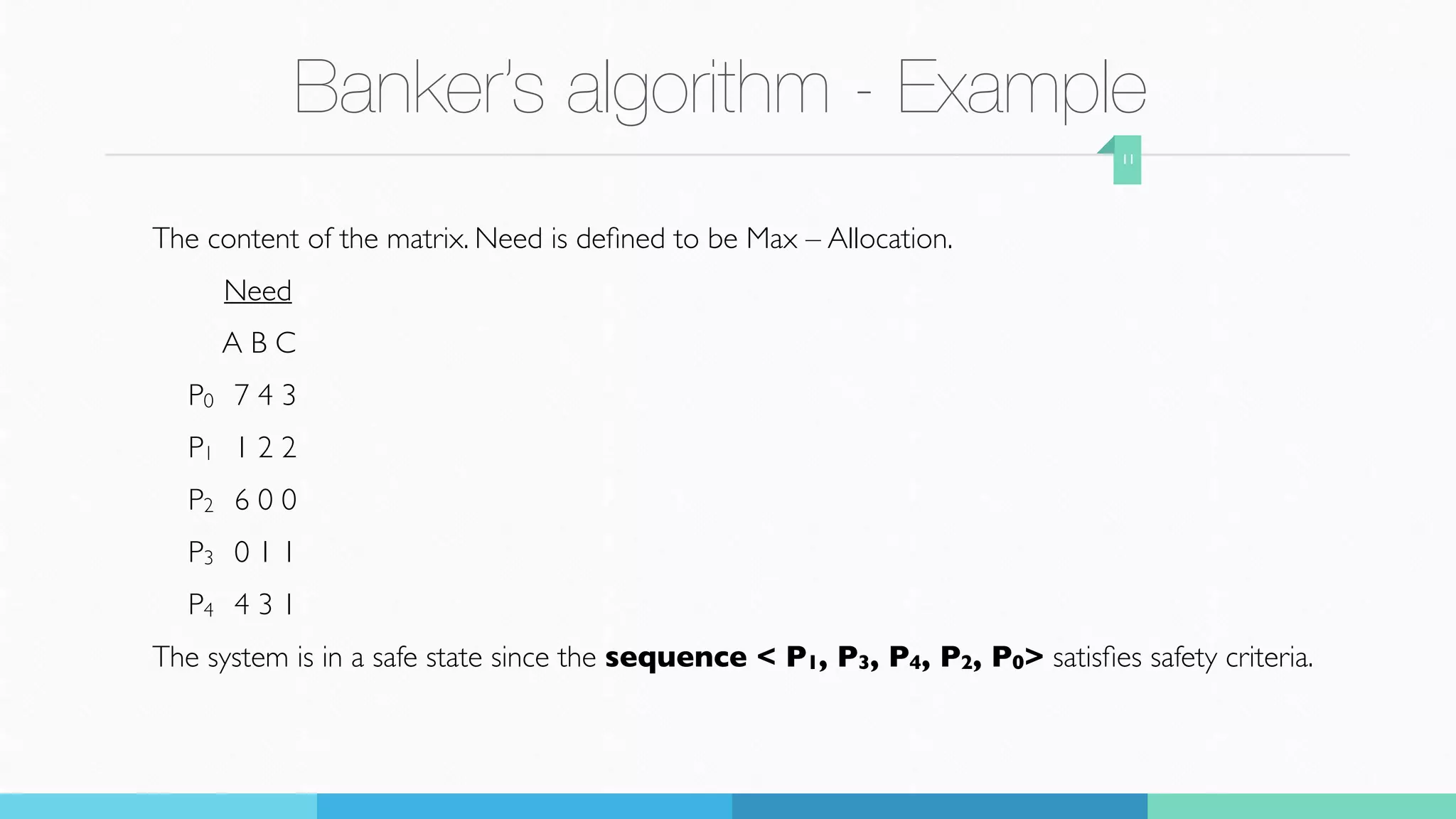

11. Banker’s algorithm - Example
11

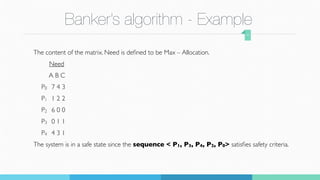

The content of the matrix. Need is defined to be Max – Allocation.
Need
A B C
P0 7 4 3
P1 1 2 2
P2 6 0 0
P3 0 1 1
P4 4 3 1
The system is in a safe state since the sequence < P1, P3, P4, P2, P0> satisfies safety criteria.

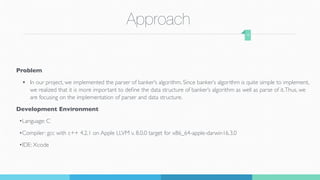

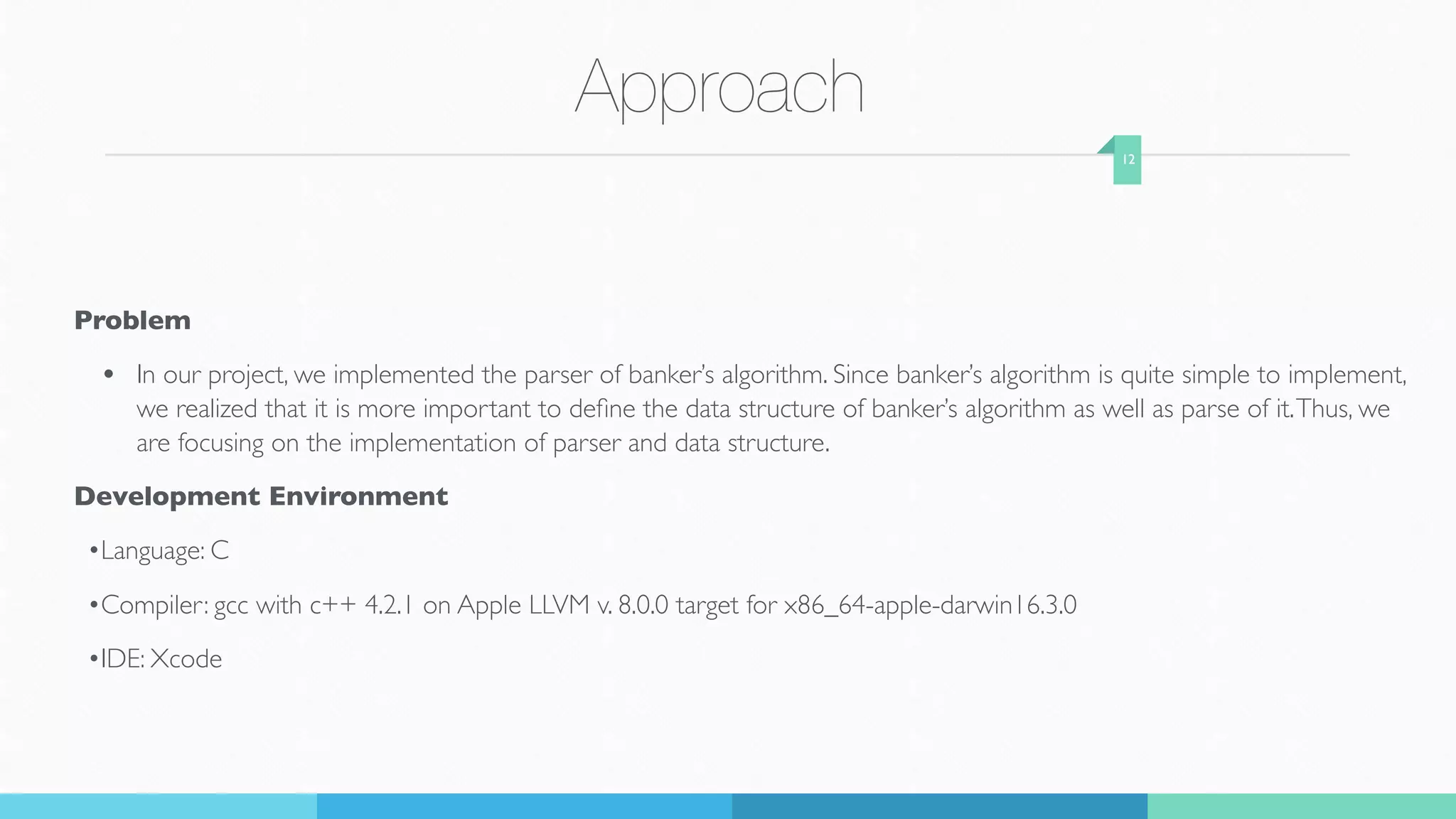

12. Approach
Problem
• In our project, we implemented the parser of banker’s algorithm. Since banker’s algorithm is quite simple to implement,
we realized that it is more important to define the data structure of banker’s algorithm as well as parse of it.Thus, we
are focusing on the implementation of parser and data structure.
Development Environment
•Language: C
•Compiler: gcc with c++ 4.2.1 on Apple LLVM v. 8.0.0 target for x86_64-apple-darwin16.3.0
•IDE: Xcode
12

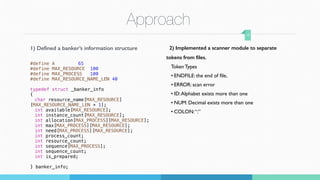

13. Approach
1) Defined a banker’s information structure
#define A 65
#define MAX_RESOURCE 100
#define MAX_PROCESS 100
#define MAX_RESOURCE_NAME_LEN 40
typedef struct _banker_info
{
char resource_name[MAX_RESOURCE]
[MAX_RESOURCE_NAME_LEN + 1];
int available[MAX_RESOURCE];
int instance_count[MAX_RESOURCE];
int allocation[MAX_PROCESS][MAX_RESOURCE];
int max[MAX_PROCESS][MAX_RESOURCE];
int need[MAX_PROCESS][MAX_RESOURCE];
int process_count;
int resource_count;
int sequence[MAX_PROCESS];
int sequence_count;
int is_prepared;
} banker_info;
13
2) Implemented a scanner module to separate
tokens from files.
Token Types
• ENDFILE: the end of file,
• ERROR: scan error
• ID:Alphabet exists more than one
• NUM: Decimal exists more than one
• COLON:“:”

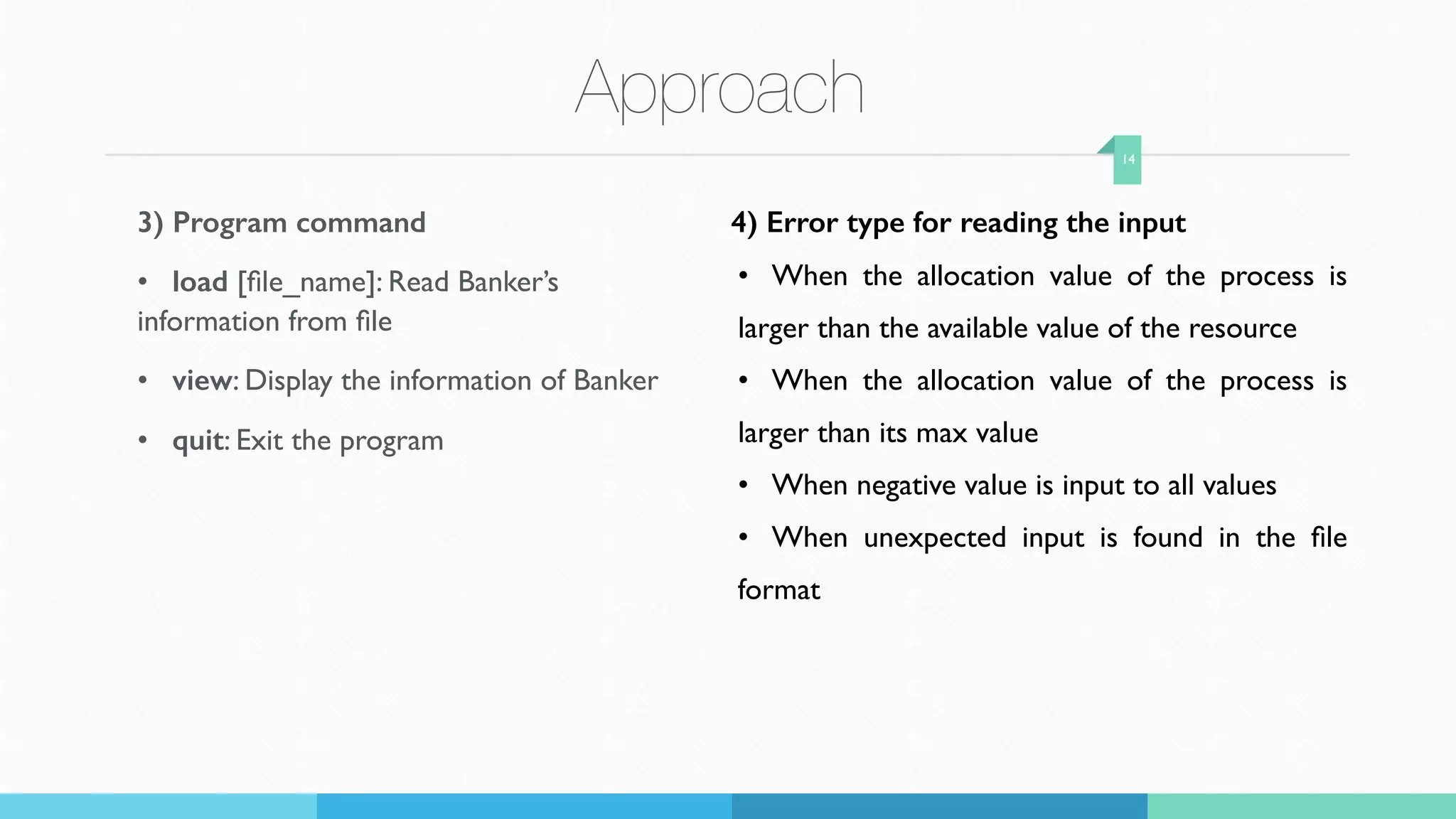

14. Approach
3) Program command
• load [file_name]: Read Banker’s
information from file
• view: Display the information of Banker
• quit: Exit the program
14
4) Error type for reading the input
• When the allocation value of the process is
larger than the available value of the resource
• When the allocation value of the process is
larger than its max value
• When negative value is input to all values
• When unexpected input is found in the file
format

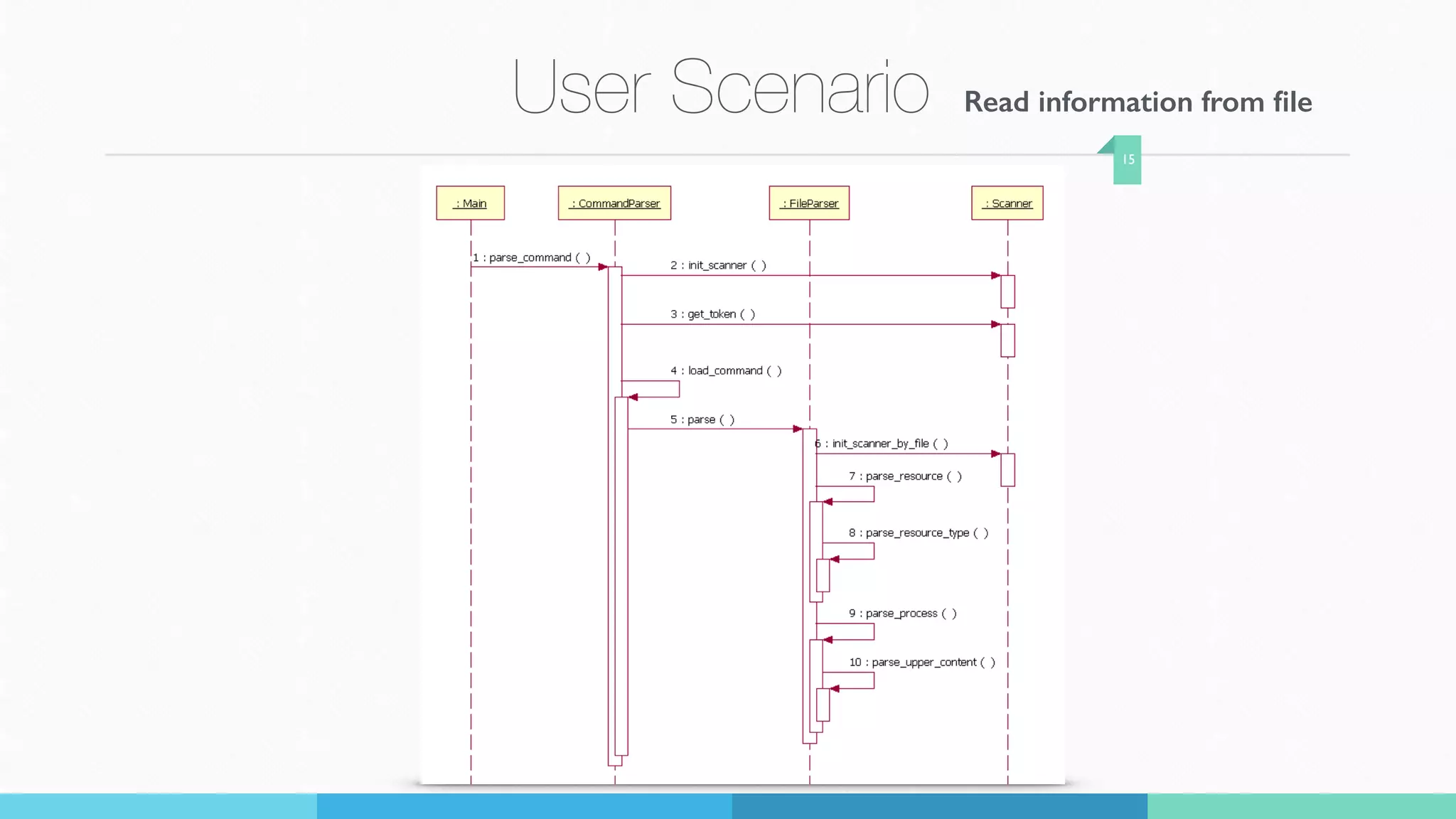

15. User Scenario Read information from file
15

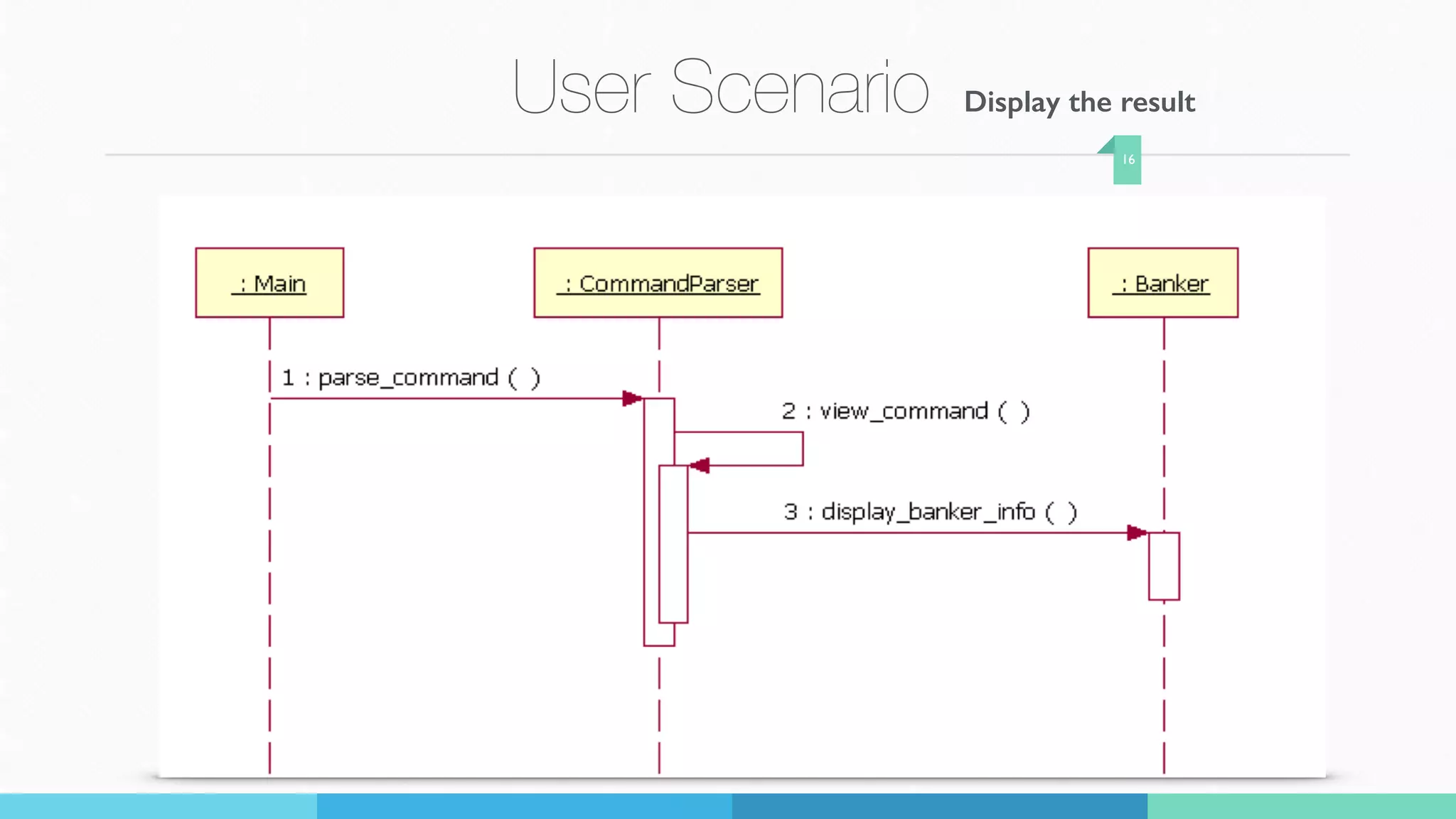

16. User Scenario Display the result
16

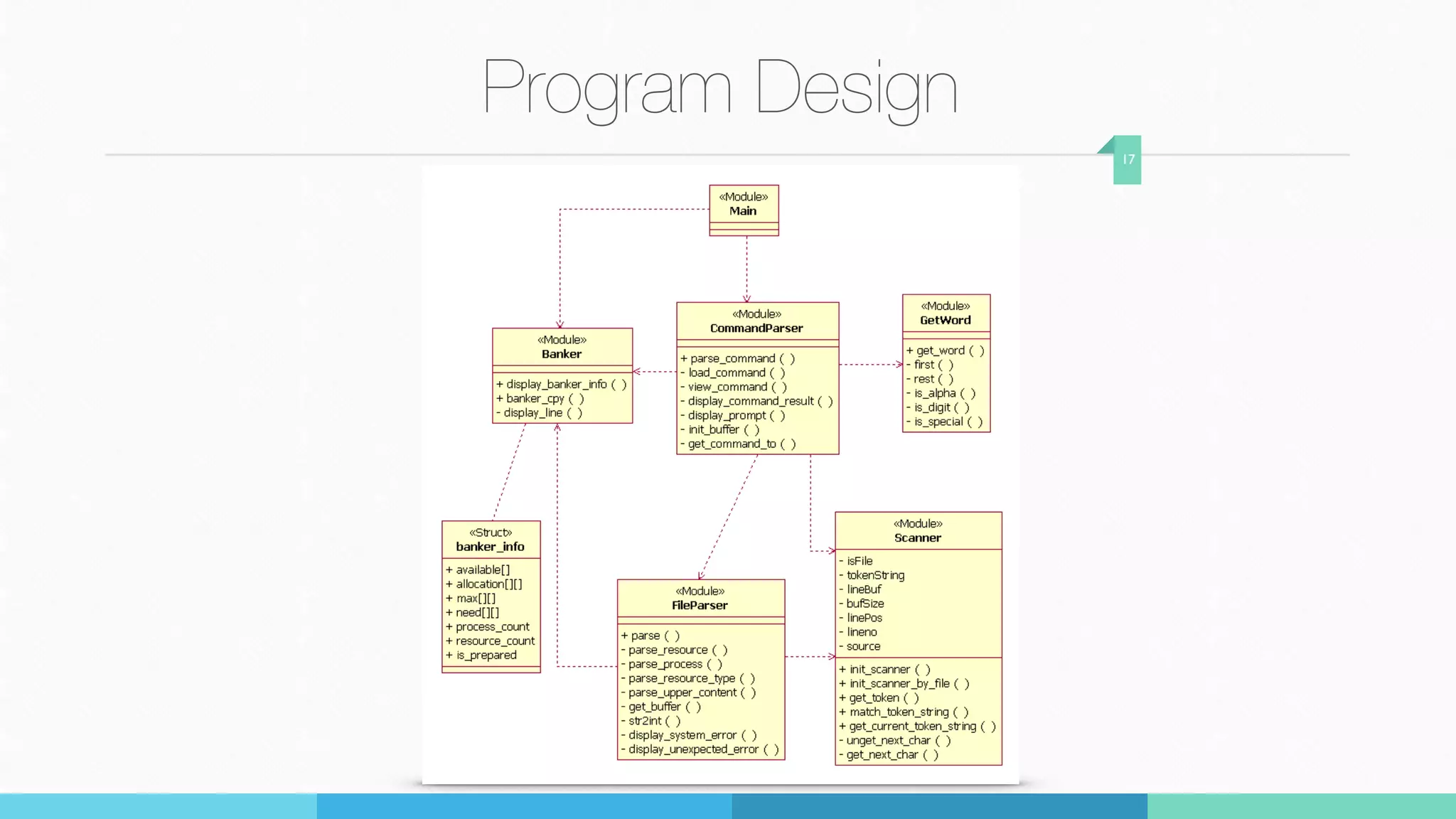

17. Program Design
17

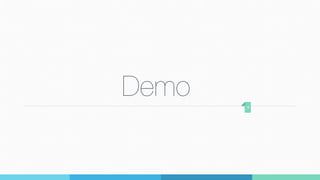

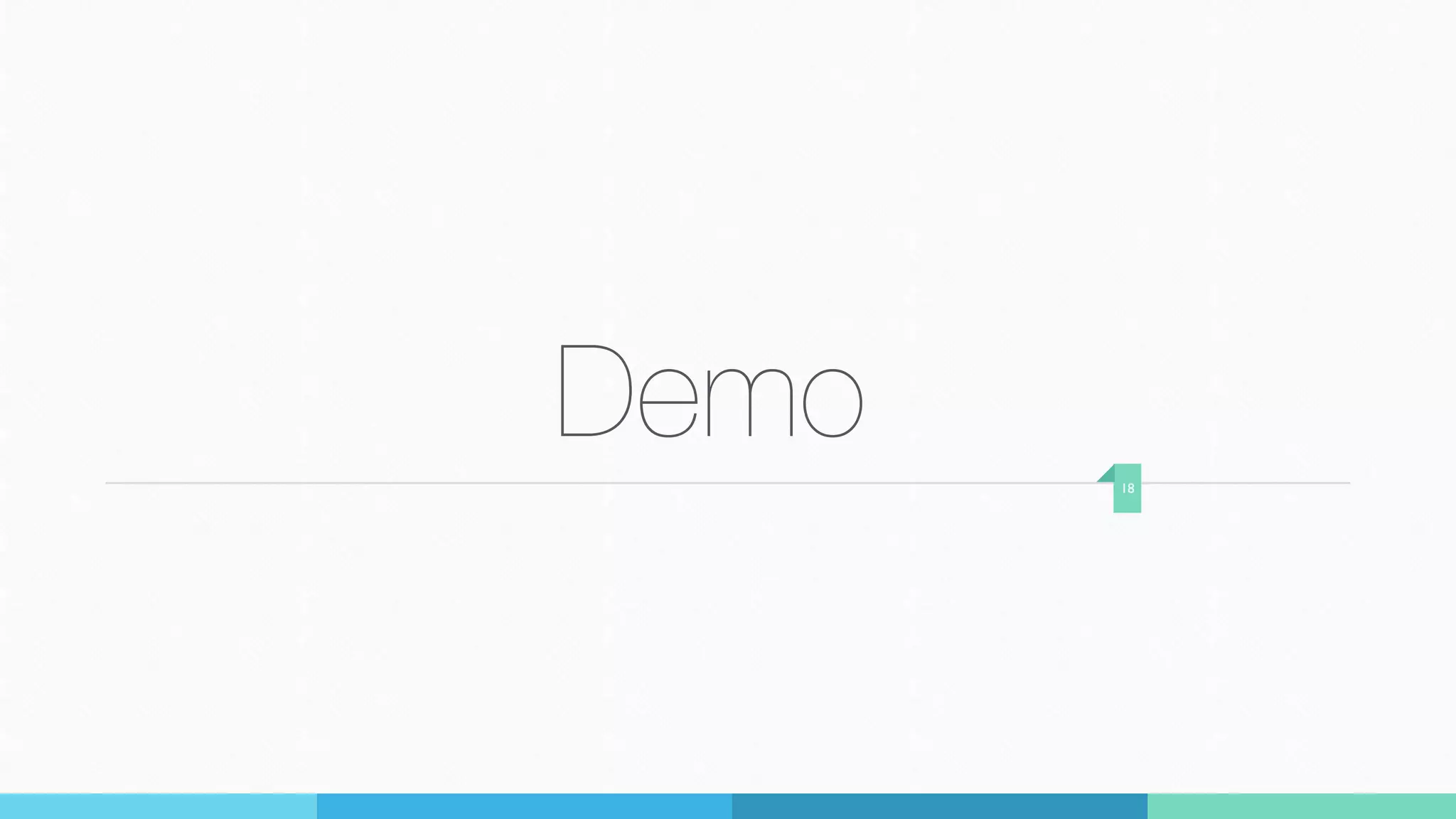

18. Demo 18

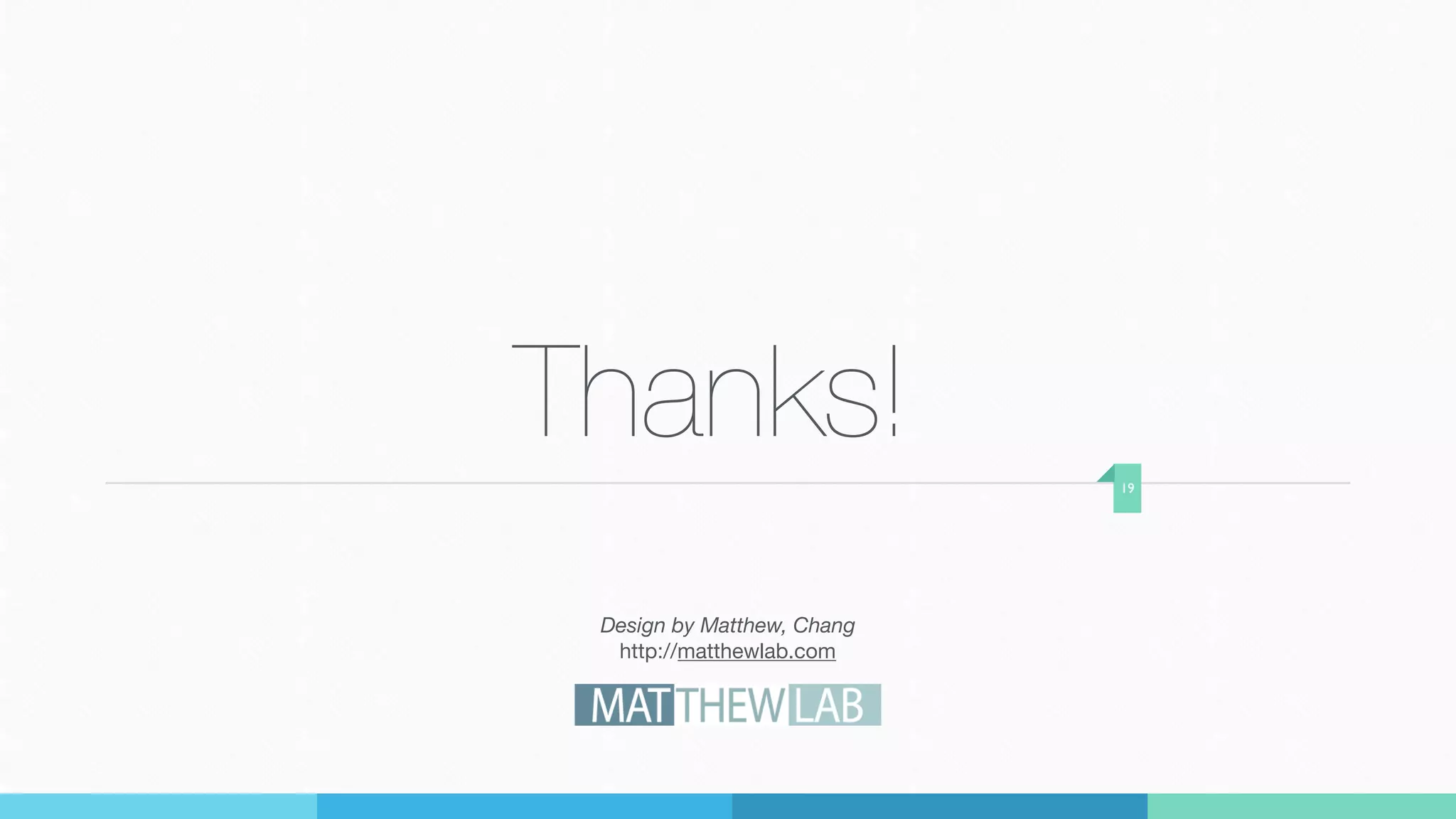

19. Thanks! 19
