The eye atlas

ALNEELAIN UNIVERSITY
THE FACULTY OF OPTICS &
VISUAL SCIENCES
Copyright: Asmaa Jamal, 2011

1Pg. 2

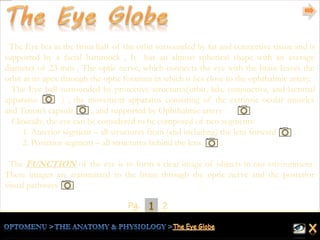

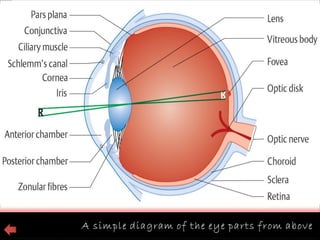

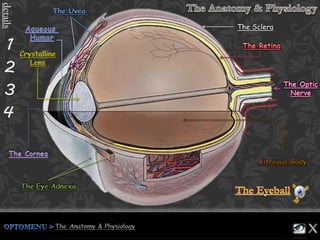

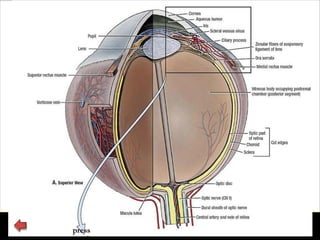

The Eye lies in the front half of the orbit surrounded by fat and connective tissue and is
supported by a facial hammock , It has an almost spherical shape with an average
diameter of 23 mm , The optic nerve, which connects the eye with the brain leaves the
orbit at its apex through the optic foramen in which it lies close to the ophthalmic artery.

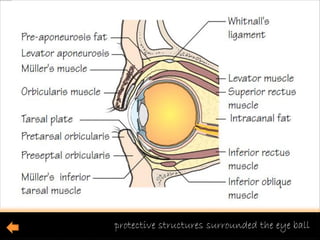

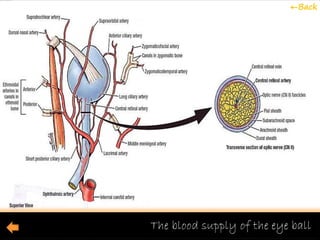

The Eye ball surrounded by protective structures(orbit, lids, conjunctiva, and lacrimal
apparatus ) , the movement apparatus consisting of the extrinsic ocular muscles
and Tenon’s capsule , and supported by Ophthalmic artery .
Clinically, the eye can be considered to be composed of two segments:
1. Anterior segment – all structures from (and including) the lens forward .
2. Posterior segment – all structures behind the lens .
The FUNCTION of the eye is to form a clear image of objects in our environment.
These images are transmitted to the brain through the optic nerve and the posterior
visual pathways .

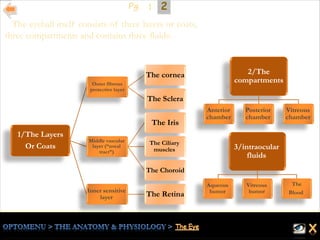

1/The Layers
Or Coats
Outer fibrous
protective layer
The cornea
The Sclera
Middle vascular
layer (“uveal
tract”)
The Iris
The Ciliary
muscles
The Choroid
Inner sensitive
layer The Retina
2/The
compartments
Anterior
chamber
Posterior
chamber
Vitreous
chamber
3/intraocular
fluids
Aqueous
humor
Vitreous
humor
The
Blood
The eyeball itself consists of three layers or coats,
three compartments and contains three fluids:
21Pg.

1Pg. 2 3

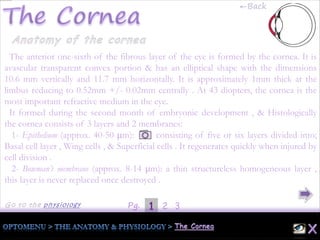

The anterior one-sixth of the fibrous layer of the eye is formed by the cornea. It is
avascular transparent convex portion & has an elliptical shape with the dimensions
10.6 mm vertically and 11.7 mm horizontally. It is approximately 1mm thick at the
limbus reducing to 0.52mm +/- 0.02mm centrally . At 43 diopters, the cornea is the
most important refractive medium in the eye.

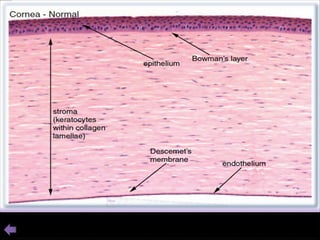

It formed during the second month of embryonic development , & Histologically
the cornea consists of 3 layers and 2 membranes:

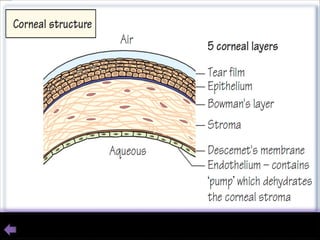

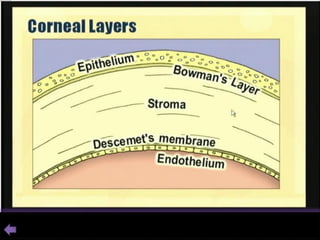

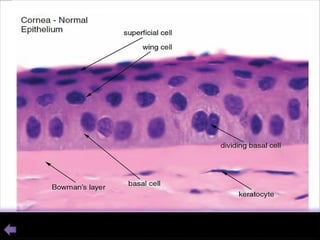

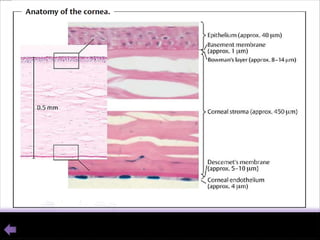

1- Epithelium (approx. 40-50 μm): consisting of five or six layers divided into;
Basal cell layer , Wing cells , & Superficial cells . It regenerates quickly when injured by
cell division .
2- Bowman’s membrane (approx. 8-14 μm): a thin structureless homogeneous layer ,
this layer is never replaced once destroyed .
←Back

21Pg. 3

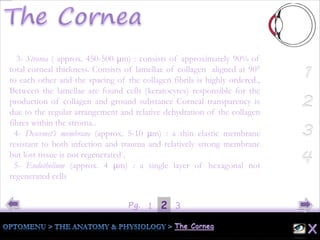

3- Stroma ( approx. 450-500 μm) : consists of approximately 90% of
total corneal thickness. Consists of lamellae of collagen aligned at 90°
to each other and the spacing of the collagen fibrils is highly ordered.,
Between the lamellae are found cells (keratocytes) responsible for the
production of collagen and ground substance Corneal transparency is
due to the regular arrangement and relative dehydration of the collagen
fibres within the stroma..
4- Descemet’s membrane (approx. 5-10 μm) : a thin elastic membrane
resistant to both infection and trauma and relatively strong membrane
but lost tissue is not regenerated .
5- Endothelium (approx. 4 μm) : a single layer of hexagonal not
regenerated cells

31Pg. 2

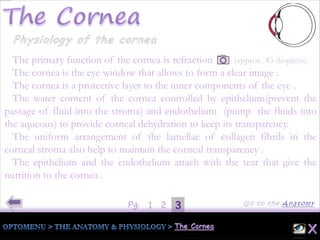

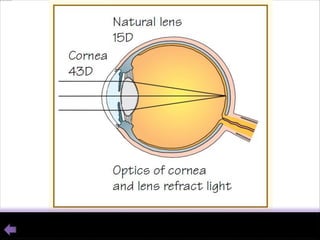

The primary function of the cornea is refraction (approx. 43 diopters).
The cornea is the eye window that allows to form a clear image .
The cornea is a protective layer to the inner components of the eye .
The water content of the cornea controlled by epithelium(prevent the
passage of fluid into the stroma) and endothelium (pump the fluids into
the aqueous) to provide corneal dehydration to keep its transparency.
The uniform arrangement of the lamellae of collagen fibrils in the
corneal stroma also help to maintain the corneal transparency .
The epithelium and the endothelium attach with the tear that give the
nutrition to the cornea .

1Pg. 2
The Sclera
The whitish opaque outer coat of the eye which form 5/6 of the outer
layer of the eye
formed by the sclera .
All six ocular muscles insert into the sclera .
The sclera is thickest (1mm) anteriorly at the limbus & thinnest
(0.3mm) beneath the insertions of the rectus muscles .

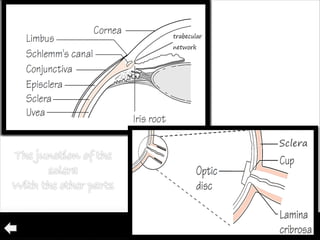

It joins with the :
* Cornea at the limbus ,
* Optic nerve enter the sclera at lamina cribrosa ,
* The angle of the anterior chamber , to form the trabecular network
and the canal of Schlemm .
XThe Sclera
←Back

21Pg.
The Sclera
The sclera is fibrous , and consists of :
* layer of loose connective tissue deep to the conjunctiva, over laying
the sclera, called the episclera.
* A cellular connective tissue with a higher water content than the
cornea .
* Stroma consists of irregular lamellae of collagen fibers (this is the
cause of its whitish opaque appearance) .
The most important FUNCTION of the sclera is to protect the eye by
its rigid formation , & cut the light entering the eye off except from the
cornea .
XThe Sclera

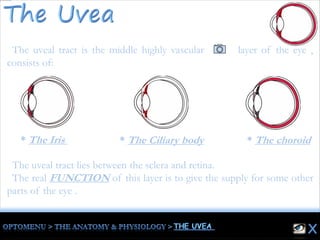

The uveal tract is the middle highly vascular layer of the eye ,
consists of:
The uveal tract lies between the sclera and retina.
The real FUNCTION of this layer is to give the supply for some other
parts of the eye .
* The choroid* The Ciliary body* The Iris

1Pg. 2 3

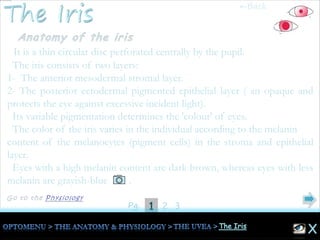

It is a thin circular disc perforated centrally by the pupil.
The iris consists of two layers:
1- The anterior mesodermal stromal layer.
2- The posterior ectodermal pigmented epithelial layer ( an opaque and
protects the eye against excessive incident light).
Its variable pigmentation determines the 'colour' of eyes.
The color of the iris varies in the individual according to the melanin
content of the melanocytes (pigment cells) in the stroma and epithelial
layer.
Eyes with a high melanin content are dark brown, whereas eyes with less
melanin are grayish-blue .
←Back

21Pg. 3

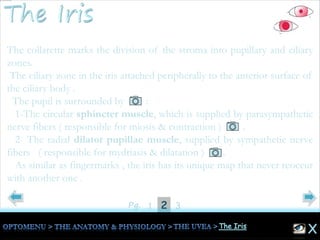

The collarette marks the division of the stroma into pupillary and ciliary
zones.
The ciliary zone in the iris attached peripherally to the anterior surface of
the ciliary body .
The pupil is surrounded by :
1-The circular sphincter muscle, which is supplied by parasympathetic
nerve fibers ( responsible for miosis & contraction ) .
2- The radial dilator pupillae muscle, supplied by sympathetic nerve
fibers ( responsible for mydriasis & dilatation ) .
As similar as fingermarks , the iris has its unique map that never reoccur
with another one .

31Pg. 2

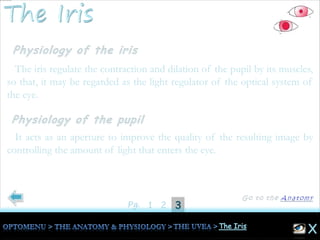

The iris regulate the contraction and dilation of the pupil by its muscles,
so that, it may be regarded as the light regulator of the optical system of
the eye.
It acts as an aperture to improve the quality of the resulting image by
controlling the amount of light that enters the eye.

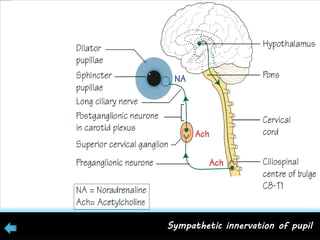

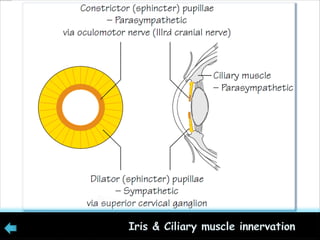

Sympathetic innervation of pupil

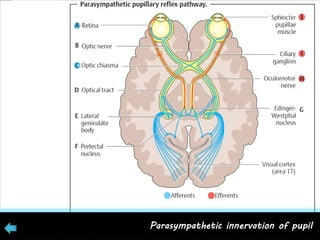

Parasympathetic innervation of pupil

1Pg. 2

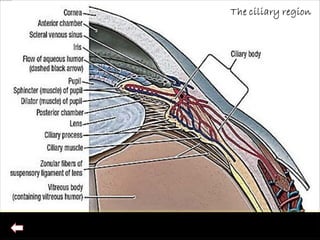

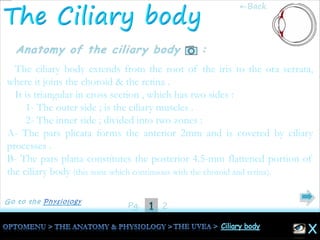

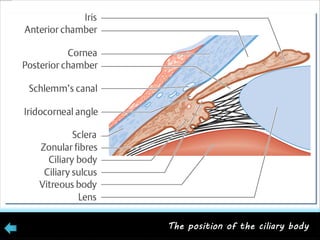

The ciliary body extends from the root of the iris to the ora serrata,
where it joins the choroid & the retina .
It is triangular in cross section , which has two sides :
1- The outer side ; is the ciliary muscles .
2- The inner side ; divided into two zones :
A- The pars plicata forms the anterior 2mm and is covered by ciliary
processes .
B- The pars plana constitutes the posterior 4.5-mm flattened portion of
the ciliary body (this zone which continuous with the choroid and retina).
←Back

21Pg.

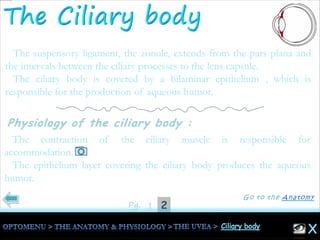

The suspensory ligament, the zonule, extends from the pars plana and
the intervals between the ciliary processes to the lens capsule.
The ciliary body is covered by a bilaminar epithelium , which is
responsible for the production of aqueous humor.
The contraction of the ciliary muscle is responsible for
accommodation.
The epithelium layer covering the ciliary body produces the aqueous
humor.

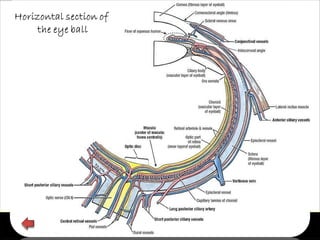

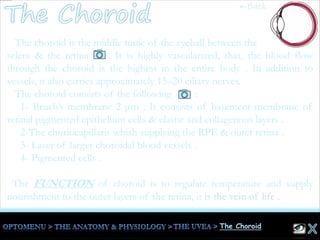

The choroid is the middle tunic of the eyeball between the
sclera & the retina . It is highly vascularized, that, the blood flow
through the choroid is the highest in the entire body . In addition to
vessels, it also carries approximately 15–20 ciliary nerves.
The choroid consists of the following :
1- Bruch’s membrane 2 μm ; It consists of basement membrane of
retinal pigmented epithelium cells & elastic and collagenous layers .
2-The choriocapillaris whish supplying the RPE & outer retina .
3- Layer of larger choroidal blood vessels .
4- Pigmented cells .
The FUNCTION of choroid is to regulate temperature and supply
nourishment to the outer layers of the retina, it is the vein of life .
←Back

1Pg. 2

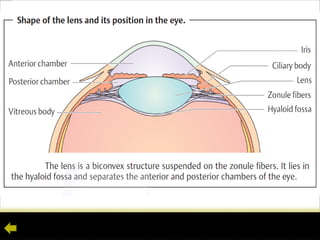

Is a transparent, bi-convex structure suspended from the ciliary body by the zonular fibres and
situated between the iris and the vitreous The lens is about 9mm in diameter and about 4mm thick
at the centre. The lens is comprised of 65% water and 35% protein .

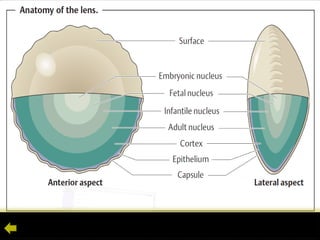

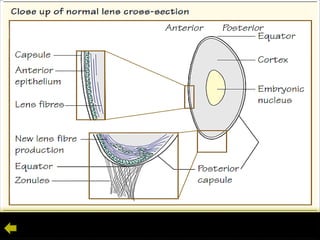

Anatomically , the lens consists of :
1- A thick elastic capsule for protection (its elasticity decreases with aged) . The zonule inserts into it
near the equator to suspend the lens by ciliary body.
2- Layer of epithelial cells (just under the anterior capsule). It active metabolically to keep the lens
clean .
3- Lens fibres ; The central lens fibres are called the nucleus and the more peripheral fibres the
cortex .
4- Embryonic nucleus , forms by the growth of primary lens fibers then displaced toward the
center of the lens by the growth secondary one .
5- Fetal nucleus (complete at birth) , & Infantile nucleus ( complete during the 1st and 2nd decades of life)
←Back

21Pg.
The lens is one of the essential refractive media (10–20 diopters, depending
on individual accommodation) of the eye and focuses incident rays of light on
the retina .

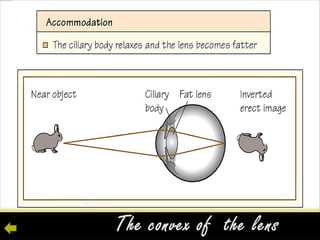

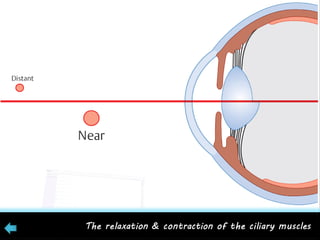

Zonule filaments suspend the lens ciliary processes to the ciliary muscle .
When the muscle contracts the filaments relax allowing the lens to
become more convex with a shorter focal length for reading .

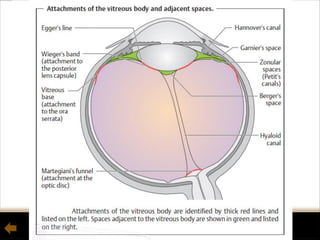

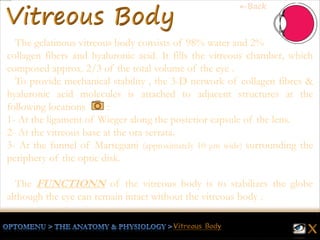

The gelatinous vitreous body consists of 98% water and 2%
collagen fibers and hyaluronic acid. It fills the vitreous chamber, which
composed approx. 2/3 of the total volume of the eye .
To provide mechanical stability , the 3-D network of collagen fibres &
hyaluronic acid molecules is attached to adjacent structures at the
following locations :
1- At the ligament of Wieger along the posterior capsule of the lens.
2- At the vitreous base at the ora serrata.
3- At the funnel of Martegiani (approximately 10 μm wide) surrounding the
periphery of the optic disk.
The FUNCTIONN of the vitreous body is to stabilizes the globe
although the eye can remain intact without the vitreous body .
←Back

41Pg. 2 3

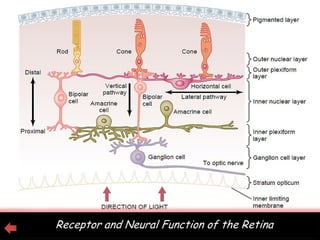

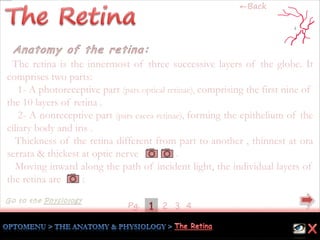

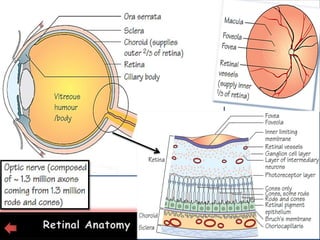

The retina is the innermost of three successive layers of the globe. It
comprises two parts:
1- A photoreceptive part (pars optical retinae), comprising the first nine of
the 10 layers of retina .
2- A nonreceptive part (pars caeca retinae), forming the epithelium of the
ciliary body and iris .

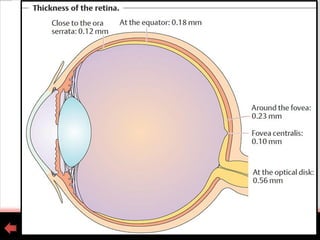

Thickness of the retina different from part to another , thinnest at ora
serrata & thickest at optic nerve .

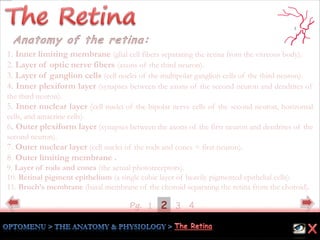

Moving inward along the path of incident light, the individual layers of
the retina are :
←Back

Pg. 421 3
1. Inner limiting membrane (glial cell fibers separating the retina from the vitreous body).
2. Layer of optic nerve fibers (axons of the third neuron).
3. Layer of ganglion cells (cell nuclei of the multipolar ganglion cells of the third neuron).
4. Inner plexiform layer (synapses between the axons of the second neuron and dendrites of
the third neuron).
5. Inner nuclear layer (cell nuclei of the bipolar nerve cells of the second neuron, horizontal
cells, and amacrine cells).
6. Outer plexiform layer (synapses between the axons of the first neuron and dendrites of the
second neuron).
7. Outer nuclear layer (cell nuclei of the rods and cones = first neuron).
8. Outer limiting membrane .
9. Layer of rods and cones (the actual photoreceptors).
10. Retinal pigment epithelium (a single cubic layer of heavily pigmented epithelial cells).
11. Bruch’s membrane (basal membrane of the choroid separating the retina from the choroid).

431Pg. 2

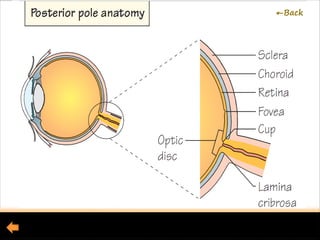

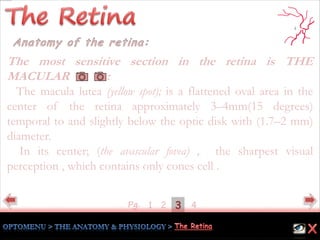

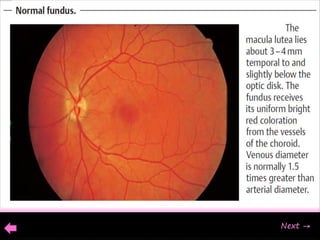

The most sensitive section in the retina is THE
MACULAR :
The macula lutea (yellow spot); is a flattened oval area in the
center of the retina approximately 3–4mm(15 degrees)
temporal to and slightly below the optic disk with (1.7–2 mm)
diameter.
In its center; (the avascular fovea) , the sharpest visual
perception , which contains only cones cell .

41Pg. 2

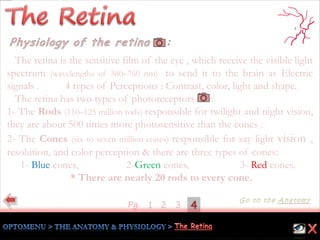

The retina is the sensitive film of the eye , which receive the visible light
spectrum (wavelengths of 380–760 nm) to send it to the brain as Electric
signals .It has 4 types of Perceptions : Contrast, color, light and shape.

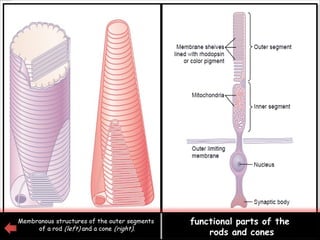

The retina has two types of photoreceptors :
1- The Rods (110–125 million rods) responsible for twilight and night vision,
they are about 500 times more photosensitive than the cones .
2- The Cones (six to seven million cones) responsible for say light vision ,
resolution, and color perception & there are three types of cones:
1- Blue cones, 2-Green cones, 3- Red cones.
* There are nearly 20 rods to every cone.
3

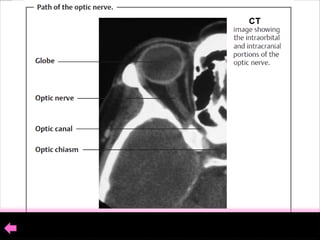

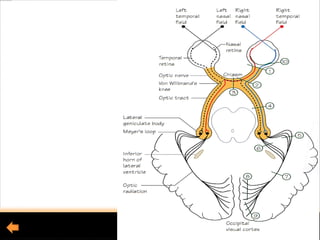

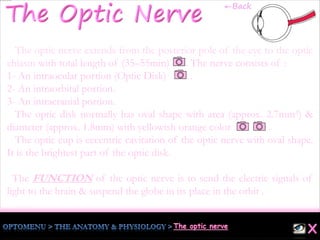

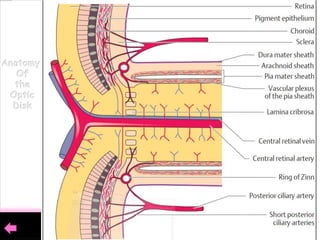

The optic nerve extends from the posterior pole of the eye to the optic
chiasm with total length of (35–55mm) . The nerve consists of :
1- An intraocular portion (Optic Disk) .
2- An intraorbital portion.
3- An intracranial portion.

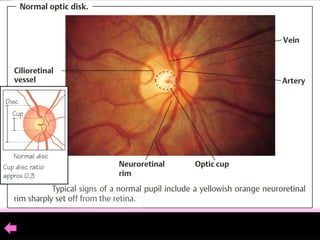

The optic disk normally has oval shape with area (approx. 2.7mm²) &
diameter (approx. 1.8mm) with yellowish orange color .
The optic cup is eccentric cavitation of the optic nerve with oval shape.
It is the brightest part of the optic disk.
The FUNCTION of the optic nerve is to send the electric signals of
light to the brain & suspend the globe in its place in the orbit .
←Back

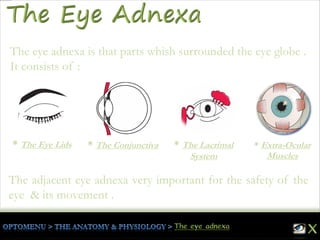

The eye adnexa is that parts whish surrounded the eye globe .
It consists of :
The adjacent eye adnexa very important for the safety of the
eye & its movement .
* The Eye Lids * The Lacrimal
System
* The Conjunctiva * Extra-Ocular
Muscles

1Pg. 2

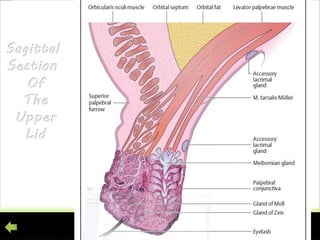

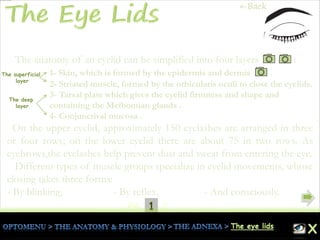

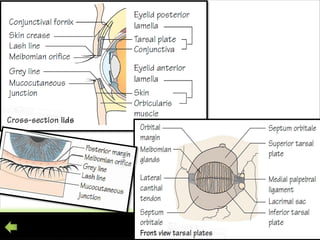

The anatomy of an eyelid can be simplified into four layers :
1- Skin, which is formed by the epidermis and dermis .
2- Striated muscle, formed by the orbicularis oculi to close the eyelids.
3- Tarsal plate which gives the eyelid firmness and shape and
containing the Meibomian glands .
4- Conjunctival mucosa .
On the upper eyelid, approximately 150 eyelashes are arranged in three
or four rows; on the lower eyelid there are about 75 in two rows. As
eyebrows,the eyelashes help prevent dust and sweat from entering the eye.
Different types of muscle groups specialize in eyelid movements, whose
closing takes three forms:
- By blinking, - By reflex, - And consciously.
The superficial
layer
The deep
layer
←Back

21Pg.

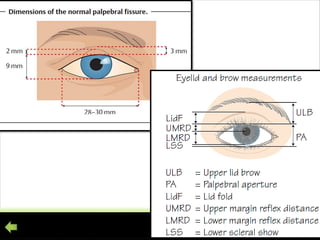

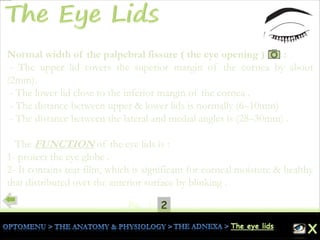

Normal width of the palpebral fissure ( the eye opening ) :
- The upper lid covers the superior margin of the cornea by about
(2mm).
- The lower lid close to the inferior margin of the cornea .
- The distance between upper & lower lids is normally (6–10mm) .
- The distance between the lateral and medial angles is (28–30mm) .
The FUNCTION of the eye lids is :
1- protect the eye globe .
2- It contains tear film, which is significant for corneal moisture & healthy
that distributed over the anterior surface by blinking .

1Pg. 2

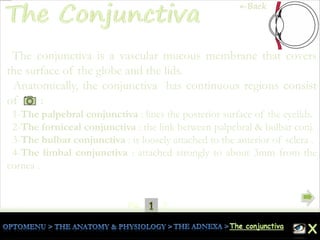

The conjunctiva is a vascular mucous membrane that covers
the surface of the globe and the lids.
Anatomically, the conjunctiva has continuous regions consist
of :

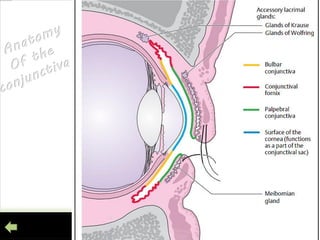

1-The palpebral conjunctiva : lines the posterior surface of the eyelids.
2-The forniceal conjunctiva : the link between palpebral & bulbar conj.
3-The bulbar conjunctiva : is loosely attached to the anterior of sclera .
4-The limbal conjunctiva : attached strongly to about 3mm from the
cornea .
←Back

21Pg.

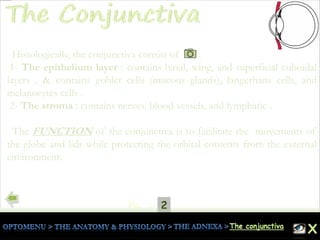

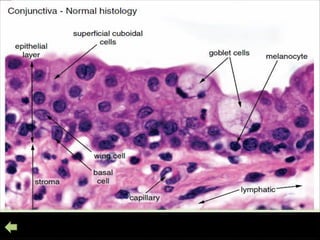

Histologically, the conjunctiva consist of :
1- The epithelium layer : contains basal, wing, and superficial cuboidal
layers . & contains goblet cells (mucous glands), langerhans cells, and
melanocytes cells .
2- The stroma : contains nerves, blood vessels, and lymphatic .
The FUNCTION of the conjunctiva is to facilitate the movements of
the globe and lids while protecting the orbital contents from the external
environment.

1Pg. 2
The lacrimal system consists of two sections :
* Structures that secrete tear fluid ( lacrimal gland, Krause and Wolfring glands ).
* Structures that facilitate tear drainage (drainage system ).
The lacrimal gland lies above the outer corner of the eye beneath the
superior temporal margin of the orbital bone in the lacrimal fossa. The
accessory Krause and Wolfring glands located in the conjunctival fornices.

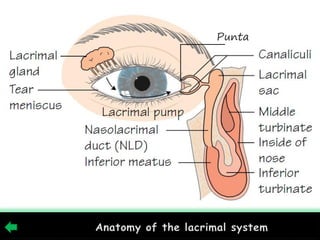

Anatomically, the lacrimal drainage system consists of :
1- The punta (2mm) : lie in papillae at the medial ends of the eyelids.
2- Canaliculi (8mm) : 70% of tears drain through the inferior and 30% through the
superior canaliculus .
3- The lacrimal sac : lies in the lacrimal groove formed by the lacrimal bone and the
frontal process of the maxilla.
4- Nasolacrimal duct (NLD) : is directed downwards, laterally and
backwards to empty into the inferior meatus of the nasal cavity.

21Pg.

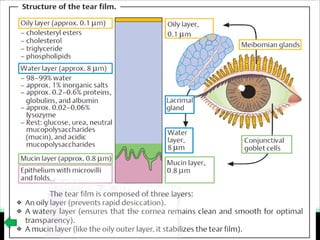

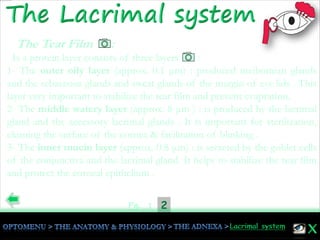

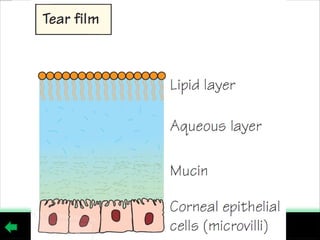

The Tear Film :
Is a protein layer consists of three layers :
1- The outer oily layer (approx. 0.1 μm) : produced meibomian glands
and the sebaceous glands and sweat glands of the margin of eye lids . This
layer very important to stabilize the tear film and prevent evapration.
2- The middle watery layer (approx. 8 μm ) : is produced by the lacrimal
gland and the accessory lacrimal glands . It is important for sterilization,
cleaning the surface of the cornea & facilitation of blinking .
3- The inner mucin layer (approx. 0.8 μm) : is secreted by the goblet cells
of the conjunctiva and the lacrimal gland. It helps to stabilize the tear film
and protect the corneal epithelium .

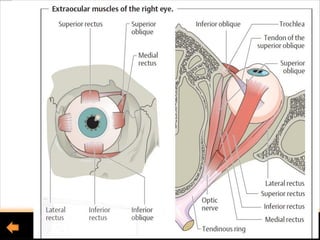

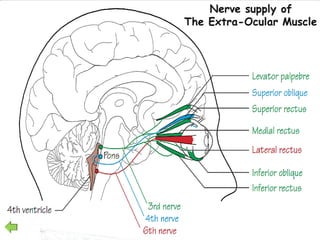

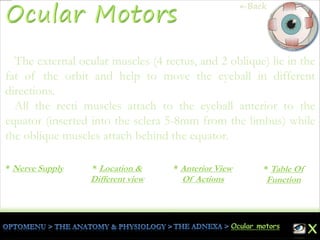

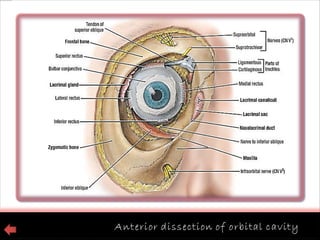

The external ocular muscles (4 rectus, and 2 oblique) lie in the
fat of the orbit and help to move the eyeball in different
directions.
All the recti muscles attach to the eyeball anterior to the
equator (inserted into the sclera 5-8mm from the limbus) while
the oblique muscles attach behind the equator.

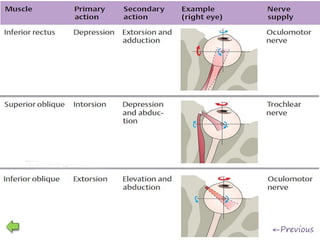

* Table Of
Function
* Anterior View
Of Actions
* Location &
Different view
* Nerve Supply
←Back

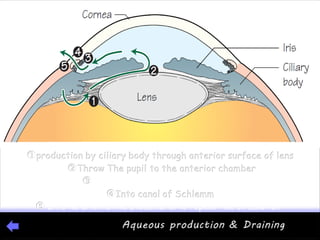

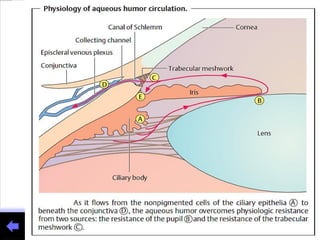

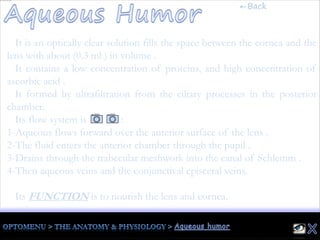

It is an optically clear solution fills the space between the cornea and the
lens with about (0.3 ml.) in volume .
It contains a low concentration of proteins, and high concentration of
ascorbic acid .
It formed by ultrafiltration from the ciliary processes in the posterior
chamber.
Its flow system is :
1-Aqueous flows forward over the anterior surface of the lens .
2-The fluid enters the anterior chamber through the pupil .
3-Drains through the trabecular meshwork into the canal of Schlemm .
4-Then aqueous veins and the conjunctival episceral veins.
Its FUNCTION is to nourish the lens and cornea.
←Back

Ametropia ●
Strabismus ●
● Eye Lids
● Lacrimal System
● Conjunctiva
● Cornea
● Sclera
● Uvea
● Lens
● Intra Ocular Pressure
● Fundus Visual Pathway Defects●
● Vitreous Body
● Red Eye

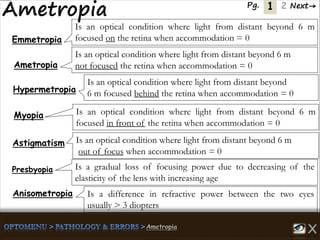

Emmetropia
Ametropia
Hypermetropia
Myopia
Anisometropia
Astigmatism
Presbyopia
Is an optical condition where light from distant beyond 6 m
focused in front of the retina when accommodation = 0
out of focus when accommodation = 0
Is an optical condition where light from distant beyond
6 m focused behind the retina when accommodation = 0
not focused the retina when accommodation = 0
focused on the retina when accommodation = 0
Is a difference in refractive power between the two eyes
usually > 3 diopters
Is a gradual loss of focusing power due to decreasing of the
elasticity of the lens with increasing age
1 Next→Pg. 2

2←Previous Pg. 1

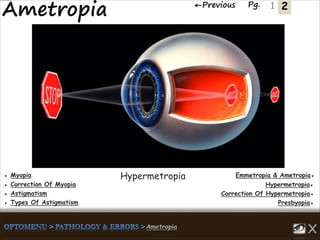

Emmetropia & Ametropia●● Myopia
Hypermetropia●● Correction Of Myopia
Correction Of Hypermetropia●● Astigmatism
Presbyopia●● Types Of Astigmatism

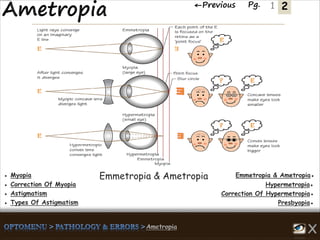

Emmetropia & Ametropia

2←Previous Pg. 1
Hypermetropia

2←Previous Pg. 1

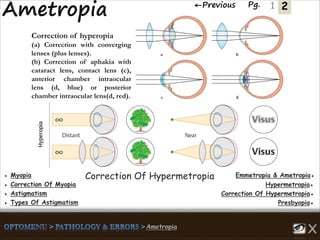

Correction of hyperopia
(a) Correction with converging
lenses (plus lenses).
(b) Correction of aphakia with
cataract lens, contact lens (c),
anterior chamber intraocular
lens (d, blue) or posterior
chamber intraocular lens(d, red).
Correction Of Hypermetropia

2←Previous Pg. 1

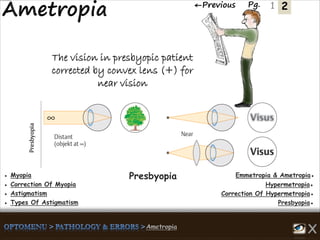

The vision in presbyopic patient
corrected by convex lens (+) for
near vision
Presbyopia

2←Previous Pg. 1

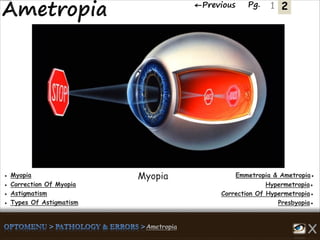

Myopia

2←Previous Pg. 1

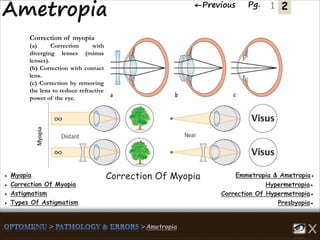

Correction of myopia
(a) Correction with
diverging lenses (minus
lenses).
(b) Correction with contact
lens.
(c) Correction by removing
the lens to reduce refractive
power of the eye.
Correction Of Myopia

2←Previous Pg. 1

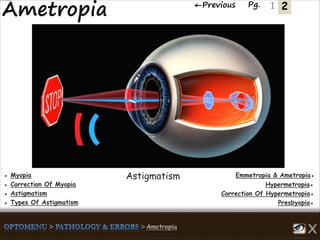

Astigmatism

2←Previous Pg. 1
Types Of Astigmatism

Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Hyperphoria & Hypophoria●
Cyclophoria●
Nystagmus●
►play
Nystagmus: Bilateral involuntary
rhythmic oscillation of the eyes, may be
latent or manifest .
Nystagmus

►play
Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●

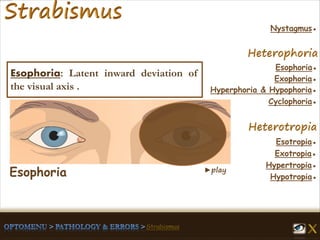

Esophoria: Latent inward deviation of
the visual axis .
Esophoria

►play
Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●
Exophoria: Latent outward deviation of
the visual axis .
Exophoria

►play
Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●

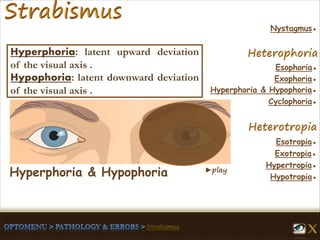

Hyperphoria & Hypophoria
Hyperphoria: latent upward deviation
of the visual axis .
Hypophoria: latent downward deviation
of the visual axis .

►play
Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●

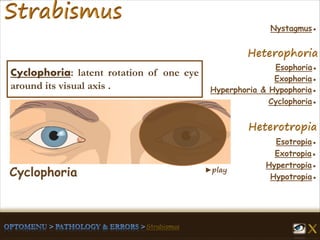

Cyclophoria: latent rotation of one eye
around its visual axis .
Cyclophoria

Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●

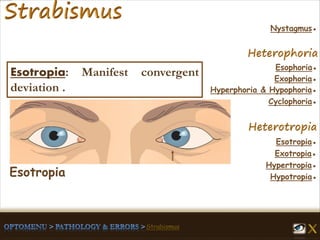

Esotropia: Manifest convergent
deviation .
Esotropia

Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●

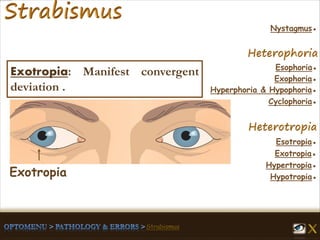

Exotropia: Manifest convergent
deviation .
Exotropia

Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●
Hypertropia: Manifest elevated
deviation .
Hypertropia

Esophoria●
Esotropia●
Hypertropia●
Exotropia●
Hypotropia●
Exophoria●
Cyclophoria●
Nystagmus●

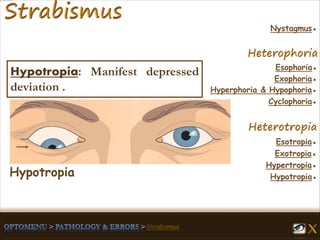

Hypotropia: Manifest depressed
deviation .
Hypotropia

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split
Normal Field

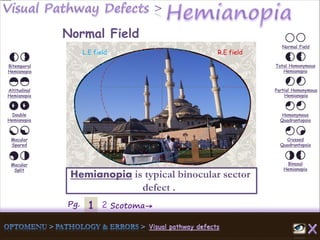

Hemianopia is typical binocular sector
defect .
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split

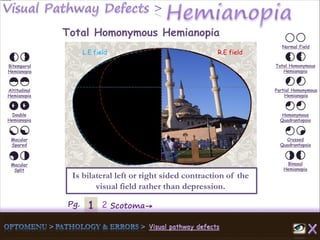

Total Homonymous Hemianopia
L.E field R.E field
Is bilateral left or right sided contraction of the
visual field rather than depression.

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split
Partial Homonymous Hemianopia
L.E field R.E field
Is bilateral left or right sided defect that one-half of visual field of
each eye is blind or partial blind, congruous or in congruous .

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split

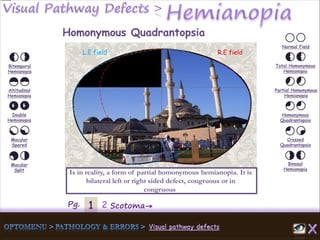

Homonymous Quadrantopsia
Is in reality, a form of partial homonymous hemianopia. It is
bilateral left or right sided defect, congruous or in
congruous
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split
Crossed Quadrantopsia

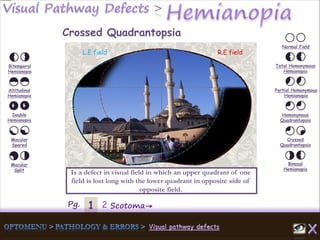

Is a defect in visual field in which an upper quadrant of one
field is lost long with the lower quadrant in opposite side of
opposite field.
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split

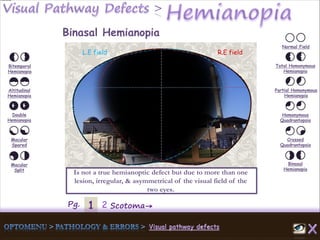

Binasal Hemianopia
Is not a true hemianoptic defect but due to more than one
lesion, irregular, & asymmetrical of the visual field of the
two eyes.
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split

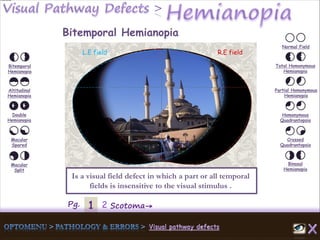

Bitemporal Hemianopia
Is a visual field defect in which a part or all temporal
fields is insensitive to the visual stimulus .
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split

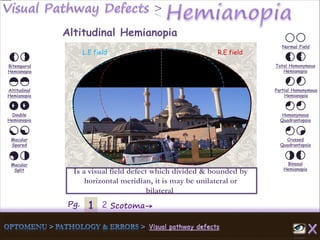

Altitudinal Hemianopia
Is a visual field defect which divided & bounded by
horizontal meridian, it is may be unilateral or
bilateral
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split

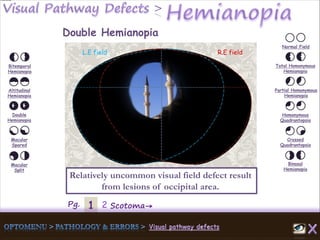

Double Hemianopia
Relatively uncommon visual field defect result
from lesions of occipital area.
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split

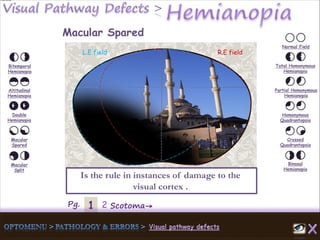

Macular Spared
Is the rule in instances of damage to the
visual cortex .
L.E field R.E field

1Pg. 2 Scotoma→
Normal Field
Total Homonymous
Hemianopia
Partial Homonymous
Hemianopia
Homonymous
Quadrantopsia
Crossed
Quadrantopsia
Binasal
Hemianopia
Bitemporal
Hemianopia
Altitudinal
Hemianopia
Double
Hemianopia
Macular
Spared
Macular
Split
Macular Split
Is the difficult to fixation & shifting of fixation due to
lesion in post-chiasmal pathway, & damage to cortex .
L.E field R.E field

2←Hemianopia Pg. 1
Normal Field
Central Scotoma
Pericentral Scotoma
Paracentral Scotoma
Cecal Scotoma
Nerve Fiber Bundle
Scotoma

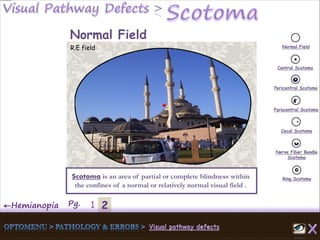

Ring ScotomaScotoma is an area of partial or complete blindness within
the confines of a normal or relatively normal visual field .
Normal Field
R.E field

Normal Field
Central Scotoma
Pericentral Scotoma
Paracentral Scotoma
Cecal Scotoma
Nerve Fiber Bundle
Scotoma

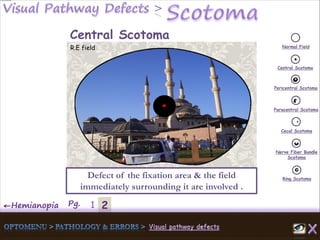

Ring ScotomaDefect of the fixation area & the field
immediately surrounding it are involved .
Central Scotoma
R.E field

Normal Field
Central Scotoma
Pericentral Scotoma
Paracentral Scotoma
Cecal Scotoma
Nerve Fiber Bundle
Scotoma
Ring Scotoma

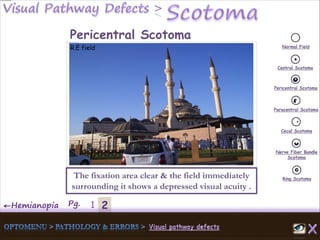

Pericentral Scotoma
R.E field
The fixation area clear & the field immediately
surrounding it shows a depressed visual acuity .

Normal Field
Central Scotoma
Pericentral Scotoma
Paracentral Scotoma
Cecal Scotoma
Nerve Fiber Bundle
Scotoma
Ring Scotoma

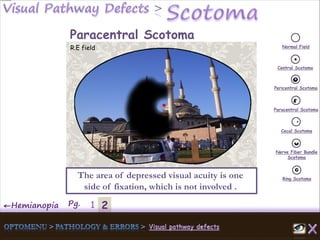

Paracentral Scotoma
R.E field
The area of depressed visual acuity is one
side of fixation, which is not involved .

Normal Field
Central Scotoma
Pericentral Scotoma
Paracentral Scotoma
Cecal Scotoma
Nerve Fiber Bundle
Scotoma
Ring Scotoma

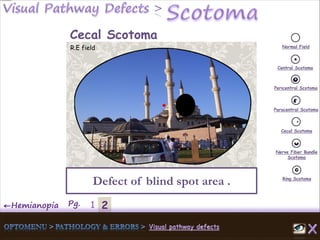

Defect of blind spot area .
Cecal Scotoma
R.E field

Normal Field
Central Scotoma
Pericentral Scotoma
Paracentral Scotoma
Cecal Scotoma
Nerve Fiber Bundle
Scotoma
Ring ScotomaThe defect takes form around fixation from the blind
spot to the horizontal raphe in the nasal field .

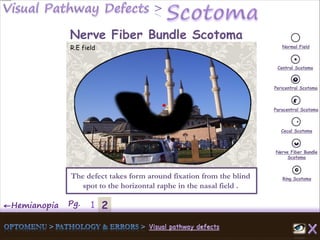

Nerve Fiber Bundle Scotoma
R.E field

Normal Field
Central Scotoma
Pericentral Scotoma
Paracentral Scotoma
Cecal Scotoma
Nerve Fiber Bundle
Scotoma

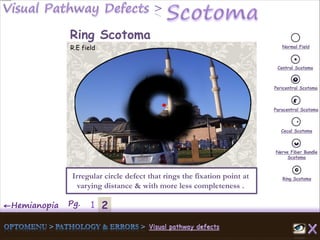

Ring ScotomaIrregular circle defect that rings the fixation point at
varying distance & with more less completeness .
Ring Scotoma
R.E field

1 Next→Pg. 2
Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
EntropionEdema Hemangioma
Herpes
simplex
Herpes
zoster
Hordeolum

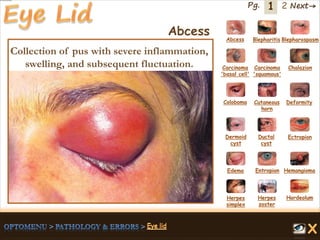

Collection of pus with severe inflammation,
swelling, and subsequent fluctuation.
Abcess

1 Next→Pg. 2
Blepharitis Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

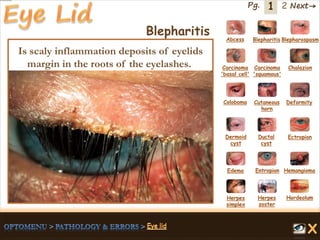

Is scaly inflammation deposits of eyelids
margin in the roots of the eyelashes.

1 Next→Pg. 2

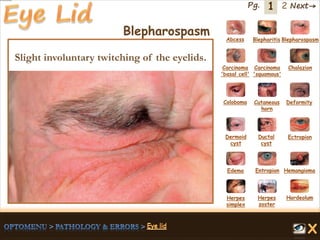

Blepharospasm Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Slight involuntary twitching of the eyelids.

1 Next→Pg. 2

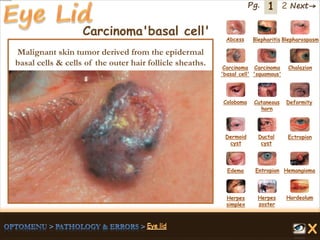

Carcinoma'basal cell' Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Malignant skin tumor derived from the epidermal
basal cells & cells of the outer hair follicle sheaths.

1 Next→Pg. 2

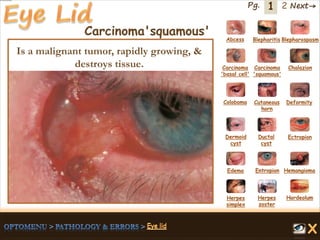

Carcinoma'squamous' Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Is a malignant tumor, rapidly growing, &
destroys tissue.

1 Next→Pg. 2
Chalazion Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

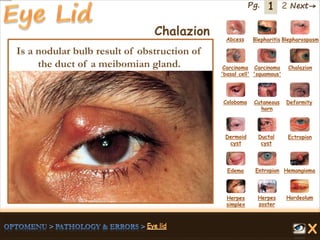

Is a nodular bulb result of obstruction of
the duct of a meibomian gland.

1 Next→Pg. 2
Coloboma Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

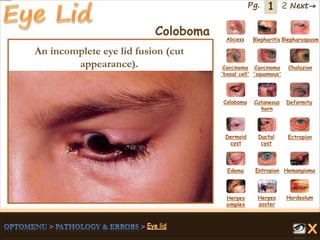

An incomplete eye lid fusion (cut
appearance).

1 Next→Pg. 2
Cutaneous horn Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
A yellow-brown growths of the Skin
consisting of keratin.

1 Next→Pg. 2
Deformity Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

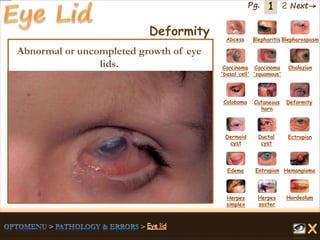

Abnormal or uncompleted growth of eye
lids.

1 Next→Pg. 2
Dermoid cyst Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

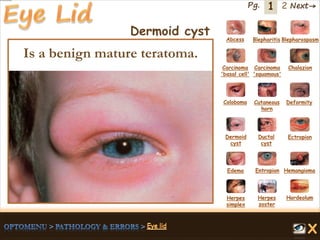

Is a benign mature teratoma.

1 Next→Pg. 2
Ductal cyst Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Local fat metabolism disorder that
produces lipoprotein deposits.

1 Next→Pg. 2
Ectropion Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

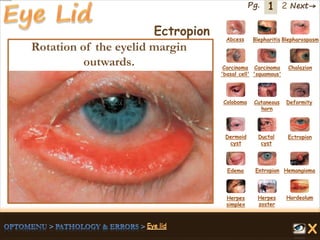

Rotation of the eyelid margin
outwards.

1 Next→Pg. 2

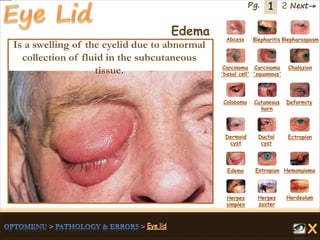

Edema Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Is a swelling of the eyelid due to abnormal
collection of fluid in the subcutaneous
tissue.

1 Next→Pg. 2
Entropion Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

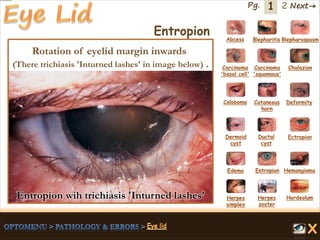

Rotation of eyelid margin inwards
(There trichiasis 'Inturned lashes' in image below) .
Entropion wih trichiasis 'Inturned lashes'

1 Next→Pg. 2

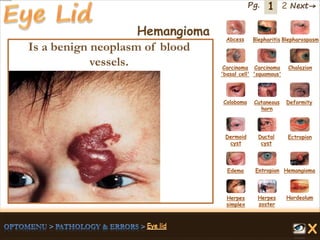

Hemangioma Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Is a benign neoplasm of blood
vessels.

1 Next→Pg. 2

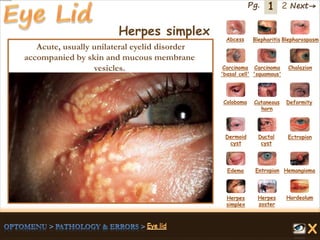

Herpes simplex Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Acute, usually unilateral eyelid disorder
accompanied by skin and mucous membrane
vesicles.

1 Next→Pg. 2
Herpes zoster Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum

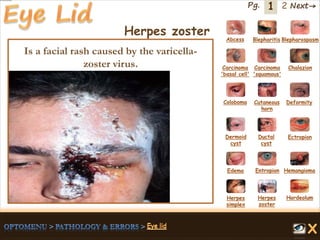

Is a facial rash caused by the varicella-
zoster virus.

1 Next→Pg. 2

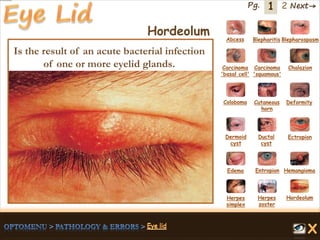

Hordeolum Abcess Blepharitis Blepharospasm
Carcinoma
'basal cell'
Carcinoma
'squamous'
Chalazion
Coloboma Cutaneous
horn
Deformity
Dermoid
cyst
Ductal
cyst
Ectropion
Herpes
simplex
Herpes
zoster
Hordeolum
Is the result of an acute bacterial infection
of one or more eyelid glands.

2←Previous Pg. 1
Keratoaconthama Lagophthalmos
Molluscum
contagiosum
Louse
infestation
Neurofibroma Ptosis
Xanthelasma

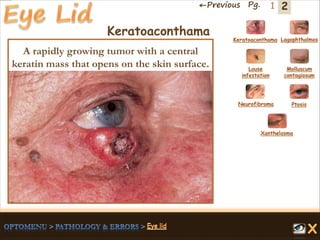

A rapidly growing tumor with a central
keratin mass that opens on the skin surface.
Keratoaconthama

2←Previous Pg. 1
Lagophthalmos
Incomplete lid closure with
infrequent blinking.
Molluscum
contagiosum
Louse
infestation
Neurofibroma Ptosis
Xanthelasma

2←Previous Pg. 1

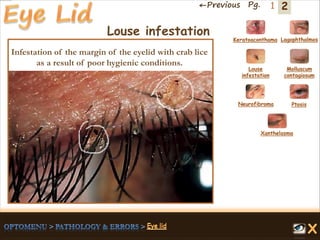

Louse infestation
Infestation of the margin of the eyelid with crab lice
as a result of poor hygienic conditions.
Molluscum
contagiosum
Louse
infestation
Neurofibroma Ptosis
Xanthelasma

2←Previous Pg. 1

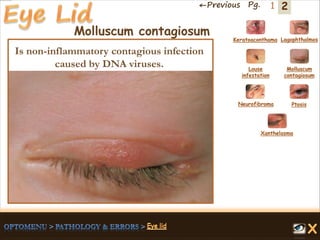

Molluscum contagiosum
Is non-inflammatory contagious infection
caused by DNA viruses.
Molluscum
contagiosum
Louse
infestation
Neurofibroma Ptosis
Xanthelasma

2←Previous Pg. 1

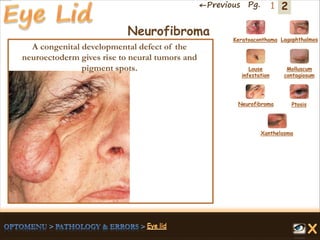

Neurofibroma
A congenital developmental defect of the
neuroectoderm gives rise to neural tumors and
pigment spots.
Molluscum
contagiosum
Louse
infestation
Neurofibroma Ptosis
Xanthelasma

2←Previous Pg. 1

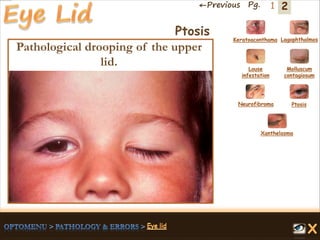

Ptosis
Pathological drooping of the upper
lid.
Molluscum
contagiosum
Louse
infestation
Neurofibroma Ptosis
Xanthelasma

2←Previous Pg. 1

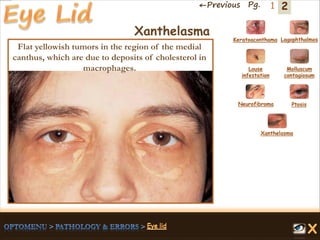

Xanthelasma
Flat yellowish tumors in the region of the medial
canthus, which are due to deposits of cholesterol in
macrophages.
Molluscum
contagiosum
Louse
infestation
Neurofibroma Ptosis
Xanthelasma

Acute
dacryoadenitis
Acute
dacryocystitis
Chronic
dacryocystitis
Lacrimal duct
anamolies
Lacrimal gland
cyst
Lacrimal duct
tearing
Chronic
dacryoadenitis

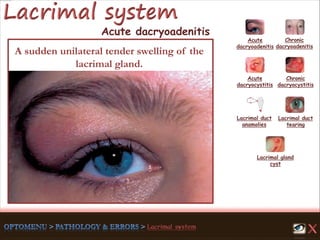

A sudden unilateral tender swelling of the
lacrimal gland.
Acute dacryoadenitis

Acute
dacryoadenitis
Acute
dacryocystitis
Chronic
dacryocystitis
Lacrimal duct
anamolies
Lacrimal gland
cyst
Lacrimal duct
tearing
Chronic
dacryoadenitis

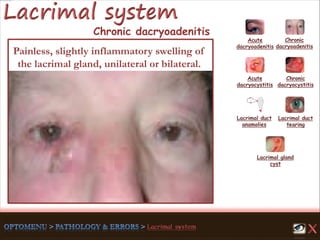

Painless, slightly inflammatory swelling of
the lacrimal gland, unilateral or bilateral.
Chronic dacryoadenitis

Acute
dacryoadenitis
Acute
dacryocystitis
Chronic
dacryocystitis
Lacrimal duct
anamolies
Lacrimal gland
cyst
Lacrimal duct
tearing
Chronic
dacryoadenitis

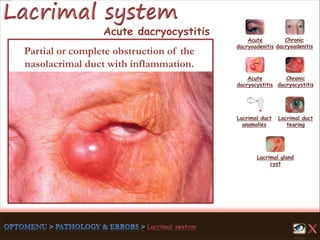

Partial or complete obstruction of the
nasolacrimal duct with inflammation.
Acute dacryocystitis

Acute
dacryoadenitis
Acute
dacryocystitis
Chronic
dacryocystitis
Lacrimal duct
anamolies
Lacrimal gland
cyst
Lacrimal duct
tearing
Chronic

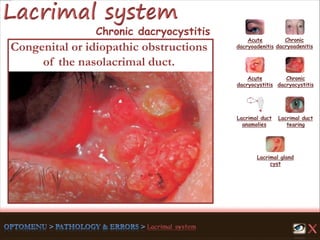

dacryoadenitisCongenital or idiopathic obstructions
of the nasolacrimal duct.
Chronic dacryocystitis

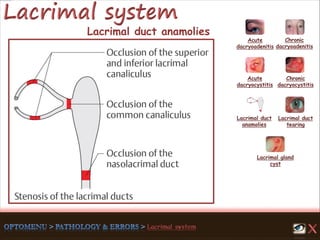

Lacrimal duct anamolies
Acute
dacryoadenitis
Acute
dacryocystitis
Chronic
dacryocystitis
Lacrimal duct
anamolies
Lacrimal gland
cyst
Lacrimal duct
tearing
Chronic
dacryoadenitis

Acute
dacryoadenitis
Acute
dacryocystitis
Chronic
dacryocystitis
Lacrimal duct
anamolies
Lacrimal gland
cyst
Lacrimal duct
tearing
Chronic
dacryoadenitis

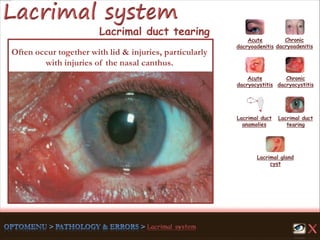

Often occur together with lid & injuries, particularly
with injuries of the nasal canthus.
Lacrimal duct tearing

Acute
dacryoadenitis
Acute
dacryocystitis
Chronic
dacryocystitis
Lacrimal duct
anamolies
Lacrimal gland
cyst
Lacrimal duct
tearing
Chronic
dacryoadenitis

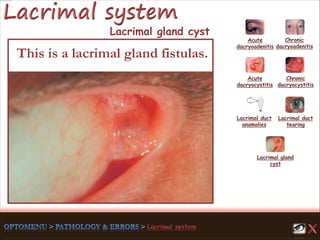

This is a lacrimal gland fistulas.
Lacrimal gland cyst

1Pg. 2 Next→
Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Dermoid

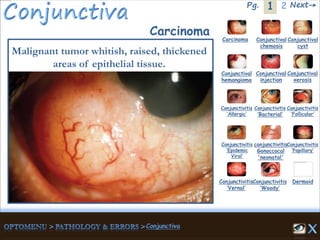

Carcinoma
Malignant tumor whitish, raised, thickened
areas of epithelial tissue.
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

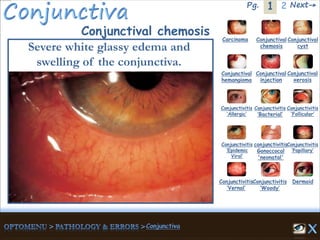

Conjunctival chemosis
Severe white glassy edema and
swelling of the conjunctiva.
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

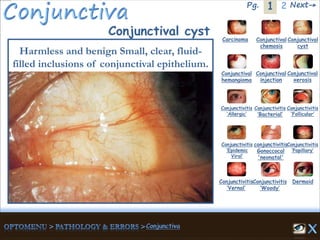

Conjunctival cyst Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’
Harmless and benign Small, clear, fluid-
filled inclusions of conjunctival epithelium.

1Pg. 2 Next→

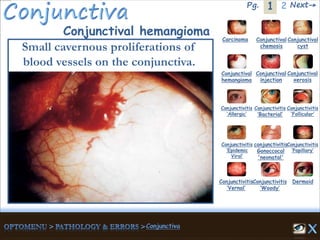

Conjunctival hemangioma
Small cavernous proliferations of
blood vessels on the conjunctiva.
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

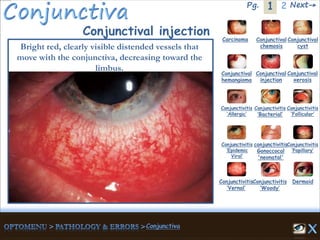

Conjunctival injection
Bright red, clearly visible distended vessels that
move with the conjunctiva, decreasing toward the
limbus.
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

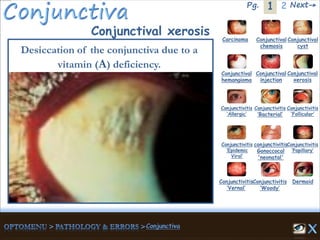

Conjunctival xerosis Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’
Desiccation of the conjunctiva due to a
vitamin (A) deficiency.

1Pg. 2 Next→

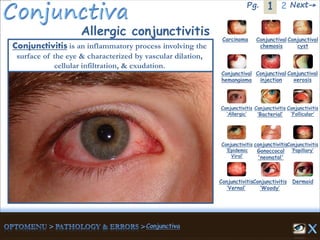

Allergic conjunctivitis
Conjunctivitis is an inflammatory process involving the
surface of the eye & characterized by vascular dilation,
cellular infiltration, & exudation.
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

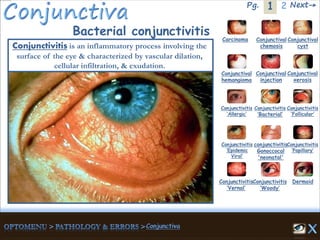

Bacterial conjunctivitis Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→
Follicular conjunctivitis Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

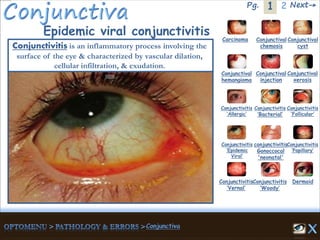

Epidemic viral conjunctivitis Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

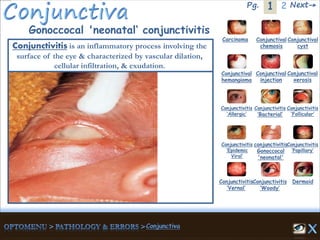

Gonoccocal 'neonatal‘ conjunctivitis
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

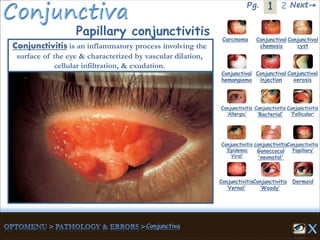

Papillary conjunctivitis Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

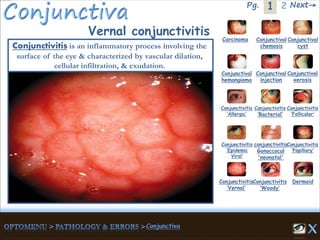

Vernal conjunctivitis Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

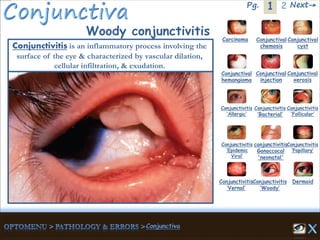

Woody conjunctivitis Carcinoma Conjunctival
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

1Pg. 2 Next→

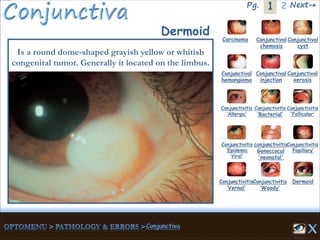

Dermoid
Is a round dome-shaped grayish yellow or whitish
congenital tumor. Generally it located on the limbus.
chemosis
Conjunctival
cyst
Conjunctival
hemangioma
Conjunctival
injection
Conjunctival
xerosis
Dermoid
Conjunctivitis
‘Allergic’
Conjunctivitis
‘Bacterial’
Conjunctivitis
‘Epidemic
Viral’
conjunctivitis
Gonoccocal
'neonatal'
Conjunctivitis
’Papillary’
Conjunctivitis
‘Vernal’
Conjunctivitis
‘Woody’
Conjunctivitis
‘Follicular’

2←Previous 1Pg.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Leukoplakia Lymphoma
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
Oncocytoma Papilloma Pingueculum
Pterygium Subconjunctival
hemorrhage
Symblepharon
Tearing Trachoma

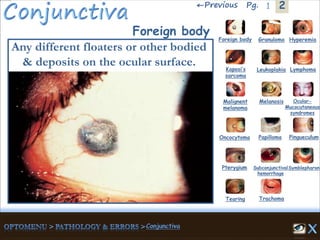

Foreign body
Any different floaters or other bodied
& deposits on the ocular surface.

2←Previous 1Pg.

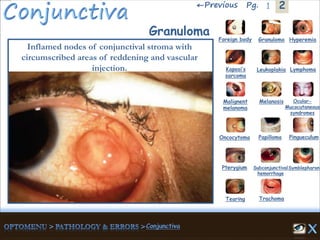

Granuloma
Inflamed nodes of conjunctival stroma with
circumscribed areas of reddening and vascular
injection.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

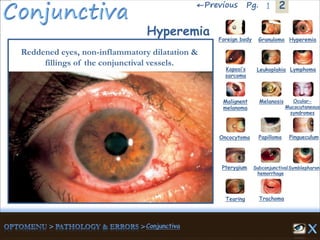

Hyperemia
Reddened eyes, non-inflammatory dilatation &
fillings of the conjunctival vessels.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

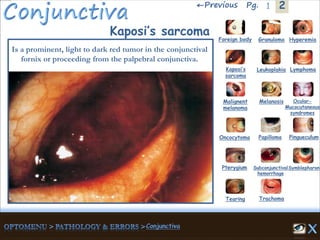

Kaposi’s sarcoma
Is a prominent, light to dark red tumor in the conjunctival
fornix or proceeding from the palpebral conjunctiva.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

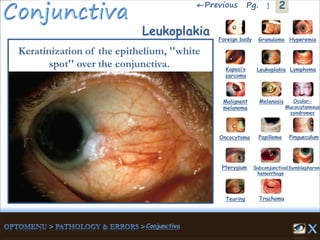

Leukoplakia
Keratinization of the epithelium, ''white
spot'' over the conjunctiva.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

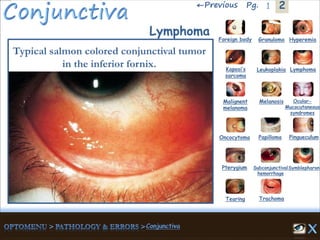

Lymphoma
Typical salmon colored conjunctival tumor
in the inferior fornix.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

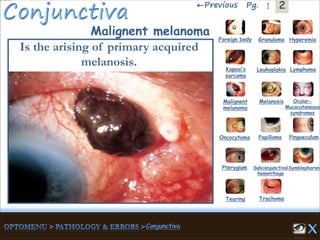

Malignent melanoma
Is the arising of primary acquired
melanosis.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

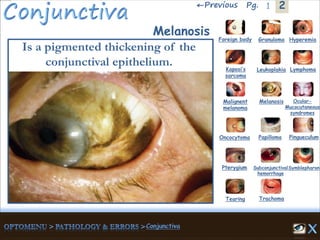

Melanosis
Is a pigmented thickening of the
conjunctival epithelium.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

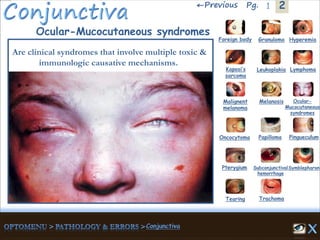

Ocular-Mucocutaneous syndromes
Are clinical syndromes that involve multiple toxic &
immunologic causative mechanisms.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

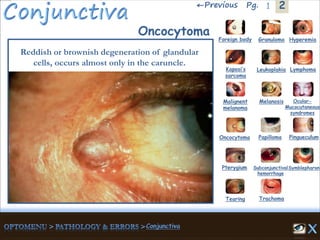

Oncocytoma
Reddish or brownish degeneration of glandular
cells, occurs almost only in the caruncle.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

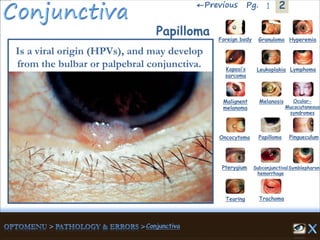

Papilloma Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma
Is a viral origin (HPVs), and may develop
from the bulbar or palpebral conjunctiva.

2←Previous 1Pg.

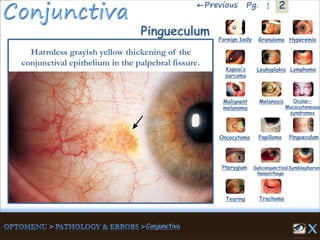

Pingueculum
Harmless grayish yellow thickening of the
conjunctival epithelium in the palpebral fissure.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

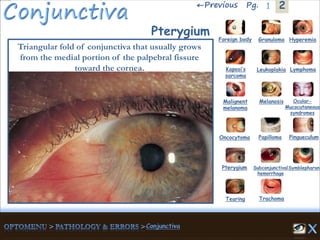

Pterygium
Triangular fold of conjunctiva that usually grows
from the medial portion of the palpebral fissure
toward the cornea.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

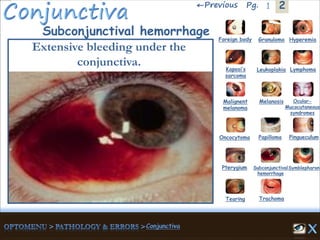

Subconjunctival hemorrhage
Extensive bleeding under the
conjunctiva.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

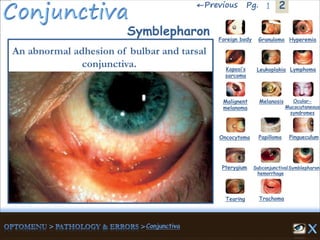

Symblepharon
An abnormal adhesion of bulbar and tarsal
conjunctiva.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.
Tearing
Usually occur due to injury.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

2←Previous 1Pg.

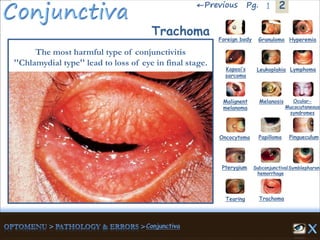

Trachoma
The most harmful type of conjunctivitis
''Chlamydial type'' lead to loss of eye in final stage.
Granuloma Hyperemia
Kaposi’s
sarcoma
Foreign body
Malignent
melanoma
Melanosis Ocular-
Mucocutaneous
syndromes
hemorrhage
Symblepharon
Tearing Trachoma

1 Next→Pg. 2
Arcus senilis Burning Band
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Hematocornea Injury Keratoconus
Keratoglobus Different
Between
Keratoconus &
Keratoglobus

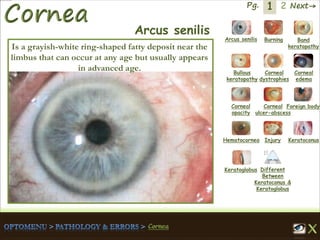

Arcus senilis
Is a grayish-white ring-shaped fatty deposit near the
limbus that can occur at any age but usually appears
in advanced age.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

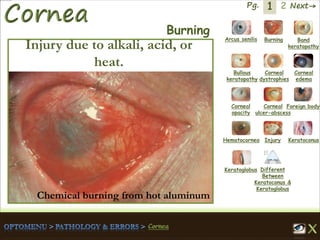

Burning
Injury due to alkali, acid, or
heat.
Chemical burning from hot aluminum

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

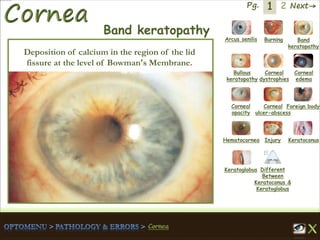

Band keratopathy
Deposition of calcium in the region of the lid
fissure at the level of Bowman's Membrane.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

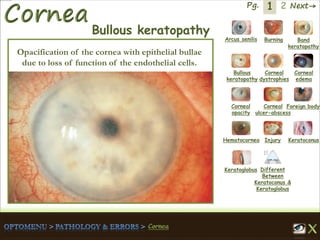

Bullous keratopathy
Opacification of the cornea with epithelial bullae
due to loss of function of the endothelial cells.

1 Next→Pg. 2

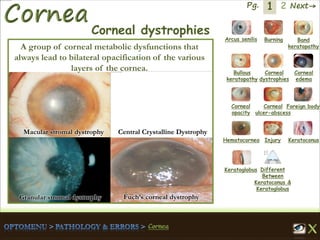

Macular stromal dystrophy
Granular stromal dystrophy
Central Crystalline Dystrophy
Fuch’s corneal dystrophy
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus
Corneal dystrophies
A group of corneal metabolic dysfunctions that
always lead to bilateral opacification of the various
layers of the cornea.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus
Corneal edema
Hydration of the cornea due to enabling of
pumping the water out of the cornea.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

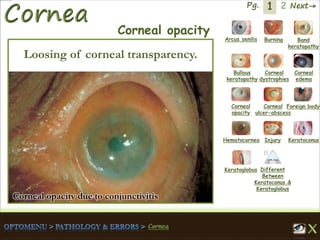

Corneal opacity
Loosing of corneal transparency.
Corneal opacity due to conjunctivitis

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

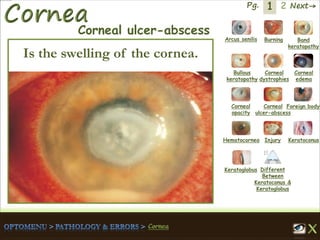

Corneal ulcer-abscess
Is the swelling of the cornea.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

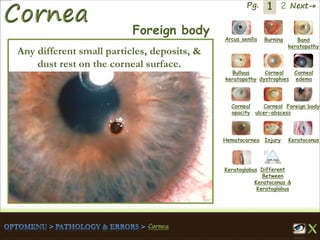

Foreign body
Any different small particles, deposits, &
dust rest on the corneal surface.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus
Hematocornea
Is a breakdown of hemoglobin and other
products of the erythrocytes.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus
Injury
Scaring or scratching of the cornea.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

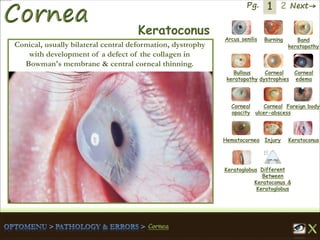

Keratoconus
Conical, usually bilateral central deformation, dystrophy
with development of a defect of the collagen in
Bowman's membrane & central corneal thinning.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

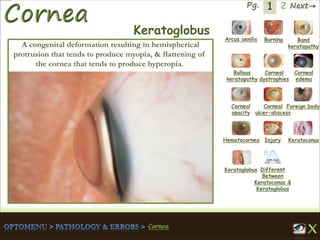

Keratoglobus
A congenital deformation resulting in hemispherical
protrusion that tends to produce myopia, & flattening of
the cornea that tends to produce hyperopia.

1 Next→Pg. 2
keratopathy
Bullous
keratopathy
Corneal
dystrophies
Corneal
edema
Corneal
opacity
Corneal
ulcer-abscess
Foreign body
Between
Keratoconus &
Keratoglobus

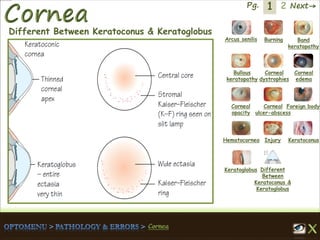

Different Between Keratoconus & Keratoglobus

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy
Keratitis ‘Acanthamoeba’
Keratitis is an inflammation of the cornea caused
by infection, trauma, dry eyes, ultraviolet exposure,
contact lens overwear, or degeneration.

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy

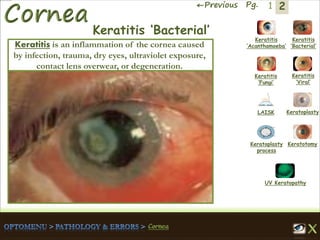

Keratitis ‘Bacterial’

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy

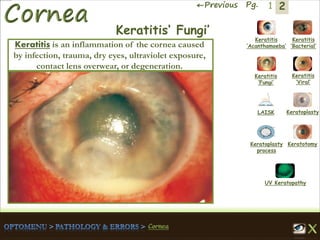

Keratitis‘ Fungi’

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy

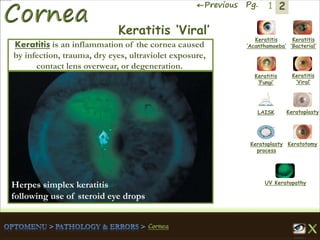

Keratitis ‘Viral’
Herpes simplex keratitis
following use of steroid eye drops

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy

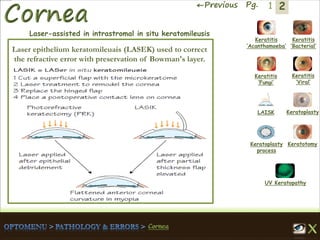

Laser-assisted in intrastromal in situ keratomileusis
Laser epithelium keratomileuais (LASEK) used to correct
the refractive error with preservation of Bowman's layer.

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy

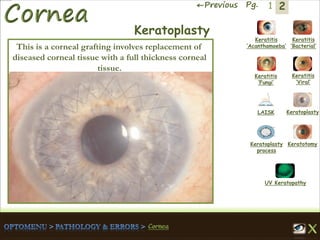

Keratoplasty
This is a corneal grafting involves replacement of
diseased corneal tissue with a full thickness corneal
tissue.

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy
Keratoplasty process

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy

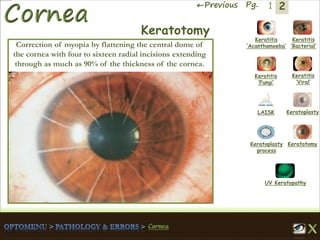

Keratotomy
Correction of myopia by flattening the central dome of
the cornea with four to sixteen radial incisions extending
through as much as 90% of the thickness of the cornea.

2←Previous Pg. 1
Keratitis
‘Acanthamoeba’
Keratitis
‘Bacterial’
Keratitis
‘Fungi’
Keratitis
‘Viral’
Keratoplasty
process
LAISK Keratoplasty
Keratotomy
UV Keratopathy

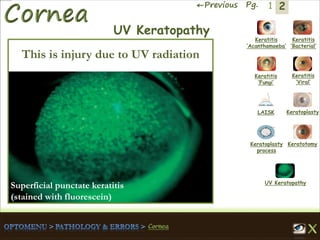

UV Keratopathy
This is injury due to UV radiation
Superficial punctate keratitis
(stained with fluorescein)

Atrophy Episcleritis Injury
Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
Staphyloma & Ectasia
‘B-scan’
‘Ophthalmologic Image’

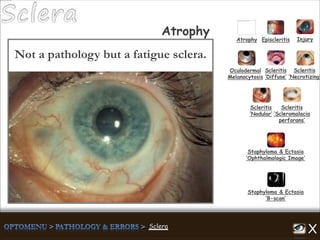

Atrophy
Not a pathology but a fatigue sclera.
Oculodermal
Melanocytosis

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’

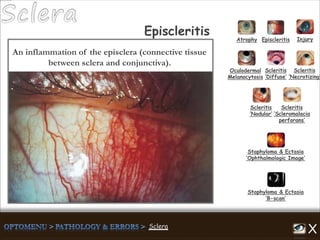

Episcleritis
Oculodermal
Melanocytosis
An inflammation of the episclera (connective tissue
between sclera and conjunctiva).

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’

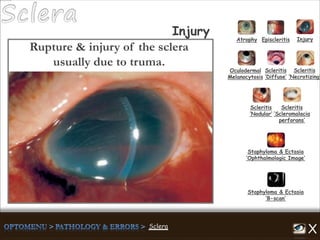

Injury
Oculodermal
Melanocytosis
Rupture & injury of the sclera
usually due to truma.

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’

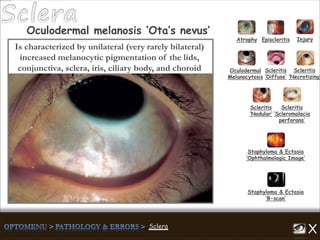

Oculodermal melanosis ‘Ota’s nevus’
Oculodermal
Melanocytosis
Is characterized by unilateral (very rarely bilateral)
increased melanocytic pigmentation of the lids,
conjunctiva, sclera, iris, ciliary body, and choroid

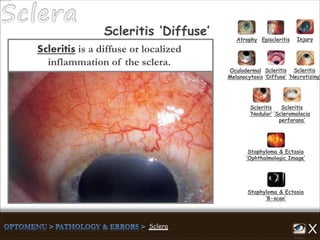

Scleritis is a diffuse or localized
inflammation of the sclera.
Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’
Scleritis ‘Diffuse’
Oculodermal
Melanocytosis

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’
Scleritis ‘Necrotizing’
Oculodermal
Melanocytosis

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’

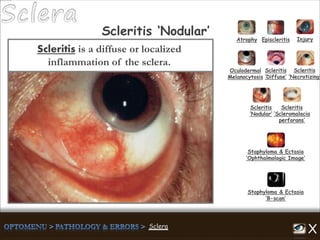

Scleritis ‘Nodular’
Oculodermal
Melanocytosis

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’

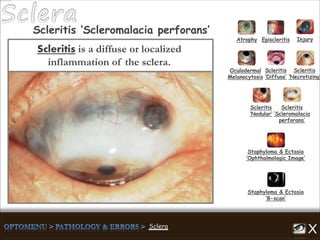

Scleritis ‘Scleromalacia perforans’
Oculodermal
Melanocytosis

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’

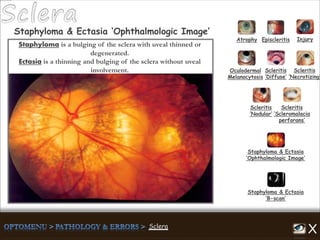

Staphyloma & Ectasia ‘Ophthalmologic Image’
Oculodermal
Melanocytosis
Staphyloma is a bulging of the sclera with uveal thinned or
degenerated.
Ectasia is a thinning and bulging of the sclera without uveal
involvement.

Scleritis
‘Diffuse’
Scleritis
‘Necrotizing’
Scleritis
‘Nodular’
Scleritis
‘Scleromalacia
perforans’
‘B-scan’

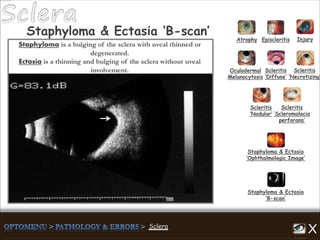

Staphyloma & Ectasia ‘B-scan’
Oculodermal
Melanocytosis
Staphyloma is a bulging of the sclera with uveal thinned or
degenerated.
Ectasia is a thinning and bulging of the sclera without uveal
involvement.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Choroiditis Coloboma
Of Choroid
Heterochromia Hyphema
Hypopyon Iridocyclitis
& iritis
Iridodialysis
Iridoschisis Iridotomy

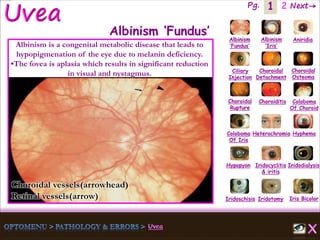

Albinism ‘Fundus’
Albinism is a congenital metabolic disease that leads to
hypopigmenation of the eye due to melanin deficiency.
•The fovea is aplasia which results in significant reduction
in visual and nystagmus.
Choroidal vessels(arrowhead)
Retinal vessels(arrow)

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

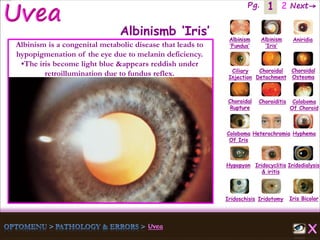

Albinismb ‘Iris’
Albinism is a congenital metabolic disease that leads to
hypopigmenation of the eye due to melanin deficiency.
•The iris become light blue &appears reddish under
retroillumination due to fundus reflex.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

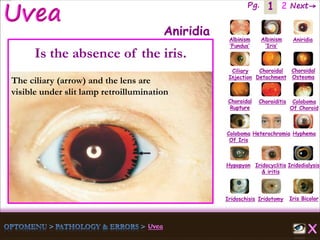

Aniridia
Is the absence of the iris.
The ciliary (arrow) and the lens are
visible under slit lamp retroillumination

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

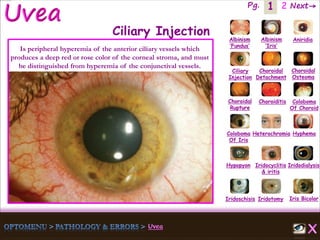

Ciliary Injection
Is peripheral hyperemia of the anterior ciliary vessels which
produces a deep red or rose color of the corneal stroma, and must
be distinguished from hyperemia of the conjunctival vessels.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis
Choroidal Detachment
Is the separation of the choroid from
the sclera.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

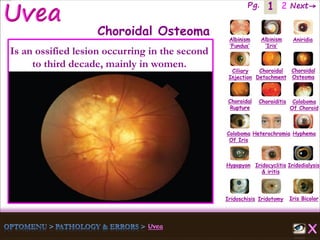

Choroidal Osteoma
Is an ossified lesion occurring in the second
to third decade, mainly in women.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

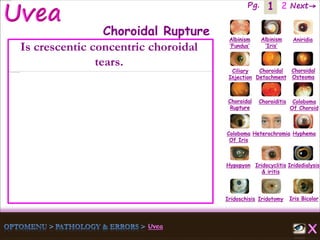

Choroidal Rupture
Is crescentic concentric choroidal
tears.

1 Next→Pg. 2

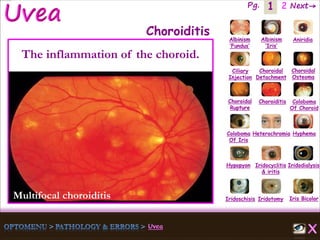

Multifocal choroiditis Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis
Choroiditis
The inflammation of the choroid.

1 Next→Pg. 2

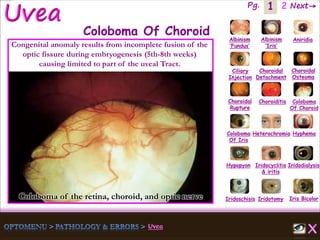

Coloboma of the retina, choroid, and optic nerve Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis
Coloboma Of Choroid
Congenital anomaly results from incomplete fusion of the
optic fissure during embryogenesis (5th-8th weeks)
causing limited to part of the uveal Tract.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

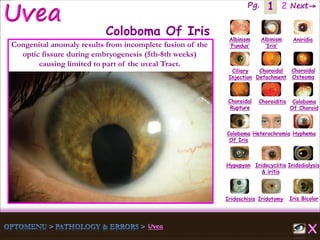

Coloboma Of Iris
Congenital anomaly results from incomplete fusion of the
optic fissure during embryogenesis (5th-8th weeks)
causing limited to part of the uveal Tract.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

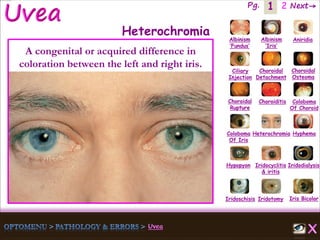

Heterochromia
A congenital or acquired difference in
coloration between the left and right iris.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

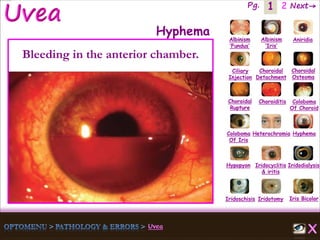

Hyphema
Bleeding in the anterior chamber.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

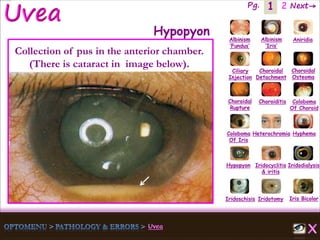

Hypopyon
Collection of pus in the anterior chamber.
(There is cataract in image below).

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

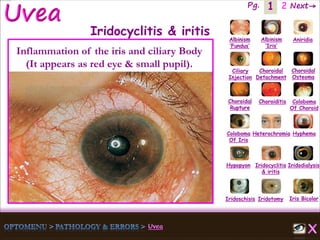

Iridocyclitis & iritis
Inflammation of the iris and ciliary Body
(It appears as red eye & small pupil).

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

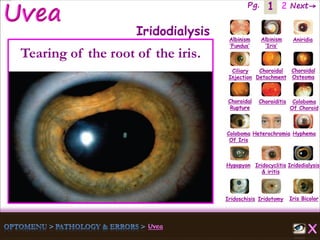

Iridodialysis
Tearing of the root of the iris.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

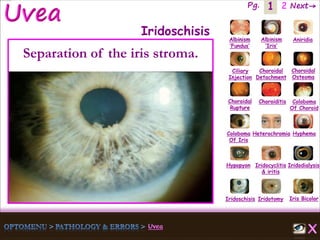

Iridoschisis
Separation of the iris stroma.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

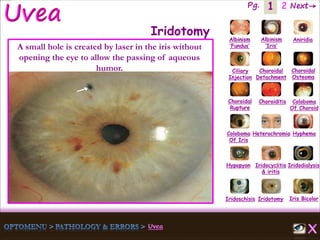

Iridotomy
A small hole is created by laser in the iris without
opening the eye to allow the passing of aqueous
humor.

1 Next→Pg. 2
Iris Bicolor
Ciliary
Injection
Coloboma
Of Iris
Albinism
‘Fundus’
Albinism
‘Iris’
Aniridia
Choroidal
Detachment
Choroidal
Osteoma
Choroidal
Rupture
Of Choroid
& iritis
Iridodialysis

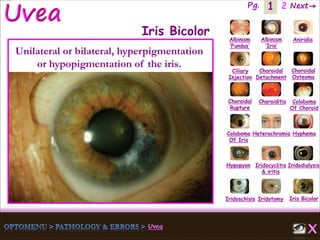

Iris Bicolor
Unilateral or bilateral, hyperpigmentation
or hypopigmentation of the iris.

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Melanosis Panuveitis
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Synechia Toxoplasmosis
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis
'Iris & Ciliary Body'

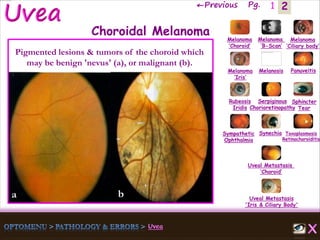

Choroidal Melanoma
Pigmented lesions & tumors of the choroid which
may be benign 'nevus' (a), or malignant (b).
a b

2←Previous Pg. 1
a b
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis
Choroidal Melanoma
Choroidal melanoma with typical mushroom shape;
ultrasound appearance (a), and cross section (b) . .

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

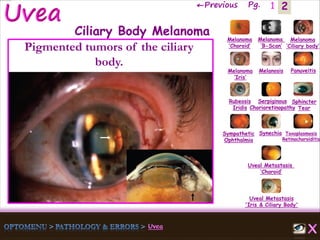

Ciliary Body Melanoma
Pigmented tumors of the ciliary
body.

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

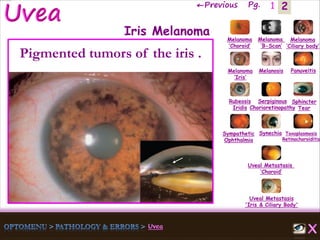

Iris Melanoma
Pigmented tumors of the iris .

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

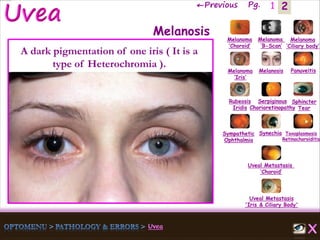

Melanosis
A dark pigmentation of one iris ( It is a
type of Heterochromia ).

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

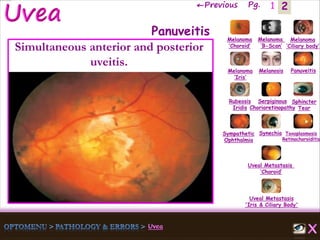

Panuveitis
Simultaneous anterior and posterior
uveitis.

2←Previous Pg. 1

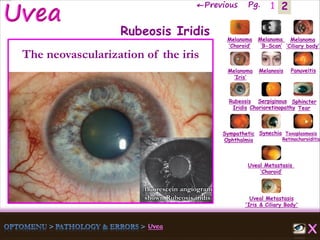

fluorescein angiogram
shown Rubeosis iridis
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis
Rubeosis Iridis
The neovascularization of the iris

2←Previous Pg. 1

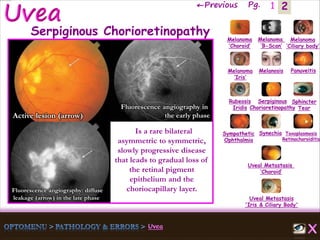

Fluorescence angiography in
the early phaseActive lesion (arrow)
Fluorescence angiography: diffuse
leakage (arrow) in the late phase
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis
Serpiginous Chorioretinopathy
Is a rare bilateral
asymmetric to symmetric,
slowly progressive disease
that leads to gradual loss of
the retinal pigment
epithelium and the
choriocapillary layer.

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

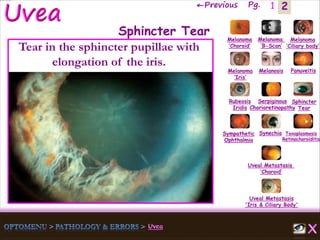

Sphincter Tear
Tear in the sphincter pupillae with
elongation of the iris.

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis
Sympathetic Ophthalmia
Specific bilateral inflammation of the uveal tract due to
chronic irritation of one eye, caused by a perforating
wound to the eye or intraocular surgery.

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

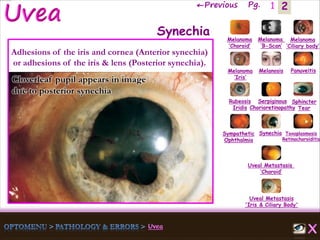

Synechia
Adhesions of the iris and cornea (Anterior synechia)
or adhesions of the iris & lens (Posterior synechia).
Cloverleaf pupil appears in image
due to posterior synechia

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

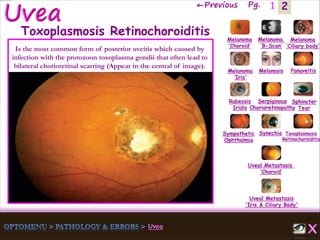

Toxoplasmosis Retinochoroiditis
Is the most common form of posterior uveitis which caused by
infection with the protozoon toxoplasma gondii that often lead to
bilateral chorioretinal scarring (Appear in the central of image).

2←Previous Pg. 1

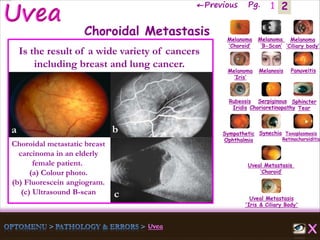

Choroidal metastatic breast
carcinoma in an elderly
female patient.
(a) Colour photo.
(b) Fluorescein angiogram.
(c) Ultrasound B-scan
a b
c
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis
Choroidal Metastasis
Is the result of a wide variety of cancers
including breast and lung cancer.

2←Previous Pg. 1
Melanoma
‘Choroid’
Melanoma
‘B-Scan’
Melanoma
‘Ciliary body’
Melanoma
‘Iris’
Rubeosis
Iridis
Serpiginous
Chorioretinopathy
Sphincter
Tear
Sympathetic
Ophthalmia
Retinochoroiditis
Uveal Metastasis
‘Choroid’
Uveal Metastasis

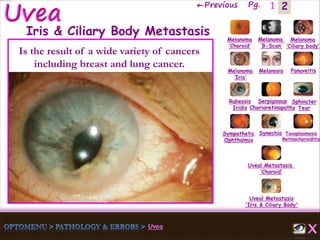

Iris & Ciliary Body Metastasis
Is the result of a wide variety of cancers
including breast and lung cancer.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
‘Lamellar-zonular’
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

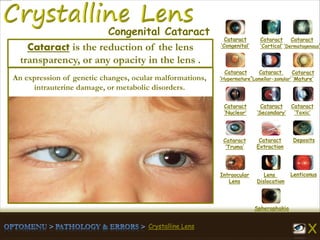

Congenital Cataract
An expression of genetic changes, ocular malformations,
intrauterine damage, or metabolic disorders.
Cataract is the reduction of the lens
transparency, or any opacity in the lens .

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

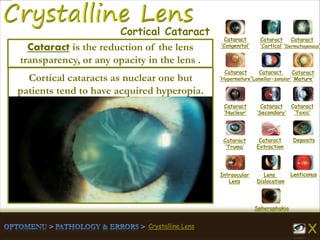

Cortical Cataract
Cortical cataracts as nuclear one but
patients tend to have acquired hyperopia.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

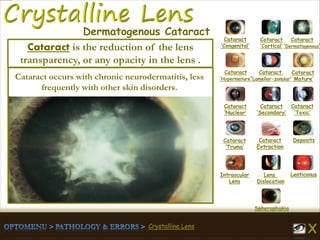

Dermatogenous Cataract
Cataract occurs with chronic neurodermatitis, less
frequently with other skin disorders.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

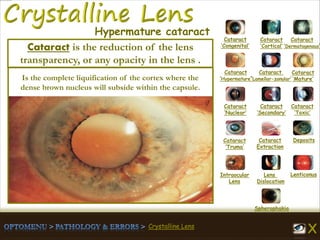

Hypermature cataract
Is the complete liquification of the cortex where the
dense brown nucleus will subside within the capsule.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

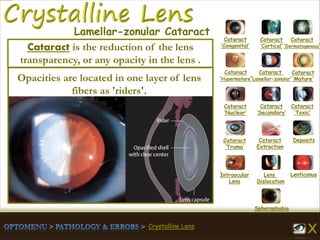

Lamellar-zonular Cataract
Opacities are located in one layer of lens
fibers as 'riders'.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

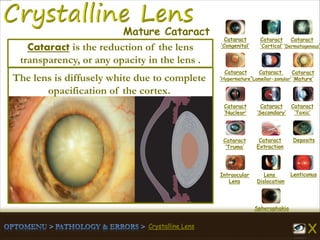

Mature Cataract
The lens is diffusely white due to complete
opacification of the cortex.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

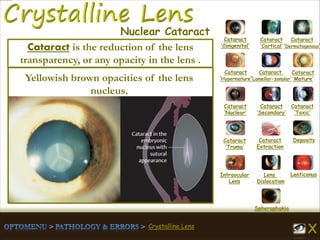

Nuclear Cataract
Yellowish brown opacities of the lens
nucleus.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

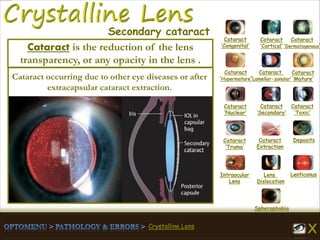

Secondary cataract
Cataract occurring due to other eye diseases or after
extracapsular cataract extraction.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

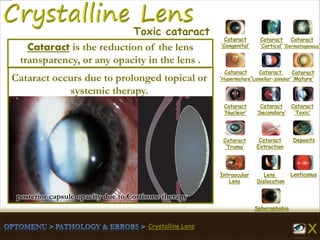

Toxic cataract
Cataract occurs due to prolonged topical or
systemic therapy.
posterior capsule opacity due to Cortisone therapy

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

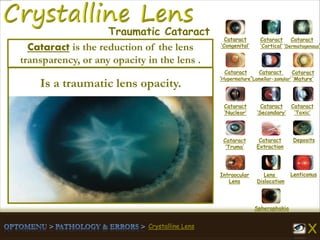

Traumatic Cataract
Is a traumatic lens opacity.

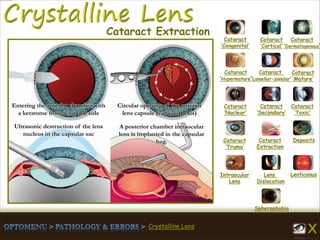

Crystalline Lens
Entering the anterior chamber with
a keratome from temporal side
Circular opening of the anterior
lens capsule (capsulorhexis)
A posterior chamber intraocular
lens is implanted in the capsular
bag.
Ultrasonic destruction of the lens
nucleus in the capsular sac
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia
Cataract Extraction

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

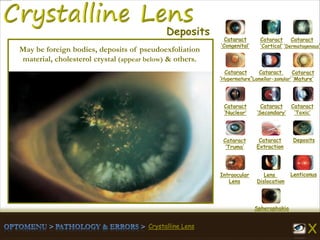

Deposits
May be foreign bodies, deposits of pseudoexfoliation
material, cholesterol crystal (appear below) & others.

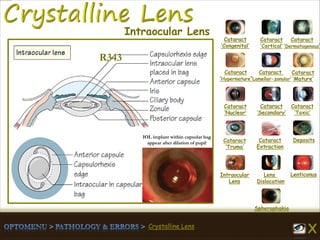

Crystalline Lens
IOL implant within capsular bag
appear after dilation of pupil
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia
Intraocular Lens
R343

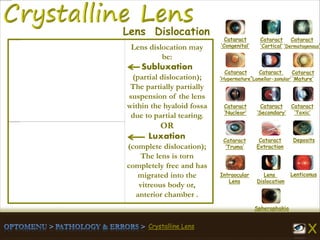

Crystalline Lens
Lens dislocation may
be:
Subluxation
(partial dislocation);
The partially partially
suspension of the lens
within the hyaloid fossa
due to partial tearing.
OR
Luxation
(complete dislocation);
The lens is torn
completely free and has
migrated into the
vitreous body or,
anterior chamber .
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia
Lens Dislocation

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

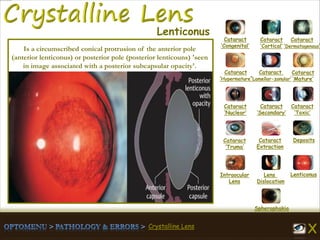

Lenticonus
Is a circumscribed conical protrusion of the anterior pole
(anterior lenticonus) or posterior pole (posterior lenticouns) 'seen
in image associated with a posterior subcapsular opacity'.

Crystalline Lens
Cataract
‘Congenital’
Cataract
‘Cortical’
Cataract
‘Dermatogenous’
Cataract
‘Hypermature’
Cataract
Cataract
‘Mature’
Cataract
‘Nuclear’
Cataract
‘Secondary’
Cataract
‘Toxic’
Cataract
‘Truma’
Cataract
Extraction
Deposits
Intraocular
Lens
Lens
Dislocation
Lenticonus
Spherophakia

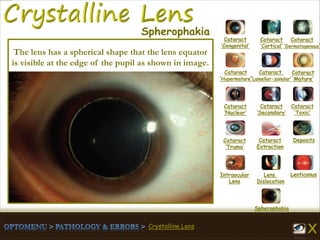

Spherophakia
The lens has a spherical shape that the lens equator
is visible at the edge of the pupil as shown in image.

Vitreous Body
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits

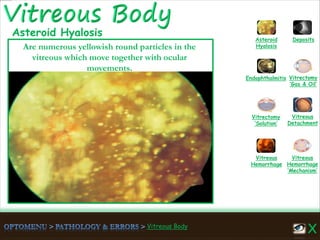

Are numerous yellowish round particles in the
vitreous which move together with ocular
movements.
Asteroid Hyalosis

Vitreous Body
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits

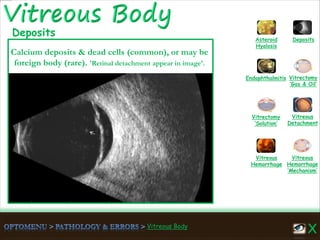

Calcium deposits & dead cells (common), or may be
foreign body (rare). 'Retinal detachment appear in image'.
Deposits

Vitreous Body
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits

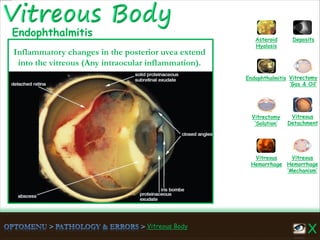

Endophthalmitis
Inflammatory changes in the posterior uvea extend
into the vitreous (Any intraocular inflammation).

Vitreous Body

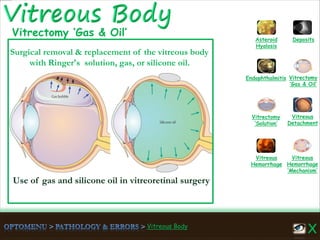

Use of gas and silicone oil in vitreoretinal surgery
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits
Surgical removal & replacement of the vitreous body
with Ringer's solution, gas, or silicone oil.
Vitrectomy ‘Gas & Oil’

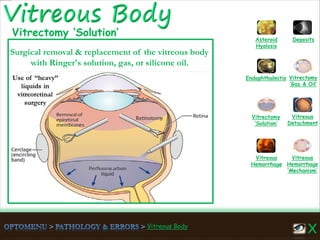

Vitreous Body
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits
Surgical removal & replacement of the vitreous body
with Ringer's solution, gas, or silicone oil.
Vitrectomy ‘Solution’

Vitreous Body

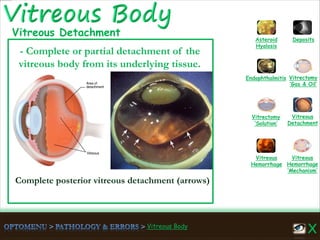

Complete posterior vitreous detachment (arrows)
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits
- Complete or partial detachment of the
vitreous body from its underlying tissue.
Vitreous Detachment

Vitreous Body
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits

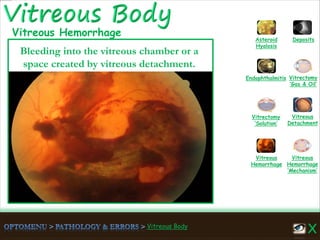

Bleeding into the vitreous chamber or a
space created by vitreous detachment.
Vitreous Hemorrhage

Vitreous Body
Vitreous
Hemorrhage
‘Mechanism’
Vitreous
Hemorrhage
Vitreous
Detachment
Vitrectomy
‘Solution’
Vitrectomy
‘Gas & Oil’
Endophthalmitis
Asteroid
Hyalosis
Deposits

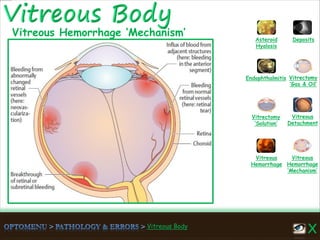

Vitreous Hemorrhage ‘Mechanism’

1 Next→Pg. 2
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Coats Disease Cystoid
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Hemangioma Hypertensive
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Melanocytoma Myelinated
Nerve Fibers
Oblique Insertion

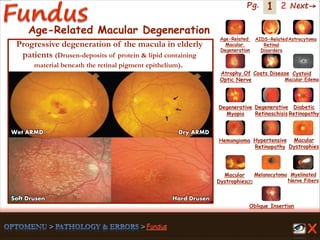

Age-Related Macular Degeneration
Dry ARMDWet ARMD
Hard DrusenSoft Drusen
Progressive degeneration of the macula in elderly
patients (Drusen-deposits of protein & lipid containing
material beneath the retinal pigment epithelium).

1 Next→Pg. 2

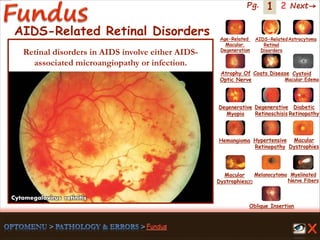

AIDS-Related Retinal Disorders
Cytomegalovirus retinitis
Retinal disorders in AIDS involve either AIDS-
associated microangiopathy or infection.
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

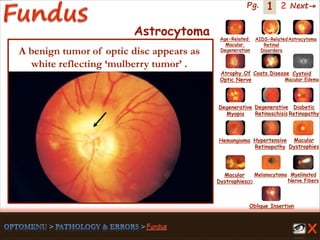

Astrocytoma
A benign tumor of optic disc appears as
white reflecting ‘mulberry tumor’ .
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

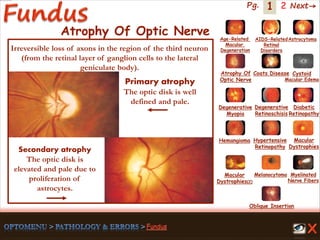

Atrophy Of Optic Nerve
Primary atrophy
The optic disk is well
defined and pale.
Secondary atrophy
The optic disk is
elevated and pale due to
proliferation of
astrocytes.
Irreversible loss of axons in the region of the third neuron
(from the retinal layer of ganglion cells to the lateral
geniculate body).
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

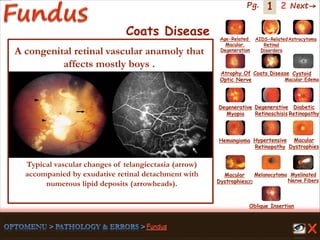

Coats Disease
Typical vascular changes of telangiectasia (arrow)
accompanied by exudative retinal detachment with
numerous lipid deposits (arrowheads).
A congenital retinal vascular anamoly that
affects mostly boys .
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

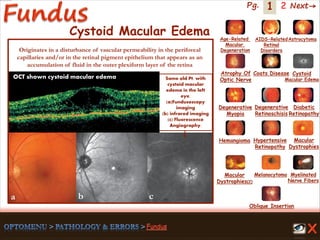

Cystoid Macular Edema
Same old Pt. with
cystoid macular
edema in the left
eye.
(a)Fundusoscopy
imaging
(b) infrared imaging
(c) Fluorescence
Angiography.
OCT shown cystoid macular edema
a b c
Originates in a disturbance of vascular permeability in the perifoveal
capillaries and/or in the retinal pigment epithelium that appears as an
accumulation of fluid in the outer plexiform layer of the retina
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

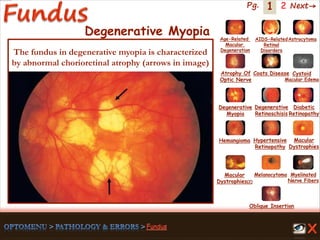

Degenerative Myopia
The fundus in degenerative myopia is characterized
by abnormal chorioretinal atrophy (arrows in image)
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

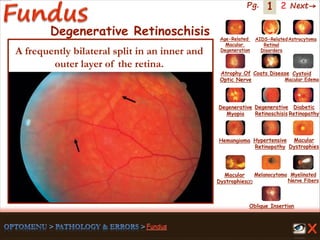

Degenerative Retinoschisis
A frequently bilateral split in an inner and
outer layer of the retina.
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

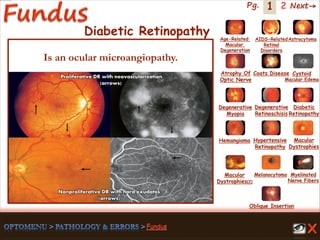

Diabetic Retinopathy
Proliferative DR with neovascularization
(arrows)
Nonproliferative DR with hard exudates
(arrows)
Is an ocular microangiopathy.
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

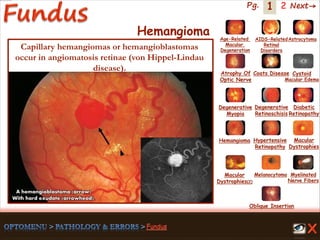

Hemangioma
A hemangioblastoma (arrow)
With hard exudate (arrowhead).
Capillary hemangiomas or hemangioblastomas
occur in angiomatosis retinae (von Hippel-Lindau
disease).
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

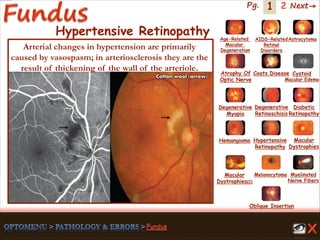

Hypertensive Retinopathy
Cotton wool (arrow)
Arterial changes in hypertension are primarily
caused by vasospasm; in arteriosclerosis they are the
result of thickening of the wall of the arteriole.
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

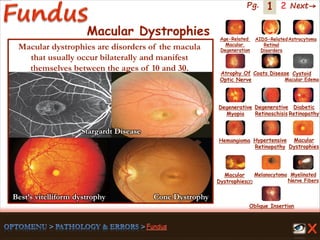

Macular Dystrophies
Stargardt Disease
Best’s vitelliform dystrophy Cone Dystrophy
Macular dystrophies are disorders of the macula
that usually occur bilaterally and manifest
themselves between the ages of 10 and 30.
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

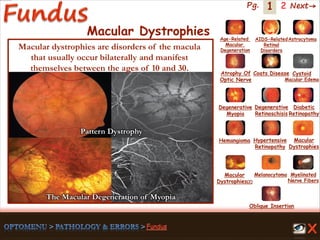

Macular Dystrophies
The Macular Degeneration of Myopia
Pattern Dystrophy
Macular dystrophies are disorders of the macula
that usually occur bilaterally and manifest
themselves between the ages of 10 and 30.
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

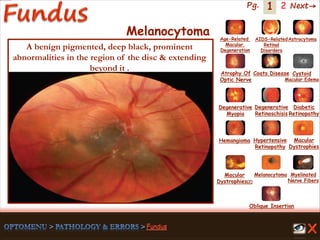

Melanocytoma
A benign pigmented, deep black, prominent
abnormalities in the region of the disc & extending
beyond it .
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

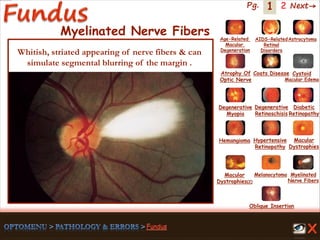

Myelinated Nerve Fibers
Whitish, striated appearing of nerve fibers & can
simulate segmental blurring of the margin .
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

1 Next→Pg. 2

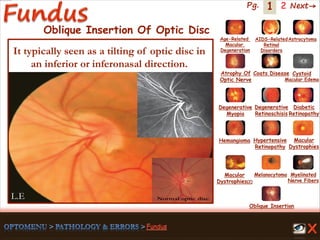

Oblique Insertion Of Optic Disc
L.E
It typically seen as a tilting of optic disc in
an inferior or inferonasal direction.
Age-Related
Macular
Degeneration
AIDS-Related
Retinal
Disorders
Astrocytoma
Atrophy Of
Optic Nerve
Macular Edema
Degenerative
Myopia
Degenerative
Retinoschisis
Diabetic
Retinopathy
Retinopathy
Macular
Dystrophies(2)
Macular
Dystrophies
Nerve Fibers
Oblique Insertion

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
‘Anterior Ischemic’
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma
L.E

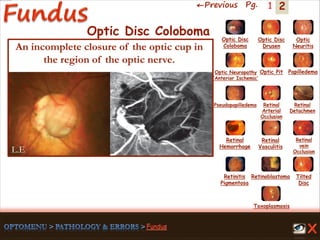

Optic Disc Coloboma
An incomplete closure of the optic cup in
the region of the optic nerve.

2←Previous Pg. 1
R.E
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

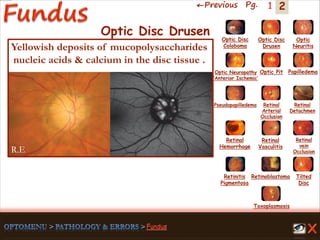

Optic Disc Drusen
Yellowish deposits of mucopolysaccharides
nucleic acids & calcium in the disc tissue .

2←Previous Pg. 1
a
c
b

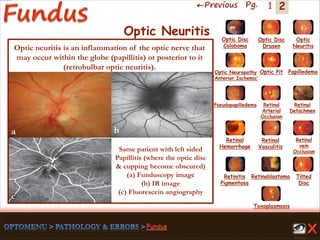

Same patient with left sided
Papillitis (where the optic disc
& cupping become obscured)
(a) Funduscopy image
(b) IR image
(c) Fluorescein angiography
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma
Optic Neuritis
Optic neuritis is an inflammation of the optic nerve that
may occur within the globe (papillitis) or posterior to it
(retrobulbar optic neuritis).

2←Previous Pg. 1

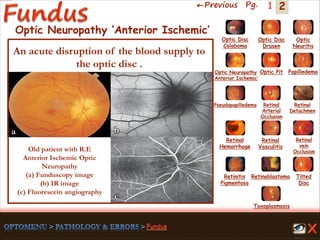

a b
c
Old patient with R.E
Anterior Ischemic Optic
Neuropathy
(a) Funduscopy image
(b) IR image
(c) Fluorescein angiography
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma
Optic Neuropathy ‘Anterior Ischemic’
An acute disruption of the blood supply to
the optic disc .

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

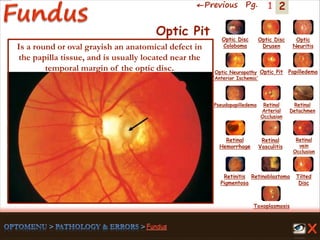

Optic Pit
Is a round or oval grayish an anatomical defect in
the papilla tissue, and is usually located near the
temporal margin of the optic disc.

2←Previous Pg. 1

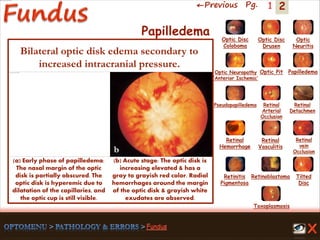

a b
(a) Early phase of papilledema:
The nasal margin of the optic
disk is partially obscured. The
optic disk is hyperemic due to
dilatation of the capillaries, and
the optic cup is still visible.
(b) Acute stage: The optic disk is
increasing elevated & has a
gray to grayish red color. Radial
hemorrhages around the margin
of the optic disk & grayish white
exudates are observed.
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma
Papilledema
Bilateral optic disk edema secondary to
increased intracranial pressure.

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

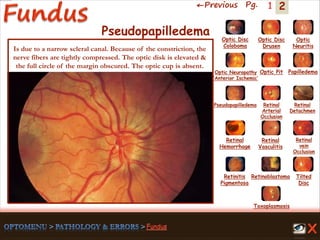

Pseudopapilledema
Is due to a narrow scleral canal. Because of the constriction, the
nerve fibers are tightly compressed. The optic disk is elevated &
the full circle of the margin obscured. The optic cup is absent.

2←Previous Pg. 1
Branch Retinal Artery Occlusion (BRAO)
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

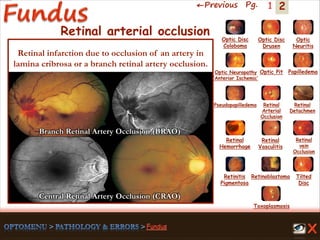

Retinal arterial occlusion
Retinal infarction due to occlusion of an artery in
lamina cribrosa or a branch retinal artery occlusion.
Central Retinal Artery Occlusion (CRAO)

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachment
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

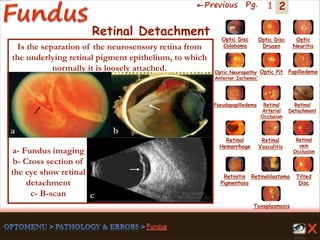

Retinal Detachment
Is the separation of the neurosensory retina from
the underlying retinal pigment epithelium, to which
normally it is loosely attached.
a- Fundus imaging
b- Cross section of
the eye show retinal
detachment
c- B-scan c
ba

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma
Retinal Hemorrhage
Is the bleeding of the retina .

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

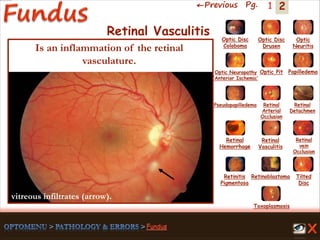

Retinal Vasculitis
Is an inflammation of the retinal
vasculature.
vitreous infiltrates (arrow).

2←Previous Pg. 1

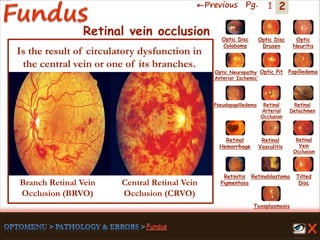

Branch Retinal Vein
Occlusion (BRVO)
Central Retinal Vein
Occlusion (CRVO)
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
Vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma
Retinal vein occlusion
Is the result of circulatory dysfunction in
the central vein or one of its branches.

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

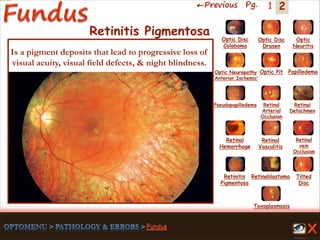

Retinitis Pigmentosa
Is a pigment deposits that lead to progressive loss of
visual acuity, visual field defects, & night blindness.

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

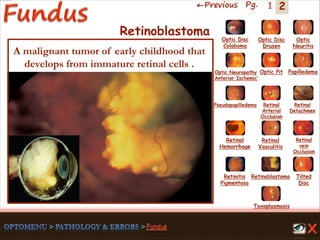

Retinoblastoma
A malignant tumor of early childhood that
develops from immature retinal cells .

2←Previous Pg. 1
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma

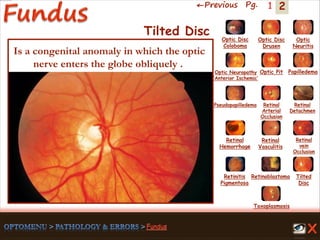

Tilted Disc
Is a congenital anomaly in which the optic
nerve enters the globe obliquely .

2←Previous Pg. 1

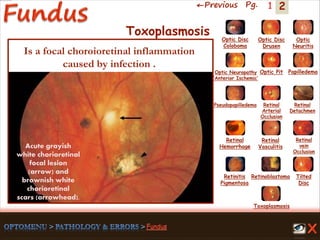

Acute grayish
white chorioretinal
focal lesion
(arrow) and
brownish white
chorioretinal
scars (arrowhead).
Toxoplasmosis
Retinal
Vasculitis
Tilted
Disc
Pseudopapilledema
Optic Disc
Drusen
Papilledema
Optic
Neuritis
Optic Pit
Optic Disc
Coloboma
Optic Neuropathy
Retinal
Detachmen
Retinal
Hemorrhage
Retinal
vein
Occlusion
Retinal
Arterial
Occlusion
Retinitis
Pigmentosa
Retinoblastoma
Toxoplasmosis
Is a focal choroioretinal inflammation
caused by infection .

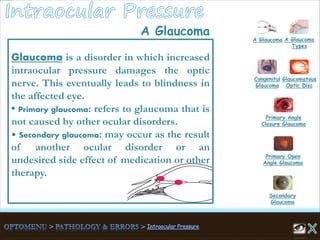

A Glaucoma A Glaucoma
Types
Congenital
Glaucoma
Glaucomatous
Optic Disc
Secondary
Glaucoma
Primary Open
Angle Glaucoma
Primary Angle
Closure Glaucoma
Glaucoma is a disorder in which increased
intraocular pressure damages the optic
nerve. This eventually leads to blindness in
the affected eye.
• Primary glaucoma: refers to glaucoma that is
not caused by other ocular disorders.
• Secondary glaucoma: may occur as the result
of another ocular disorder or an
undesired side effect of medication or other
therapy.

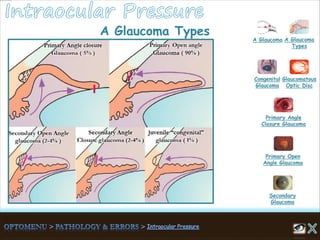

A Glaucoma

A Glaucoma Types
Types
Congenital
Glaucoma
Glaucomatous
Optic Disc
Secondary
Glaucoma
Primary Open
Angle Glaucoma
Primary Angle
Closure Glaucoma

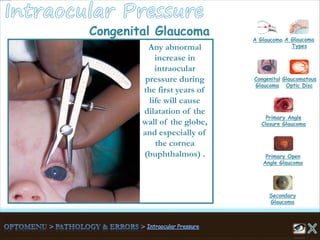

Congenital Glaucoma
Types
Congenital
Glaucoma
Glaucomatous
Optic Disc
Secondary
Glaucoma
Primary Open
Angle Glaucoma
Primary Angle
Closure Glaucoma
Any abnormal
increase in
intraocular
pressure during
the first years of
life will cause
dilatation of the
wall of the globe,
and especially of
the cornea
(buphthalmos) .

The optic disc is sharply demarcated and pale (a sign of
tissue atrophy). The optic cup is enlarged and almost
completely covers the disc. The blood vessels abruptly
plunge into the deep cup, indicated by their typical
bayonet shaped kinks in the image (arrow).
Glaucomatous Optic Disc
Types
Congenital
Glaucoma
Glaucomatous
Optic Disc
Secondary
Glaucoma
Primary Open
Angle Glaucoma
Primary Angle
Closure Glaucoma

closed angles
Acute angle closure

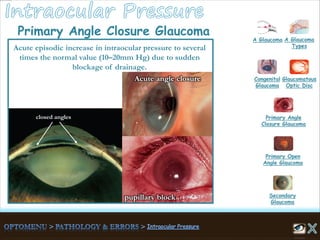

Primary Angle Closure Glaucoma
Types
Congenital
Glaucoma
Glaucomatous
Optic Disc
Secondary
Glaucoma
Primary Open
Angle Glaucoma
Primary Angle
Closure Glaucoma
pupillary block
Acute episodic increase in intraocular pressure to several
times the normal value (10–20mm Hg) due to sudden
blockage of drainage.

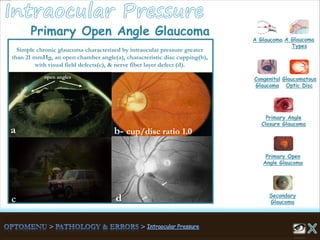

open angles
a
d
b- cup/disc ratio 1.0
Simple chronic glaucoma characterized by intraocular pressure greater
than 21 mmHg, an open chamber angle(a), characteristic disc cupping(b),
with visual field defects(c), & nerve fiber layer defect (d).
Primary Open Angle Glaucoma
Types
Congenital
Glaucoma
Glaucomatous
Optic Disc
Secondary
Glaucoma
Primary Open
Angle Glaucoma
Primary Angle
Closure Glaucoma

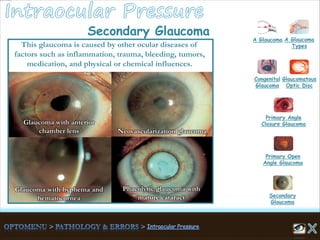

Phacolytic glaucoma with
mature cataract
Glaucoma with hyphema and
hematocornea
Glaucoma with anterior
chamber lens Neovascularization glaucoma
This glaucoma is caused by other ocular diseases of
factors such as inflammation, trauma, bleeding, tumors,
medication, and physical or chemical influences.
Secondary Glaucoma
Types
Congenital
Glaucoma
Glaucomatous
Optic Disc
Secondary
Glaucoma
Primary Open
Angle Glaucoma
Primary Angle
Closure Glaucoma

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage
Episcleritis Blepharitis
Acute Glaucoma
Acute angle-closure glaucoma is a sudden
elevation in intraocular pressure that occurs
when the iris blocks the eye's drainage channel
(the trabecular meshwork).

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

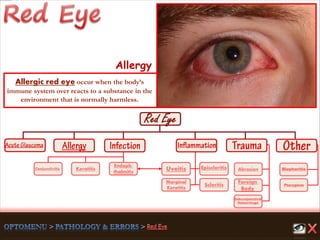

Allergy
Allergic red eye occur when the body’s
immune system over reacts to a substance in the
environment that is normally harmless.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

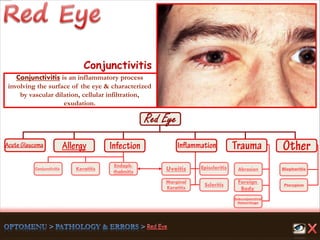

Conjunctivitis
Conjunctivitis is an inflammatory process
involving the surface of the eye & characterized
by vascular dilation, cellular infiltration,
exudation.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

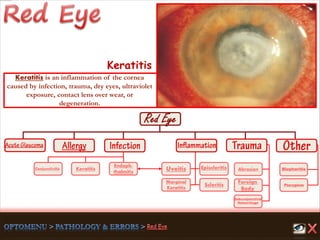

Keratitis
Keratitis is an inflammation of the cornea
caused by infection, trauma, dry eyes, ultraviolet
exposure, contact lens over wear, or
degeneration.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

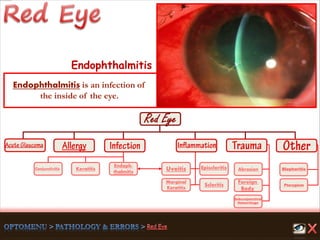

Endophthalmitis
Endophthalmitis is an infection of
the inside of the eye.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

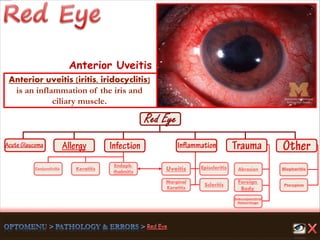

Anterior Uveitis
Anterior uveitis (iritis, iridocyclitis)
is an inflammation of the iris and
ciliary muscle.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

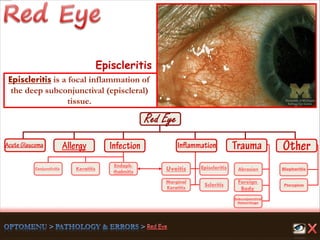

Episcleritis
Episcleritis is a focal inflammation of
the deep subconjunctival (episcleral)
tissue.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

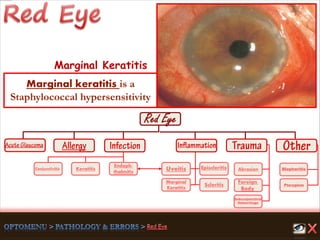

Marginal Keratitis
Marginal keratitis is a
Staphylococcal hypersensitivity

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

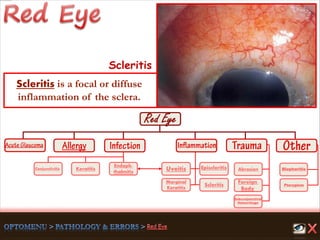

Scleritis
Scleritis is a focal or diffuse

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

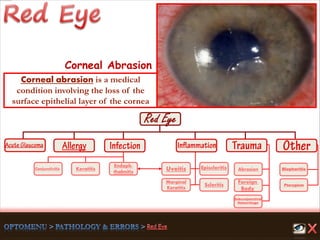

Corneal Abrasion
Corneal abrasion is a medical
condition involving the loss of the
surface epithelial layer of the cornea

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

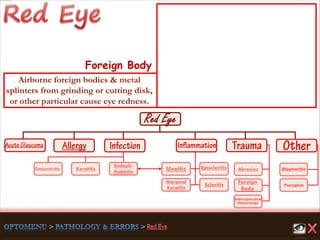

Foreign Body
Airborne foreign bodies & metal
splinters from grinding or cutting disk,
or other particular cause eye redness.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

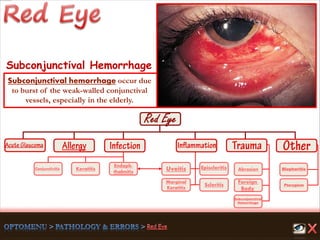

Subconjunctival Hemorrhage
Subconjunctival hemorrhage occur due
to burst of the weak-walled conjunctival
vessels, especially in the elderly.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage
Blepharitis
Blepharitis is a diffuse inflammation
of the sebaceous glands or lash
follicles of the eyelids.

Endoph-
thalmitis
Keratitis
Scleritis
Marginal
Keratitis
Uveitis
Foreign
Body
Abrasion
Pterygium
Conjunctivitis
Subconjunctival
Hemorrhage

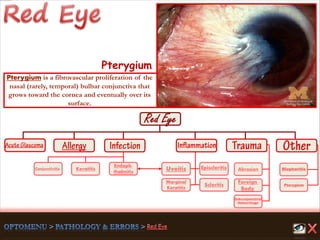

Pterygium
Pterygium is a fibrovascular proliferation of the
nasal (rarely, temporal) bulbar conjunctiva that
grows toward the cornea and eventually over its
surface.

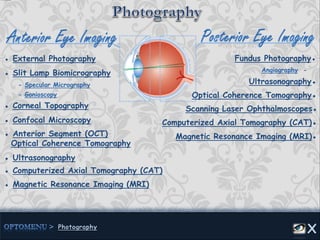

Fundus Photography●
Scanning Laser Ophthalmoscopes●
● External Photography
● Slit Lamp Biomicrography
● Corneal Topography
● Confocal Microscopy
● Anterior Segment (OCT)
Optical Coherence Tomography
- Specular Micrography
Optical Coherence Tomography●- Gonioscopy
● Ultrasonography
● Computerized Axial Tomography (CAT)
● Magnetic Resonance Imaging (MRI)
Ultrasonography●
Computerized Axial Tomography (CAT)●
Magnetic Resonance Imaging (MRI)●
Angiography -

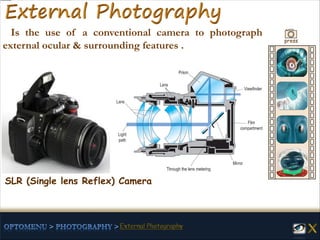

Is the use of a conventional camera to photograph
external ocular & surrounding features .
SLR (Single lens Reflex) Camera
press

Types of External
Photography :
①Close-up
photography of the eye
& ②Its adnexa
③Binocular
photography
④Portraiture.
❶
❹❸
❷
←Back

Parts of the Slit Lamp
Biomicrography
1.Cable guide.
2.Flash housing.
3.Flash intensity changer for
background illumination.
4.Objective tube.
5.Camera body.
6.Eye-piece with double cross hair
reticle.
7.Mirror housing.
8.Background illumination.
9.Mirror and Diffusion filter.
10.Cold light source.
11.Shutter release bar.
12.Photo control unit.
Parts of the Slit Lamp
Biomicrography
Is the photography of the
structures of the eye with a
specially designed horizontally
mounted microscope.
press
1
23
4
5
6
7
8
9
10
12
11

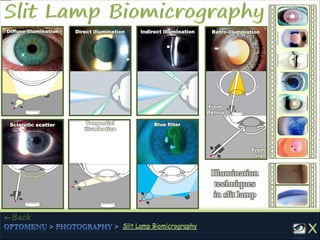

Diffuse illumination
Blue filter
Indirect illumination Retro-illumination
Sclerotic scatter
Direct illumination
From
Iris
From
Retina
Illumination
techniques
in slit lamp
←Back
Tangential
illumination

←Back

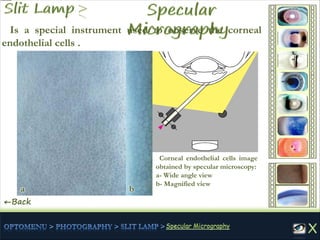

Is a special instrument used to observe the corneal
endothelial cells .
Corneal endothelial cells image
obtained by specular microscopy:
a- Wide angle view
b- Magnified view
a b

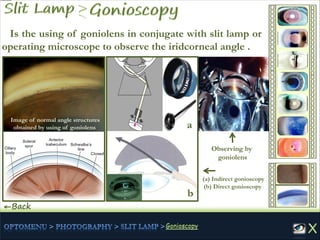

Is the using of goniolens in conjugate with slit lamp or
operating microscope to observe the iridcorneal angle .
←Back
Image of normal angle structures
obtained by using of goniolens
Observing by
goniolens
(a) Indirect gonioscopy
(b) Direct gonioscopy
a
b

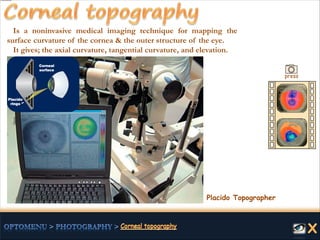

Placido Topographer
Is a noninvasive medical imaging technique for mapping the
surface curvature of the cornea & the outer structure of the eye.
It gives; the axial curvature, tangential curvature, and elevation.
press
Placido
rings
Corneal
surface

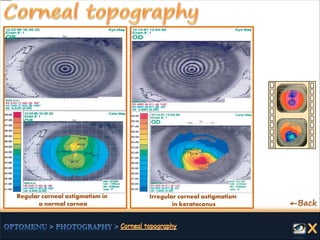

Regular corneal astigmatism in
a normal cornea
Irregular corneal astigmatism
in keratoconus ←Back

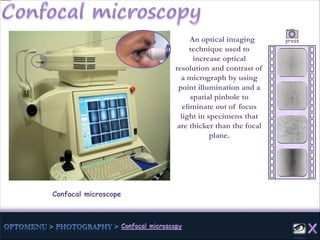

Confocal microscope
An optical imaging
technique used to
increase optical
resolution and contrast of
a micrograph by using
point illumination and a
spatial pinhole to
eliminate out of focus
light in specimens that
are thicker than the focal
plane.
press

Epithelium Bowman’s lamina
Stroma Endothelium
Corneal layers images by confocal microscpe←Back

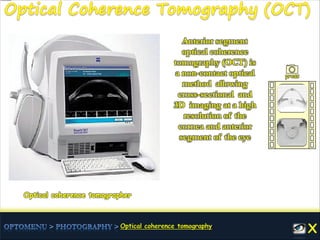

Optical coherence tomographer
Anterior segment
optical coherence
tomography (OCT) is
a non-contact optical
method allowing
cross-sectional and
3D imaging at a high
resolution of the
cornea and anterior
segment of the eye
press

←Back
a
b

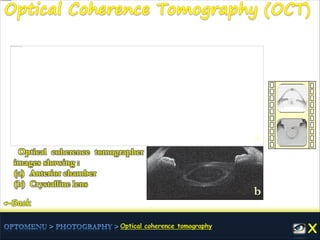

images showing :
(a) Anterior chamber
(b) Crystalline lens

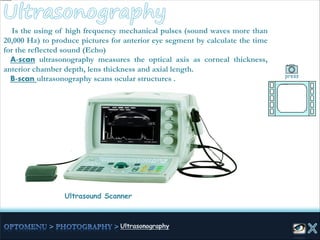

Ultrasound Scanner
Is the using of high frequency mechanical pulses (sound waves more than
20,000 Hz) to produce pictures for anterior eye segment by calculate the time
for the reflected sound (Echo)
A-scan ultrasonography measures the optical axis as corneal thickness,
anterior chamber depth, lens thickness and axial length.
B-scan ultrasonography scans ocular structures . press

←Back

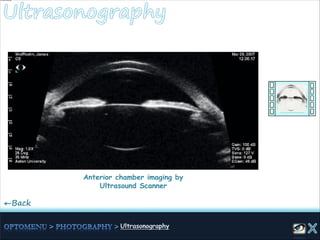

Anterior chamber imaging by
Ultrasound Scanner

Computerized tomographer
Is the Emitting of
several simultaneous
X-rays from different
angles.
X-rays which have
high energy, short
wavelength and able to
pass through tissue;
passed through the
body creating a cross-
sectional image.
press

←Back

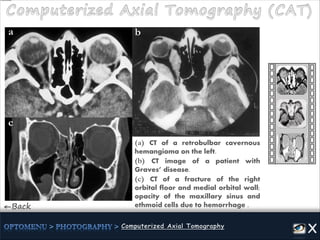

(a) CT of a retrobulbar cavernous
hemangioma on the left.
(b) CT image of a patient with
Graves’ disease.
(c) CT of a fracture of the right
orbital floor and medial orbital wall;
opacity of the maxillary sinus and
ethmoid cells due to hemorrhage .
ba
c

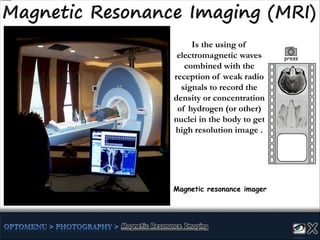

Magnetic resonance imager
Is the using of
electromagnetic waves
combined with the
reception of weak radio
signals to record the
density or concentration
of hydrogen (or other)
nuclei in the body to get
high resolution image .
press

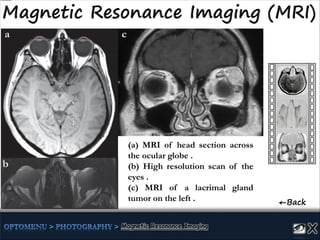

(a) MRI of head section across
the ocular globe .
(b) High resolution scan of the
eyes .
(c) MRI of a lacrimal gland
tumor on the left . ←Back
a
b
c

Fundus Camera
Is the
photographing
of the ocular
fundus .
press

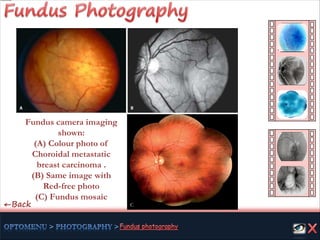

Fundus camera imaging
shown:
(A) Colour photo of
Choroidal metastatic
breast carcinoma .
(B) Same image with
Red-free photo
(C) Fundus mosaic
C←Back

C←Back

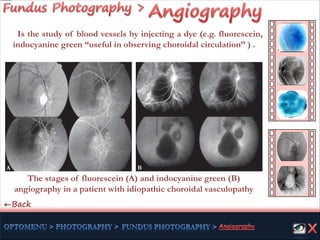

The stages of fluorescein (A) and indocyanine green (B)
angiography in a patient with idiopathic choroidal vasculopathy
A B
Is the study of blood vessels by injecting a dye (e.g. fluorescein,
indocyanine green “useful in observing choroidal circulation” ) .

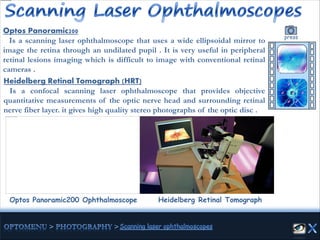

Optos Panoramic200 Ophthalmoscope
Optos Panoramic200
Is a scanning laser ophthalmoscope that uses a wide ellipsoidal mirror to
image the retina through an undilated pupil . It is very useful in peripheral
retinal lesions imaging which is difficult to image with conventional retinal
cameras .
press
Heidelberg Retinal Tomograph (HRT)
Is a confocal scanning laser ophthalmoscope that provides objective
quantitative measurements of the optic nerve head and surrounding retinal
nerve fiber layer. it gives high quality stereo photographs of the optic disc .
Heidelberg Retinal Tomograph

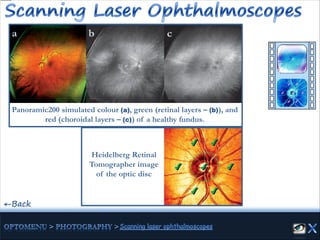

Panoramic200 simulated colour (a), green (retinal layers – (b)), and
red (choroidal layers – (c)) of a healthy fundus.
←Back
a cb
Heidelberg Retinal
Tomographer image
of the optic disc

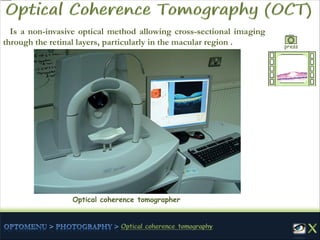

Is a non-invasive optical method allowing cross-sectional imaging
through the retinal layers, particularly in the macular region .
press

OCT imaging showing :
(a) Cystoid macular edema
(b) A retinal slice
(c) 3D composite of 50 slices
←Back
a
c
b

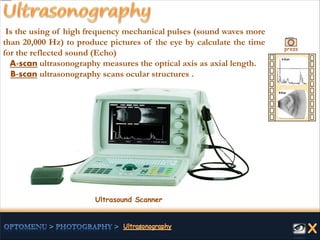

Is the using of high frequency mechanical pulses (sound waves more
than 20,000 Hz) to produce pictures of the eye by calculate the time
for the reflected sound (Echo)
A-scan ultrasonography measures the optical axis as axial length.
B-scan ultrasonography scans ocular structures .
Ultrasound Scanner
press

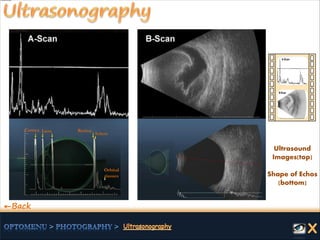

Ultrasound
Images(top)
Shape of Echos
(bottom)
←Back
Cornea Lens
Orbital
tissues
Sclera
Retina

1- A Textbook of Clinical Ophthalmology: Ronald P. Crick, Peng T. Khaw, 3rd Ed,
World Scientific Publishing Co. Ltd. , London, New Jersey, Singapore, Hong Kong,
2003 .
2- Color Atlas of Ophthalmology: Arthur L. Ming, Ian J. Constable, 3rd Ed, World
Science .
3- Common Eye Diseases and their Management: N. R. Galloway, W. M. K.
Amoaku, P. H. Galloway, and A. C. Browning, 3rd Ed, Springer Verlag London Ltd. ,
UK, 2006 .
4- Fluorescence Angiography in Ophthalmology: S. Dithmer, F. G. Holz, Springer
Verlog Heidelberg, 2008 .
5-Grant’s Atlas of Anatomy: Anne M. R. Agur, Arthur F. Dalley, 12th Ed, Wolters
Klumer, Lippincott Williams & Wilikins Co. , 2009 .
Pg. 1 2 3

6- Medical Retina: Frank G. Holz, Richard F. Spadia, Springer Verlag Heidelberg,
2005 .
7- Miracle in the Eye: Harun Yahya, Michael Daventry translation, 3rd Ed, Istanbul,
2006 .
8- Ophthalmic Imaging: James Wolffsohn, Elsevier Ltd. , 2008 .
9- Ophthalmic Pathology an illustrated guide for Clinicians: K. Weng Sehu, William
R. Lee, Blackwell publishing Ltd. , 2005 .
10- Ophthalmology a short textbook: Gerhard K. Lang, George Thieme Verlag,
New York , 2000 .
11- Ophthalmology at a Glance: J. Oliver, L. Cassidy, Blackwell Science Ltd. , 2005 .
Pg. 1 2 3

12- Pocket Atlas of Ophthalmology: T. Schlote, J. Rohrbach, M. Grueb, J. Mielke,
George Thieme Verlag, New York, 2006 .
13- Slit lamp imaging guide: Haag – Streit International , slit lamp BX 900® .
14- Textbook of Medical Physiology: Arthur C. Guyton, John E. Hall, 11th Ed, Elsevier
Saunders, Philadelphia, 2006 .
15- The Visual Fields a Textbook and Atlas of Clinical Perimetery: David O. Harrington, 5th
Ed, Mosby Co. , London, 1981 .
16- www.aao.org
17- www.eyeatlas.com
No
Pg. 1 2 3

The eye atlas

More Related Content

What's hot

Similar to The eye atlas

More from sosojammoly

Recently uploaded

The eye atlas
