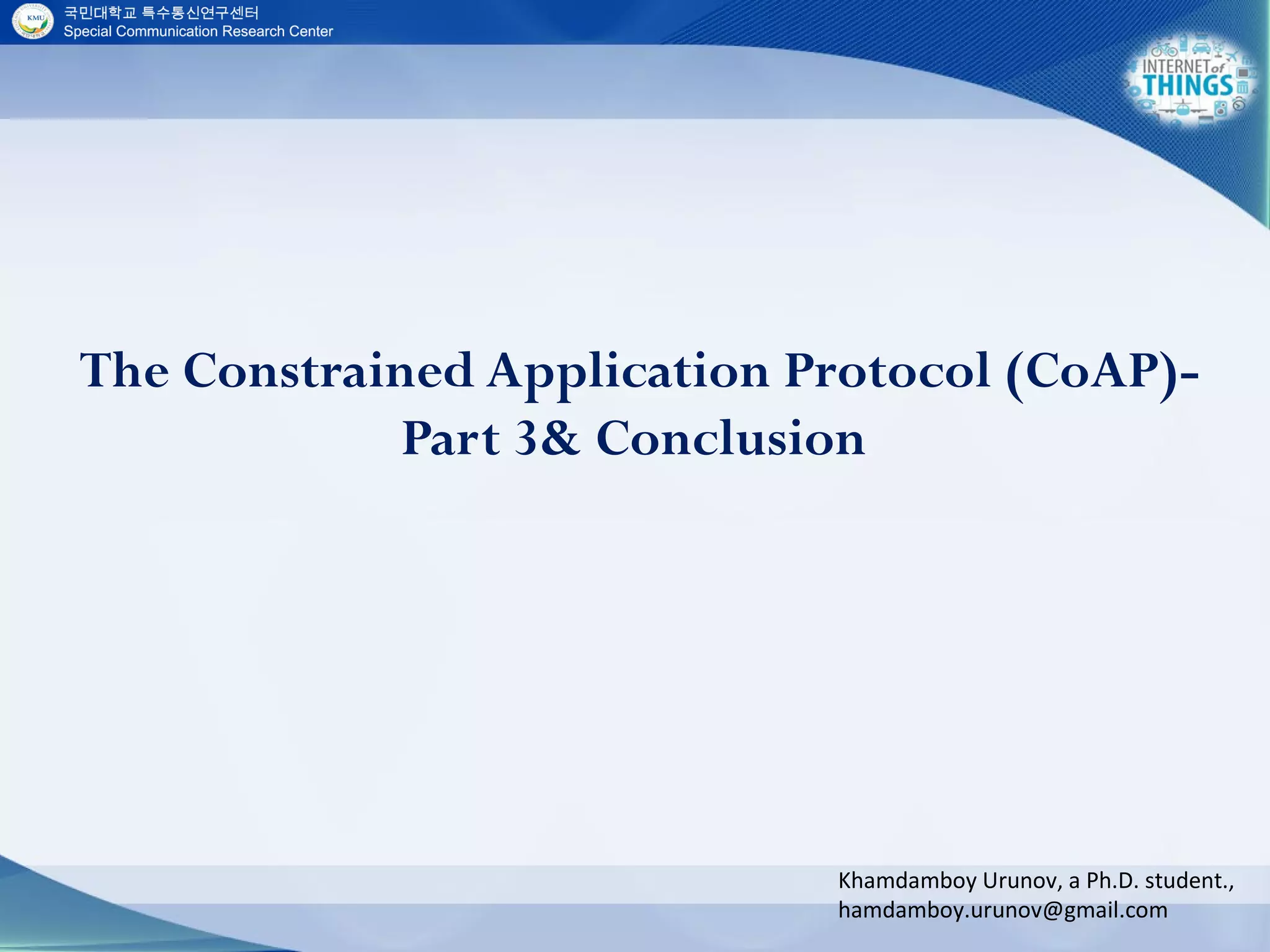

1. The Constrained Application Protocol (CoAP)-
Part 3& Conclusion
Khamdamboy Urunov, a Ph.D. student.,
hamdamboy.urunov@gmail.com

2. 2

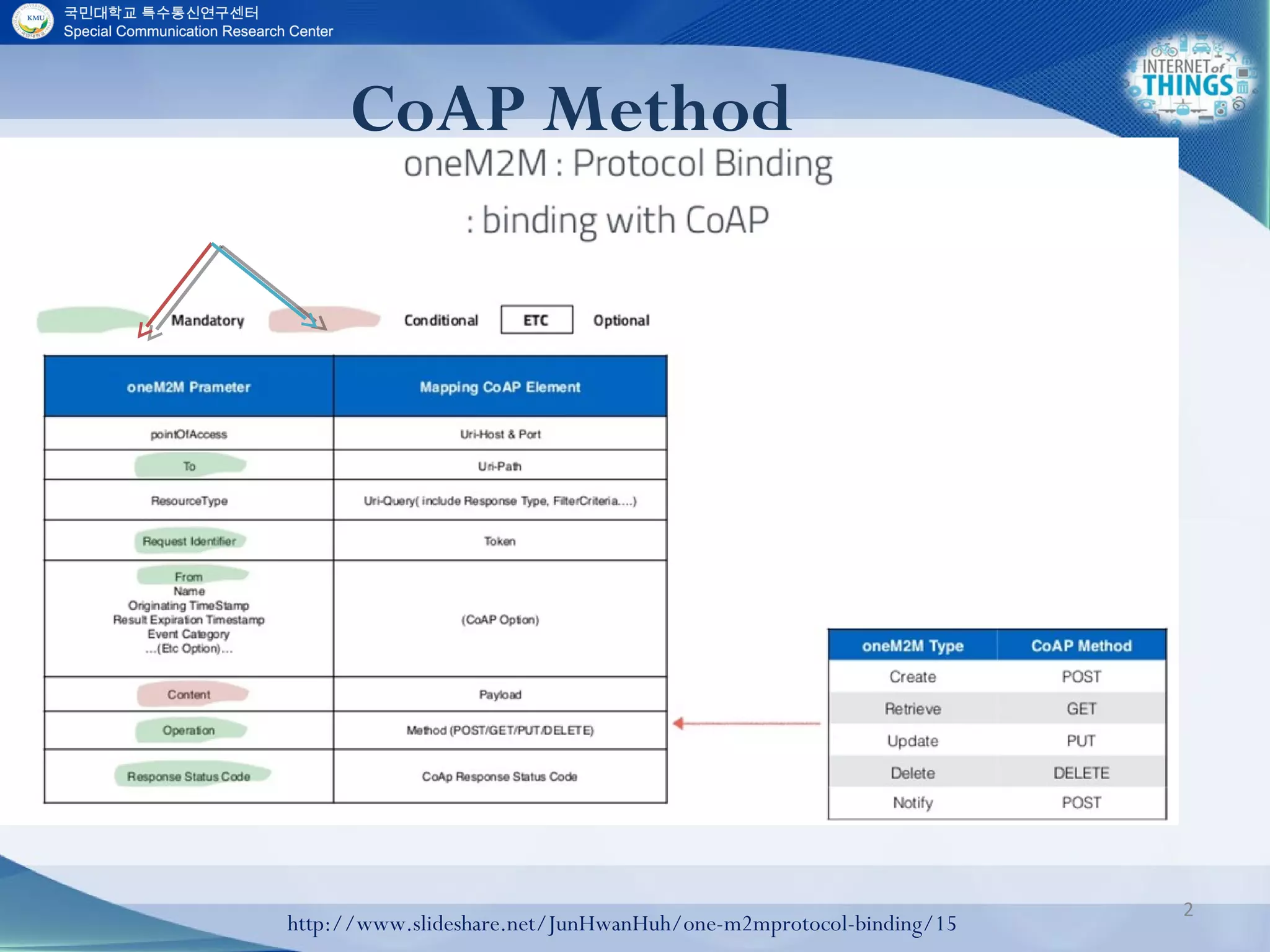

CoAP Method
http://www.slideshare.net/JunHwanHuh/one-m2mprotocol-binding/15

3. 3

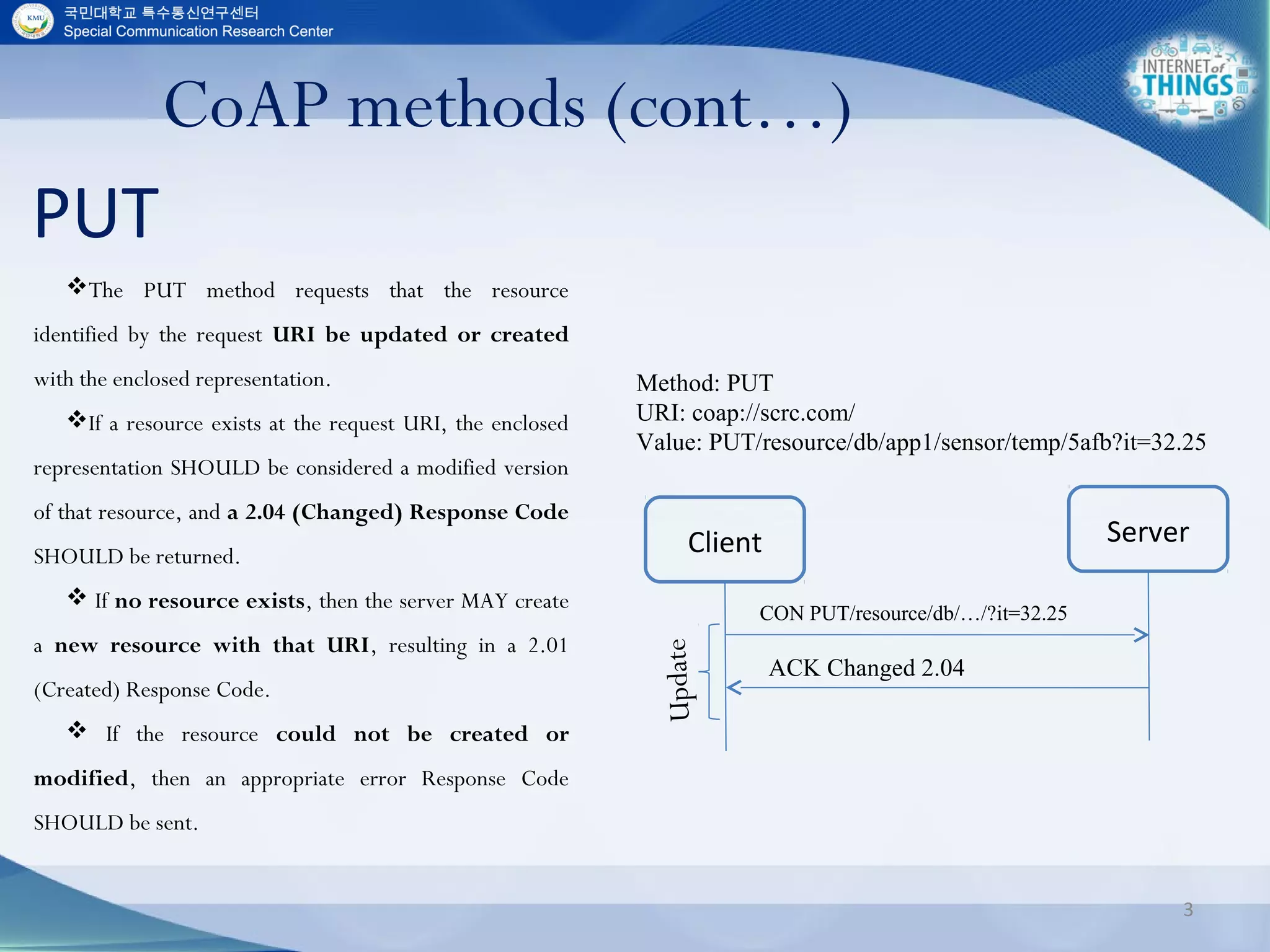

The PUT method requests that the resource
identified by the request URI be updated or created
with the enclosed representation.
If a resource exists at the request URI, the enclosed
representation SHOULD be considered a modified version
of that resource, and a 2.04 (Changed) Response Code
SHOULD be returned.
 If no resource exists, then the server MAY create
a new resource with that URI, resulting in a 2.01
(Created) Response Code.
 If the resource could not be created or
modified, then an appropriate error Response Code
SHOULD be sent.
Method: PUT
URI: coap://scrc.com/
Value: PUT/resource/db/app1/sensor/temp/5afb?it=32.25
CoAP methods (cont…)
PUT
Client Server
CON PUT/resource/db/…/?it=32.25
ACK Changed 2.04
Update

4. 4

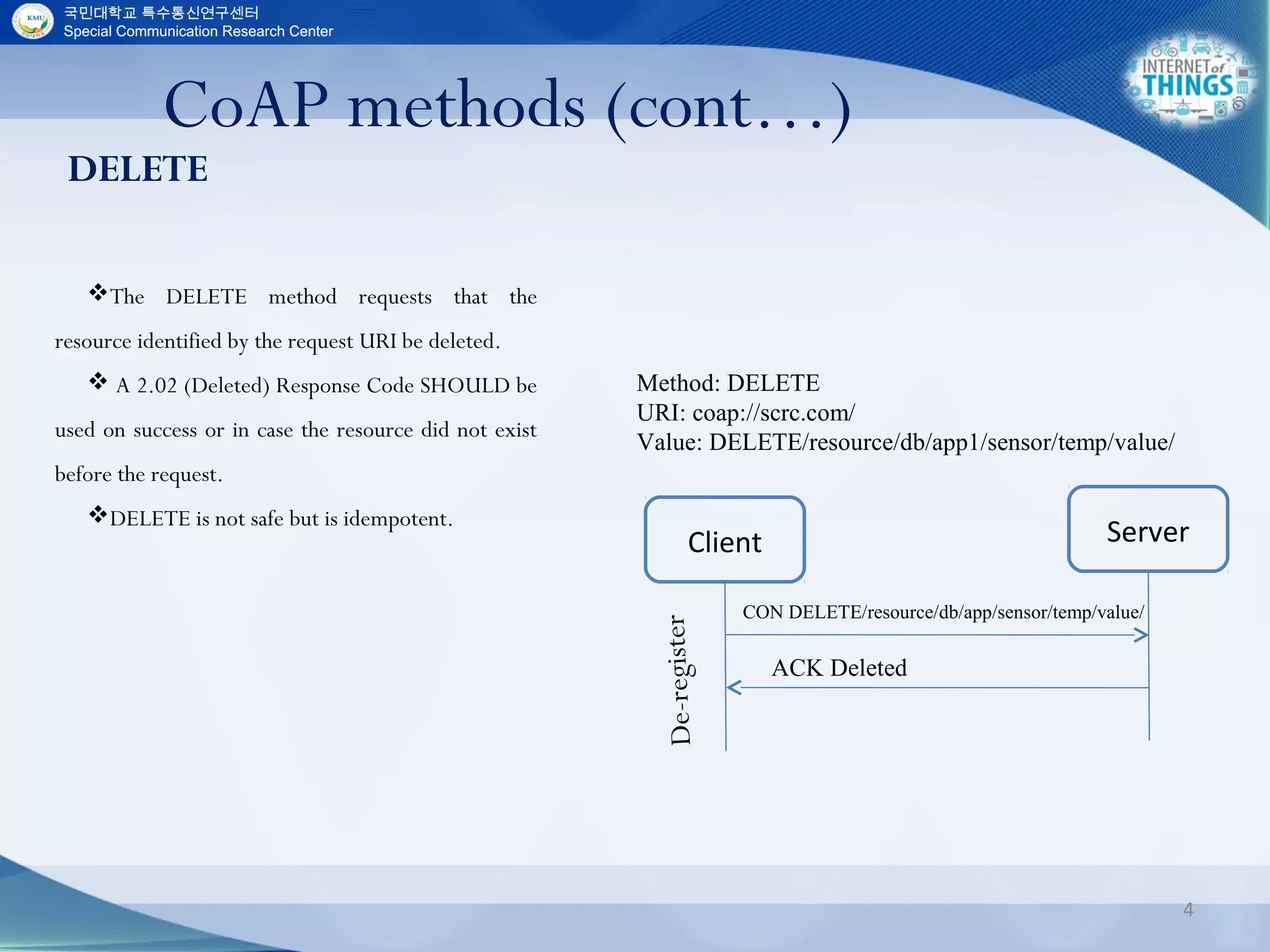

The DELETE method requests that the
resource identified by the request URI be deleted.
 A 2.02 (Deleted) Response Code SHOULD be
used on success or in case the resource did not exist
before the request.
DELETE is not safe but is idempotent.
Method: DELETE
URI: coap://scrc.com/
Value: DELETE/resource/db/app1/sensor/temp/value/
Client Server
CON DELETE/resource/db/app/sensor/temp/value/
ACK Deleted
De-register
CoAP methods (cont…)
DELETE

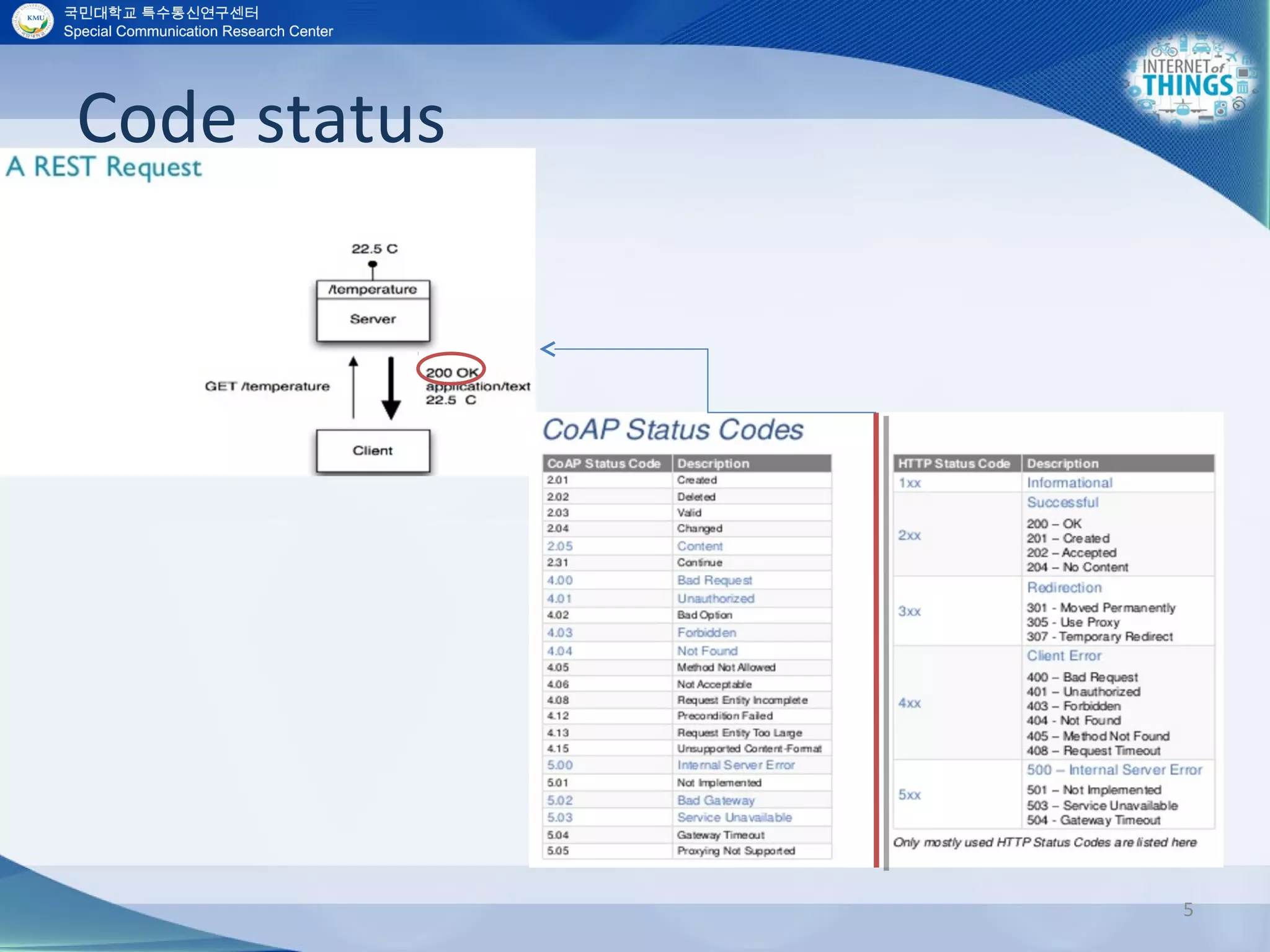

5. Code status
5

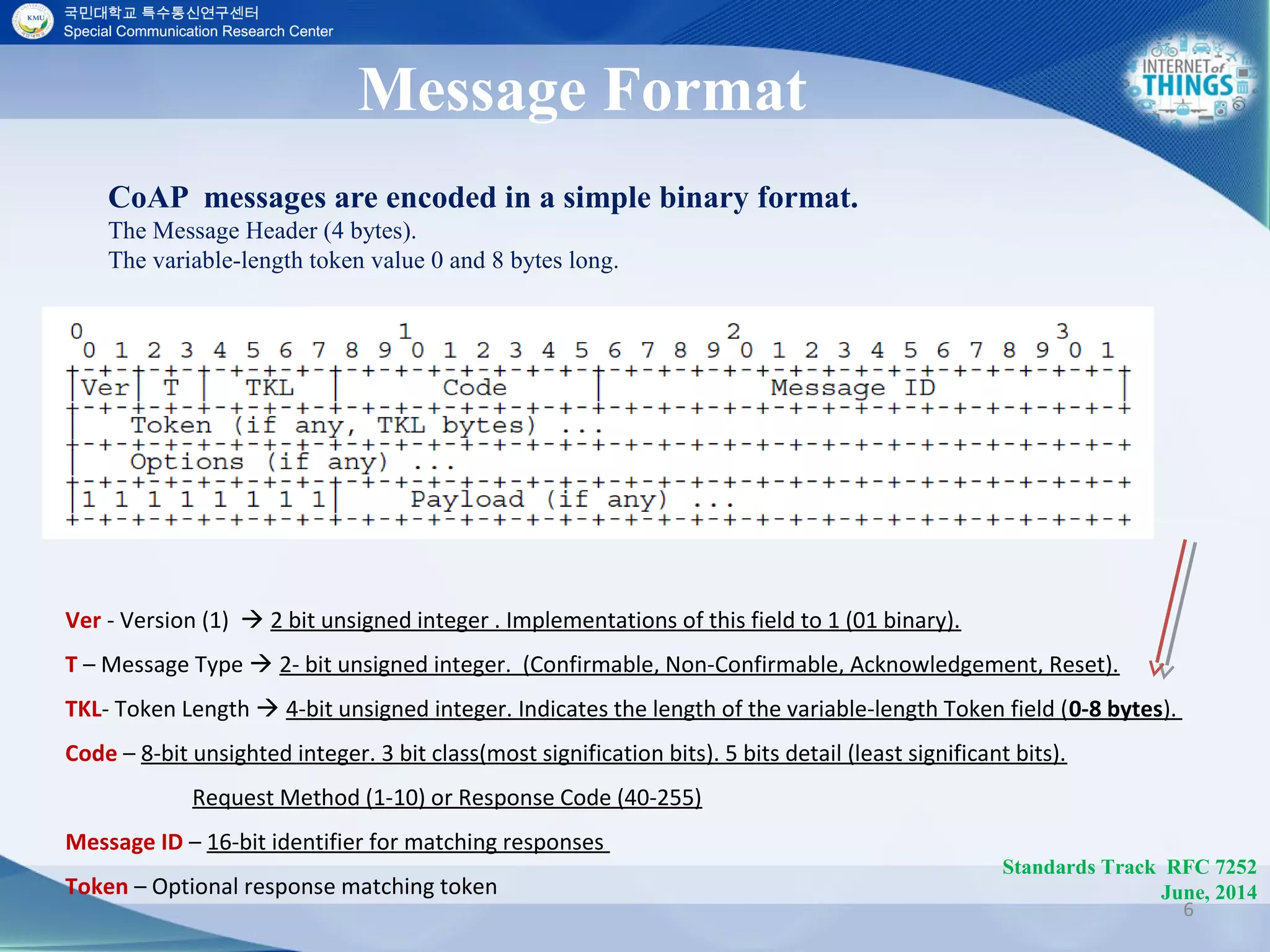

6. CoAP messages are encoded in a simple binary format.
The Message Header (4 bytes).
The variable-length token value 0 and 8 bytes long.
6
Ver - Version (1)  2 bit unsigned integer . Implementations of this field to 1 (01 binary).
T – Message Type  2- bit unsigned integer. (Confirmable, Non-Confirmable, Acknowledgement, Reset).
TKL- Token Length  4-bit unsigned integer. Indicates the length of the variable-length Token field (0-8 bytes).
Code – 8-bit unsighted integer. 3 bit class(most signification bits). 5 bits detail (least significant bits).
Request Method (1-10) or Response Code (40-255)
Message ID – 16-bit identifier for matching responses
Token – Optional response matching token
Message Format
Standards Track RFC 7252
June, 2014

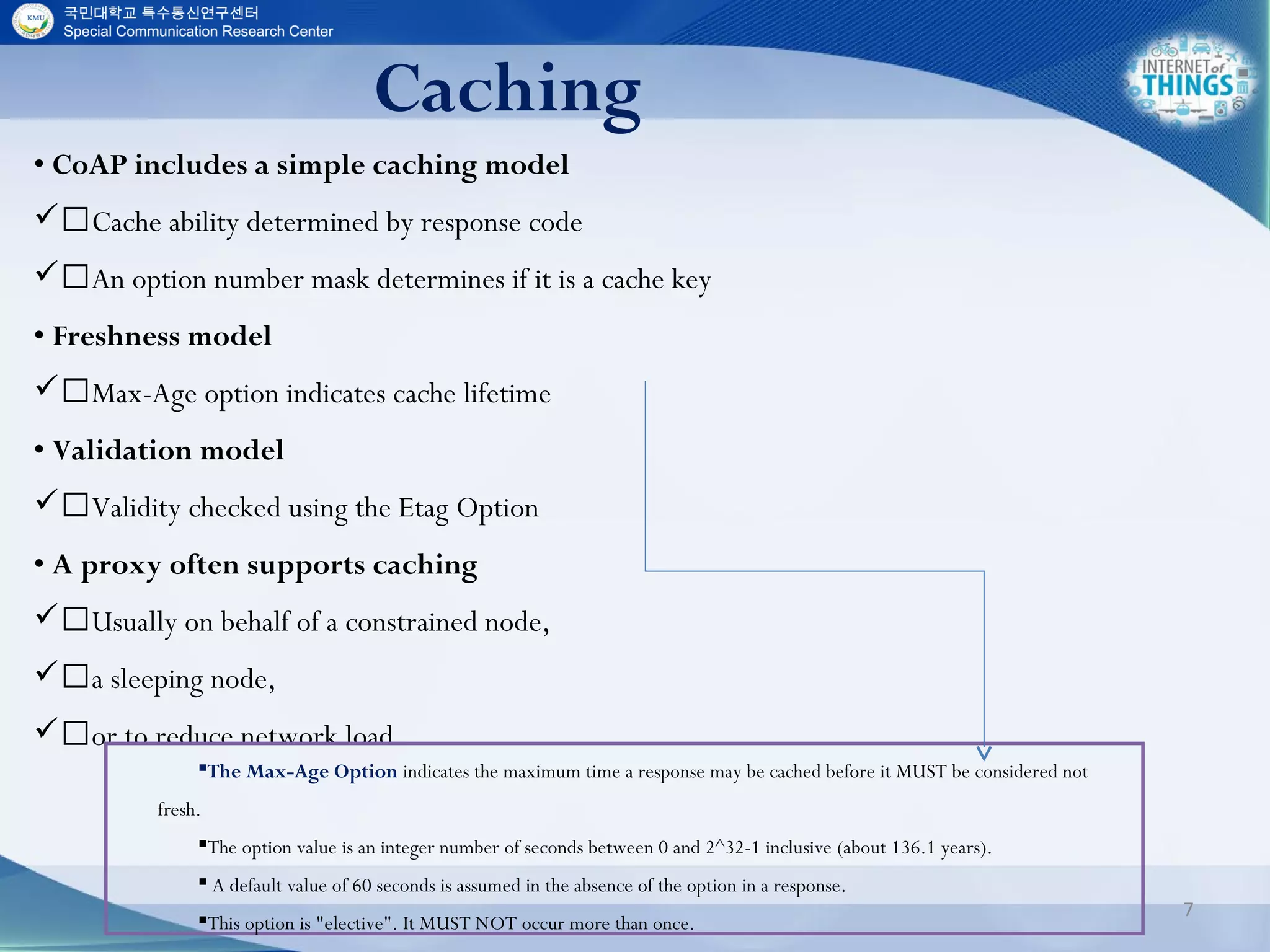

7. Caching
7
• CoAP includes a simple caching model
Cache ability determined by response code
An option number mask determines if it is a cache key
• Freshness model
Max-Age option indicates cache lifetime
• Validation model
Validity checked using the Etag Option
• A proxy often supports caching
Usually on behalf of a constrained node,
a sleeping node,
or to reduce network load
The Max-Age Option indicates the maximum time a response may be cached before it MUST be considered not
fresh.
The option value is an integer number of seconds between 0 and 2^32-1 inclusive (about 136.1 years).
 A default value of 60 seconds is assumed in the absence of the option in a response.
This option is "elective". It MUST NOT occur more than once.

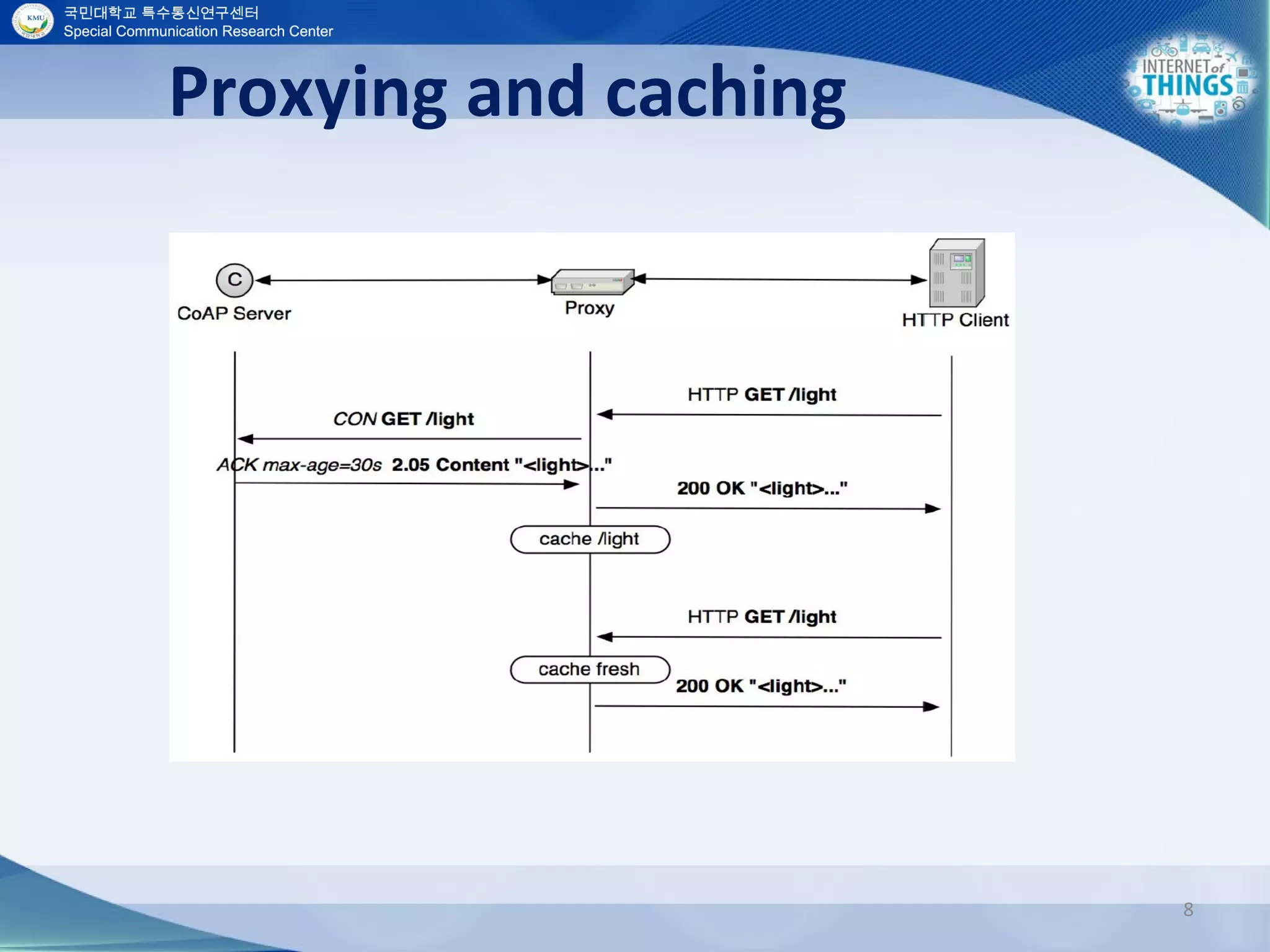

8. Proxying and caching
8

9. Observation
9
COAP Observation
PROBLEM:
 REST paradigm is often “PULL” type, that is,
data is obtained by issuing an explicit request
 Information/data in WSN is often periodic/
triggered (e.g., get me a temperature sample every
2 seconds or get me a warning if temperature goes
below 5°C)
SOLUTION:
 use Observation on COAP resources

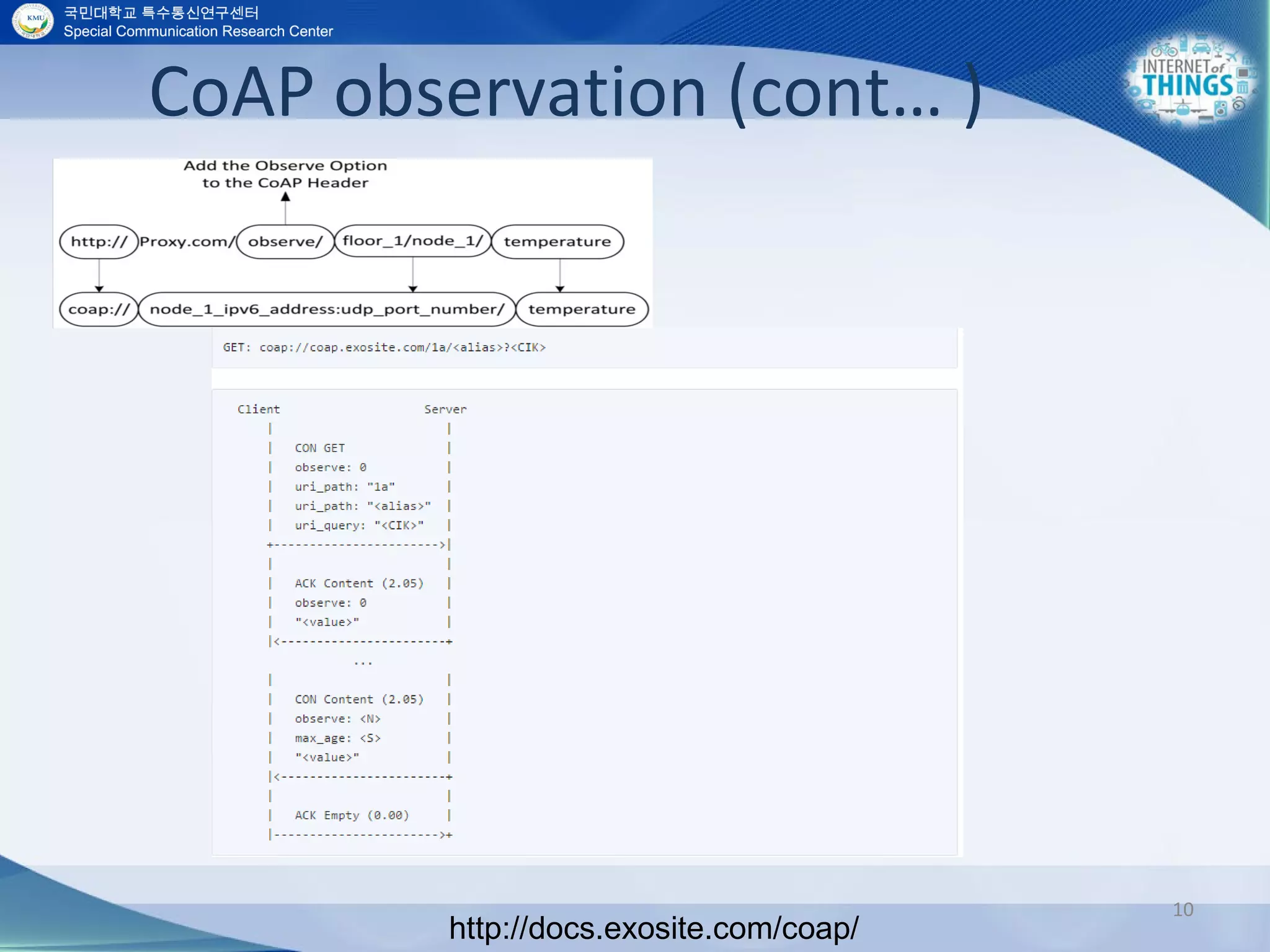

10. CoAP observation (cont… )
10
http://docs.exosite.com/coap/

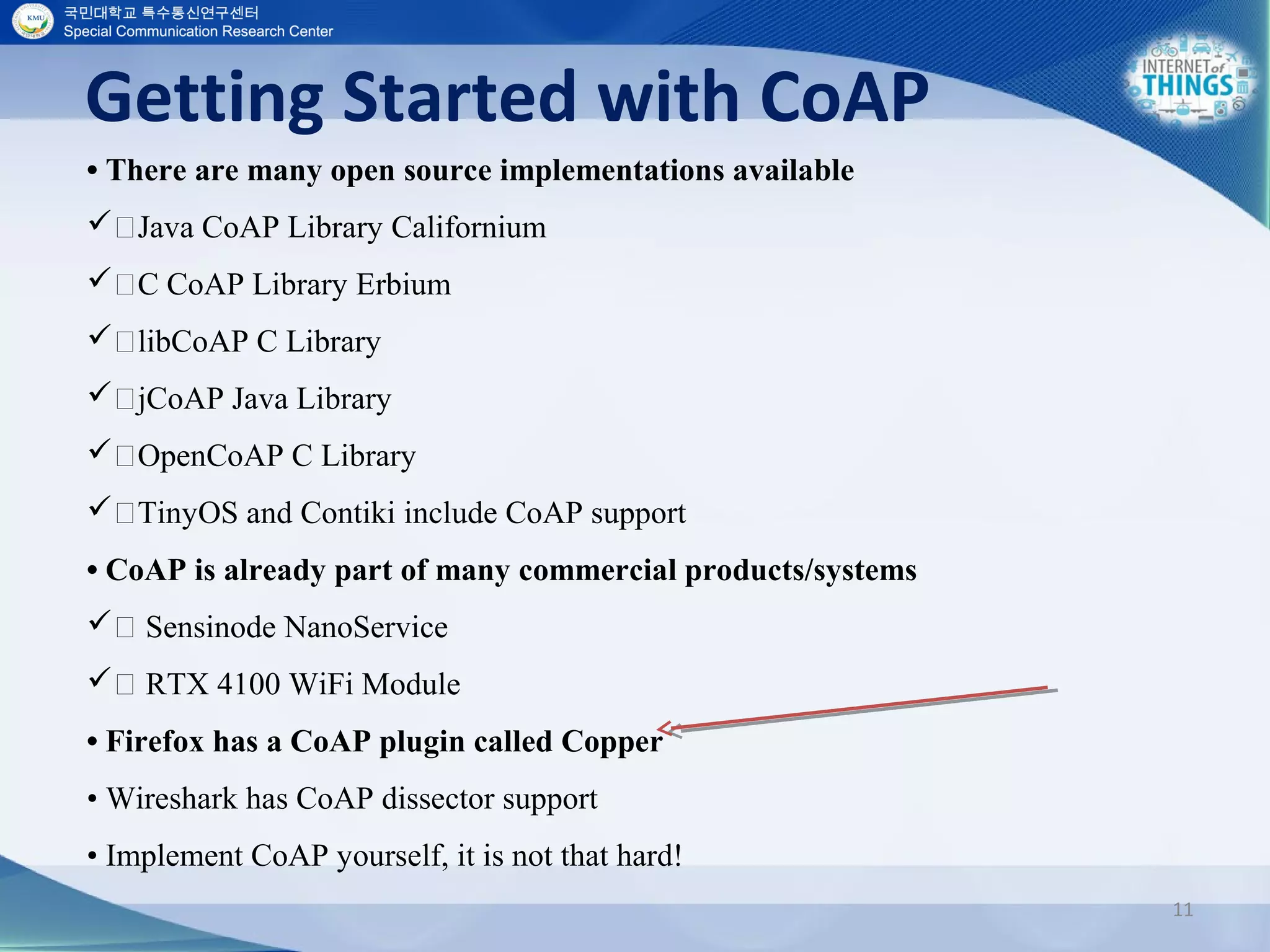

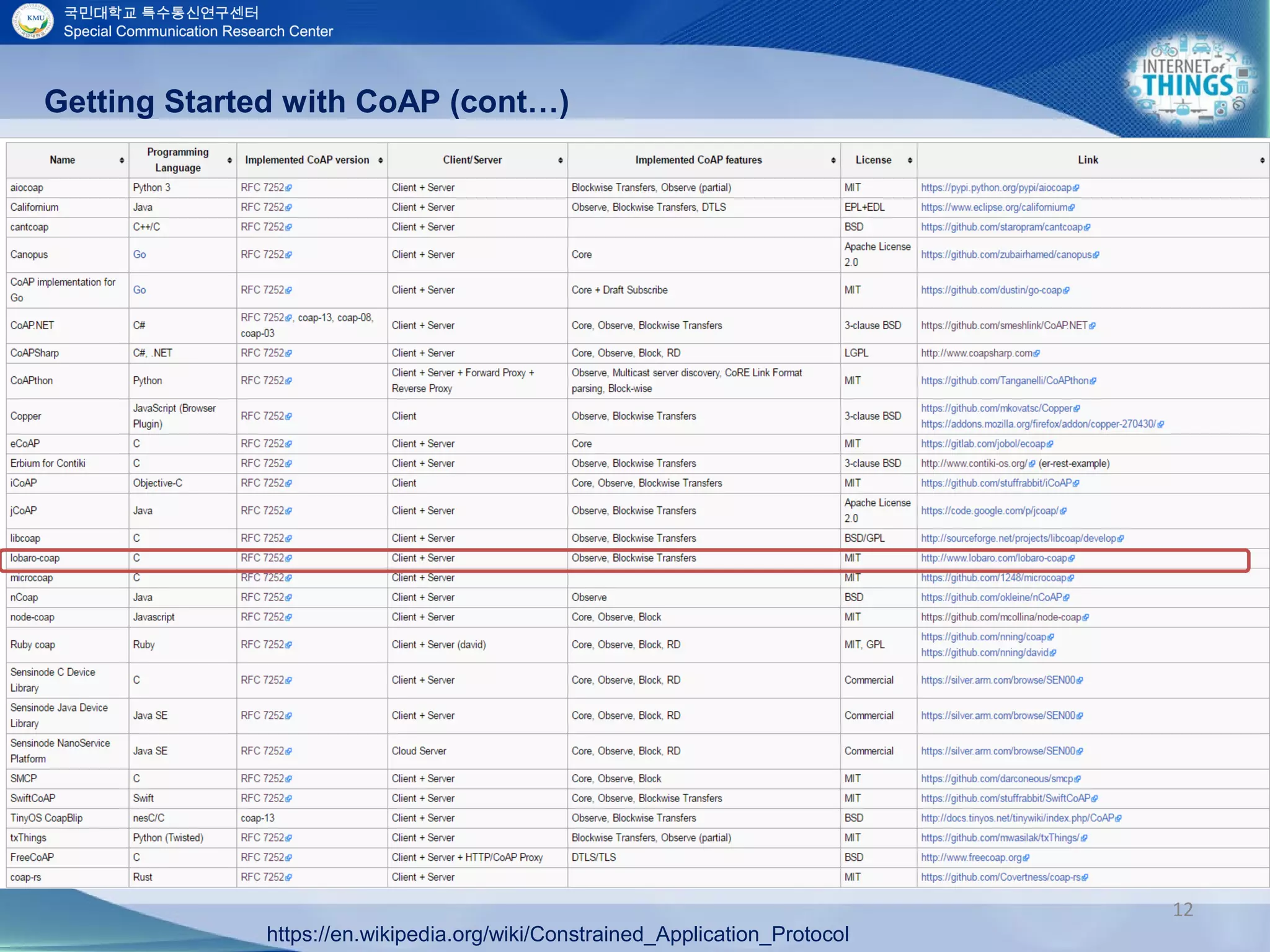

11. Getting Started with CoAP
11
• There are many open source implementations available
Java CoAP Library Californium
C CoAP Library Erbium
libCoAP C Library
jCoAP Java Library
OpenCoAP C Library
TinyOS and Contiki include CoAP support
• CoAP is already part of many commercial products/systems
 Sensinode NanoService
 RTX 4100 WiFi Module
• Firefox has a CoAP plugin called Copper
• Wireshark has CoAP dissector support
• Implement CoAP yourself, it is not that hard!

12. 12
Getting Started with CoAP (cont…)
https://en.wikipedia.org/wiki/Constrained_Application_Protocol

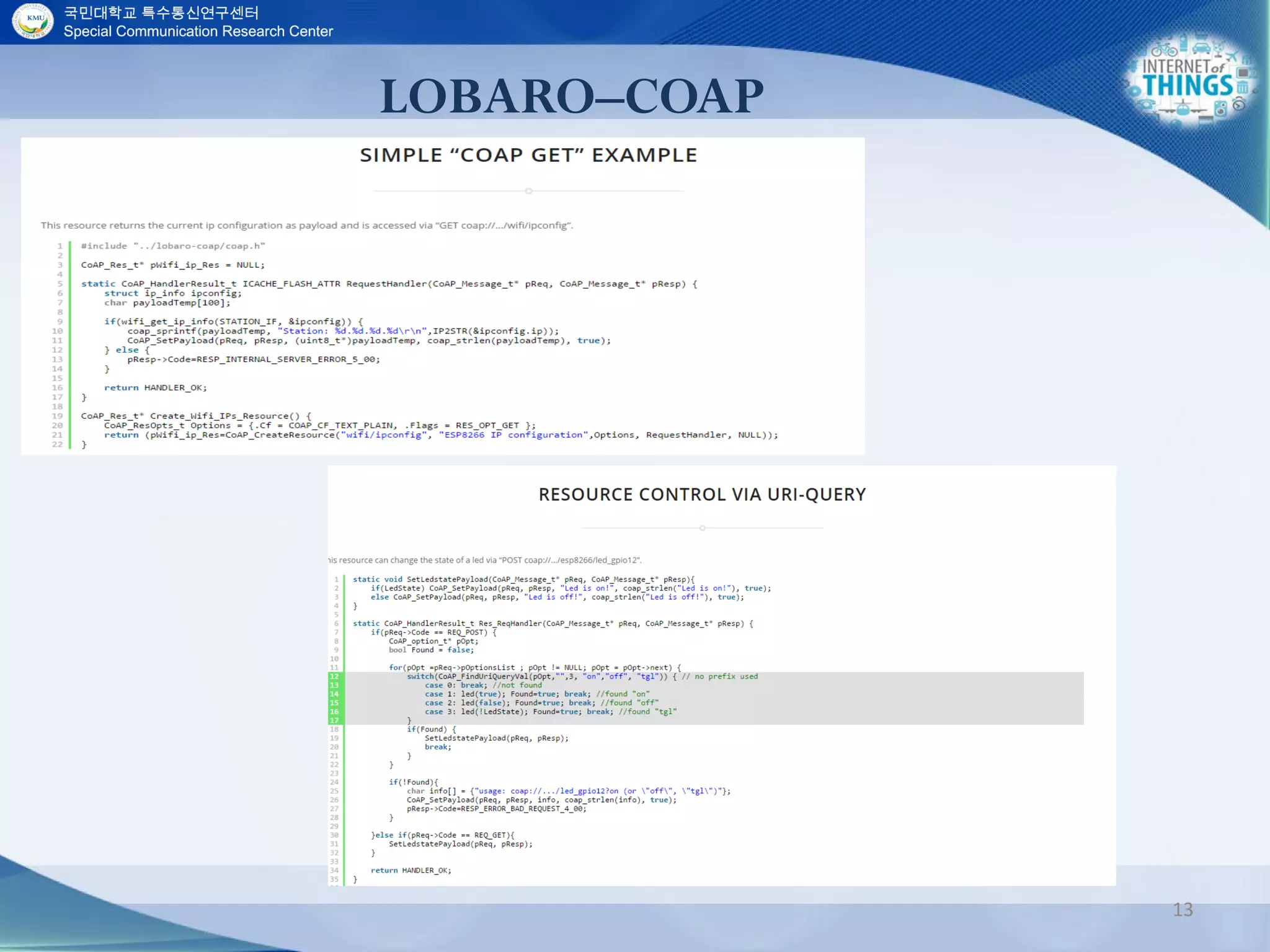

13. LOBARO–COAP
13

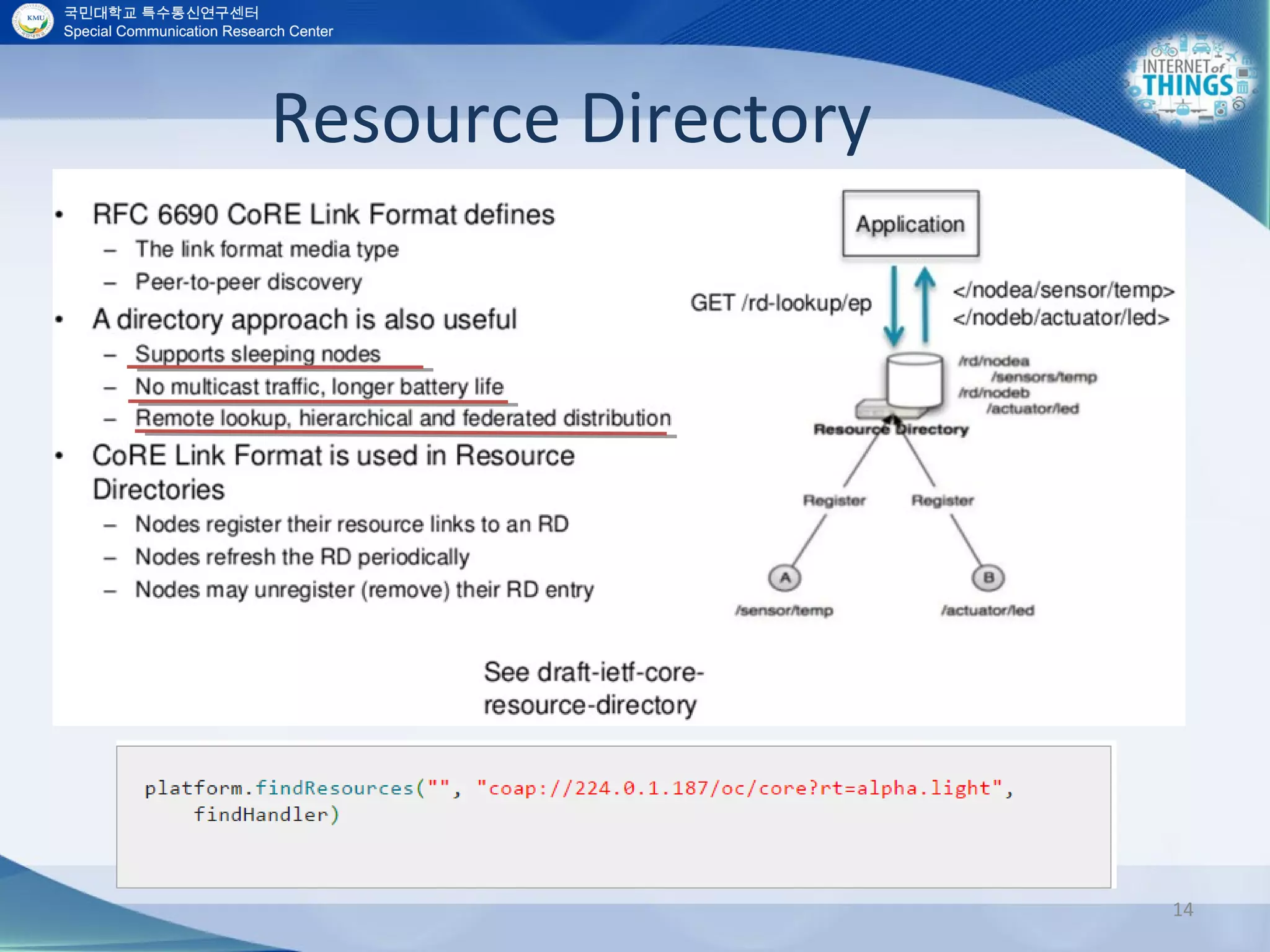

14. Resource Directory
14

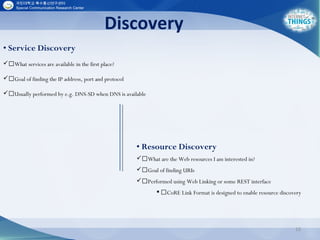

15. Discovery
15
• Service Discovery
What services are available in the first place?
Goal of finding the IP address, port and protocol
Usually performed by e.g. DNS-SD when DNS is available
• Resource Discovery
What are the Web resources I am interested in?
Goal of finding URIs
Performed using Web Linking or some REST interface
 CoRE Link Format is designed to enable resource discovery

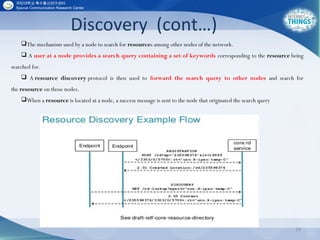

16. Discovery (cont…)
16

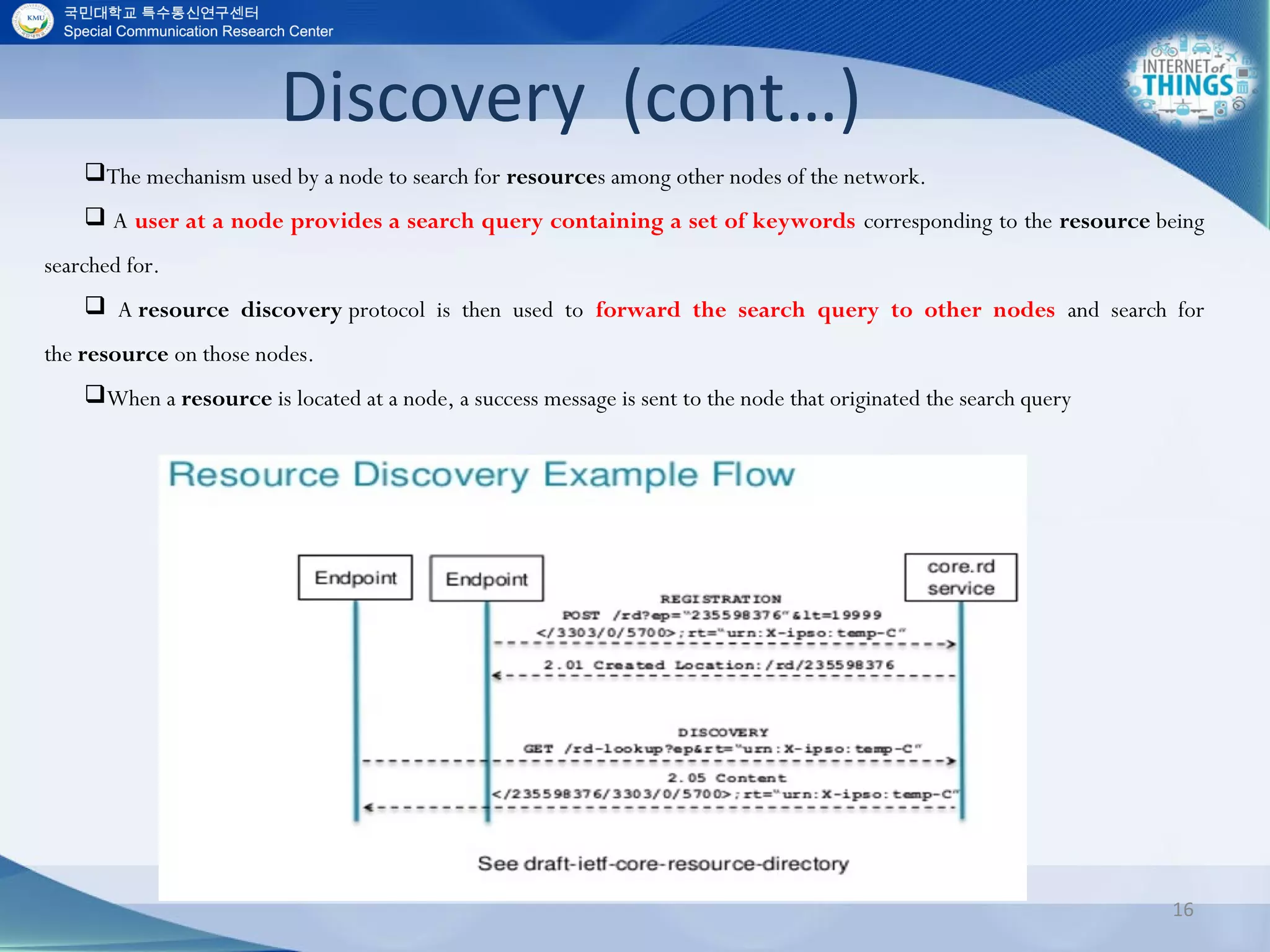

The mechanism used by a node to search for resources among other nodes of the network.
 A user at a node provides a search query containing a set of keywords corresponding to the resource being
searched for.
 A resource discovery protocol is then used to forward the search query to other nodes and search for
the resource on those nodes.
When a resource is located at a node, a success message is sent to the node that originated the search query

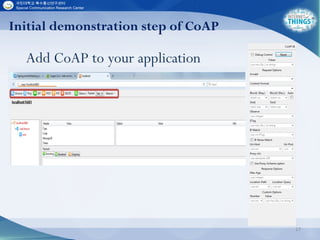

17. Add CoAP to your application
17
Initial demonstration step of CoAP

18. 18
Initial demonstration step of CoAP (cont…)

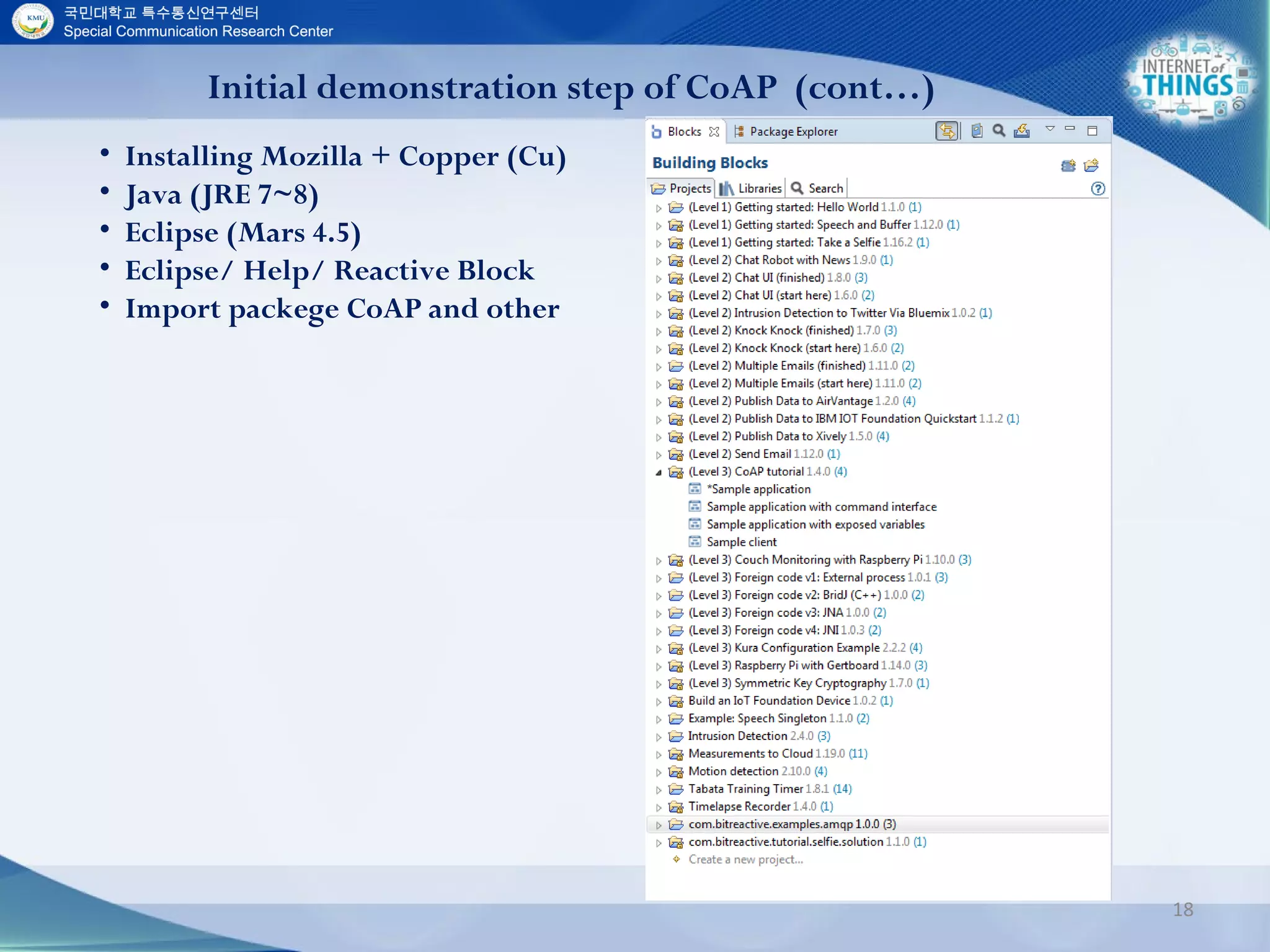

• Installing Mozilla + Copper (Cu)
• Java (JRE 7~8)
• Eclipse (Mars 4.5)
• Eclipse/ Help/ Reactive Block
• Import packege CoAP and other

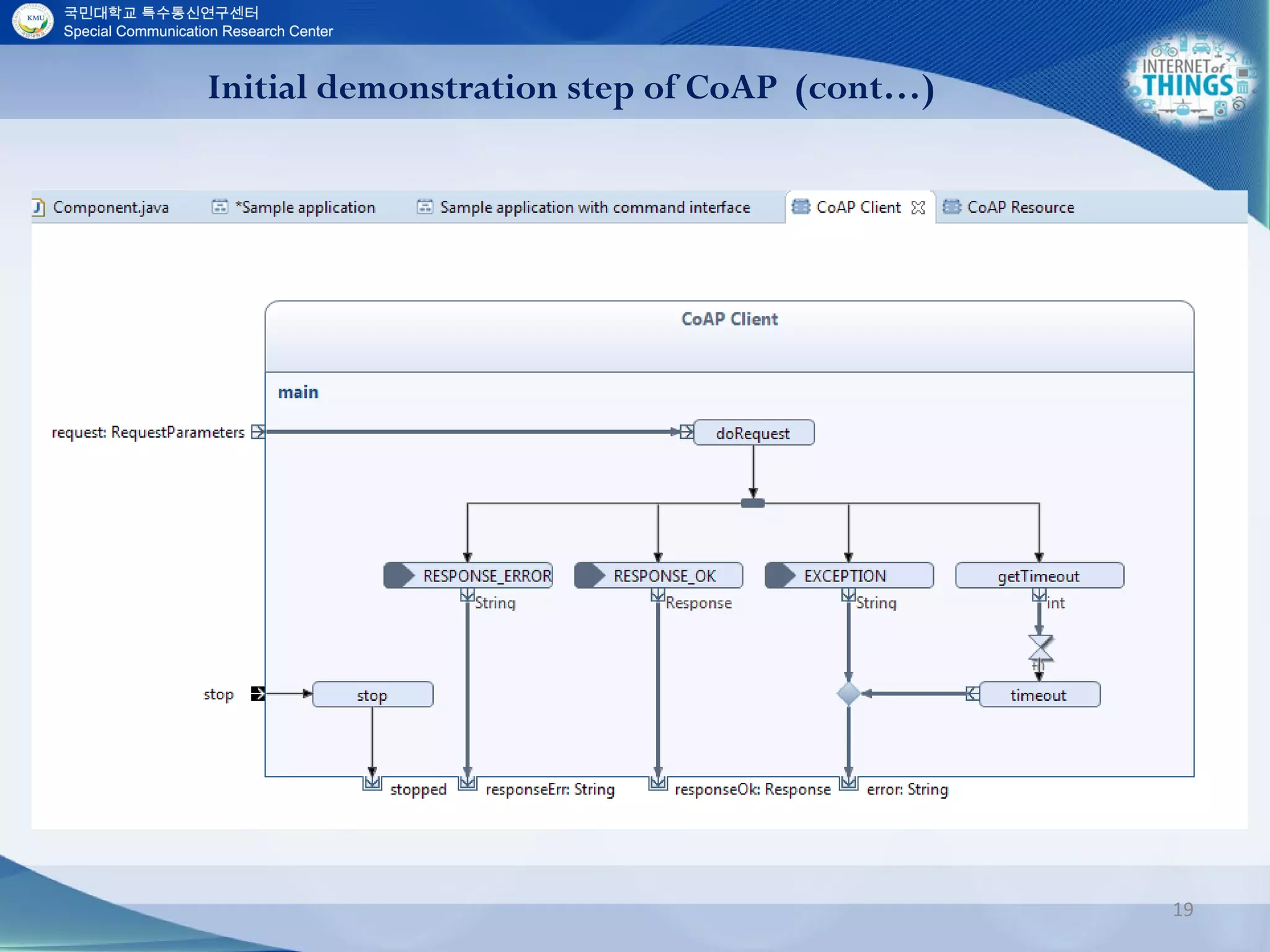

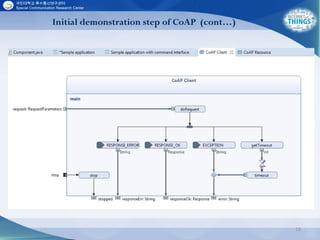

19. 19
Initial demonstration step of CoAP (cont…)

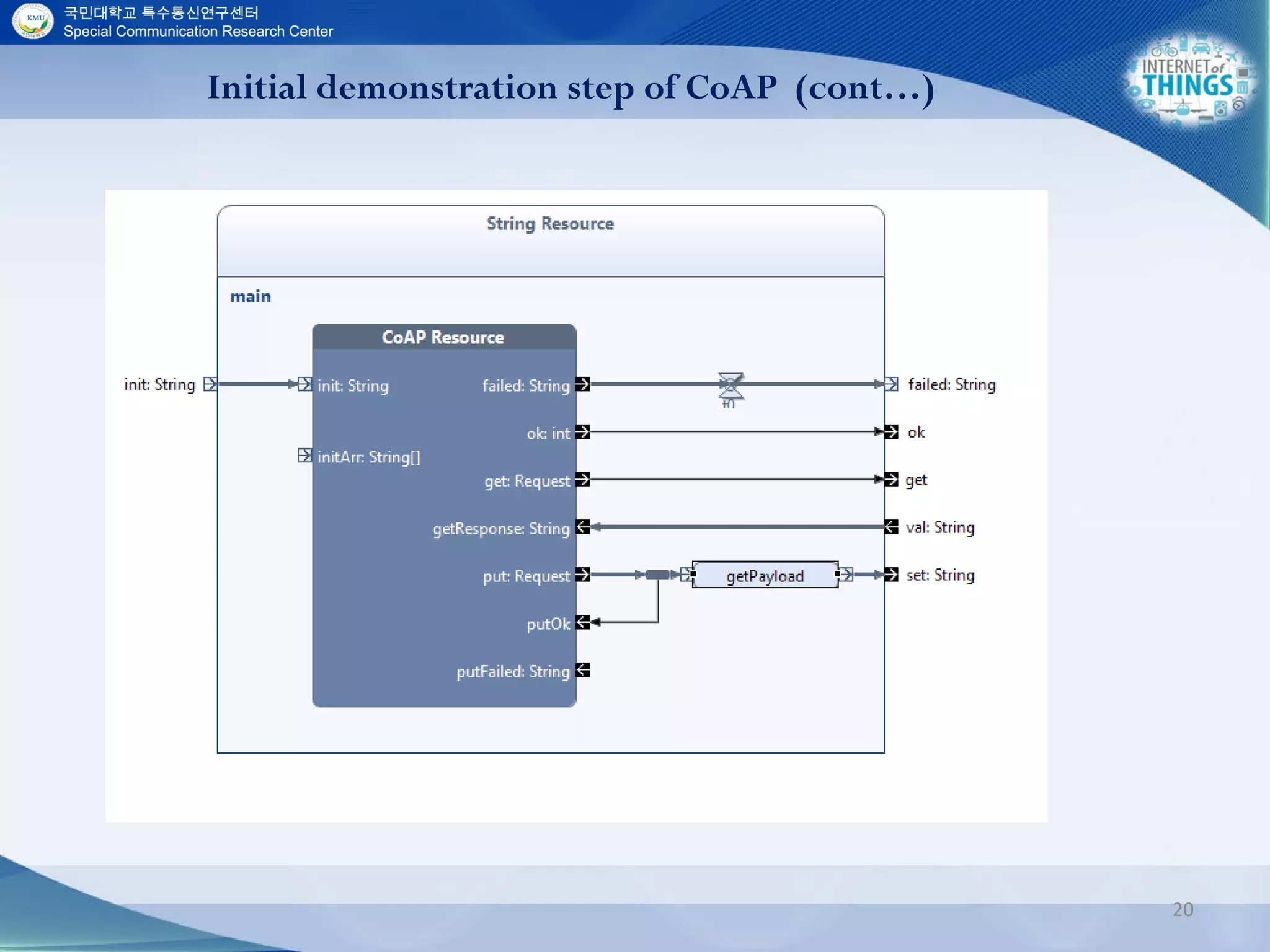

20. 20
Initial demonstration step of CoAP (cont…)

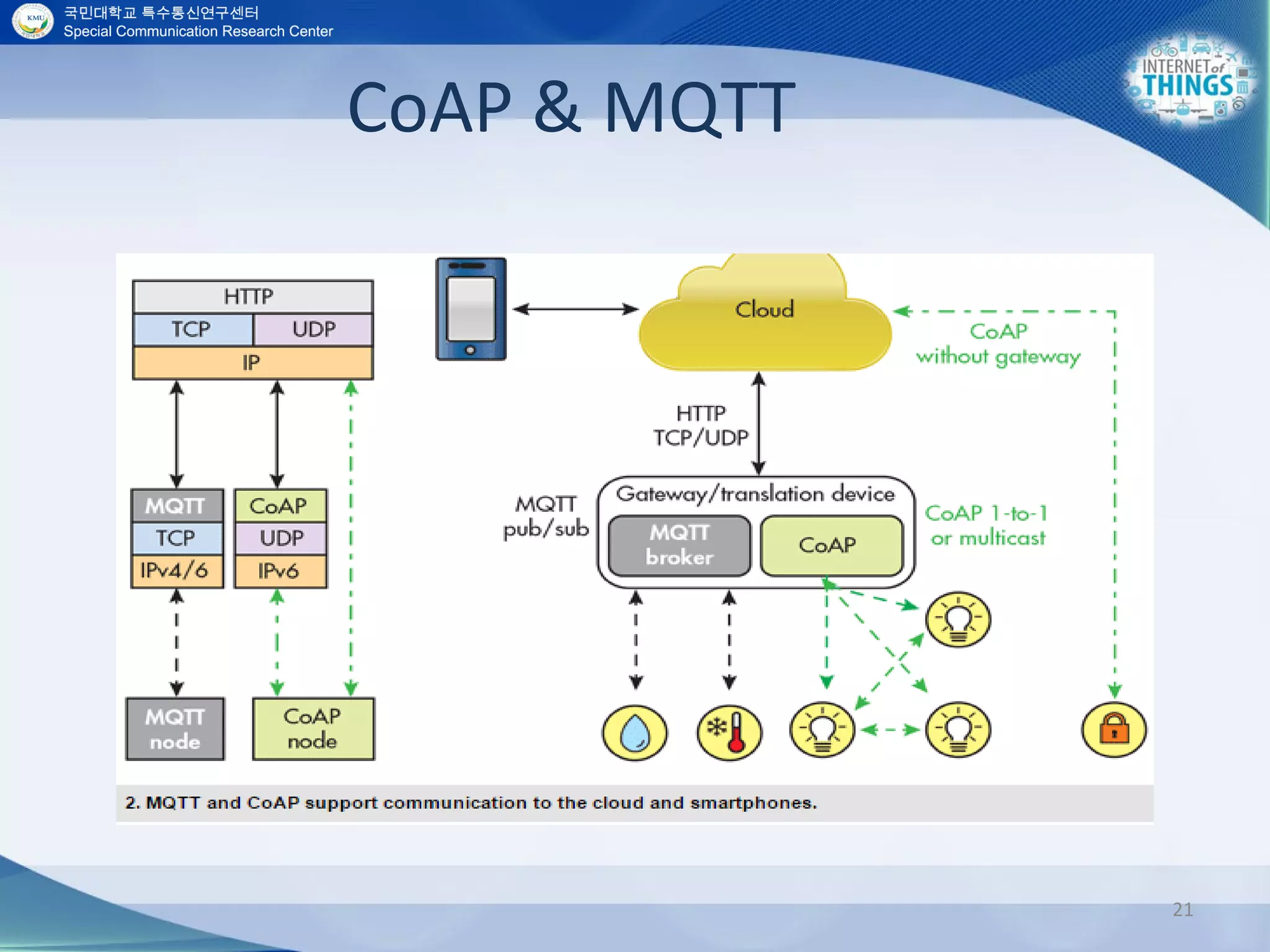

21. CoAP & MQTT
21

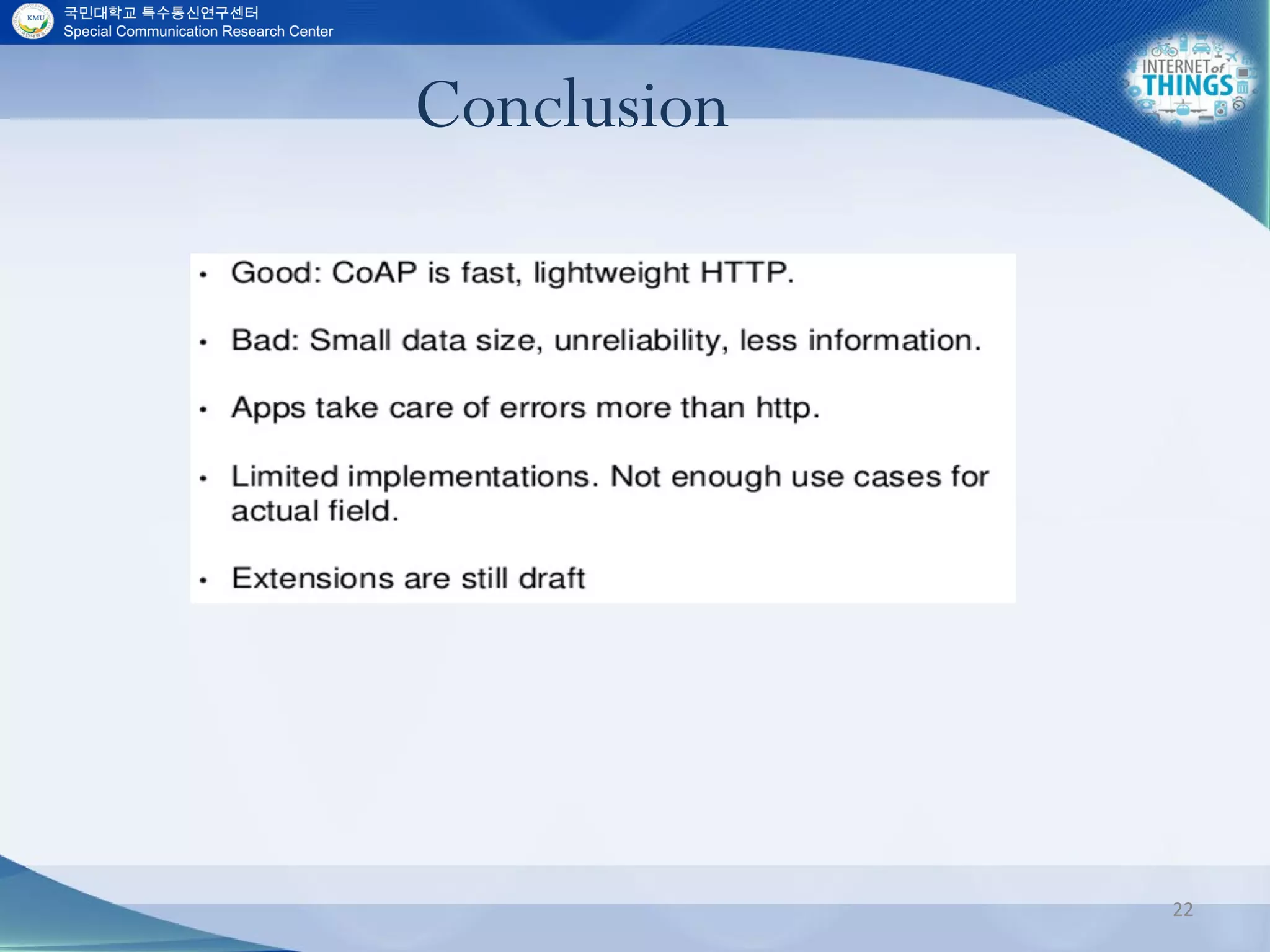

22. Conclusion
22

23. Thank you !
