Meetup #4: AWS ELB Deep dive & Best practices
The document summarizes a meetup about AWS Elastic Load Balancing (ELB). The meetup covered an overview of ELB, the new Application Load Balancer, and a demo. It discussed key ELB concepts like health checks, metrics, logging, and integration with other AWS services. The new ALB supports features like path-based routing and HTTP/2 that improve on the classic load balancer.
More Related Content
Similar to Meetup #4: AWS ELB Deep dive & Best practices
More from AWS Vietnam Community
Meetup #4: AWS ELB Deep dive & Best practices
- 1. Meetup: www.meetup.com/aws-vn/ FB: www.facebook.com/groups/amazonwebservicevietnam JoinSlack: https://aws-vn.herokuapp.com/
- 2. AWS ELB Deep dive& Best practices November 4, 2016 Thuan Duong-Ba Lecturer, Hanoi University of Science and Technology Former SDE @ AWS (SQS/SNS; ELB; Lookout-anti DDoS)

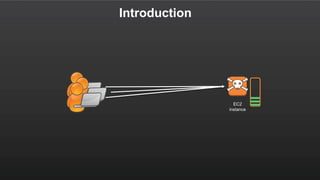

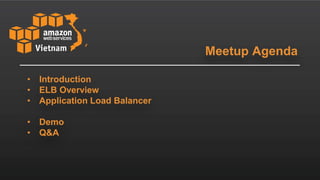

- 3. Meetup Agenda • Introduction •ELB Overview • Application Load Balancer • Demo • Q&A

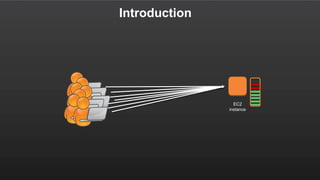

- 4.
- 5.

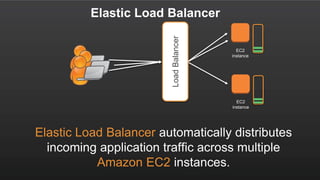

- 6. Elastic Load Balancer EC2 instance EC2 instance ElasticLoad Balancer Elastic Load Balancer automatically distributes incoming application traffic across multiple Amazon EC2 instances. LoadBalancer
- 7. General architecture Amazon Route 53 instancesinstances Auto Scaling S3 instances EBS DynamoDB RDS AWS CloudTrail AWS Config CloudWatch IAM AWS CloudFormation Zone a Zone b

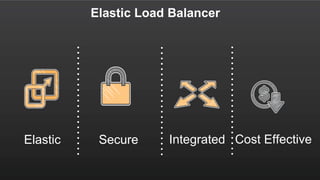

- 8. Elastic Load Balancer SecureElasticIntegrated Cost Effective

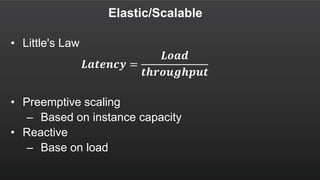

- 9. Elastic/Scalable • Little's Law 𝑳𝒂𝒕𝒆𝒏𝒄𝒚= 𝑳𝒐𝒂𝒅 𝒕𝒉𝒓𝒐𝒖𝒈𝒉𝒑𝒖𝒕 • Preemptive scaling – Based on instance capacity • Reactive – Base on load

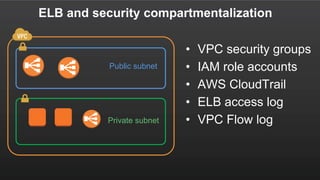

- 10. ELB and securitycompartmentalization Public subnet Private subnet • VPC security groups • IAM role accounts • AWS CloudTrail • ELB access log • VPC Flow log

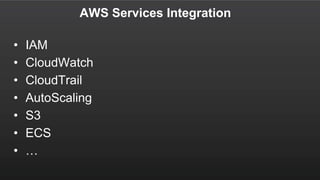

- 11. AWS Services Integration •IAM • CloudWatch • CloudTrail • AutoScaling • S3 • ECS • …

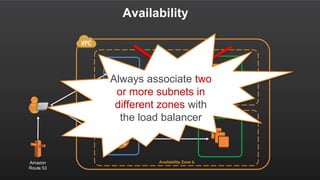

- 12. Availability Availability Zone a AvailabilityZone bAmazon Route 53 Always associate two or more subnets in different zones with the load balancer

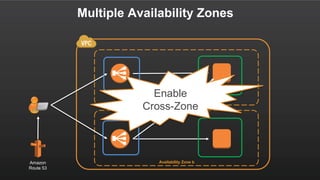

- 13. Multiple Availability Zones AvailabilityZone a Availability Zone bAmazon Route 53 Enable Cross-Zone

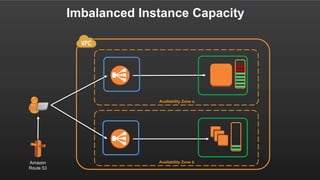

- 14. Imbalanced Instance Capacity AvailabilityZone a Availability Zone bAmazon Route 53

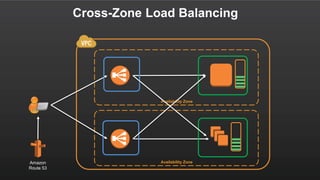

- 15. Cross-Zone Load Balancing AvailabilityZone Availability ZoneAmazon Route 53

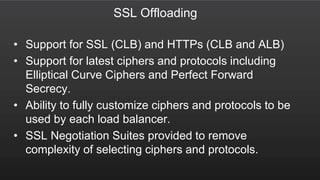

- 16. SSL Offloading • Supportfor SSL (CLB) and HTTPs (CLB and ALB) • Support for latest ciphers and protocols including Elliptical Curve Ciphers and Perfect Forward Secrecy. • Ability to fully customize ciphers and protocols to be used by each load balancer. • SSL Negotiation Suites provided to remove complexity of selecting ciphers and protocols.

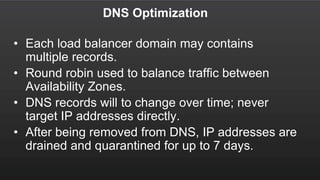

- 17. DNS Optimization • Eachload balancer domain may contains multiple records. • Round robin used to balance traffic between Availability Zones. • DNS records will to change over time; never target IP addresses directly. • After being removed from DNS, IP addresses are drained and quarantined for up to 7 days.
- 18.

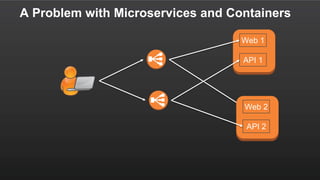

- 19. A Problem withMicroservices and Containers Web 1 API 1 Web 2 API 2

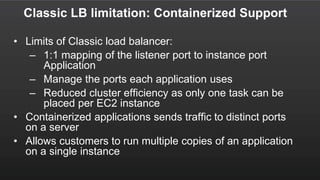

- 20. Classic LB limitation:Containerized Support • Limits of Classic load balancer: – 1:1 mapping of the listener port to instance port Application – Manage the ports each application uses – Reduced cluster efficiency as only one task can be placed per EC2 instance • Containerized applications sends traffic to distinct ports on a server • Allows customers to run multiple copies of an application on a single instance

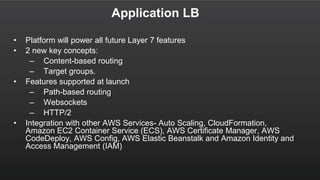

- 21. Application LB • Platformwill power all future Layer 7 features • 2 new key concepts: – Content-based routing – Target groups. • Features supported at launch – Path-based routing – Websockets – HTTP/2 • Integration with other AWS Services- Auto Scaling, CloudFormation, Amazon EC2 Container Service (ECS), AWS Certificate Manager, AWS CodeDeploy, AWS Config, AWS Elastic Beanstalk and Amazon Identity and Access Management (IAM)

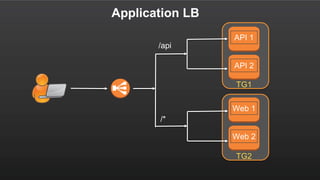

- 22. TG2 Application LB API 1 API2 Web 1 Web 2 TG1 /api /*
- 23. API 1 Web 1 API2 Web 2 Application LB /api /*
- 24. Application Load Balancer •Dynamic port Mapping with ECS • Allows customers to register an EC2 instance with a target group on multiple ports • Load balance across multiple ports on a single EC2 instance • ECS will pick an unused port when the task is scheduled on the EC2 instance • ECS will automatically add the task to the load balancer using this port

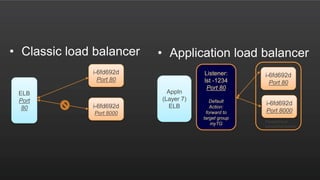

- 25. ELB Port 80 i-6fd692d Port 80 i-6fd692d Port 8000 Appln (Layer7) ELB Listener: lst -1234 Port 80 Default Action: forward to target group myTG i-6fd692d Port 80 i-6fd692d Port 8000 TargetGroup: ecswebservertext • Classic load balancer • Application load balancer

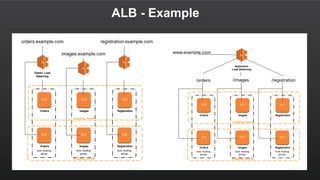

- 26.

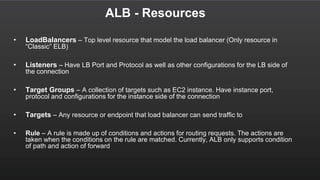

- 27. ALB - Resources •LoadBalancers – Top level resource that model the load balancer (Only resource in “Classic” ELB) • Listeners – Have LB Port and Protocol as well as other configurations for the LB side of the connection • Target Groups – A collection of targets such as EC2 instance. Have instance port, protocol and configurations for the instance side of the connection • Targets – Any resource or endpoint that load balancer can send traffic to • Rule – A rule is made up of conditions and actions for routing requests. The actions are taken when the conditions on the rule are matched. Currently, ALB only supports condition of path and action of forward

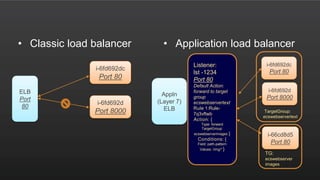

- 28. • Classic loadbalancer • Application load balancer ELB Port 80 i-6fd692dc Port 80 i-6fd692d Port 8000 Appln (Layer 7) ELB Listener: lst -1234 Port 80 Default Action: forward to target group ecswebservertext Rule 1:Rule- 7q3vftwb Action: { Type: forward TargetGroup: ecswebserverimages } Conditions: { Field: path-pattern Values: /img/* } i-6fd692dc Port 80 i-6fd692d Port 8000 i-66cd8d5 Port 80 TargetGroup: ecswebservertext TG: ecswebserver images

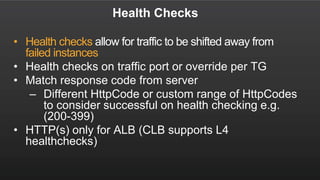

- 30. Health Checks • Healthchecks allow for traffic to be shifted away from failed instances • Health checks on traffic port or override per TG • Match response code from server – Different HttpCode or custom range of HttpCodes to consider successful on health checking e.g. (200-399) • HTTP(s) only for ALB (CLB supports L4 healthchecks)

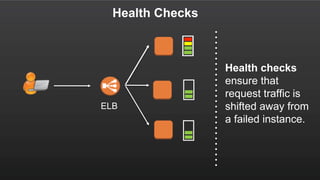

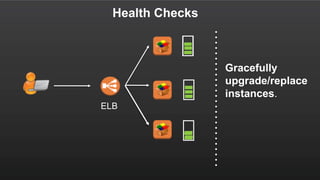

- 31. Health Checks ELB Health checks ensurethat request traffic is shifted away from a failed instance.
- 32.

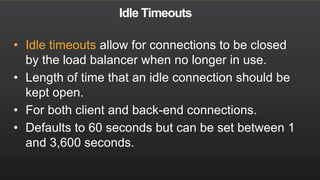

- 33. Idle Timeouts • Idletimeouts allow for connections to be closed by the load balancer when no longer in use. • Length of time that an idle connection should be kept open. • For both client and back-end connections. • Defaults to 60 seconds but can be set between 1 and 3,600 seconds.

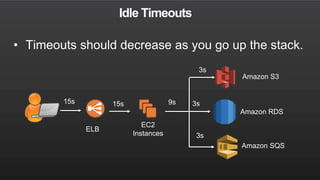

- 34. Idle Timeouts 15s 3s 3s ELB 15s EC2 Instances Amazon S3 AmazonRDS Amazon SQS 3s 9s • Timeouts should decrease as you go up the stack.
- 35. Access Log • Providedetailed information on each request processed by the load balancer. • Includes request time, client IP address, latencies, request path, server responses, negotiated cipher. • Delivered to your Amazon S3 bucket every 5 minutes. • Access log files now have the .gz extension

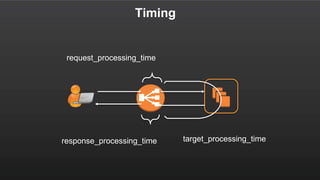

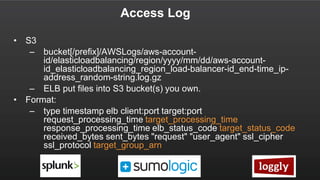

- 36. Access Log • S3 –bucket[/prefix]/AWSLogs/aws-account- id/elasticloadbalancing/region/yyyy/mm/dd/aws-account- id_elasticloadbalancing_region_load-balancer-id_end-time_ip- address_random-string.log.gz – ELB put files into S3 bucket(s) you own. • Format: – type timestamp elb client:port target:port request_processing_time target_processing_time response_processing_time elb_status_code target_status_code received_bytes sent_bytes "request" "user_agent" ssl_cipher ssl_protocol target_group_arn
- 37.

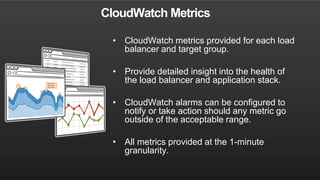

- 38. CloudWatch Metrics • CloudWatchmetrics provided for each load balancer and target group. • Provide detailed insight into the health of the load balancer and application stack. • CloudWatch alarms can be configured to notify or take action should any metric go outside of the acceptable range. • All metrics provided at the 1-minute granularity.

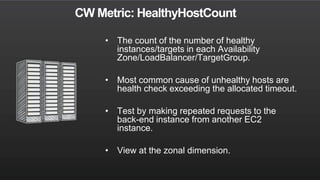

- 39. CW Metric: HealthyHostCount •The count of the number of healthy instances/targets in each Availability Zone/LoadBalancer/TargetGroup. • Most common cause of unhealthy hosts are health check exceeding the allocated timeout. • Test by making repeated requests to the back-end instance from another EC2 instance. • View at the zonal dimension.

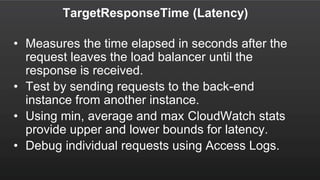

- 40. TargetResponseTime (Latency) • Measuresthe time elapsed in seconds after the request leaves the load balancer until the response is received. • Test by sending requests to the back-end instance from another instance. • Using min, average and max CloudWatch stats provide upper and lower bounds for latency. • Debug individual requests using Access Logs.

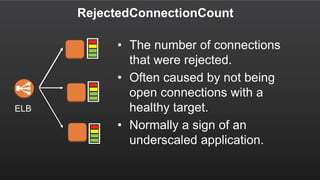

- 41. RejectedConnectionCount • The numberof connections that were rejected. • Often caused by not being open connections with a healthy target. • Normally a sign of an underscaled application. ELB

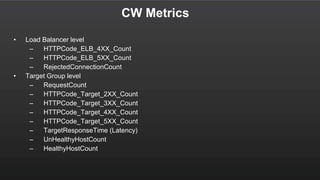

- 42. CW Metrics • LoadBalancer level – HTTPCode_ELB_4XX_Count – HTTPCode_ELB_5XX_Count – RejectedConnectionCount • Target Group level – RequestCount – HTTPCode_Target_2XX_Count – HTTPCode_Target_3XX_Count – HTTPCode_Target_4XX_Count – HTTPCode_Target_5XX_Count – TargetResponseTime (Latency) – UnHealthyHostCount – HealthyHostCount

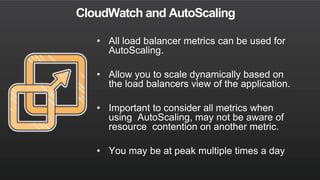

- 43. CloudWatch and AutoScaling •All load balancer metrics can be used for AutoScaling. • Allow you to scale dynamically based on the load balancers view of the application. • Important to consider all metrics when using AutoScaling, may not be aware of resource contention on another metric. • You may be at peak multiple times a day

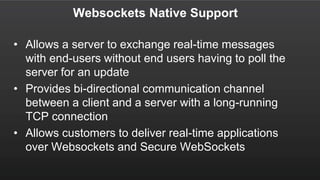

- 44. Websockets Native Support •Allows a server to exchange real-time messages with end-users without end users having to poll the server for an update • Provides bi-directional communication channel between a client and a server with a long-running TCP connection • Allows customers to deliver real-time applications over Websockets and Secure WebSockets

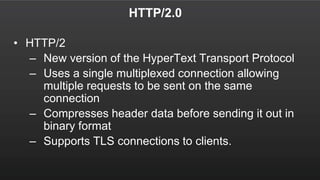

- 45. HTTP/2.0 • HTTP/2 – Newversion of the HyperText Transport Protocol – Uses a single multiplexed connection allowing multiple requests to be sent on the same connection – Compresses header data before sending it out in binary format – Supports TLS connections to clients.

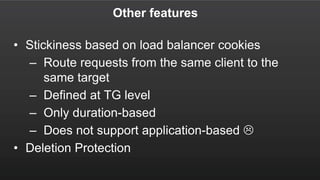

- 46. Other features • Stickinessbased on load balancer cookies – Route requests from the same client to the same target – Defined at TG level – Only duration-based – Does not support application-based • Deletion Protection
- 47. Limits • Load Balancersper Region – 20 • Target groups per region– 50 • Listeners per load balancer – 10 • Targets per load balancer – 1000 • Rules per load balancer – 10 • Number of times same target can be registered per load balancer – 100 • Load balancers per TG - 1

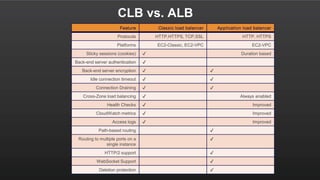

- 48. CLB vs. ALB FeatureClassic load balancer Application load balancer Protocols HTTP,HTTPS, TCP,SSL HTTP, HTTPS Platforms EC2-Classic, EC2-VPC EC2-VPC Sticky sessions (cookies) ✔ Duration based Back-end server authentication ✔ Back-end server encryption ✔ ✔ Idle connection timeout ✔ ✔ Connection Draining ✔ ✔ Cross-Zone load balancing ✔ Always enabled Health Checks ✔ Improved CloudWatch metrics ✔ Improved Access logs ✔ Improved Path-based routing ✔ Routing to multiple ports on a single instance ✔ HTTP/2 support ✔ WebSocket Support ✔ Deletion protection ✔
- 52. Meetup: www.meetup.com/aws-vn/ FB: www.facebook.com/groups/amazonwebservicevietnam JoinSlack: https://aws-vn.herokuapp.com/
