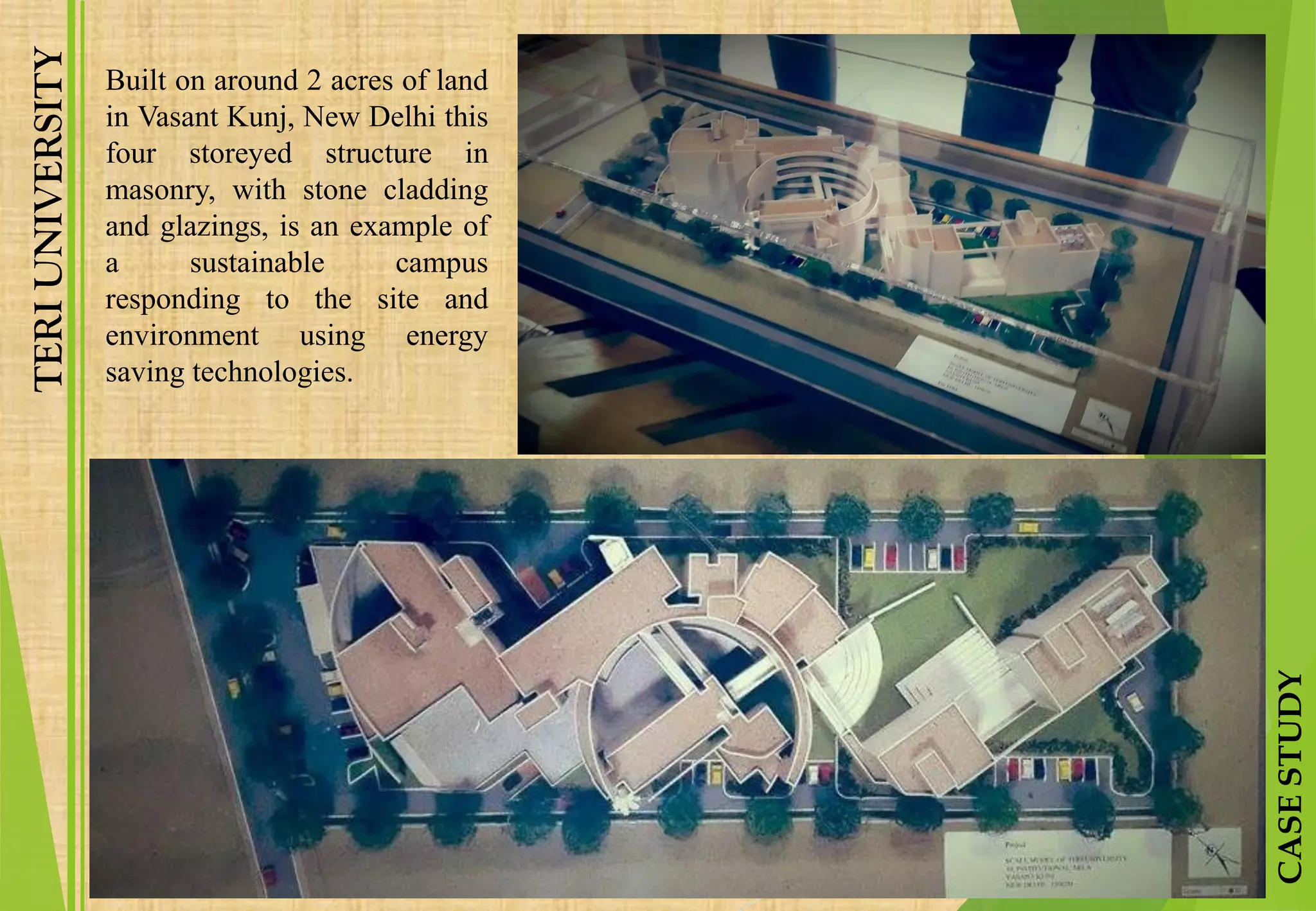

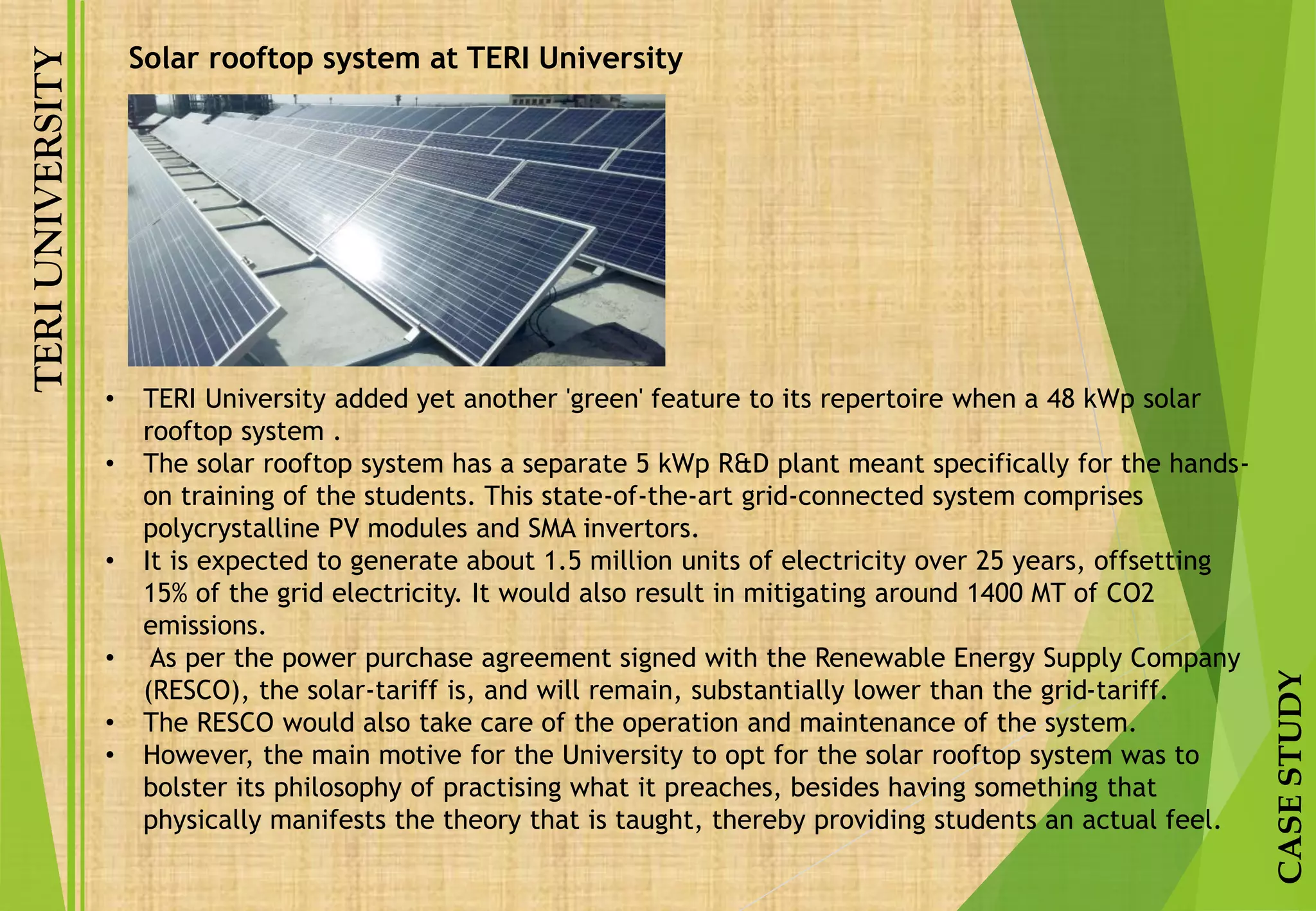

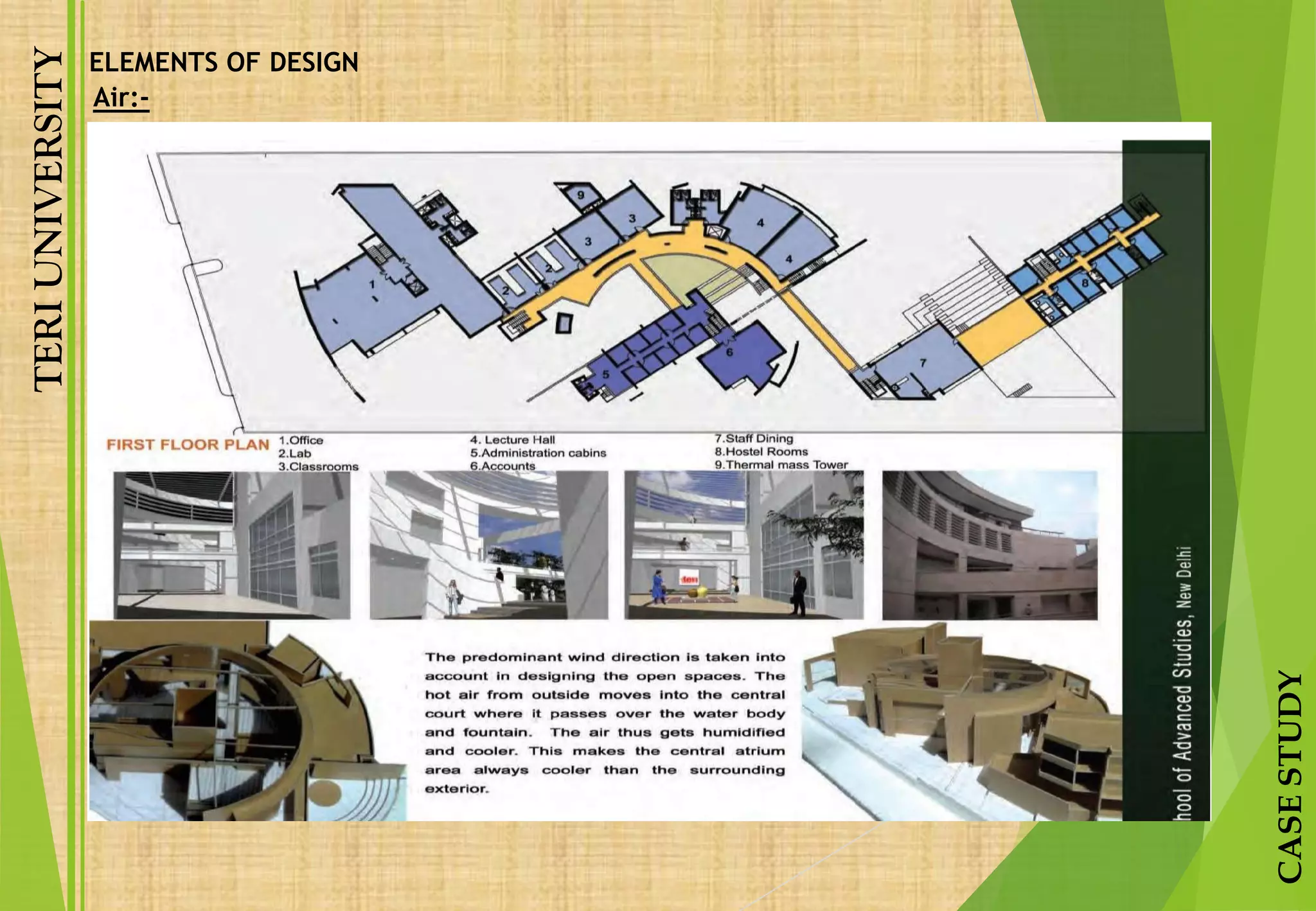

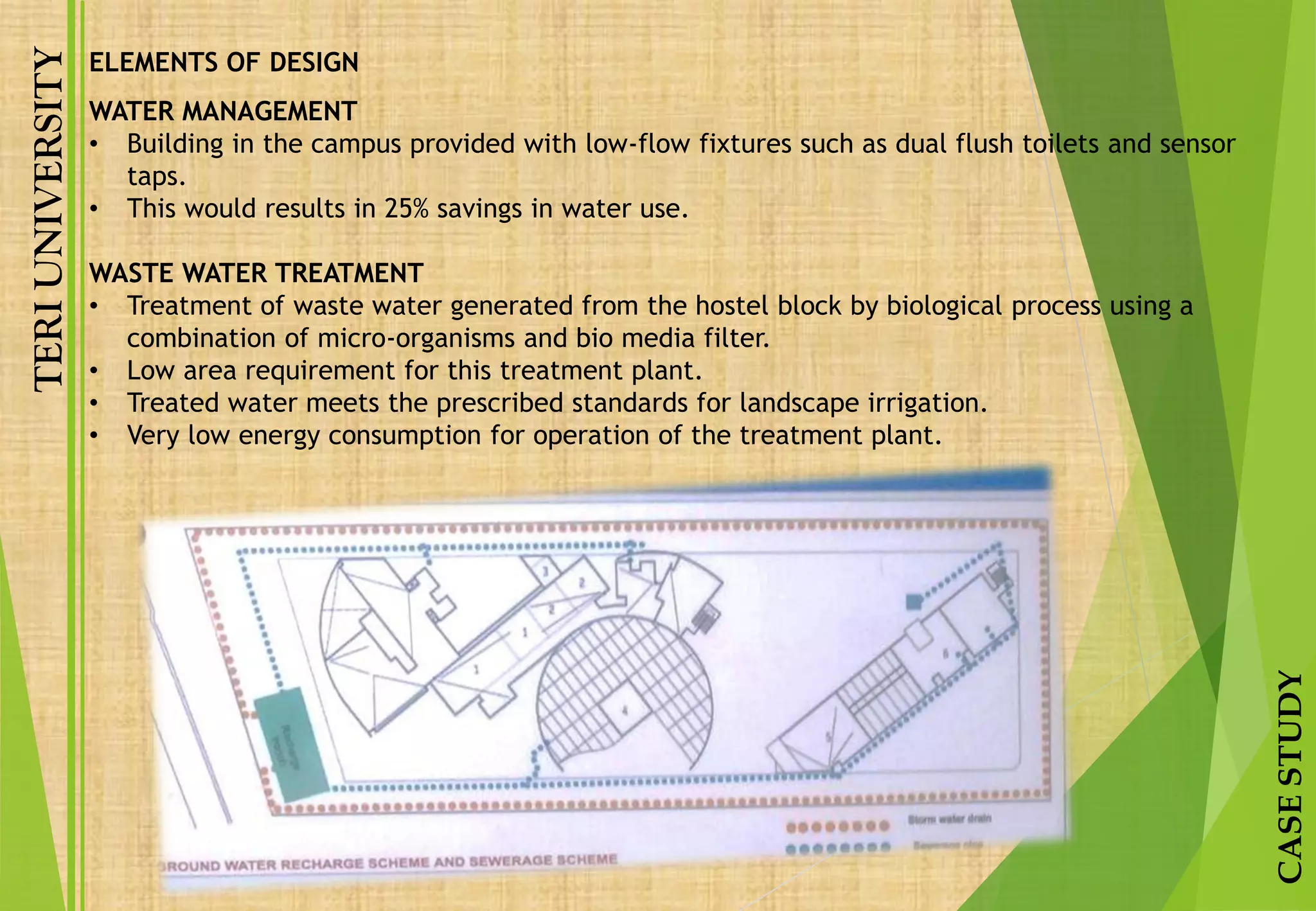

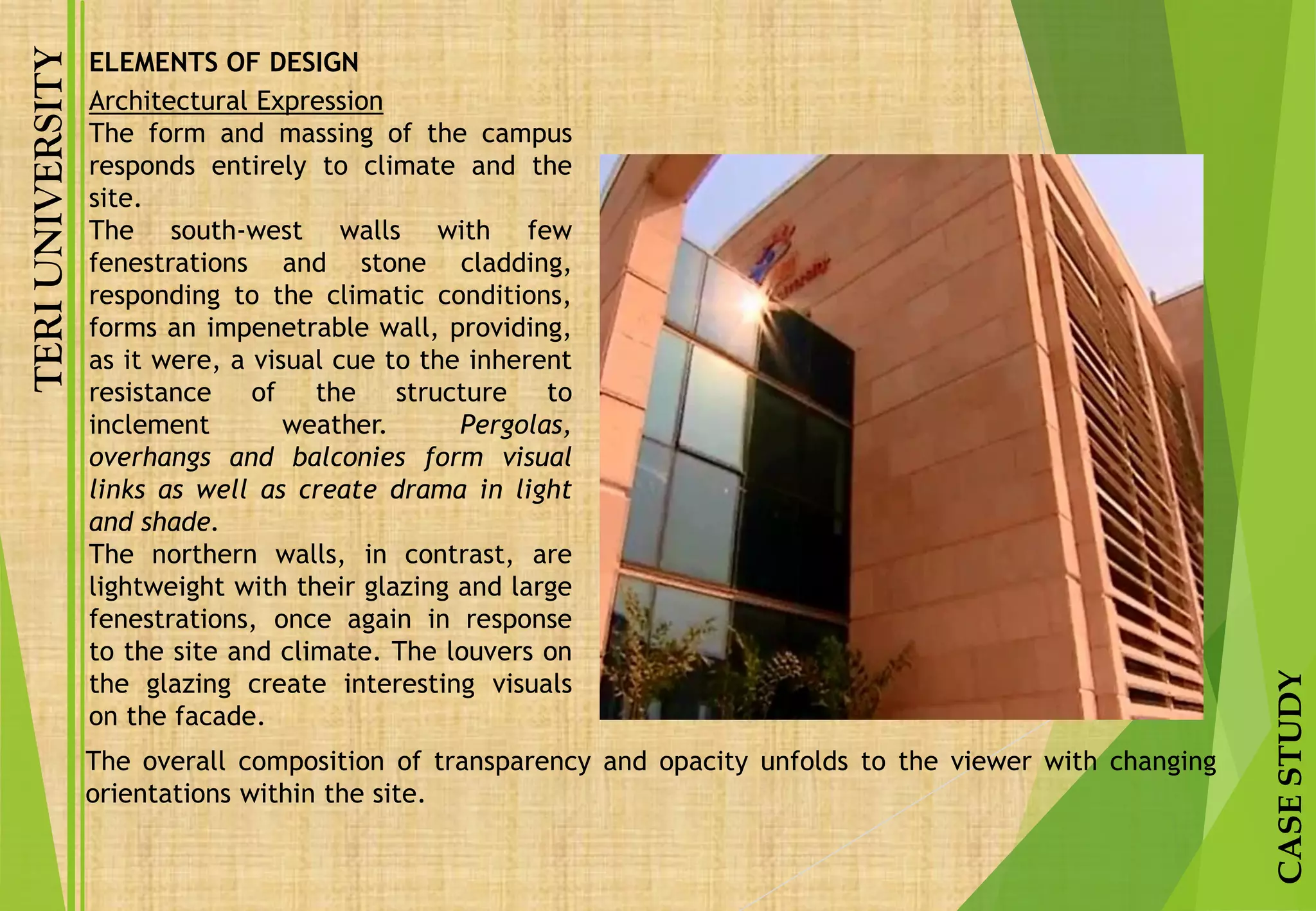

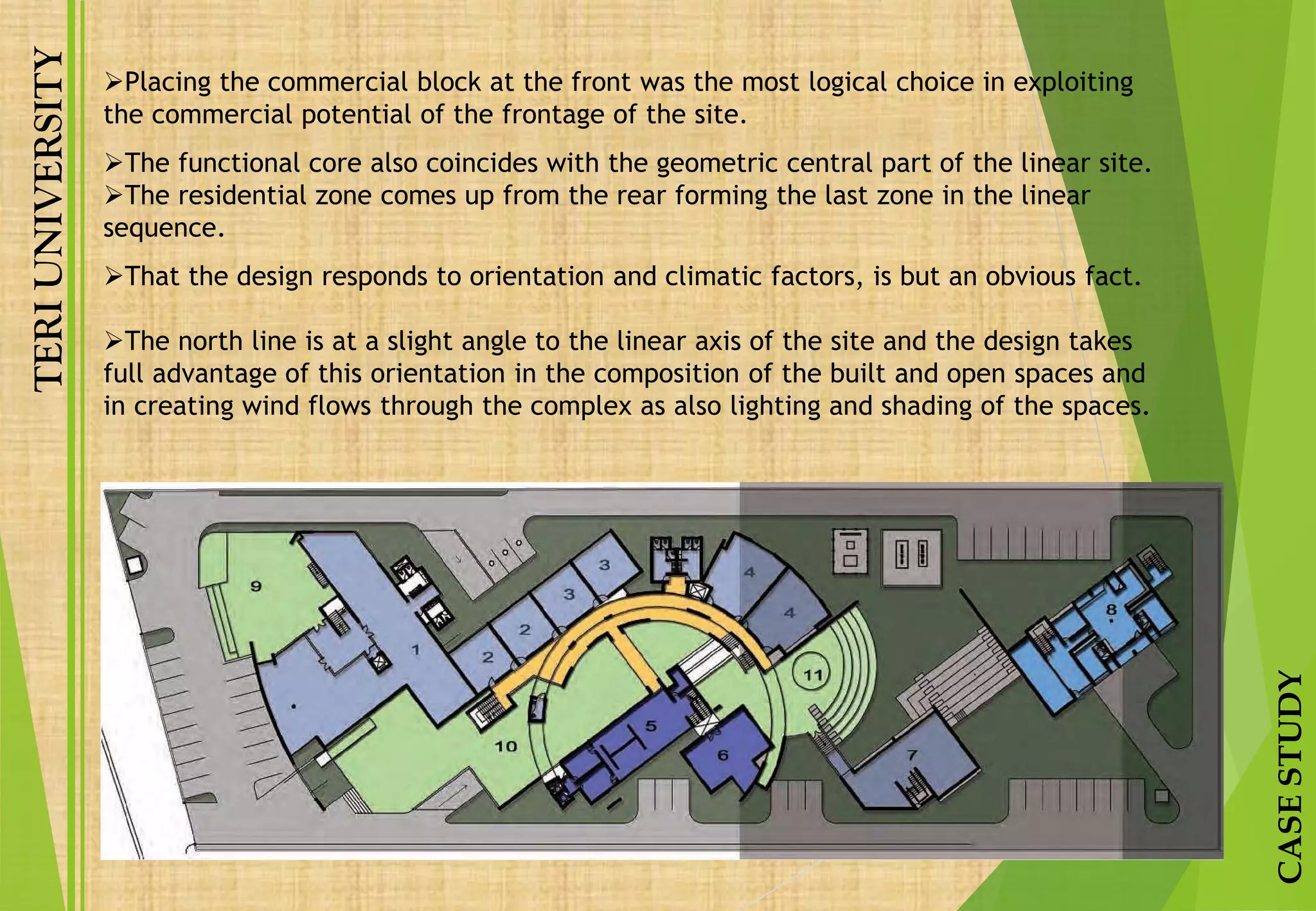

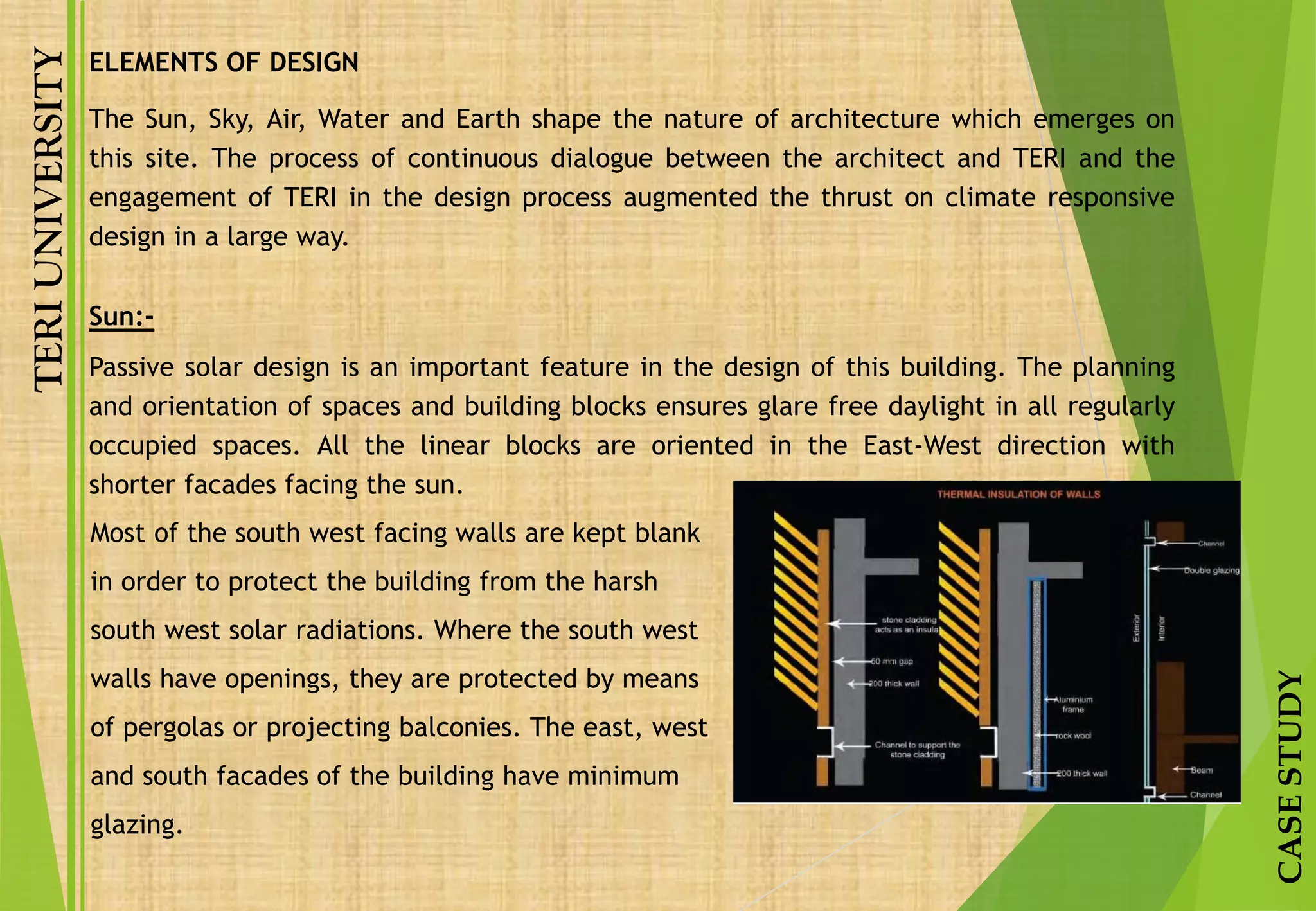

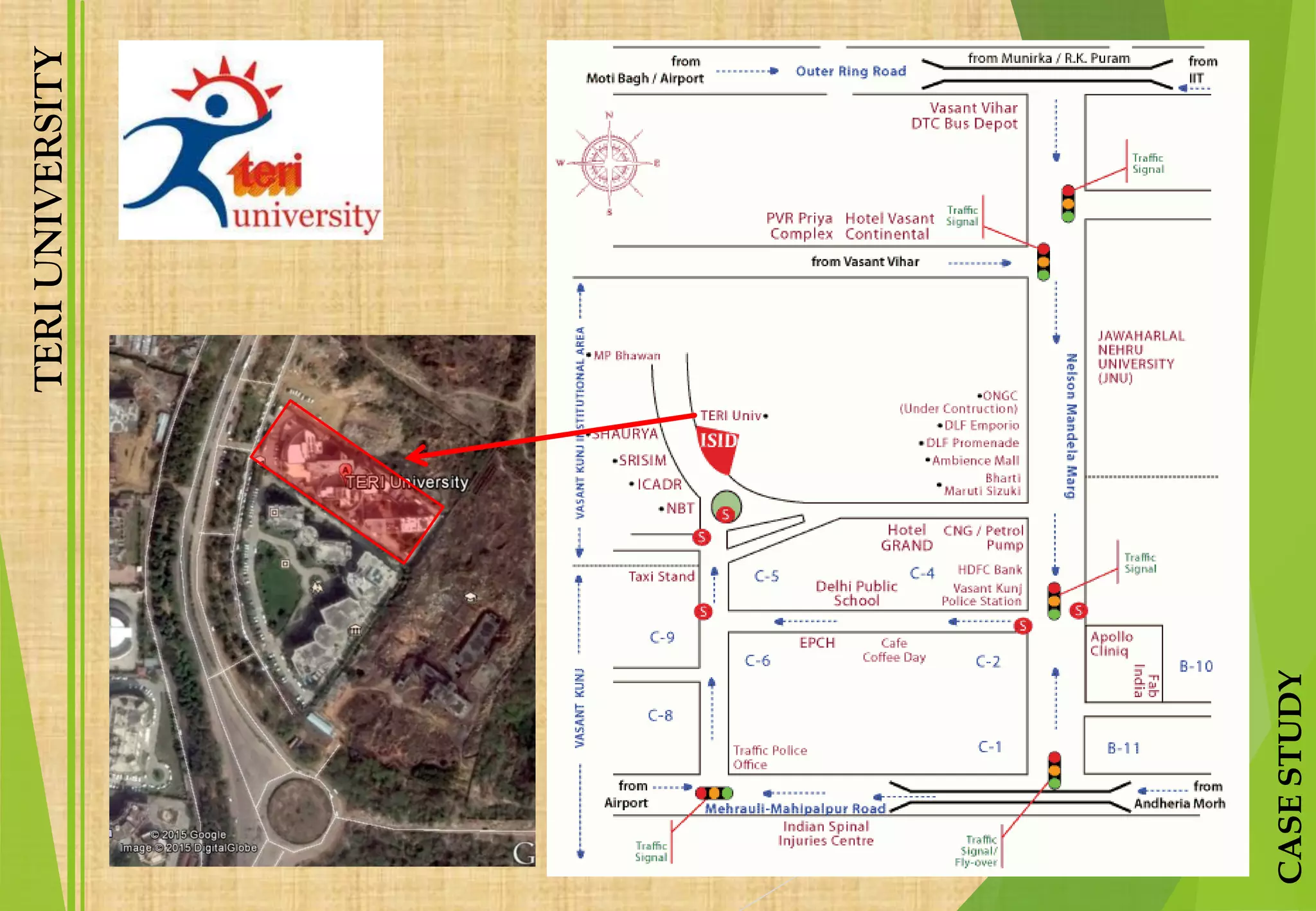

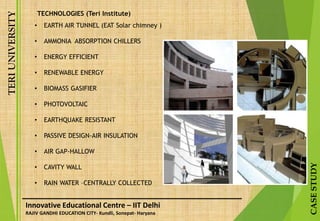

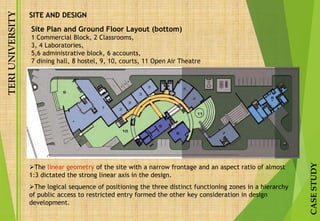

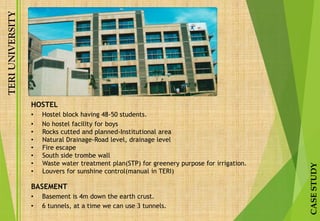

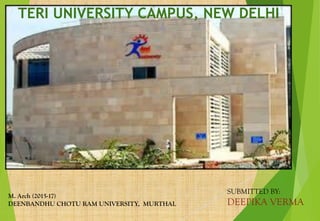

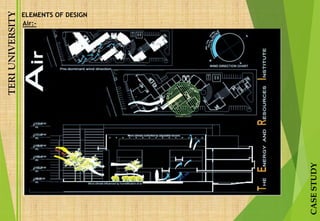

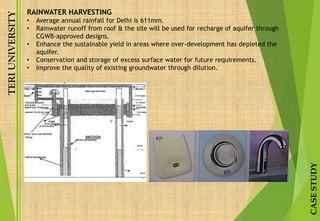

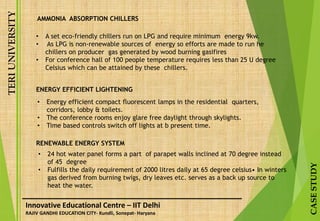

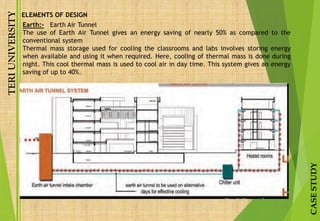

The document provides information about TERI University located in New Delhi, India. It was established in 1998 and is spread over 2 acres of land. The campus was designed to be sustainable and energy efficient using techniques like passive solar design, daylighting, an earth air tunnel system for cooling, and rooftop solar panels. It aims to minimize its ecological footprint through sustainable design features and the use of renewable energy sources.
Green Building Case Study on TERI,bangalore.Vinay M
This presentation basically encompasses the green practices which are followed or incorporated in the structure to attain the platinum rating systems and posses the sustainable features that way..!!
Indira Paryavaran Bhawan is a 5 star rated GRIHA green building located in Delhi. It is a net zero building and a perfect example of the latest and green technologies.
TERI -BANGLORE_Case study
this case study is prepared for my studio project _sustainable corporate office . we did a study tour at TERI for a day and report is made in accordance with the goals of sustainable (12 point's )
Green Building Case Study on TERI,bangalore.Vinay M
This presentation basically encompasses the green practices which are followed or incorporated in the structure to attain the platinum rating systems and posses the sustainable features that way..!!
Indira Paryavaran Bhawan is a 5 star rated GRIHA green building located in Delhi. It is a net zero building and a perfect example of the latest and green technologies.
TERI -BANGLORE_Case study
this case study is prepared for my studio project _sustainable corporate office . we did a study tour at TERI for a day and report is made in accordance with the goals of sustainable (12 point's )
Auroville, City of dawn is located in state of Tamil Nadu, India, near Pondicherry in South India. .Auroville was founded as a project on experimental basis of the ‘Sri Arbindo Society’ on Wednesday 28 February 1968. The basic idea originated from Mirra Alfassa ‘The Mother ‘who was spiritually related to India.
Ma envisaged Auroville as an international township for 50,000 residents on the shape of a flower. Architect Roger Anger refined the planning and designed it in shape of Universe.He placed Matrimandir at the center of this city.
Mary Alfassa in her first message regarding the town stated that, "Auroville is meant to be a universal town where men and women of al countries are able to live in peace and progressive harmony, above all creeds, all politics and all nationalities”
.
Suzlon One Earth, Pune
This significantly unique office is designed by Christopher Charles, Pune based architect and has received LEED Platinum rating in 2010. He and his partner came up with the concept “Office in the garden”. Spread over 10 acres, this magnificent structure is one of the largest green building projects of the country and is also one of the India’s first buildings to be LEED (Leadership in Energy and Environmental Design) certified.
Suzlon One Earth, Pune
Suzlon one earth is 100% powered by onsite and offsite renewable sources.
The campus has 18 hybrid wind turbines that fulfil 7% of the total energy consumption, the rest of energy demand is met from offsite wind turbines.
The structure is designed in a way to ensure maximum daylight exposure thereby reducing artificial lighting consumption.
The infrastructure within the campus is designed to enable water percolation and thereby control storm water runoff thus, contributing towards an increased water table level.
School Of Architecture And Planning vijayawada , Case study sheets and Liter...UdayGotetiStudios
School Of Architecture And Planning vijayawada , Case study sheets and Literature .
Presentation made by vaishnavi school of architecture and planning 3 year 5th sem students as a design project .
Execution and presentation by UDAY GOTETI
THANK YOU
UGS
This is an Architectural case study on the Centre for Environment Planning & Technology (CEPT) building. Situated in Ahmedabad, Gujarat. This is done by an architecture student in semester 5.
Campus Landscaping of Centre for Environmental Planning and Technology (CEPT...RituSaha3
CEPT University, formerly the Centre for Environmental Planning and Technology, is an academic institution located near university area in Ahmedabad, India offering undergraduate and postgraduate programmes in areas of natural and developed environment of human society and related disciplines. This university have a unique landscape features and this slide presented with pictures and necessary information.
PEDA OFFICE
CHANDIGARH
PEDA OFFICE COMPLEX, CHANDIGARH
• Punjab Energy Development Agency (PEDA)
• Solar Passive Complex
• Location -Plot No. 1 & 2, Sector 33-D
• Plot size -1.49 acre
• Total covered area 68,224 Sq.Ft. including 23,200 Sq.Ft. basement
• COST -5.5 CRORES
INTRODUCTION
Location: Solar Passive Complex sector 33D, Chandigarh (Latitude 30°N)
About:- Chandigarh the modern and planned city designed by Le-Corbusier, lies in the plains at the foot of the Lower Himalayas, is the capital of Punjab and Haryana .
Punjab Energy Development Agency (PEDA), Chandigarh is a state nodal agency responsible for development of new & renewable energy and non-conventional energy in the state of Punjab.
PEDA– Solar Passive Complex, Chandigarh is a unique and successful model of Energy Efficient Solar Building, designed on solar passive architecture with the partial financial support of Ministry of New & Renewable Energy, GOI and Dept. of Science, Technology, Environment and Non-conventional Energy, Govt. of Punjab. It is setup at Plot No. 1 & 2, Sector 33-D, Chandigarh.
Site Area : 1.49 acre (268ft. x 243 ft.)
Total covered area : 68,224 Sq.Ft. including 23,200 Sq.Ft. Basement.
Architecture style : Sustainable architecture
SITE ANALYSIS
LOCATION: PEDA Office ,Solar Passive Complex sector 33D,Chandigarh
COUNTRY: INDIA
STATE: PUNJAB
TIME ZONE: IST(UTC+05:30)
COORDINATES:
GEOGRAPHY
ELEVATION: 350M
CLIMATE: COMPOSITE
MAX.SUMMER TEMPERATURE: 44°C
MIN. WINTER TEMPERATURE: 5°C
ANNUAL AVG RAINFALL: 1110.7MM
Context & Site micro-climatic Analysis
Architectural building design needs store pond to the composite climatic context of the site. The final design solution needs to satisfy the diverse and often conflicting conditions of a hot-dry, hot-humid, temperate and cold period of Chandigarh
BUILDING: PEDA Office Complex
ARCHITECT: Prof. Dr. Arvind Krishan
ARCHITECTURAL DESIGN: Sustainable Architecture
This building has a 3Dimensional form responding to solar geometry i.e., minimizing solar heat gain in hot dry period and maximizing solar heat gain in cold period.
hello! find the details about composite climate and aurabindo ashramam here. If u want best architecture and interior services, click on https://jakkan.com/ and contact them. They give best services.
Data collection - Climate Analysis - Tropical Wet and Dry Climate - Architect...LipikaPandey
CLIMATE ANALYSIS
TROPICAL WET AND DRY CLIMATE
HOT AND HUMID
HOT AND DRY
DESIGN STRATEGIES
ORIENTATION AND POSITIONING
SHADING DEVICES
VENTILATION AND CROSS VENTILATION
PASSIVE COOLING TECHNIQUES
COLOR SCHEME
ENERGY EFFICIENT TECHNIQUES
CONSTRUCTION TECHNIQUES AND MATERIALS TO BE USED - ROOF, WALL, WINDOWS
Architecture case study - IIM AhemdabadOnal Kothari
The campus of IIM-Ahmedabad is not only an institution of learning but also a place for everyone to see. That is why; the institute draws the attention of both the students as well as common man. The campus of IIM Ahmedabad is spread over 67 acres of land. The building design of institute was created by noted architect Louis Kahn a famous American architect known for his majestic architectural designs.
GREEN BUILDINGS
Uses less energy, water, natural resources
Generates less waste
Healthier for people living in it
Energy saved= 30-40% per day
Enhanced indoor air quality, light and ventilation
Potable water saving upto 20-30%
High productivity of occupants
Minimum generation of non-degradable waste
Lower operating costs and increase asset value
Auroville, City of dawn is located in state of Tamil Nadu, India, near Pondicherry in South India. .Auroville was founded as a project on experimental basis of the ‘Sri Arbindo Society’ on Wednesday 28 February 1968. The basic idea originated from Mirra Alfassa ‘The Mother ‘who was spiritually related to India.
Ma envisaged Auroville as an international township for 50,000 residents on the shape of a flower. Architect Roger Anger refined the planning and designed it in shape of Universe.He placed Matrimandir at the center of this city.
Mary Alfassa in her first message regarding the town stated that, "Auroville is meant to be a universal town where men and women of al countries are able to live in peace and progressive harmony, above all creeds, all politics and all nationalities”
.
Suzlon One Earth, Pune
This significantly unique office is designed by Christopher Charles, Pune based architect and has received LEED Platinum rating in 2010. He and his partner came up with the concept “Office in the garden”. Spread over 10 acres, this magnificent structure is one of the largest green building projects of the country and is also one of the India’s first buildings to be LEED (Leadership in Energy and Environmental Design) certified.
Suzlon One Earth, Pune
Suzlon one earth is 100% powered by onsite and offsite renewable sources.
The campus has 18 hybrid wind turbines that fulfil 7% of the total energy consumption, the rest of energy demand is met from offsite wind turbines.
The structure is designed in a way to ensure maximum daylight exposure thereby reducing artificial lighting consumption.
The infrastructure within the campus is designed to enable water percolation and thereby control storm water runoff thus, contributing towards an increased water table level.
School Of Architecture And Planning vijayawada , Case study sheets and Liter...UdayGotetiStudios
School Of Architecture And Planning vijayawada , Case study sheets and Literature .
Presentation made by vaishnavi school of architecture and planning 3 year 5th sem students as a design project .
Execution and presentation by UDAY GOTETI
THANK YOU
UGS
This is an Architectural case study on the Centre for Environment Planning & Technology (CEPT) building. Situated in Ahmedabad, Gujarat. This is done by an architecture student in semester 5.
Campus Landscaping of Centre for Environmental Planning and Technology (CEPT...RituSaha3
CEPT University, formerly the Centre for Environmental Planning and Technology, is an academic institution located near university area in Ahmedabad, India offering undergraduate and postgraduate programmes in areas of natural and developed environment of human society and related disciplines. This university have a unique landscape features and this slide presented with pictures and necessary information.
PEDA OFFICE
CHANDIGARH
PEDA OFFICE COMPLEX, CHANDIGARH
• Punjab Energy Development Agency (PEDA)
• Solar Passive Complex
• Location -Plot No. 1 & 2, Sector 33-D
• Plot size -1.49 acre
• Total covered area 68,224 Sq.Ft. including 23,200 Sq.Ft. basement
• COST -5.5 CRORES
INTRODUCTION
Location: Solar Passive Complex sector 33D, Chandigarh (Latitude 30°N)
About:- Chandigarh the modern and planned city designed by Le-Corbusier, lies in the plains at the foot of the Lower Himalayas, is the capital of Punjab and Haryana .
Punjab Energy Development Agency (PEDA), Chandigarh is a state nodal agency responsible for development of new & renewable energy and non-conventional energy in the state of Punjab.
PEDA– Solar Passive Complex, Chandigarh is a unique and successful model of Energy Efficient Solar Building, designed on solar passive architecture with the partial financial support of Ministry of New & Renewable Energy, GOI and Dept. of Science, Technology, Environment and Non-conventional Energy, Govt. of Punjab. It is setup at Plot No. 1 & 2, Sector 33-D, Chandigarh.
Site Area : 1.49 acre (268ft. x 243 ft.)
Total covered area : 68,224 Sq.Ft. including 23,200 Sq.Ft. Basement.
Architecture style : Sustainable architecture
SITE ANALYSIS
LOCATION: PEDA Office ,Solar Passive Complex sector 33D,Chandigarh
COUNTRY: INDIA
STATE: PUNJAB
TIME ZONE: IST(UTC+05:30)
COORDINATES:
GEOGRAPHY
ELEVATION: 350M
CLIMATE: COMPOSITE
MAX.SUMMER TEMPERATURE: 44°C
MIN. WINTER TEMPERATURE: 5°C
ANNUAL AVG RAINFALL: 1110.7MM
Context & Site micro-climatic Analysis
Architectural building design needs store pond to the composite climatic context of the site. The final design solution needs to satisfy the diverse and often conflicting conditions of a hot-dry, hot-humid, temperate and cold period of Chandigarh
BUILDING: PEDA Office Complex
ARCHITECT: Prof. Dr. Arvind Krishan
ARCHITECTURAL DESIGN: Sustainable Architecture
This building has a 3Dimensional form responding to solar geometry i.e., minimizing solar heat gain in hot dry period and maximizing solar heat gain in cold period.
hello! find the details about composite climate and aurabindo ashramam here. If u want best architecture and interior services, click on https://jakkan.com/ and contact them. They give best services.
Data collection - Climate Analysis - Tropical Wet and Dry Climate - Architect...LipikaPandey
CLIMATE ANALYSIS
TROPICAL WET AND DRY CLIMATE
HOT AND HUMID
HOT AND DRY
DESIGN STRATEGIES
ORIENTATION AND POSITIONING
SHADING DEVICES
VENTILATION AND CROSS VENTILATION
PASSIVE COOLING TECHNIQUES
COLOR SCHEME
ENERGY EFFICIENT TECHNIQUES
CONSTRUCTION TECHNIQUES AND MATERIALS TO BE USED - ROOF, WALL, WINDOWS
Architecture case study - IIM AhemdabadOnal Kothari
The campus of IIM-Ahmedabad is not only an institution of learning but also a place for everyone to see. That is why; the institute draws the attention of both the students as well as common man. The campus of IIM Ahmedabad is spread over 67 acres of land. The building design of institute was created by noted architect Louis Kahn a famous American architect known for his majestic architectural designs.
GREEN BUILDINGS
Uses less energy, water, natural resources
Generates less waste
Healthier for people living in it
Energy saved= 30-40% per day
Enhanced indoor air quality, light and ventilation
Potable water saving upto 20-30%
High productivity of occupants
Minimum generation of non-degradable waste
Lower operating costs and increase asset value
Sustainable site selection and development. Simple passive design considerations involving site
conditions, building orientation, plan form and building envelope for sun and wind.
Passive heating of buildings- direct, indirect and isolated gain.
Passive cooling of buildings – shading of buildings, insulation, induced ventilation (air vents, wind
tower, etc.,), radiative cooling, evaporative cooling, earth coupling, dessicant cooling.
This presentation gives an idea about the various types of intelligent envelopes used in the different types of buildings in different climatic conditions.
I came to know regarding this competition from rediff.com
The process of Architectural Design is a complex exercise involving interactive relationships between Parameters of diverse nature and varying magnitudes.
A logical process based on quantitative assessment leading to qualitative decisions that respond to economical and ecological context will result in satisfactory environment comfortable to the human beings,
A SUSTAINABLE HABITAT
The idea of Energy Efficient design is
to modulate the conditions such that they
are always within or as close as possible to
comfort zone.Modulations introduced by the
landscape,built form,envelope,materials and
other control measures bring the conditions
within the range throughout twenty four hours
cycle.
This is goal of Energy Efficient Architecture
Sustainable architecture is architecture that seeks to minimize the negative environmental impact of buildings by efficiency and moderation in the use of materials, energy, and development space.
Sustainable architecture uses a conscious approach to energy and ecological conservation in the design of the built environment.
The idea of sustainability, or ecological design, is to ensure that our actions and decisions today do not inhibit the opportunities of future generations.
A lift or elevator is an appliance to transport men or material two or more floors in
a vertical direction by means of a guided car or platform. The necessity of lifts in
multi storied buildings has been so well recognized that no multi storied building
is planned without proper provision for lifts.
Introduction to the study of acoustics, basic terminology, sound and distance inverse square law; absorption of sound, sound absorption co-efficient. Reverberation time, Sabines formula, various sound absorbing materials. Behavior of sound in enclosed spaces, Acoustical defects
Waste-to-energy (WtE) or energy-from-waste (EfW) is the process of generating energy in the form of electricity and/or heat from the primary treatment of waste. WtE is a form of energy recovery. Most WtE processes produce electricity and/or heat directly through combustion, or produce a combustible fuel commodity, such as methane, methanol, ethanol or synthetic fuels.
Waste-to-energy technologies convert waste matter into various forms of fuel that can be used to supply energy. Waste feed stocks can include municipal solid waste (MSW); construction and demolition (C&D) debris; agricultural waste, such as crop silage and livestock manure; industrial waste from coal mining, lumber mills, or other facilities; and even the gases that are naturally produced within landfills.
Architecture involves use of various different construction materials that require a unique constructiontechnique. But most of these construction techniques are energy intensive techniques.
Mud construction system is less energy intensive and very effective in different climatic conditions.
Earth is one of man's oldest building materials and most ancient civilizations used it in some form. It was easily available, cheap, and strong and required only simple technology.
Solar energy center is an institute developed by Ministry of New and Renewable Energy resources to showcase the R & D activities related to solar sciences.
Environmental Impact Assessment(EIA) is a process which ensures that all environmental matters are taken into account quite early in the project at planning process itself.It takes into consideration not only technical and economic considerations but also, traditional aspects like impact on local people, biodiversity etc.
Brutalism Architecture (EXPLORING VERSATALITY OF R.C.C.)Deepika Verma
formed with striking blockish, geometric, and repetitive shapes, and often reveal the textures of the wooden forms used to shape the material, which is normally rough, unadorned poured concrete.
Water conservation encompasses the policies, strategies and activities made to manage fresh water as a sustainable resource, to protect the water environment, and to meet current and future human demand. Population, household size, and growth and affluence all affect how much water is used. Factors such as climate change will increase pressures on natural water resources especially in manufacturing and agricultural irrigation.
Water conservation refers to any beneficial reduction of water usage, loss or waste.
Griha avoided post construction landfillDeepika Verma
Multi-coloured dustbins/different garbage chutes have been provided to building occupants to ensure segregation of waste at source.
Dedicated, segregated and hygienic storage spaces in the project site to store different wastes before treatment /recycling.
Contractual tie-ups with waste recyclers for safe recycling for recyclable wastes like metal, paper, plastic, glass etc.
Griha design to mitigate urban heat island effectDeepika Verma
The percentage of total site area (visible to sky but not including the landscape area) which is either soft paved AND/OR covered with SRI coating > 0.5 AND/OR shaded by trees/vegetated pergolas/solar panels AND/OR any combination of these strategies.
Dynamic insulation is a form of insulation where cool outside air flowing through the thermal insulation in the envelope of a building will pick up heat from the insulation fibres.
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxEduSkills OECD
Andreas Schleicher presents at the OECD webinar ‘Digital devices in schools: detrimental distraction or secret to success?’ on 27 May 2024. The presentation was based on findings from PISA 2022 results and the webinar helped launch the PISA in Focus ‘Managing screen time: How to protect and equip students against distraction’ https://www.oecd-ilibrary.org/education/managing-screen-time_7c225af4-en and the OECD Education Policy Perspective ‘Students, digital devices and success’ can be found here - https://oe.cd/il/5yV
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
The Indian economy is classified into different sectors to simplify the analysis and understanding of economic activities. For Class 10, it's essential to grasp the sectors of the Indian economy, understand their characteristics, and recognize their importance. This guide will provide detailed notes on the Sectors of the Indian Economy Class 10, using specific long-tail keywords to enhance comprehension.
For more information, visit-www.vavaclasses.com
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
We all have good and bad thoughts from time to time and situation to situation. We are bombarded daily with spiraling thoughts(both negative and positive) creating all-consuming feel , making us difficult to manage with associated suffering. Good thoughts are like our Mob Signal (Positive thought) amidst noise(negative thought) in the atmosphere. Negative thoughts like noise outweigh positive thoughts. These thoughts often create unwanted confusion, trouble, stress and frustration in our mind as well as chaos in our physical world. Negative thoughts are also known as “distorted thinking”.
This is a presentation by Dada Robert in a Your Skill Boost masterclass organised by the Excellence Foundation for South Sudan (EFSS) on Saturday, the 25th and Sunday, the 26th of May 2024.
He discussed the concept of quality improvement, emphasizing its applicability to various aspects of life, including personal, project, and program improvements. He defined quality as doing the right thing at the right time in the right way to achieve the best possible results and discussed the concept of the "gap" between what we know and what we do, and how this gap represents the areas we need to improve. He explained the scientific approach to quality improvement, which involves systematic performance analysis, testing and learning, and implementing change ideas. He also highlighted the importance of client focus and a team approach to quality improvement.
Ethnobotany and Ethnopharmacology:
Ethnobotany in herbal drug evaluation,
Impact of Ethnobotany in traditional medicine,
New development in herbals,
Bio-prospecting tools for drug discovery,
Role of Ethnopharmacology in drug evaluation,
Reverse Pharmacology.
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Read| The latest issue of The Challenger is here! We are thrilled to announce that our school paper has qualified for the NATIONAL SCHOOLS PRESS CONFERENCE (NSPC) 2024. Thank you for your unwavering support and trust. Dive into the stories that made us stand out!
3. TERIUNIVERSITY
CASESTUDY
Established 1998
Type Education and
Research
Institution
Chancellor Ajay Mathur
Location New Delhi, new
delhi, India
Campus 2acre
The TERI University established and constituted in 1998, dedicates
itself to the study of environment, energy and natural resources for
attaining the far-reaching goal of sustainable development. The
campus is housed in a green building in New Delhi and is spread over
two acres of land, and is one of the first in the country for a university
and itfurther aims to minimize the ecological footprint.
4. TERIUNIVERSITY
CASESTUDY
Built on around 2 acres of land
in Vasant Kunj, New Delhi this
four storeyed structure in
masonry, with stone cladding
and glazings, is an example of
a sustainable campus
responding to the site and
environment using energy
saving technologies.
5. TERIUNIVERSITY
CASESTUDY
SITE AND DESIGN
Site Plan and Ground Floor Layout (bottom)
1 Commercial Block, 2 Classrooms,
3, 4 Laboratories,
5,6 administrative block, 6 accounts,
7 dining hall, 8 hostel, 9, 10, courts, 11 Open Air Theatre
The linear geometry of the site with a narrow frontage and an aspect ratio of almost
1:3 dictated the strong linear axis in the design.
The logical sequence of positioning the three distinct functioning zones in a hierarchy
of public access to restricted entry formed the other key consideration in design
development.
6. TERIUNIVERSITY
CASESTUDY
Placing the commercial block at the front was the most logical choice in exploiting
the commercial potential of the frontage of the site.
The functional core also coincides with the geometric central part of the linear site.
The residential zone comes up from the rear forming the last zone in the linear
sequence.
That the design responds to orientation and climatic factors, is but an obvious fact.
The north line is at a slight angle to the linear axis of the site and the design takes
full advantage of this orientation in the composition of the built and open spaces and
in creating wind flows through the complex as also lighting and shading of the spaces.
7. TERIUNIVERSITY
CASESTUDY
The Sun, Sky, Air, Water and Earth shape the nature of architecture which emerges on
this site. The process of continuous dialogue between the architect and TERI and the
engagement of TERI in the design process augmented the thrust on climate responsive
design in a large way.
Sun:-

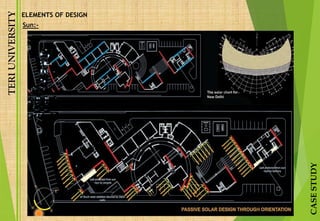

Passive solar design is an important feature in the design of this building. The planning
and orientation of spaces and building blocks ensures glare free daylight in all regularly
occupied spaces. All the linear blocks are oriented in the East-West direction with
shorter facades facing the sun.
Most of the south west facing walls are kept blank
in order to protect the building from the harsh
south west solar radiations. Where the south west
walls have openings, they are protected by means
of pergolas or projecting balconies. The east, west
and south facades of the building have minimum
glazing.
ELEMENTS OF DESIGN
9. TERIUNIVERSITY
CASESTUDY

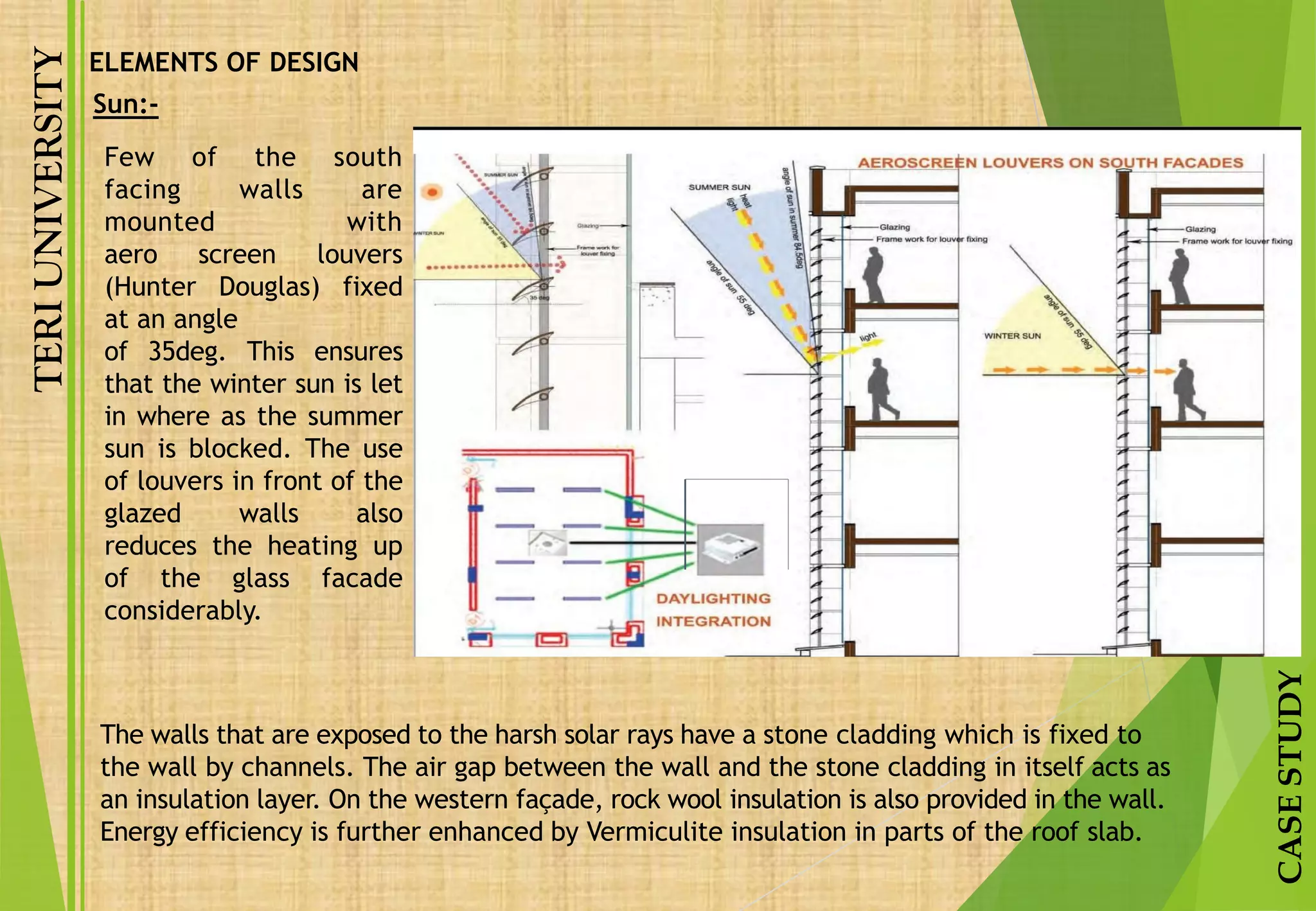

Few of the south
facing walls are
mounted with
aero screen louvers
(Hunter Douglas) fixed
at an angle
of 35deg. This ensures
that the winter sun is let
in where as the summer
sun is blocked. The use
of louvers in front of the
glazed walls also
reduces the heating up
of the glass facade
considerably.
The walls that are exposed to the harsh solar rays have a stone cladding which is fixed to
the wall by channels. The air gap between the wall and the stone cladding in itself acts as
an insulation layer. On the western façade, rock wool insulation is also provided in the wall.
Energy efficiency is further enhanced by Vermiculite insulation in parts of the roof slab.
ELEMENTS OF DESIGN
I
I
Glat rig
Frame work for louv
II
IIWINTER SUN q‘si,
i■ir- ■11.-
M
U
r fixingr fixing
Sun:-
10. TERIUNIVERSITY
CASESTUDY
Sky:-

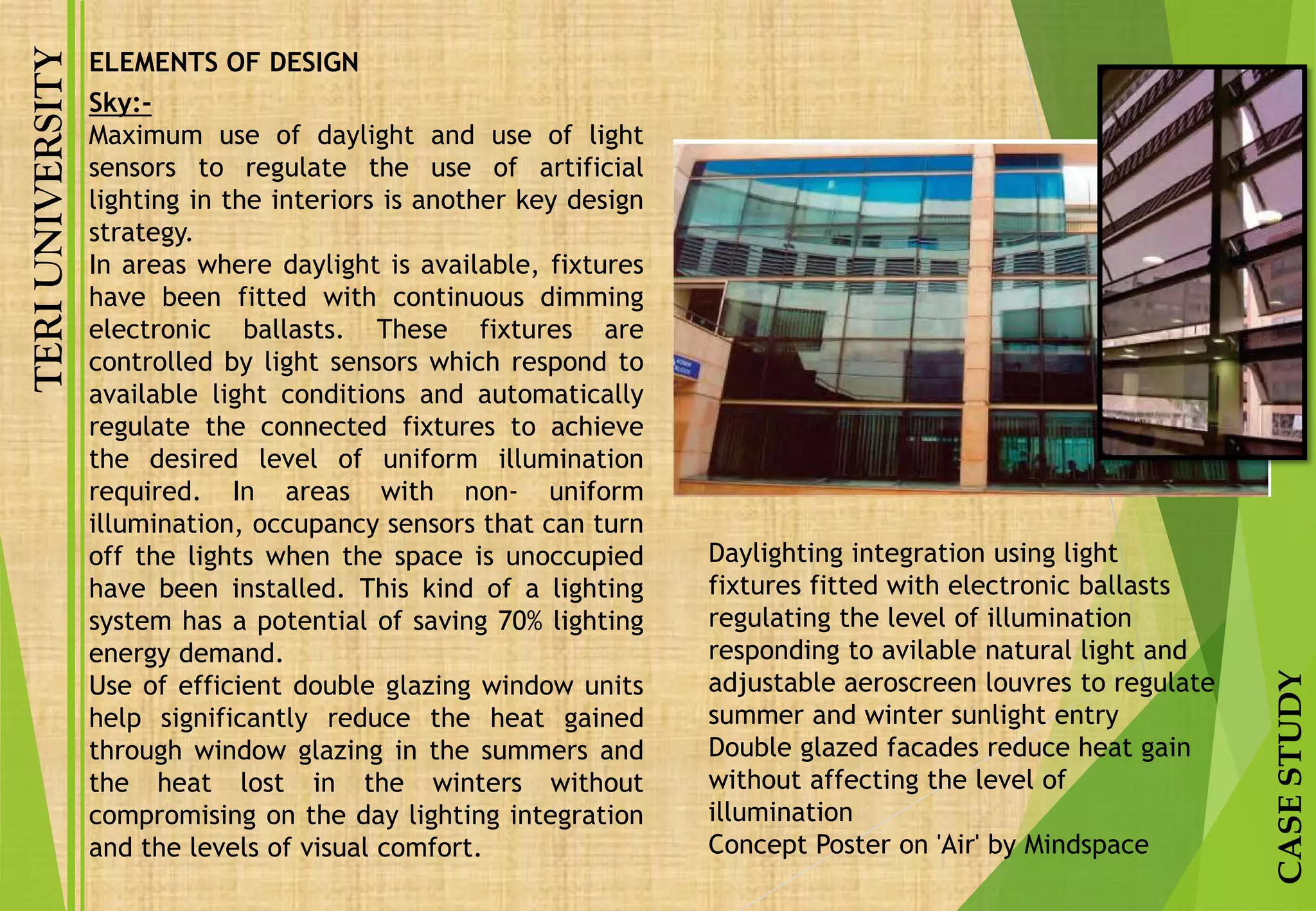

Maximum use of daylight and use of light
sensors to regulate the use of artificial
lighting in the interiors is another key design
strategy.
In areas where daylight is available, fixtures
have been fitted with continuous dimming
electronic ballasts. These fixtures are
controlled by light sensors which respond to
available light conditions and automatically
regulate the connected fixtures to achieve
the desired level of uniform illumination
required. In areas with non- uniform
illumination, occupancy sensors that can turn
off the lights when the space is unoccupied
have been installed. This kind of a lighting
system has a potential of saving 70% lighting
energy demand.
Use of efficient double glazing window units
help significantly reduce the heat gained
through window glazing in the summers and
the heat lost in the winters without
compromising on the day lighting integration
and the levels of visual comfort.
Daylighting integration using light
fixtures fitted with electronic ballasts
regulating the level of illumination
responding to avilable natural light and
adjustable aeroscreen louvres to regulate
summer and winter sunlight entry
Double glazed facades reduce heat gain
without affecting the level of
illumination
Concept Poster on 'Air' by Mindspace
ELEMENTS OF DESIGN
12. TERIUNIVERSITY
CASESTUDY

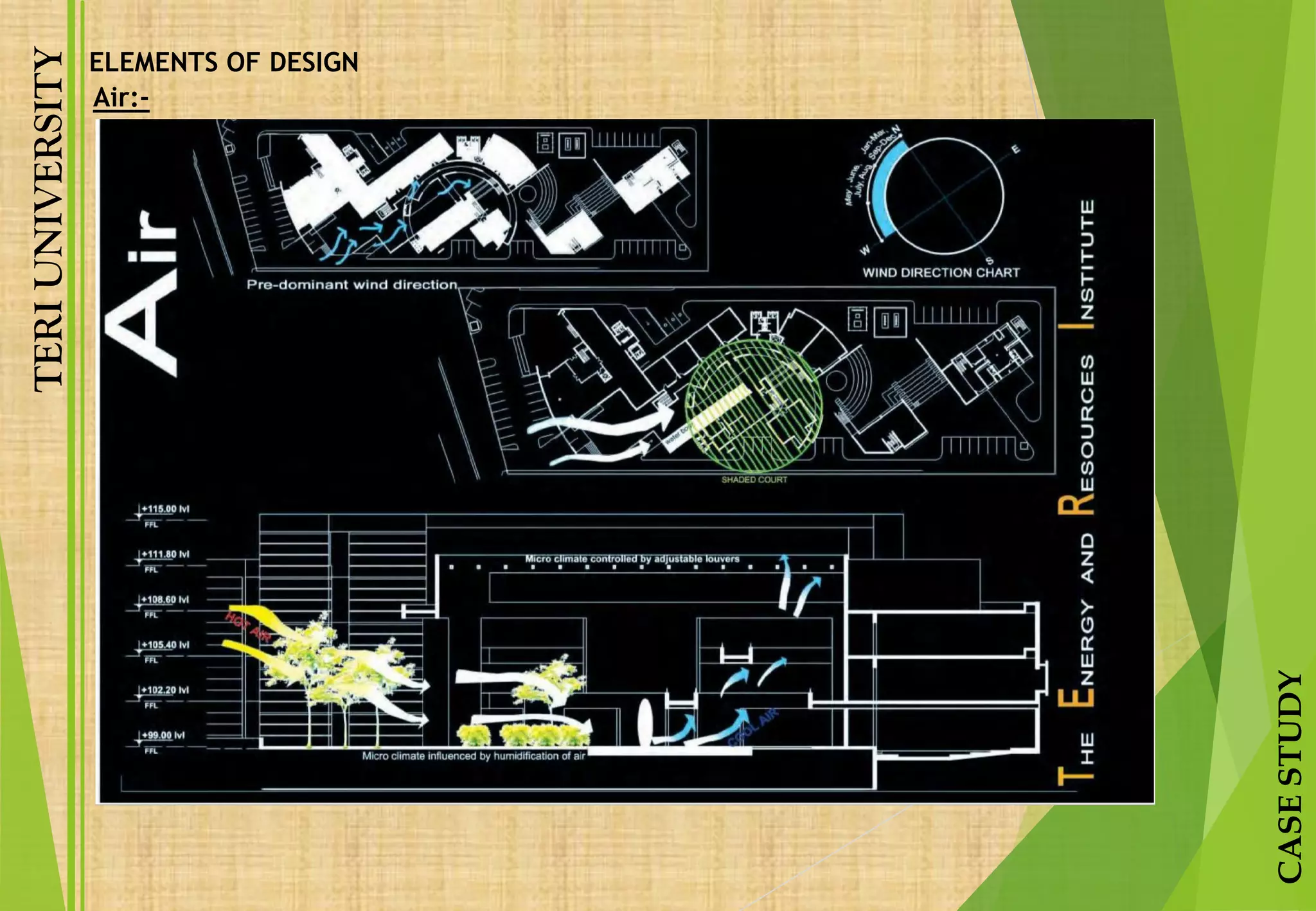

Air:-

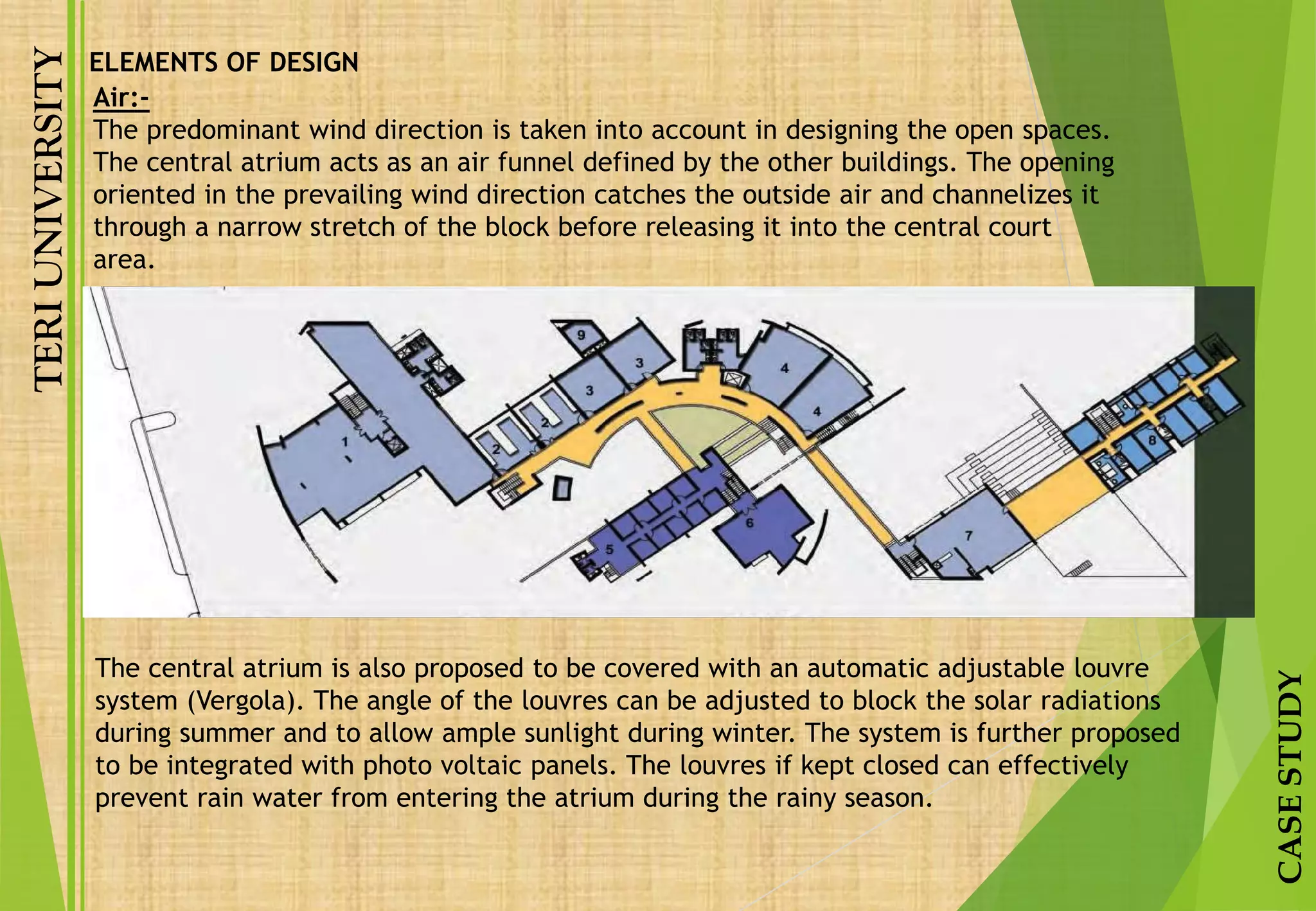

The predominant wind direction is taken into account in designing the open spaces.
The central atrium acts as an air funnel defined by the other buildings. The opening
oriented in the prevailing wind direction catches the outside air and channelizes it
through a narrow stretch of the block before releasing it into the central court
area.
ELEMENTS OF DESIGN
The central atrium is also proposed to be covered with an automatic adjustable louvre
system (Vergola). The angle of the louvres can be adjusted to block the solar radiations
during summer and to allow ample sunlight during winter. The system is further proposed
to be integrated with photo voltaic panels. The louvres if kept closed can effectively
prevent rain water from entering the atrium during the rainy season.
14. TERIUNIVERSITY
CASESTUDY
ELEMENTS OF DESIGN
WATER MANAGEMENT
• Building in the campus provided with low-flow fixtures such as dual flush toilets and sensor
taps.
• This would results in 25% savings in water use.
WASTE WATER TREATMENT
• Treatment of waste water generated from the hostel block by biological process using a
combination of micro-organisms and bio media filter.
• Low area requirement for this treatment plant.
• Treated water meets the prescribed standards for landscape irrigation.
• Very low energy consumption for operation of the treatment plant.
15. TERIUNIVERSITY
CASESTUDY
RAINWATER HARVESTING
• Average annual rainfall for Delhi is 611mm.
• Rainwater runoff from roof & the site will be used for recharge of aquifer through
CGWB-approved designs.
• Enhance the sustainable yield in areas where over-development has depleted the
aquifer.
• Conservation and storage of excess surface water for future requirements.
• Improve the quality of existing groundwater through dilution.
16. TERIUNIVERSITY
CASESTUDY
Earth:-

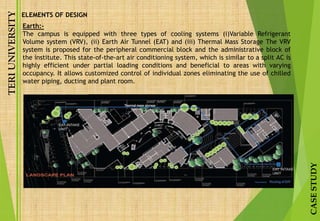

The campus is equipped with three types of cooling systems (i)Variable Refrigerant
Volume system (VRV), (ii) Earth Air Tunnel (EAT) and (iii) Thermal Mass Storage The VRV
system is proposed for the peripheral commercial block and the administrative block of
the institute. This state-of-the-art air conditioning system, which is similar to a split AC is
highly efficient under partial loading conditions and beneficial to areas with varying
occupancy. It allows customized control of individual zones eliminating the use of chilled
water piping, ducting and plant room.
ELEMENTS OF DESIGN
17. TERIUNIVERSITY
CASESTUDY
ELEMENTS OF DESIGN
EARTH AIR TUNNEL SYSTEM
It is used for free cooling / heating of the building for a major part of the year.
This technology uses the heat sink property of earth to maintain comfortable
temperatures inside the building. Supplementary systems have been used for
extreme conditions (monsoon). In such a system energy savings of nearly 50%
compared to conventional system can be achieved. At the campus, this system is
used for providing comfort for the rooms in hostel block.
VARIABLE REFRIGERANT VOLUME SYSTEMS
The VRV system is a modern air-conditioning system, similar to an efficient
version of a split air conditioner. The VRV system is highly efficient under partial
load conditions and therefore, has been used in areas with varying occupancies
such as the office block, laboratories, administrative block and recreation &
dining areas of the hostel block. It features customized control of individual
zones. Depending on the cooling demands of the building, variable refrigerant
volumes circulate through the chillers. The VRV system also eliminates the
requirement of a plant room; piping & ducting for chilled water; and contributes
to 15% energy savings as compared to a conventional air conditioning system.
18. TERIUNIVERSITY
CASESTUDY
THERMAL MASS STORAGE
Thermal mass storage is used in the classrooms. It involves storing energy
when available and using it when required. In the proposed arrangement,
cooling of the thermal mass is done during night (when ambient temperatures
are lower). During daytime when ambient temperature is high, the thermal
storage is used as sink for the fresh air requirement. Estimated energy savings
of up to 40% can be achieved with this system.
ELEMENTS OF DESIGN
19. TERIUNIVERSITY
CASESTUDY
Earth:- Earth Air Tunnel
The use of Earth Air Tunnel gives an energy saving of nearly 50% as compared to the
conventional system
Thermal mass storage used for cooling the classrooms and labs involves storing energy
when available and using it when required. Here, cooling of thermal mass is done during
night. This cool thermal mass is used to cool air in day time. This system gives an energy
saving of up to 40%.
ELEMENTS OF DESIGN
20. TERIUNIVERSITY
CASESTUDY
Earth:- EARTH AIR TUNNEL

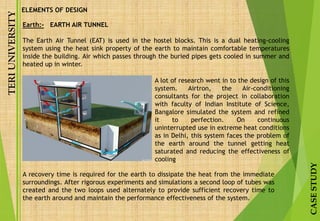

The Earth Air Tunnel (EAT) is used in the hostel blocks. This is a dual heating-cooling
system using the heat sink property of the earth to maintain comfortable temperatures
inside the building. Air which passes through the buried pipes gets cooled in summer and
heated up in winter.
ELEMENTS OF DESIGN
A lot of research went in to the design of this
system. Airtron, the Air-conditioning
consultants for the project in collaboration
with faculty of Indian Institute of Science,
Bangalore simulated the system and refined
it to perfection. On continuous
uninterrupted use in extreme heat conditions
as in Delhi, this system faces the problem of
the earth around the tunnel getting heat
saturated and reducing the effectiveness of
cooling
A recovery time is required for the earth to dissipate the heat from the immediate
surroundings. After rigorous experiments and simulations a second loop of tubes was
created and the two loops used alternately to provide sufficient recovery time to
the earth around and maintain the performance effectiveness of the system.
21. TERIUNIVERSITY
CASESTUDY

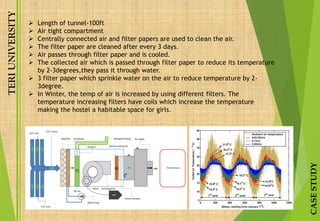

Length of tunnel-100ft
Air tight compartment
Centrally connected air and filter papers are used to clean the air.
The filter paper are cleaned after every 3 days.
Air passes through filter paper and is cooled.
The collected air which is passed through filter paper to reduce its temperature
by 2-3degrees,they pass it through water.
3 filter paper which sprinkle water on the air to reduce temperature by 2-
3degree.
In Winter, the temp of air is increased by using different filters. The
temperature increasing filters have coils which increase the temperature
making the hostel a habitable space for girls.
22. TERIUNIVERSITY
CASESTUDY
Innovative Educational Centre – IIT Delhi
RAJIV GANDHI EDUCATION CITY- Kundli, Sonepat- Haryana
TECHNOLOGIES (Teri Institute)
• EARTH AIR TUNNEL (EAT Solar chimney )
• AMMONIA ABSORPTION CHILLERS
• ENERGY EFFICIENT
• RENEWABLE ENERGY
• BIOMASS GASIFIER
• PHOTOVOLTAIC
• EARTHQUAKE RESISTANT
• PASSIVE DESIGN-AIR INSULATION
• AIR GAP-HALLOW
• CAVITY WALL
• RAIN WATER –CENTRALLY COLLECTED
23. TERIUNIVERSITY
CASESTUDY
Innovative Educational Centre – IIT Delhi
RAJIV GANDHI EDUCATION CITY- Kundli, Sonepat- Haryana
• A set eco-friendly chillers run on LPG and require minimum energy 9kw.
• As LPG is non-renewable sources of energy so efforts are made to run he
chillers on producer gas generated by wood burning gasifires
• For conference hall of 100 people temperature requires less than 25 U degree
Celsius which can be attained by these chillers.
AMMONIA ABSORPTION CHILLERS
• Energy efficient compact fluorescent lamps in the residential quarters,
corridors, lobby & toilets.
• The conference rooms enjoy glare free daylight through skylights.
• Time based controls switch off lights at b present time.
• 24 hot water panel forms a part of parapet walls inclined at 70 degree instead
of 45 degree
• Fulfills the daily requirement of 2000 litres daily at 65 degree celsius• In winters
gas derived from burning twigs, dry leaves etc. serves as a back up source to
heat the water.
ENERGY EFFICIENT LIGHTENING
RENEWABLE ENERGY SYSTEM
24. TERIUNIVERSITY
CASESTUDY

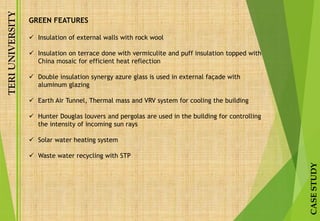

GREEN FEATURES
Insulation of external walls with rock wool
Insulation on terrace done with vermiculite and puff insulation topped with
China mosaic for efficient heat reflection
Double insulation synergy azure glass is used in external façade with
aluminum glazing
Earth Air Tunnel, Thermal mass and VRV system for cooling the building
Hunter Douglas louvers and pergolas are used in the building for controlling
the intensity of incoming sun rays
Solar water heating system
Waste water recycling with STP
25. TERIUNIVERSITY
CASESTUDY

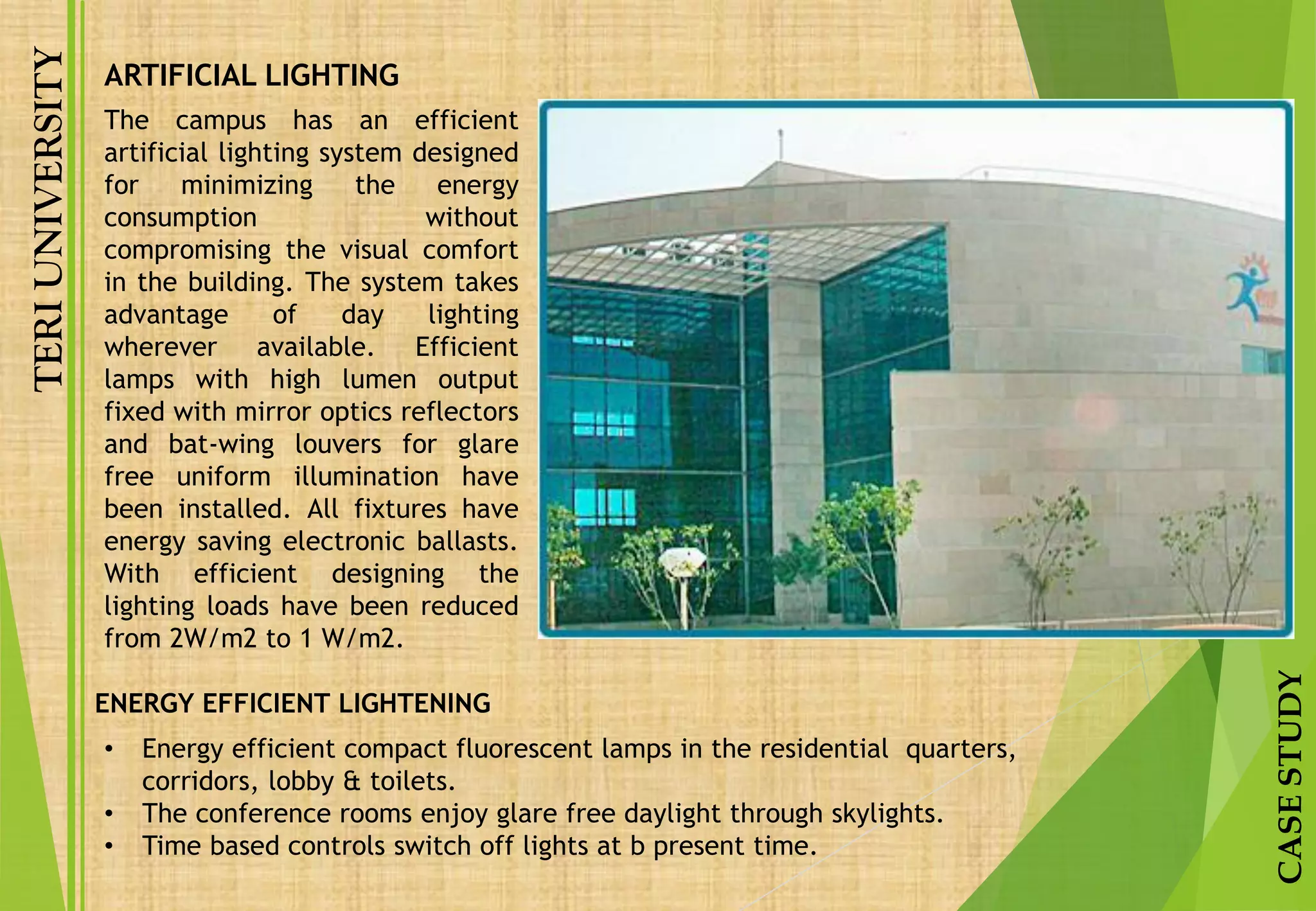

The campus has an efficient
artificial lighting system designed
for minimizing the energy
consumption without
compromising the visual comfort
in the building. The system takes
advantage of day lighting
wherever available. Efficient
lamps with high lumen output
fixed with mirror optics reflectors
and bat-wing louvers for glare
free uniform illumination have
been installed. All fixtures have
energy saving electronic ballasts.
With efficient designing the
lighting loads have been reduced
from 2W/m2 to 1 W/m2.
• Energy efficient compact fluorescent lamps in the residential quarters,
corridors, lobby & toilets.
• The conference rooms enjoy glare free daylight through skylights.
• Time based controls switch off lights at b present time.
ENERGY EFFICIENT LIGHTENING
ARTIFICIAL LIGHTING
26. TERIUNIVERSITY
CASESTUDY

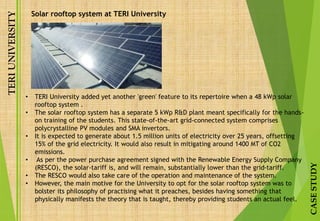

Solar rooftop system at TERI University
• TERI University added yet another 'green' feature to its repertoire when a 48 kWp solar
rooftop system .
• The solar rooftop system has a separate 5 kWp R&D plant meant specifically for the hands-
on training of the students. This state-of-the-art grid-connected system comprises
polycrystalline PV modules and SMA invertors.
• It is expected to generate about 1.5 million units of electricity over 25 years, offsetting
15% of the grid electricity. It would also result in mitigating around 1400 MT of CO2
emissions.
• As per the power purchase agreement signed with the Renewable Energy Supply Company
(RESCO), the solar-tariff is, and will remain, substantially lower than the grid-tariff.
• The RESCO would also take care of the operation and maintenance of the system.
• However, the main motive for the University to opt for the solar rooftop system was to
bolster its philosophy of practising what it preaches, besides having something that
physically manifests the theory that is taught, thereby providing students an actual feel.
27. TERIUNIVERSITY
CASESTUDY

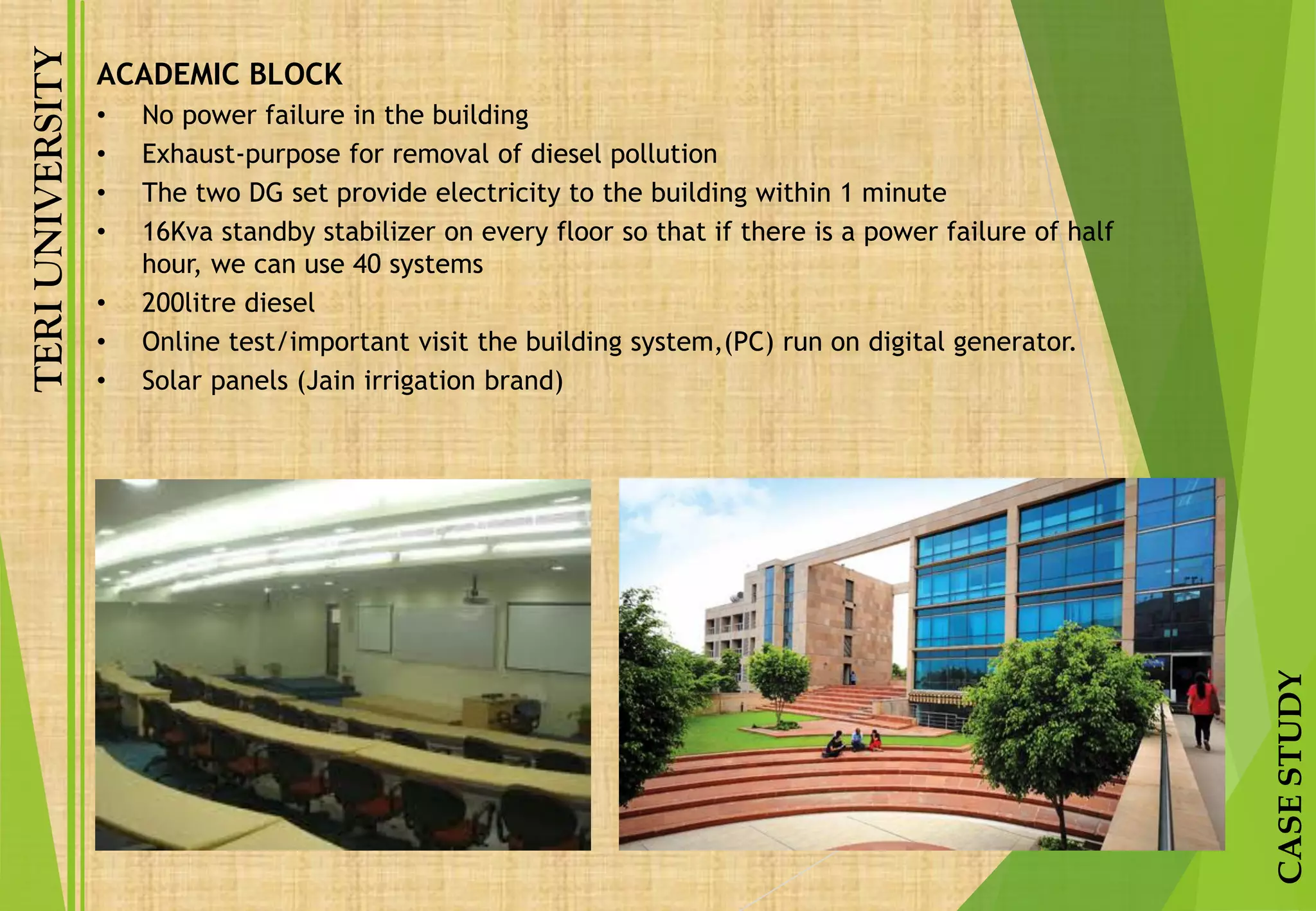

ACADEMIC BLOCK
• No power failure in the building
• Exhaust-purpose for removal of diesel pollution
• The two DG set provide electricity to the building within 1 minute
• 16Kva standby stabilizer on every floor so that if there is a power failure of half
hour, we can use 40 systems
• 200litre diesel
• Online test/important visit the building system,(PC) run on digital generator.
• Solar panels (Jain irrigation brand)
28. TERIUNIVERSITY
CASESTUDY

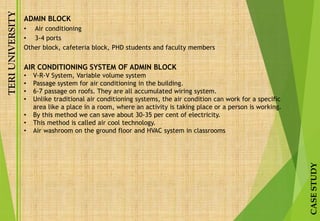

ADMIN BLOCK
• Air conditioning
• 3-4 ports
Other block, cafeteria block, PHD students and faculty members
AIR CONDITIONING SYSTEM OF ADMIN BLOCK
• V-R-V System, Variable volume system
• Passage system for air conditioning in the building.
• 6-7 passage on roofs. They are all accumulated wiring system.
• Unlike traditional air conditioning systems, the air condition can work for a specific
area like a place in a room, where an activity is taking place or a person is working.
• By this method we can save about 30-35 per cent of electricity.
• This method is called air cool technology.
• Air washroom on the ground floor and HVAC system in classrooms
29. TERIUNIVERSITY
CASESTUDY
HOSTEL
• Hostel block having 48-50 students.
• No hostel facility for boys
• Rocks cutted and planned-Institutional area
• Natural Drainage-Road level, drainage level
• Fire escape
• South side trombe wall
• Waste water treatment plan(STP) for greenery purpose for irrigation.
• Louvers for sunshine control(manual in TERI)
BASEMENT
• Basement is 4m down the earth crust.
• 6 tunnels, at a time we can use 3 tunnels.
30. TERIUNIVERSITY
CASESTUDY
Architectural Expression
The form and massing of the campus
responds entirely to climate and the
site.
The south-west walls with few
fenestrations and stone cladding,
responding to the climatic conditions,
forms an impenetrable wall, providing,
as it were, a visual cue to the inherent
resistance of the structure to
inclement weather. Pergolas,
overhangs and balconies form visual
links as well as create drama in light
and shade.
The northern walls, in contrast, are
lightweight with their glazing and large
fenestrations, once again in response
to the site and climate. The louvers on
the glazing create interesting visuals
on the facade.
ELEMENTS OF DESIGN
The overall composition of transparency and opacity unfolds to the viewer with changing
orientations within the site.
31. TERIUNIVERSITY
CASESTUDY

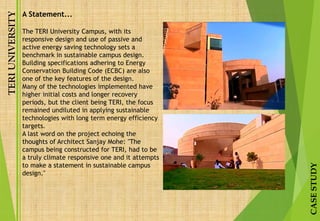

A Statement...
The TERI University Campus, with its
responsive design and use of passive and
active energy saving technology sets a
benchmark in sustainable campus design.
Building specifications adhering to Energy
Conservation Building Code (ECBC) are also
one of the key features of the design.
Many of the technologies implemented have
higher initial costs and longer recovery
periods, but the client being TERI, the focus
remained undiluted in applying sustainable
technologies with long term energy efficiency
targets.
A last word on the project echoing the
thoughts of Architect Sanjay Mohe: "The
campus being constructed for TERI, had to be
a truly climate responsive one and it attempts
to make a statement in sustainable campus
design."
