This document discusses Telco analytics at scale using distributed stream processing. It describes using technologies like Apache Spark Streaming, Kafka, and Hadoop (HDFS, Hive, HBase) to ingest and process large volumes of streaming data from various sources in real-time or near real-time. Example use cases discussed include fraud detection, real-time rating, security information and event management. It also covers strategies for distributed in-memory caching and rule processing to enable low latency analytics at high throughput scales needed for telco data and applications.

1. Telco Analytics @Scale
Harikumar, Director Platform & Architecture
www.subex.com
Nov , 2016
1

2. Private & Confidentialwww.subex.com2
Subex Intro

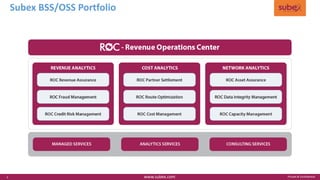

3. Private & Confidentialwww.subex.com
Subex BSS/OSS Portfolio
3

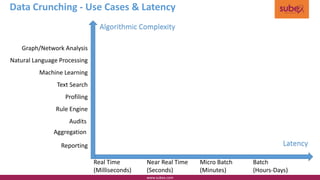

4. Data Crunching - Use Cases & Latency
www.subex.com
Real Time
(Milliseconds)
Near Real Time
(Seconds)
Micro Batch
(Minutes)
Batch
(Hours-Days)
Latency
Algorithmic Complexity
Reporting
Aggregation
Rule Engine
Profiling
Machine Learning
Audits
Graph/Network Analysis
Text Search
Natural Language Processing

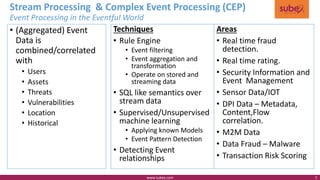

5. Stream Processing & Complex Event Processing (CEP)
Event Processing in the Eventful World
www.subex.com 5
• (Aggregated) Event
Data is
combined/correlated
with
• Users
• Assets
• Threats
• Vulnerabilities
• Location
• Historical
Techniques
• Rule Engine
• Event filtering
• Event aggregation and
transformation
• Operate on stored and
streaming data
• SQL like semantics over
stream data
• Supervised/Unsupervised
machine learning
• Applying known Models
• Event Pattern Detection
• Detecting Event
relationships
Areas
• Real time fraud
detection.
• Real time rating.
• Security Information and
Event Management
• Sensor Data/IOT
• DPI Data – Metadata,
Content,Flow
correlation.
• M2M Data
• Data Fraud – Malware
• Transaction Risk Scoring

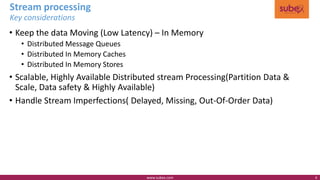

6. Stream processing
• Keep the data Moving (Low Latency) – In Memory
• Distributed Message Queues
• Distributed In Memory Caches
• Distributed In Memory Stores
• Scalable, Highly Available Distributed stream Processing(Partition Data &
Scale, Data safety & Highly Available)
• Handle Stream Imperfections( Delayed, Missing, Out-Of-Order Data)
Key considerations
www.subex.com 6

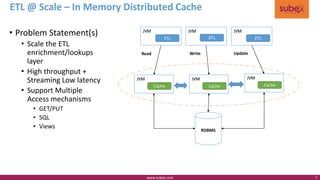

7. ETL @ Scale – In Memory Distributed Cache
• Problem Statement(s)
• Scale the ETL
enrichment/lookups
layer
• High throughput +
Streaming Low latency
• Support Multiple
Access mechanisms
• GET/PUT
• SQL
• Views
www.subex.com 7
JVM
ETL
JVM
Cache
JVM
ETL
JVM
ETL
JVM
Cache
JVM
Cache
RDBMS
Read Write Update

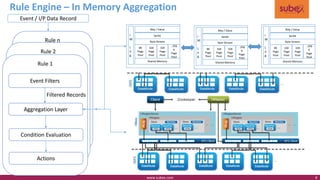

8. Rule n
Rule Engine – In Memory Aggregation
www.subex.com 8
Event / I/P Data Record
Rule 2
Rule 1
Event Filters
Filtered Records
Aggregation Layer
Condition Evaluation
Actions
Shared Memory
8K
Page
Pool
16K
Page
Pool
32K
Page
Pool
..256
K
Page
Pool
Key / Value
Byte Stream
SerDEI
M
L
o
g
Shared Memory
8K
Page
Pool
16K
Page
Pool
32K
Page
Pool
..256
K
Page
Pool
Key / Value
Byte Stream
SerDEI
M
L
o
g
Shared Memory
8K
Page
Pool
16K
Page
Pool
32K
Page
Pool
..256
K
Page
Pool
Key / Value
Byte Stream
SerDEI
M
L
o
g

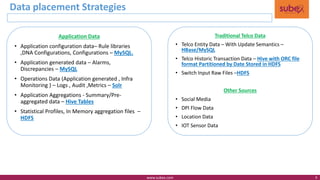

9. www.subex.com 9
Data placement Strategies
Application Data
• Application configuration data– Rule libraries
,DNA Configurations, Configurations – MySQL.
• Application generated data – Alarms,
Discrepancies – MySQL
• Operations Data (Application generated , Infra
Monitoring ) – Logs , Audit ,Metrics – Solr
• Application Aggregations - Summary/Pre-
aggregated data – Hive Tables
• Statistical Profiles, In Memory aggregation files –
HDFS
Traditional Telco Data
• Telco Entity Data – With Update Semantics –
HBase/MySQL
• Telco Historic Transaction Data – Hive with ORC file
format Partitioned by Date Stored in HDFS
• Switch Input Raw Files –HDFS
Other Sources
• Social Media
• DPI Flow Data
• Location Data
• IOT Sensor Data

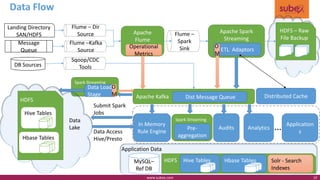

10. Spark Streaming
Application Data
Data Flow
www.subex.com 10
Landing Directory
SAN/HDFS Apache
Flume
Flume –
Spark
Sink
Apache Kafka
In Memory
Rule Engine
Analytics
Application
s
…
Apache Spark
Streaming
ETL Adaptors
Flume – Dir
Source
Message
Queue
Flume –Kafka
Source
DB Sources
Sqoop/CDC
Tools
HDFS – Raw
File Backup
HDFS Hive Tables Hbase Tables Solr - Search
Indexes
Audits
MySQL–
Ref DB
HDFS
Hive Tables
Hbase Tables
Dist Message Queue
Data
Lake
Submit Spark
Jobs
Data Access
Hive/Presto
Distributed Cache
Operational
Metrics
Data Load
Stage
O
M
Spark Streaming
O
M
Pre-
aggregation

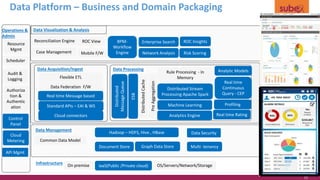

11. Data Management
Data Platform – Business and Domain Packaging
11
Data Acquisition/Ingest
Data Federation F/W
Data Processing
PreAggregation
Distributed Stream
Processing Apache Spark
Data Visualization & Analysis
Mobile F/W
ROC View
Case Management
Standard APIs – EAI & WS
Analytics Engine
Reconciliation Engine BPM-
Workflow
Engine
Flexible ETL
Rule Processing - In
Memory
Common Data Model
DistributedCache
Control
Panel
Operations &
Admin
Resource
Mgmt
Data Security
Audit &
Logging
Scheduler
Network Analysis
ROC Insights
Real time Message based
Distributed
MessageQueue
Hadoop – HDFS, Hive , HBase
Multi -tenancy
Machine Learning
Enterprise Search
Real time
Continuous
Query - CEP
Document Store Graph Data Store
Authoriza
tion &
Authentic
ation
Real time Rating
Profiling
Cloud
Metering
Risk Scoring
Cloud connectors
API Mgmt
Infrastructure
On premise OS/Servers/Network/StorageIaaS(Public /Private cloud)
ESB
Analytic Models

12. Thank you
Harikumar
hari.kumar@Subex.com
www.subex.com 12
