1. Game Theoretic
Concepts
in
Support Vector
Machine Learning
Subhayan Mukerjee
BITS Pilani

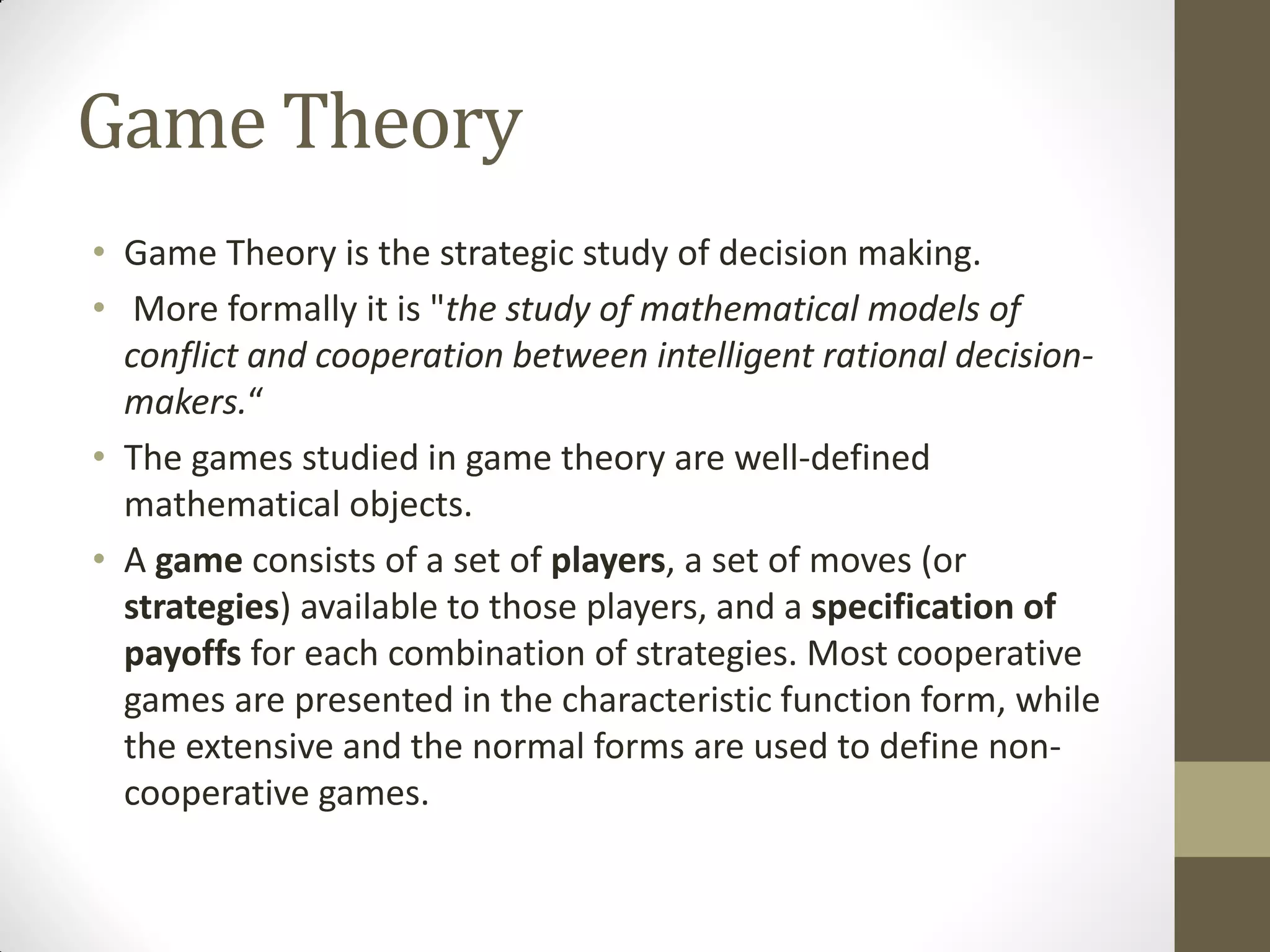

2. Game Theory
• Game Theory is the strategic study of decision making.
• More formally it is "the study of mathematical models of
conflict and cooperation between intelligent rational decision-
makers.“
• The games studied in game theory are well-defined
mathematical objects.
• A game consists of a set of players, a set of moves (or
strategies) available to those players, and a specification of
payoffs for each combination of strategies. Most cooperative
games are presented in the characteristic function form, while
the extensive and the normal forms are used to define non-
cooperative games.

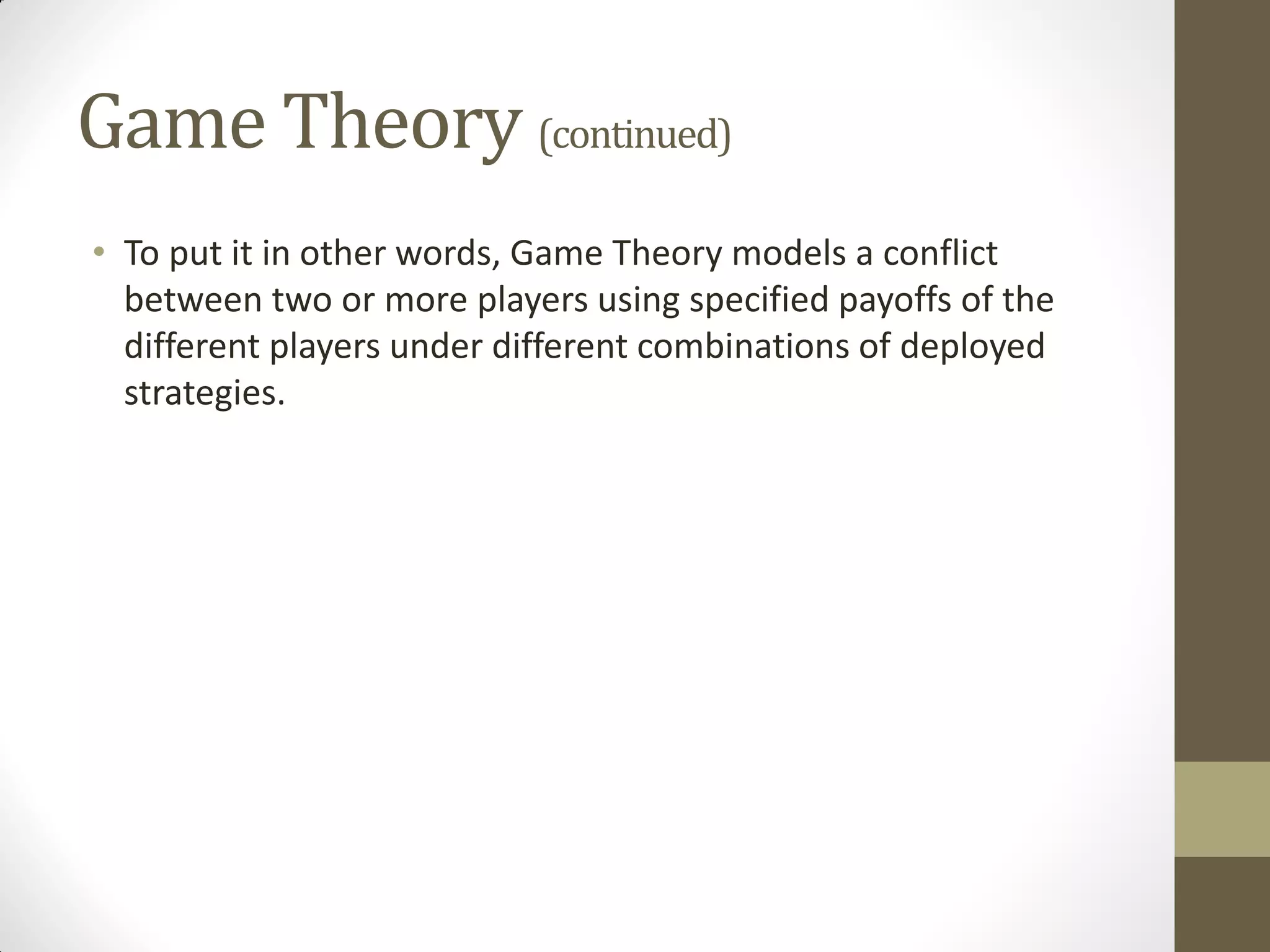

3. Game Theory (continued)
• To put it in other words, Game Theory models a conflict
between two or more players using specified payoffs of the
different players under different combinations of deployed
strategies.

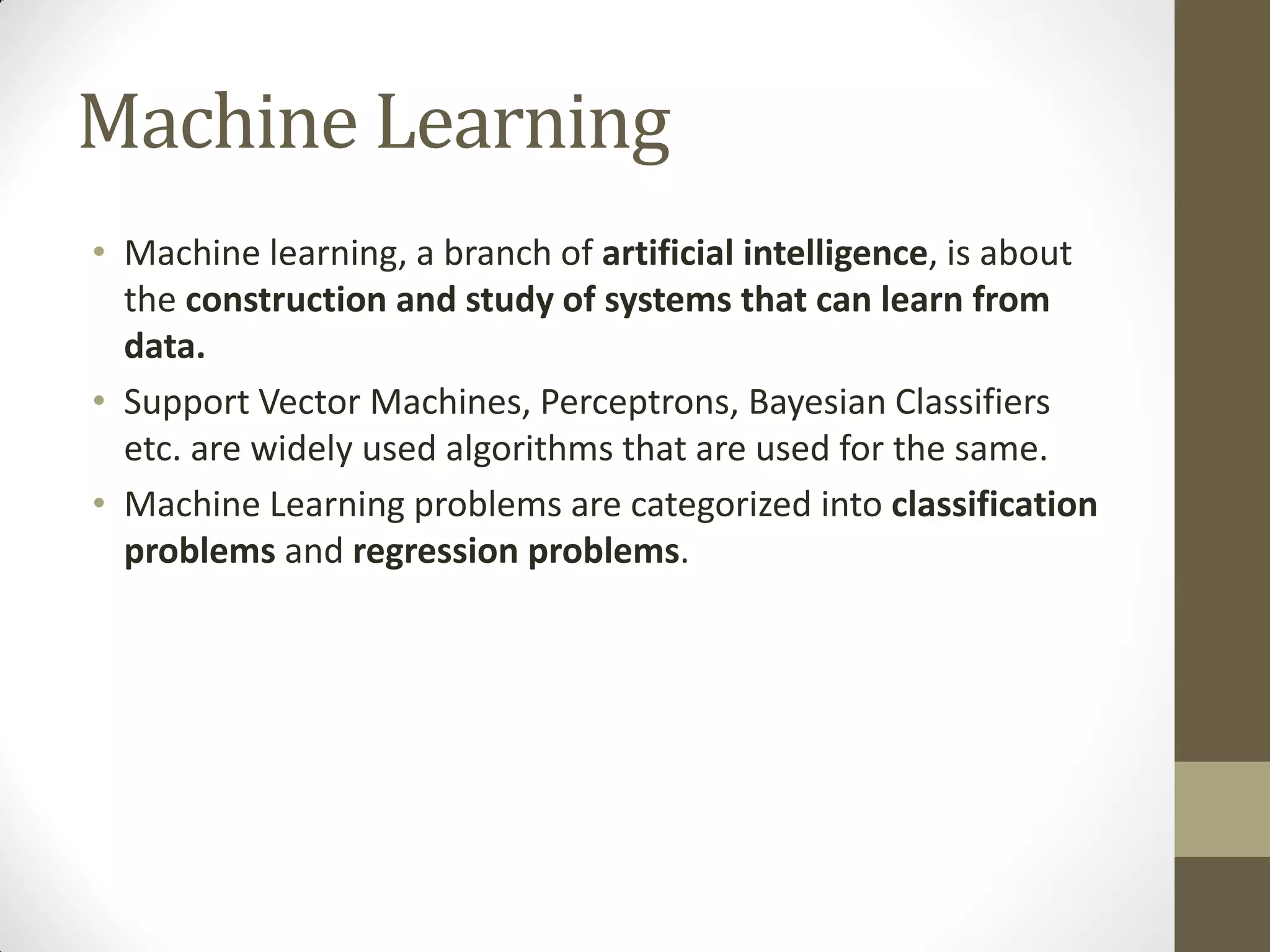

4. Machine Learning
• Machine learning, a branch of artificial intelligence, is about
the construction and study of systems that can learn from
data.
• Support Vector Machines, Perceptrons, Bayesian Classifiers
etc. are widely used algorithms that are used for the same.
• Machine Learning problems are categorized into classification
problems and regression problems.

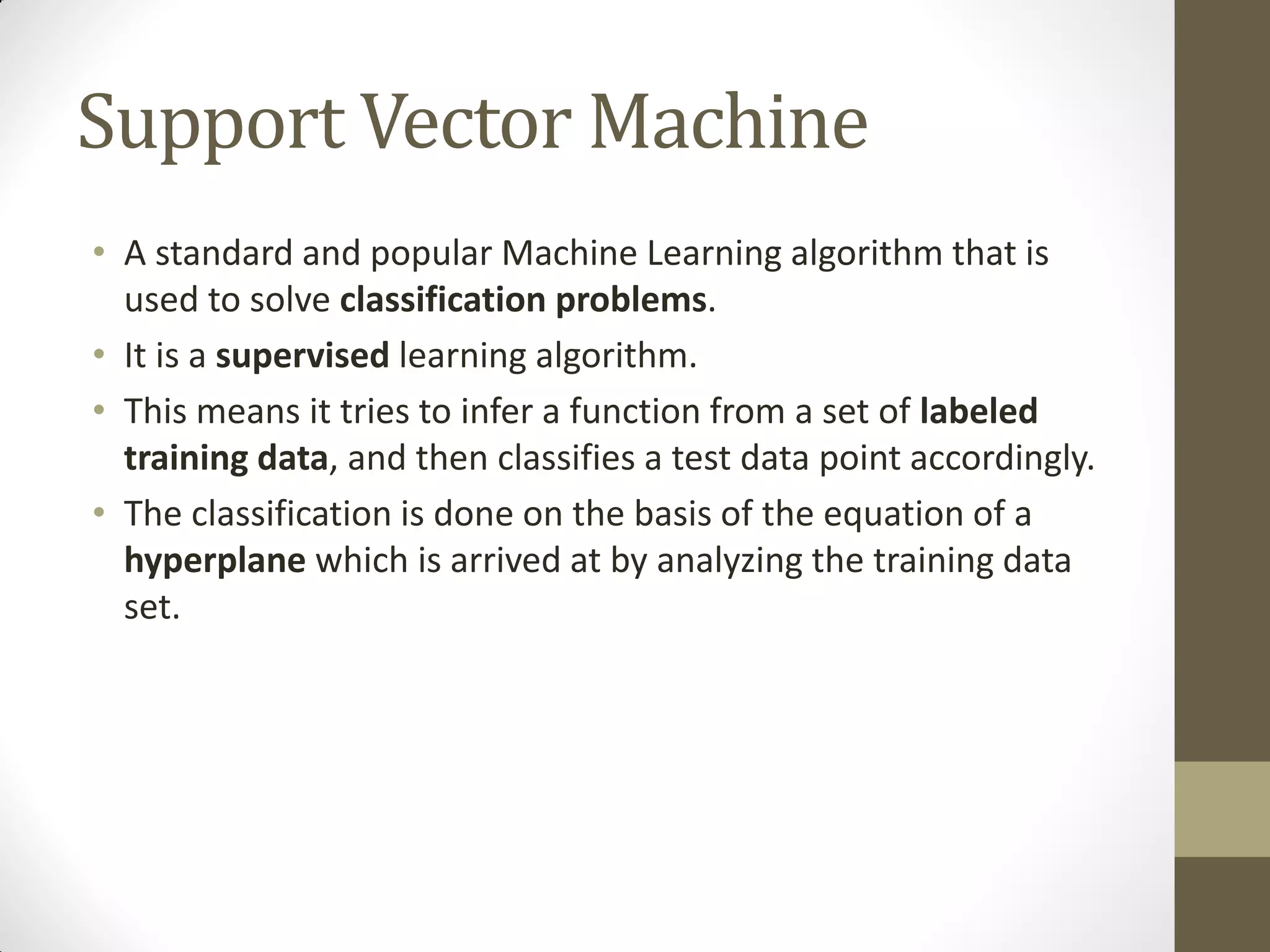

5. Support Vector Machine
• A standard and popular Machine Learning algorithm that is
used to solve classification problems.
• It is a supervised learning algorithm.
• This means it tries to infer a function from a set of labeled
training data, and then classifies a test data point accordingly.
• The classification is done on the basis of the equation of a
hyperplane which is arrived at by analyzing the training data
set.

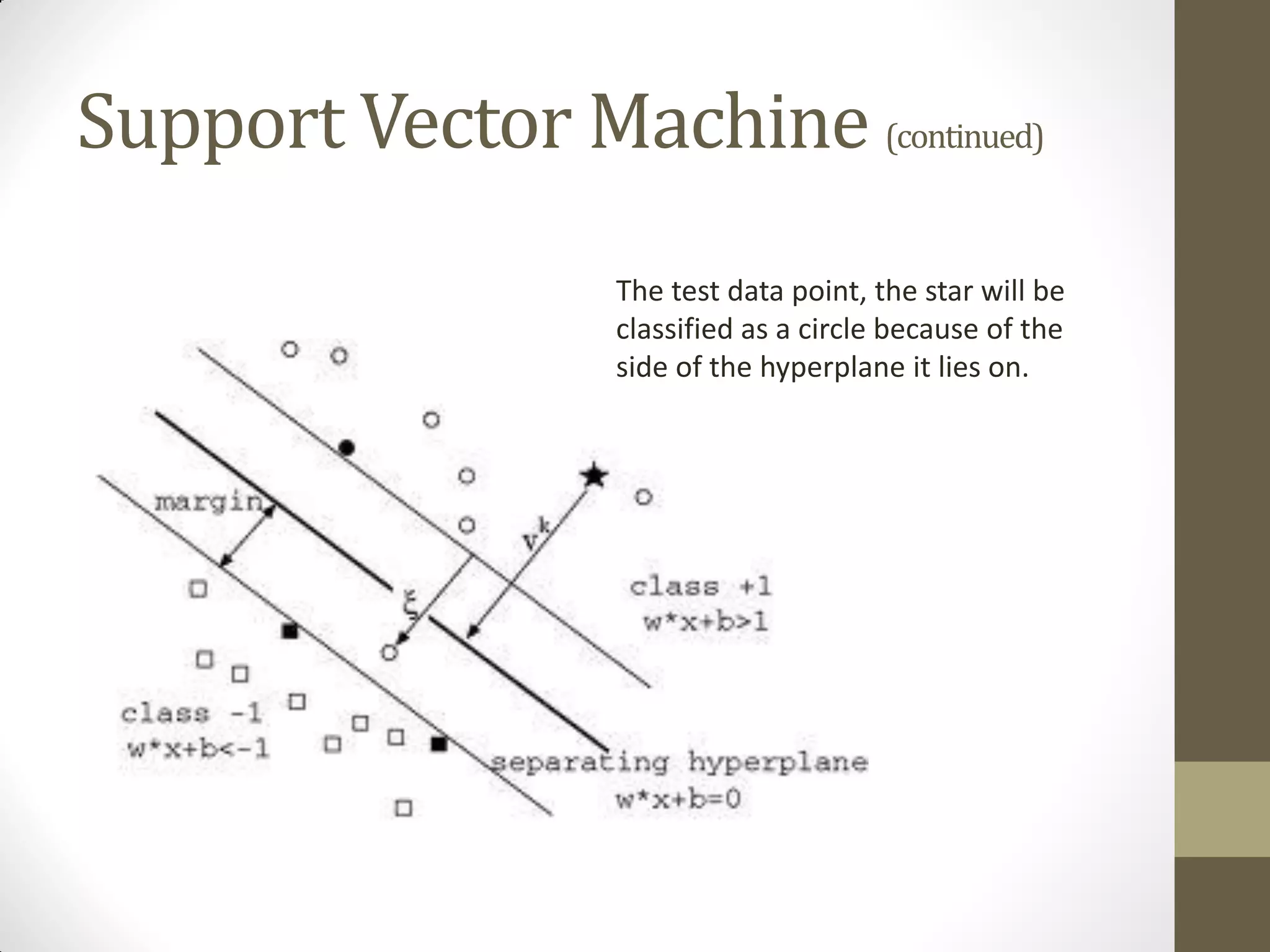

6. Support Vector Machine (continued)
The test data point, the star will be
classified as a circle because of the
side of the hyperplane it lies on.

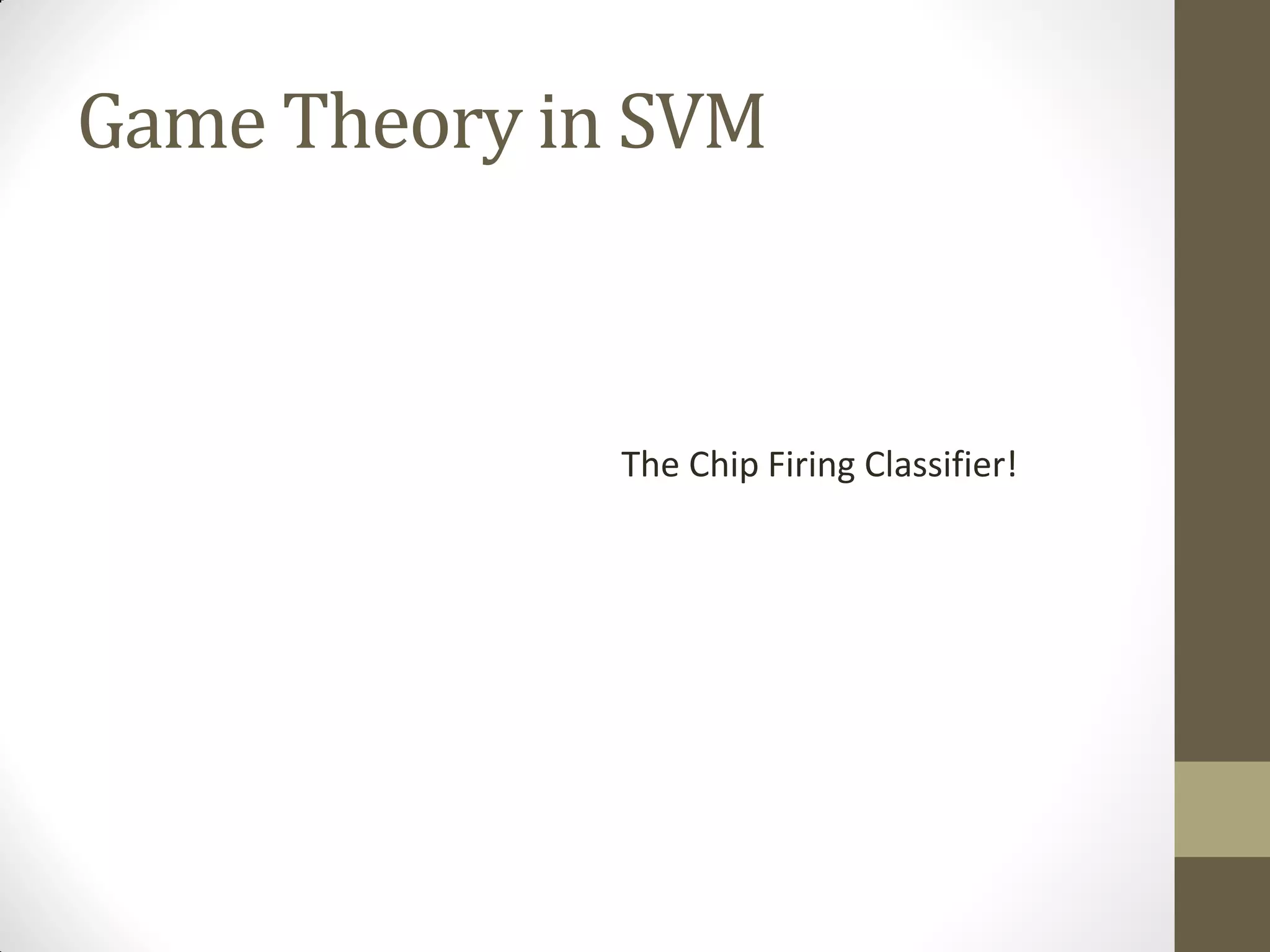

7. Game Theory in SVM
The Chip Firing Classifier!

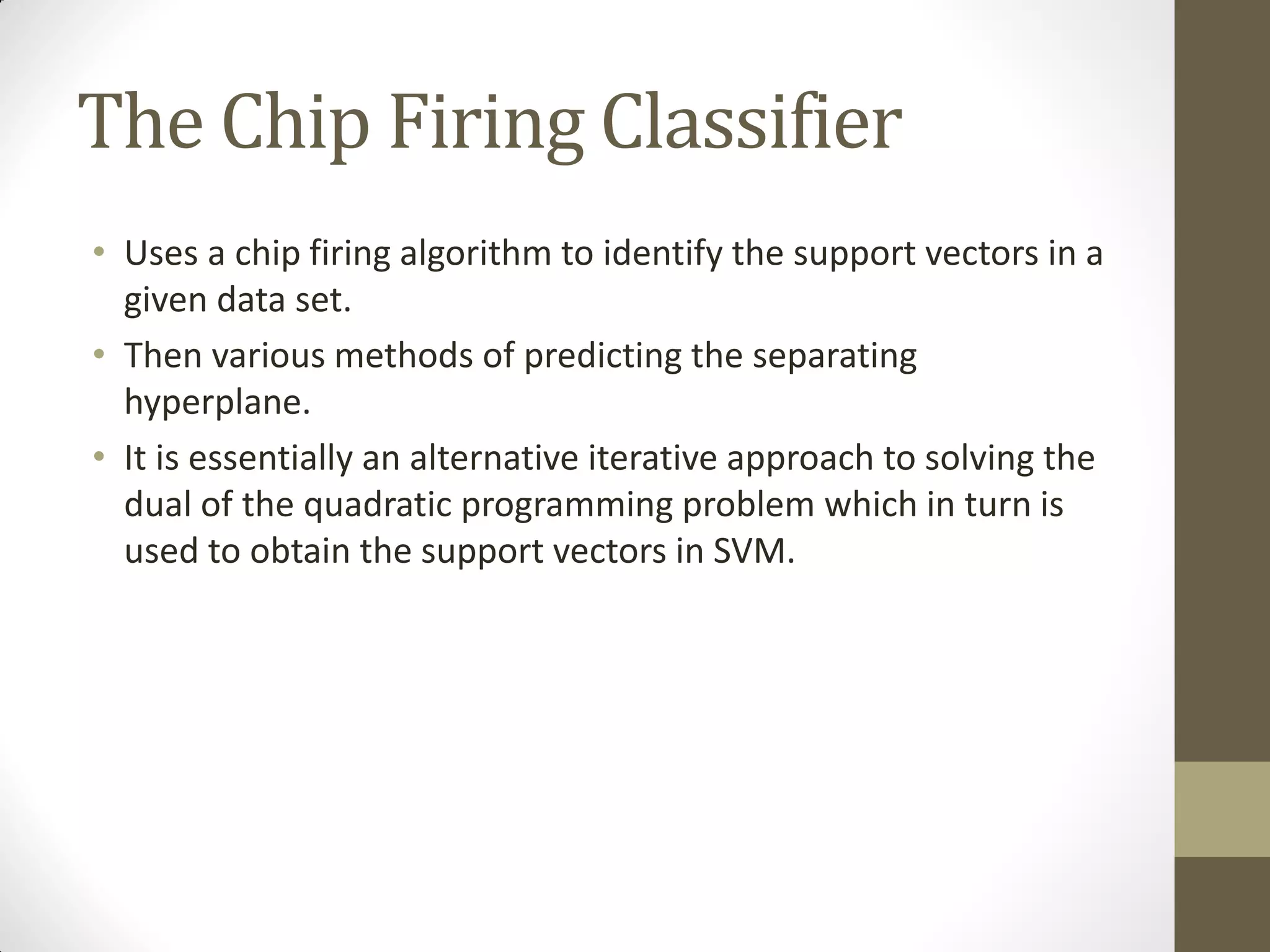

8. The Chip Firing Classifier
• Uses a chip firing algorithm to identify the support vectors in a
given data set.
• Then various methods of predicting the separating
hyperplane.
• It is essentially an alternative iterative approach to solving the
dual of the quadratic programming problem which in turn is
used to obtain the support vectors in SVM.

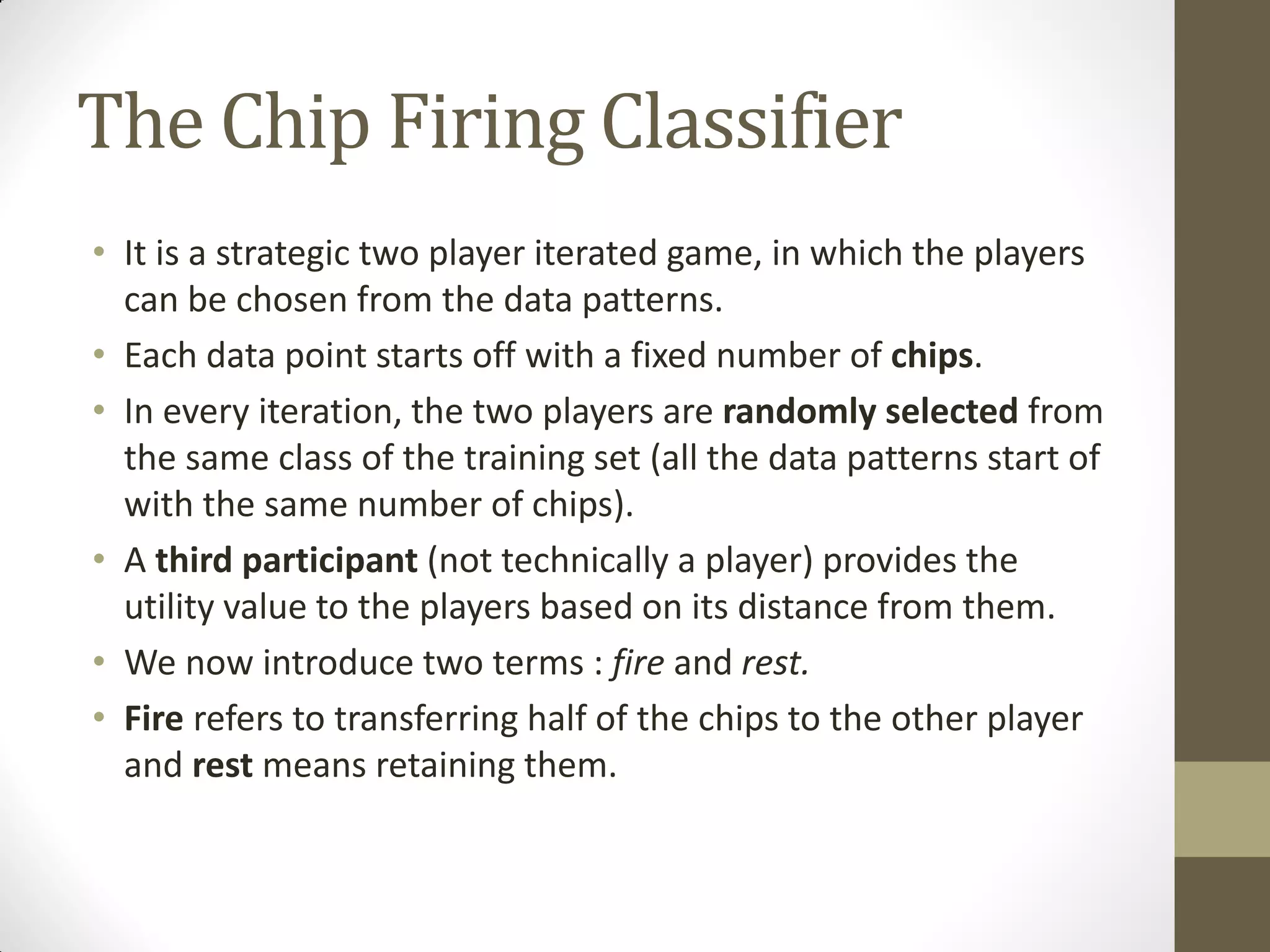

9. The Chip Firing Classifier
• It is a strategic two player iterated game, in which the players
can be chosen from the data patterns.
• Each data point starts off with a fixed number of chips.
• In every iteration, the two players are randomly selected from
the same class of the training set (all the data patterns start of
with the same number of chips).
• A third participant (not technically a player) provides the
utility value to the players based on its distance from them.
• We now introduce two terms : fire and rest.
• Fire refers to transferring half of the chips to the other player
and rest means retaining them.

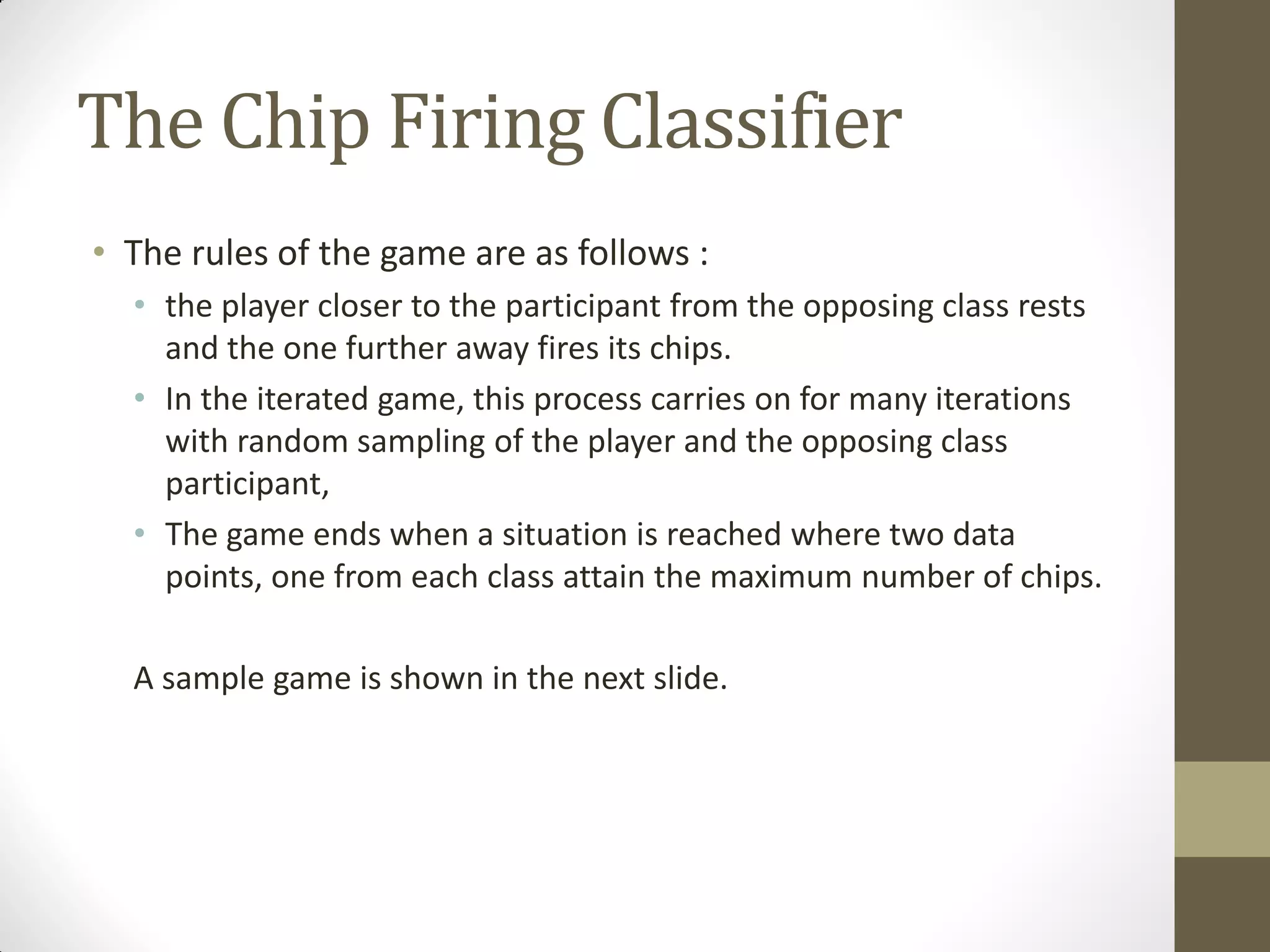

10. The Chip Firing Classifier
• The rules of the game are as follows :
• the player closer to the participant from the opposing class rests
and the one further away fires its chips.
• In the iterated game, this process carries on for many iterations
with random sampling of the player and the opposing class
participant,
• The game ends when a situation is reached where two data
points, one from each class attain the maximum number of chips.

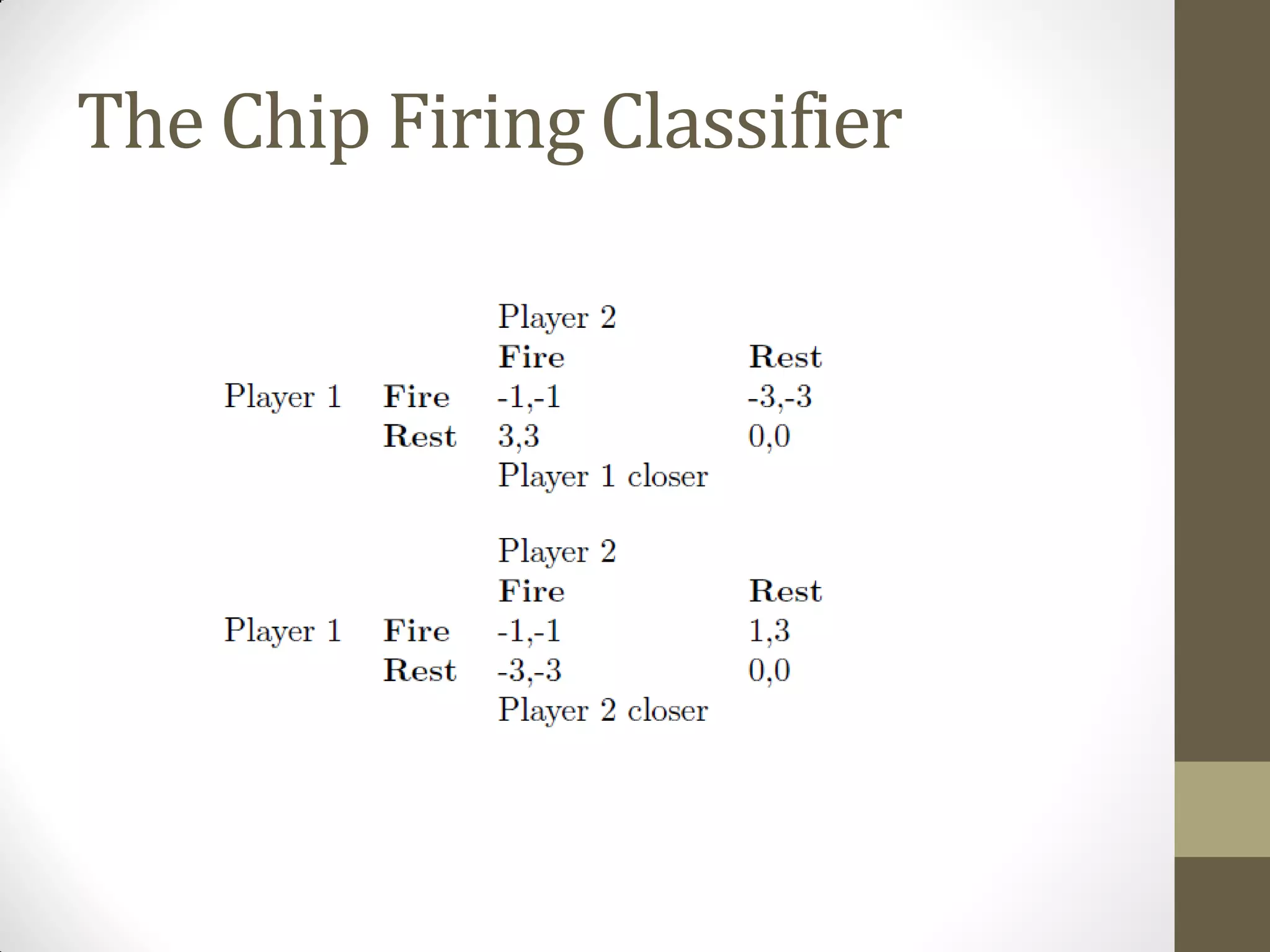

A sample game is shown in the next slide.

11. The Chip Firing Classifier

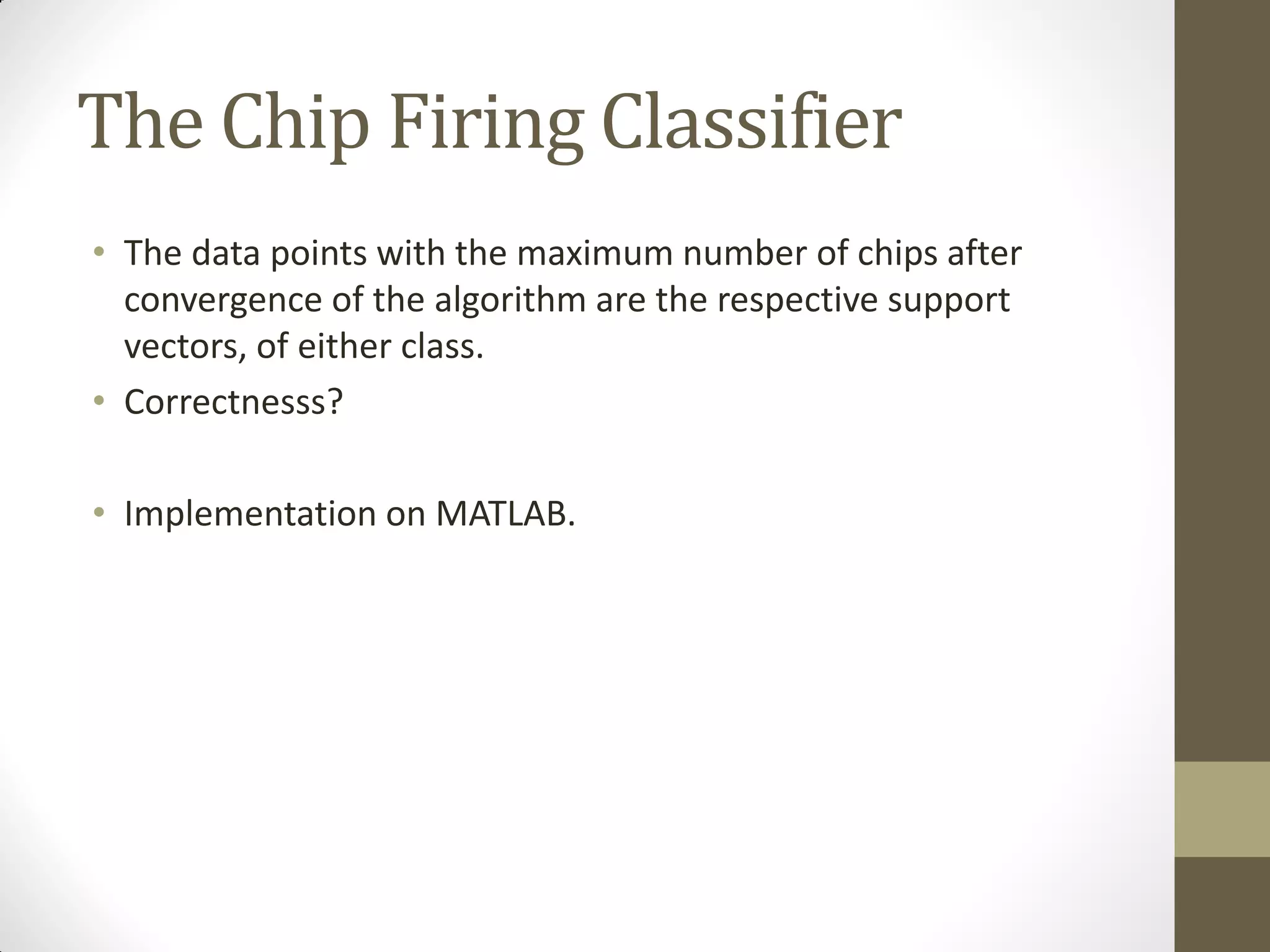

12. The Chip Firing Classifier
• The data points with the maximum number of chips after
convergence of the algorithm are the respective support
vectors, of either class.
• Correctnesss?
• Implementation on MATLAB.

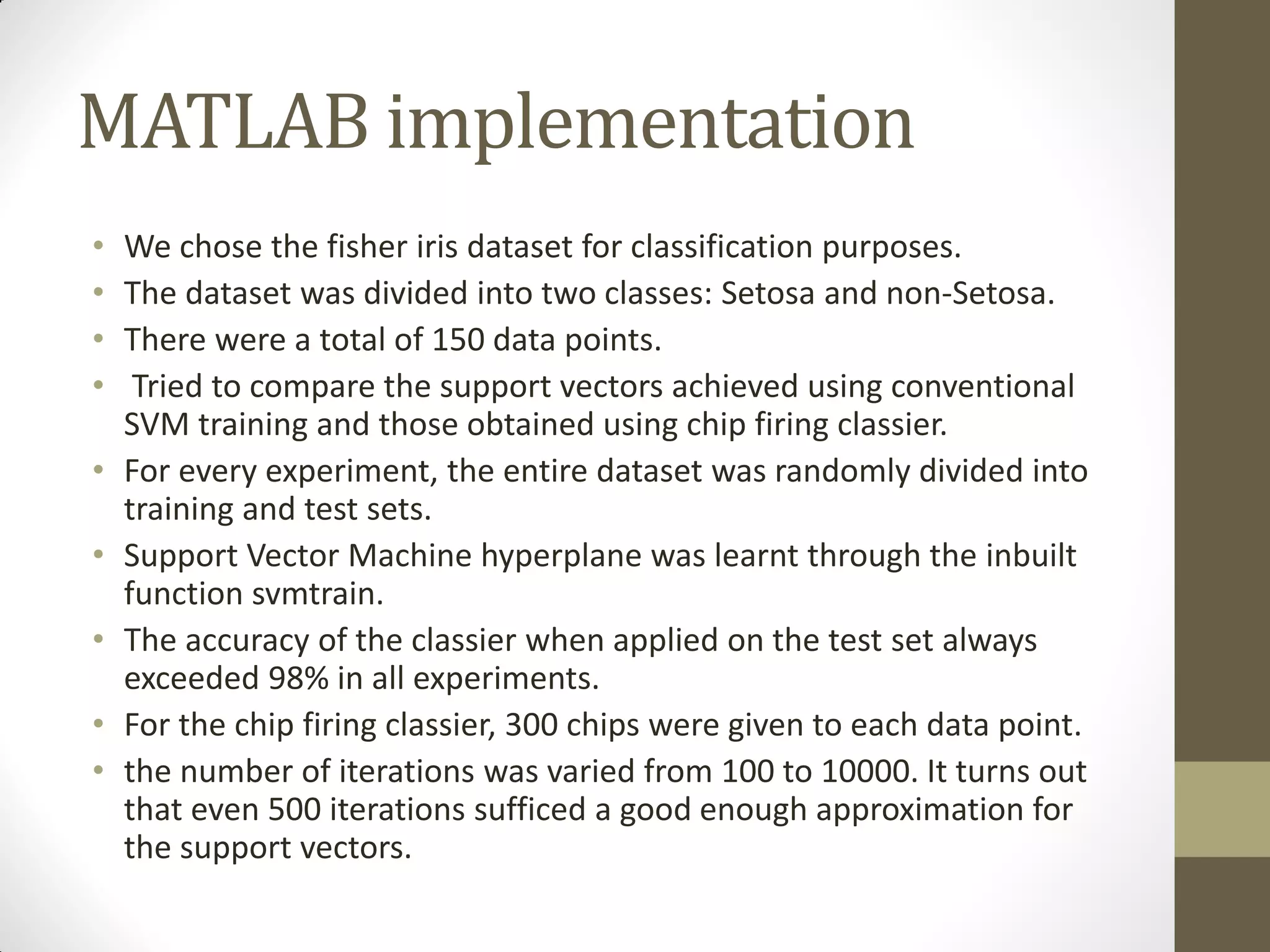

13. MATLAB implementation
• We chose the fisher iris dataset for classification purposes.
• The dataset was divided into two classes: Setosa and non-Setosa.
• There were a total of 150 data points.
• Tried to compare the support vectors achieved using conventional
SVM training and those obtained using chip firing classier.
• For every experiment, the entire dataset was randomly divided into
training and test sets.
• Support Vector Machine hyperplane was learnt through the inbuilt
function svmtrain.
• The accuracy of the classier when applied on the test set always
exceeded 98% in all experiments.
• For the chip firing classier, 300 chips were given to each data point.
• the number of iterations was varied from 100 to 10000. It turns out
that even 500 iterations sufficed a good enough approximation for
the support vectors.

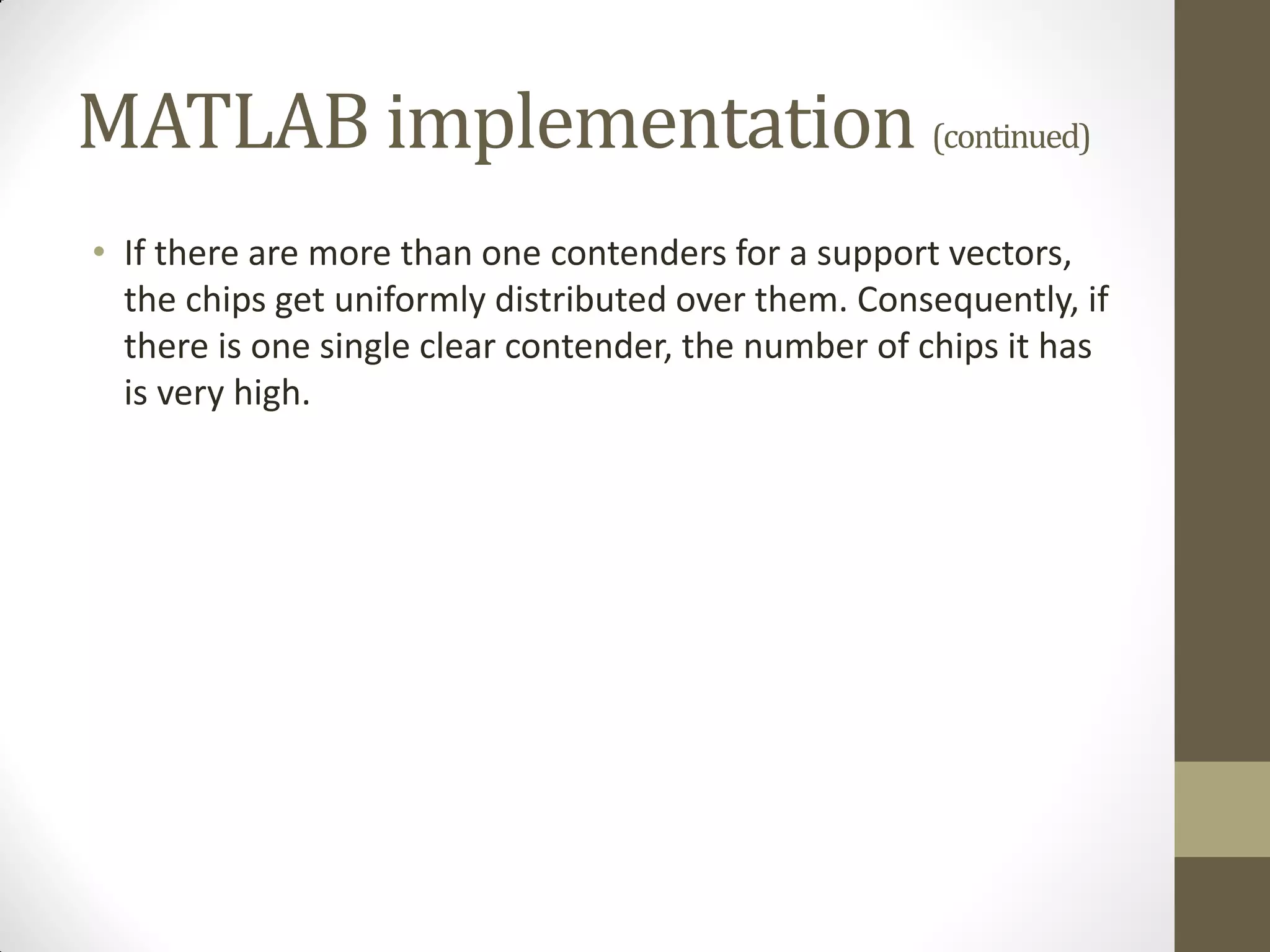

14. MATLAB implementation (continued)
• If there are more than one contenders for a support vectors,
the chips get uniformly distributed over them. Consequently, if
there is one single clear contender, the number of chips it has
is very high.

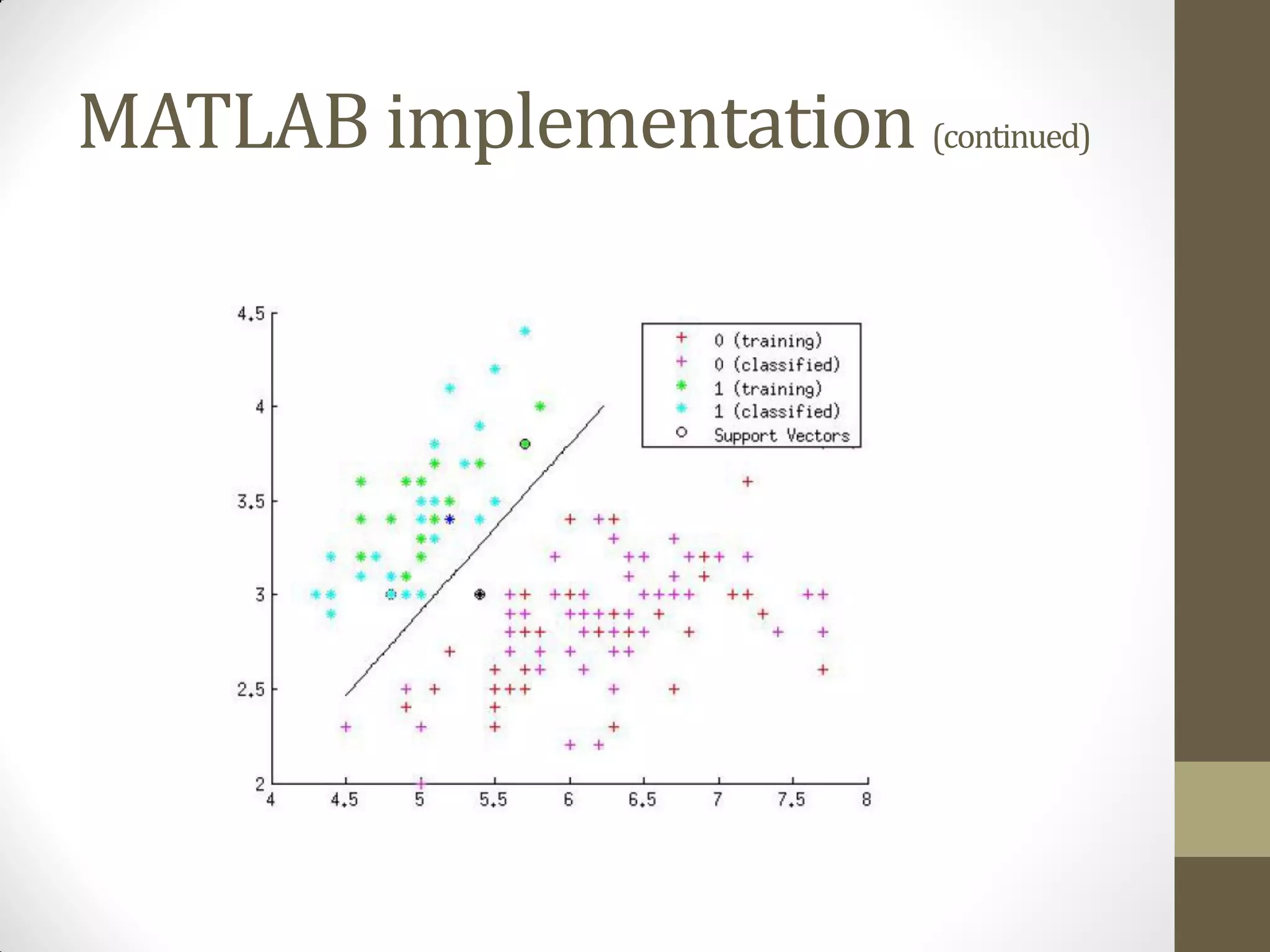

15. MATLAB implementation (continued)

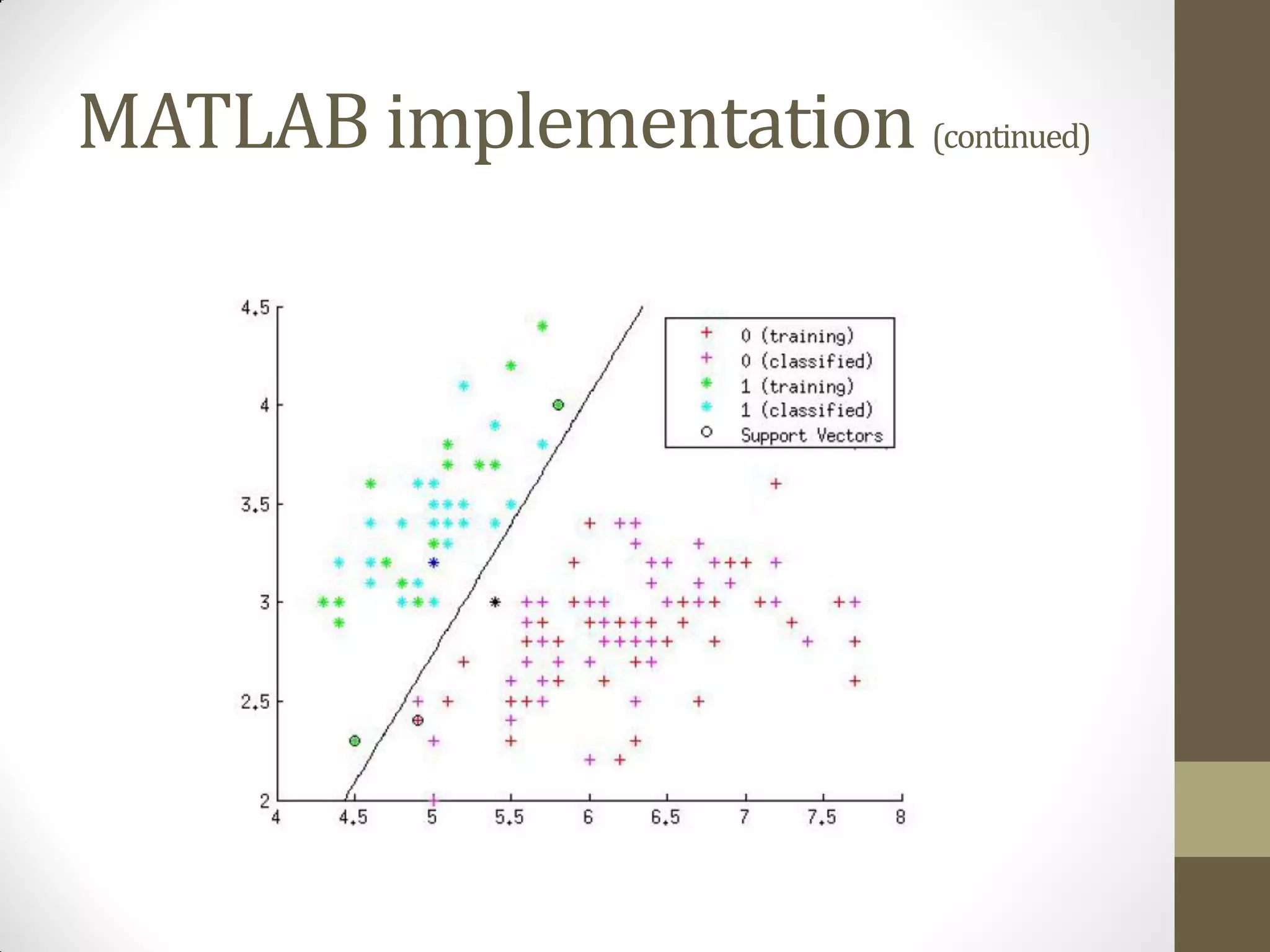

16. MATLAB implementation (continued)

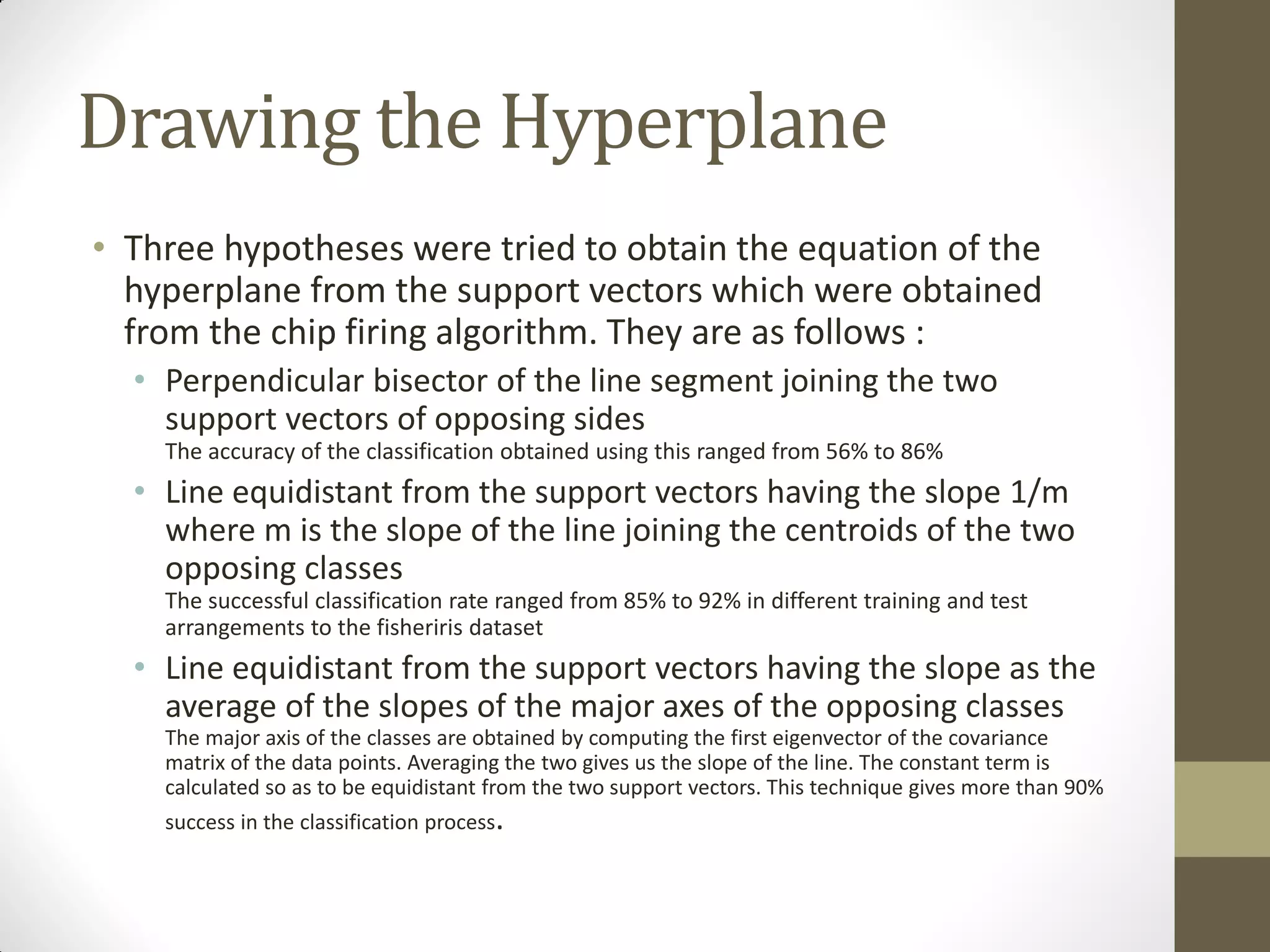

17. Drawing the Hyperplane
• Three hypotheses were tried to obtain the equation of the
hyperplane from the support vectors which were obtained
from the chip firing algorithm. They are as follows :
• Perpendicular bisector of the line segment joining the two
support vectors of opposing sides
The accuracy of the classification obtained using this ranged from 56% to 86%
• Line equidistant from the support vectors having the slope 1/m
where m is the slope of the line joining the centroids of the two
opposing classes
The successful classification rate ranged from 85% to 92% in different training and test
arrangements to the fisheriris dataset
• Line equidistant from the support vectors having the slope as the
average of the slopes of the major axes of the opposing classes
The major axis of the classes are obtained by computing the first eigenvector of the covariance
matrix of the data points. Averaging the two gives us the slope of the line. The constant term is
calculated so as to be equidistant from the two support vectors. This technique gives more than 90%
success in the classification process.

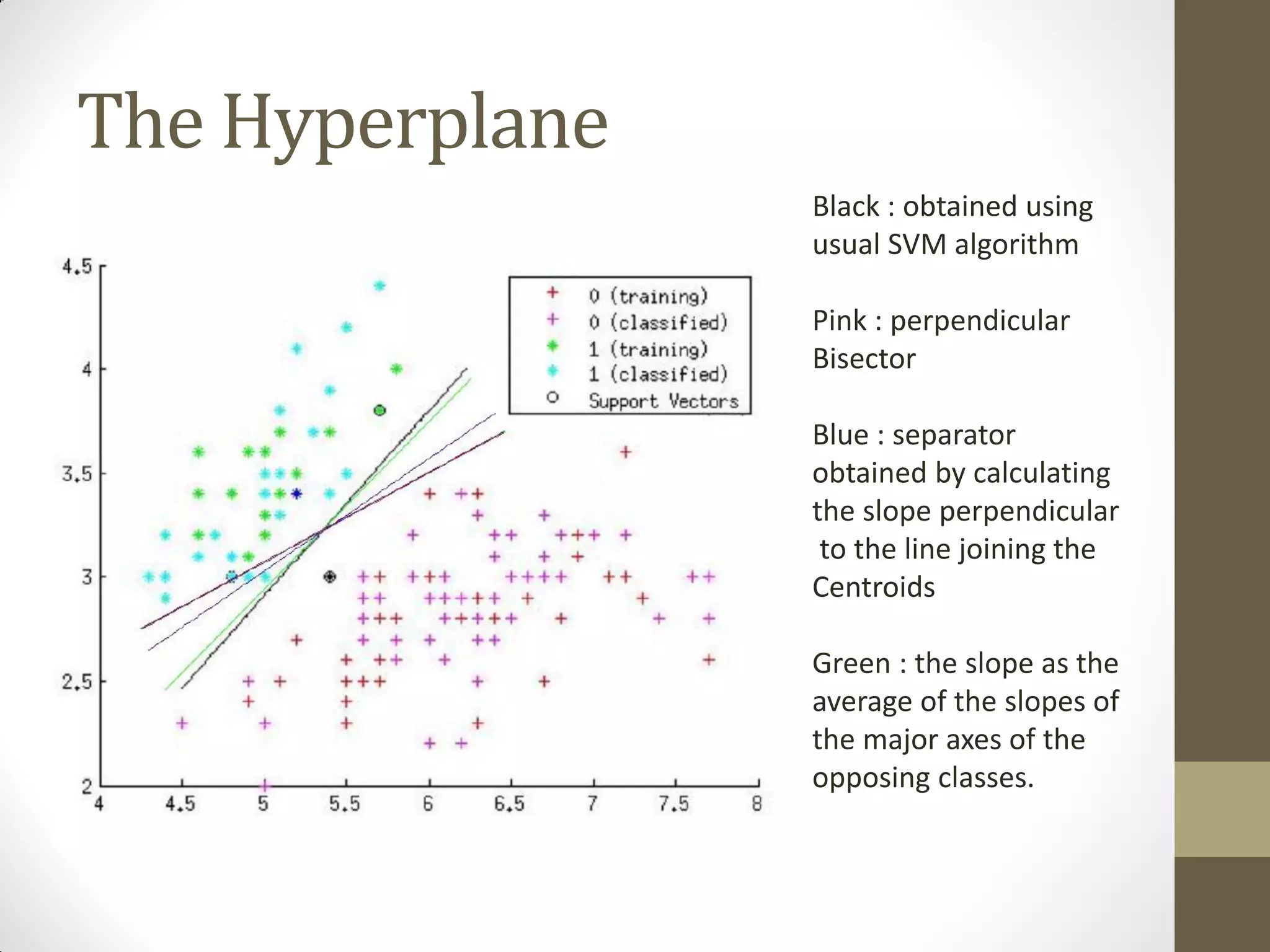

18. The Hyperplane
Black : obtained using
usual SVM algorithm
Pink : perpendicular
Bisector
Blue : separator
obtained by calculating
the slope perpendicular
to the line joining the
Centroids
Green : the slope as the
average of the slopes of
the major axes of the
opposing classes.

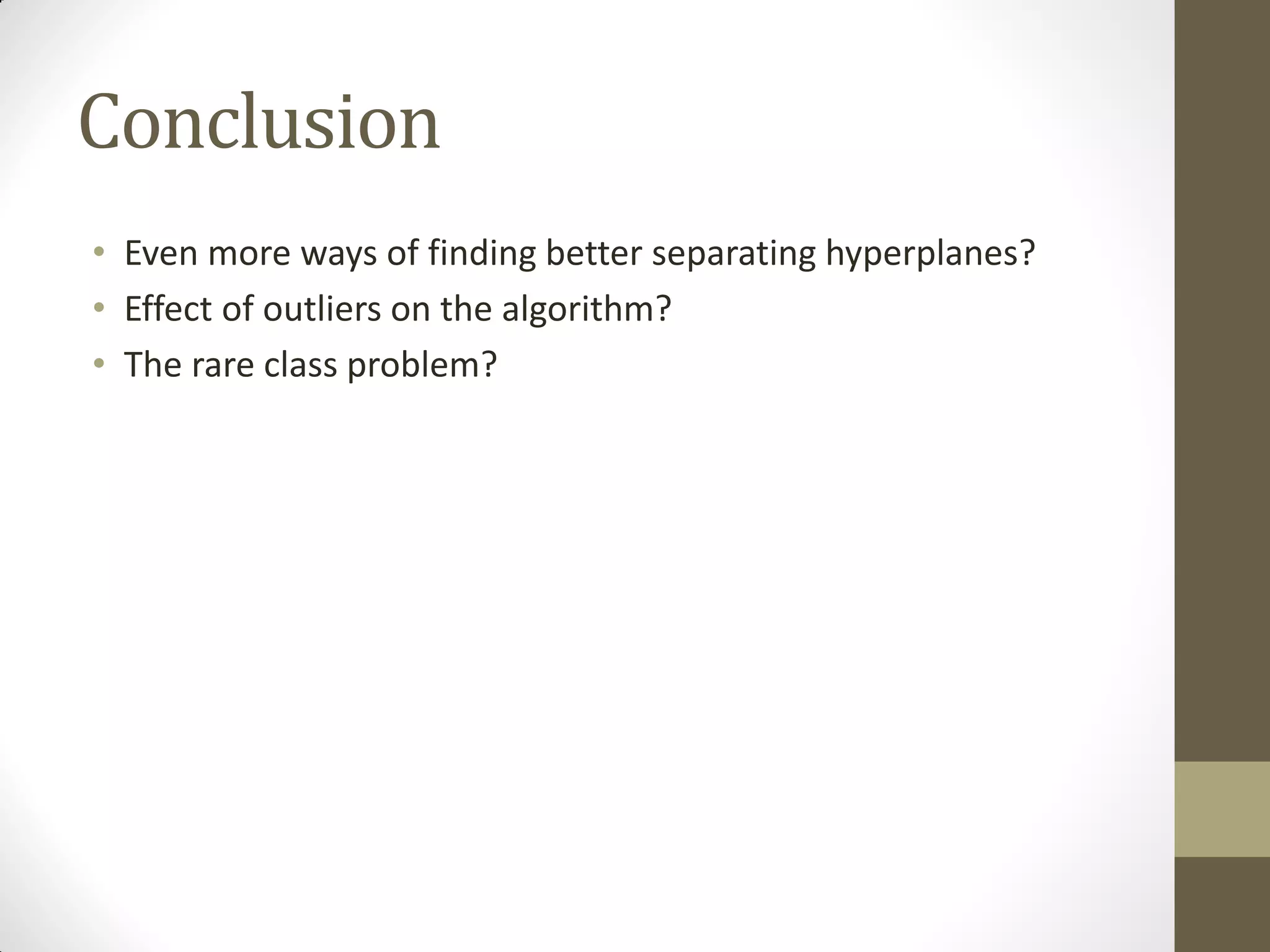

19. Conclusion
• Even more ways of finding better separating hyperplanes?
• Effect of outliers on the algorithm?
• The rare class problem?

20. Thank you
