Structure Question (Structure of atom)

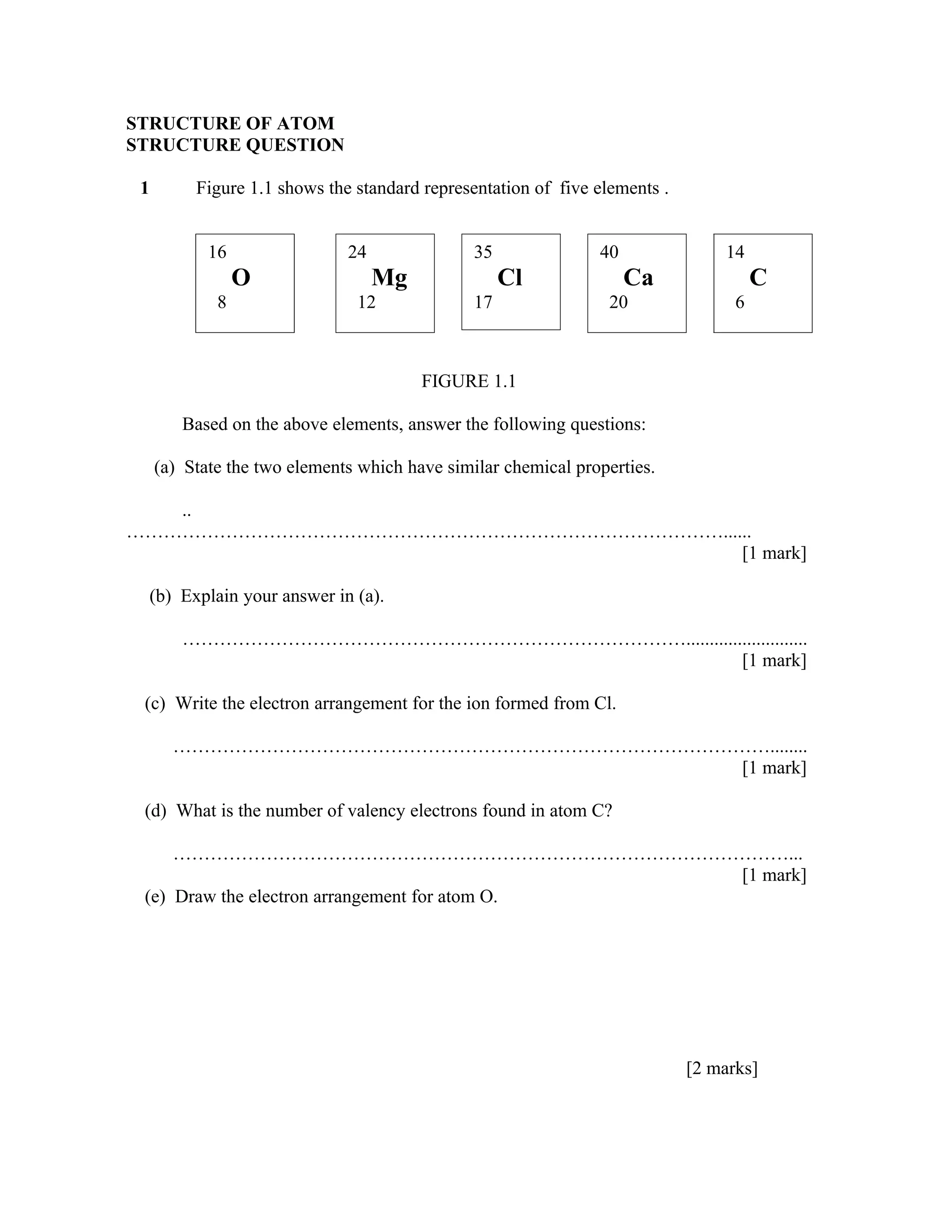

1. STRUCTURE OF ATOM
STRUCTURE QUESTION
1 Figure 1.1 shows the standard representation of five elements .
16 24 35 40 14
O Mg Cl Ca C
8 12 17 20 6
FIGURE 1.1
Based on the above elements, answer the following questions:
(a) State the two elements which have similar chemical properties.
..
……………………………………………………………………………………......
[1 mark]
(b) Explain your answer in (a).
………………………………………………………………………..........................
[1 mark]
(c) Write the electron arrangement for the ion formed from Cl.
……………………………………………………………………………………........
[1 mark]
(d) What is the number of valency electrons found in atom C?
………………………………………………………………………………………...
[1 mark]
(e) Draw the electron arrangement for atom O.
[2 marks]

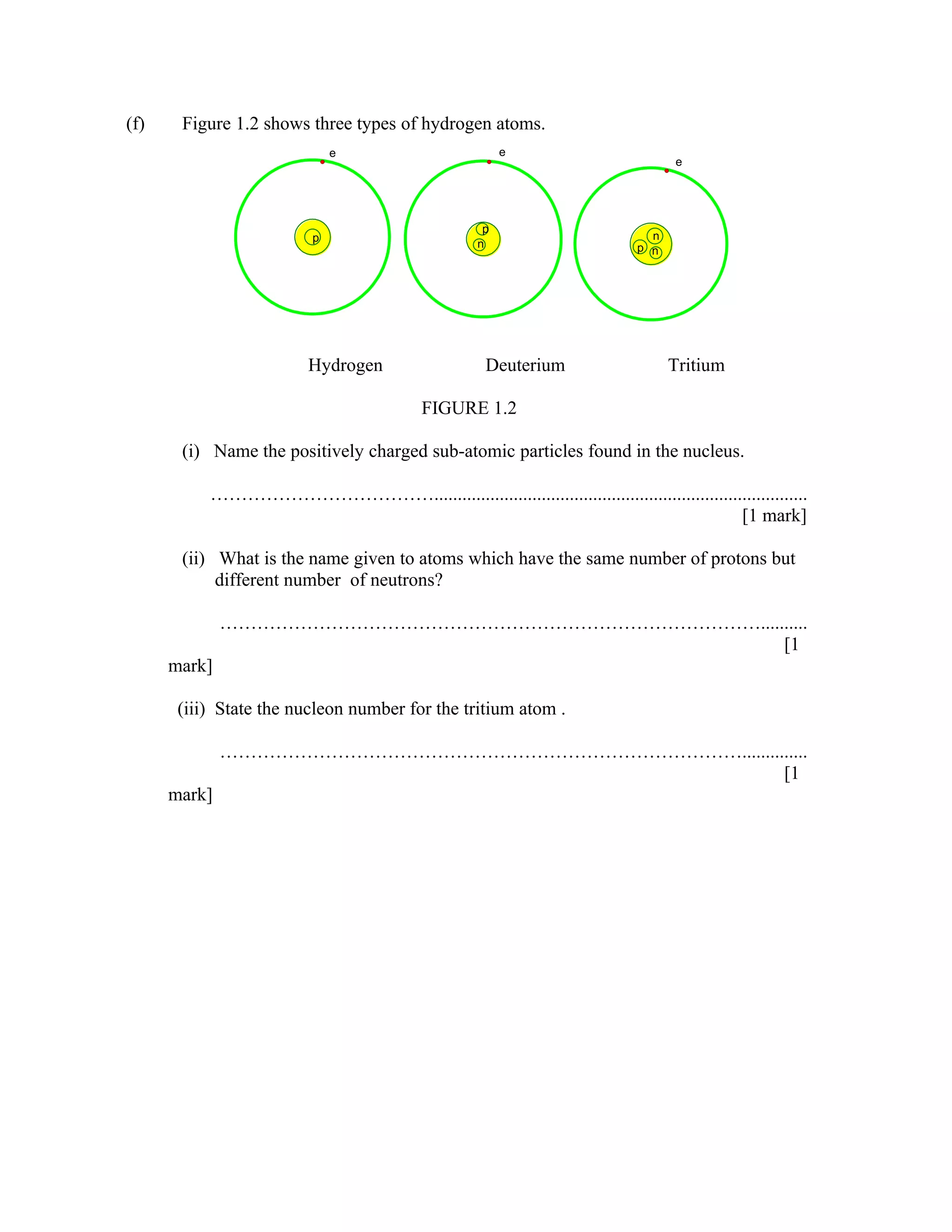

2. (f) Figure 1.2 shows three types of hydrogen atoms.
F
e e
e
p
p n
n p n
Hydrogen Deuterium Tritium
FIGURE 1.2
(i) Name the positively charged sub-atomic particles found in the nucleus.
………………………………................................................................................
[1 mark]
(ii) What is the name given to atoms which have the same number of protons but
different number of neutrons?
……………………………………………………………………………..........
[1
mark]
(iii) State the nucleon number for the tritium atom .
…………………………………………………………………………..............
[1
mark]

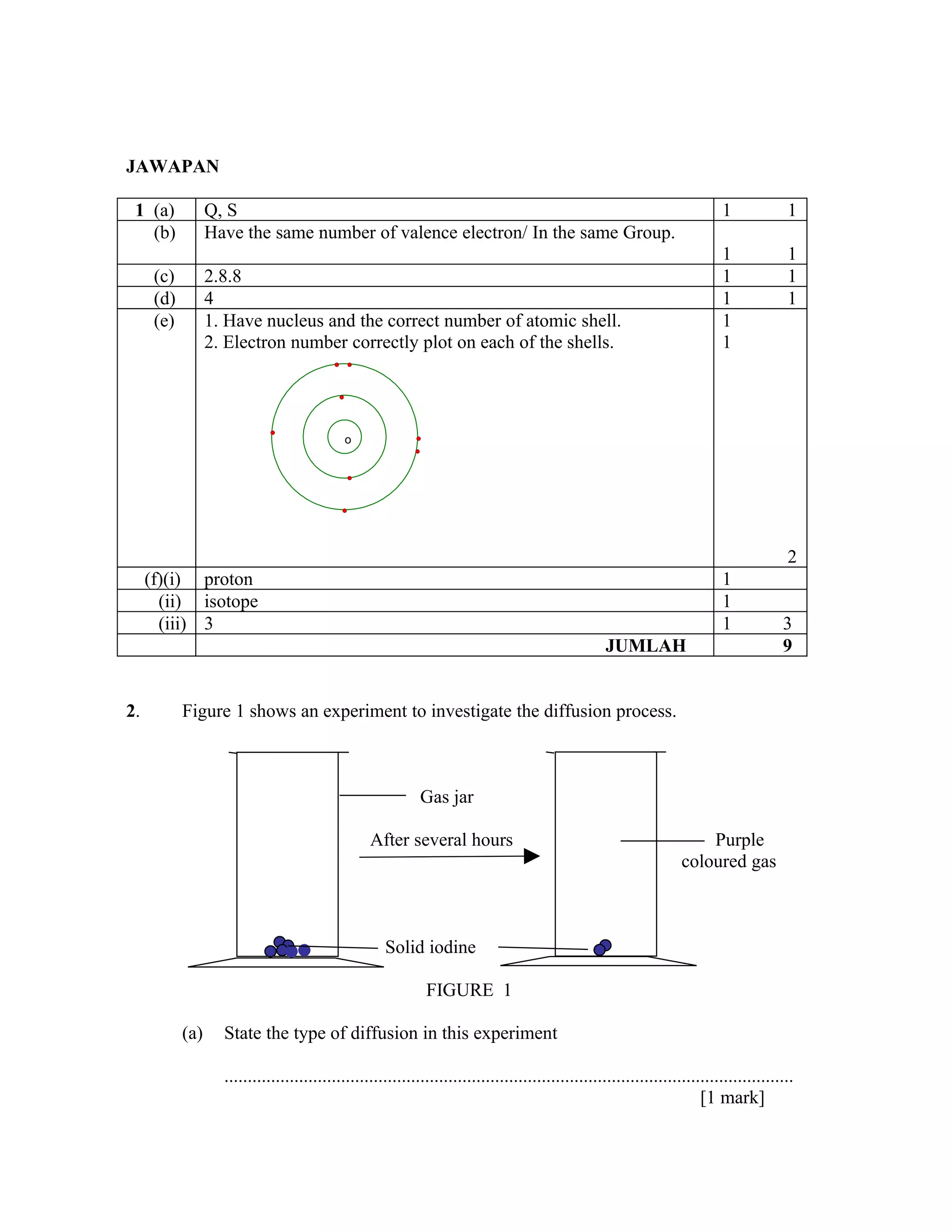

3. JAWAPAN
1 (a) Q, S 1 1
(b) Have the same number of valence electron/ In the same Group.
1 1
(c) 2.8.8 1 1
(d) 4 1 1
(e) 1. Have nucleus and the correct number of atomic shell. 1
2. Electron number correctly plot on each of the shells. 1
o
2
(f)(i) proton 1
(ii) isotope 1
(iii) 3 1 3
JUMLAH 9
2. Figure 1 shows an experiment to investigate the diffusion process.
Gas jar
After several hours Purple
coloured gas
Solid iodine
FIGURE 1
(a) State the type of diffusion in this experiment
..........................................................................................................................
[1 mark]

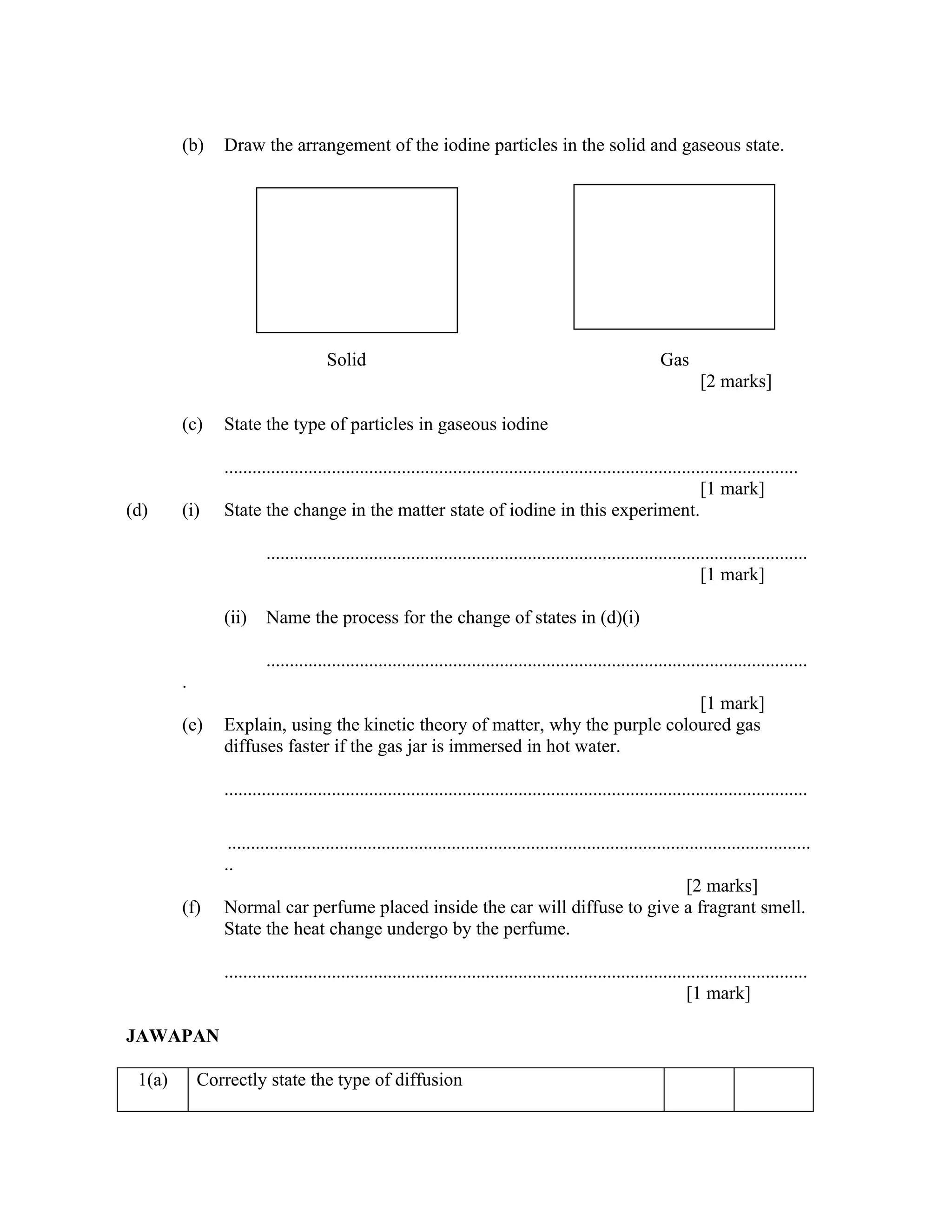

4. (b) Draw the arrangement of the iodine particles in the solid and gaseous state.
Solid Gas
[2 marks]
(c) State the type of particles in gaseous iodine
...........................................................................................................................
[1 mark]
(d) (i) State the change in the matter state of iodine in this experiment.
....................................................................................................................
[1 mark]
(ii) Name the process for the change of states in (d)(i)
....................................................................................................................
.
[1 mark]
(e) Explain, using the kinetic theory of matter, why the purple coloured gas
diffuses faster if the gas jar is immersed in hot water.
.............................................................................................................................
.............................................................................................................................
..
[2 marks]
(f) Normal car perfume placed inside the car will diffuse to give a fragrant smell.
State the heat change undergo by the perfume.
.............................................................................................................................
[1 mark]
JAWAPAN
1(a) Correctly state the type of diffusion

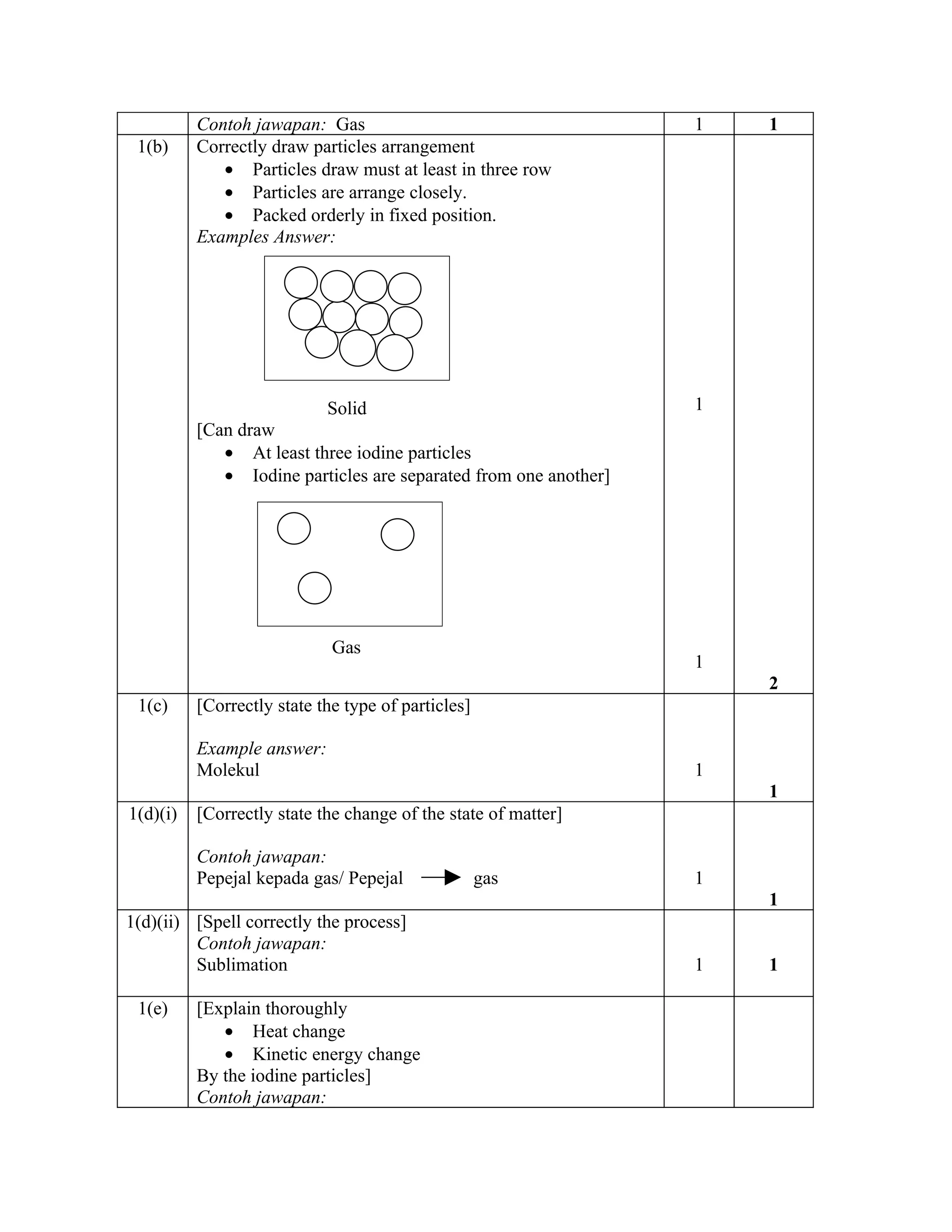

5. Contoh jawapan: Gas 1 1
1(b) Correctly draw particles arrangement
• Particles draw must at least in three row
• Particles are arrange closely.
• Packed orderly in fixed position.
Examples Answer:
Solid 1
[Can draw
• At least three iodine particles
• Iodine particles are separated from one another]
Gas
1
2
1(c) [Correctly state the type of particles]
Example answer:
Molekul 1
1
1(d)(i) [Correctly state the change of the state of matter]
Contoh jawapan:
Pepejal kepada gas/ Pepejal gas 1
1
1(d)(ii) [Spell correctly the process]
Contoh jawapan:
Sublimation 1 1
1(e) [Explain thoroughly
• Heat change
• Kinetic energy change
By the iodine particles]
Contoh jawapan:

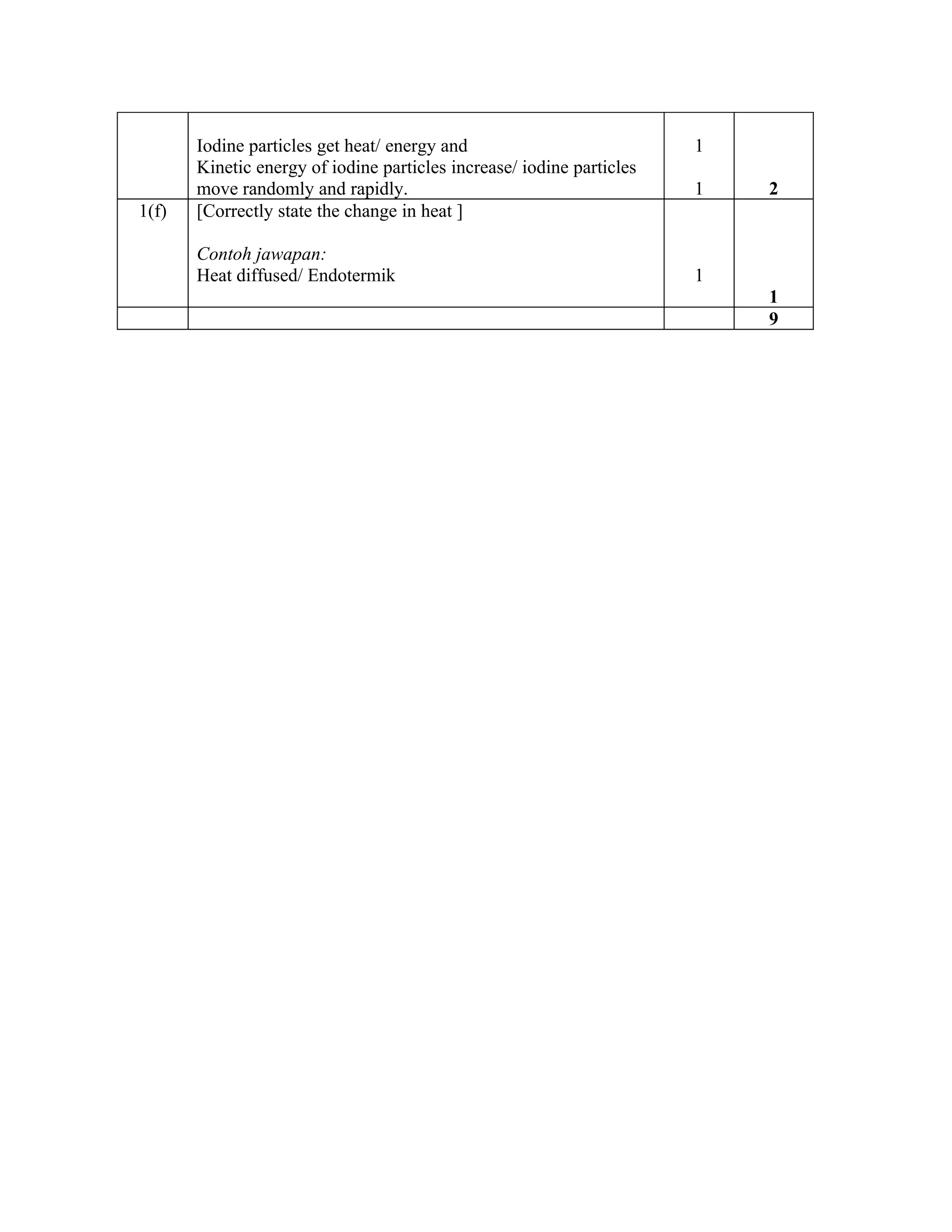

6. Iodine particles get heat/ energy and 1
Kinetic energy of iodine particles increase/ iodine particles
move randomly and rapidly. 1 2
1(f) [Correctly state the change in heat ]
Contoh jawapan:
Heat diffused/ Endotermik 1
1
9
