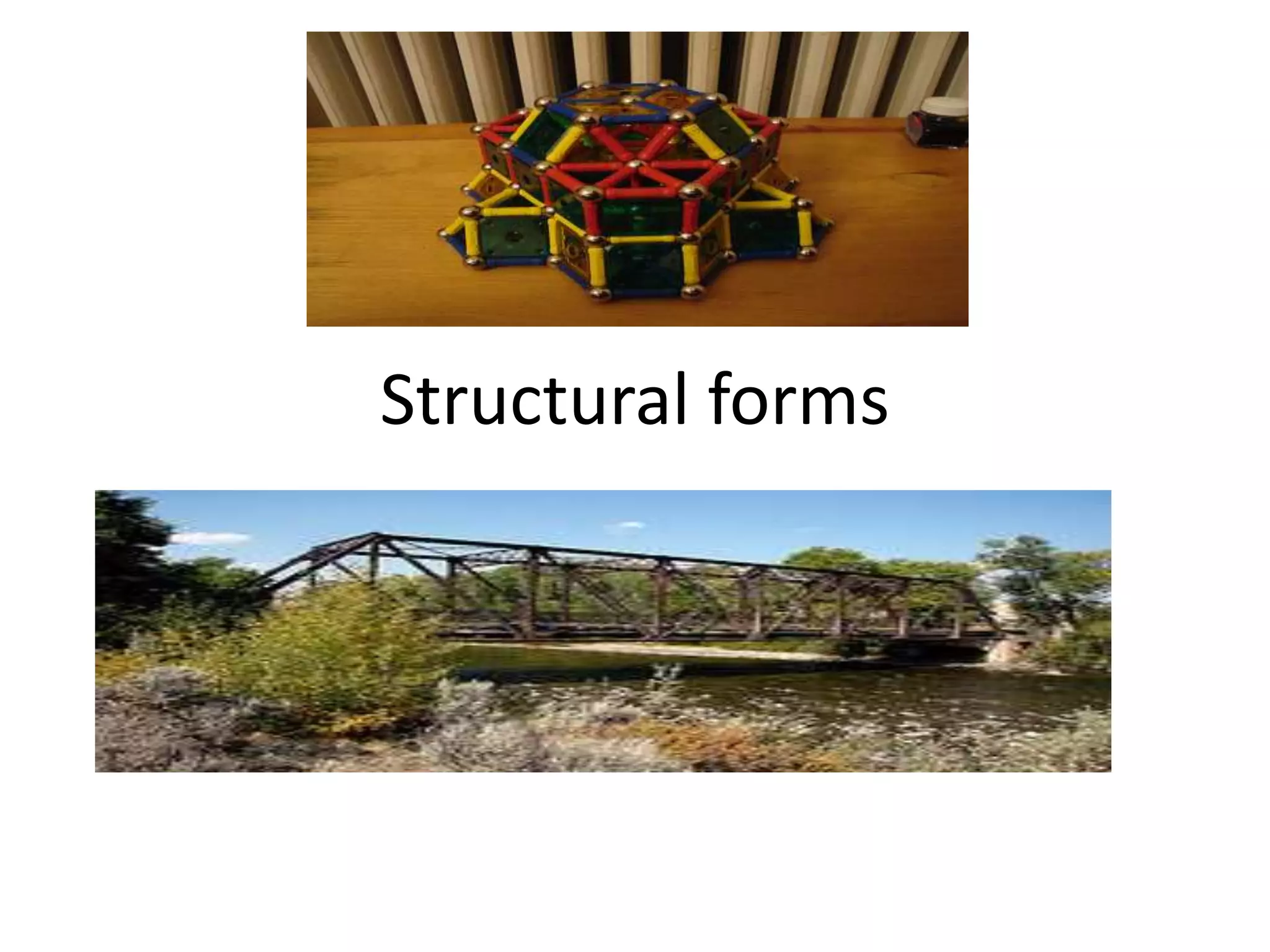

Structural forms

Solid structure

Is formed from a solid piece of some strong
material .
Concrete brick or a hockey puck
A solid structure has little or no space in it.

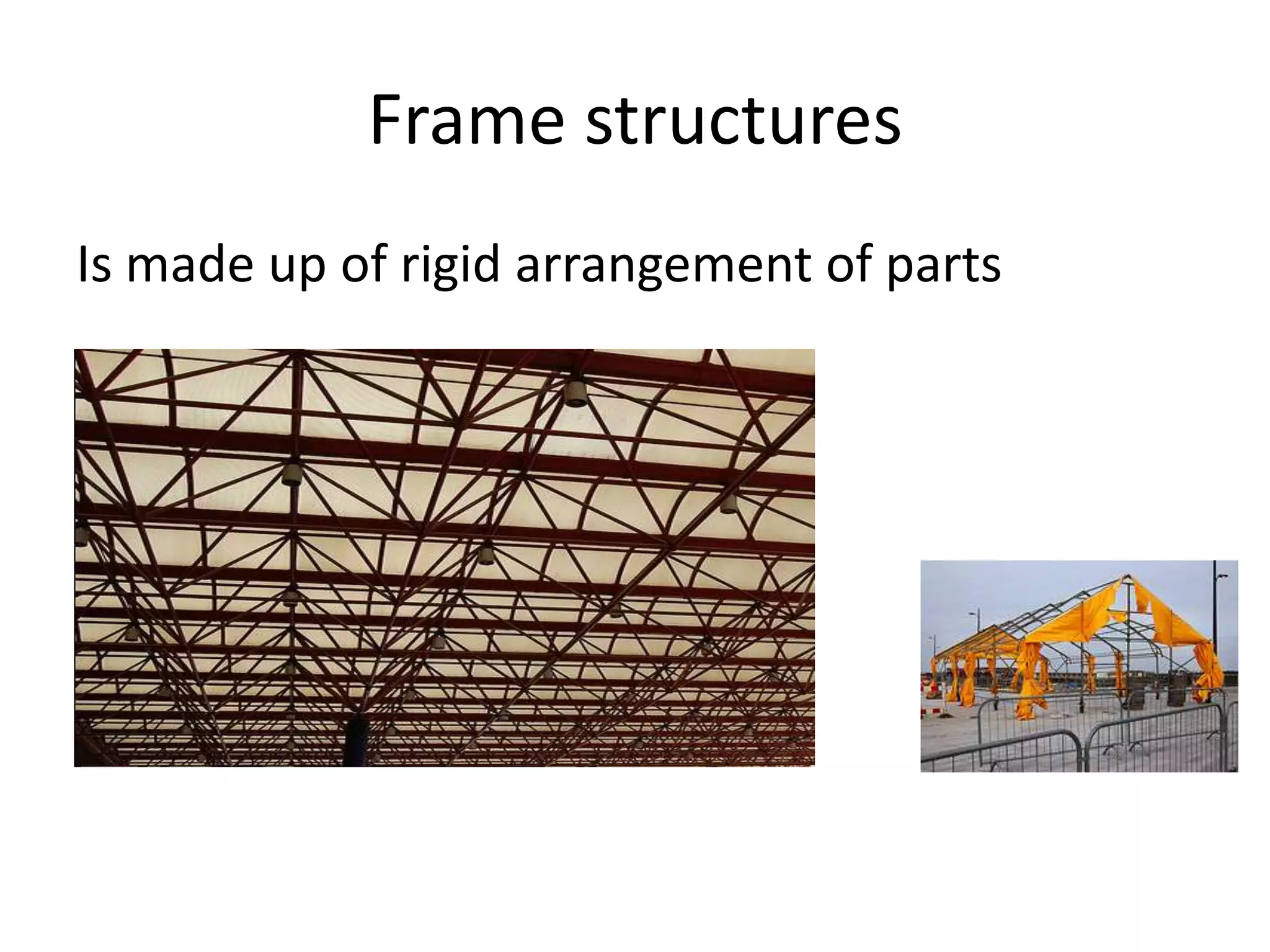

Frame structures
Is made up of rigid arrangement of parts

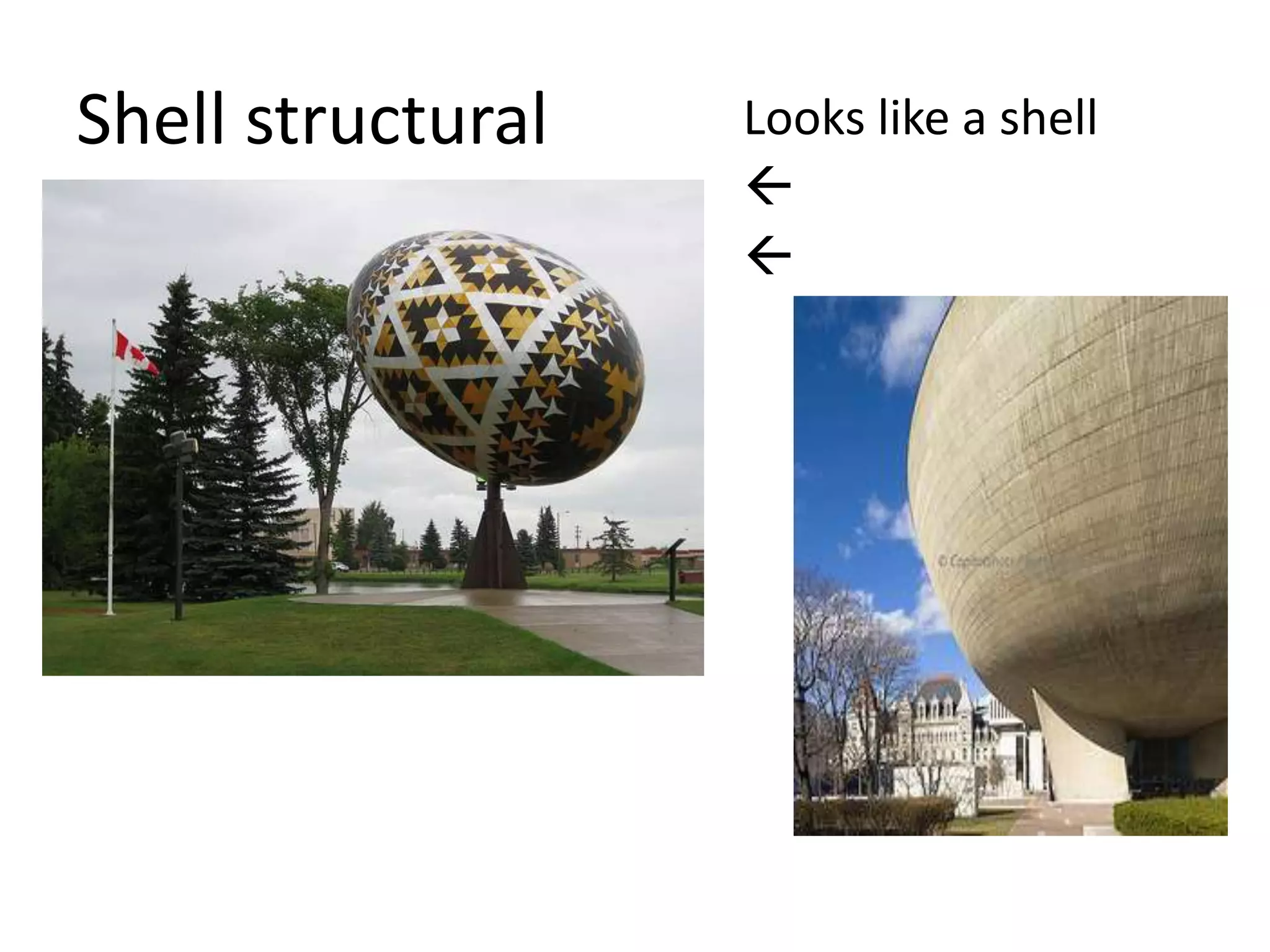

Shell structural Looks like a shell



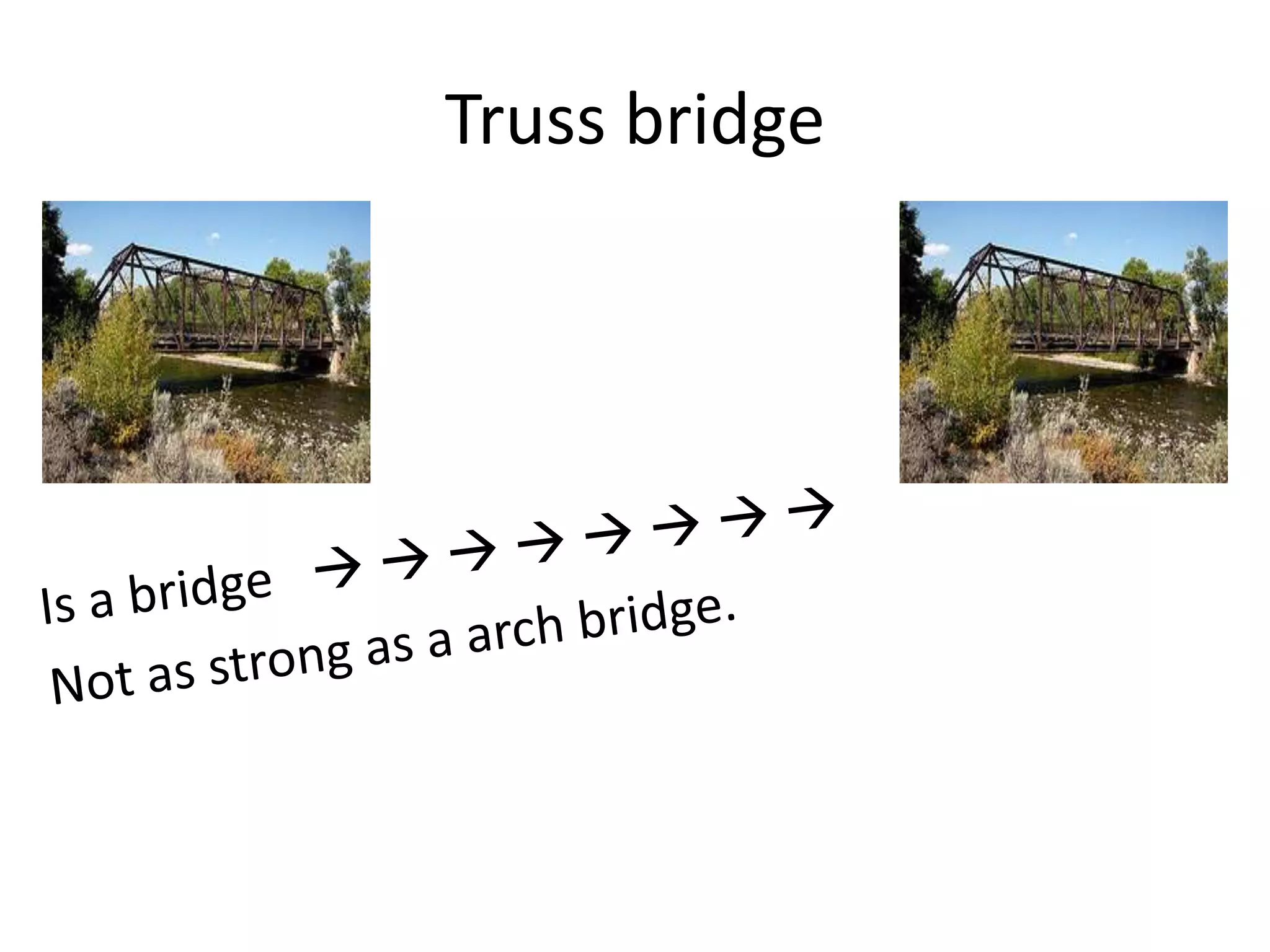

Truss bridge
