1. Static Code Analysis for Projects,
Built on Unreal Engine
Ilya Gainulin
PVS-Studio
gainulin@viva64.com

2. I Am Looking for Errors in Your Code
2

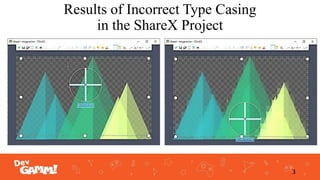

3. Results of Incorrect Type Casing
in the ShareX Project
3

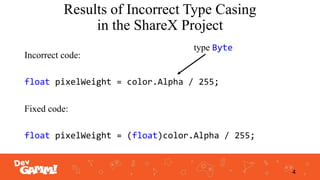

4. Results of Incorrect Type Casing
in the ShareX Project
Incorrect code:
float pixelWeight = color.Alpha / 255;
Fixed code:
float pixelWeight = (float)color.Alpha / 255;
4
type Byte

5. Collaboration with Epic Games
5

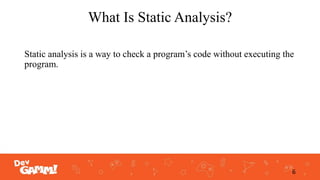

6. What Is Static Analysis?
Static analysis is a way to check a program’s code without executing the
program.
6

7. Why Do You Need Static Analysis?
• Detect errors early in the program development process.
• Get recommendations on code formatting.
• Check your spelling.
• Calculate various software metrics
7

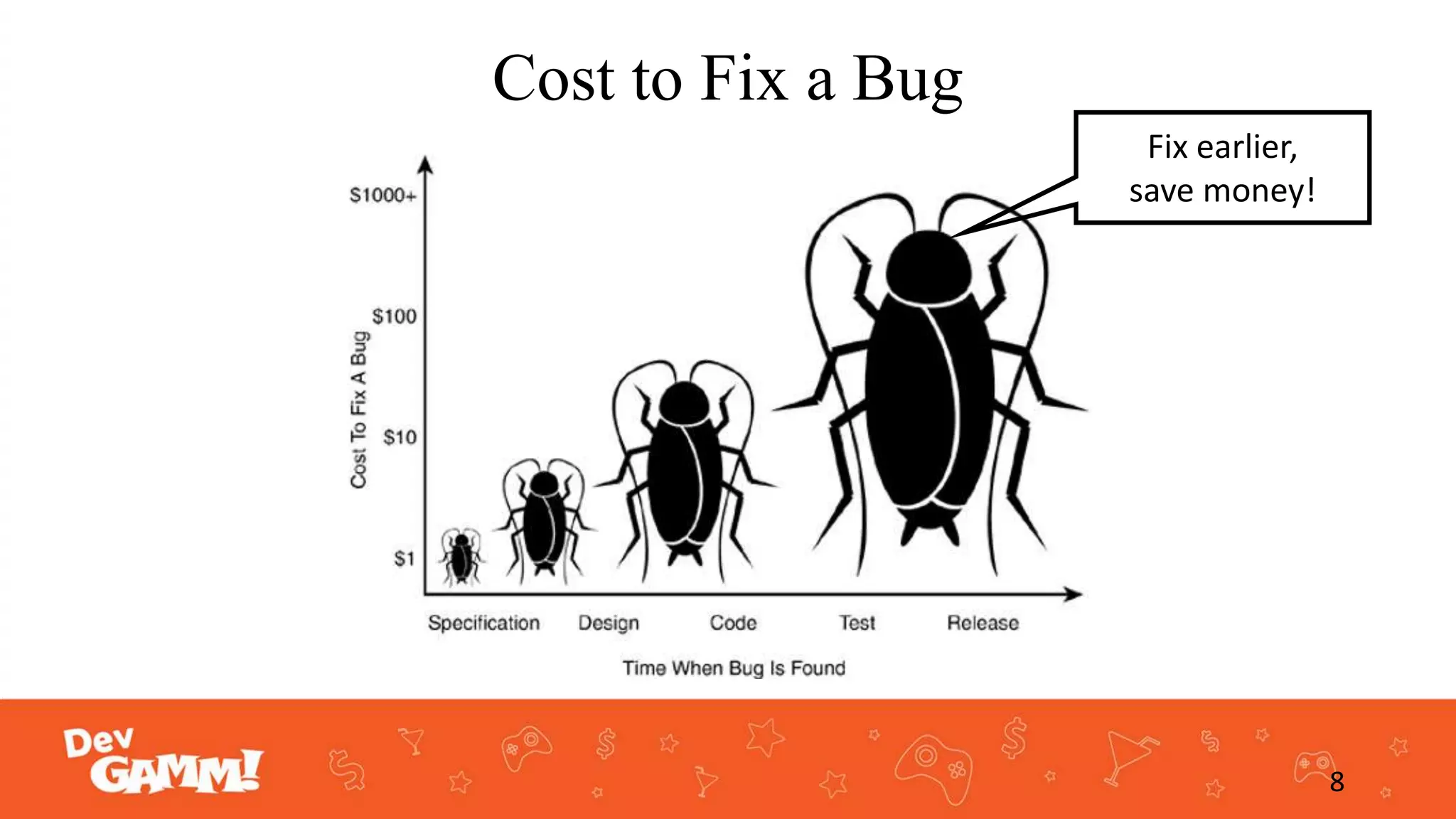

8. Cost to Fix a Bug
Fix earlier,
save money!
8

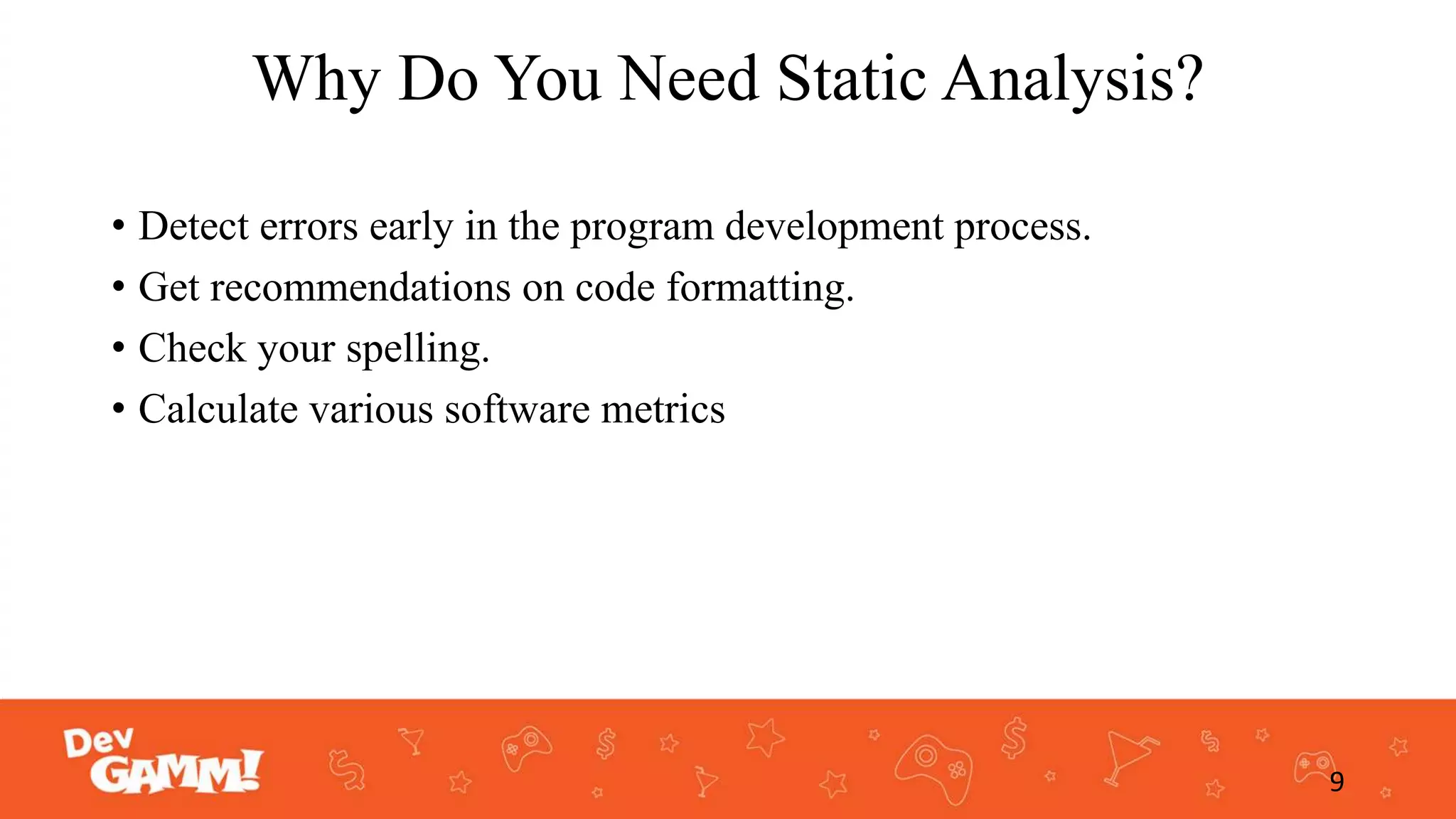

9. Why Do You Need Static Analysis?
• Detect errors early in the program development process.
• Get recommendations on code formatting.
• Check your spelling.
• Calculate various software metrics
9

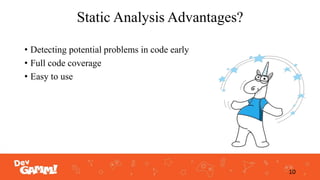

10. Static Analysis Advantages?
• Detecting potential problems in code early
• Full code coverage
• Easy to use
10

11. Static Analysis Advantages
11

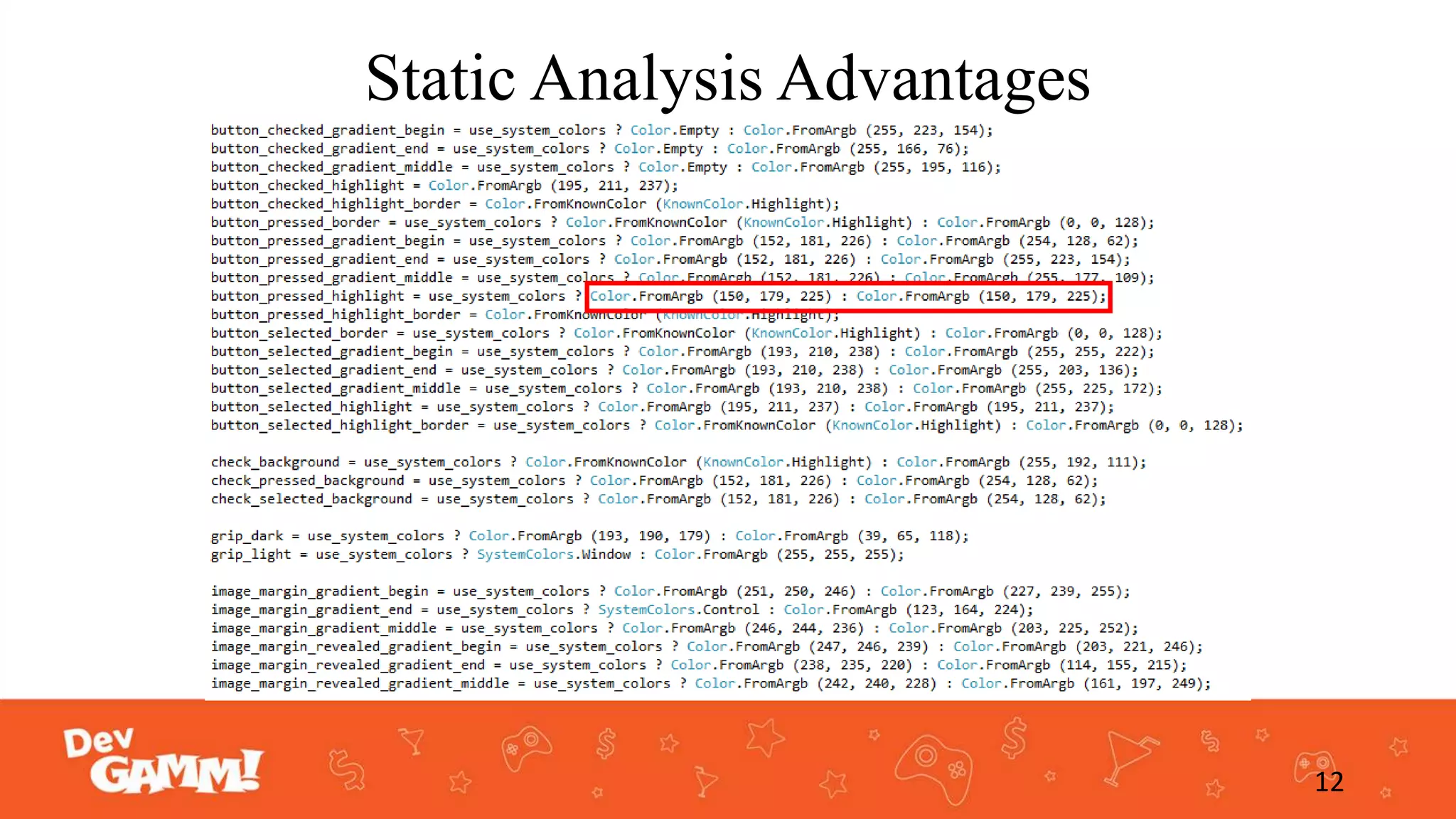

12. Static Analysis Advantages
12

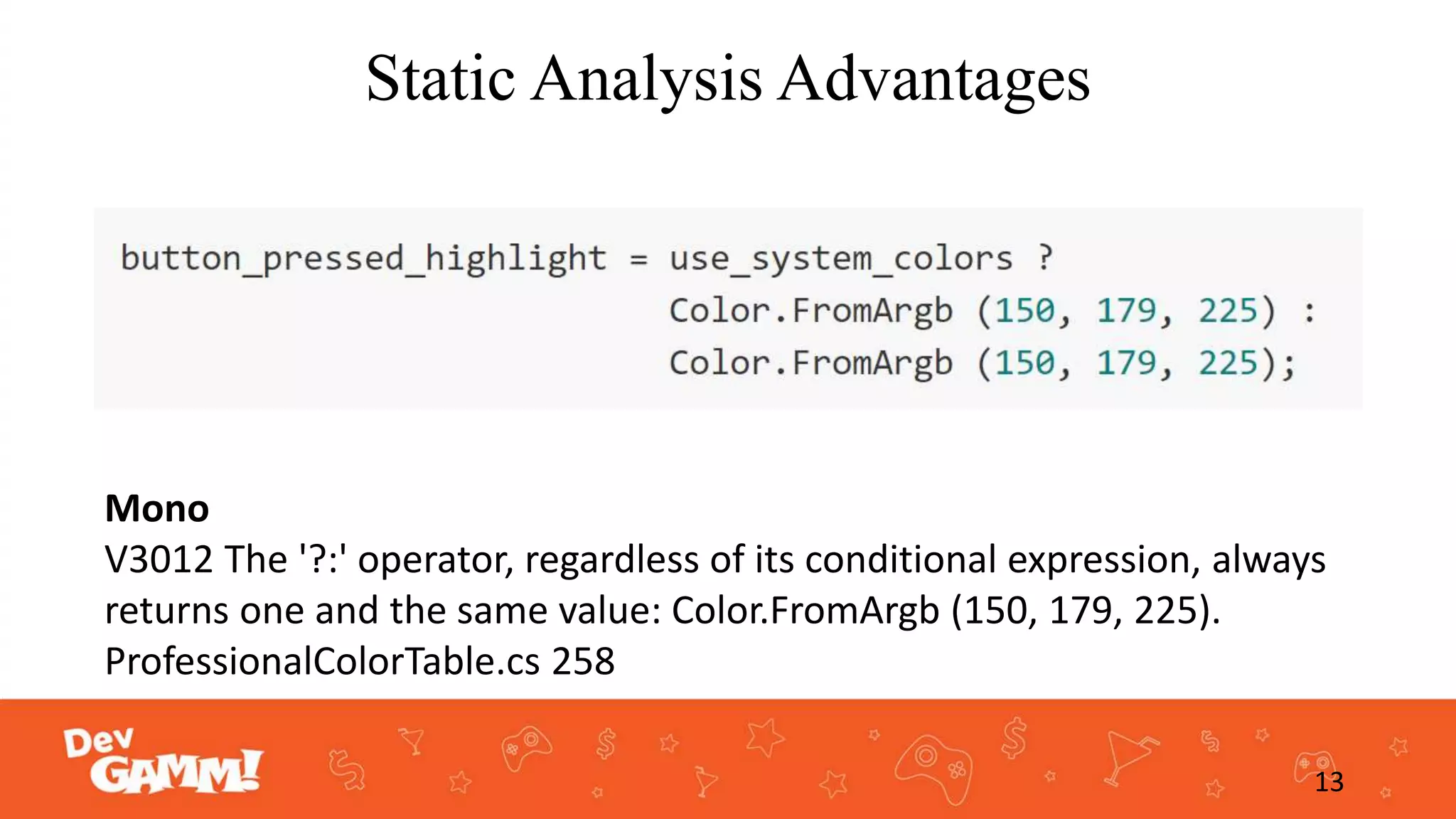

13. Static Analysis Advantages
13
Mono
V3012 The '?:' operator, regardless of its conditional expression, always
returns one and the same value: Color.FromArgb (150, 179, 225).
ProfessionalColorTable.cs 258

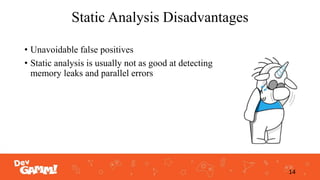

14. Static Analysis Disadvantages
• Unavoidable false positives
• Static analysis is usually not as good at detecting
memory leaks and parallel errors
14

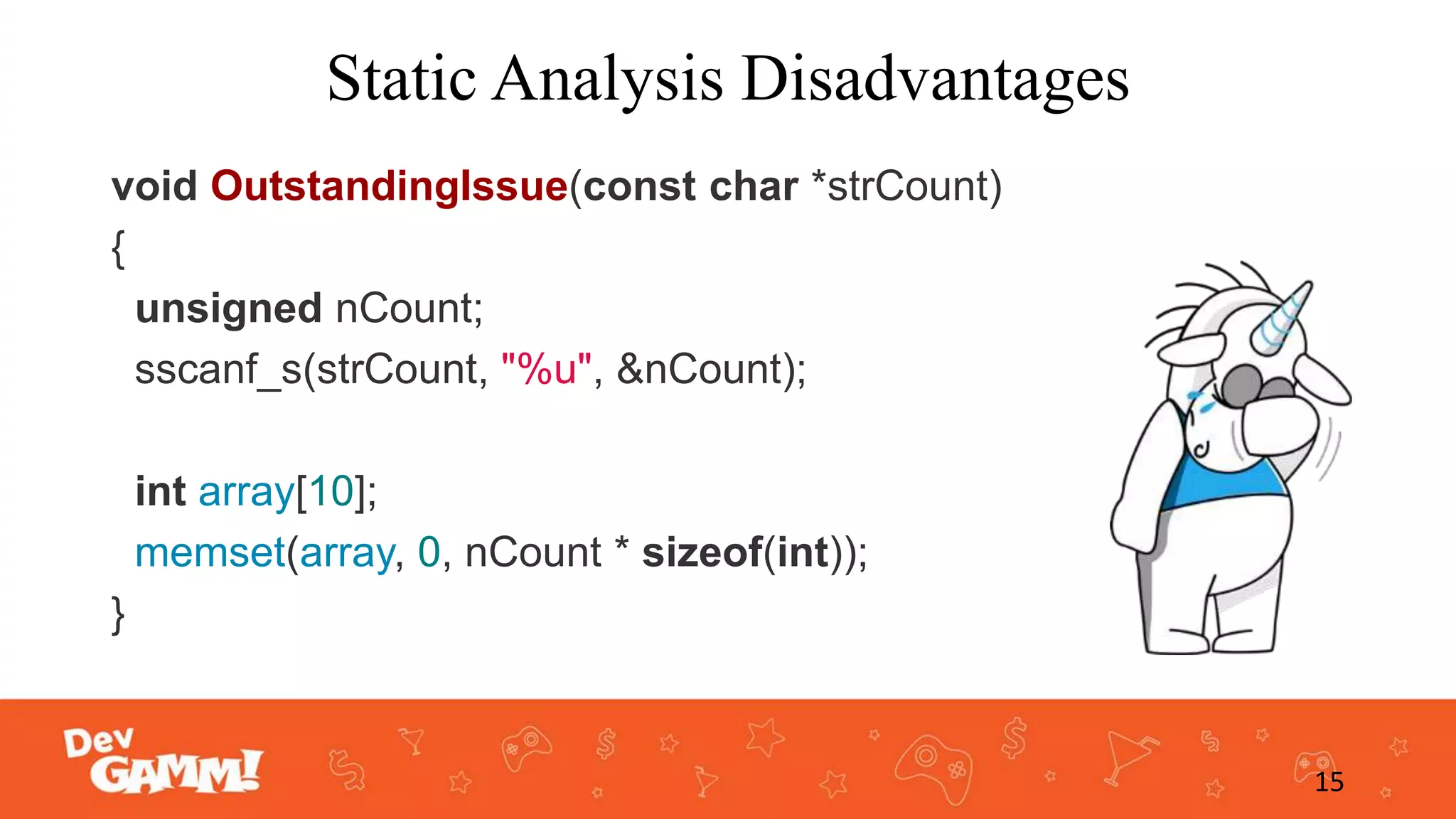

15. Static Analysis Disadvantages
void OutstandingIssue(const char *strCount)
{
unsigned nCount;
sscanf_s(strCount, "%u", &nCount);
int array[10];
memset(array, 0, nCount * sizeof(int));
}
15

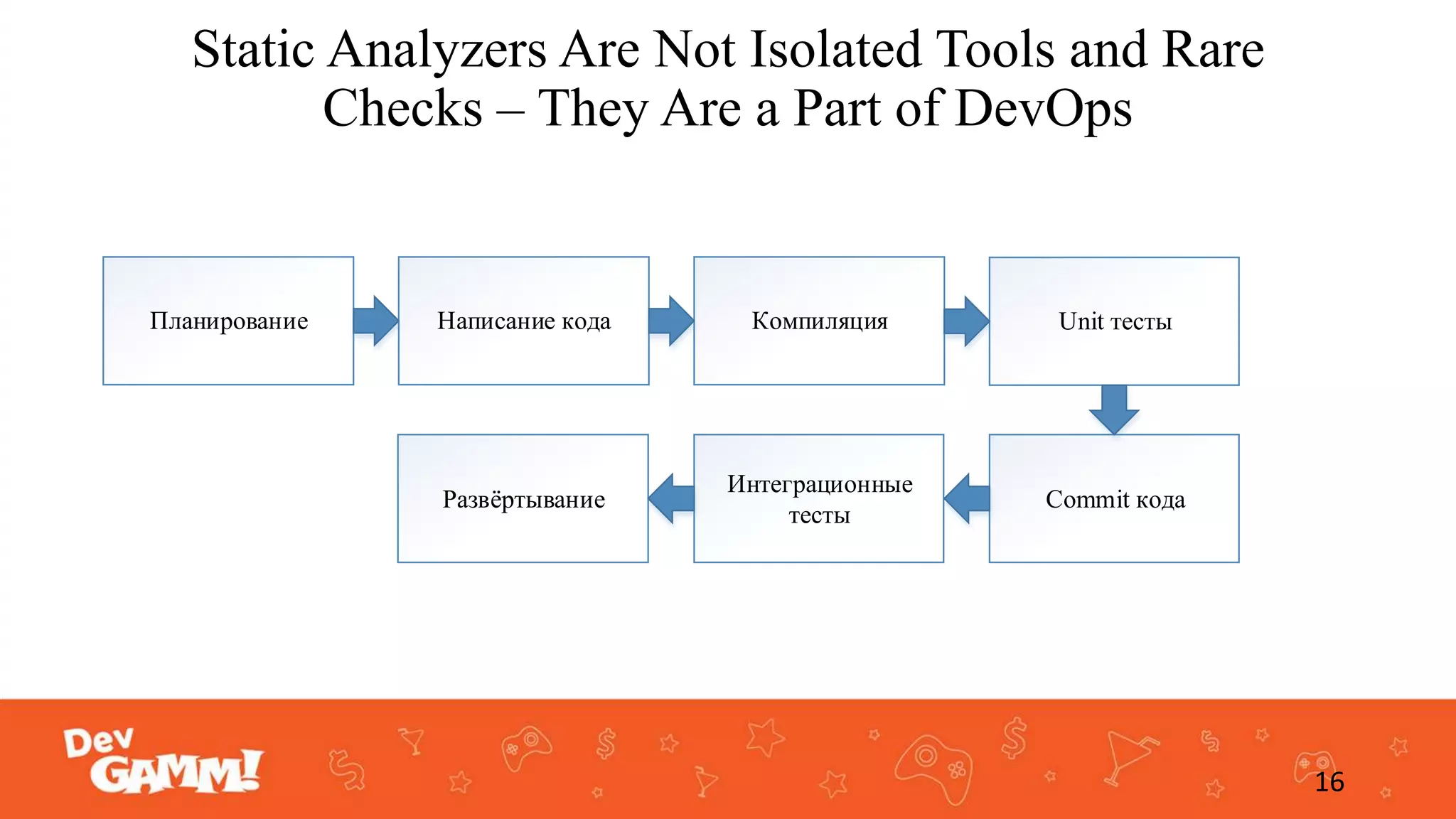

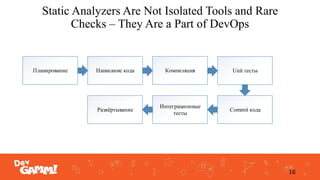

16. Static Analyzers Are Not Isolated Tools and Rare
Checks – They Are a Part of DevOps
16
Написание кода Компиляция Unit тесты
Интеграционные
тесты
Развёртывание
Планирование
Commit кода

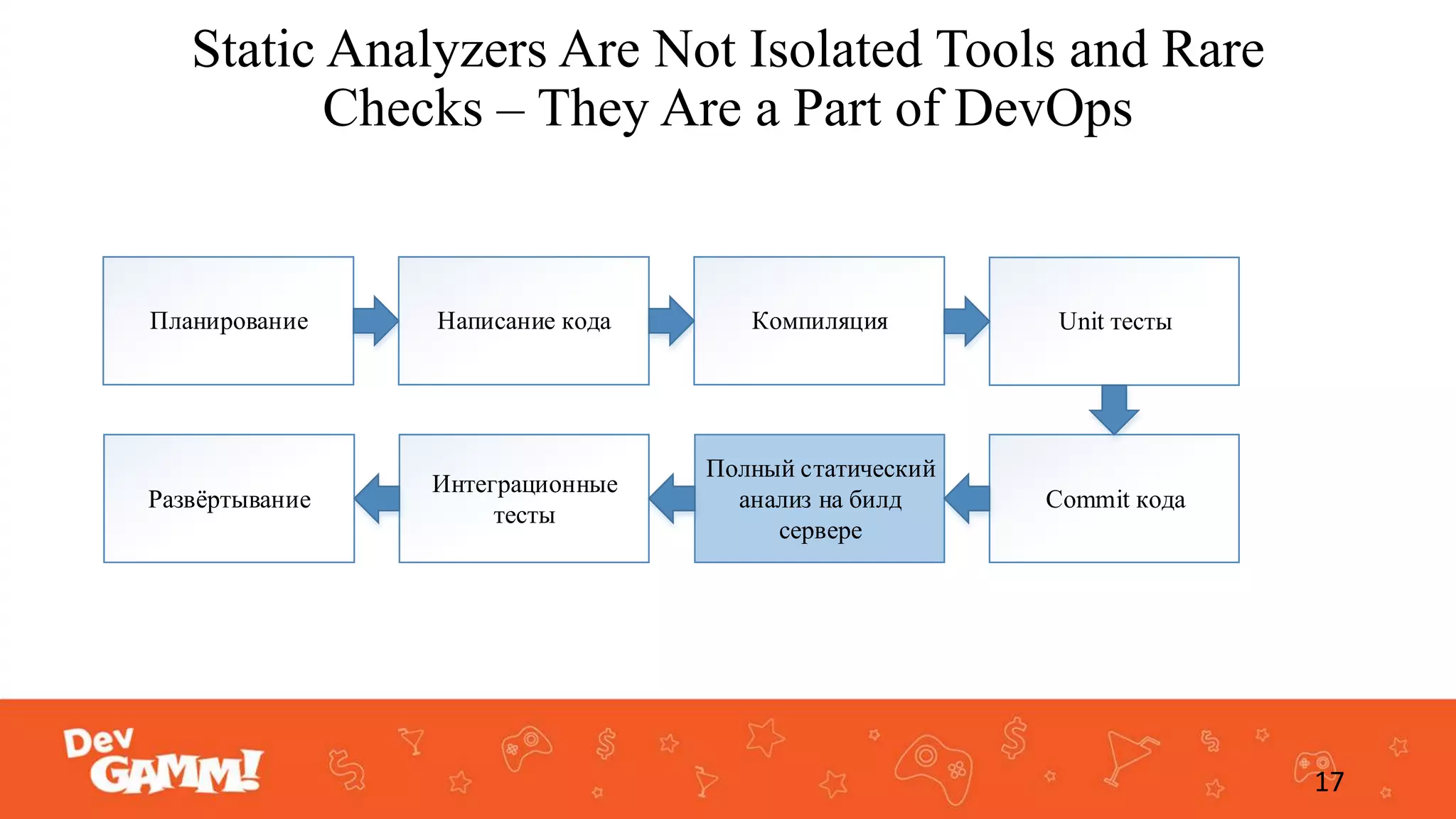

17. Static Analyzers Are Not Isolated Tools and Rare
Checks – They Are a Part of DevOps
17
Написание кода Компиляция
Полный статический
анализ на билд
сервере
Unit тесты
Интеграционные
тесты
Развёртывание
Планирование
Commit кода

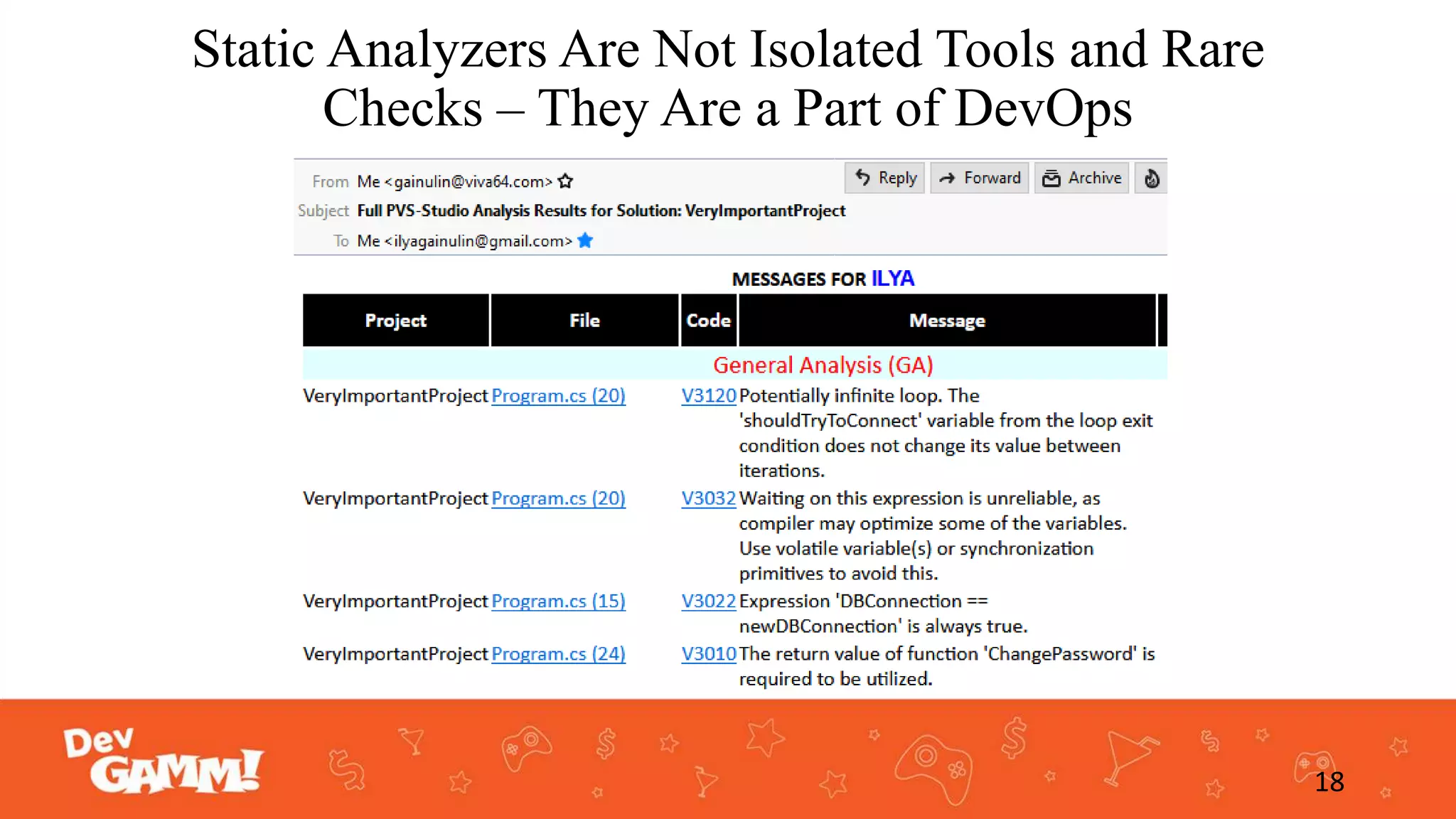

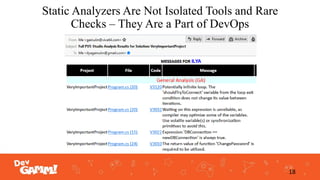

18. Static Analyzers Are Not Isolated Tools and Rare
Checks – They Are a Part of DevOps
18

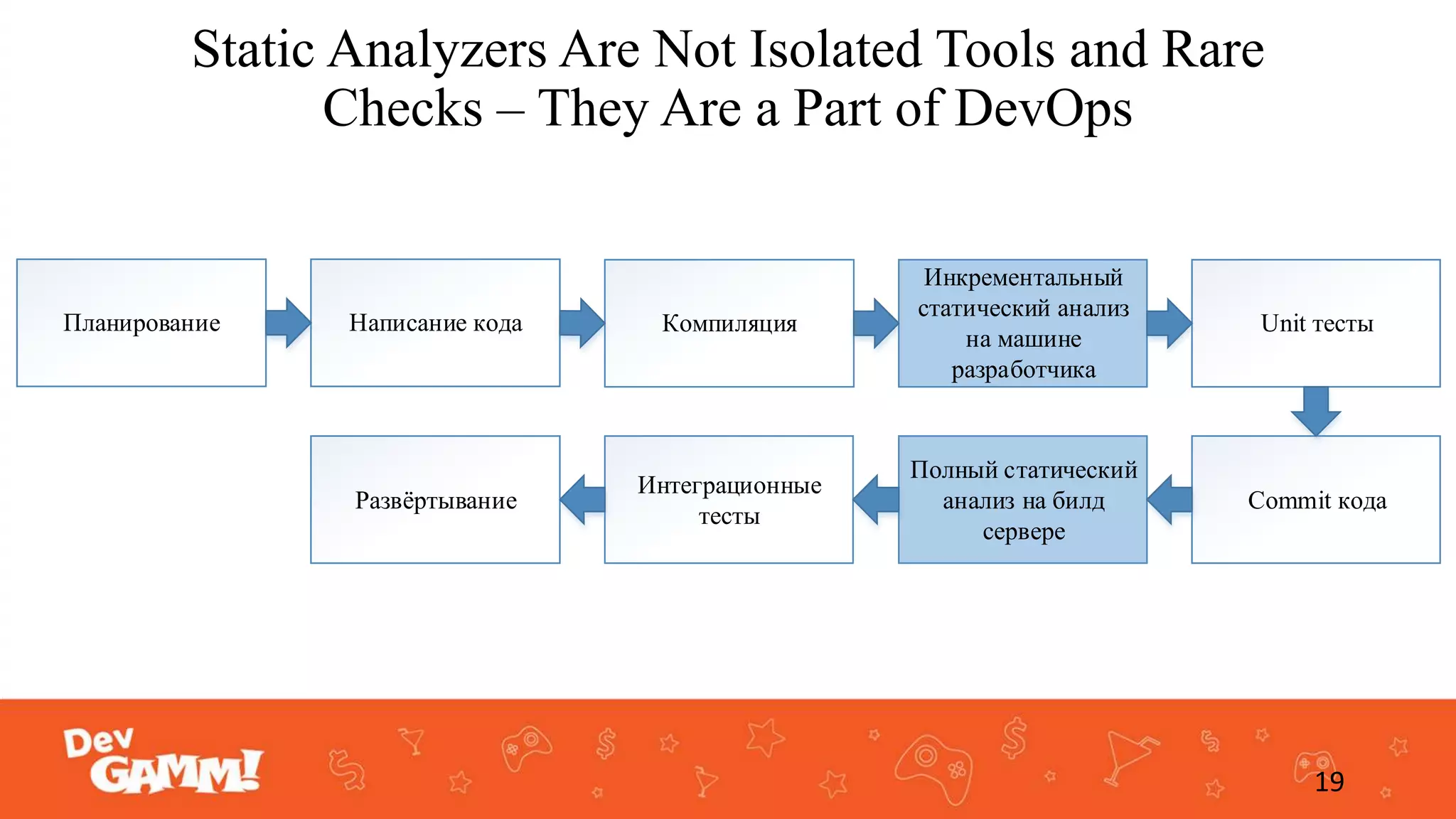

19. Static Analyzers Are Not Isolated Tools and Rare
Checks – They Are a Part of DevOps
Написание кода Компиляция
Полный статический
анализ на билд
сервере
Unit тесты
Интеграционные
тесты
Развёртывание
Планирование
Инкрементальный
статический анализ
на машине
разработчика
Commit кода
19

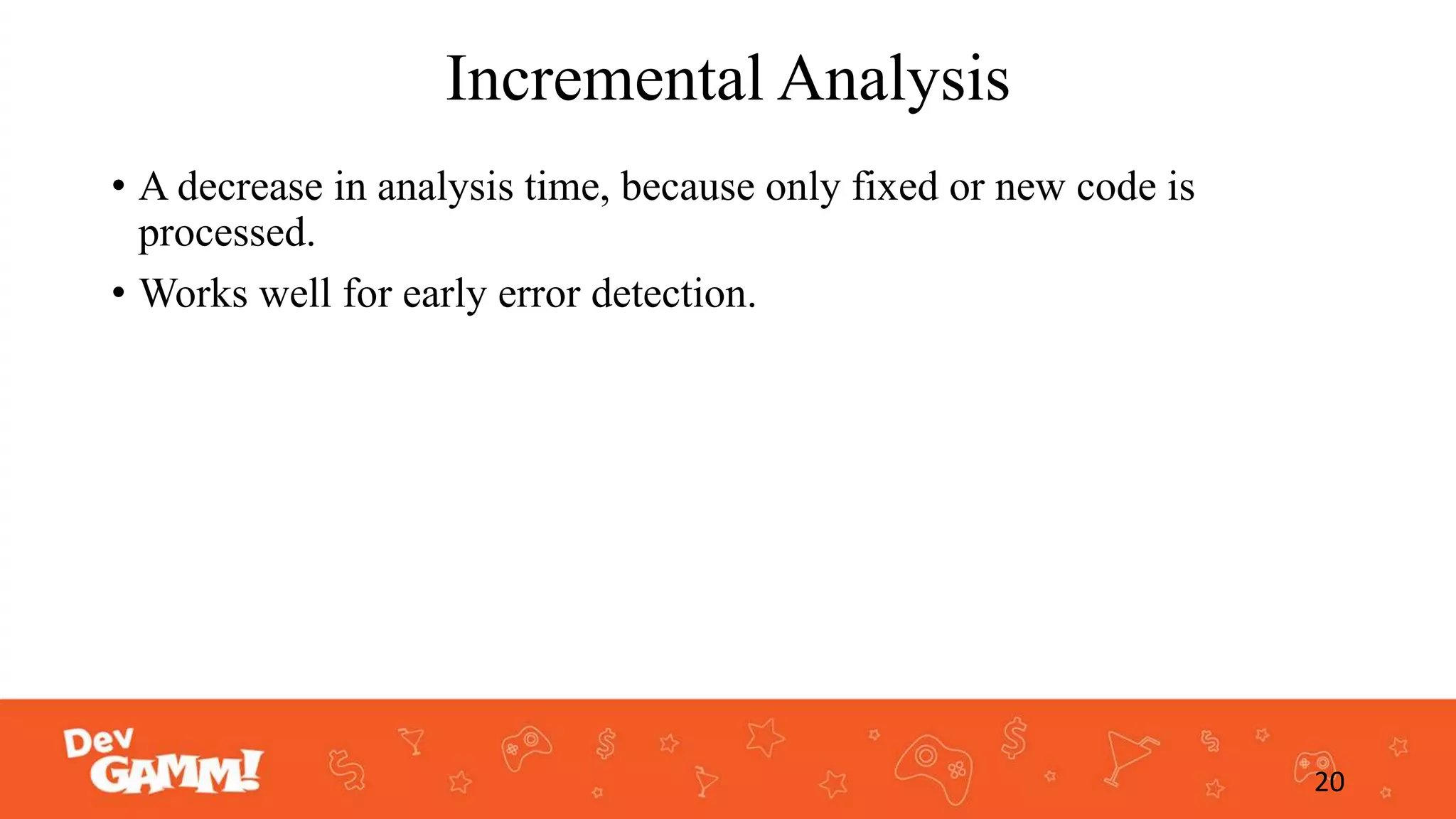

20. Incremental Analysis
• A decrease in analysis time, because only fixed or new code is
processed.
• Works well for early error detection.
20

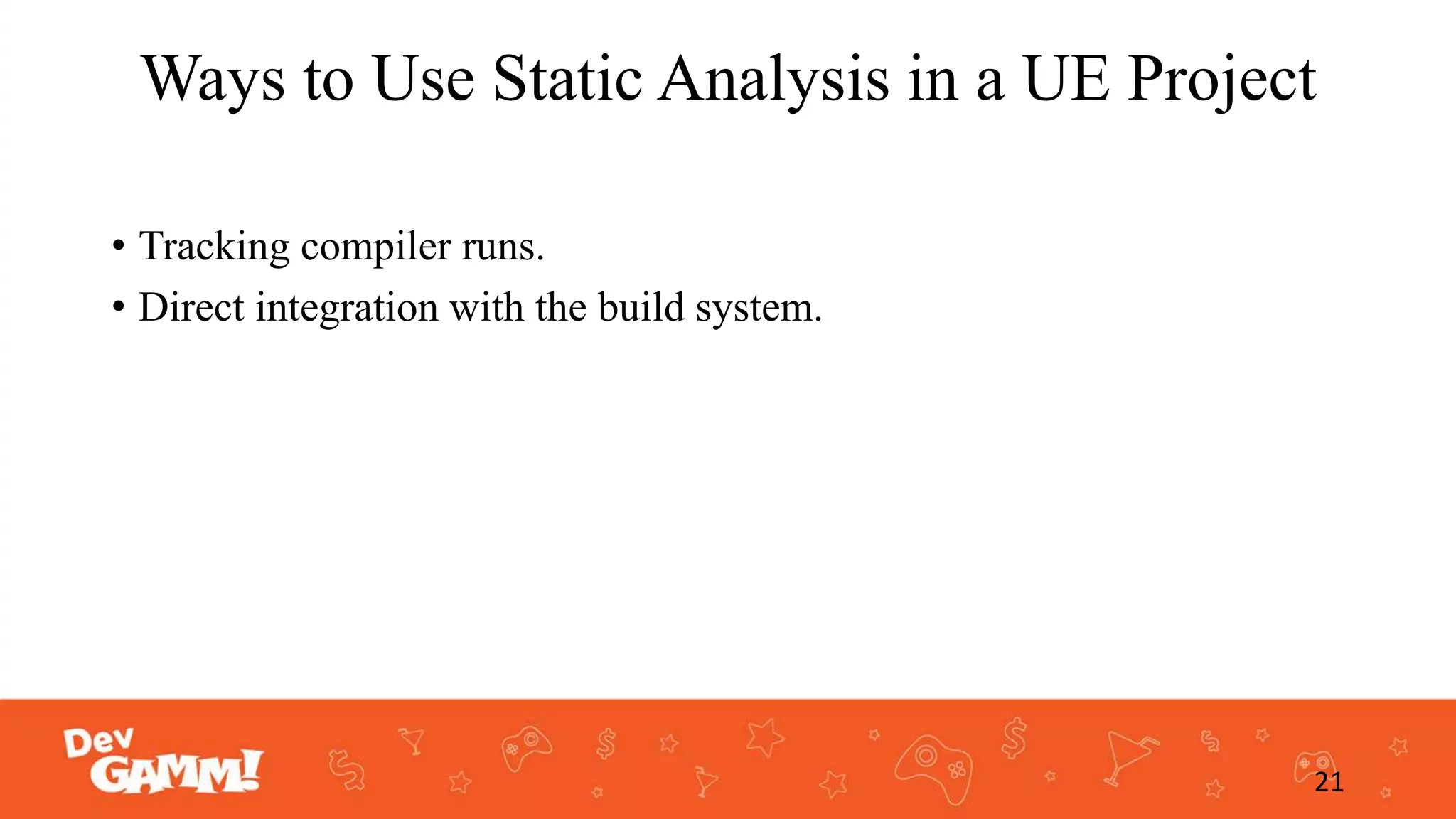

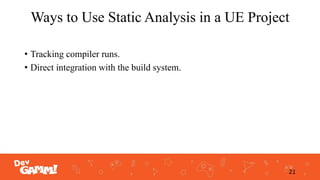

21. Ways to Use Static Analysis in a UE Project
• Tracking compiler runs.
• Direct integration with the build system.
21

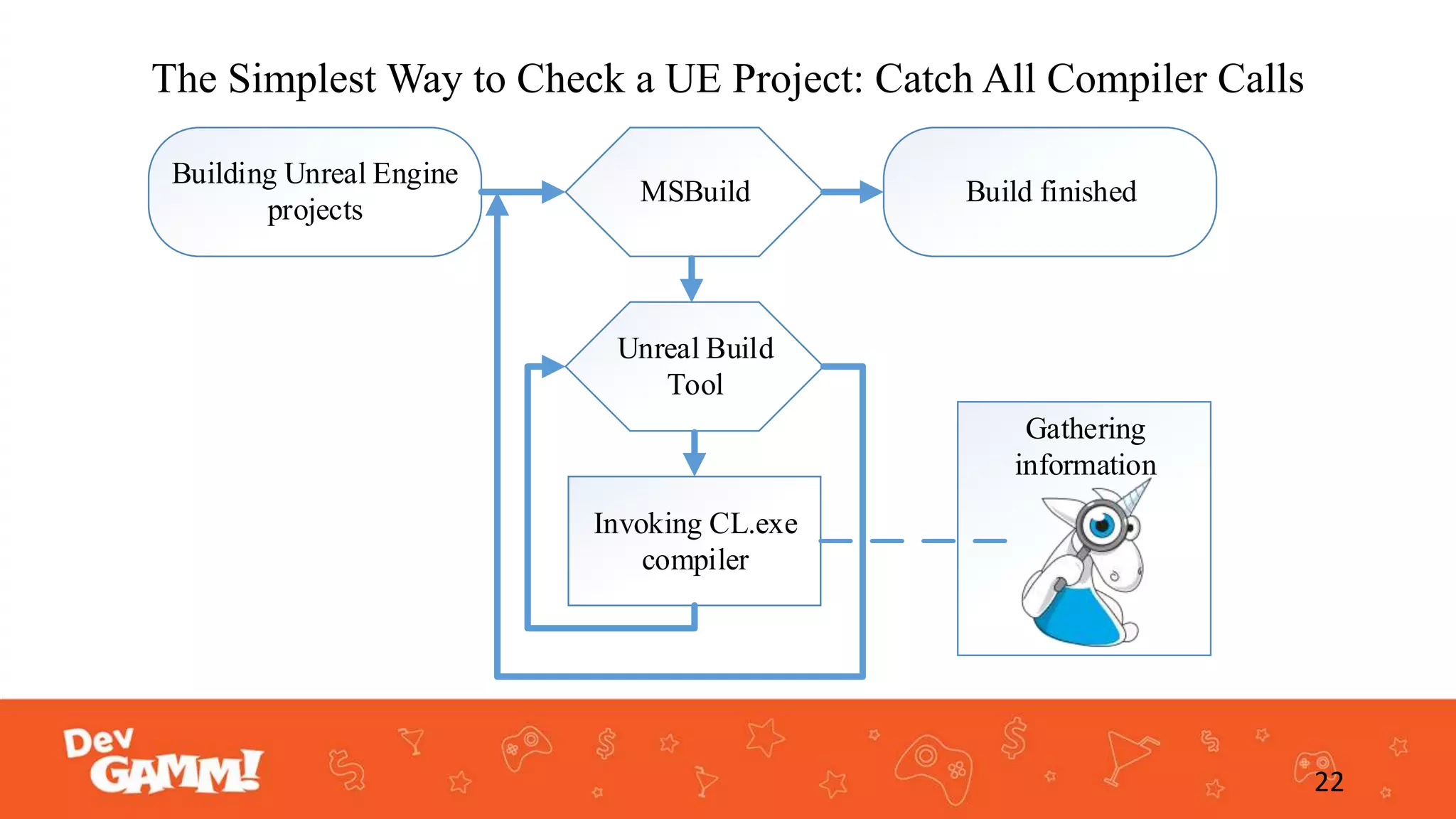

22. 22
Invoking CL.exe
compiler
MSBuild
Unreal Build
Tool
Building Unreal Engine
projects
Build finished
Gathering
information
The Simplest Way to Check a UE Project: Catch All Compiler Calls

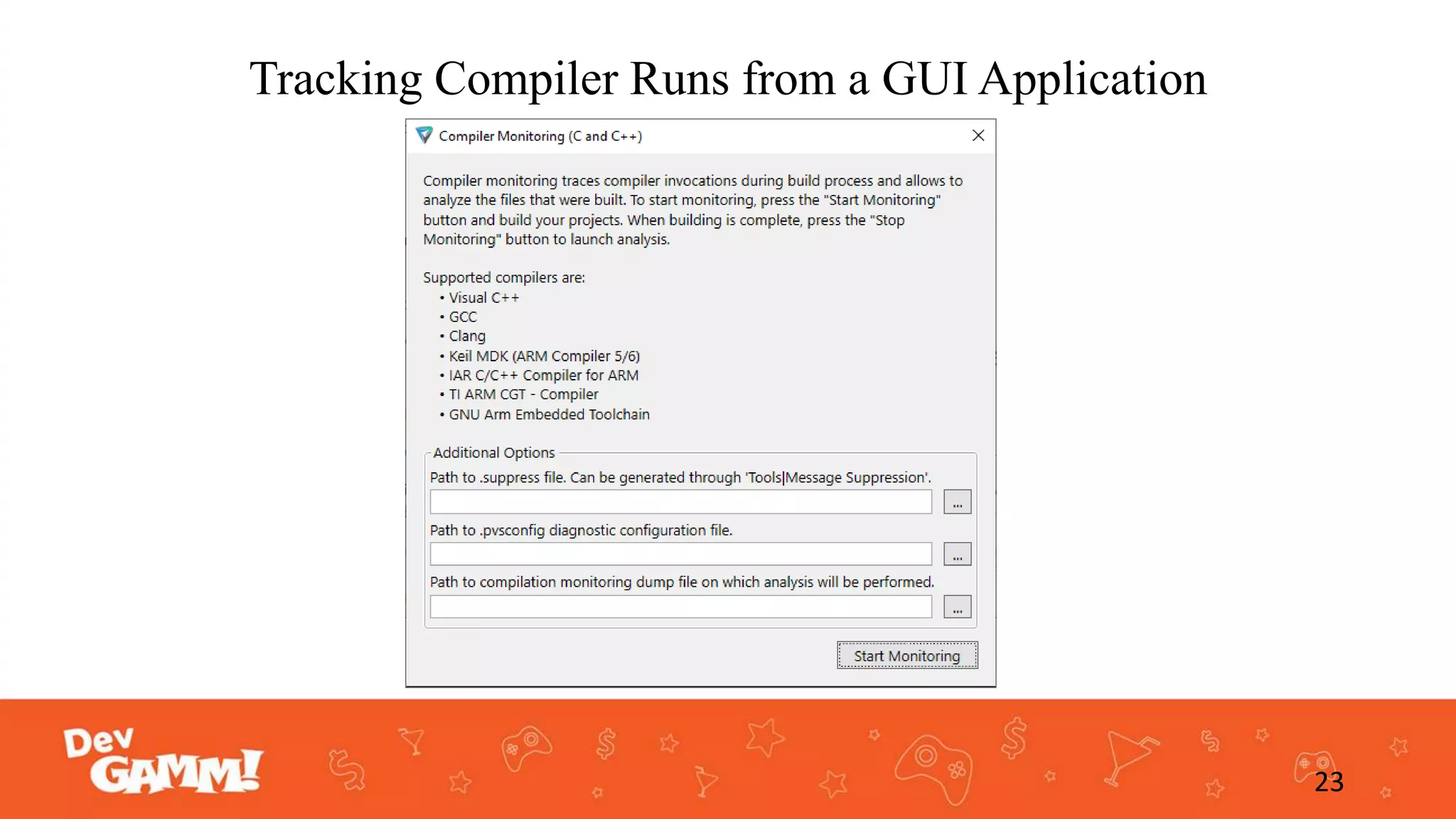

23. Tracking Compiler Runs from a GUI Application
23

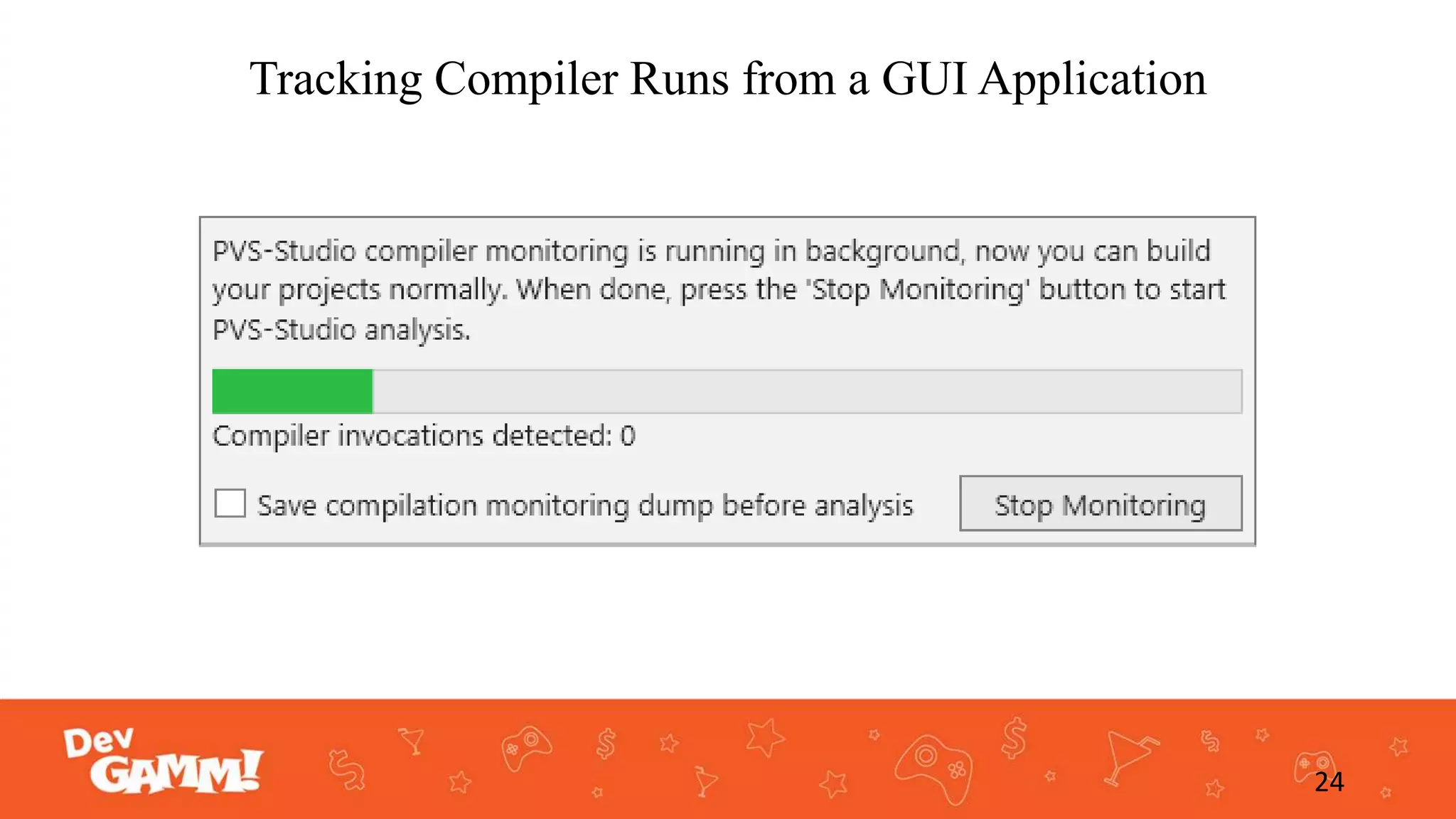

24. Tracking Compiler Runs from a GUI Application
24

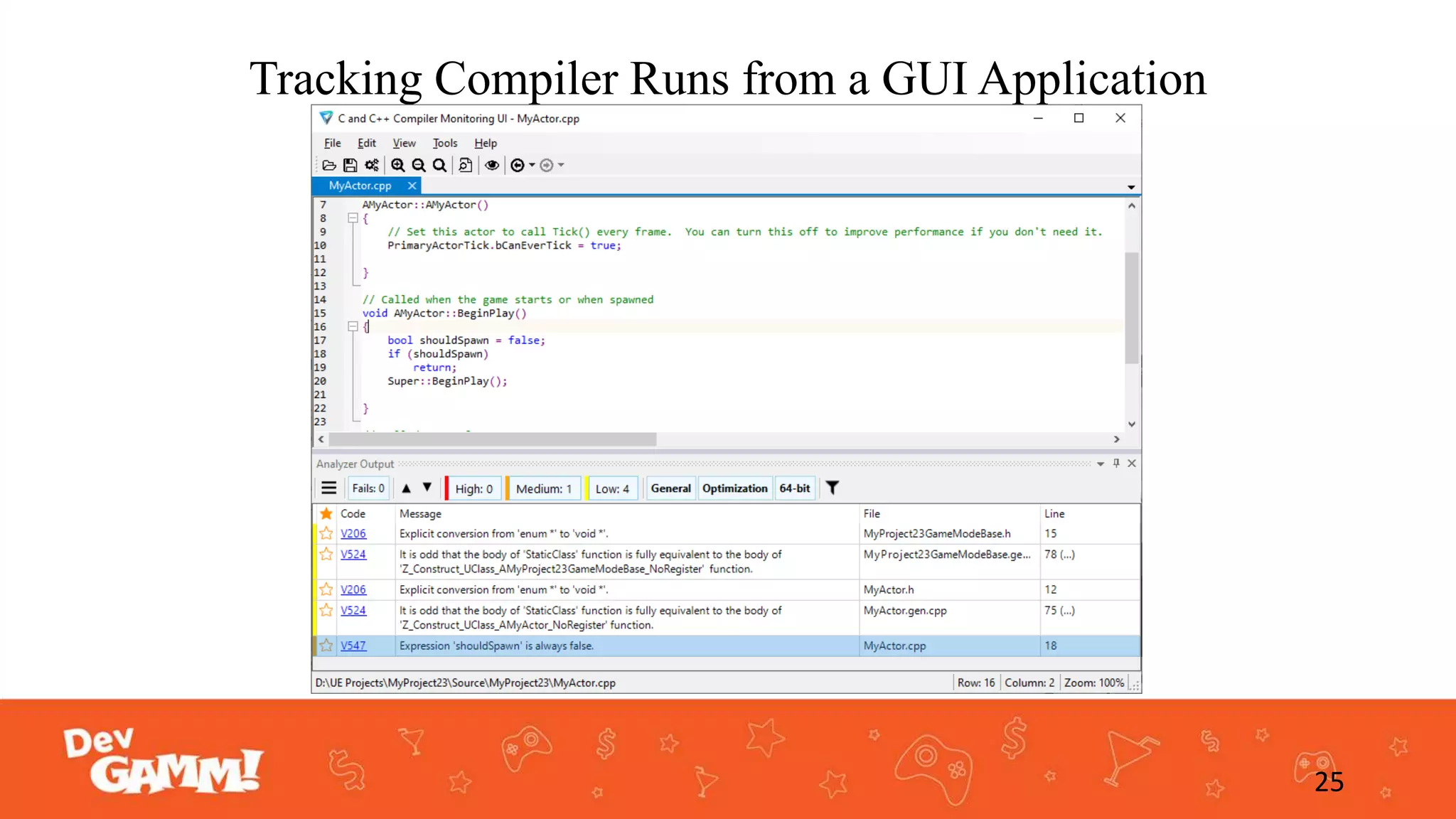

25. Tracking Compiler Runs from a GUI Application
25

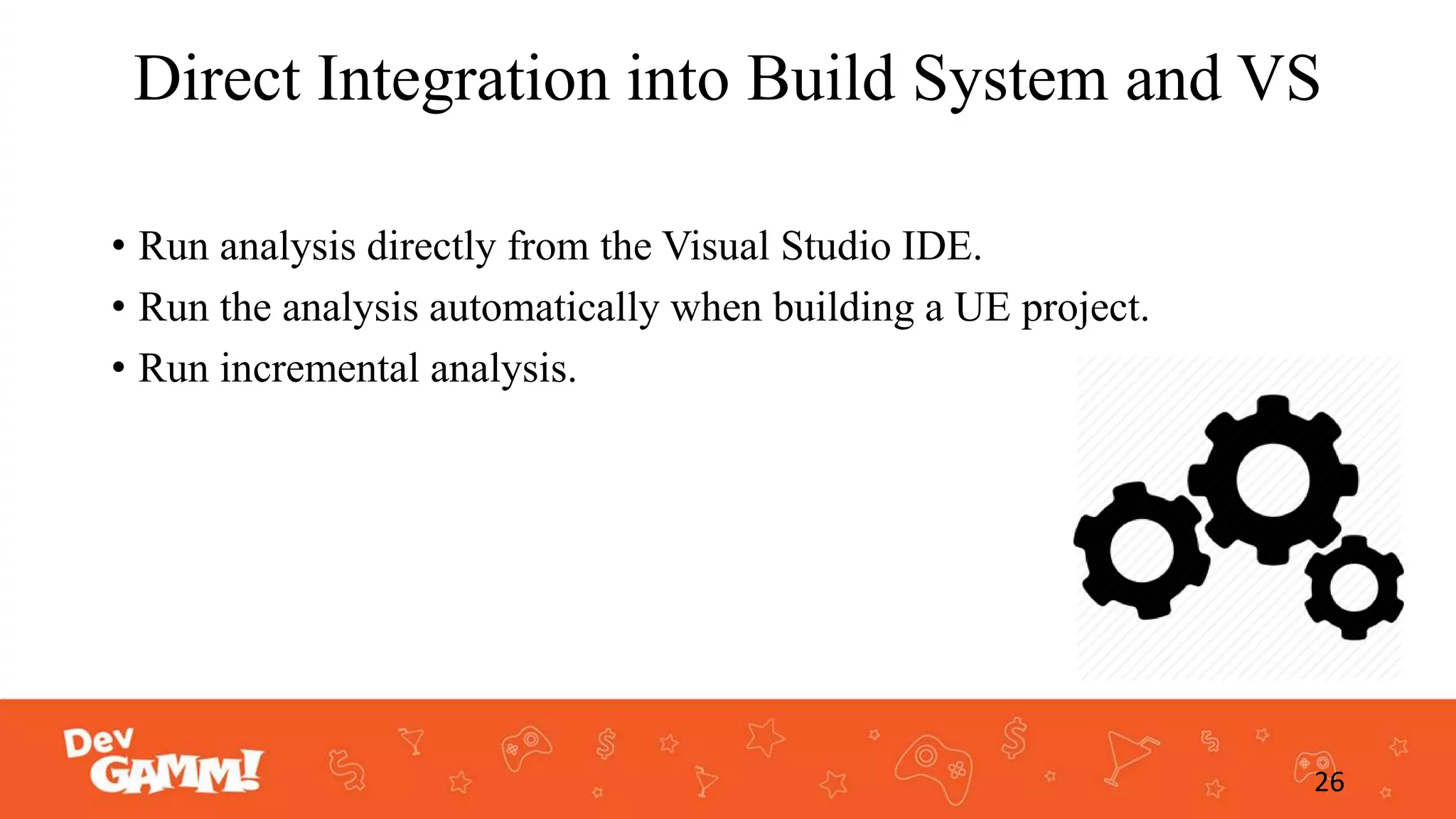

26. Direct Integration into Build System and VS
• Run analysis directly from the Visual Studio IDE.
• Run the analysis automatically when building a UE project.
• Run incremental analysis.
26

27. Common assembly scenario of a C++ project in VS
27

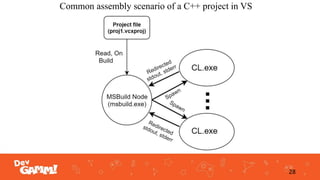

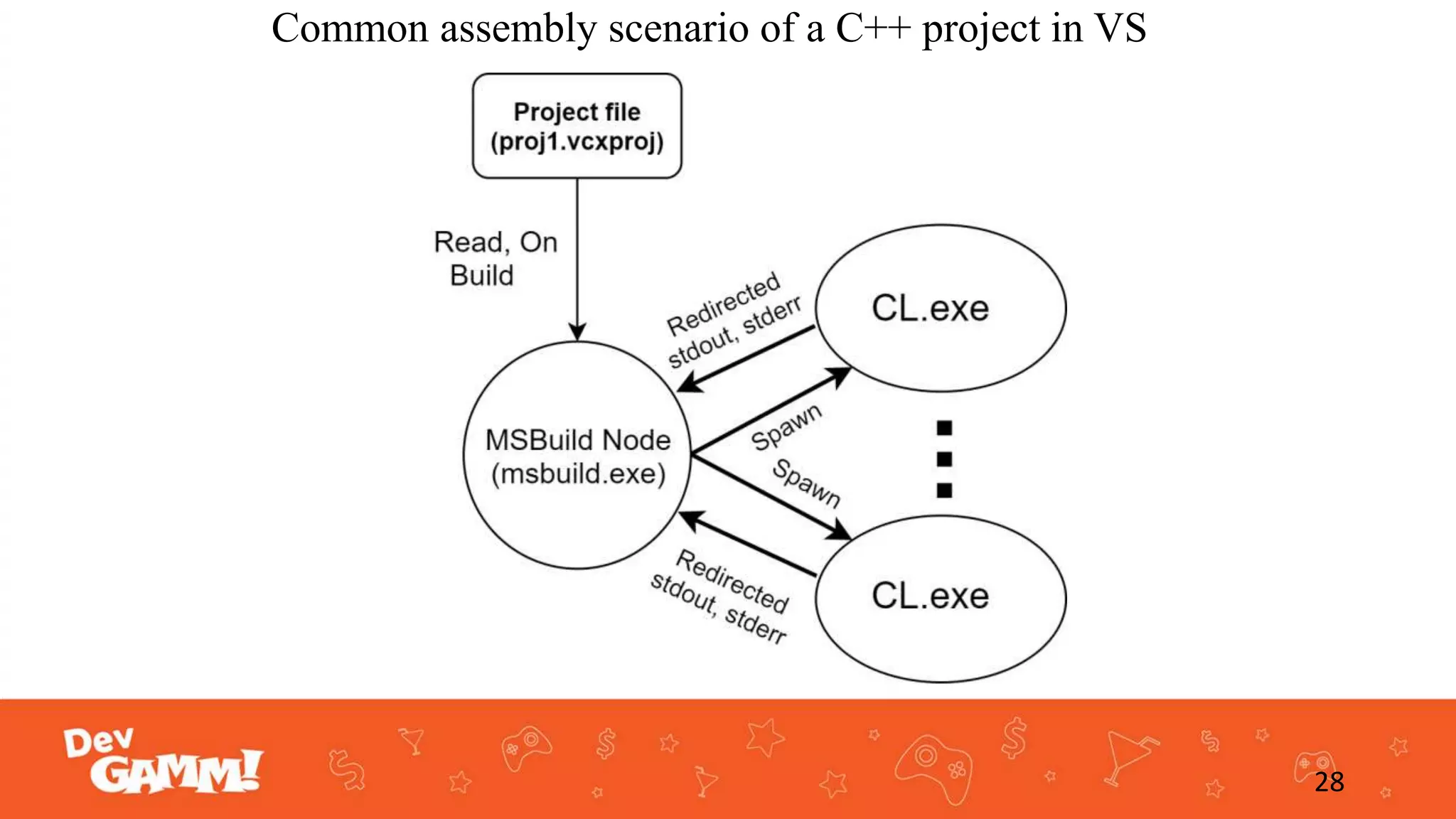

28. Common assembly scenario of a C++ project in VS
28

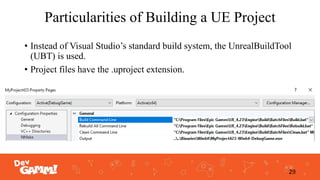

29. Particularities of Building a UE Project
• Instead of Visual Studio’s standard build system, the UnrealBuildTool
(UBT) is used.
• Project files have the .uproject extension.
29

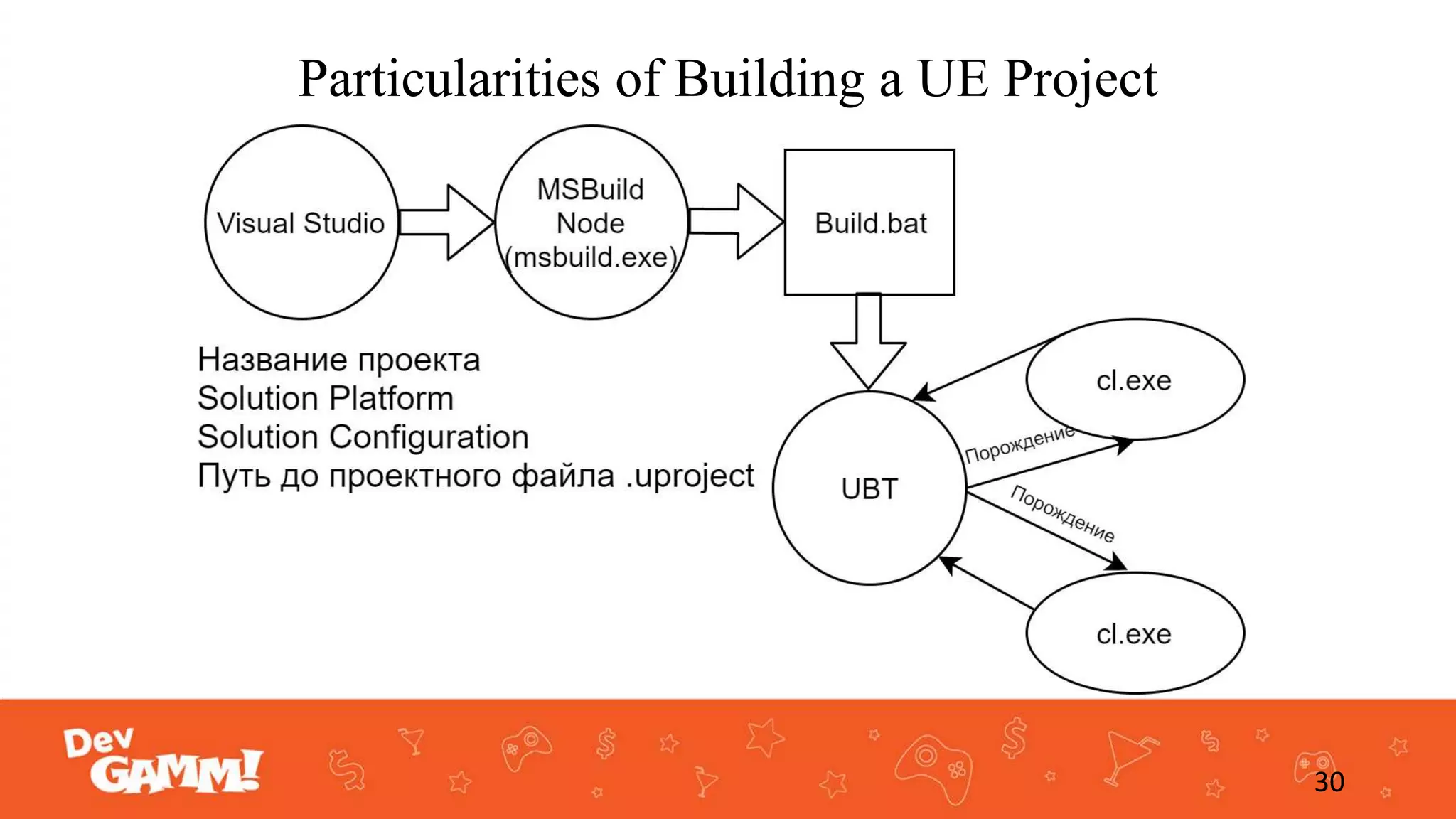

30. Particularities of Building a UE Project
30

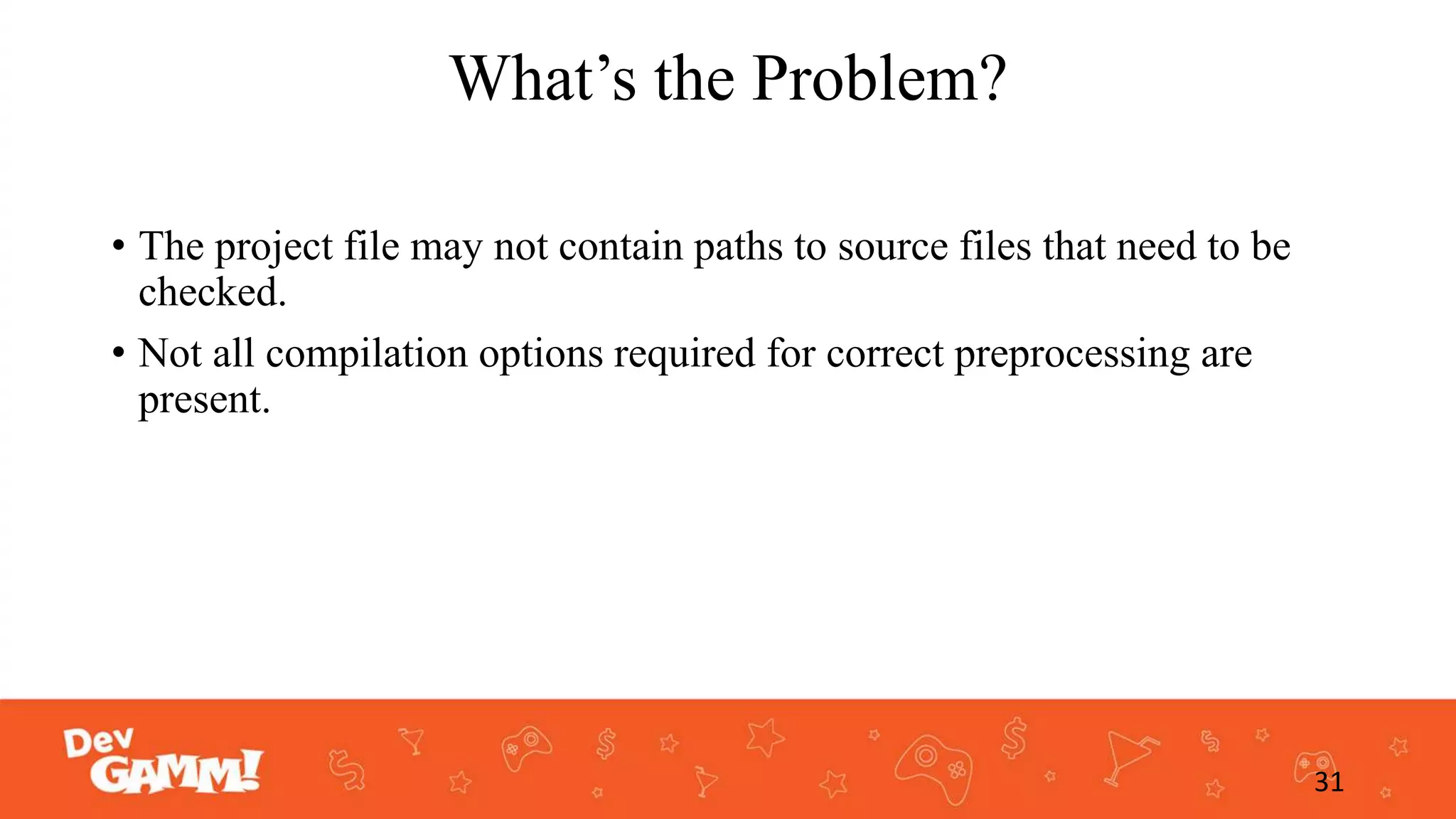

31. What’s the Problem?
• The project file may not contain paths to source files that need to be
checked.
• Not all compilation options required for correct preprocessing are
present.
31

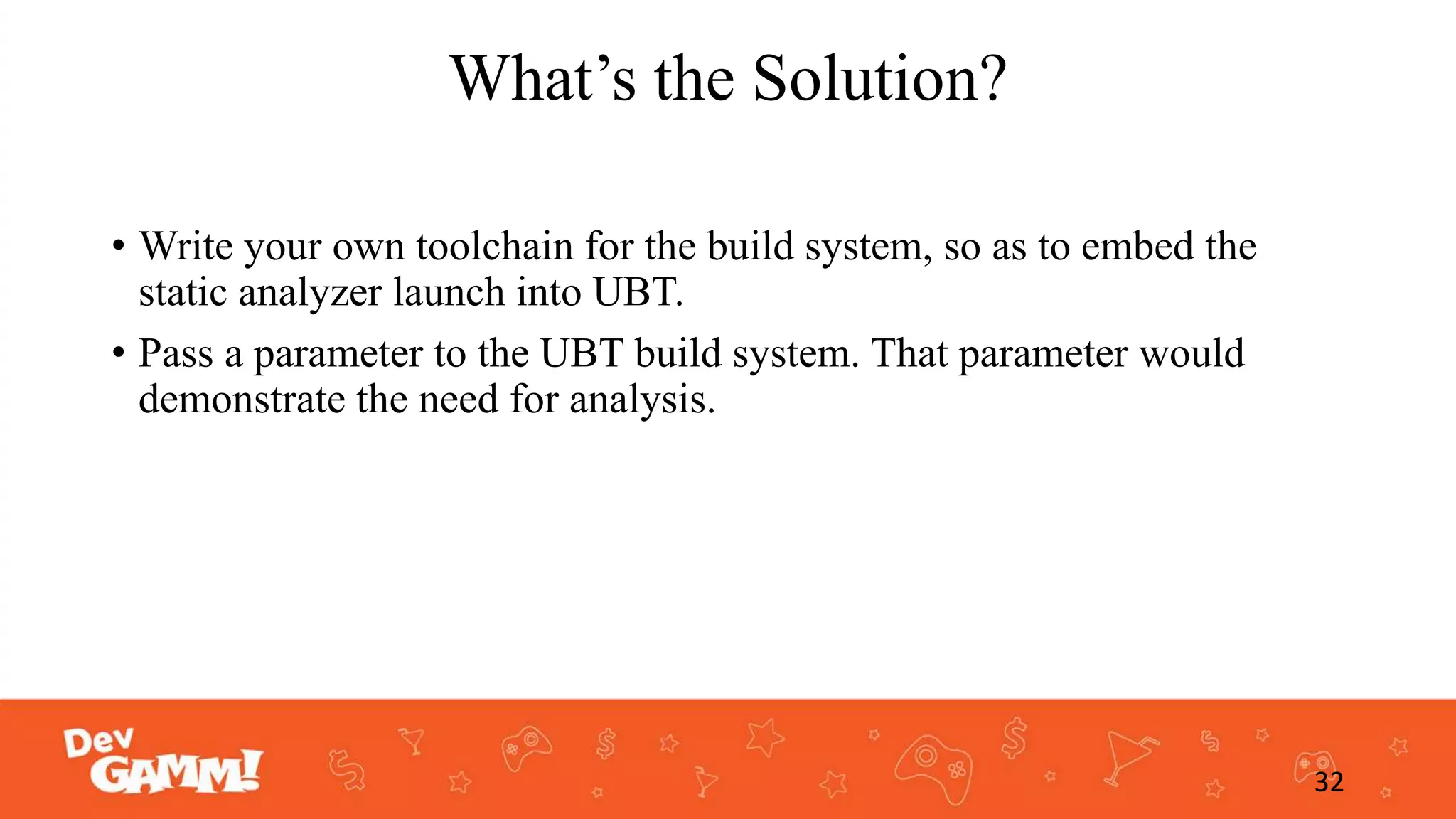

32. What’s the Solution?
• Write your own toolchain for the build system, so as to embed the
static analyzer launch into UBT.
• Pass a parameter to the UBT build system. That parameter would
demonstrate the need for analysis.
32

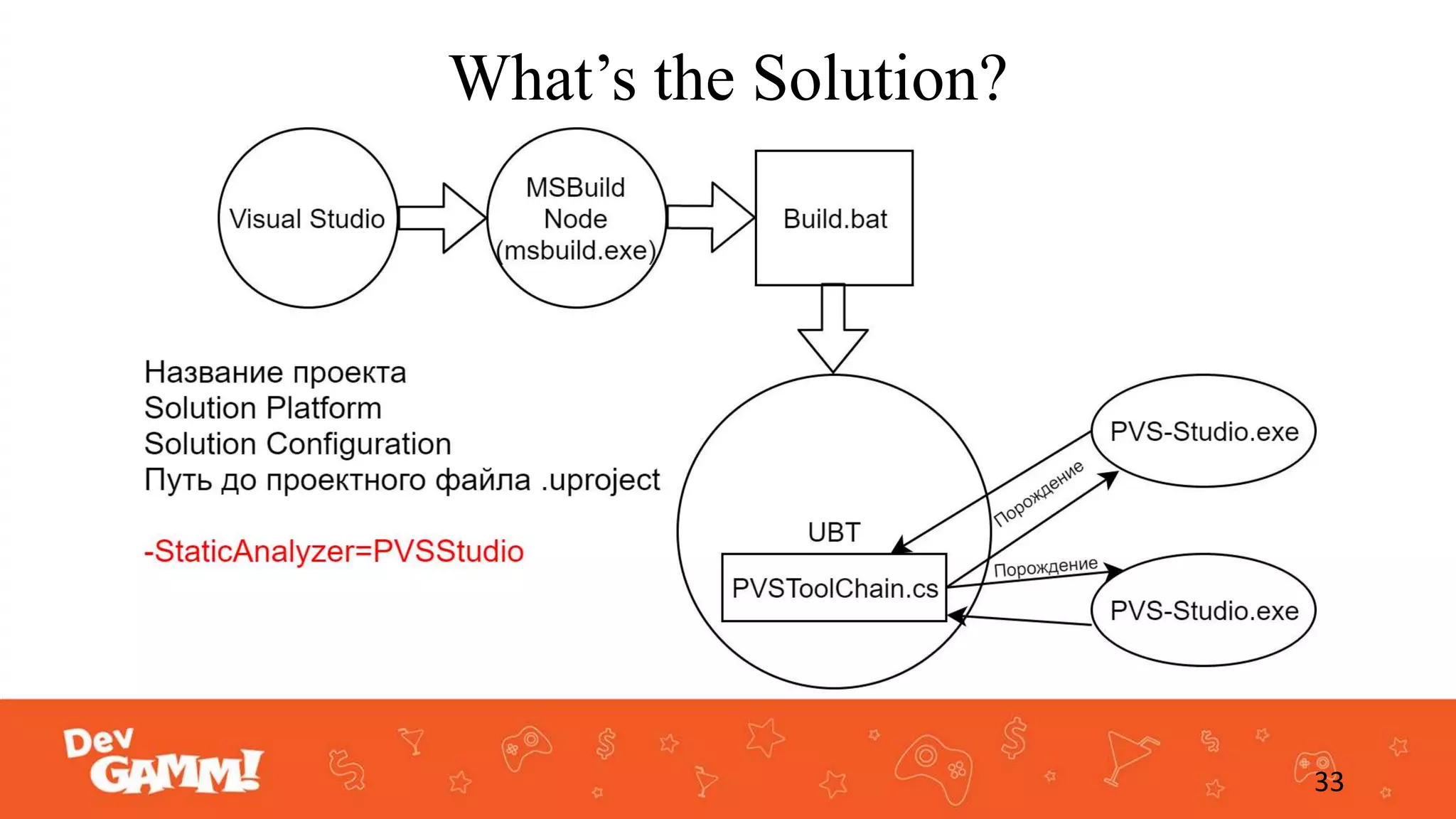

33. What’s the Solution?
33

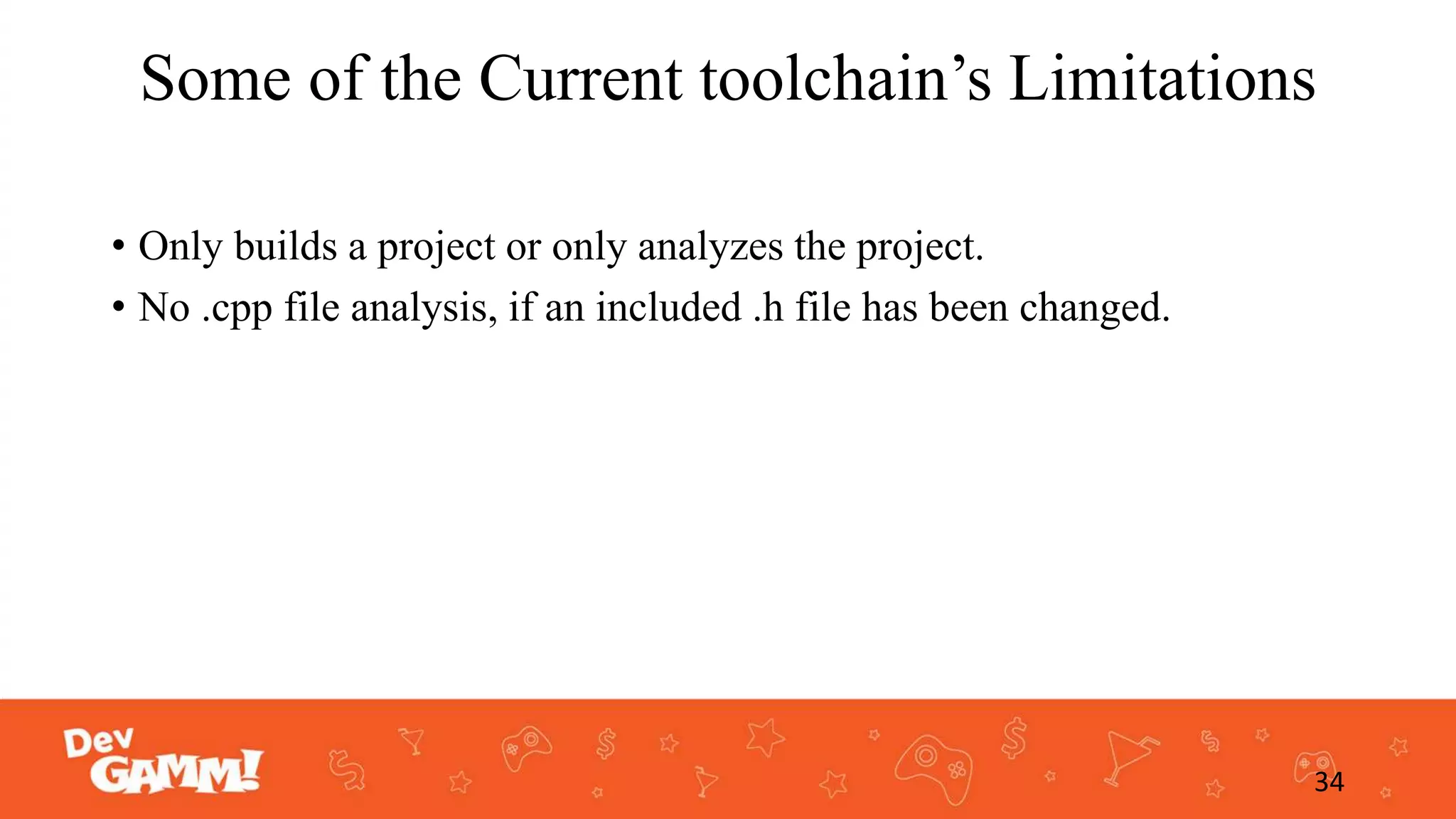

34. Some of the Current toolchain’s Limitations
• Only builds a project or only analyzes the project.
• No .cpp file analysis, if an included .h file has been changed.
34

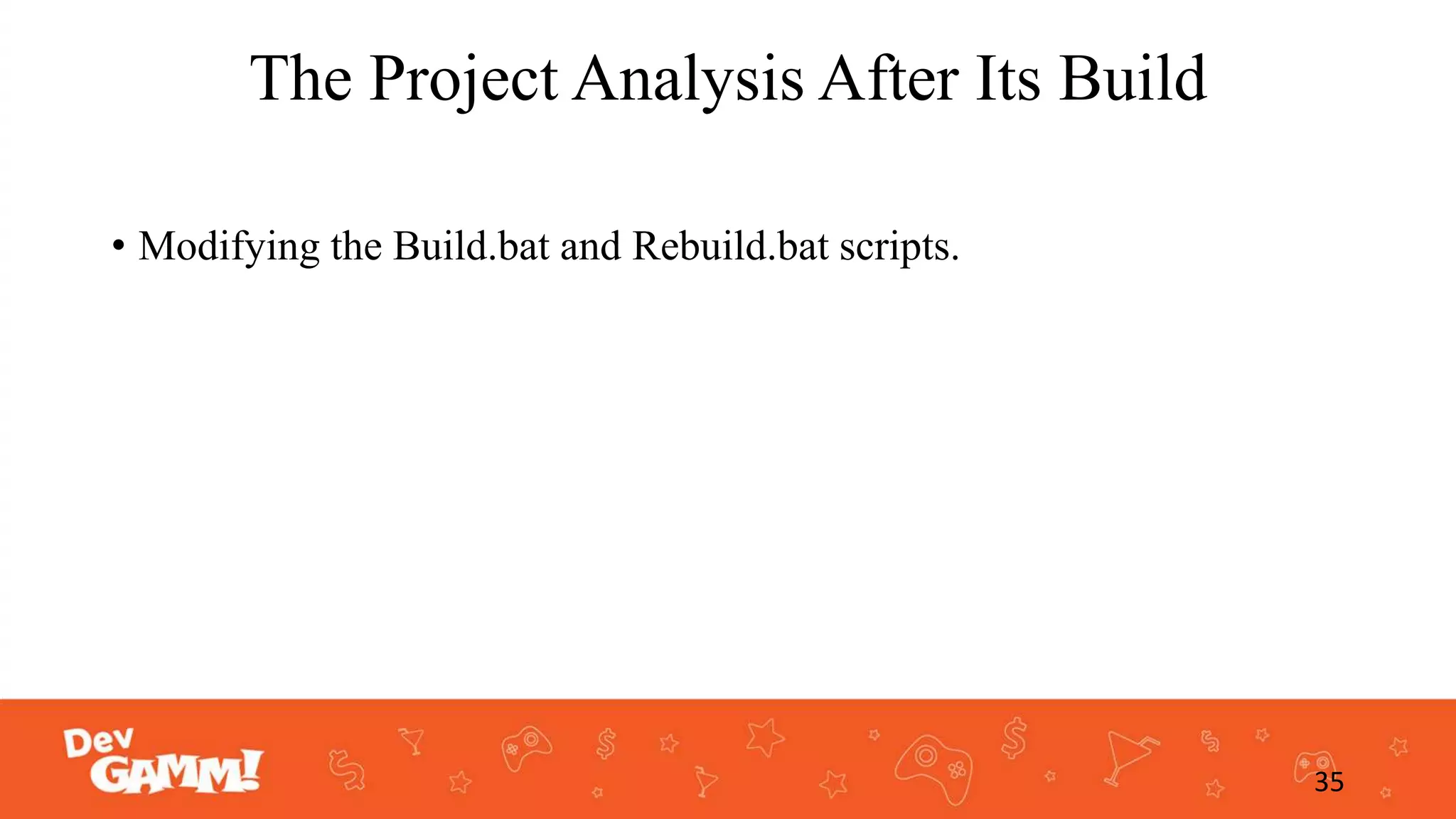

35. The Project Analysis After Its Build
• Modifying the Build.bat and Rebuild.bat scripts.
35

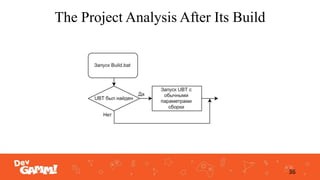

36. The Project Analysis After Its Build
36

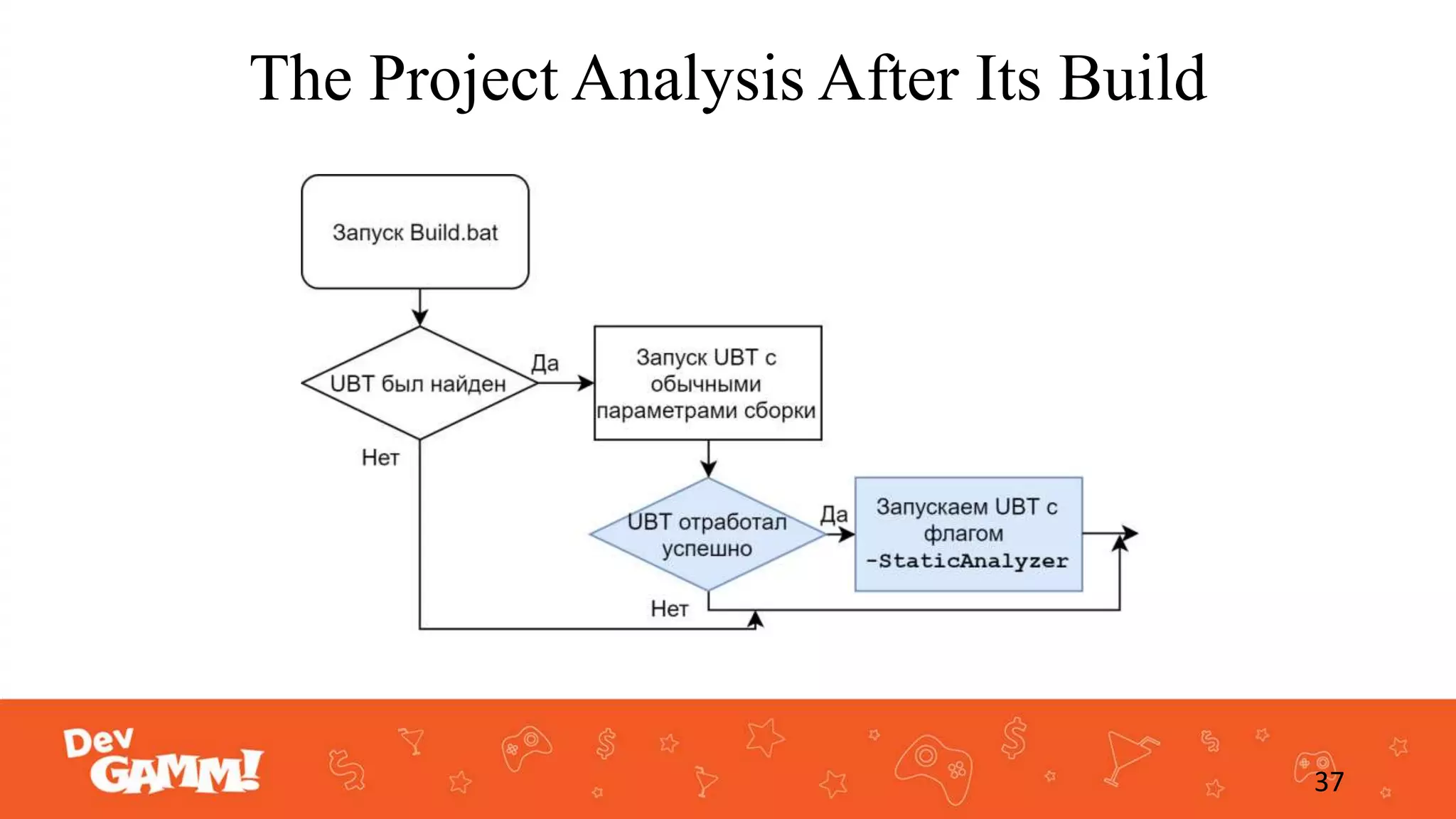

37. The Project Analysis After Its Build
37

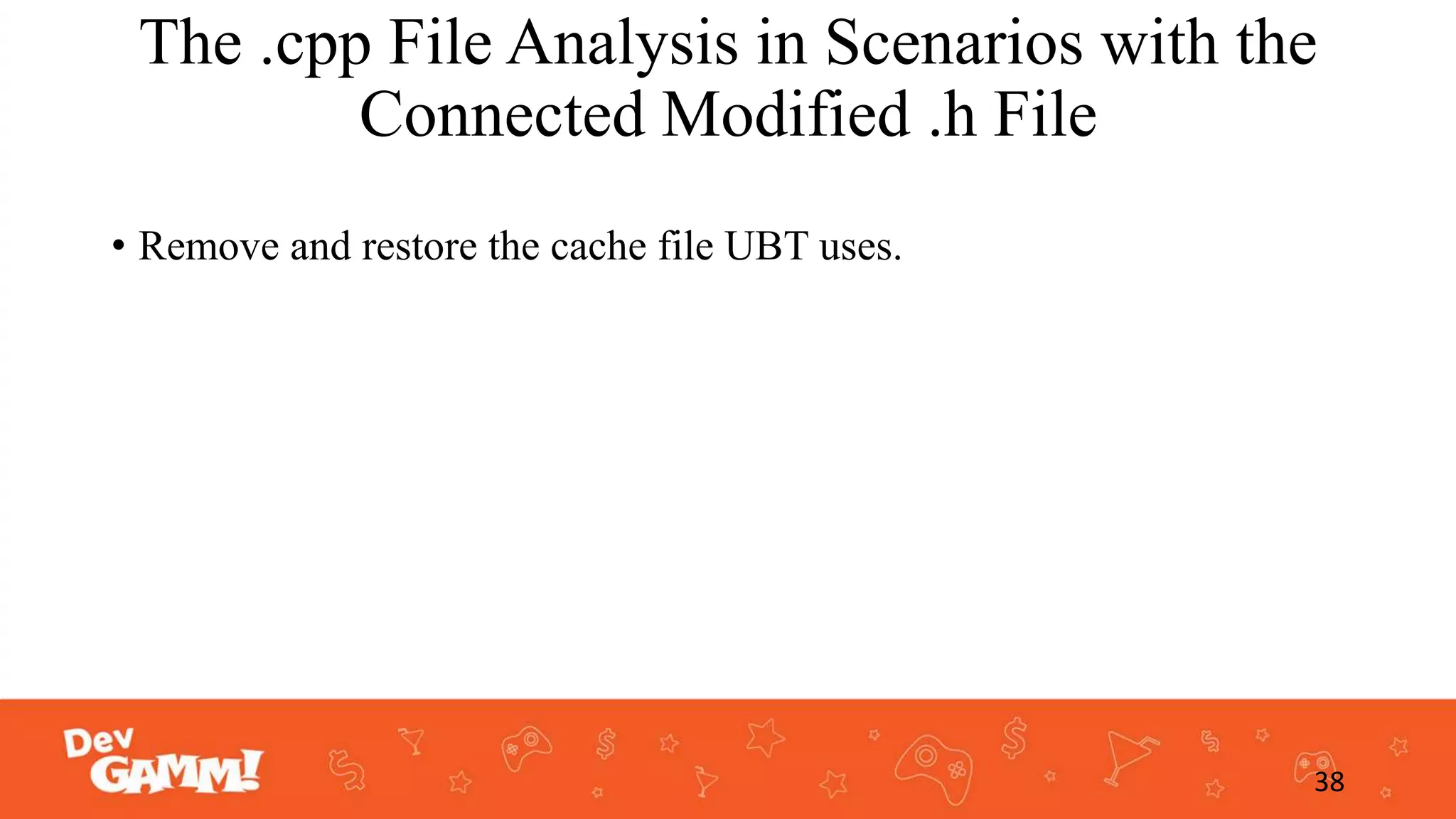

38. The .cpp File Analysis in Scenarios with the
Connected Modified .h File
• Remove and restore the cache file UBT uses.
38

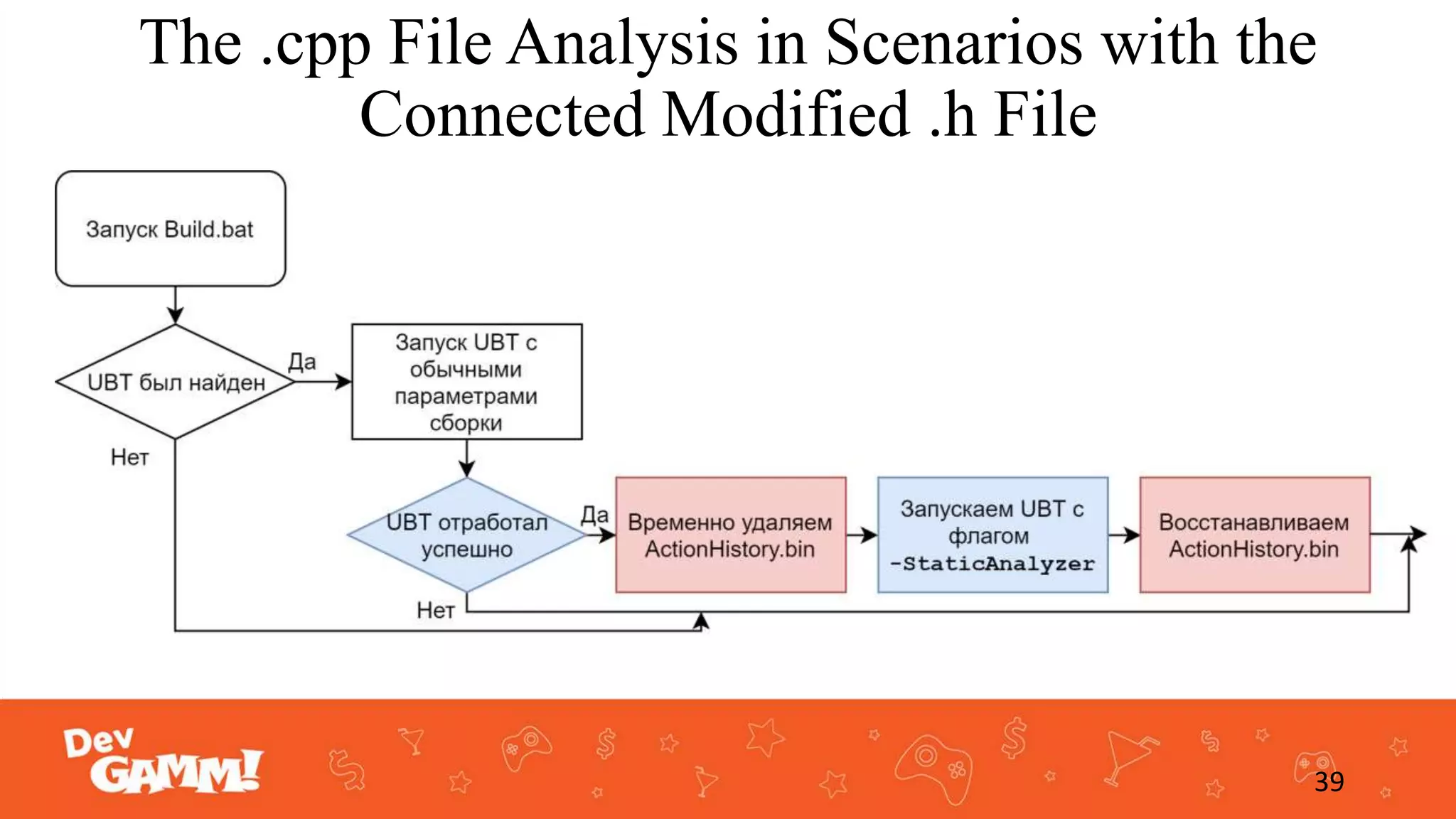

39. The .cpp File Analysis in Scenarios with the
Connected Modified .h File
39

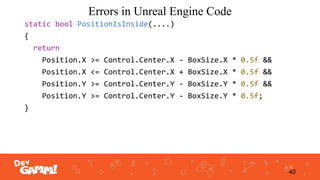

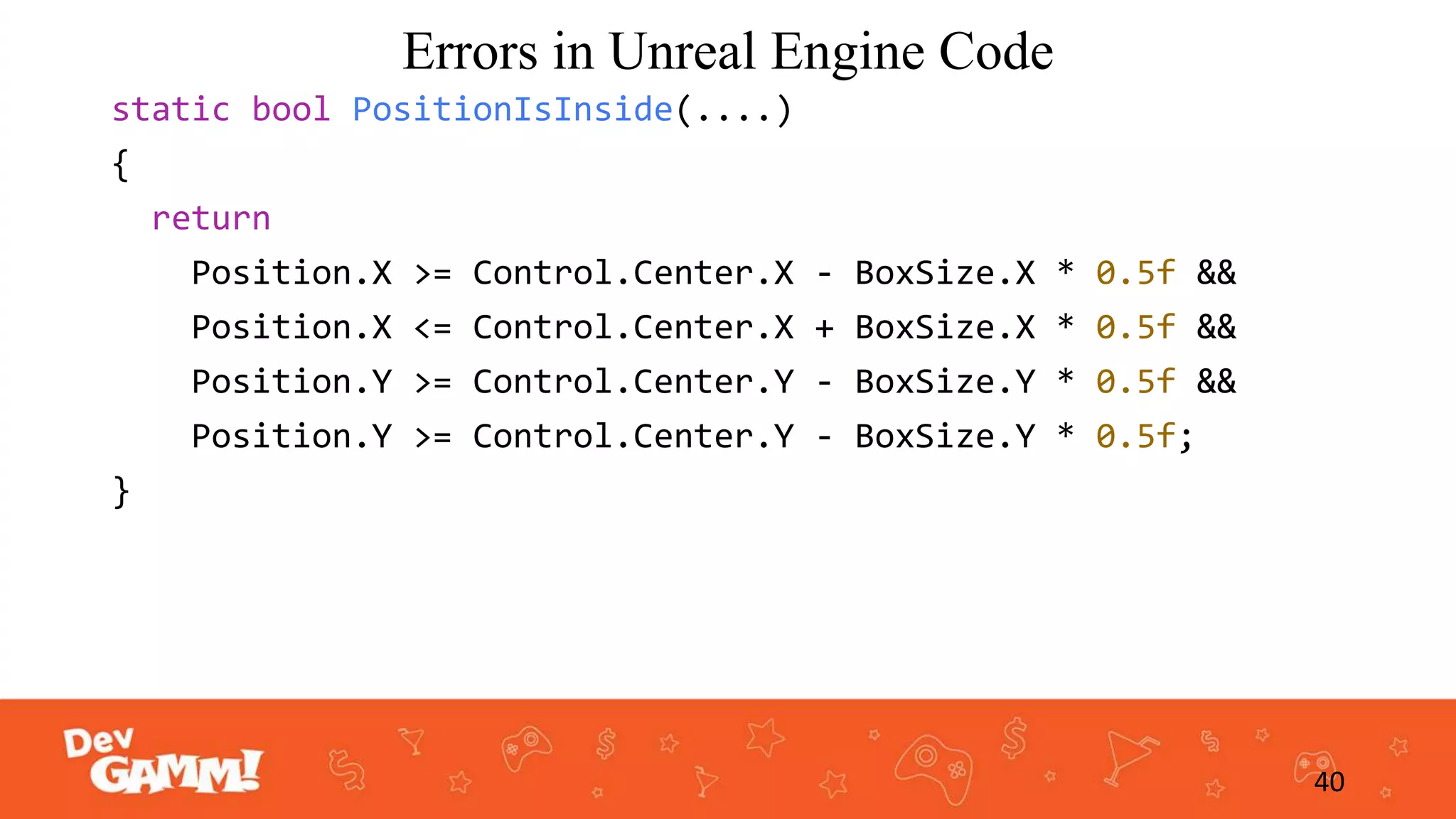

40. Errors in Unreal Engine Code
static bool PositionIsInside(....)
{
return
Position.X >= Control.Center.X - BoxSize.X * 0.5f &&
Position.X <= Control.Center.X + BoxSize.X * 0.5f &&
Position.Y >= Control.Center.Y - BoxSize.Y * 0.5f &&
Position.Y >= Control.Center.Y - BoxSize.Y * 0.5f;
}
40

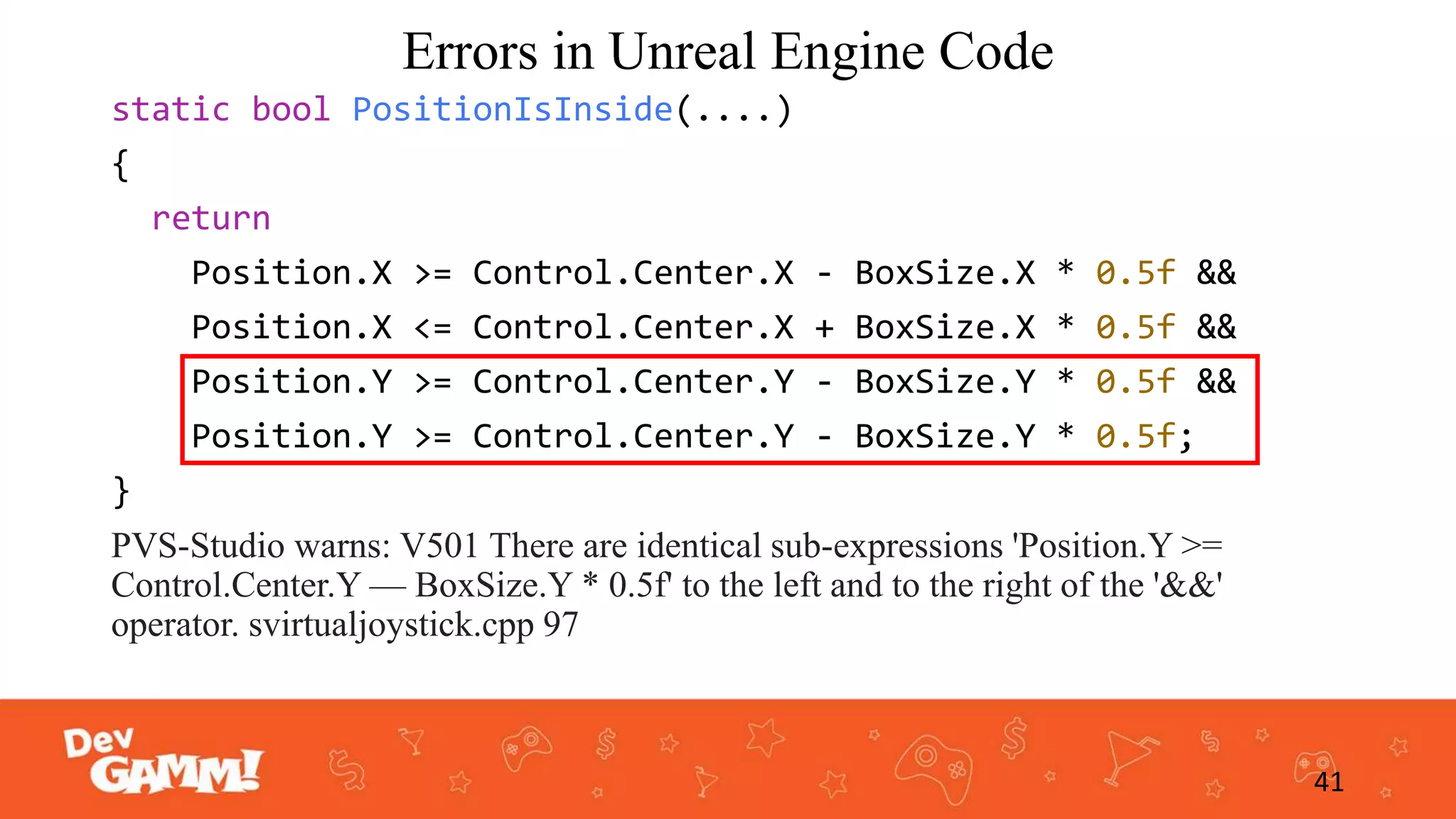

41. Errors in Unreal Engine Code
static bool PositionIsInside(....)
{
return
Position.X >= Control.Center.X - BoxSize.X * 0.5f &&
Position.X <= Control.Center.X + BoxSize.X * 0.5f &&
Position.Y >= Control.Center.Y - BoxSize.Y * 0.5f &&
Position.Y >= Control.Center.Y - BoxSize.Y * 0.5f;
}
PVS-Studio warns: V501 There are identical sub-expressions 'Position.Y >=
Control.Center.Y — BoxSize.Y * 0.5f' to the left and to the right of the '&&'
operator. svirtualjoystick.cpp 97
41

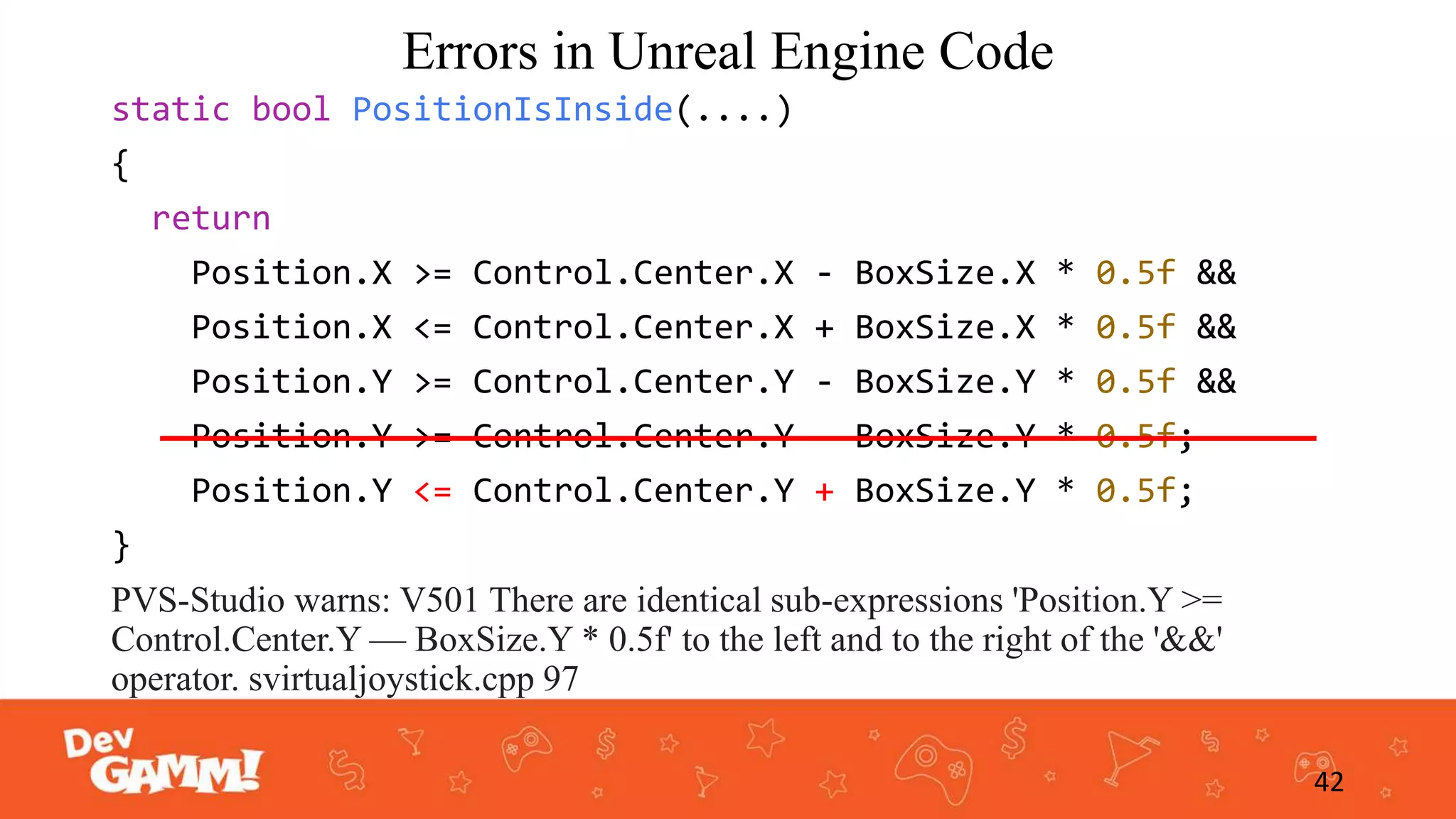

42. Errors in Unreal Engine Code
static bool PositionIsInside(....)
{
return
Position.X >= Control.Center.X - BoxSize.X * 0.5f &&
Position.X <= Control.Center.X + BoxSize.X * 0.5f &&
Position.Y >= Control.Center.Y - BoxSize.Y * 0.5f &&
Position.Y >= Control.Center.Y - BoxSize.Y * 0.5f;
Position.Y <= Control.Center.Y + BoxSize.Y * 0.5f;
}
PVS-Studio warns: V501 There are identical sub-expressions 'Position.Y >=
Control.Center.Y — BoxSize.Y * 0.5f' to the left and to the right of the '&&'
operator. svirtualjoystick.cpp 97
42

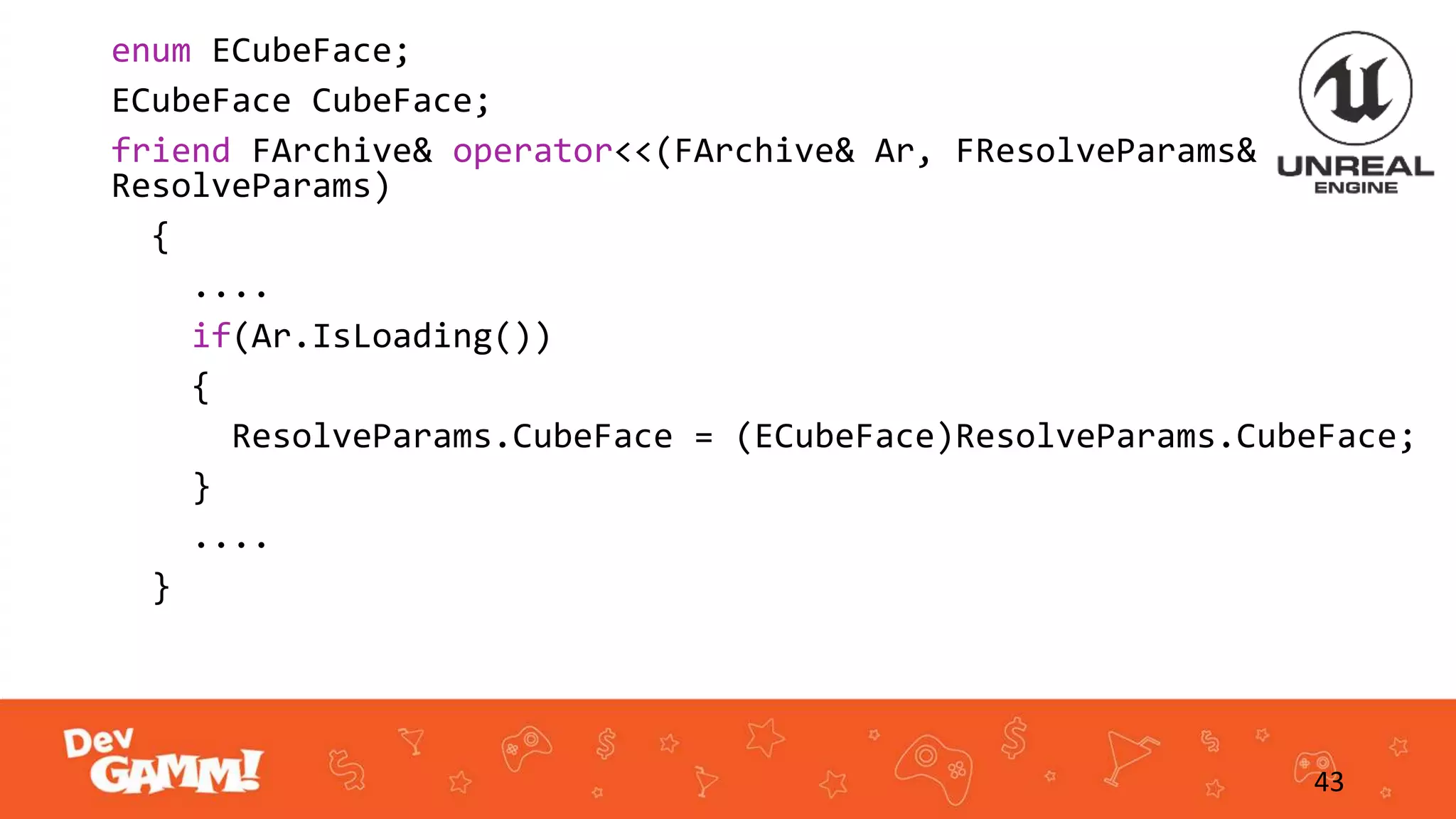

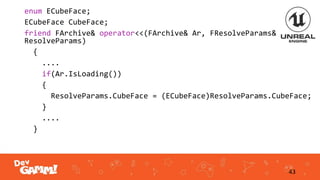

43. enum ECubeFace;
ECubeFace CubeFace;
friend FArchive& operator<<(FArchive& Ar, FResolveParams&
ResolveParams)
{
....
if(Ar.IsLoading())
{
ResolveParams.CubeFace = (ECubeFace)ResolveParams.CubeFace;
}
....
}
43

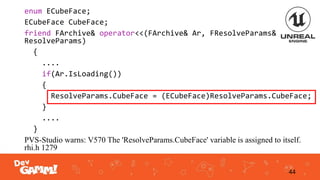

44. enum ECubeFace;
ECubeFace CubeFace;
friend FArchive& operator<<(FArchive& Ar, FResolveParams&
ResolveParams)
{
....
if(Ar.IsLoading())
{
ResolveParams.CubeFace = (ECubeFace)ResolveParams.CubeFace;
}
....
}
PVS-Studio warns: V570 The 'ResolveParams.CubeFace' variable is assigned to itself.
rhi.h 1279
44

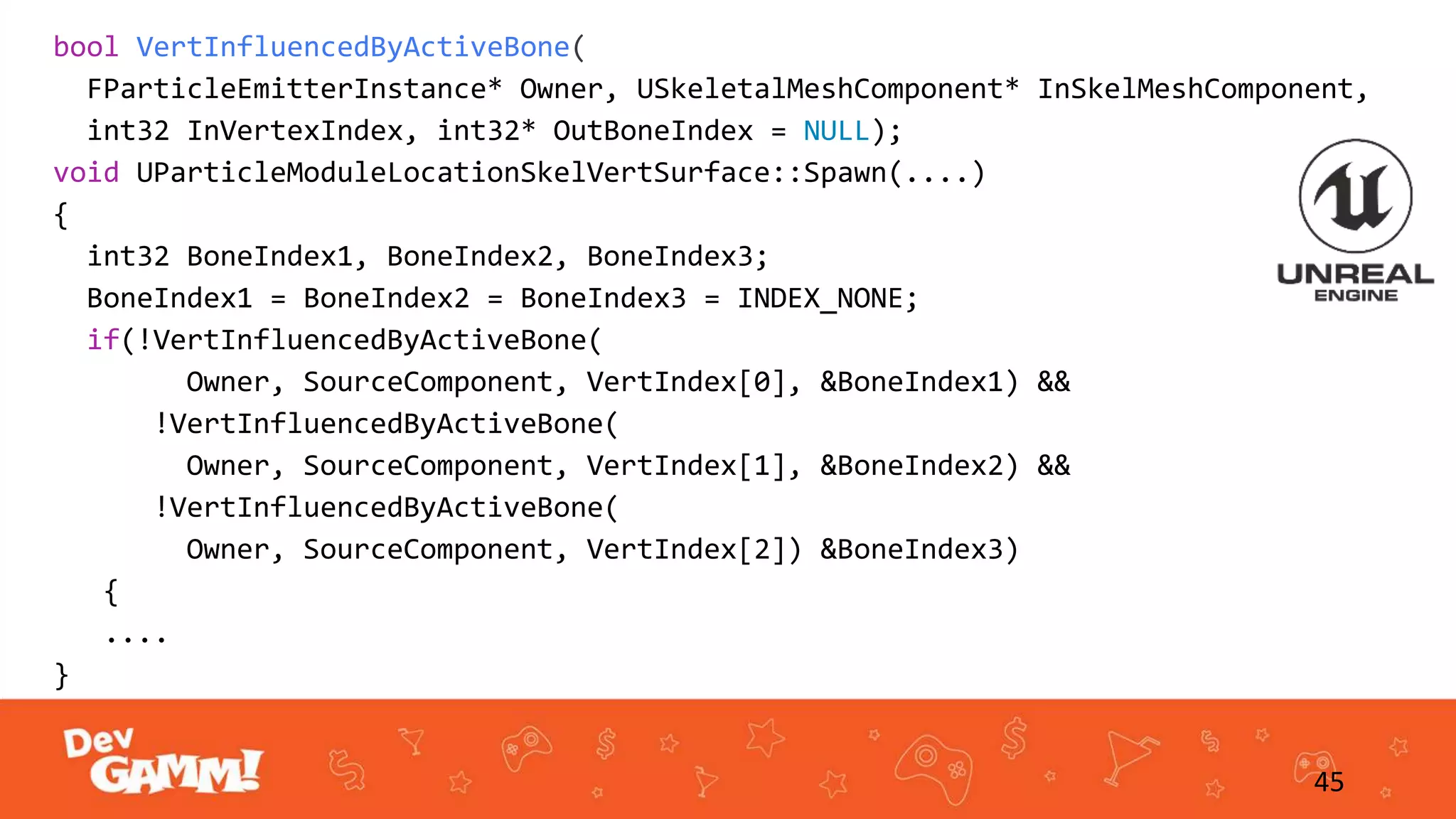

45. bool VertInfluencedByActiveBone(
FParticleEmitterInstance* Owner, USkeletalMeshComponent* InSkelMeshComponent,
int32 InVertexIndex, int32* OutBoneIndex = NULL);
void UParticleModuleLocationSkelVertSurface::Spawn(....)
{
int32 BoneIndex1, BoneIndex2, BoneIndex3;
BoneIndex1 = BoneIndex2 = BoneIndex3 = INDEX_NONE;
if(!VertInfluencedByActiveBone(
Owner, SourceComponent, VertIndex[0], &BoneIndex1) &&
!VertInfluencedByActiveBone(
Owner, SourceComponent, VertIndex[1], &BoneIndex2) &&
!VertInfluencedByActiveBone(
Owner, SourceComponent, VertIndex[2]) &BoneIndex3)
{
....
}
45

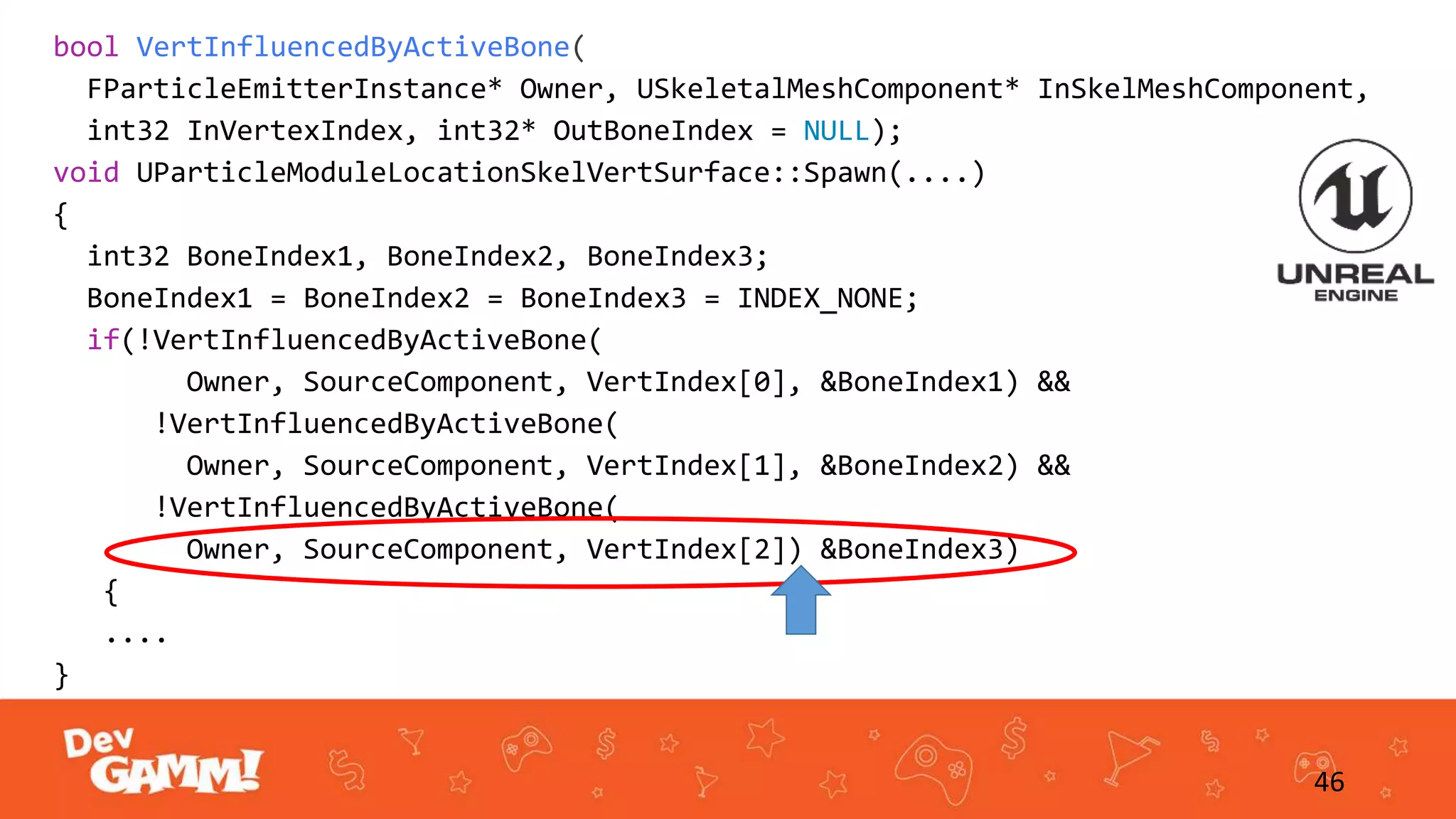

46. bool VertInfluencedByActiveBone(
FParticleEmitterInstance* Owner, USkeletalMeshComponent* InSkelMeshComponent,
int32 InVertexIndex, int32* OutBoneIndex = NULL);
void UParticleModuleLocationSkelVertSurface::Spawn(....)
{
int32 BoneIndex1, BoneIndex2, BoneIndex3;
BoneIndex1 = BoneIndex2 = BoneIndex3 = INDEX_NONE;
if(!VertInfluencedByActiveBone(
Owner, SourceComponent, VertIndex[0], &BoneIndex1) &&
!VertInfluencedByActiveBone(
Owner, SourceComponent, VertIndex[1], &BoneIndex2) &&
!VertInfluencedByActiveBone(
Owner, SourceComponent, VertIndex[2]) &BoneIndex3)
{
....
}
46

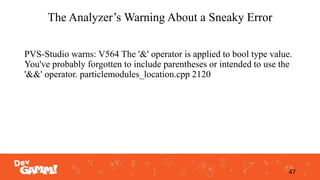

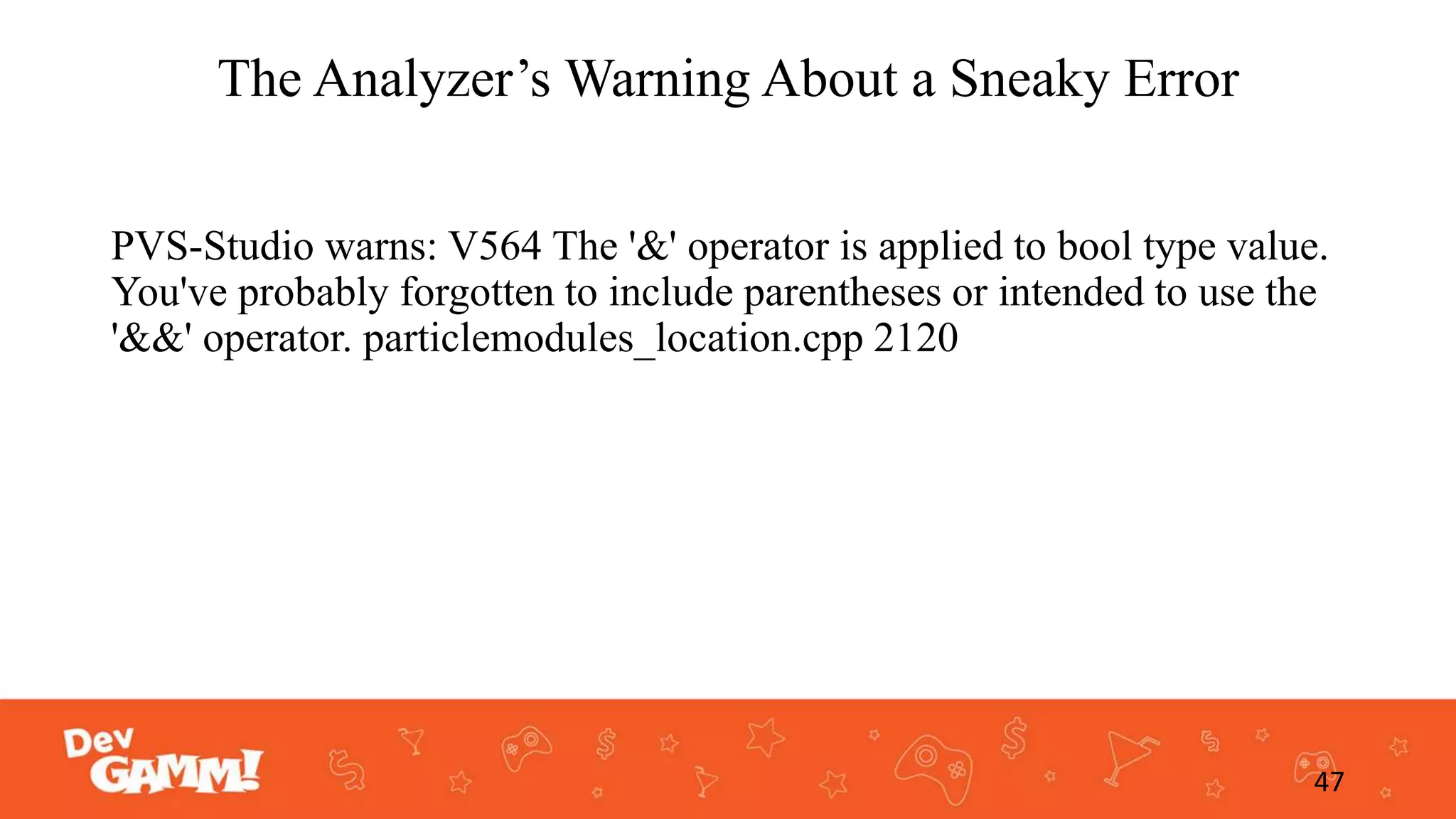

47. The Analyzer’s Warning About a Sneaky Error
PVS-Studio warns: V564 The '&' operator is applied to bool type value.
You've probably forgotten to include parentheses or intended to use the
'&&' operator. particlemodules_location.cpp 2120
47

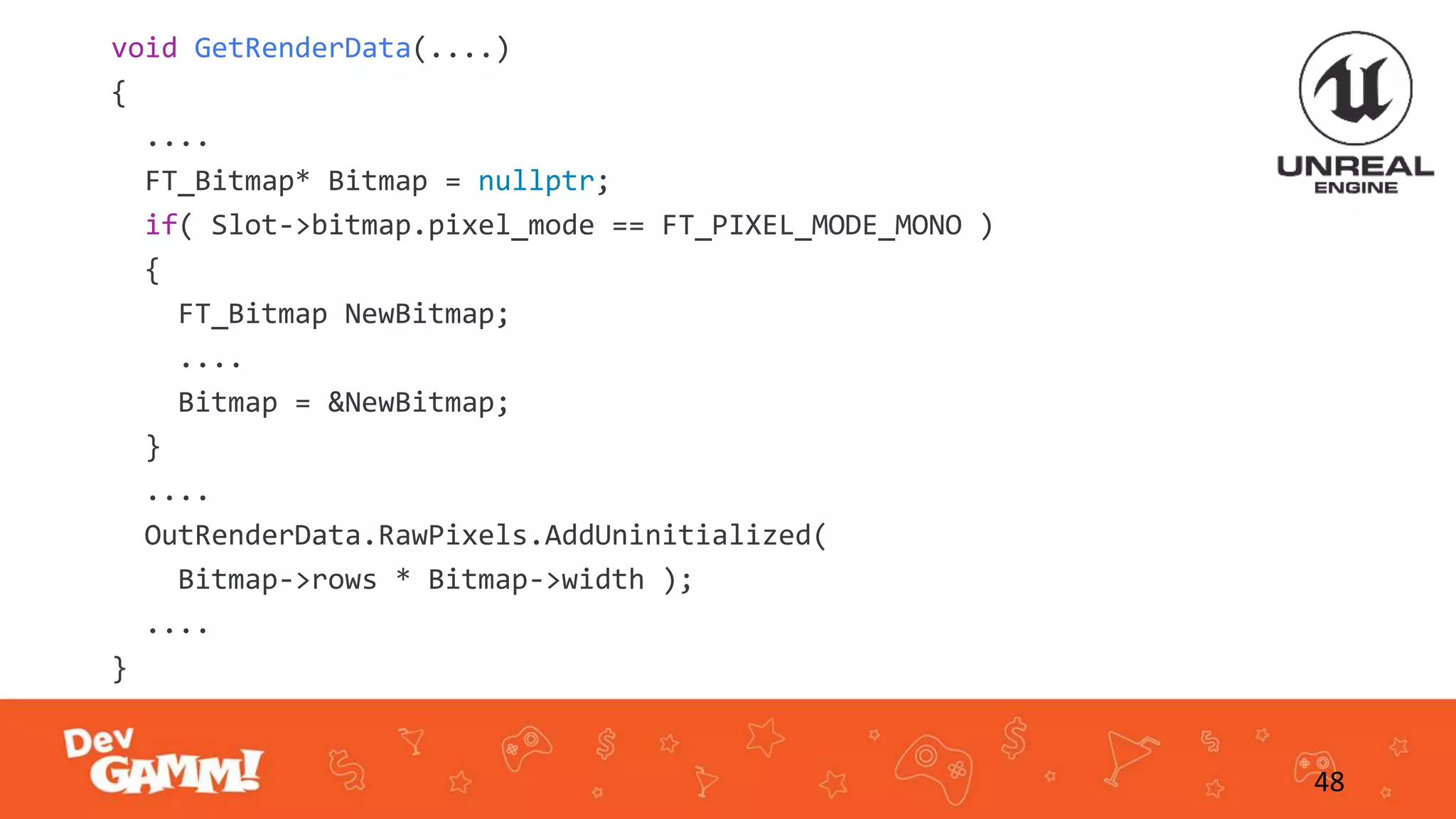

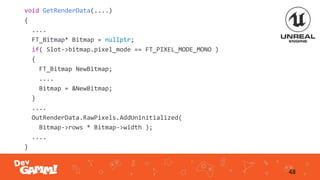

48. void GetRenderData(....)
{
....
FT_Bitmap* Bitmap = nullptr;
if( Slot->bitmap.pixel_mode == FT_PIXEL_MODE_MONO )
{
FT_Bitmap NewBitmap;
....
Bitmap = &NewBitmap;
}
....
OutRenderData.RawPixels.AddUninitialized(
Bitmap->rows * Bitmap->width );
....
}
48

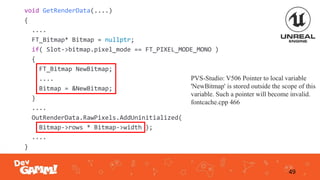

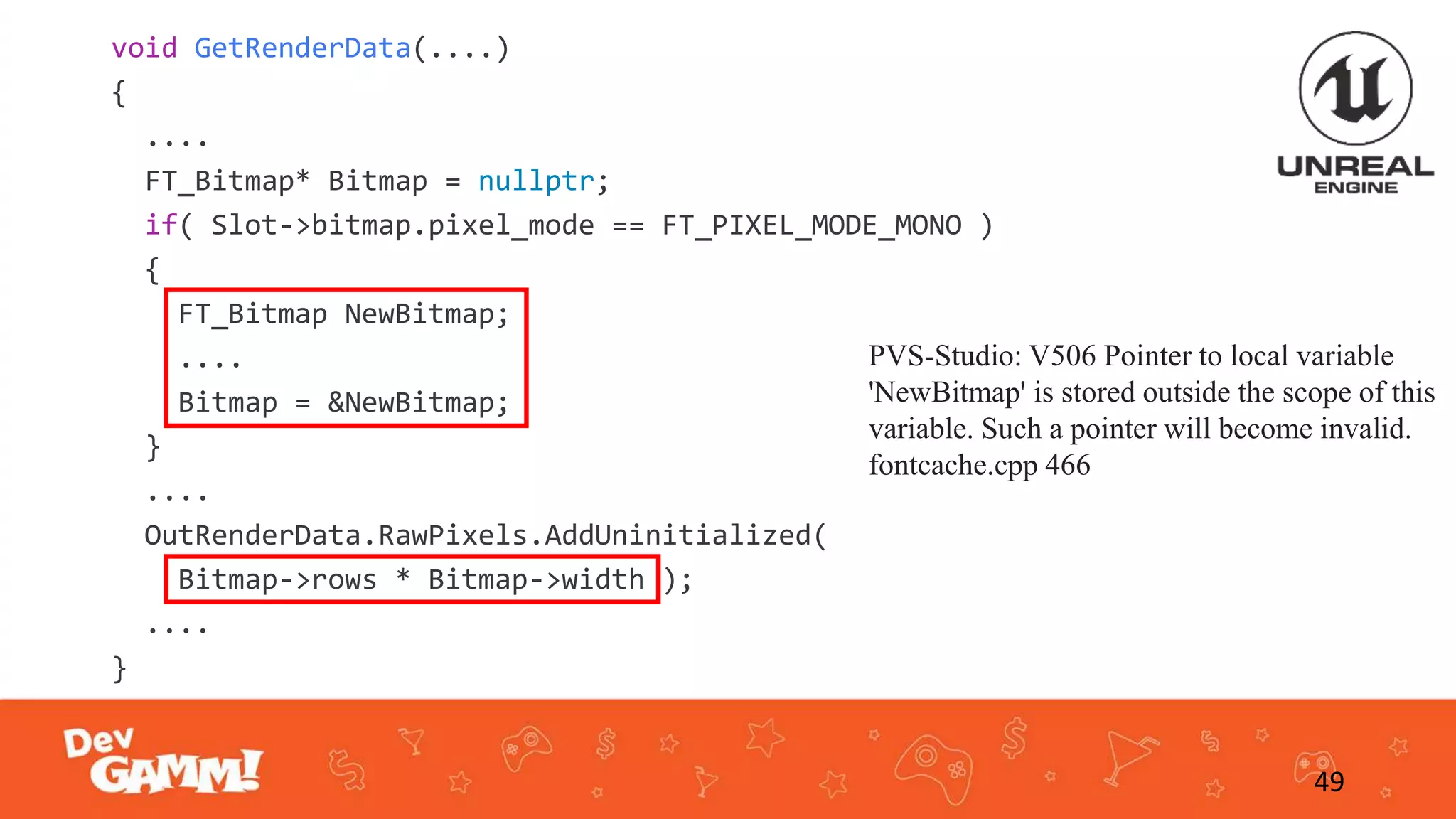

49. void GetRenderData(....)
{
....
FT_Bitmap* Bitmap = nullptr;
if( Slot->bitmap.pixel_mode == FT_PIXEL_MODE_MONO )
{
FT_Bitmap NewBitmap;
....
Bitmap = &NewBitmap;
}
....
OutRenderData.RawPixels.AddUninitialized(
Bitmap->rows * Bitmap->width );
....
}
49
PVS-Studio: V506 Pointer to local variable
'NewBitmap' is stored outside the scope of this
variable. Such a pointer will become invalid.
fontcache.cpp 466

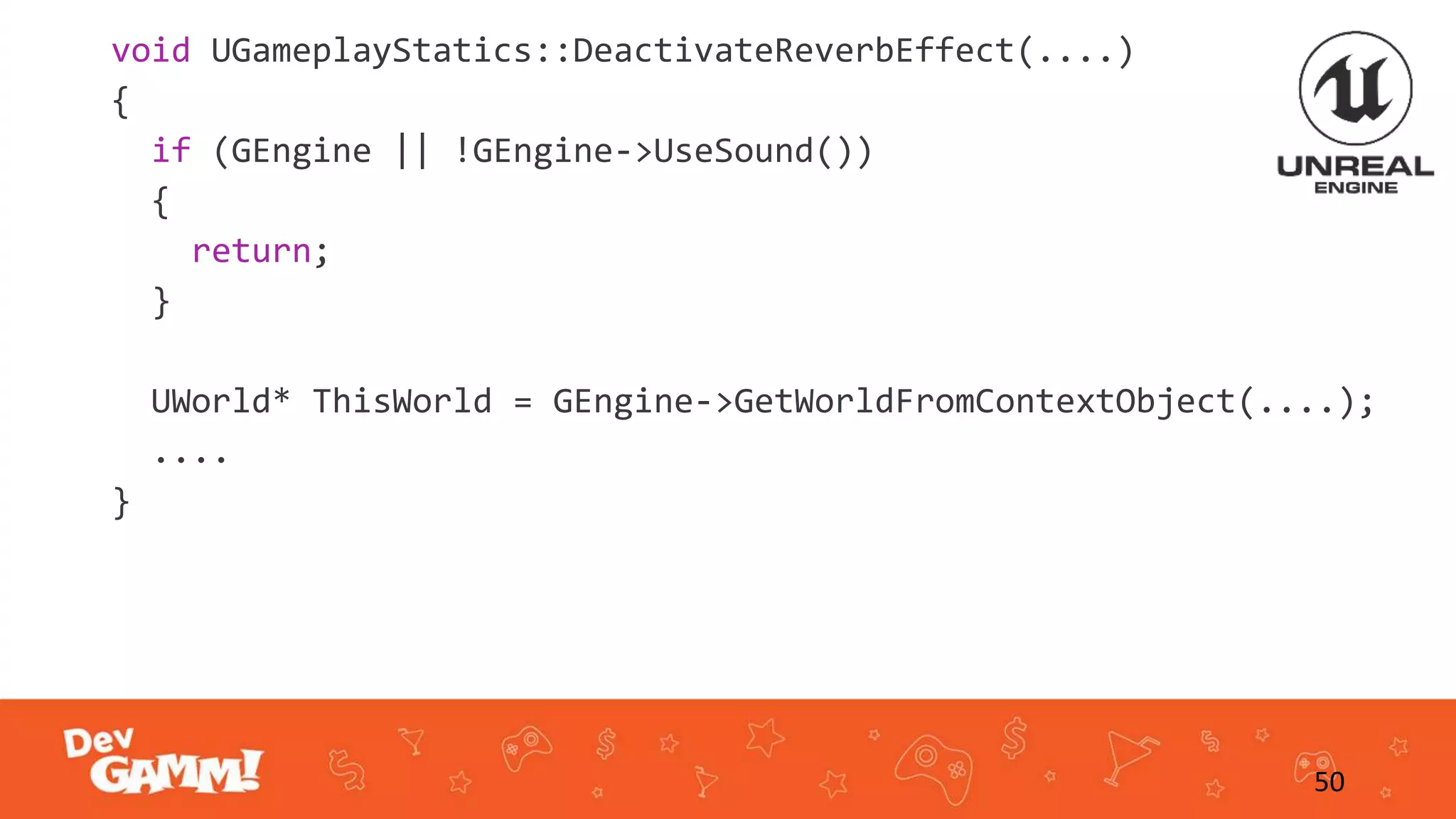

50. void UGameplayStatics::DeactivateReverbEffect(....)
{
if (GEngine || !GEngine->UseSound())
{
return;
}
UWorld* ThisWorld = GEngine->GetWorldFromContextObject(....);
....
}
50

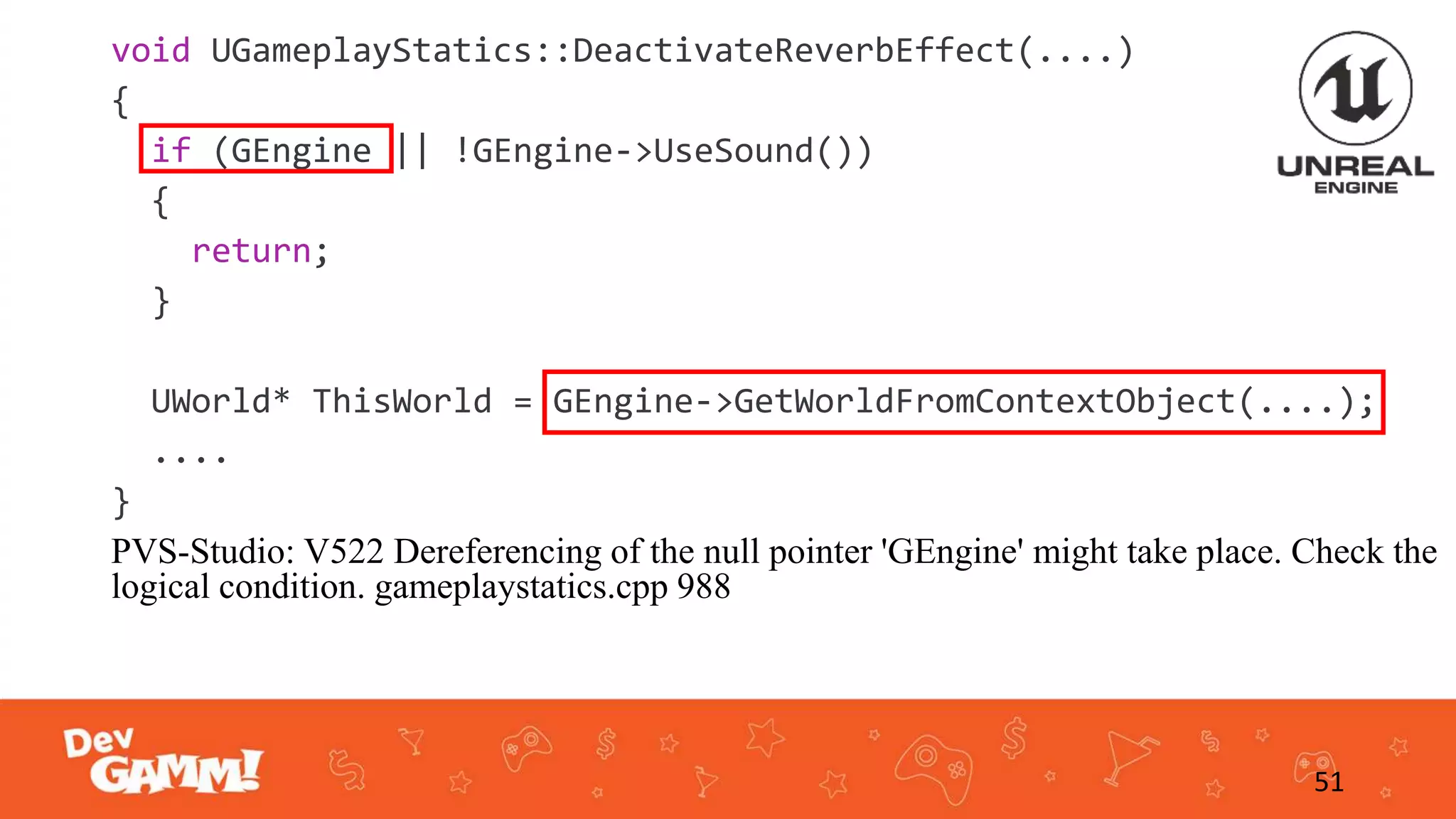

51. void UGameplayStatics::DeactivateReverbEffect(....)
{
if (GEngine || !GEngine->UseSound())
{
return;
}
UWorld* ThisWorld = GEngine->GetWorldFromContextObject(....);
....
}
PVS-Studio: V522 Dereferencing of the null pointer 'GEngine' might take place. Check the
logical condition. gameplaystatics.cpp 988
51

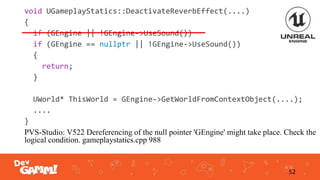

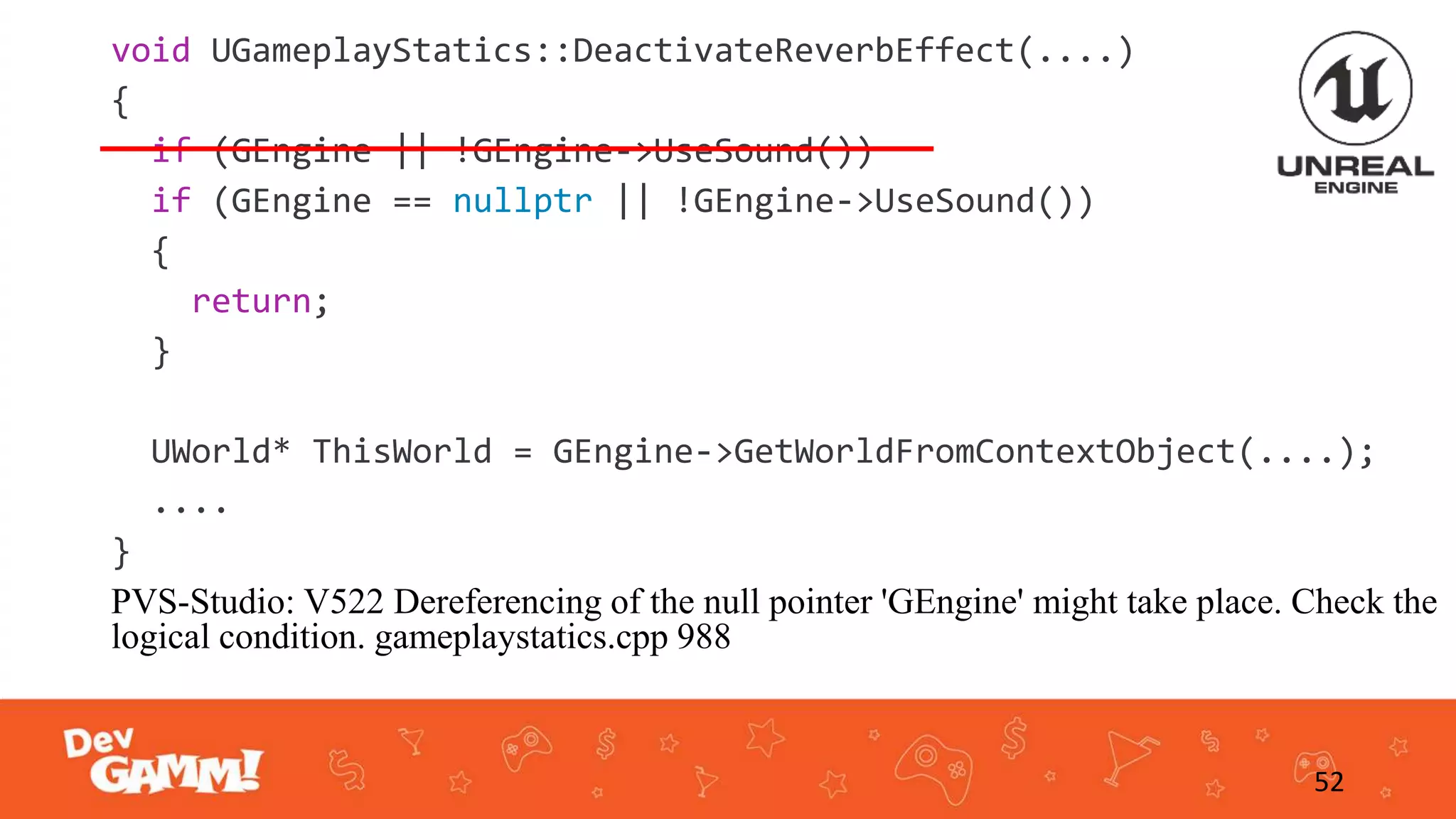

52. void UGameplayStatics::DeactivateReverbEffect(....)
{
if (GEngine || !GEngine->UseSound())
if (GEngine == nullptr || !GEngine->UseSound())
{
return;
}
UWorld* ThisWorld = GEngine->GetWorldFromContextObject(....);
....
}
PVS-Studio: V522 Dereferencing of the null pointer 'GEngine' might take place. Check the
logical condition. gameplaystatics.cpp 988
52

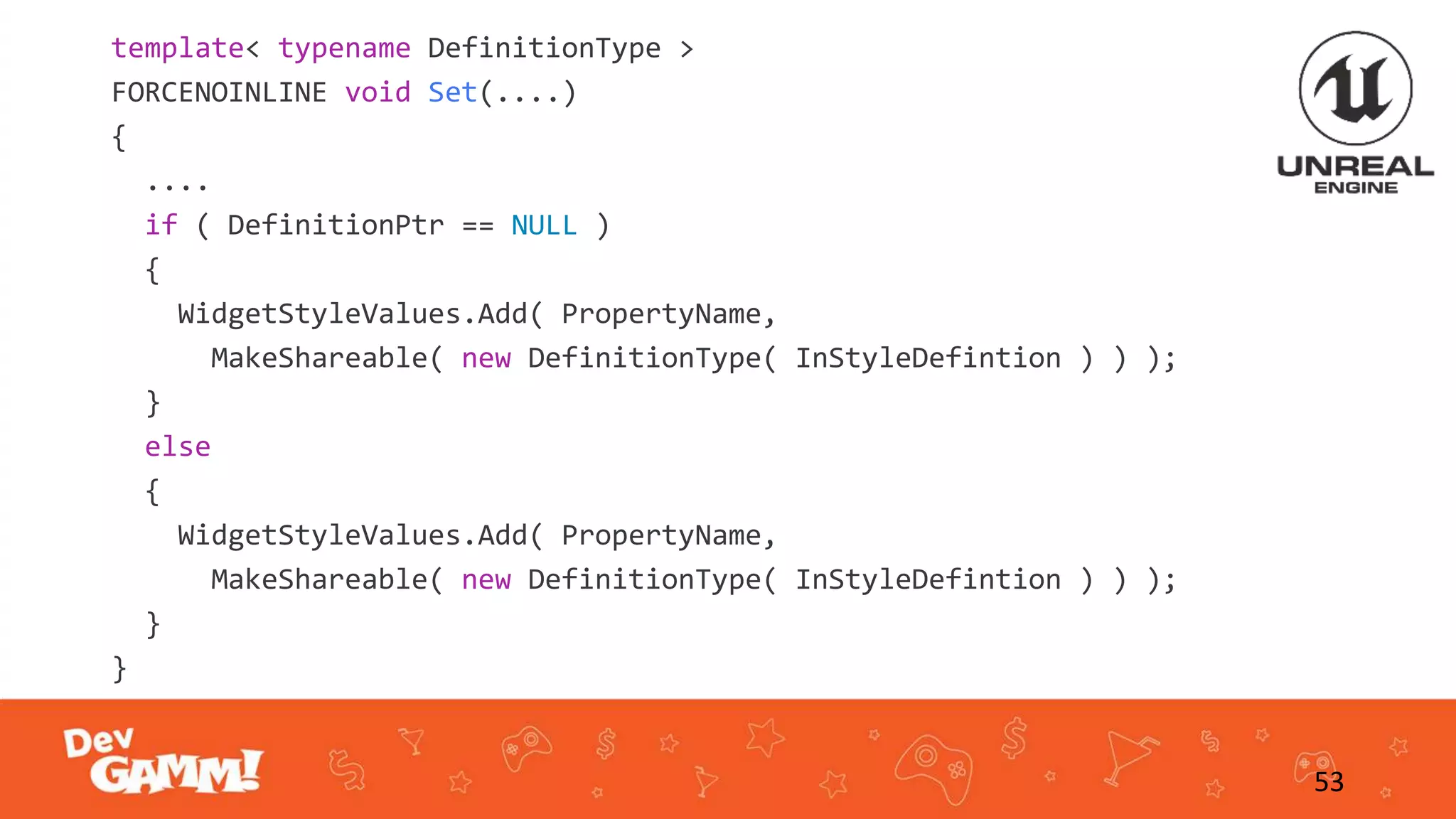

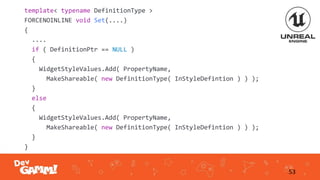

53. template< typename DefinitionType >
FORCENOINLINE void Set(....)
{
....
if ( DefinitionPtr == NULL )
{
WidgetStyleValues.Add( PropertyName,
MakeShareable( new DefinitionType( InStyleDefintion ) ) );
}
else
{
WidgetStyleValues.Add( PropertyName,
MakeShareable( new DefinitionType( InStyleDefintion ) ) );
}
}
53

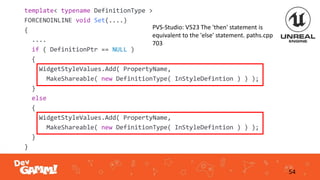

54. template< typename DefinitionType >
FORCENOINLINE void Set(....)
{
....
if ( DefinitionPtr == NULL )
{
WidgetStyleValues.Add( PropertyName,
MakeShareable( new DefinitionType( InStyleDefintion ) ) );
}
else
{
WidgetStyleValues.Add( PropertyName,
MakeShareable( new DefinitionType( InStyleDefintion ) ) );
}
}
54
PVS-Studio: V523 The 'then' statement is
equivalent to the 'else' statement. paths.cpp
703

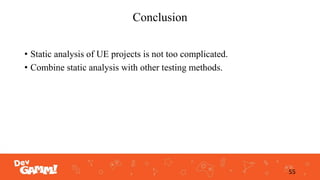

55. Conclusion
• Static analysis of UE projects is not too complicated.
• Combine static analysis with other testing methods.
55
