PVS-Studio is a static code analyzer that helps ensure code quality. It detects errors in code without running programs and supplements code reviews. The document discusses how PVS-Studio analyzes C# code using Roslyn to build a syntax tree and semantic model. It describes how the tool develops diagnostics through positive and negative tests, then validates them on real projects using a SelfTester. High-quality static analysis requires processing exceptions, reducing false positives, and incorporating user feedback.

1. 1/38
How to create a high quality
static code analyzer
Sergey Khrenov (PVS-Studio)

2. 2/38

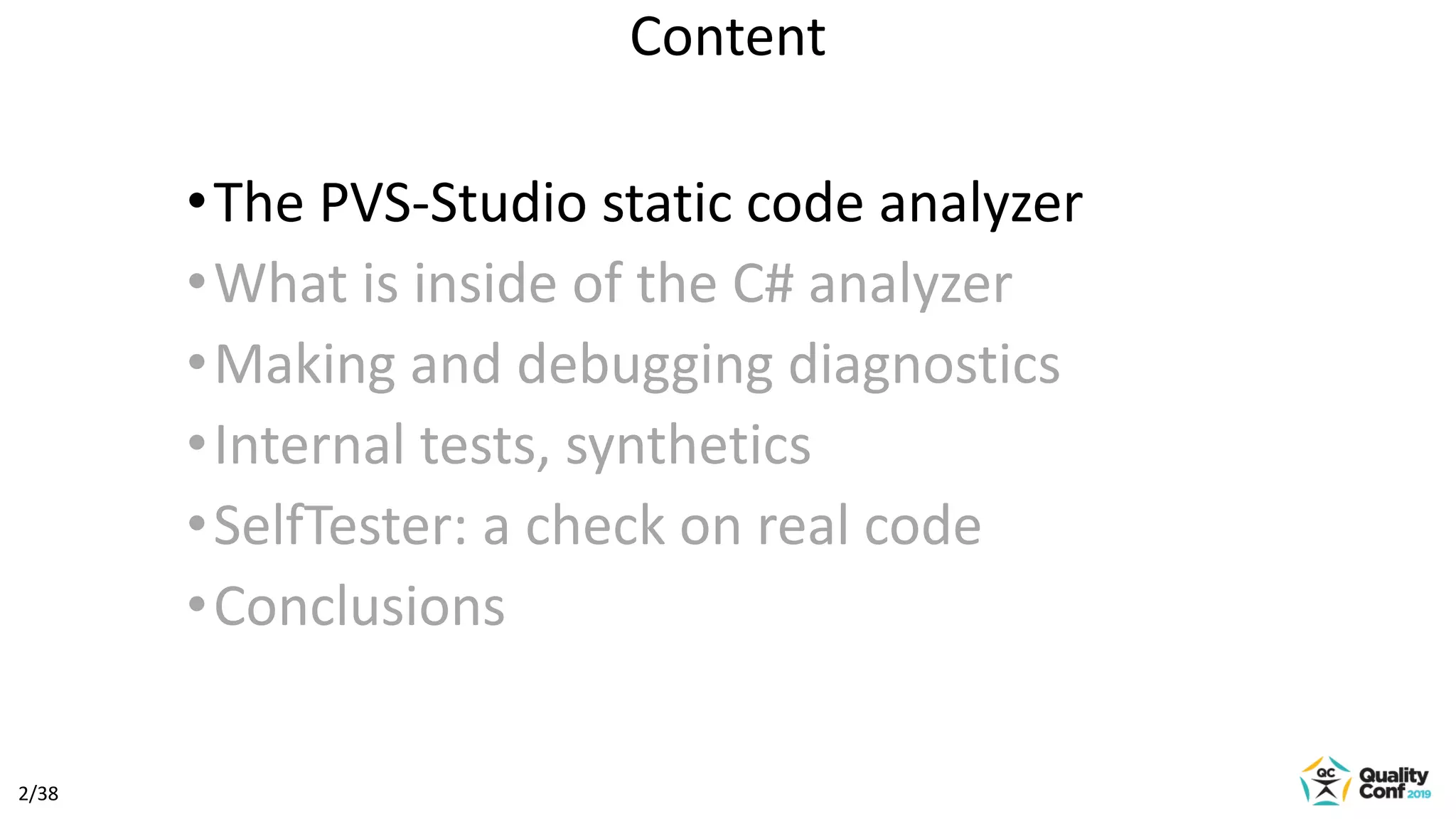

•The PVS-Studio static code analyzer
•What is inside of the C# analyzer
•Making and debugging diagnostics
•Internal tests, synthetics
•SelfTester: a check on real code
•Conclusions
Content

3. 3/38
• It doesn’t replace but supplement
code reviews
• Detects errors in code without
running the program
• It helps to control the code quality
in large projects
Static analysis

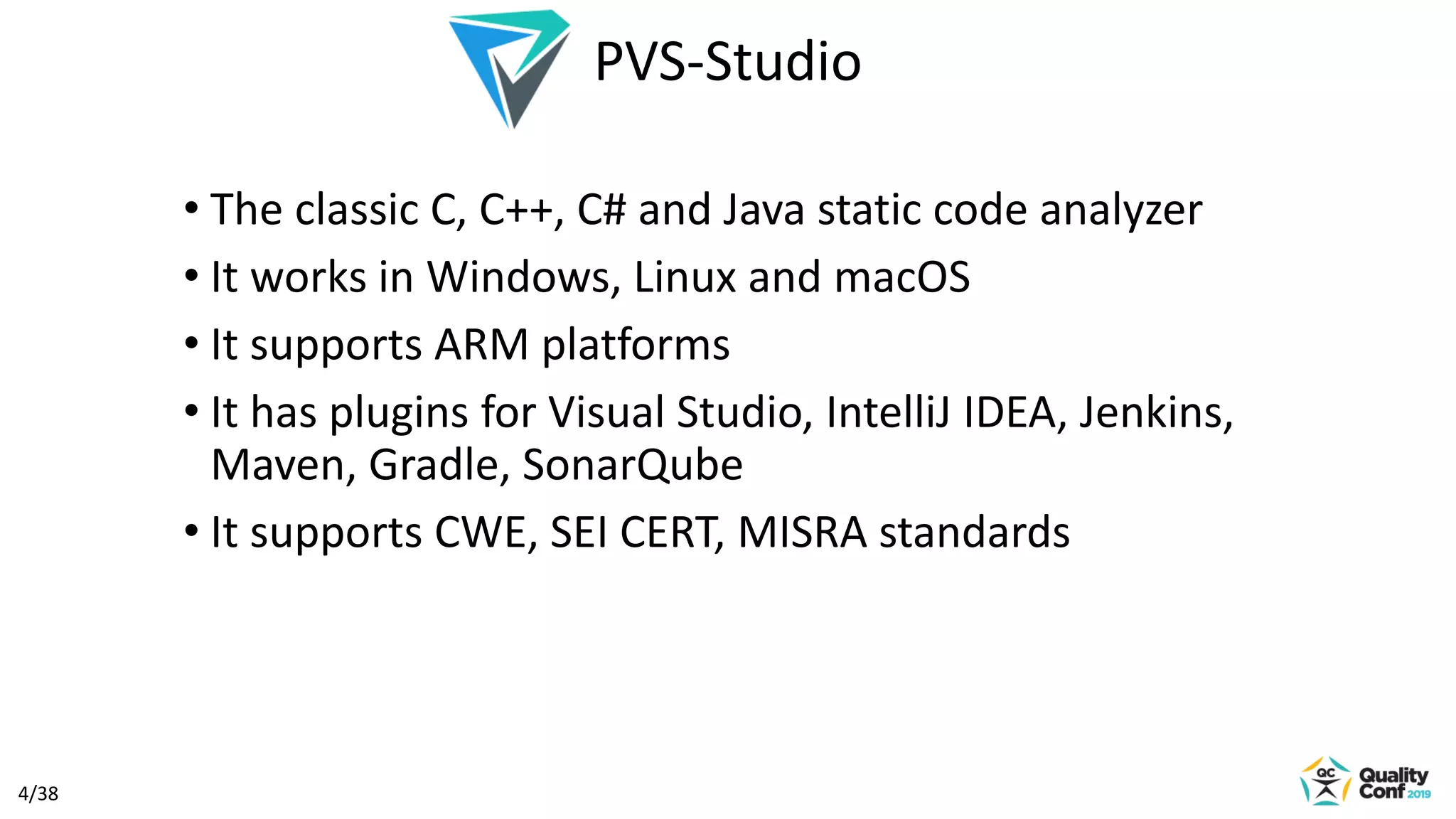

4. 4/38
PVS-Studio
• The classic C, C++, C# and Java static code analyzer
• It works in Windows, Linux and macOS
• It supports ARM platforms
• It has plugins for Visual Studio, IntelliJ IDEA, Jenkins,
Maven, Gradle, SonarQube
• It supports CWE, SEI CERT, MISRA standards

5. 5/38

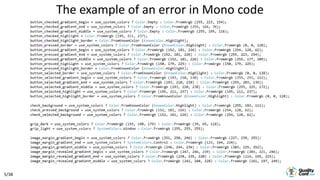

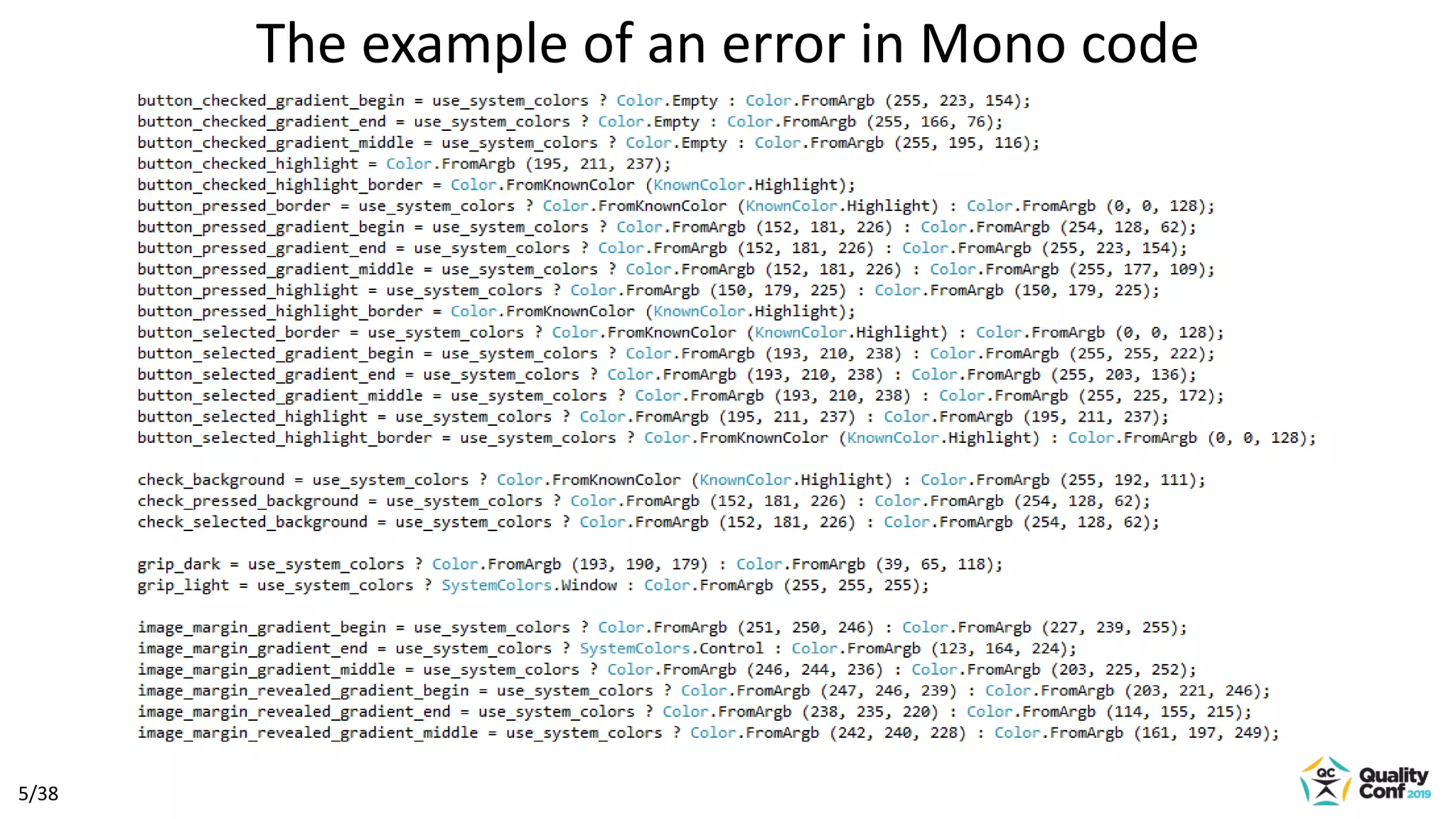

The example of an error in Mono code

6. 6/38
The example of an error in Mono code

7. 7/38

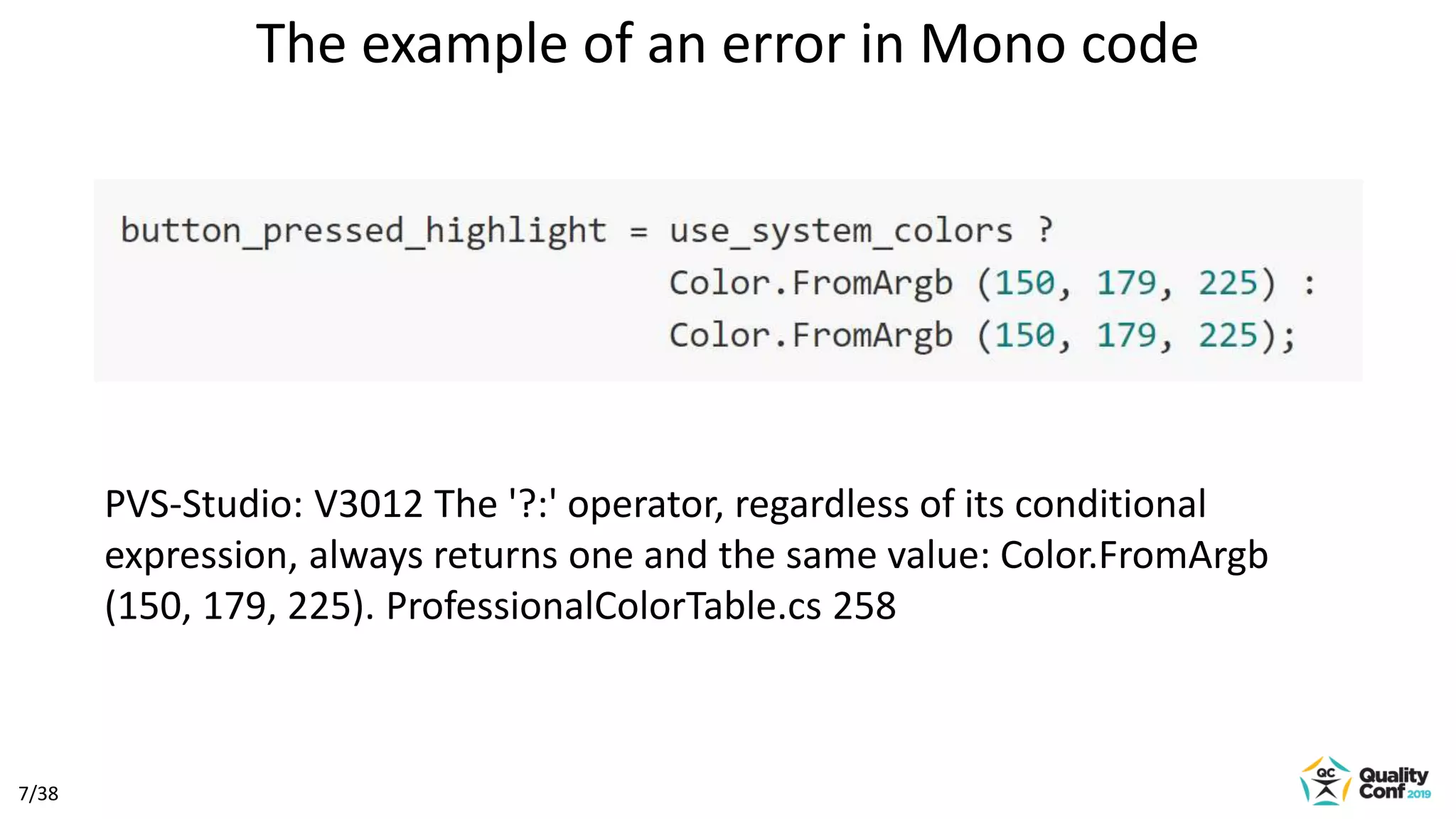

PVS-Studio: V3012 The '?:' operator, regardless of its conditional
expression, always returns one and the same value: Color.FromArgb
(150, 179, 225). ProfessionalColorTable.cs 258
The example of an error in Mono code

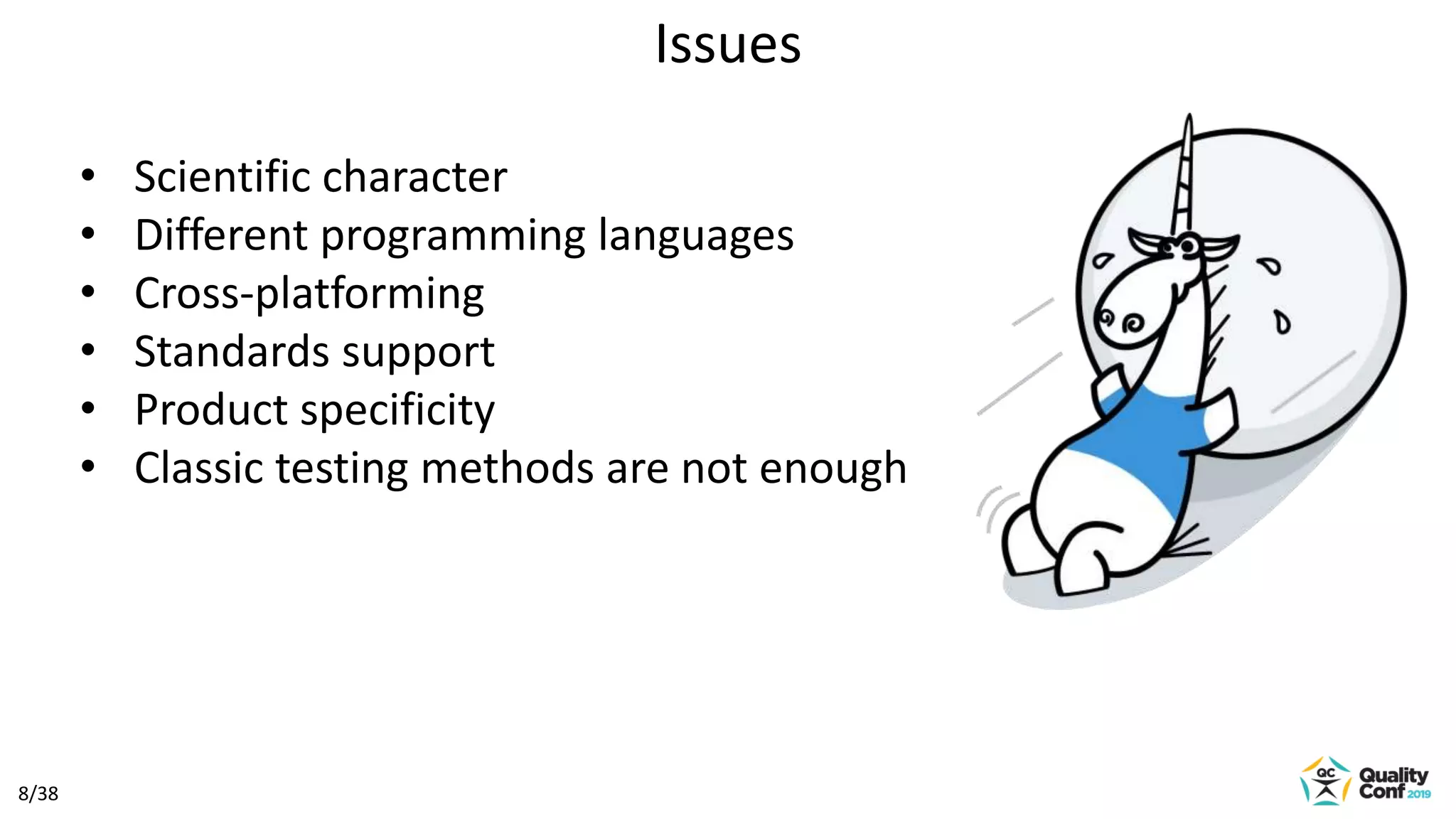

8. 8/38
Issues
• Scientific character
• Different programming languages
• Cross-platforming
• Standards support
• Product specificity
• Classic testing methods are not enough

9. 9/38
How to ensure quality?
• Joint code reviews (it works!)
• Static analysis
• Unit-tests
• UI-tests
• Functional tests
• Load testing
• Real project checks

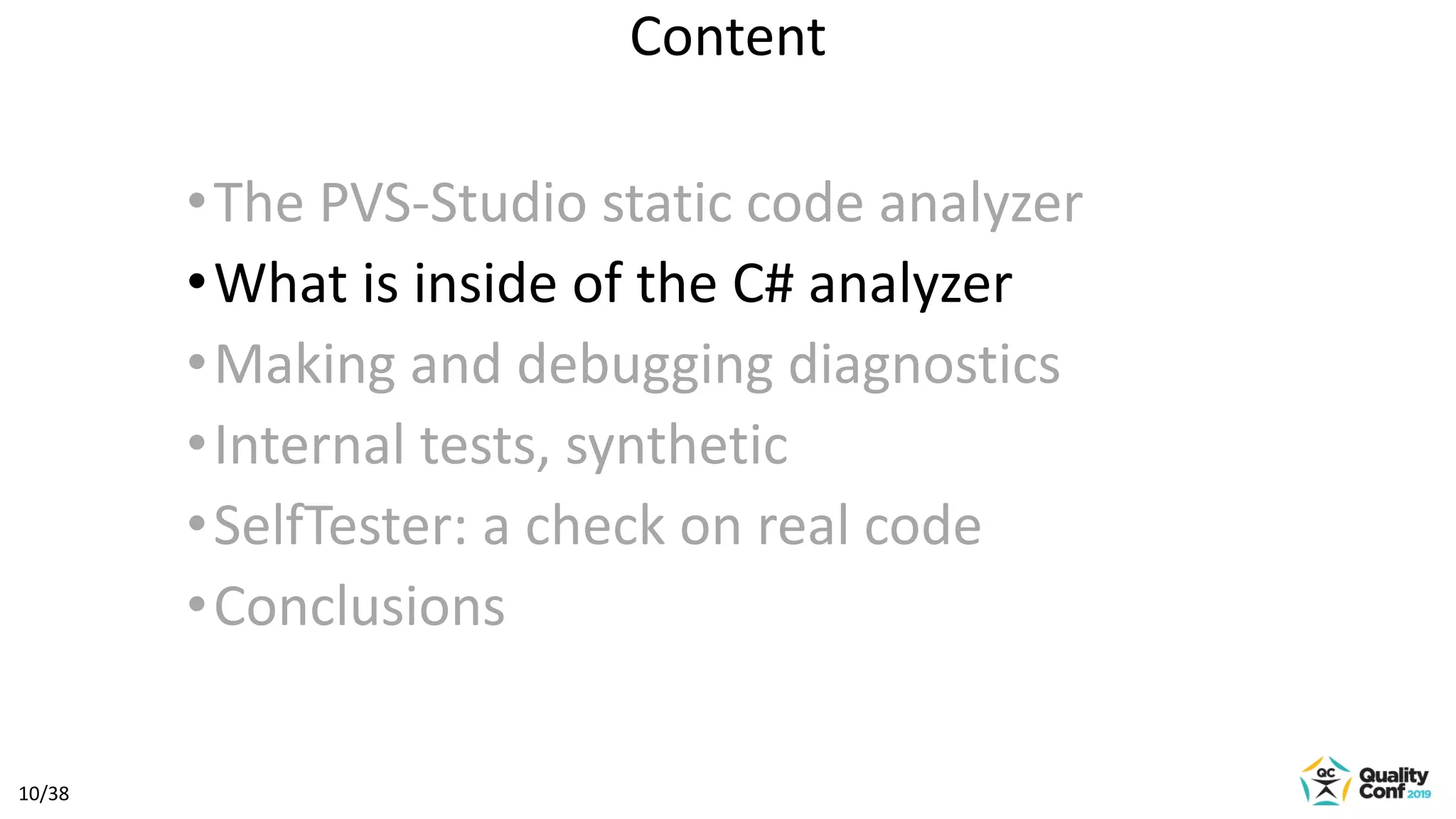

10. 10/38
•The PVS-Studio static code analyzer
•What is inside of the C# analyzer
•Making and debugging diagnostics
•Internal tests, synthetic
•SelfTester: a check on real code
•Conclusions
Content

11. 11/38
Roslyn

12. 12/38

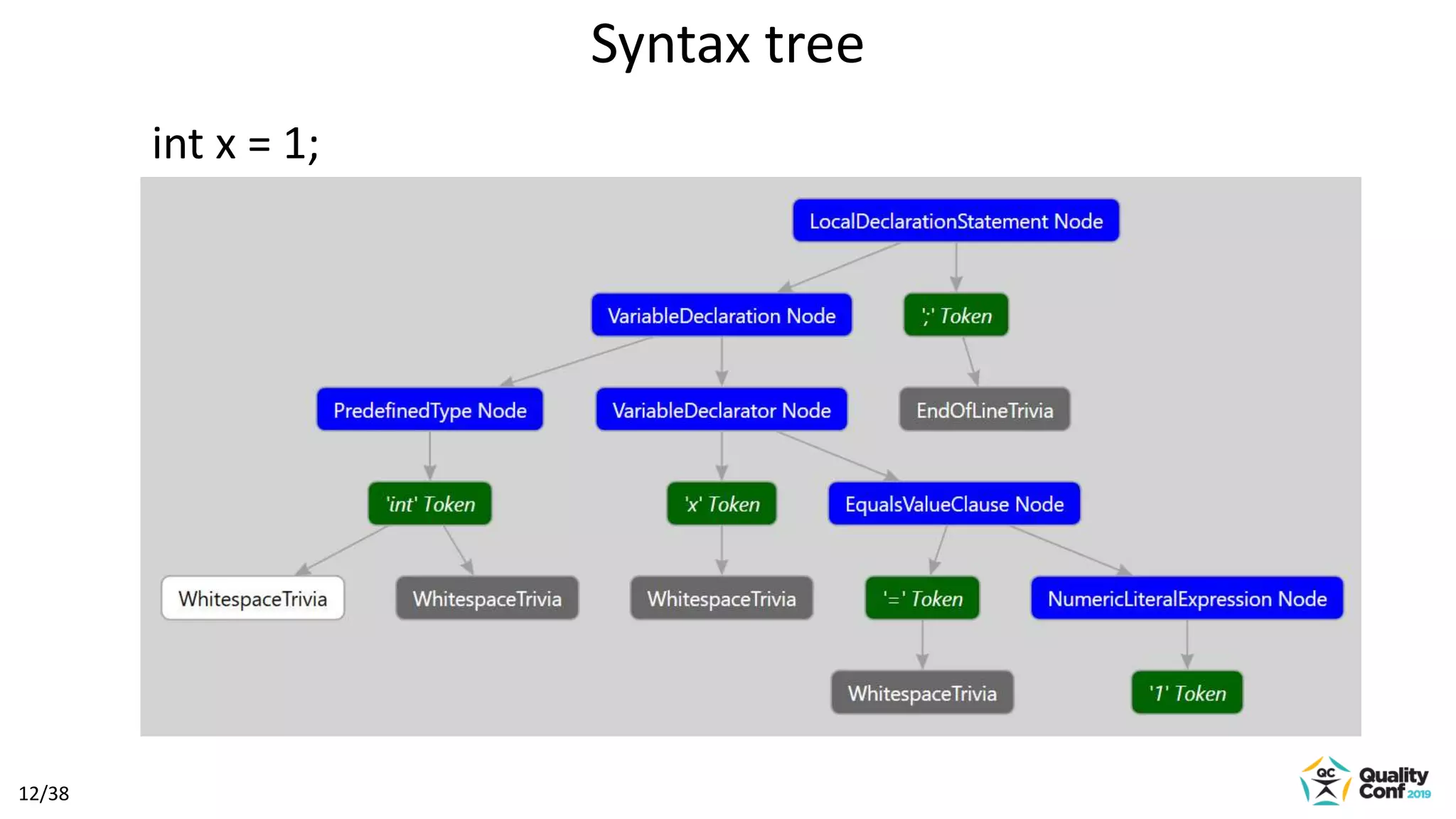

int x = 1;
Syntax tree

13. 13/38

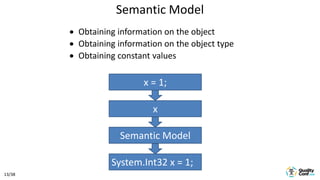

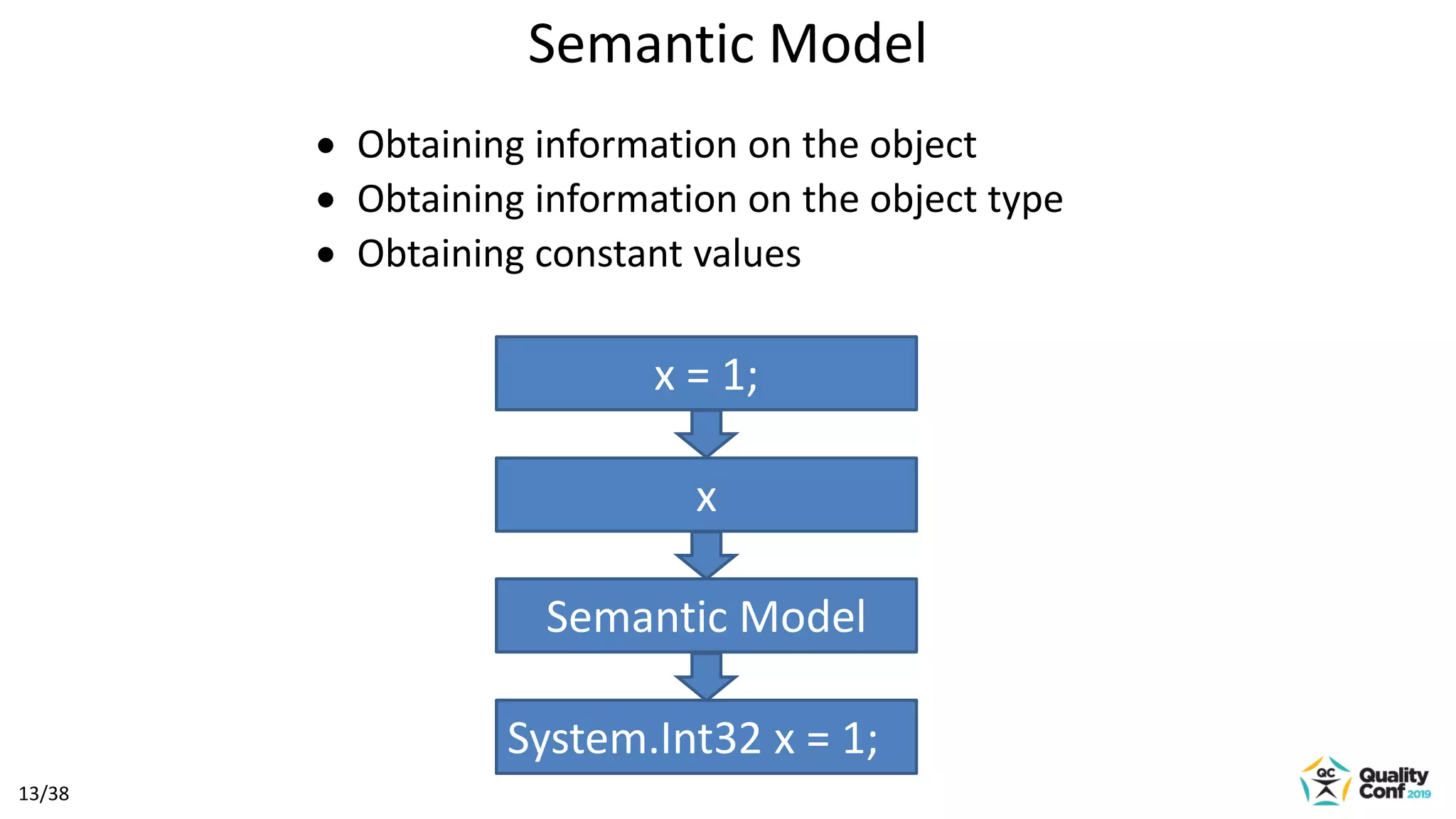

Semantic Model
 Obtaining information on the object
 Obtaining information on the object type
 Obtaining constant values
x = 1;
x
Semantic Model
System.Int32 x = 1;

14. 14/38

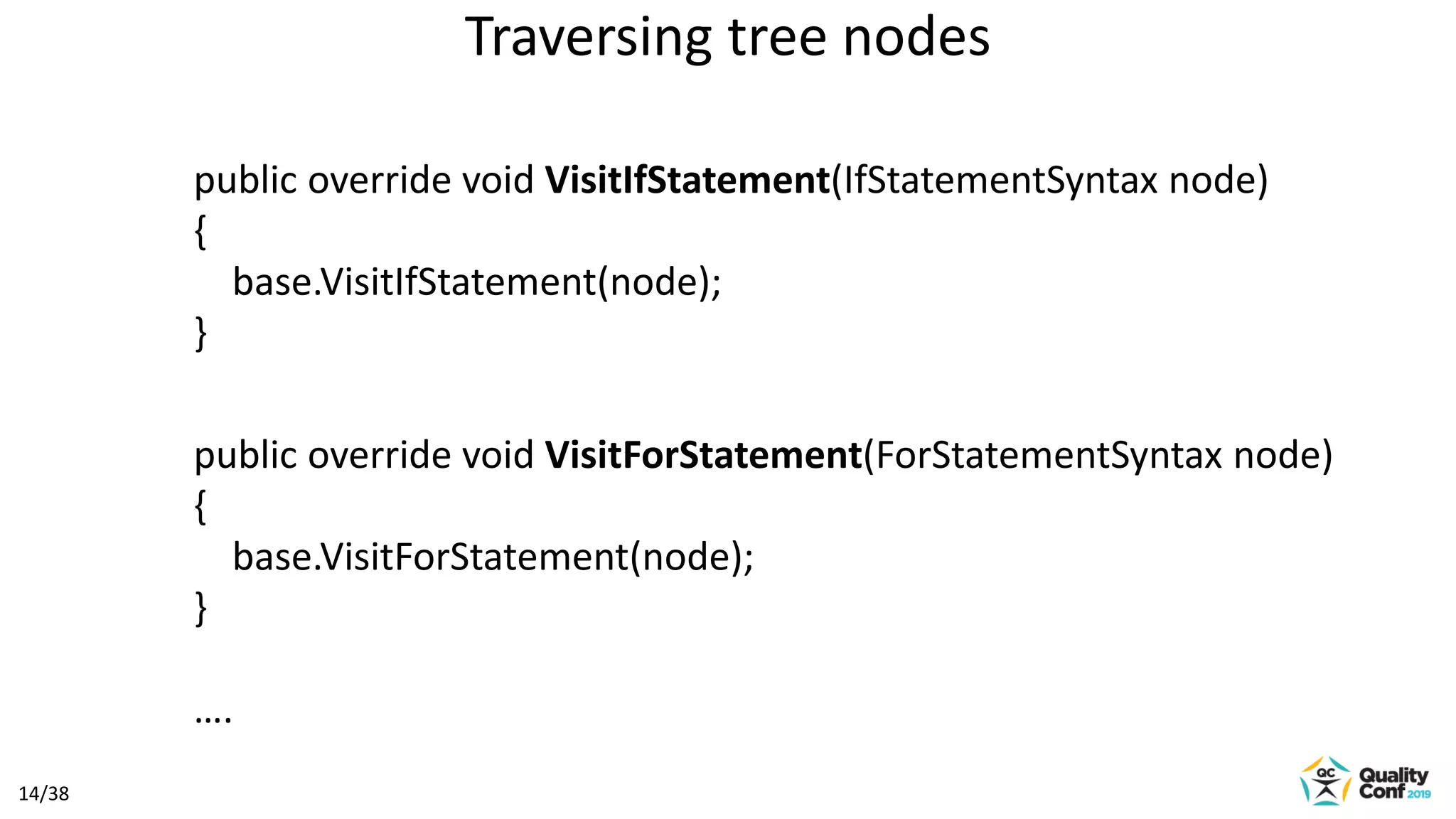

Traversing tree nodes
public override void VisitIfStatement(IfStatementSyntax node)
{
base.VisitIfStatement(node);
}
public override void VisitForStatement(ForStatementSyntax node)
{
base.VisitForStatement(node);
}
….

15. 15/38

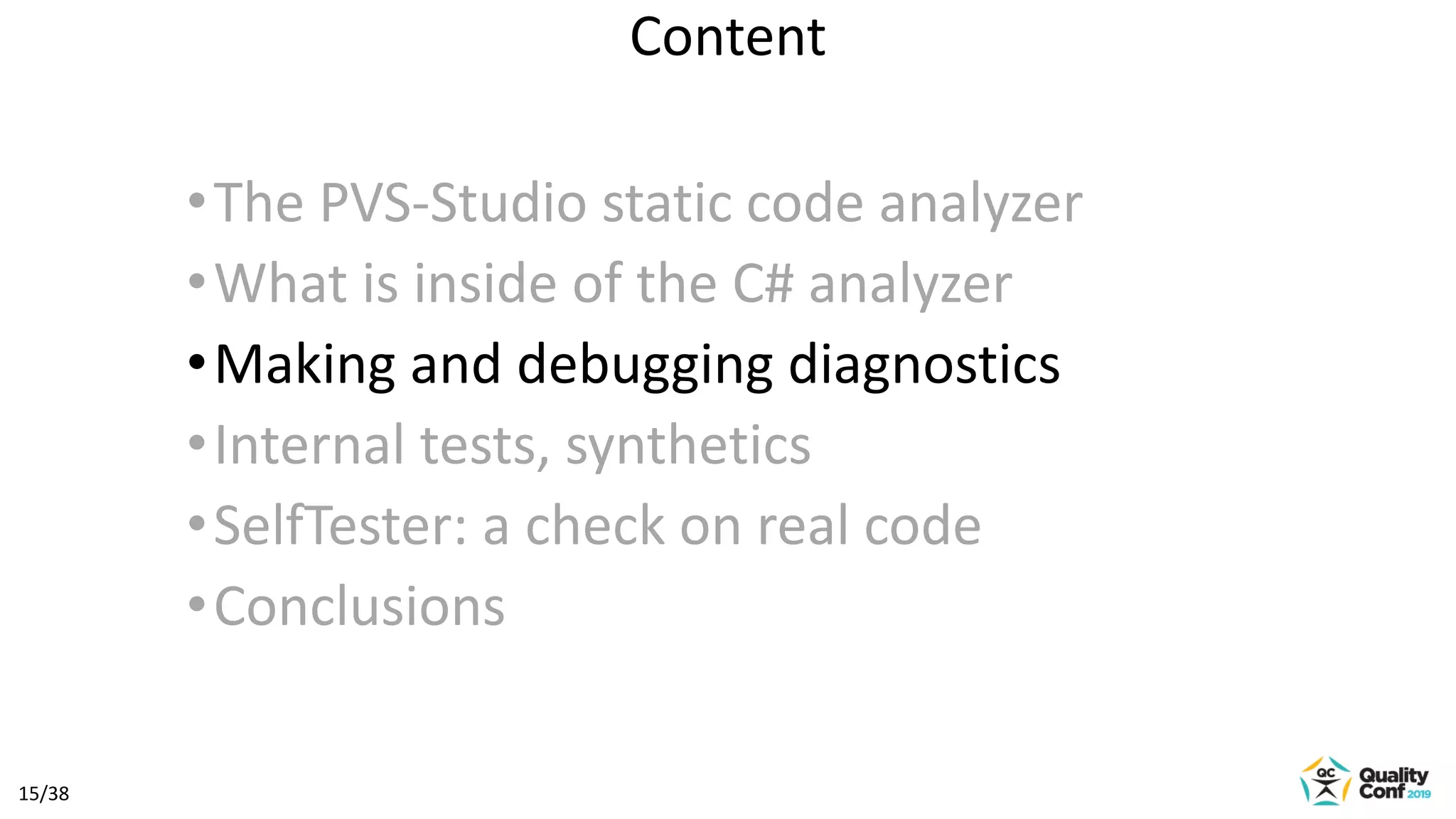

•The PVS-Studio static code analyzer
•What is inside of the C# analyzer
•Making and debugging diagnostics
•Internal tests, synthetics
•SelfTester: a check on real code
•Conclusions
Content

16. 16/38

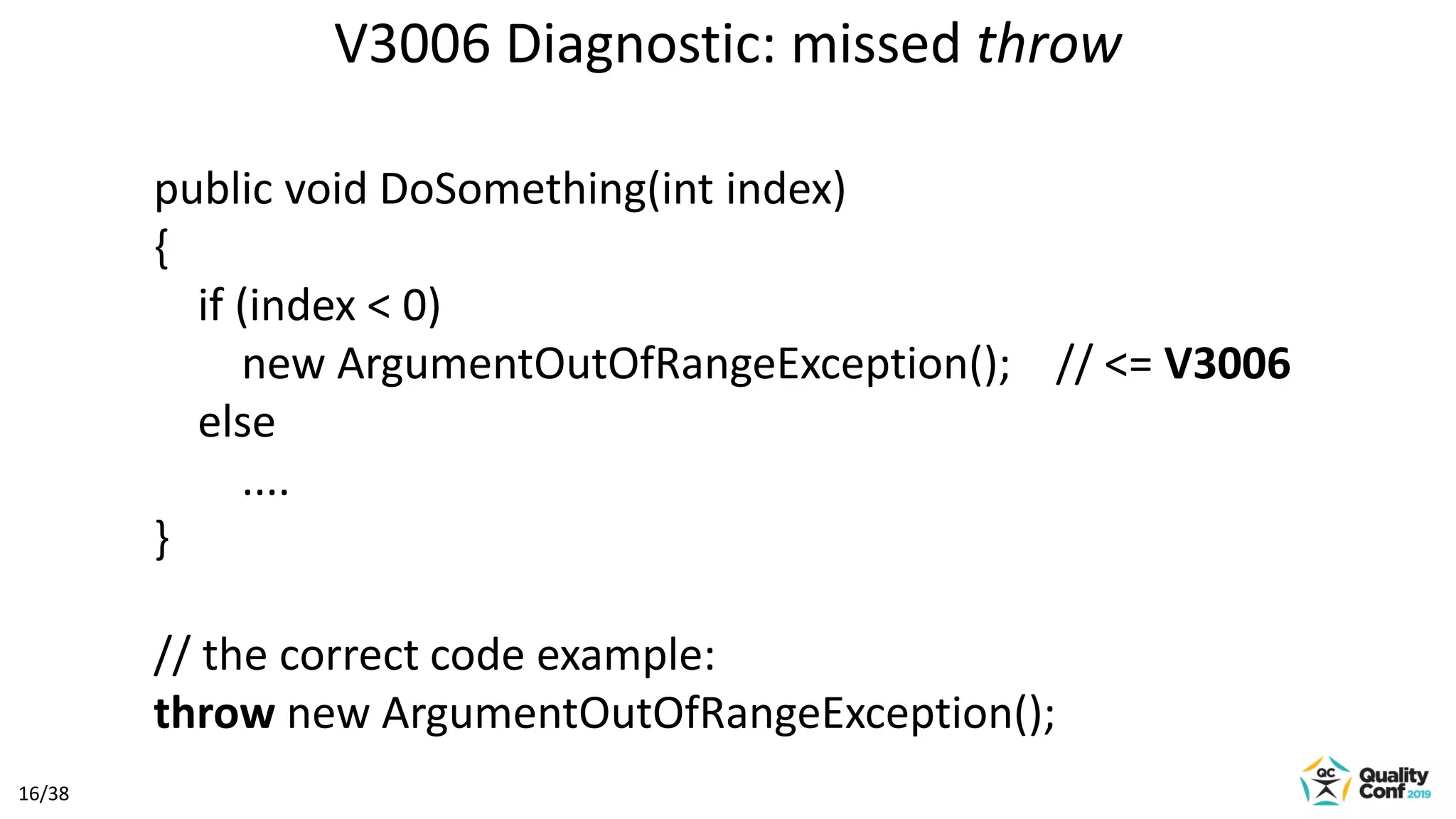

V3006 Diagnostic: missed throw
public void DoSomething(int index)
{
if (index < 0)
new ArgumentOutOfRangeException(); // <= V3006
else
....
}
// the correct code example:
throw new ArgumentOutOfRangeException();

17. 17/38

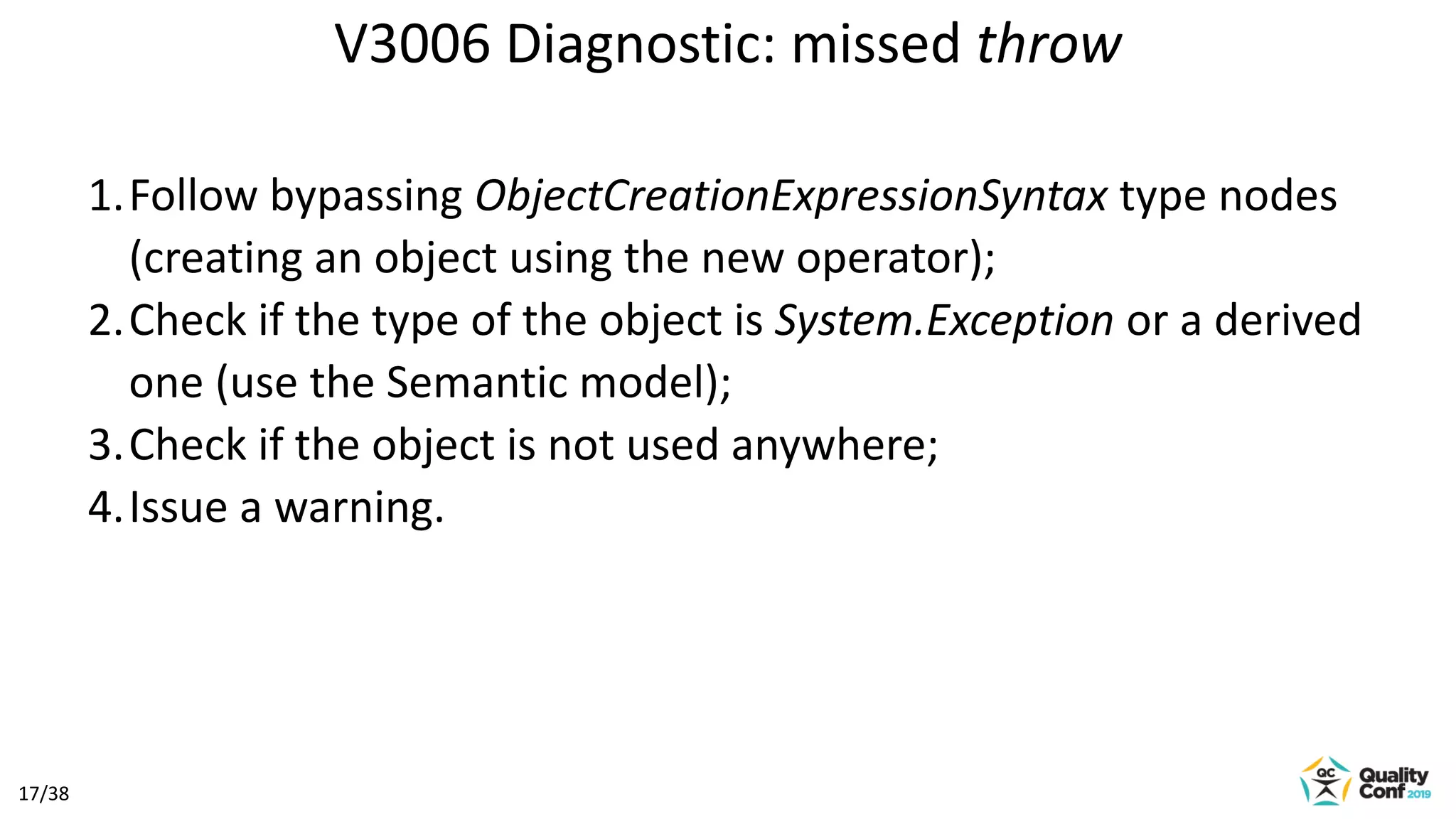

1.Follow bypassing ObjectCreationExpressionSyntax type nodes
(creating an object using the new operator);
2.Check if the type of the object is System.Exception or a derived
one (use the Semantic model);
3.Check if the object is not used anywhere;
4.Issue a warning.
V3006 Diagnostic: missed throw

18. 18/38

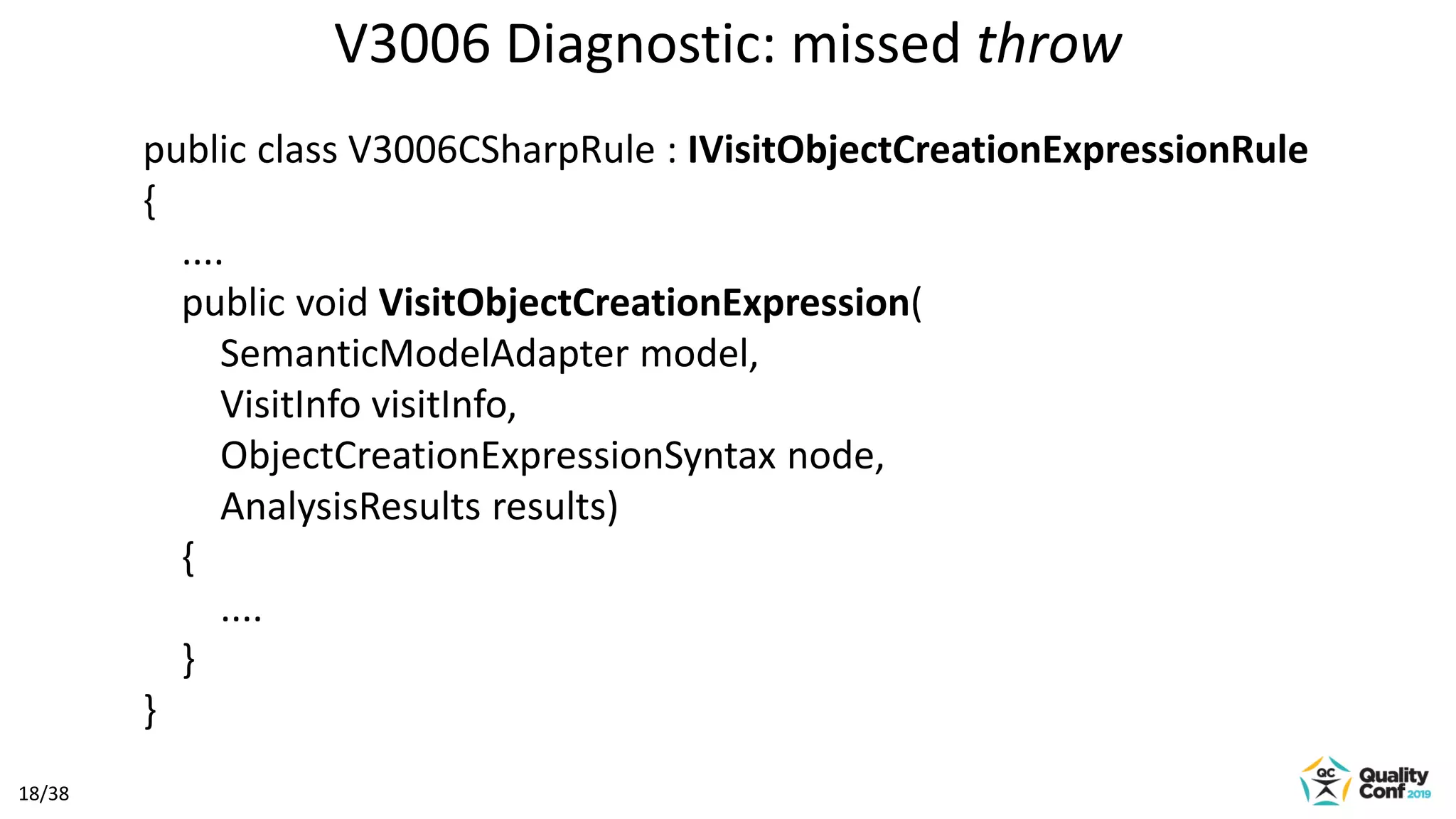

public class V3006CSharpRule : IVisitObjectCreationExpressionRule
{
....
public void VisitObjectCreationExpression(
SemanticModelAdapter model,
VisitInfo visitInfo,
ObjectCreationExpressionSyntax node,
AnalysisResults results)
{
....
}
}
V3006 Diagnostic: missed throw

19. 19/38

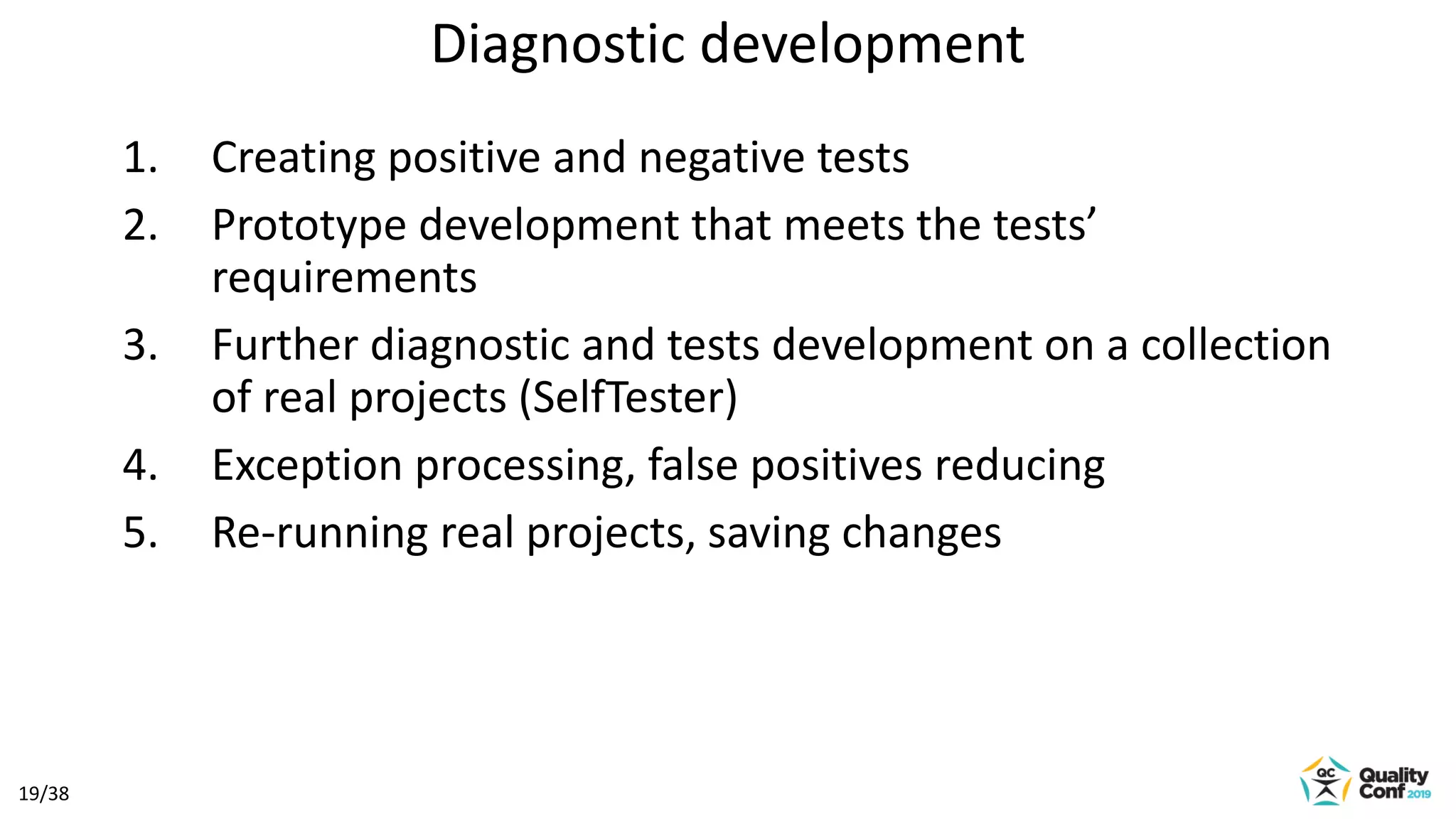

Diagnostic development
1. Creating positive and negative tests
2. Prototype development that meets the tests’
requirements
3. Further diagnostic and tests development on a collection
of real projects (SelfTester)
4. Exception processing, false positives reducing
5. Re-running real projects, saving changes

20. 20/38

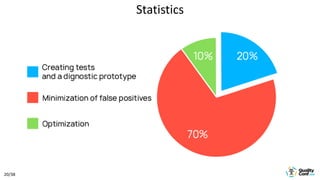

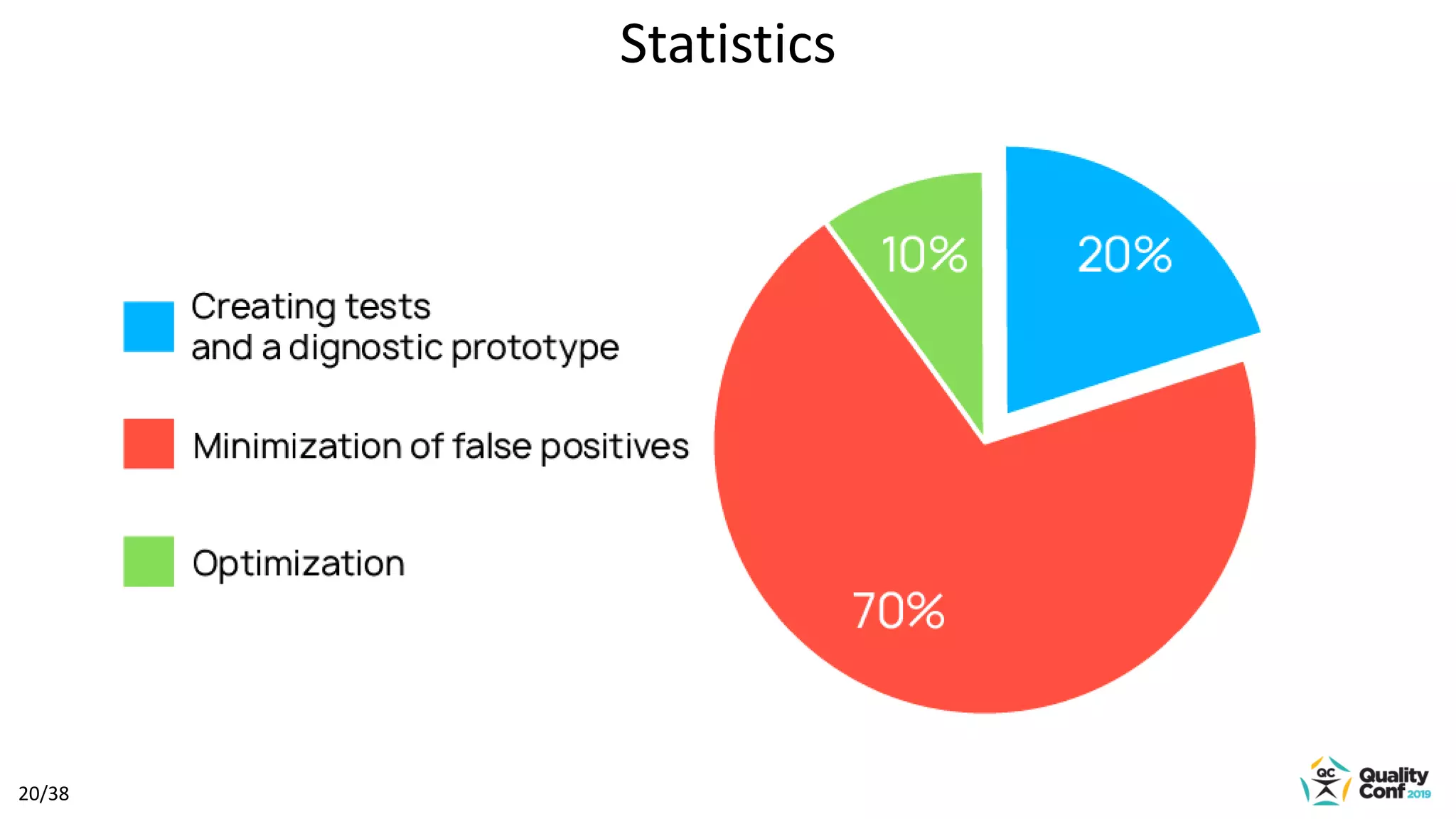

Statistics

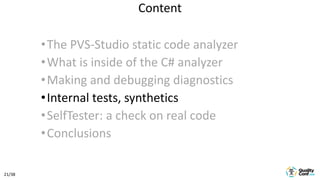

21. 21/38
•The PVS-Studio static code analyzer
•What is inside of the C# analyzer
•Making and debugging diagnostics
•Internal tests, synthetics
•SelfTester: a check on real code
•Conclusions
Content

22. 22/38

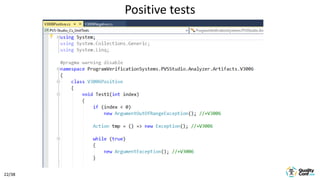

Positive tests

23. 23/38

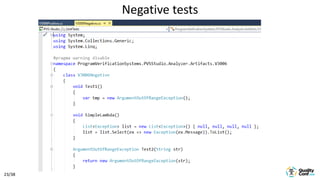

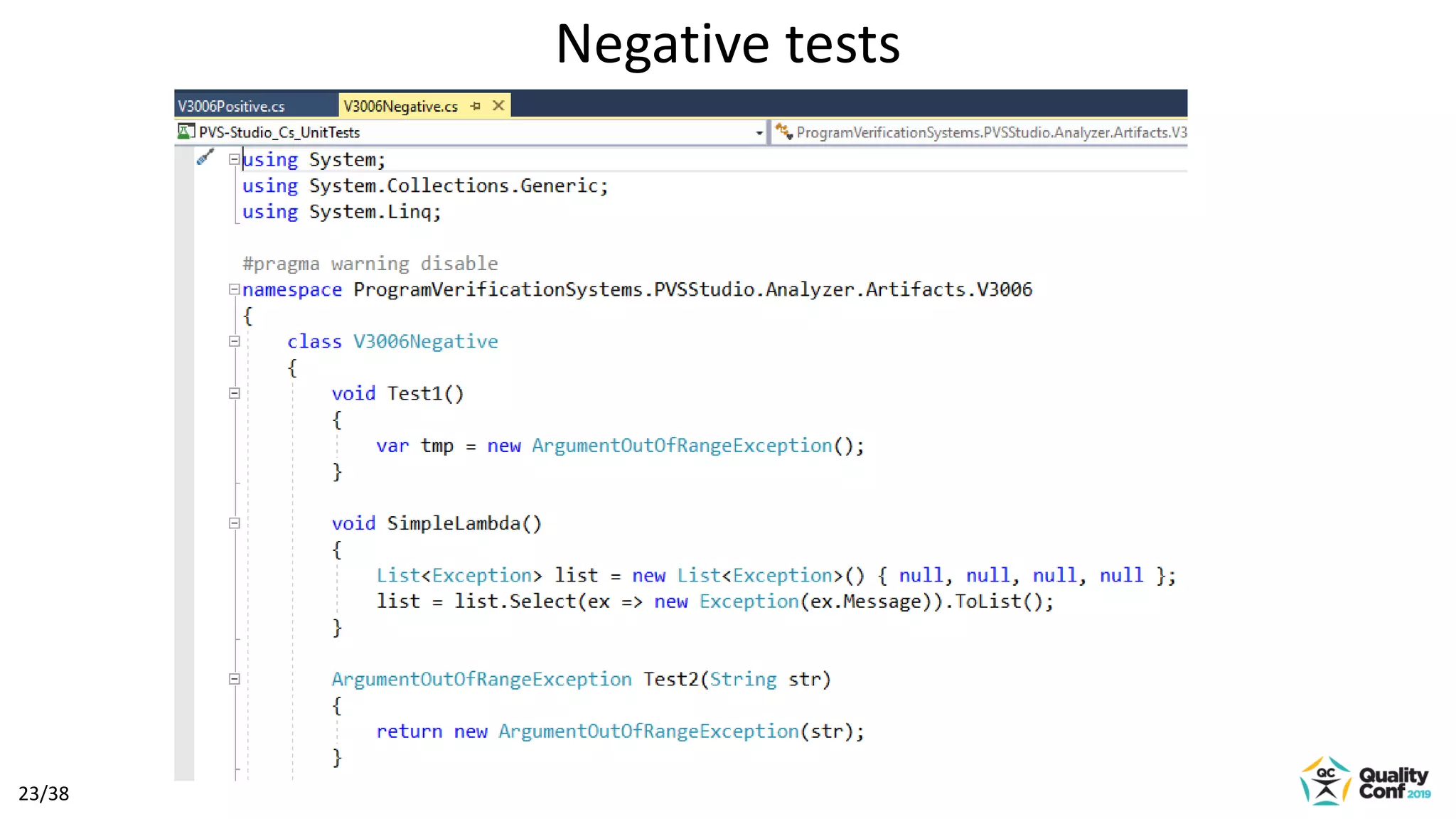

Negative tests

24. 24/38

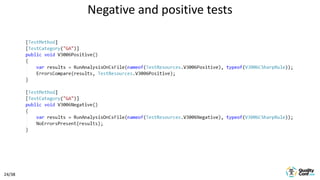

Negative and positive tests

25. 25/38

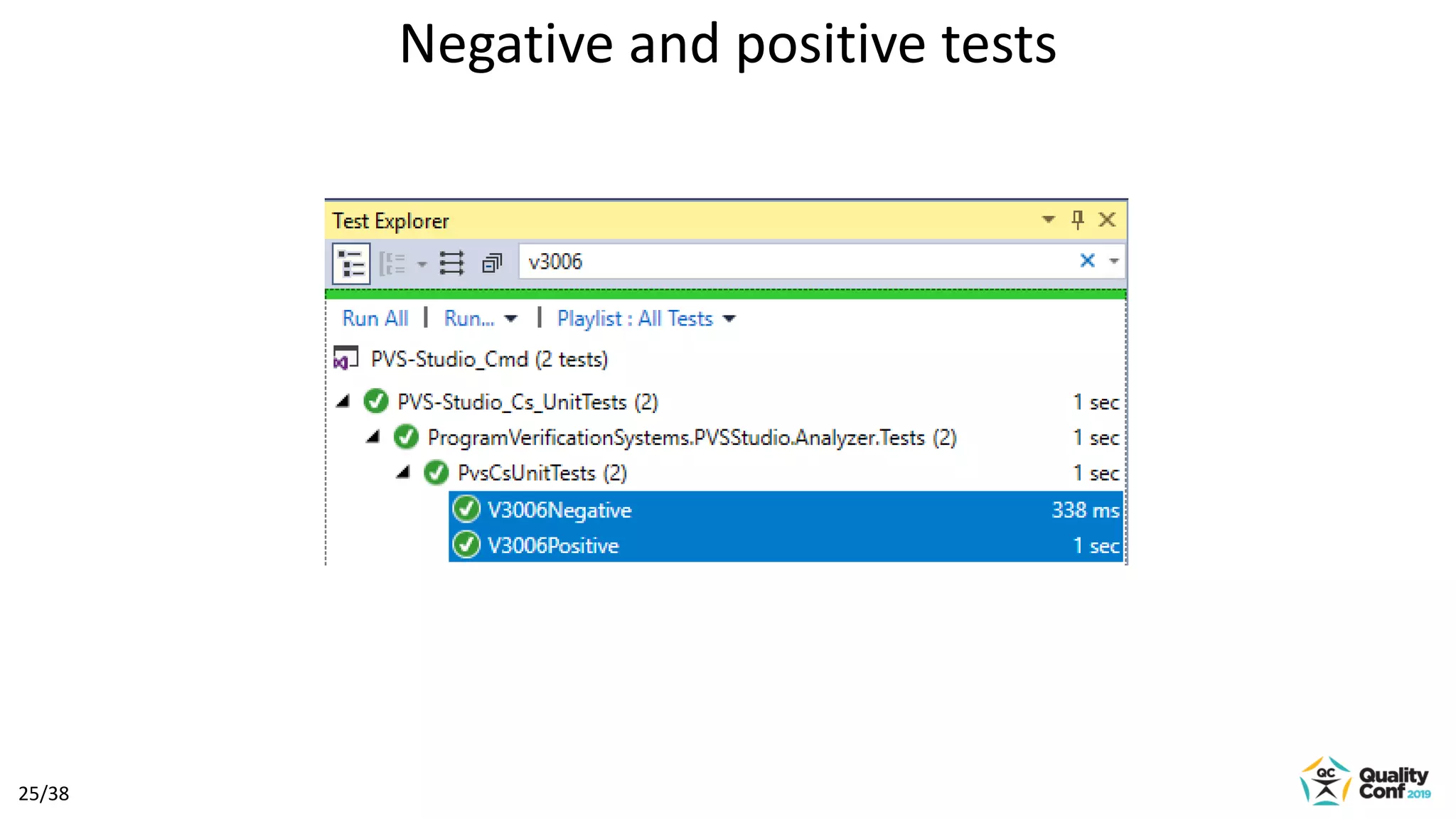

Negative and positive tests

26. 26/38

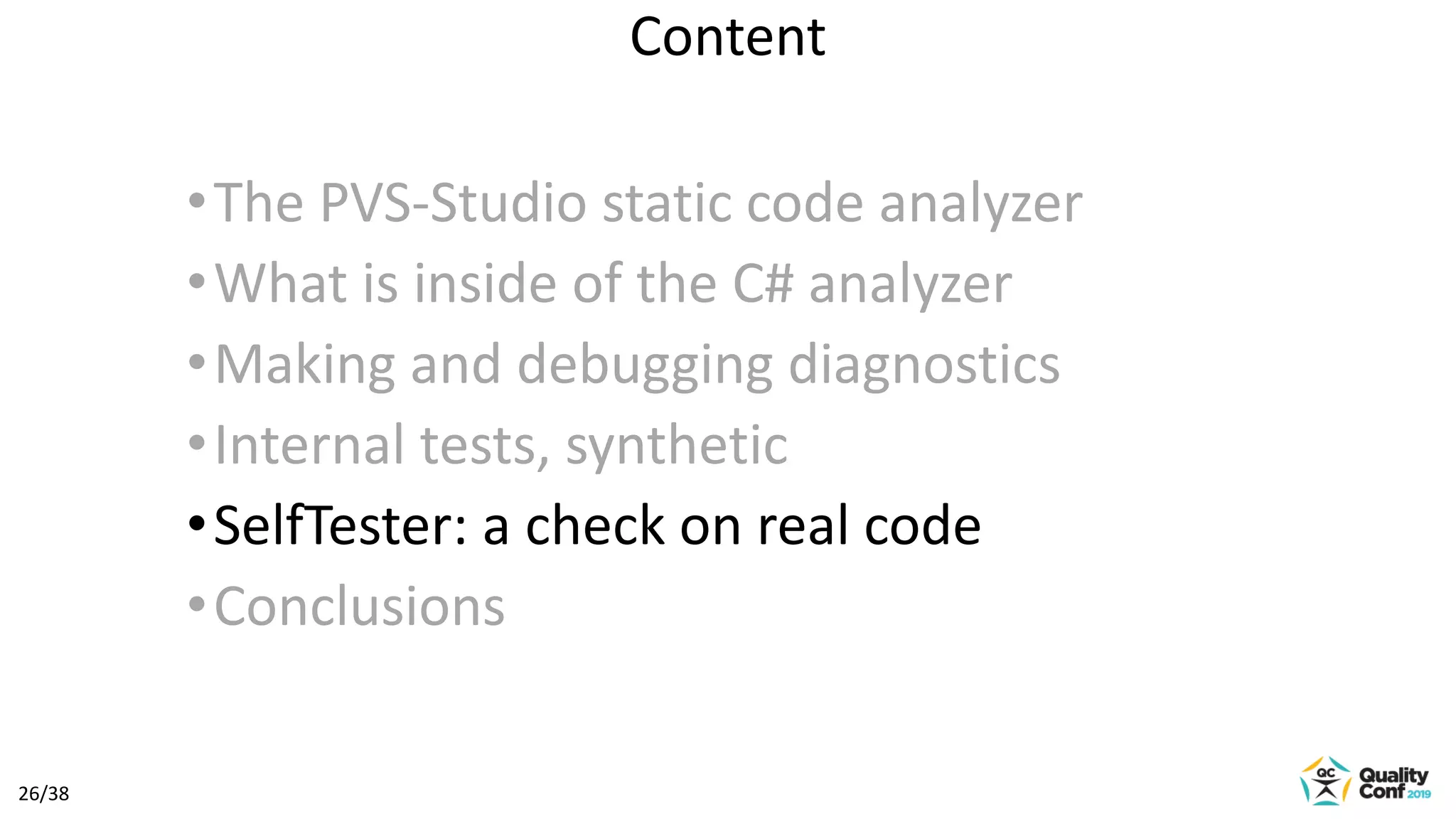

•The PVS-Studio static code analyzer
•What is inside of the C# analyzer
•Making and debugging diagnostics
•Internal tests, synthetic
•SelfTester: a check on real code
•Conclusions
Content

27. 27/38

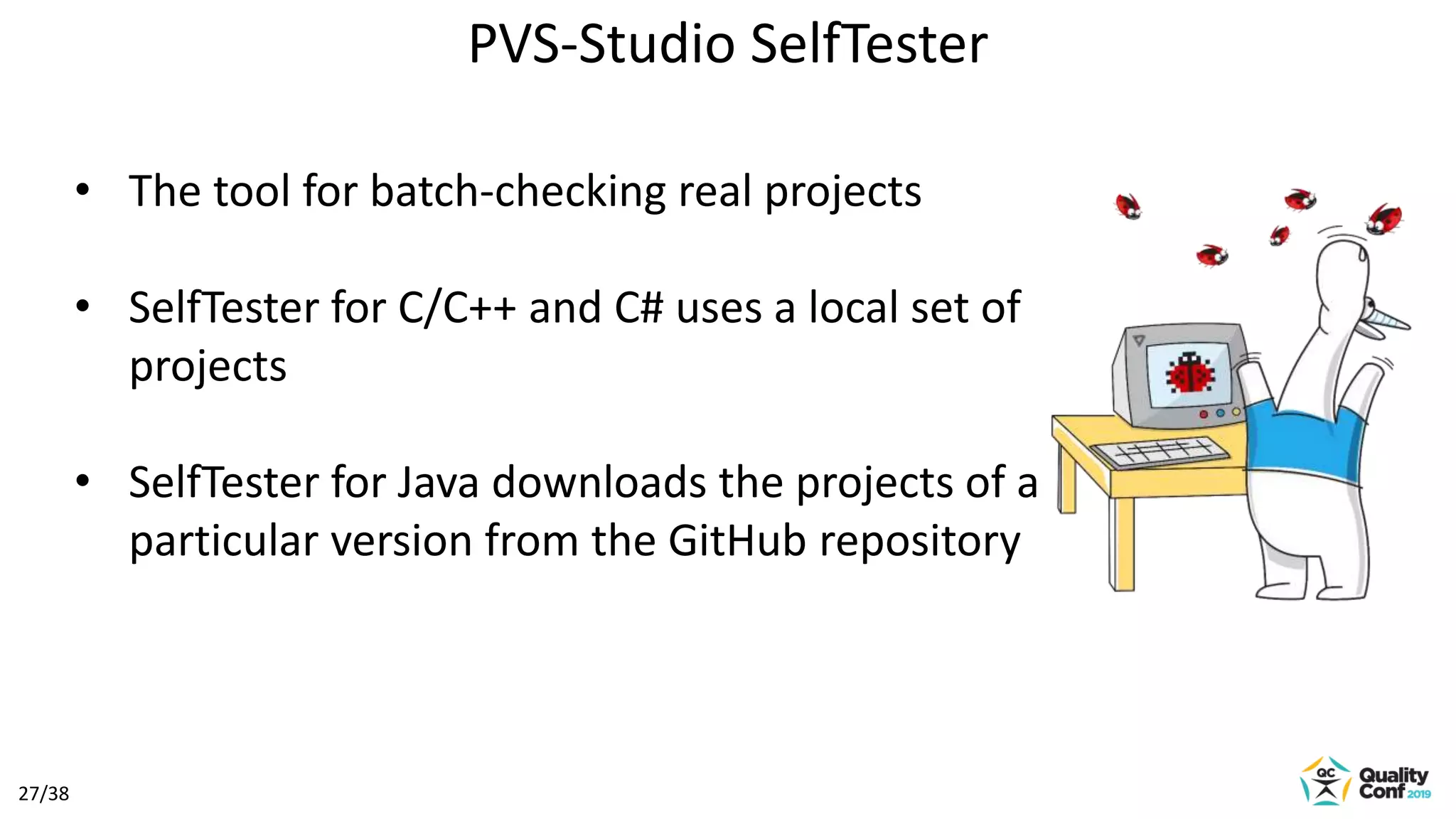

• The tool for batch-checking real projects
• SelfTester for С/С++ and C# uses a local set of
projects
• SelfTester for Java downloads the projects of a
particular version from the GitHub repository
PVS-Studio SelfTester

28. 28/38
SelfTester tasks
• The main task is to detect defects of
PVS-Studio behavior
• Defects - difference in comparing to
previous analysis results
• Defects often represent expected
behavior

29. 29/38

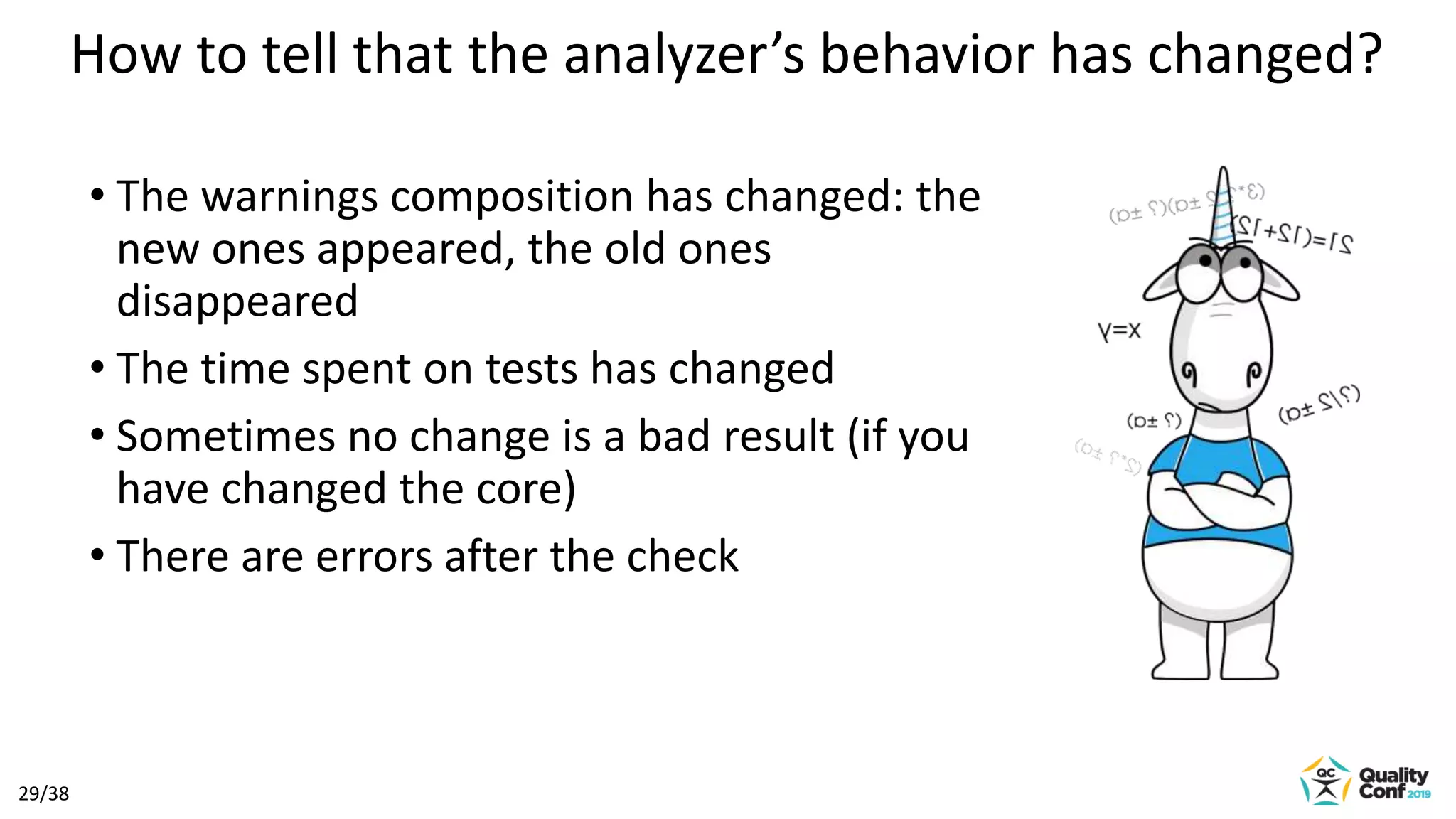

How to tell that the analyzer’s behavior has changed?
• The warnings composition has changed: the
new ones appeared, the old ones
disappeared
• The time spent on tests has changed
• Sometimes no change is a bad result (if you
have changed the core)
• There are errors after the check

30. 30/38

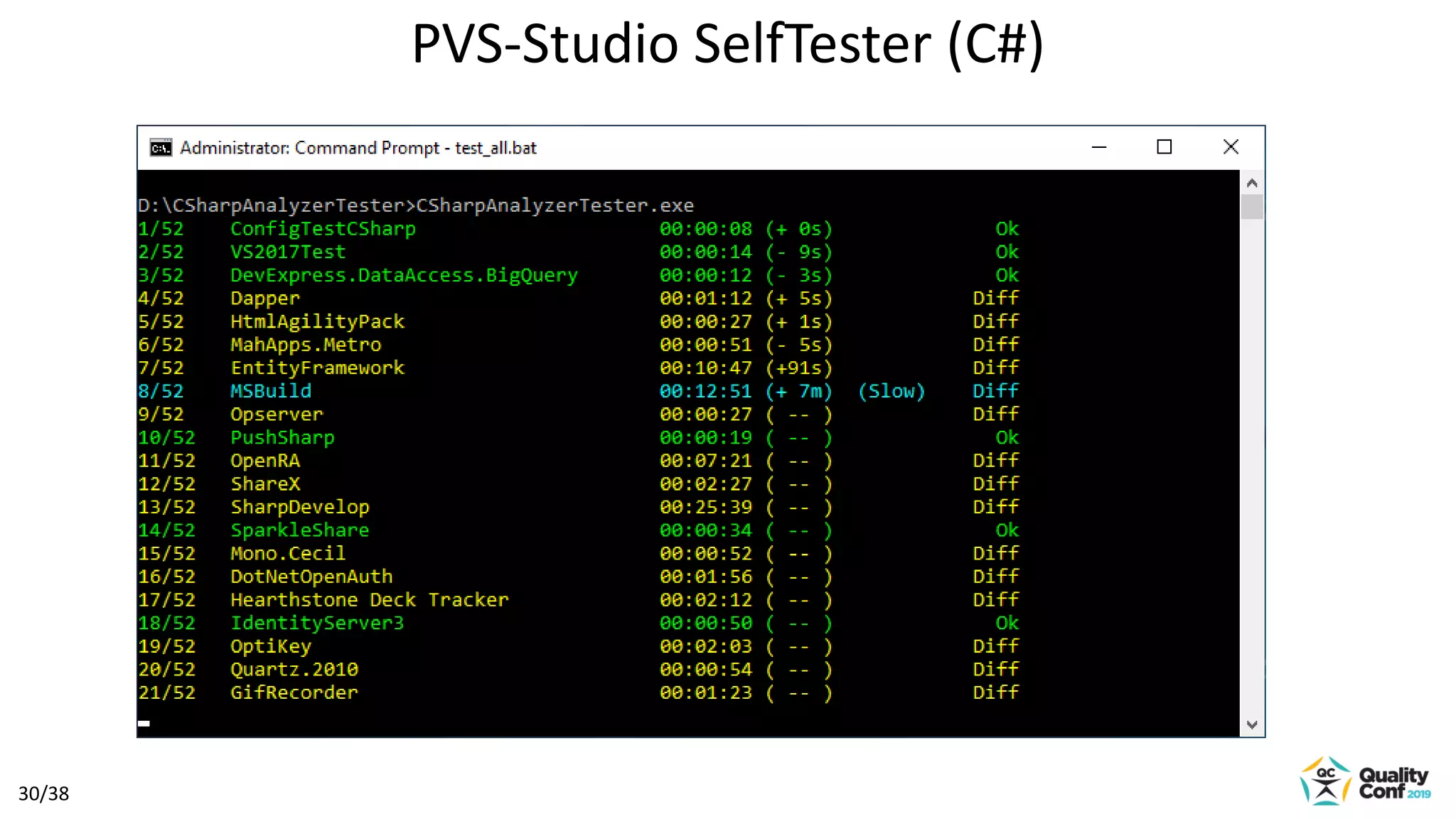

PVS-Studio SelfTester (С#)

31. 31/38

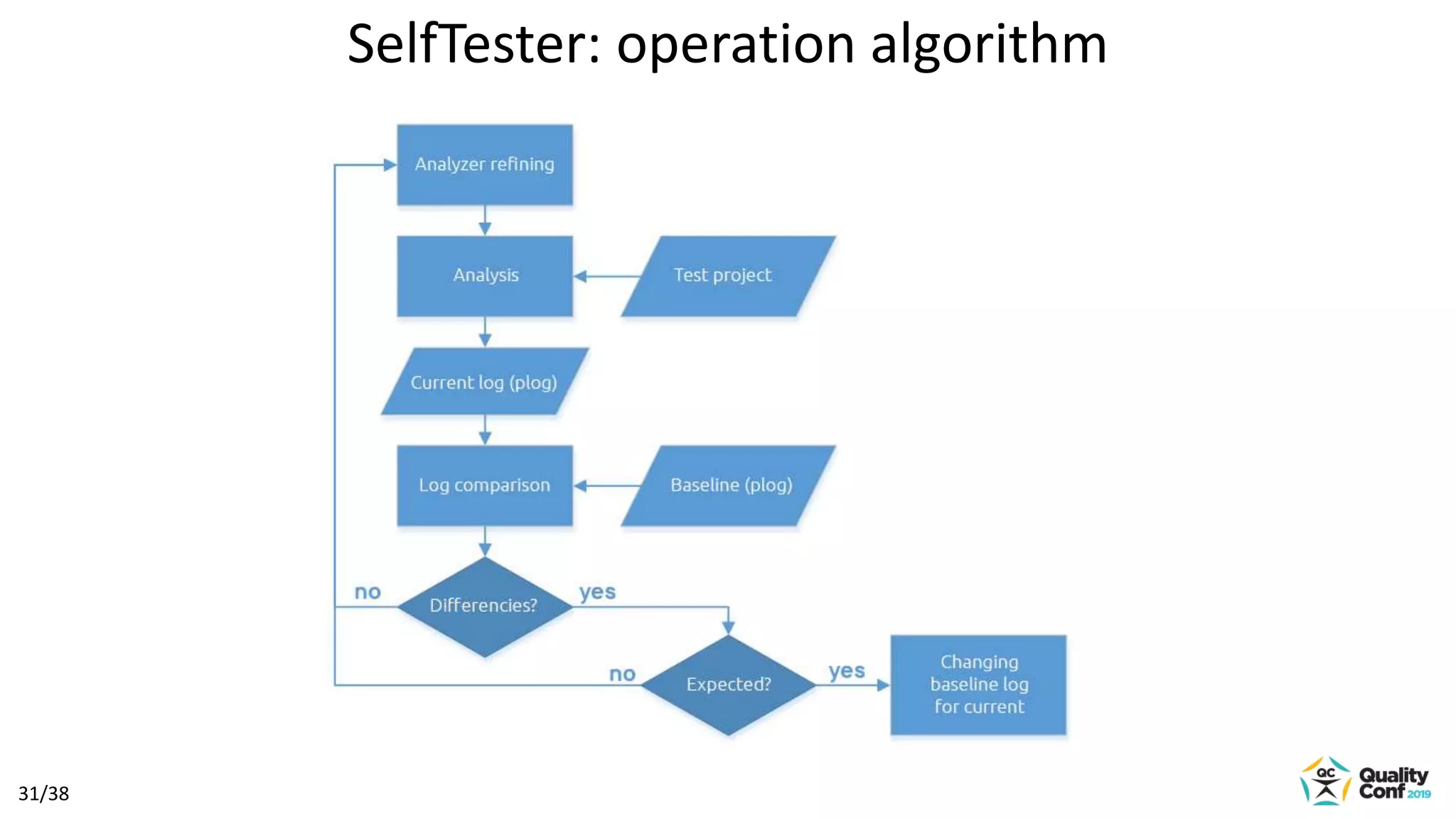

SelfTester: operation algorithm

32. 32/38

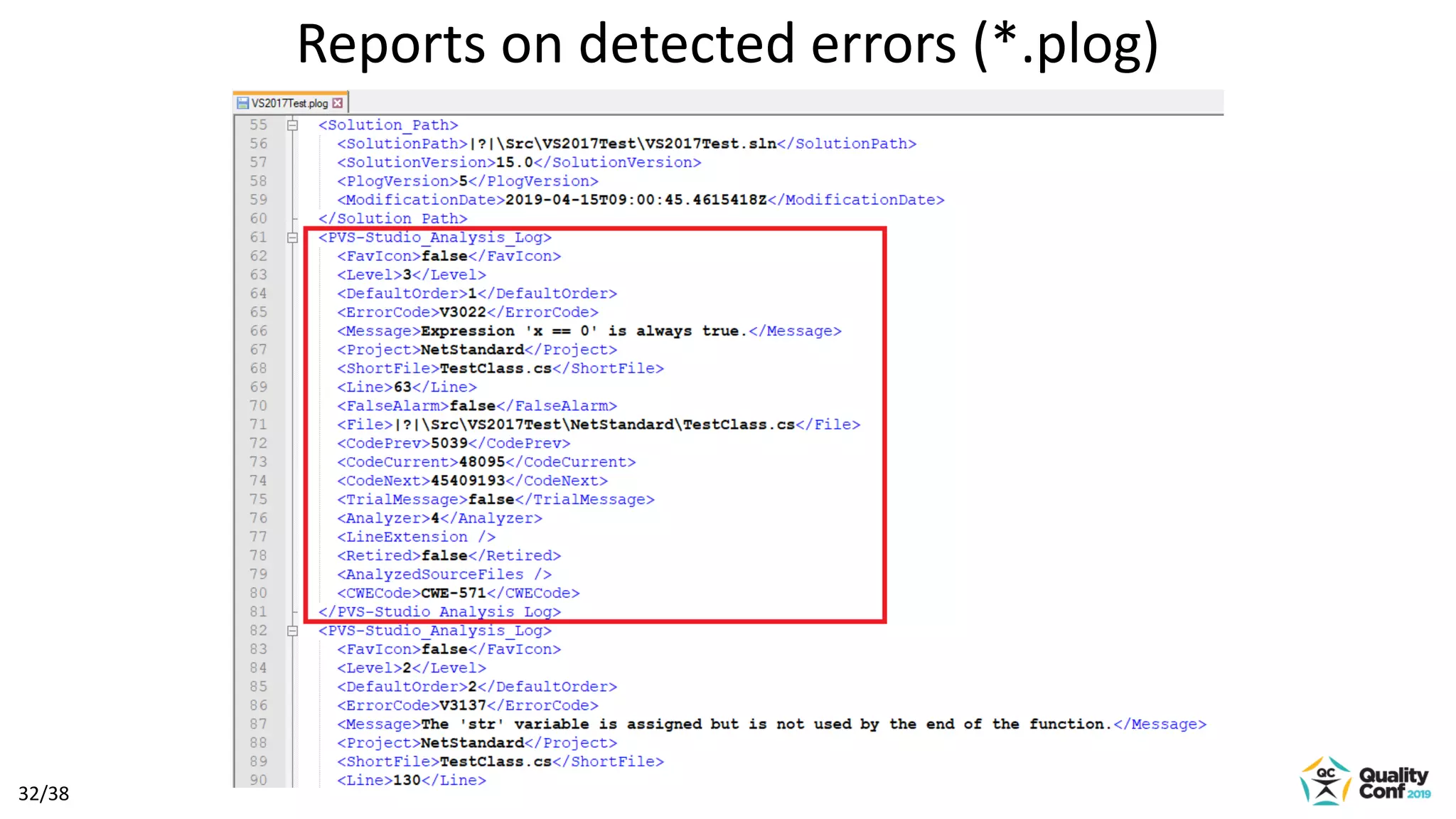

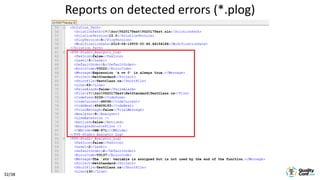

Reports on detected errors (*.plog)

33. 33/38

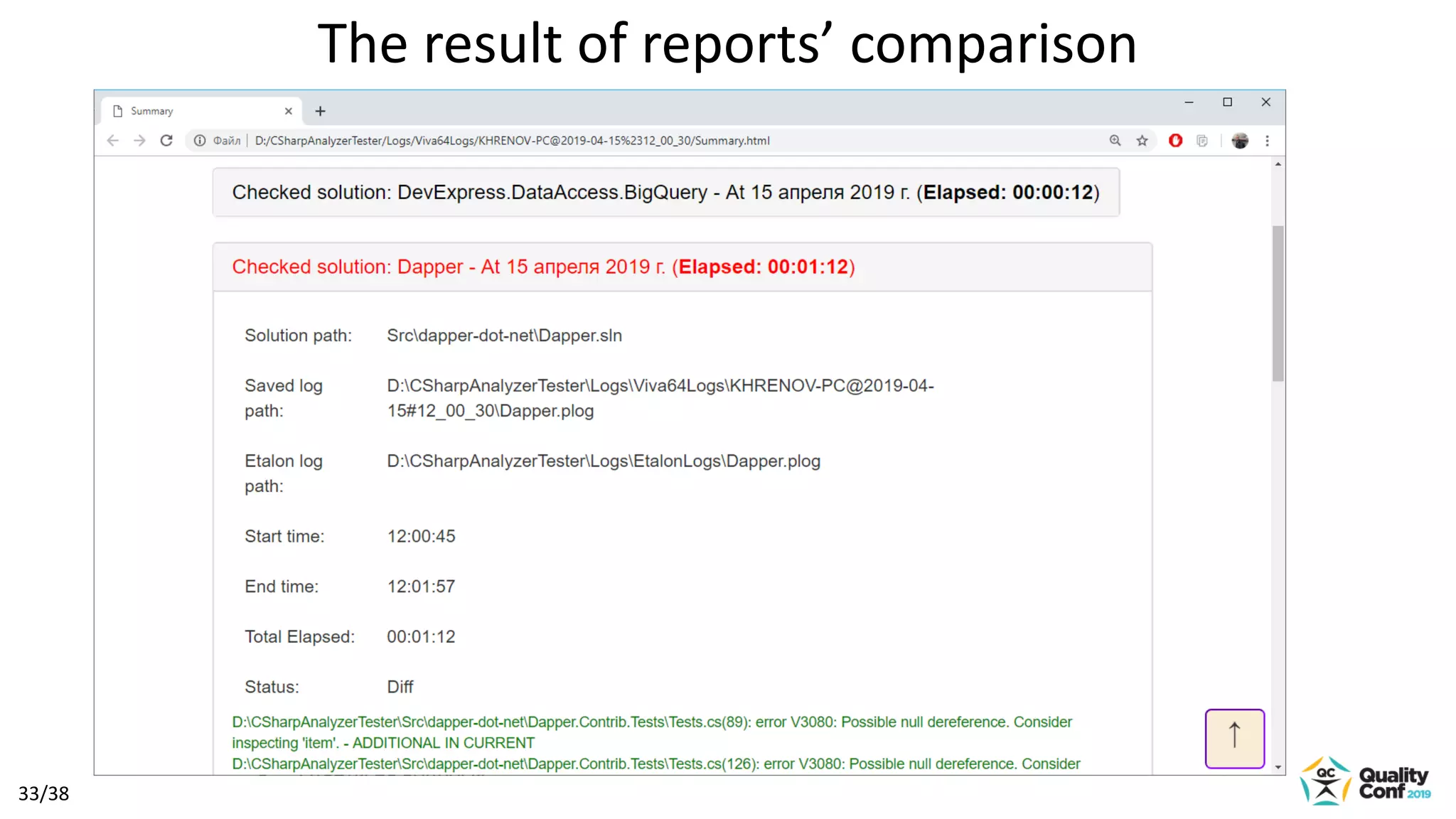

The result of reports’ comparison

34. 34/38
Getting ready for production
• Further development on the basis
of user feedback (including the
internal users)
• Further development related to
change of the core behavior
(mechanisms finalization, new
language standards support, etc)

35. 35/38

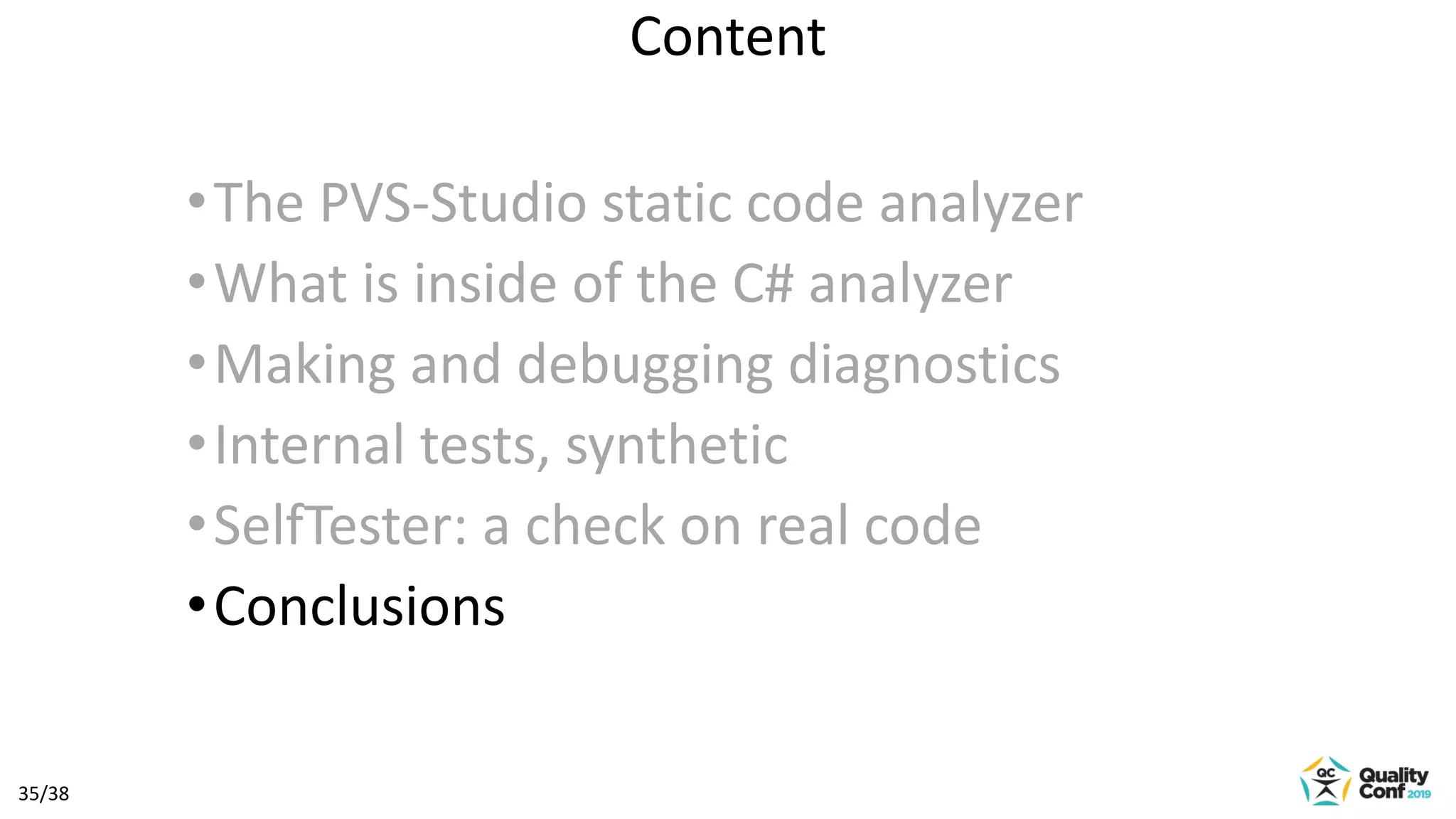

•The PVS-Studio static code analyzer
•What is inside of the C# analyzer
•Making and debugging diagnostics
•Internal tests, synthetic
•SelfTester: a check on real code
•Conclusions
Content

36. 36/38
High-quality static analyzer
• A proprietary one
• Fast code processing
• Minimum false positives
• Advanced means of integrating
• Simple introduction in large projects

37. 37/38
Any questions?

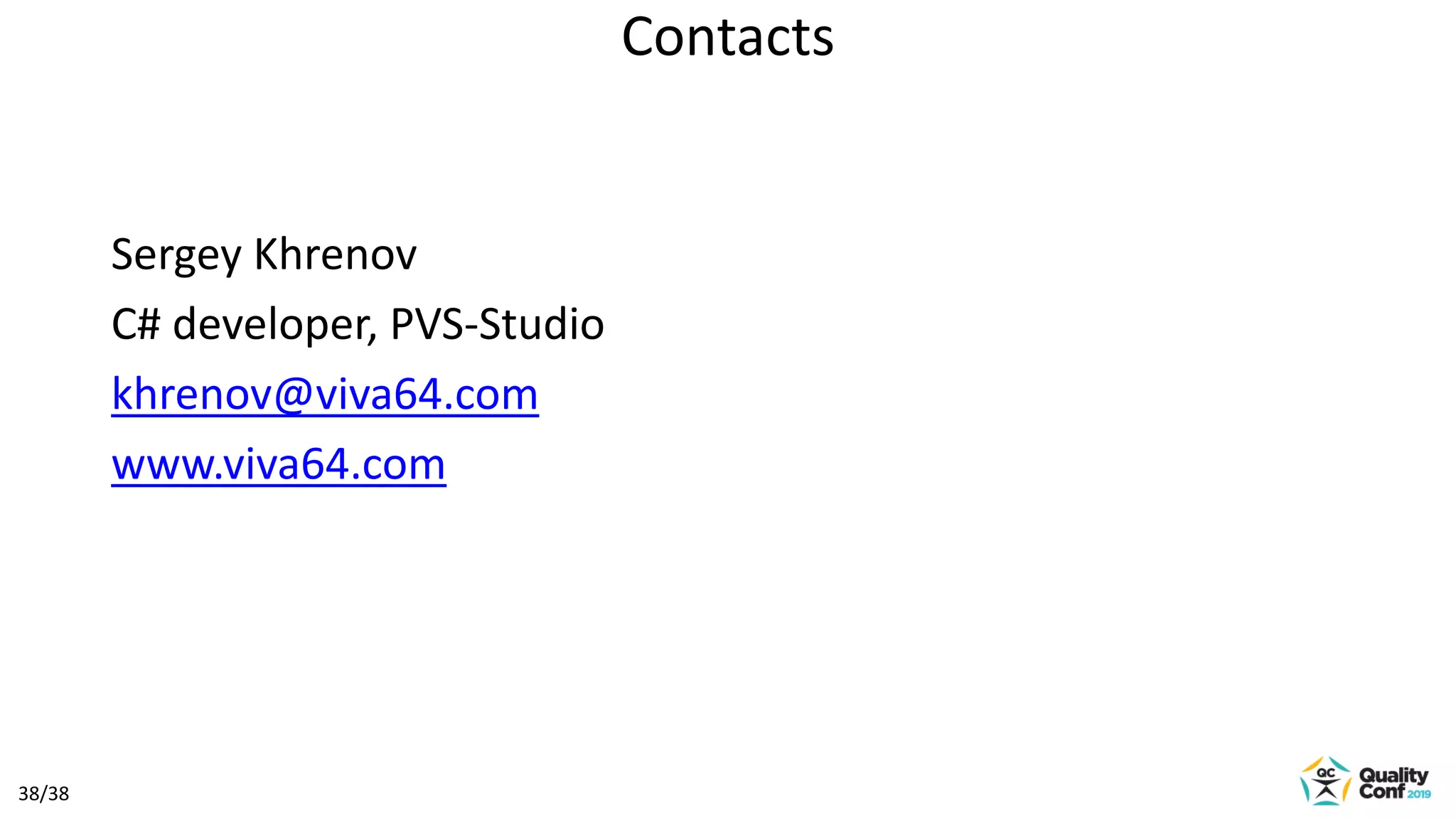

38. 38/38
Sergey Khrenov
C# developer, PVS-Studio
khrenov@viva64.com
www.viva64.com
Contacts
