The document discusses developing a code quality process including selecting code quality tools like Checkstyle, PMD, and FindBugs to check code style, errors, test coverage, and more. It emphasizes controlling quality to reduce technical debt and bugs. Setting up the tools on a project initially found thousands of issues. The process involved documenting rules, configuring tools, and integrating checks into the build to fail on violations. Manager support and refactoring tasks are important for the ongoing process.

1. provectus.com
Code quality
Developing code quality process

2. provectus.com
What is code quality?
• Code style
• Code complexity (size of files/functions, cyclomatic complexity)
• Duplicated code
• Documentation, comments
• Test coverage

3. provectus.com

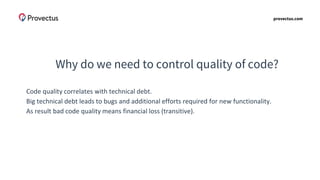

Why do we need to control quality of code?
Code quality correlates with technical debt.
Big technical debt leads to bugs and additional efforts required for new functionality.
As result bad code quality means financial loss (transitive).

4. provectus.com
Java code quality tools
• Code style control: Checkstyle
• Code errors control: PMD, FindBugs
• Test coverage: Jacoco, EMMA, Cobertura
• SonarQube

5. provectus.com
What does CheckStyle check
• Formatting: indents, braces, etc.
• Unused imports
• Redundant modifiers (e.g. “public” modifier in interfaces)
• Maximum function parameters number
• Magic numbers
• Hidden fields
• Naming conventions
• hashCode() and equals() contract
• Number of lines in classes / functions
• RegExp. checks

6. provectus.com
Checkstyle not only for java
<module name="Checker">
<module name="RegexpSingleline">
<property name="format"
value="(?i)((VARCHAR2)|(VARCHAR))s*(s*d+s+((char)|(byte)))"/>
<property name="minimum" value="0"/>
<property name="maximum" value="0"/>
<property name="message"value="Don't specify character's size
VARCHAR2(XXX CHAR / BYTE). "/>
</module>
</module>
How we prevented columns declared like following in our SQL changesets.
columnName VARCHAR2(400 BYTE)

7. provectus.com

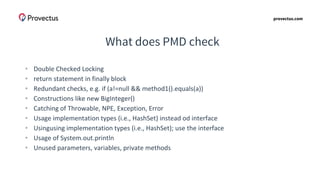

What does PMD check
• Double Checked Locking
• return statement in finally block
• Redundant checks, e.g. if (a!=null && method1().equals(a))
• Constructions like new BigInteger()
• Catching of Throwable, NPE, Exception, Error
• Usage implementation types (i.e., HashSet) instead od interface
• Usingusing implementation types (i.e., HashSet); use the interface
• Usage of System.out.println
• Unused parameters, variables, private methods

8. provectus.com

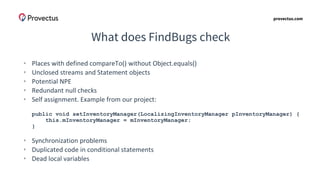

What does FindBugs check
• Places with defined compareTo() without Object.equals()
• Unclosed streams and Statement objects
• Potential NPE
• Redundant null checks
• Self assignment. Example from our project:
public void setInventoryManager(LocalizingInventoryManager pInventoryManager) {
this.mInventoryManager = mInventoryManager;
}
• Synchronization problems
• Duplicated code in conditional statements
• Dead local variables

9. provectus.com

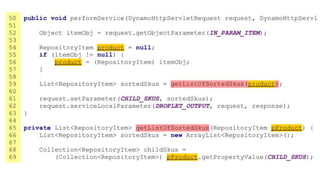

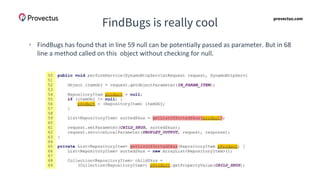

FindBugs is really cool
• FindBugs has found that in line 59 null can be potentially passed as parameter. But in 68
line a method called on this object without checking for null.

10. provectus.com

11. provectus.com
Merge error found by FindBugs

12. provectus.com

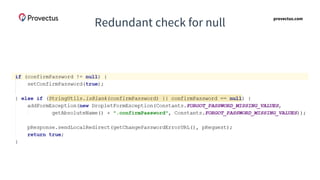

Redundant check for null

13. provectus.com

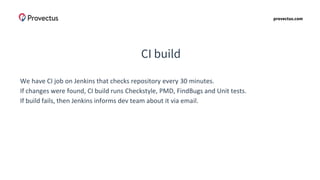

CI build
We have CI job on Jenkins that checks repository every 30 minutes.
If changes were found, CI build runs Checkstyle, PMD, FindBugs and Unit tests.
If build fails, then Jenkins informs dev team about it via email.

14. provectus.com

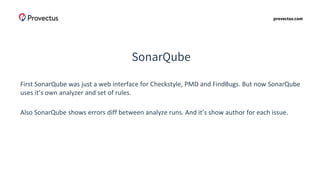

SonarQube
First SonarQube was just a web interface for Checkstyle, PMD and FindBugs. But now SonarQube
uses it’s own analyzer and set of rules.
Also SonarQube shows errors diff between analyze runs. And it’s show author for each issue.

15. provectus.com

16. provectus.com

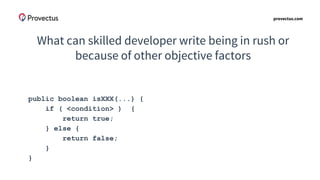

What can skilled developer write being in rush or
because of other objective factors
public boolean isXXX(...) {
if ( <condition> ) {
return true;
} else {
return false;
}
}

17. provectus.com

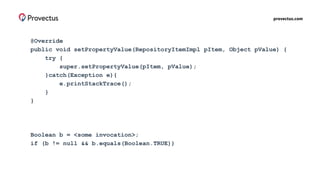

@Override
public void setPropertyValue(RepositoryItemImpl pItem, Object pValue) {
try {
super.setPropertyValue(pItem, pValue);
}catch(Exception e){
e.printStackTrace();
}
}
Boolean b = <some invocation>;
if (b != null && b.equals(Boolean.TRUE))

18. provectus.com
What we wanted to do
• Using same coding style on the project
• Prevent new “stupid” problem before code review
• Prevent issues that hardly can be found by human, but can be found automatically

19. provectus.com

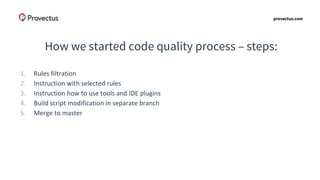

How we started code quality process – steps:
1. Rules filtration
2. Instruction with selected rules
3. Instruction how to use tools and IDE plugins
4. Build script modification in separate branch
5. Merge to master

20. provectus.com

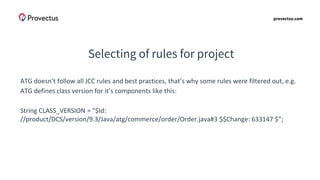

Selecting of rules for project
ATG doesn’t follow all JCC rules and best practices, that’s why some rules were filtered out, e.g.
ATG defines class version for it’s components like this:
String CLASS_VERSION = "$Id:
//product/DCS/version/9.3/Java/atg/commerce/order/Order.java#3 $$Change: 633147 $";

21. provectus.com

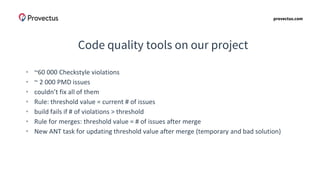

Code quality tools on our project
• ~60 000 Checkstyle violations
• ~ 2 000 PMD issues
• couldn’t fix all of them
• Rule: threshold value = current # of issues
• build fails if # of violations > threshold
• Rule for merges: threshold value = # of issues after merge
• New ANT task for updating threshold value after merge (temporary and bad solution)

22. provectus.com

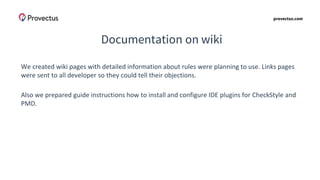

Documentation on wiki
We created wiki pages with detailed information about rules were planning to use. Links pages
were sent to all developer so they could tell their objections.
Also we prepared guide instructions how to install and configure IDE plugins for CheckStyle and
PMD.

23. provectus.com
How much time has it taken
• Checkstyle:
– selecting rules for our project – 6 hour
– modifying ant script – 8 hours
– creating IDE (Eclipse + Idea) configurations – 2 hours
– Writing instruction on wiki – 2 hours
• PMD:
– selecting rules for our project – 8 hours
– modifying ant script – 2 hours
– creating IDE (Eclipse + Idea) configurations – 2 hours
– writing instruction on wiki – 1 hour

24. provectus.com
SonarQube on our project
SonarQube can be used to monitor new issues with their authors.
If someone decides to alter threshold value, it will be seen in SonarQube.

25. provectus.com
Time for developing code quality process
• Checkstyle check was developed in free time and presented as first step of code quality
process
• PMD and FindBugs checks were developed in project time

26. provectus.com

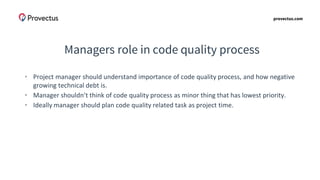

Managers role in code quality process
• Project manager should understand importance of code quality process, and how negative
growing technical debt is.
• Manager shouldn’t think of code quality process as minor thing that has lowest priority.
• Ideally manager should plan code quality related task as project time.

27. provectus.com
How to explain the need in code quality to manager
Give to a manager an example how code quality will have to improve situation on project.
E.g. it will reduce a number of bugs related to null-pointer exception.

28. provectus.com

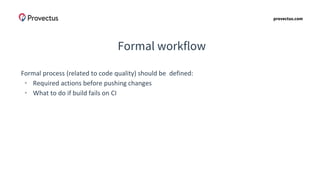

Formal workflow
Formal process (related to code quality) should be defined:
• Required actions before pushing changes
• What to do if build fails on CI

29. provectus.com
Workflow on our project
• On our project each developer should perform Checkstyle+PMD check (using Ant task)
before pushing changes.
• FindBugs check is implemented as separate task, and it doesn’t fail build.
• If Checkstyle or PMD fails on CI, developers are informed via email and CCTray.

30. provectus.com
Refactoring
Code quality process has two goals:
• Don’t increase technical debt by adding new issues
• Get rid of existing problems by refactor code
Many developers afraid of refactoring because it can cause regression.
Part of code that is under refactoring should be covered with unit tests for all cases. It takes
much time, but it’s the only right way.

31. provectus.com

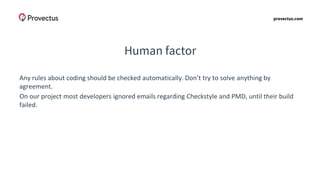

Human factor
Any rules about coding should be checked automatically. Don’t try to solve anything by
agreement.
On our project most developers ignored emails regarding Checkstyle and PMD, until their build
failed.

32. provectus.com
Summary
• Fix styling problems as soon as possible. Don’t use violations threshold with Checkstyle
• Both developers and managers should be involved in code quality process: metrics,
refactoring tasks
• Information about code quality process should be delivered to developers in the most
convenient (for them) way: explanation on small meeting, presentation, short article on wiki,
video
