伺服馬達控制
- 1. 伺服馬達控制 Joseph Chen

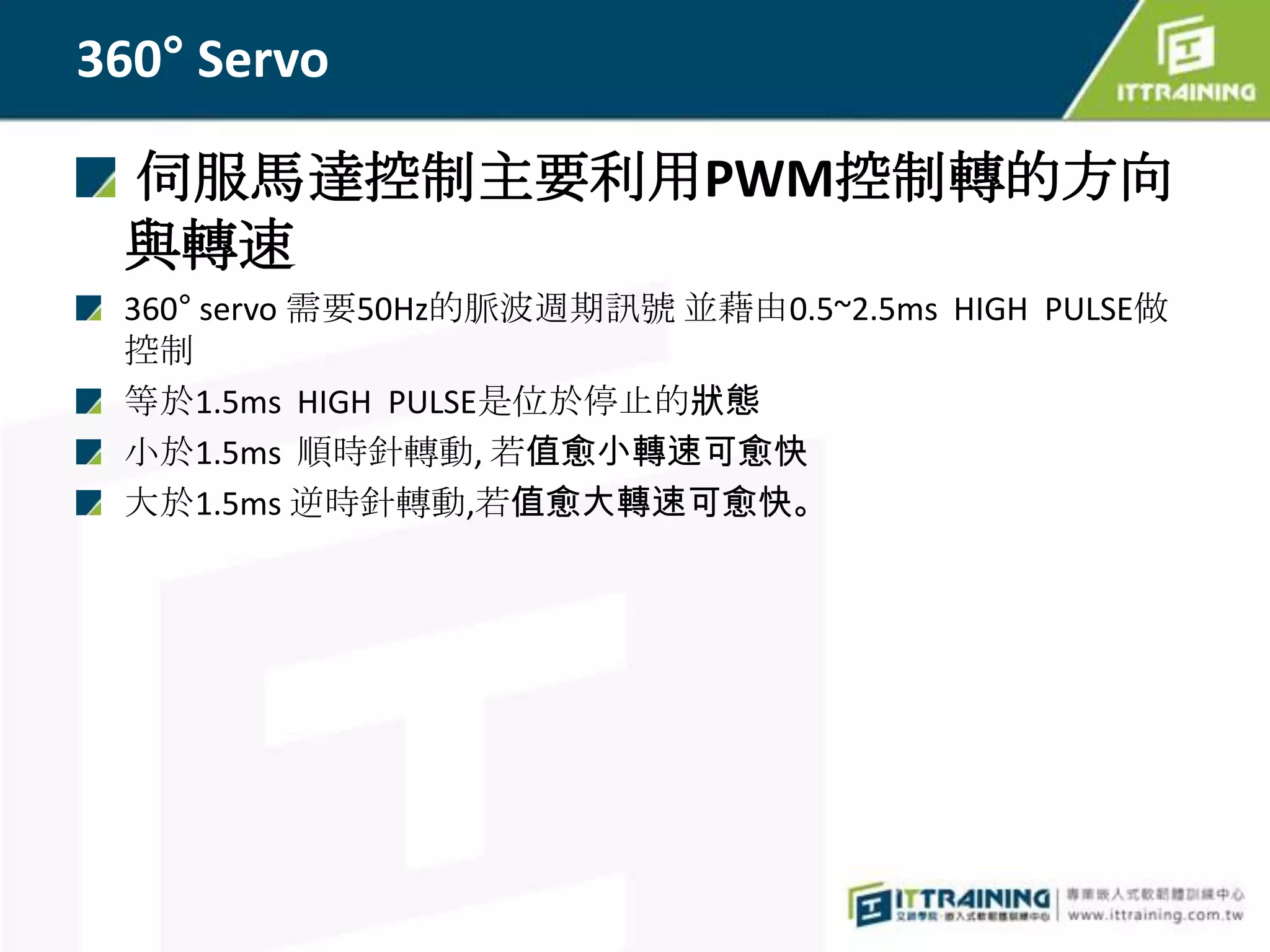

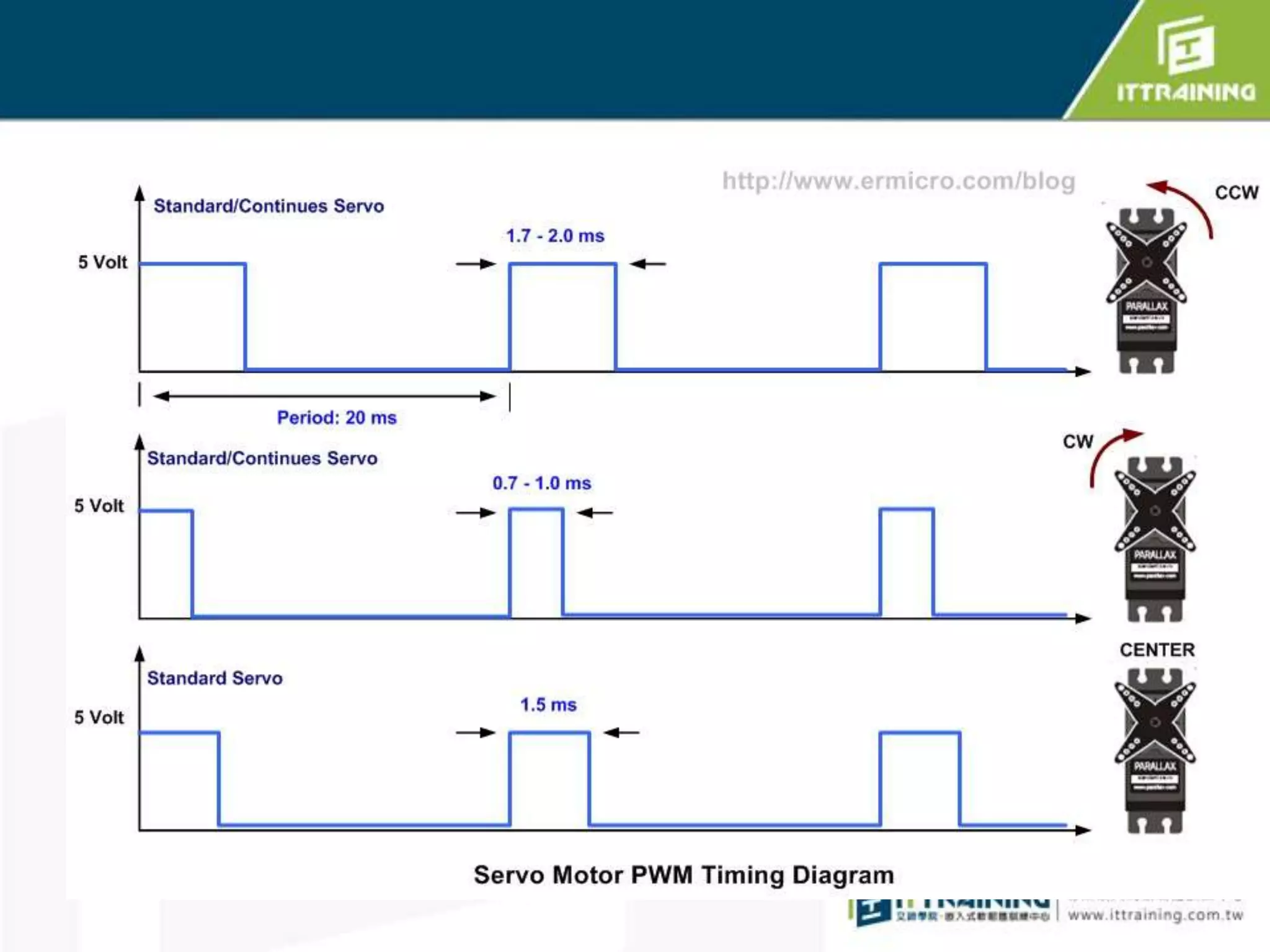

- 2. 360° Servo 伺服馬達控制主要利用PWM控制轉的方向 與轉速 360° servo 需要50Hz的脈波週期訊號 並藉由0.5~2.5ms HIGH PULSE做 控制 等於1.5ms HIGH PULSE是位於停止的狀態 小於1.5ms 順時針轉動, 若值愈小轉速可愈快 大於1.5ms 逆時針轉動,若值愈大轉速可愈快。

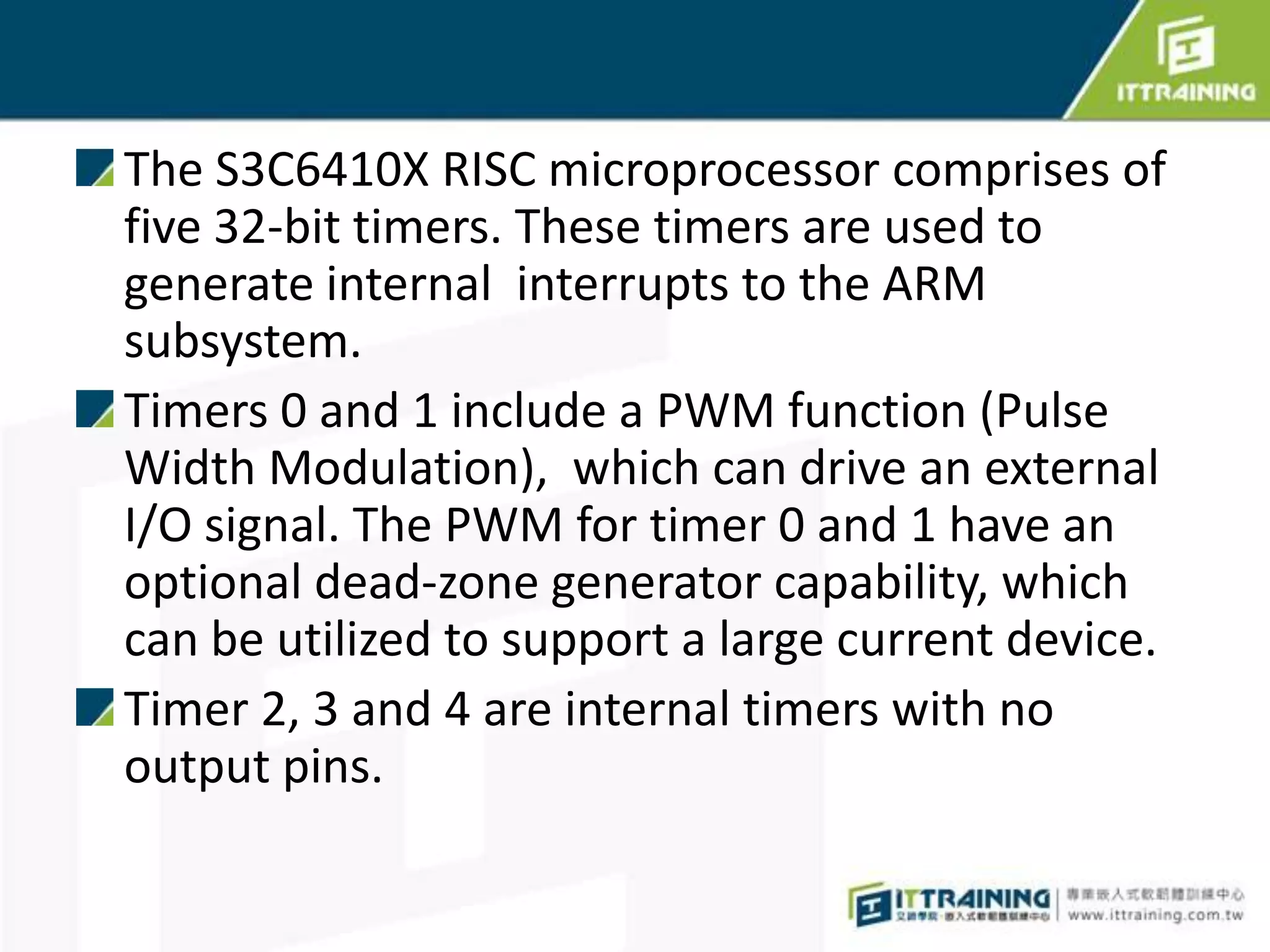

- 4. The S3C6410X RISCmicroprocessor comprises of five 32-bit timers. These timers are used to generate internal interrupts to the ARM subsystem. Timers 0 and 1 include a PWM function (Pulse Width Modulation), which can drive an external I/O signal. The PWM for timer 0 and 1 have an optional dead-zone generator capability, which can be utilized to support a large current device. Timer 2, 3 and 4 are internal timers with no output pins.

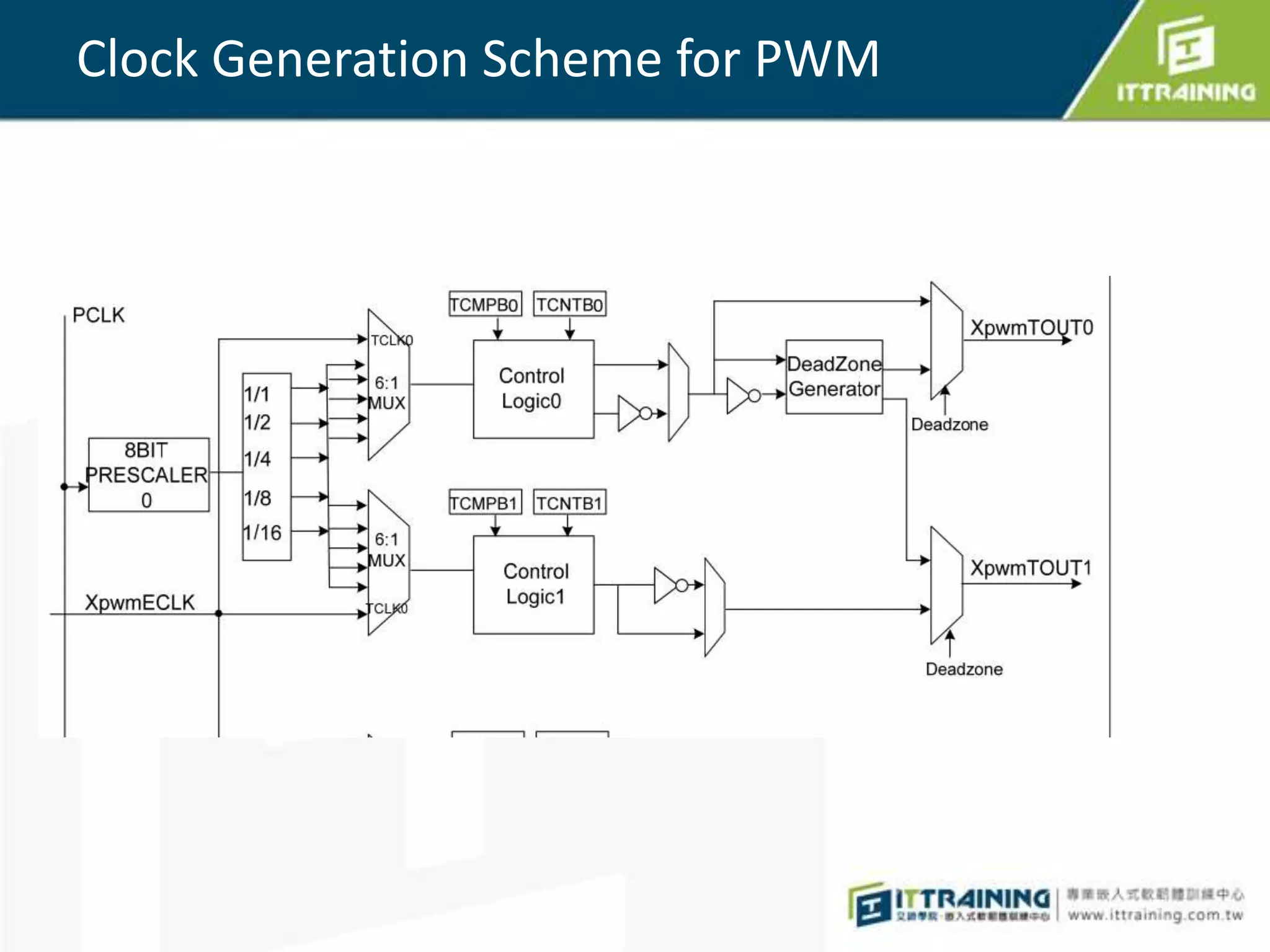

- 5. Clock Generation Schemefor PWM

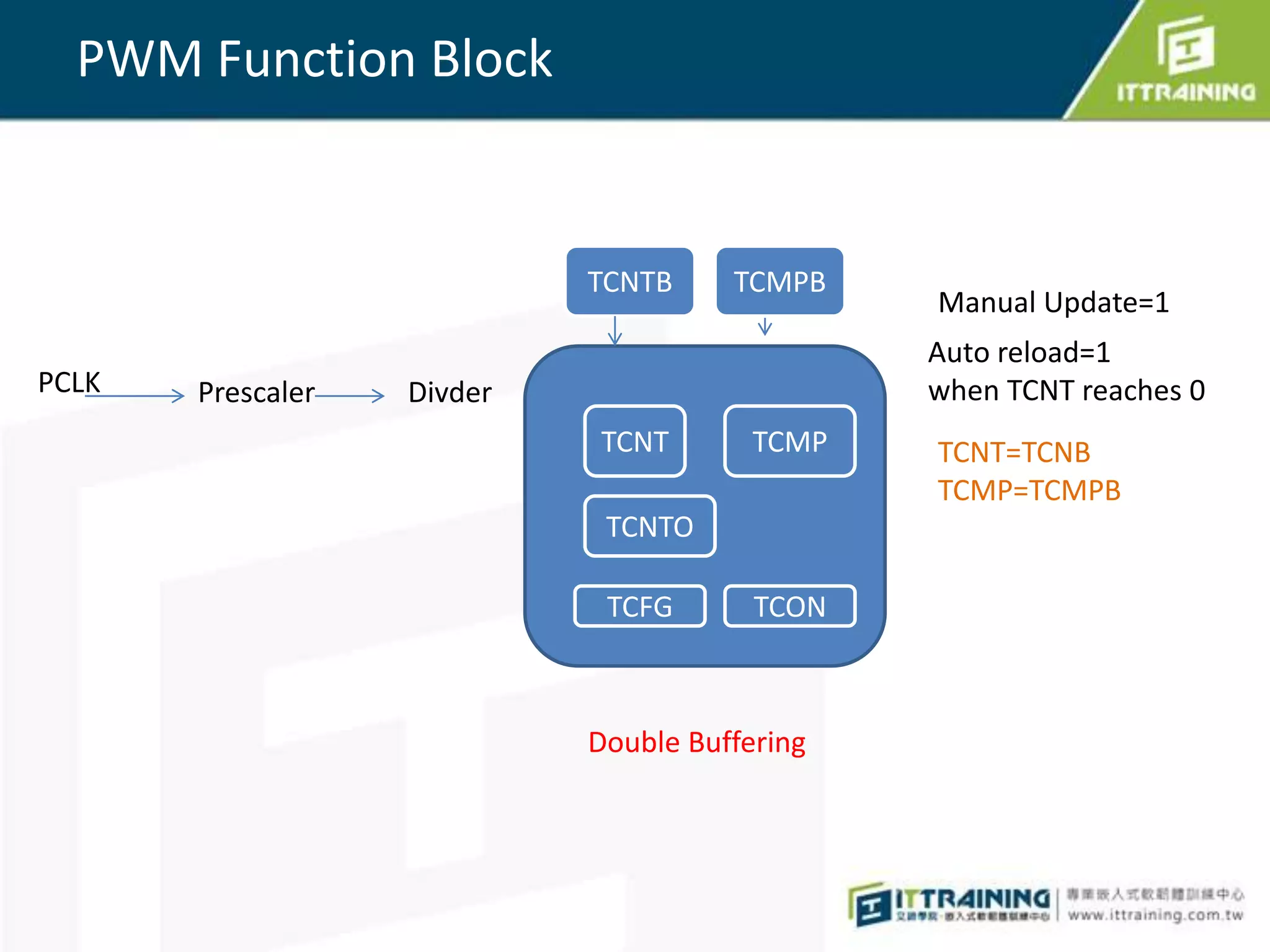

- 6. PWM Function Block TCNTB TCMPB Manual Update=1 Auto reload=1 PCLK Prescaler Divder when TCNT reaches 0 TCNT TCMP TCNT=TCNB TCMP=TCMPB TCNTO TCFG TCON Double Buffering

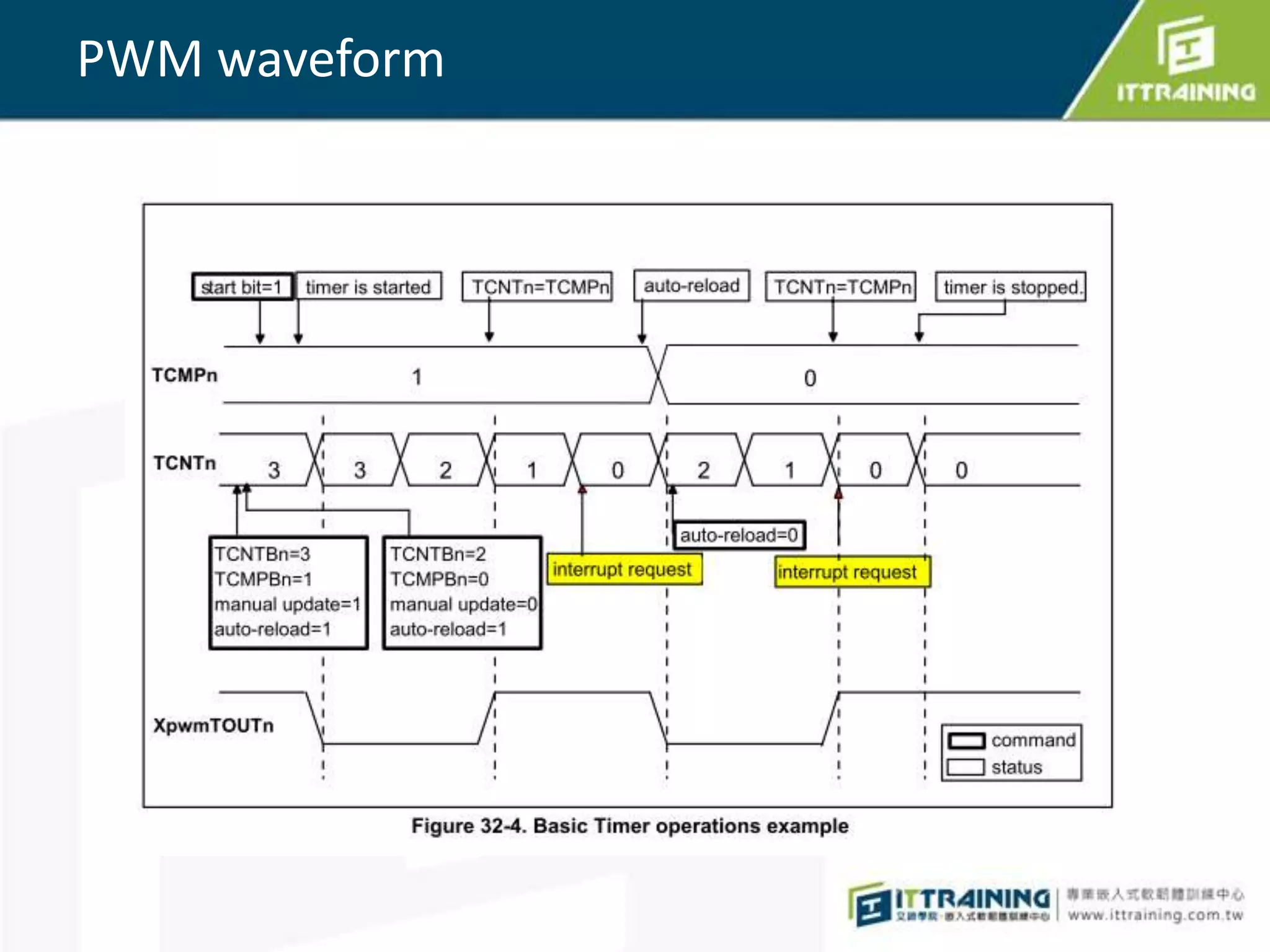

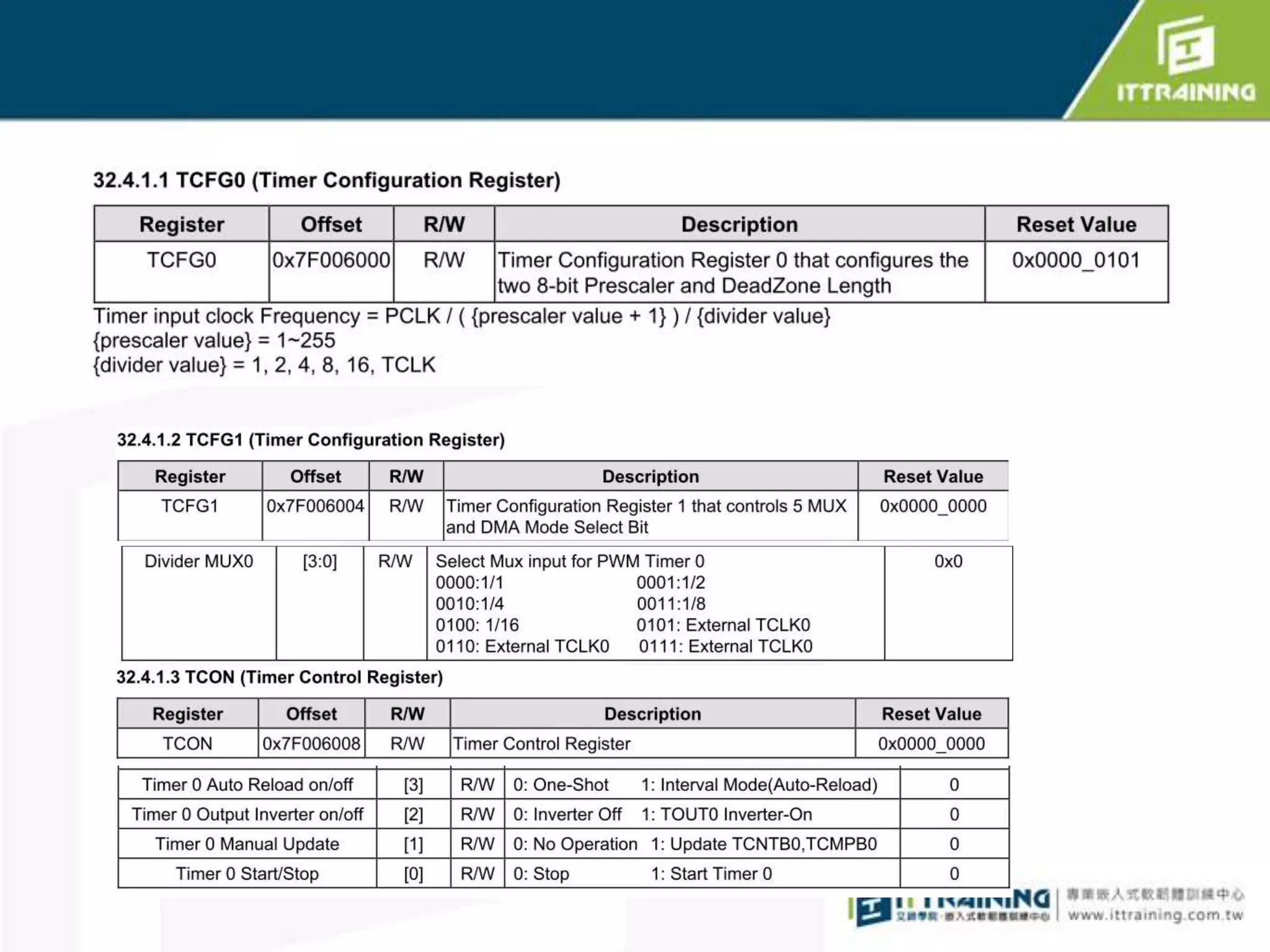

- 7.

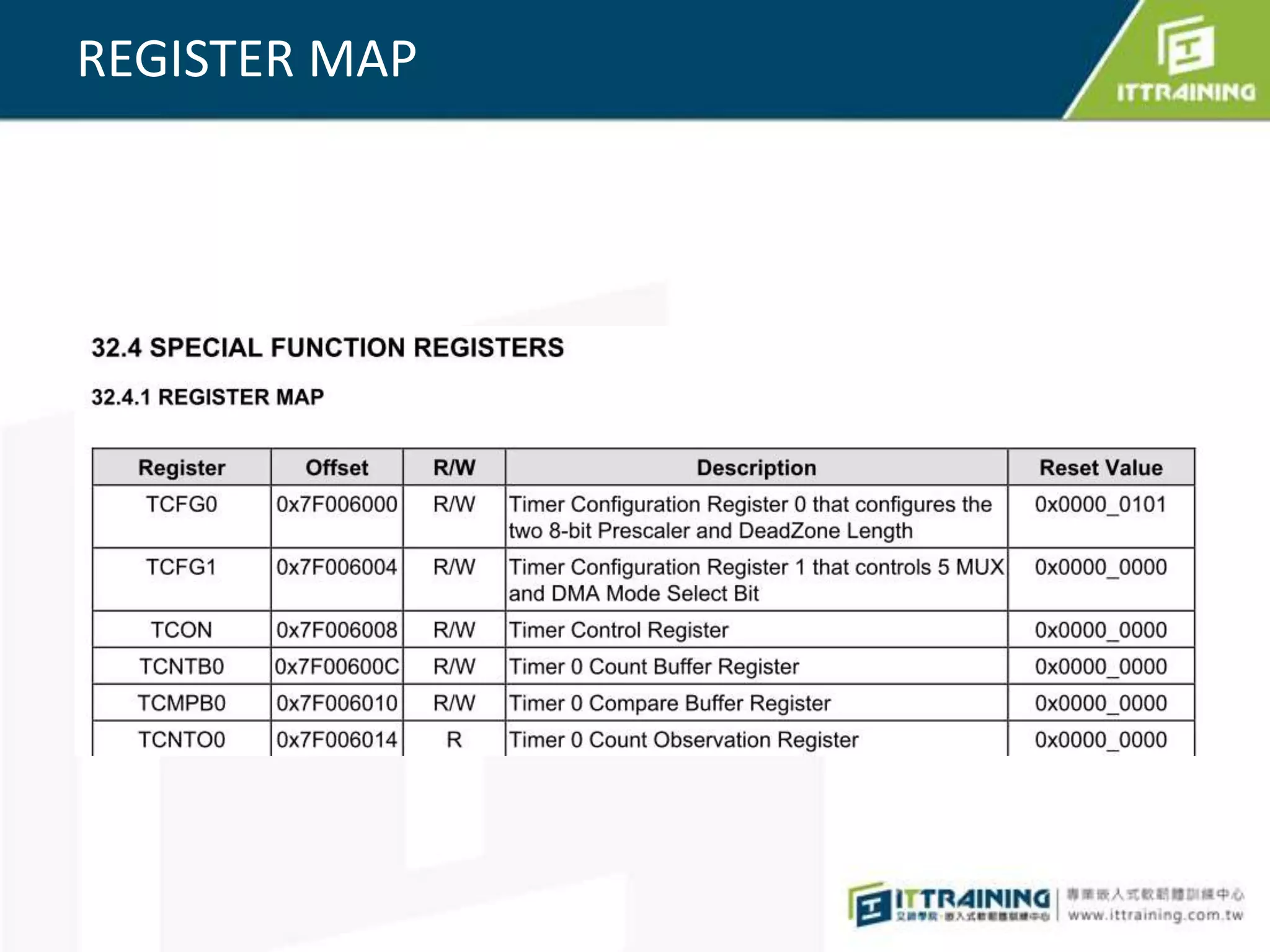

- 8.

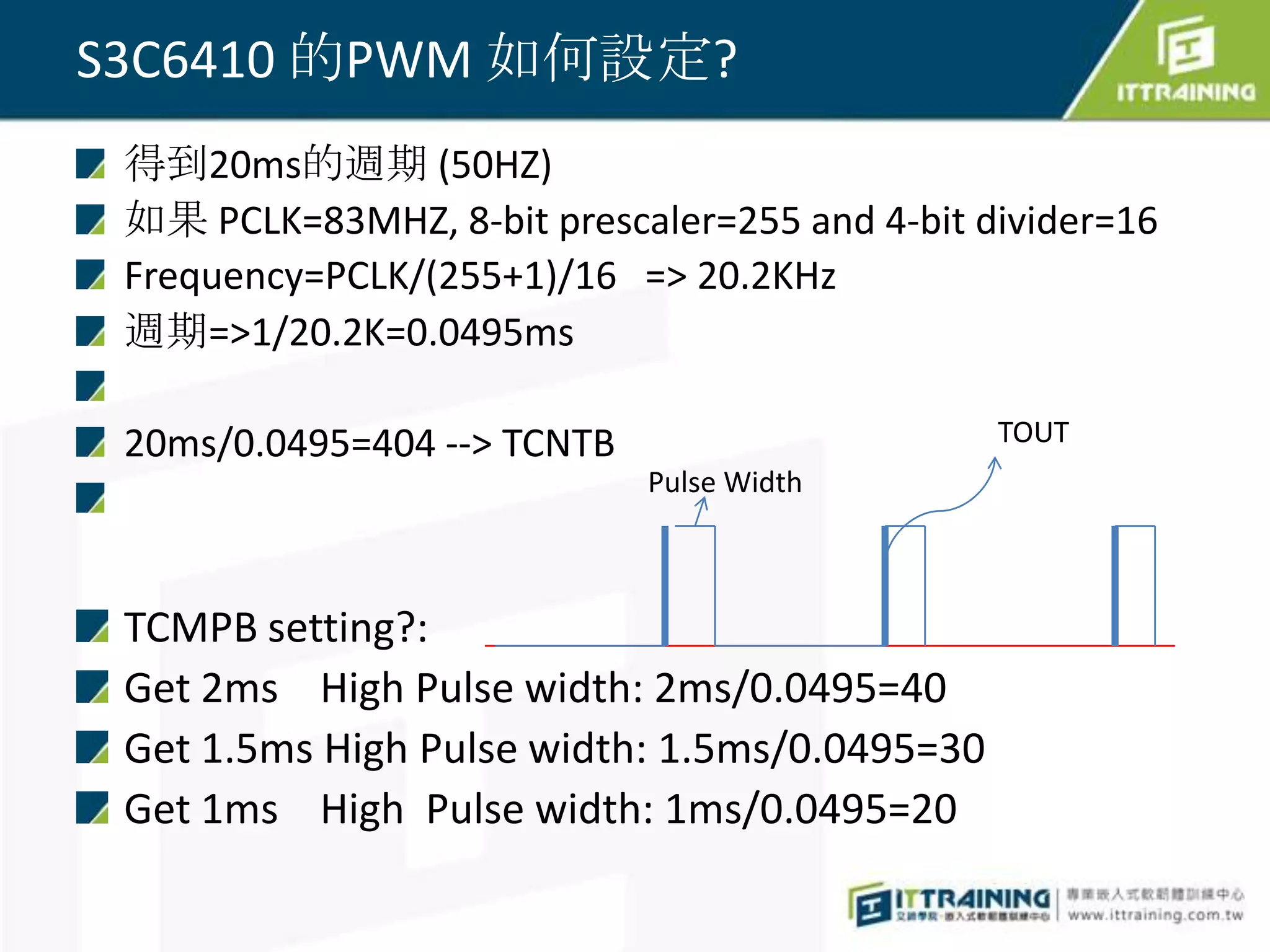

- 10. S3C6410 的PWM 如何設定? 得到20ms的週期 (50HZ) 如果 PCLK=83MHZ, 8-bit prescaler=255 and 4-bit divider=16 Frequency=PCLK/(255+1)/16 => 20.2KHz 週期=>1/20.2K=0.0495ms 20ms/0.0495=404 --> TCNTB TOUT Pulse Width TCMPB setting?: Get 2ms High Pulse width: 2ms/0.0495=40 Get 1.5ms High Pulse width: 1.5ms/0.0495=30 Get 1ms High Pulse width: 1ms/0.0495=20

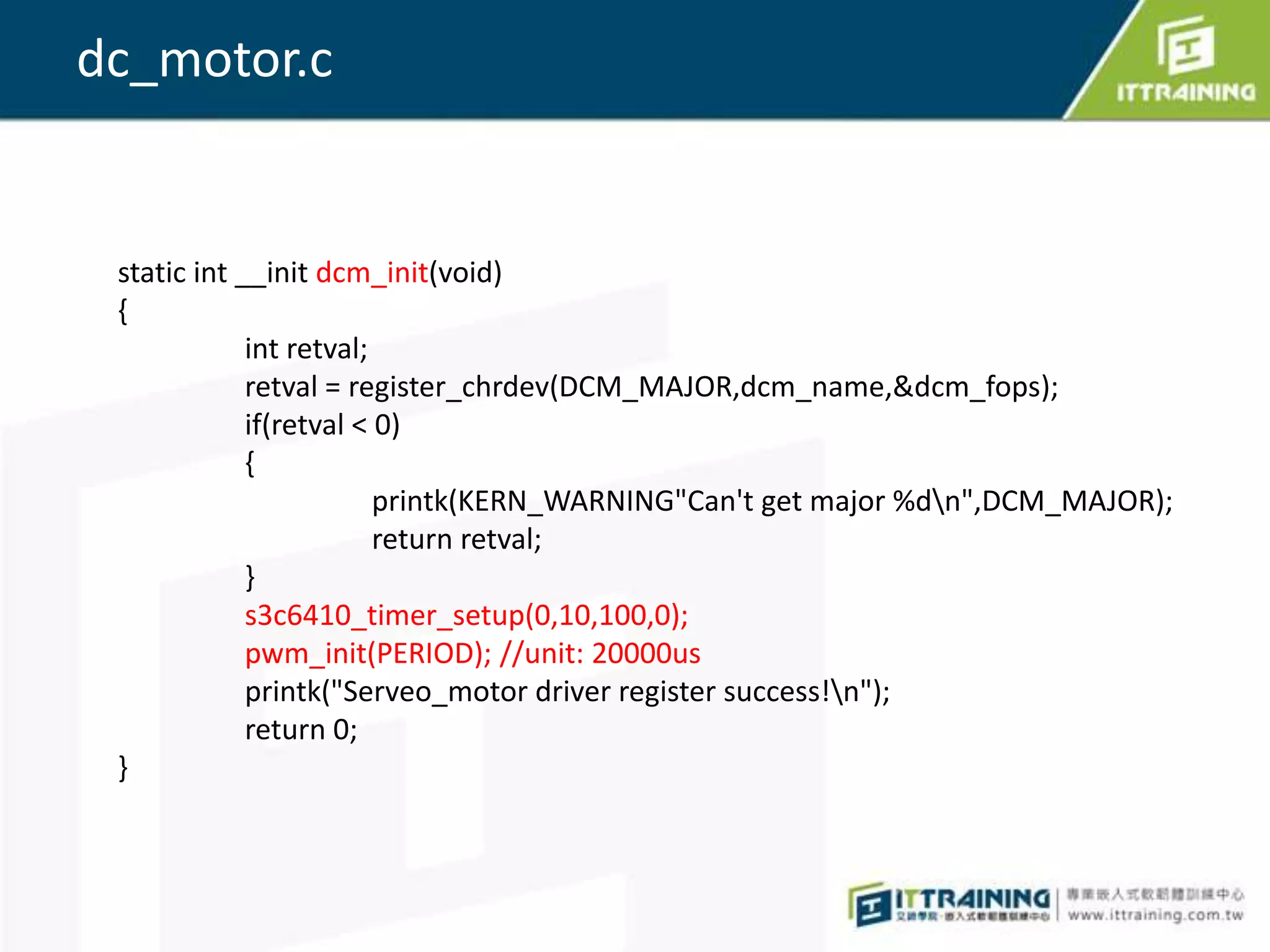

- 11. dc_motor.c static int__init dcm_init(void) { int retval; retval = register_chrdev(DCM_MAJOR,dcm_name,&dcm_fops); if(retval < 0) { printk(KERN_WARNING"Can't get major %dn",DCM_MAJOR); return retval; } s3c6410_timer_setup(0,10,100,0); pwm_init(PERIOD); //unit: 20000us printk("Serveo_motor driver register success!n"); return 0; }

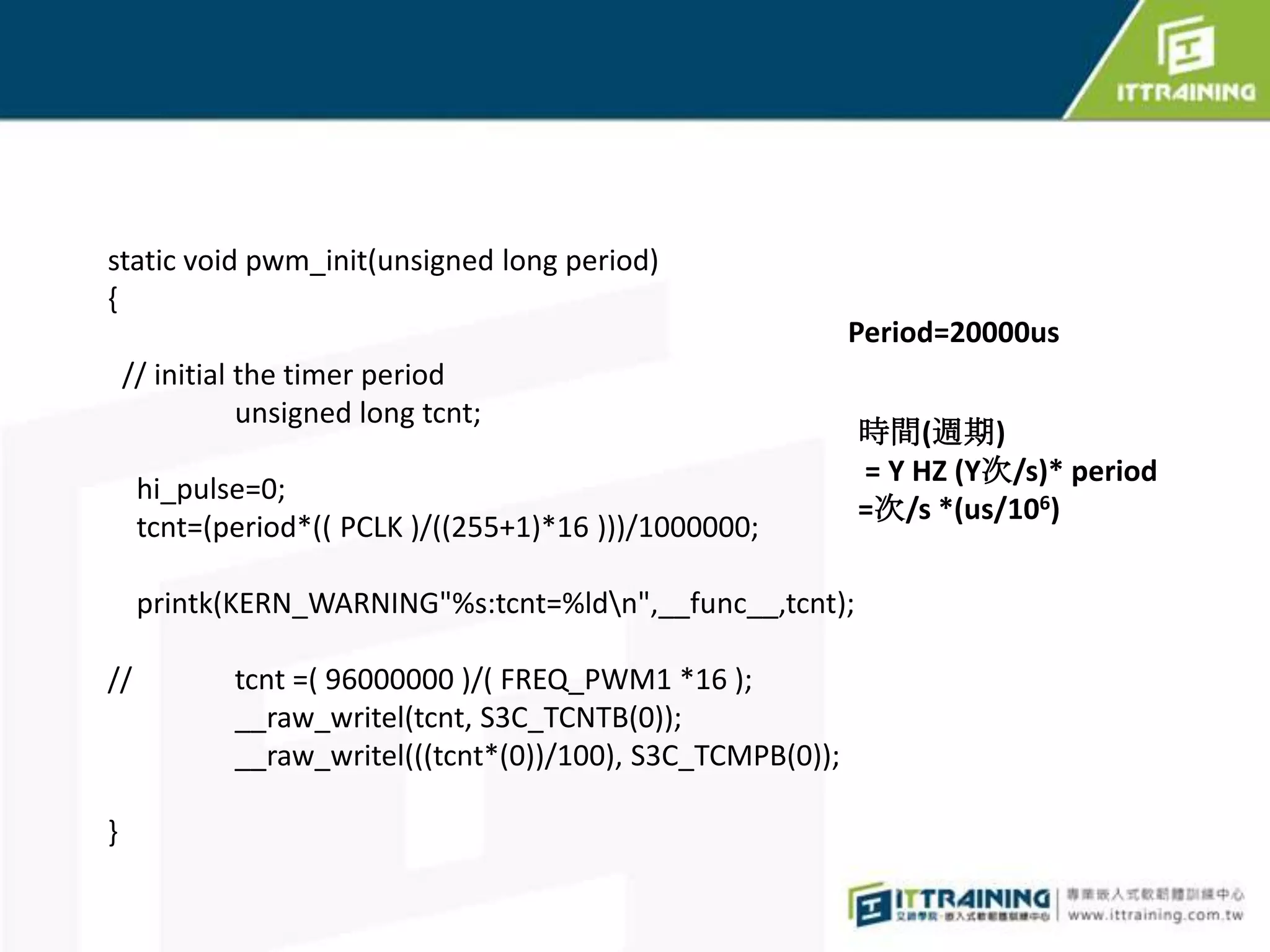

- 12. static void pwm_init(unsignedlong period) { Period=20000us // initial the timer period unsigned long tcnt; 時間(週期) = Y HZ (Y次/s)* period hi_pulse=0; =次/s *(us/106) tcnt=(period*(( PCLK )/((255+1)*16 )))/1000000; printk(KERN_WARNING"%s:tcnt=%ldn",__func__,tcnt); // tcnt =( 96000000 )/( FREQ_PWM1 *16 ); __raw_writel(tcnt, S3C_TCNTB(0)); __raw_writel(((tcnt*(0))/100), S3C_TCMPB(0)); }

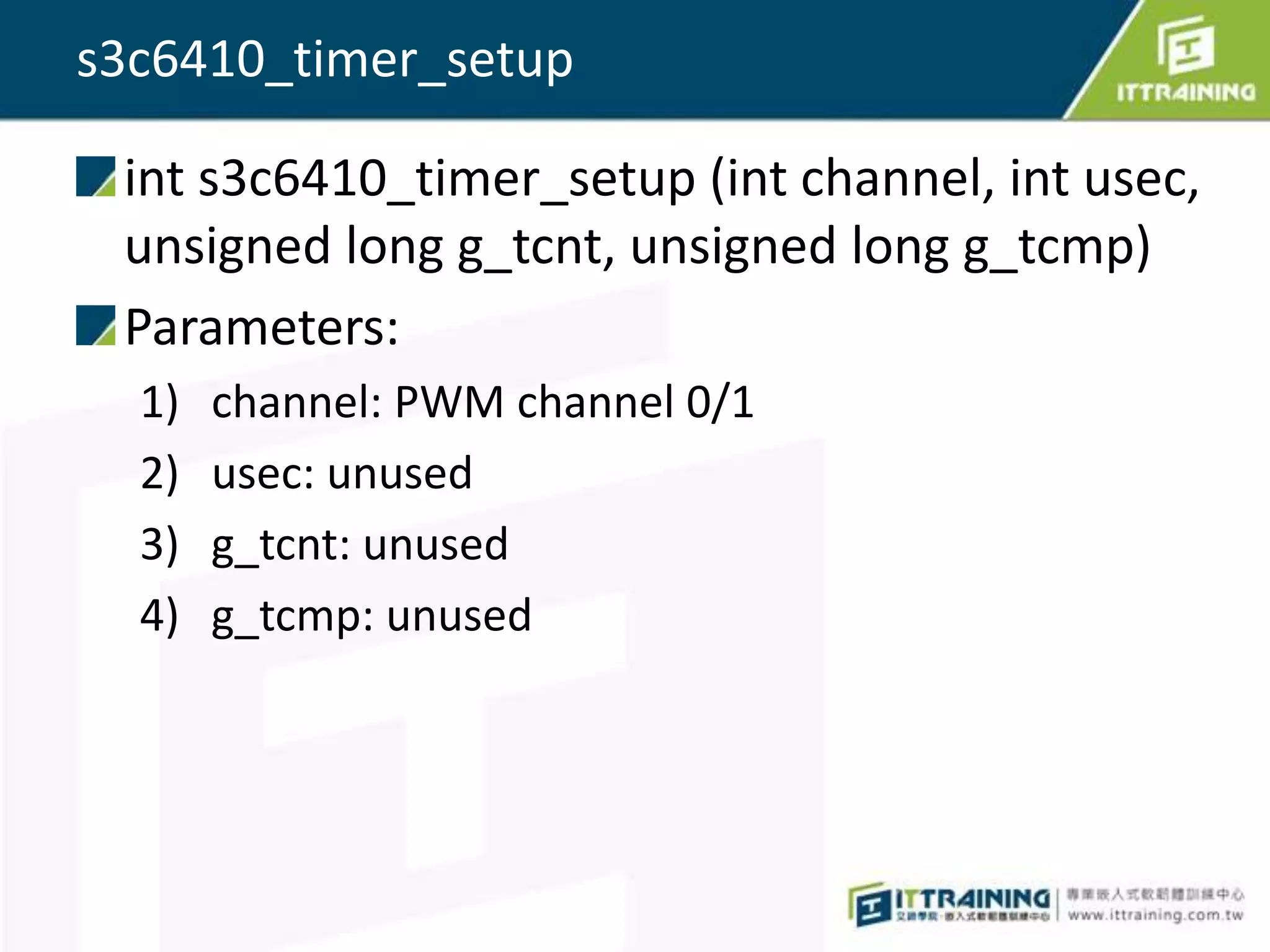

- 13. s3c6410_timer_setup int s3c6410_timer_setup(int channel, int usec, unsigned long g_tcnt, unsigned long g_tcmp) Parameters: 1) channel: PWM channel 0/1 2) usec: unused 3) g_tcnt: unused 4) g_tcmp: unused

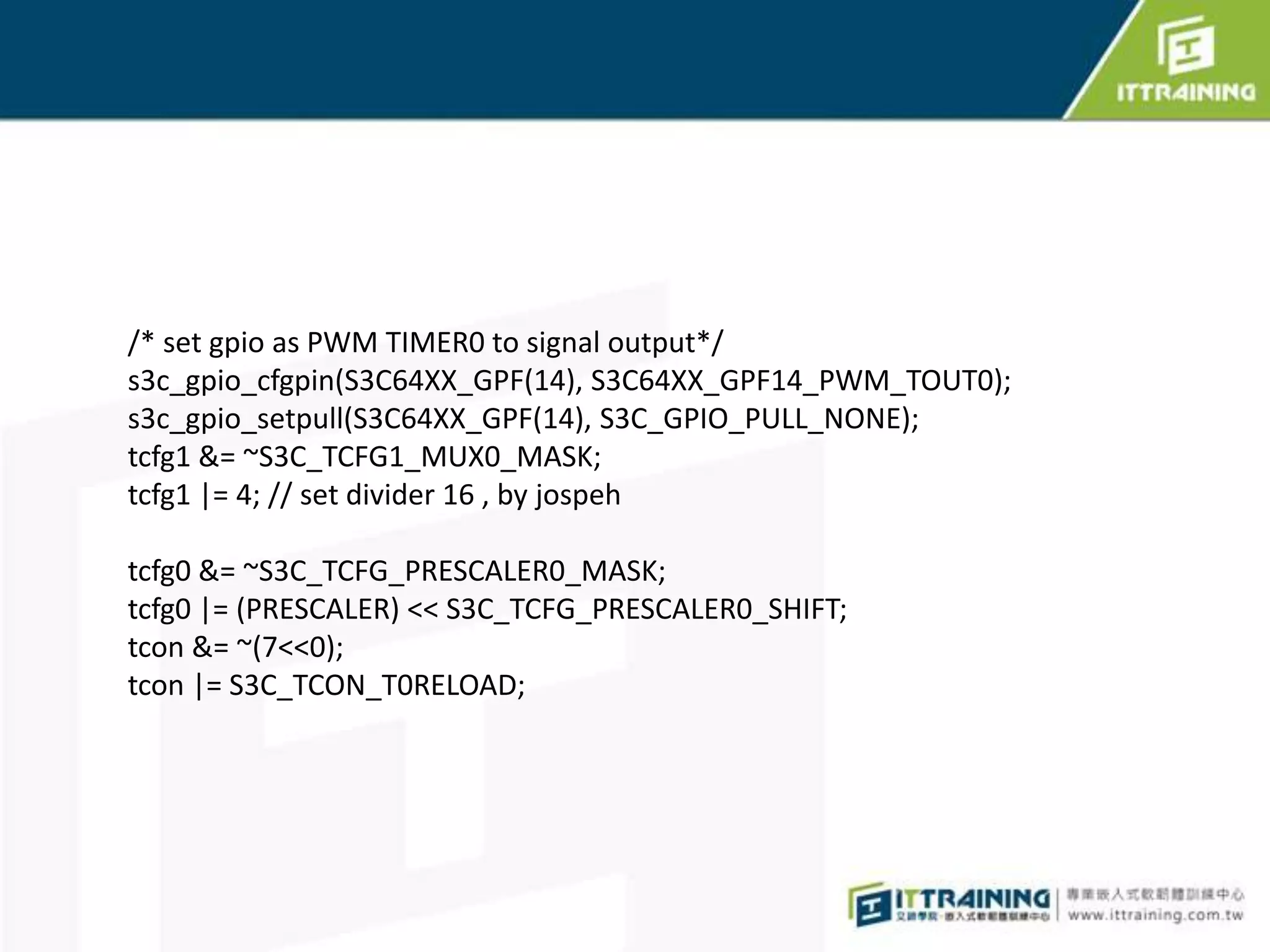

- 14. /* set gpioas PWM TIMER0 to signal output*/ s3c_gpio_cfgpin(S3C64XX_GPF(14), S3C64XX_GPF14_PWM_TOUT0); s3c_gpio_setpull(S3C64XX_GPF(14), S3C_GPIO_PULL_NONE); tcfg1 &= ~S3C_TCFG1_MUX0_MASK; tcfg1 |= 4; // set divider 16 , by jospeh tcfg0 &= ~S3C_TCFG_PRESCALER0_MASK; tcfg0 |= (PRESCALER) << S3C_TCFG_PRESCALER0_SHIFT; tcon &= ~(7<<0); tcon |= S3C_TCON_T0RELOAD;

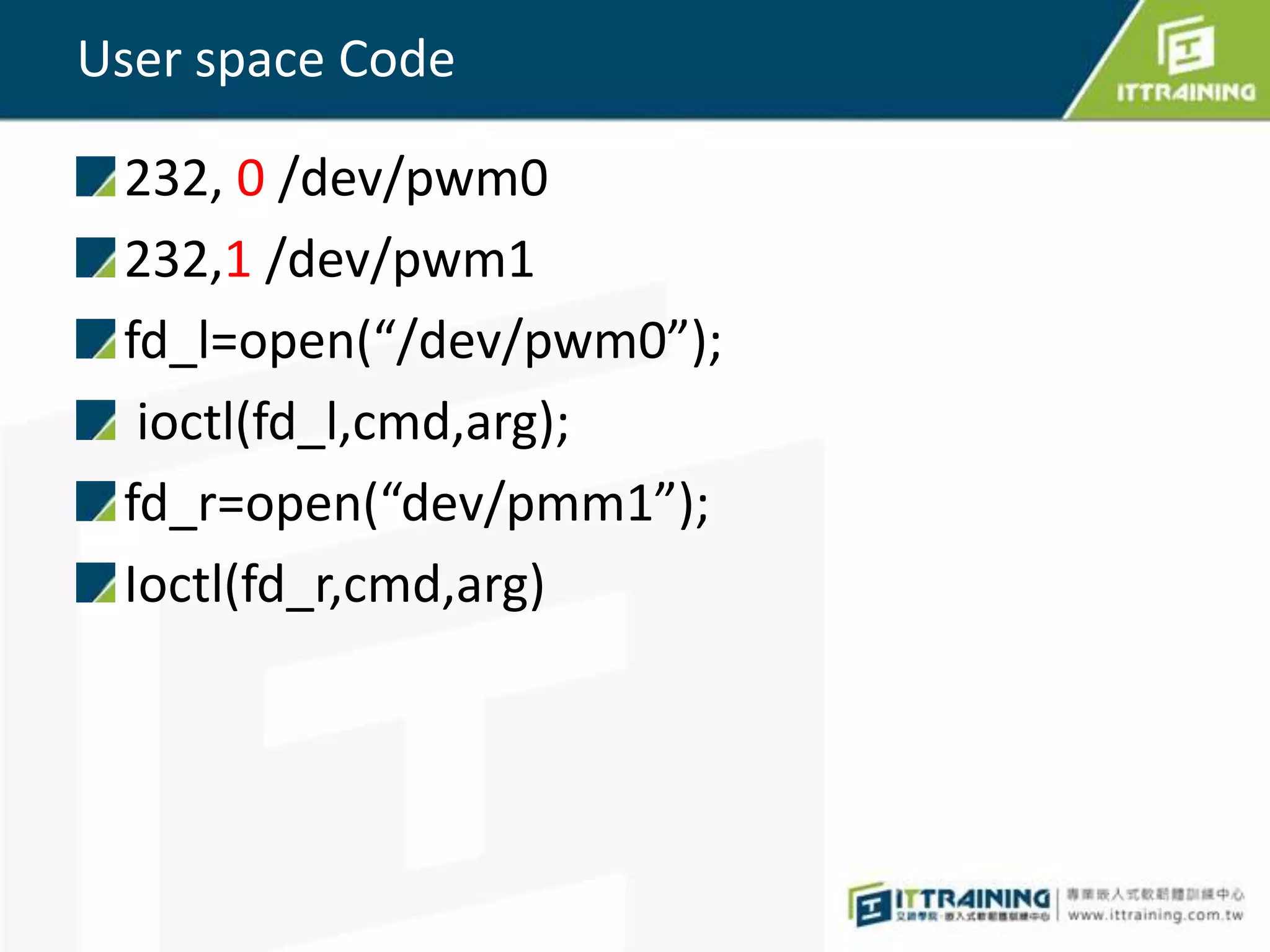

- 15. User space Code 232, 0 /dev/pwm0 232,1 /dev/pwm1 fd_l=open(“/dev/pwm0”); ioctl(fd_l,cmd,arg); fd_r=open(“dev/pmm1”); Ioctl(fd_r,cmd,arg)
