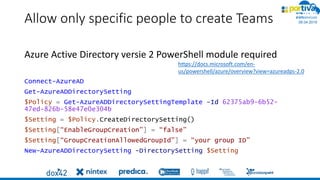

![06.04.2019
#
Allow only specific people to create Teams
Azure Active Directory versie 2 PowerShell module required
Connect-AzureAD
Get-AzureADDirectorySetting
$Policy = Get-AzureADDirectorySettingTemplate –Id 62375ab9-6b52-
47ed-826b-58e47e0e304b
$Setting = $Policy.CreateDirectorySetting()
$Setting[“EnableGroupCreation”] = “false”
$Setting[“GroupCreationAllowedGroupId”] = “your group ID”
New-AzureADDirectorySetting -DirectorySetting $Setting
https://docs.microsoft.com/en-
us/powershell/azure/overview?view=azureadps-2.0](https://image.slidesharecdn.com/spswarsaw19-microsoftteamsarchitecturedeepdive-maarteneekels-190406135732/85/SPSWarsaw-Teams-Architecture-Deep-Dive-14-320.jpg)
![06.04.2019
#
External sharing per Team
Disabling or enabling external guest user access is only possible through
PowerShell
$template = Get-AzureADDirectorySettingTemplate | ? {$_.displayname -eq
"group.unified.guest"}
$settings = $template.CreateDirectorySetting()
$settings["AllowToAddGuests"]=$False
$groupID = (Get-AzureADGroup -SearchString “<your group name").ObjectId
Get-AzureADObjectSetting -TargetObjectId $groupID -TargetType Groups | fl
Values
New-AzureADObjectSetting -TargetObjectId $groupID -TargetType Groups
-DirectorySetting $settings
Get-AzureADObjectSetting -TargetObjectId $groupId -TargetType Groups | Set-
AzureADObjectSetting -TargetObjectId $groupId -TargetType Groups -
DirectorySetting $settings](https://image.slidesharecdn.com/spswarsaw19-microsoftteamsarchitecturedeepdive-maarteneekels-190406135732/85/SPSWarsaw-Teams-Architecture-Deep-Dive-16-320.jpg)
![06.04.2019
#
Naming conventions
Get-AzureADDirectorySetting
$directorySetting = Get-AzureADDirectorySetting -Id 92efeacc-
89c6-4c16-b1cf-107aaf87f7dc
$directorySetting.Values
$directorySetting["PrefixSuffixNamingRequirement"] =
"Grp_[Department]_[GroupName]"
$directorySetting["CustomBlockedWordsList"]="Payroll,CEO,HR"
Set-AzureADDirectorySetting -Id (Get-AzureADDirectorySetting
| where -Property DisplayName -Value "Group.Unified" -EQ).id
-DirectorySetting $directorySetting](https://image.slidesharecdn.com/spswarsaw19-microsoftteamsarchitecturedeepdive-maarteneekels-190406135732/85/SPSWarsaw-Teams-Architecture-Deep-Dive-19-320.jpg)
Uploaded byMaarten Eekels
SPSWarsaw - Teams Architecture Deep Dive
This document provides an in-depth overview of the Microsoft Teams architecture. It describes where Teams data is stored, such as files, messages and voicemail in services like Azure Blob storage, SharePoint and Exchange. It outlines the high-level Teams architecture including core Microsoft 365 services and how Teams integrates with Office 365 workloads. It also discusses Teams security, compliance boundaries, roles, settings and ways to manage Teams through PowerShell.
More Related Content
Similar to SPSWarsaw - Teams Architecture Deep Dive
More from Maarten Eekels
SPSWarsaw - Teams Architecture Deep Dive
- 1. 06.04.2019 # 2019 # Microsoft Teams Architecture DeepDive Maarten Eekels - @maarteneekels
- 2.
- 3.

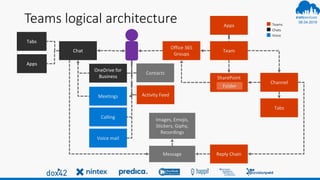

- 4. 06.04.2019 # Teams logical architecture Team Office365 Groups Chat Channel SharePoint Reply ChainMessage Images, Emojis, Stickers, Giphy, Recordings OneDrive for Business Tabs Folder Tabs Activity FeedMeetings Calling Apps Apps Contacts Teams Chats Voice Voice mail
- 5. 06.04.2019 # Where is everythingstored? Image Files Voicemail Message Recording Calendar meeting Contacts Media service on Azure (using Blob storage) Team files SharePoint Chat files OneDrive for Business Individual mailbox in Exchange Chat service table storage (moving to Cosmos DB) Media service on Azure (using Blob storage) (<24 hours) Individual mailbox in Exchange Exchange Ingested to Exchange to enable compliance Ingested to Exchange to enable compliance Encoded to Microsoft Stream Telemetry Microsoft Data warehouse (No customer content)
- 6. 06.04.2019 # Teams high levelarchitecture Microsoft Teams Intelligent Communications Microsoft 365 Core services Most recent files Telemetry Files Files Web Companions Notes Calendar AAD MessagingSettings and O365 access OneNote OneDrivefor Business WAC Other Workloads Connectors Audio / video Search Notification service SMTP SharePoint Publish / Subscribe Push Notifications Experimentation MRU Calling / Meeting PSTN Desktop iOS App Android AppElectron Web Chat & Presence services Exchange Information Protection Graph Webhook Stream Recording Bots Graph API Email service Policy Teams services
- 7. 06.04.2019 # Outside the compliancyperimeter User Browser, Desktop ,Mobile compliance boundary Microsoft Teams Guest user Anonymous join to a meeting Federation communication Email a channel Connectors Apps/Bots Tabs Calling Plan (PSTN) Push Notifications (Mobile) Other Cloud storage (3rd party) Graph API Giphy 2-way communication Inbound data Outbound data Data posted to a channel Data posted to a channel Query to Giphy Push notifications to Apple or Google to notify mobile client Optional Box, Dropbox, Google drive, Citrix Fileshare Any third-party tab is hosted outside the compliance boundary Any third-party App/bot or line of business app is hosted outside the compliance boundary Graph APIs can be exposed to line of business apps or 3rd party apps Enables inbound/outbound calling outside the organization Standard Teams user Guest added via AAD B2B Anonymous user joining a meeting Communication between multiple tenants URL Preview Get a preview of a URL that is posted to a message
- 8. 06.04.2019 # Teams client Browsers: Edge,IE11, latest Chrome, latest Firefox, and now Safari too | Desktop: Windows 10, 8.1, 7(SP1), Mac OS X 10.10+ IOS Android Swift Java Angular React jQuery, lodash etc.. (200+ Open Source Components) TypeScript, Node, SASS HTML5/CSS C++ Objective C Windows MacWeb AndroidiPhone/iPad Desktop Mobile Electron React Native

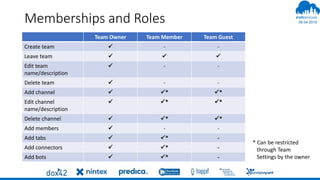

- 9. 06.04.2019 # Memberships and Roles TeamOwner Team Member Team Guest Create team - - Leave team Edit team name/description - - Delete team - - Add channel * * Edit channel name/description * * Delete channel * * Add members - - Add tabs * - Add connectors * - Add bots * - * Can be restricted through Team Settings by the owner

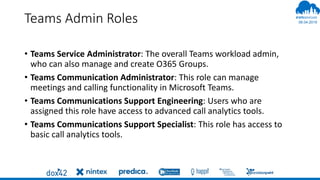

- 10. 06.04.2019 # Teams Admin Roles •Teams Service Administrator: The overall Teams workload admin, who can also manage and create O365 Groups. • Teams Communication Administrator: This role can manage meetings and calling functionality in Microsoft Teams. • Teams Communications Support Engineering: Users who are assigned this role have access to advanced call analytics tools. • Teams Communications Support Specialist: This role has access to basic call analytics tools.
- 11. 06.04.2019 # Teams Settings onTenant Level
- 12.
- 13. 06.04.2019 # Manage Teams withPowerShell Install-Module -Name MicrosoftTeams Get-Team $groupId = (Get-AzureADGroup -SearchString “<group name>").objectId Get-TeamFunSettings -GroupId $groupId Get-TeamMemberSettings -GroupId $groupId Get-TeamGuestSettings -GroupId $groupId
- 14. 06.04.2019 # Allow only specificpeople to create Teams Azure Active Directory versie 2 PowerShell module required Connect-AzureAD Get-AzureADDirectorySetting $Policy = Get-AzureADDirectorySettingTemplate –Id 62375ab9-6b52- 47ed-826b-58e47e0e304b $Setting = $Policy.CreateDirectorySetting() $Setting[“EnableGroupCreation”] = “false” $Setting[“GroupCreationAllowedGroupId”] = “your group ID” New-AzureADDirectorySetting -DirectorySetting $Setting https://docs.microsoft.com/en- us/powershell/azure/overview?view=azureadps-2.0

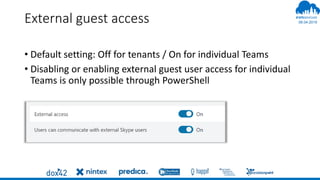

- 15. 06.04.2019 # External guest access •Default setting: Off for tenants / On for individual Teams • Disabling or enabling external guest user access for individual Teams is only possible through PowerShell

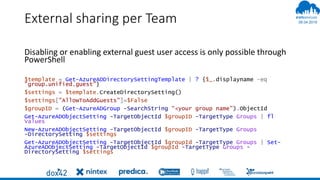

- 16. 06.04.2019 # External sharing perTeam Disabling or enabling external guest user access is only possible through PowerShell $template = Get-AzureADDirectorySettingTemplate | ? {$_.displayname -eq "group.unified.guest"} $settings = $template.CreateDirectorySetting() $settings["AllowToAddGuests"]=$False $groupID = (Get-AzureADGroup -SearchString “<your group name").ObjectId Get-AzureADObjectSetting -TargetObjectId $groupID -TargetType Groups | fl Values New-AzureADObjectSetting -TargetObjectId $groupID -TargetType Groups -DirectorySetting $settings Get-AzureADObjectSetting -TargetObjectId $groupId -TargetType Groups | Set- AzureADObjectSetting -TargetObjectId $groupId -TargetType Groups - DirectorySetting $settings
- 17.
- 18.

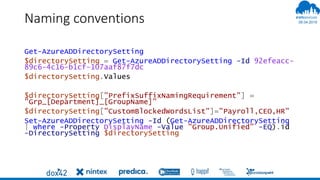

- 19. 06.04.2019 # Naming conventions Get-AzureADDirectorySetting $directorySetting =Get-AzureADDirectorySetting -Id 92efeacc- 89c6-4c16-b1cf-107aaf87f7dc $directorySetting.Values $directorySetting["PrefixSuffixNamingRequirement"] = "Grp_[Department]_[GroupName]" $directorySetting["CustomBlockedWordsList"]="Payroll,CEO,HR" Set-AzureADDirectorySetting -Id (Get-AzureADDirectorySetting | where -Property DisplayName -Value "Group.Unified" -EQ).id -DirectorySetting $directorySetting
- 20.
- 21.
- 22.
- 23.
