Creating a Graph (Scala)
VertexId
=
Long
Graph
val
vertices:
RDD[(VertexId,
String)]
=
sc.parallelize(List(
(1L,
“Alice”),
(2L,
“Bob”),
(3L,
“Charlie”)))
class
Edge[ED](
val
srcId:
VertexId,
val
dstId:
VertexId,
val
attr:
ED)
val
edges:
RDD[Edge[String]]
=
sc.parallelize(List(
Edge(1L,
2L,
“coworker”),
Edge(2L,
3L,
“friend”)))
val
graph
=
Graph(vertices,
edges)
1
2
3
Alice
Bob
Charlie
coworker
friend](https://image.slidesharecdn.com/graphx-ampcamp5-141121143336-conversion-gate02/85/GraphX-Graph-Analytics-in-Apache-Spark-AMPCamp-5-2014-11-20-20-320.jpg)
![Graph Operations (Scala)
class
Graph[VD,
ED]
{
//
Table
Views
-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐
def
vertices:
RDD[(VertexId,
VD)]
def
edges:
RDD[Edge[ED]]
def
triplets:
RDD[EdgeTriplet[VD,
ED]]
//
Transformations
-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐
def
mapVertices[VD2](f:
(VertexId,
VD)
=
VD2):
Graph[VD2,
ED]
def
mapEdges[ED2](f:
Edge[ED]
=
ED2):
Graph[VD2,
ED]
def
reverse:
Graph[VD,
ED]
def
subgraph(epred:
EdgeTriplet[VD,
ED]
=
Boolean,
vpred:
(VertexId,
VD)
=
Boolean):
Graph[VD,
ED]
//
Joins
-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐
def
outerJoinVertices[U,
VD2]
(tbl:
RDD[(VertexId,
U)])
(f:
(VertexId,
VD,
Option[U])
=
VD2):
Graph[VD2,
ED]
//
Computation
-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐
def
mapReduceTriplets[A](
sendMsg:
EdgeTriplet[VD,
ED]
=
Iterator[(VertexId,
A)],
mergeMsg:
(A,
A)
=
A):
RDD[(VertexId,
A)]](https://image.slidesharecdn.com/graphx-ampcamp5-141121143336-conversion-gate02/85/GraphX-Graph-Analytics-in-Apache-Spark-AMPCamp-5-2014-11-20-21-320.jpg)
![//
Continued
from
previous
slide
def
pageRank(tol:
Double):
Graph[Double,
Double]
def
triangleCount():
Graph[Int,
ED]
def
connectedComponents():
Graph[VertexId,
ED]
//
...and
more:
org.apache.spark.graphx.lib
}
Built-in Algorithms (Scala)
PageRank Triangle Count Connected
Components](https://image.slidesharecdn.com/graphx-ampcamp5-141121143336-conversion-gate02/85/GraphX-Graph-Analytics-in-Apache-Spark-AMPCamp-5-2014-11-20-22-320.jpg)
RDD
class
Graph[VD,
ED]
{
def
triplets:
RDD[EdgeTriplet[VD,
ED]]
Graph
1
2
3
Alice
Bob
Charlie
coworker
friend
srcAttr dstAttr attr
Alice coworker Bob
Bob friend Charlie
triplets](https://image.slidesharecdn.com/graphx-ampcamp5-141121143336-conversion-gate02/85/GraphX-Graph-Analytics-in-Apache-Spark-AMPCamp-5-2014-11-20-23-320.jpg)
![The subgraph transformation
class
Graph[VD,
ED]
{
def
subgraph(epred:
EdgeTriplet[VD,
ED]
=
Boolean,
vpred:
(VertexId,
VD)
=
Boolean):
Graph[VD,
ED]
}
graph.subgraph(epred
=
(edge)
=
edge.attr
!=
“relative”)
subgraph
Graph
Alice Bob
relative
Charlie
coworker
friend
relative David
Graph
Alice Bob
Charlie
coworker
friend
David](https://image.slidesharecdn.com/graphx-ampcamp5-141121143336-conversion-gate02/85/GraphX-Graph-Analytics-in-Apache-Spark-AMPCamp-5-2014-11-20-24-320.jpg)
![The subgraph transformation
class
Graph[VD,
ED]
{
def
subgraph(epred:
EdgeTriplet[VD,
ED]
=
Boolean,
vpred:
(VertexId,
VD)
=
Boolean):
Graph[VD,
ED]
}
graph.subgraph(vpred
=
(id,
name)
=
name
!=
“Bob”)
subgraph
Graph
Alice Bob
relative
Charlie
coworker
friend
relative David
Graph
Alice
relative
Charlie
relative David](https://image.slidesharecdn.com/graphx-ampcamp5-141121143336-conversion-gate02/85/GraphX-Graph-Analytics-in-Apache-Spark-AMPCamp-5-2014-11-20-25-320.jpg)
![Computation with mapReduceTriplets
class
Graph[VD,
ED]
{
def
mapReduceTriplets[A](
upgrade to aggregateMessages
sendMsg:
EdgeTriplet[VD,
ED]
=
Iterator[(VertexId,
A)],
mergeMsg:
(A,
A)
=
A):
RDD[(VertexId,
A)]
}
graph.mapReduceTriplets(
edge
=
Iterator(
(edge.srcId,
1),
(edge.dstId,
1)),
_
+
_)
Graph
Alice Bob
relative
Charlie
friend
coworker
relative David
mapReduceTriplets
RDD
vertex id degree
Alice 2
Bob 2
Charlie 3
David 1
in Spark 1.2.0](https://image.slidesharecdn.com/graphx-ampcamp5-141121143336-conversion-gate02/85/GraphX-Graph-Analytics-in-Apache-Spark-AMPCamp-5-2014-11-20-26-320.jpg)
Uploaded byAnkur Dave
GraphX: Graph Analytics in Apache Spark (AMPCamp 5, 2014-11-20)
The document discusses GraphX, a component of Apache Spark for graph analytics, highlighting its capabilities for managing property graphs and implementing diverse graph-parallel algorithms such as PageRank and community detection. It describes the architecture of GraphX, including the structure of property graphs and various graph operations and transformations that can be performed using Scala. Additionally, it outlines future developments for GraphX, including language support and new algorithms.
More Related Content
Similar to GraphX: Graph Analytics in Apache Spark (AMPCamp 5, 2014-11-20)
GraphX: Graph Analytics in Apache Spark (AMPCamp 5, 2014-11-20)
- 1. UC BERKELEY GraphX Graph Analytics in Spark Ankur Dave Graduate Student, UC Berkeley AMPLab Joint work with Joseph Gonzalez, Reynold Xin, Daniel Crankshaw, Michael Franklin, and Ion Stoica
- 2.

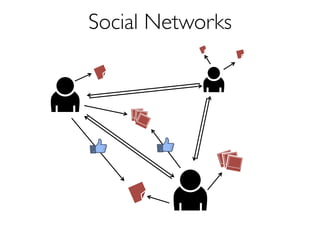

- 3.

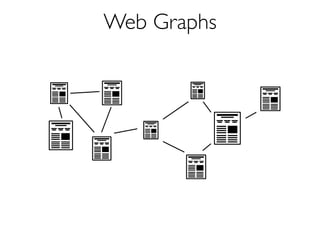

- 4.

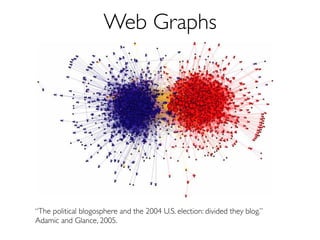

- 5. Web Graphs “Thepolitical blogosphere and the 2004 U.S. election: divided they blog.” Adamic and Glance, 2005.
- 6. User-Item Graphs ⋆⋆⋆⋆⋆ ⋆ ⋆⋆⋆⋆ ⋆⋆⋆⋆ ⋆⋆⋆⋆⋆
- 7.

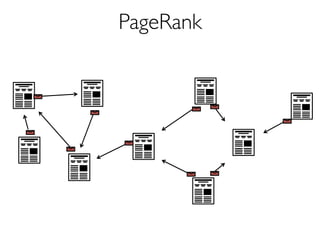

- 8.

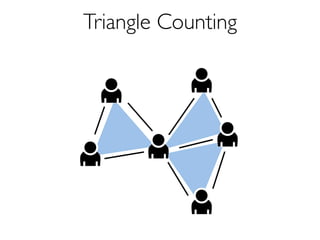

- 9.

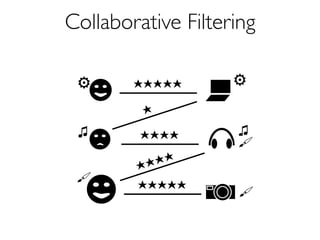

- 10. Collaborative Filtering ⋆⋆⋆⋆⋆ ⋆ ⋆⋆⋆⋆ ⋆⋆⋆⋆ ⋆⋆⋆⋆⋆ ⚙ ♫ ⚙ ♫

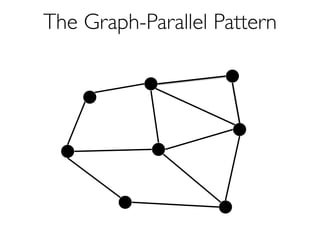

- 11.
- 12.

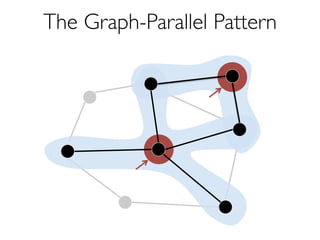

- 13.

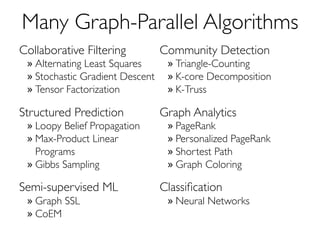

- 14. Many Graph-Parallel Algorithms Collaborative Filtering » Alternating Least Squares » Stochastic Gradient Descent » Tensor Factorization Structured Prediction » Loopy Belief Propagation » Max-Product Linear Programs » Gibbs Sampling Semi-supervised ML » Graph SSL » CoEM Community Detection » Triangle-Counting » K-core Decomposition » K-Truss Graph Analytics » PageRank » Personalized PageRank » Shortest Path » Graph Coloring Classification » Neural Networks

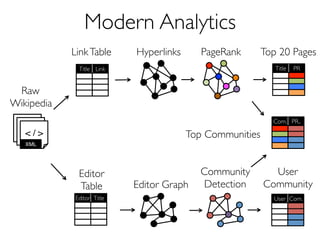

- 15. Raw Wikipedia / / / XML Hyperlinks PageRank Top 20 Pages Title PR Link Table Title Link Editor Graph Community Detection User Community User Com. Editor Table Editor Title Top Communities Com. PR.. Modern Analytics
- 16. Tables Raw Wikipedia / / / XML Hyperlinks PageRank Top 20 Pages Title PR Link Table Title Link Editor Graph Community Detection User Community User Com. Top Communities Com. PR.. Editor Table Editor Title

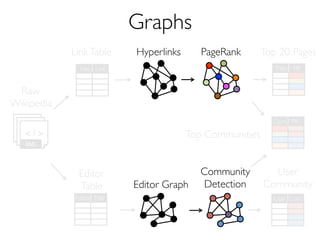

- 17. Editor Table EditorTitle Raw Wikipedia / / / XML Hyperlinks PageRank Top 20 Pages Title PR Link Table Title Link Editor Graph Community Detection User Community User Com. Top Communities Com. PR.. Graphs
- 18.

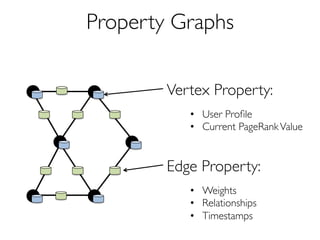

- 19. Property Graphs VertexProperty: • User Profile • Current PageRank Value Edge Property: • Weights • Relationships • Timestamps
- 20. type Creating aGraph (Scala) VertexId = Long Graph val vertices: RDD[(VertexId, String)] = sc.parallelize(List( (1L, “Alice”), (2L, “Bob”), (3L, “Charlie”))) class Edge[ED]( val srcId: VertexId, val dstId: VertexId, val attr: ED) val edges: RDD[Edge[String]] = sc.parallelize(List( Edge(1L, 2L, “coworker”), Edge(2L, 3L, “friend”))) val graph = Graph(vertices, edges) 1 2 3 Alice Bob Charlie coworker friend

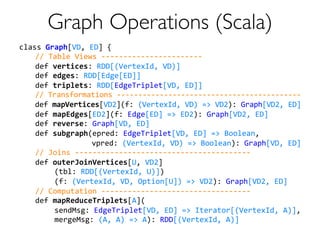

- 21. Graph Operations (Scala) class Graph[VD, ED] { // Table Views -‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐ def vertices: RDD[(VertexId, VD)] def edges: RDD[Edge[ED]] def triplets: RDD[EdgeTriplet[VD, ED]] // Transformations -‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐ def mapVertices[VD2](f: (VertexId, VD) = VD2): Graph[VD2, ED] def mapEdges[ED2](f: Edge[ED] = ED2): Graph[VD2, ED] def reverse: Graph[VD, ED] def subgraph(epred: EdgeTriplet[VD, ED] = Boolean, vpred: (VertexId, VD) = Boolean): Graph[VD, ED] // Joins -‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐ def outerJoinVertices[U, VD2] (tbl: RDD[(VertexId, U)]) (f: (VertexId, VD, Option[U]) = VD2): Graph[VD2, ED] // Computation -‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐ def mapReduceTriplets[A]( sendMsg: EdgeTriplet[VD, ED] = Iterator[(VertexId, A)], mergeMsg: (A, A) = A): RDD[(VertexId, A)]
- 22. // Continued from previous slide def pageRank(tol: Double): Graph[Double, Double] def triangleCount(): Graph[Int, ED] def connectedComponents(): Graph[VertexId, ED] // ...and more: org.apache.spark.graphx.lib } Built-in Algorithms (Scala) PageRank Triangle Count Connected Components

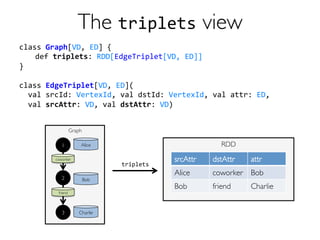

- 23. The triplets view } class EdgeTriplet[VD, ED]( val srcId: VertexId, val dstId: VertexId, val attr: ED, val srcAttr: VD, val dstAttr: VD) RDD class Graph[VD, ED] { def triplets: RDD[EdgeTriplet[VD, ED]] Graph 1 2 3 Alice Bob Charlie coworker friend srcAttr dstAttr attr Alice coworker Bob Bob friend Charlie triplets
- 24. The subgraph transformation class Graph[VD, ED] { def subgraph(epred: EdgeTriplet[VD, ED] = Boolean, vpred: (VertexId, VD) = Boolean): Graph[VD, ED] } graph.subgraph(epred = (edge) = edge.attr != “relative”) subgraph Graph Alice Bob relative Charlie coworker friend relative David Graph Alice Bob Charlie coworker friend David

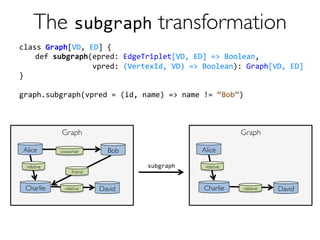

- 25. The subgraph transformation class Graph[VD, ED] { def subgraph(epred: EdgeTriplet[VD, ED] = Boolean, vpred: (VertexId, VD) = Boolean): Graph[VD, ED] } graph.subgraph(vpred = (id, name) = name != “Bob”) subgraph Graph Alice Bob relative Charlie coworker friend relative David Graph Alice relative Charlie relative David
- 26. Computation with mapReduceTriplets class Graph[VD, ED] { def mapReduceTriplets[A]( upgrade to aggregateMessages sendMsg: EdgeTriplet[VD, ED] = Iterator[(VertexId, A)], mergeMsg: (A, A) = A): RDD[(VertexId, A)] } graph.mapReduceTriplets( edge = Iterator( (edge.srcId, 1), (edge.dstId, 1)), _ + _) Graph Alice Bob relative Charlie friend coworker relative David mapReduceTriplets RDD vertex id degree Alice 2 Bob 2 Charlie 3 David 1 in Spark 1.2.0
- 27.

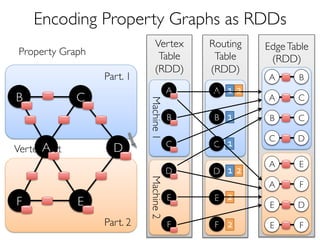

- 28. Encoding Property Graphsas RDDs Part. 1 A D Part. 2 Vertex Table (RDD) C A D F E D Property Graph B A Machine 1 Machine 2 Edge Table (RDD) A B A C B C C D A E A F E D E F A B C D E F Routing Table (RDD) A B C D E F 1 2 1 1 1 2 2 2 Vertex Cut
- 29. Graph System Optimizations Specialized Vertex-Cuts Remote Data-Structures Partitioning Caching / Mirroring Message Combiners Active Set Tracking
- 30. 3500 3000 EC2Cluster of 16 x m2.4xLarge (8 cores) + 1GigE Seconds) 2500 2000 (Runtime 1500 1000 500 0 state-of-the-art graph processing systems. PageRank Benchmark Twitter Graph (42M Vertices,1.5B Edges) UK-Graph (106M Vertices, 3.7B Edges) 9000 8000 7000 6000 5000 7x 18x 4000 3000 2000 1000 0 GraphX performs comparably to

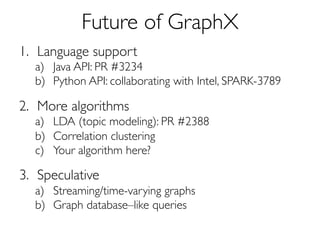

- 31. Future of GraphX 1. Language support a) Java API: PR #3234 b) Python API: collaborating with Intel, SPARK-3789 2. More algorithms a) LDA (topic modeling): PR #2388 b) Correlation clustering c) Your algorithm here? 3. Speculative a) Streaming/time-varying graphs b) Graph database–like queries

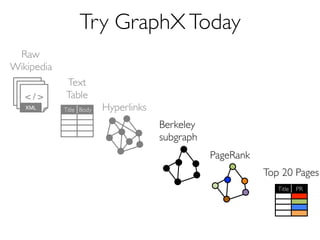

- 32. Raw Wikipedia / / / Try GraphX Today XML Hyperlinks PageRank Top 20 Pages Title PR Text Table Title Body Berkeley subgraph
- 33. Thanks! http://spark.apache.org/graphx ankurd@eecs.berkeley.edu jegonzal@eecs.berkeley.edu rxin@eecs.berkeley.edu crankshaw@eecs.berkeley.edu
