1. Big Data processing
with Apache Spark
Lucian Neghina
Big Data Architect
by Developer for Developers

2. Outline
● Spark Overview
● Structured APIs
● Low-Level APIs
● Streaming
● Writing an Application

3. Who uses Spark, and for what
Data Science
● Analyze and model the data
● Transforming the data into a
usable format
● Ad-hoc analysis, statistics,
machine learning
Data Processing
● Parallelize across clusters
● Hides the complexity of
distributed systems
○ Programming
○ Networking communication
○ Fault tolerance

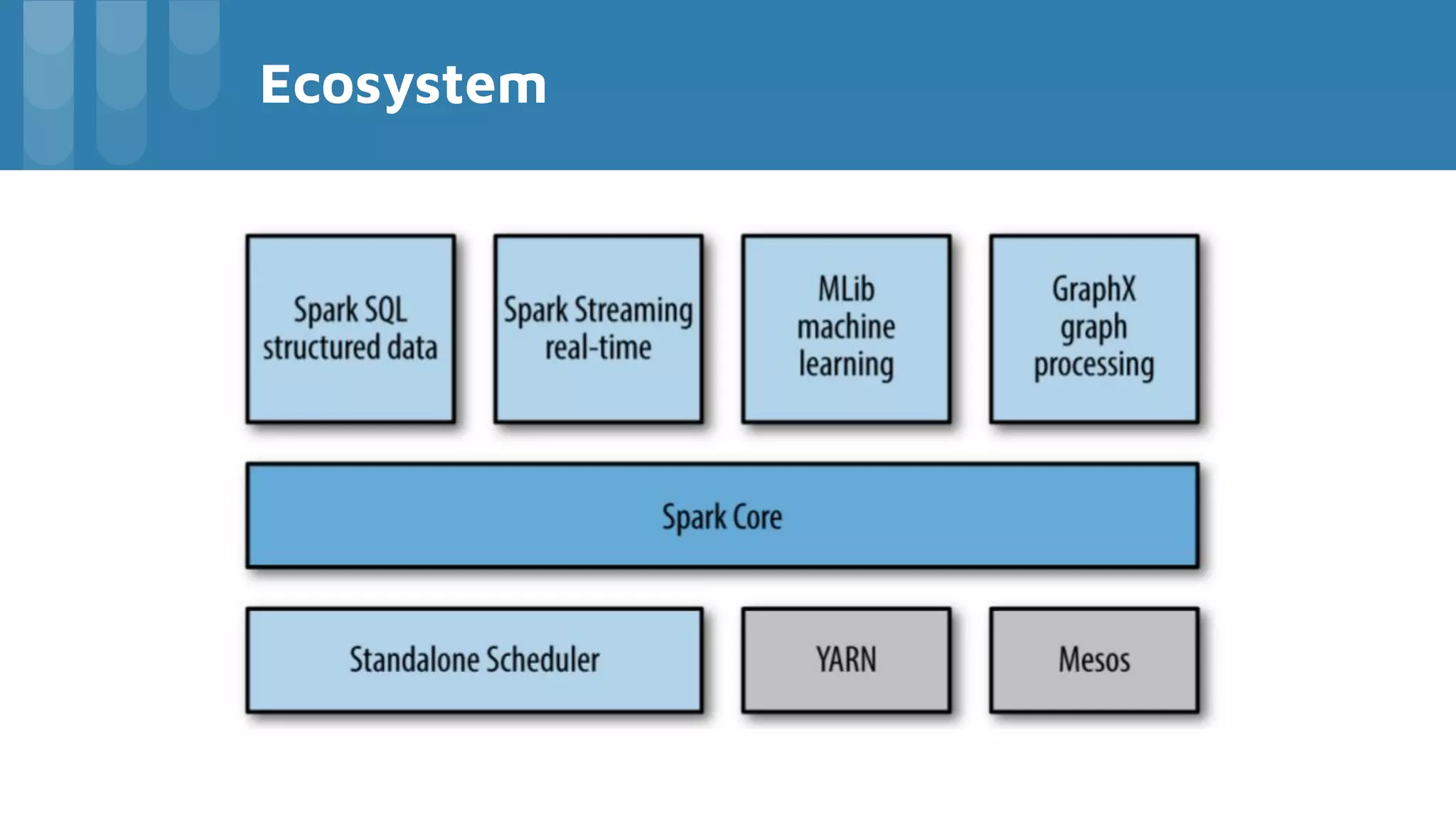

4. Ecosystem

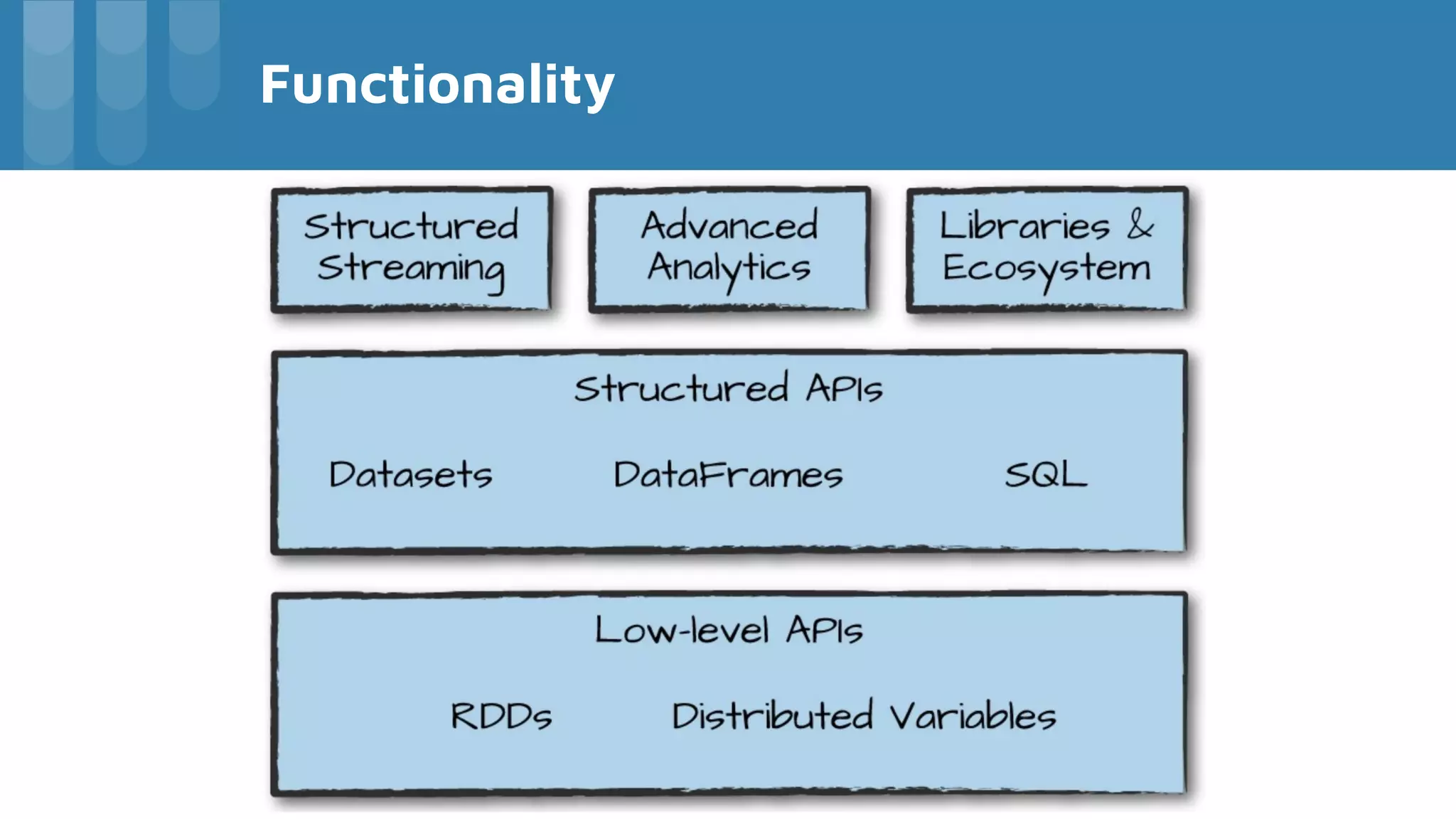

5. Functionality

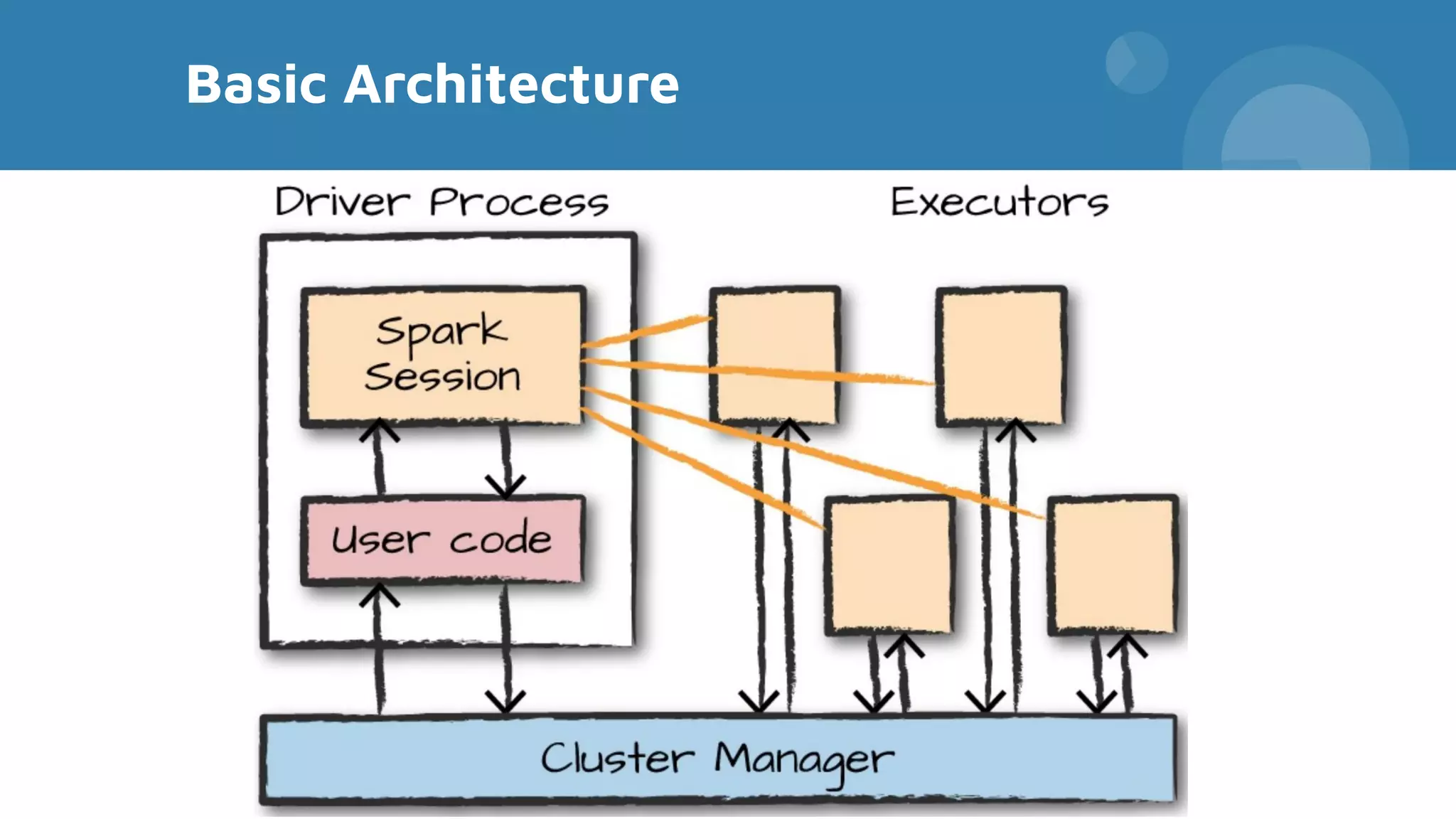

6. Basic Architecture

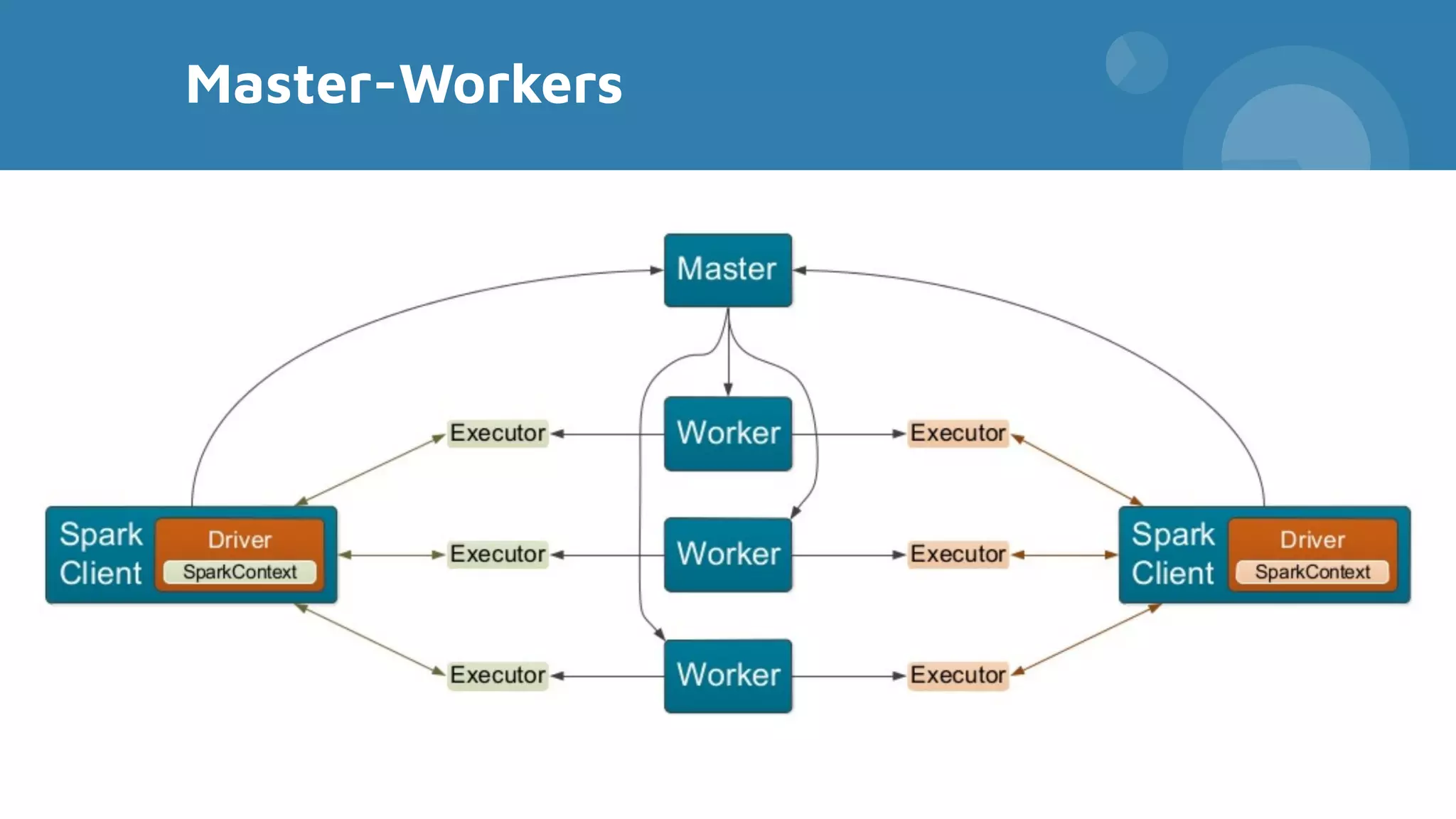

7. Master-Workers

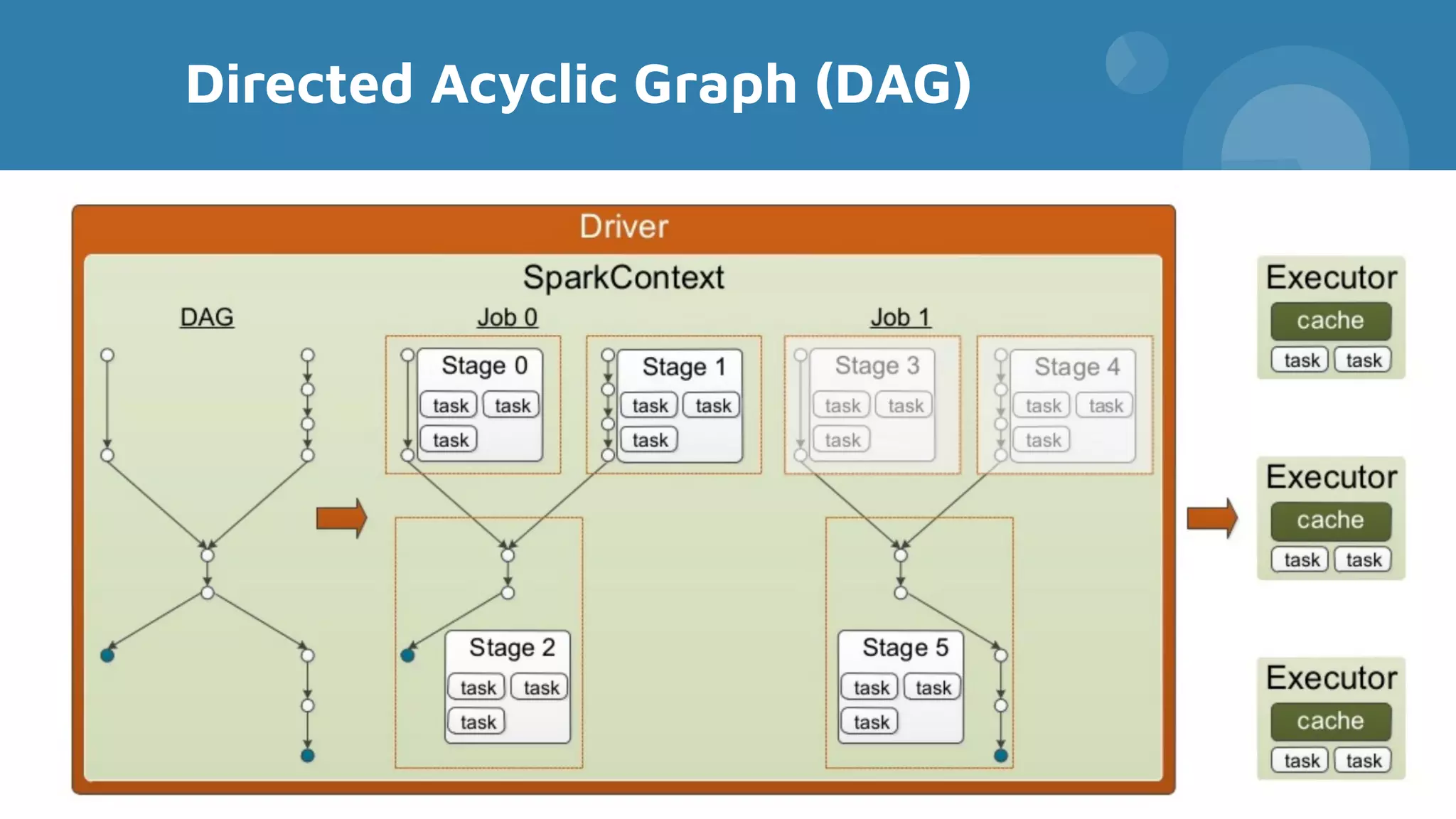

8. Directed Acyclic Graph (DAG)

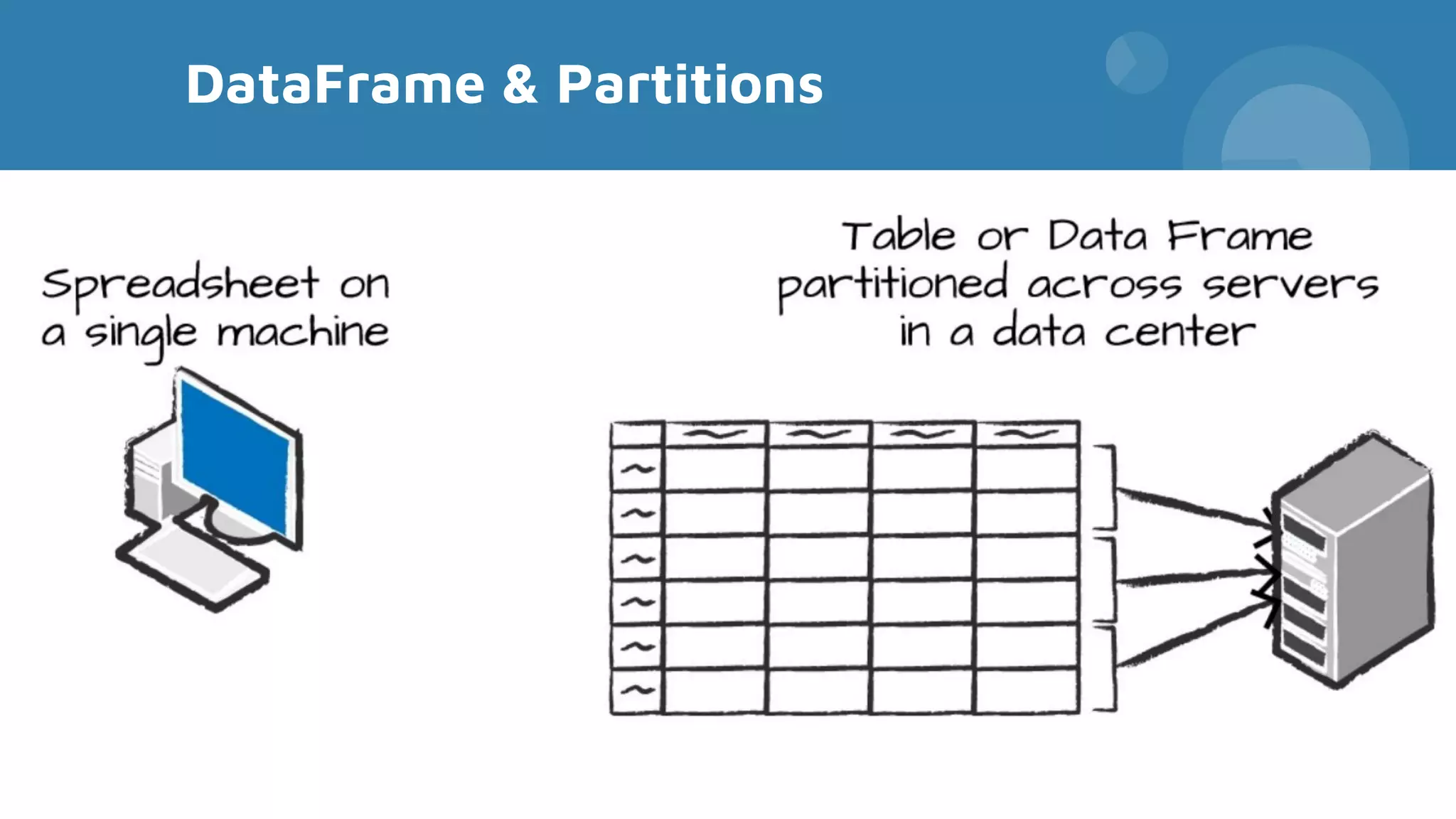

9. DataFrame & Partitions

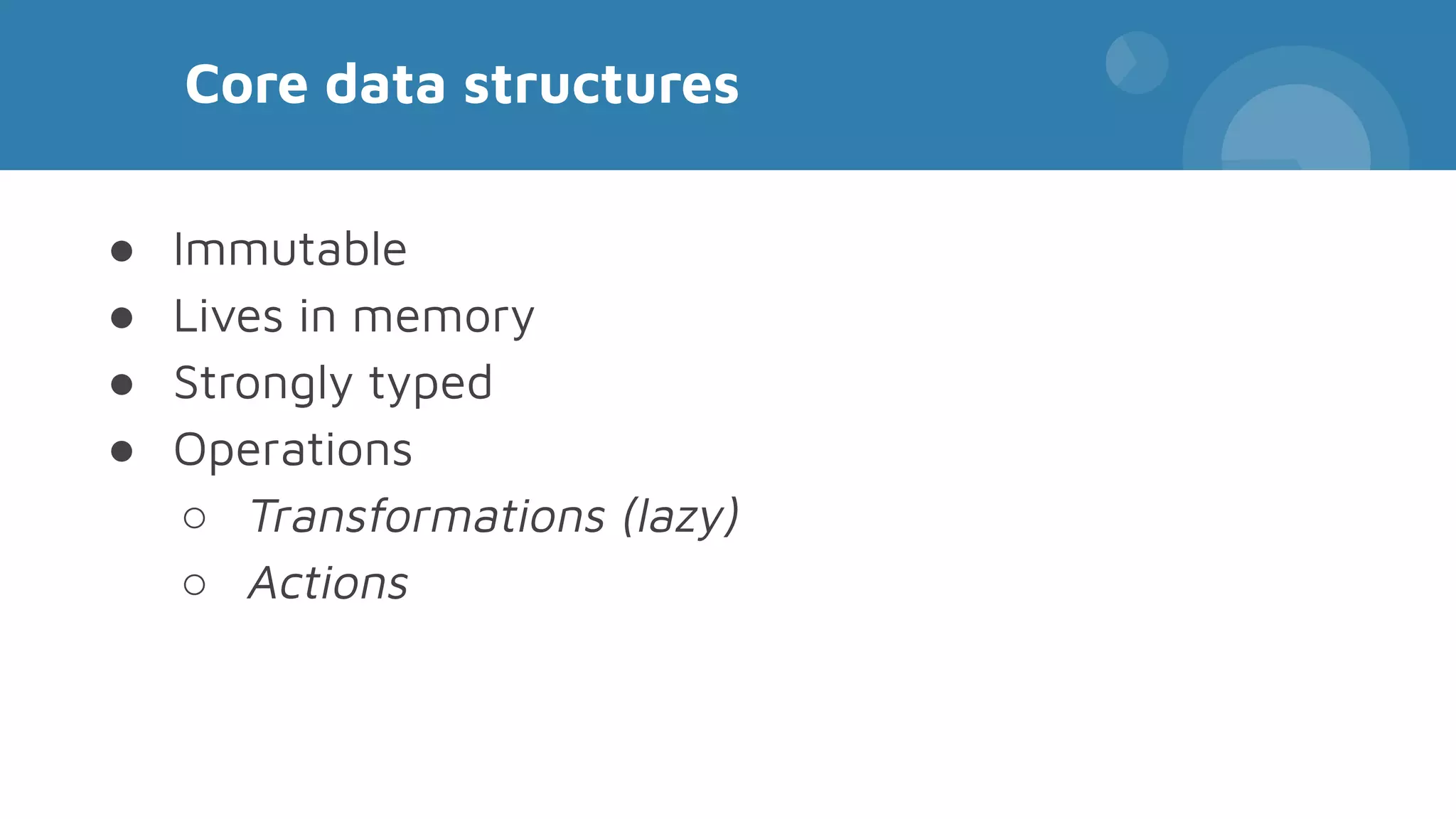

10. Core data structures
● Immutable
● Lives in memory
● Strongly typed
● Operations
○ Transformations (lazy)
○ Actions

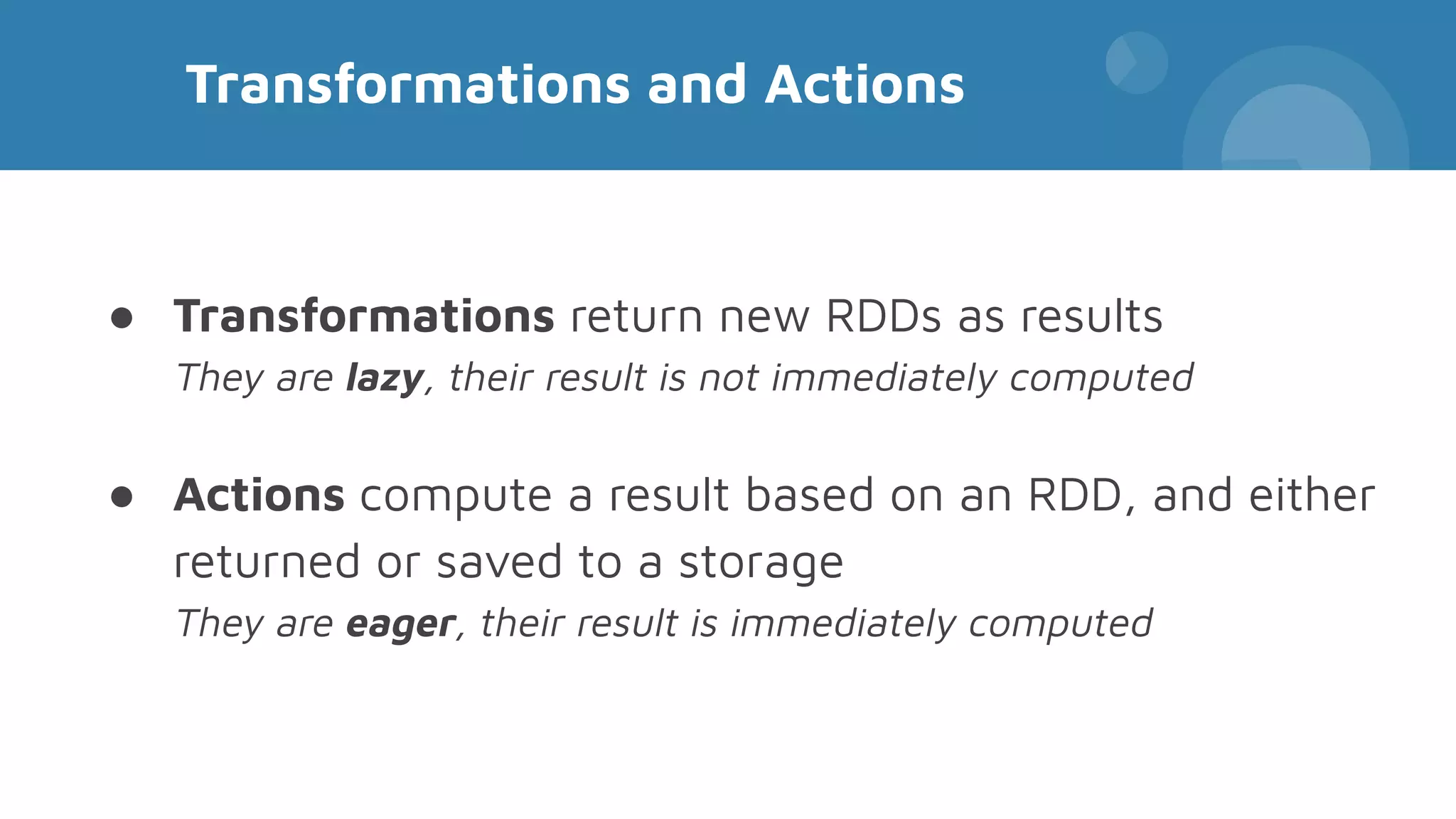

11. Transformations and Actions
● Transformations return new RDDs as results
They are lazy, their result is not immediately computed
● Actions compute a result based on an RDD, and either
returned or saved to a storage
They are eager, their result is immediately computed

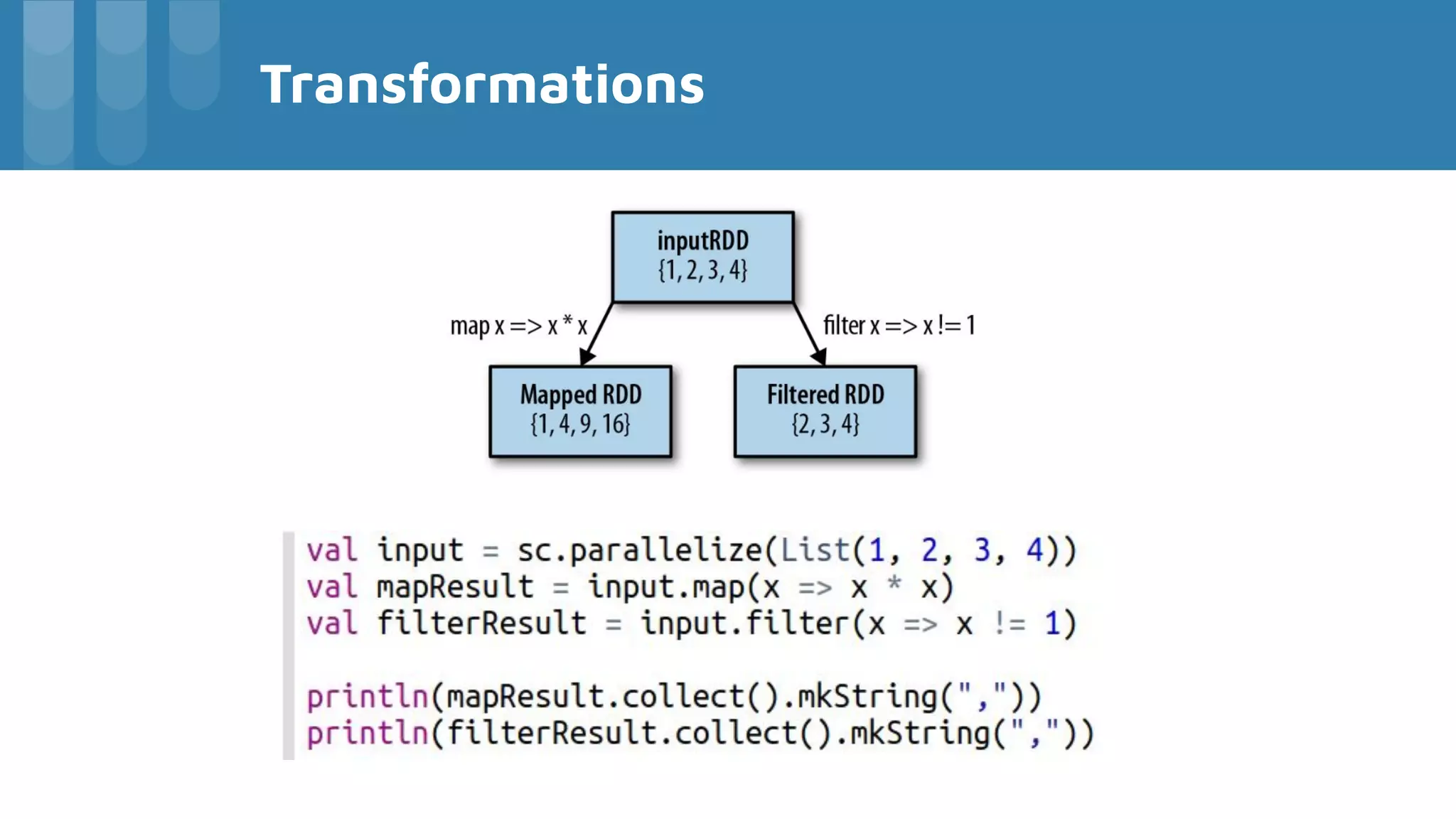

12. Transformations

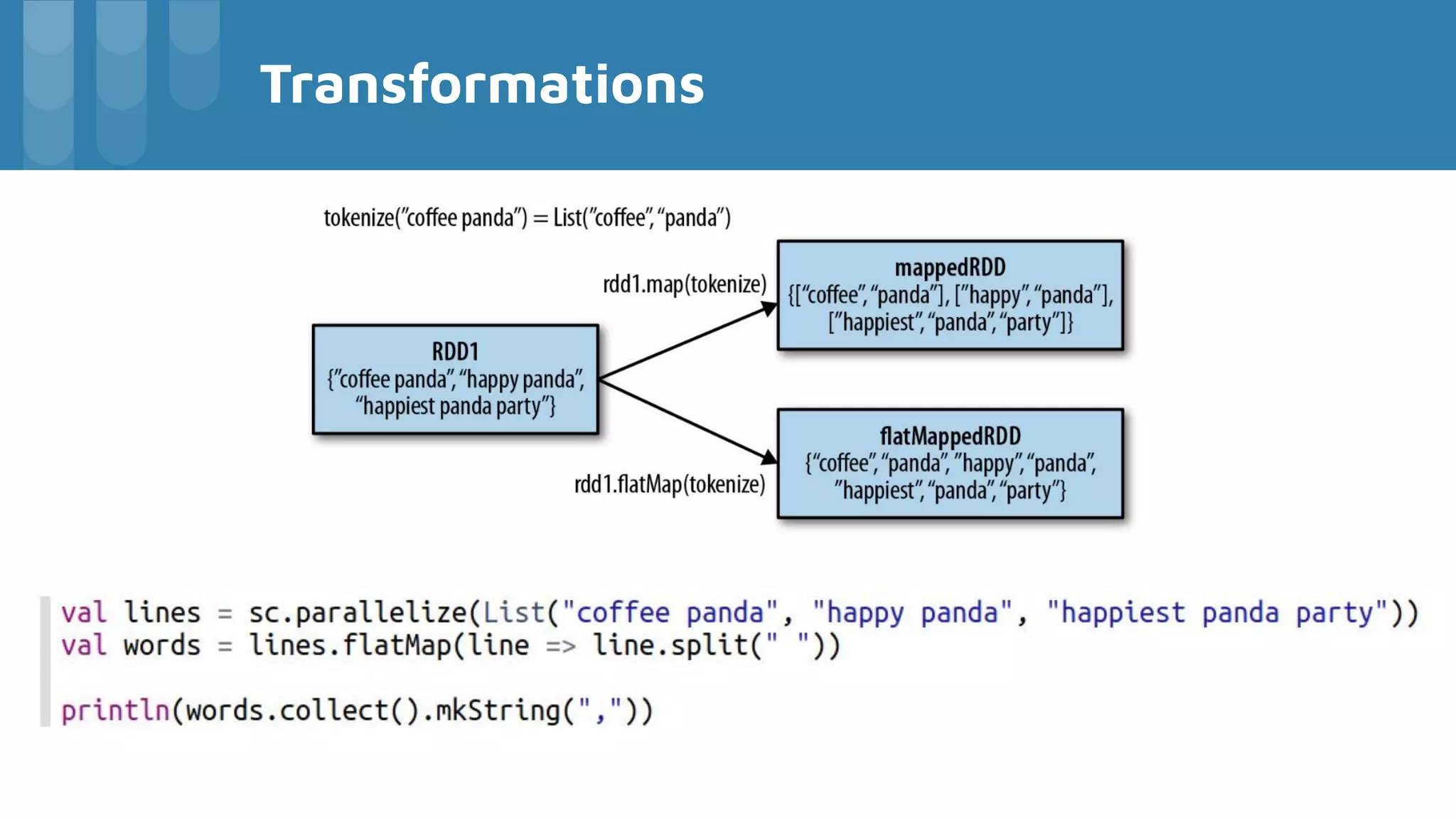

13. Transformations

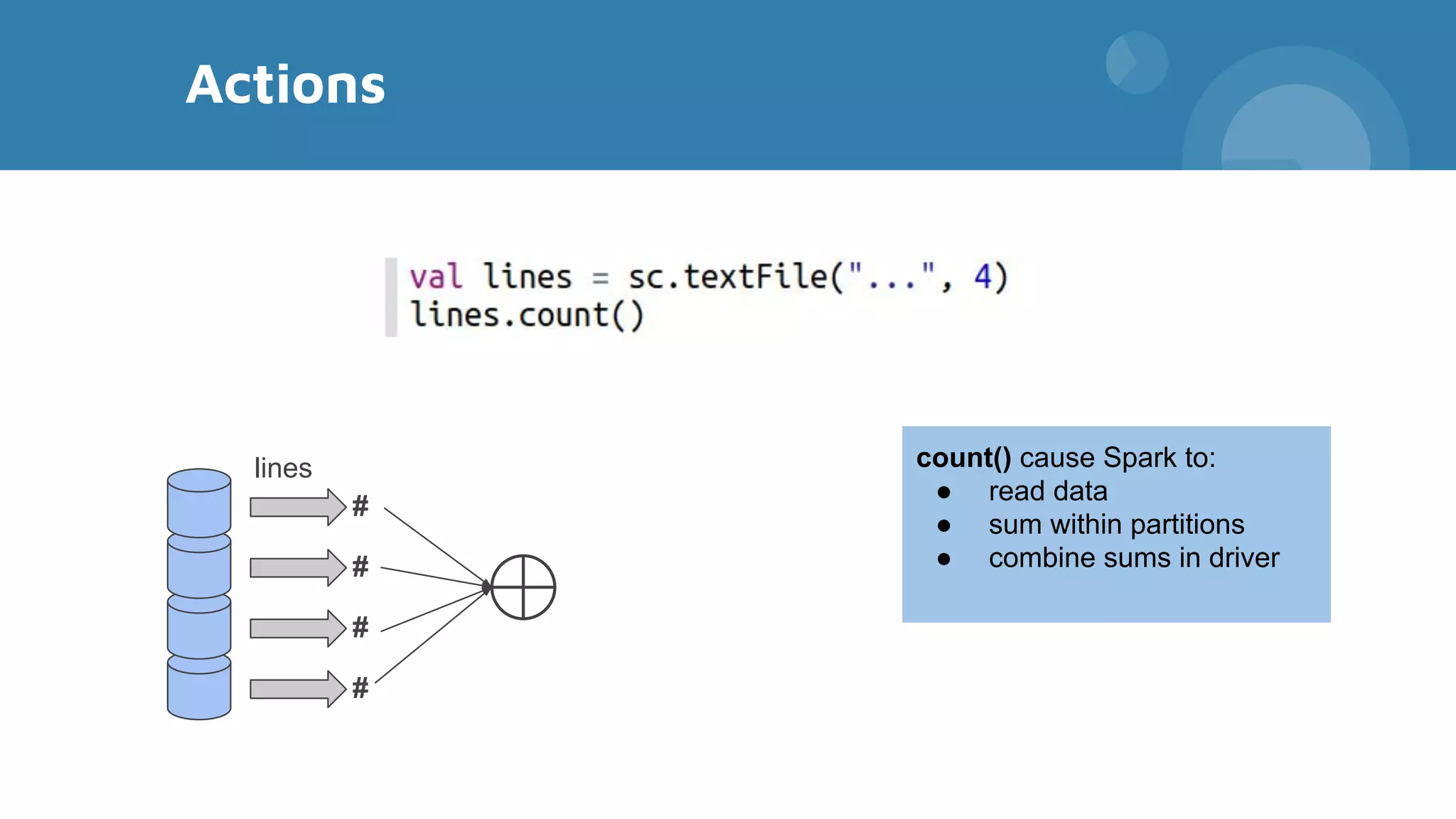

14. Actions
lines
#
#
#
#
count() cause Spark to:
● read data
● sum within partitions
● combine sums in driver

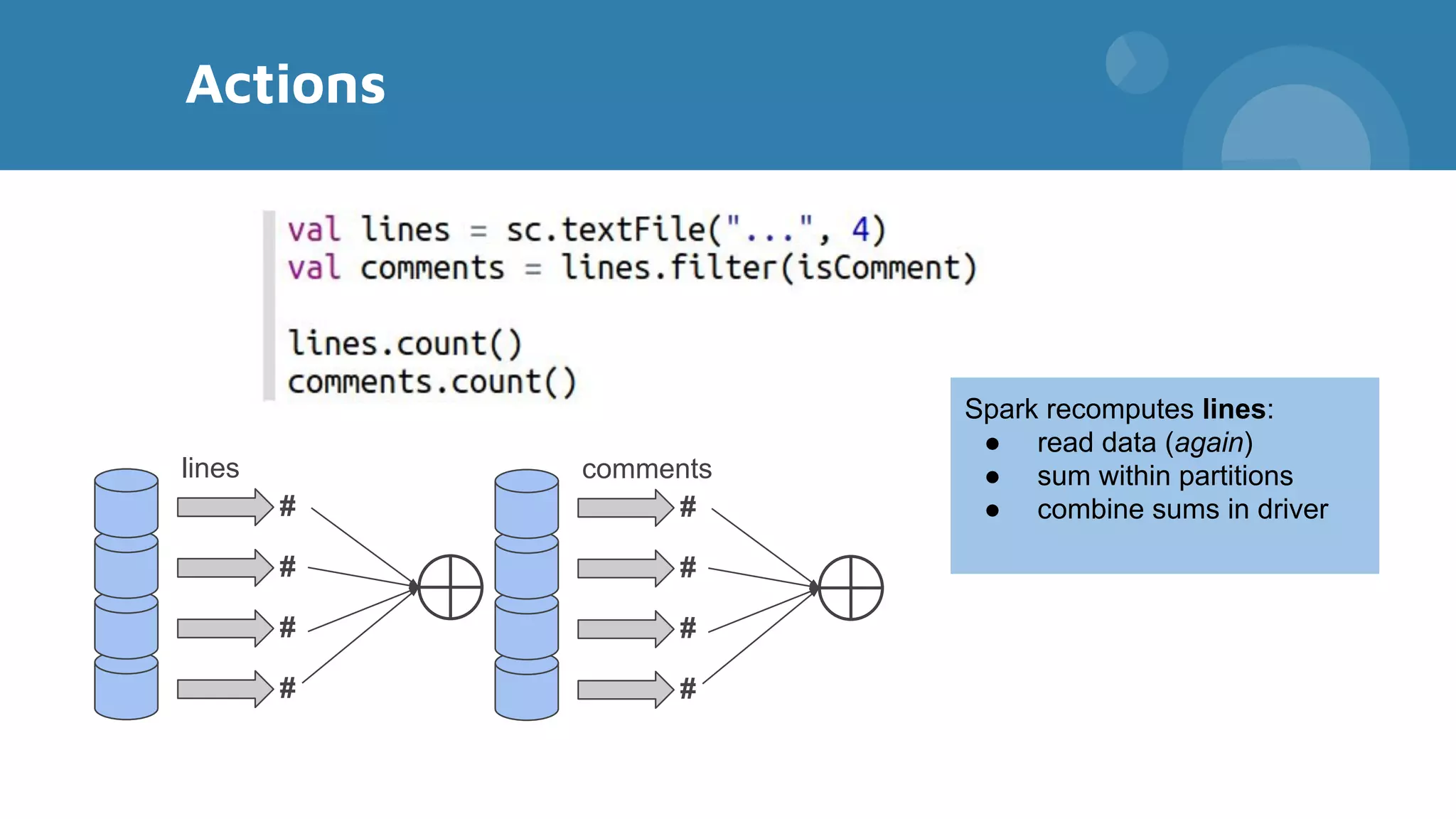

15. Actions
lines
#
#
#
#
Spark recomputes lines:
● read data (again)
● sum within partitions
● combine sums in driver
comments
#
#
#
#

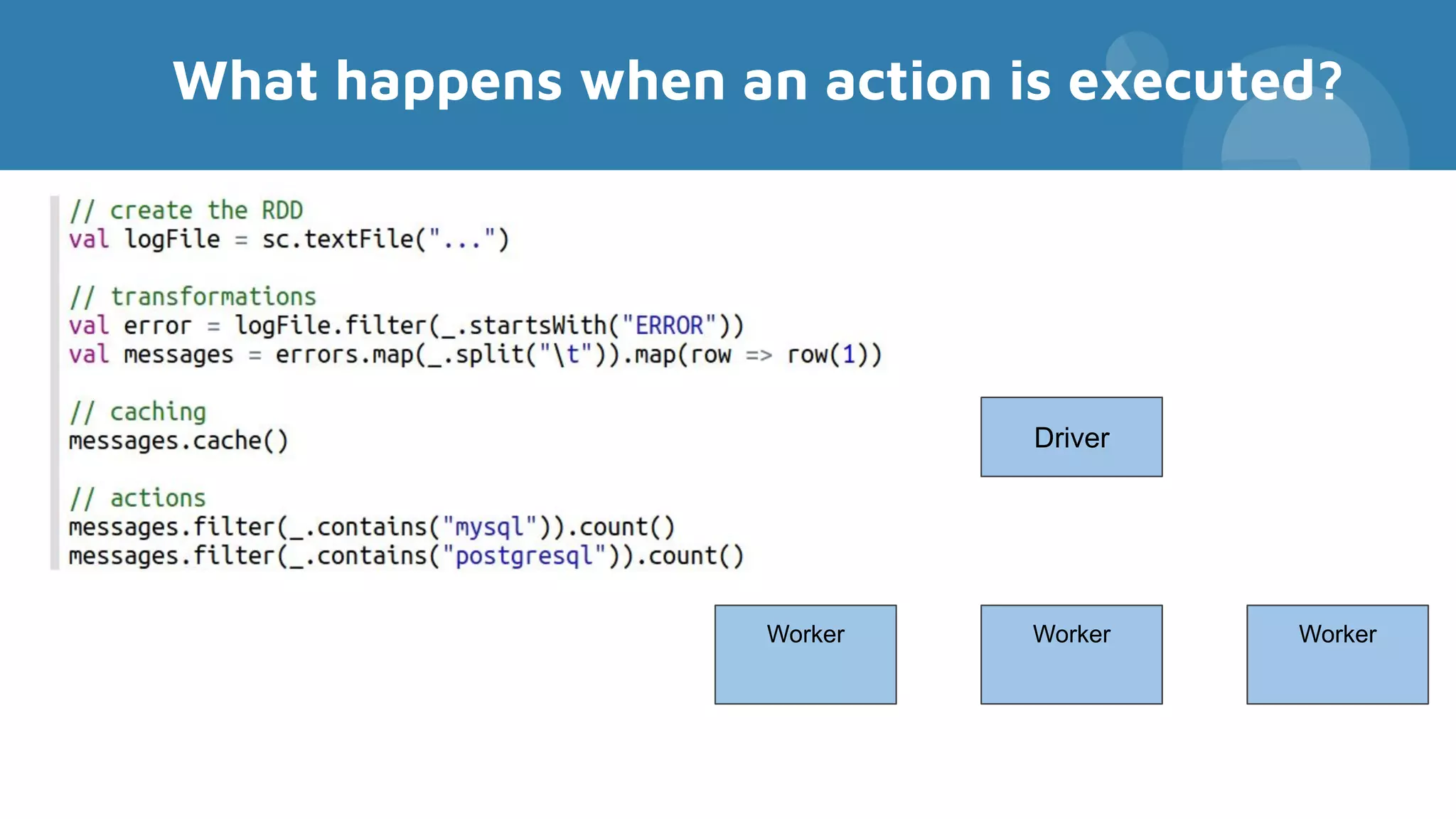

16. What happens when an action is executed?
Driver
Worker Worker Worker

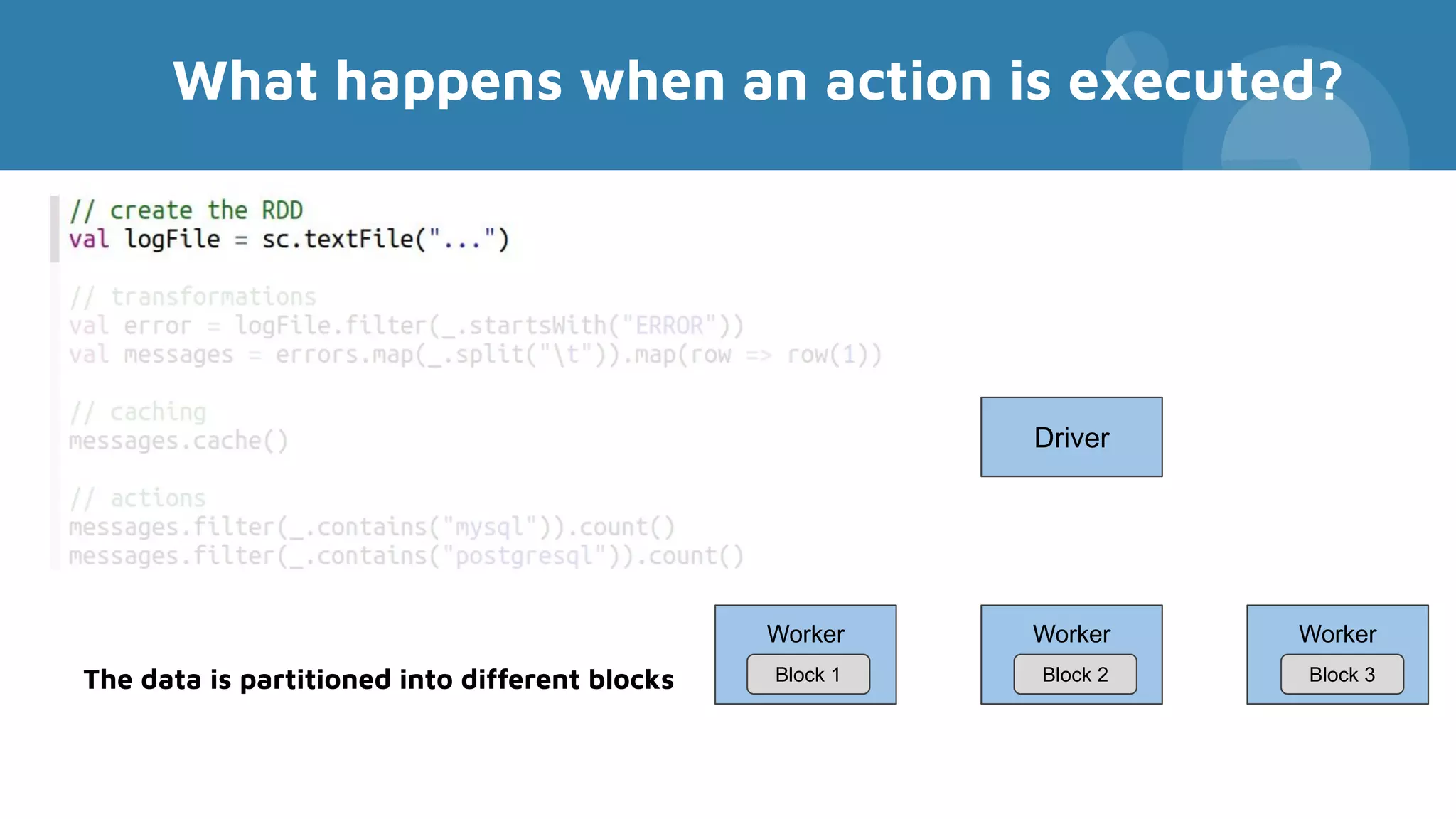

17. What happens when an action is executed?
The data is partitioned into different blocks
Driver
Worker Worker Worker
Block 1 Block 2 Block 3

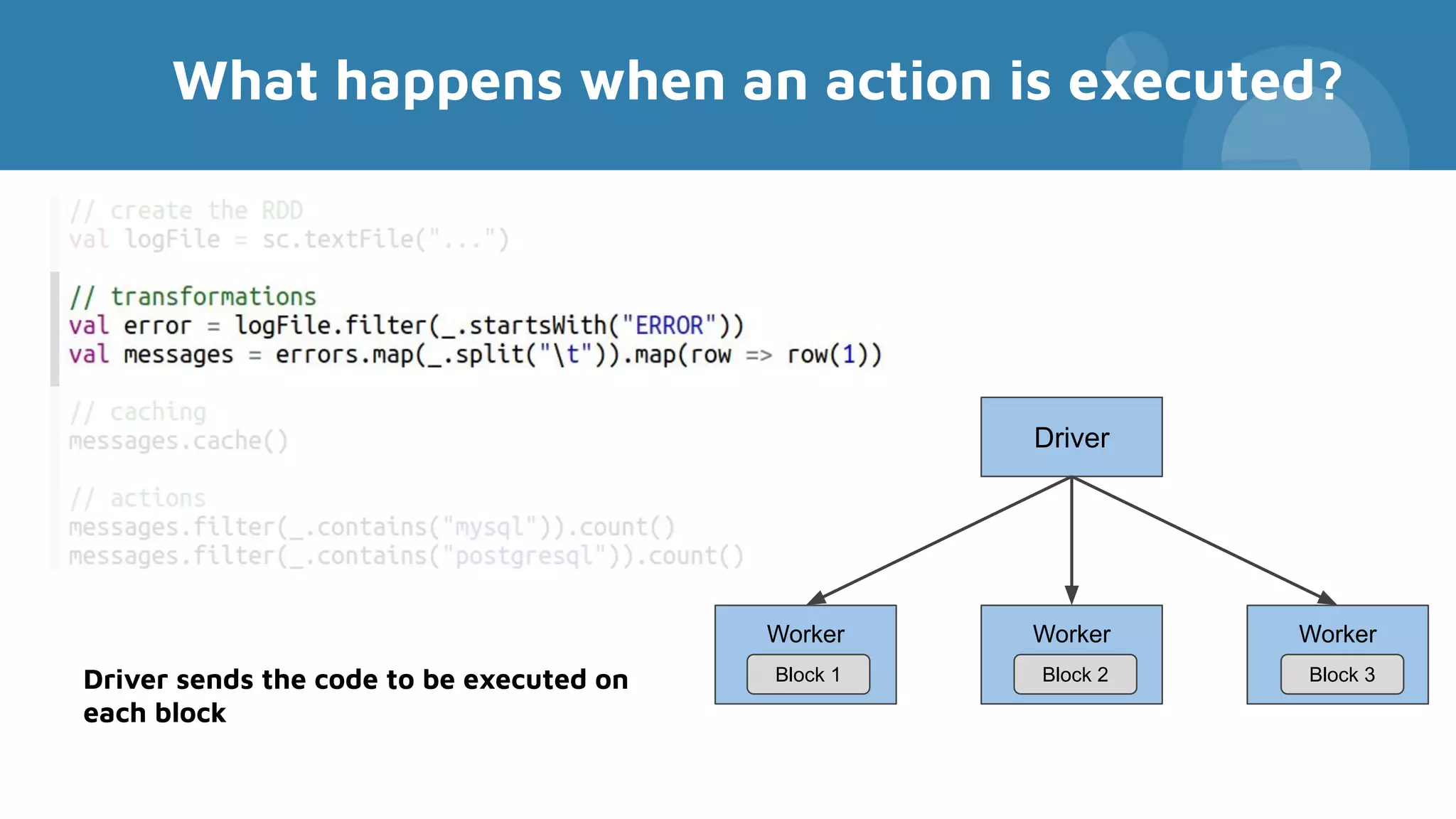

18. What happens when an action is executed?
Driver sends the code to be executed on
each block
Driver
Worker Worker Worker
Block 1 Block 2 Block 3

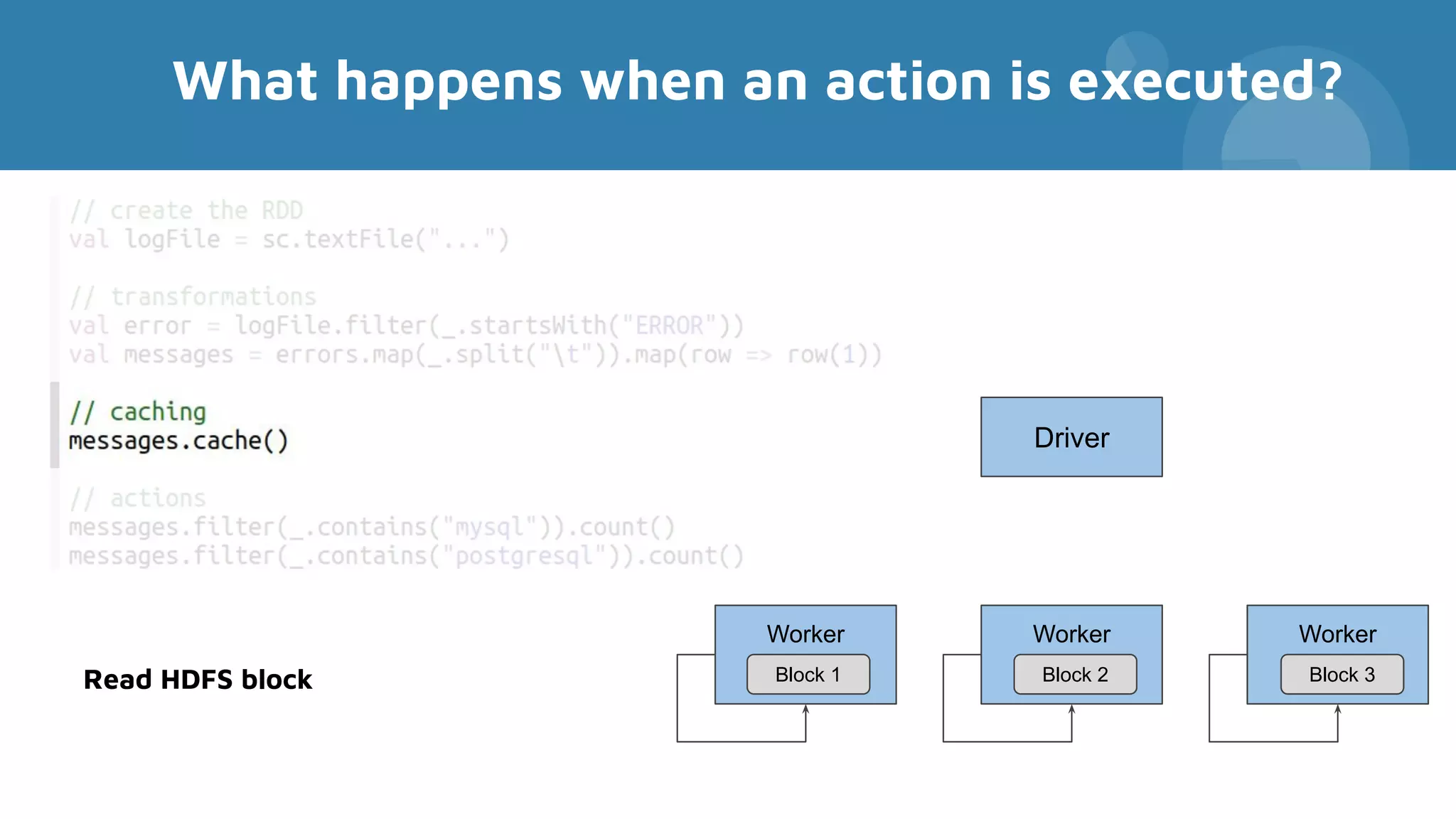

19. What happens when an action is executed?
Read HDFS block
Driver
Worker Worker Worker
Block 1 Block 2 Block 3

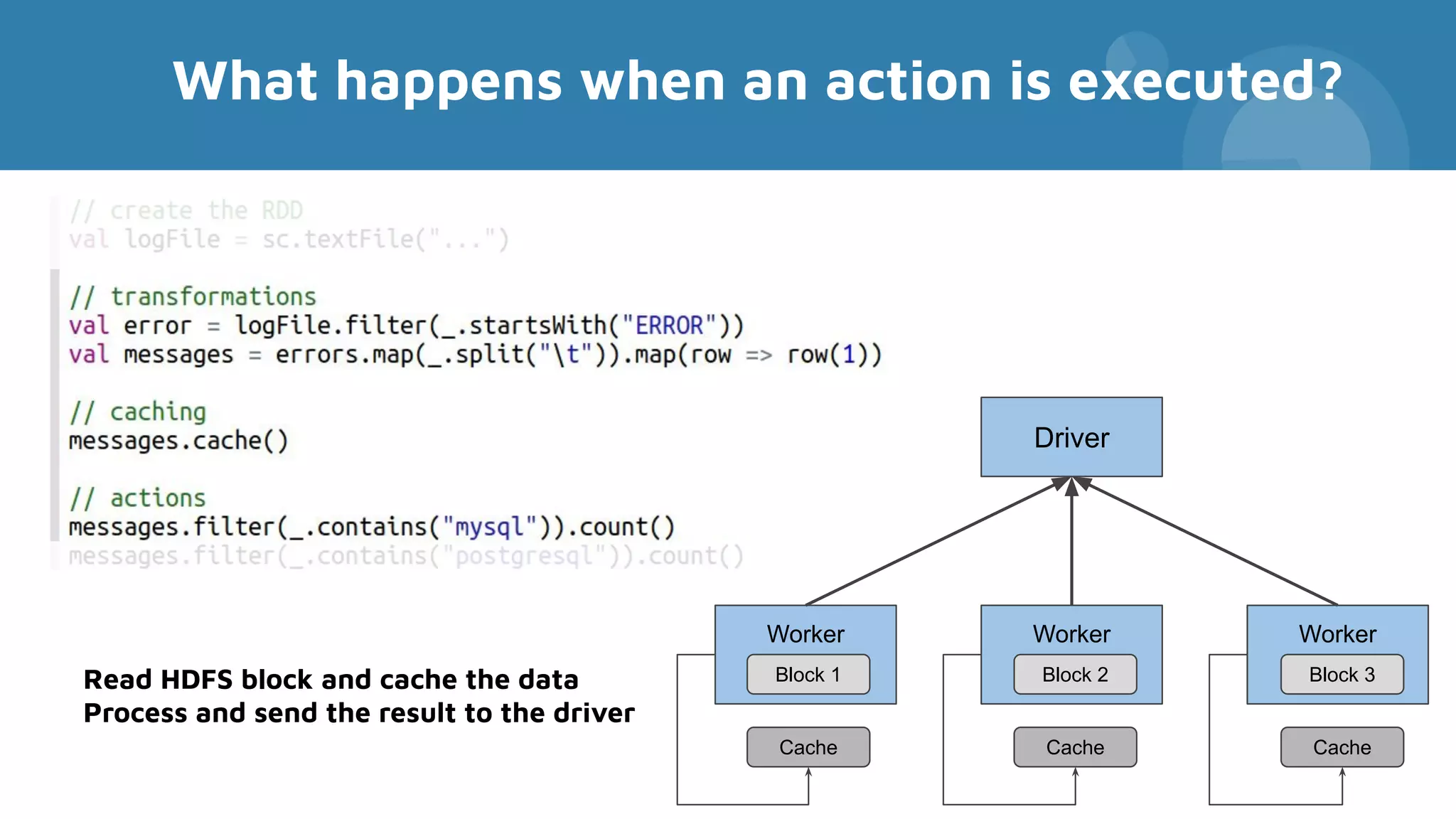

20. What happens when an action is executed?
Read HDFS block and cache the data
Process and send the result to the driver
Driver
Worker Worker Worker
Block 1 Block 2 Block 3
Cache Cache Cache

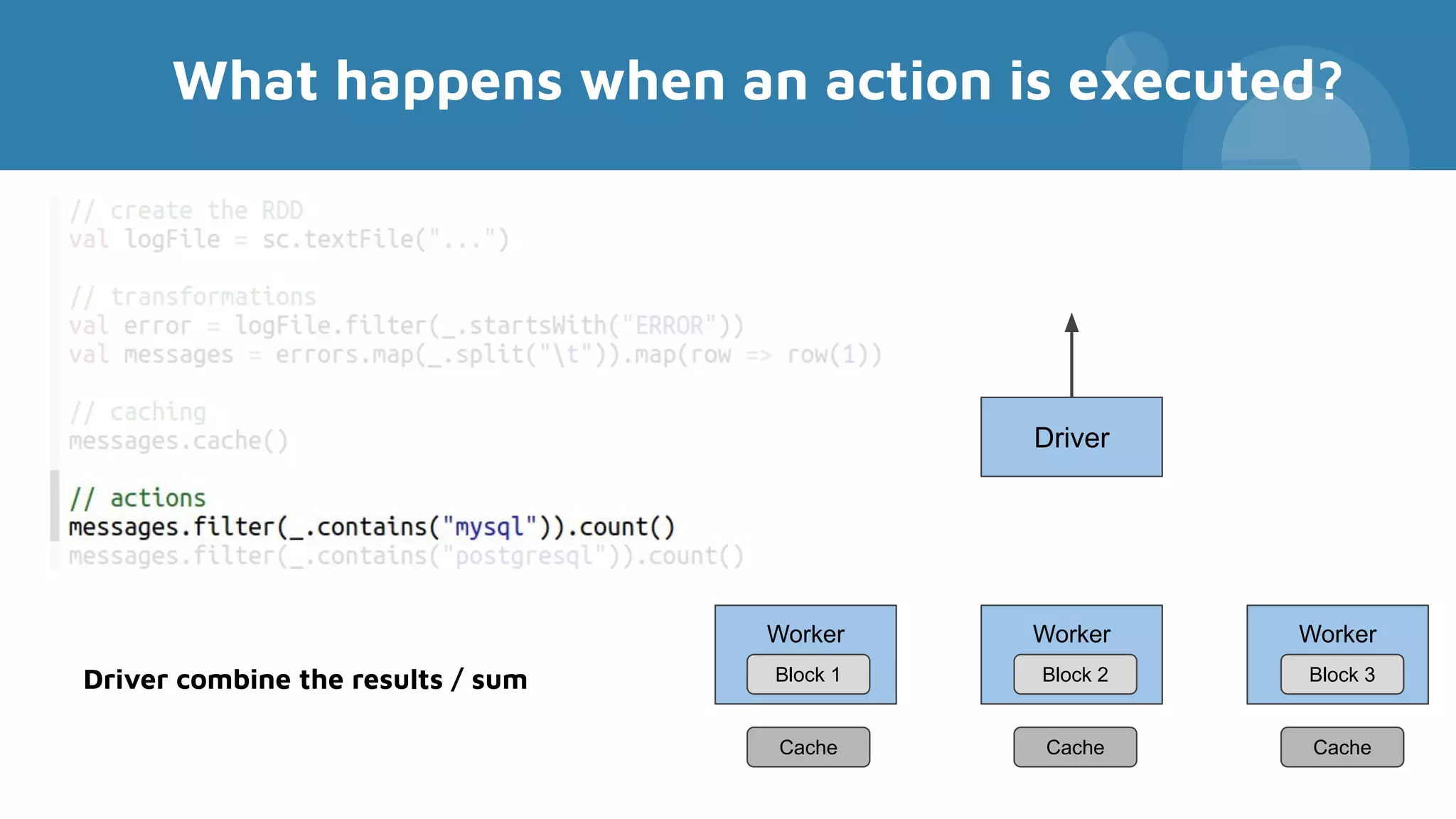

21. What happens when an action is executed?
Driver combine the results / sum
Driver
Worker Worker Worker
Block 1 Block 2 Block 3
Cache Cache Cache

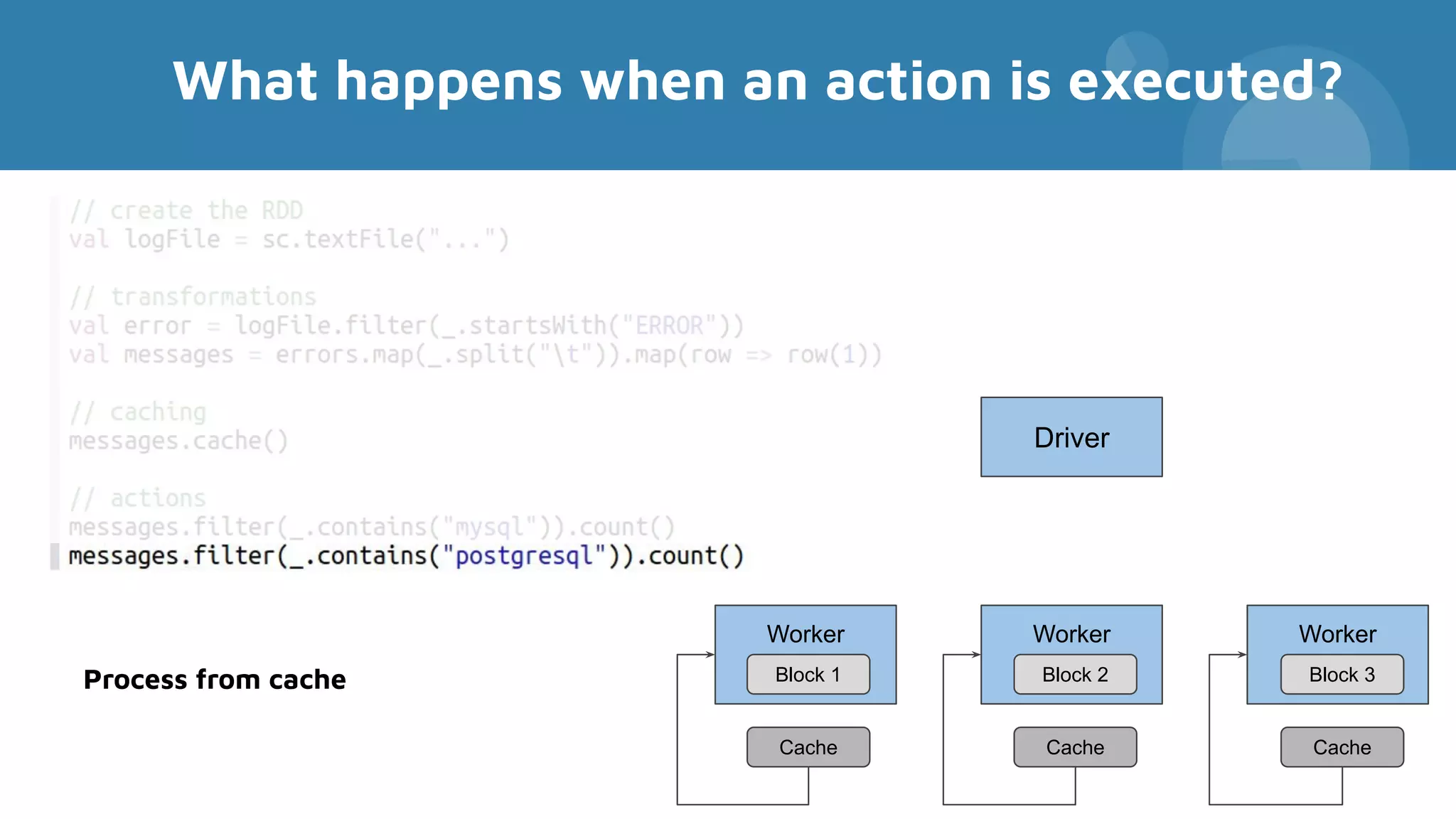

22. What happens when an action is executed?
Process from cache
Driver
Worker Worker Worker
Block 1 Block 2 Block 3
Cache Cache Cache

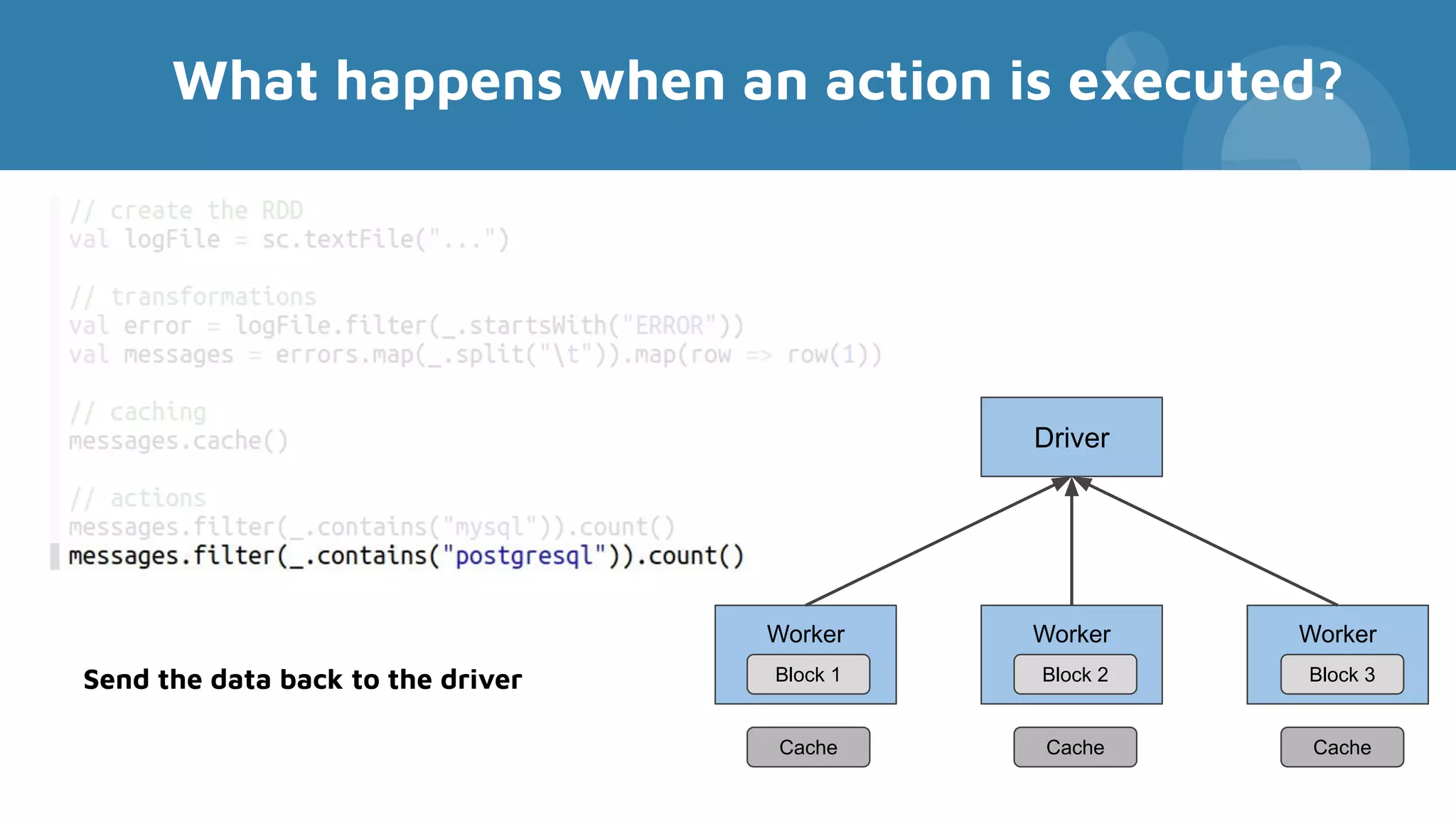

23. What happens when an action is executed?
Send the data back to the driver
Driver
Worker Worker Worker
Block 1 Block 2 Block 3
Cache Cache Cache

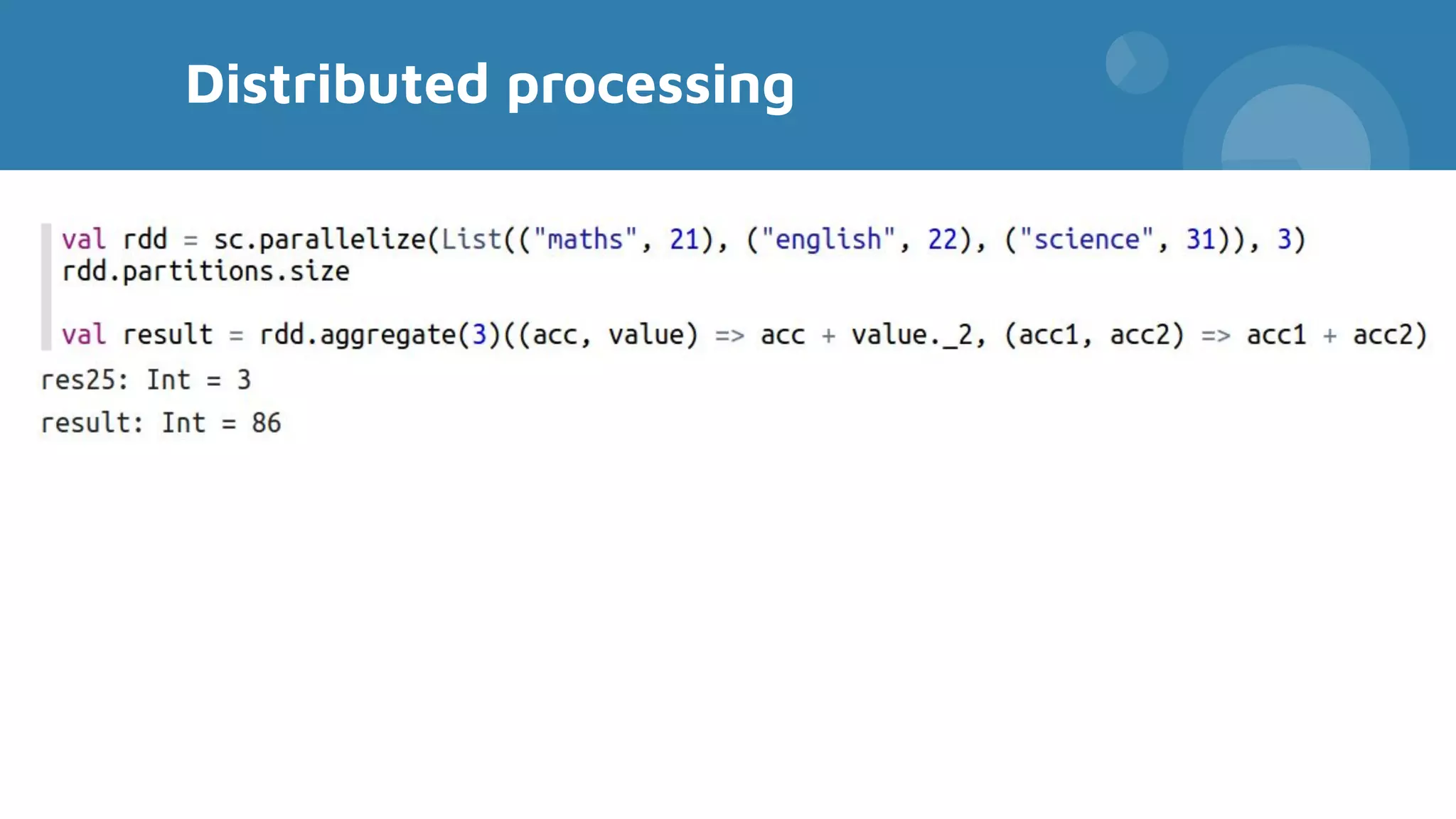

24. Distributed processing

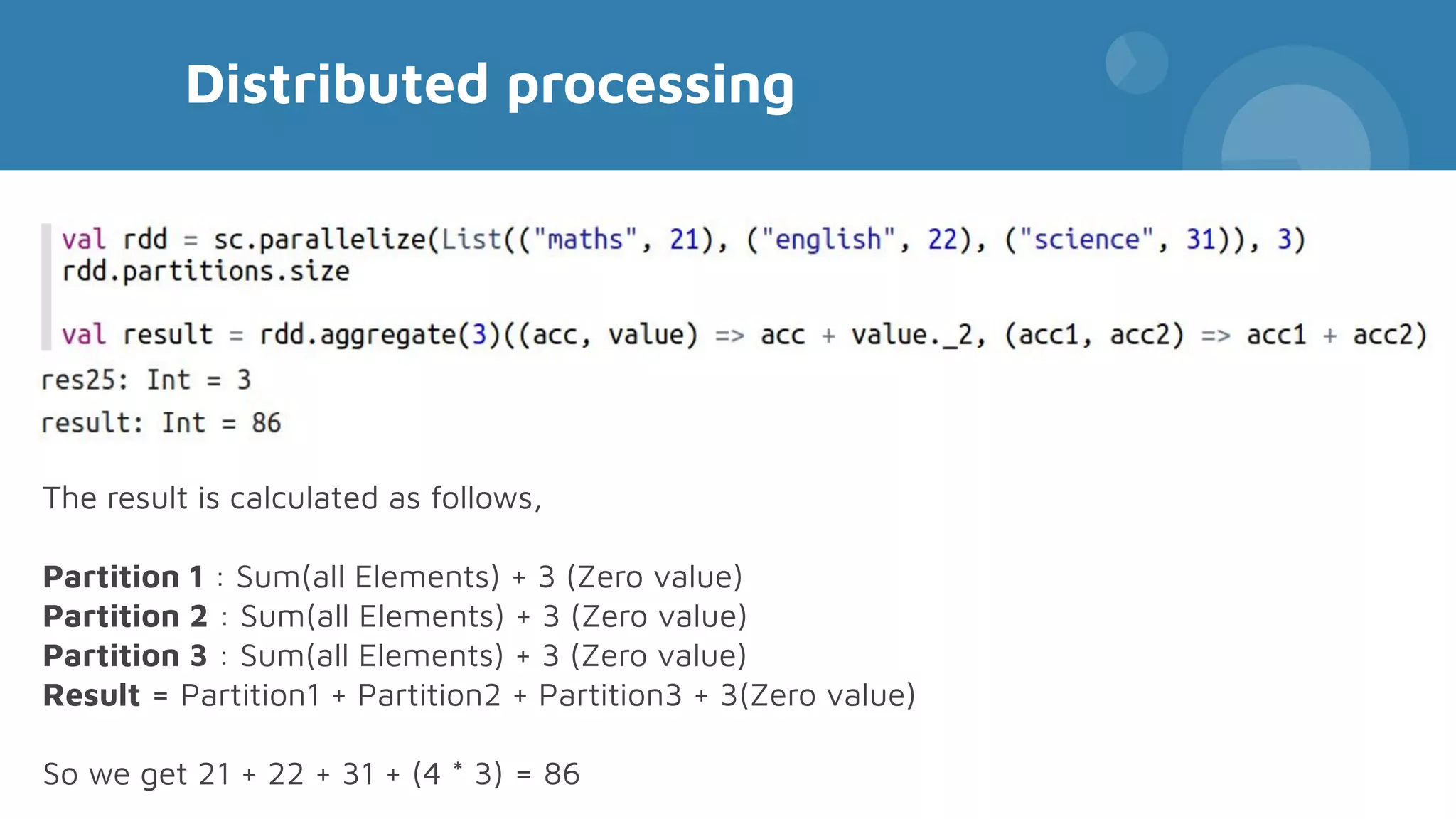

25. Distributed processing
The result is calculated as follows,
Partition 1 : Sum(all Elements) + 3 (Zero value)
Partition 2 : Sum(all Elements) + 3 (Zero value)
Partition 3 : Sum(all Elements) + 3 (Zero value)
Result = Partition1 + Partition2 + Partition3 + 3(Zero value)
So we get 21 + 22 + 31 + (4 * 3) = 86

26. Structured APIs
DataFrames, Datasets and SQL

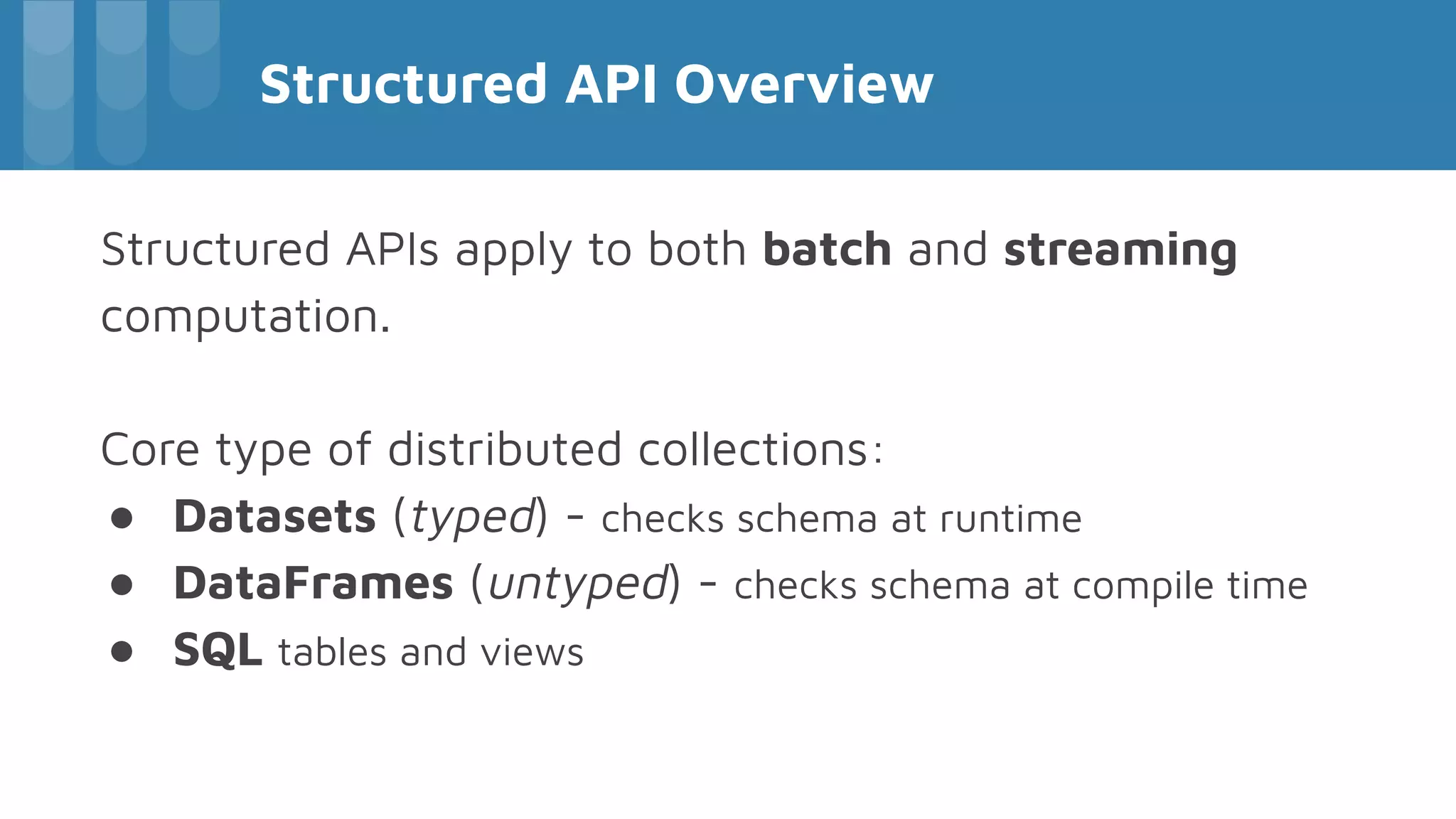

27. Structured API Overview
Structured APIs apply to both batch and streaming
computation.
Core type of distributed collections:
● Datasets (typed) - checks schema at runtime
● DataFrames (untyped) - checks schema at compile time
● SQL tables and views

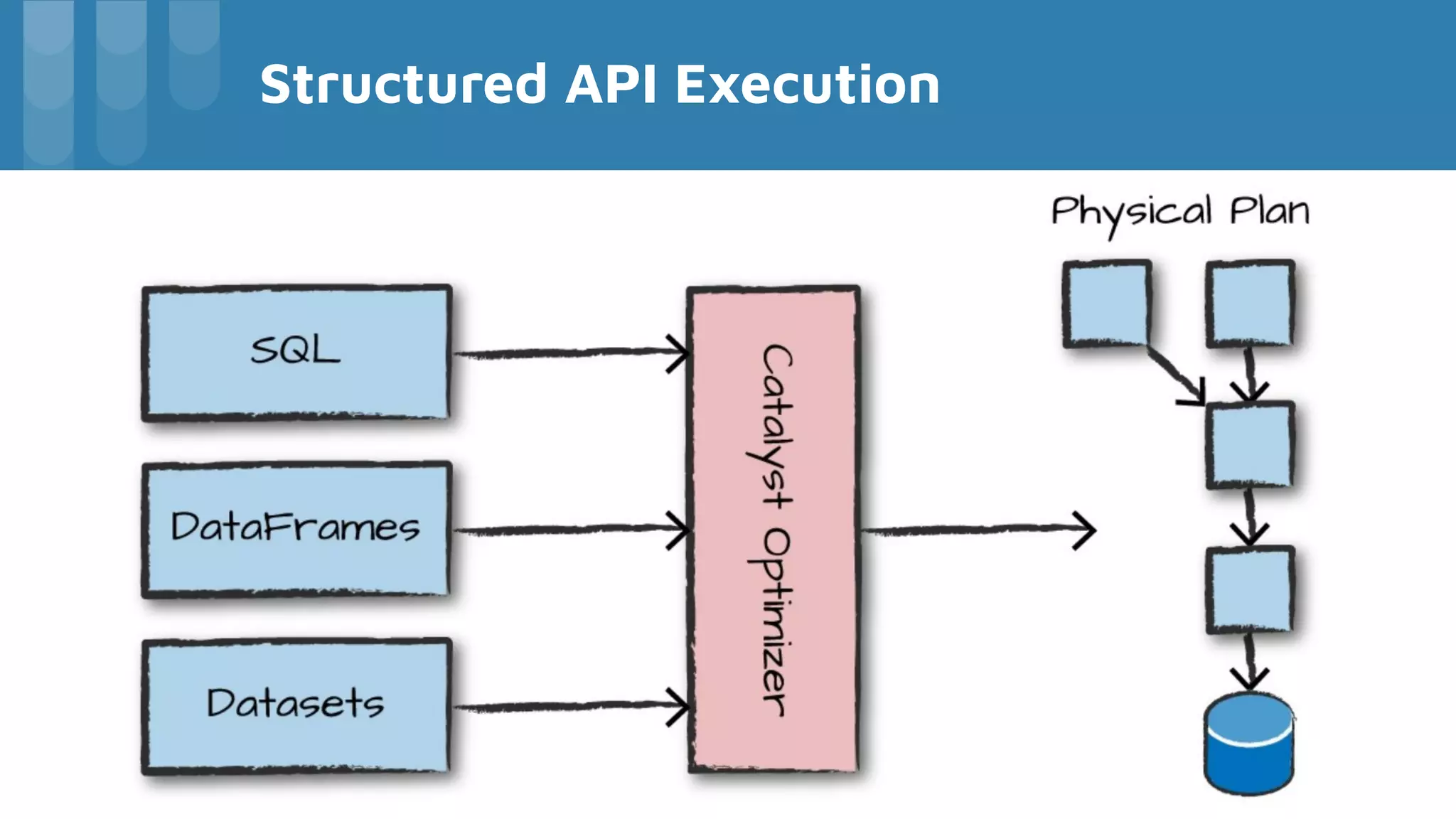

28. Structured API Execution

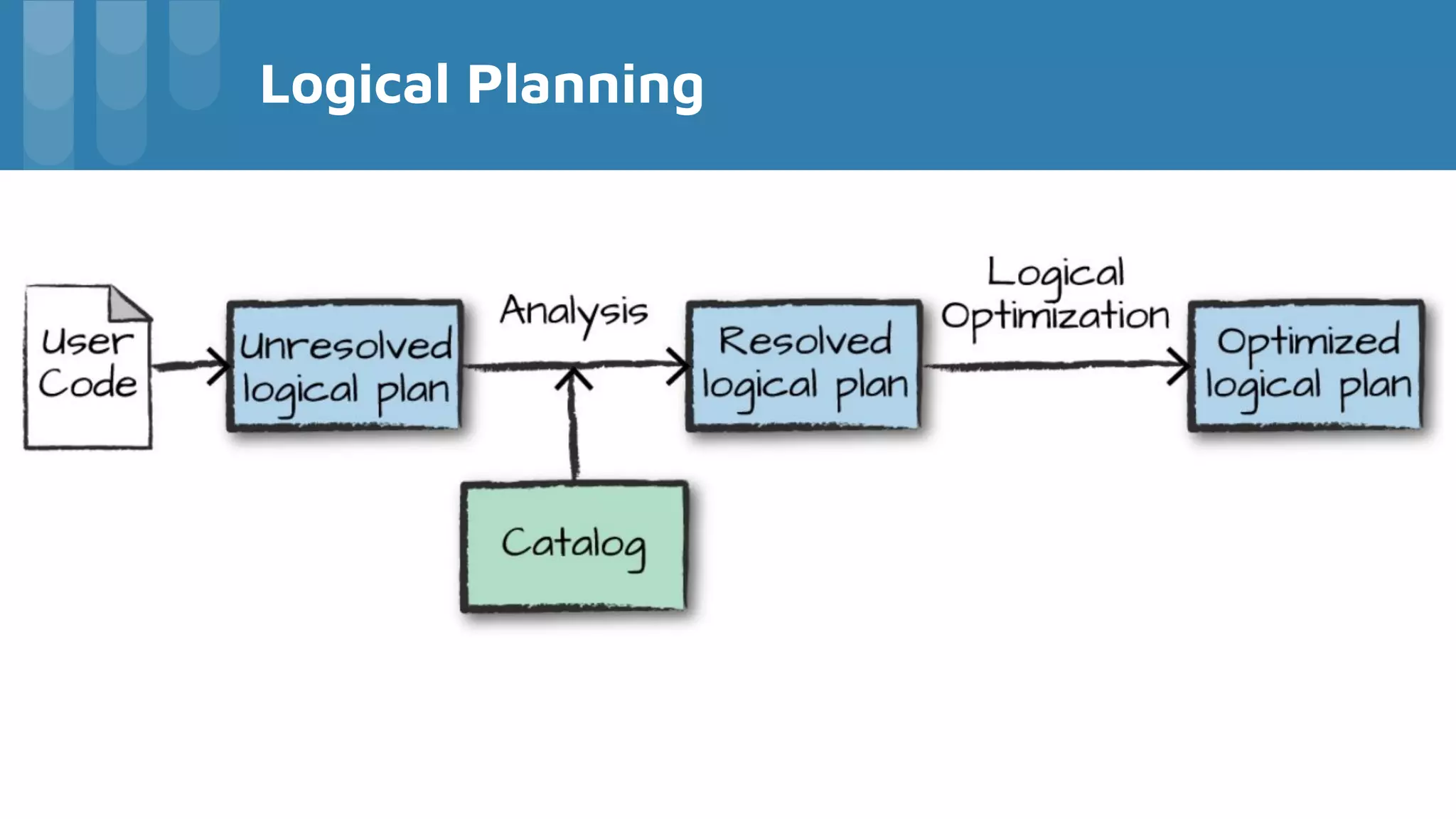

29. Logical Planning

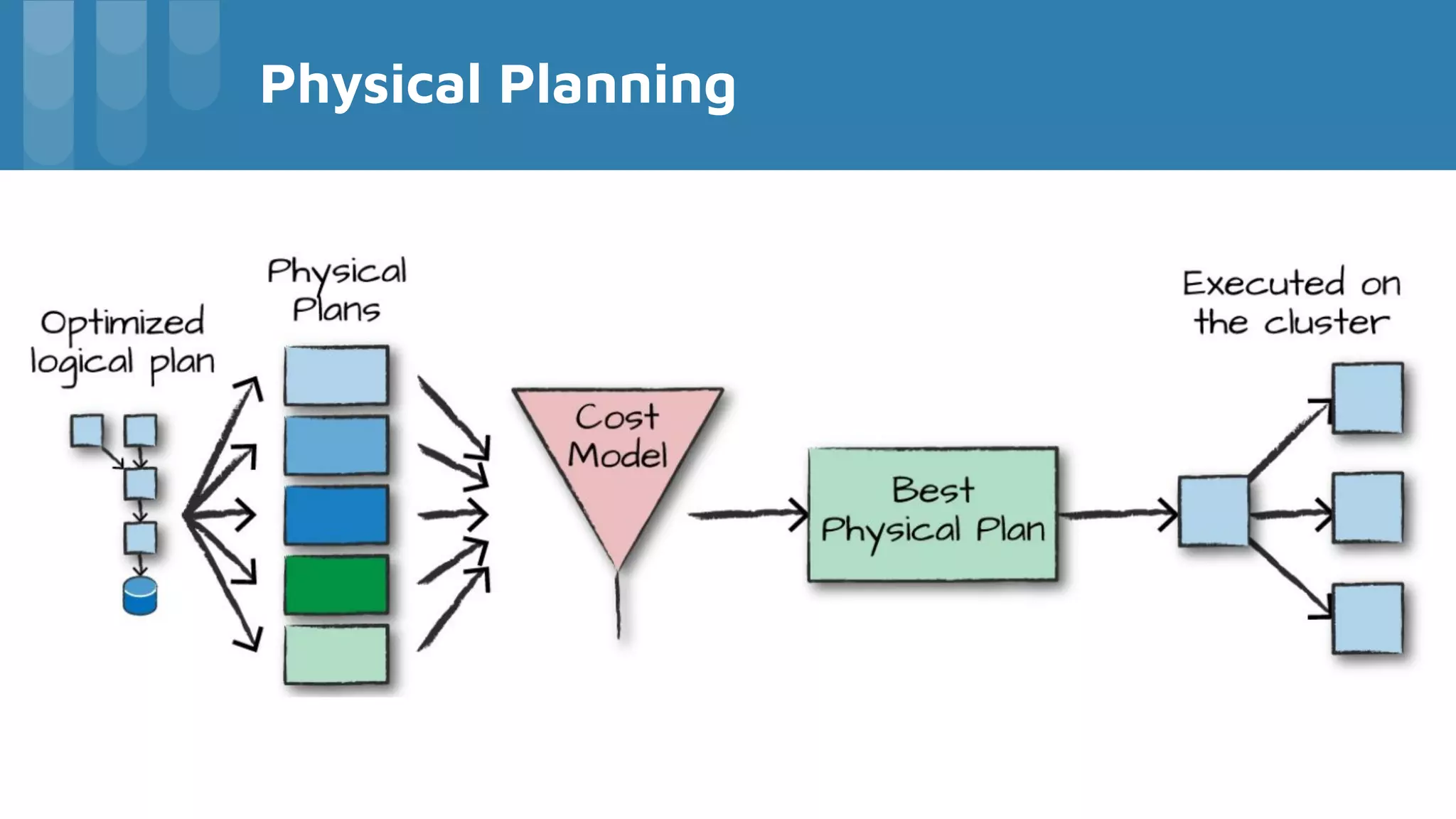

30. Physical Planning

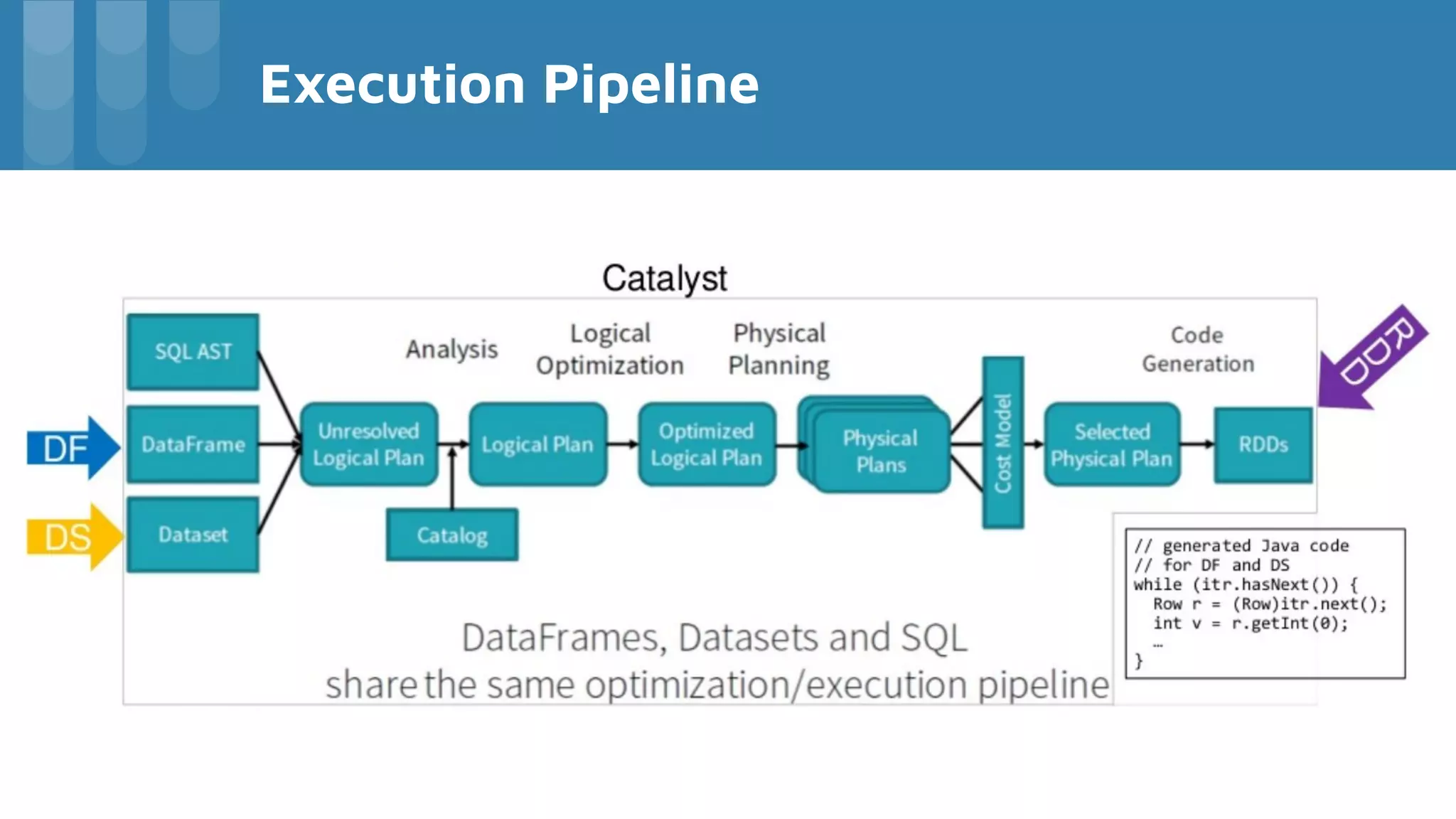

31. Execution Pipeline

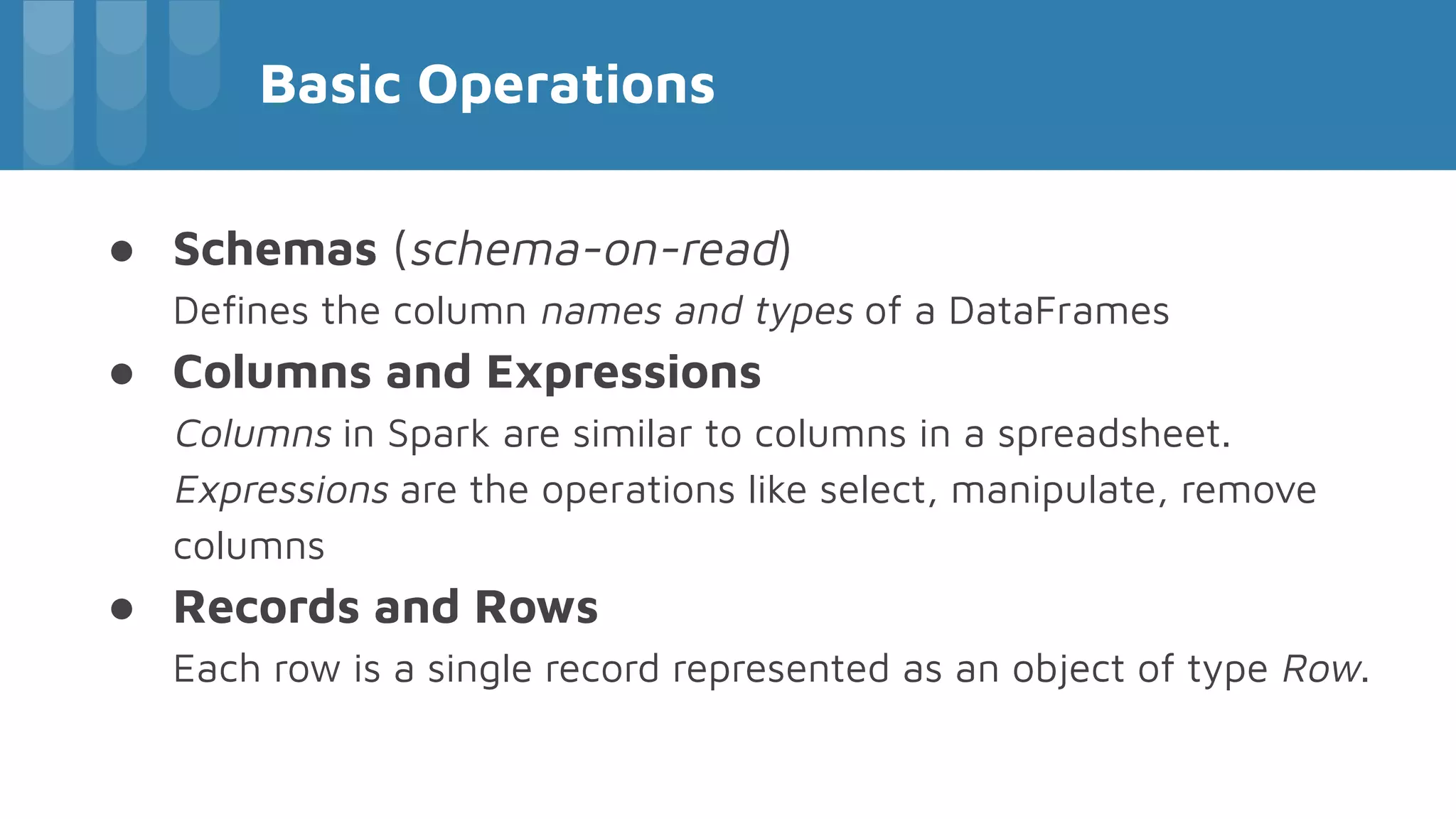

32. Basic Operations
● Schemas (schema-on-read)
Defines the column names and types of a DataFrames
● Columns and Expressions
Columns in Spark are similar to columns in a spreadsheet.
Expressions are the operations like select, manipulate, remove
columns
● Records and Rows
Each row is a single record represented as an object of type Row.

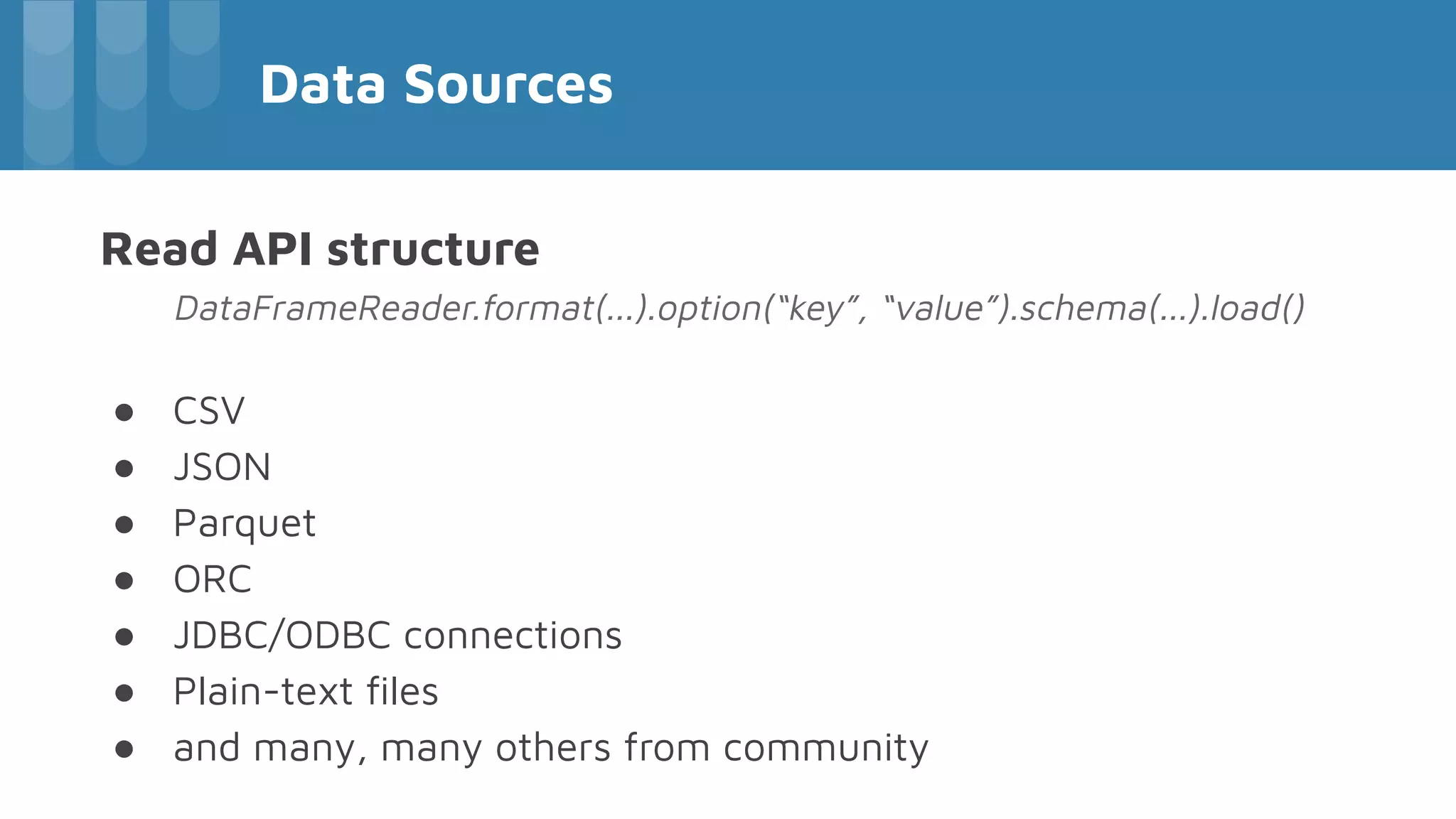

33. Data Sources
Read API structure
DataFrameReader.format(...).option(“key”, “value”).schema(...).load()
● CSV
● JSON
● Parquet
● ORC
● JDBC/ODBC connections
● Plain-text files
● and many, many others from community

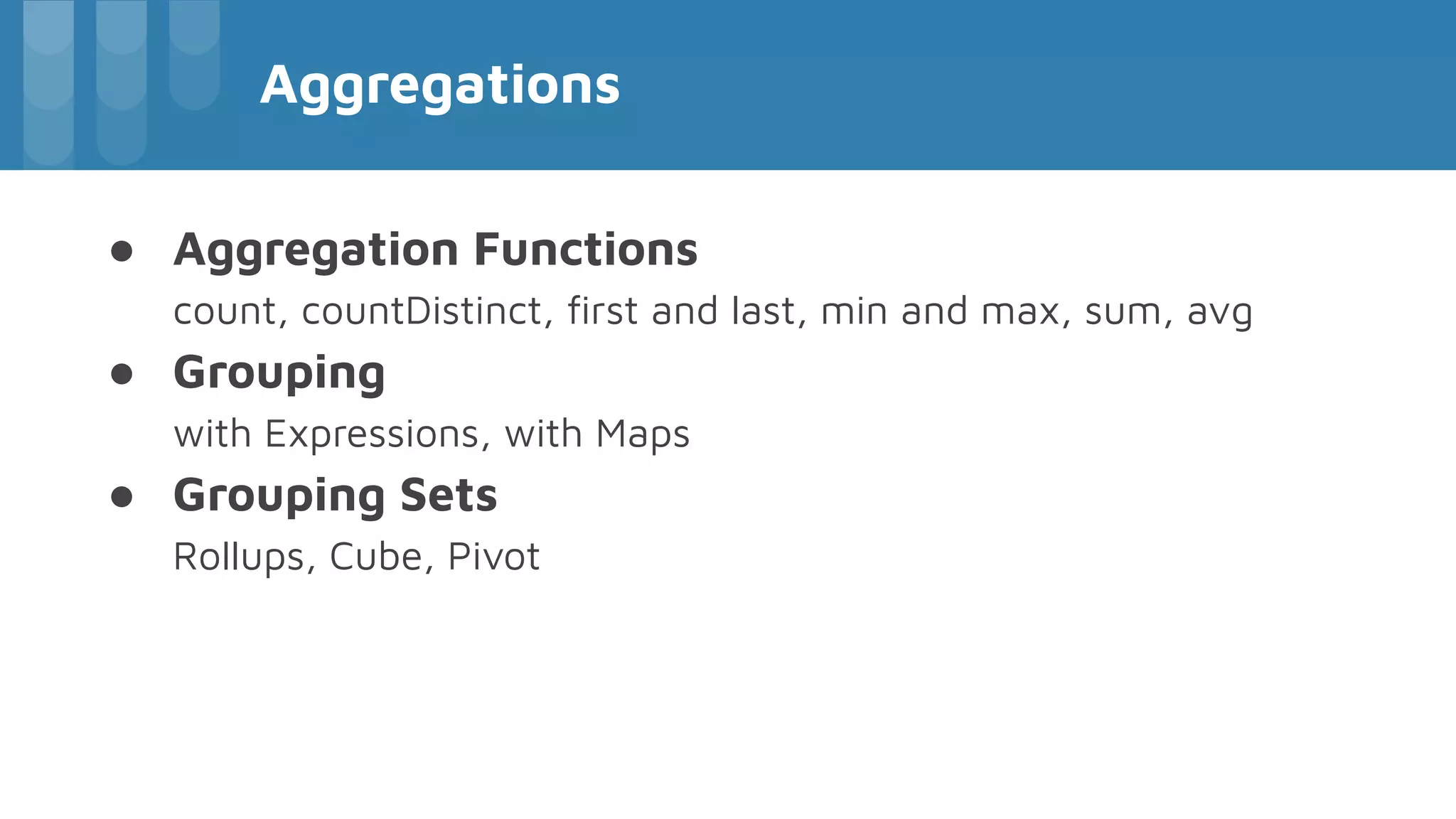

34. Aggregations
● Aggregation Functions
count, countDistinct, first and last, min and max, sum, avg
● Grouping
with Expressions, with Maps
● Grouping Sets
Rollups, Cube, Pivot

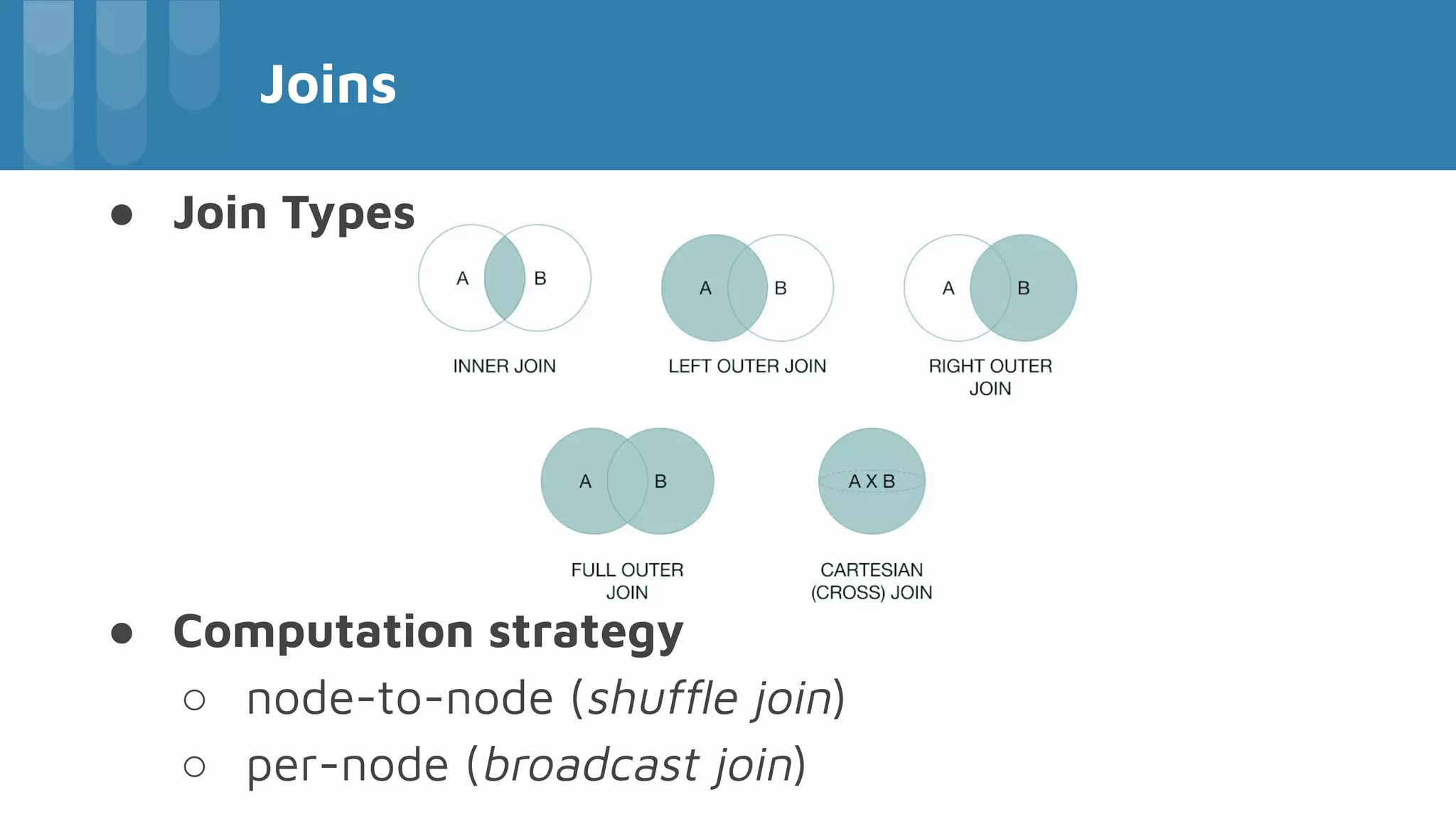

35. ● Join Types
● Computation strategy
○ node-to-node (shuffle join)
○ per-node (broadcast join)
Joins

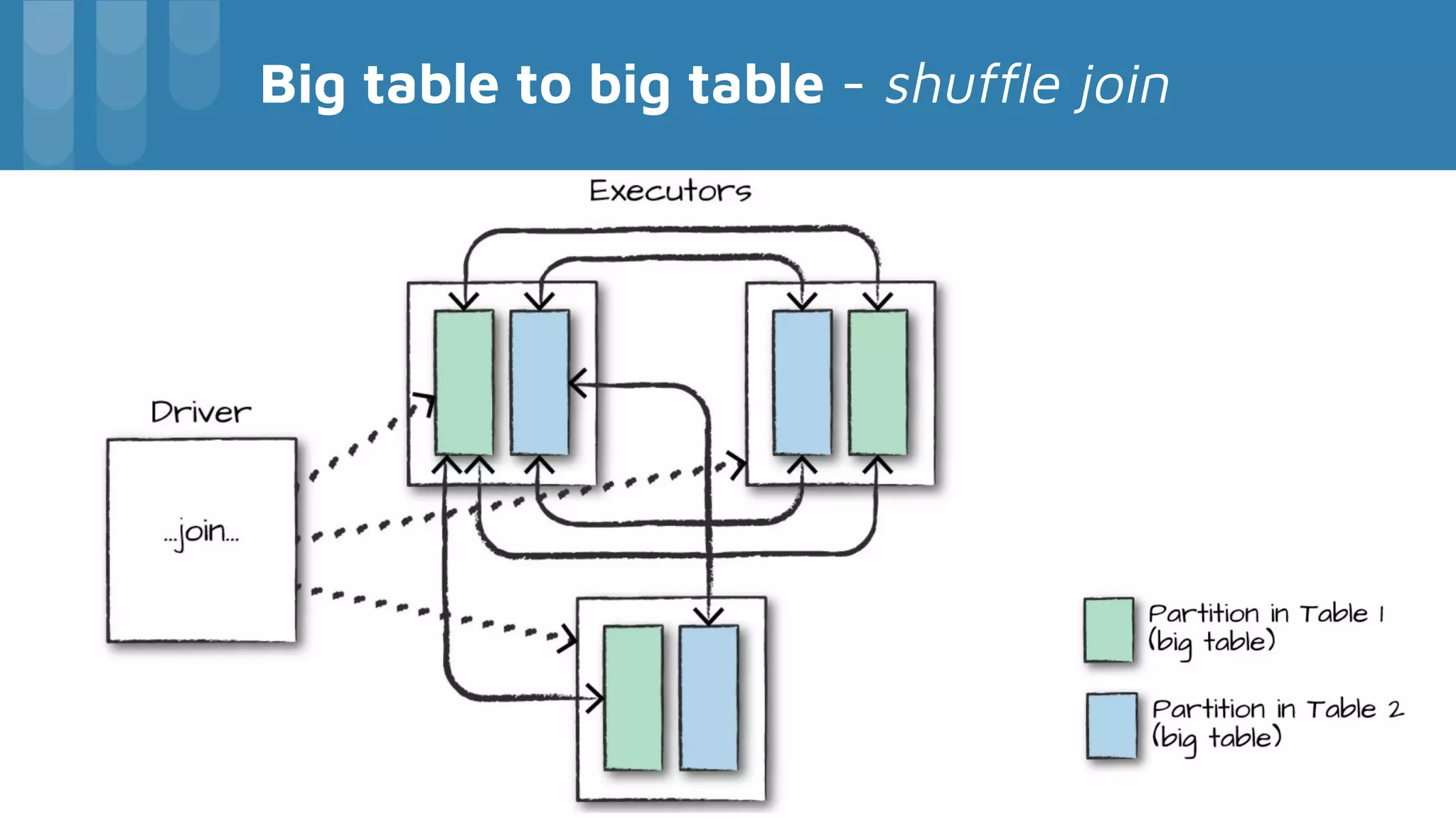

36. Big table to big table - shuffle join

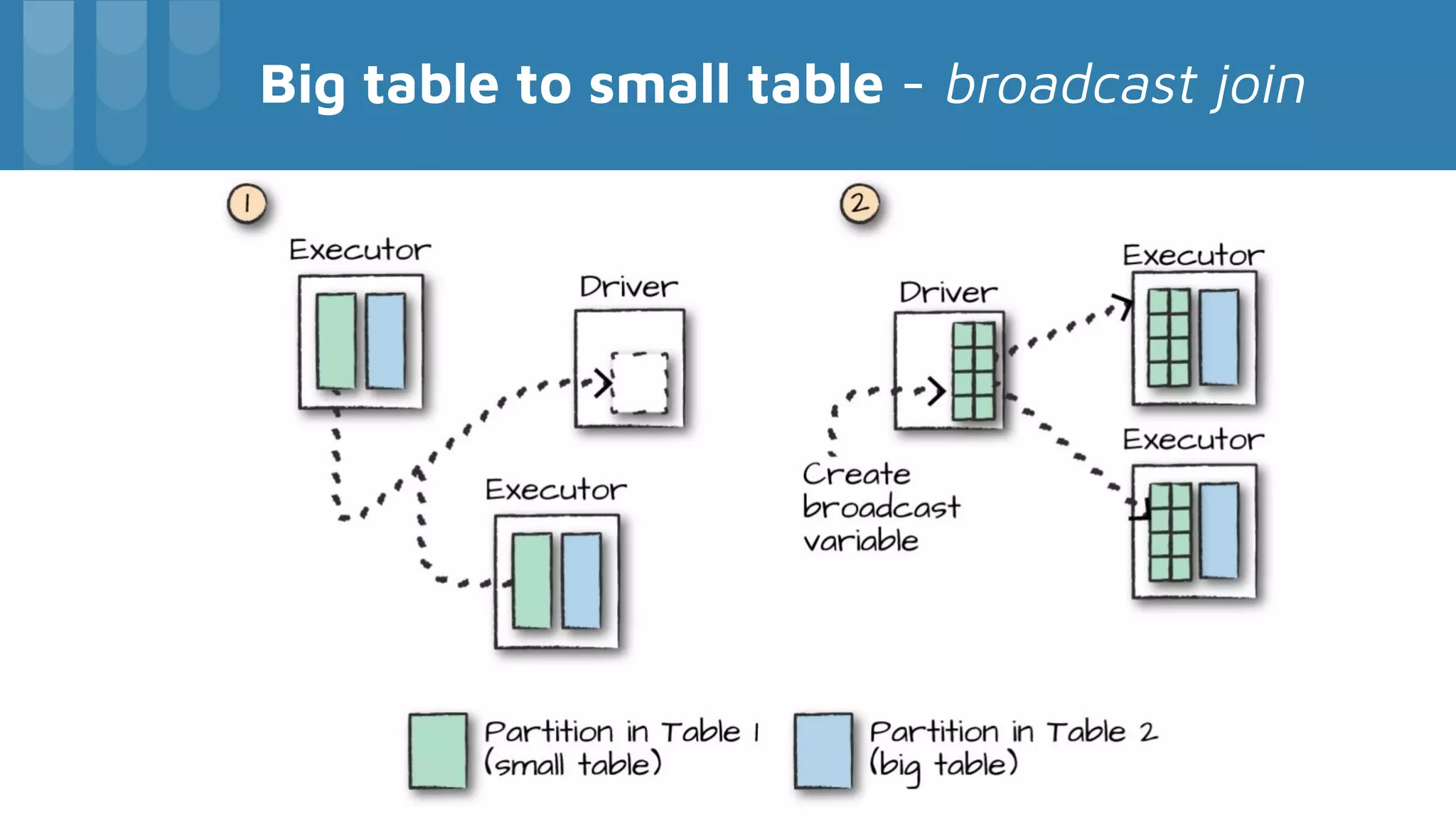

37. Big table to small table - broadcast join

38. Low-Level APIs
Resilient Distributed Datasets (RDDs)

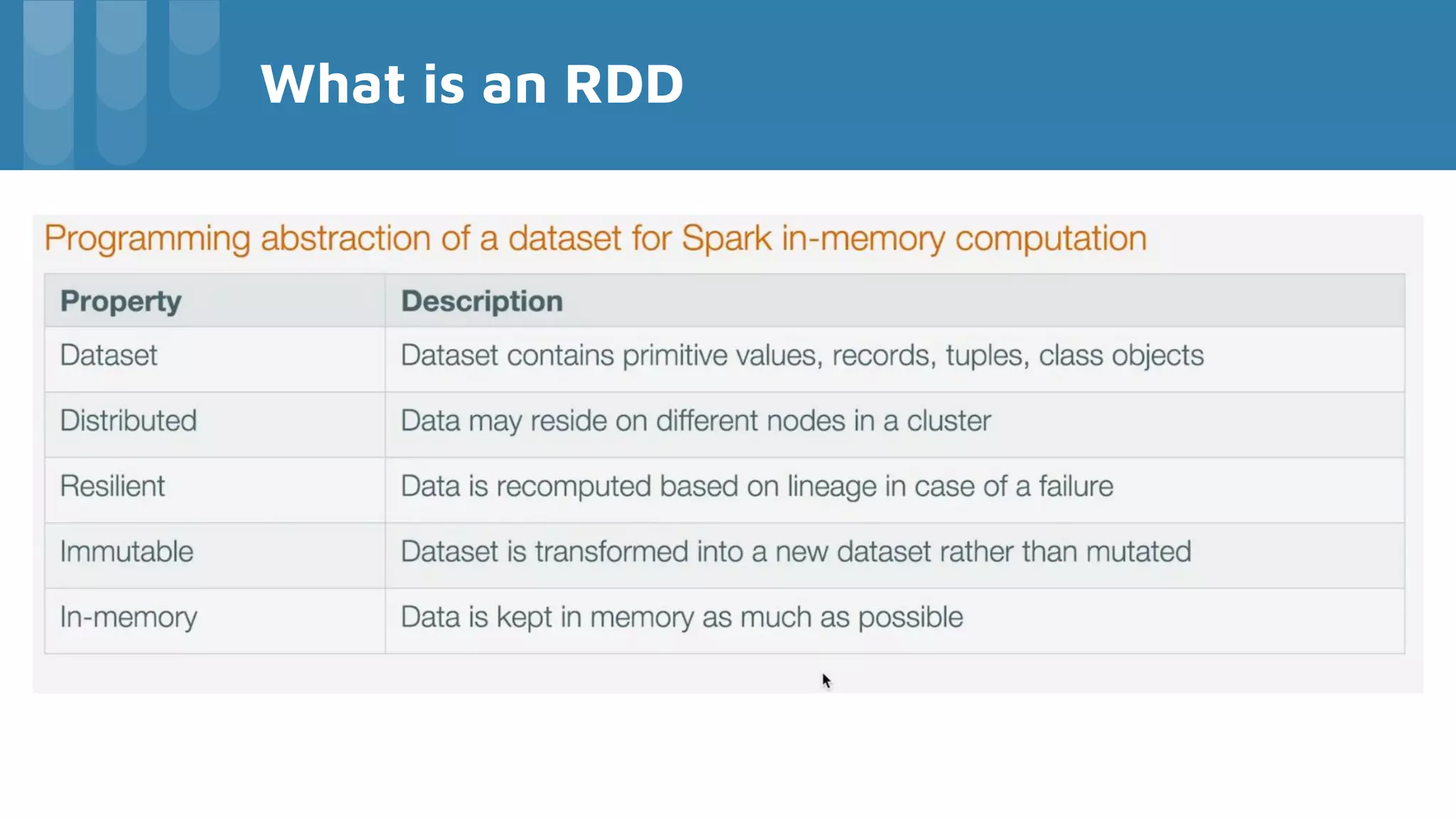

39. What is an RDD

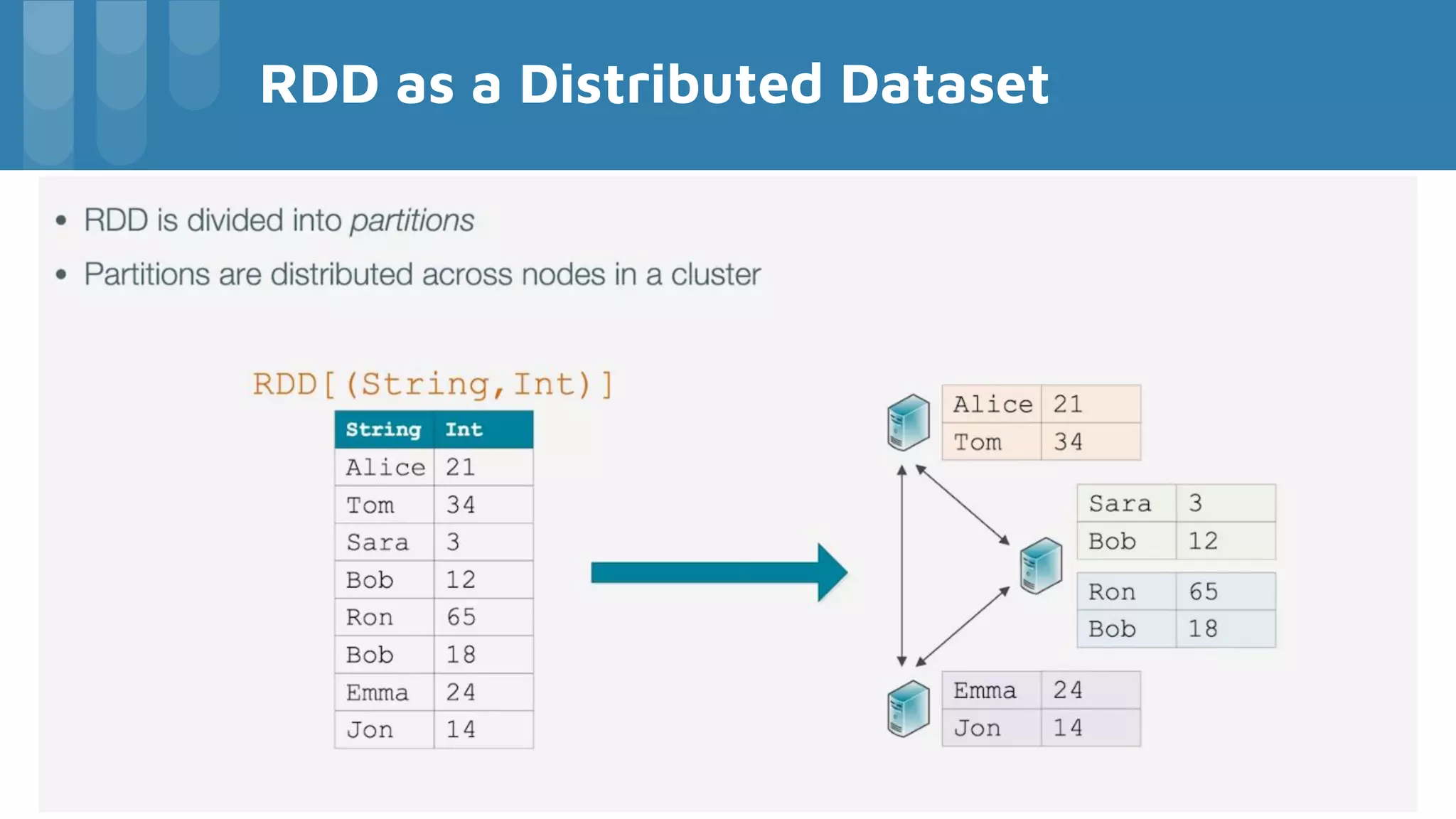

40. RDD as a Distributed Dataset

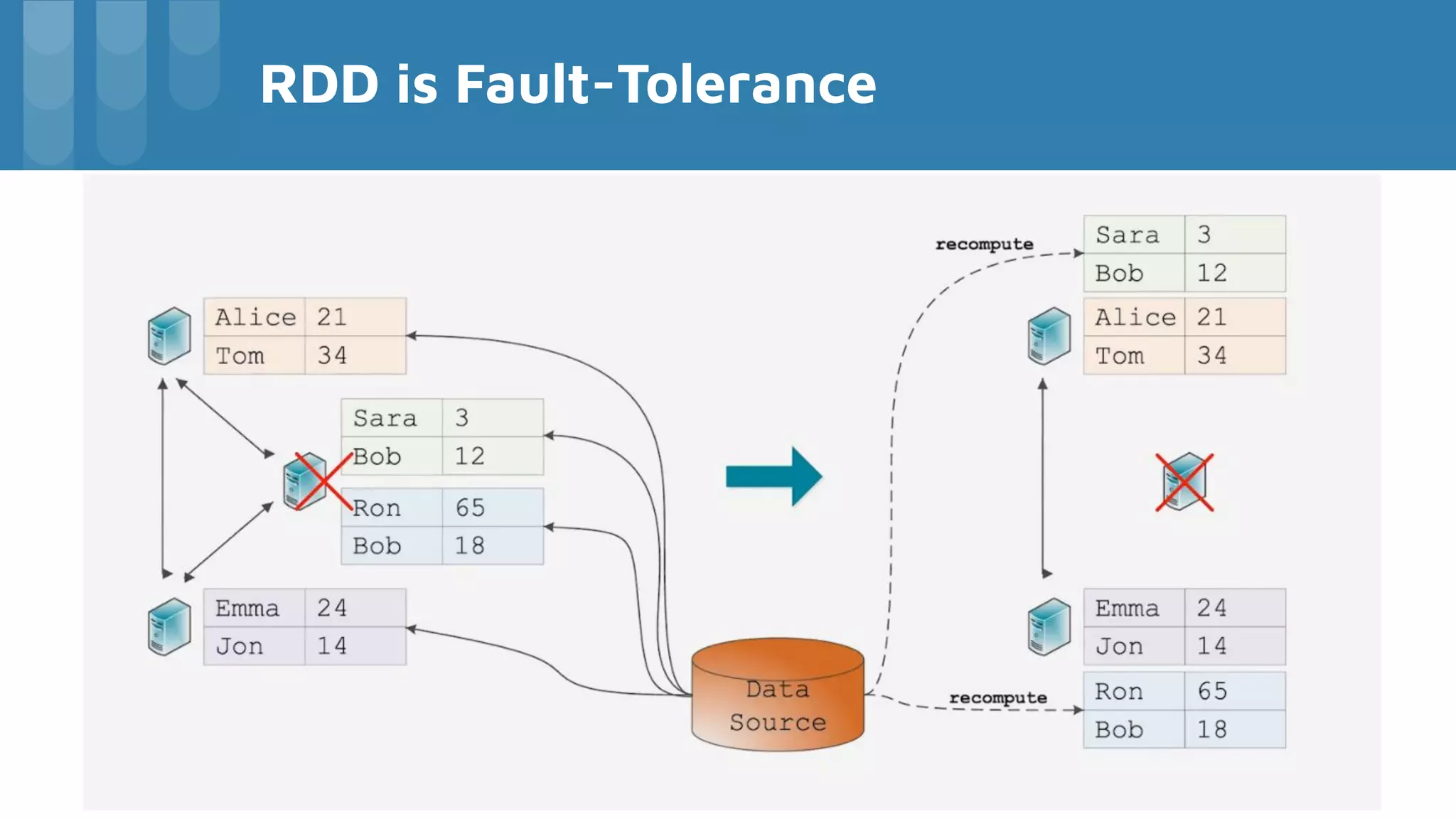

41. RDD is Fault-Tolerance

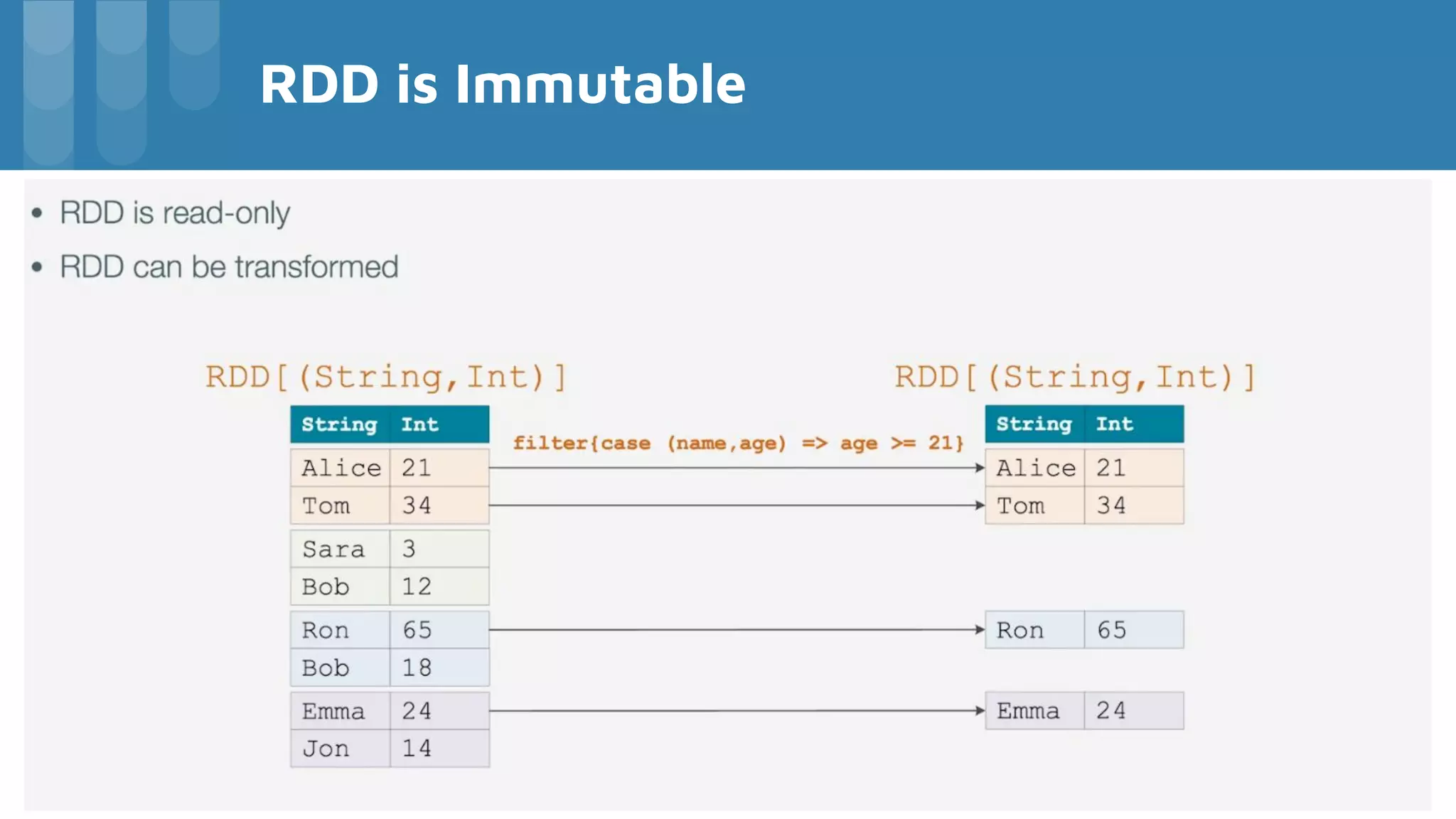

42. RDD is Immutable

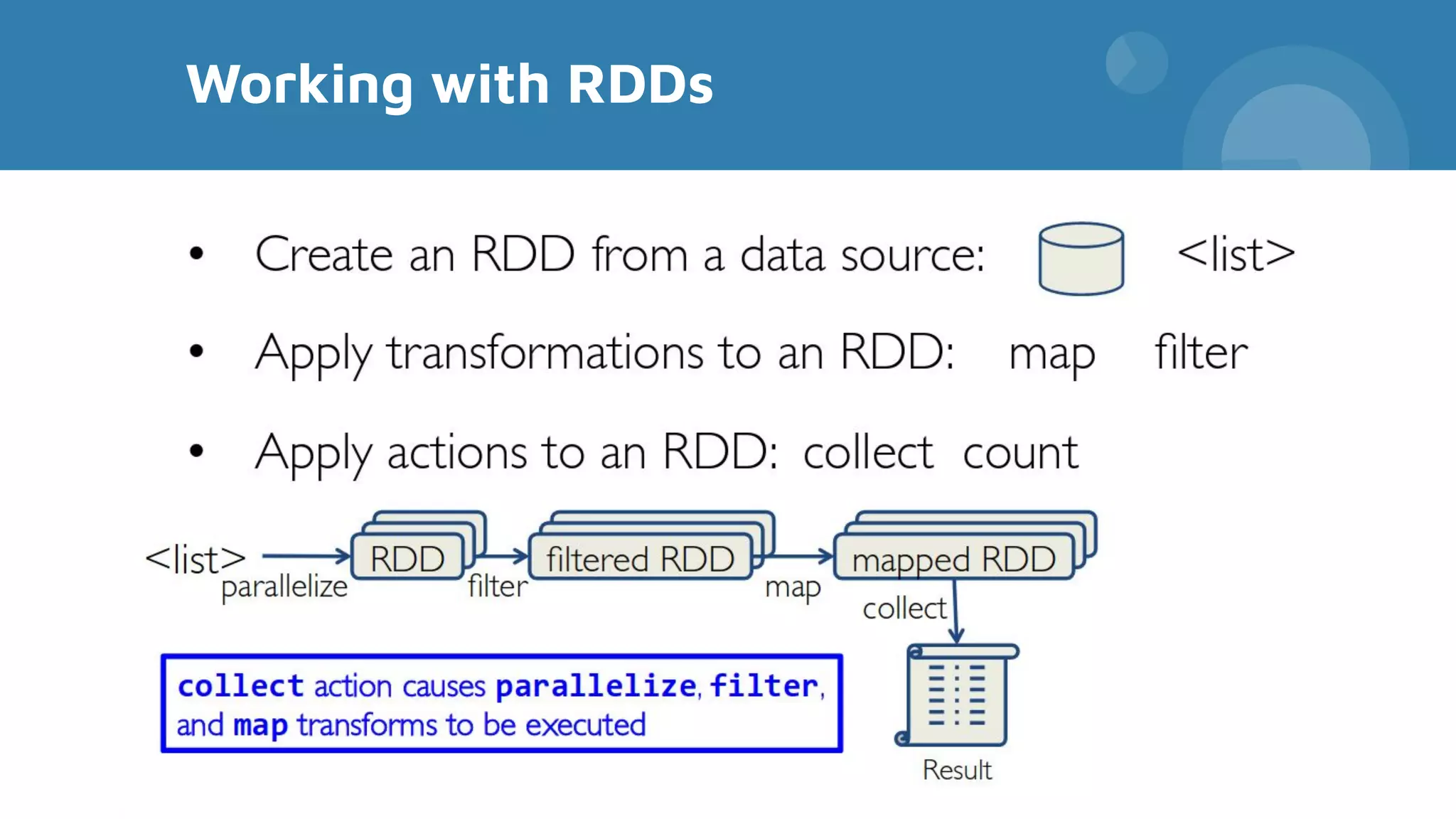

43. Working with RDDs

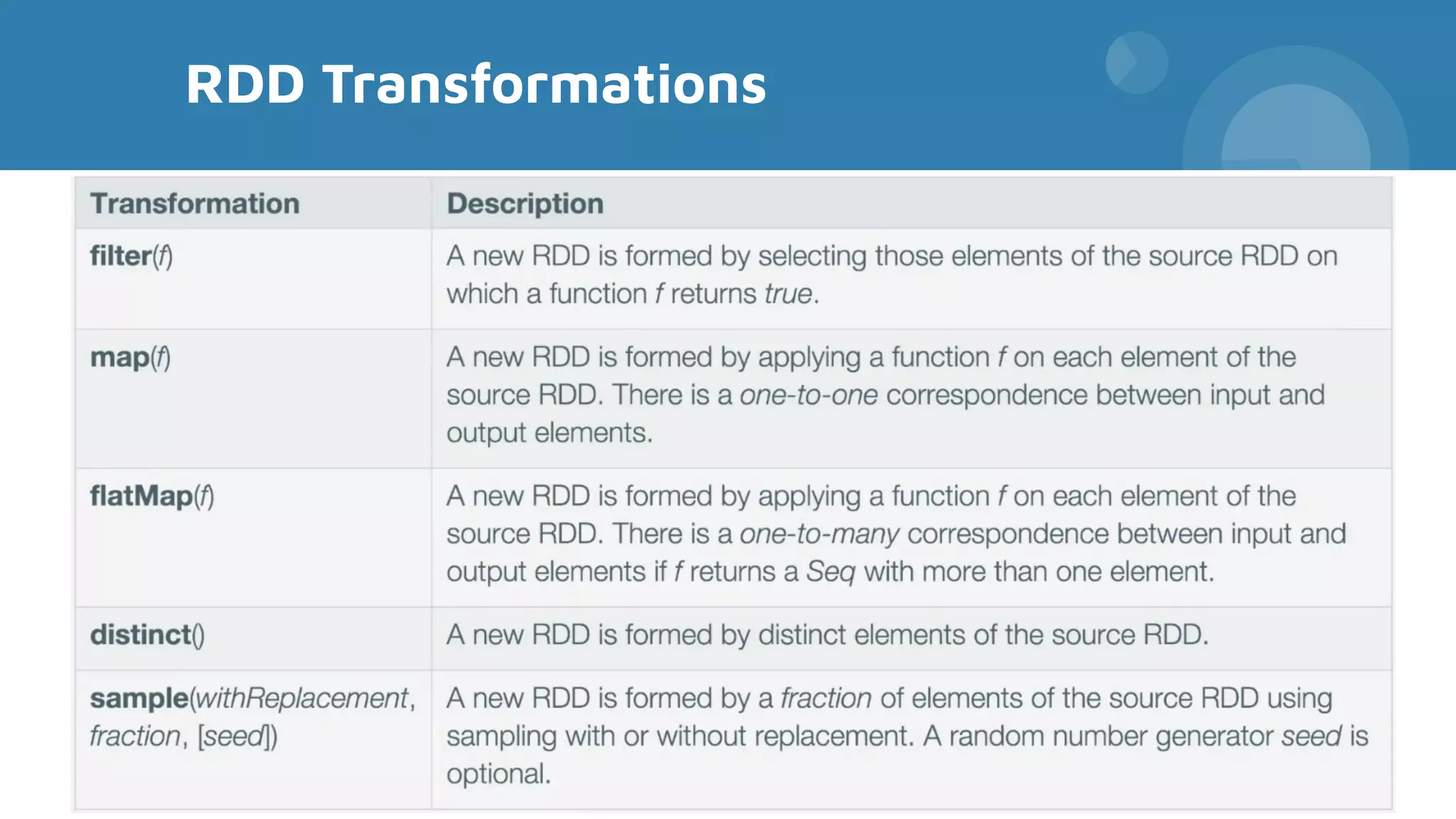

44. RDD Transformations

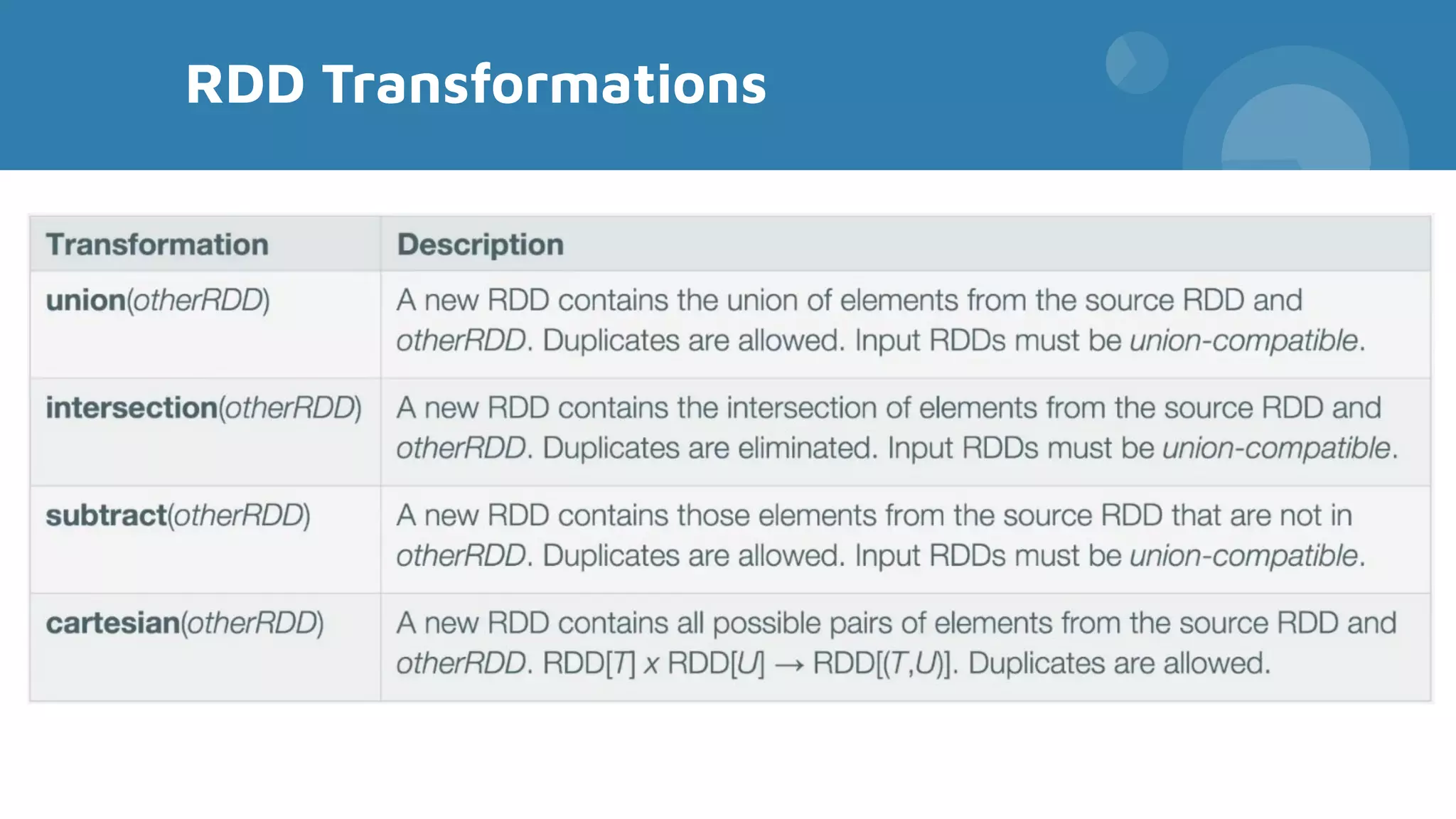

45. RDD Transformations

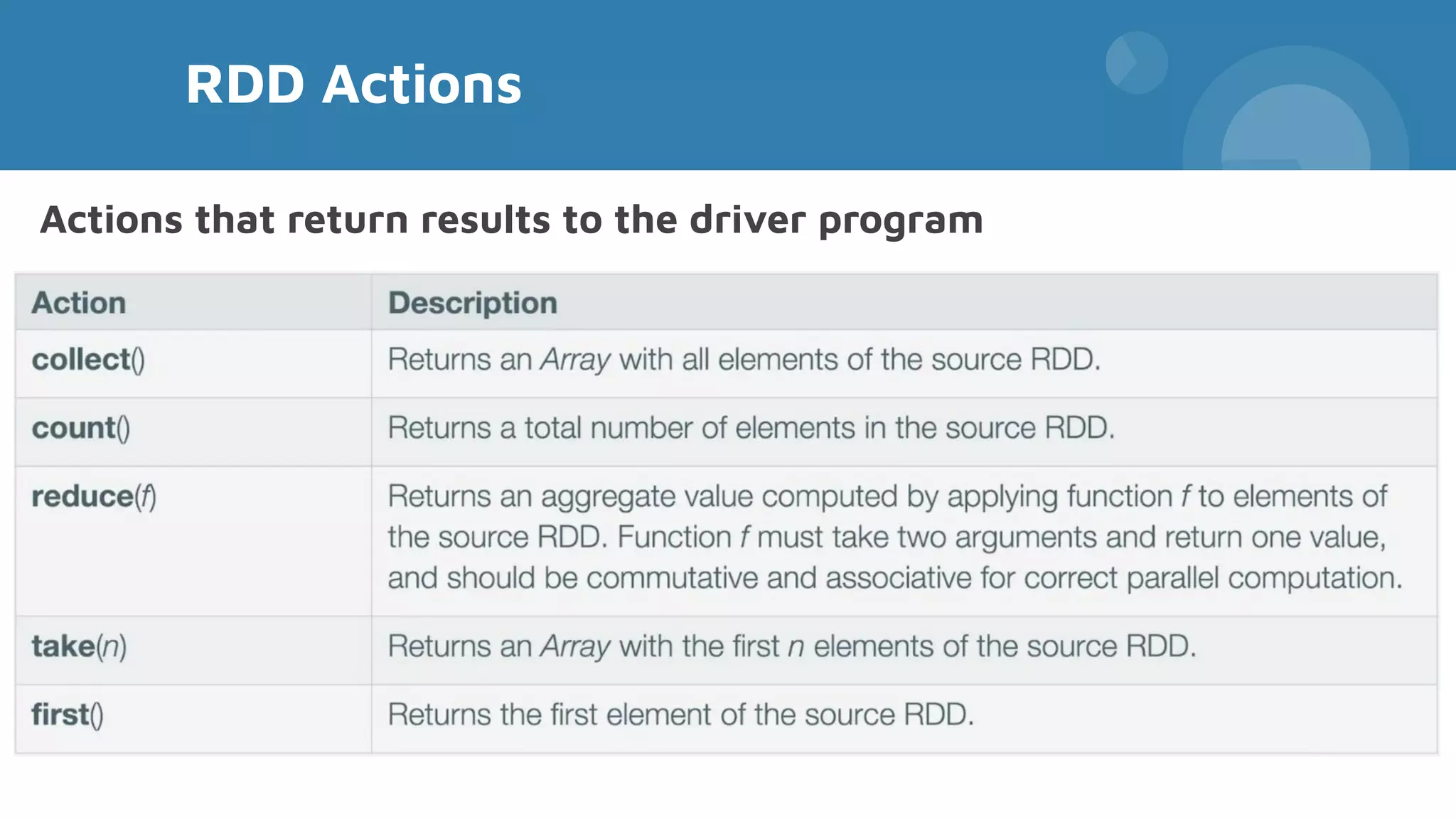

46. RDD Actions
Actions that return results to the driver program

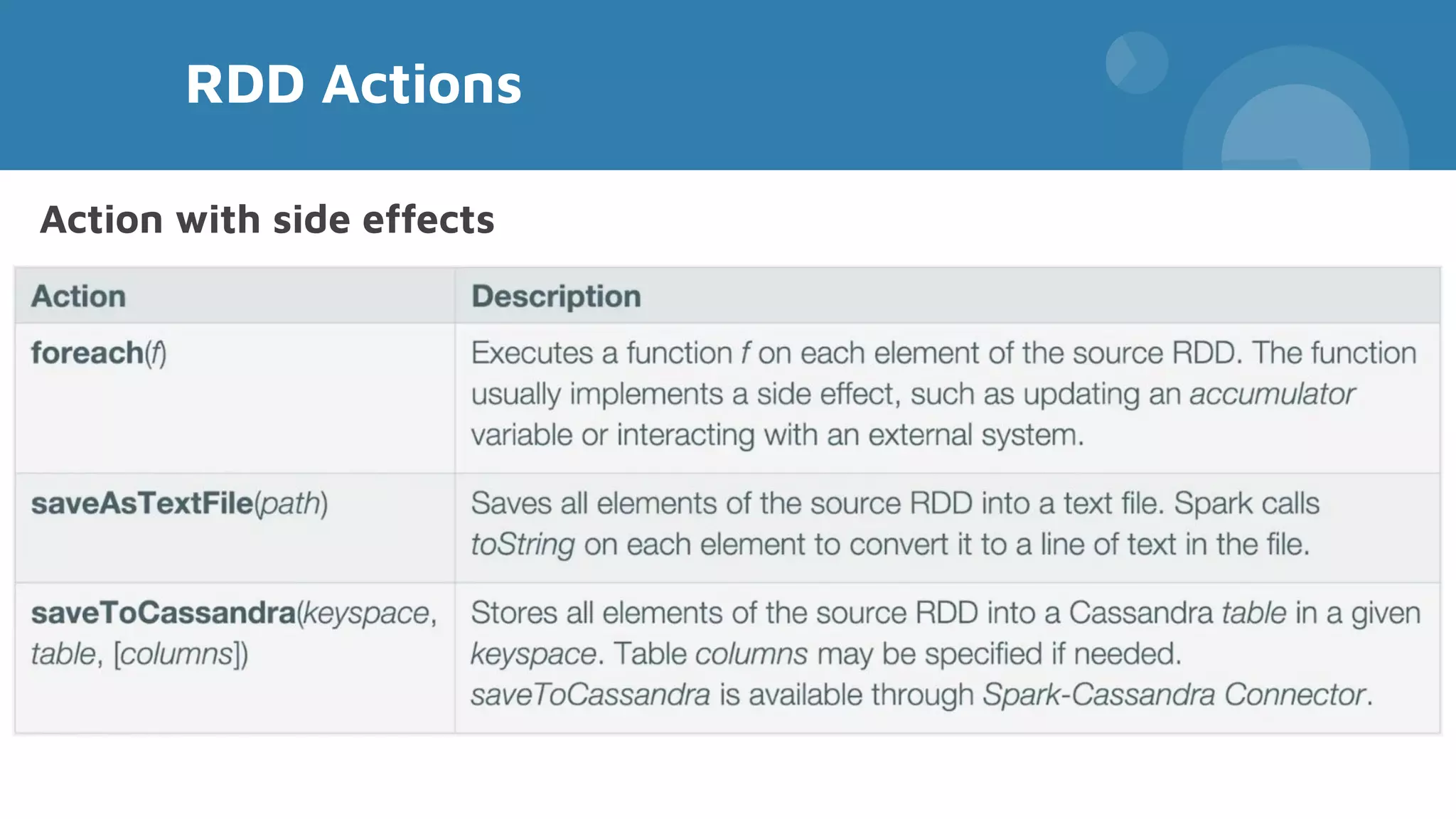

47. RDD Actions
Action with side effects

48. Key-Value Pairs

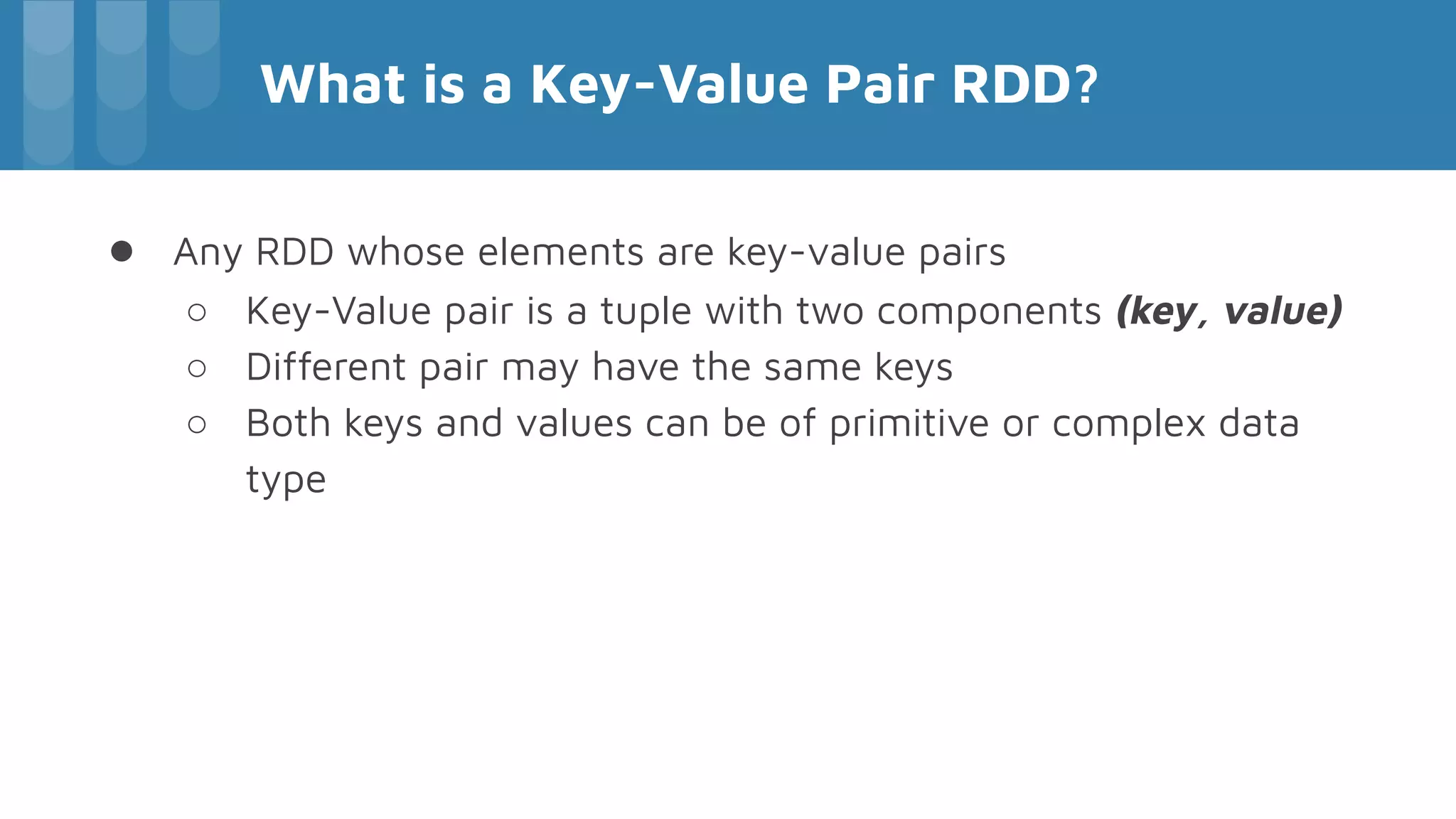

49. What is a Key-Value Pair RDD?
● Any RDD whose elements are key-value pairs
○ Key-Value pair is a tuple with two components (key, value)
○ Different pair may have the same keys
○ Both keys and values can be of primitive or complex data
type

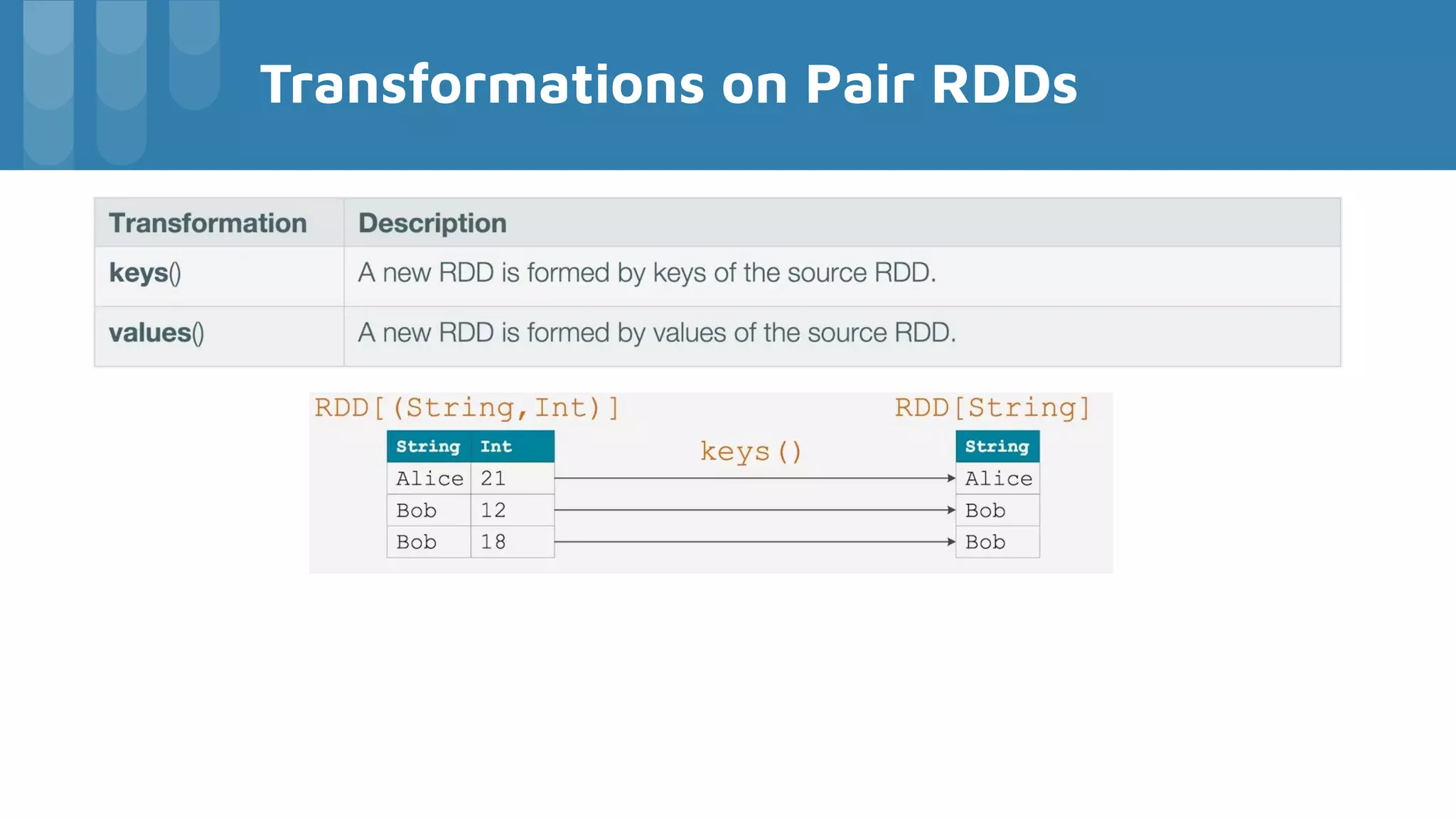

50. Transformations on Pair RDDs

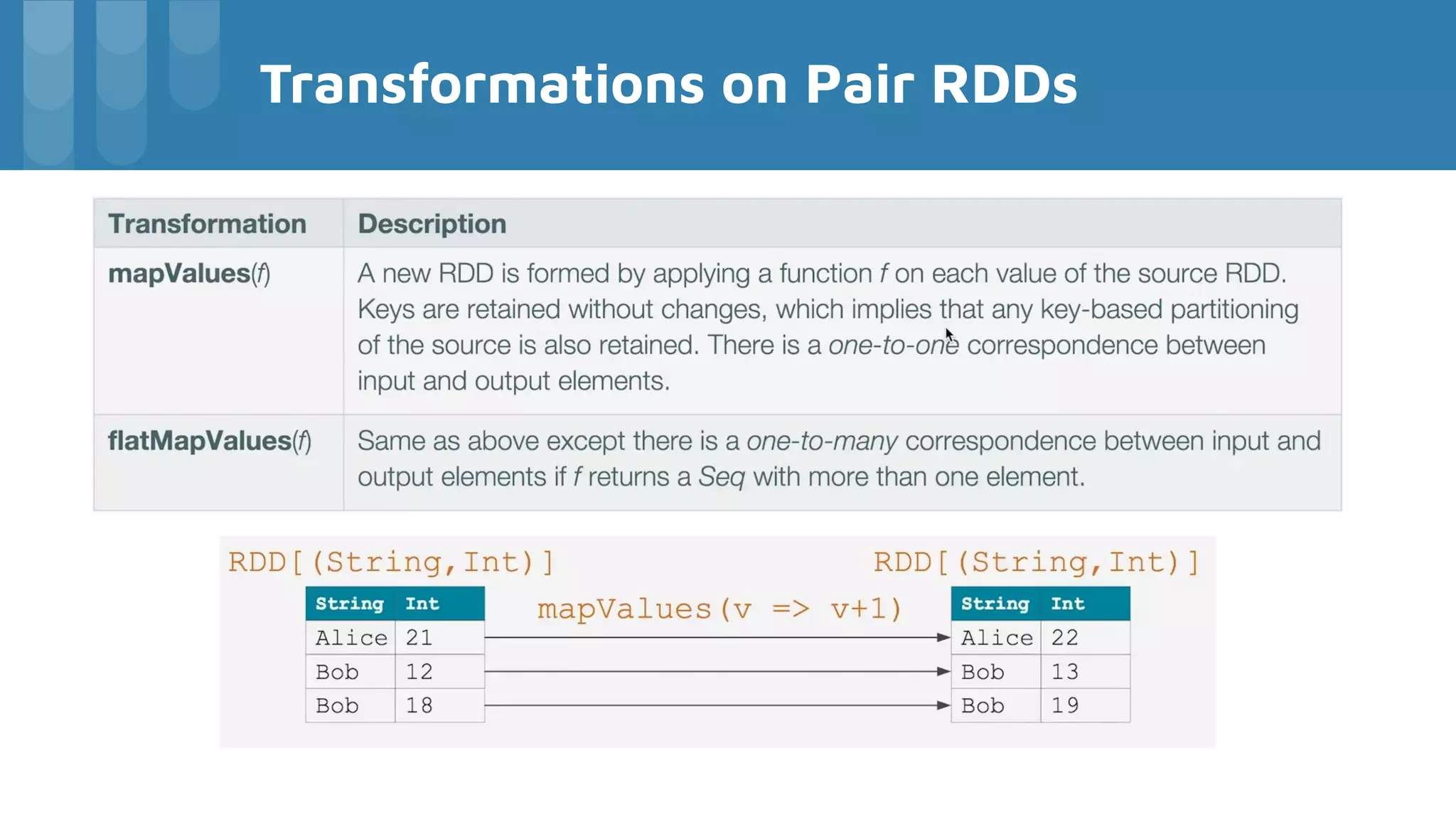

51. Transformations on Pair RDDs

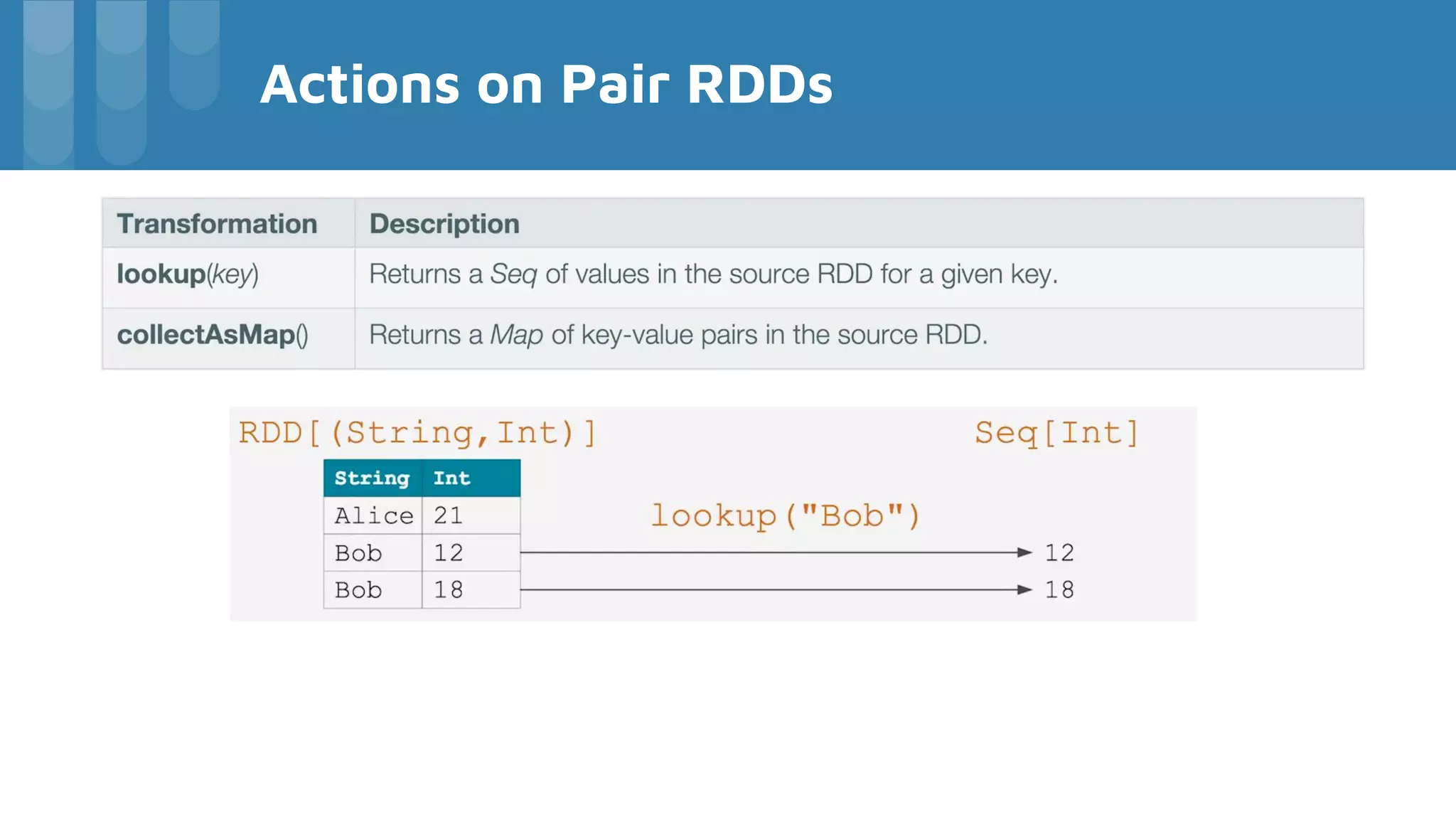

52. Actions on Pair RDDs

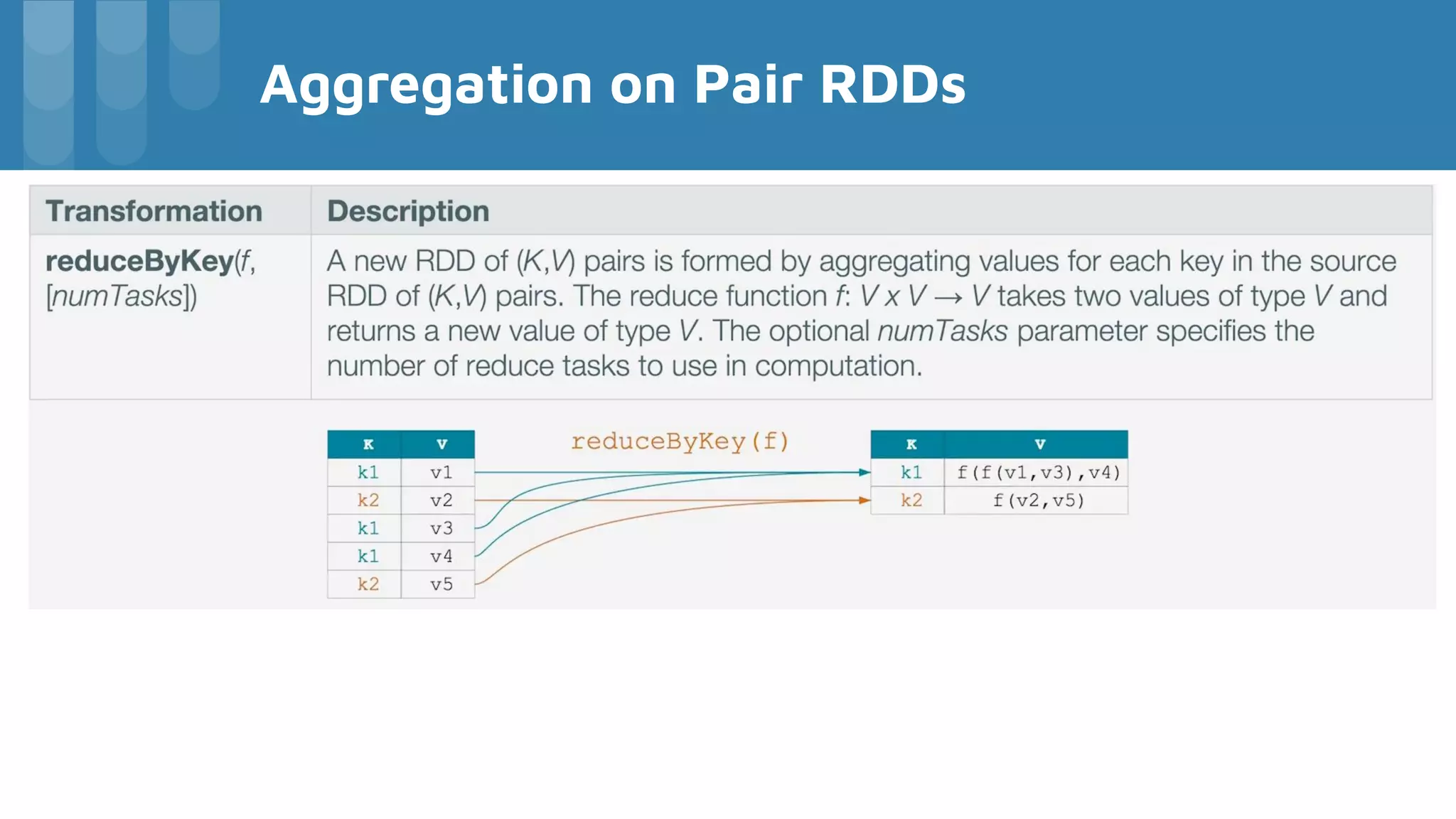

53. Aggregation on Pair RDDs

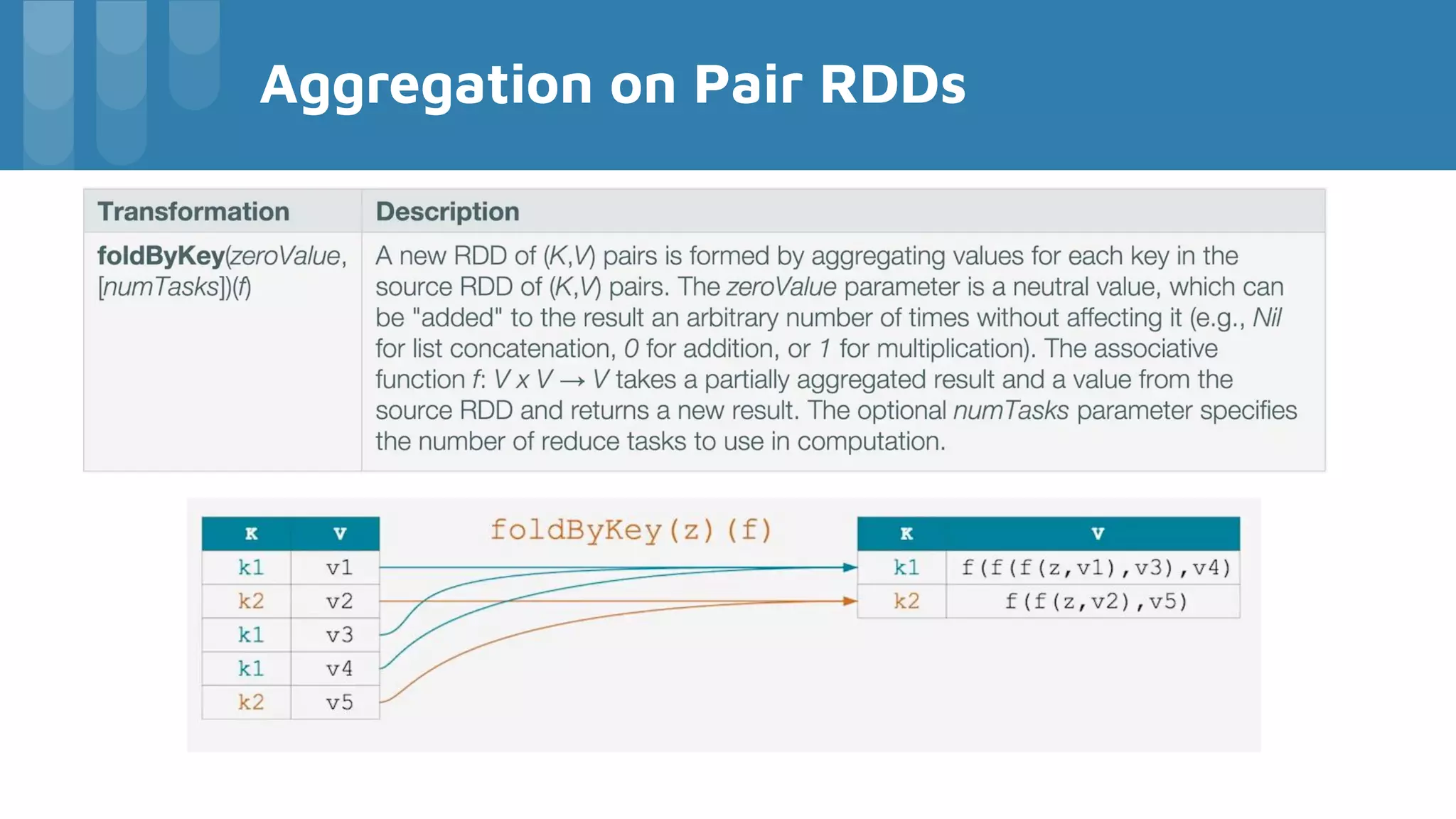

54. Aggregation on Pair RDDs

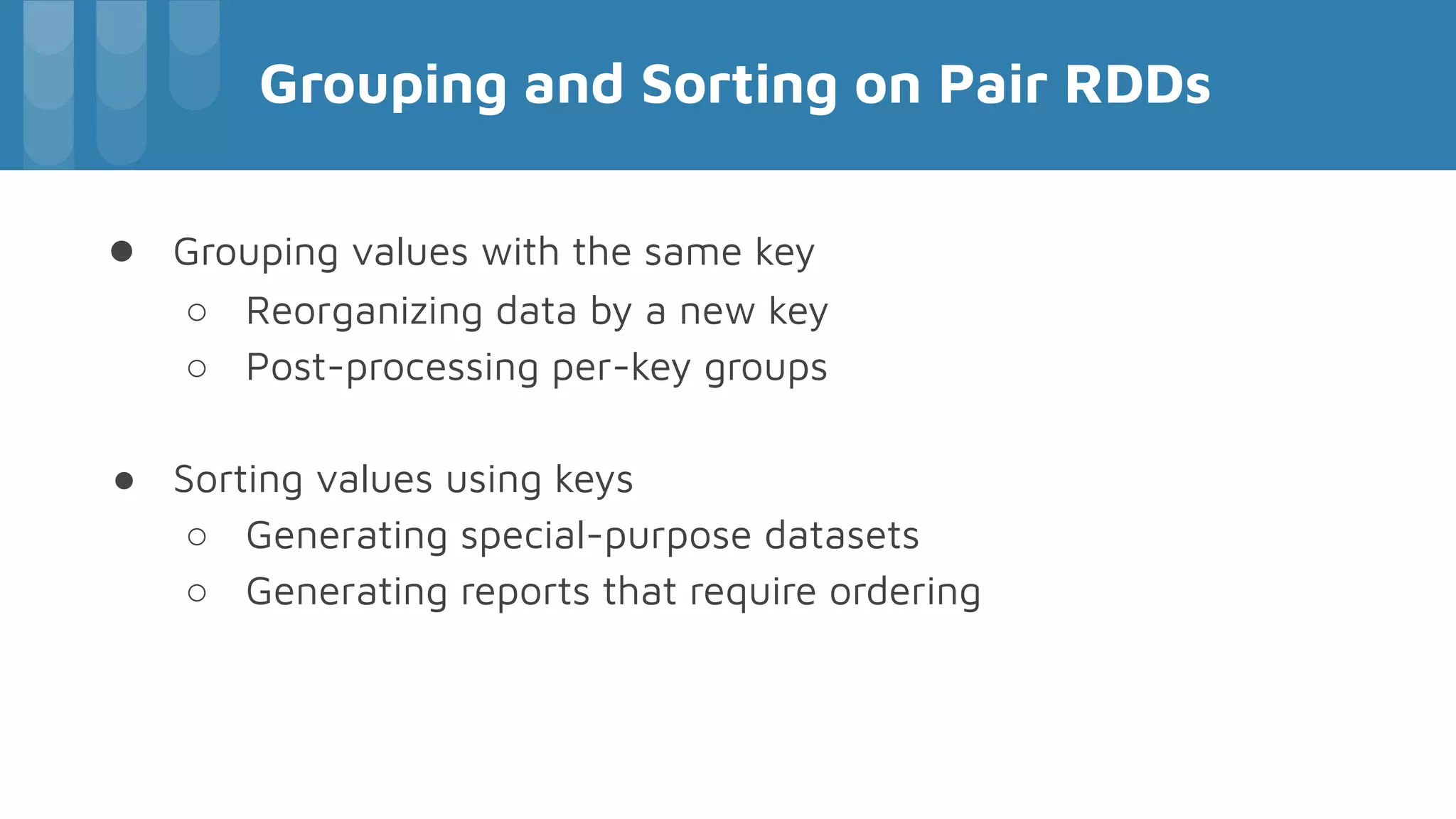

55. Grouping and Sorting on Pair RDDs
● Grouping values with the same key
○ Reorganizing data by a new key
○ Post-processing per-key groups
● Sorting values using keys
○ Generating special-purpose datasets
○ Generating reports that require ordering

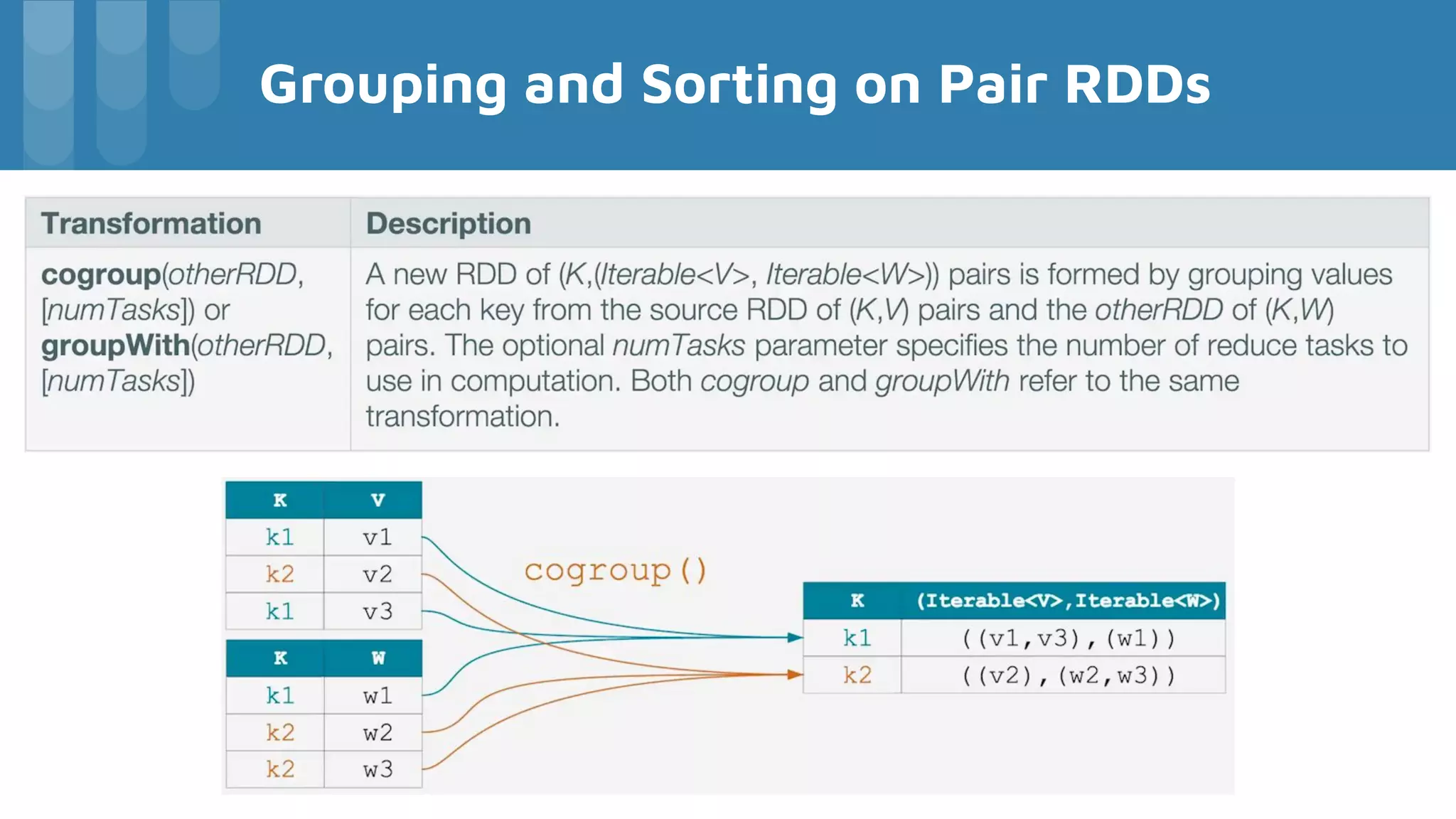

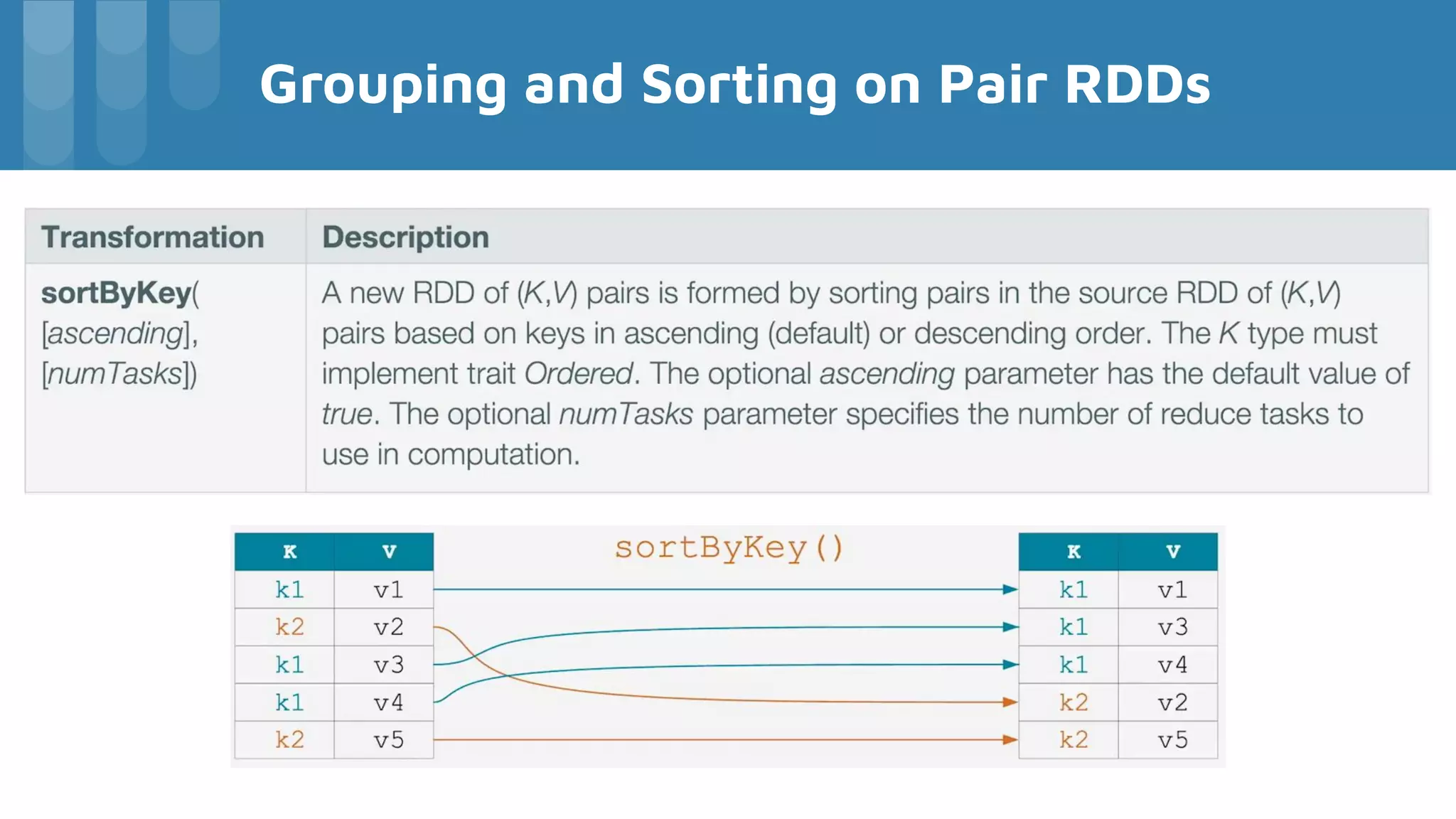

56. Grouping and Sorting on Pair RDDs

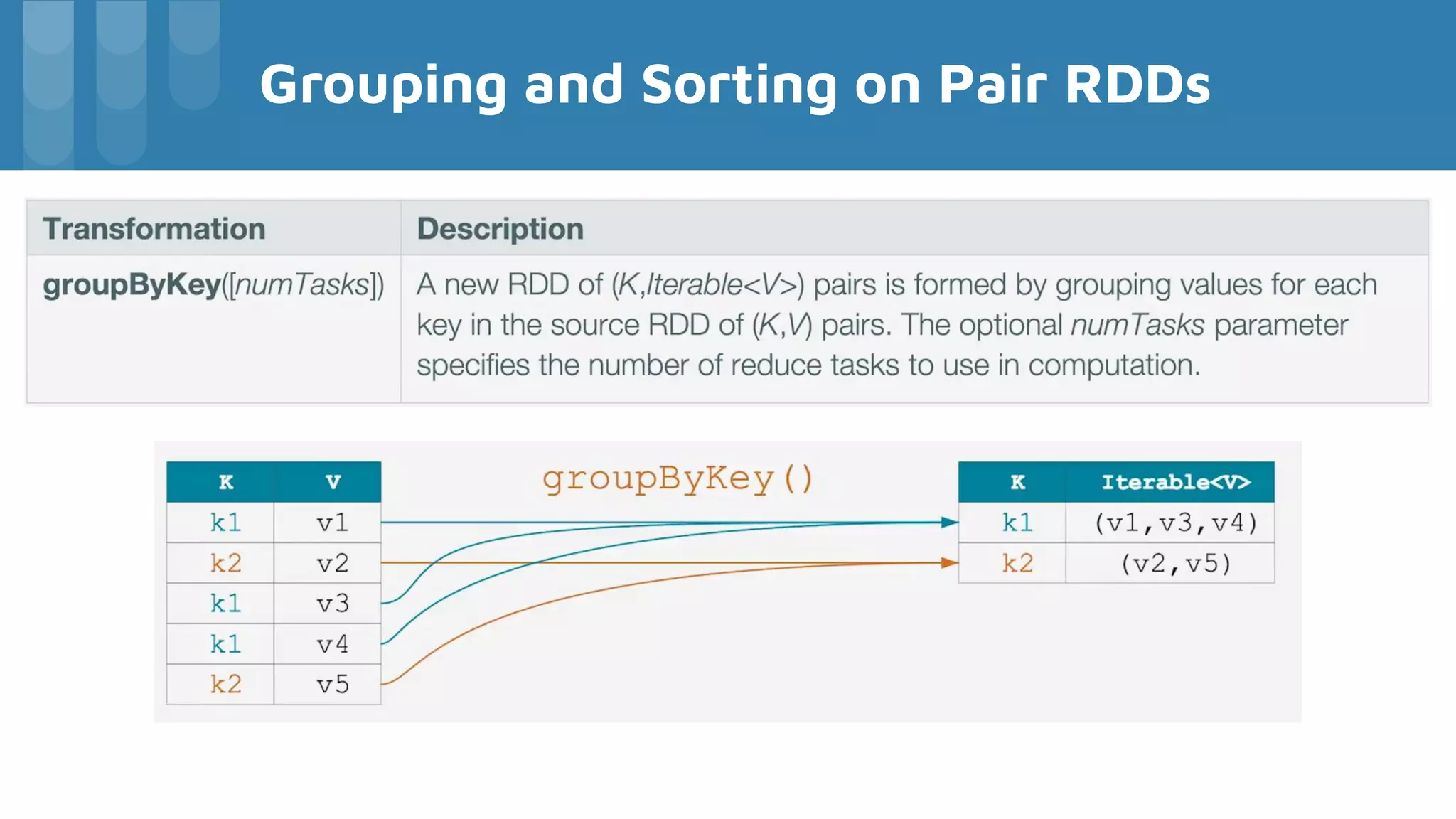

57. Grouping and Sorting on Pair RDDs

58. Grouping and Sorting on Pair RDDs

59. Distributed Variables

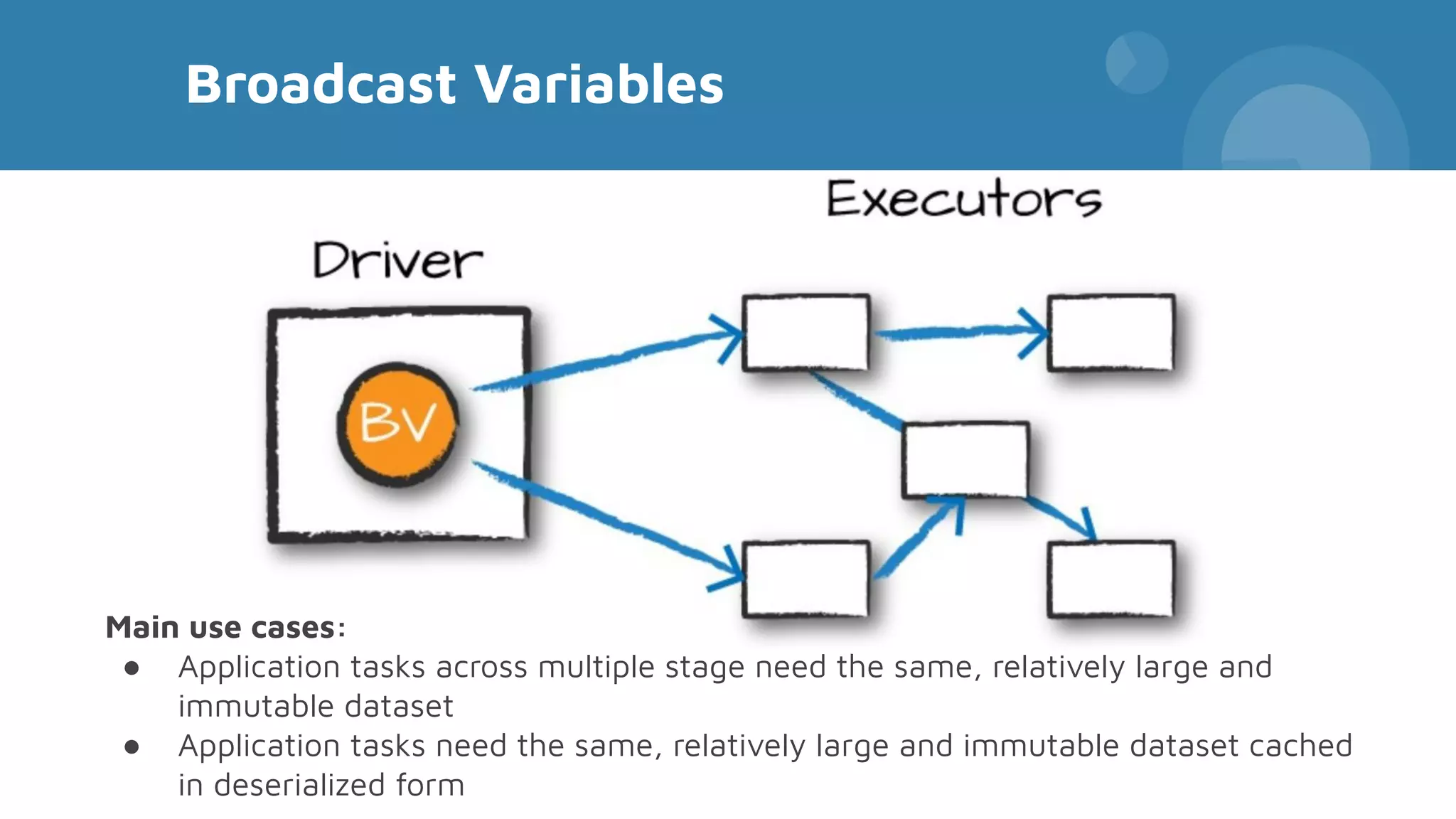

60. Broadcast Variables
Main use cases:
● Application tasks across multiple stage need the same, relatively large and
immutable dataset
● Application tasks need the same, relatively large and immutable dataset cached
in deserialized form

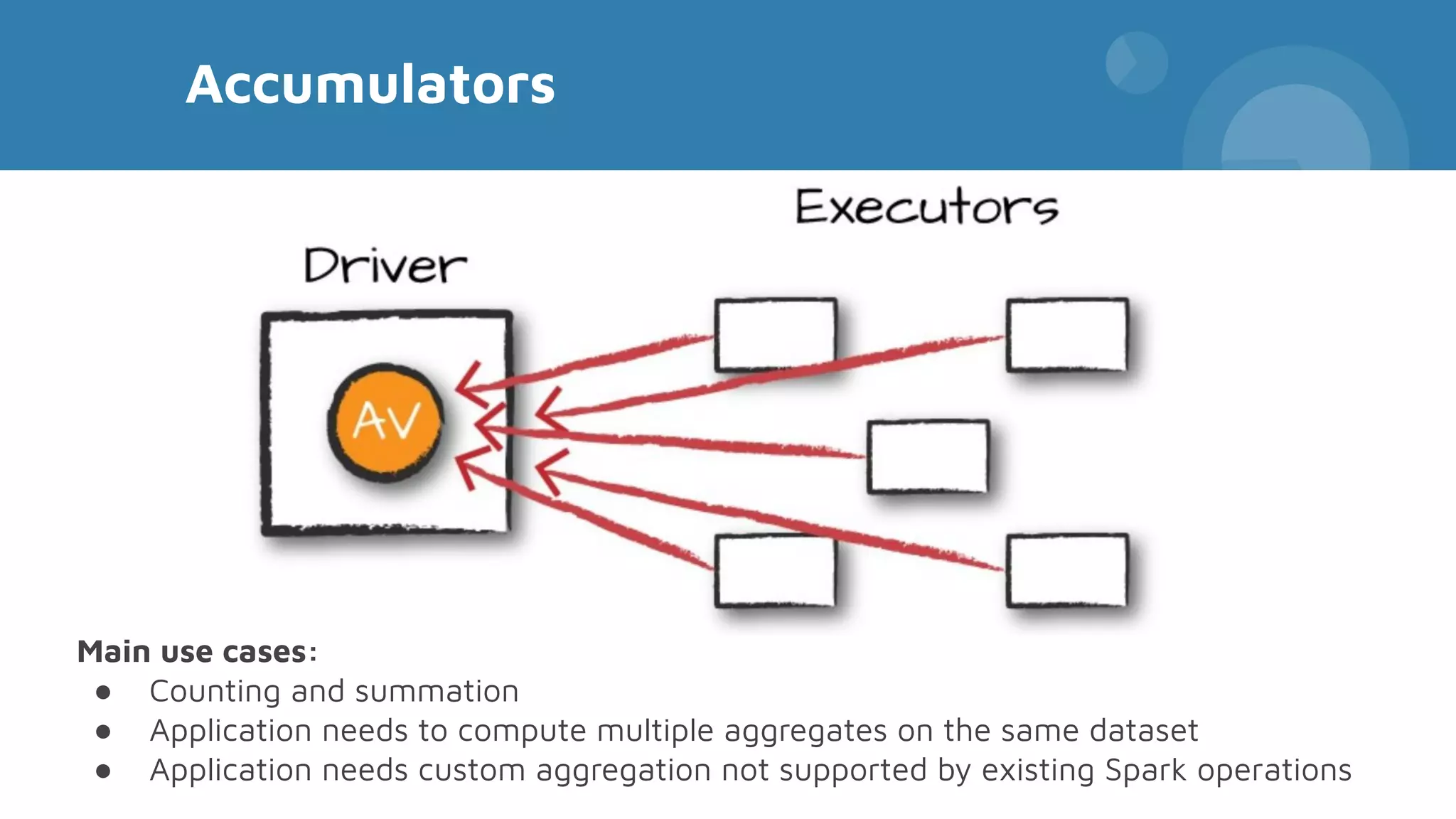

61. Accumulators
Main use cases:
● Counting and summation
● Application needs to compute multiple aggregates on the same dataset
● Application needs custom aggregation not supported by existing Spark operations

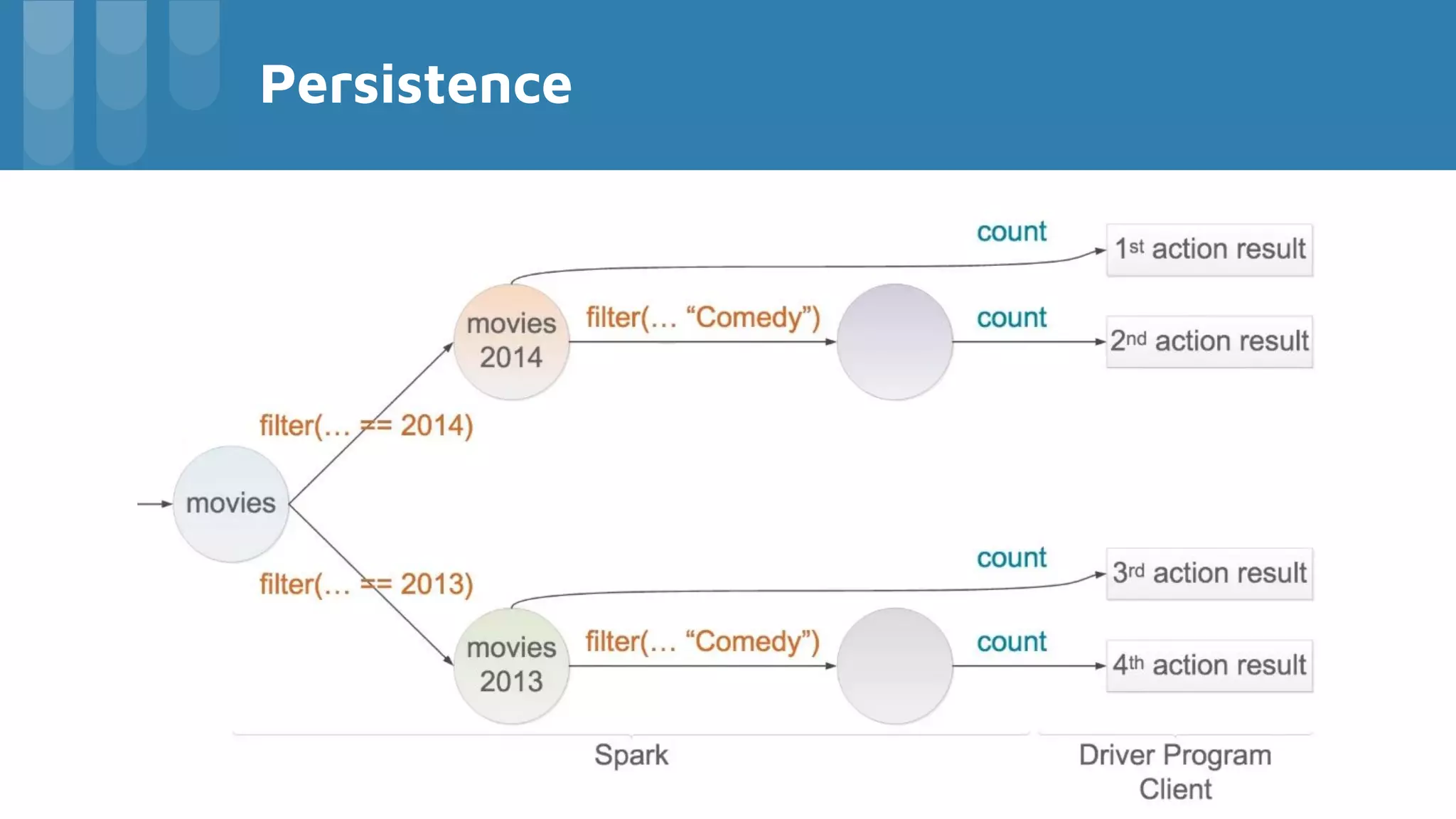

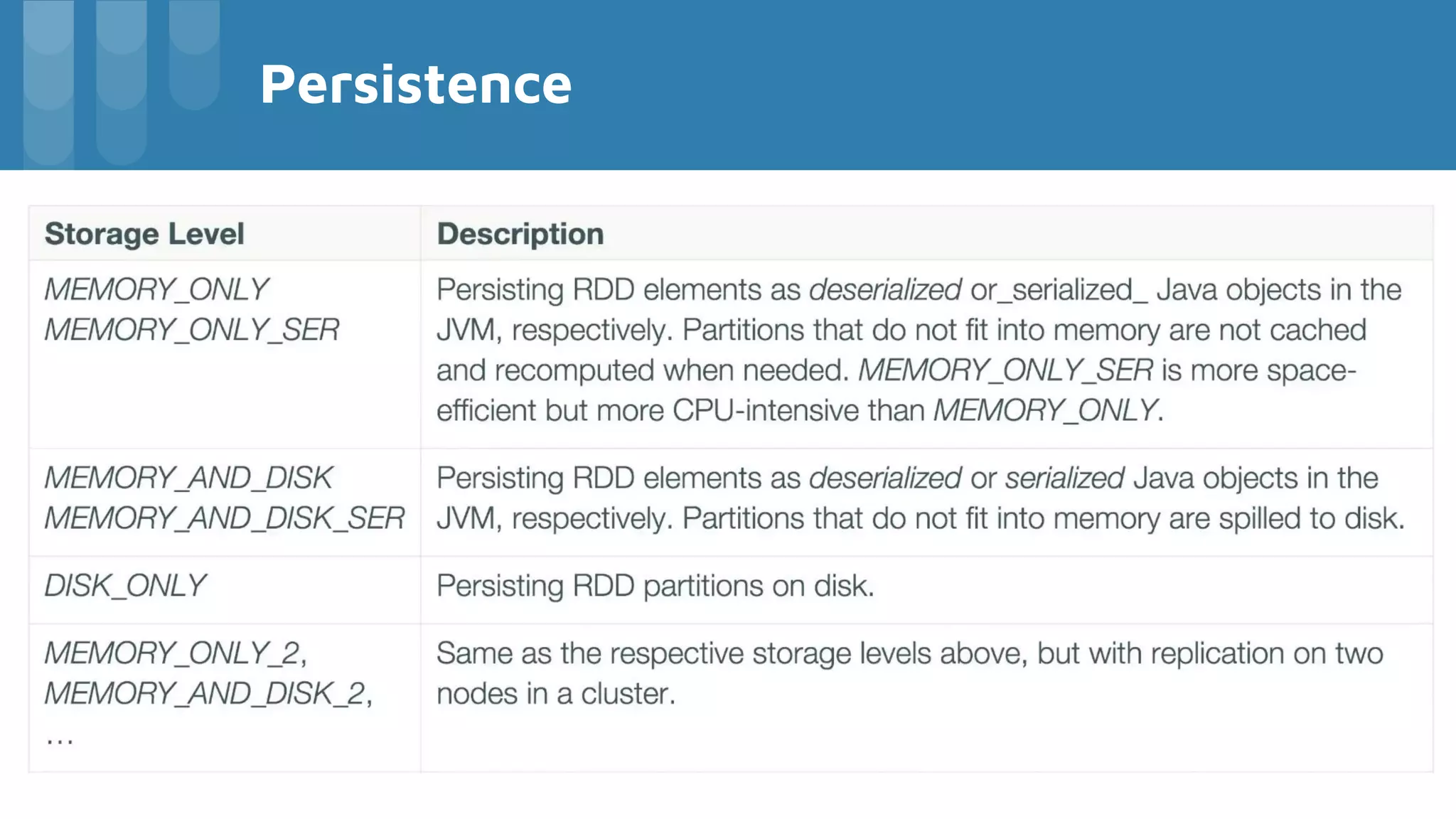

62. Persistence

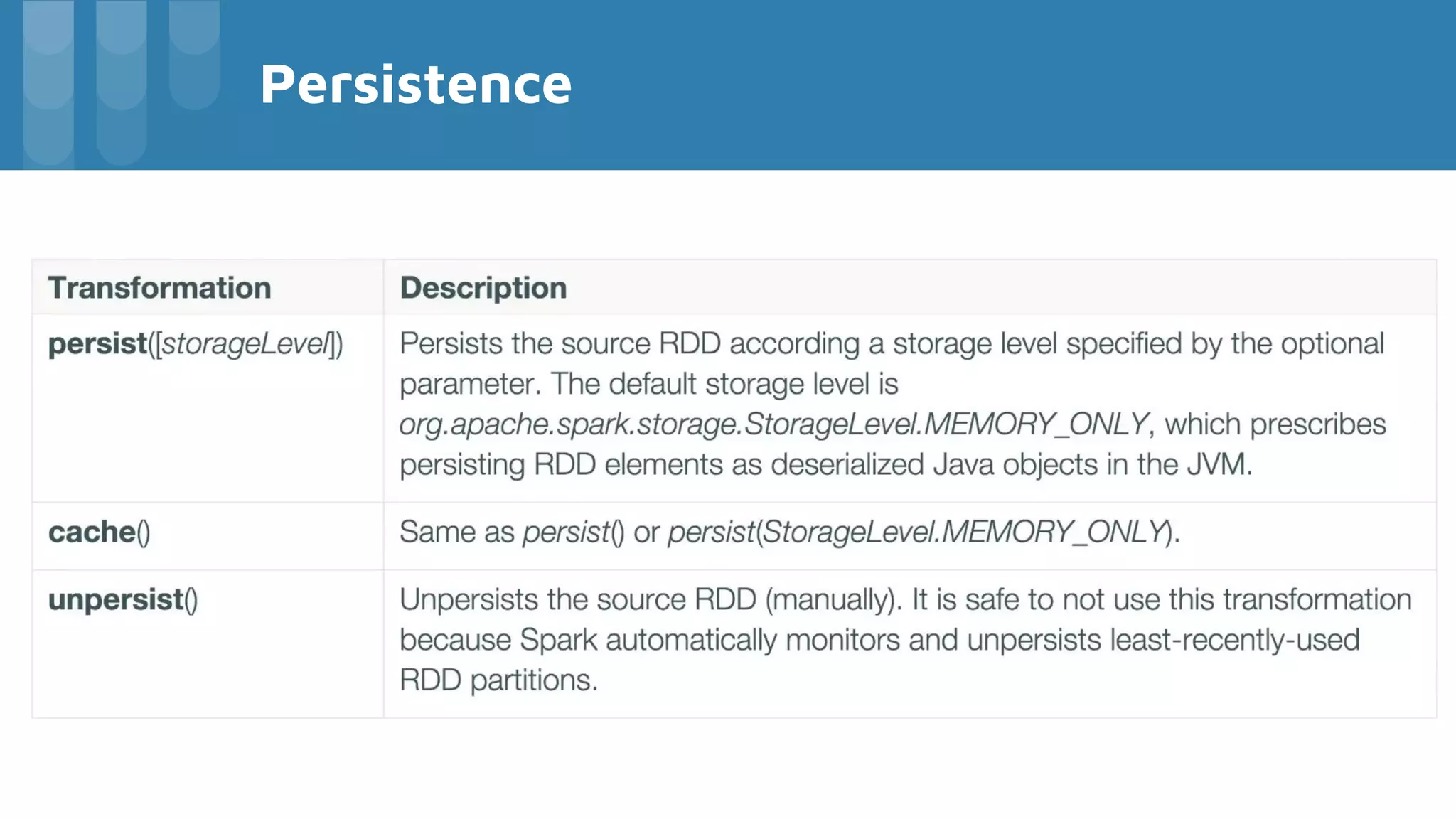

63. Persistence

64. Persistence

65. Persistence

66. Persistence

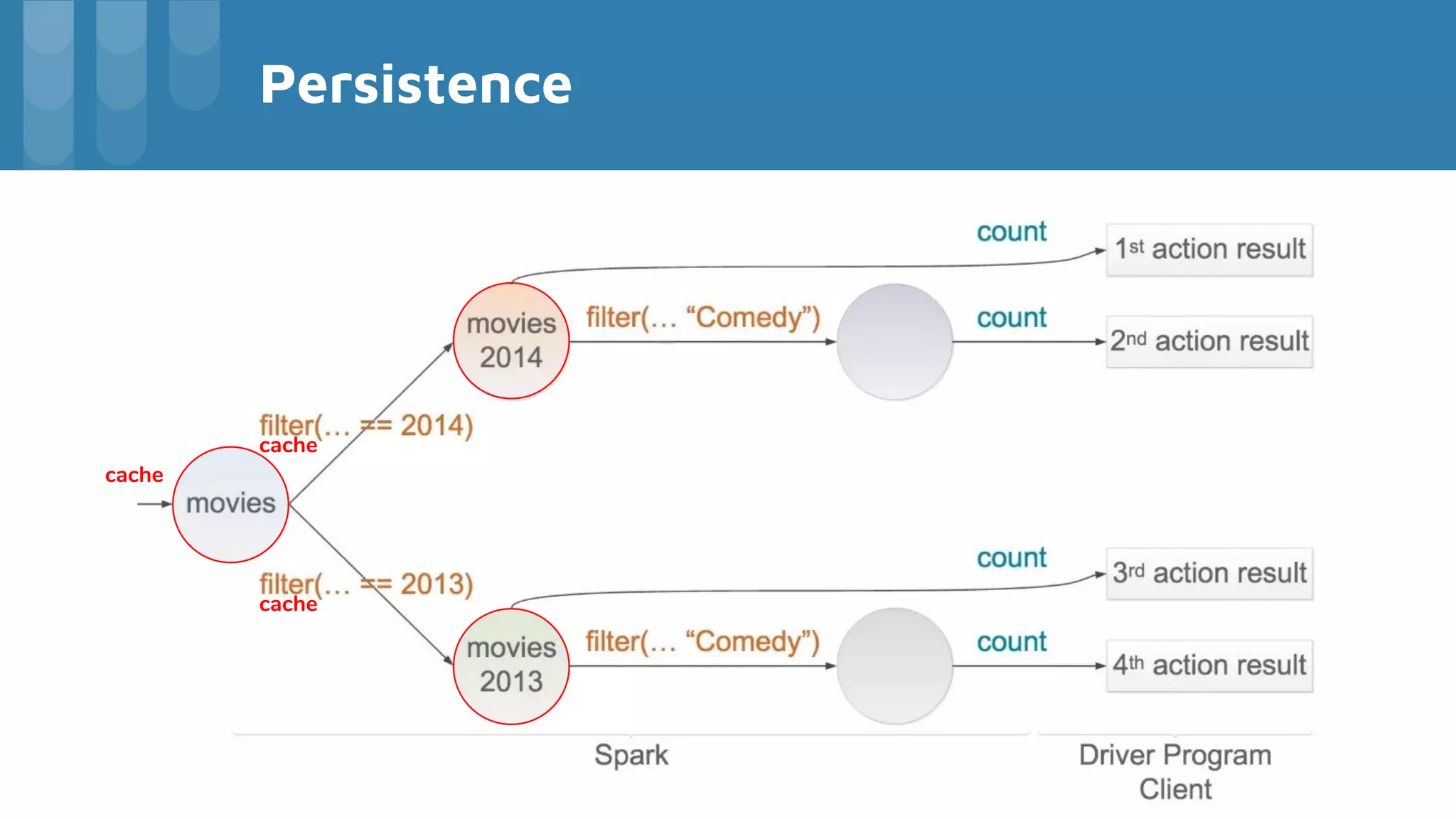

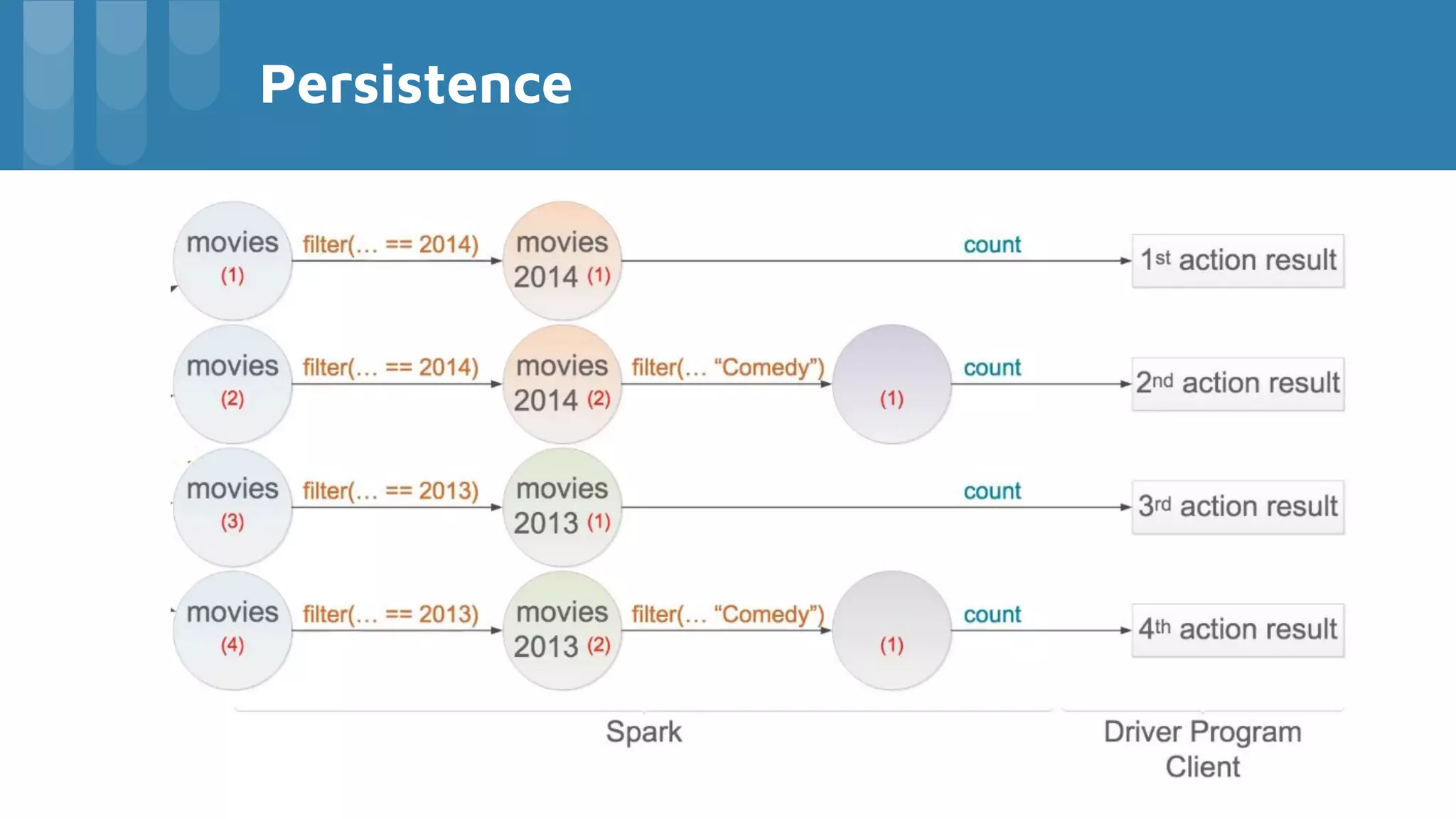

67. Persistence
cache
cache
cache

68. Tuning Partitioning

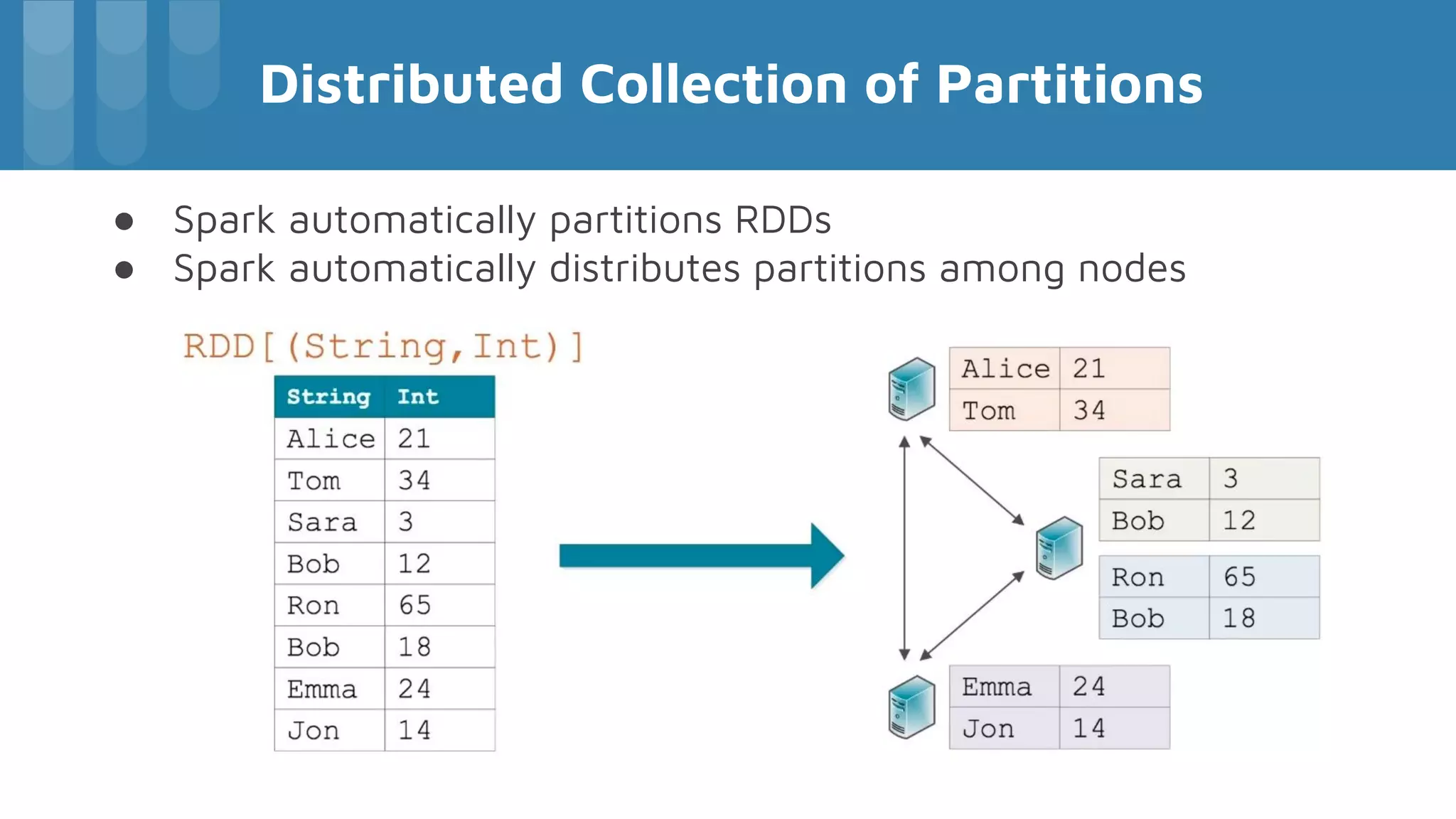

69. Distributed Collection of Partitions
● Spark automatically partitions RDDs
● Spark automatically distributes partitions among nodes

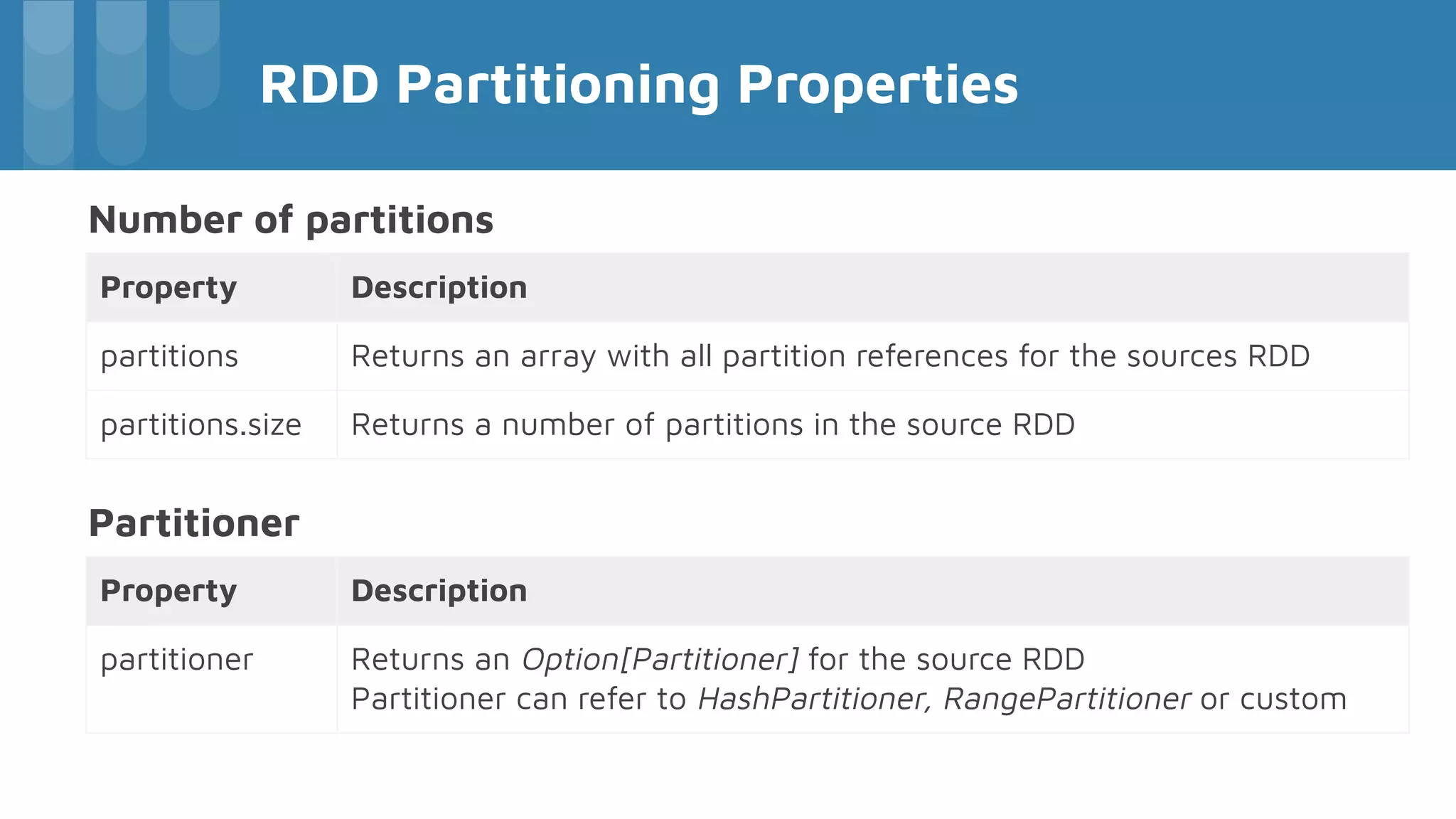

70. RDD Partitioning Properties
Number of partitions
Property Description
partitions Returns an array with all partition references for the sources RDD
partitions.size Returns a number of partitions in the source RDD
Partitioner
Property Description
partitioner Returns an Option[Partitioner] for the source RDD
Partitioner can refer to HashPartitioner, RangePartitioner or custom

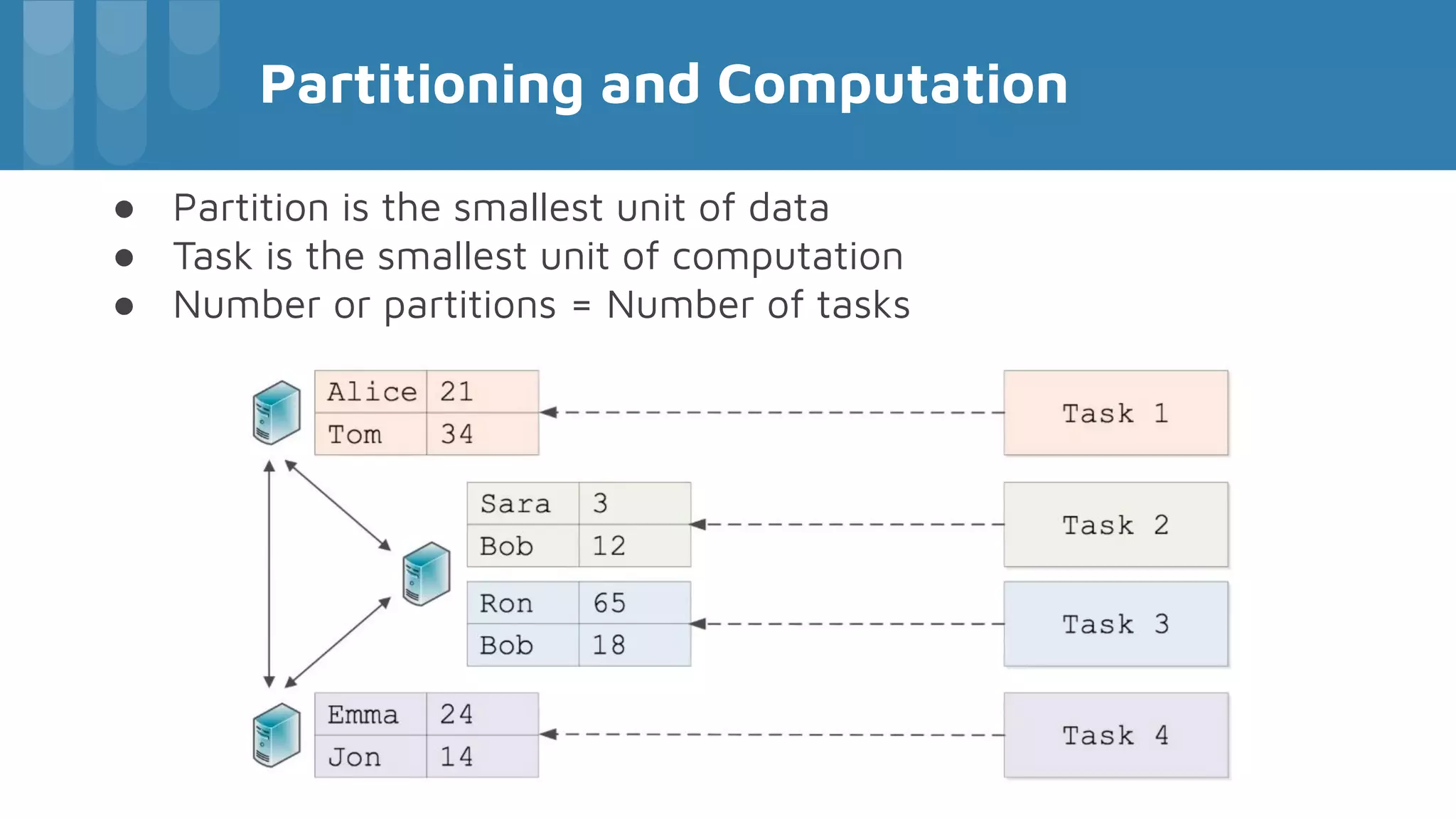

71. Partitioning and Computation
● Partition is the smallest unit of data
● Task is the smallest unit of computation
● Number or partitions = Number of tasks

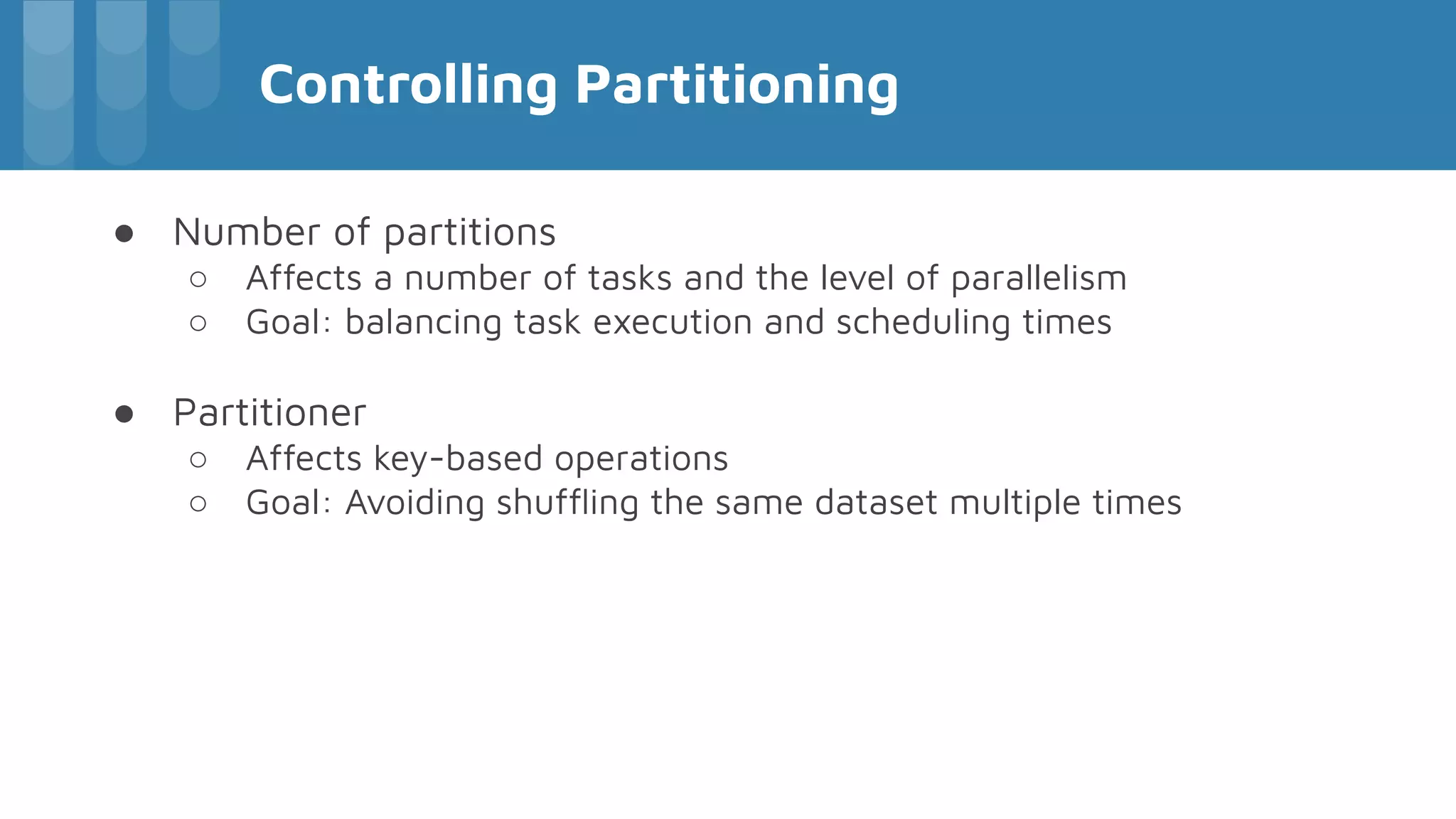

72. ● Number of partitions
○ Affects a number of tasks and the level of parallelism
○ Goal: balancing task execution and scheduling times
● Partitioner
○ Affects key-based operations
○ Goal: Avoiding shuffling the same dataset multiple times
Controlling Partitioning

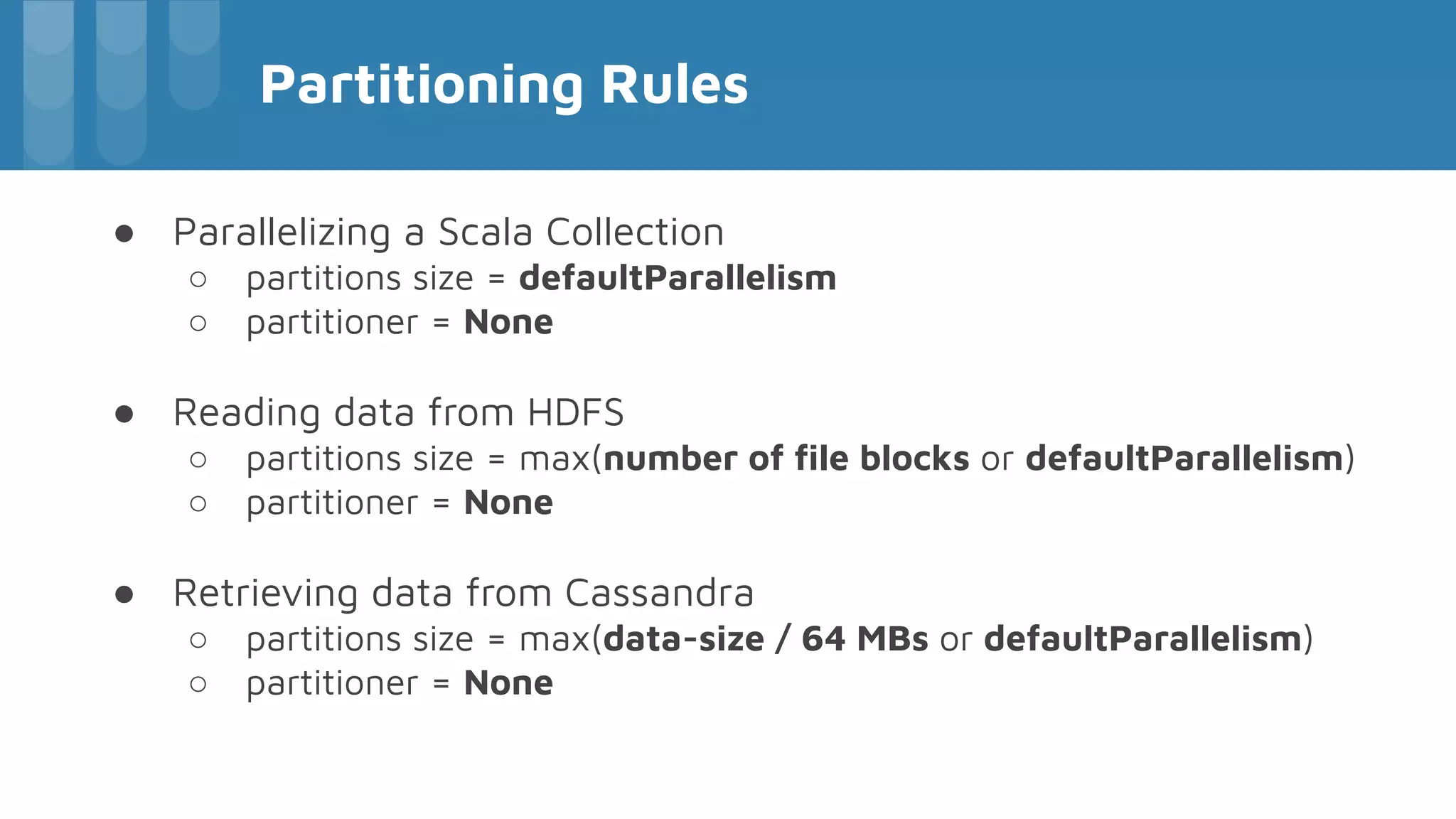

73. Partitioning Rules
● Parallelizing a Scala Collection
○ partitions size = defaultParallelism
○ partitioner = None
● Reading data from HDFS
○ partitions size = max(number of file blocks or defaultParallelism)
○ partitioner = None
● Retrieving data from Cassandra
○ partitions size = max(data-size / 64 MBs or defaultParallelism)
○ partitioner = None

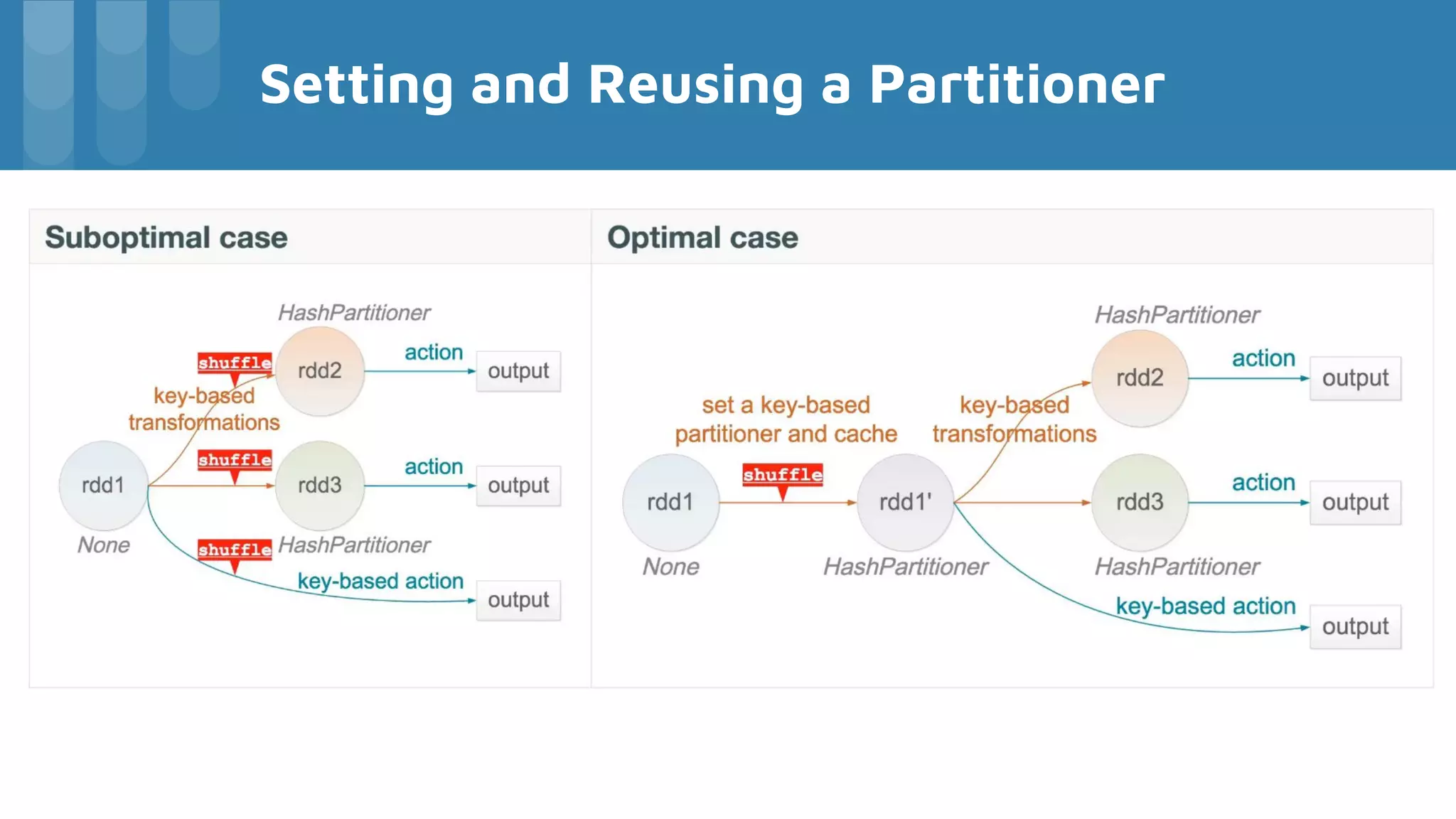

74. Setting and Reusing a Partitioner

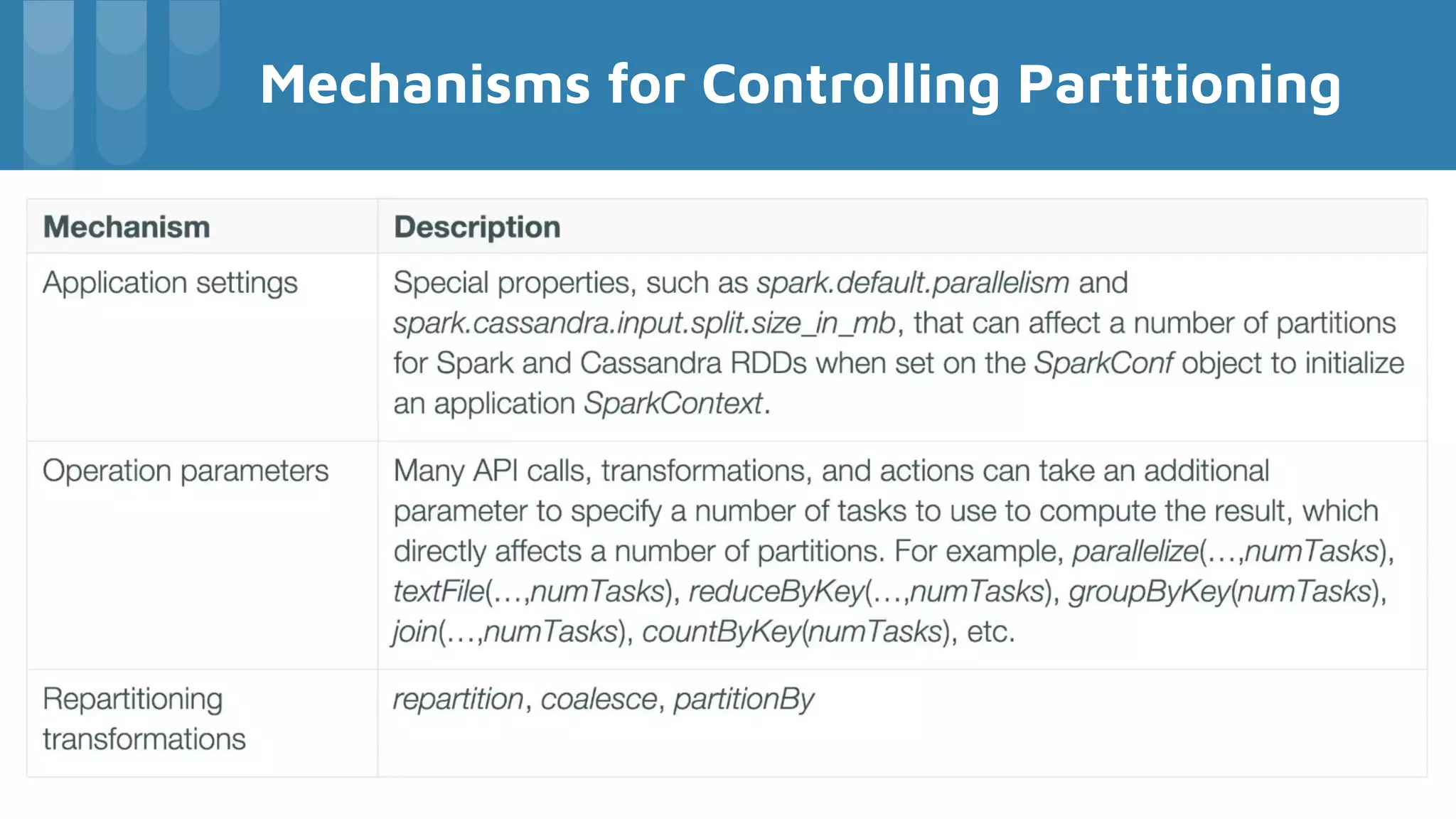

75. Mechanisms for Controlling Partitioning

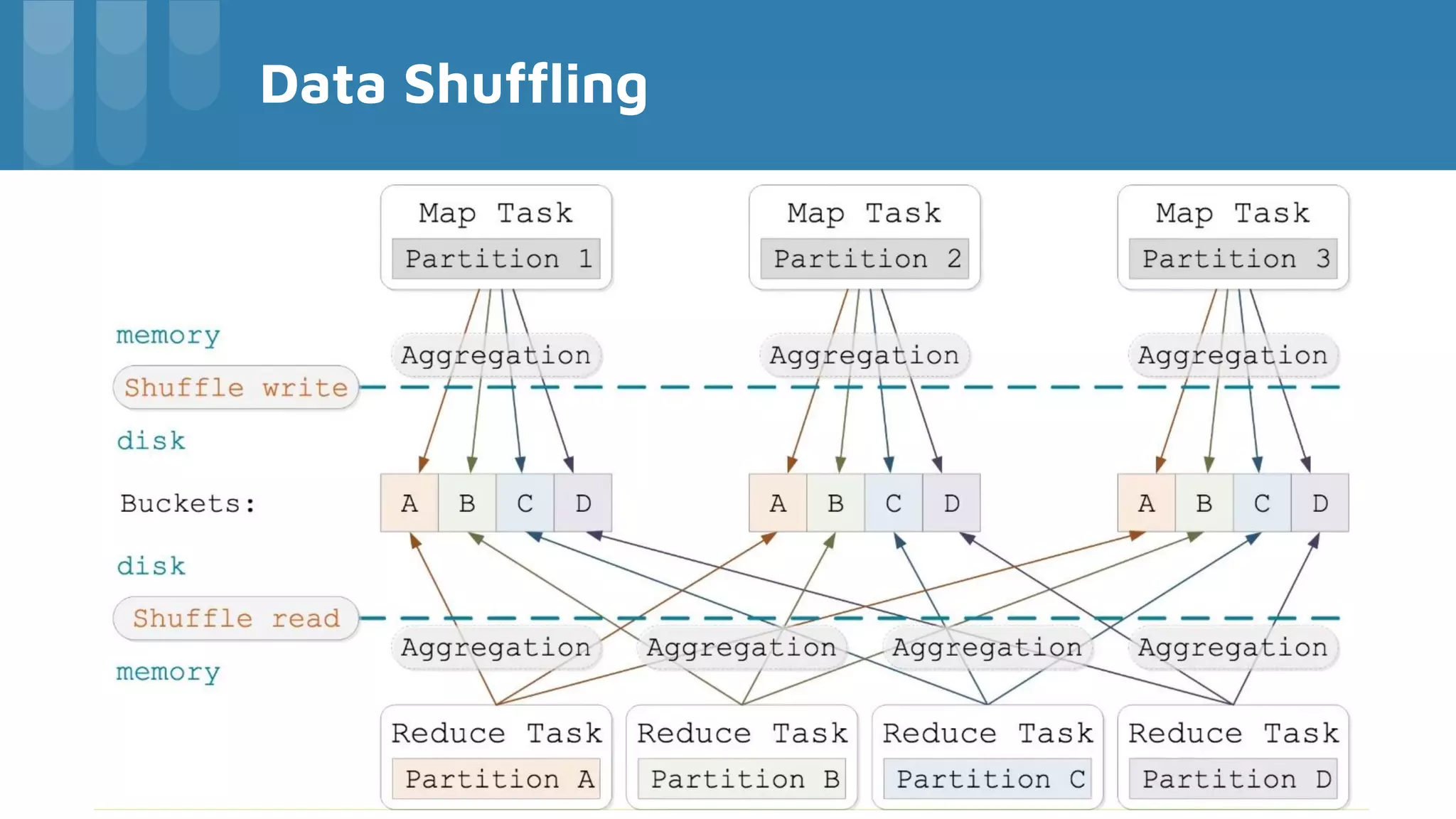

76. Data Shuffling
