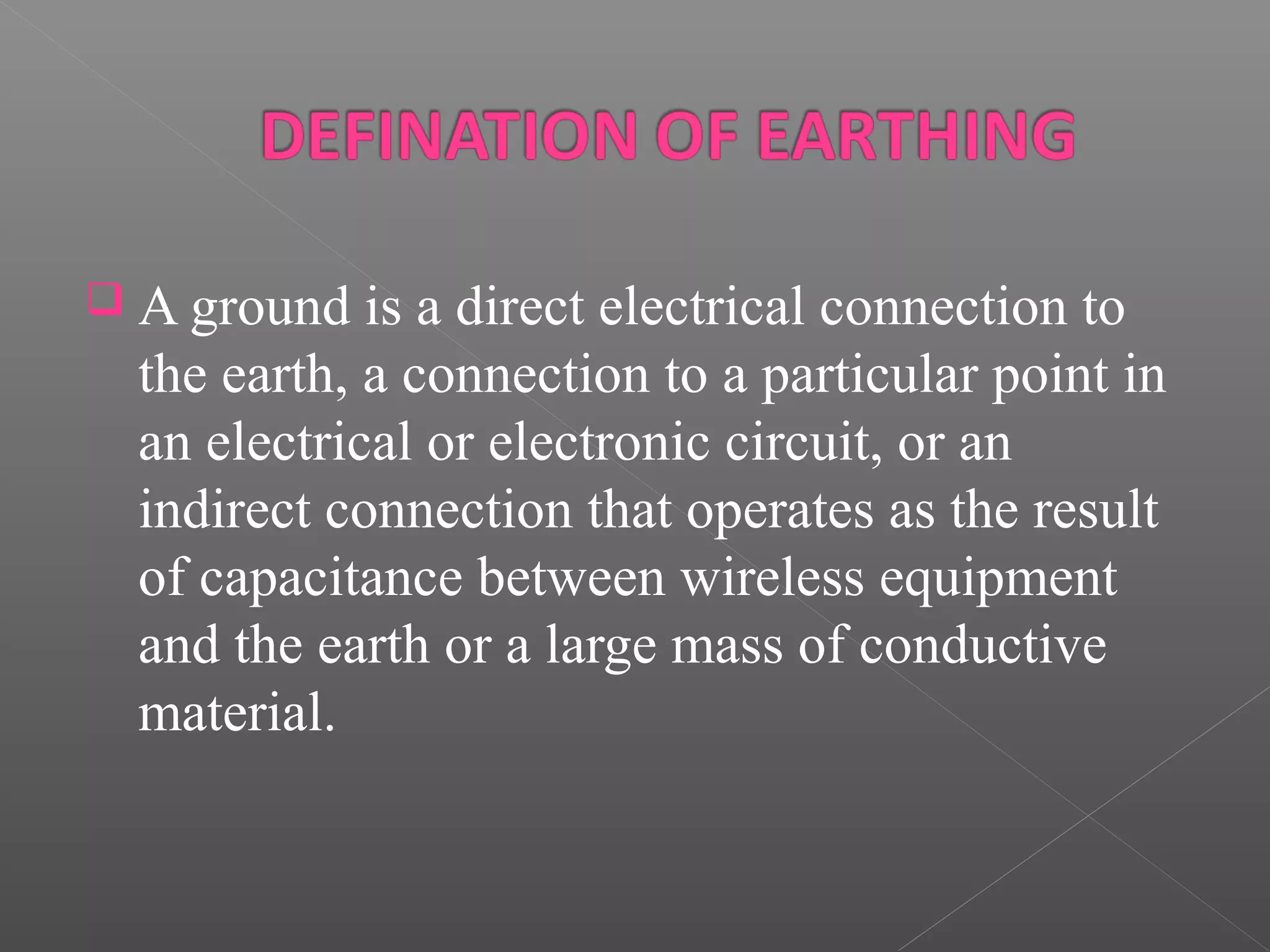

2.  A ground is a direct electrical connection to
the earth, a connection to a particular point in
an electrical or electronic circuit, or an
indirect connection that operates as the result
of capacitance between wireless equipment
and the earth or a large mass of conductive
material.

3.  For all practical purposes the earth potential is taken
as zero
 The Neutral wire in an A.C supply & middle wire in
three wire distribution D.C supply are always
earthed
 The earthing of electrical equipments brings the
equipments to zero potential & avoids shock to the
operator, under any fault conditions

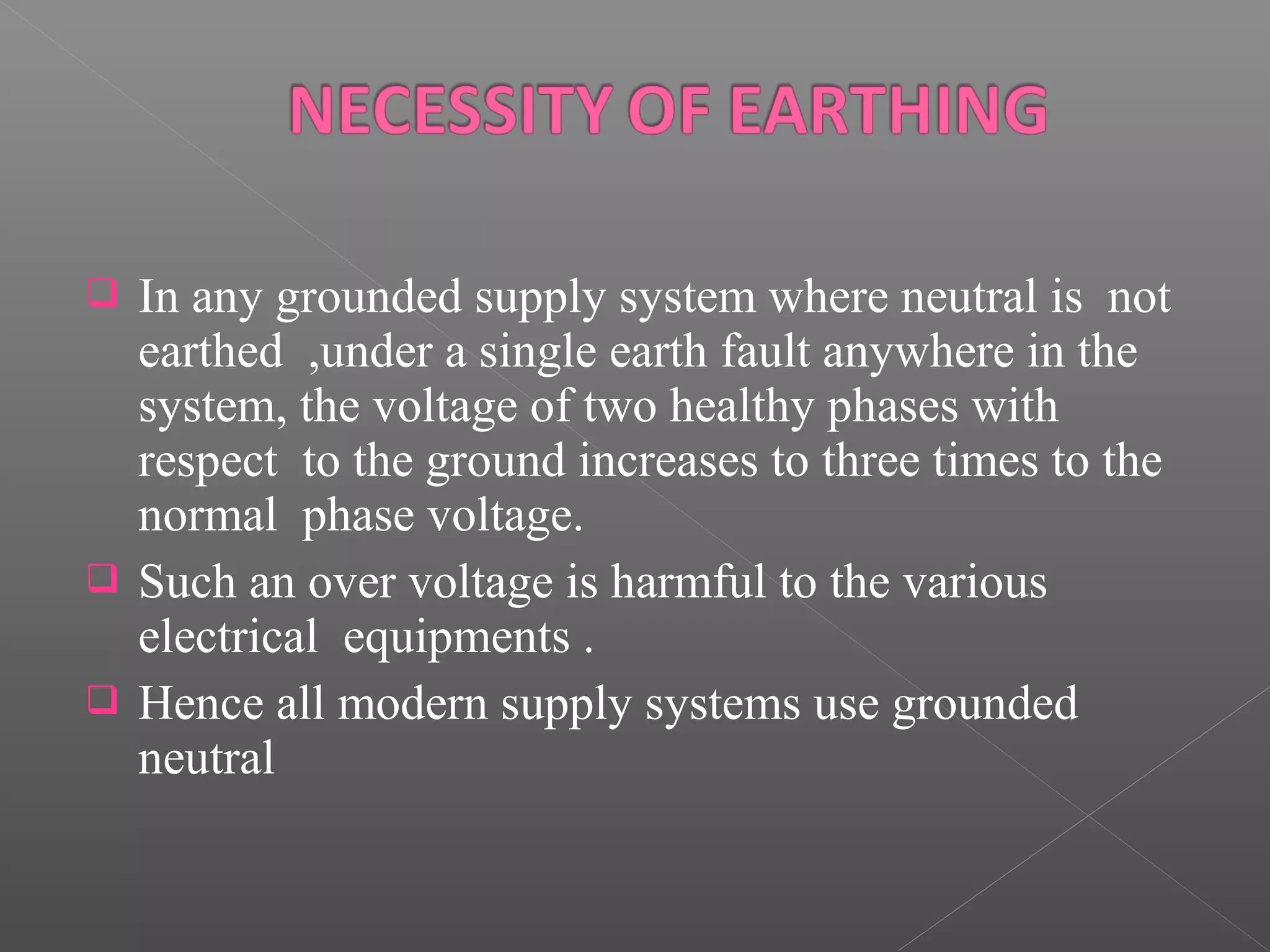

4.  In any grounded supply system where neutral is not
earthed ,under a single earth fault anywhere in the
system, the voltage of two healthy phases with
respect to the ground increases to three times to the
normal phase voltage.
 Such an over voltage is harmful to the various
electrical equipments .
 Hence all modern supply systems use grounded
neutral

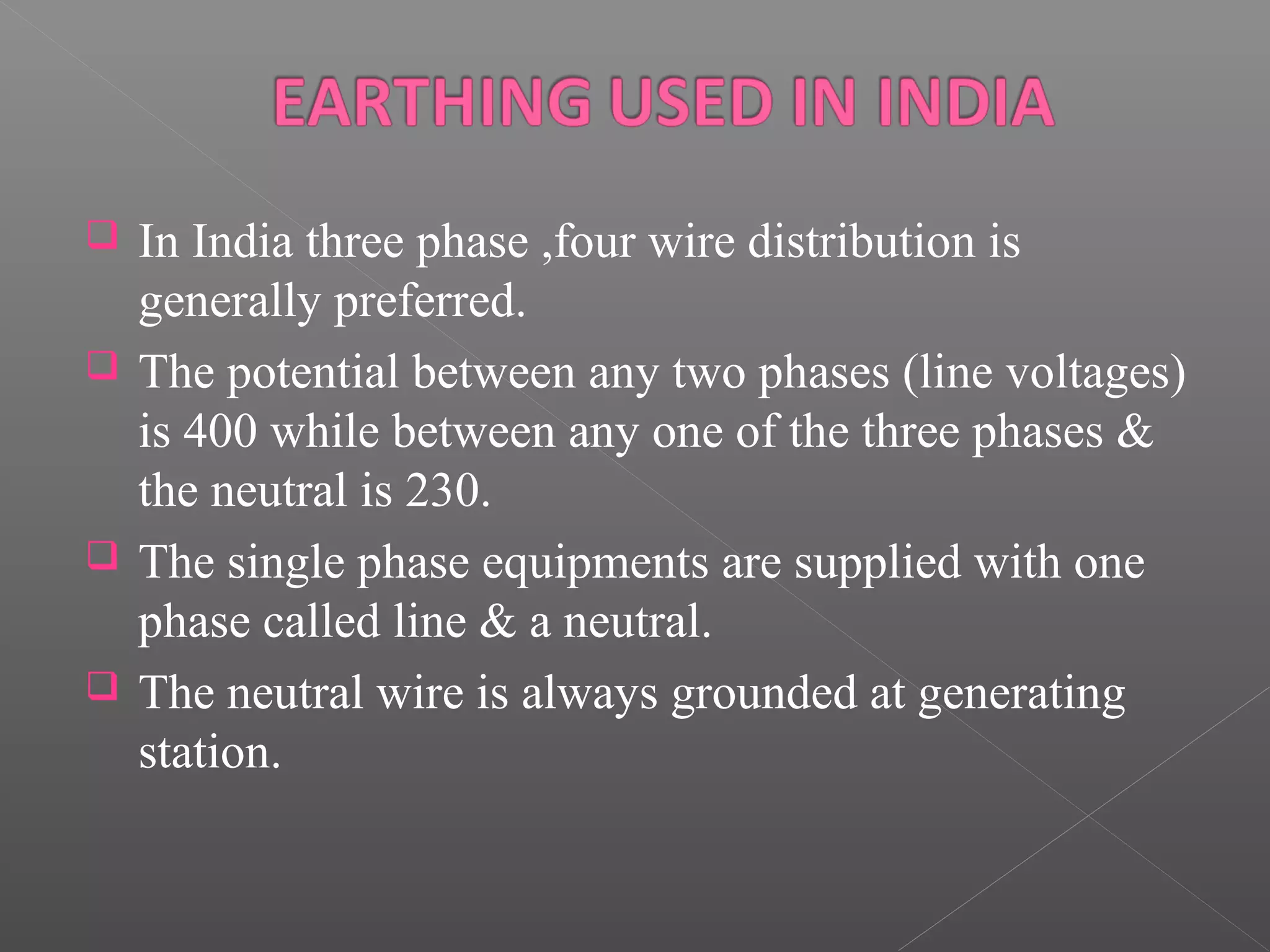

5.  In India three phase ,four wire distribution is
generally preferred.
 The potential between any two phases (line voltages)
is 400 while between any one of the three phases &
the neutral is 230.
 The single phase equipments are supplied with one
phase called line & a neutral.
 The neutral wire is always grounded at generating
station.

6. The grounded neutral supply system has
following advantages:
 It is very easy for earth protection.
 Spikes of over voltages are easily dissipated
to earth
 Less stresses on insulation ,if there is earth
fault anywhere

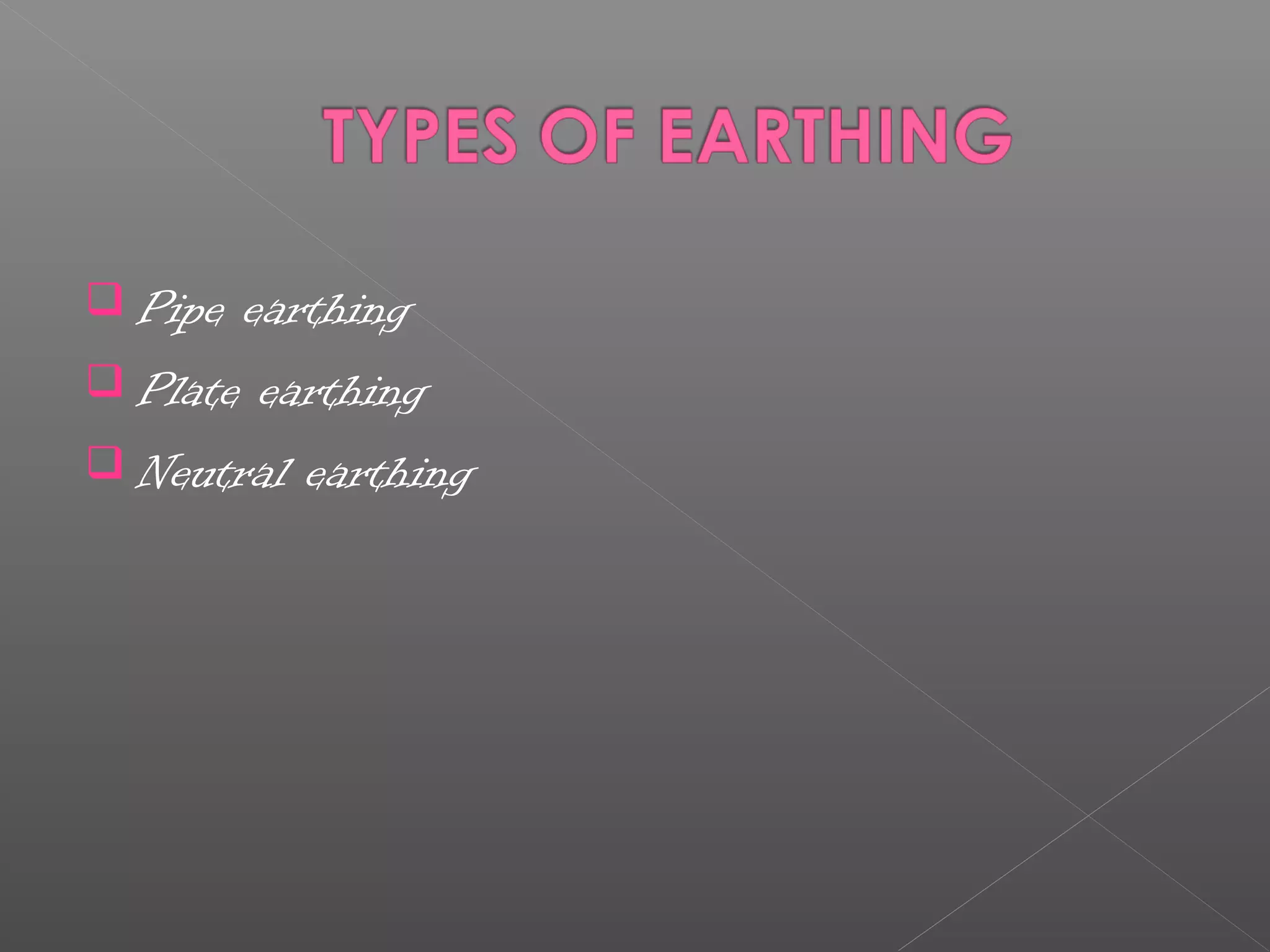

7.  Pipe earthing
 Plate earthing
 Neutral earthing
