The document discusses a hybrid power generation system combining solar and wind technologies to enhance efficiency in battery storage applications. It outlines the use of maximum power point tracking (MPPT) to optimize energy output despite varying environmental conditions and emphasizes the benefits of renewable energy sources. The study concludes that this system offers voltage stability, low maintenance costs, and environmental sustainability while meeting energy demands.

2. Maximum Power Point Tracking in
Solar-Wind Hybrid system
for Battery Storage Application

3. What is hybrid power generation system?
 Hybrid power generation is the combination
of different technologies to produce power.
17/05/2020

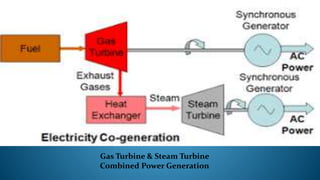

5. Gas Turbine & Steam Turbine
Combined Power Generation

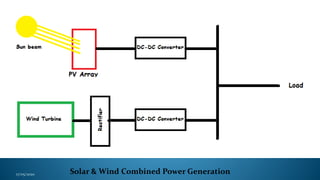

6. Solar & Wind Combined Power Generation17/05/2020

7. Renewable Energy sources

8. Renewable Energy Sources
Sun Light
Wind
Rain
Tides
Waves
Geothermal Heat
17/05/2020

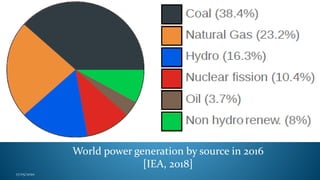

9. World power generation by source in 2016
[IEA, 2018]
17/05/2020

10.  Worldwide investments in renewable technologies
amounted to more than US$286 billion in 2015
 China and the United States heavily investing in
wind, hydro, solar and bio-fuels.
17/05/2020

11.  According to the worldwide report of 2015,
more than 50% of all new electricity generation systems that
are installed was based on renewable energy sources.
 At present approx 47 nations around the world
already have over 50% of electricity
from renewable resources.
17/05/2020

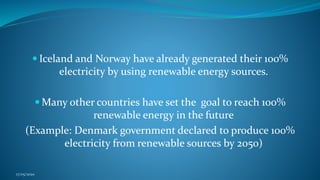

12.  Iceland and Norway have already generated their 100%
electricity by using renewable energy sources.
 Many other countries have set the goal to reach 100%
renewable energy in the future
(Example: Denmark government declared to produce 100%
electricity from renewable sources by 2050)
17/05/2020

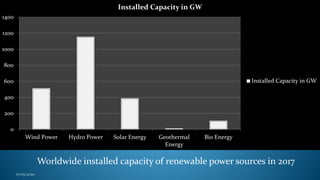

13. Worldwide installed capacity of renewable power sources in 2017
0
200
400
600
800
1000
1200
1400
Wind Power Hydro Power Solar Energy Geothermal
Energy
Bio Energy
Installed Capacity in GW
Installed Capacity in GW
17/05/2020

14.  Globally installed electricity
generating capacity in 2017 was 2.2 TW
 Growth in consumption of coal and oil could end
by 2020 due to the increase of renewable energy sources.
17/05/2020

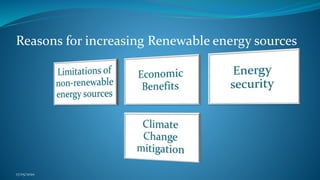

15. Reasons for increasing Renewable energy sources
17/05/2020

16. Diesel Power Plant
17/05/2020
Primary source: Oil
Source: Limited
Exhaust Temp.: 300-400 degree

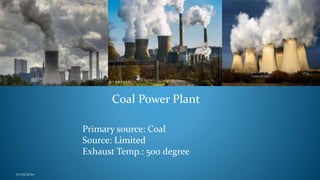

17. Coal Power Plant
17/05/2020
Primary source: Coal
Source: Limited
Exhaust Temp.: 500 degree

18. Gas Turbine Power Plant
17/05/2020
Primary source: Natural gases
Source: Limited
Exhaust Temp.: 500-600 degree

19. 17/05/2020
Power Generation System from renewable energy sources
Primary source: Sun Beam, Air, Water etc.
Source: Unlimited

20. PV Installations 2015-2019
0
20000
40000
60000
80000
100000
120000
140000
2015 2016 2017 2018 2019
Annual Installation MW
Annual Installation MW
17/05/2020

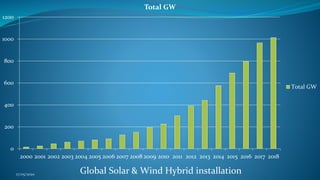

21. Global Solar & Wind Hybrid installation
0
200
400
600
800
1000
1200
2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
Total GW
Total GW
17/05/2020

22. Why Solar-Wind Hybrid
power generation system

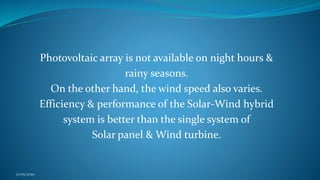

23. Photovoltaic array is not available on night hours &
rainy seasons.
On the other hand, the wind speed also varies.
Efficiency & performance of the Solar-Wind hybrid
system is better than the single system of
Solar panel & Wind turbine.
17/05/2020

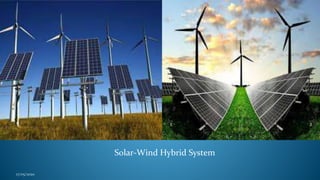

24. Solar-Wind Hybrid System
17/05/2020

25. 17/05/2020

26. Maximum power point tracking (MPPT) is a technique used
commonly with wind turbines and photovoltaic (PV) solar systems for
maximizing the power under all conditions.
Wind turbines & PV solar systems exist in many different configurations
with regard to their relationship to inverter systems, external grids,
battery banks, or other electrical loads
17/05/2020

27. 17/05/2020

28.  The purpose of the MPPT system is to sample the output of
the Wind turbine & PV cells and apply the proper resistance
(load) to obtain maximum power for any given
environmental conditions
17/05/2020

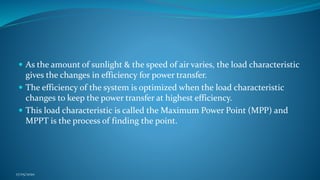

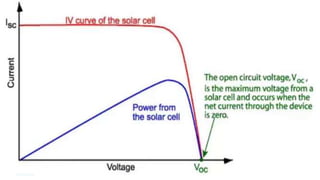

29.  As the amount of sunlight & the speed of air varies, the load characteristic
gives the changes in efficiency for power transfer.
 The efficiency of the system is optimized when the load characteristic
changes to keep the power transfer at highest efficiency.

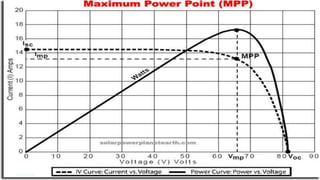

 This load characteristic is called the Maximum Power Point (MPP) and
MPPT is the process of finding the point.
17/05/2020

30. 17/05/2020

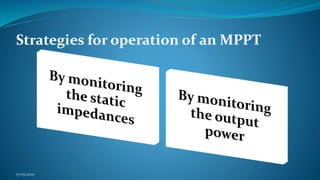

31. Strategies for operation of an MPPT
17/05/2020

32. By monitoring the static impedances
 A small signal current is periodically injected into the array bus as well as
static bus impedances (Zd and Zs respectively) are measured. The
operating voltage is then adjusted until the condition Zd = - Zs is achieved.
17/05/2020

33. By monitoring the output power

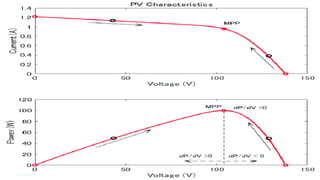

 The value of dP / dV is zero at maximum power point. This property is
utilized to track the minimum power point. Voltage is adjusted and power
output is sensed. The operating voltage is increased as long as dP / dV is
positive. That is, voltage is increased as long as we get increased output.
 If dP / dV is sensed negative, the operating voltage is decreased.
17/05/2020

34. 17/05/2020

35. 17/05/2020

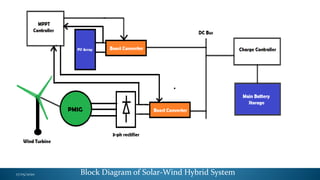

36. 17/05/2020 Block Diagram of Solar-Wind Hybrid System

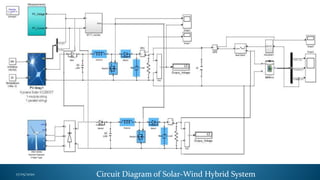

37. 17/05/2020 Circuit Diagram of Solar-Wind Hybrid System

38. Simulation Result
17/05/2020

39. 0
2
4
6
8
10
12
14
0s 1s 2s 3s 4s 5s 6s 7s 8s 9s
V
V
17/05/2020

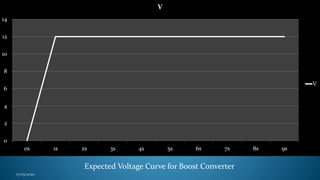

Expected Voltage Curve for Boost Converter

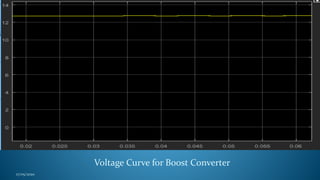

40. Voltage Curve for Boost Converter
17/05/2020

41. 0
0.2
0.4
0.6
0.8
1
1.2
0s 1s 2s 3s 4s 5s 6s 7s 8s 9s 10s
PWM
PWM
17/05/2020

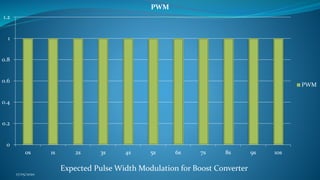

Expected Pulse Width Modulation for Boost Converter

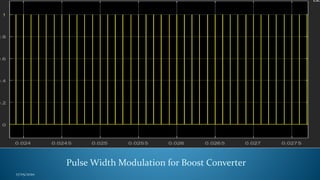

42. Pulse Width Modulation for Boost Converter
17/05/2020

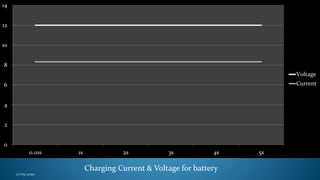

43. 0
2
4
6
8
10
12
14
0.01s 1s 2s 3s 4s 5s
Voltage
Current
17/05/2020
Charging Current & Voltage for battery

44. Charging Condition of Battery
17/05/2020

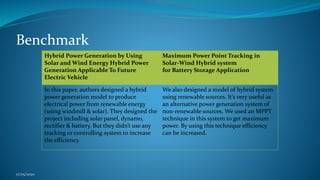

45. Benchmark
Hybrid Power Generation by Using
Solar and Wind Energy Hybrid Power
Generation Applicable To Future
Electric Vehicle
Maximum Power Point Tracking in
Solar-Wind Hybrid system
for Battery Storage Application
In this paper, authors designed a hybrid
power generation model to produce
electrical power from renewable energy
(using windmill & solar). They designed the
project including solar panel, dynamo,
rectifier & battery. But they didn’t use any
tracking or controlling system to increase
the efficiency.
We also designed a model of hybrid system
using renewable sources. It’s very useful as
an alternative power generation system of
non-renewable sources. We used an MPPT
technique in this system to get maximum
power. By using this technique efficiency
can be increased.
17/05/2020

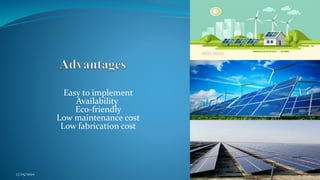

46. Easy to implement
Availability
Eco-friendly
Low maintenance cost
Low fabrication cost
17/05/2020

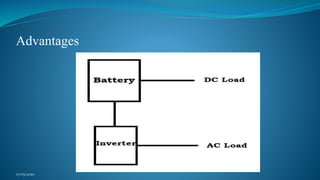

47. Advantages
17/05/2020

48. Comparatively High Installation cost
Speed of wind varies
Unavailability of PV in night hours
17/05/2020

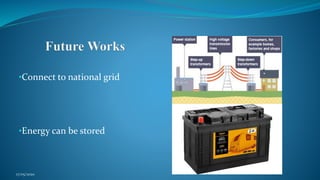

49. •Connect to national grid
•Energy can be stored
17/05/2020

50. Conclusion
 It is cleared from this study that, this solar-wind hybrid power generation
system provides voltage stability. Though it’s maintenance & fabrication
cost is low, consumers can get the power at low cost. From the results, it
indicates that the system has better dynamic behavior and it’s satisfying
the requirement of battery storage application at any environmental
condition & there’s no chance to pollute the environment. There’s no
carbon emission from this system.
