Smart buildings
- 2. CONTENTS WHAT ISA SMART BUILDING? OVERVIEW OF SMART BUILDING SECURITY SAFETY AND SURVEILLANCE ENERGY EFFICIENCY MEASURES DIFFERENCE BETWEEN SMART AND ORDINARY BUILDING ENVIRONMENTAL BENEFITS SMART BUILDINGS IN INDIA CONCLUSION
- 3. WHAT IS ASMART BUILDING? Smart building is the one which provide a productive and a cost-efficient environment They help the business owners, property managers and occupants to realize their goals in the area of cost, comfort, convenience, safety, long term flexibility and marketability. Also called as intelligent building or automated building.

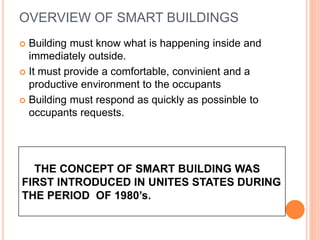

- 4. OVERVIEW OF SMARTBUILDINGS Building must know what is happening inside and immediately outside. It must provide a comfortable, convinient and a productive environment to the occupants Building must respond as quickly as possinble to occupants requests. THE CONCEPT OF SMART BUILDING WAS FIRST INTRODUCED IN UNITES STATES DURING THE PERIOD OF 1980’s.

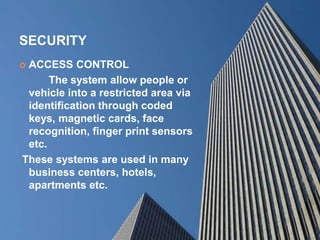

- 5. SECURITY ACCESS CONTROL Thesystem allow people or vehicle into a restricted area via identification through coded keys, magnetic cards, face recognition, finger print sensors etc. These systems are used in many business centers, hotels, apartments etc.

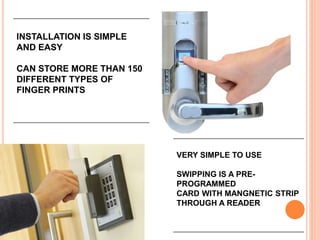

- 6. INSTALLATION IS SIMPLE ANDEASY CAN STORE MORE THAN 150 DIFFERENT TYPES OF FINGER PRINTS VERY SIMPLE TO USE SWIPPING IS A PRE- PROGRAMMED CARD WITH MANGNETIC STRIP THROUGH A READER

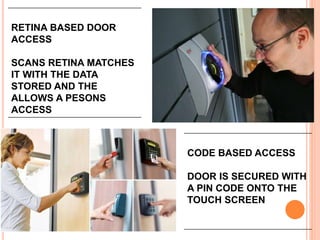

- 7. RETINA BASED DOOR ACCESS SCANSRETINA MATCHES IT WITH THE DATA STORED AND THE ALLOWS A PESONS ACCESS CODE BASED ACCESS DOOR IS SECURED WITH A PIN CODE ONTO THE TOUCH SCREEN
- 8. DOORS WITH ENHANCEDSECURITY GOJI SMART LOCK The Goji Smart Lock, with its own on-lock welcome screen, is packed with features. The device works both via Bluetooth for smart phone and fob proximity unlocking and via Wi-Fi for remote control functionality. No worries if you somehow lock yourself out without your phone –Goji maintains a customer service call center for lockout requests. Each Goji comes with 4 electronic keys and 2 mechanical backup keys.
- 9. CLEAN IS SMART Selfsterilizing door handles continuously give out UV - radiations and kill 99 percent of bacteria that cause diseases and also ensures child safety.
- 10. SAFETY AND SURVEILLANCE It consists of the use of high technology gadgets to improve the performance of fire alarms and the security cameras, at the same time minimizing costs
- 11. SOME OF THELIFE SAFETY FACTORS IN INTELLIGENT BUILDINGS Reduced man power dependence Closed Circuit Television Smoke detection Intrusion alarms Emergency control of elevators Uninterrupted power supply
- 12. SURVEILLANCE Helps inmonitoring movements within and outside the buildings using CCTV cameras or some devises such as intrusion alarms Helps in alerting the security manager in case of violation of pre-set norms.
- 13. SAFETY SMOKE DETECTION SYSTEM TURNSON ALARM WHEN DETECTS SMOKE FIRE PROTECTION SYSTEM WATER PUMP PUMP WATER WHERE THE FIRE OCCURS AND EXTINGUISH THE FIRE THROUGH SPRINKLER BULBS
- 14. ENERGY EFFICIENCY MEASURES AUTOMATIC LIGHTNING CONTROL i) The presence of humans inside the building is detected by using sensors ii) Thus the lights switch off itself when there is no humans inside the building and thu some energy is saved.

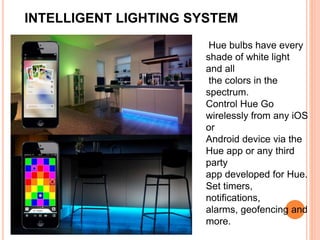

- 15. INTELLIGENT LIGHTING SYSTEM Huebulbs have every shade of white light and all the colors in the spectrum. Control Hue Go wirelessly from any iOS or Android device via the Hue app or any third party app developed for Hue. Set timers, notifications, alarms, geofencing and more.

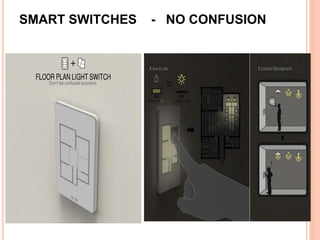

- 16. SMART SWITCHES -NO CONFUSION

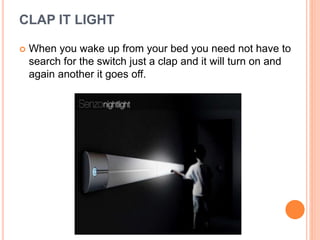

- 17. CLAP IT LIGHT When you wake up from your bed you need not have to search for the switch just a clap and it will turn on and again another it goes off.
- 18. SOLAR ROOFING These arehighly energy efficient and not a conventional solar panel they are made up of nano- crystals which provide insulation whereas other panels don’t . Moreover they are made up of titanium dioxide which absorbs smoke and also protects the building from fire.
- 19. HVAC Control i)HVAC – Heating Ventillation and Air-Conditioning. ii) Temperature inside the rooms is controlled with the help of sensors iii) Thus when the temperature reaches the particular degree the A/C turns off. Also the A/C turns on automatically when temperature is hot. Thus it helps in maintaining the constant room temperatute for the no. of accomodants in the room. Thus energy saving is done.

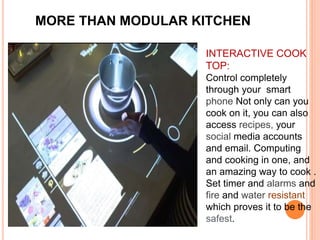

- 20. MORE THAN MODULARKITCHEN INTERACTIVE COOK TOP: Control completely through your smart phone Not only can you cook on it, you can also access recipes, your social media accounts and email. Computing and cooking in one, and an amazing way to cook . Set timer and alarms and fire and water resistant which proves it to be the safest.

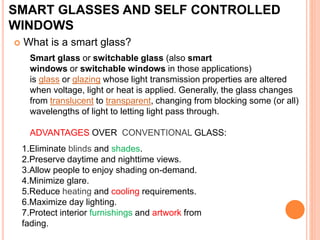

- 21. SMART GLASSES ANDSELF CONTROLLED WINDOWS What is a smart glass? Smart glass or switchable glass (also smart windows or switchable windows in those applications) is glass or glazing whose light transmission properties are altered when voltage, light or heat is applied. Generally, the glass changes from translucent to transparent, changing from blocking some (or all) wavelengths of light to letting light pass through. ADVANTAGES OVER CONVENTIONAL GLASS: 1.Eliminate blinds and shades. 2.Preserve daytime and nighttime views. 3.Allow people to enjoy shading on-demand. 4.Minimize glare. 5.Reduce heating and cooling requirements. 6.Maximize day lighting. 7.Protect interior furnishings and artwork from fading.
- 22. UNIQUE WATER METERDISPLAYS BOTH THE AMOUNT OF WATER CONSUMED AND ITS EQUIVALENT COST.

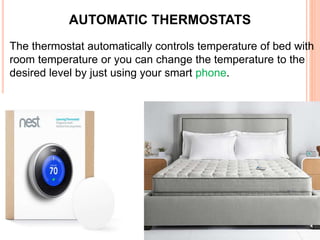

- 23. AUTOMATIC THERMOSTATS The thermostatautomatically controls temperature of bed with room temperature or you can change the temperature to the desired level by just using your smart phone.
- 24. THE DEVELOPMENT COSTOF A SMART BUILDING IS 8-10% HIGHER THAN THE ORDINARY BUILDING. BUT THIS CAN BE JUSTIFIED BY THE RESULTING ENERGY SAVING WHICH IS ONLY 25-35% OF THE ENERGY REQUIRED BY THE NORMAL BUILDING
- 25. DIFFERENCE BETWEEN ORDINARY ANDSMART BUILDING COST IS HIGH HARDWARE ENGINEER IS REQUIRED DURING ITS CONSTRUCTION HEATING AND VENTILLATION IS CONTROLLED BY SENSORS AND COMPUTERS COST IS LOW HARDWARE ENGINEER IS NOT REQUIRED HEATING AND VENTILLATION IS CONTROLLED BY ENVIRONMENTAL CONDITIONS SMART BUILDING ORDINARY BUILDING

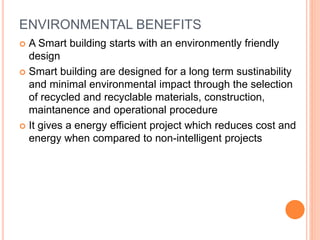

- 26. ENVIRONMENTAL BENEFITS ASmart building starts with an environmently friendly design Smart building are designed for a long term sustinability and minimal environmental impact through the selection of recycled and recyclable materials, construction, maintanence and operational procedure It gives a energy efficient project which reduces cost and energy when compared to non-intelligent projects
- 27. SMART BUILDINGS ININDIA It is an India multinational company that offers training and learning of various skills regarding computer education
- 28. COGNIZANT, INDIA It isan American multinational corporation that provides BPO services, information technology and consulting Situated in mumbai and bangalore

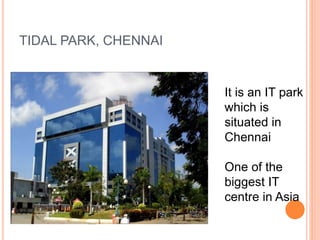

- 29. TIDAL PARK, CHENNAI Itis an IT park which is situated in Chennai One of the biggest IT centre in Asia
- 30. GATE WAY TOWER Situatedin Gurgoan in Haryana. It a business centre
- 31. OTHER FAMOUS SMARTBUILDING
- 32.
- 33.
- 34. NASA SUSTAINABILITY BASE,CALIFORNIA
- 35. CONCLUSION There areenormous benefits gained by the smart building In this 21st century with the advent of various artificial intelligent systems the cost of constructing a smart building may decrease and many such buildings are developing.
