2. CONTENTS
DEMAND FOR INTELLIGENT BUILDINGS
OBJECTIVES
FEATURES
HISTORY
GOALS
INTELLIGENT BUILDING MODEL
PRESENT TECHNOLOGY
SYSTEMS
CASE STUDY
FUTURE TRENDS
CONCLUSIONS
3. 1/3 1/2
136
MILLION
TONNES3/4
ELECTRICITY CO2 EMMISION RAW MATERIALS WASTE
IN UNITED STATES BUILDING
ACCOUNTS FOR…..
+
58000 MEGAWATTS ELECTRICITY SHORT FALL
EQUATING TO DEVELOPING OF POWERPLANT
EVERY MONTH FOR TEN YEARS…
6. SOLUTION LIES IN ELABORATING
EXISTING IT INFRASTRUCTURE TO
CREATE INTELLIGENT BUILDING….
ORDINARY BUILDING
IT APPLICATIONS
SMART BUILDING
7. WHAT IS AN INTELLIGENT BUILDING?
A building incorporating :
information systems that support the flow of
information
Allowing business automation
Monitoring management and maintenance
Ensuring flexibility ,simplicity and economy
……......IS AN INTELLIGENT BUILDING
9. ENERGY MANAGEMENT
Residential /
Commercial
41%
Industry
28%
Transport
31%
Energy Demand in the US in 2000
Healthcare Buildings
28% Water Heating
23% Space Heating
16% Lighting
6% Office Equipment
27% Other
Retail Buildings
37% Lighting
30% Space Heating
10% Space Cooling
6% Water Heating
17% Other
Intelligent Building aims
at design involving clean
and efficient technologies
that could reduce energy
consumption as well as
provide a better quality
of life for citizens.
10. INDOOR COMFORT
To ensure Intelligence everywhere in buildings :
for usages optimization, for comfort, for health, for
services

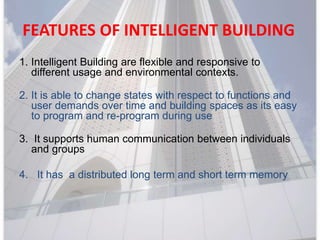

11. FEATURES OF INTELLIGENT BUILDING
1. Intelligent Building are flexible and responsive to
different usage and environmental contexts.
2. It is able to change states with respect to functions and
user demands over time and building spaces as its easy
to program and re-program during use
3. It supports human communication between individuals
and groups
4. It has a distributed long term and short term memory
12. FEATURES2
5. It contains tenant and administration service systems
6. It is equipped with sensors (stationary and mobile) for
direct or indirect input and manipulation of signals from
users, systems and the building structure
7.It is equipped with actuators for direct or indirect
manipulation installations and the building structure
8. It is well documented available in Virtual Reality with
physical structure overlay
13. HISTORY
YEAR MOVE TOWARDS DEVELOPMENT
1980 Yoneji Masuda writes the book
'Information Society' about changes in
society, information and knowledge
industries, participatory democracy,
examples from Japan.
1982 AT&T establish the concept
"INTELLIGENT BUILDINGS" due to
marketing reasons.
The INFORMART building is erected in
Dallas
1984-1985 The Smart House Development USA
'Automated Buildings', 'High Tech.
Buildings', 'Smart Houses'. STS, Shared
Tenants Services (using PABX, private
automatic branch exchange, is an
automatic telephone switching system
within a private enterprise,
Communication Service Management.
14. HISTORY2
YEAR MOVE TOWARDS DEVELOPMENT
1986 Seminar in Lund
1987 N.Y. Times "I.B. is a dumb idea".
1990
LonWorks technology work starts
1999 Bluetooth wireless communication
Lon Works use :
Home Automation, 15%
Industry Automation, 35%
Building Automation , 35%
Transport, etc.., 15%
17. INTELLIGENT BUILDING MODEL
The IB model structure has been subdivided into
seven systems These systems are...
Heating Ventilating and Air Conditioning (HVAC)
system
Lighting System
Electrical Power Distribution system
Vertical Transport System
Security System
Life Safety System
Communications System
19. PRESENT TECHNOLOGY
• Phones and intercoms
• Home automation
• Audio distribution (e.g. hi-fi speaker)
• Video distribution (e.g. TV)
• Video surveillance (e.g. security)
• Structured wiring
• Home theater, game station
20. SYSTEMS FOR INTELLIGENT BUILDINGS
Traditional systems
Proprietary systems
Complex cabling
Fieldbus systems
Reduced cabling
Standardisation
Higher accuracy
26. BACKGROUND
• Consist of 35-storey tower and six- storey podium block
• One of the earliest skyscraper in Kuala Lumpur
• It was designed in a modern Islamic style
• Has a shopping mall called City Point at podium block
30. BUILDING AUTOMATION
SYSTEM
CHILLER SYSTEM
AIR HANDLING UNITS SYSTEMS
LIGHTING CONTROL
ELECTRIC SYSTEMS
LIFT AND ESCALATORS
DRAINAGE SYSTEM
31. FIRE AUTOMATION SYSTEM
Computerized control monitor
Siren on the control panel to alert the
operator when there is an emergency
The printer will print the detection of
emergency for record automatically
Lift Control Panel
Lift Intercom
34. CCTV System that is monitor from BAS
Control Room
SYSTEMS
ESCALATOR
Network server for internet
and intranet connectivity
Siren on the control panel
to alert the operator when
there is an emergency
35. Dayabumi complex is now in a major renovation to
improve the condition of the Dayabumi Tower and building a
more sophisticated system in line with the current situation
This is in line to make complex Dayabumi as green
buildings with intelligent features
RECEPTIVENESS TO CHANGES
36. JAMES LAW CYBER TECTURE
INTERNATIONAL
COMMISIONED BY VIJAY ASSOCIATES, MUMBAI , INDIA
37. FUTURE TRENDS
The former Intelligent Building Institute (IBI)
foundation advocated, a few years ago, a need to
recognize, in future building designs, the transition
from national economies to a combination of local
and global economies and therefore the need to
facilitate each employee’s access to global
communication networks. They predicted that
information technology access will provide the
biggest single impetus for change in the office
environment.
This prediction has now become a reality…..
38.
39. CONCLUSIONS
“INTELLIGENT BUILDING IS MORE THAN
BUILDING , IT IS LIVING SYSTEM”
Following concept
provides adaptation to growing market and
communication globalization
improve worker satisfaction and productivity
enhance flexibility and management capabilities
reduces energy consumption needs.
lead to positive Cost to Benefit
increased user satisfaction
as potential future savings over the projected life cycle of the
building
40.
41. REFERENCES
A. Intelligent Building Concept Commissioned by
PWGSC A&ES Technology ,Project manager
Winston Hetherington
B. CBA conference – Cambridge – May 2006 report
by Jean-Christophe HUTT ,Innovation &
Technology for Energy Efficiency, Services Division
C. Intelligent Buildings International, CIB encouraged
journal
D. Intelligent Building Systems ,by Albert Ting-pat So,
Wai Lok Cha
