1. ASP. NET Web server Controls
Session 9

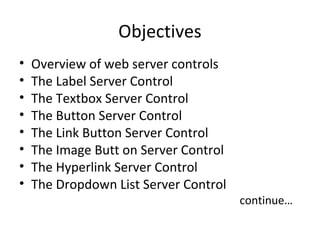

2. Objectives
• Overview of web server controls
• The Label Server Control
• The Textbox Server Control
• The Button Server Control
• The Link Button Server Control
• The Image Butt on Server Control
• The Hyperlink Server Control
• The Dropdown List Server Control
continue…

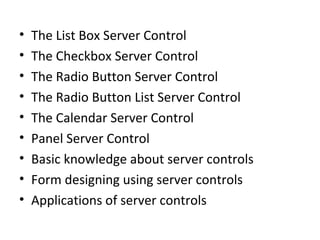

3. • The List Box Server Control
• The Checkbox Server Control
• The Radio Button Server Control
• The Radio Button List Server Control
• The Calendar Server Control
• Panel Server Control
• Basic knowledge about server controls
• Form designing using server controls
• Applications of server controls

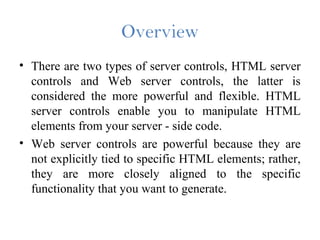

4. Overview
• There are two types of server controls, HTML server
controls and Web server controls, the latter is
considered the more powerful and flexible. HTML
server controls enable you to manipulate HTML
elements from your server - side code.
• Web server controls are powerful because they are
not explicitly tied to specific HTML elements; rather,
they are more closely aligned to the specific
functionality that you want to generate.

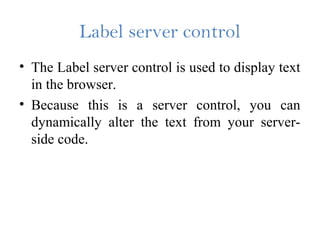

5. Label server control
• The Label server control is used to display text
in the browser.
• Because this is a server control, you can
dynamically alter the text from your server-
side code.

6. Example
<form id="form1" runat="server">
<p>
<asp:Label ID="Label1" runat="server"
AccessKey="N">User<u>n</u>ame
</asp:Label>
<asp:TextBox ID="TextBox1"
runat="server"></asp:TextBox></p
>
<p>
<asp:Label ID="Label2" runat="server"
AccessKey="P"><u>P</u>assword<
/asp:Label>
<asp:TextBox ID="TextBox2"
Runat="server"></asp:TextBox></
p>
<p>
<asp:Button ID="Button1"
runat="server" Text="Submit" />
</p>
</form>

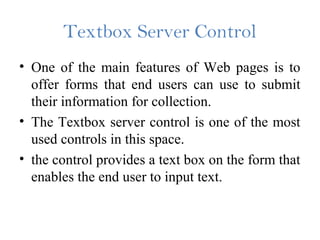

7. Textbox Server Control
• One of the main features of Web pages is to
offer forms that end users can use to submit
their information for collection.
• The Textbox server control is one of the most
used controls in this space.
• the control provides a text box on the form that
enables the end user to input text.

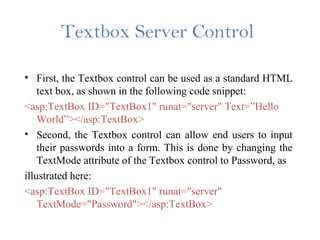

8. Textbox Server Control
• First, the Textbox control can be used as a standard HTML
text box, as shown in the following code snippet:
<asp:TextBox ID="TextBox1" runat="server" Text=”Hello
World”></asp:TextBox>
• Second, the Textbox control can allow end users to input
their passwords into a form. This is done by changing the
TextMode attribute of the Textbox control to Password, as
illustrated here:
<asp:TextBox ID="TextBox1" runat="server"
TextMode="Password"></asp:TextBox>

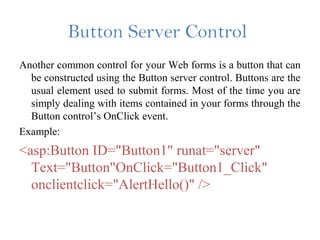

9. Button Server Control
Another common control for your Web forms is a button that can
be constructed using the Button server control. Buttons are the
usual element used to submit forms. Most of the time you are
simply dealing with items contained in your forms through the
Button control’s OnClick event.
Example:
<asp:Button ID="Button1" runat="server"
Text="Button"OnClick="Button1_Click"
onclientclick="AlertHello()" />

10. LinkButton Server Control
The Link Button server control is a variation of the
Button control. It is the same except that the Link
Button control takes the form of a hyperlink.
Nevertheless, it is not a typical hyperlink. When the
end user clicks the link, it behaves like a button. This
is an ideal control to use if you have a large number
of buttons on your Web form.

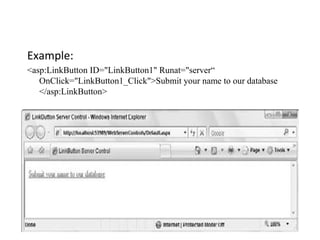

11. Example:
<asp:LinkButton ID="LinkButton1" Runat="server“
OnClick="LinkButton1_Click">Submit your name to our database
</asp:LinkButton>

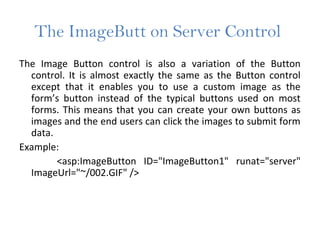

12. The ImageButt on Server Control
The Image Button control is also a variation of the Button
control. It is almost exactly the same as the Button control
except that it enables you to use a custom image as the
form’s button instead of the typical buttons used on most
forms. This means that you can create your own buttons as
images and the end users can click the images to submit form
data.
Example:
<asp:ImageButton ID="ImageButton1" runat="server"
ImageUrl="~/002.GIF" />

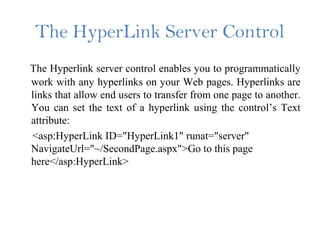

13. The HyperLink Server Control
The Hyperlink server control enables you to programmatically
work with any hyperlinks on your Web pages. Hyperlinks are
links that allow end users to transfer from one page to another.
You can set the text of a hyperlink using the control’s Text
attribute:
<asp:HyperLink ID="HyperLink1" runat="server"
NavigateUrl="~/SecondPage.aspx">Go to this page
here</asp:HyperLink>

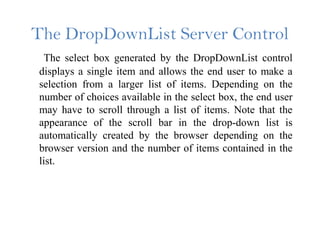

14. The DropDownList Server Control
The select box generated by the DropDownList control
displays a single item and allows the end user to make a
selection from a larger list of items. Depending on the
number of choices available in the select box, the end user
may have to scroll through a list of items. Note that the
appearance of the scroll bar in the drop-down list is
automatically created by the browser depending on the
browser version and the number of items contained in the
list.

15. Example:
<asp:DropDownList ID="DropDownList1" runat="server">
<asp:ListItem>Car</asp:ListItem>
<asp:ListItem>Airplane</asp:ListItem>
<asp:ListItem>Train</asp:ListItem>
</asp:DropDownList>

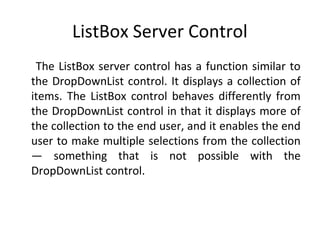

16. ListBox Server Control
The ListBox server control has a function similar to
the DropDownList control. It displays a collection of
items. The ListBox control behaves differently from
the DropDownList control in that it displays more of
the collection to the end user, and it enables the end
user to make multiple selections from the collection
— something that is not possible with the
DropDownList control.

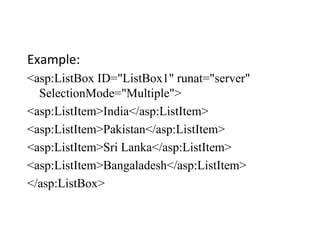

17. Example:
<asp:ListBox ID="ListBox1" runat="server"
SelectionMode="Multiple">
<asp:ListItem>India</asp:ListItem>
<asp:ListItem>Pakistan</asp:ListItem>
<asp:ListItem>Sri Lanka</asp:ListItem>
<asp:ListItem>Bangaladesh</asp:ListItem>
</asp:ListBox>

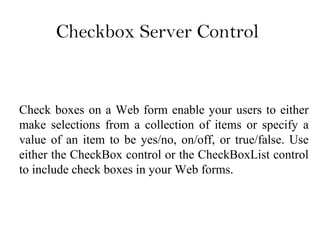

18. Checkbox Server Control
Check boxes on a Web form enable your users to either
make selections from a collection of items or specify a
value of an item to be yes/no, on/off, or true/false. Use
either the CheckBox control or the CheckBoxList control
to include check boxes in your Web forms.

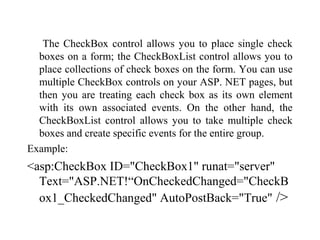

19. The CheckBox control allows you to place single check
boxes on a form; the CheckBoxList control allows you to
place collections of check boxes on the form. You can use
multiple CheckBox controls on your ASP. NET pages, but
then you are treating each check box as its own element
with its own associated events. On the other hand, the
CheckBoxList control allows you to take multiple check
boxes and create specific events for the entire group.
Example:
<asp:CheckBox ID="CheckBox1" runat="server"
Text="ASP.NET!“OnCheckedChanged="CheckB
ox1_CheckedChanged" AutoPostBack="True" />

20. RadioButtonList Server Control
The RadioButtonList server control lets you display a collection of
radio buttons on a Web page. The RadioButtonList control is quite
similar to the CheckBoxList and other list controls in that it allows you
to iterate through to see what the user selected, to make counts, or to
perform other actions.
Example:
<asp:RadioButtonList ID="RadioButtonList1" runat="server">
<asp:ListItem Selected="True">English</asp:ListItem>
<asp:ListItem>Russian</asp:ListItem>
<asp:ListItem>Italian</asp:ListItem>
<asp:ListItem>Swedish</asp:ListItem>
</asp:RadioButtonList>

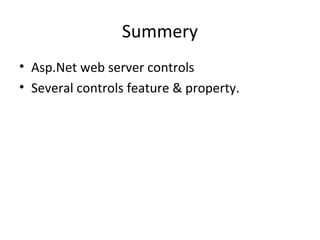

21. Summery
• Asp.Net web server controls
• Several controls feature & property.
