1. Web API 2 With MVC 5
KRUNAL TRIVEDI
Microsoft Certified Trainer
Email : it.ktrivedi@gmail.com
www.iamkrunaltrivedi.com
about.me/TrainerKrunal
Tweet : @TrainerKrunal

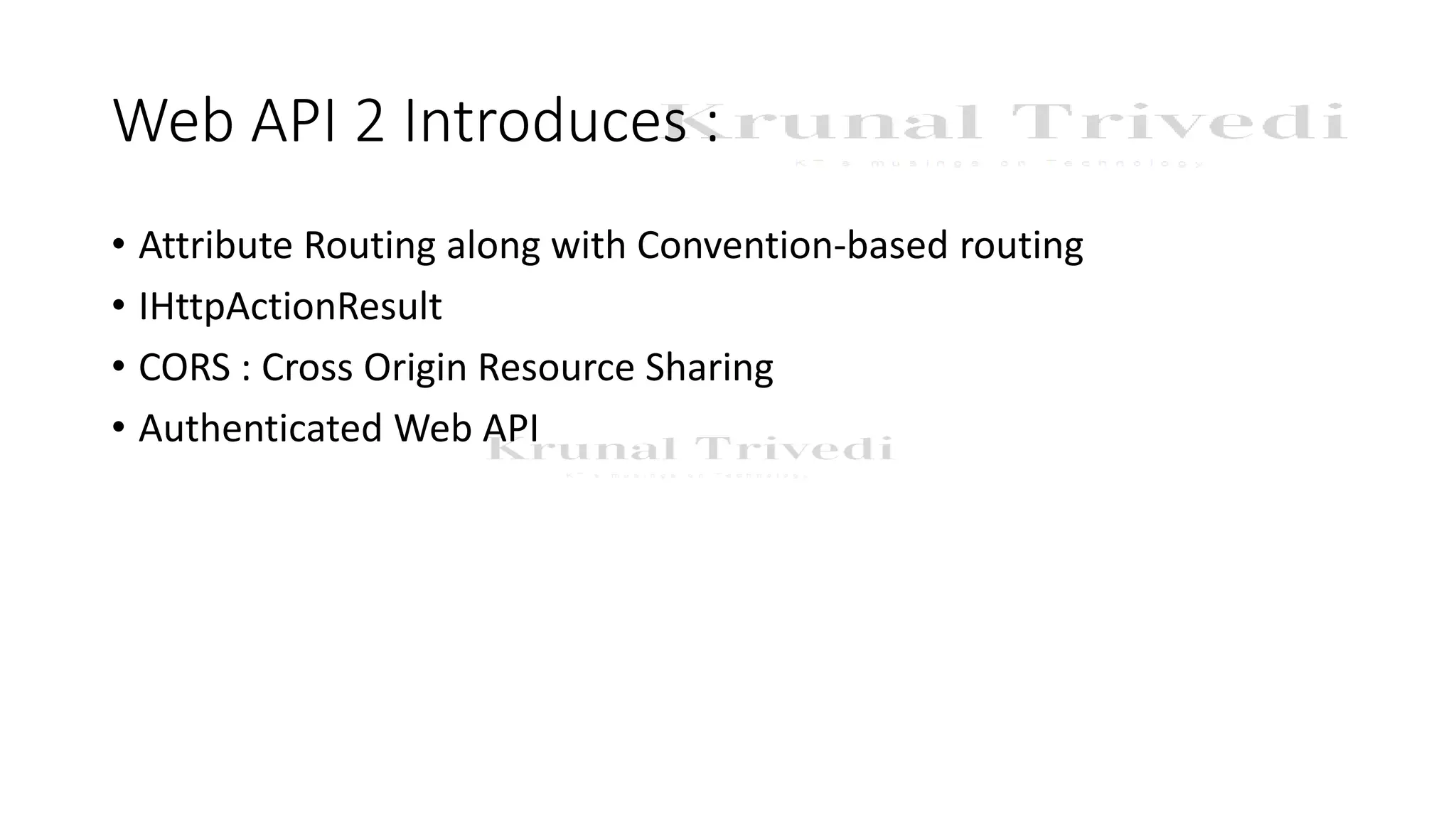

2. Web API 2 Introduces :
• Attribute Routing along with Convention-based routing
• IHttpActionResult
• CORS : Cross Origin Resource Sharing
• Authenticated Web API

3. IHttpActionResult
• IHttpActionResult interface defines a command that asynchronously
creates an HttpResponseMessage.
• IHttpActionResult interface contains ExecuteAsync() method which
creates an HttpResponseMessage asynchronously.

5. • A Web API controller action can return any of the following
• Void
• HttpResponseMessage
• IHttpActionResult
• Some other type

6. IHttpActionResult
• The IHttpActionResult interface introduced in Web API 2.
• It defines HttpResponseMessage factory.
• It contains single method , ExecuteAsync , which asynchronously creates an
HttpResponseMessage instance.

8. • If a controller action returns an IHttpActionResult , Web API calls the
ExecuteAsync method to create an HttpResponseMessage.
• Then it converts the HttpResponseMessage into an HTTP response message.

9. CORS : Cross Origin Resource Sharing
• CORS allows JavaScript in the browser to call an API on the different domain.
• Cross-Origin Resource Sharing is a specification that enables truly open access
across domain-boundaries.
• If you serve public content , please consider using CORS to open it up for
universal JavaScript/browser access.
• It calls an API on the different server somewhere different from it’s origin.
• For you , cross domain call is blocked by browser by default and disallowed for
the security risk.
• But , it is extremely useful if we able to do this.
• If other server allows it browser can call to that server.

10. • CORS defines a way in which the browser and the server can interact to
determine whether or not to allow the cross-origin request.
• The CORS standard works by adding new HTTP headers which allow servers to
serve resources to permitted origin domains.
• Browsers supports this headers and respect the restrictions they establish.

11. “CORS can be used as a modern alternative to
the JSONP pattern”
• While JSONP supports only the GET request method.
• CORS also supports other types of HTTP requests.
• Using CORS enables a web programmer to use regular XMLHttpRequest, which
supports better error handling than JSONP.
• JSONP can cause Cross-site-scripting issues where the external site is
compromised , CORS allows websites to manually parse responses to ensure
security.

12. How CORS work
• To initiate a cross-origin request , a browser sends the request with an Origin
HTTP Header.
• The value of this header is the domain that served the page.
• For example , suppose a page from http://www.iamkrunaltrivedi.com attempts to
access a user’s data in http://www.online-city-directory.com
• If the user’s browser implements CORS , the following request header would be
sent to online-city-directory.com
Origin : http://www.iamkrunaltrivedi.com

13. • If http://www.online-city-directory.com allows the request , it sends an Access-
Control-Allow-Origin (ACAO) header in its response.
• The value of the header indicates what origin sites are allowed.
• For example , a response to the previous request could contain the following :
Access-Control-Allow-Origin : http://www.iamkrunaltrivedi.com

14. • If the server does not allow the Cross-origin request , the browser will deliver an
error to http://www.iamkrunaltrivedi.com page instead of the
http://www.online-city-directory.com response.
• To allow access from all domains , a server can send the following response
header :
Access-Control-Allow-Origin : *

15. Demo
Web API2 With MVC 5

16. Create New ASP.NET Web Application

17. Select Web API Template with MVC

18. Right Click on ModelAdd New ClassCustomer.cs

20. Right Click on Controller  Add Controller

21. Select Web API 2 Empty Controller

22. Name it CustomerController

23. CustomerController

24. Right Click on SolutionAdd New ProjectASP.NET Web Application

25. Select Empty Web Application Template

26. Right Click on WebAPIConsumer ProjectAdd New ItemHTML
PageCustomerPage.html

27. Go To Quick Launch and Open Manage NuGet Packages

28. Select jQuery Package and Install

29. After installation of jQuery we will get Scripts directory along with jQuery files

30. Create CustomerPage.cshtml page as shown below

31. Right Click on CustomerPage.html pageView In BrowserClick on Get Customers
buttonYou can see XMLHttpRequest cannot load , No Access-Control-Allow-Origin
header is present on the requested resource.

32. • Now , to Enable CORS we need following Dlls
• System.Web.Cors.dll
• System.Web.Http.Cors.dll
• Add reference of this dlls….

33. Again , Go Back to KTWebAPI2Demo project , our source project , Open Package
Manager Console and Search for CORS , install ASP.NET Web API Cors-Origin

35. OR OPTIONALLY

36. Open WebApiConfig.cs and write down below code

37. Now, Set your WebAPIConsumer Project as start up project , Run your applicationClick on buttonyou can
see your getting data.To Check open Developes Tools and check the headers..

38. Getting a Customer By Id
• To get a customer by ID, send an HTTP GET request to
"/api/customer/id", where id is the CustomerId. Add the following
code to the script block

39. Modify your CustomerPage.html as shown below
Here , we are adding a label , a textbox and a button .
OnClick of button we are calling FindDetails() function which we will create next.

40. Create JavaScript function as shown below

41. Final , page looks a like

42. Here , you can see the Final desired output.
Again observe the URL…we are accessing the data of web application hosted on port
1436 from the Web Application hosted on port 1654…Thanks to CORS

43. Attribute Routing

44. Open CustomerControllerModify your GetCustomerId function….
Here we are using [Route] attribute to define the custom route.
We also mention that CustomerId parameter must have an integer value.

45. Open WebApiConfig.cs and make sure you have MapHttpAttributeRoutes method
defined

48. Here , I have defined constraints…. Integer value must not be less then 2

50. We can also define below constraints…

51. IHttpActionResult
• IHttpActionResult is now supported in Web API 2.
• Now , same as your MVC ActionResult ,which has ViewResult ,
RedirectToActionResult ,now in Web API 2 IHttpActionResult return type also
return multiple types like OKResult , NotFoundResult , ConflictResult ,
BadRequestResult etc..
• IHttpActionResult simplifies unit testing process.
• It contains single method , ExecuteAsync , which asynchronously creates an
HttpResponseMessage instance
