Session 4
•Download as PPTX, PDF•
1 like•1,388 views

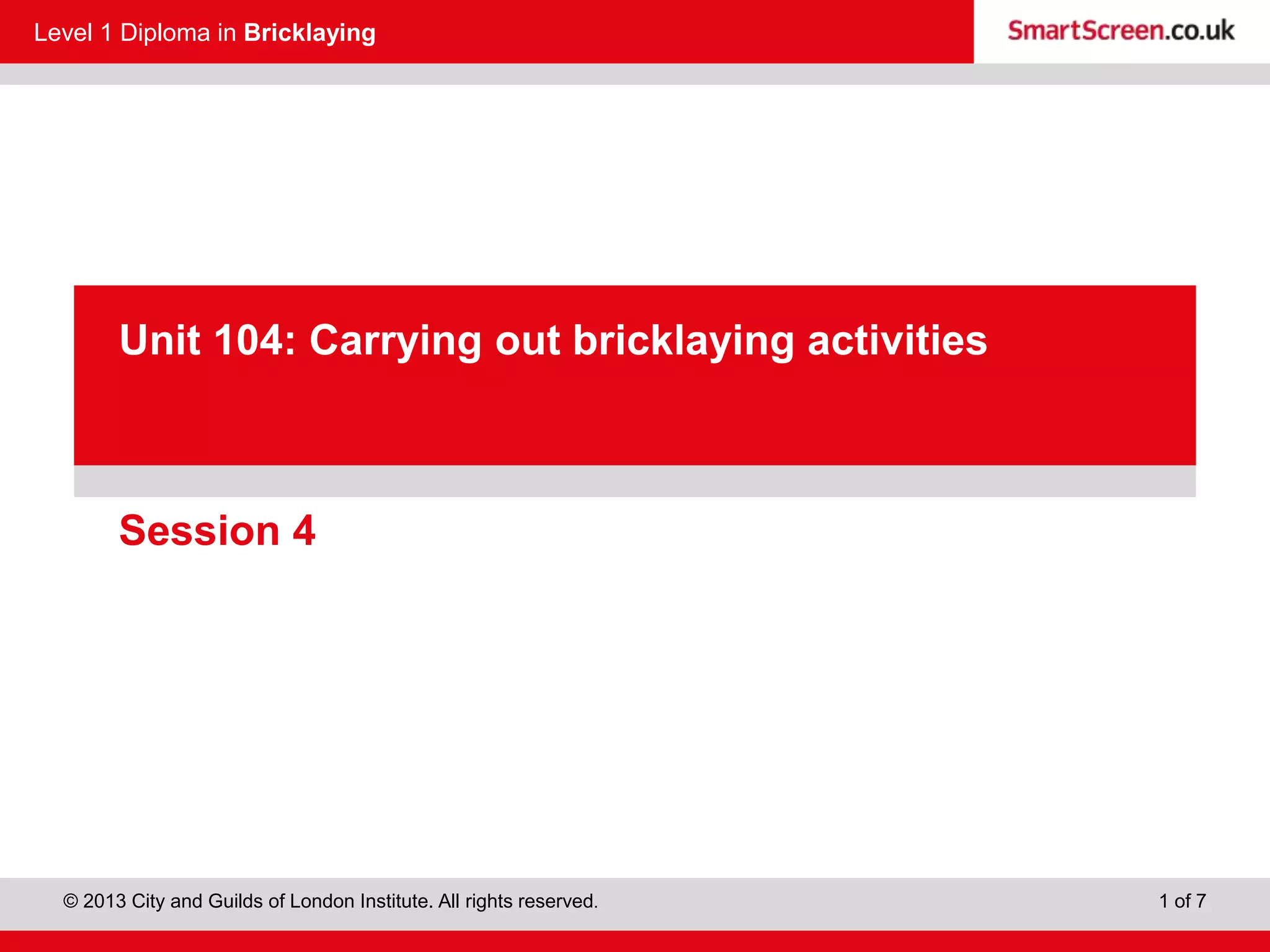

The document discusses techniques for cutting bricks when doing bricklaying work. It recommends placing cut bricks in a broken bond near the center of the wall or underneath doors and windows. It also notes that when including a half-bat brick, the courses above and below will need to contain three-quarter cuts to maintain the bond. The document provides tips for cleanly cutting bricks with sharp edges and safety precautions. It suggests damping vibrations when cutting and notes the compressive strength and brittleness of many bricks. Methods like measuring and marking or using a gauge are presented for accurately cutting half-bat bricks.
