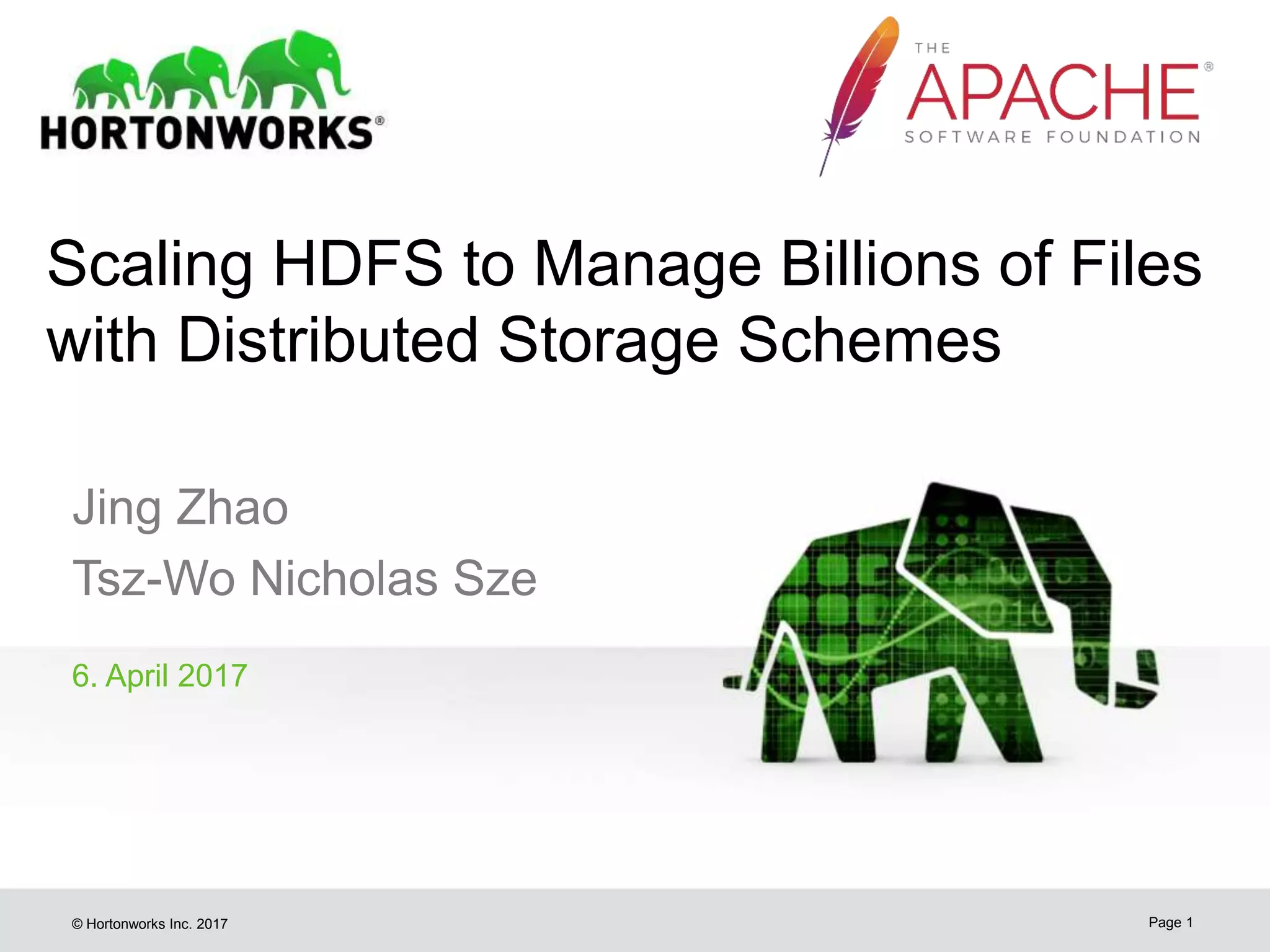

Scaling HDFS to Manage Billions of Files
with Distributed Storage Schemes
Jing Zhao
Tsz-Wo Nicholas Sze
6. April 2017
Page 1

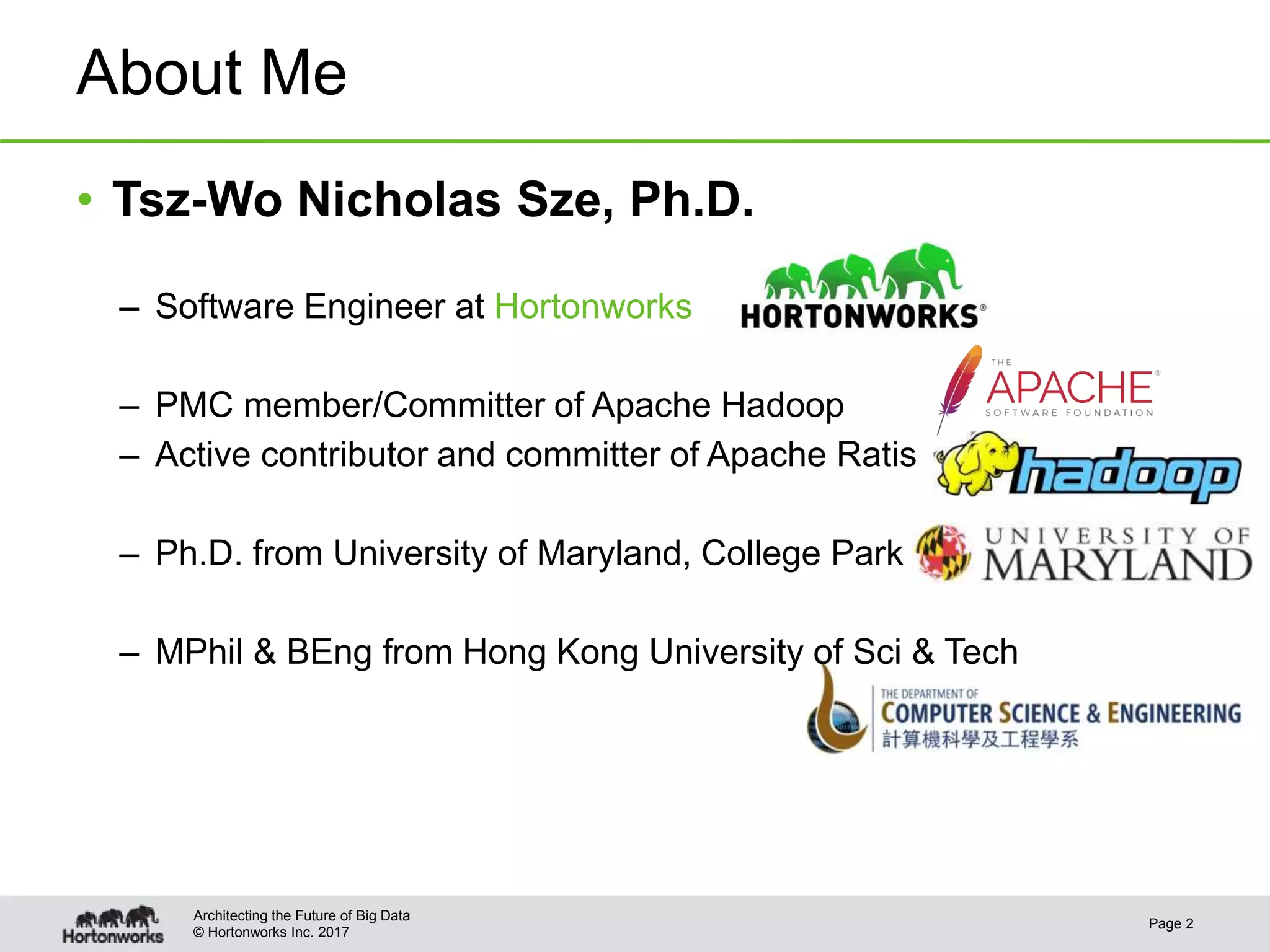

About Me
• Tsz-Wo Nicholas Sze, Ph.D.
– Software Engineer at Hortonworks
– PMC member/Committer of Apache Hadoop
– Active contributor and committer of Apache Ratis
– Ph.D. from University of Maryland, College Park
– MPhil & BEng from Hong Kong University of Sci & Tech
Page 2
Architecting the Future of Big Data

• Jing Zhao, Ph.D.
– Software Engineer at Hortonworks
– PMC member/Committer of Apache Hadoop
– Active contributor and committer of Apache Ratis
– Ph.D. from University of Southern California
– B.E. from Tsinghua University, Beijing
Page 3

Agenda
• Current HDFS Architecture
• Namespace Scaling
• Container Architecture
– Containers
– Next Generation HDFS
– Ozone – Hadoop Object Store
– cBlock
• Current Development Status
Page 4

Current HDFS
Architecture
Page 5

HDFS Architecture
Page 7
Namenode
Heartbeats & Block Reports
Block
Map Block ID  Block Locations
Datanodes
Block ID  Data
Namespace
Tree
File Path  Block IDs
Horizontally Scale IO and Storage
7
b1
b5
b3
BlockStorageNamespace
b2
b3
b1 b3
b5
b2 b1
b5
b2

Foreign
NS n
Common Storage
HDFS Layering
Page 14
DN 1 DN 2 DN m
..
NS1
... ...
NS k
Block PoolsPool nPool kPool 1
NN-1 NN-k NN-n
BlockStorageNamespace
.. ..

Scalability – What HDFS Does Well?
• HDFS NN stores all metadata in memory (as per GFS)
– Scales to large clusters (5k) and since all metadata in memory
• 60K-100K tasks (large # of parallel ops) can share Namenode
• Low latency
• Large data if files are large
– Proof points of large data and large clusters
• Single Organizations have over 600PB in HDFS
• Single clusters with over 200PB using federation
Page 15
Metadata in memory the strength of the original GFS and HDFS design
But also its weakness in scaling number of files and blocks

Scalability – The Challenges
• Large number of files (> 350 million)
– The files may be small in size.
– NN’s strength has become a limitation
• Number of file operations
– Need to improve concurrency – move to multiple name servers
• HDFS Federation is the current solution
– Add NameNodes to scale number of files & operations
– Deployed at Twitter
• Cluster with three NameNodes 5000+ node cluster (Plans to grow to 10,000 nodes)
– Back ported and used at Facebook to scale HDFS
Page 16

Scalability – Large Number of Blocks
• Block report processing
– Datanode block reports also become huge
– Requires a long time to process them.
Namenode
Datanodes
b1
b5
b3b2
b3
b1 b3
b5
b2 b1
b5
b2
Heartbeats & Block Reports

Namespace Scaling
Page 19

Partial Namespace - Briefly
• Has been prototyped
– Benchmarks so that model works well
– Most file systems keep only partial namespace in memory but not at this
scale
• Hence Cache replacement policies of working-set is important
• In Big Data, you are using only the last 3-6-12 months of your five/ten years of data
actively => working set is small
• Work in progress to get it into HDFS
• Partial Namespace has other benefits
– Faster NN start up – load-in the working set as needed
– Allows n+k failover as all the namespace does not need to fit in memory
– Partial Namespace in Memory will allow multiple namespace volumes
Page 21

Previous Talks on Partial Namespace
• Evolving HDFS to a Generalized Storage Subsystem
– Sanjay Radia, Jitendra Pandey (@Hortonworks)
– Hadoop Summit 2016
• Scaling HDFS to Manage Billions of Files with Key Value Stores
– Haohui Mai, Jing Zhao (@Hortonworks)
– Hadoop Summit 2015
• Removing the NameNode's memory limitation
– Lin Xiao (Phd student @CMU, intern @Hortonworks)
– Hadoop User Group 2013

Container Architecture
Page 23

Containers
• Container – a storage unit
• Local block map
– Map block IDs to local block locations.
• Small in size
– 5GB or 32GB (configurable)
Page 24
b6b1 b3
Block Map
c1
Containers
b8b2 b7
Block Map
c2

Distributed Block Map
• The block map is moved from the namenode to datanodes
– The block map becomes distributed
– Entire container is replicated
– A datanode has multiple containers
Page 25
b6b1 b3
Block Map
c1
b6b1 b3
Block Map
c1
b6b1 b3
Block Map
c1
c1
c5
c3
Containers
c1
c4
c2 c2
c6
c3
Datanodes

SCM – Storage Container Manager
SCM
Heartbeats & Container Reports
Container
Map Container ID  Container Locations
Datanodes
c1
c5
c3c2
c3
c1 c3
c5
c2 c1
c5
c2

Next Generation HDFS
Namenode/SCM
Container
Datanodes
c1
c5
c3c2
c3
c1 c3
c5
c2 c1
c5
c2
Namespace
Tree
File Path  Block IDs and Container IDs

Billions of Files
• Current HDFS architecture
– Support 1 million blocks per datanode
– A 5k-node cluster can store 5 billion blocks.
• Next generation HDFS architecture
– Support up to 1 million blocks per container
• Provided that the total block size can fit into a container.
– A 5k-node cluster could have 1 million containers
– The cluster can store up to 1 trillion (small) blocks.
– HDFS can easily scale to mange billions of files!
Page 28

Ozone – Hadoop Object Store
• Store KV (key-value) pairs
– Similar to Amazon S3
• Need a Key Map – a key-to-container-id map
• Containers are partial object stores (partial KV maps)
Page 29
Ozone
Container
Datanodes
c1
c5
c3c2
c3
c1 c3
c5
c2 c1
c5
c2
Key MapKey  Container IDs

Challenge – Trillions of Key-Value Pairs
• Values (Objects) are distributed in datanodes
– 5k nodes can handle a trillion of objects (no problem)
• Trillions of keys in the Key Map
– The Key Map becomes huge (TB in size)
– Cannot fit in memory – the same old problem
• Avoid storing all keys in the Key Map
– Hash partitioning
– Range partitioning
– Partitions can be split/merged
Page 30
Ozone
Key MapKey  Container IDs

Challenge – Millions of Containers
• Object store
– Users may choose to use any key combinations
• Hash/Range partitioning
– Map a key to a key partition
– Each container stores the partial KV map according to the partitioning
• Need millions of containers (partitions) for trillions of keys
– User clients may read or write to any of these containers.
• Users decide the key; the partitioning decides the partition of the key
– All containers need to send key reports to SCM
• A scalability issue!
Page 31
c1: Partition 1 c2: Partition 2 c3: Partition 3 …

Solution – Closed Containers
• Initially, a container is open for read and write
• Close the container
– once the container has reached a certain size, say 5GB or 32GB.
• Closed containers are immutable
– Cannot add new KV entries
– Cannot overwrite KV entries
– Cannot delete KV entries
– Cannot be reopened
• Open containers
– New KV entries are always written to open containers
– Only need a small number of open containers (hundreds/thousands)
Page 32

Solution – Keychain Containers
• In order to support Closed containers
– Hash/range partitioning cannot be used directly
– New keys cannot be mapped to a closed containers!
• Distribute the Key Map (key-to-container-id)
– Use hash partitioning to partition the Key Map
– Store a key partition in a Keychain container
• Keychain containers (partial key maps)
– Special system containers (with the same container implementation)
– 10GB can store 100 million entries
– Need only thousands keychain containers
• One more map: a key-to-keychain-container map
– Very small in size (KB)
– The map is mostly constant (keychains do not split/merge often)
– Stored in SCM, cached everywhere
Page 33

Summary of the Mappings
• Ozone: a key-to-value map (PB or even EB in size)
– Distributed over containers
– Containers: partial key-to-value map (GB in size @)
• Key Map: key-to-container-id (TB in size)
– Distributed over keychain containers
– Keychain Containers: partial key-to-container-id map (GB in size @)
• Keychain Map: key-to-keychain-container (KB in size)
– Use hash partitioning
• Container Map: container-id-to-locations (GB in size)
– Cached in all the keychain containers
Page 34

Object Lookup
• Step 1
– Client computes the hash of the key, and
– find out the keychain container from the cache.
– (For cache miss, load the cache from SCM.)
• Step 2
– Client lookups container locations from the keychain container
• Step 3
– The keychain container replies the locations to client
• Step 4
– Client lookups the object from the container
Page 35

Object Creation
• Step 1 (same as before)
– Client computes the hash of the key, and
– find out the keychain container from the cache.
– (For cache miss, load the cache from SCM.)
• Step 2
– Client sends a create request to the keychain container.
• Step 3
– The keychain container allocates the key to an open container, and
– replies the container locations to client.
• Step 4
– Client writes to the container.
Page 36

Container Replication
• Closed containers
– Replication or Erasure Coding
– The same way HDFS does for blocks
• Open containers are replicated by Raft
– Raft – a consensus algorithm
– Apache Ratis – an implementation of Raft
• More detail in later slides
Page 37

cBlock
• A block device backed by containers
– highly available, replicated and fault tolerant
• Block device
– allow users to create normal file systems on top of it like ext4 or XFS
• HDFS-11118: Block Storage for HDFS
Page 38

Big Picture
Page 39
DataNodes
Block
Containers
Object Store
Containers
Cluster
Membership
Replication
Management
Container
Location Service
Container Management Services
(Runs on DataNodes)
HBase
Object
Store
Metadata
Applications
HDFS
Physical Storage - Shared

Current Development
Status
Page 40

HDFS-7240 – Object store in HDFS
• The umbrella JIRA for the Ozone including the container
framework
– 130 subtasks
– 103 subtasks resolved (as of 5. April)
– Code contributors
• Anu Engineer, Arpit Agarwal, Chen Liang, Chris Nauroth, Kanaka Kumar Avvaru,
Mukul Kumar Singh, Tsz Wo Nicholas Sze, Weiwei Yang, Xiaobing Zhou, Xiaoyu
Yao, Yuanbo Liu,
Page 41

HDFS-11118: Block Storage for HDFS
• The umbrella JIRA for additional work for cBlock
– 13 subtasks
– 10 subtasks resolved (as of 5. April)
– Code contributor
• Chen Liang
• cBlock has already been deployed in Hortonworks’ QE
environment for several months!
Page 42

Raft – A Consensus Algorithm
• “In Search of an Understandable Consensus Algorithm”
– The Raft paper by Diego Ongaro and John Ousterhout
– USENIX ATC’14
• “In Search of a Usable Raft Library”
– A long list of Raft implementations is available
– None of them a general library ready to be consumed by other projects.
– Most of them are tied to another project or a part of another project.
• We need a Raft library!
Page 43

Apache Ratis – A Raft Library
• A brand new, incubating Apache project
– Open source, open development
– Apache License 2.0
– Written in Java 8
• Emphasized on pluggability
– Pluggable state machine
– Pluggable Raft log
– Pluggable RPC
• Supported RPC: gRPC, Netty, Hadoop RPC
• Users may provide their own RPC implementation
• Support high throughput data ingest
– for more general data replication use cases.
Page 44

Apache Ratis – Use cases
• General use case:
– You already have a service running on a single server.
• You want to:
– replicate the server log/states to multiple machines
• The replication number/cluster membership can be changed in runtime
– have a HA (highly available) service
• When a server fails, another server will automatically take over.
• Clients automatically failover to the new server.
• Apache Ratis is for you!
• Use cases in Ozone/HDFS
– Replicating open containers (HDFS-11519, committed on 3. April)
– Support HA in SCM
– Replacing the current Namenode HA solution
Page 45

Apache Ratis – Development Status
• A brief history
– 2016-03: Project started at Hortonworks
– 2016-04: First commit “leader election (without tests)”
– 2017-01: Entered Apache incubation.
– 2017-03: Started preparing the first Alpha release (RATIS-53).
– 2017-04: Hadoop Ozone branch started using Ratis (HDFS-11519)!
• Committers
– Anu Engineer, Arpit Agarwal, Chen Liang, Chris Nauroth, Devaraj Das,
Enis Soztutar, Hanisha Koneru, Jakob Homan, Jing Zhao, Jitendra
Pandey, Li Lu, Mayank Bansal, Mingliang Liu, Tsz Wo Nicholas Sze,
Uma Maheswara Rao G, Xiaobing Zhou, Xiaoyu Yao
• Contributions are welcome!
– http://incubator.apache.org/projects/ratis.html
– dev@ratis.incubator.apache.org
Page 46

Thank You!
Page 47

Scaling HDFS to Manage Billions of Files with Distributed Storage Schemes

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (13)

Similar to Scaling HDFS to Manage Billions of Files with Distributed Storage Schemes

Similar to Scaling HDFS to Manage Billions of Files with Distributed Storage Schemes (20)

More from DataWorks Summit/Hadoop Summit

More from DataWorks Summit/Hadoop Summit (20)

Recently uploaded

Recently uploaded (20)

Scaling HDFS to Manage Billions of Files with Distributed Storage Schemes
