ABSTRACT OF THE TALK Kubernetes has hit a home run for stateless workloads, but can it do the same for stateful services such as distributed databases? Before we can answer that question, we need to understand the challenges of running stateful workloads on, well anything. In this talk, we will first look at which stateful workloads, specifically databases, are ideal for running inside Kubernetes. Secondly, we will explore the various concerns around running databases in Kubernetes for production environments, such as: - The production-readiness of Kubernetes for stateful workloads in general - The pros and cons of the various deployment architectures - The failure characteristics of a distributed database inside containers In this session, we will demonstrate what Kubernetes brings to the table for stateful workloads and what database servers must provide to fit the Kubernetes model. This talk will also highlight some of the modern databases that take full advantage of Kubernetes and offer a peek into what’s possible if stateful services can meet Kubernetes halfway. We will go into the details of deployment choices, how the different cloud-vendor managed container offerings differ in what they offer, as well as compare performance and failure characteristics of a Kubernetes-based deployment with an equivalent VM-based deployment. BIO Amey is a VP of Data Engineering at Yugabyte with a deep passion for Data Analytics and Cloud-Native technologies. In his current role, he collaborates with Fortune 500 enterprises to architect their business applications with scalable microservices and geo-distributed, fault-tolerant data backend using YugabyteDB. Prior to joining Yugabyte, he spent 5 years at Pivotal as Platform Data Architect and has helped enterprise customers across multiple industry verticals to extend their analytical capabilities using Pivotal & OSS Big Data platforms. He is originally from Mumbai, India, and has a Master's degree in Computer Science from the University of Pennsylvania(UPenn), Philadelphia. Twitter: @ameybanarse LinkedIn: linkedin.com/in/ameybanarse/

1. © 2020 - All Rights Reserved 1
YugabyteDB –
Distributed SQL
Database on Kubernetes
Amey Banarse
VP of Data Engineering, Yugabyte, Inc.
Aug 3rd, 2021

2. © 2020 - All Rights Reserved 2
Introductions
VP of Data Engineering, Yugabyte
Pivotal • FINRA • NYSE
University of Pennsylvania (UPenn)
@ameybanarse
about.me/amey
Amey Banarse

3. © 2020 - All Rights Reserved 3

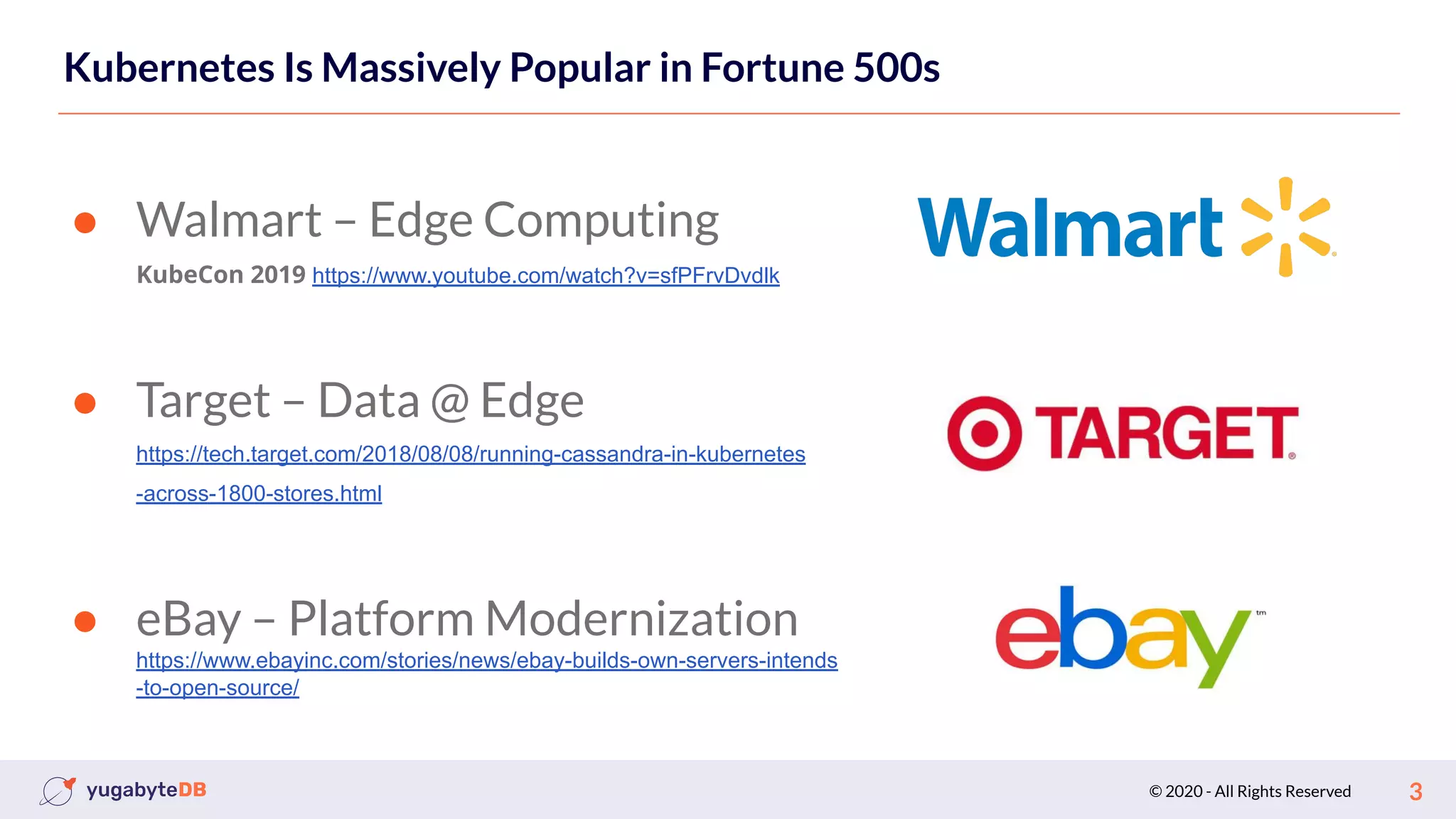

Kubernetes Is Massively Popular in Fortune 500s
● Walmart – Edge Computing
KubeCon 2019 https://www.youtube.com/watch?v=sfPFrvDvdlk
● Target – Data @ Edge
https://tech.target.com/2018/08/08/running-cassandra-in-kubernetes
-across-1800-stores.html
● eBay – Platform Modernization
https://www.ebayinc.com/stories/news/ebay-builds-own-servers-intends
-to-open-source/

4. © 2020 - All Rights Reserved 4

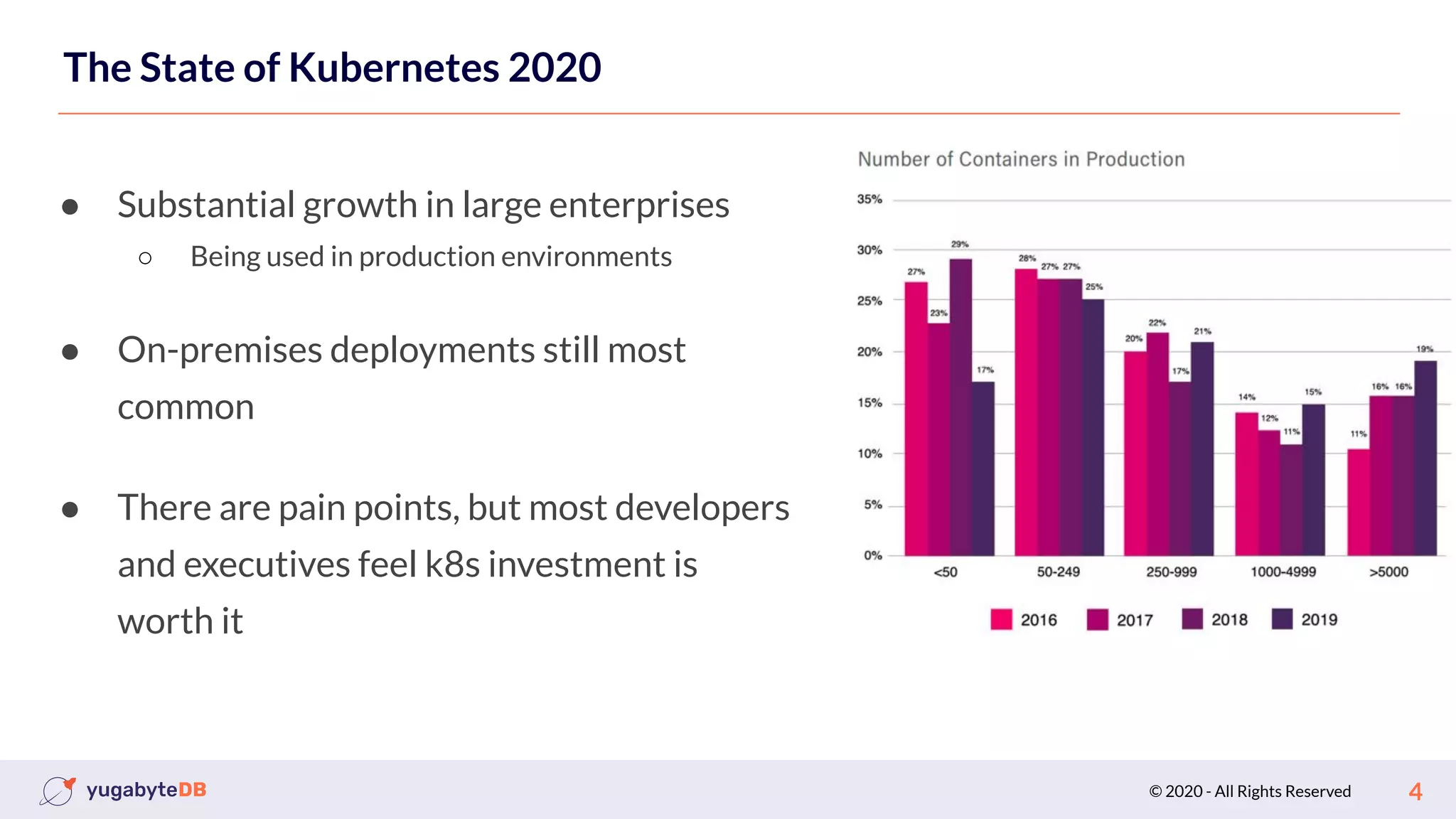

The State of Kubernetes 2020
● Substantial growth in large enterprises
○ Being used in production environments
● On-premises deployments still most
common
● There are pain points, but most developers
and executives feel k8s investment is
worth it

5. © 2020 - All Rights Reserved 5

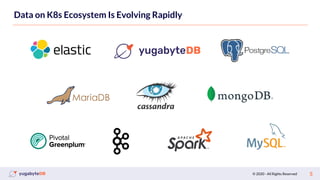

Data on K8s Ecosystem Is Evolving Rapidly

6. © 2020 - All Rights Reserved 6

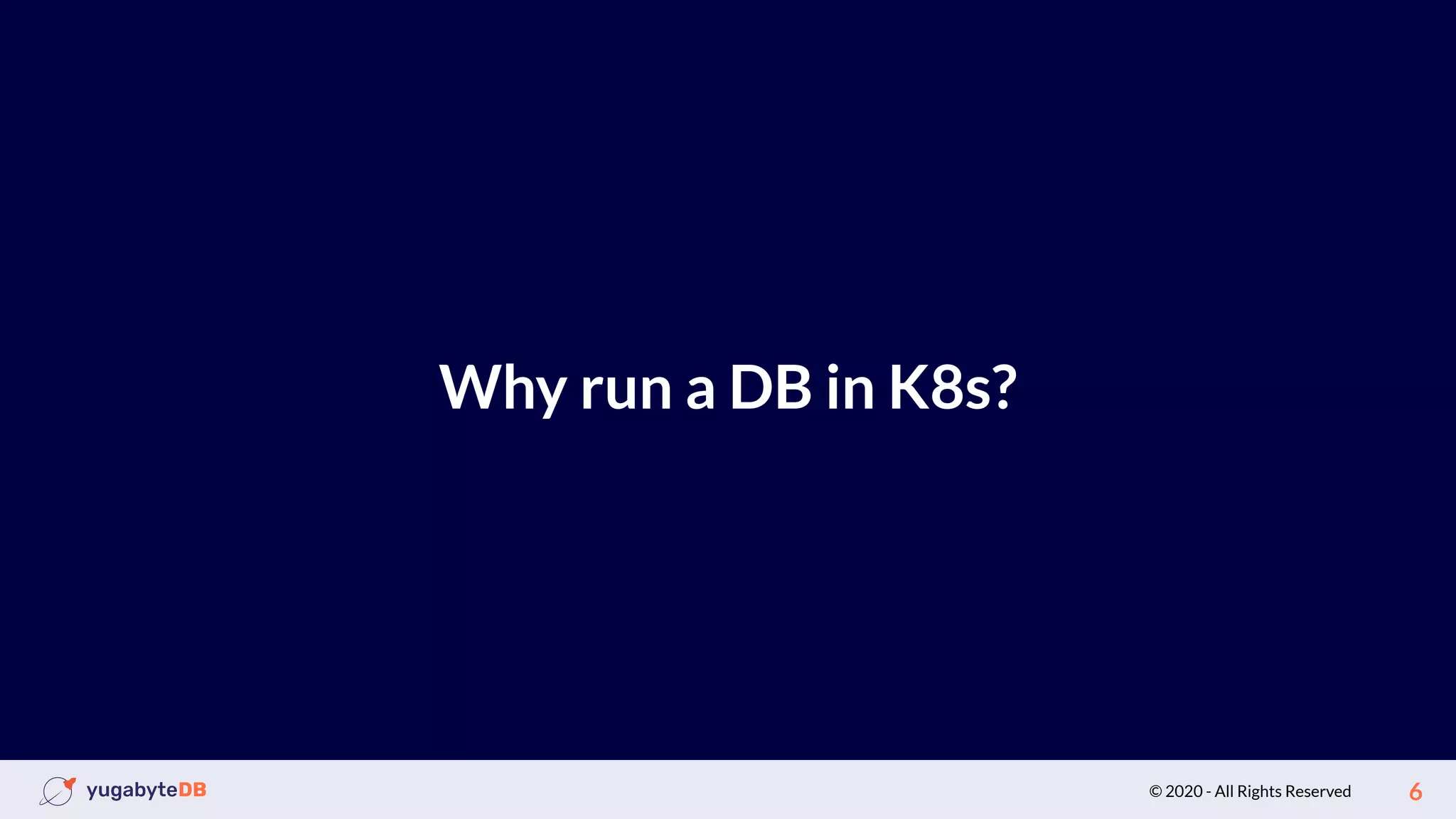

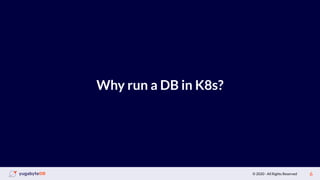

Why run a DB in K8s?

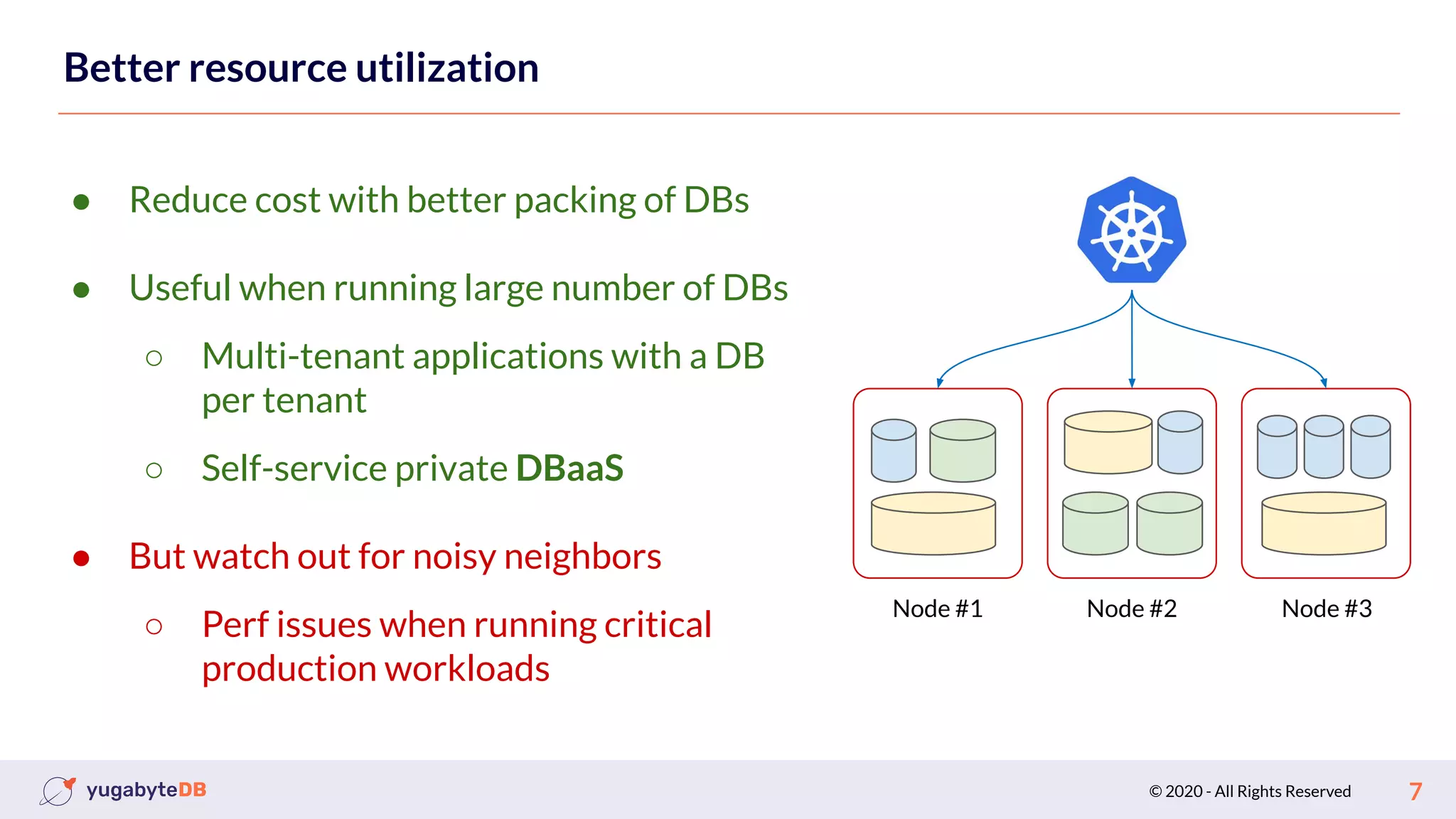

7. © 2020 - All Rights Reserved 7
Better resource utilization
● Reduce cost with better packing of DBs
● Useful when running large number of DBs
○ Multi-tenant applications with a DB
per tenant
○ Self-service private DBaaS
● But watch out for noisy neighbors
○ Perf issues when running critical
production workloads
Node #1 Node #2 Node #3

8. © 2020 - All Rights Reserved 8

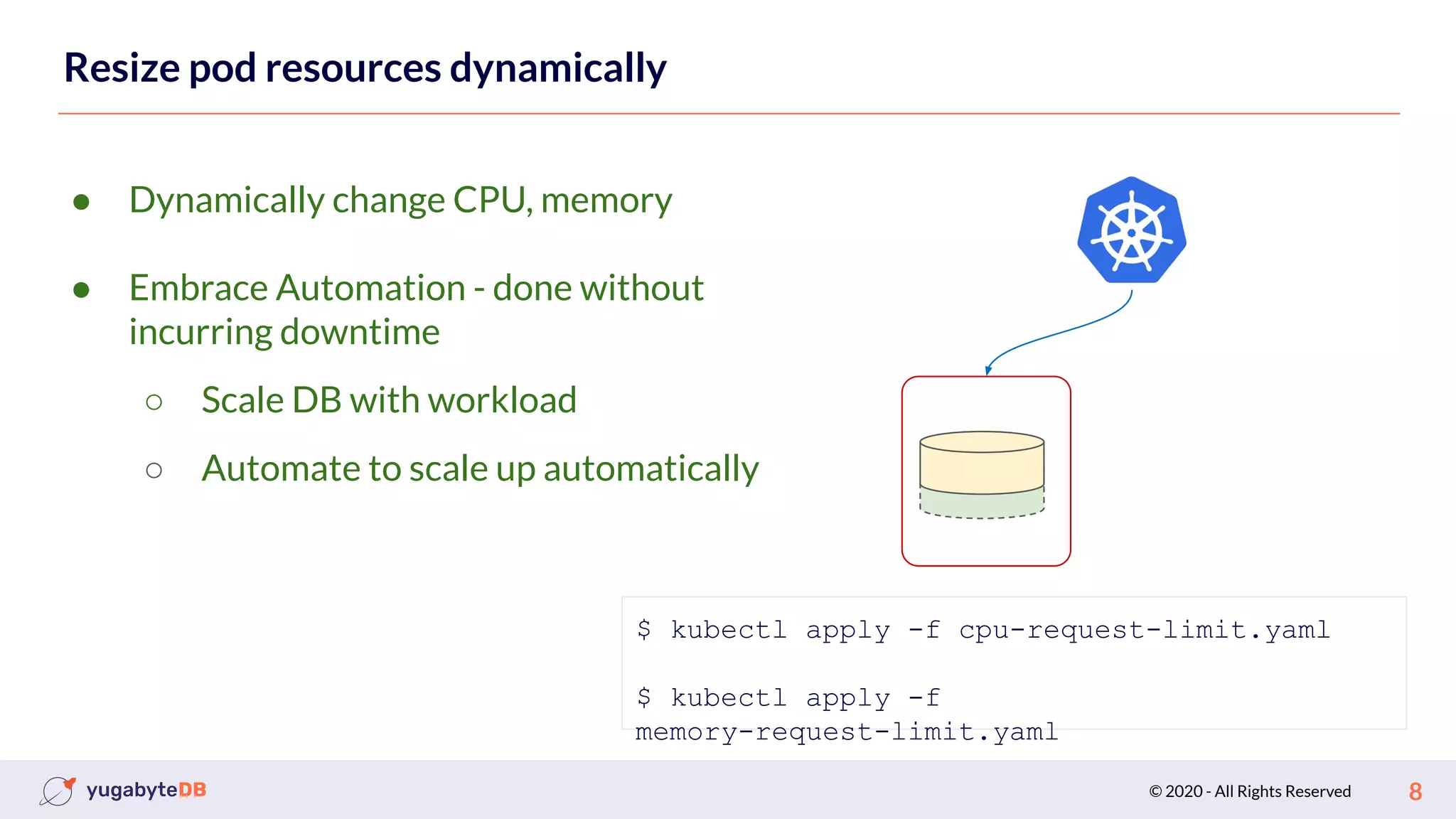

Resize pod resources dynamically
● Dynamically change CPU, memory
● Embrace Automation - done without
incurring downtime
○ Scale DB with workload
○ Automate to scale up automatically
$ kubectl apply -f cpu-request-limit.yaml
$ kubectl apply -f
memory-request-limit.yaml

9. © 2020 - All Rights Reserved 9

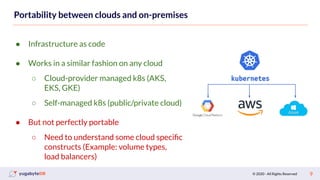

Portability between clouds and on-premises
● Infrastructure as code
● Works in a similar fashion on any cloud
○ Cloud-provider managed k8s (AKS,
EKS, GKE)
○ Self-managed k8s (public/private cloud)
● But not perfectly portable
○ Need to understand some cloud specific
constructs (Example: volume types,
load balancers)

10. © 2020 - All Rights Reserved 10

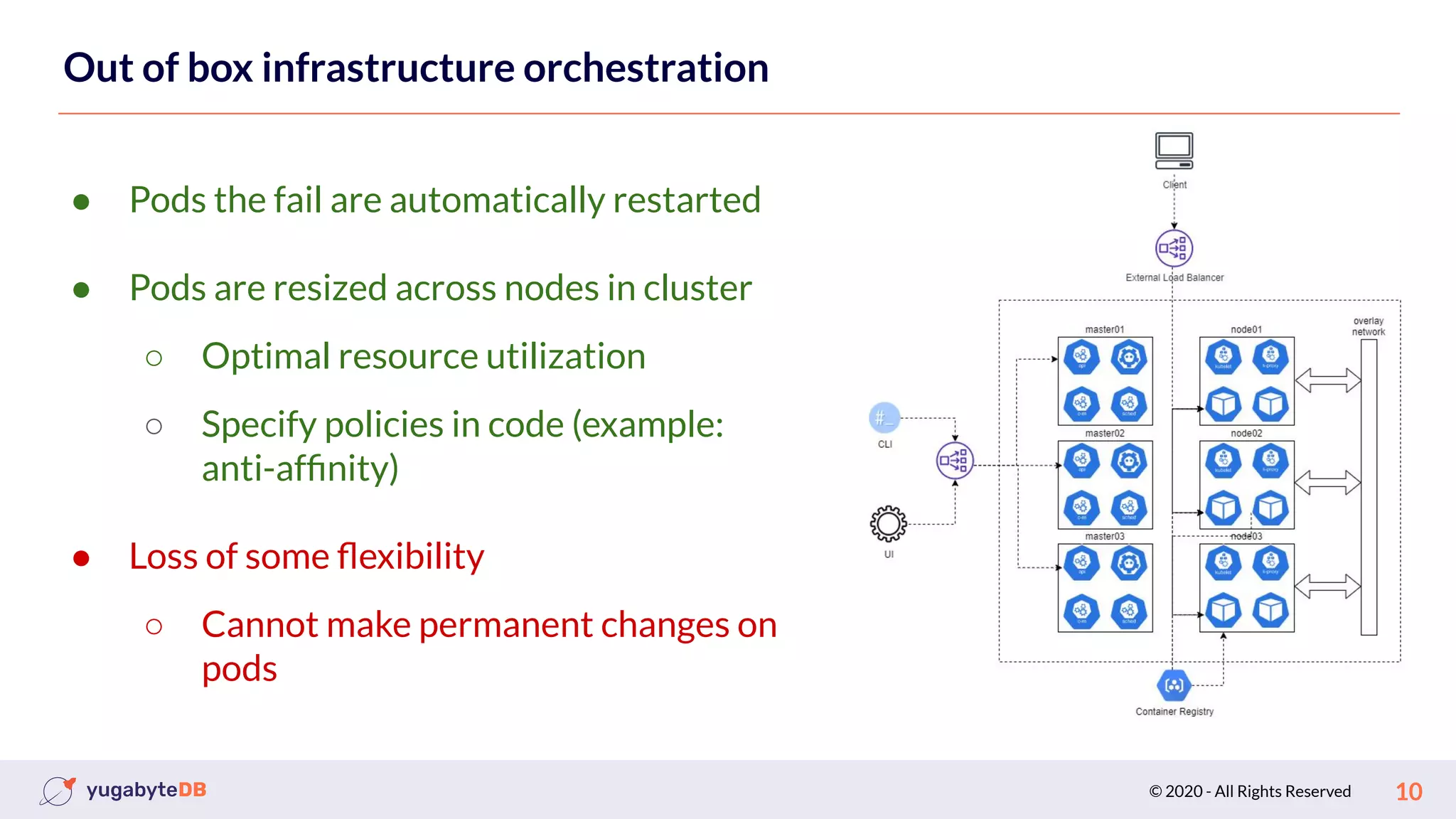

Out of box infrastructure orchestration
● Pods the fail are automatically restarted
● Pods are resized across nodes in cluster
○ Optimal resource utilization
○ Specify policies in code (example:
anti-affinity)
● Loss of some flexibility
○ Cannot make permanent changes on
pods

11. © 2020 - All Rights Reserved 11
Automating day 2 operations
● Robust automation with CRDs (Custom
Resource Definitions) or commonly referred
as ‘K8s Operator’
● Easy to build an operator for ops
○ Periodic backups
○ DB software upgrades
● Automating failover of traditional RDBMS can
be dangerous
○ Potential for data loss?
○ Mitigation: use a distributed DB

12. © 2020 - All Rights Reserved 12
Why NOT run a DB in K8s?

13. © 2020 - All Rights Reserved 13

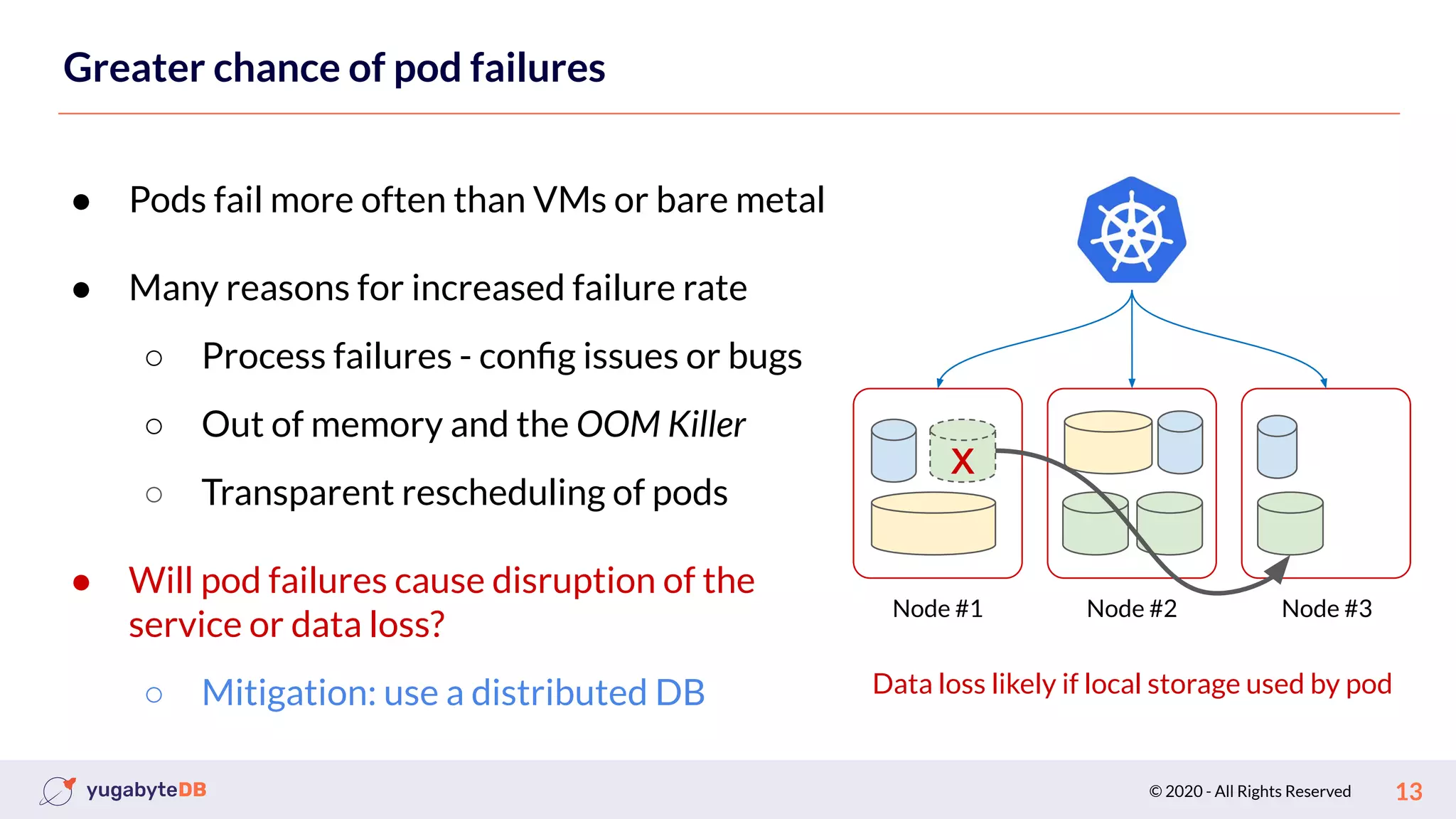

Greater chance of pod failures
● Pods fail more often than VMs or bare metal
● Many reasons for increased failure rate
○ Process failures - config issues or bugs
○ Out of memory and the OOM Killer
○ Transparent rescheduling of pods
● Will pod failures cause disruption of the
service or data loss?
○ Mitigation: use a distributed DB
x
Node #1 Node #2 Node #3
Data loss likely if local storage used by pod

14. © 2020 - All Rights Reserved 14

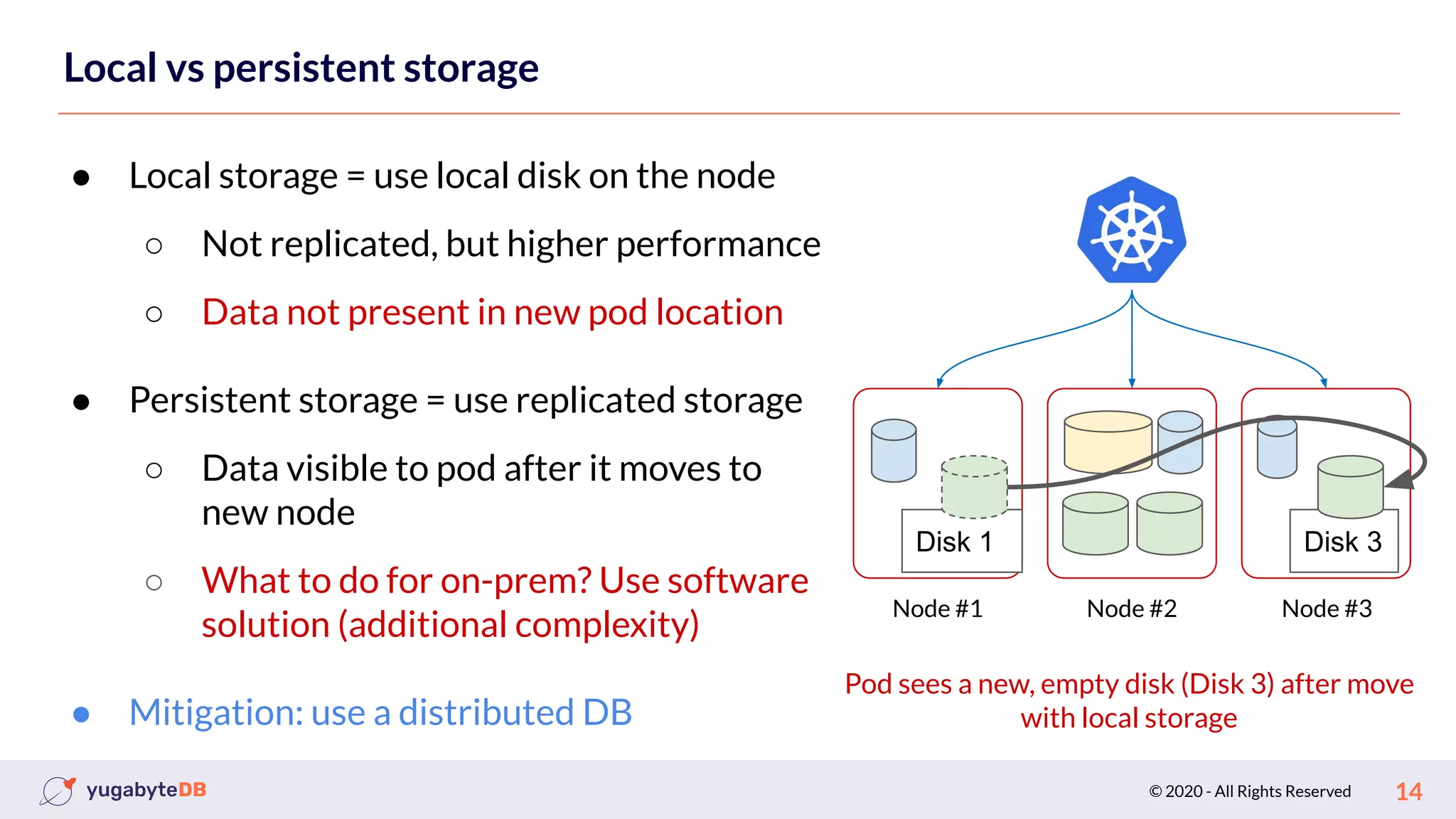

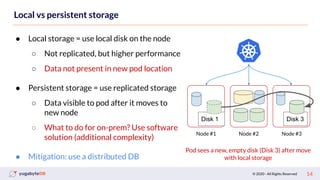

Local vs persistent storage
● Local storage = use local disk on the node
○ Not replicated, but higher performance
○ Data not present in new pod location
● Persistent storage = use replicated storage
○ Data visible to pod after it moves to
new node
○ What to do for on-prem? Use software
solution (additional complexity)
● Mitigation: use a distributed DB
Node #1 Node #2 Node #3
Disk 1 Disk 3
Pod sees a new, empty disk (Disk 3) after move
with local storage

15. © 2020 - All Rights Reserved 15

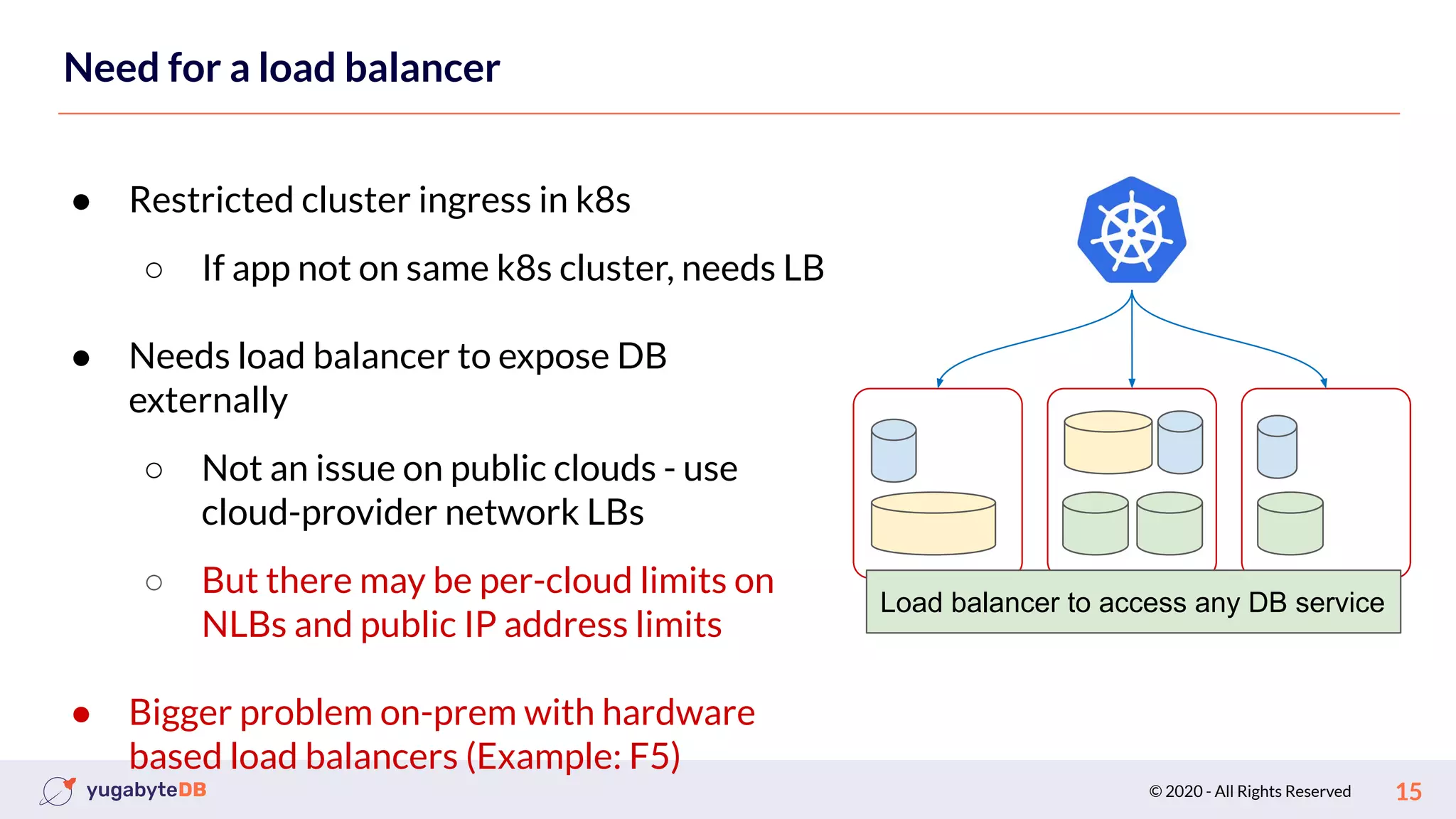

Need for a load balancer
● Restricted cluster ingress in k8s
○ If app not on same k8s cluster, needs LB
● Needs load balancer to expose DB
externally
○ Not an issue on public clouds - use
cloud-provider network LBs
○ But there may be per-cloud limits on
NLBs and public IP address limits
● Bigger problem on-prem with hardware
based load balancers (Example: F5)
Node #1 Node #2 Node #3
Load balancer to access any DB service

16. © 2020 - All Rights Reserved 16

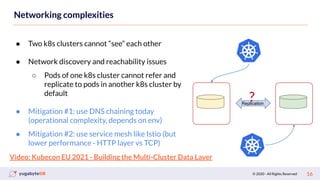

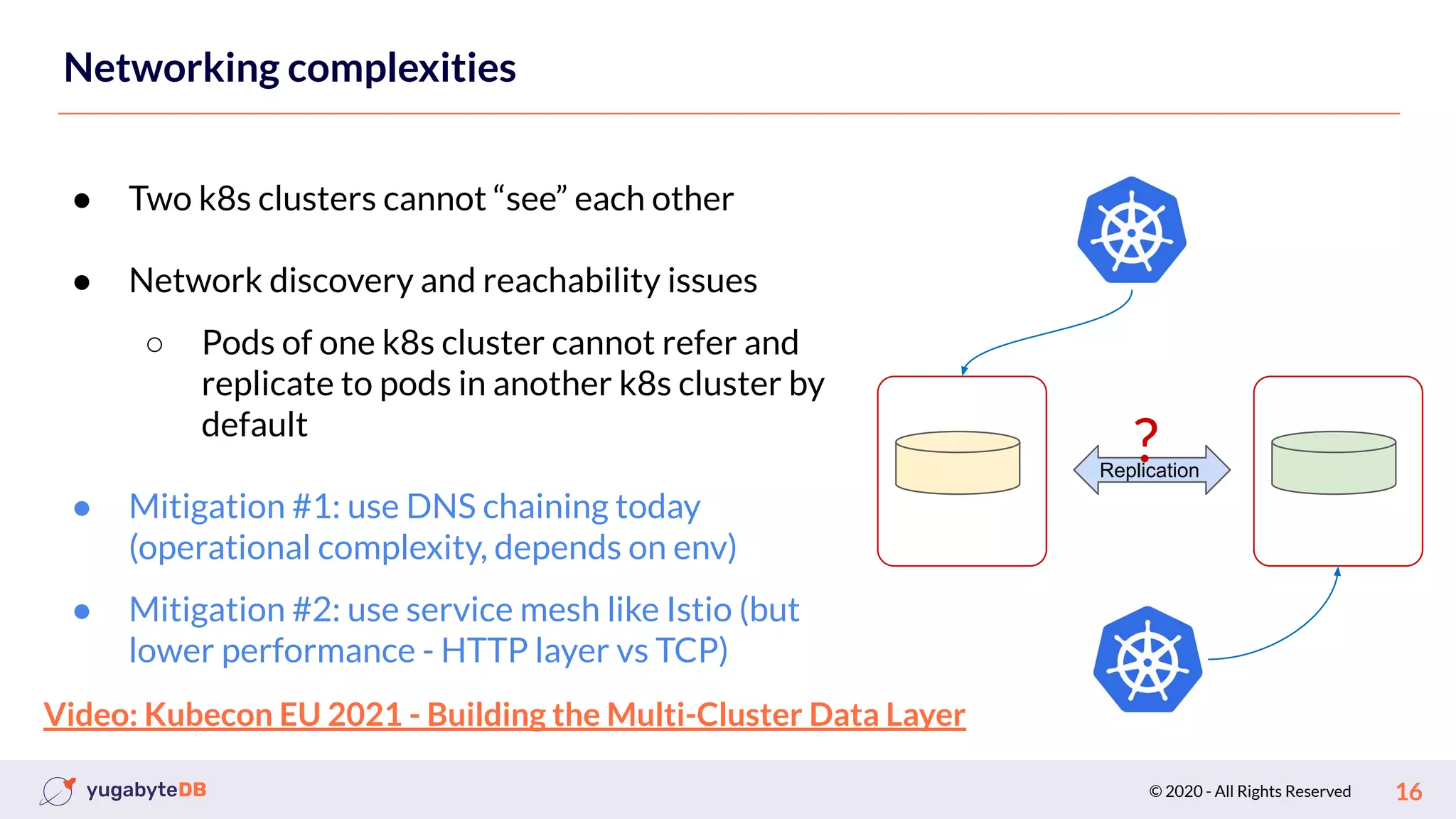

Networking complexities
● Two k8s clusters cannot “see” each other
● Network discovery and reachability issues
○ Pods of one k8s cluster cannot refer and
replicate to pods in another k8s cluster by
default
● Mitigation #1: use DNS chaining today
(operational complexity, depends on env)
● Mitigation #2: use service mesh like Istio (but
lower performance - HTTP layer vs TCP)
Replication
?
Video: Kubecon EU 2021 - Building the Multi-Cluster Data Layer

17. © 2020 - All Rights Reserved 17

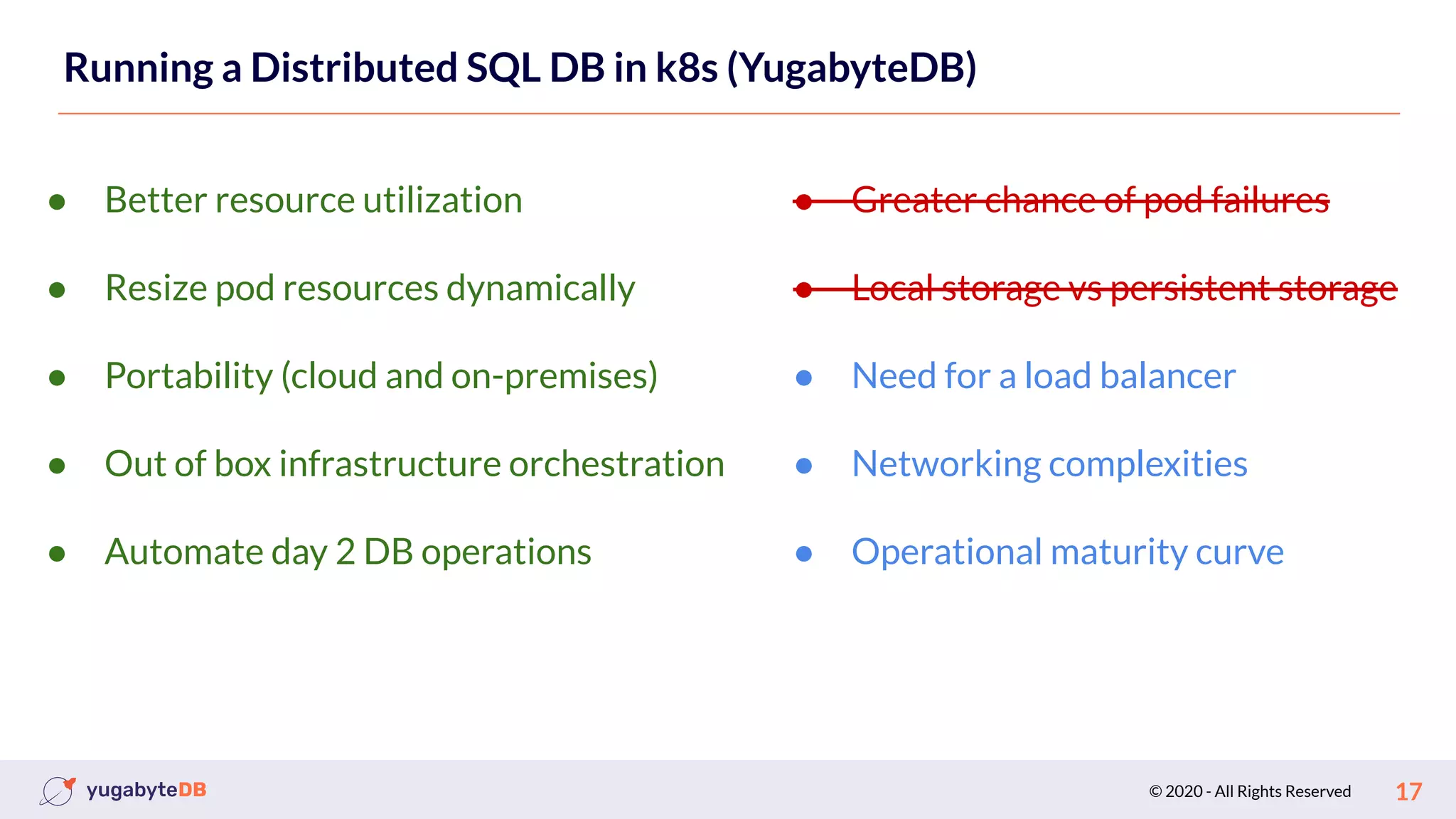

Running a Distributed SQL DB in k8s (YugabyteDB)
● Better resource utilization
● Resize pod resources dynamically
● Portability (cloud and on-premises)
● Out of box infrastructure orchestration
● Automate day 2 DB operations
● Greater chance of pod failures
● Local storage vs persistent storage
● Need for a load balancer
● Networking complexities
● Operational maturity curve

18. © 2020 - All Rights Reserved 18
Transactional, distributed SQL database designed for resilience
and scale
100% open source, PostgreSQL compatible, enterprise-grade RDBMS
…..built to run across all your cloud environments

19. © 2020 - All Rights Reserved 19

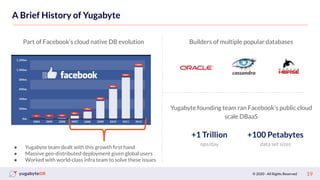

A Brief History of Yugabyte
Part of Facebook’s cloud native DB evolution
● Yugabyte team dealt with this growth first hand
● Massive geo-distributed deployment given global users
● Worked with world-class infra team to solve these issues
Builders of multiple popular databases
+1 Trillion
ops/day
+100 Petabytes
data set sizes
Yugabyte founding team ran Facebook’s public cloud
scale DBaaS

20. © 2020 - All Rights Reserved

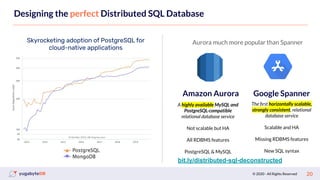

Designing the perfect Distributed SQL Database
20
Aurora much more popular than Spanner
Amazon Aurora Google Spanner
A highly available MySQL and
PostgreSQL-compatible
relational database service
Not scalable but HA
All RDBMS features
PostgreSQL & MySQL
The first horizontally scalable,
strongly consistent, relational
database service
Scalable and HA
Missing RDBMS features
New SQL syntax
bit.ly/distributed-sql-deconstructed
Skyrocketing adoption of PostgreSQL for
cloud-native applications

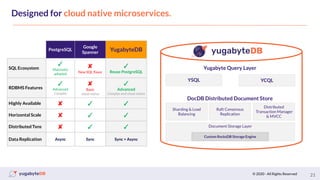

21. © 2020 - All Rights Reserved

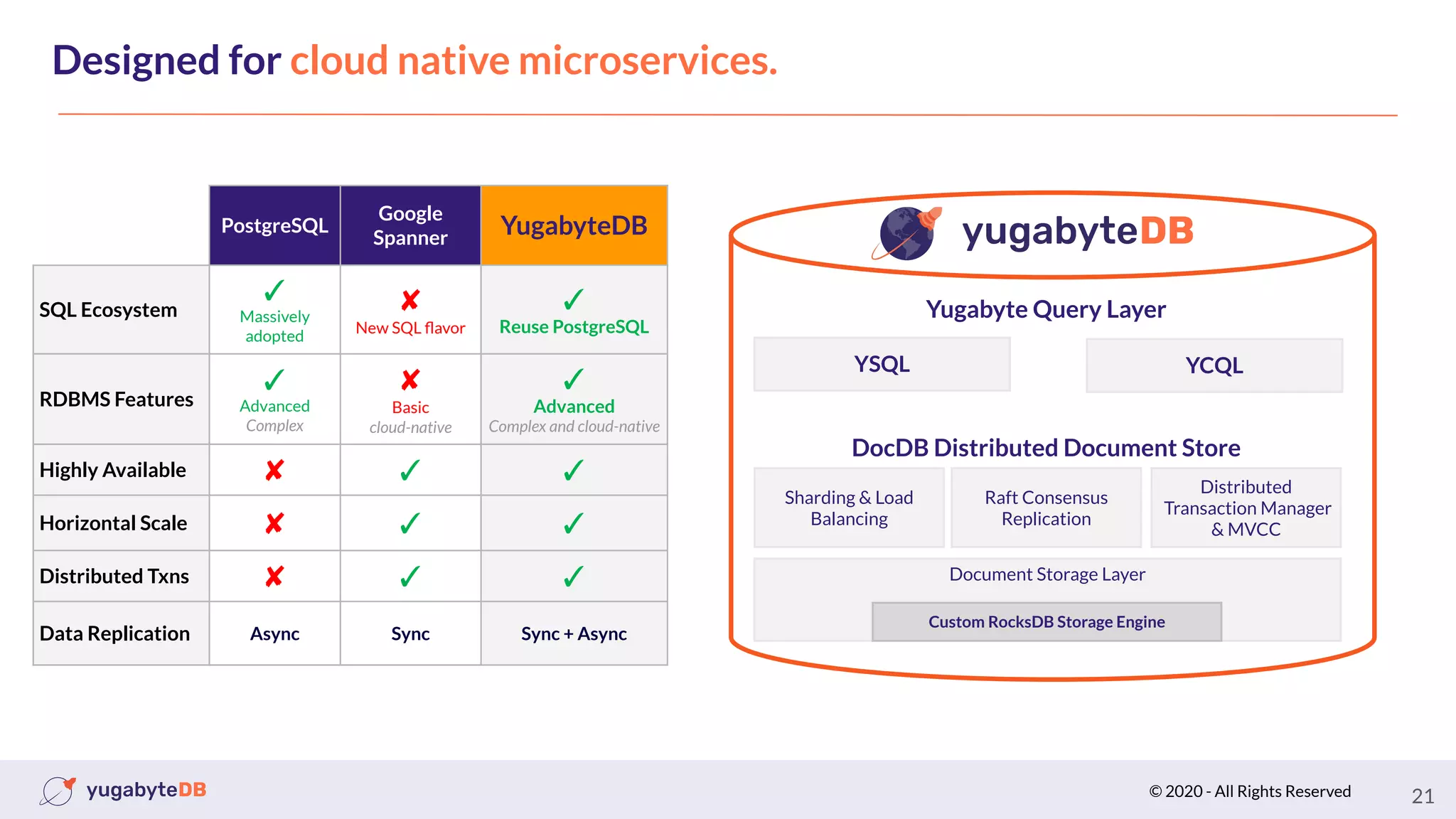

Designed for cloud native microservices.
21
Sharding & Load
Balancing
Raft Consensus
Replication
Distributed
Transaction Manager
& MVCC
Document Storage Layer
Custom RocksDB Storage Engine
DocDB Distributed Document Store
Yugabyte Query Layer
YSQL YCQL
PostgreSQL
Google
Spanner YugabyteDB
SQL Ecosystem
✓
Massively
adopted
✘
New SQL flavor
✓
Reuse PostgreSQL
RDBMS Features
✓
Advanced
Complex
✘
Basic
cloud-native
✓
Advanced
Complex and cloud-native
Highly Available ✘ ✓ ✓
Horizontal Scale ✘ ✓ ✓
Distributed Txns ✘ ✓ ✓
Data Replication Async Sync Sync + Async

22. © 2020 - All Rights Reserved

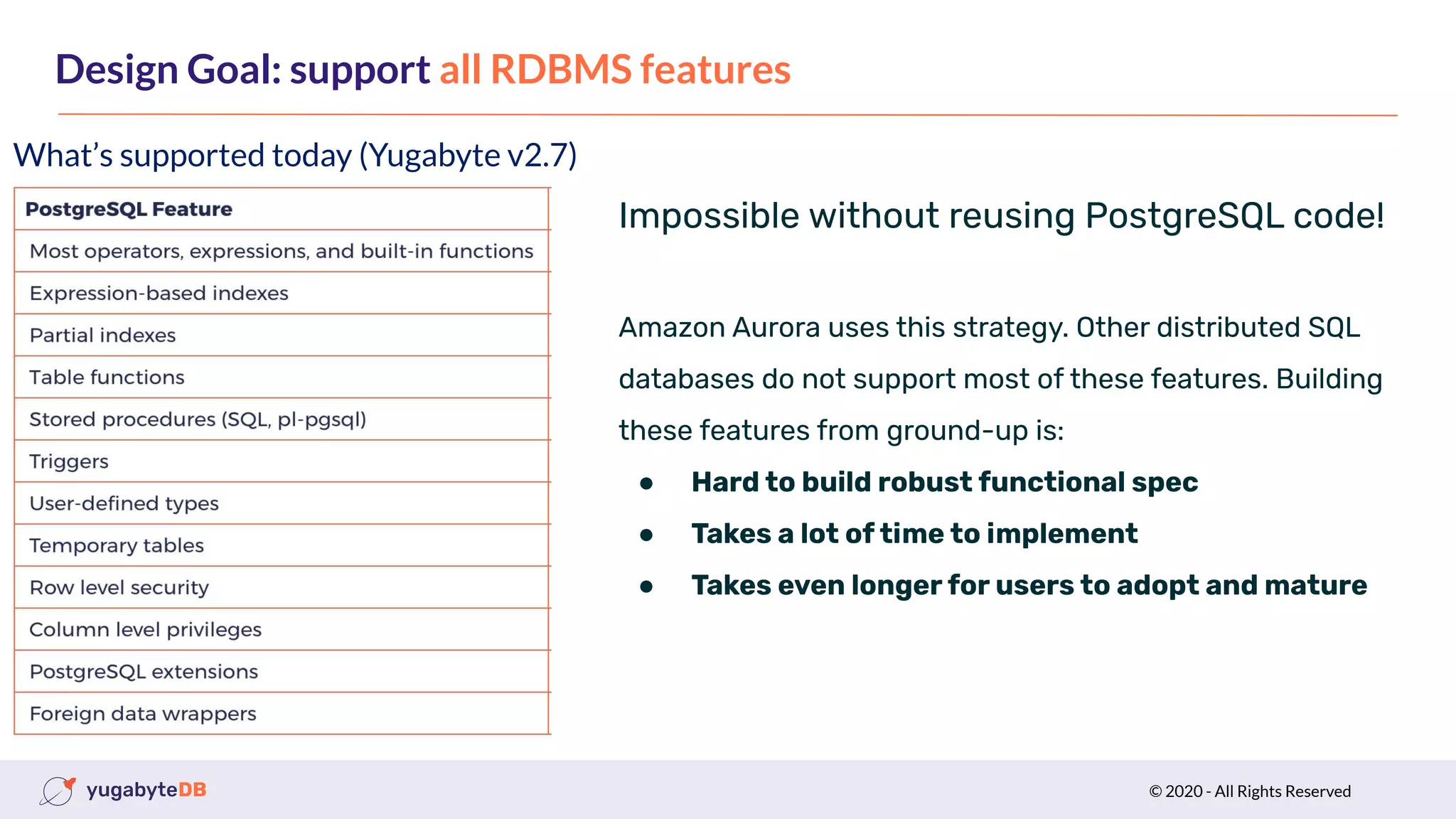

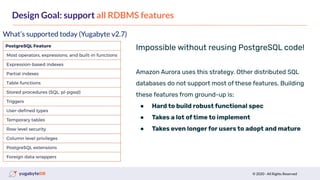

Design Goal: support all RDBMS features
What’s supported today (Yugabyte v2.7)
Impossible without reusing PostgreSQL code!
Amazon Aurora uses this strategy. Other distributed SQL
databases do not support most of these features. Building
these features from ground-up is:
● Hard to build robust functional spec
● Takes a lot of time to implement
● Takes even longer for users to adopt and mature

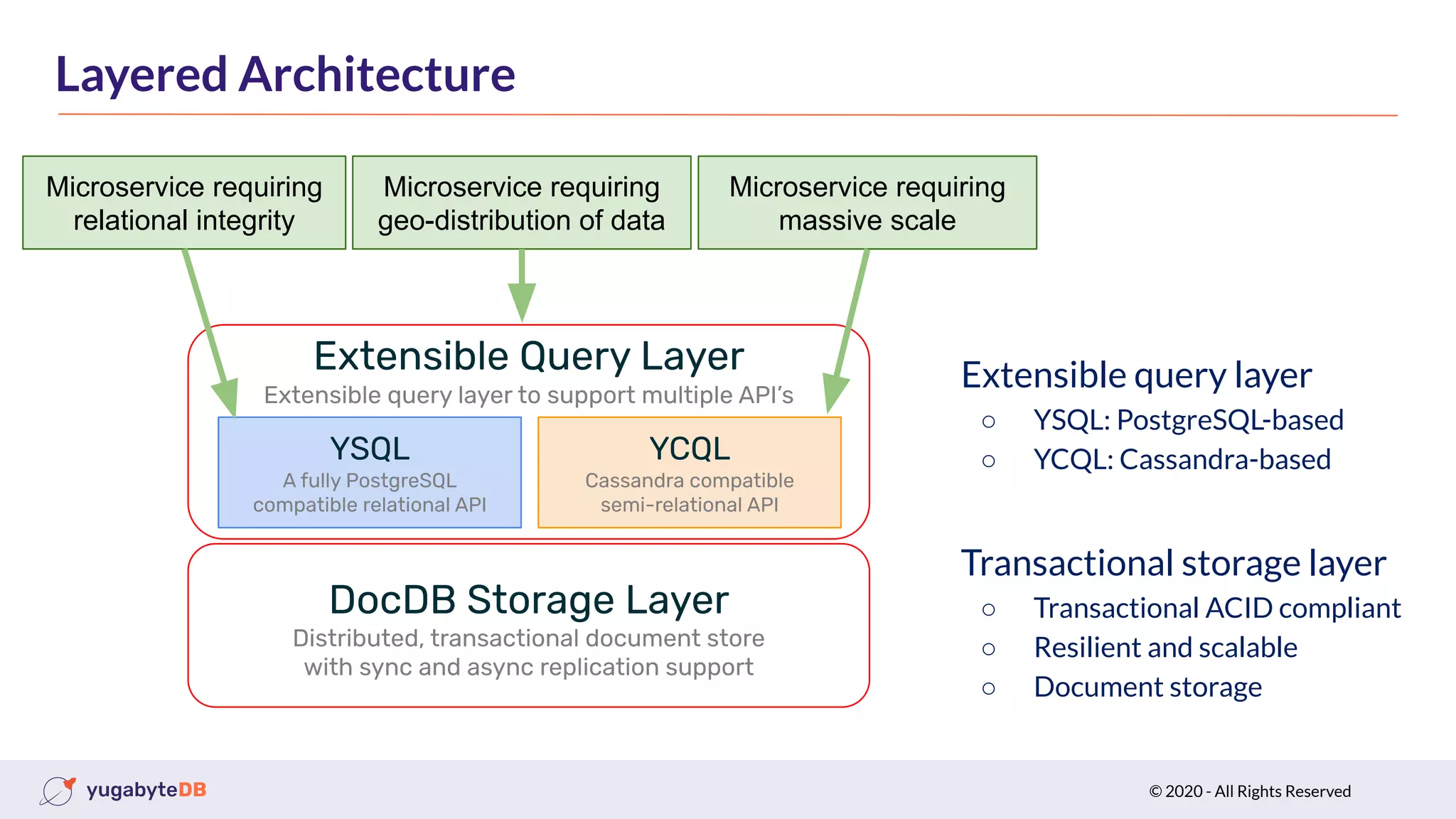

23. © 2020 - All Rights Reserved
Layered Architecture
DocDB Storage Layer
Distributed, transactional document store
with sync and async replication support
YSQL
A fully PostgreSQL
compatible relational API
YCQL
Cassandra compatible
semi-relational API
Extensible Query Layer
Extensible query layer to support multiple API’s
Microservice requiring
relational integrity
Microservice requiring
massive scale
Microservice requiring
geo-distribution of data
Extensible query layer
○ YSQL: PostgreSQL-based
○ YCQL: Cassandra-based
Transactional storage layer
○ Transactional ACID compliant
○ Resilient and scalable
○ Document storage

24. © 2020 - All Rights Reserved

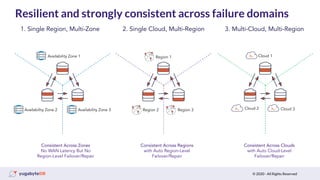

1. Single Region, Multi-Zone
Availability Zone 1
Availability Zone 2 Availability Zone 3
Consistent Across Zones
No WAN Latency But No
Region-Level Failover/Repair
2. Single Cloud, Multi-Region
Region 1
Region 2 Region 3
Consistent Across Regions
with Auto Region-Level
Failover/Repair
3. Multi-Cloud, Multi-Region
Cloud 1
Cloud 2 Cloud 3
Consistent Across Clouds
with Auto Cloud-Level
Failover/Repair
Resilient and strongly consistent across failure domains

25. © 2020 - All Rights Reserved 25
YugabyteDB on K8s
Architecture

26. © 2020 - All Rights Reserved

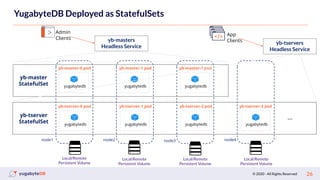

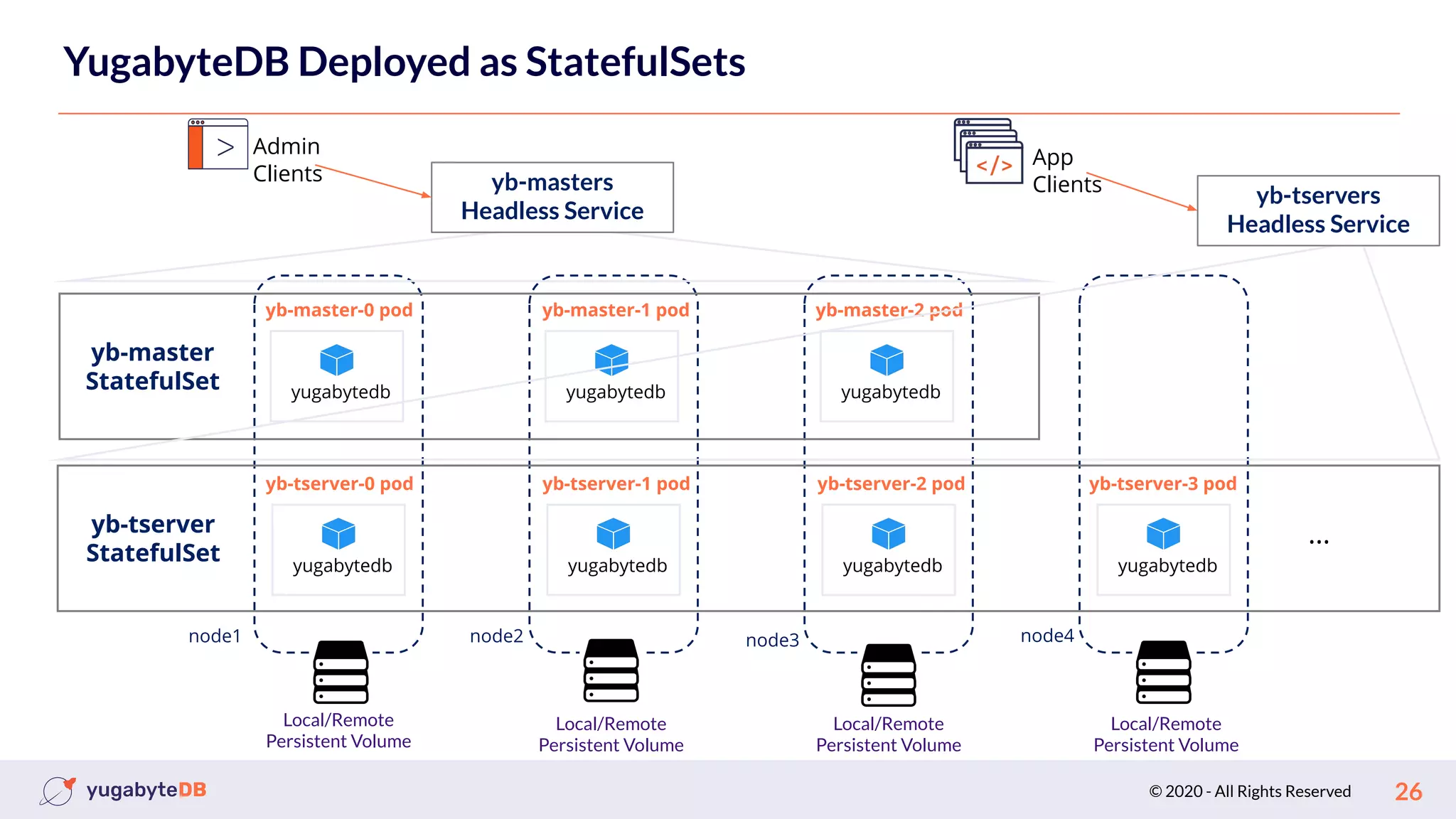

YugabyteDB Deployed as StatefulSets
26
node2
node1 node4
node3
yb-master
StatefulSet yugabytedb
yb-master-1 pod
yugabytedb
yb-master-0 pod
yugabytedb
yb-master-2 pod
yb-tserver
StatefulSet
tablet 1’
yugabytedb
yb-tserver-1 pod
tablet 1’
yugabytedb
yb-tserver-0 pod tablet 1’
yugabytedb
yb-tserver-3 pod
tablet 1’
yugabytedb
yb-tserver-2 pod
…
Local/Remote
Persistent Volume
Local/Remote
Persistent Volume
Local/Remote
Persistent Volume
Local/Remote
Persistent Volume
yb-masters
Headless Service
yb-tservers
Headless Service
App
Clients
Admin
Clients

27. © 2020 - All Rights Reserved

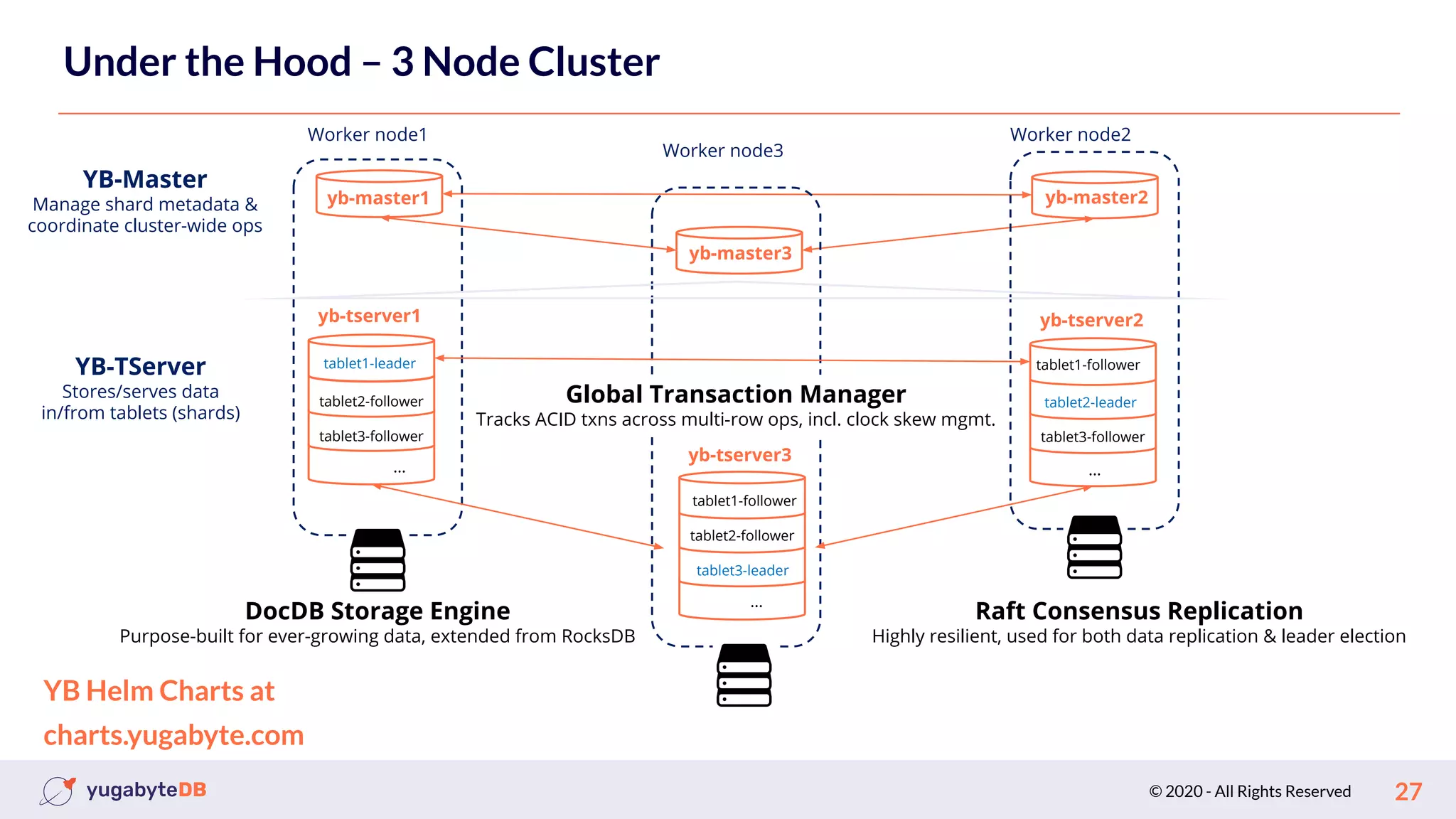

Under the Hood – 3 Node Cluster
27
DocDB Storage Engine
Purpose-built for ever-growing data, extended from RocksDB
yb-master1
yb-master3
yb-master2
YB-Master
Manage shard metadata &
coordinate cluster-wide ops
Worker node1
Worker node3
Worker node2
Global Transaction Manager
Tracks ACID txns across multi-row ops, incl. clock skew mgmt.
Raft Consensus Replication
Highly resilient, used for both data replication & leader election
tablet 1’
tablet 1’
yb-tserver1 yb-tserver2
yb-tserver3
tablet 1’
tablet2-leader
tablet3-leader
tablet1-leader
YB-TServer
Stores/serves data
in/from tablets (shards)
tablet1-follower
tablet1-follower
tablet3-follower
tablet2-follower
tablet3-follower
tablet2-follower
…
…
…
YB Helm Charts at
charts.yugabyte.com

28. © 2020 - All Rights Reserved 28
Deployed on all popular Kubernetes platforms

29. © 2020 - All Rights Reserved 29

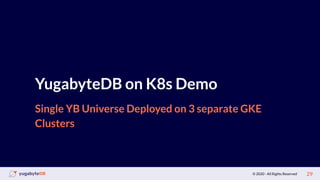

YugabyteDB on K8s Demo
Single YB Universe Deployed on 3 separate GKE
Clusters

30. © 2020 - All Rights Reserved

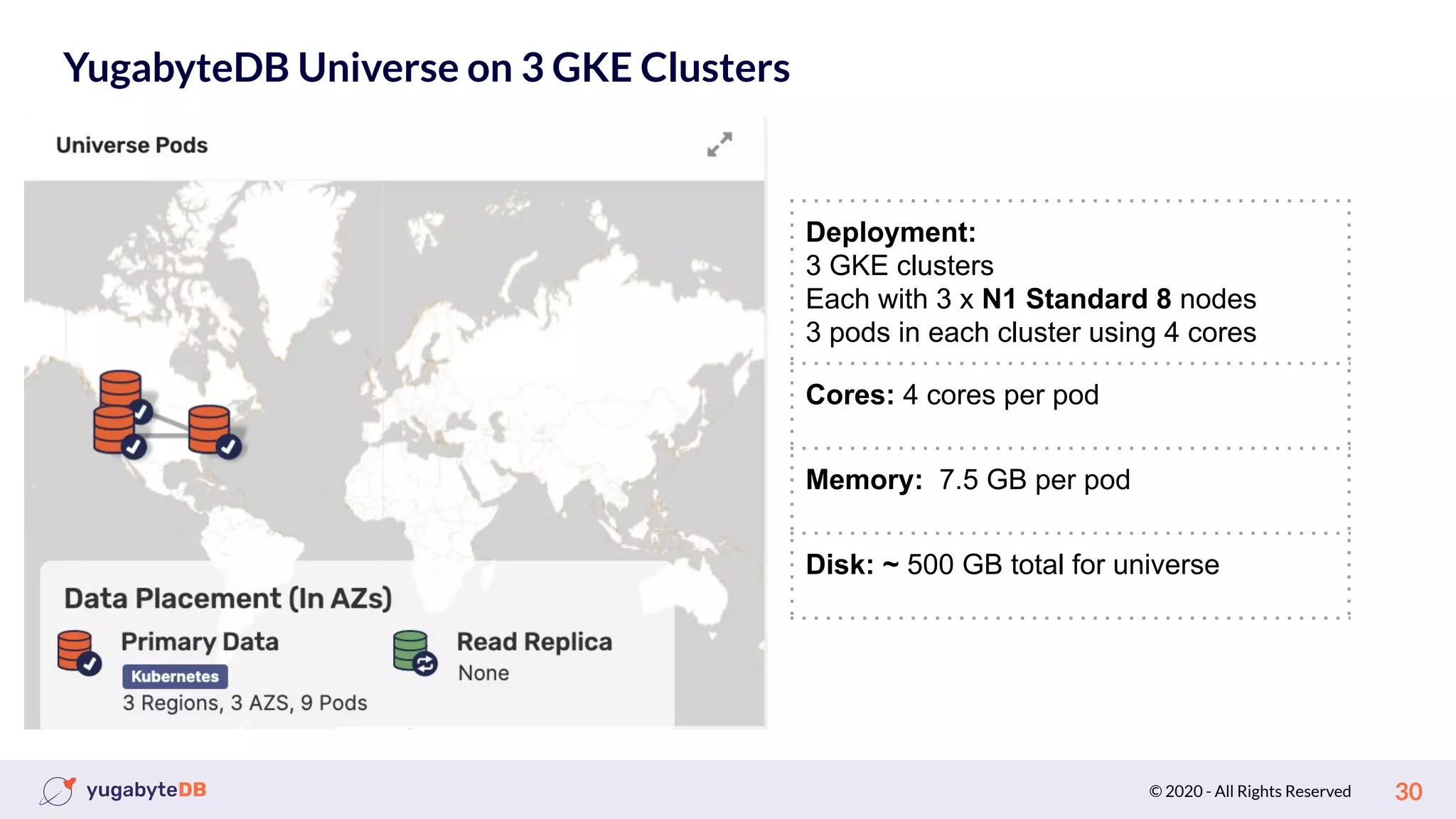

YugabyteDB Universe on 3 GKE Clusters
Deployment:
3 GKE clusters
Each with 3 x N1 Standard 8 nodes
3 pods in each cluster using 4 cores
Cores: 4 cores per pod
Memory: 7.5 GB per pod
Disk: ~ 500 GB total for universe
30

31. © 2020 - All Rights Reserved
yb-tserver1 yb-tserver2 yb-tserver3

32. © 2020 - All Rights Reserved

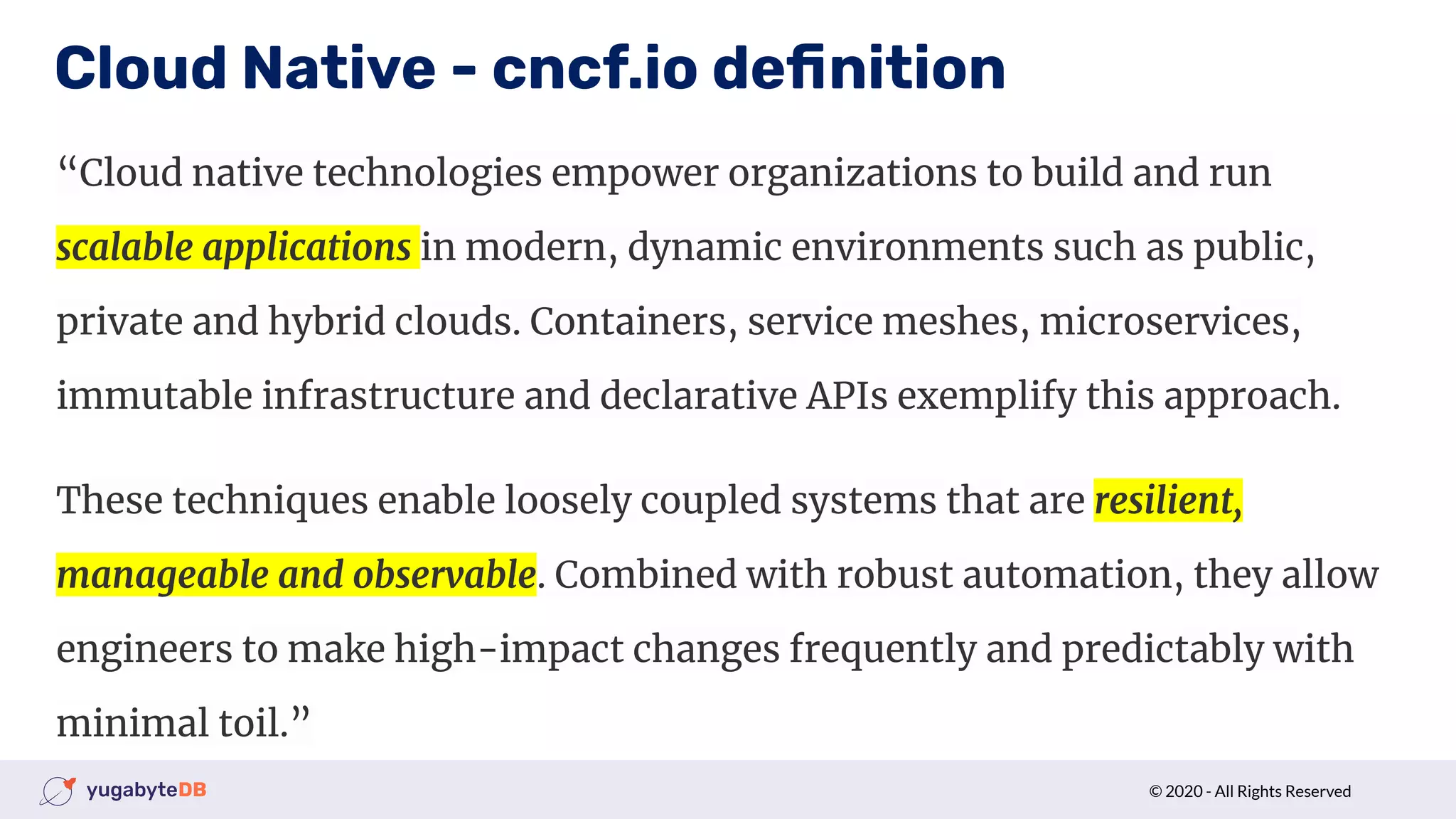

“Cloud native technologies empower organizations to build and run
scalable applications in modern, dynamic environments such as public,
private and hybrid clouds. Containers, service meshes, microservices,
immutable infrastructure and declarative APIs exemplify this approach.
These techniques enable loosely coupled systems that are resilient,
manageable and observable. Combined with robust automation, they allow
engineers to make high-impact changes frequently and predictably with
minimal toil.”
Cloud Native - cncf.io definition

33. © 2021 All Rights Reserved
● Database Reliability Engineering
○ Inspired by Google’s SRE model
○ Blending DevOps culture with
DBA teams
○ Infrastructure as code
○ Automation is the key

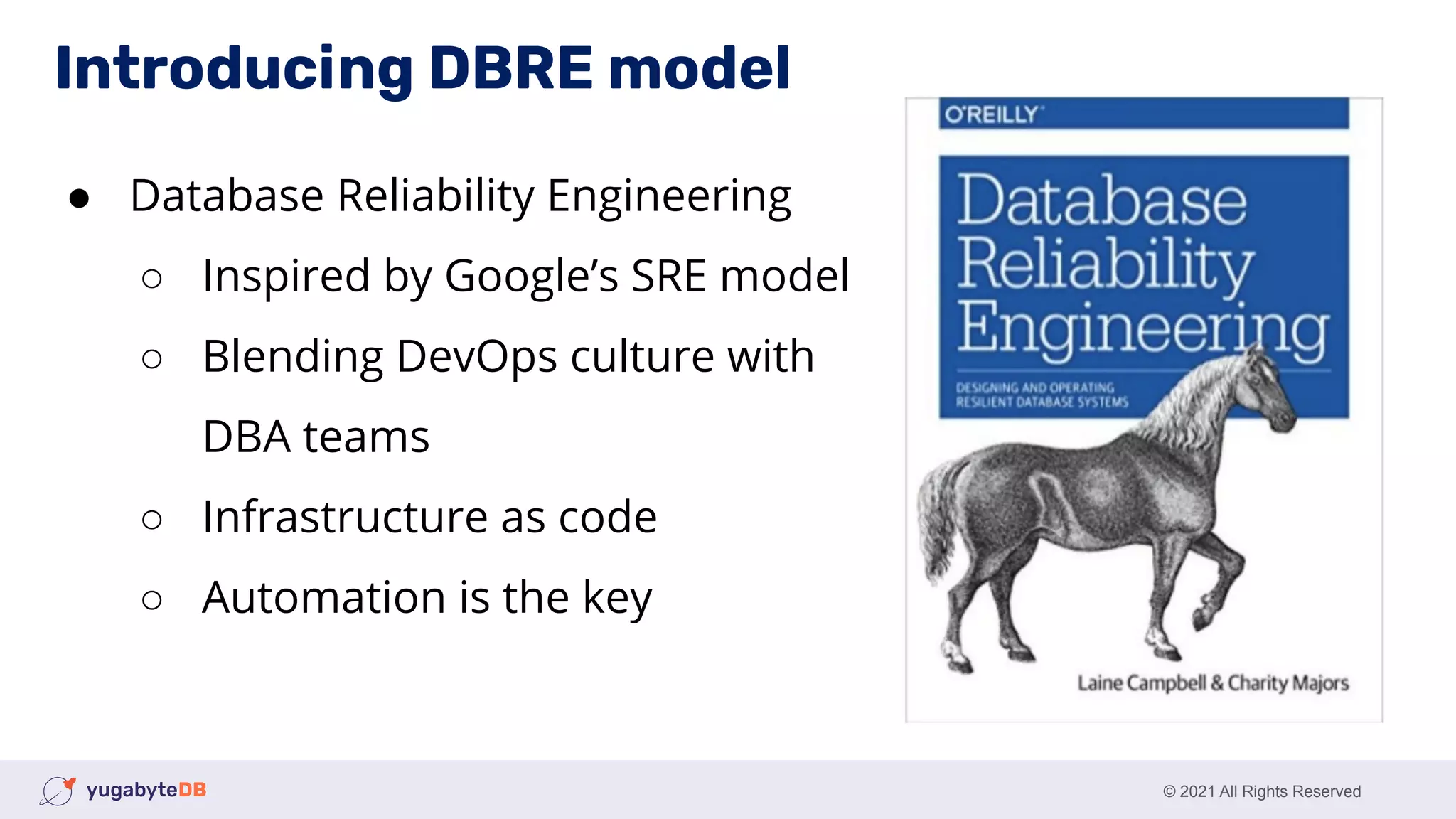

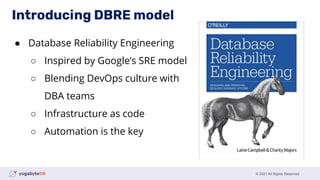

Introducing DBRE model

34. © 2021 All Rights Reserved
● Responsibility of the data shared by cross-functional
teams
● Provide patterns and knowledge to support other team’s
processes to facilitate their work
● Defining reference architectures and configurations for
data stores that are approved for operations, and can be
deployed by teams.
DBRE Guiding Principles

35. © 2020 - All Rights Reserved 35

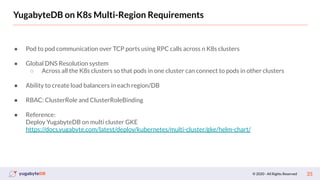

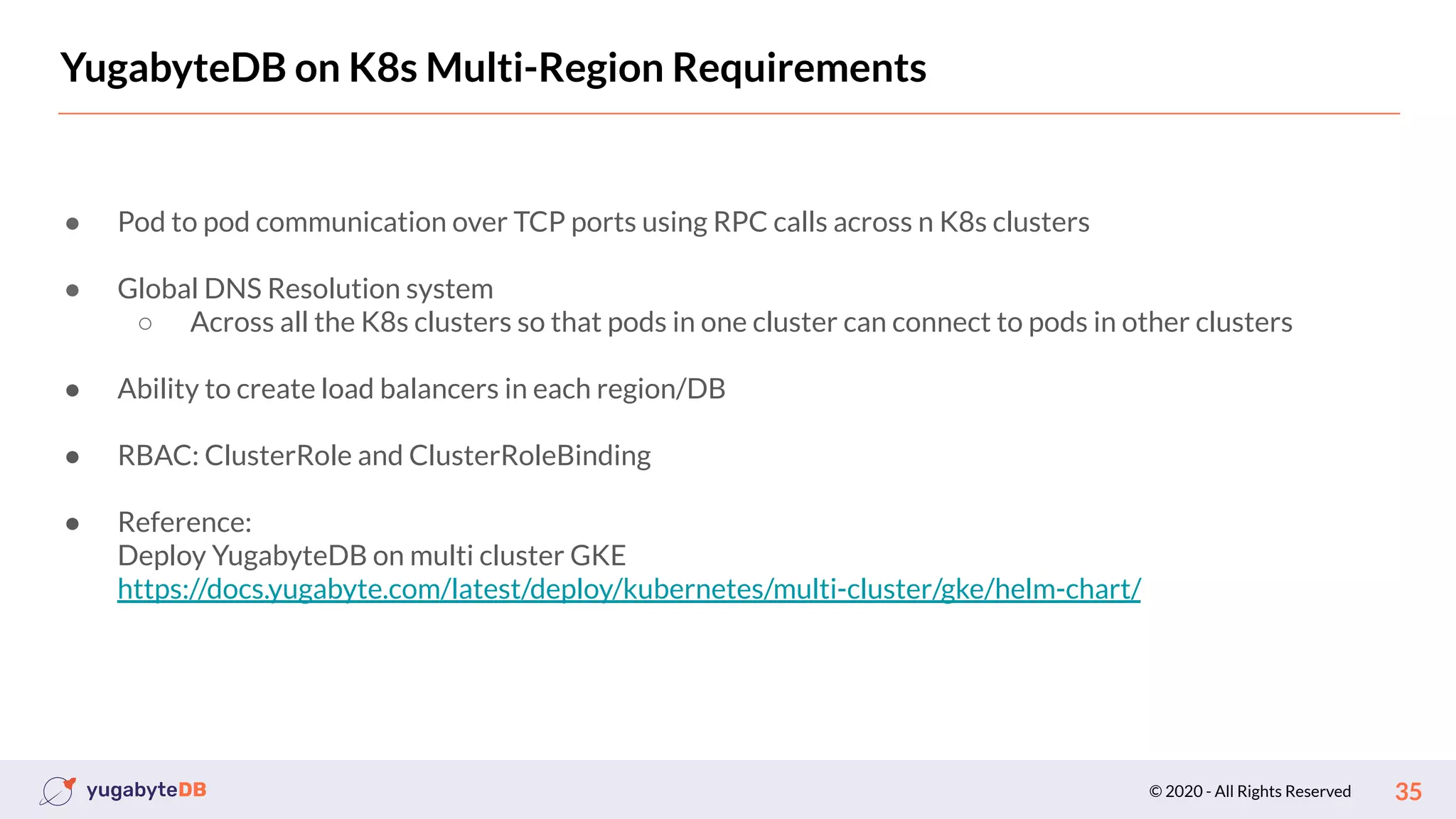

YugabyteDB on K8s Multi-Region Requirements
● Pod to pod communication over TCP ports using RPC calls across n K8s clusters
● Global DNS Resolution system
○ Across all the K8s clusters so that pods in one cluster can connect to pods in other clusters
● Ability to create load balancers in each region/DB
● RBAC: ClusterRole and ClusterRoleBinding
● Reference:
Deploy YugabyteDB on multi cluster GKE
https://docs.yugabyte.com/latest/deploy/kubernetes/multi-cluster/gke/helm-chart/

36. © 2020 - All Rights Reserved 36

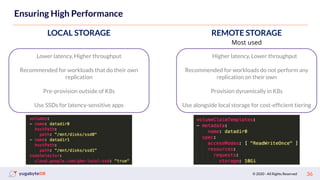

Ensuring High Performance
LOCAL STORAGE REMOTE STORAGE
Lower latency, Higher throughput
Recommended for workloads that do their own
replication
Pre-provision outside of K8s
Use SSDs for latency-sensitive apps
Higher latency, Lower throughput
Recommended for workloads do not perform any
replication on their own
Provision dynamically in K8s
Use alongside local storage for cost-efficient tiering
Most used

37. © 2020 - All Rights Reserved 37

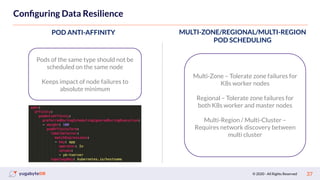

Configuring Data Resilience
POD ANTI-AFFINITY MULTI-ZONE/REGIONAL/MULTI-REGION
POD SCHEDULING
Pods of the same type should not be
scheduled on the same node
Keeps impact of node failures to
absolute minimum
Multi-Zone – Tolerate zone failures for
K8s worker nodes
Regional – Tolerate zone failures for
both K8s worker and master nodes
Multi-Region / Multi-Cluster –
Requires network discovery between
multi cluster

38. © 2020 - All Rights Reserved 38

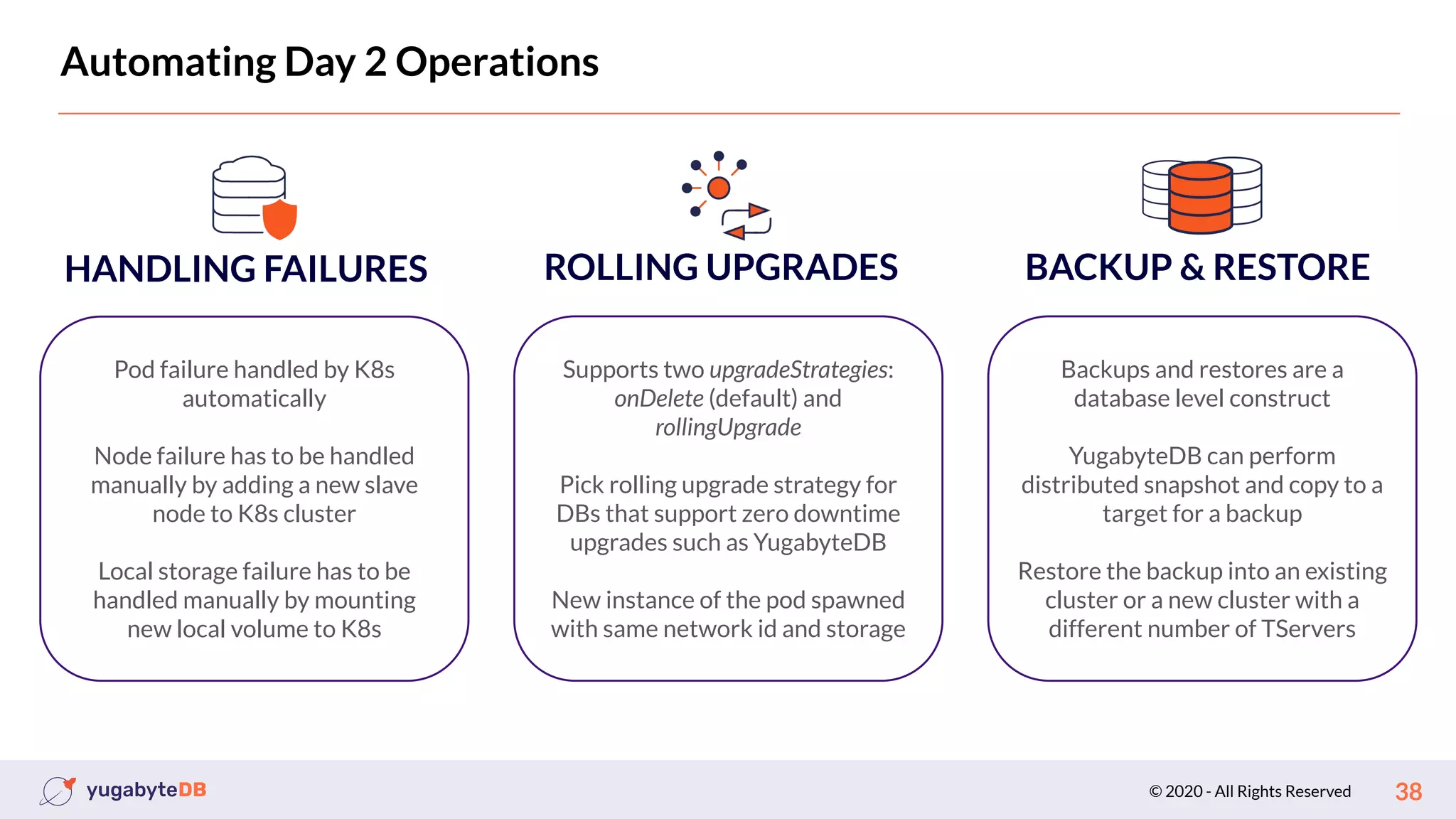

BACKUP & RESTORE
Backups and restores are a
database level construct
YugabyteDB can perform
distributed snapshot and copy to a
target for a backup
Restore the backup into an existing
cluster or a new cluster with a
different number of TServers
ROLLING UPGRADES
Supports two upgradeStrategies:
onDelete (default) and
rollingUpgrade
Pick rolling upgrade strategy for
DBs that support zero downtime
upgrades such as YugabyteDB
New instance of the pod spawned
with same network id and storage
HANDLING FAILURES
Pod failure handled by K8s
automatically
Node failure has to be handled
manually by adding a new slave
node to K8s cluster
Local storage failure has to be
handled manually by mounting
new local volume to K8s
Automating Day 2 Operations

39. © 2020 - All Rights Reserved 39
https://github.com/yugabyte/yugabyte-platform-operator
Based on Custom Controllers that have direct
access to lower level K8S API
Excellent fit for stateful apps requiring human
operational knowledge to correctly scale,
reconfigure and upgrade while simultaneously
ensuring high performance and data resilience
Complementary to Helm for packaging

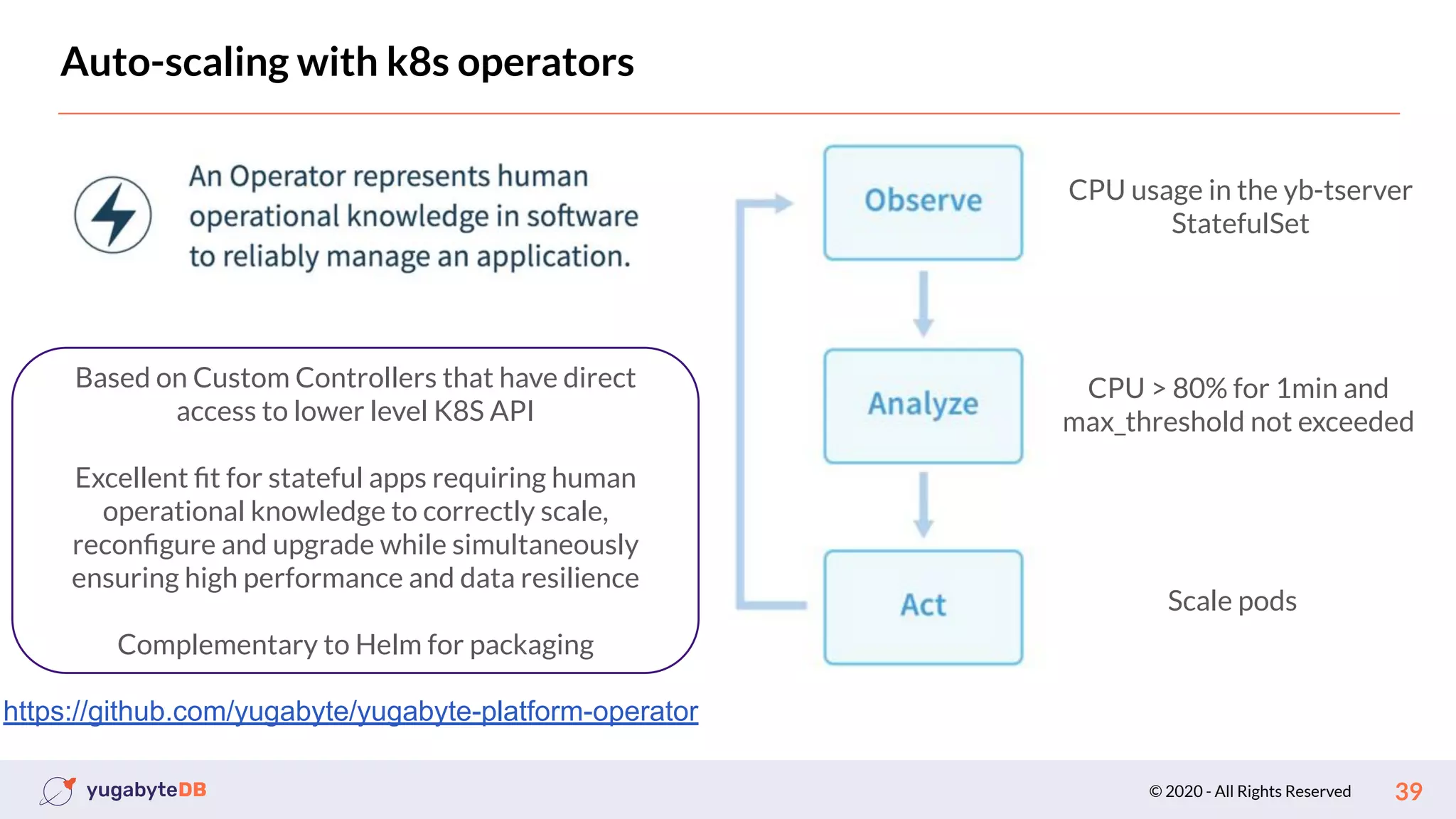

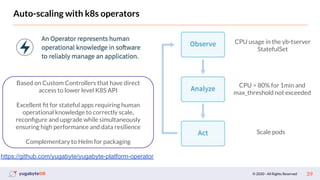

Auto-scaling with k8s operators
CPU usage in the yb-tserver
StatefulSet
Scale pods
CPU > 80% for 1min and
max_threshold not exceeded

40. © 2020 All Rights Reserved

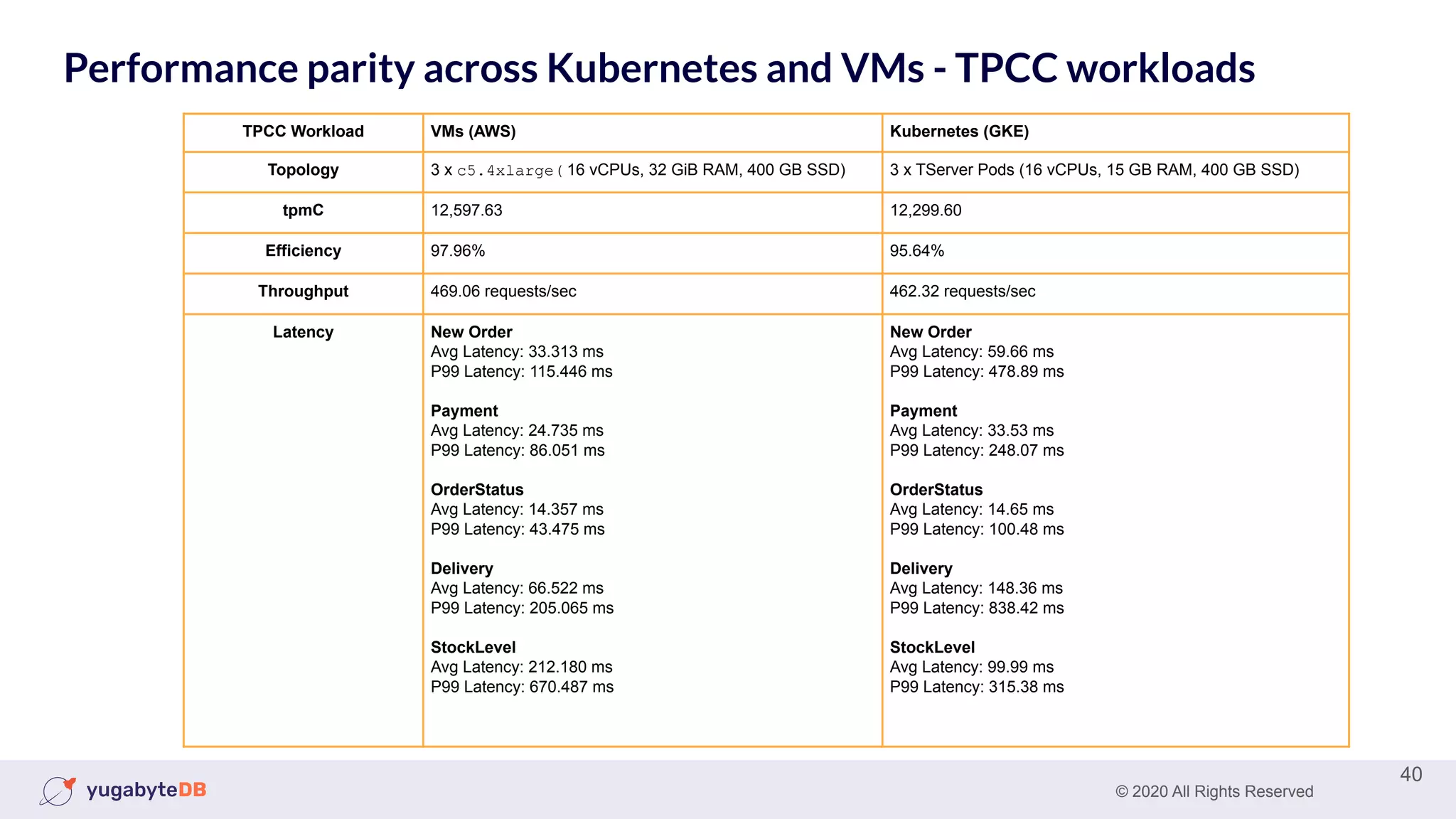

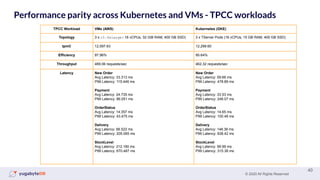

Performance parity across Kubernetes and VMs - TPCC workloads
40
TPCC Workload VMs (AWS) Kubernetes (GKE)
Topology 3 x c5.4xlarge( 16 vCPUs, 32 GiB RAM, 400 GB SSD) 3 x TServer Pods (16 vCPUs, 15 GB RAM, 400 GB SSD)
tpmC 12,597.63 12,299.60
Efficiency 97.96% 95.64%
Throughput 469.06 requests/sec 462.32 requests/sec
Latency New Order
Avg Latency: 33.313 ms
P99 Latency: 115.446 ms
Payment
Avg Latency: 24.735 ms
P99 Latency: 86.051 ms
OrderStatus
Avg Latency: 14.357 ms
P99 Latency: 43.475 ms
Delivery
Avg Latency: 66.522 ms
P99 Latency: 205.065 ms
StockLevel
Avg Latency: 212.180 ms
P99 Latency: 670.487 ms
New Order
Avg Latency: 59.66 ms
P99 Latency: 478.89 ms
Payment
Avg Latency: 33.53 ms
P99 Latency: 248.07 ms
OrderStatus
Avg Latency: 14.65 ms
P99 Latency: 100.48 ms
Delivery
Avg Latency: 148.36 ms
P99 Latency: 838.42 ms
StockLevel
Avg Latency: 99.99 ms
P99 Latency: 315.38 ms

41. © 2021 All Rights Reserved

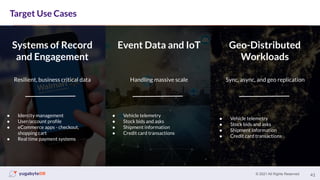

Target Use Cases
41
Systems of Record
and Engagement
Event Data and IoT Geo-Distributed
Workloads
Resilient, business critical data Handling massive scale Sync, async, and geo replication
● Identity management
● User/account profile
● eCommerce apps - checkout,
shopping cart
● Real time payment systems
● Vehicle telemetry
● Stock bids and asks
● Shipment information
● Credit card transactions
● Vehicle telemetry
● Stock bids and asks
● Shipment information
● Credit card transactions

42. © 2020 - All Rights Reserved 42
A Classic Enterprise App Scenario

43. © 2020 - All Rights Reserved

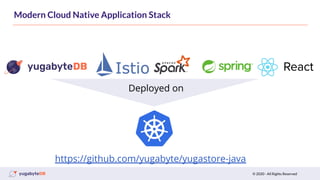

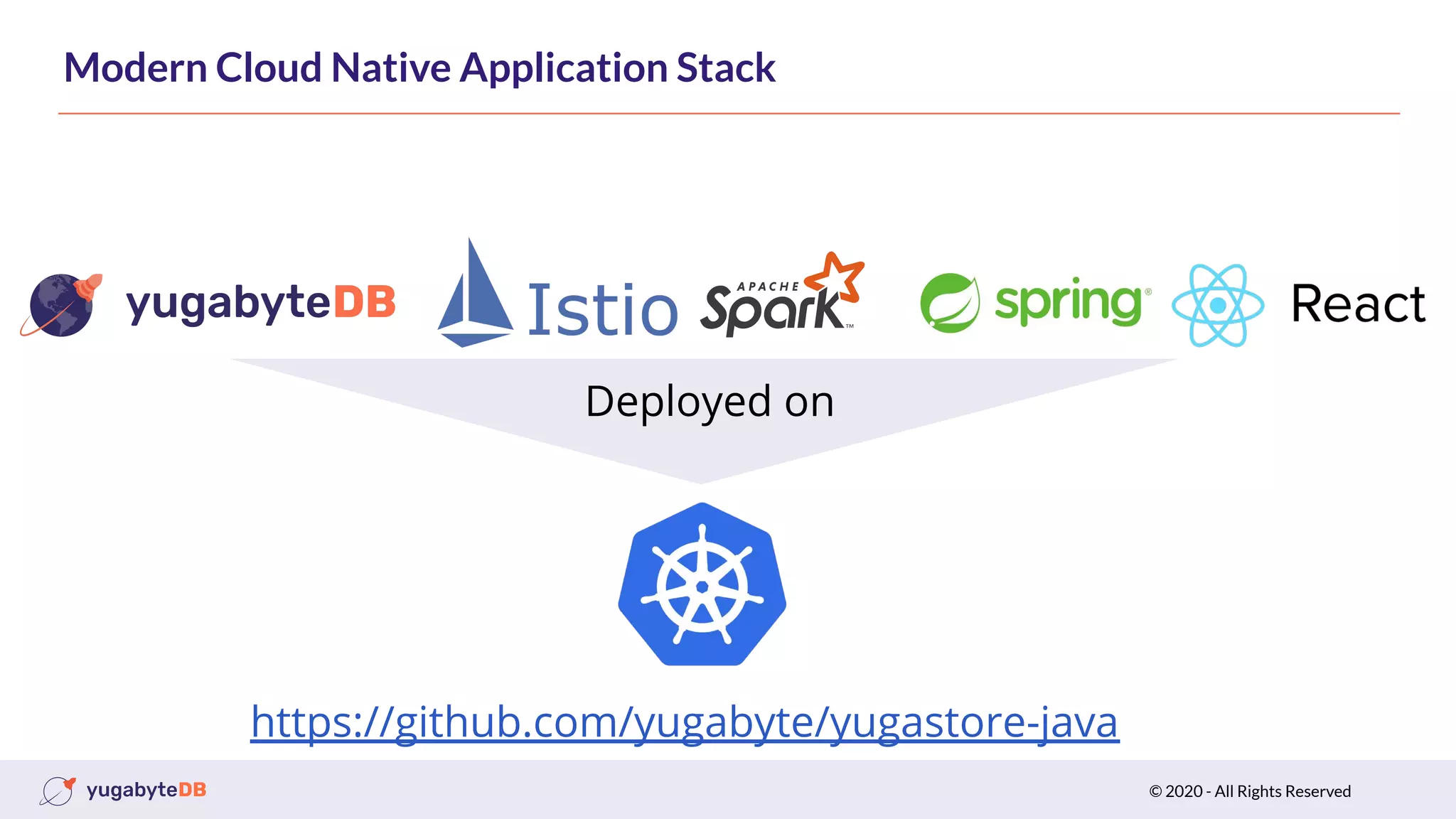

Modern Cloud Native Application Stack
Deployed on
https://github.com/yugabyte/yugastore-java

44. © 2020 - All Rights Reserved

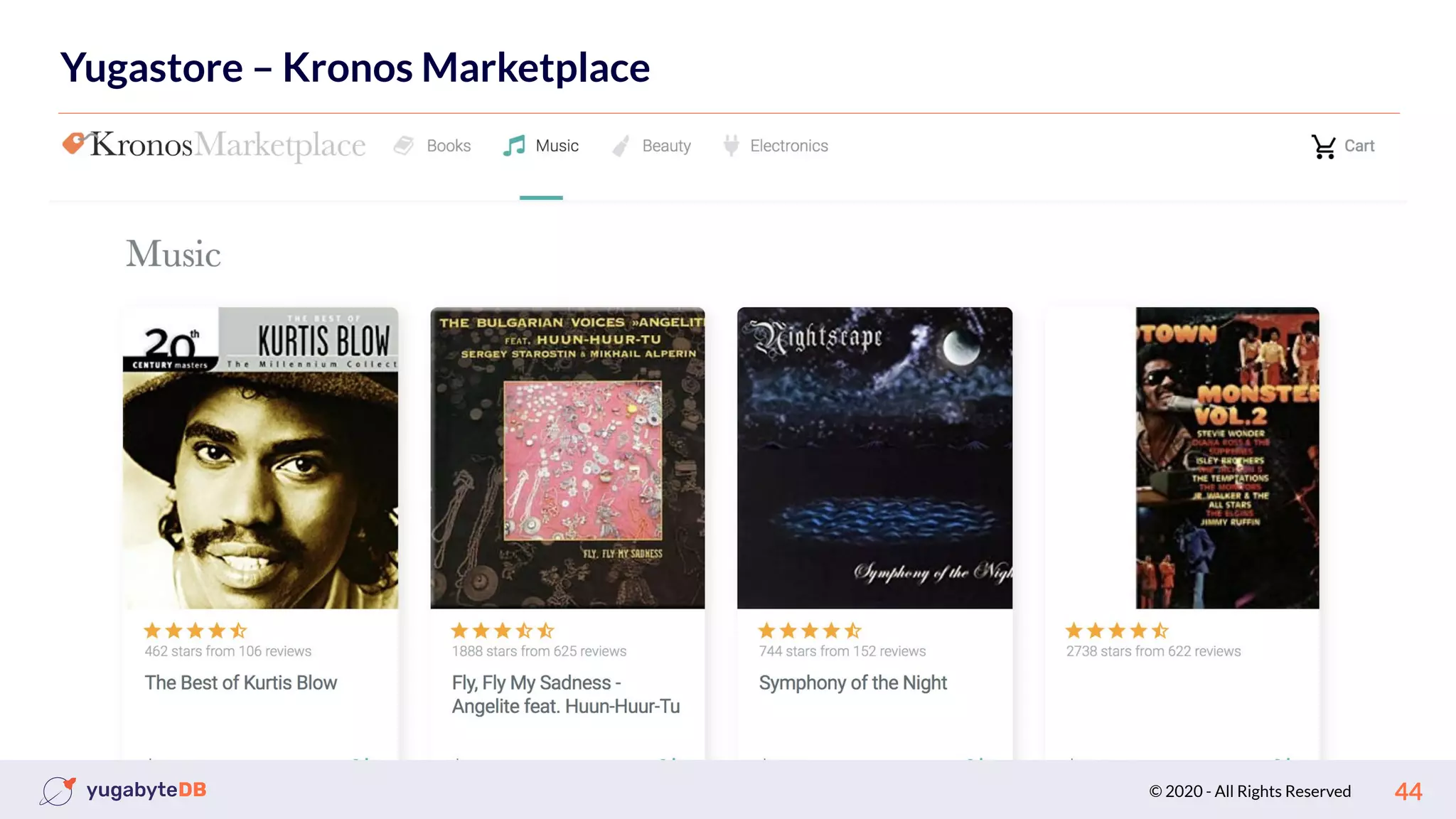

Yugastore – Kronos Marketplace
44

45. © 2020 - All Rights Reserved

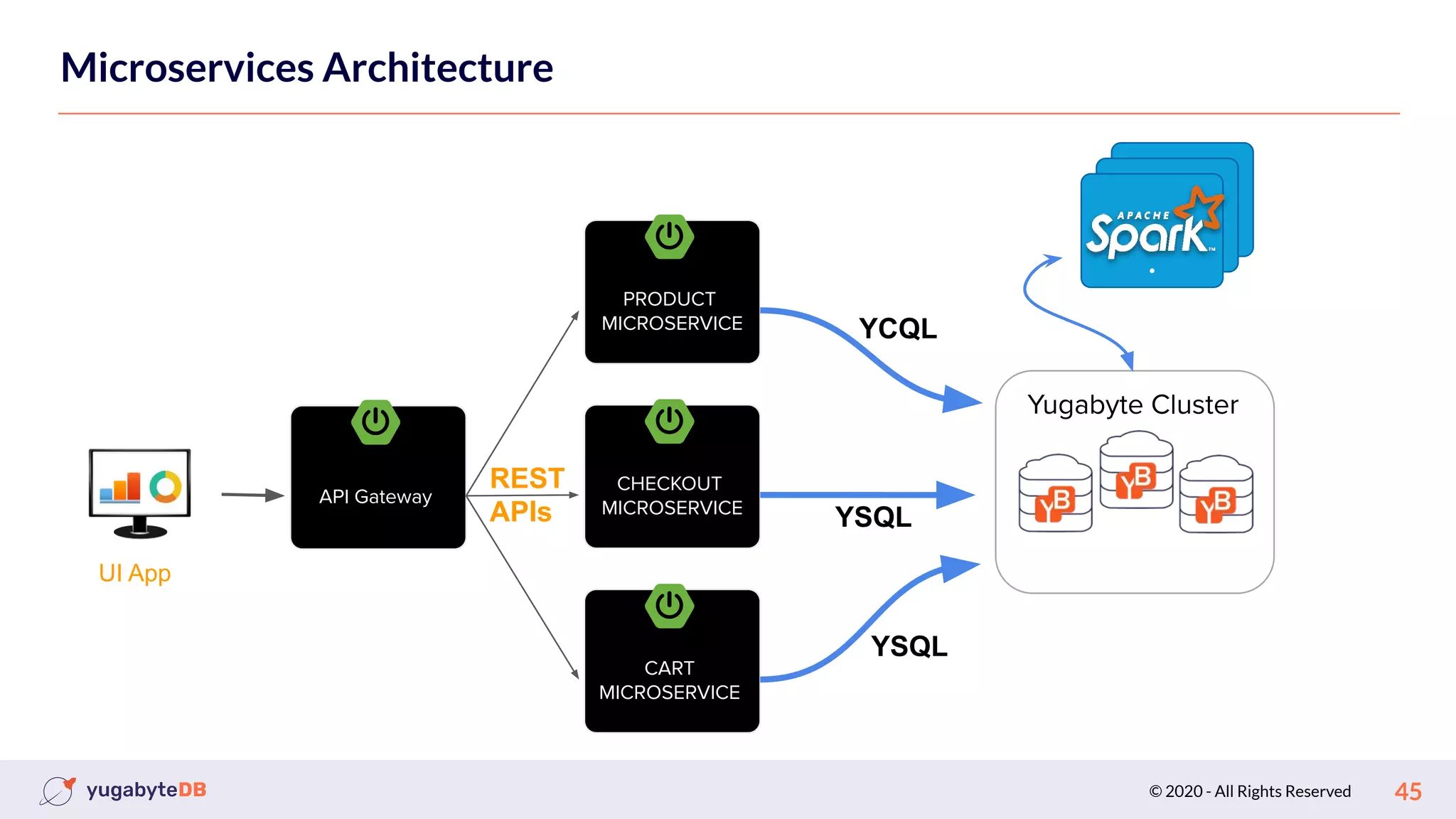

Microservices Architecture
45
CART
MICROSERVICE
PRODUCT
MICROSERVICE
API Gateway
CHECKOUT
MICROSERVICE
Yugabyte Cluster
YSQL
YSQL
YCQL
UI App
REST
APIs
.

46. © 2020 - All Rights Reserved

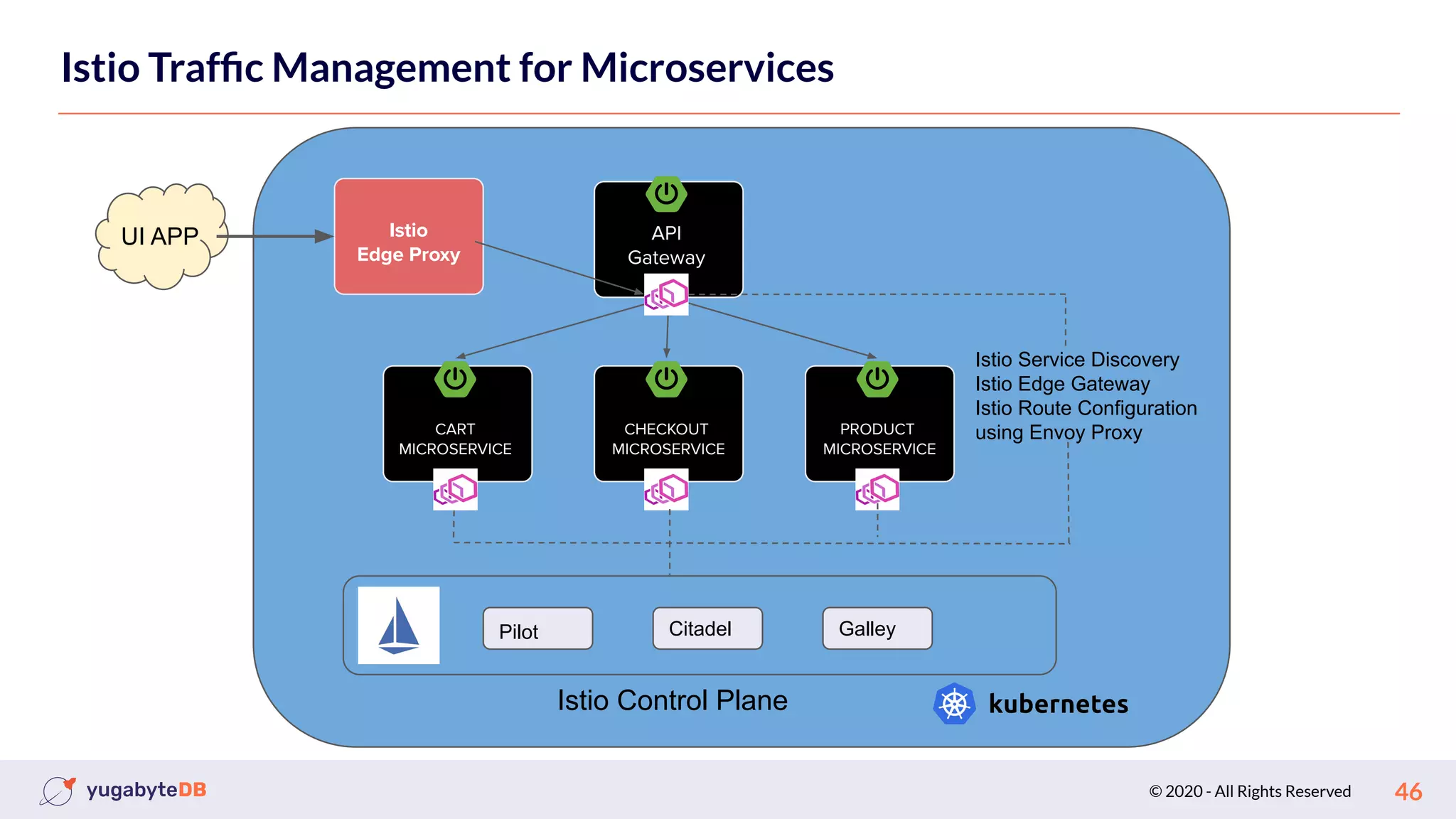

Istio Traffic Management for Microservices
46
CART
MICROSERVICE
PRODUCT
MICROSERVICE
API
Gateway
CHECKOUT
MICROSERVICE
UIU
UI APP
Galley
Citadel
Pilot
Istio
Edge Proxy
Istio Control Plane
Istio Service Discovery
Istio Edge Gateway
Istio Route Configuration
using Envoy Proxy

47. © 2020 - All Rights Reserved

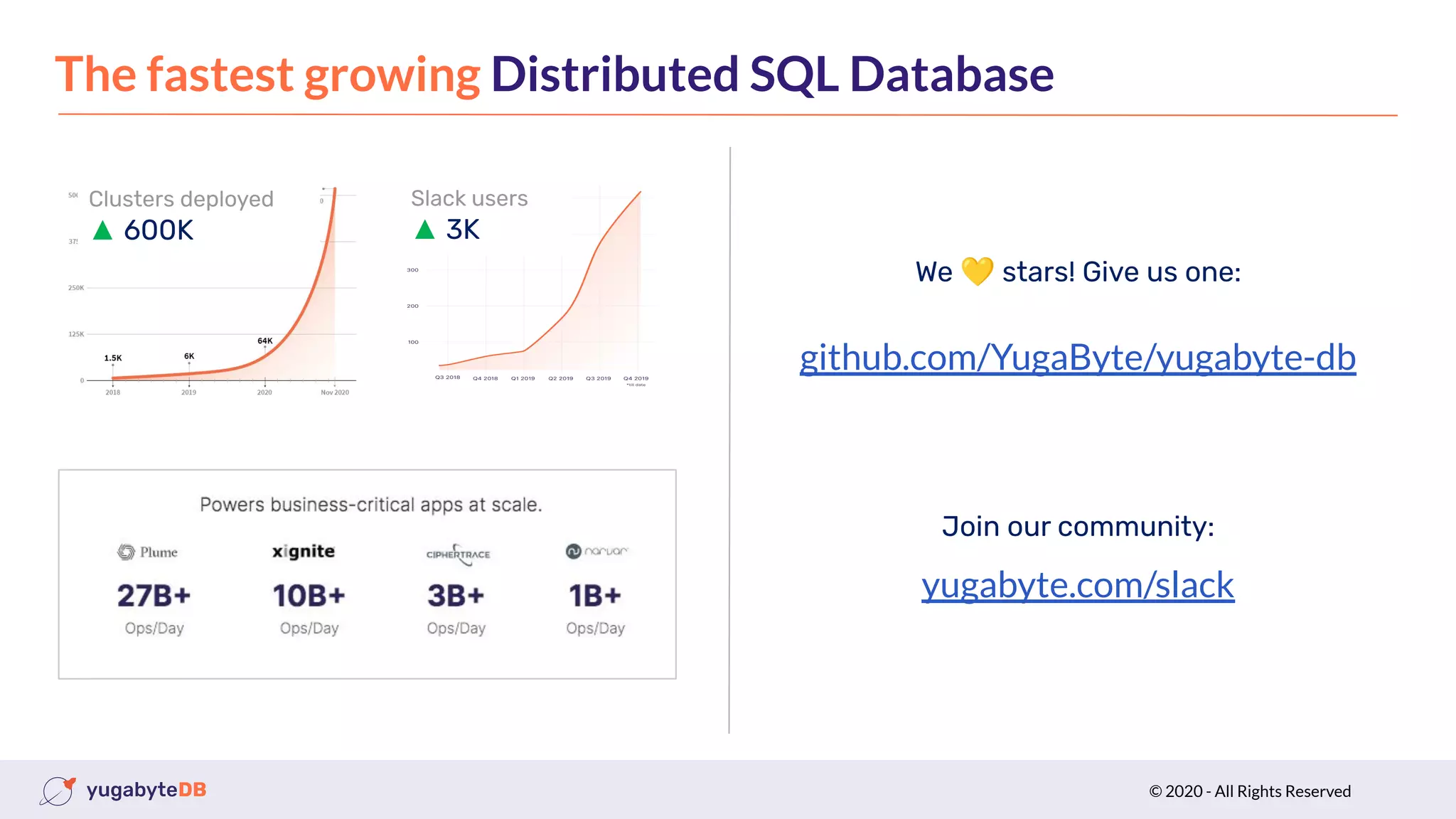

The fastest growing Distributed SQL Database
Slack users
▲ 3K
We 💛 stars! Give us one:
github.com/YugaByte/yugabyte-db
Join our community:
yugabyte.com/slack
Clusters deployed
▲ 600K

48. © 2020 - All Rights Reserved 48
Thank You
Join us on Slack: yugabyte.com/slack
Star us on GitHub: github.com/yugabyte/yugabyte-db
