2. ROLLING OF METALS
07-02-2019 05:42 2

3. TYPES OF ROLLING MILLS
Two high rolling mill
Three high rolling mill
Two high reverse rolling mill
Four high rolling mill
Multi rolling mill
Universal rolling mill
Planetary rolling mill
07-02-2019 05:42 3

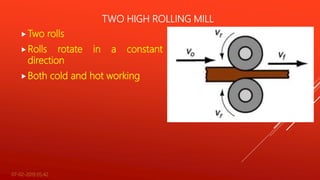

4. TWO HIGH ROLLING MILL
Two rolls
Rolls rotate in a constant
direction
Both cold and hot working
07-02-2019 05:42 4

5. THREE HIGH ROLLING MILL
Three rolls
Upper and lower rolls are drive
rolls
Middle rolls rotates by friction
Rolling of two continuous
passes in a rolling sequence
without reversing the drive
07-02-2019 05:42 5

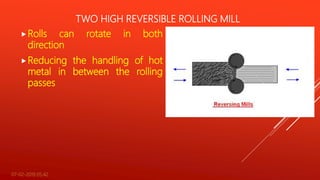

6. TWO HIGH REVERSIBLE ROLLING MILL
Rolls can rotate in both
direction
Reducing the handling of hot
metal in between the rolling
passes
07-02-2019 05:42 6

7. FOUR HIGH ROLLING MILL
It has a roll stand with four
parallel rolls one above the
other
The top and the bottom rolls
rotate in opposite direction as
do the two middle rolls
The two middle are smaller in
size than the top and bottom
rolls which are called backup
rolls for providing the necessary
rigidity to the smaller rolls
07-02-2019 05:42 7

8. CLUSTER ROLLING MILL
 It is a special type of four high
rolling mill in which each of the
two working rolls is backup by two
or more of the larger backup rolls
for rolling hard in materials
 It may be necessary to employ
work rolls of a very small diameter
but of considerable length
 In such cases adequate of the
working rolls can be obtained by
using a cluster mill
07-02-2019 05:42 8

9. TANDEM ROLLING MILL
 It is a set of two or three stands of
roll set in parallel alignment
 So that a continuous pass may be
made through each one
successively with change the
direction of material
07-02-2019 05:42 9

10. UNIVERSAL ROLLING MILL
 Metal is reduced to desired shape
by both horizontal and vertical
rolls
 Sheets, plates, slabs and beams
07-02-2019 05:42 10

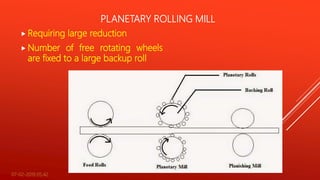

11. PLANETARY ROLLING MILL
 Requiring large reduction
 Number of free rotating wheels
are fixed to a large backup roll
07-02-2019 05:42 11

12. 07-02-2019 05:42 12

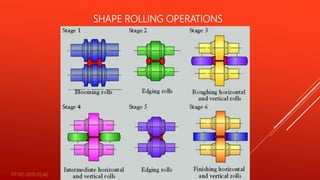

13. SHAPE ROLLING OPERATIONS
07-02-2019 05:42 13

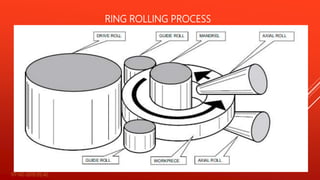

14. RING ROLLING PROCESS
07-02-2019 05:42 14

15. RING ROLLING PROCESS
07-02-2019 05:42 15

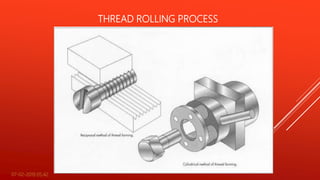

16. THREAD ROLLING PROCESS
07-02-2019 05:42 16

17. THREAD ROLLING PROCESS
07-02-2019 05:42 17

18. DEFECTS IN ROLLED PARTS
 Surface defects:
 Rust, scratches, cracks and pits
 Internal structural defects:
 Waviness, zipper cracks, edge cracks, alligatoring
07-02-2019 05:42 18
