1. Ambreen Umar
RESTING MEMBRANE POTENTIAL AND
ACTION POTENTIAL

2. Electrical Current and the
Body
 Potential energy generated by separated
charges is called voltage.
 Reflects the flow of ions rather than electrons
 There is a potential on either side of
membranes when the number of ions is
different across the membrane

3. Role of Ion Channels
 Types of plasma membrane ion channels:
 Passive, or leakage, channels – always open
 Chemically gated channels – open with
binding of a specific neurotransmitter
 Voltage-gated channels – open and close in
response to membrane potential (change in
charge)
 Mechanically gated channels – open and
close in response to physical deformation of
receptors

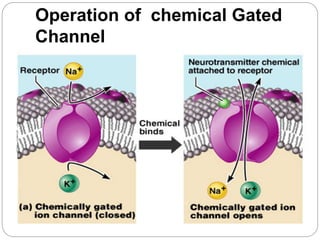

4. Operation of chemical Gated
Channel

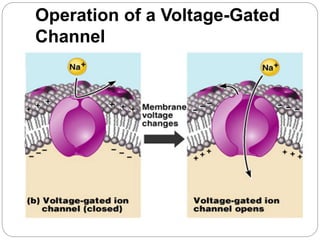

5. Operation of a Voltage-Gated
Channel

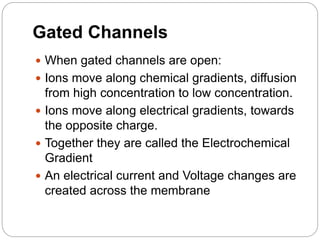

6. Gated Channels
 When gated channels are open:
 Ions move along chemical gradients, diffusion
from high concentration to low concentration.
 Ions move along electrical gradients, towards
the opposite charge.
 Together they are called the Electrochemical
Gradient
 An electrical current and Voltage changes are
created across the membrane

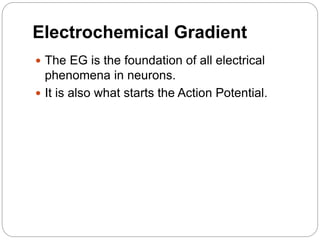

7. Electrochemical Gradient
 The EG is the foundation of all electrical
phenomena in neurons.
 It is also what starts the Action Potential.

8. Resting Membrane Potential
(Vr)
 The potential difference (–70 mV) across the
membrane of a resting neuron
 It is generated by different concentrations of Na+,
K+, Cl , and protein anions (A )
 The cytoplam inside a cell is negative and the
outside of the cell is positive. (Polarized)

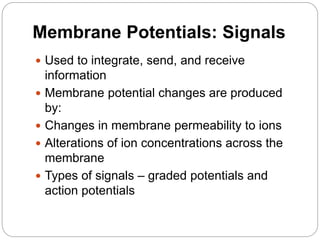

9. Membrane Potentials: Signals
 Used to integrate, send, and receive
information
 Membrane potential changes are produced
by:
 Changes in membrane permeability to ions
 Alterations of ion concentrations across the
membrane
 Types of signals – graded potentials and
action potentials

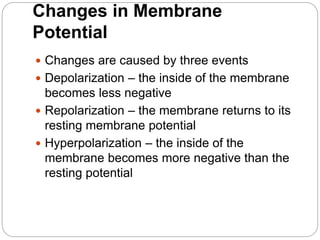

10. Changes in Membrane
Potential
 Changes are caused by three events
 Depolarization – the inside of the membrane
becomes less negative
 Repolarization – the membrane returns to its
resting membrane potential
 Hyperpolarization – the inside of the
membrane becomes more negative than the
resting potential

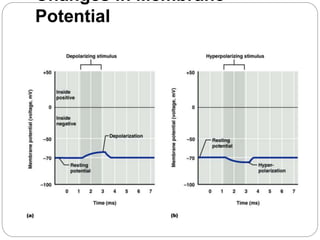

11. Changes in Membrane
Potential

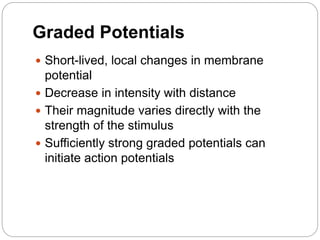

12. Graded Potentials
 Short-lived, local changes in membrane
potential
 Decrease in intensity with distance
 Their magnitude varies directly with the
strength of the stimulus
 Sufficiently strong graded potentials can
initiate action potentials

13. Graded Potentials
 A stimuli from sensory input causes the gated
ion channels to open for a short period of
time.
 Positive Cations flow into the cell and move
towards negative locations around the stimuli.
 Alternately the now negative area on the
outside of the cell will flow towards the
positive areas.
 However, this spread of depolarization is short
lived because the lipid membrane is not a
good conductor and is very leaky, so charges
quickly balance out.

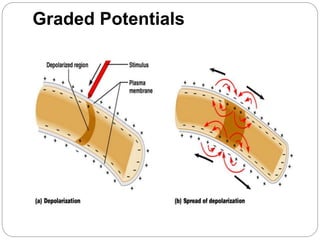

14. Graded Potentials

15. Graded Potentials

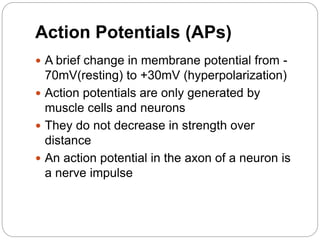

16. Action Potentials (APs)
 A brief change in membrane potential from -
70mV(resting) to +30mV (hyperpolarization)
 Action potentials are only generated by
muscle cells and neurons
 They do not decrease in strength over
distance
 An action potential in the axon of a neuron is
a nerve impulse

17. Action Potential: Step 1
Resting State
 Na+ and K+ channels are closed
 Leakage accounts for small movements of
Na+ and K+
 Each Na+ channel has two voltage-regulated
gates
 Activation gates –
closed in the resting
state
 Inactivation gates –
open in the resting
state

18. Action Potential: Step 2
Depolarization Phase
 The local depolarization current flips open the
sodium gate and Na+ rushes in.
 Threshold: when enough Na+ is inside to
reach a critical level of depolarization (-55 to -
50 mV) threshold, depolarization becomes
self-generating

19. Action Potential: Step 2 Cont.
 Na + will continue to rush in making the inside
less and less negative and actually
overshoots the 0mV (balanced) mark to about
+30mV

20. Action Potential: Step 3
Repolarization Phase
 After 1 ms enough Na+ has entered that positive
charges resist entering the cell.
 Sodium inactivation gates close and membrane
permeability to Na+ declines to resting levels
 As sodium gates close, voltage-sensitive K+
gates open
 K+ exits the cell and
internal negativity
of the resting neuron
is restored

21. Action Potential: Step 3
Repolarization Phase
 After 1 ms enough Na+ has entered that positive
charges resist entering the cell.
 Sodium inactivation gates close and membrane
permeability to Na+ declines to resting levels
 As sodium gates close, voltage-sensitive K+
gates open
 K+ exits the cell and
internal negativity
of the resting neuron
is restored

22. Action Potential: Step 4
Hyperpolarization
 Potassium gates are slow and remain open,
causing an excessive efflux of K+
 This efflux causes hyperpolarization of the
membrane (undershoot).
 The neuron is
insensitive to
stimulus and
depolarization
during this time

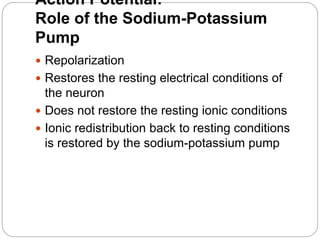

23. Action Potential:
Role of the Sodium-Potassium
Pump
 Repolarization
 Restores the resting electrical conditions of
the neuron
 Does not restore the resting ionic conditions
 Ionic redistribution back to resting conditions
is restored by the sodium-potassium pump

24. Phases of the Action Potential
 1 – resting state
 2 – depolarization phase
 3 – repolarization phase
 4 – hyperpolarization

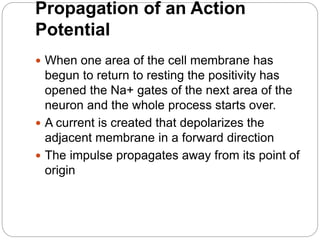

25. Propagation of an Action
Potential
 When one area of the cell membrane has
begun to return to resting the positivity has
opened the Na+ gates of the next area of the
neuron and the whole process starts over.
 A current is created that depolarizes the
adjacent membrane in a forward direction
 The impulse propagates away from its point of
origin

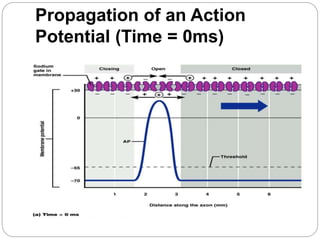

26. Propagation of an Action
Potential (Time = 0ms)

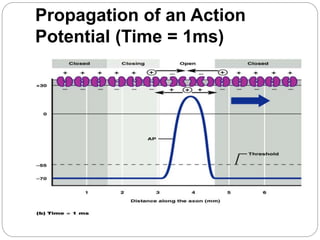

27. Propagation of an Action
Potential (Time = 1ms)

28. Propagation of an Action
Potential (Time = 2ms)

29. Coding for Stimulus Intensity
 All action potentials are alike and are
independent of stimulus intensity
 Strong stimuli can generate an action
potential more often than weaker stimuli
 The CNS determines stimulus intensity by the
frequency of impulse transmission
