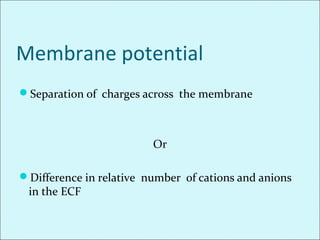

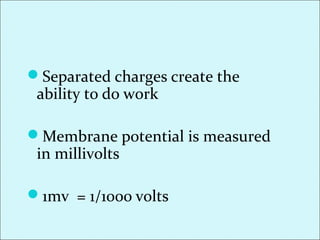

3. ďSeparated charges create the
ability to do work
ďMembrane potential is measured
in millivolts
ď1mv = 1/1000 volts
4. Chapter 3 The Plasma Membrane and
Membrane Potential
Human Physiology by Lauralee Sherwood Š2007
Brooks/Cole-Thomson Learning
Which has the greatest membrane potential?

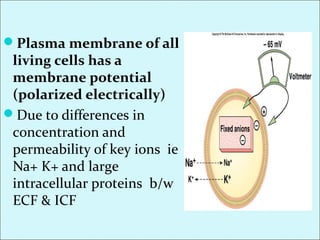

5. ďPlasma membrane of all
living cells has a
membrane potential
(polarized electrically)
ďDue to differences in
concentration and
permeability of key ions ie
Na+ K+ and large
intracellular proteins b/w
ECF & ICF

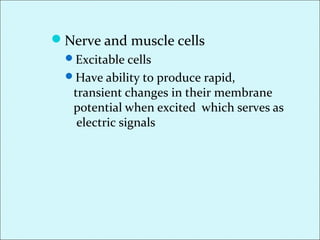

6. ďNerve and muscle cells
ďExcitable cells
ďHave ability to produce rapid,
transient changes in their membrane
potential when excited which serves as
electric signals

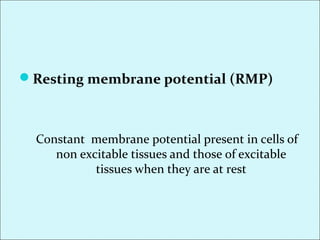

7. ďResting membrane potential (RMP)
Constant membrane potential present in cells of
non excitable tissues and those of excitable
tissues when they are at rest

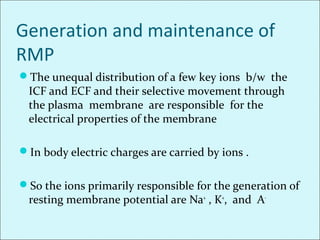

8. Generation and maintenance of
RMP
ďThe unequal distribution of a few key ions b/w the
ICF and ECF and their selective movement through
the plasma membrane are responsible for the
electrical properties of the membrane
ďIn body electric charges are carried by ions .
ďSo the ions primarily responsible for the generation of
resting membrane potential are Na+
, K+
, and A-

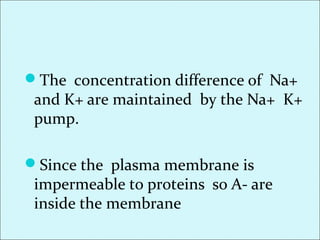

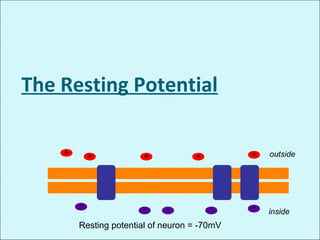

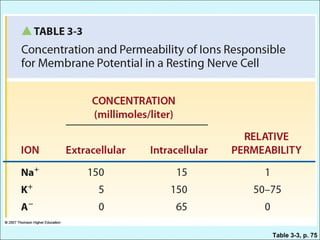

12. ďThe concentration difference of Na+
and K+ are maintained by the Na+ K+
pump.
ďSince the plasma membrane is
impermeable to proteins so A- are
inside the membrane

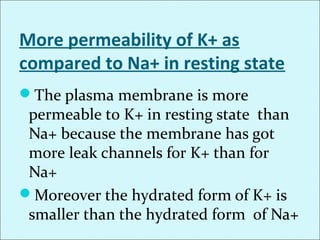

13. More permeability of K+ as
compared to Na+ in resting state
ďThe plasma membrane is more
permeable to K+ in resting state than
Na+ because the membrane has got
more leak channels for K+ than for
Na+
ďMoreover the hydrated form of K+ is
smaller than the hydrated form of Na+
14. Key point
ďConcentration gradient
for K is towards
outside and for Na is
towards inside but the
electric gradient for
both of these ions is
towards the negatively
charged side of the
membrane

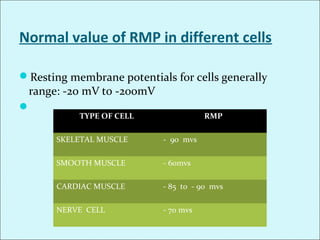

15. Normal value of RMP in different cells
ďResting membrane potentials for cells generally
range: -20 mV to -200mV
ď
TYPE OF CELL RMP
SKELETAL MUSCLE - 90 mvs
SMOOTH MUSCLE - 60mvs
CARDIAC MUSCLE - 85 to - 90 mvs
NERVE CELL - 70 mvs

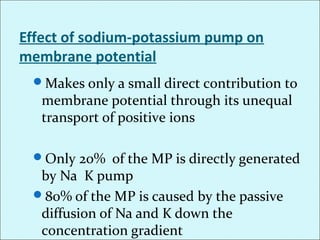

16. Effect of sodium-potassium pump on
membrane potential
ďMakes only a small direct contribution to
membrane potential through its unequal
transport of positive ions
ďOnly 20% of the MP is directly generated
by Na K pump
ď80% of the MP is caused by the passive
diffusion of Na and K down the
concentration gradient

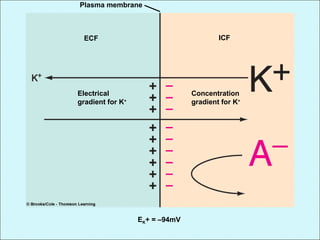

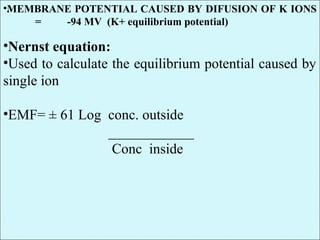

19. â˘.â˘MEMBRANE POTENTIAL CAUSED BY DIFUSION OF K IONS
= -94 MV (K+ equilibrium potential)
â˘Nernst equation:
â˘Used to calculate the equilibrium potential caused by
single ion
â˘EMF= Âą 61 Log conc. outside
____________
Conc inside

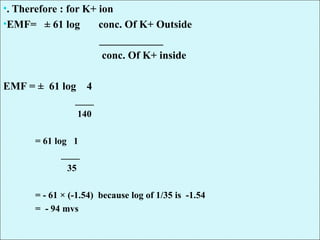

20. â˘. Therefore : for K+ ion
â˘EMF= Âą 61 log conc. Of K+ Outside
____________
conc. Of K+ inside
EMF = Âą 61 log 4
____
140
= 61 log 1
____
35
= - 61 Ă (-1.54) because log of 1/35 is -1.54
= - 94 mvs

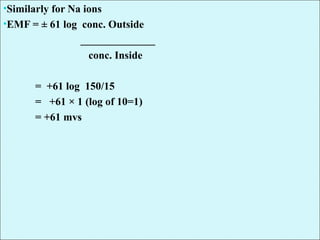

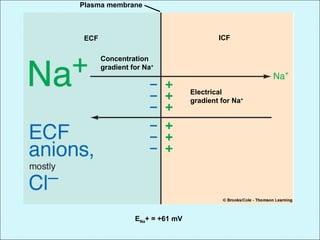

23. â˘Similarly for Na ions
â˘EMF = Âą 61 log conc. Outside
______________
conc. Inside
= +61 log 150/15
= +61 Ă 1 (log of 10=1)
= +61 mvs

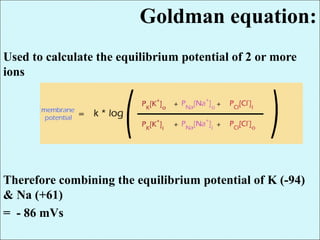

24. Goldman equation:
Used to calculate the equilibrium potential of 2 or more
ions
Therefore combining the equilibrium potential of K (-94)
& Na (+61)
= - 86 mVs
25. ďThe membrane is so impermeable
to Chloride that you drop it from
the equation

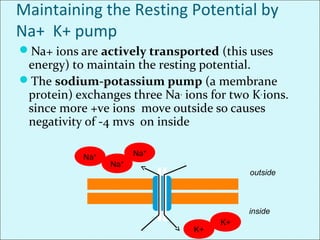

26. Maintaining the Resting Potential by
Na+ K+ pump
ďNa+ ions are actively transported (this uses
energy) to maintain the resting potential.
ďThe sodium-potassium pump (a membrane
protein) exchanges three Na+
ions for two K+
ions.
since more +ve ions move outside so causes
negativity of -4 mvs on inside
inside
outside
Na+
Na+
K+
K+
Na+

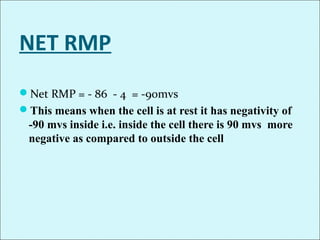

27. NET RMP
ďNet RMP = - 86 - 4 = -90mvs
ďThis means when the cell is at rest it has negativity of
-90 mvs inside i.e. inside the cell there is 90 mvs more
negative as compared to outside the cell

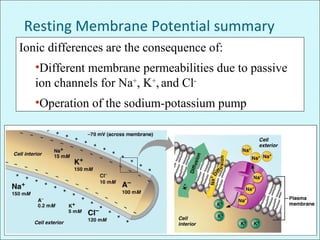

28. Resting Membrane Potential summary
Ionic differences are the consequence of:
â˘Different membrane permeabilities due to passive
ion channels for Na+
, K+
,and Cl-
â˘Operation of the sodium-potassium pump

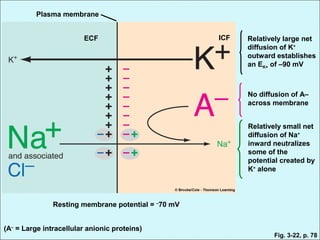

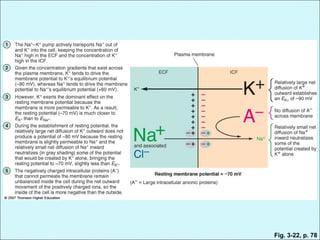

30. Plasma membrane
ECF ICF Relatively large net
diffusion of K+
outward establishes
an EK+ of â90 mV
No diffusion of Aâ
across membrane
Relatively small net
diffusion of Na+
inward neutralizes
some of the
potential created by
K+
alone
Resting membrane potential = â
70 mV
(Aâ
= Large intracellular anionic proteins)
Fig. 3-22, p. 78

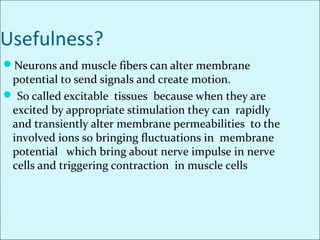

32. Usefulness?
ďNeurons and muscle fibers can alter membrane
potential to send signals and create motion.
ď So called excitable tissues because when they are
excited by appropriate stimulation they can rapidly
and transiently alter membrane permeabilities to the
involved ions so bringing fluctuations in membrane
potential which bring about nerve impulse in nerve
cells and triggering contraction in muscle cells

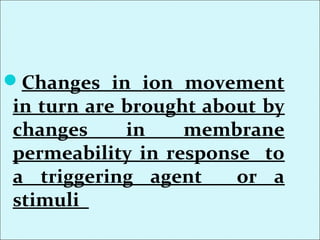

33. ďChanges in ion movement
in turn are brought about by
changes in membrane
permeability in response to
a triggering agent or a
stimuli

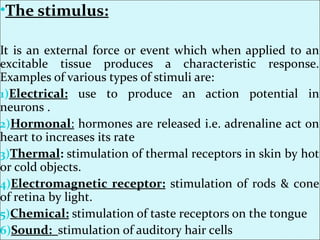

34. â˘The stimulus:
It is an external force or event which when applied to an
excitable tissue produces a characteristic response.
Examples of various types of stimuli are:
1)Electrical: use to produce an action potential in
neurons .
2)Hormonal: hormones are released i.e. adrenaline act on
heart to increases its rate
3)Thermal: stimulation of thermal receptors in skin by hot
or cold objects.
4)Electromagnetic receptor: stimulation of rods & cone
of retina by light.
5)Chemical: stimulation of taste receptors on the tongue
6)Sound: stimulation of auditory hair cells

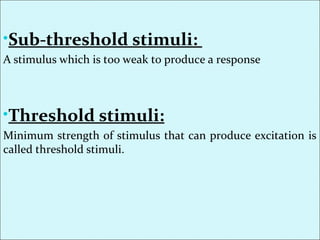

35. â˘Sub-threshold stimuli:
A stimulus which is too weak to produce a response
â˘Threshold stimuli:
Minimum strength of stimulus that can produce excitation is
called threshold stimuli.

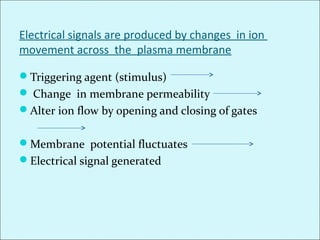

36. Electrical signals are produced by changes in ion
movement across the plasma membrane
ďTriggering agent (stimulus)
ď Change in membrane permeability
ďAlter ion flow by opening and closing of gates
ďMembrane potential fluctuates
ďElectrical signal generated
37. Types of electrical signals
ďTwo types of signals are produced by a change in
membrane potential:
ďgraded potentials (short-distance signals)
ďaction potentials (long-distance signals)

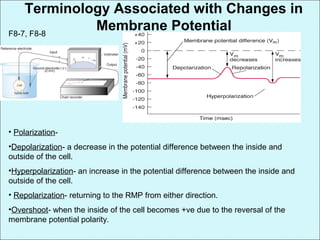

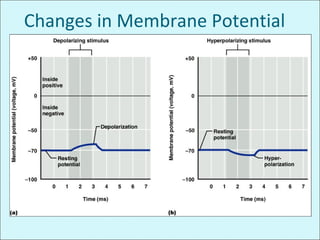

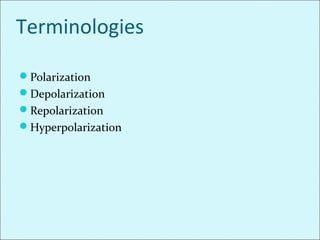

38. Terminology Associated with Changes in
Membrane PotentialF8-7, F8-8
⢠Polarization-
â˘Depolarization- a decrease in the potential difference between the inside and
outside of the cell.
â˘Hyperpolarization- an increase in the potential difference between the inside and
outside of the cell.
⢠Repolarization- returning to the RMP from either direction.
â˘Overshoot- when the inside of the cell becomes +ve due to the reversal of the
membrane potential polarity.

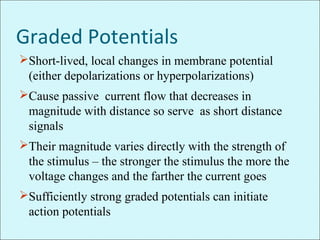

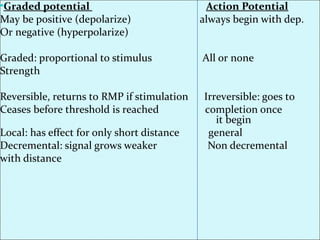

40. Graded Potentials
ďShort-lived, local changes in membrane potential
(either depolarizations or hyperpolarizations)
ďCause passive current flow that decreases in
magnitude with distance so serve as short distance
signals
ďTheir magnitude varies directly with the strength of
the stimulus â the stronger the stimulus the more the
voltage changes and the farther the current goes
ďSufficiently strong graded potentials can initiate
action potentials

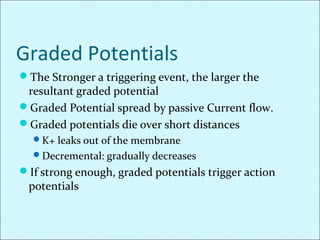

41. Graded Potentials
ďThe Stronger a triggering event, the larger the
resultant graded potential
ďGraded Potential spread by passive Current flow.
ďGraded potentials die over short distances
ďK+ leaks out of the membrane
ďDecremental: gradually decreases
ďIf strong enough, graded potentials trigger action
potentials

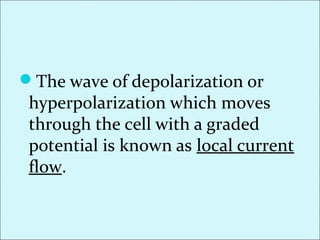

42. ďThe wave of depolarization or
hyperpolarization which moves
through the cell with a graded
potential is known as local current
flow.

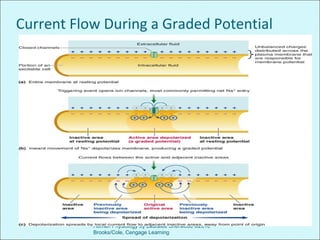

43. Current Flow During a Graded Potential
Chapter 4 Principles of Neural and Hormonal
Communication
Human Physiology by Lauralee Sherwood Š2010
Brooks/Cole, Cengage Learning
44. Chapter 4 Principles of Neural
and Hormonal Communication
Human Physiology by Lauralee
Sherwood Š2010 Brooks/Cole,
Cengage Learning

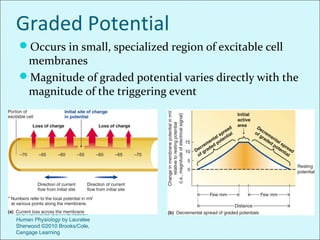

Graded Potential
ďOccurs in small, specialized region of excitable cell
membranes
ďMagnitude of graded potential varies directly with the
magnitude of the triggering event

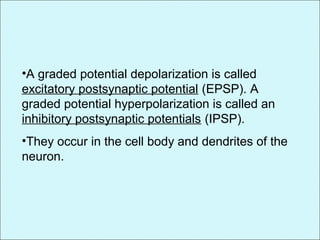

46. â˘A graded potential depolarization is called
excitatory postsynaptic potential (EPSP). A
graded potential hyperpolarization is called an
inhibitory postsynaptic potentials (IPSP).
â˘They occur in the cell body and dendrites of the
neuron.

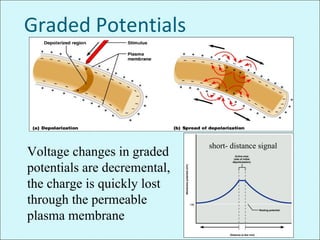

48. Graded Potentials
Voltage changes in graded
potentials are decremental,
the charge is quickly lost
through the permeable
plasma membrane
short- distance signal

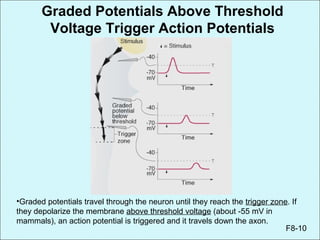

49. â˘Graded potentials travel through the neuron until they reach the trigger zone. If
they depolarize the membrane above threshold voltage (about -55 mV in
mammals), an action potential is triggered and it travels down the axon.
F8-10
Graded Potentials Above Threshold
Voltage Trigger Action Potentials

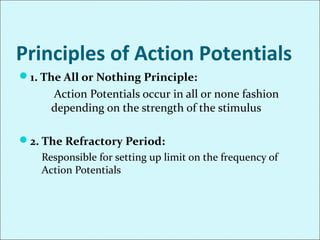

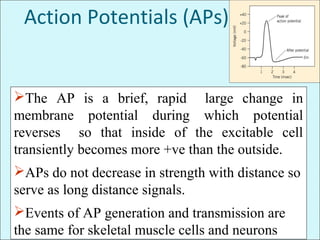

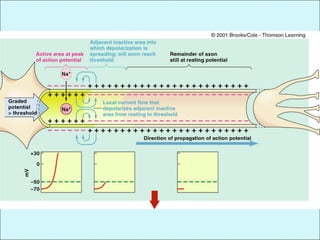

50. Action Potentials (APs)
ďThe AP is a brief, rapid large change in
membrane potential during which potential
reverses so that inside of the excitable cell
transiently becomes more +ve than the outside.
ďAPs do not decrease in strength with distance so
serve as long distance signals.
ďEvents of AP generation and transmission are
the same for skeletal muscle cells and neurons

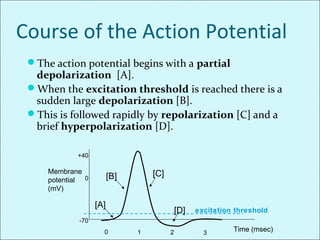

51. Course of the Action Potential

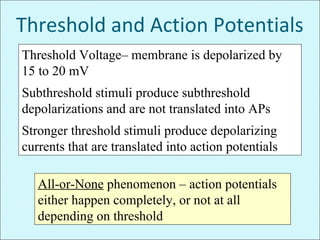

ďThe action potential begins with a partial
depolarization [A].
ďWhen the excitation threshold is reached there is a
sudden large depolarization [B].
ďThis is followed rapidly by repolarization [C] and a
brief hyperpolarization [D].
Membrane
potential
(mV)
[A]
[B] [C]
[D] excitation threshold
Time (msec)
-70
+40
0
0 1 2 3

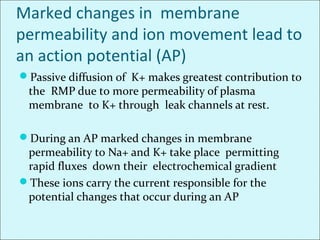

52. Marked changes in membrane
permeability and ion movement lead to
an action potential (AP)
ďPassive diffusion of K+ makes greatest contribution to
the RMP due to more permeability of plasma
membrane to K+ through leak channels at rest.
ďDuring an AP marked changes in membrane
permeability to Na+ and K+ take place permitting
rapid fluxes down their electrochemical gradient
ďThese ions carry the current responsible for the
potential changes that occur during an AP
53. ďAction potential takes place as
a result of the triggered
opening and subsequent closing
of 2 specific types of channels
ďVoltage gated Na+ channels
ďVoltage gated K+ channels

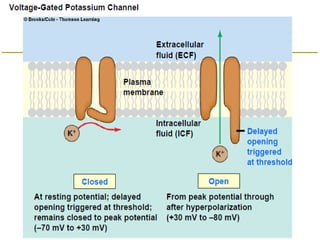

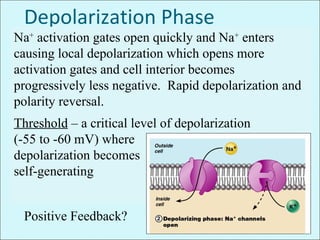

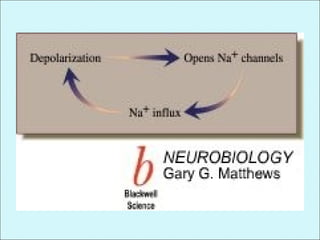

54. ROLE OF VOLTAGE GATED Na+
CHANNEL & VOLTAGE GATED K+
CHANNELS IN ACTION POTENTIAL

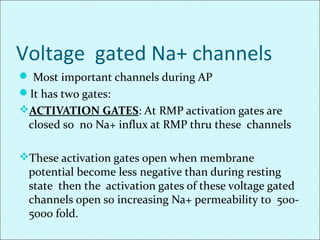

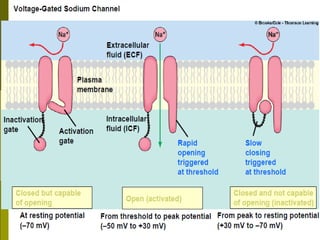

55. Voltage gated Na+ channels
ď Most important channels during AP
ďIt has two gates:
ďśACTIVATION GATES: At RMP activation gates are
closed so no Na+ influx at RMP thru these channels
ďśThese activation gates open when membrane
potential become less negative than during resting
state then the activation gates of these voltage gated
channels open so increasing Na+ permeability to 500-
5000 fold.

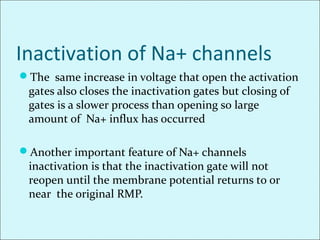

56. Inactivation of Na+ channels
ďThe same increase in voltage that open the activation
gates also closes the inactivation gates but closing of
gates is a slower process than opening so large
amount of Na+ influx has occurred
ďAnother important feature of Na+ channels
inactivation is that the inactivation gate will not
reopen until the membrane potential returns to or
near the original RMP.

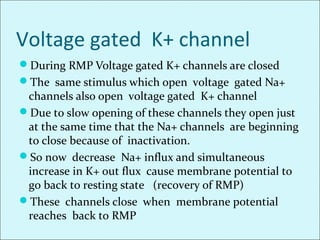

58. Voltage gated K+ channel
ďDuring RMP Voltage gated K+ channels are closed
ďThe same stimulus which open voltage gated Na+
channels also open voltage gated K+ channel
ďDue to slow opening of these channels they open just
at the same time that the Na+ channels are beginning
to close because of inactivation.
ďSo now decrease Na+ influx and simultaneous
increase in K+ out flux cause membrane potential to
go back to resting state (recovery of RMP)
ďThese channels close when membrane potential
reaches back to RMP
60. Phases of action potential
ďDepolarization
ďRepolarization
ďHyperpolarizatio
n
61.
62.

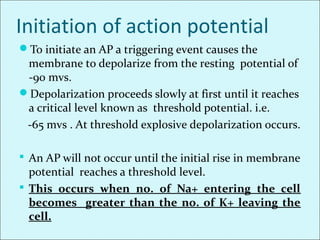

63. Initiation of action potential
ďTo initiate an AP a triggering event causes the
membrane to depolarize from the resting potential of
-90 mvs.
ďDepolarization proceeds slowly at first until it reaches
a critical level known as threshold potential. i.e.
-65 mvs . At threshold explosive depolarization occurs.
ď§ An AP will not occur until the initial rise in membrane
potential reaches a threshold level.
ď§ This occurs when no. of Na+ entering the cell
becomes greater than the no. of K+ leaving the
cell.
64. Threshold and Action Potentials
Threshold Voltageâ membrane is depolarized by
15 to 20 mV
Subthreshold stimuli produce subthreshold
depolarizations and are not translated into APs
Stronger threshold stimuli produce depolarizing
currents that are translated into action potentials
All-or-None phenomenon â action potentials
either happen completely, or not at all
depending on threshold
65.
66.
67. Action Potential: Resting
StateNa+
and K+
channels are closed
Each Na+
channel has two voltage-regulated gates
Activation gates â
closed in the resting
state
Inactivation gates â
open in the resting
state
Depolarization opens the activation gate (rapid)
and closes the inactivation gate (slower) The gate
for the K+
is slowly opened with depolarization.
68.

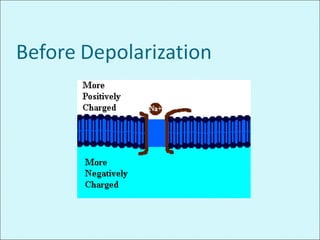

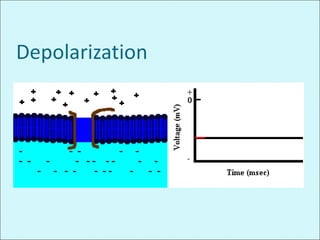

69. Depolarization Phase
Na+
activation gates open quickly and Na+
enters
causing local depolarization which opens more
activation gates and cell interior becomes
progressively less negative. Rapid depolarization and
polarity reversal.
Threshold â a critical level of depolarization
(-55 to -60 mV) where
depolarization becomes
self-generating

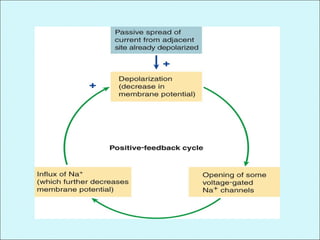

Positive Feedback?
70.

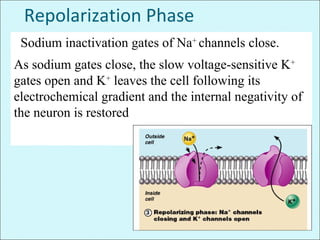

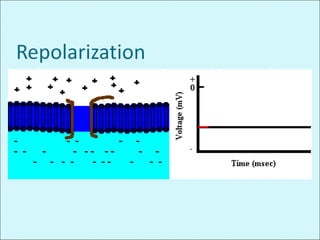

71. Repolarization Phase
Sodium inactivation gates of Na+
channels close.
As sodium gates close, the slow voltage-sensitive K+
gates open and K+
leaves the cell following its
electrochemical gradient and the internal negativity of
the neuron is restored
72.

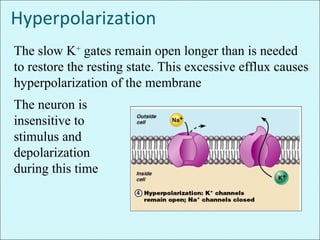

73. Hyperpolarization
The slow K+
gates remain open longer than is needed
to restore the resting state. This excessive efflux causes
hyperpolarization of the membrane
The neuron is
insensitive to
stimulus and
depolarization
during this time
74. Depolarization increases the probability of
producing nerve impulses. Hyperpolarization
reduces the probability of producing nerve
impulses.
75. Role of the Sodium-Potassium Pump
Repolarization restores the resting electrical
conditions of the neuron, but does not restore the
resting ionic conditions
Ionic redistribution is accomplished by the
sodium-potassium pump following
repolarization
76. Importance of Action Potential
Generation
ďNerve traffic, muscle contraction, hormone
release, G.I. secretions, Cognitive thought,
etc.
ďAction Potentials are required for the
senses - Sight, hearing, and touch are all
dependent on action potentials for
transmission of information to the brain
ďThreshold stimuli (Graded Potential) cause
the.generation of an action potential

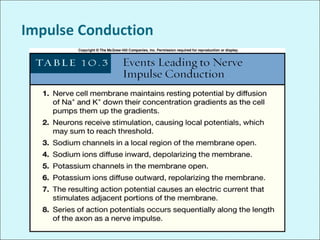

77.

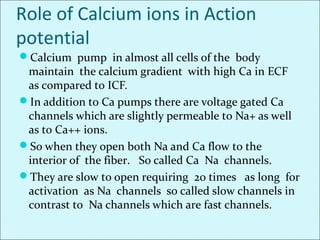

78. Role of Calcium ions in Action
potential
ďCalcium pump in almost all cells of the body
maintain the calcium gradient with high Ca in ECF
as compared to ICF.
ďIn addition to Ca pumps there are voltage gated Ca
channels which are slightly permeable to Na+ as well
as to Ca++ ions.
ďSo when they open both Na and Ca flow to the
interior of the fiber. So called Ca Na channels.
ďThey are slow to open requiring 20 times as long for
activation as Na channels so called slow channels in
contrast to Na channels which are fast channels.

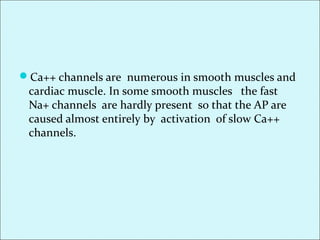

79. ďCa++ channels are numerous in smooth muscles and
cardiac muscle. In some smooth muscles the fast
Na+ channels are hardly present so that the AP are
caused almost entirely by activation of slow Ca++
channels.

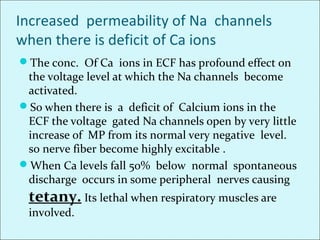

80. Increased permeability of Na channels
when there is deficit of Ca ions
ďThe conc. Of Ca ions in ECF has profound effect on
the voltage level at which the Na channels become
activated.
ďSo when there is a deficit of Calcium ions in the
ECF the voltage gated Na channels open by very little
increase of MP from its normal very negative level.
so nerve fiber become highly excitable .
ďWhen Ca levels fall 50% below normal spontaneous
discharge occurs in some peripheral nerves causing
tetany. Its lethal when respiratory muscles are
involved.

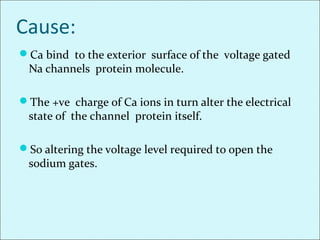

81. Cause:
ďCa bind to the exterior surface of the voltage gated
Na channels protein molecule.
ďThe +ve charge of Ca ions in turn alter the electrical
state of the channel protein itself.
ďSo altering the voltage level required to open the
sodium gates.

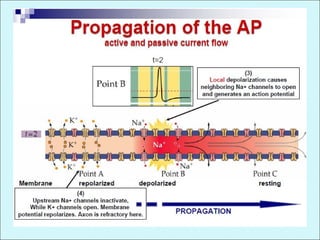

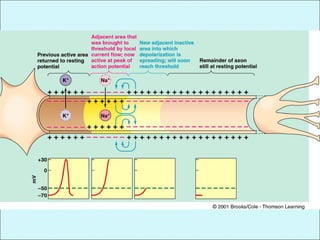

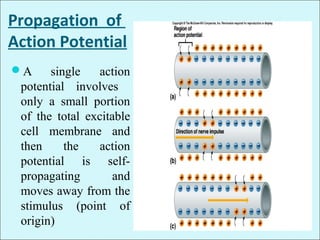

82. Propagation of
Action Potential
ďA single action
potential involves
only a small portion
of the total excitable
cell membrane and
then the action
potential is self-
propagating and
moves away from the
stimulus (point of
origin)
83. Direction of Action potential
ďAP travels in all directions away from the stimulus
until the entire membrane is depolarized
84. Conduction of Action Potentials
ďTwo types of propagation
ďContiguous conduction
ď Conduction in unmyelinated fibers
ď Action potential spreads along every portion of the
membrane
ďSaltatory conduction
ď Rapid conduction in myelinated fibers
ď Impulse jumps over sections of the fiber covered with
insulating myelin
85.
86.
87.
88.

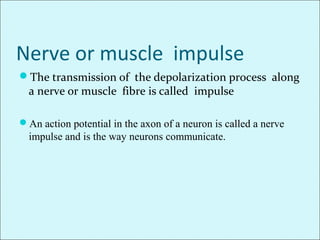

89. Nerve or muscle impulse
ďThe transmission of the depolarization process along
a nerve or muscle fibre is called impulse
ďAn action potential in the axon of a neuron is called a nerve
impulse and is the way neurons communicate.

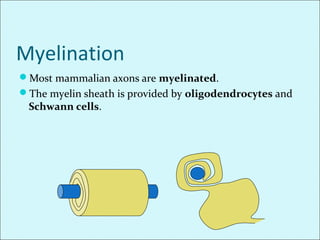

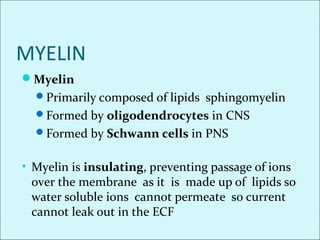

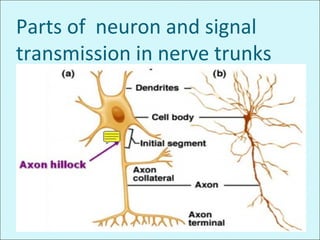

92. MYELIN
ďMyelin
ďPrimarily composed of lipids sphingomyelin
ďFormed by oligodendrocytes in CNS
ďFormed by Schwann cells in PNS
⢠Myelin is insulating, preventing passage of ions
over the membrane as it is made up of lipids so
water soluble ions cannot permeate so current
cannot leak out in the ECF

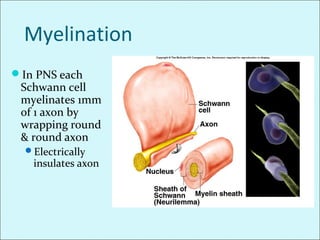

94. ⢠The resistance of the
membrane to current leak
out of the cell and the
diameter of the axon
determine the speed of AP
conduction.
⢠Large diameter axons
provide a low resistance to
current flow within the axon
and this in turn, speeds up
conduction.
â˘Myelin sheath which wraps around vertebrate axons prevents current leak out of
the cells. Acts like an insulator, for example, plastic coating surrounding electric
wires. It is devoid of any passage ways.

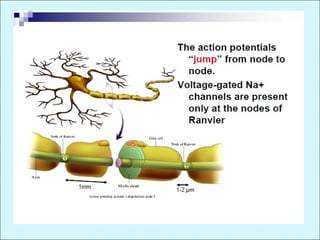

⢠However, portions of the axons lack the myelin sheath and these are called
Nodes of Ranvier. They are present at about 1 mm intervals along the length
of axons . High concentration of Na+
channels are found at these nodes so AP
occurs only at nodes

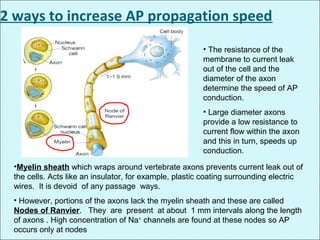

2 ways to increase AP propagation speed
95.

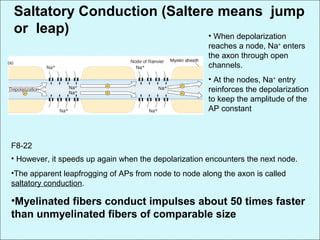

96. Saltatory Conduction (Saltere means jump
or leap) ⢠When depolarization
reaches a node, Na+
enters
the axon through open
channels.
⢠At the nodes, Na+
entry
reinforces the depolarization
to keep the amplitude of the
AP constant

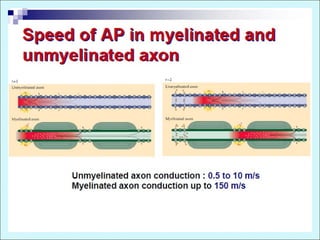

⢠However, it speeds up again when the depolarization encounters the next node.
â˘The apparent leapfrogging of APs from node to node along the axon is called
saltatory conduction.
â˘Myelinated fibers conduct impulses about 50 times faster
than unmyelinated fibers of comparable size
F8-22

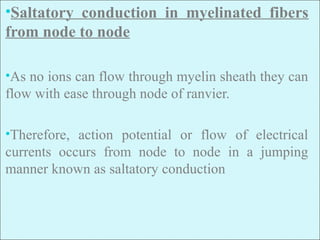

97. â˘Saltatory conduction in myelinated fibers
from node to node
â˘As no ions can flow through myelin sheath they can
flow with ease through node of ranvier.
â˘Therefore, action potential or flow of electrical
currents occurs from node to node in a jumping
manner known as saltatory conduction

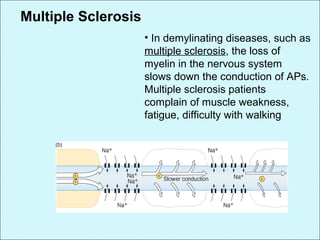

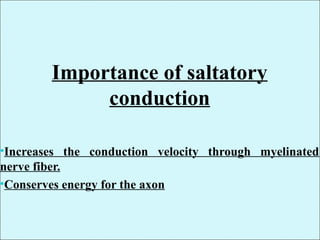

100. Multiple Sclerosis
⢠In demylinating diseases, such as
multiple sclerosis, the loss of
myelin in the nervous system
slows down the conduction of APs.
Multiple sclerosis patients
complain of muscle weakness,
fatigue, difficulty with walking

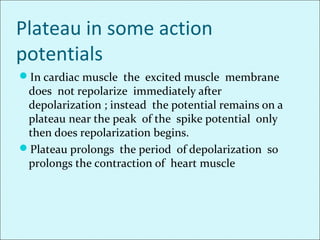

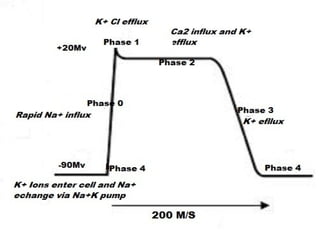

101. Plateau in some action
potentials
ďIn cardiac muscle the excited muscle membrane
does not repolarize immediately after
depolarization ; instead the potential remains on a
plateau near the peak of the spike potential only
then does repolarization begins.
ďPlateau prolongs the period of depolarization so
prolongs the contraction of heart muscle

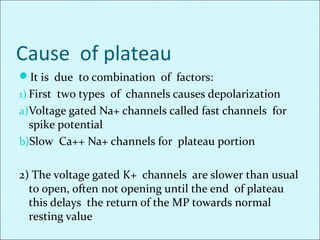

102. Cause of plateau
ďIt is due to combination of factors:
1) First two types of channels causes depolarization
a)Voltage gated Na+ channels called fast channels for
spike potential
b)Slow Ca++ Na+ channels for plateau portion
2) The voltage gated K+ channels are slower than usual
to open, often not opening until the end of plateau
this delays the return of the MP towards normal
resting value

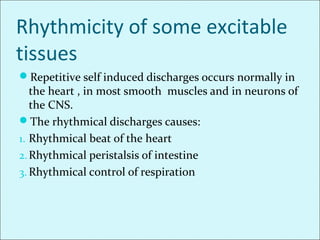

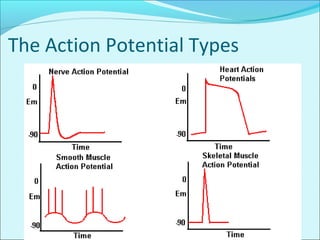

105. Rhythmicity of some excitable
tissues
ďRepetitive self induced discharges occurs normally in
the heart , in most smooth muscles and in neurons of
the CNS.
ďThe rhythmical discharges causes:
1. Rhythmical beat of the heart
2.Rhythmical peristalsis of intestine
3. Rhythmical control of respiration

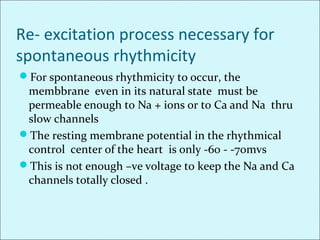

106. Re- excitation process necessary for
spontaneous rhythmicity
ďFor spontaneous rhythmicity to occur, the
membbrane even in its natural state must be
permeable enough to Na + ions or to Ca and Na thru
slow channels
ďThe resting membrane potential in the rhythmical
control center of the heart is only -60 - -70mvs
ďThis is not enough âve voltage to keep the Na and Ca
channels totally closed .

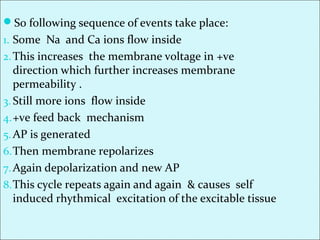

107. ďSo following sequence of events take place:
1. Some Na and Ca ions flow inside
2.This increases the membrane voltage in +ve
direction which further increases membrane
permeability .
3. Still more ions flow inside
4.+ve feed back mechanism
5.AP is generated
6.Then membrane repolarizes
7.Again depolarization and new AP
8.This cycle repeats again and again & causes self
induced rhythmical excitation of the excitable tissue

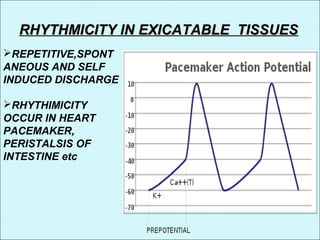

108. RHYTHMICITY IN EXICATABLE TISSUESRHYTHMICITY IN EXICATABLE TISSUES
ďREPETITIVE,SPONT
ANEOUS AND SELF
INDUCED DISCHARGE
ďRHYTHIMICITY
OCCUR IN HEART
PACEMAKER,
PERISTALSIS OF
INTESTINE etc

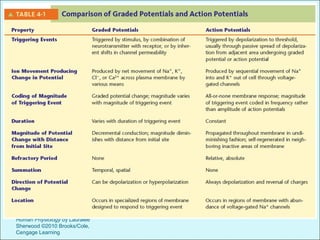

109. Chapter 4 Principles of Neural
and Hormonal Communication
Human Physiology by Lauralee
Sherwood Š2010 Brooks/Cole,
Cengage Learning
111. Principles of Action Potentials

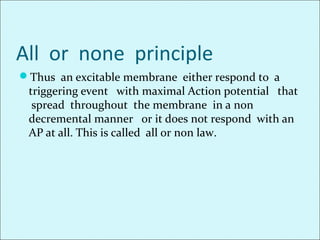

ď1. The All or Nothing Principle:
Action Potentials occur in all or none fashion
depending on the strength of the stimulus

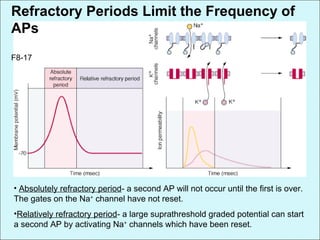

ď2. The Refractory Period:
Responsible for setting up limit on the frequency of
Action Potentials
112. All-or-None Principle
⢠If any portion of the membrane is depolarized
to threshold an AP is initiated which
will go to its maximum height.
⢠A triggering event stronger than one necessary
to bring the membrane to threshold does not
produce a large AP.
⢠However a triggering event that fails to
depolarize the membrane to threshold does
not trigger the AP at all.
113. All or none principle
ďThus an excitable membrane either respond to a
triggering event with maximal Action potential that
spread throughout the membrane in a non
decremental manner or it does not respond with an
AP at all. This is called all or non law.

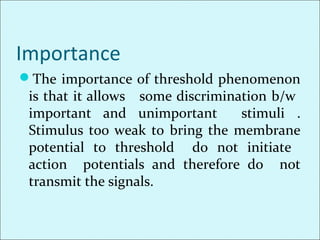

114. Importance
ďThe importance of threshold phenomenon
is that it allows some discrimination b/w
important and unimportant stimuli .
Stimulus too weak to bring the membrane
potential to threshold do not initiate
action potentials and therefore do not
transmit the signals.

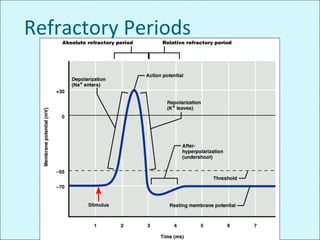

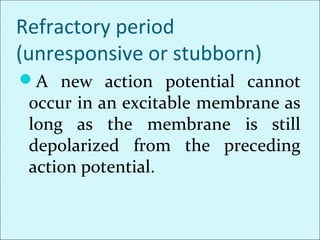

115. Refractory period
(unresponsive or stubborn)
ďA new action potential cannot
occur in an excitable membrane as
long as the membrane is still
depolarized from the preceding
action potential.

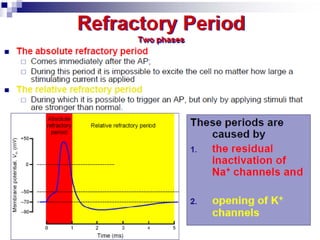

116.

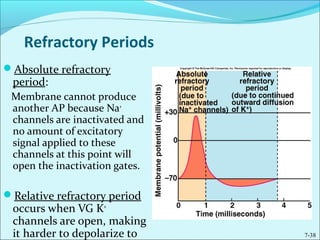

117. Refractory Periods
ďAbsolute refractory
period:
Membrane cannot produce
another AP because Na+
channels are inactivated and
no amount of excitatory
signal applied to these
channels at this point will
open the inactivation gates.
ďRelative refractory period
occurs when VG K+
channels are open, making
it harder to depolarize to 7-38

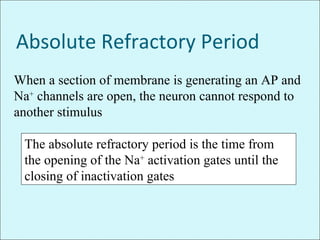

118. Absolute Refractory Period
The absolute refractory period is the time from
the opening of the Na+
activation gates until the
closing of inactivation gates
When a section of membrane is generating an AP and
Na+
channels are open, the neuron cannot respond to
another stimulus

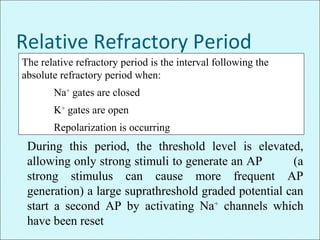

119. Relative Refractory Period
The relative refractory period is the interval following the
absolute refractory period when:
Na+
gates are closed
K+
gates are open
Repolarization is occurring
During this period, the threshold level is elevated,
allowing only strong stimuli to generate an AP (a
strong stimulus can cause more frequent AP
generation) a large suprathreshold graded potential can
start a second AP by activating Na+
channels which
have been reset
120. ⢠Absolutely refractory period- a second AP will not occur until the first is over.
The gates on the Na+
channel have not reset.
â˘Relatively refractory period- a large suprathreshold graded potential can start
a second AP by activating Na+
channels which have been reset.
Refractory Periods Limit the Frequency of
APs
F8-17

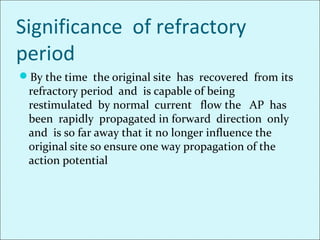

121. Significance of refractory
period
ďBy the time the original site has recovered from its
refractory period and is capable of being
restimulated by normal current flow the AP has
been rapidly propagated in forward direction only
and is so far away that it no longer influence the
original site so ensure one way propagation of the
action potential

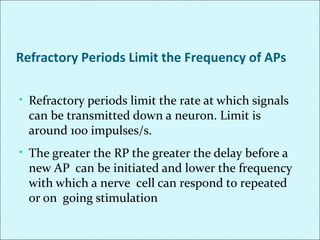

122. ⢠Refractory periods limit the rate at which signals
can be transmitted down a neuron. Limit is
around 100 impulses/s.
⢠The greater the RP the greater the delay before a
new AP can be initiated and lower the frequency
with which a nerve cell can respond to repeated
or on going stimulation
Refractory Periods Limit the Frequency of APs

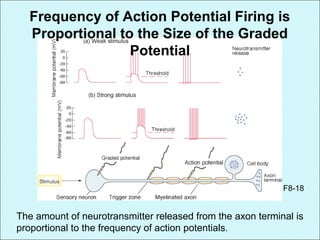

124. Frequency of Action Potential Firing is
Proportional to the Size of the Graded
Potential
The amount of neurotransmitter released from the axon terminal is
proportional to the frequency of action potentials.
F8-18
125. Factors Affecting Excitability of Nerve
1-Increase excitability:1-Increase excitability:
-Increase Na permeability (Depolarize):-Increase Na permeability (Depolarize):
Low extracellularLow extracellular Ca++
--Increase extracellularIncrease extrac K concentration..
2-Decrease excitability (membrane stabilizers)2-Decrease excitability (membrane stabilizers)
--Decreased Na permeability:Decreased Na permeability:
High extracellularHigh extracellular, Ca++ and local anesthesia
--Decrease extracellularDecrease extracellular K+ concentration.
.

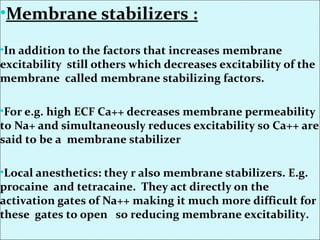

126. â˘Membrane stabilizers :
â˘In addition to the factors that increases membrane
excitability still others which decreases excitability of the
membrane called membrane stabilizing factors.
â˘For e.g. high ECF Ca++ decreases membrane permeability
to Na+ and simultaneously reduces excitability so Ca++ are
said to be a membrane stabilizer
â˘Local anesthetics: they r also membrane stabilizers. E.g.
procaine and tetracaine. They act directly on the
activation gates of Na++ making it much more difficult for
these gates to open so reducing membrane excitability.

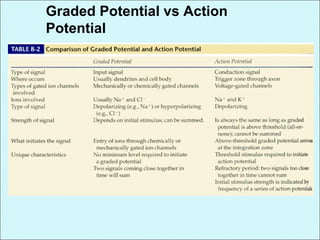

127. â˘Graded potential Action Potential
May be positive (depolarize) always begin with dep.
Or negative (hyperpolarize)
Graded: proportional to stimulus All or none
Strength
Reversible, returns to RMP if stimulation Irreversible: goes to
Ceases before threshold is reached completion once
it begin
Local: has effect for only short distance general
Decremental: signal grows weaker Non decremental
with distance
Editor's Notes

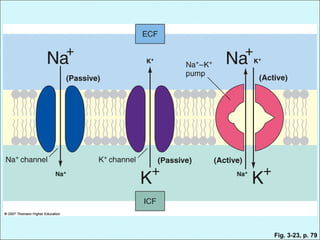

Figure 3.23: Counterbalance between passive Na+ and K+ leaks and the active Na+âK+ pump. At resting membrane potential, the passive leaks of Na+ and K+ down their electrochemical gradients are counterbalanced by the active Na+âK+ pump, so no net movement of Na+ and K+ takes place, and membrane potential remains constant.
Figure 3.22: Effect of concurrent K+ and Na+ movement on establishing the resting membrane potential.
