1. Government Polytechnic, Murtizapur
Code : 1241
Sub : Electrical Wiring Accessories
Submitted By :
Ku. Payoshni S. Tayade
EE-3G , Roll No. :- 27 , (E2)
Superior By :
Waychal Sir (department of electrical engineering)

2. Report On
Electrical
Wiring
Accessories

3. Report On Electrical Wiring Accessories
Introduction :
Electrical wiring in general refers to insulated conductors used to
carry electricity and associated
devices . general aspects of electrical wiring are used to provide power
in to building and structures
Commonly referred as building wiring.
Electrical wiring whether for residential , commercial or industrial
projects must be carefully
installed and maintained in such a way it will provide safety to person
and properly this requires
Good workmanship , knowledge of electrical principles and circuitry .
Familiarity with electrical wiring
Accessories is an important provision beside an awareness of and strict
adherence to the provisions
Of the national electrical code (NEC).

4. Definitions :-
“Electrical accessory” means a
device associated with the electrical
wiring of
A domestic installation . “adapter” means
a electrical accessory which may be
engaged . With
A socket being an electrical accessory
which is designed

5. Factor affecting the choice of wiring
1) Durability :- Type of wiring selected should conform to standard specifications ,
So that is durable i.e. without being affected by the weather conditions fumes etc.
2) Safety :- The wiring must provide safety against leakage , shock and fire hazards
For the operating personnel.
3) Appearance :- Electrical wiring should give anesthetic appeal to the interiors.
4) Cost :- It should not be prohibitively expensive.
5) Accessibility :- The switches and plug points provided should be easily accessible .
There must be provision for further extension of the wiring system , if necessary .
6) Maintenance Cost :- The maintance cost should be a minimum .

6. Accessories required for domestic wiring :-
a) Wire and cable
b) Flexible cords
c) Switch :- They are classifieds in two types ,
1) Tumbler switch
2) Flush switch
According to operation required they are classifieds as ,
. One way switch
. Tow way switch
. Centre off switch
. Double pole switch
. Table lamp switch
. Bed switch

7. Curriculum for house wiring
Study demonstration and identification of common electrical material such as
wire,cable,switches,fuses pvc channels allied items tools along with electrical instrument
such as voltmeter, ammeter and multimeter.
Study of electrical safety measures and demonstration about use of protective .
Device such as fuses , MCBs , ELCB and relays including earthling
Job (i) identification of phase , neutral and earth and domestic appliances and their
Connections to two pin / three pin plugs .
Job (ii) preparation of a house wiring circuit on wooden boarded using fuse switches ,
socket , holder , ceiling rose etc . In pvc conduit wiring system .
Job (iii) make conduit connection to control one lamp from two different places with
two different switches according to a given route diagram (staircase wiring) .

8. Implementation
• Visual basics to design a CUI , which include the control of the wireless robot
• A wire less cam is used to give a live video stream to remote user
• A zigdee transceivers is used for communication
• A mechanical ARM is used to peak and place objects
• A temperature sensor is used to measure the temperature in that region

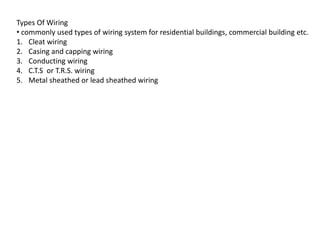

9. Types Of Wiring
• commonly used types of wiring system for residential buildings, commercial building etc.
1. Cleat wiring
2. Casing and capping wiring
3. Conducting wiring
4. C.T.S or T.R.S. wiring
5. Metal sheathed or lead sheathed wiring

10. Cleat wiring
cleat wiring is one of the cheapest wiring considering the initial cost and labor ,
And is most suitable for temporary wiring, this wiring can be quickly installed easily
Inspected and altered when not required when not required, this wiring could be dismantled
Without damage to the cables cleats and accessories.
All cleats shall consists of two parts , a base peace and cap. Cleats shall be fixed at distance
Not more than 60cm apart and at regular intervals. where cleat wiring is laid along an iron
joist, , porcelain cleats shall be inserted either with varnished wood clamps

11. Advantages of cleat wiring
• It is simple and cheap wiring system
• Most suitable for temporary use i.e. under construction building or army camping
• As the cables and wires of cleat wiring system is in open air , therefore fault in cables
can be seen and repair easily .
• Cleat wiring system installation is easy and simple .
• Customization can be easily done in this wiring system . e.g. alteration and addition .
• Inspection is easy and simple .

12. Disadvantages of cleat wiring
• Appearance is not so good .
•Cleat wiring can’t be use for permanent use because , sag may be occur after
sometime of the usage .
•In this wiring system , the cables and wiring is in open air , therefore , oil , steam ,
humidity smoke , rain , chemical and acidic effect may damage the cables and wires .
•It can be only used on 250/440 volts on low temperature .
•There is always risk of fire and electric shock .
•It can’t used in important and sensitive location and places .
•It is not reliable and sustainable wiring system .

13. Casing and capping wiring
This system of wiring is suitable for low voltage insulation , in this wiring
cables like vulcanized rubber, insulated cable& or plastic insulated cables are
used and carried within the wood casing enclosures . The wood casing wiring system
shall not be use in damp places, unless suitable precaution are taken.
A rectangular strip of wood called capping having some width as that of casing
is fixed over it . Both the casing and the capping are screwed together at every 15 cam
casing is attached to the wall .

14. Advantages of casing and capping
• It is cheap wiring system as compared to sheathed and conduit wiring system .
•It is strong and long lasting wiring systems .
•If phase neutral wire is installed in separate slots , then repairing is easy .
•Stay for long time in the field due to strong insulation of capping and casing .
•No risk of fire and good protection against mechanical injury .
•Shock –proof with proper earthling and bonding .
•Water proof and trouble shooting is easy

15. Disadvantages of capping and casing
•There is high risk of fire in casing and capping system
•Not suitable in the acidic ,alkaline , and humidity condition .
•Costly repairing and need more material .
•Material can not be found easily in the contemporary .

16. In this system PVC (polyvinyl-chloride)or VIR cables are run through metallic or VIR
Or PVC pipe providing good protection against mechanical injury and fire due to
short circuit. They are either embedded inside the walls or support over the walls ,
and are known as connected wiring or surface conduct wiring ( open conduit)
respectively. The conduits are buried inside the walls on wooden gutted and the
wires are drawn through them with fish (wire) the system is best suit for public
buildings, industries and workshops .
Advantages :
(1) No risk of fire and good protection against mechanical injury.
(2) The lead and return wires can carried in the same tube.
(3) Earthling and continuity is assured
(4) Waterproof and trouble shooting is easy.
(5) Shocks-proof with proper earthling and bounding.

17. Types of Conducting Wiring
 Metallic Conducting
 Non-metallic Conducting
Metallic Conducting :-
Metallic conduits are made up steel which are very strong but costly as well as two types
I. Class (A) conduits :- Low gauge Conduits (thin layer sheet steel conduits )
II. Class (B) Conduits :- High gauge conduits (thick sheet of steel conduits )
Non-metallic conducting :-
A solid PVC conduit is used as non-metallic conduit now a day , which is
flexible and easy to Bend
Size of conduit :-
the common conduit pipes are available in a different sizes 13, 16.2, 18.75 mm and
1/2 , 5/8, 3/4 , and 2 inch in diameter

18. Batten Wiring (C.T.S.or T.R.S.)
Single or double core or three core TRS cable with the circular oval shape cables
With are used in this kind of wiring Mostly single core cable are preferred TRS cable are
Chemical proof , water proof , steam proof but are slightly affected by lubricating
Oil the TRS cable are run on well seasoned and straight teak wood batten with at least a
Thickness of 10 mm already fix on the batten with brass pins and spaced of a interval of
10 cm for horizontal runs and 15 cm for vertical runs.

19. Advantage of C.T.S. / T.R.S
batten wiring
• Wiring installation is simple and easy
• cheap as compared to other electrical wiring system
• perhaps is easy
• strong and long lasting
• perhaps is good and beautiful.
Disadvantages of C.T.S. / T.R.S
batten wiring
• can’t be install in the humidity , chemical affects ,open and outdoor areas
• High risk and fire
• heavy wire can’t used in batten wiring system
• Only suitable below then 250 v
• needs more cable and wire

20. Lead sheathed wiring
the type of wiring employs conductor that are insulated with VIR converted with
An outer sheath of lead aluminum alloy containing about 95% of lead the metal sheath
given protection to cable from mechanical damage , moisture and atmospheric corrosion.
Wiring Accessories Analysis
market size and forecast 2011-2020 including key underlying market drivers , influences
And future prospects
• Domestic new build , commercial and domestic RMI mix by value of wiring accessories
• product mix by value –sockets , light switches , grid switches , lighting accessories ,
other
• key trends and factors for change by product group – in plug , sockets , switches , lighting
•Accessories , other

21. Electrical Accessories Market
total electrical accessories market – analysis
• size by value , horizontal , treads and market characteristics
• product mix by value 2015 and review of key market influences
• Future prospects and forecast of market performance to 2020 and key influencing
factors.
LV circuit protection equipment
analysis
• market size and forecast 2011-2020 with key market drivers , influences and future
prospects
• production mix by value – key trends and factors influencing changes to products mix-
LV circuits protection devices , isolating switches , distribution boards and switchgear
• key trends and underlying drivers by product group indicated above

22. LV cable system analysis
• market size and forecast 2011-2020 with key market drivers , influences and future
prospectus.
• product mix by value – LV power cables bus bars , cable accessories , cable
management
• key trends and underlying drivers by product group indicated above.
Live , Neutral and Earth wires
• Live wire carrier electric current to the appliances.
• Neutral wire completes the circuit by forming a path for the current back to the main ,
it is usually at zero value.
• Earth wire has very low resistance and is usually connected to the metal casing of
The appliances it forms a safety outlet current in case the appliances become live.

23. Electric Installation
• physical marketing of layout of wiring in all unit / rooms.
• providing and laying complete wiring
• fixing all fittings and fixtures and complete electrical
installation
• testing of installation
• providing consumers meter
• permanent electric supply connection to buildings and consumer
there of meters

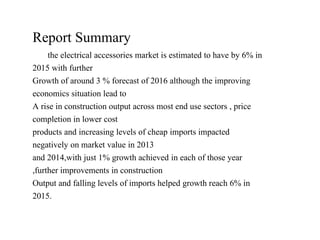

24. Report Summary
the electrical accessories market is estimated to have by 6% in
2015 with further
Growth of around 3 % forecast of 2016 although the improving
economics situation lead to
A rise in construction output across most end use sectors , price
completion in lower cost
products and increasing levels of cheap imports impacted
negatively on market value in 2013
and 2014,with just 1% growth achieved in each of those year
,further improvements in construction
Output and falling levels of imports helped growth reach 6% in
2015.
