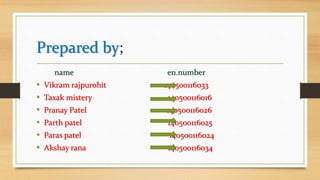

2. Prepared by;
name en.number
• Vikram rajpurohit 140500116033
• Taxak mistery 140500116016
• Pranay Patel 140500116026
• Parth patel 140500116025
• Paras patel 140500116024
• Akshay rana 140500116034

3. INTRODUCTION
From 19th century use of electricity was started.
Electricity is usefull in domestic & industrial purpose.
Proper precautions should be taken for the safety and
protection of electricity otherwise it may even lead to
death.

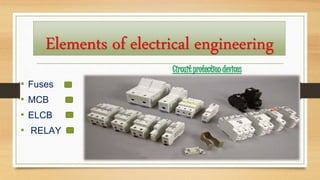

4. Elements of electrical engineering
Circuit protection devices
• Fuses
• MCB
• ELCB
• RELAY

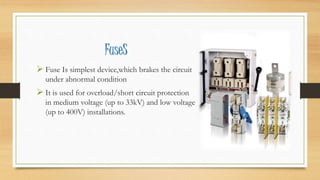

5. FuseS
 Fuse Is simplest device,which brakes the circuit
under abnormal condition
 It is used for overload/short circuit protection
in medium voltage (up to 33kV) and low voltage
(up to 400V) installations.

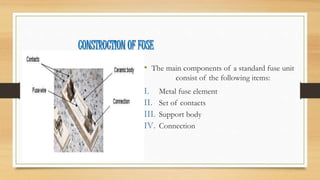

6. CONSTRUCTION OF FUSE
• The main components of a standard fuse unit
consist of the following items:
I. Metal fuse element
II. Set of contacts
III. Support body
IV. Connection

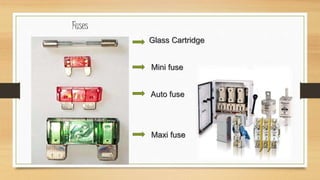

7. Fuses
Glass Cartridge
Mini fuse
Auto fuse
Maxi fuse

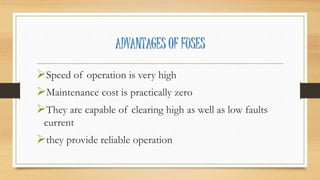

8. ADVANTAGES OF FUSES
Speed of operation is very high
Maintenance cost is practically zero
They are capable of clearing high as well as low faults
current
they provide reliable operation

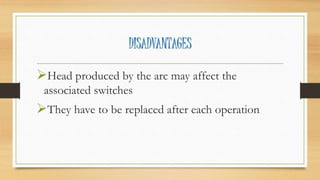

9. DISADVANTAGES
Head produced by the arc may affect the
associated switches
They have to be replaced after each operation

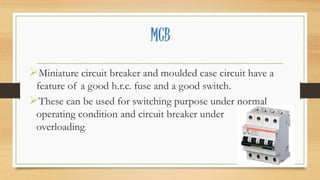

10. MCB
Miniature circuit breaker and moulded case circuit have a
feature of a good h.r.c. fuse and a good switch.
These can be used for switching purpose under normal
operating condition and circuit breaker under
overloading.

11. MCB
All other metal parts are made up of nonferrous ,non-rusting
type materials.
These are used in low voltage domestic, commercials and
industrial application.

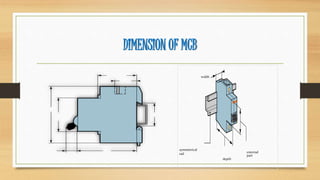

12. DIMENSION OF MCB
symmetrical
rail external
part
depth
width

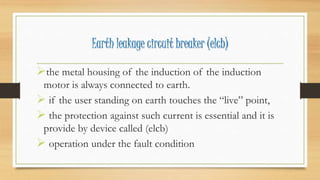

13. Earth leakage circuit breaker (elcb)
the metal housing of the induction of the induction
motor is always connected to earth.
 if the user standing on earth touches the “live” point,
 the protection against such current is essential and it is
provide by device called (elcb)
 operation under the fault condition

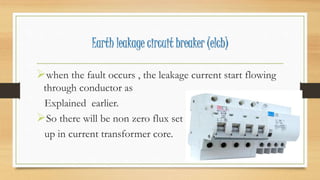

14. Earth leakage circuit breaker (elcb)
when the fault occurs , the leakage current start flowing
through conductor as
Explained earlier.
So there will be non zero flux set
up in current transformer core.

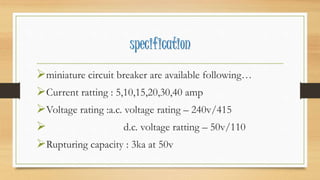

15. specification
miniature circuit breaker are available following…
Current ratting : 5,10,15,20,30,40 amp
Voltage rating :a.c. voltage rating – 240v/415
 d.c. voltage ratting – 50v/110
Rupturing capacity : 3ka at 50v

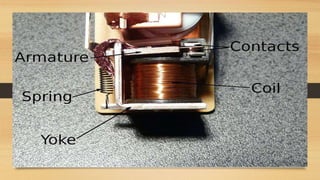

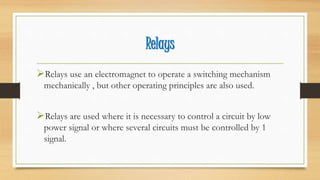

16. Relays
Relays use an electromagnet to operate a switching mechanism
mechanically , but other operating principles are also used.
Relays are used where it is necessary to control a circuit by low
power signal or where several circuits must be controlled by 1
signal.

17. Relays
A type of relay that can handle the high power required to
directly control an electric motor or other loads is called a
contactor.
Solid state relays control power circuits with no moving parts
instead using a semiconductor device to perform switching .

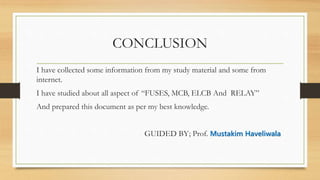

19. CONCLUSION
I have collected some information from my study material and some from
internet.
I have studied about all aspect of “FUSES, MCB, ELCB And RELAY”
And prepared this document as per my best knowledge.
GUIDED BY; Prof. Mustakim Haveliwala
