Workshop on rapid prototyping for wearable computing given by Mark Billinghurst and Daniela Busse at the TEI 2015 conference on January 15th, 2015.

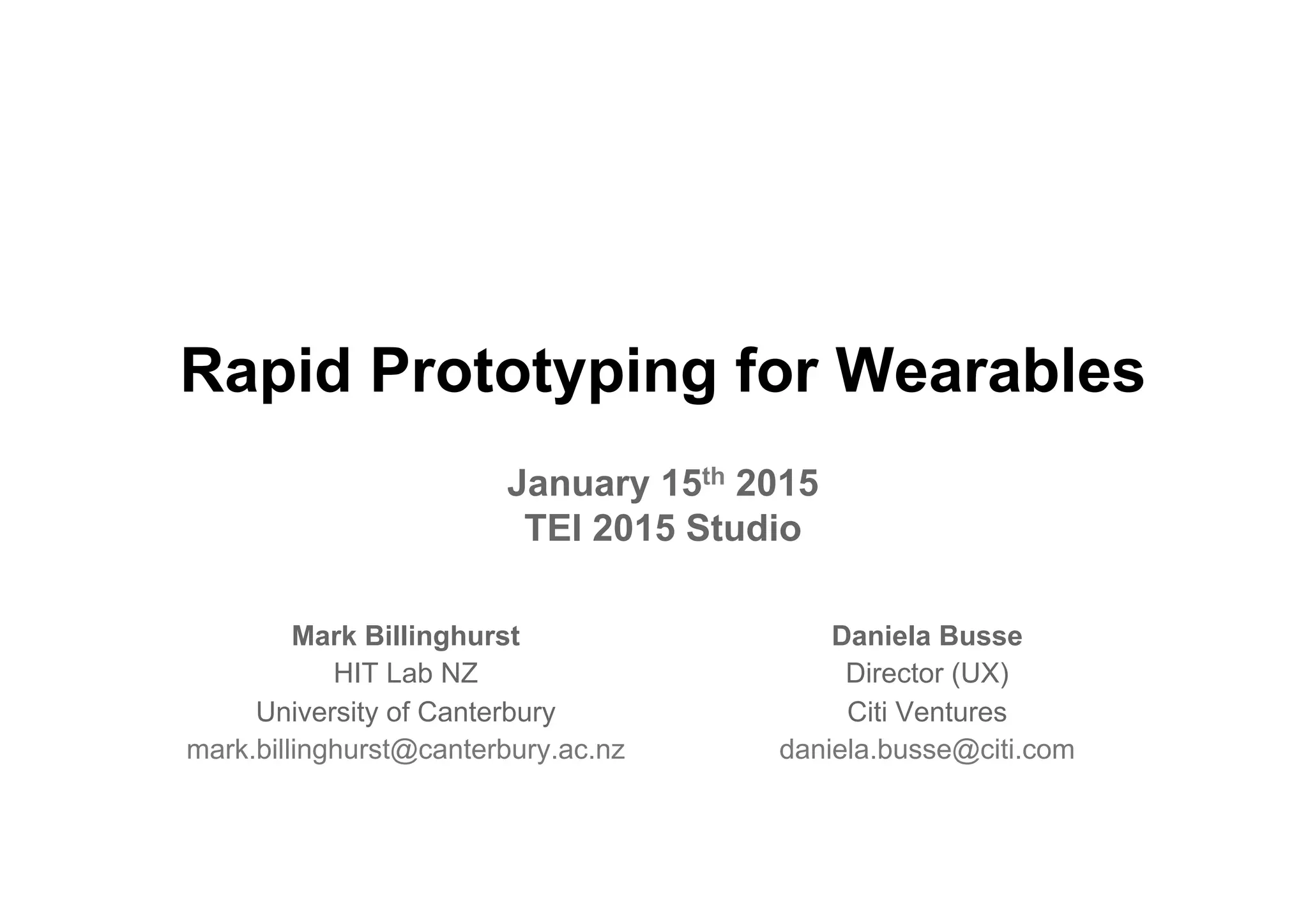

1. Rapid Prototyping for Wearables
January 15th 2015
TEI 2015 Studio
Mark Billinghurst
HIT Lab NZ
University of Canterbury
mark.billinghurst@canterbury.ac.nz
Daniela Busse
Director (UX)
Citi Ventures
daniela.busse@citi.com

2. 1: Introduction

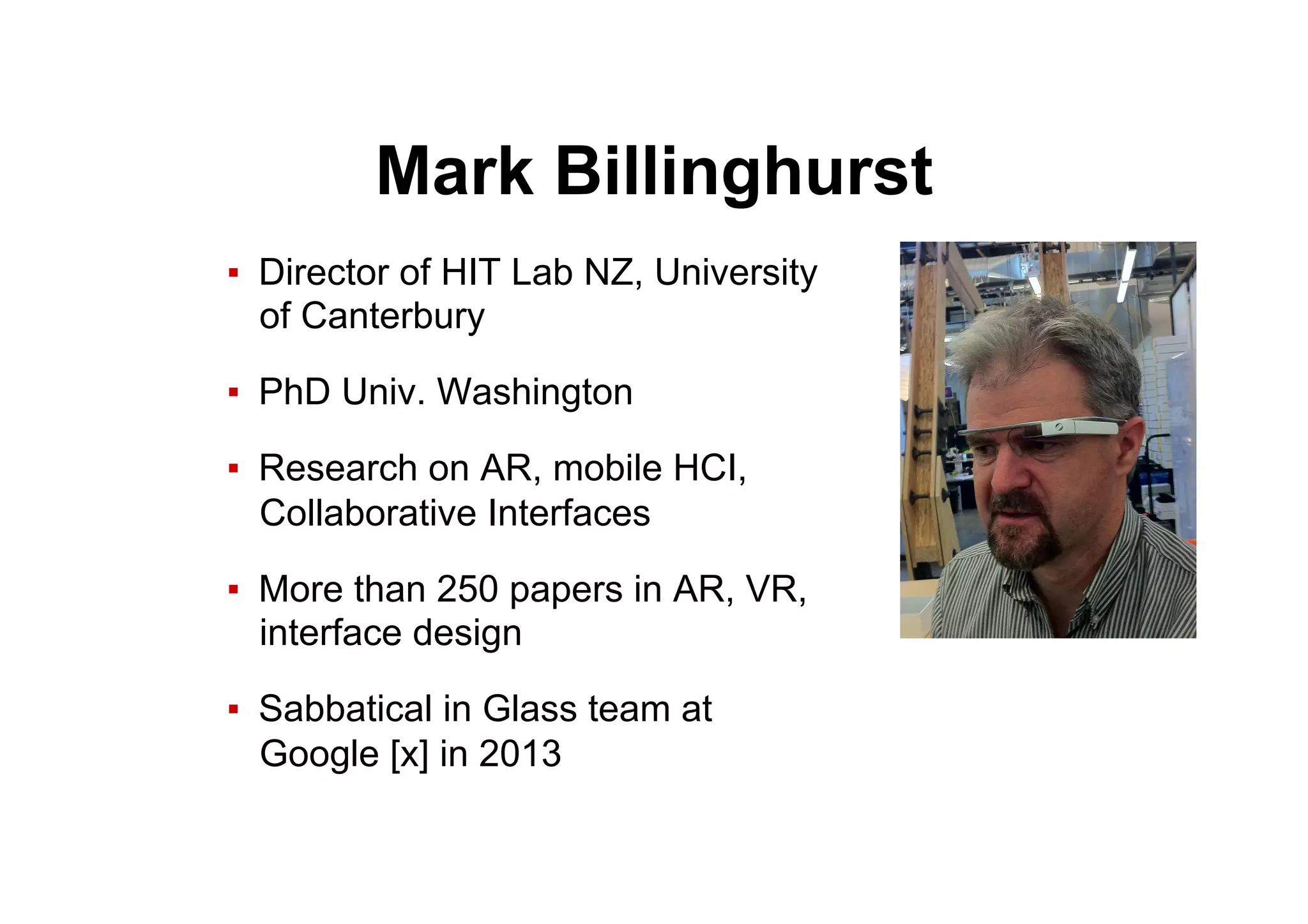

3. Mark Billinghurst
▪ Director of HIT Lab NZ, University
of Canterbury
▪ PhD Univ. Washington
▪ Research on AR, mobile HCI,
Collaborative Interfaces
▪ More than 250 papers in AR, VR,
interface design
▪ Sabbatical in Glass team at
Google [x] in 2013

4. ● Daniela Busse
▪ UX Director
▪ Citi Ventures Global Innovation Network
▪ Previous
▪ Design Futurist, Samsung Research
America
▪ UX Director/Chief UX Architect, SAP
▪ PhD, Computer Science
▪ Glasgow University

7. ● What You Will Learn
▪ An introduction to wearable computers
▪ Key interface design guidelines
▪ Examples of good wearable design
▪ How to use a variety of rapid prototyping tools
▪ Hands on with Google Glass hardware
▪ Active areas of wearable computing research

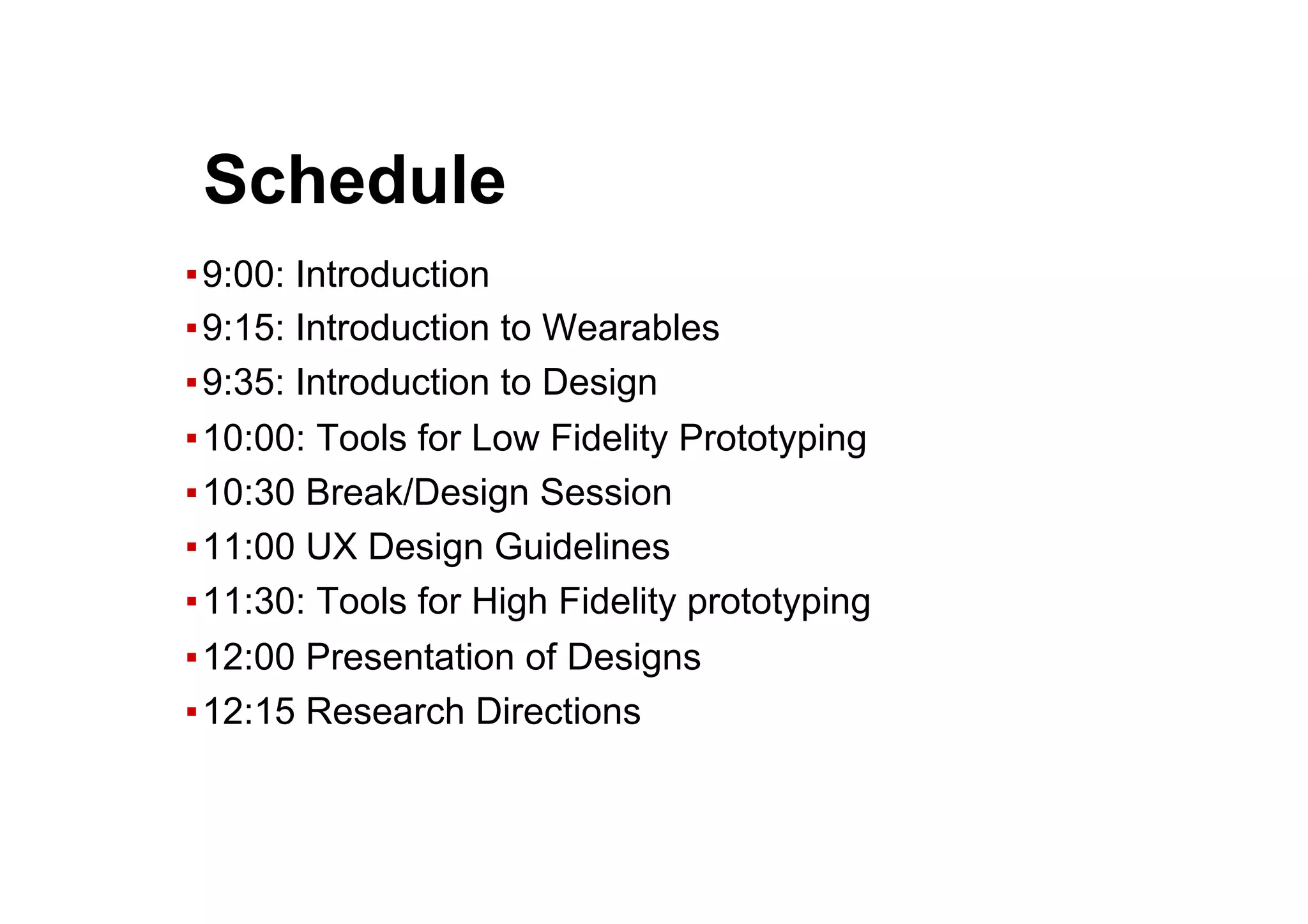

8. ● Schedule
▪ 9:00: Introduction
▪ 9:15: Introduction to Wearables
▪ 9:35: Introduction to Design
▪ 10:00: Tools for Low Fidelity Prototyping
▪ 10:30 Break/Design Session
▪ 11:00 UX Design Guidelines
▪ 11:30: Tools for High Fidelity prototyping
▪ 12:00 Presentation of Designs
▪ 12:15 Research Directions

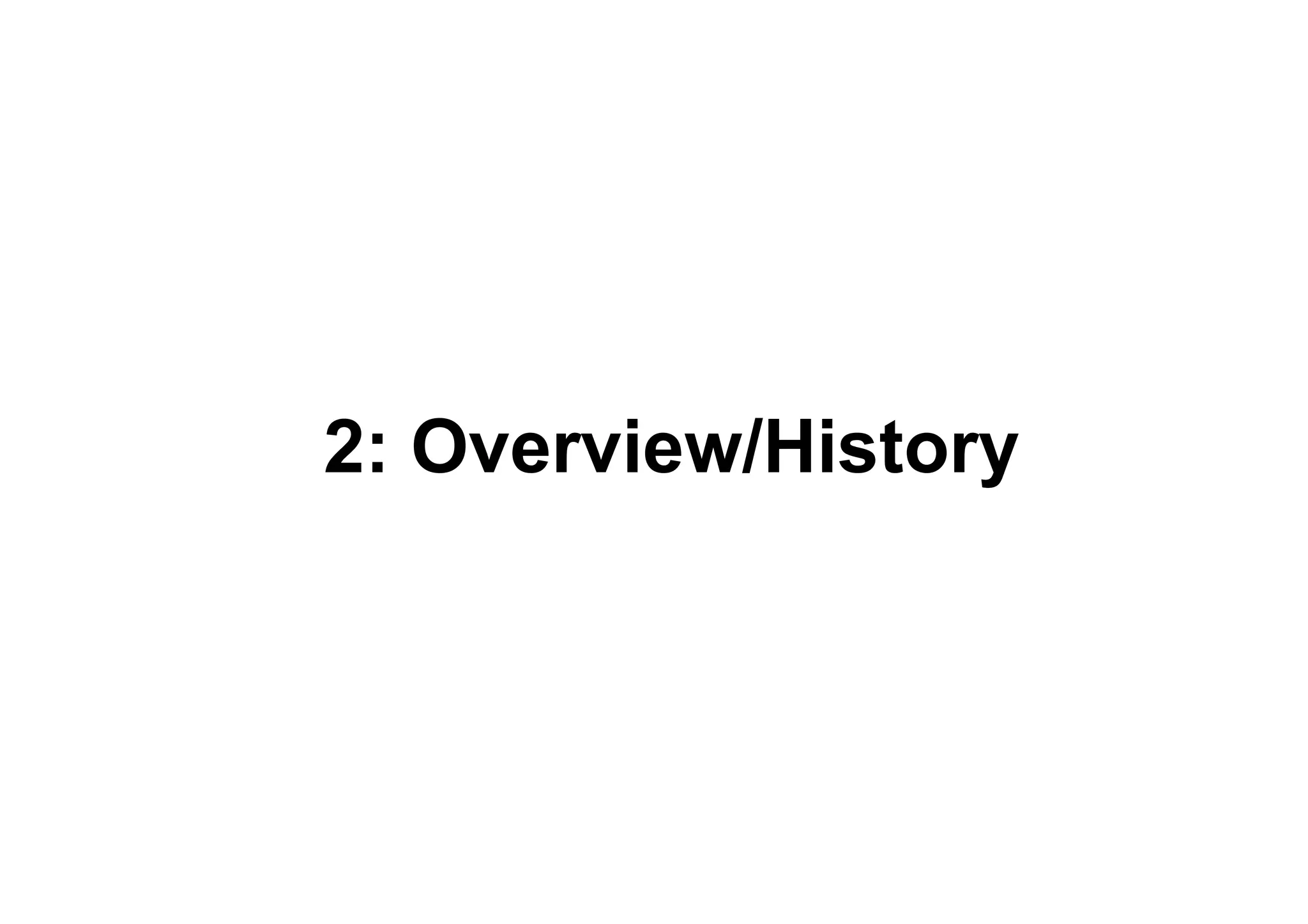

9. 2: Overview/History

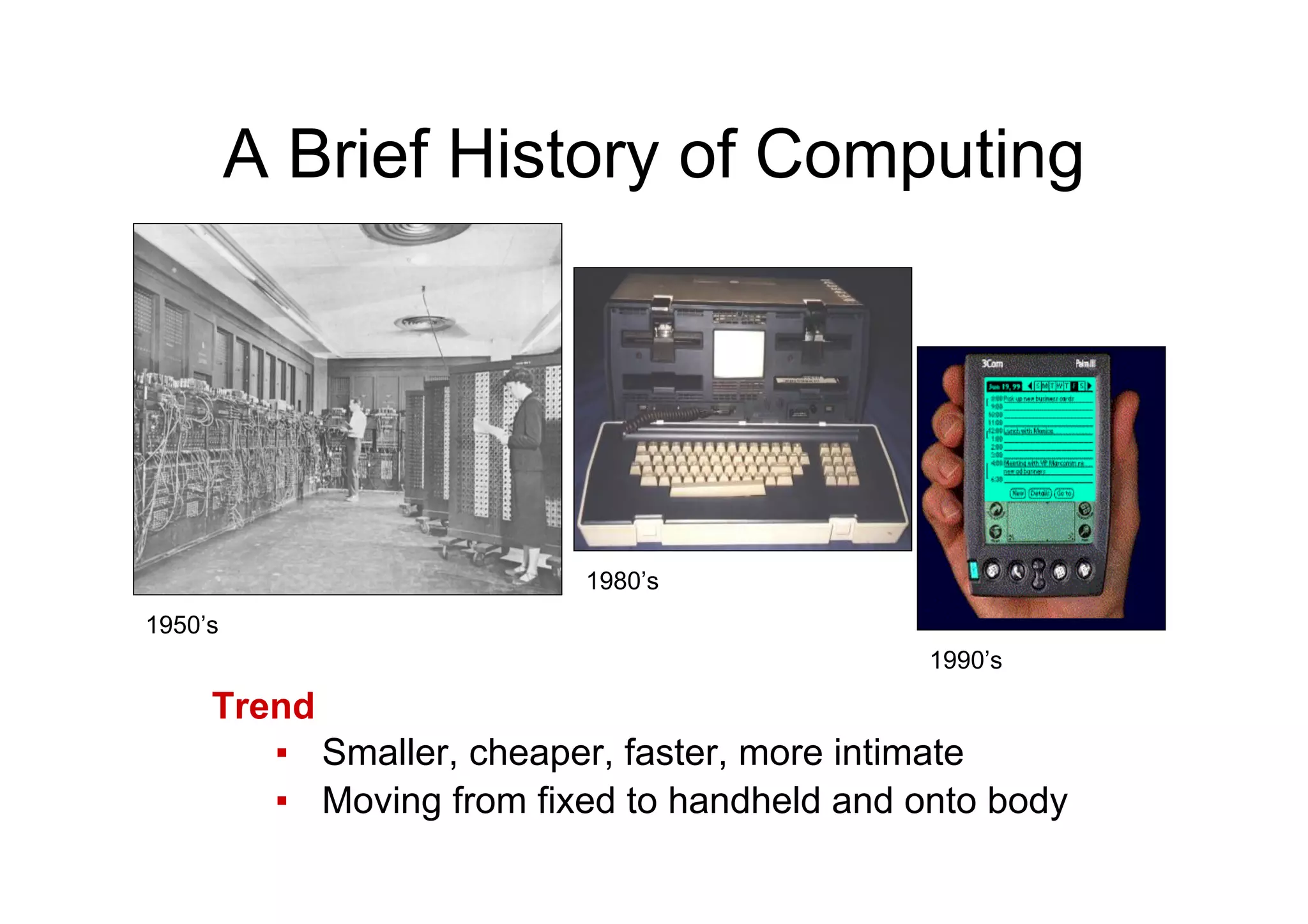

10. A Brief History of Computing
Trend
▪ Smaller, cheaper, faster, more intimate
▪ Moving from fixed to handheld and onto body
1950’s
1980’s
1990’s

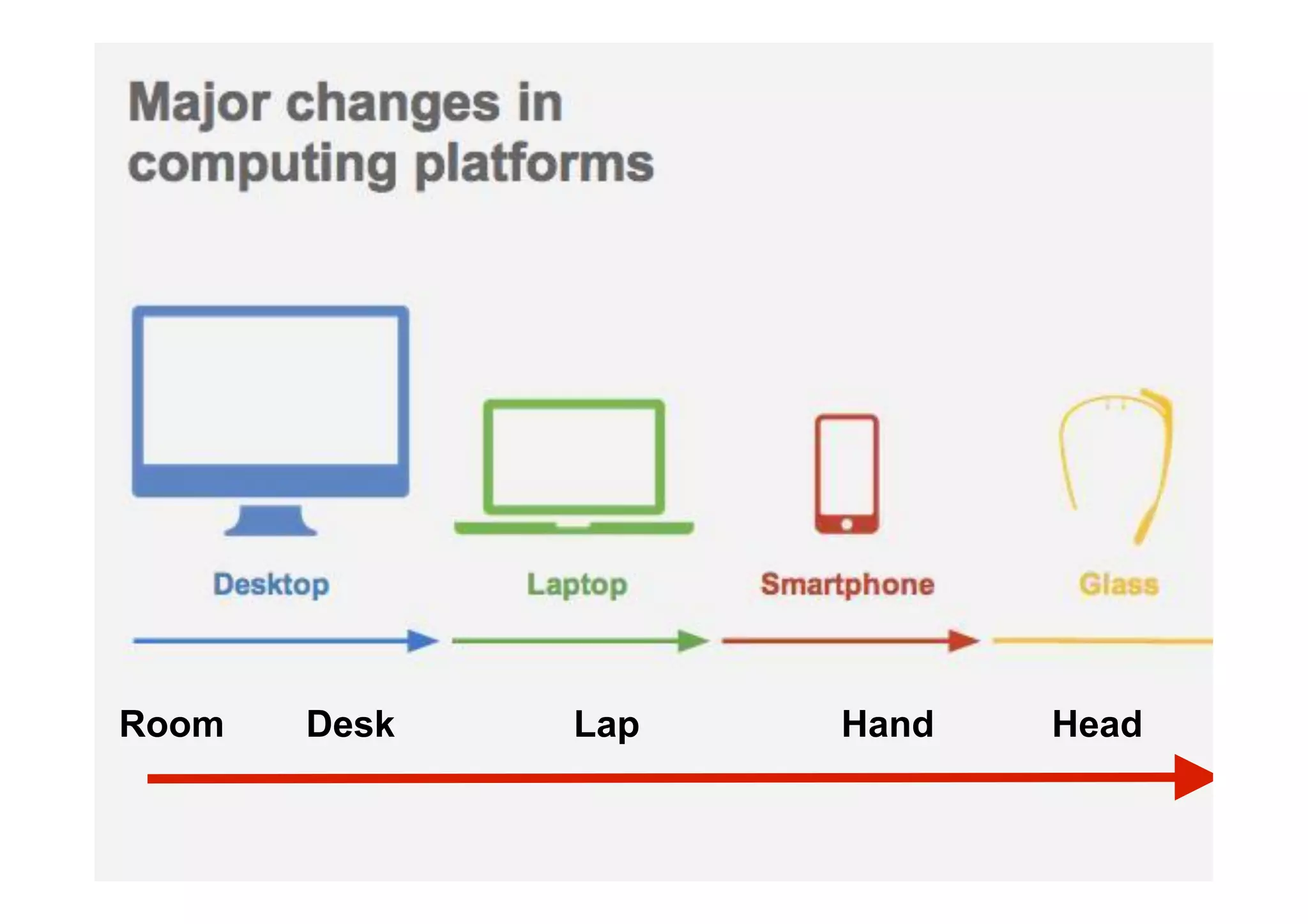

11. Room Desk Lap Hand Head

12. What is a Wearable Computer?
▪ Computer on the body that is:
▪ Always on
▪ Always accessible
▪ Always connected
▪ Other attributes
▪ Augmenting user actions
▪ Aware of user and surroundings
Rhodes, B. J. (1997). The wearable remembrance agent: A system for
augmented memory. Personal Technologies, 1(4), 218-224.
Mann, S. (1997). Wearable computing: A first step toward personal
imaging. Computer, 30(2), 25-32.

13. The Ideal Wearable
▪ Persists and Provides Constant Access: Designed
for everyday and continuous user over a lifetime.
▪ Senses and Models Context: Observes and
models the users and environment.
▪ Augments and Mediates: Information support for
the user in both the physical and virtual realities.
▪ Interacts Seamlessly: Adapts its input and output
modalities to those most appropriate at the time.
Starner, T. E. (1999). Wearable computing and contextual awareness
(Doctoral dissertation, Massachusetts Institute of Technology).

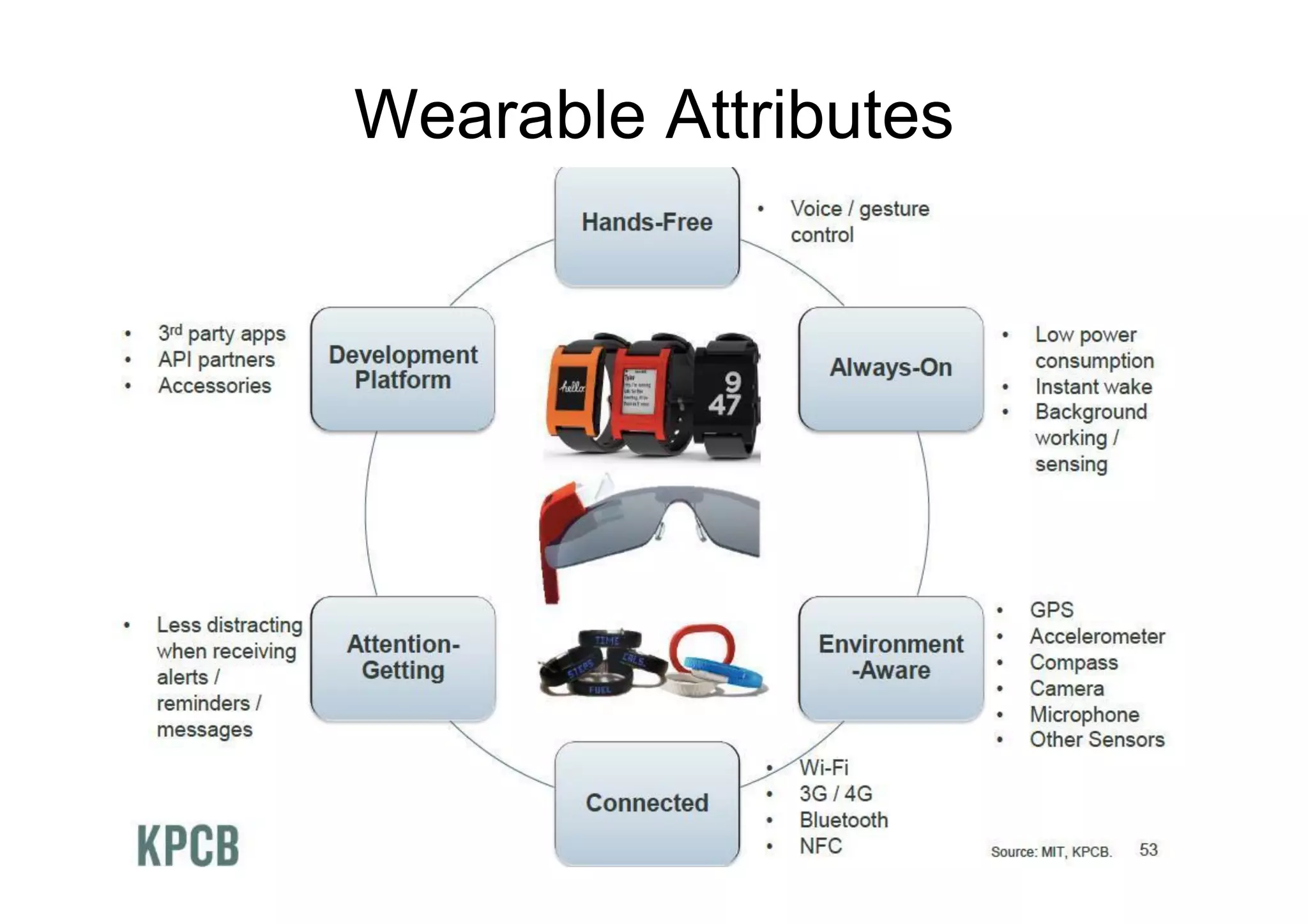

14. Wearable Attributes
▪ fafds

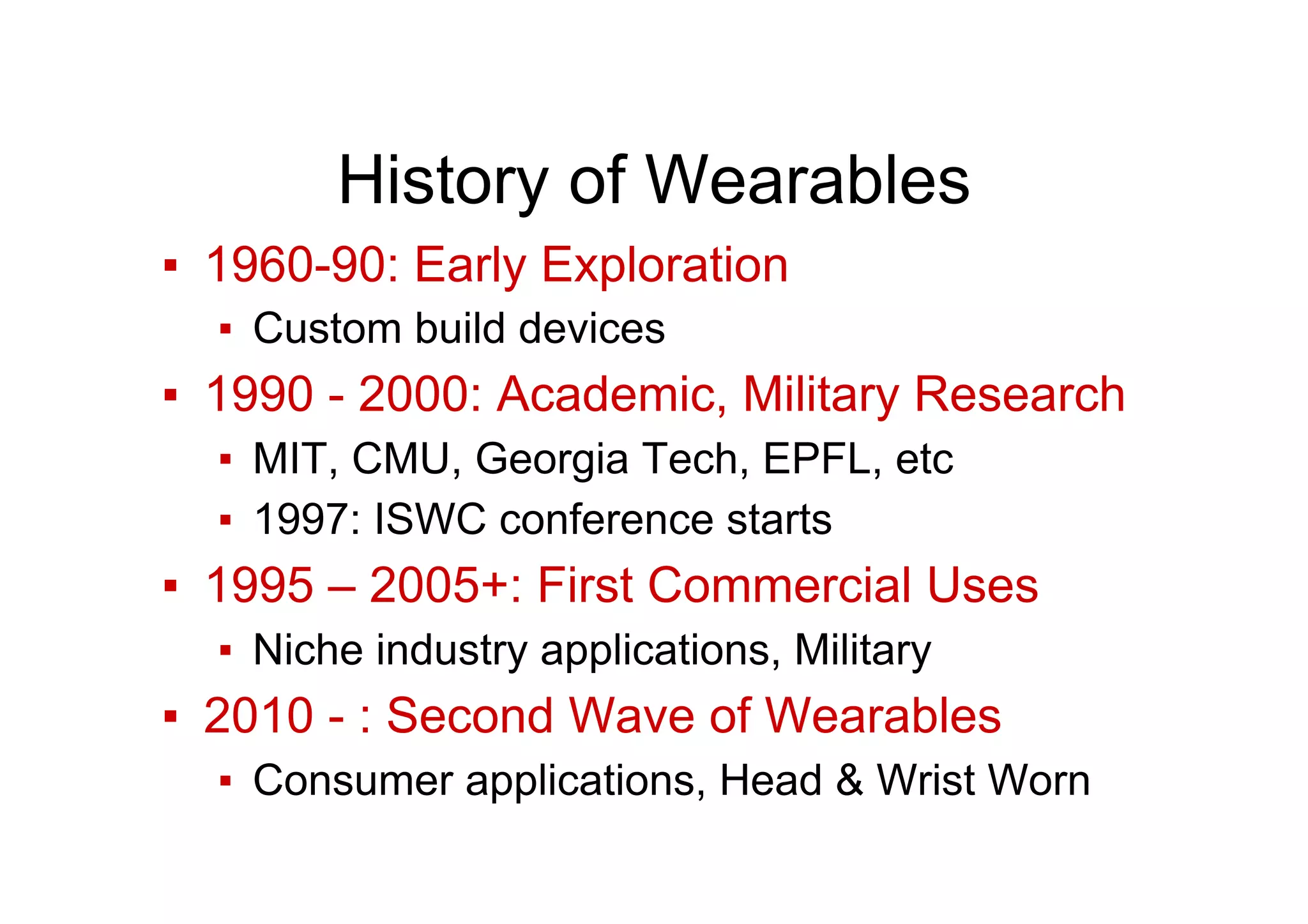

15. History of Wearables
▪ 1960-90: Early Exploration
▪ Custom build devices
▪ 1990 - 2000: Academic, Military Research
▪ MIT, CMU, Georgia Tech, EPFL, etc
▪ 1997: ISWC conference starts
▪ 1995 – 2005+: First Commercial Uses
▪ Niche industry applications, Military
▪ 2010 - : Second Wave of Wearables
▪ Consumer applications, Head & Wrist Worn

16. The Gamblers
▪ Timing device for roulette prediction
▪ Card counting hardware (toe input)
Ed Thorp (1961)
Thorp, E. O. (1998, October). The invention of the first wearable computer. In Wearable
Computers, 1998. Second International Symposium on (pp. 4-8). IEEE.
Belt computer
Shoe Input
Glasses
Display
Keith Taft (1972)

17. ● The Academics (1980’s - )
▪ MIT Media Lab – Wearable Computing (1993)
▪ CMU – Industrial wearables
http://www.media.mit.edu/wearables/
http://www.cs.cmu.edu/afs/cs/project/vuman/www/frontpage.html

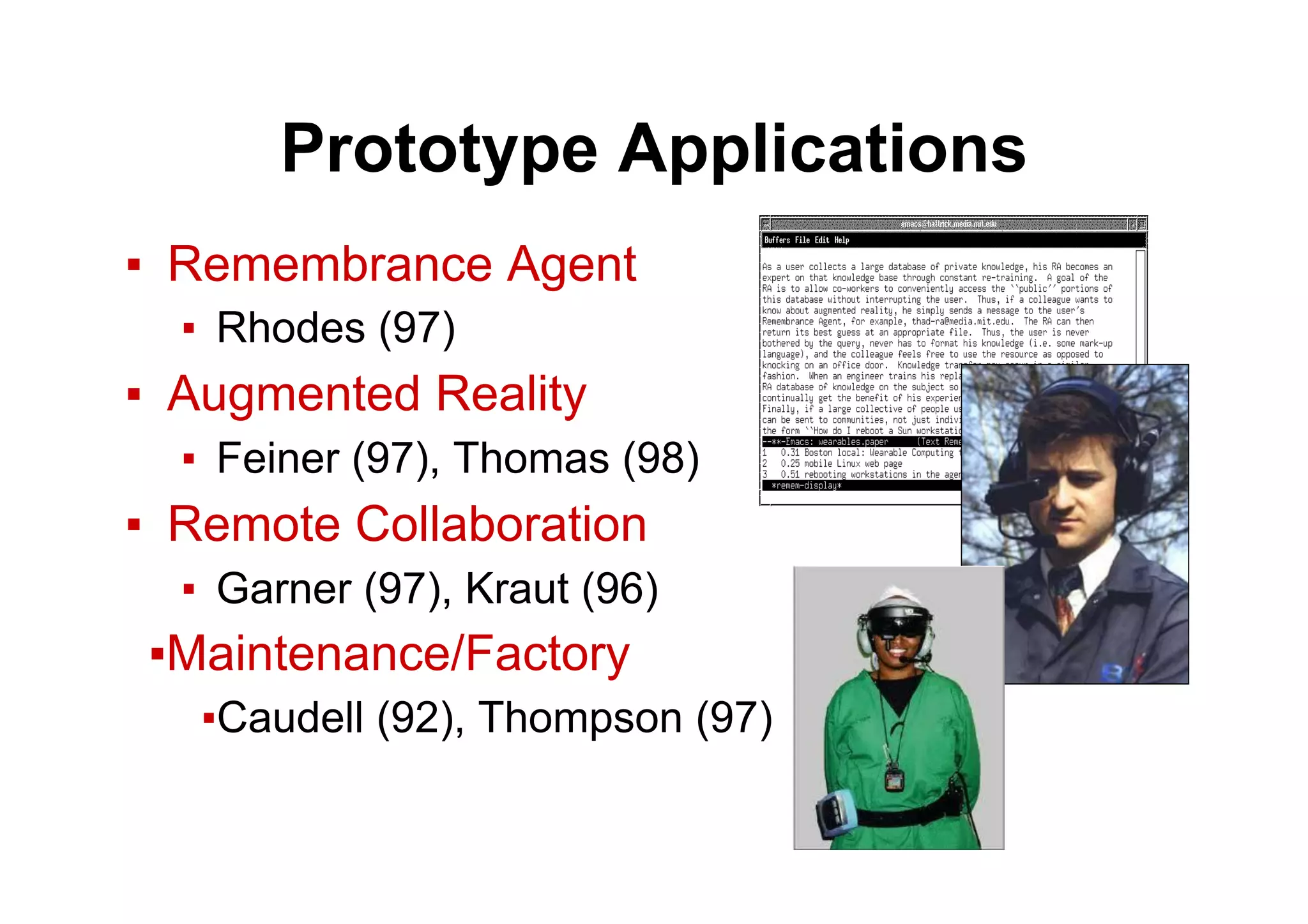

18. Prototype Applications
▪ Remembrance Agent
▪ Rhodes (97)
▪ Augmented Reality
▪ Feiner (97), Thomas (98)
▪ Remote Collaboration
▪ Garner (97), Kraut (96)
▪ Maintenance/Factory
▪ Caudell (92), Thompson (97)

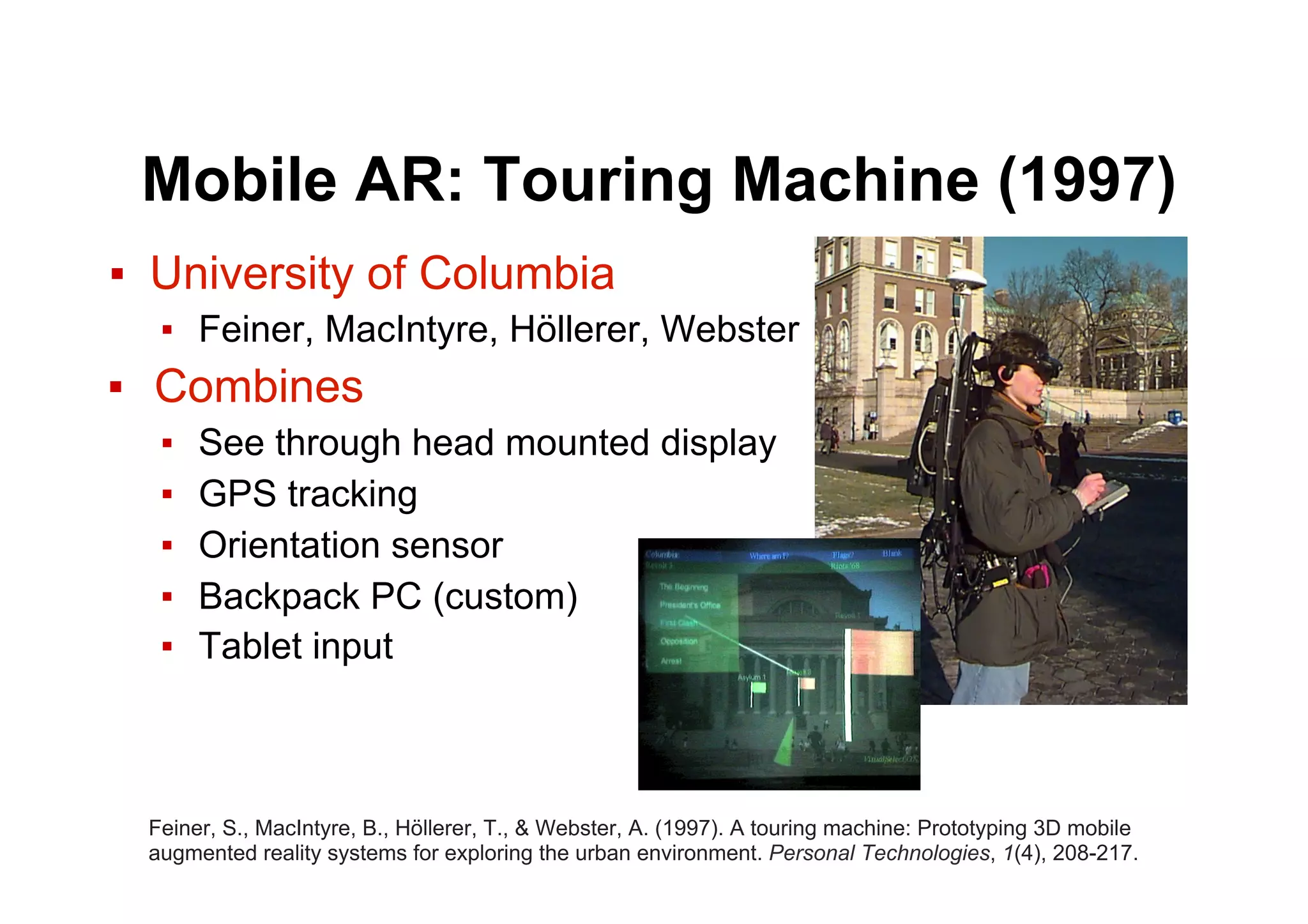

19. Mobile AR: Touring Machine (1997)
▪ University of Columbia
▪ Feiner, MacIntyre, Höllerer, Webster
▪ Combines
▪ See through head mounted display
▪ GPS tracking
▪ Orientation sensor
▪ Backpack PC (custom)
▪ Tablet input
Feiner, S., MacIntyre, B., Höllerer, T., & Webster, A. (1997). A touring machine: Prototyping 3D mobile
augmented reality systems for exploring the urban environment. Personal Technologies, 1(4), 208-217.

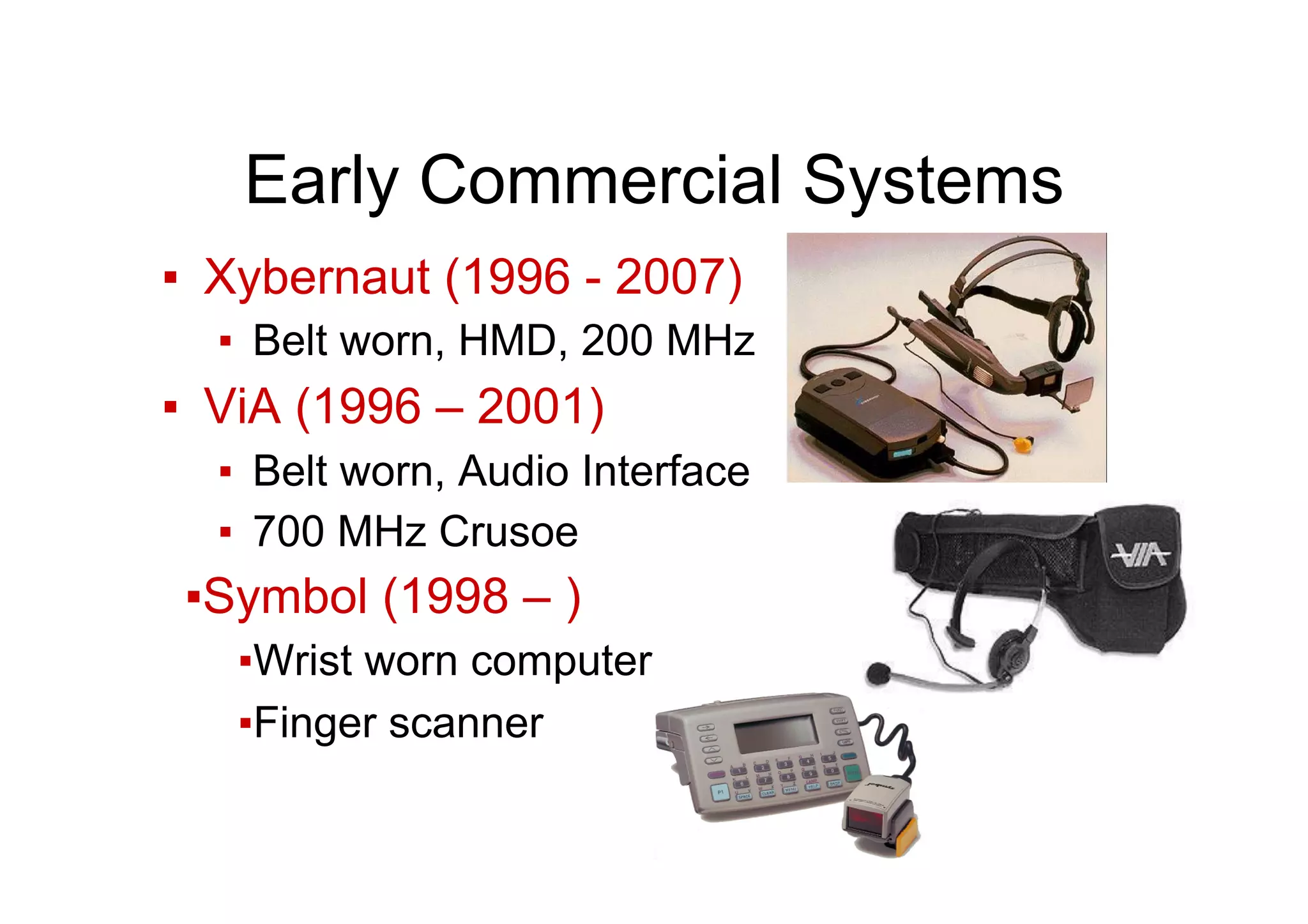

20. Early Commercial Systems
▪ Xybernaut (1996 - 2007)
▪ Belt worn, HMD, 200 MHz
▪ ViA (1996 – 2001)
▪ Belt worn, Audio Interface
▪ 700 MHz Crusoe
▪ Symbol (1998 – )
▪ Wrist worn computer
▪ Finger scanner

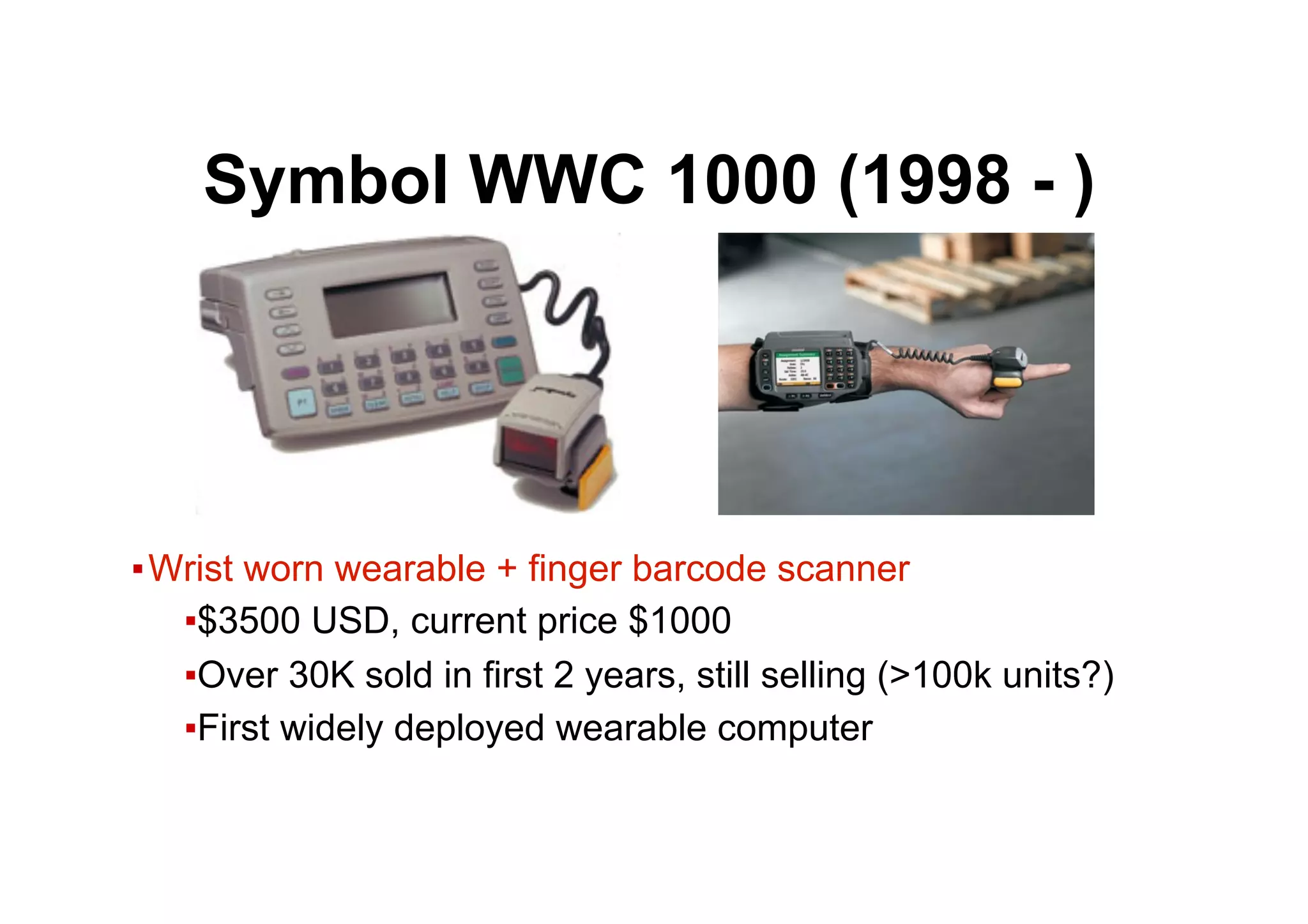

21. ● Symbol WWC 1000 (1998 - )
▪ Wrist worn wearable + finger barcode scanner
▪ $3500 USD, current price $1000
▪ Over 30K sold in first 2 years, still selling (>100k units?)
▪ First widely deployed wearable computer

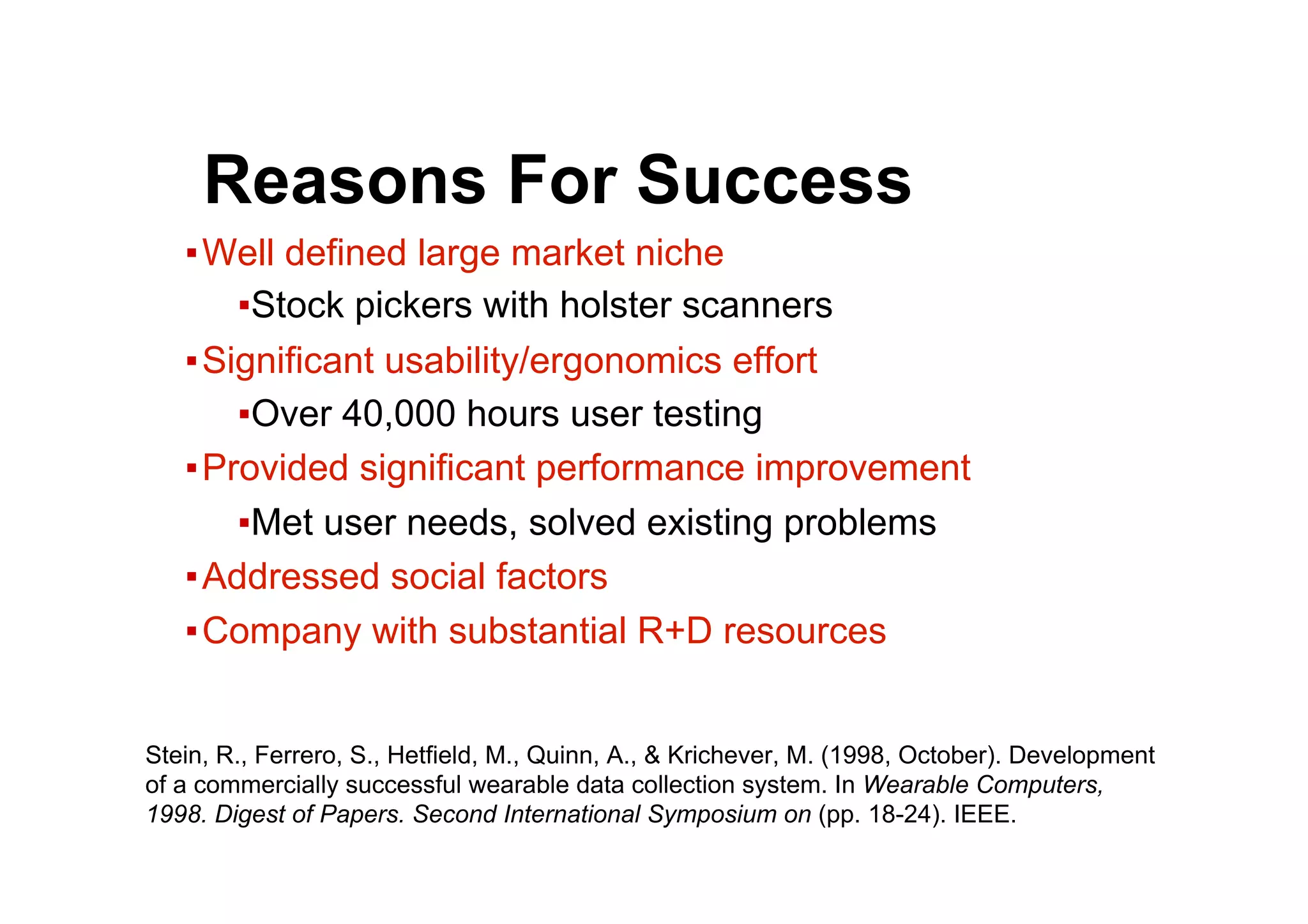

22. ● Reasons For Success
▪ Well defined large market niche
▪ Stock pickers with holster scanners
▪ Significant usability/ergonomics effort
▪ Over 40,000 hours user testing
▪ Provided significant performance improvement
▪ Met user needs, solved existing problems
▪ Addressed social factors
▪ Company with substantial R+D resources
Stein, R., Ferrero, S., Hetfield, M., Quinn, A., & Krichever, M. (1998, October). Development
of a commercially successful wearable data collection system. In Wearable Computers,
1998. Digest of Papers. Second International Symposium on (pp. 18-24). IEEE.

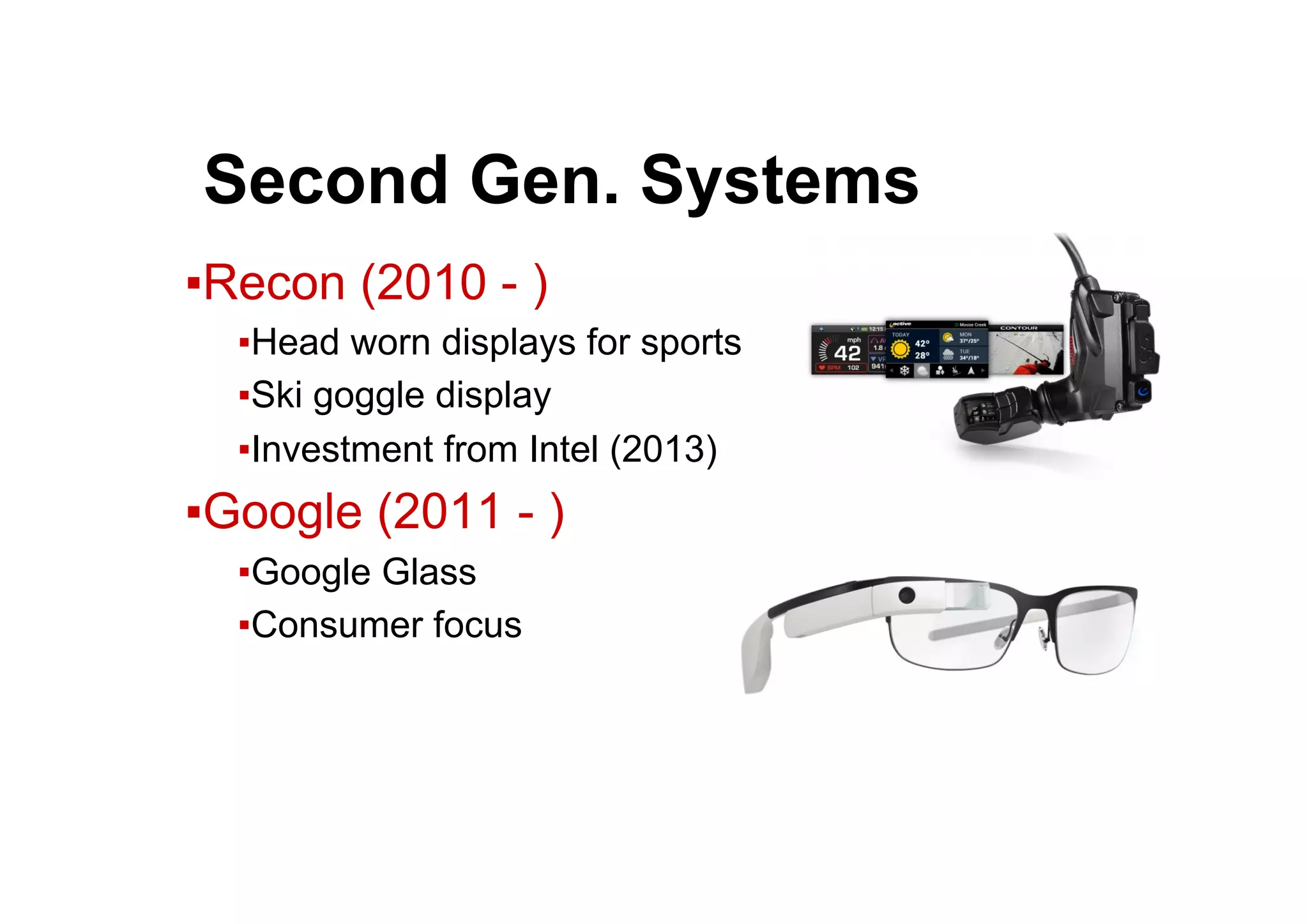

23. ● Second Gen. Systems
▪ Recon (2010 - )
▪ Head worn displays for sports
▪ Ski goggle display
▪ Investment from Intel (2013)
▪ Google (2011 - )
▪ Google Glass
▪ Consumer focus

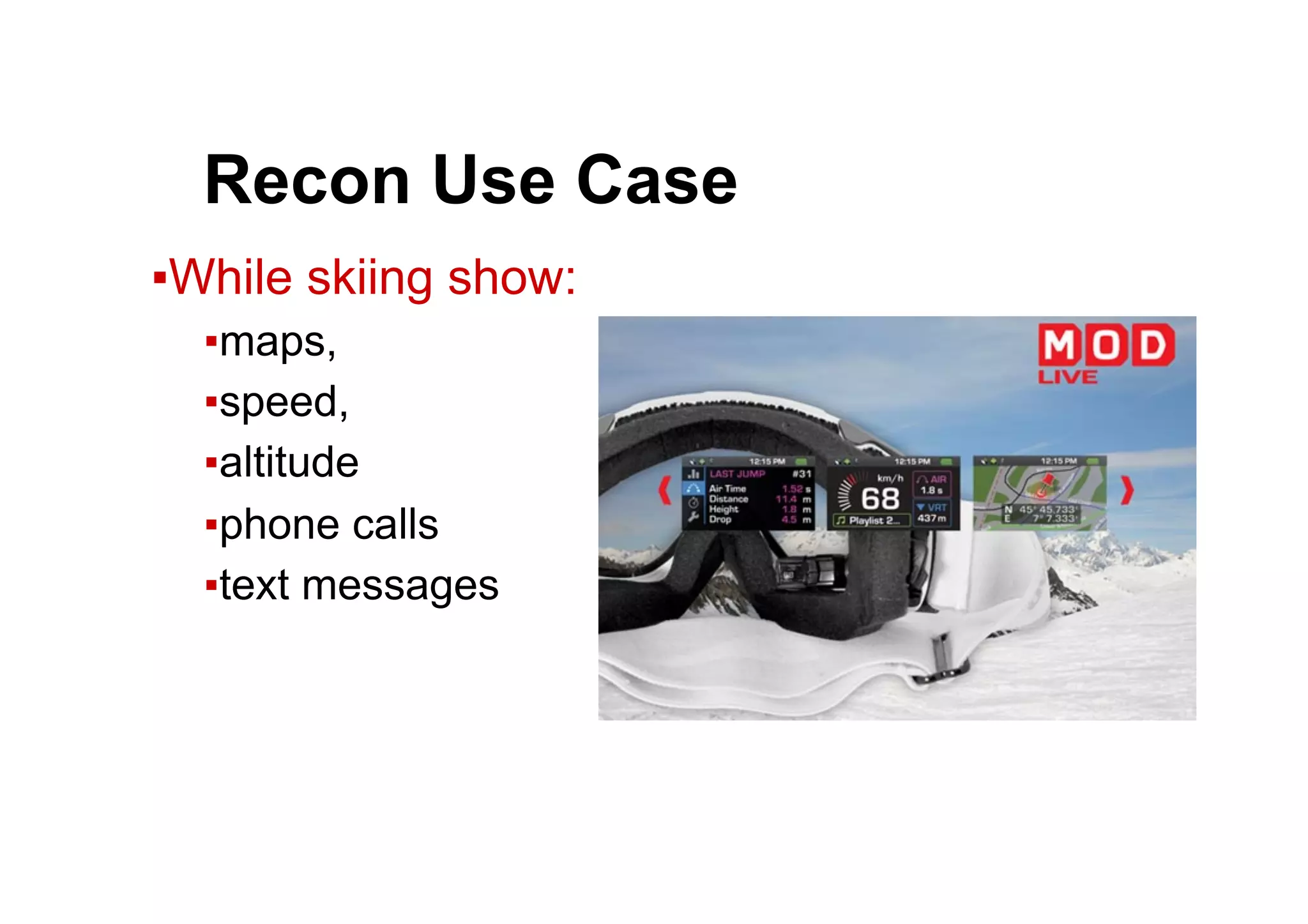

24. ● Recon Use Case
▪ While skiing show:
▪ maps,
▪ speed,
▪ altitude
▪ phone calls
▪ text messages

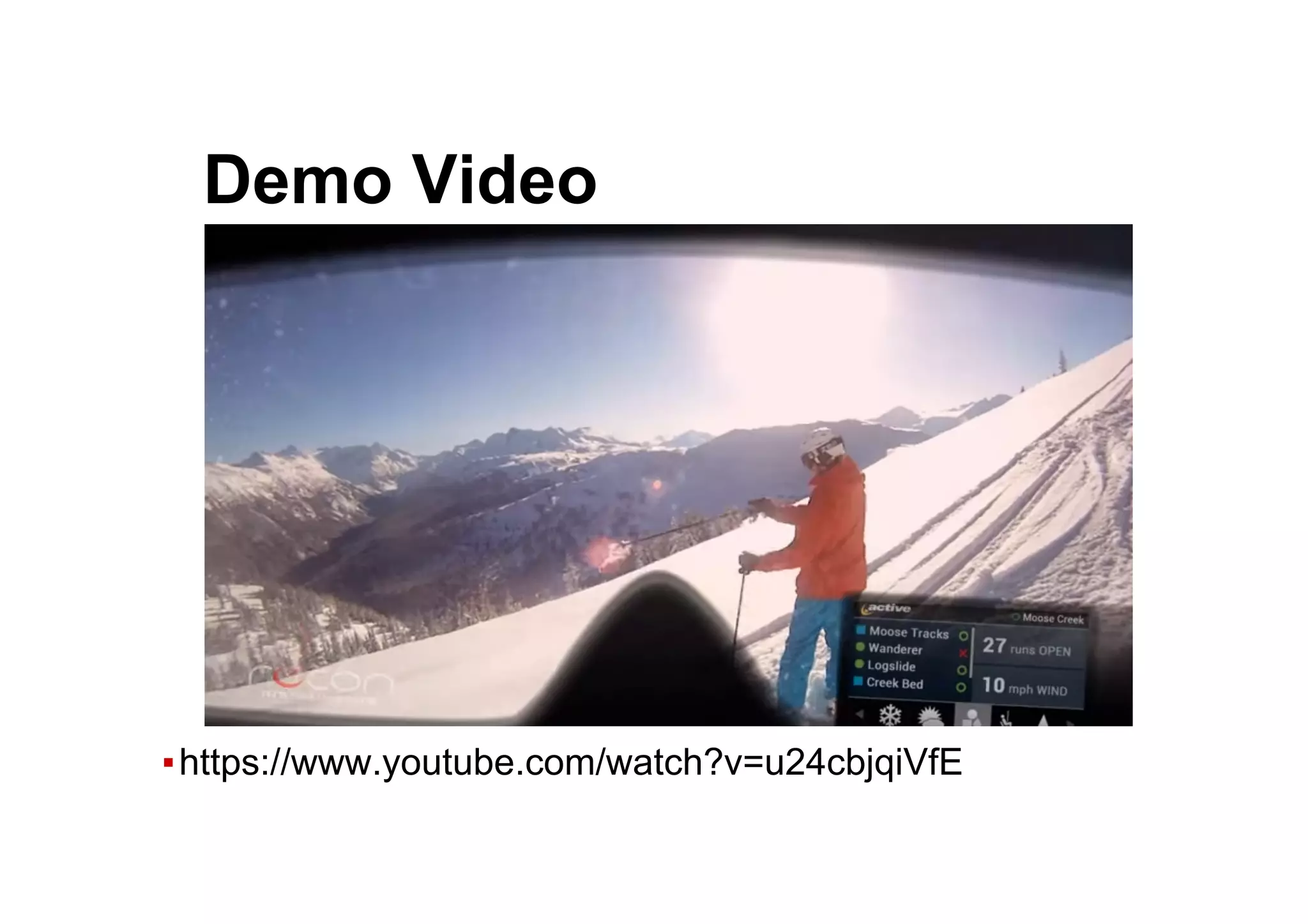

25. ● Demo Video
▪ https://www.youtube.com/watch?v=u24cbjqiVfE

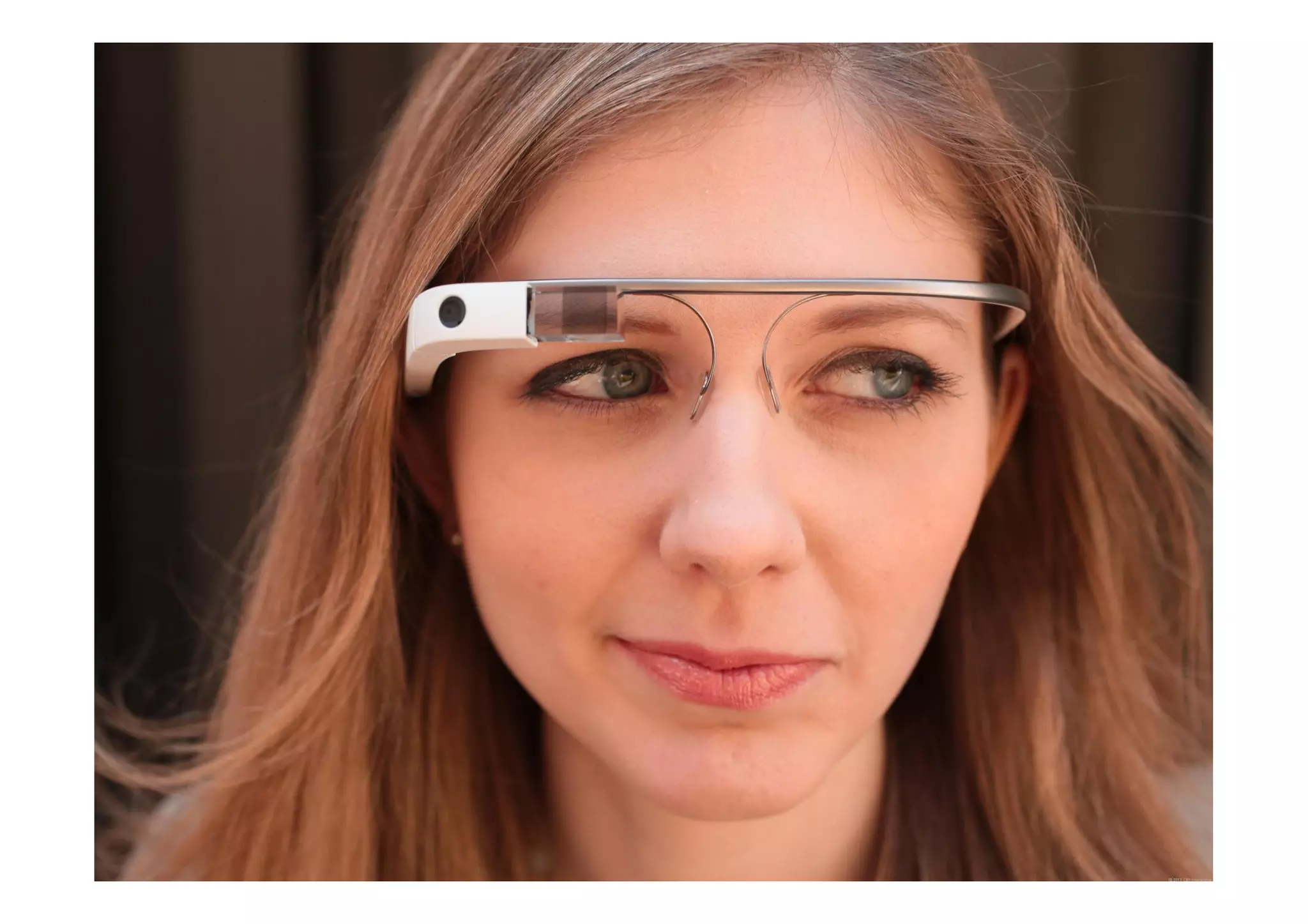

26. Google Glass (2011 - )

28. ● View Through Google Glass
Always available peripheral information display
Combining computing, communications and content capture

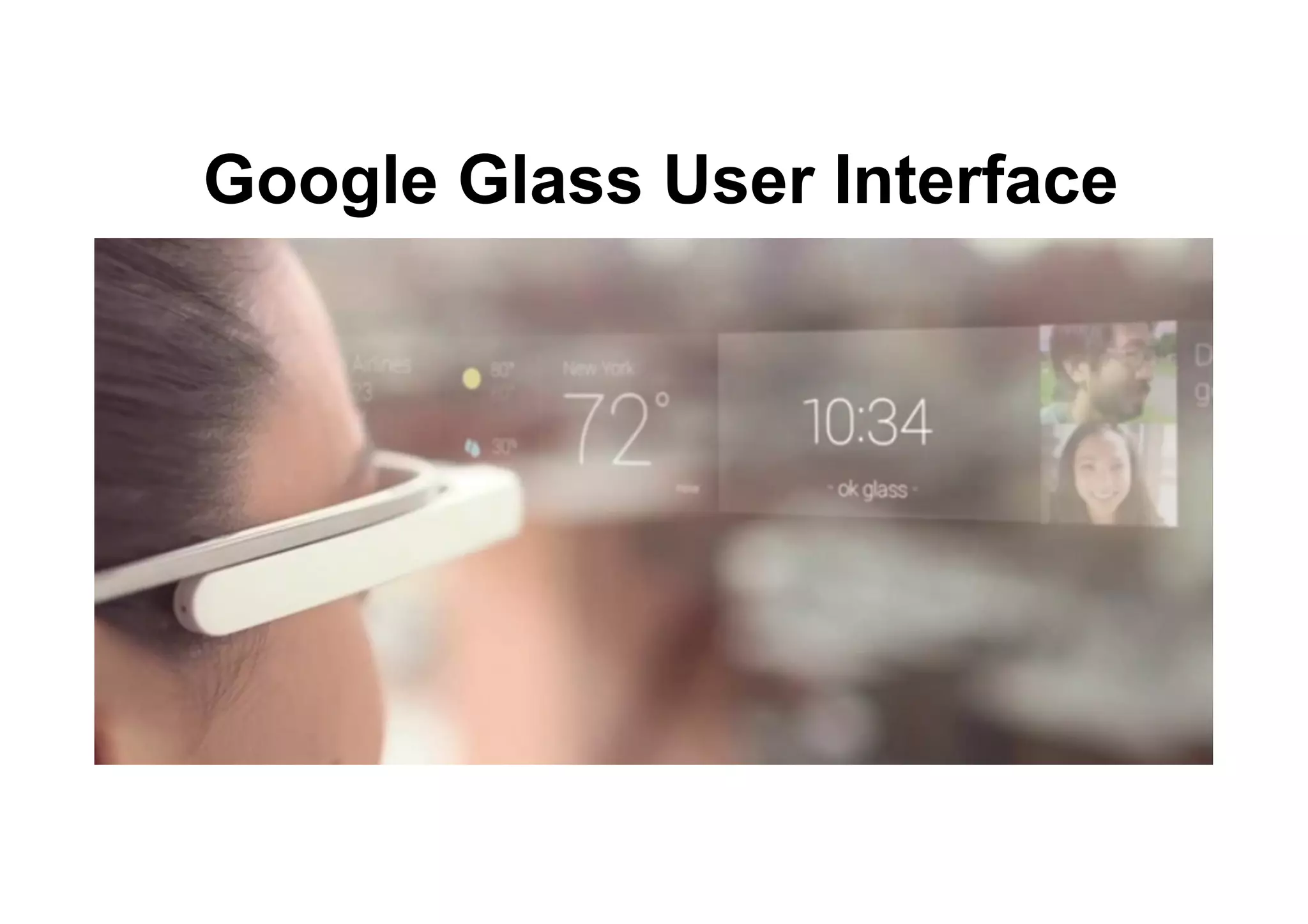

29. ● Google Glass User Interface
▪ dfasdf

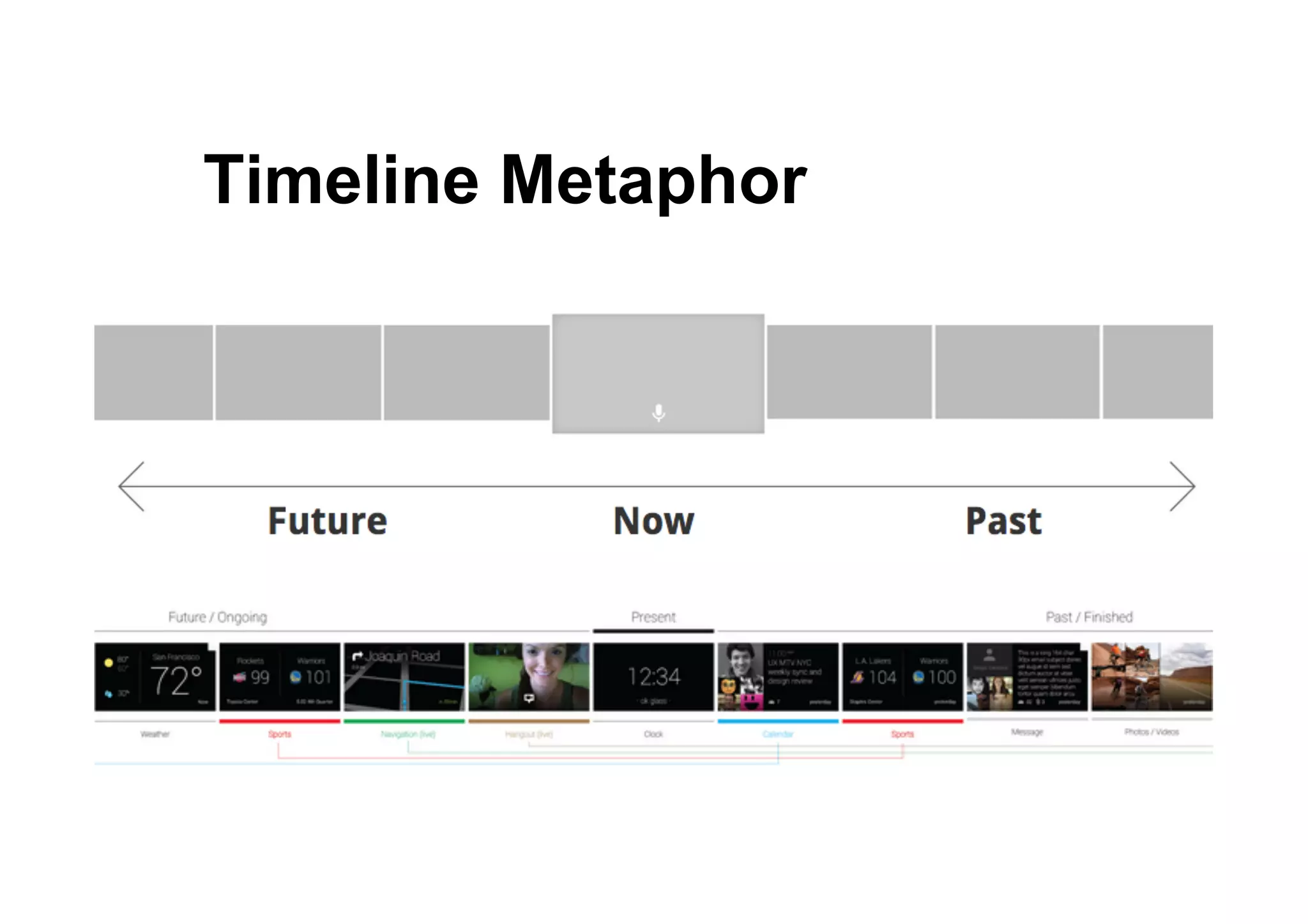

30. ● Timeline Metaphor

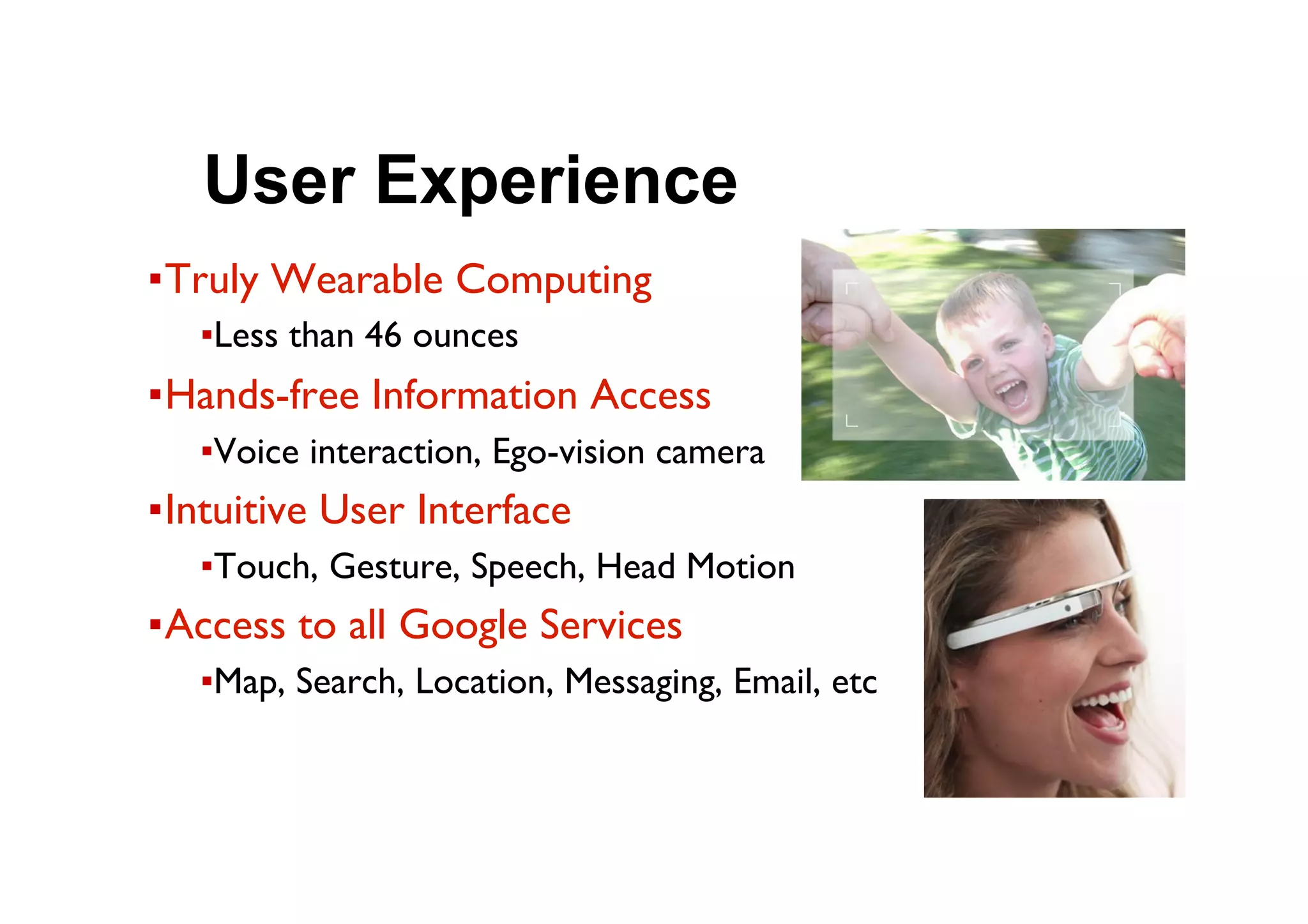

31. ● User Experience
▪ Truly Wearable Computing
▪ Less than 46 ounces
▪ Hands-free Information Access
▪ Voice interaction, Ego-vision camera
▪ Intuitive User Interface
▪ Touch, Gesture, Speech, Head Motion
▪ Access to all Google Services
▪ Map, Search, Location, Messaging, Email, etc

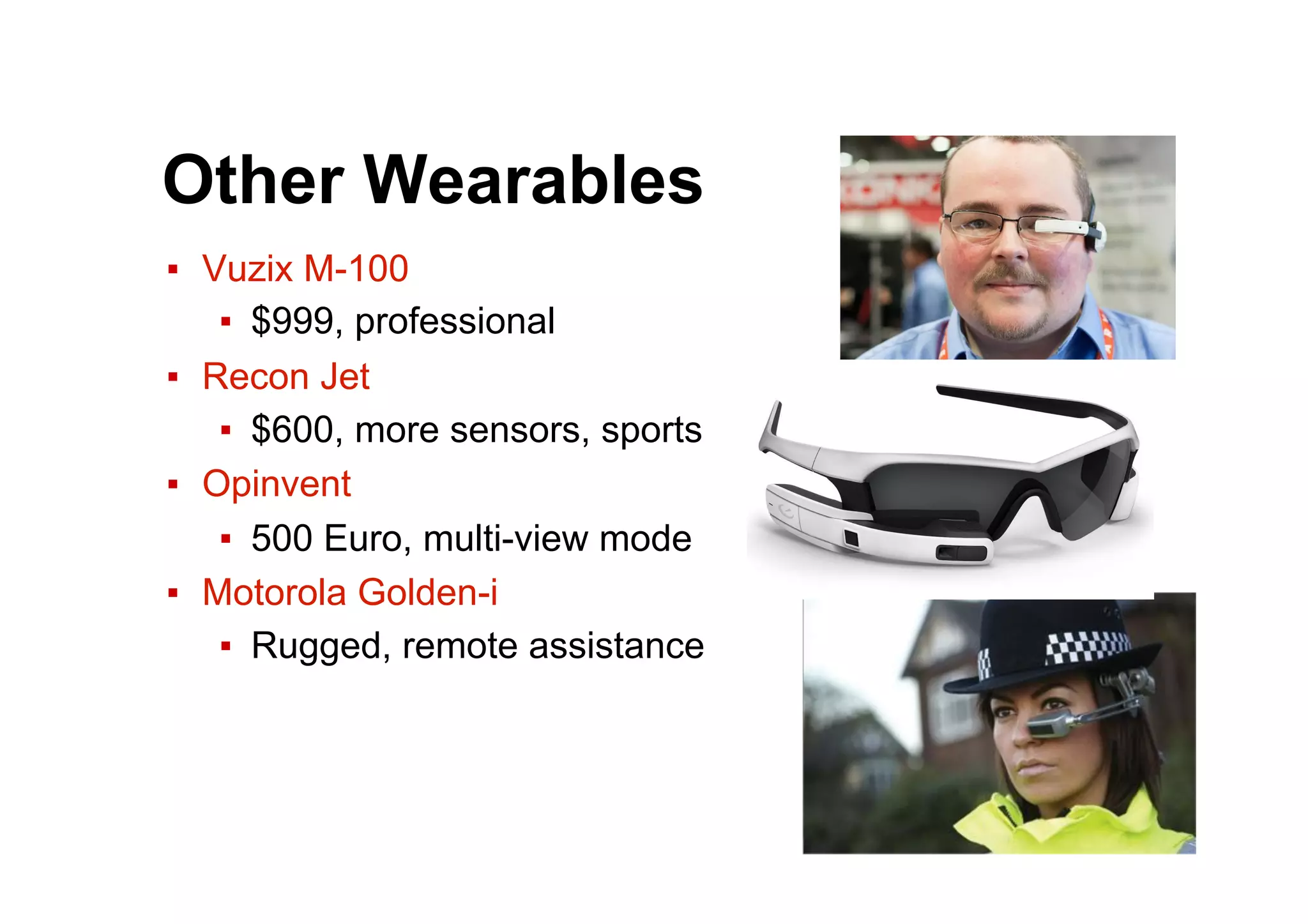

32. Other Wearables
▪ Vuzix M-100
▪ $999, professional
▪ Recon Jet
▪ $600, more sensors, sports
▪ Opinvent
▪ 500 Euro, multi-view mode
▪ Motorola Golden-i
▪ Rugged, remote assistance

33. dsfh

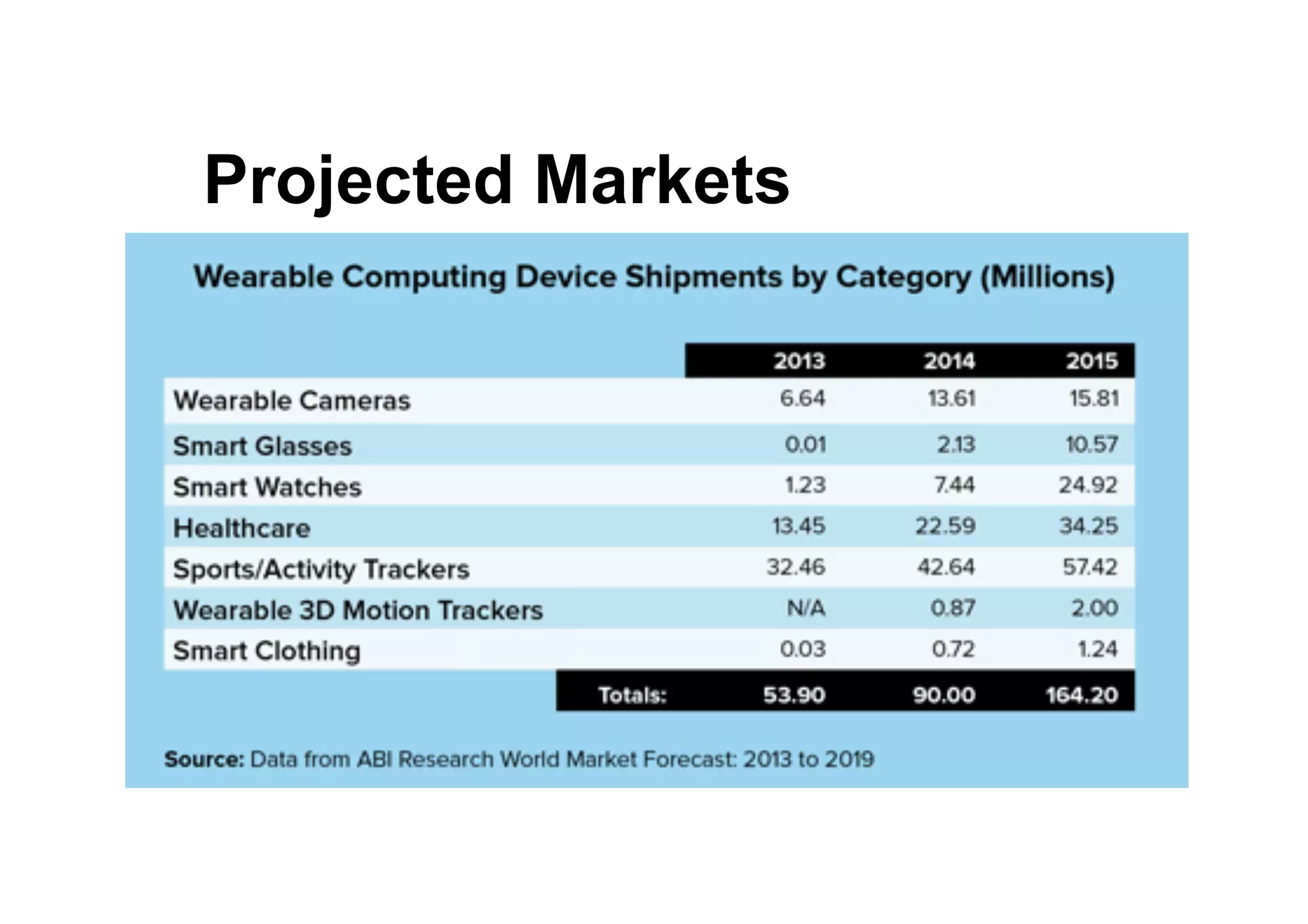

35. ● Projected Markets

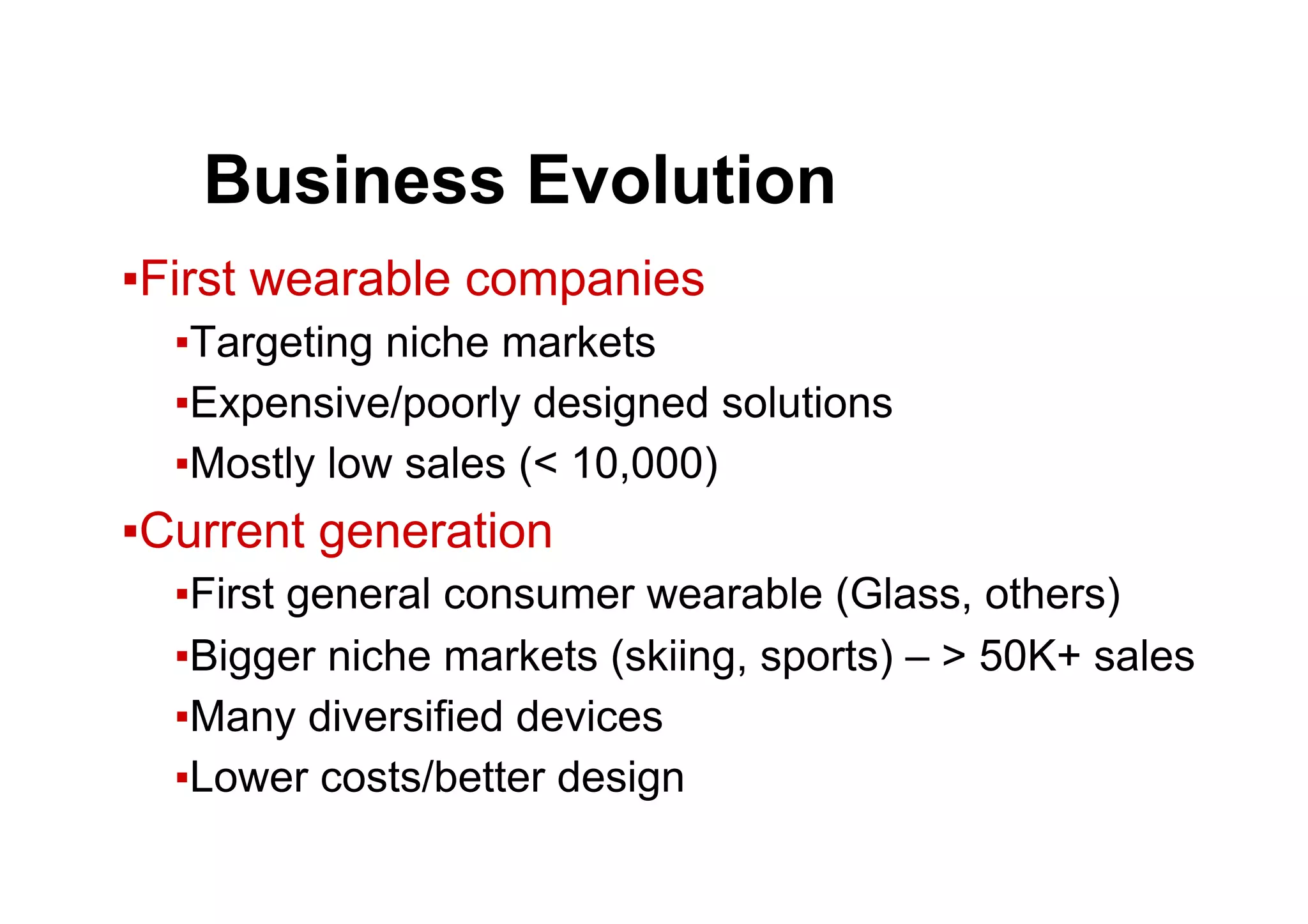

36. ● Business Evolution
▪ First wearable companies
▪ Targeting niche markets
▪ Expensive/poorly designed solutions
▪ Mostly low sales (< 10,000)
▪ Current generation
▪ First general consumer wearable (Glass, others)
▪ Bigger niche markets (skiing, sports) – > 50K+ sales
▪ Many diversified devices
▪ Lower costs/better design

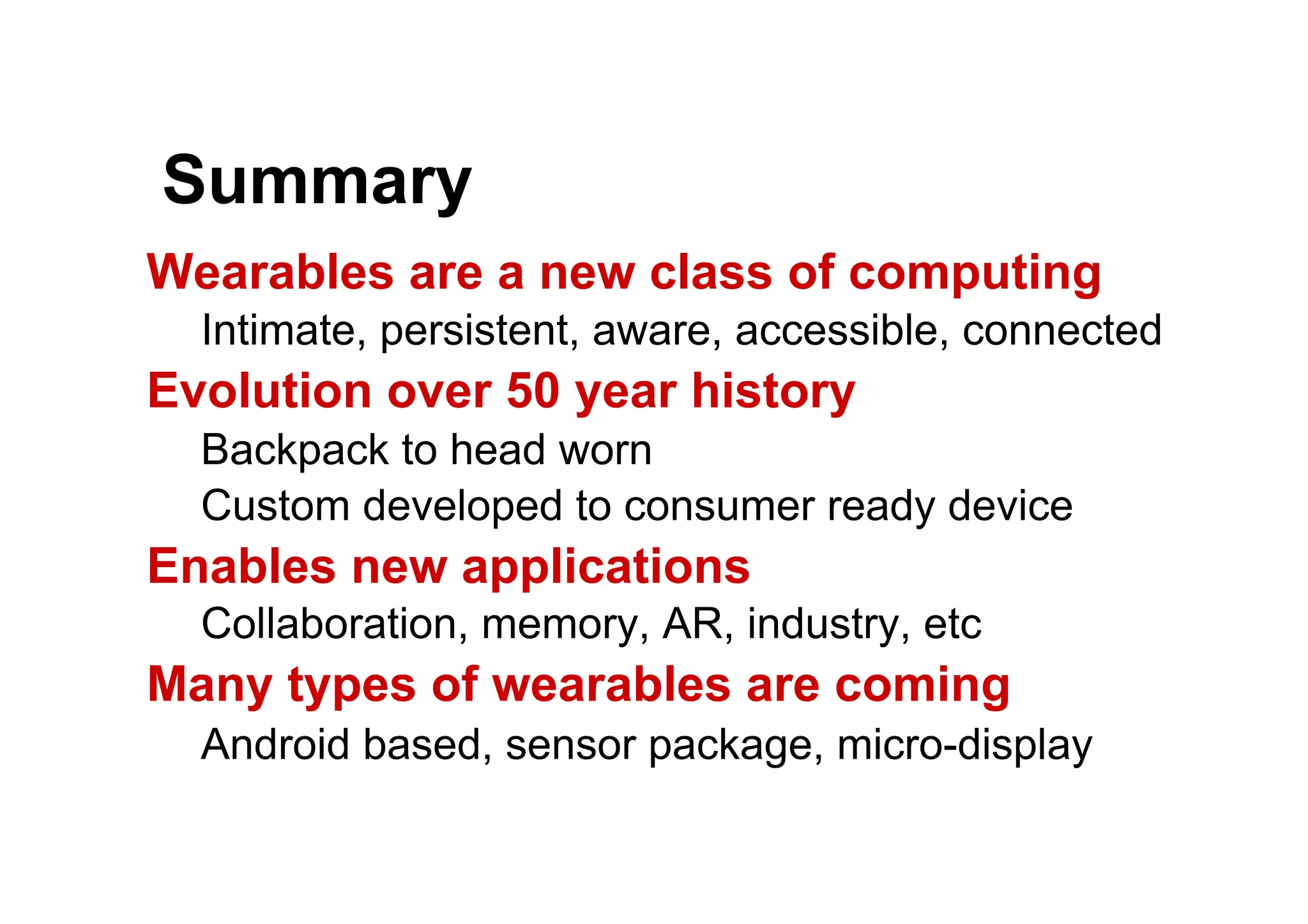

37. Summary
Wearables are a new class of computing
Intimate, persistent, aware, accessible, connected
Evolution over 50 year history
Backpack to head worn
Custom developed to consumer ready device
Enables new applications
Collaboration, memory, AR, industry, etc
Many types of wearables are coming
Android based, sensor package, micro-display

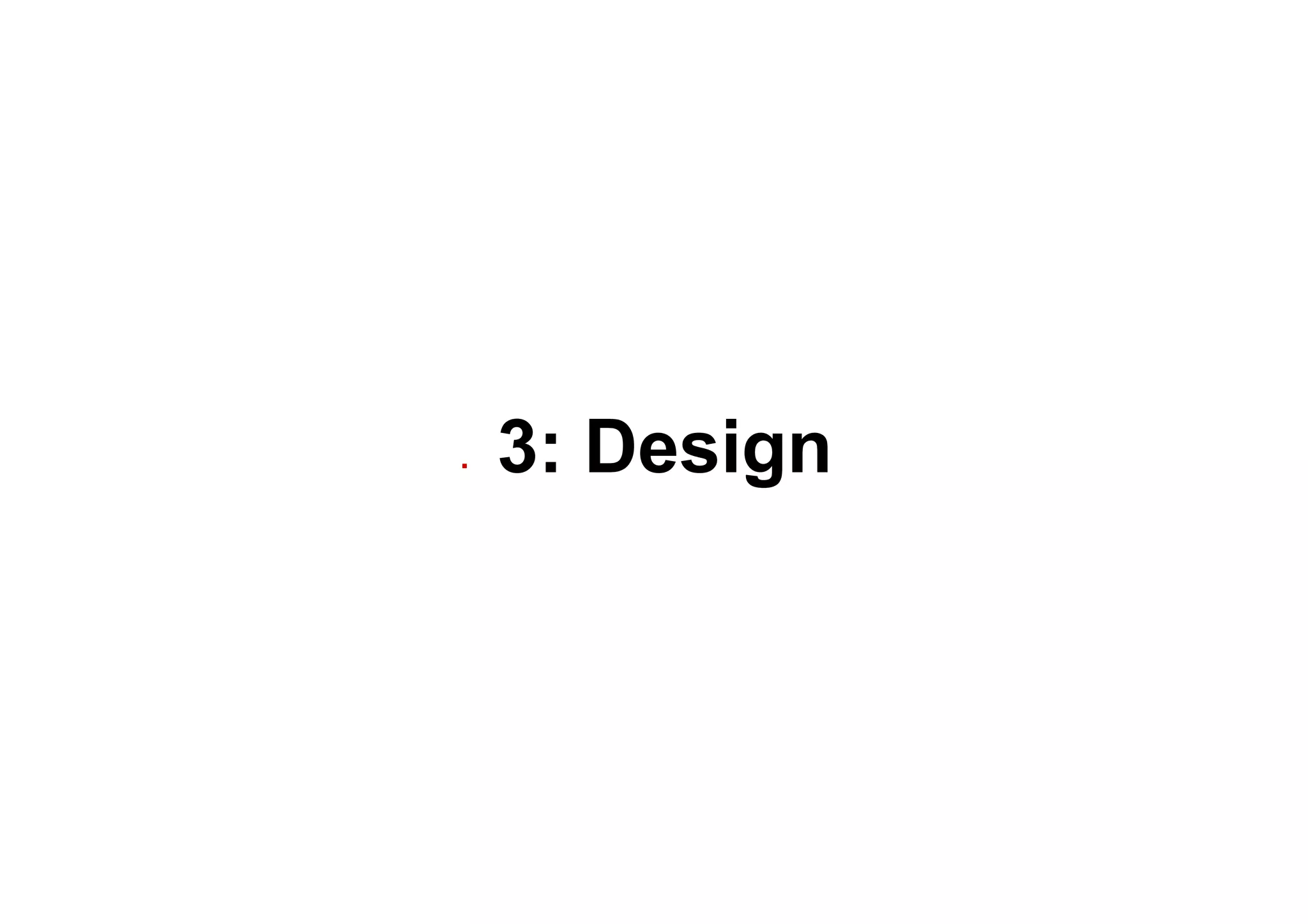

38. ▪ 3: Design

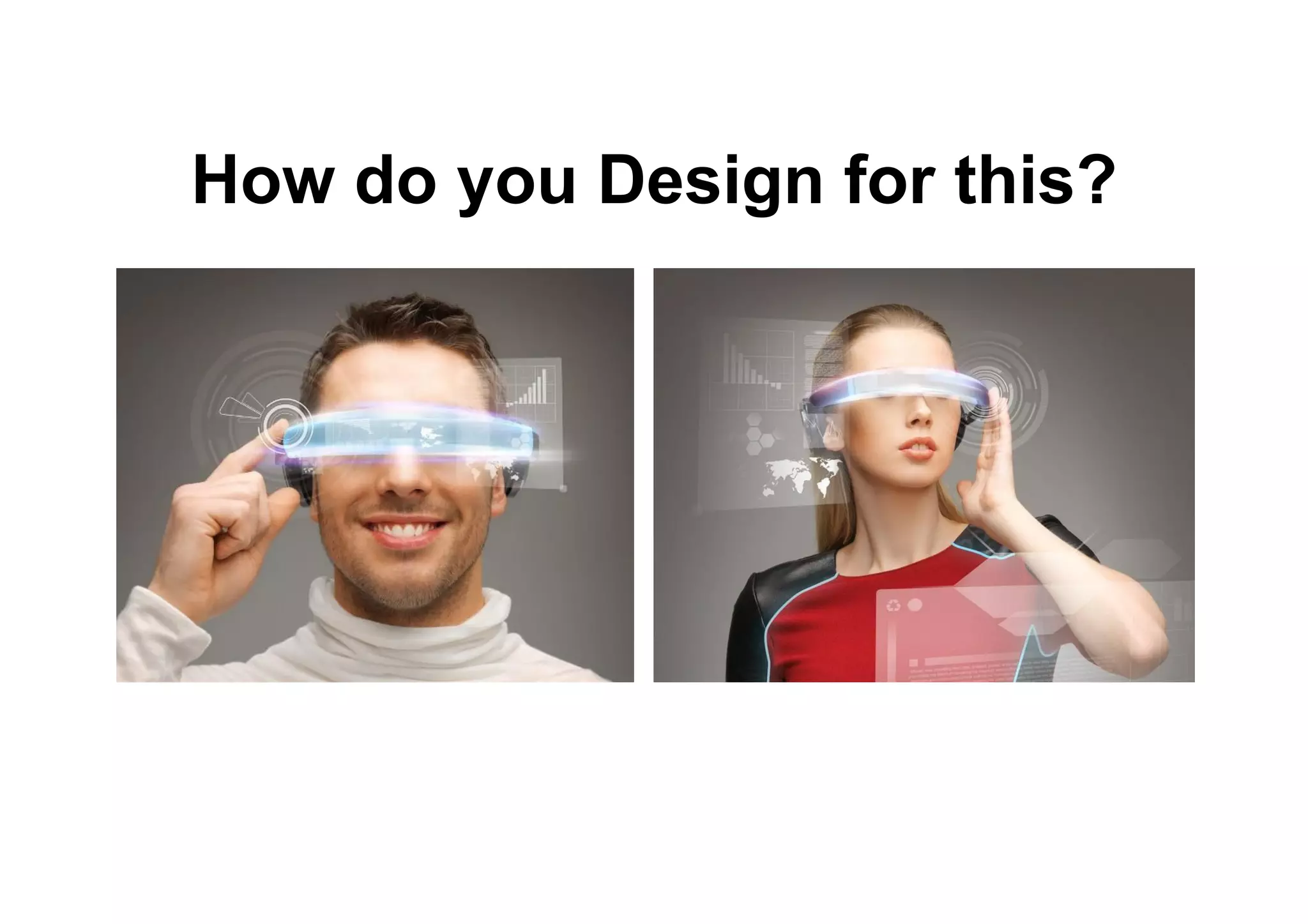

39. How do you Design for this?

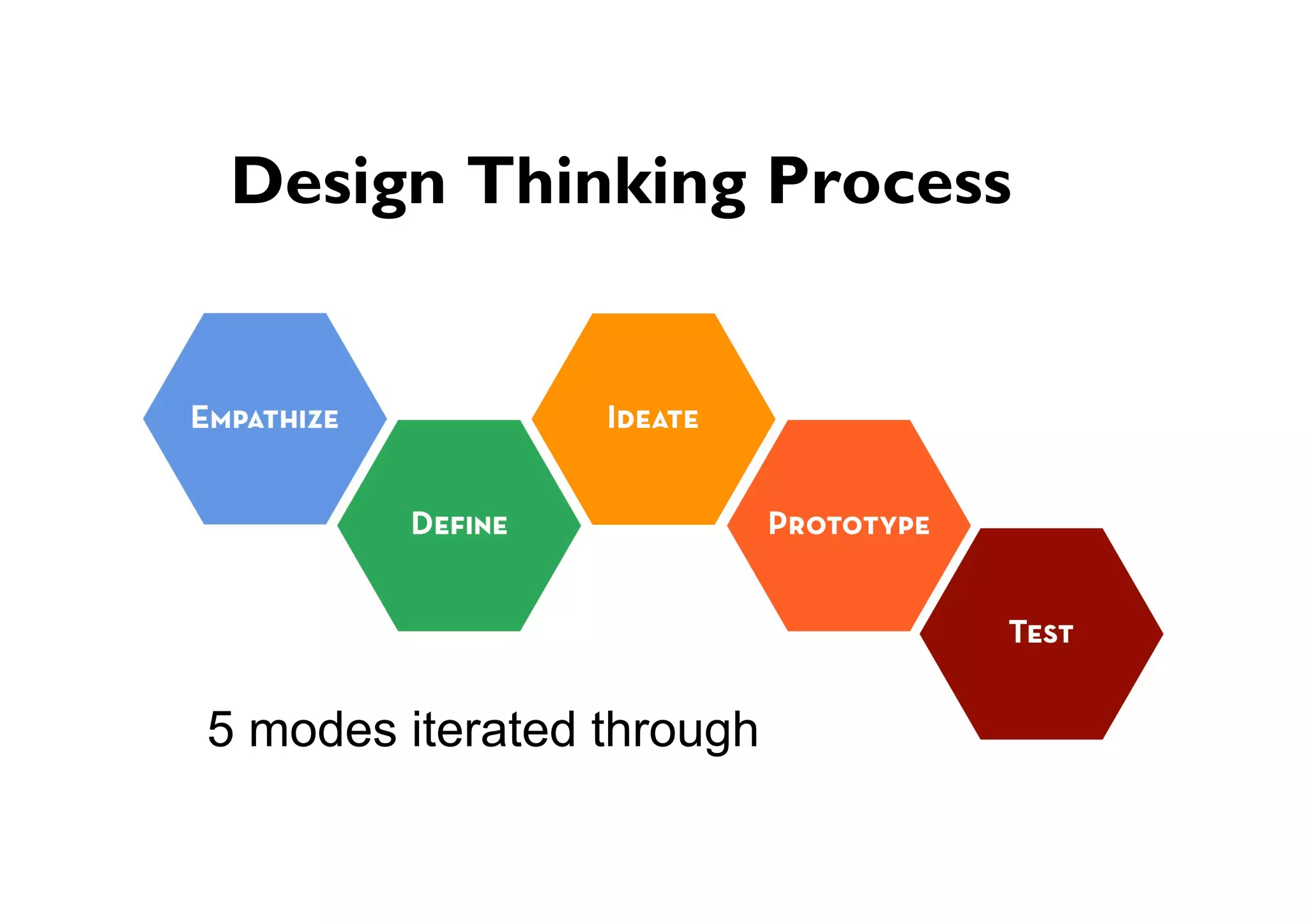

40. ● Design Thinking Process
5 modes iterated through

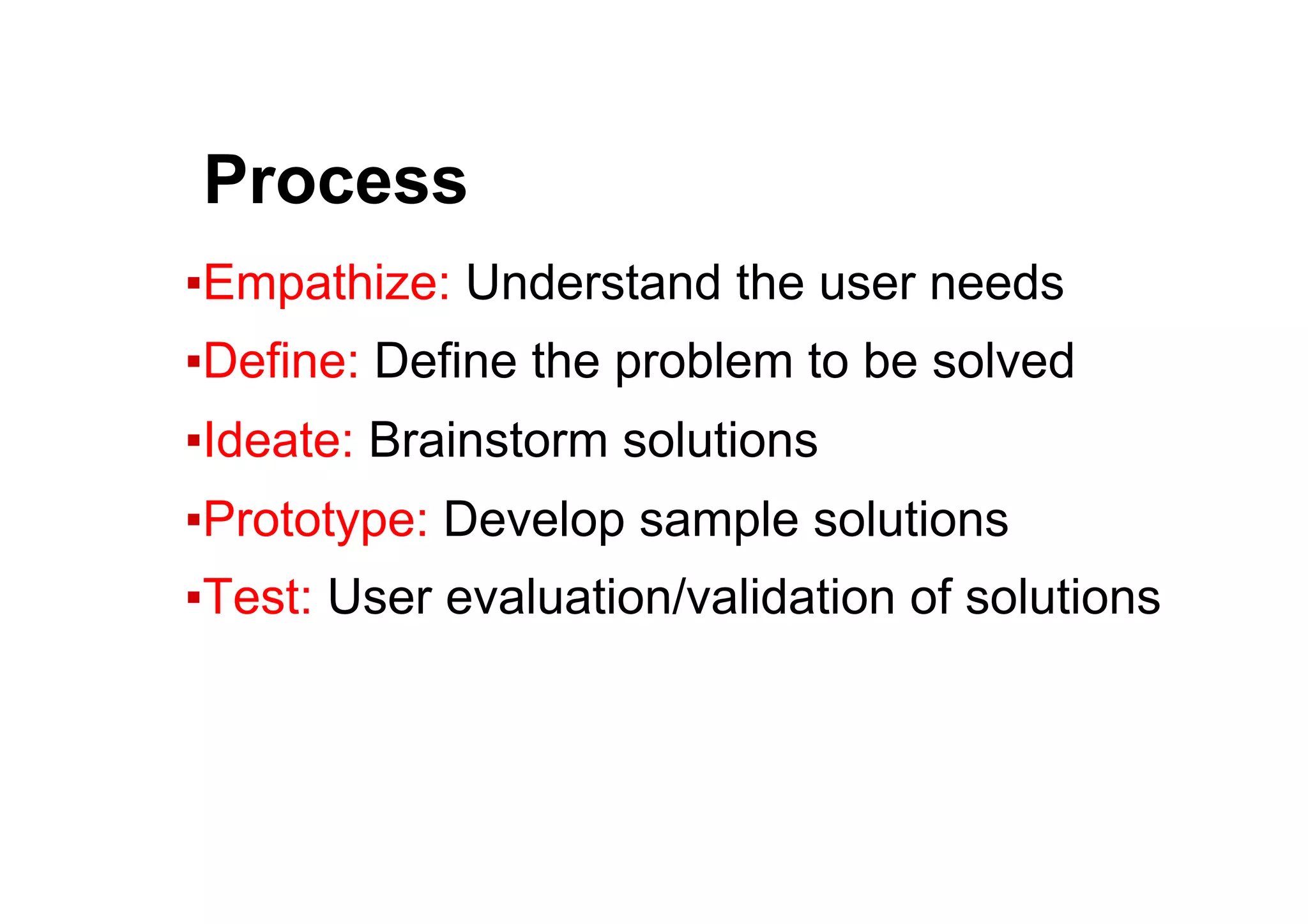

41. ● Process
▪ Empathize: Understand the user needs
▪ Define: Define the problem to be solved
▪ Ideate: Brainstorm solutions
▪ Prototype: Develop sample solutions
▪ Test: User evaluation/validation of solutions

42. ● Three Phase Model

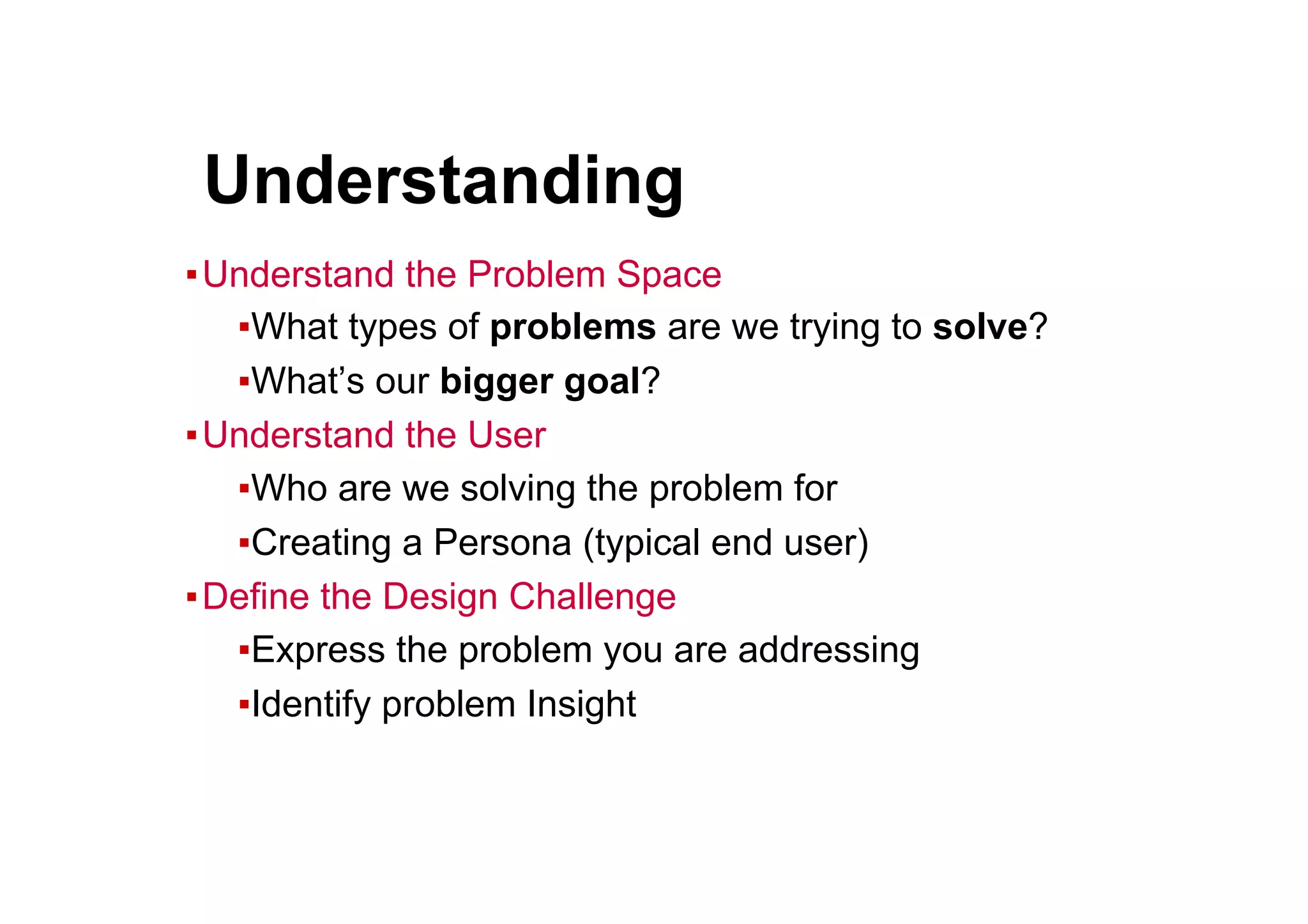

43. ● Understanding
▪ Understand the Problem Space
▪ What types of problems are we trying to solve?
▪ What’s our bigger goal?
▪ Understand the User
▪ Who are we solving the problem for
▪ Creating a Persona (typical end user)
▪ Define the Design Challenge
▪ Express the problem you are addressing
▪ Identify problem Insight

44. Celine needs
& wants
because
____________
____________
____________
Persona - Celine
Story
Travel writer & well-known blogger in Paris.
Just published her first book of travel photography.
Has 30K+ followers on Twitter, 800K+ on Instagram

45. Celine needs
& wants
because
_to capture and
share what she is
doing now_
_the experience to
be shared with
friends_______
she values being
able to take friends
with her on trips___
Persona - Celine

46. ● The Design Challenge
▪ How can a wearable computer be used to capture
and share a user’s experience with remote people?
▪ Key Insight: A wearable computer allows a person to
see and hear with the eyes and ears of another

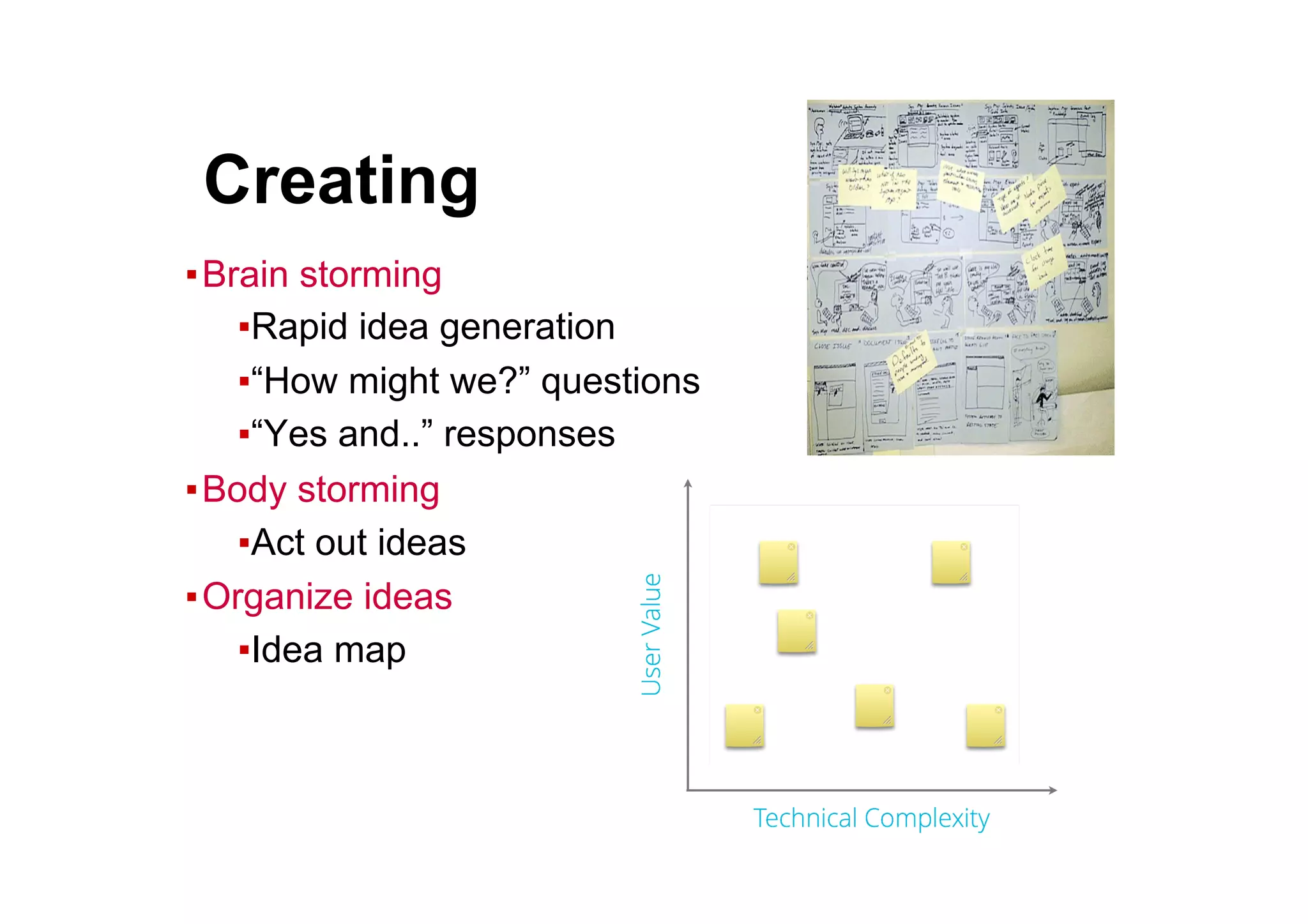

47. ● Creating
▪ Brain storming
▪ Rapid idea generation
▪ “How might we?” questions
▪ “Yes and..” responses
▪ Body storming
▪ Act out ideas
▪ Organize ideas
▪ Idea map

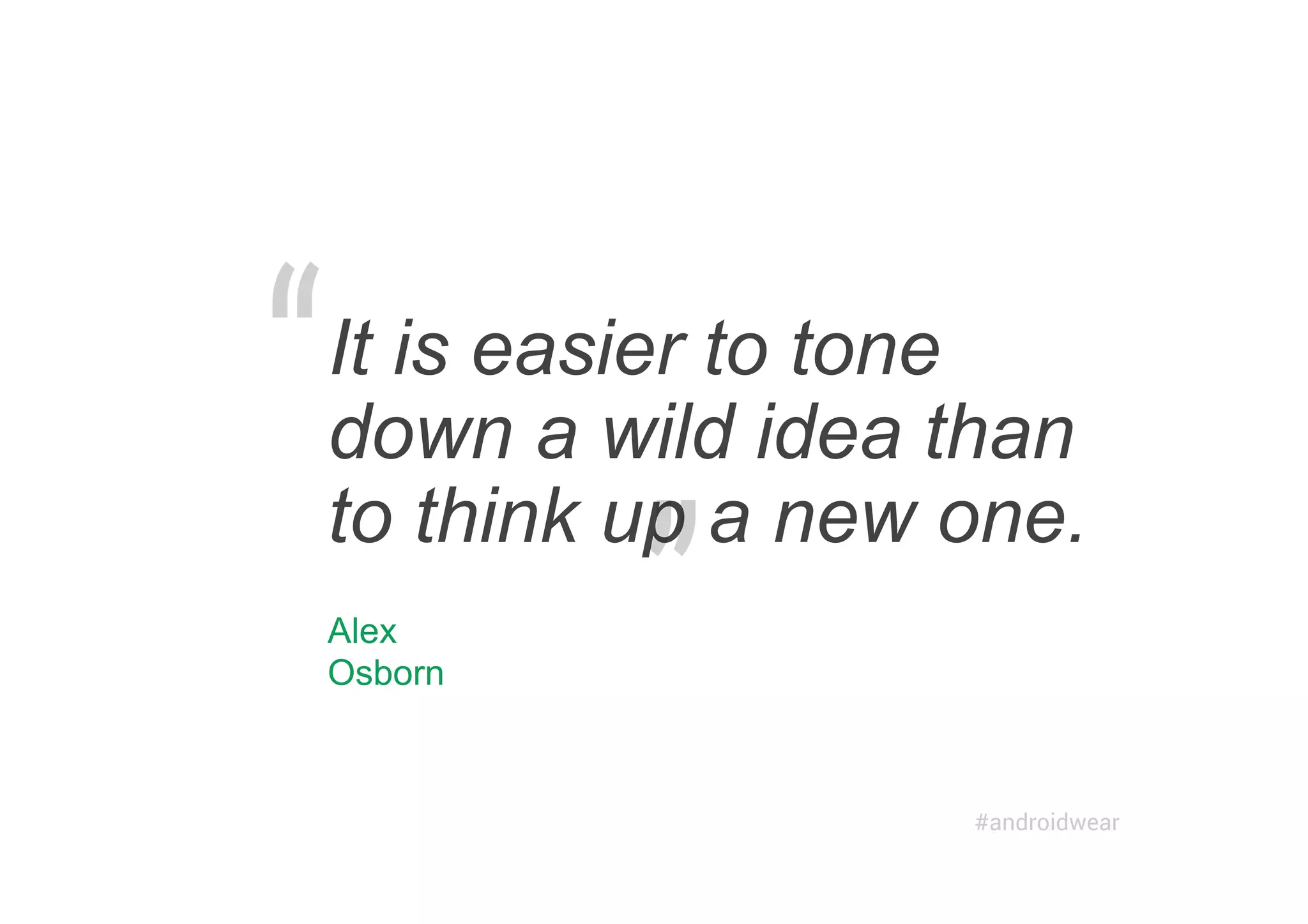

48. It is easier to tone
down a wild idea than
to think up a new one.
Alex
Osborn
#androidwear

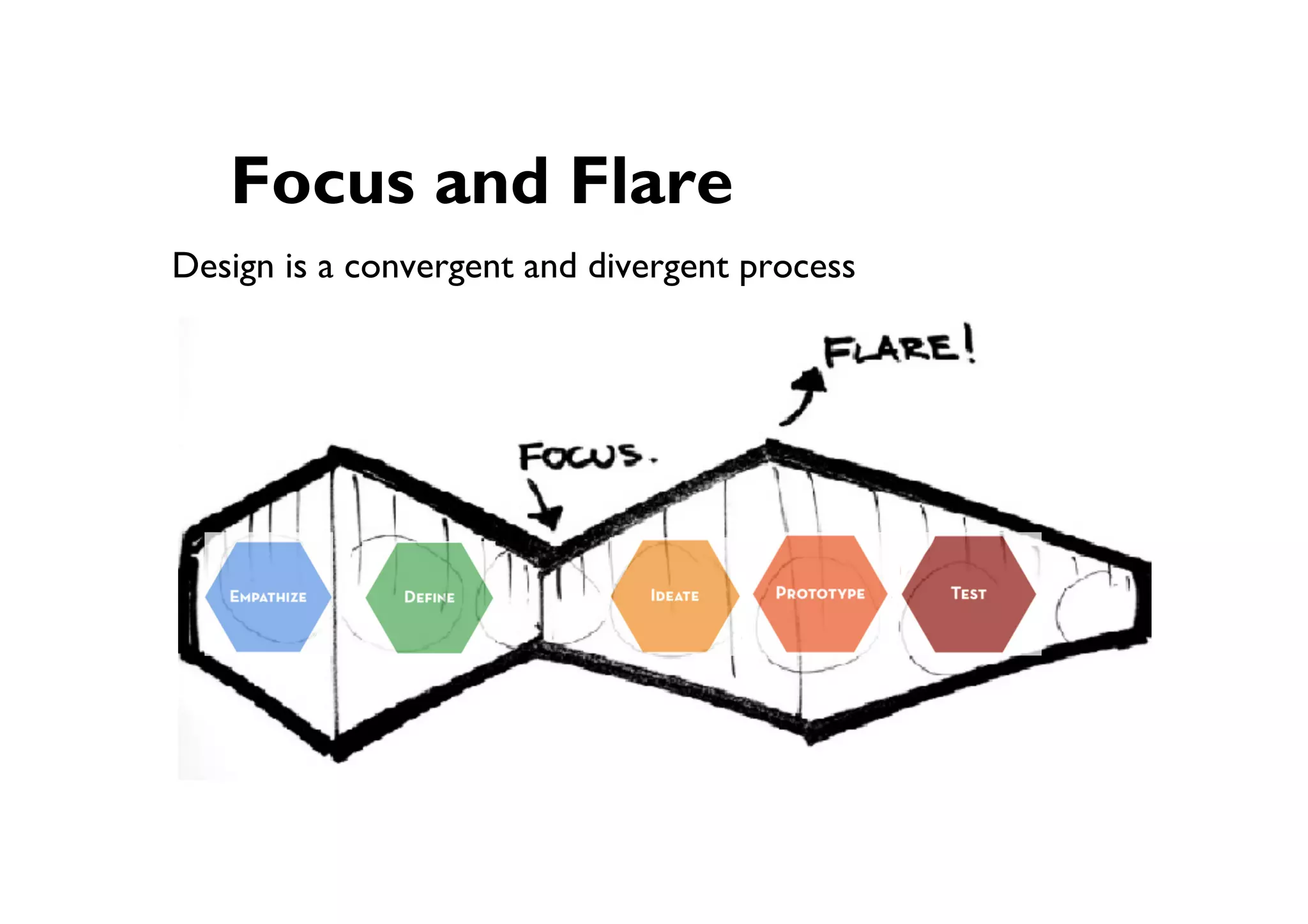

49. ● Focus and Flare
Design is a convergent and divergent process

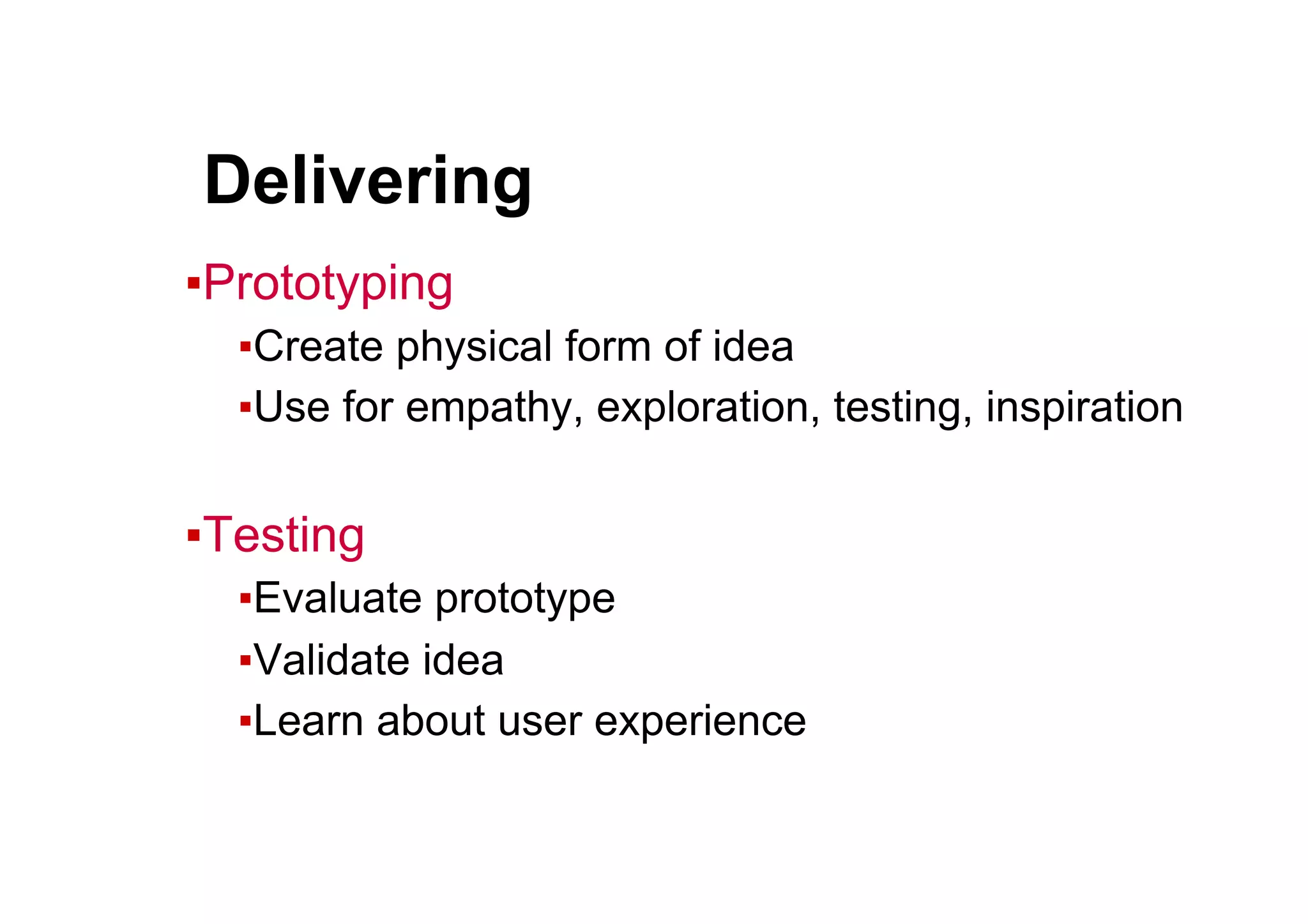

50. ● Delivering
▪ Prototyping
▪ Create physical form of idea
▪ Use for empathy, exploration, testing, inspiration
▪ Testing
▪ Evaluate prototype
▪ Validate idea
▪ Learn about user experience

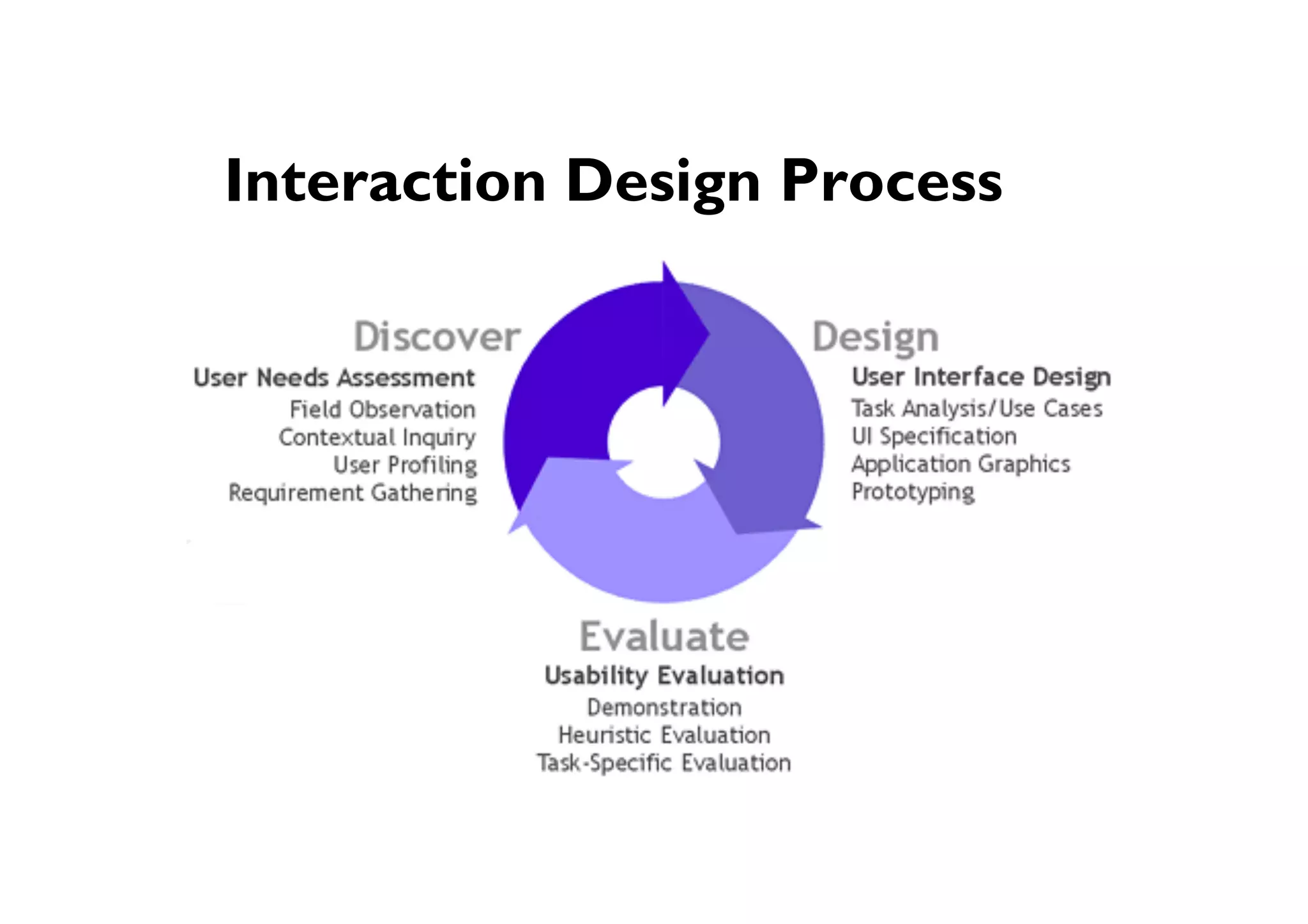

51. ● Interaction Design Process

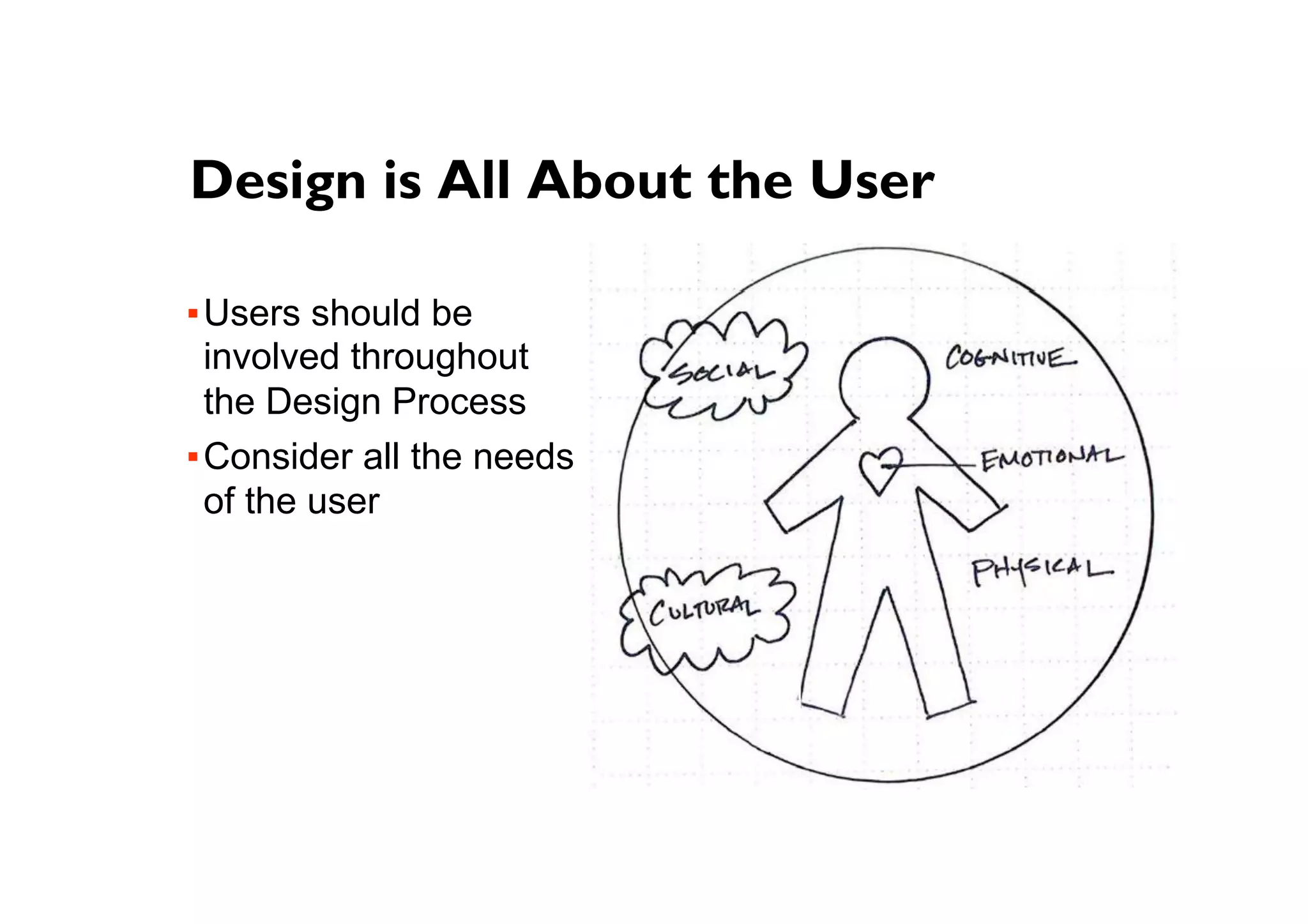

52. ● Design is All About the User
▪ Users should be
involved throughout
the Design Process
▪ Consider all the needs
of the user

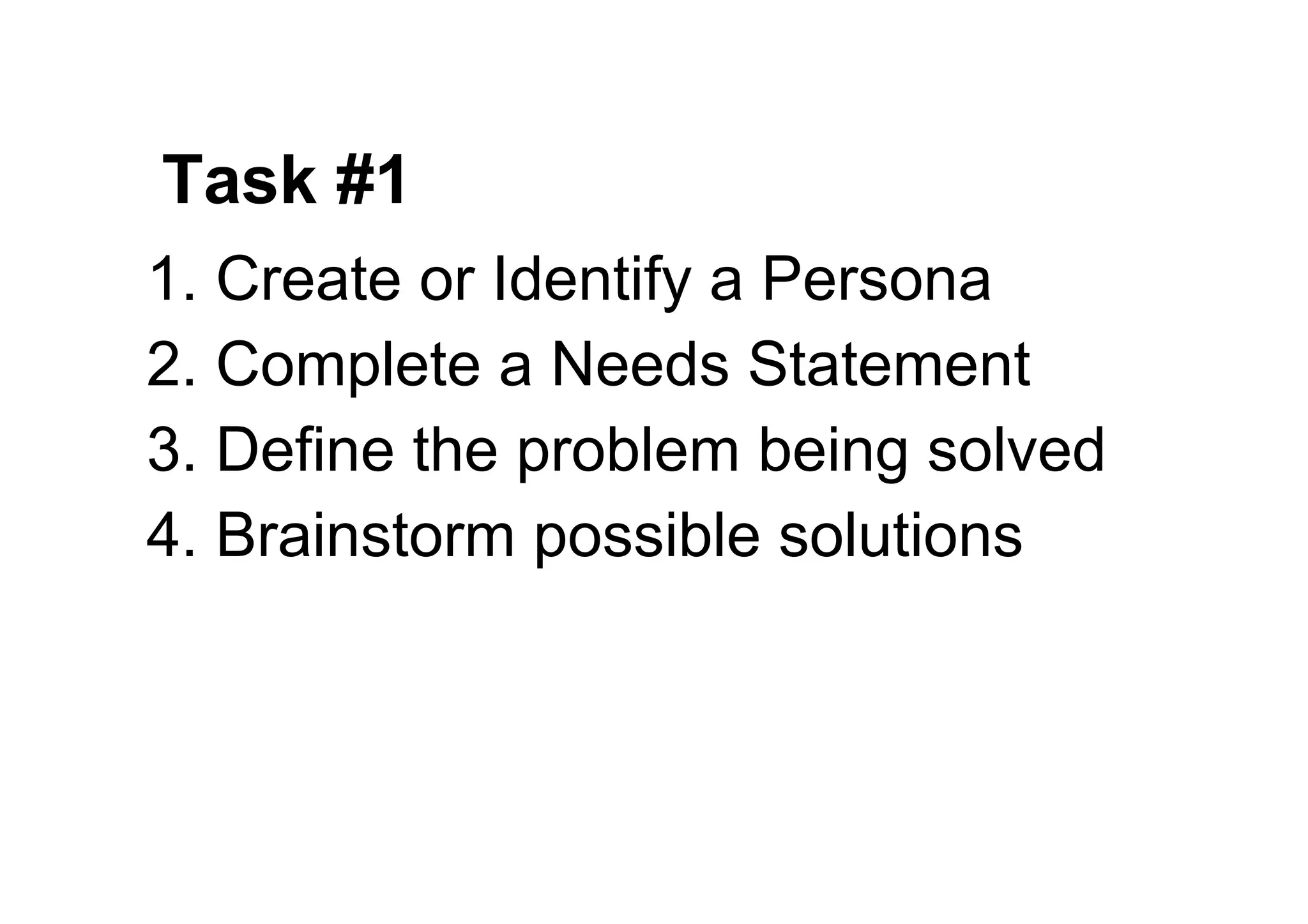

54. Task #1
1. Create or Identify a Persona
2. Complete a Needs Statement
3. Define the problem being solved
4. Brainstorm possible solutions

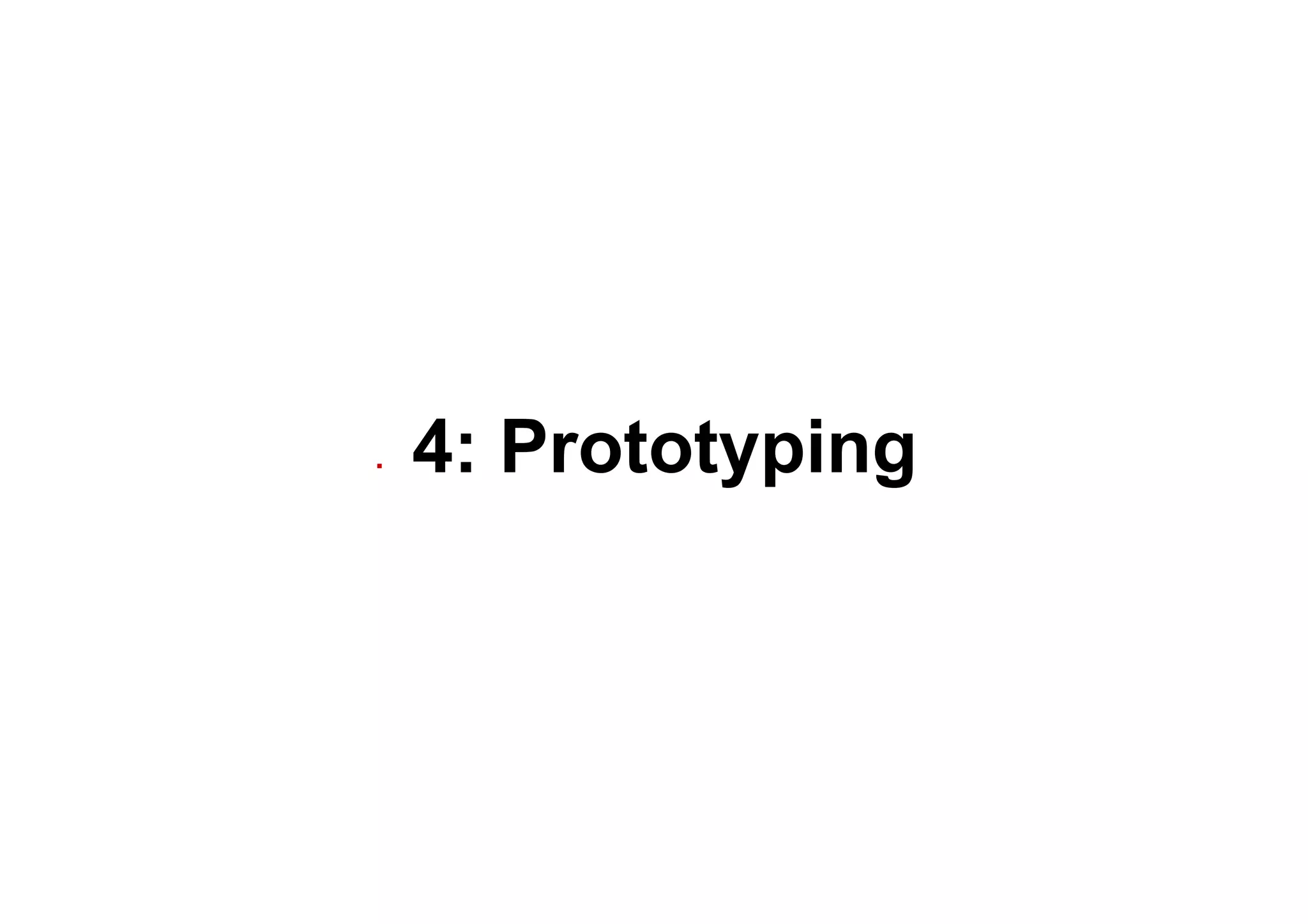

55. ▪ 4: Prototyping

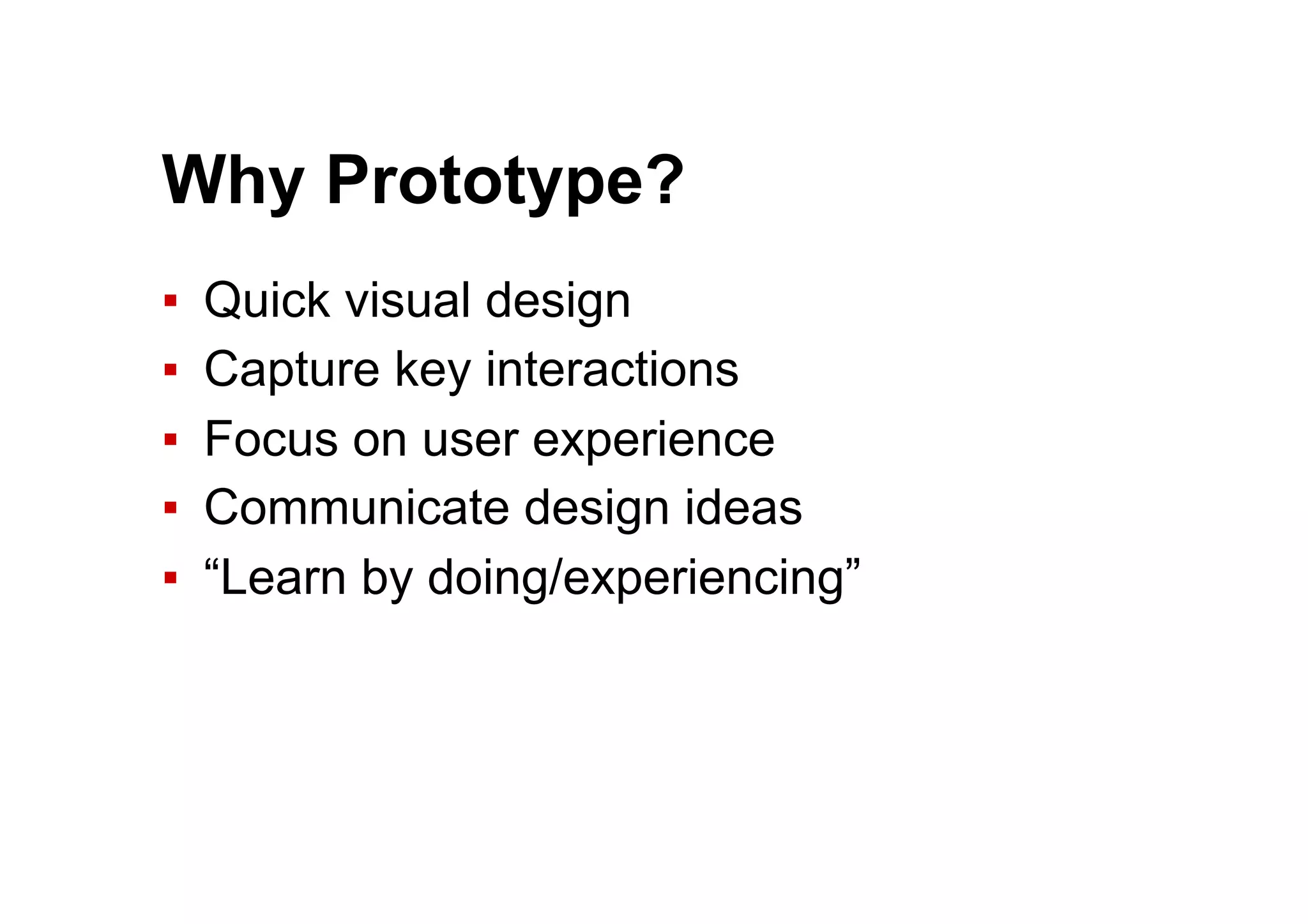

56. Why Prototype?
▪ Quick visual design
▪ Capture key interactions
▪ Focus on user experience
▪ Communicate design ideas
▪ “Learn by doing/experiencing”

57. ● Google Glass Prototyping

58. How can we quickly
prototype Wearable
experiences with
little or no coding?

59. ● Design/Prototyping Tools

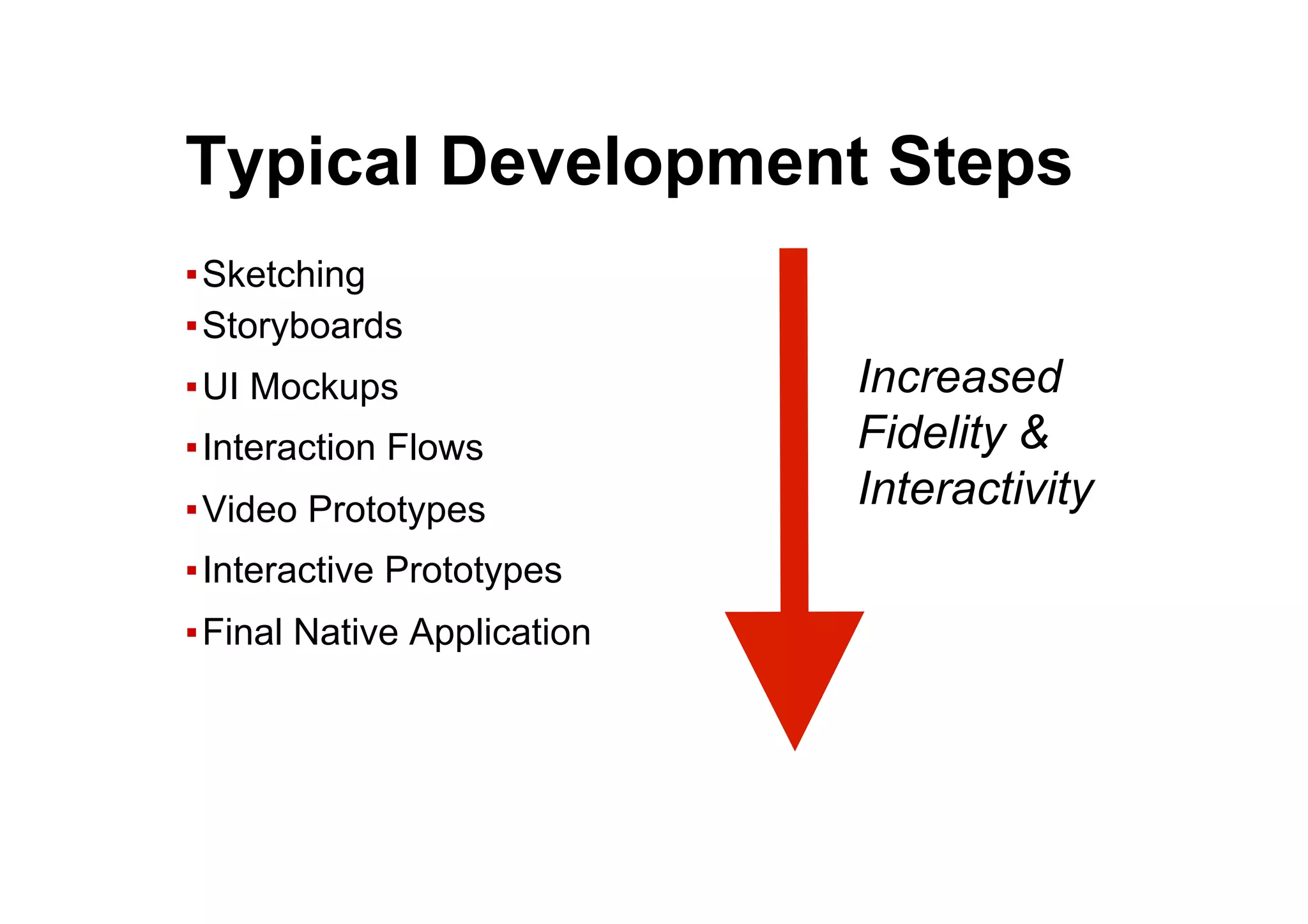

60. ● Typical Development Steps
▪ Sketching
▪ Storyboards
▪ UI Mockups
▪ Interaction Flows
▪ Video Prototypes
▪ Interactive Prototypes
▪ Final Native Application
Increased
Fidelity &
Interactivity

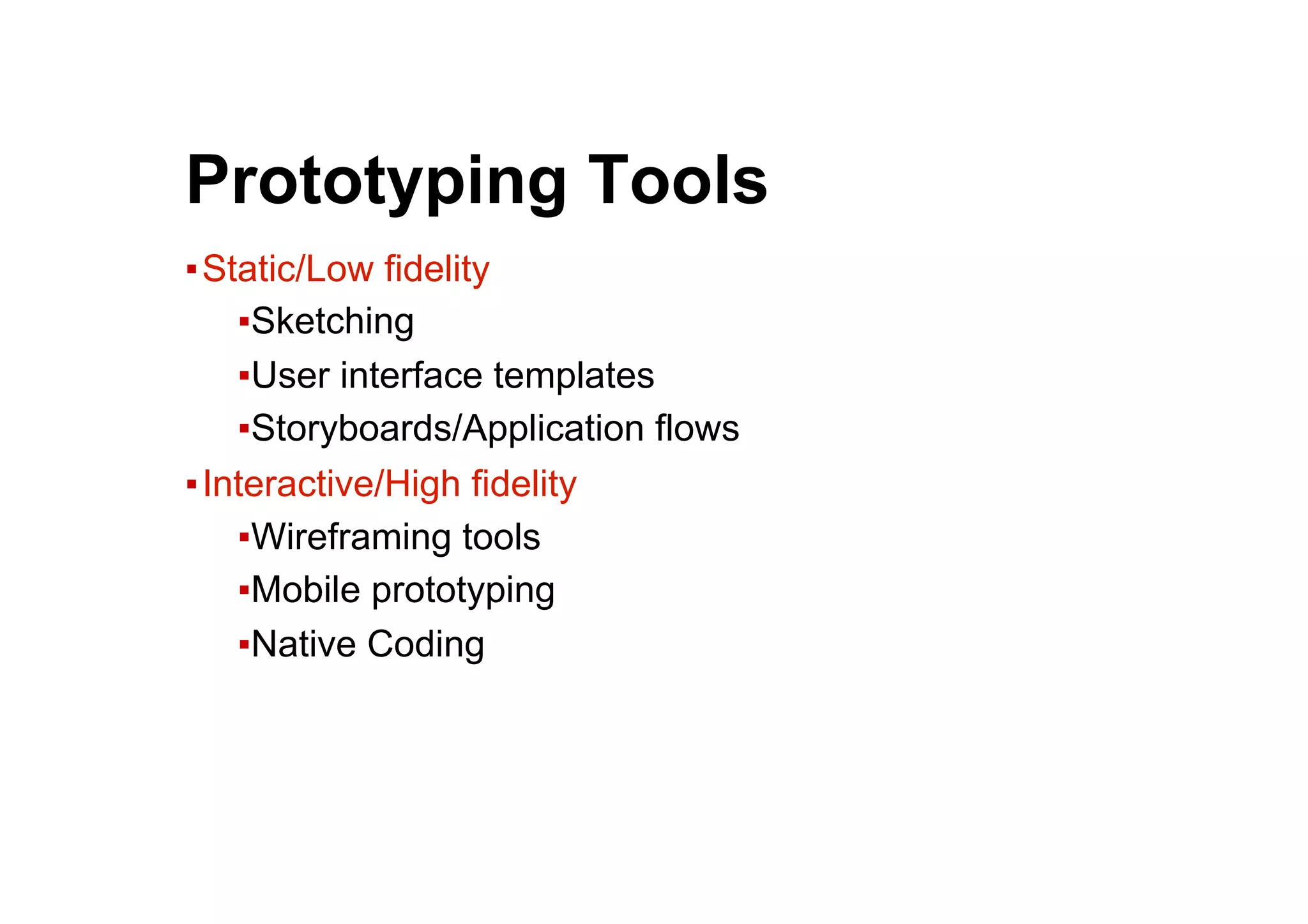

61. ● Prototyping Tools
▪ Static/Low fidelity
▪ Sketching
▪ User interface templates
▪ Storyboards/Application flows
▪ Interactive/High fidelity
▪ Wireframing tools
▪ Mobile prototyping
▪ Native Coding

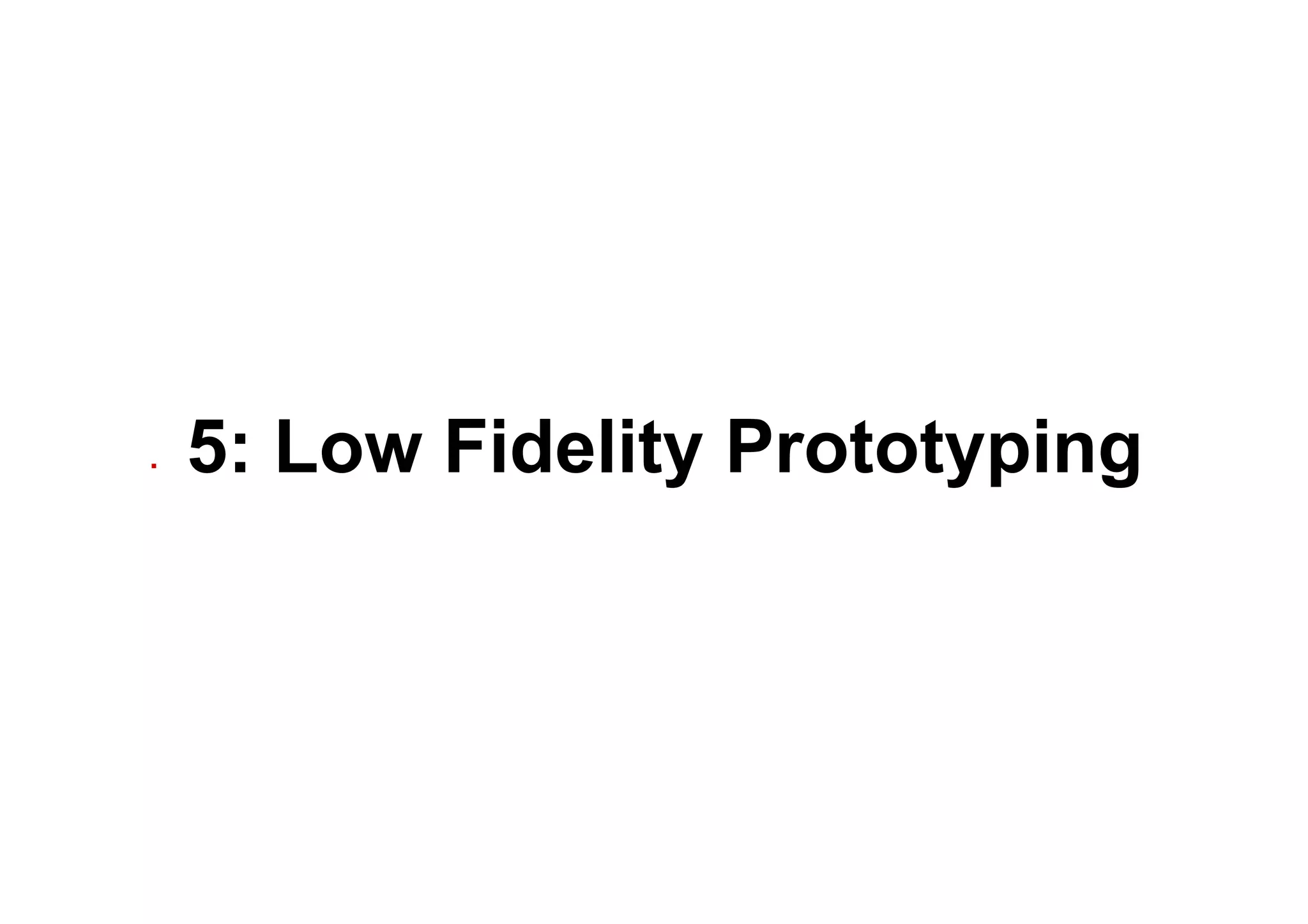

62. ▪ 5: Low Fidelity Prototyping

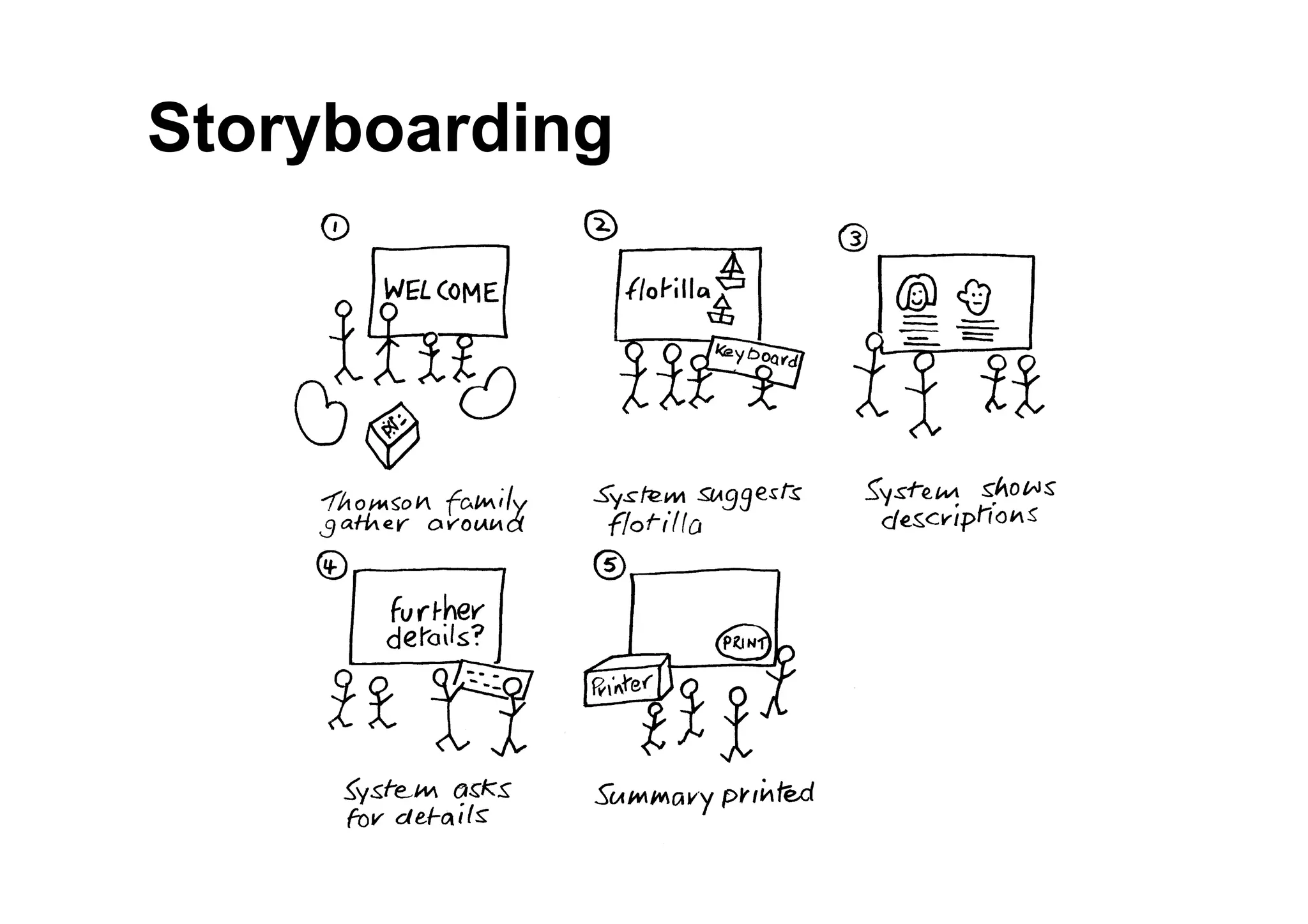

63. ● Storyboarding

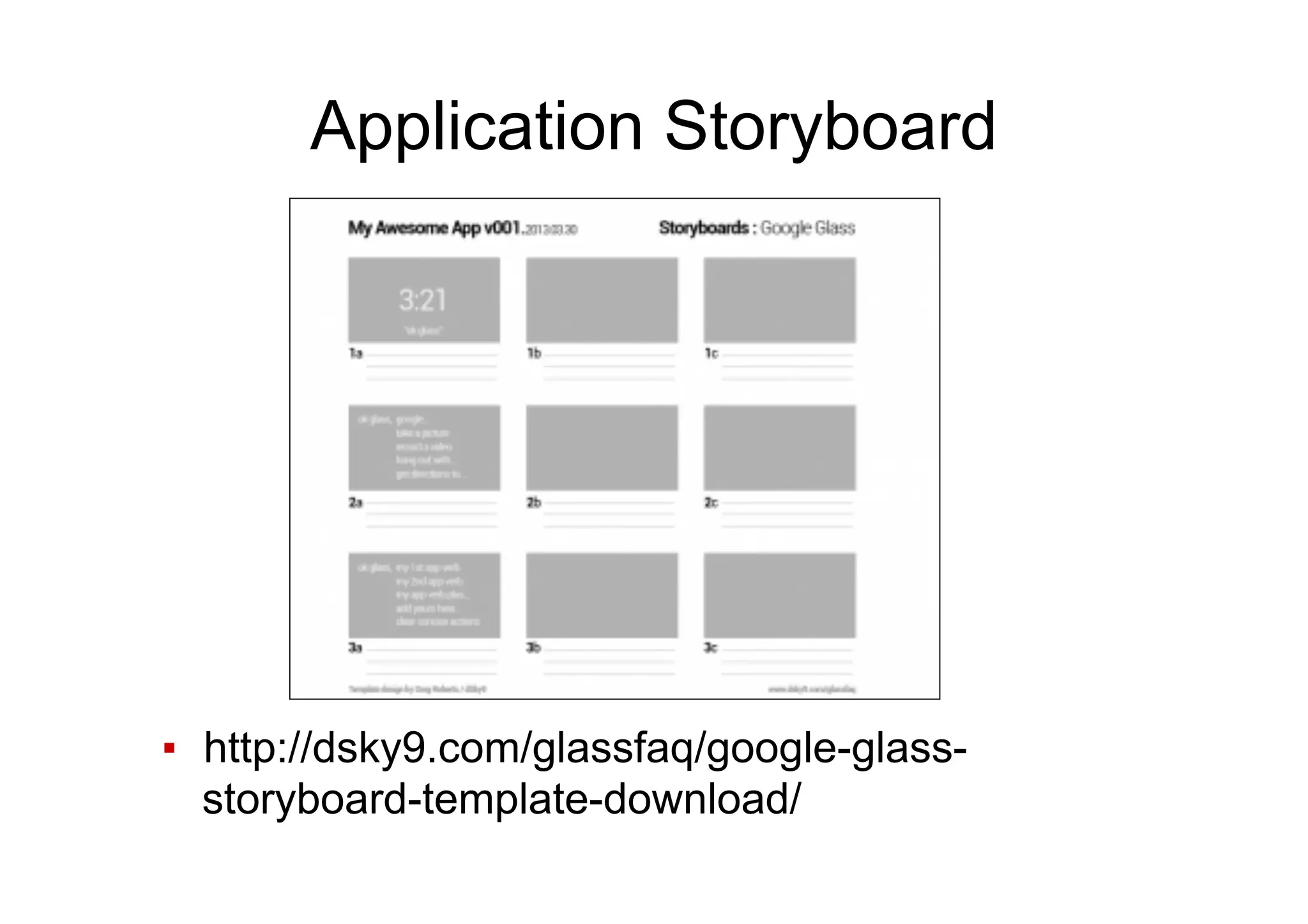

64. Application Storyboard
▪ http://dsky9.com/glassfaq/google-glass-
storyboard-template-download/

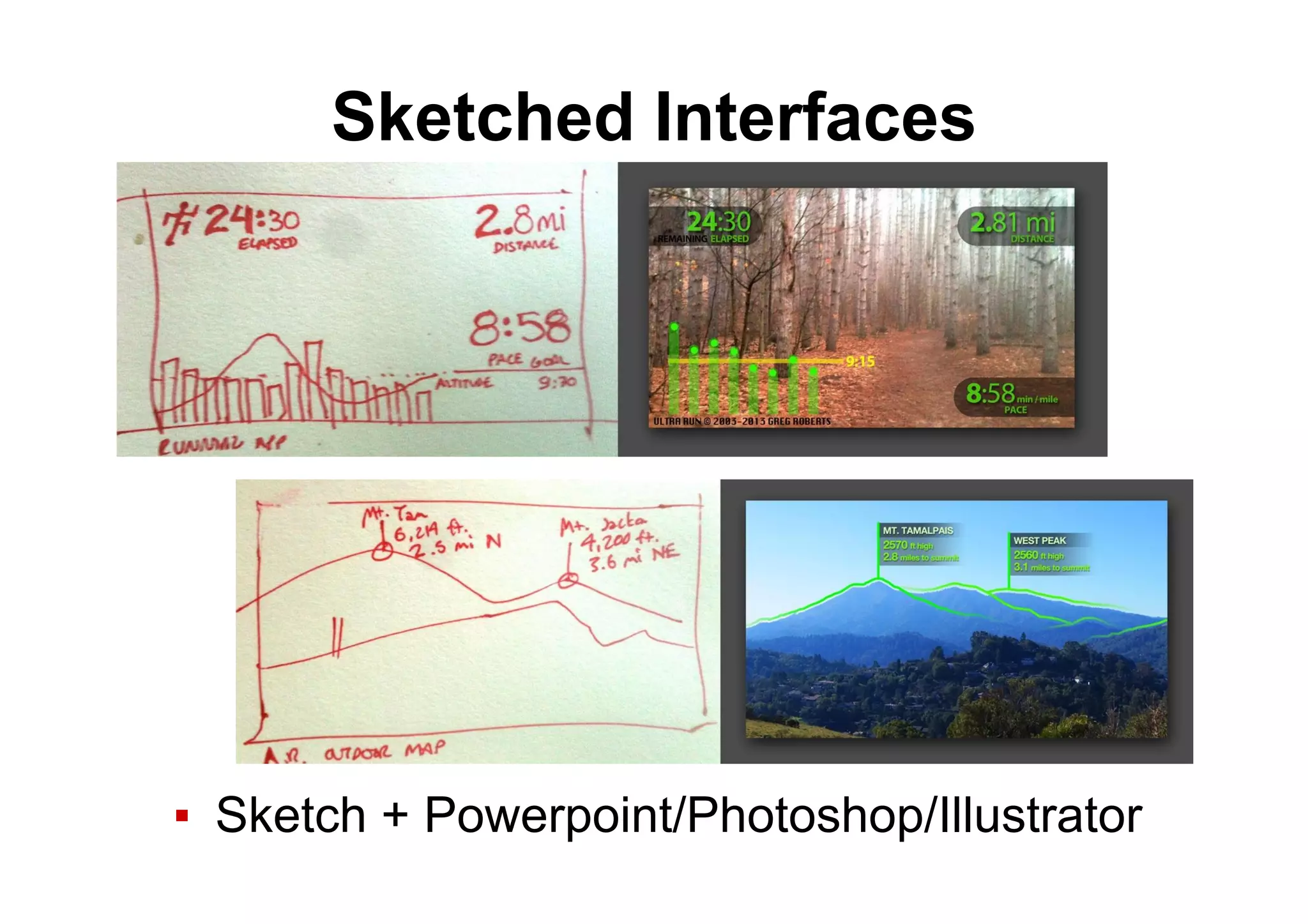

65. Sketched Interfaces
▪ Sketch + Powerpoint/Photoshop/Illustrator

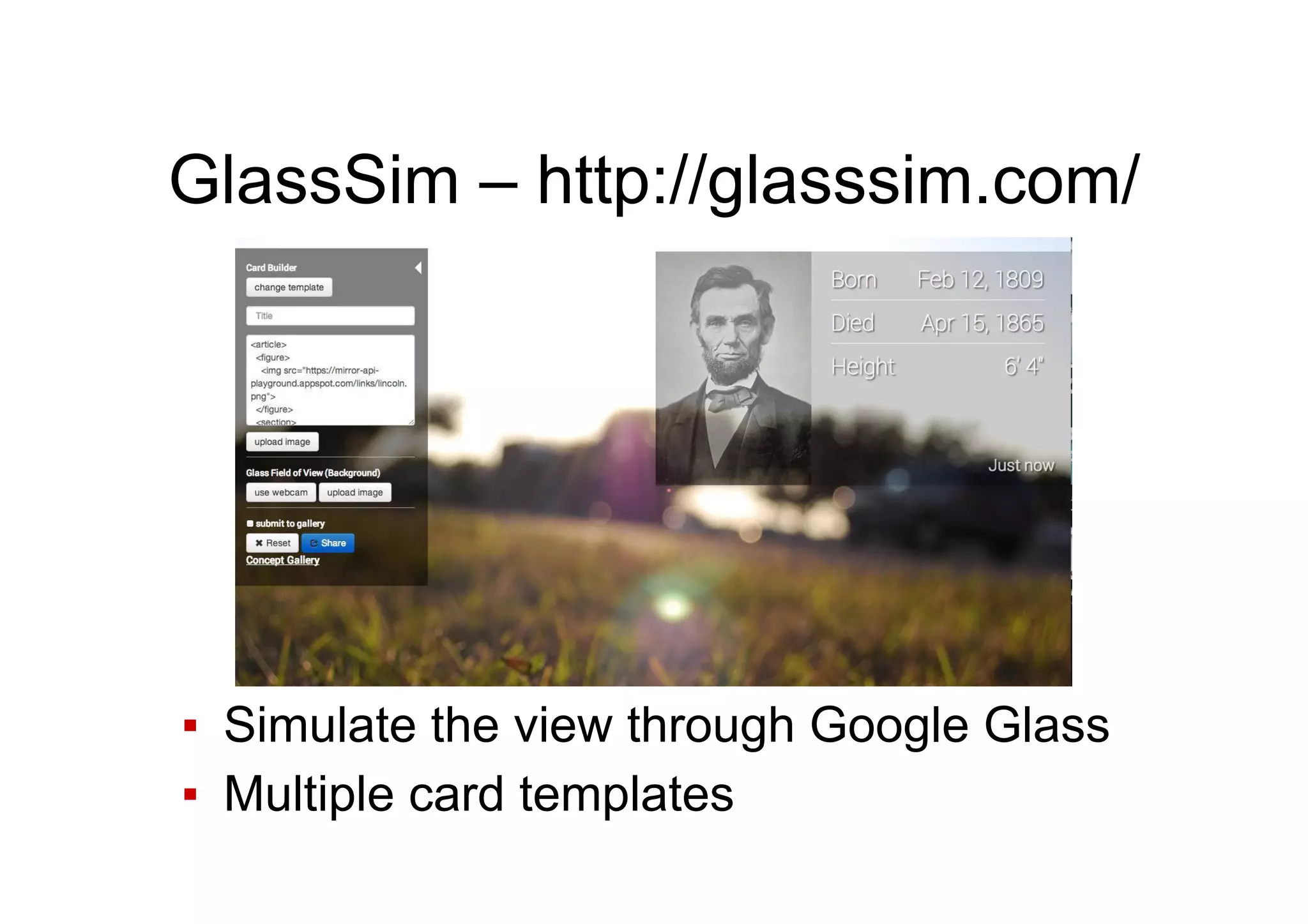

66. GlassSim – http://glasssim.com/
▪ Simulate the view through Google Glass
▪ Multiple card templates

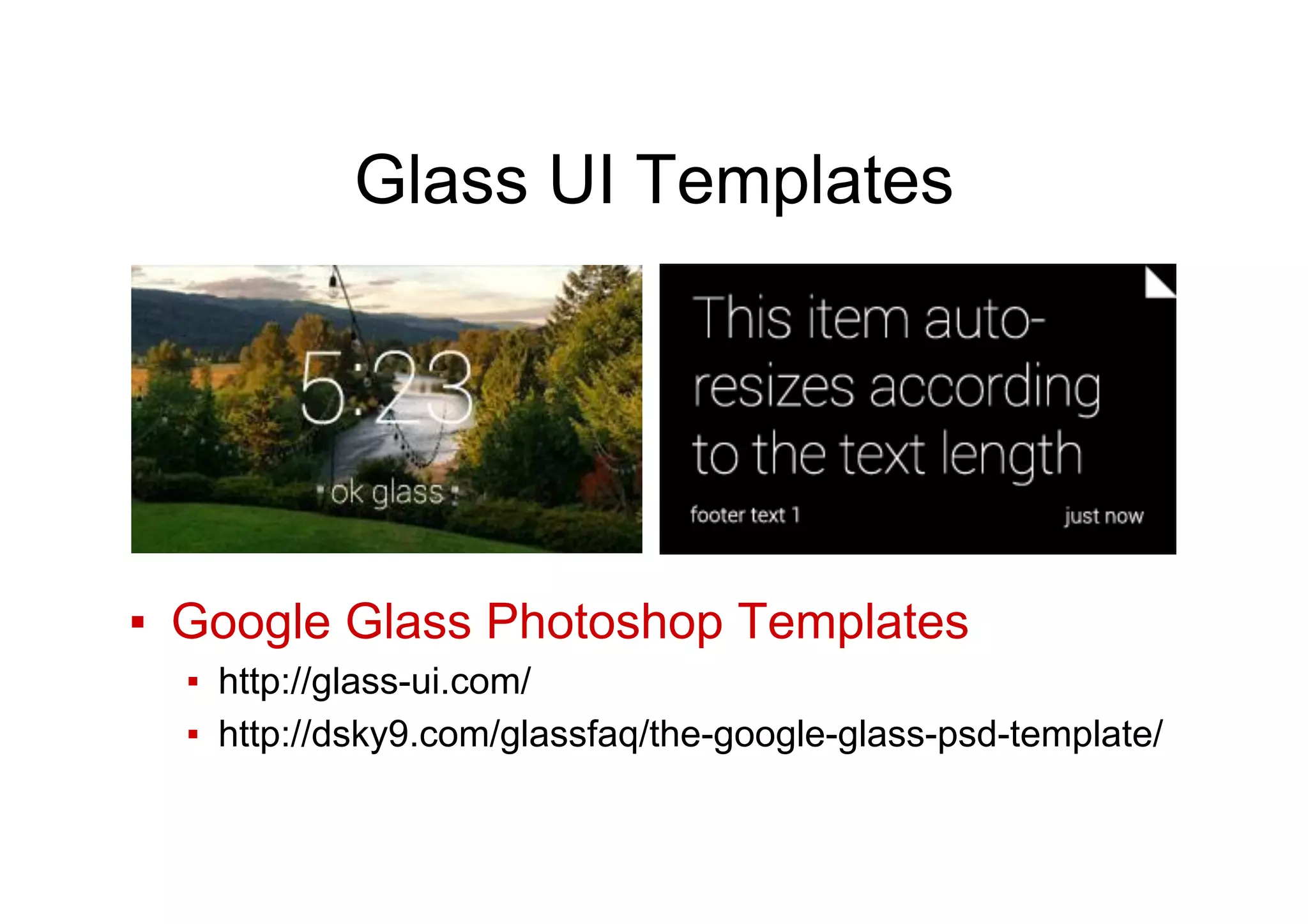

67. Glass UI Templates
▪ Google Glass Photoshop Templates
▪ http://glass-ui.com/
▪ http://dsky9.com/glassfaq/the-google-glass-psd-template/

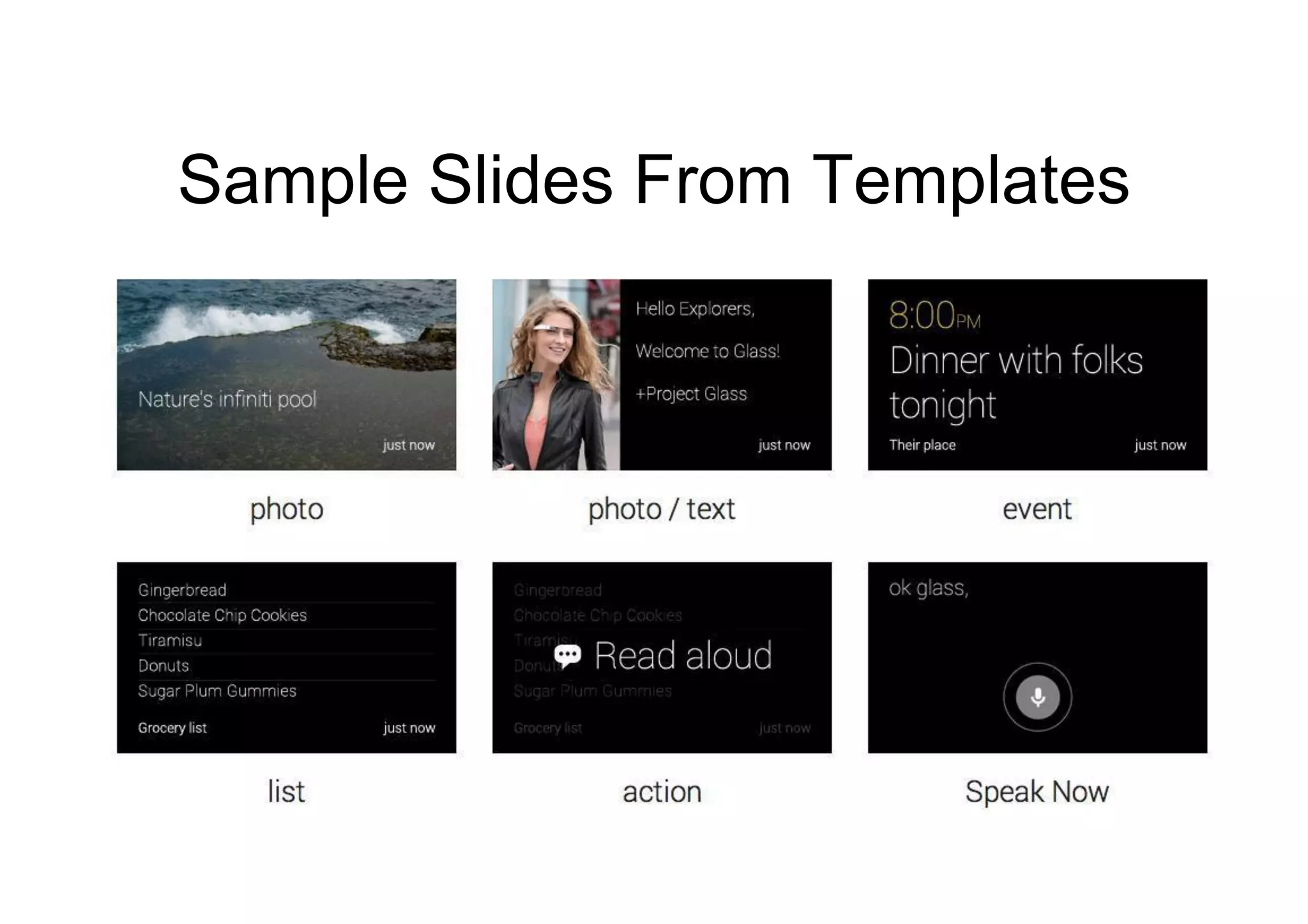

68. Sample Slides From Templates

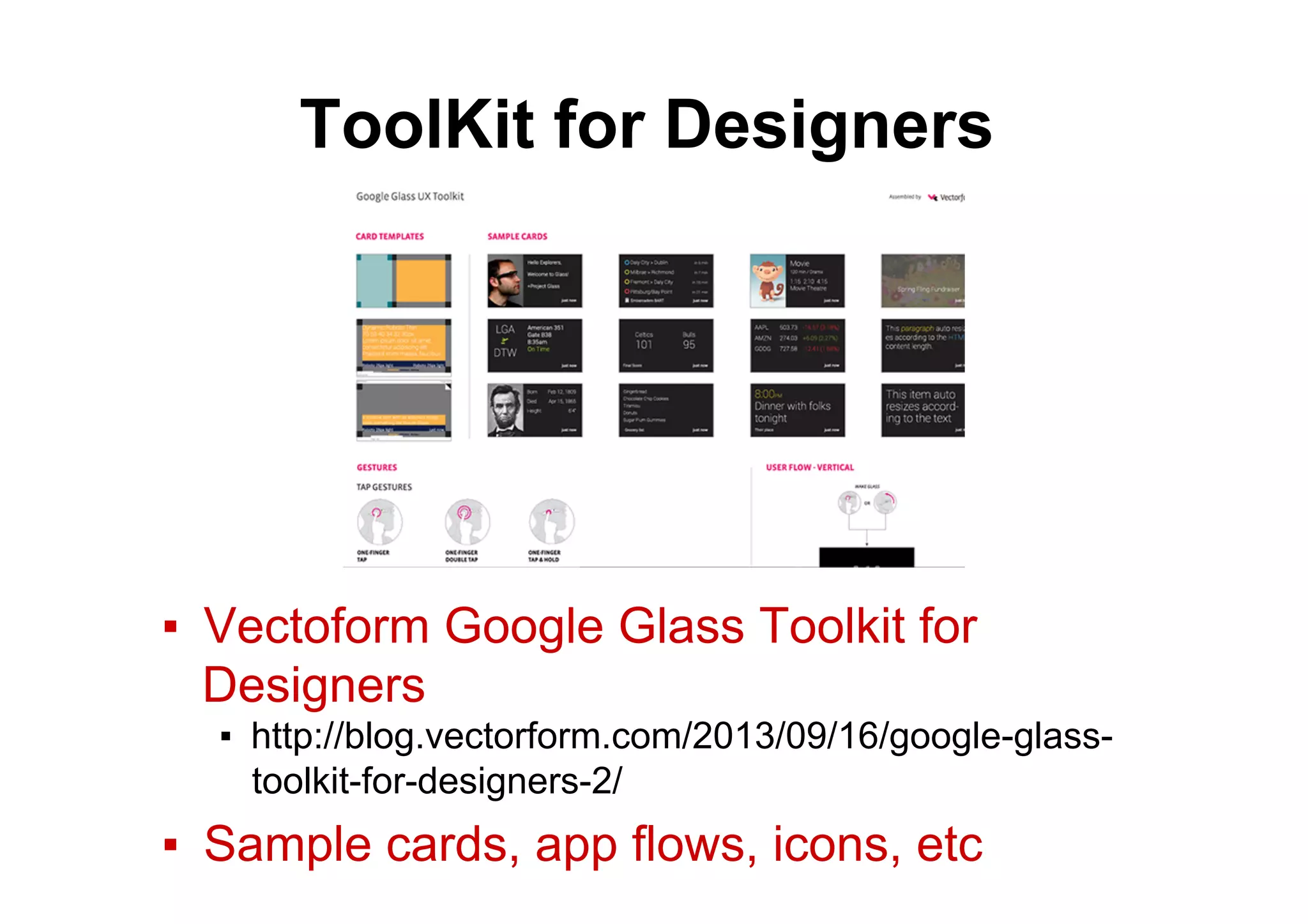

69. ToolKit for Designers
▪ Vectoform Google Glass Toolkit for
Designers
▪ http://blog.vectorform.com/2013/09/16/google-glass-
toolkit-for-designers-2/
▪ Sample cards, app flows, icons, etc

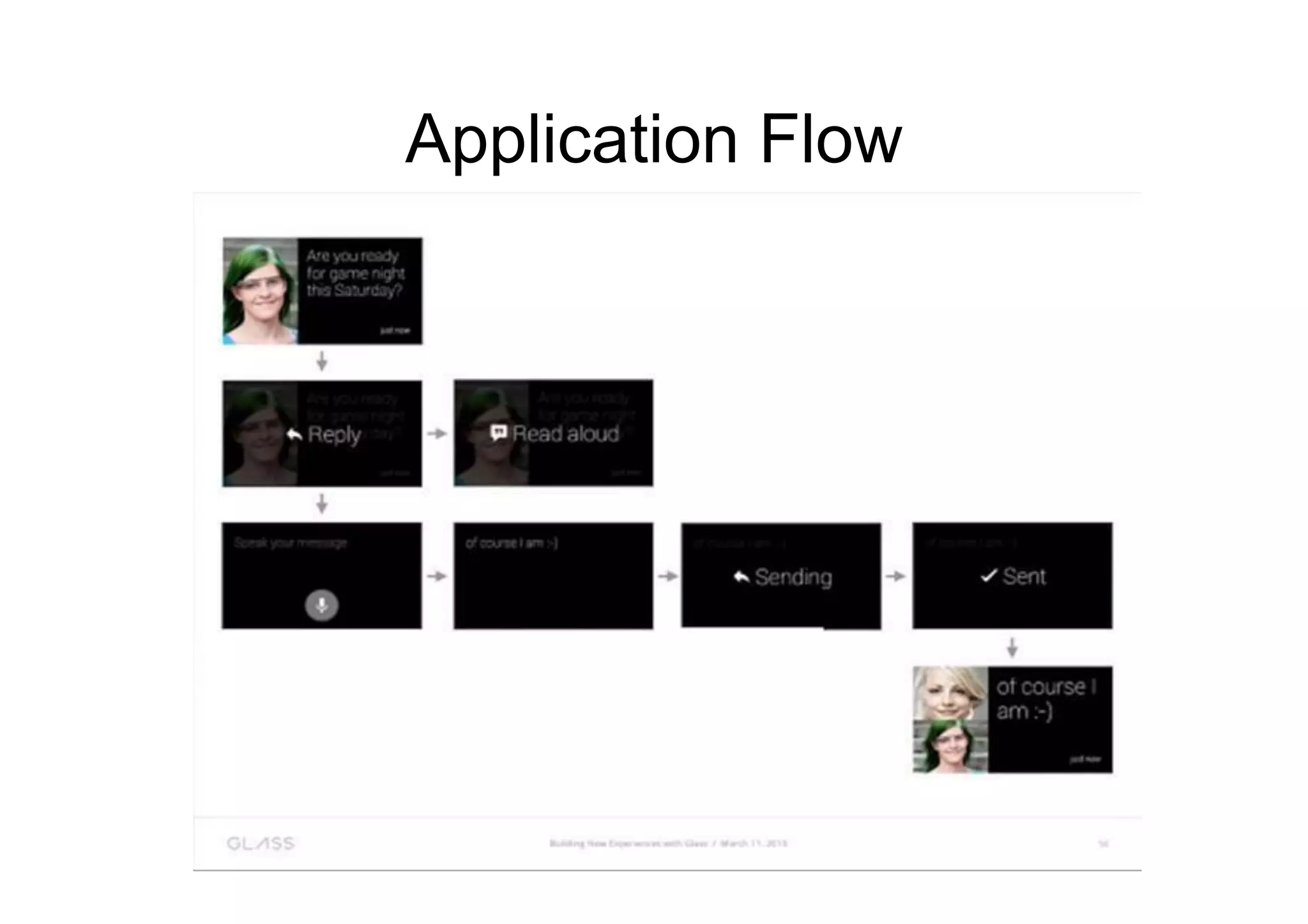

70. Application Flow

71. ● Glassware Flow Designer
▪ Visual tool for designing application flows
▪ Drag and drop interface
developers.google.com/glass/tools-downloads/glassware-flow-designer

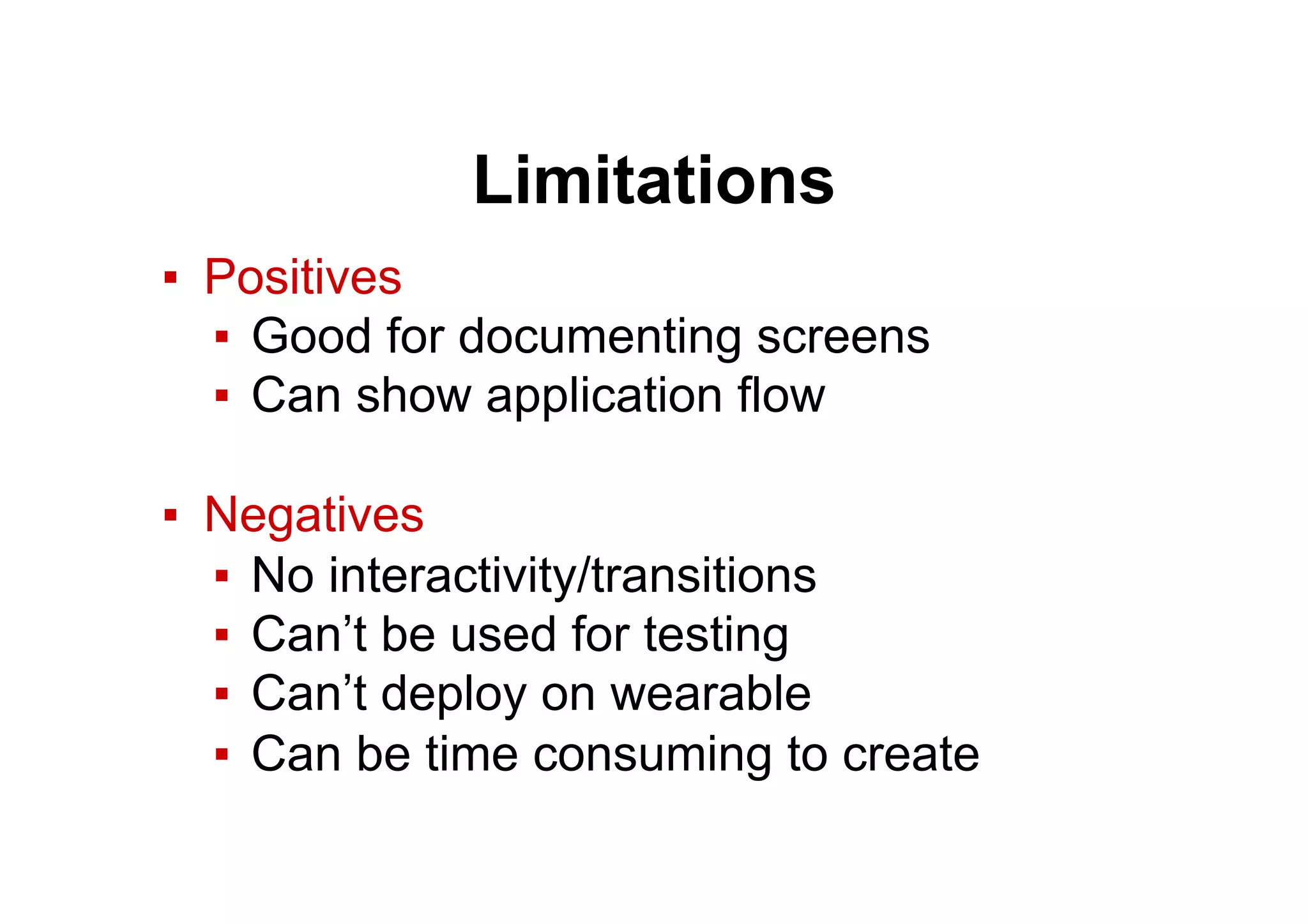

72. Limitations
▪ Positives
▪ Good for documenting screens
▪ Can show application flow
▪ Negatives
▪ No interactivity/transitions
▪ Can’t be used for testing
▪ Can’t deploy on wearable
▪ Can be time consuming to create

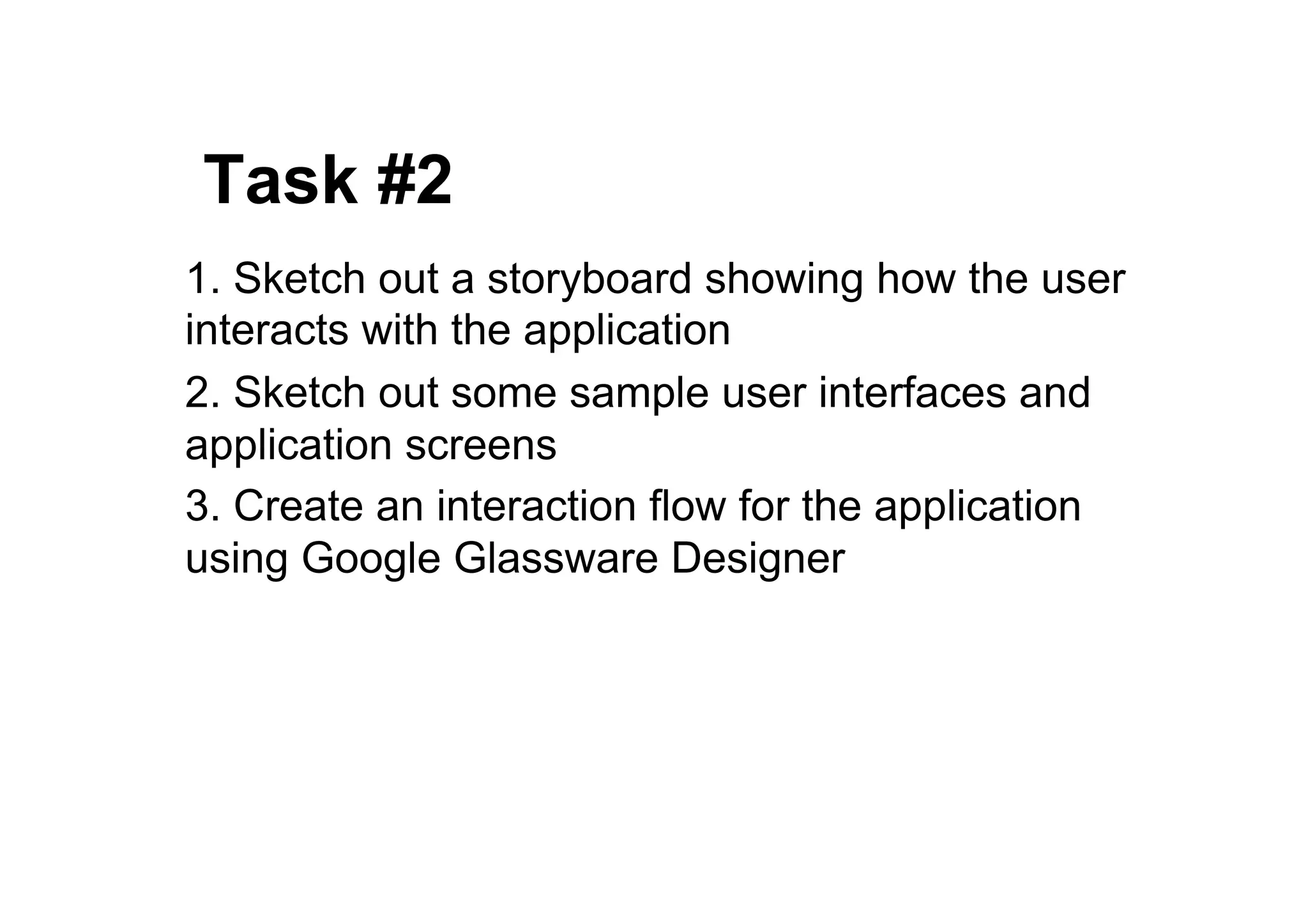

73. ● Task #2
1. Sketch out a storyboard showing how the user
interacts with the application
2. Sketch out some sample user interfaces and
application screens
3. Create an interaction flow for the application
using Google Glassware Designer

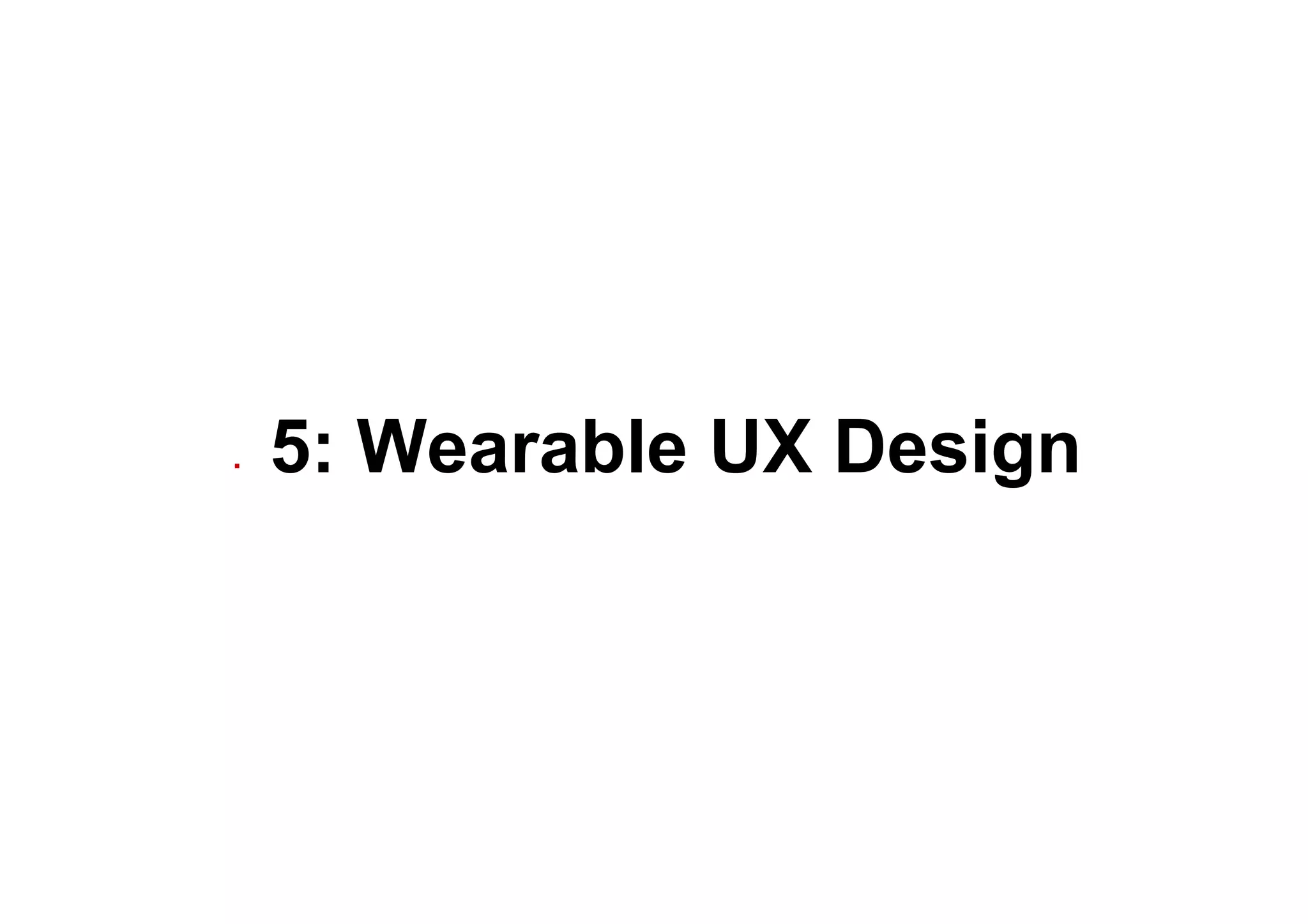

74. ▪ 5: Wearable UX Design

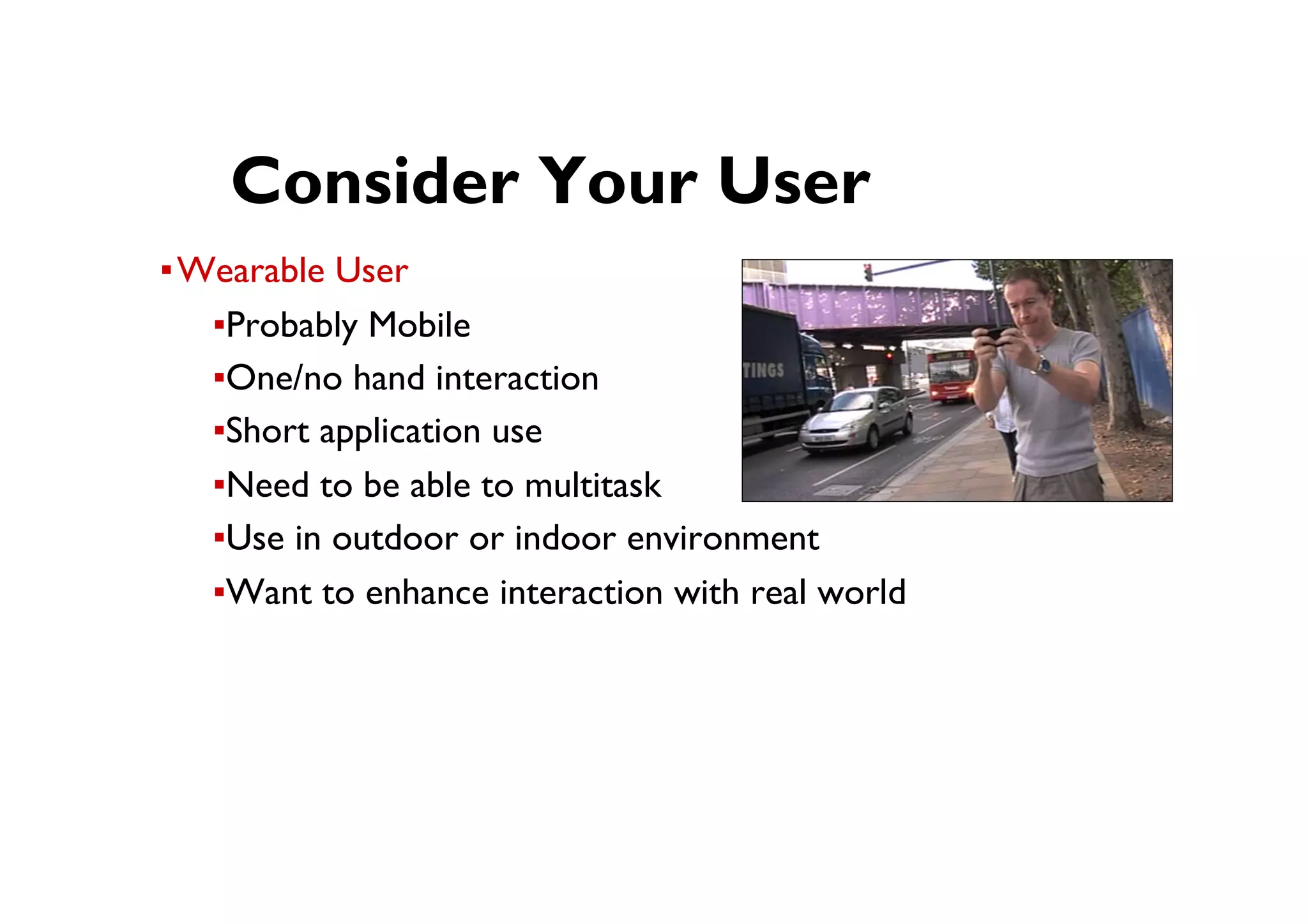

75. ● Consider Your User
▪ Wearable User
▪ Probably Mobile
▪ One/no hand interaction
▪ Short application use
▪ Need to be able to multitask
▪ Use in outdoor or indoor environment
▪ Want to enhance interaction with real world

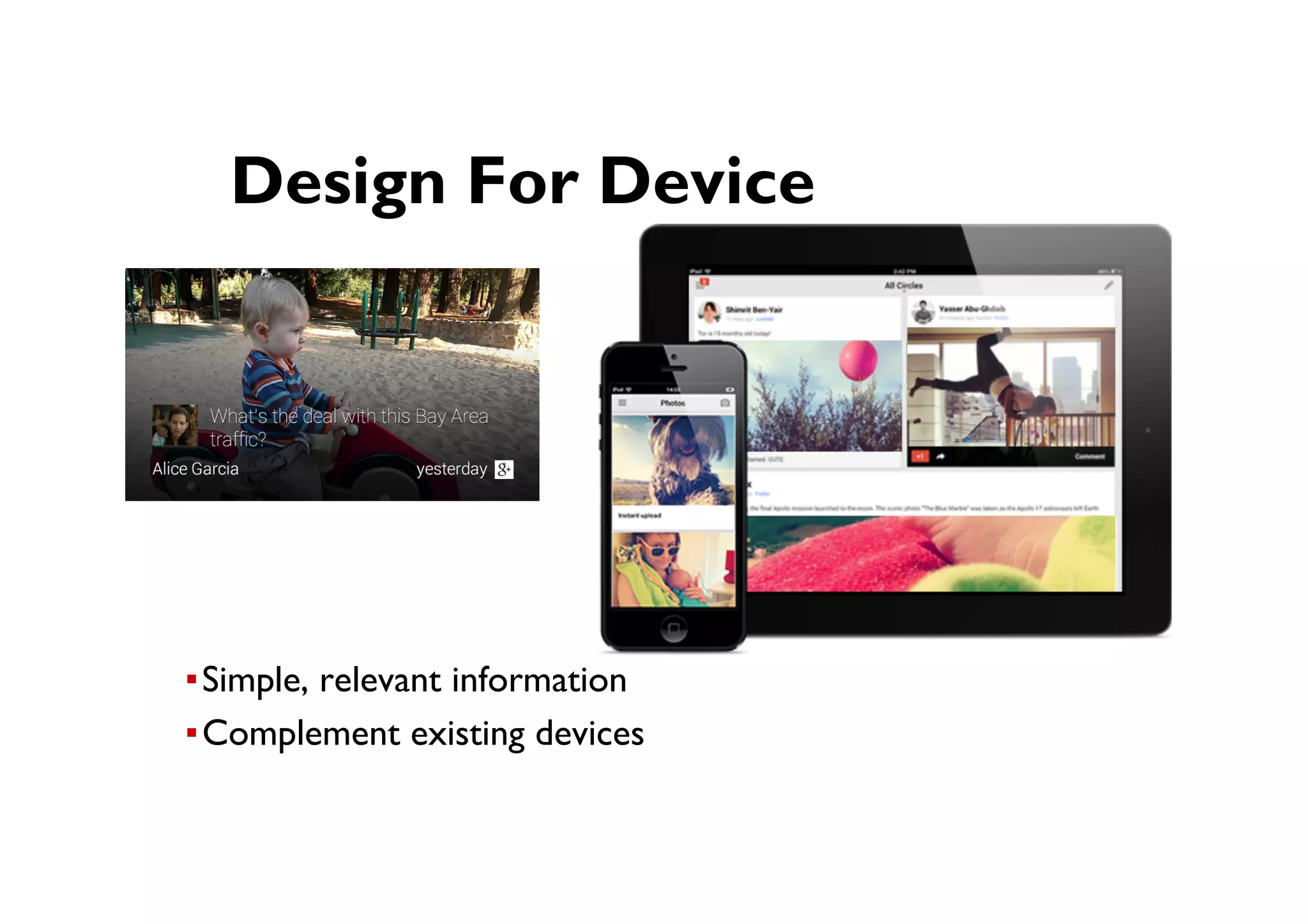

76. ● Design For Device
▪ Simple, relevant information
▪ Complement existing devices

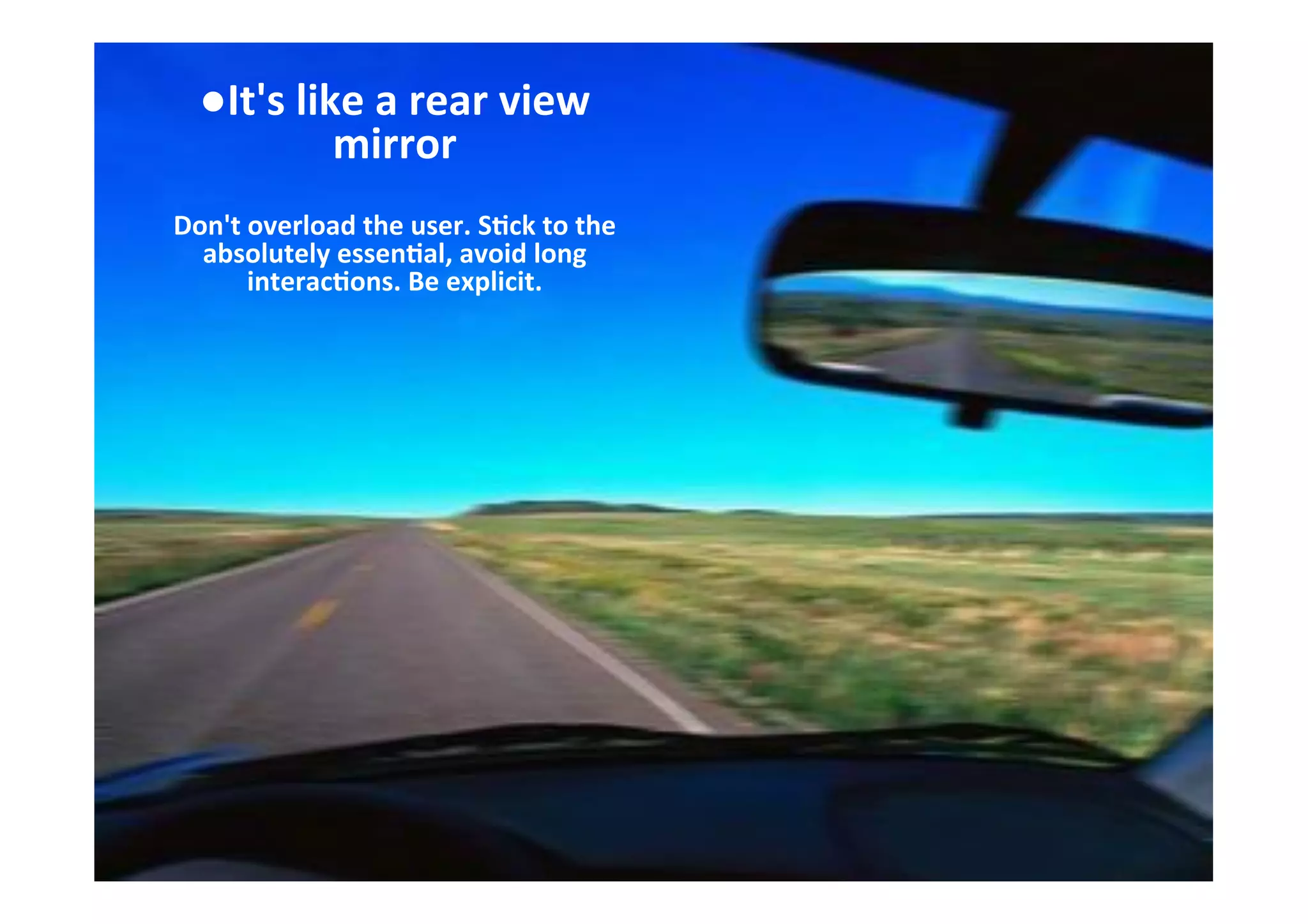

77. ● It's
like
a
rear
view
mirror
Don't
overload
the
user.
S7ck
to
the
absolutely
essen7al,
avoid
long
interac7ons.
Be
explicit.

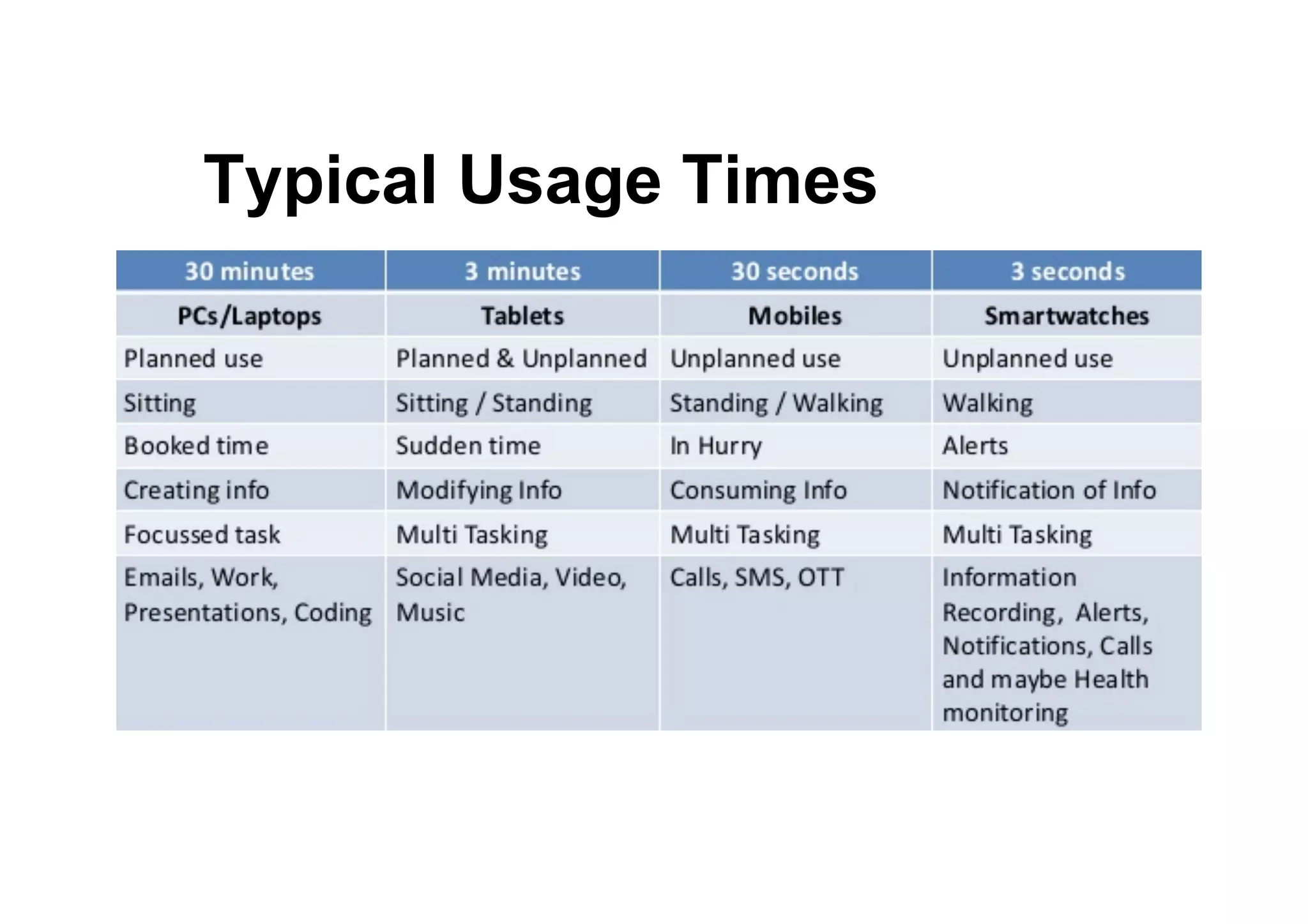

78. ● Typical Usage Times

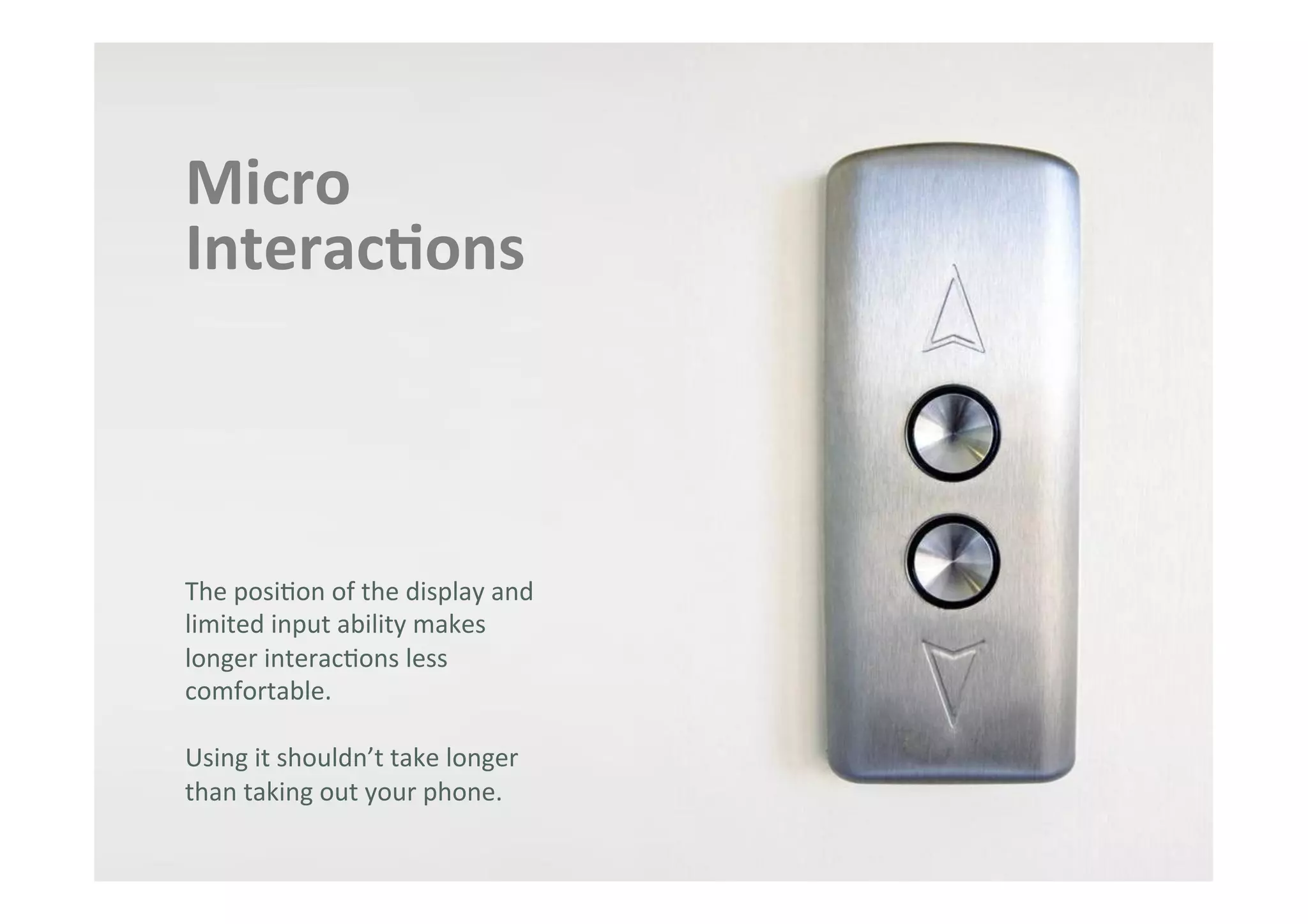

79. Micro
Interac7ons
The
posi*on
of
the
display
and
limited
input
ability
makes
longer
interac*ons
less
comfortable.
Using
it
shouldn’t
take
longer
than
taking
out
your
phone.

80. Micro-Interactions
▪ On mobiles people split attention
between display and real world

81. ● Time Looking at Screen
Oulasvirta, A. (2005). The fragmentation of attention in mobile
interaction, and what to do with it. interactions, 12(6), 16-18.

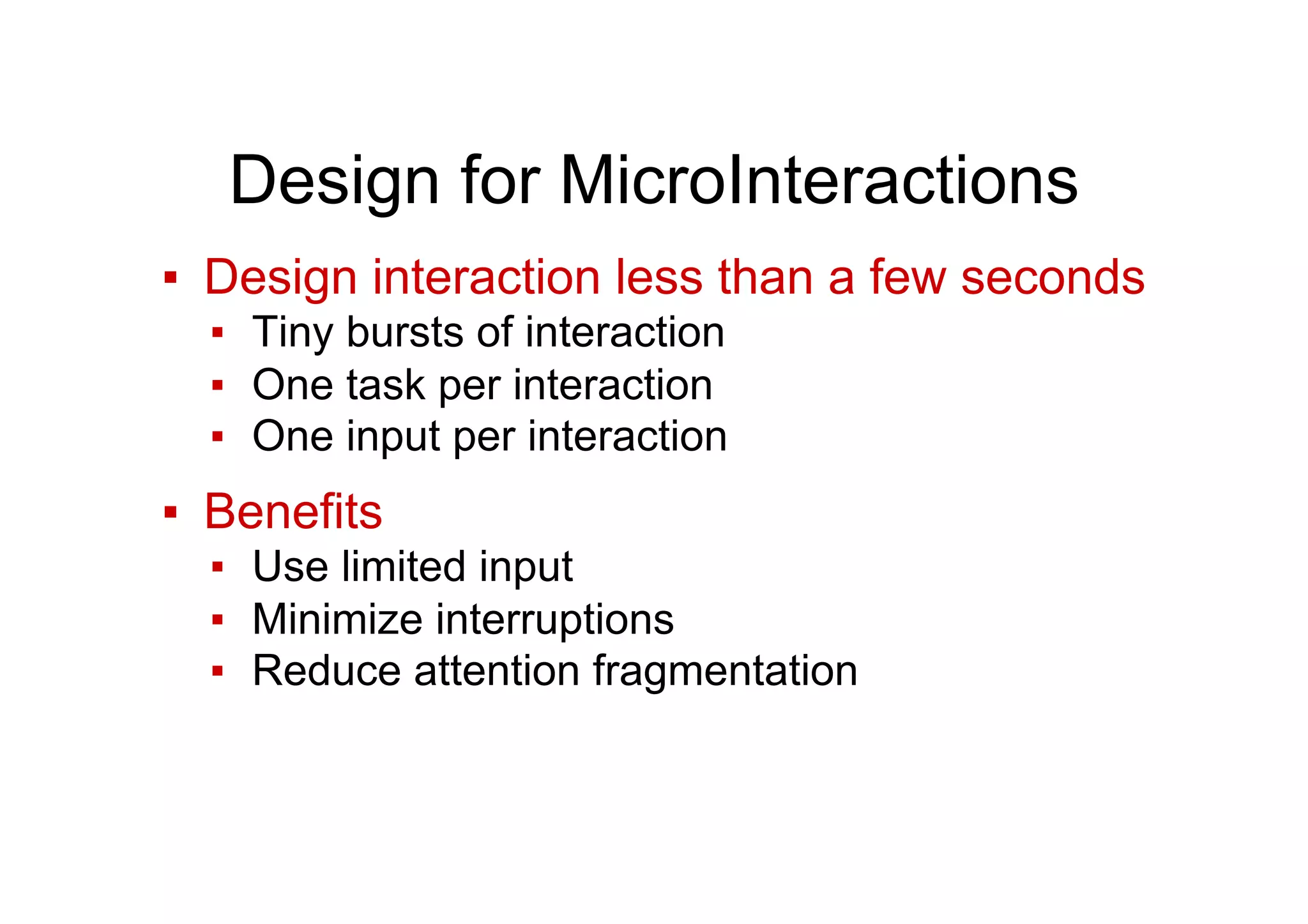

82. Design for MicroInteractions
▪ Design interaction less than a few seconds
▪ Tiny bursts of interaction
▪ One task per interaction
▪ One input per interaction
▪ Benefits
▪ Use limited input
▪ Minimize interruptions
▪ Reduce attention fragmentation

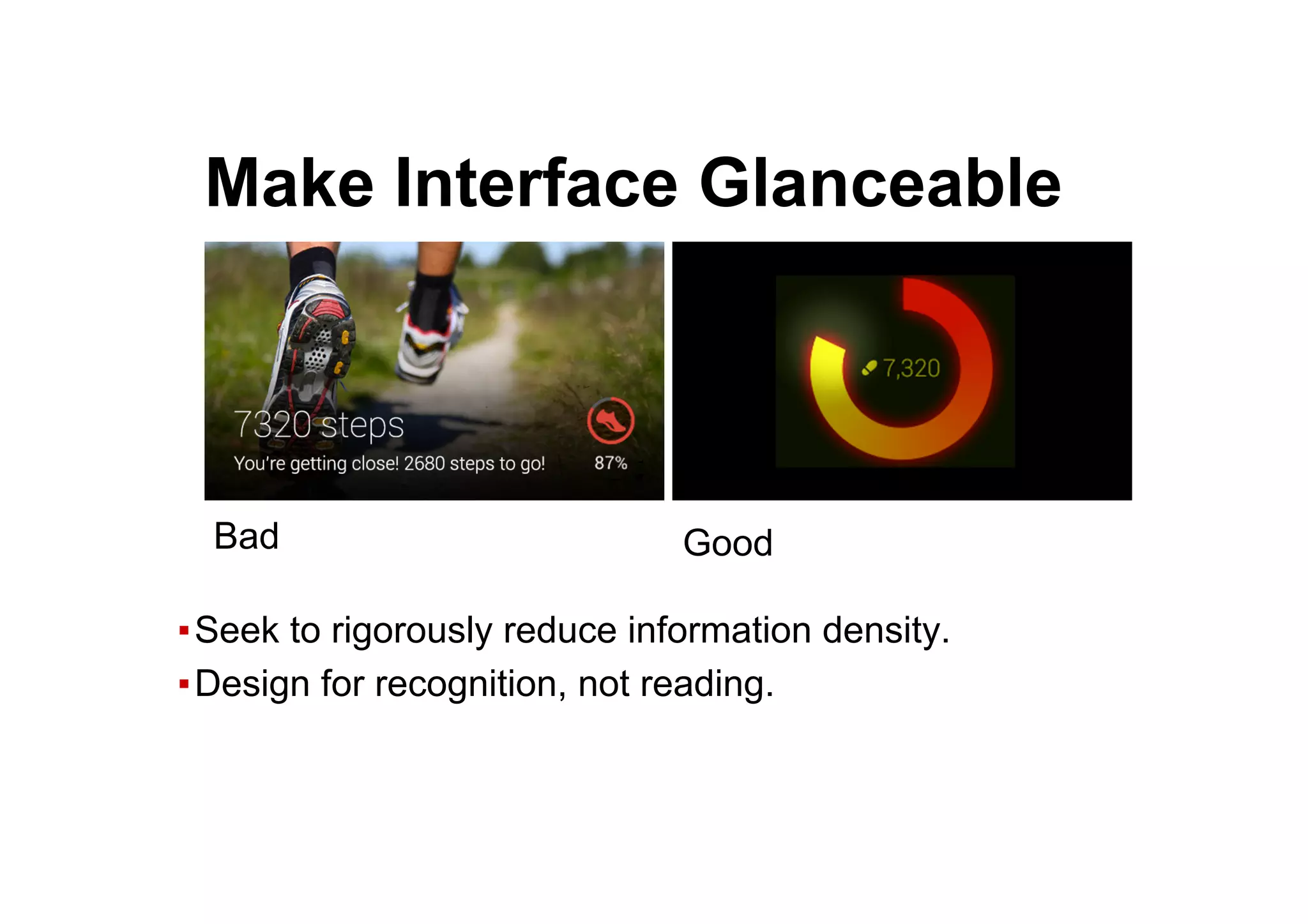

83. ● Make Interface Glanceable
▪ Seek to rigorously reduce information density.
▪ Design for recognition, not reading.
Bad Good

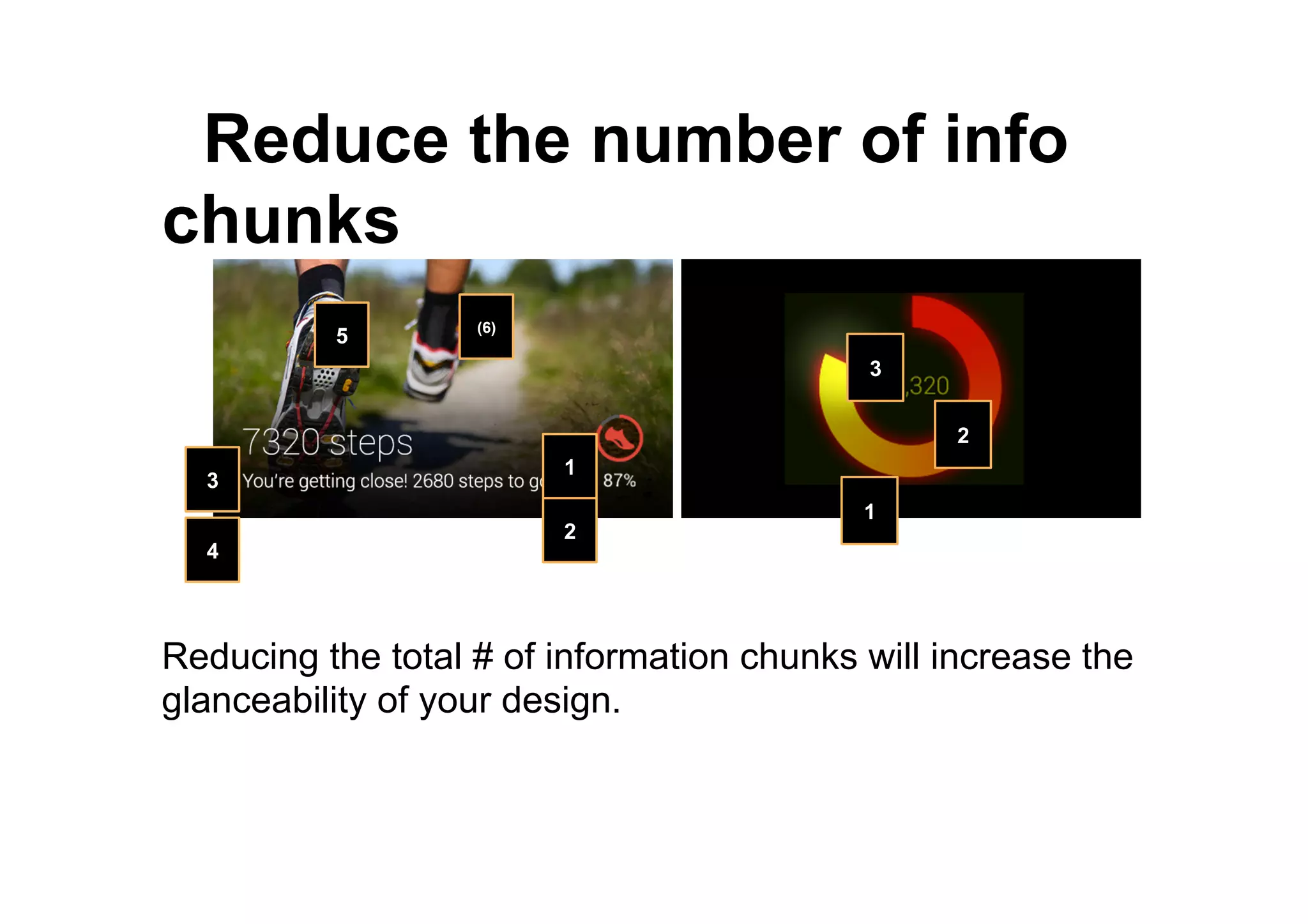

84. ● Reduce the number of info
chunks
Reducing the total # of information chunks will increase the
glanceability of your design.
1
2
3
1
2
3
4
5 (6)

85. ● Single Interactions Faster
than 4 s
1
2
3
1
2
3
4
5 (6)
Eye Movements: ~ 2 secs Eye Movements: ~ 0.9 sec

86. Test the glanceability of your design✓

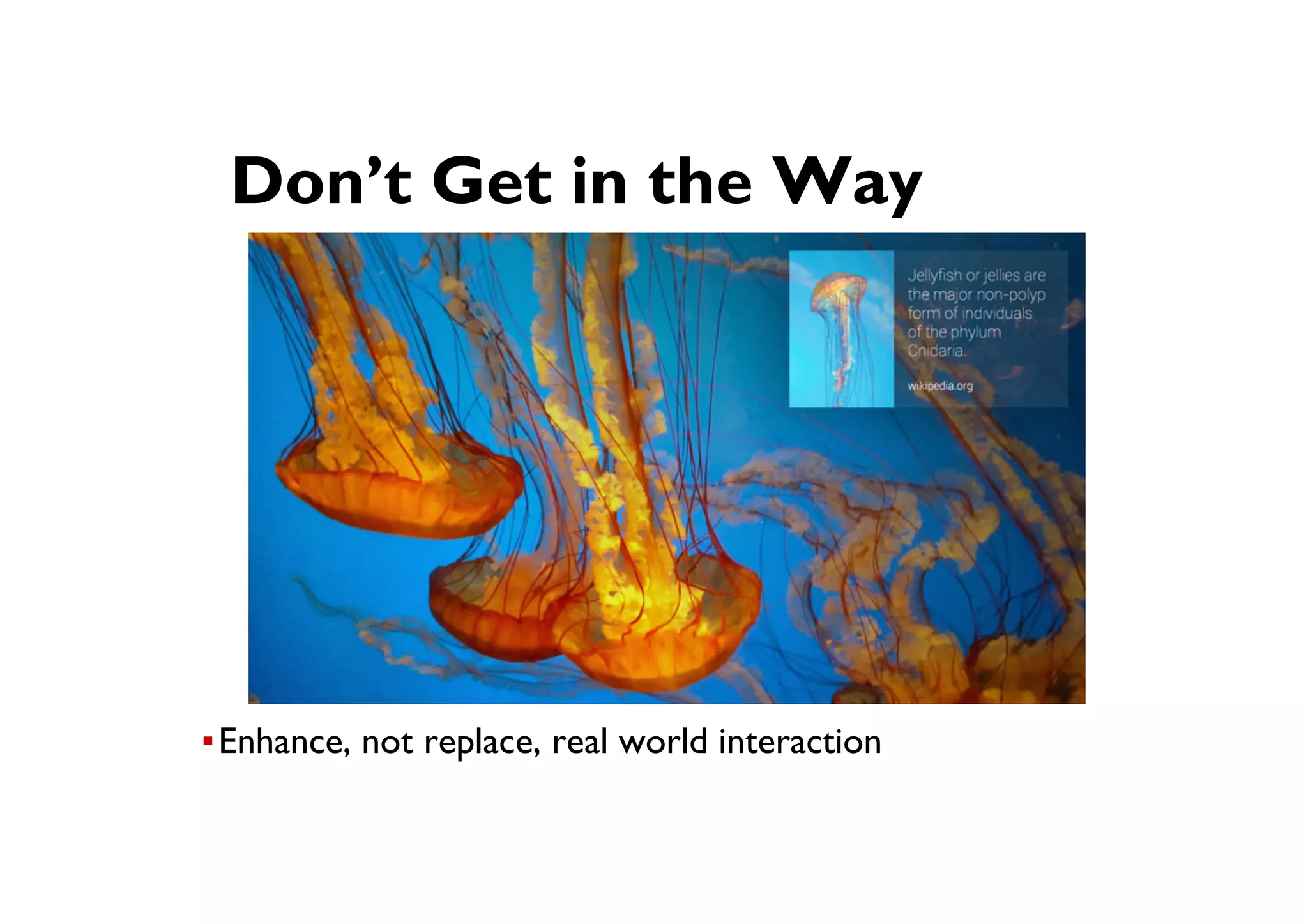

87. ● Don’t Get in the Way
▪ Enhance, not replace, real world interaction

88. ● Design for Interruptions
▪ Gradually increase engagement and attention load
▪ Respond to user engagement
Receiving SMS on Glass
“Bing”
Tap
Swipe
Glass
Show Message Start Reply
User
Look
Up
Say
Reply

89. ● Keep it Relevant
▪ Information at the right time and place

90. ✓
Test your design indoors + outdoors

91. Interface Guidelines
▪ Design for device
▪ Use Micro Interaction
▪ Make it glanceable
▪ Do one thing at a time
▪ Reduce number of information chunks
▪ Design for indoor and outdoor use

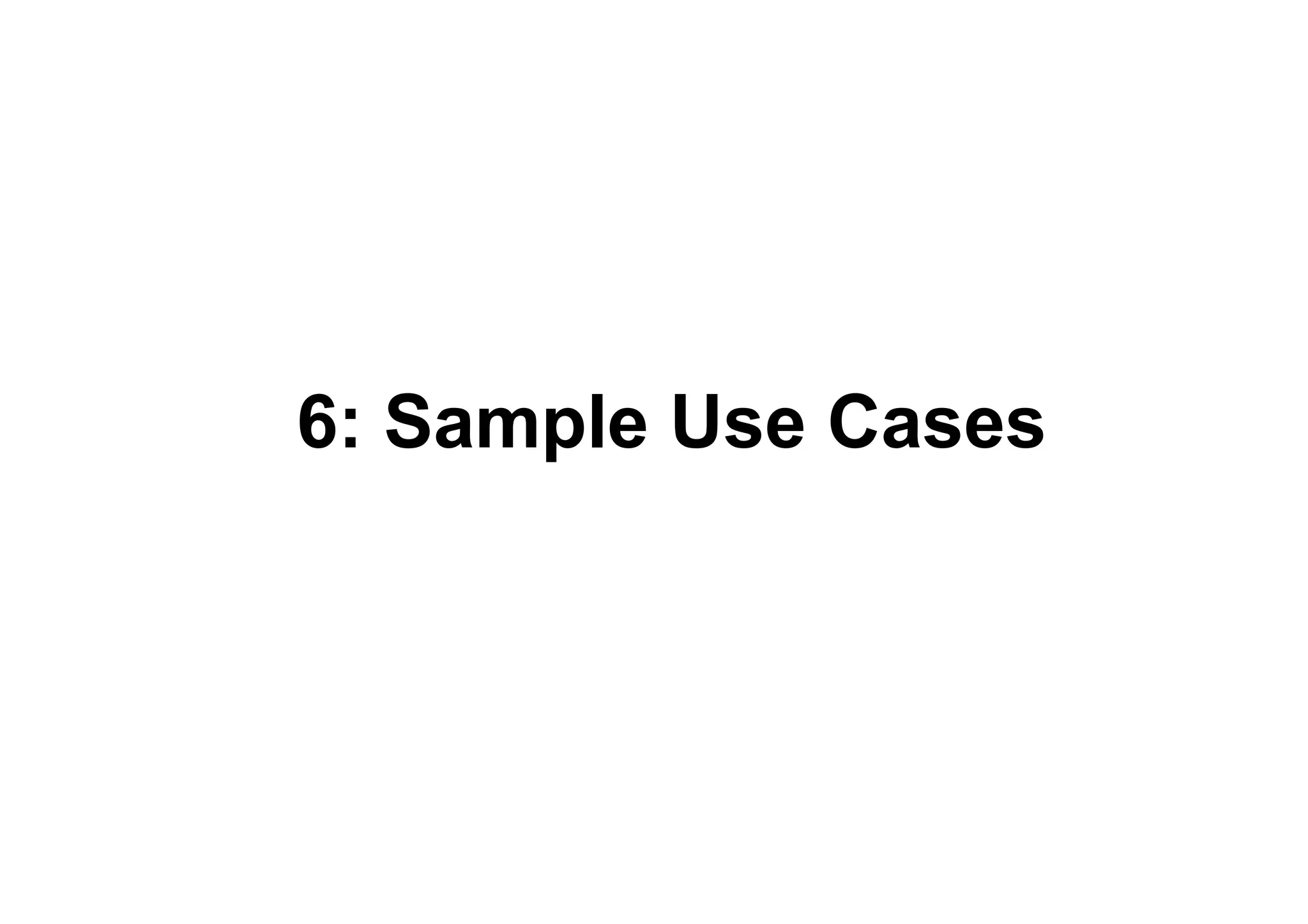

92. 6: Sample Use Cases

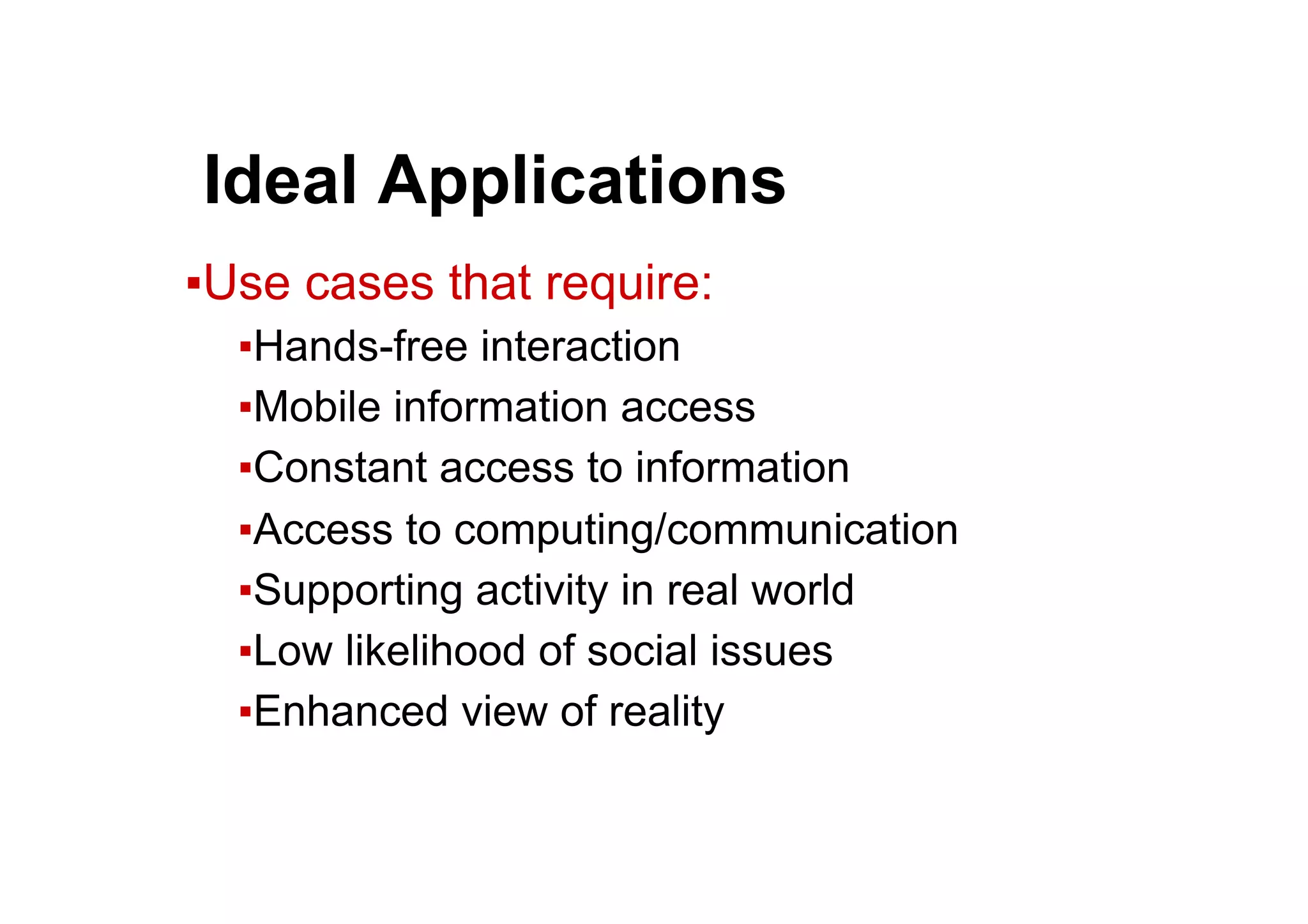

93. ● Ideal Applications
▪ Use cases that require:
▪ Hands-free interaction
▪ Mobile information access
▪ Constant access to information
▪ Access to computing/communication
▪ Supporting activity in real world
▪ Low likelihood of social issues
▪ Enhanced view of reality

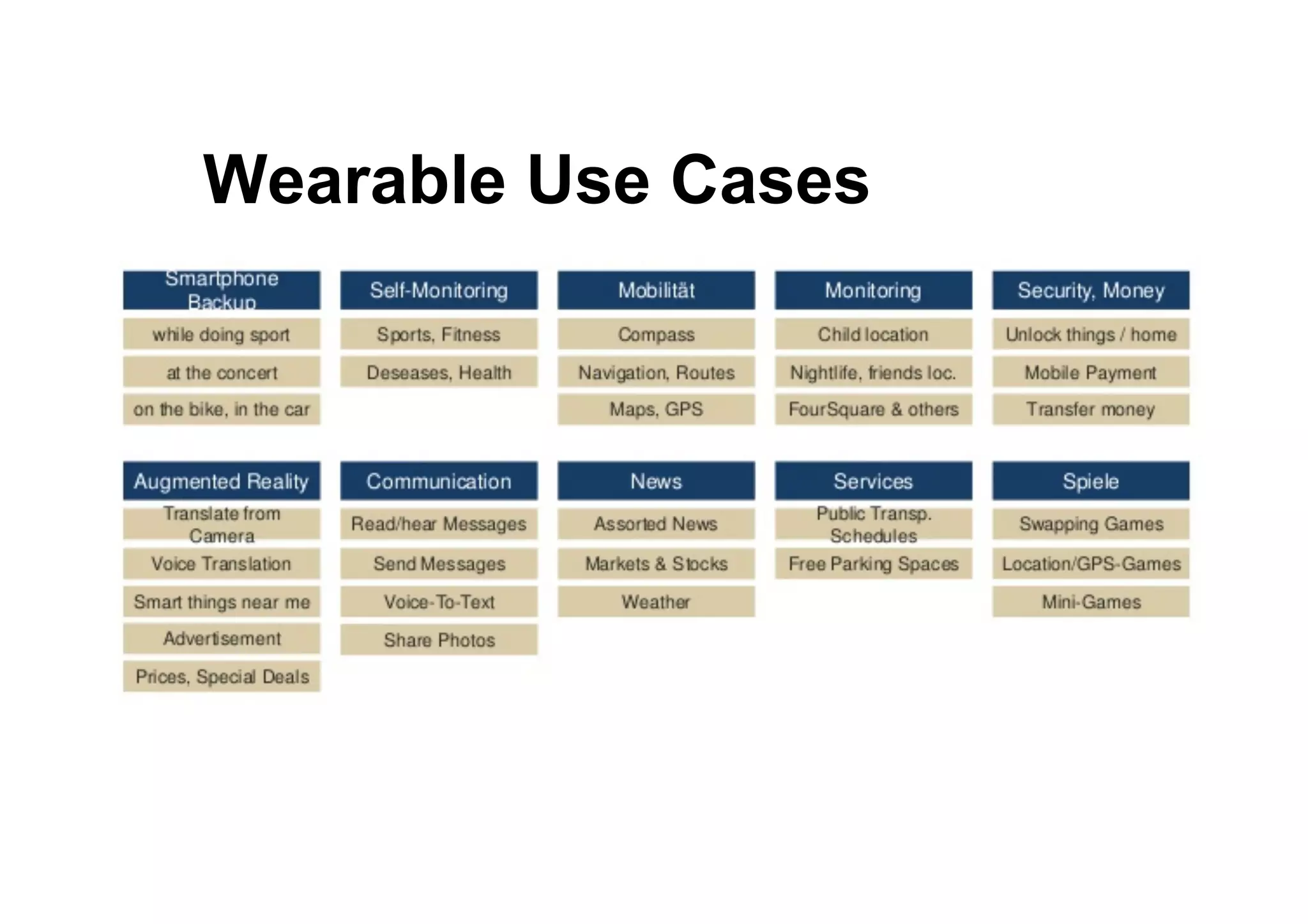

94. ● Wearable Use Cases

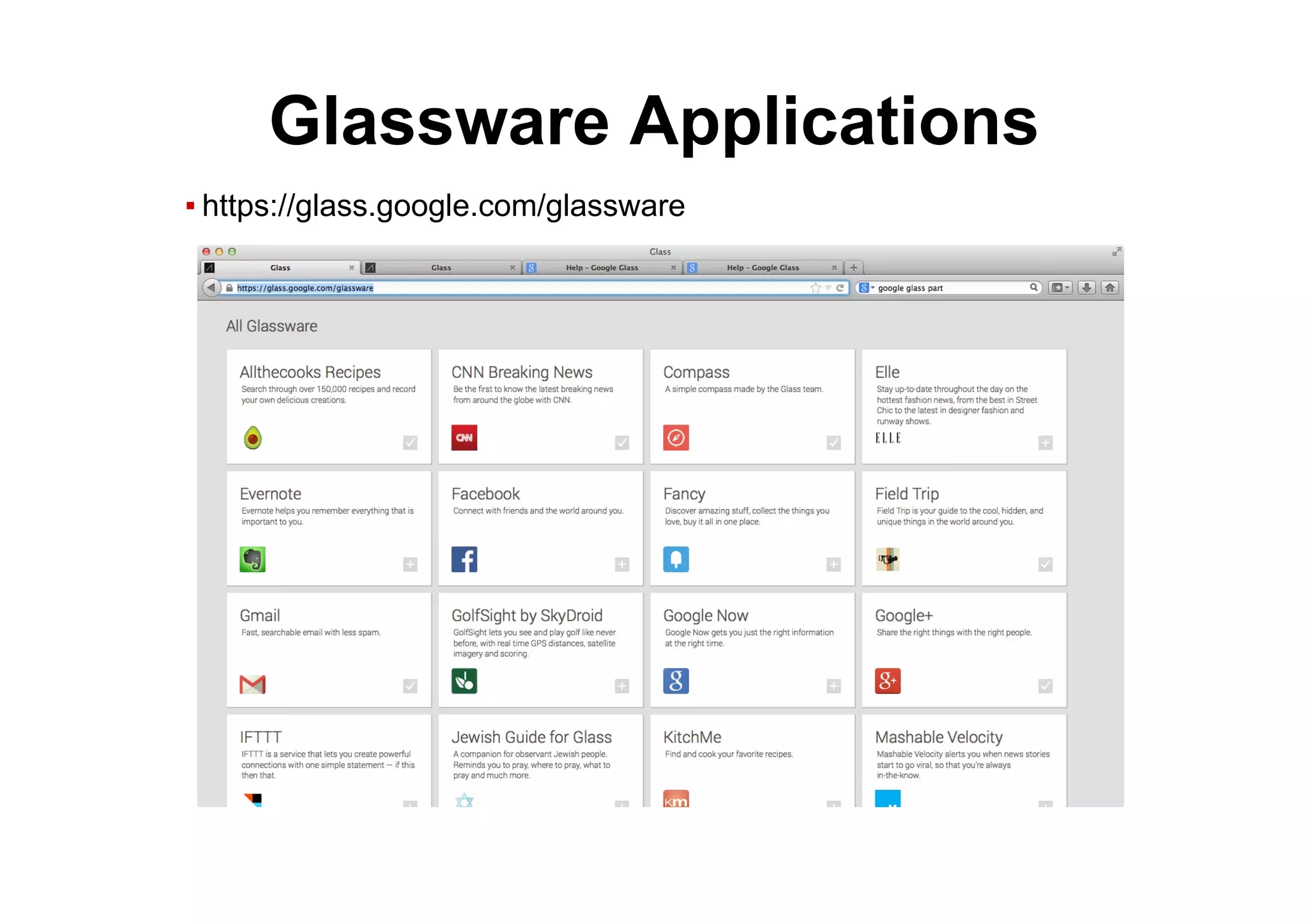

95. ▪ https://glass.google.com/glassware
Glassware Applications

97. Social
ac7on
First-­‐person
journalist
Tim
Pool
broadcasts
an
in*mate
view
of
Istanbul
protests.
'I
want
to
show
you
what
it's
like
to
be
there
as
best
I
can,
even
if
that
ends
with
me
running
full-­‐speed
into
a
cafe
and
rubbing
lemons
all
over
my
face
a<er
being
tear-­‐gassed'

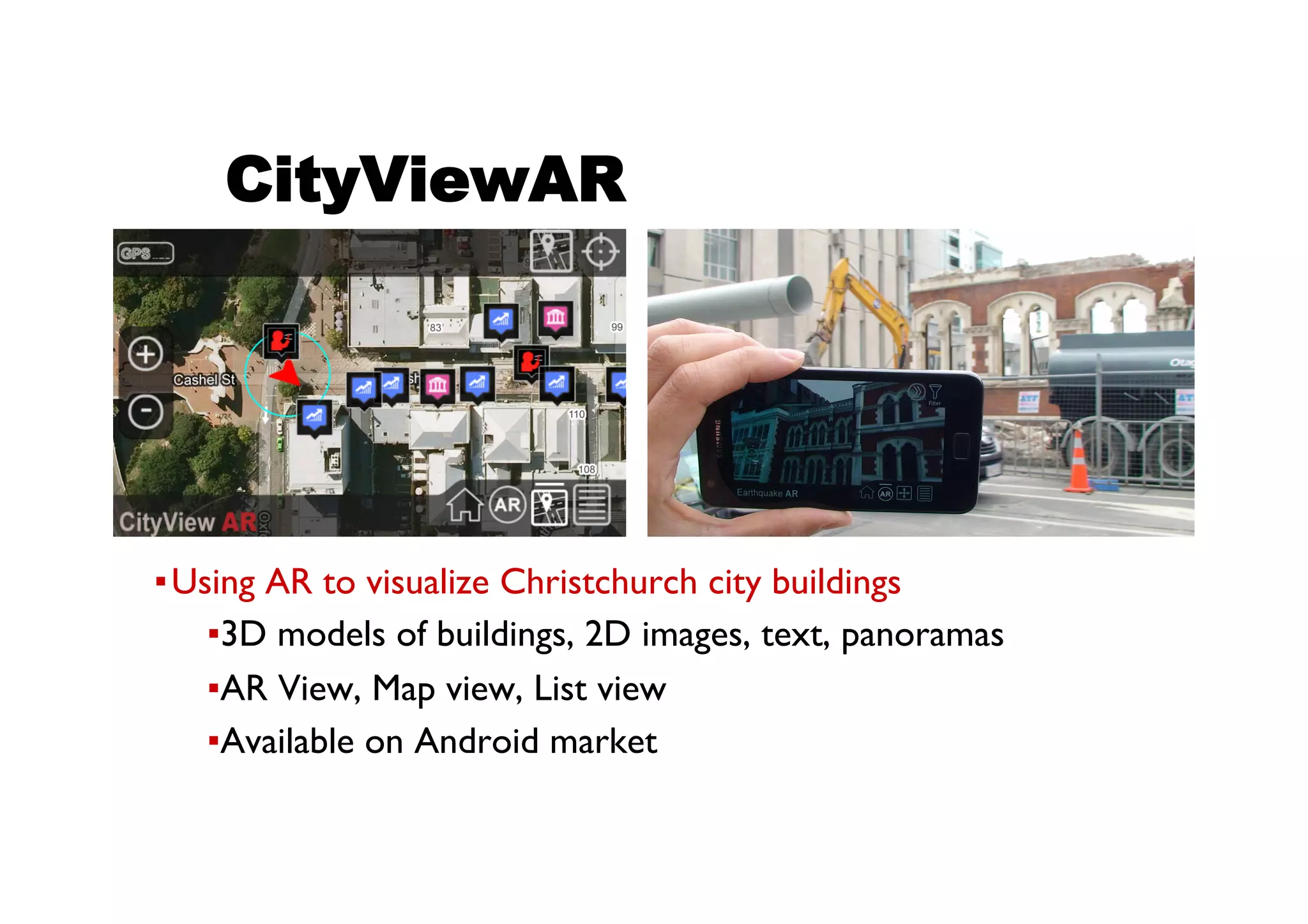

99. ● CityViewAR
▪ Using AR to visualize Christchurch city buildings
▪ 3D models of buildings, 2D images, text, panoramas
▪ AR View, Map view, List view
▪ Available on Android market

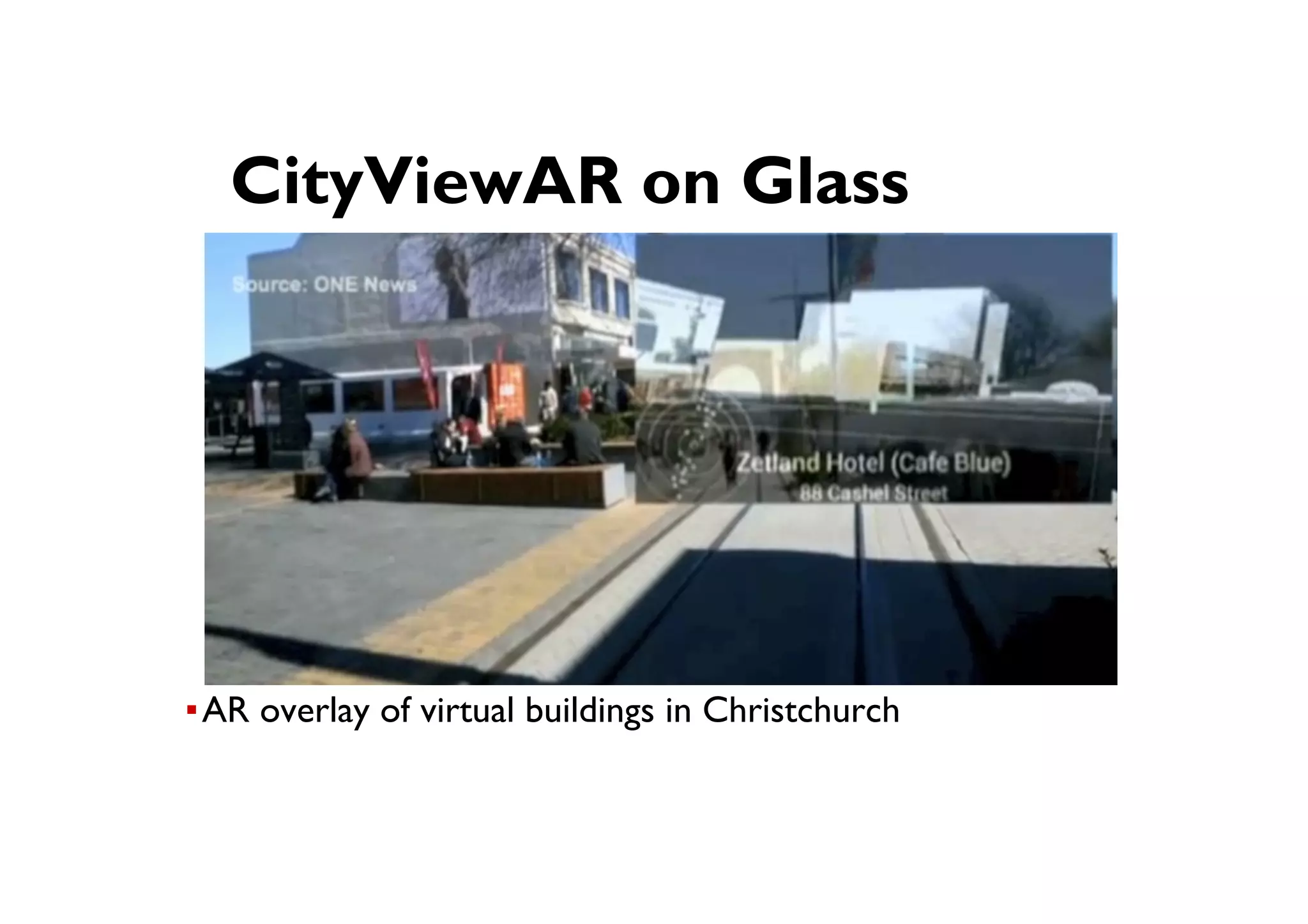

100. ● CityViewAR on Glass
▪ AR overlay of virtual buildings in Christchurch

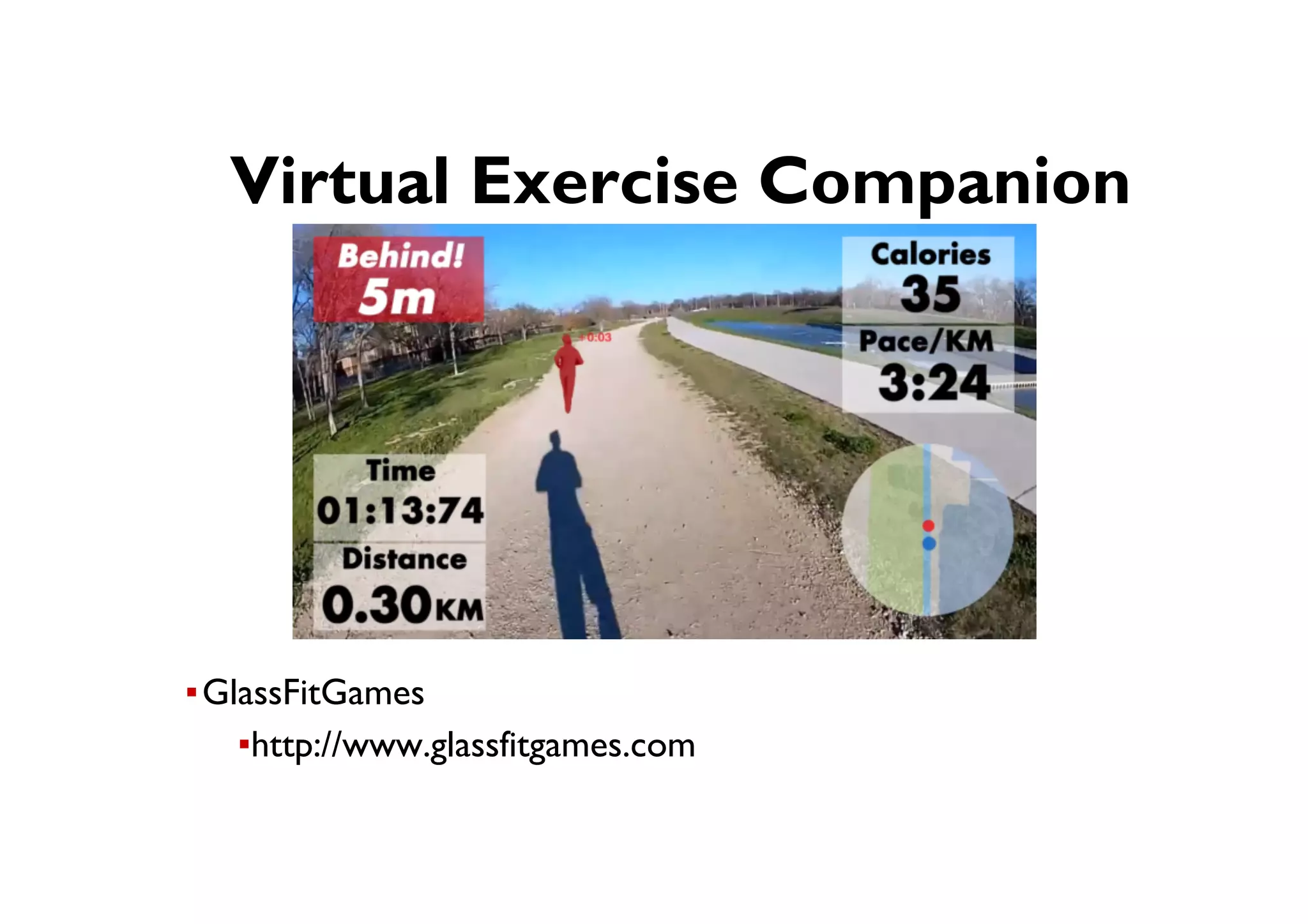

101. ● Virtual Exercise Companion
▪ GlassFitGames
▪ http://www.glassfitgames.com

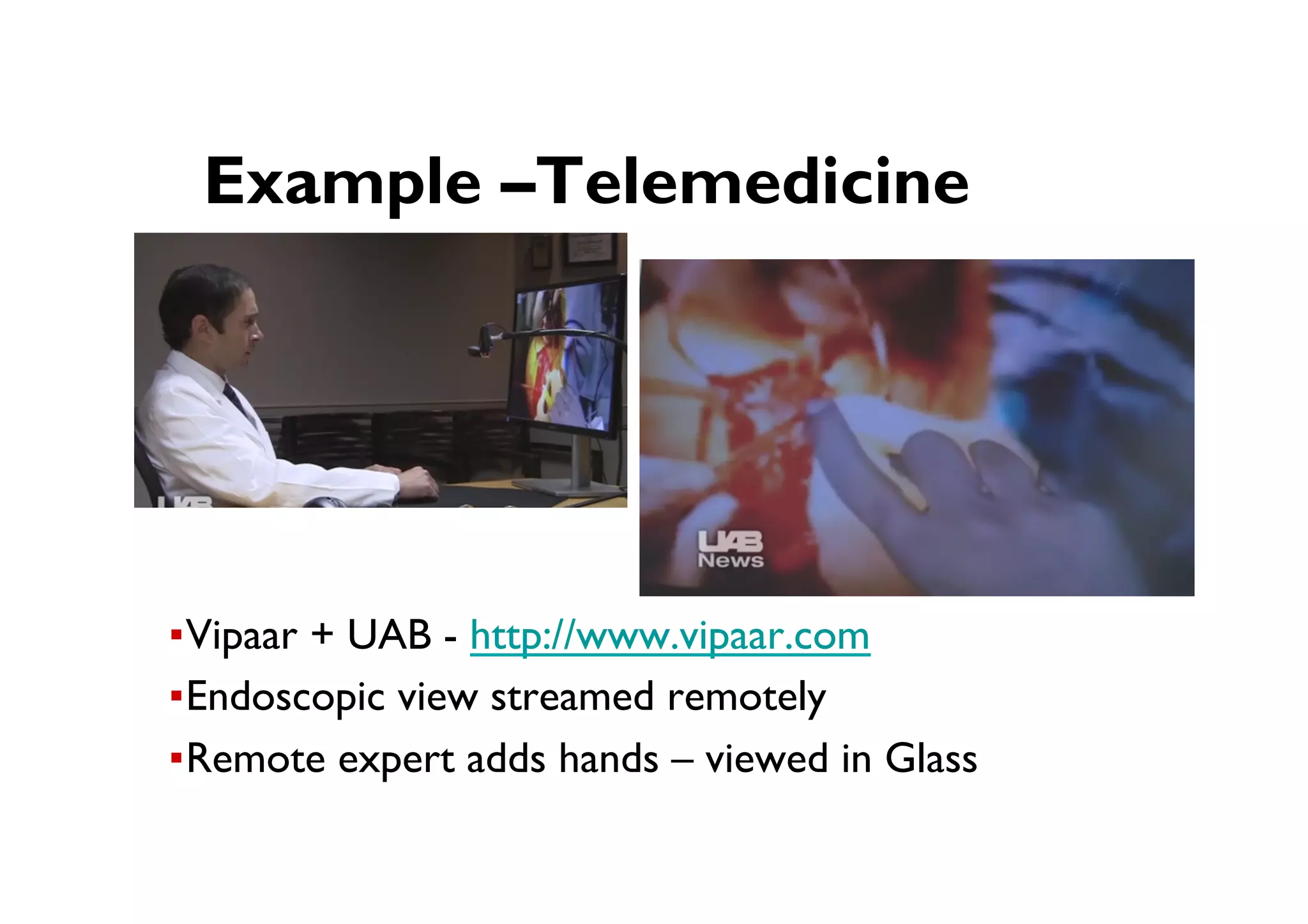

102. ● Example –Telemedicine
▪ Vipaar + UAB - http://www.vipaar.com
▪ Endoscopic view streamed remotely
▪ Remote expert adds hands – viewed in Glass

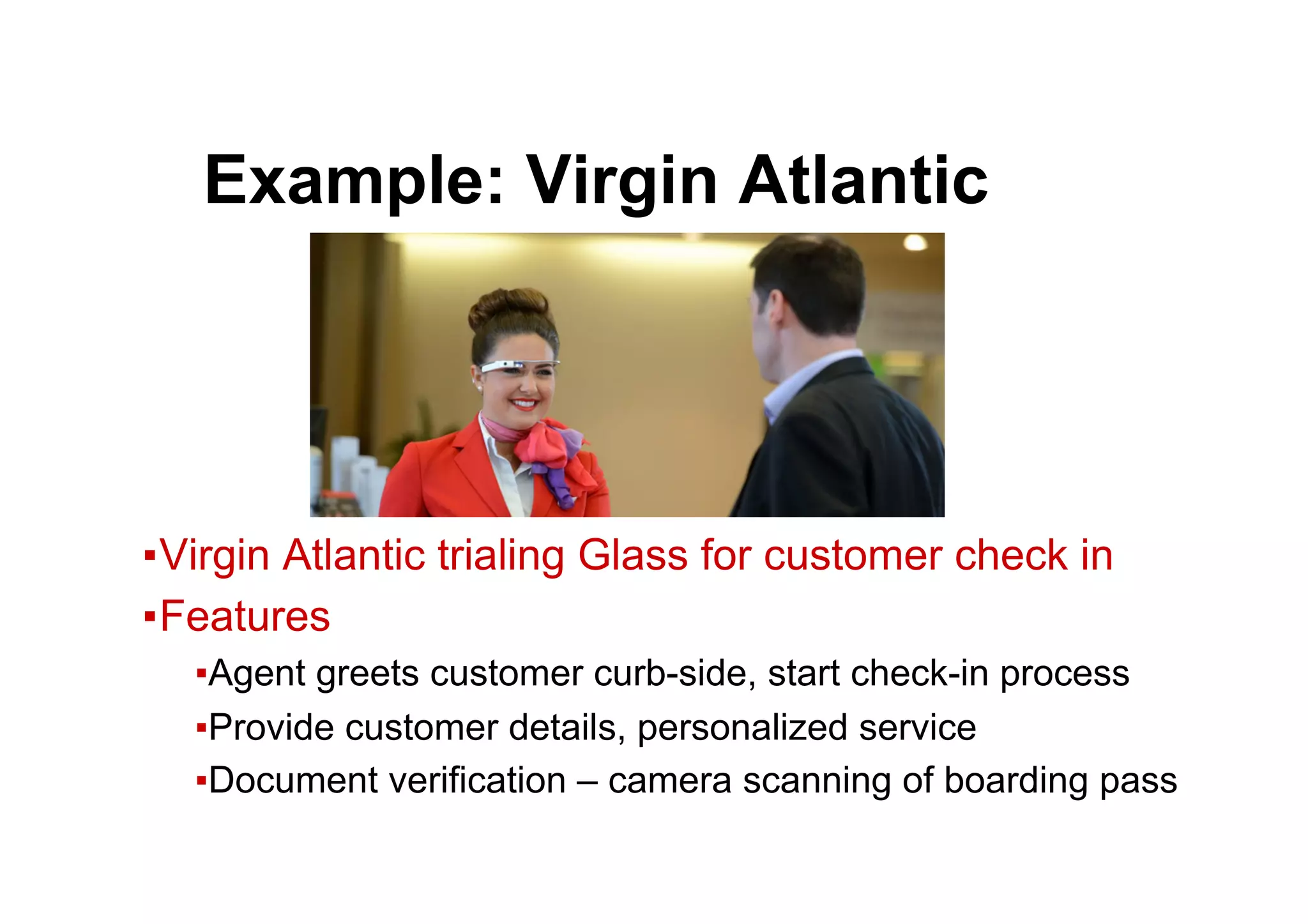

103. ● Example: Virgin Atlantic
▪ Virgin Atlantic trialing Glass for customer check in
▪ Features
▪ Agent greets customer curb-side, start check-in process
▪ Provide customer details, personalized service
▪ Document verification – camera scanning of boarding pass

104. ▪ Advantages
▪ Focus attention on customer
▪ Moves agent to customer
- Earlier engagement
▪ Reduces technology barrier
between agent and customer
- Hide behind computer/desk
▪ Provides personalized service
- Name, flight details, weather,
diet, translation services, etc

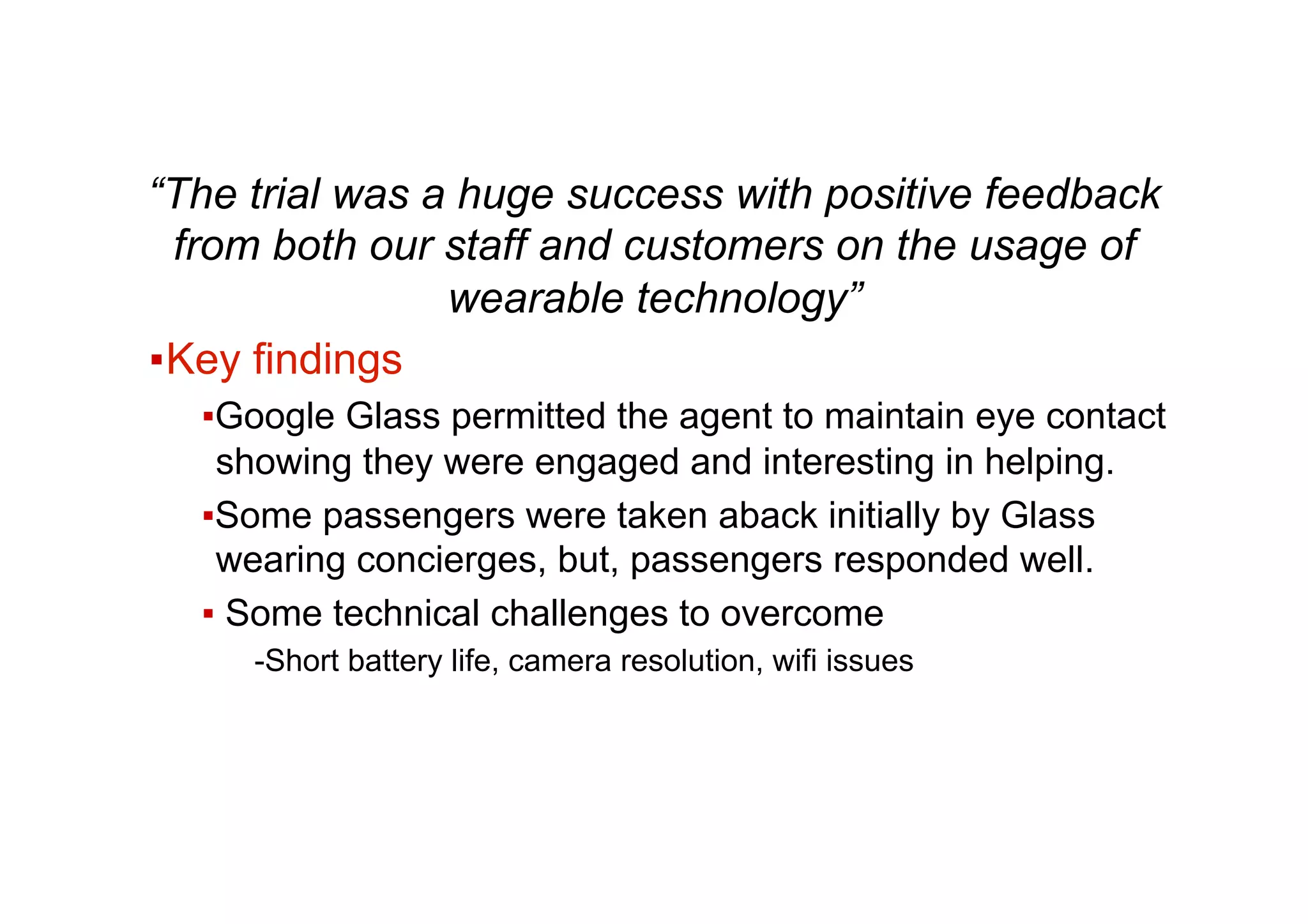

105. “The trial was a huge success with positive feedback
from both our staff and customers on the usage of
wearable technology”
▪ Key findings
▪ Google Glass permitted the agent to maintain eye contact
showing they were engaged and interesting in helping.
▪ Some passengers were taken aback initially by Glass
wearing concierges, but, passengers responded well.
▪ Some technical challenges to overcome
- Short battery life, camera resolution, wifi issues

106. ▪ 7: High Fidelity Prototyping

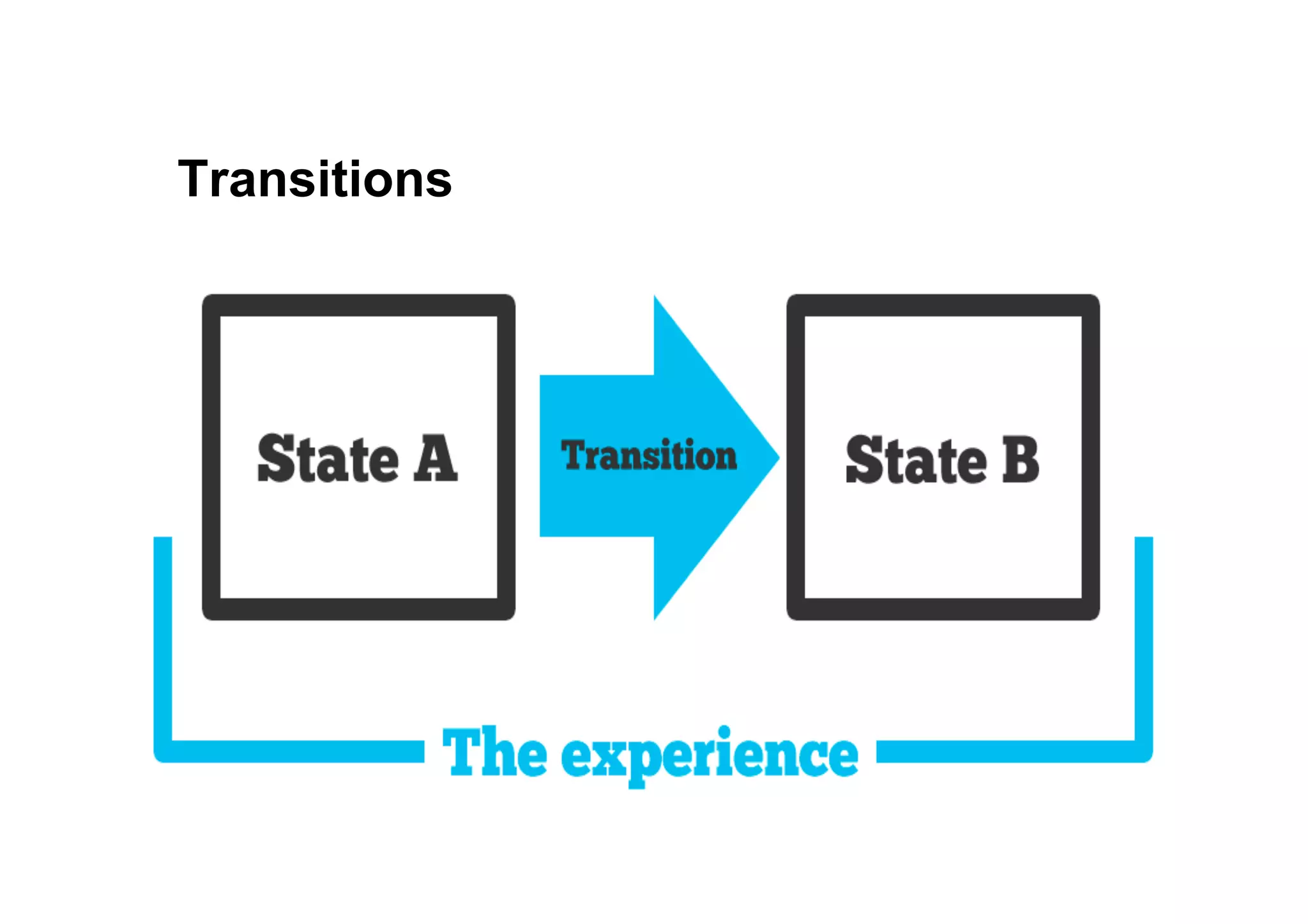

107. ● Transitions

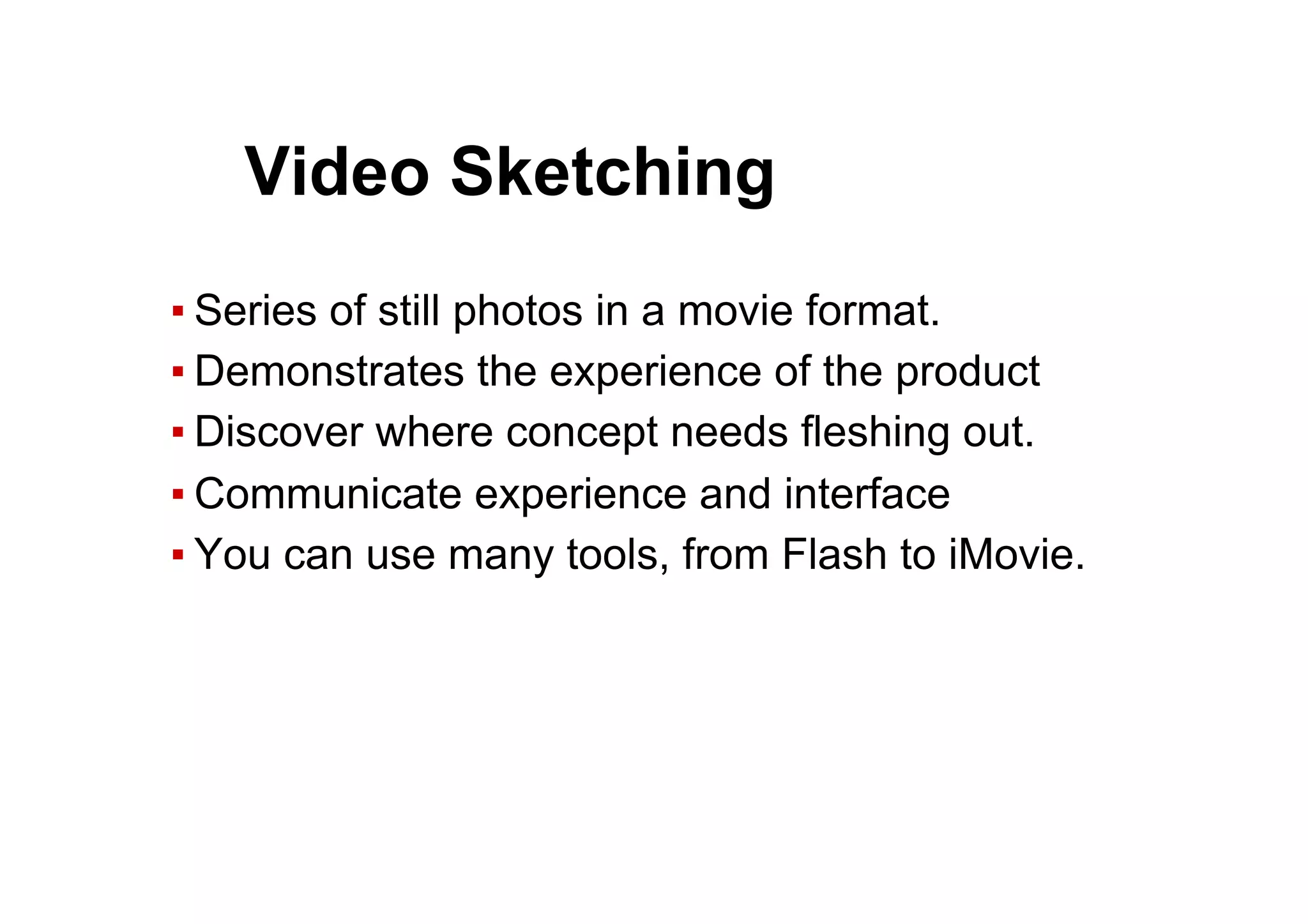

109. ▪ Series of still photos in a movie format.
▪ Demonstrates the experience of the product
▪ Discover where concept needs fleshing out.
▪ Communicate experience and interface
▪ You can use many tools, from Flash to iMovie.
● Video Sketching

110. See https://vine.co/v/bgIaLHIpFTB
● Example: Video Sketch of Vine
UI

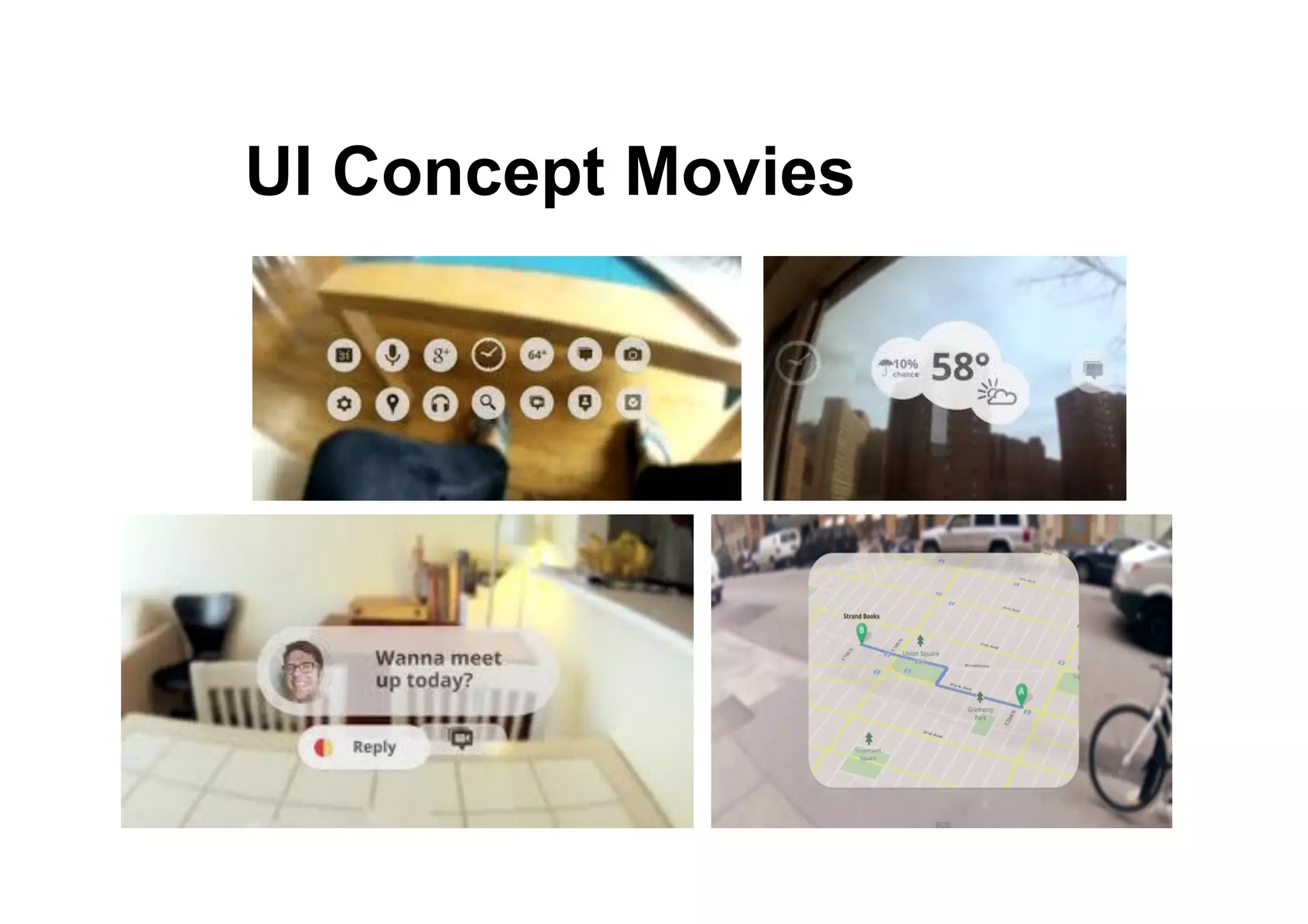

111. ● UI Concept Movies

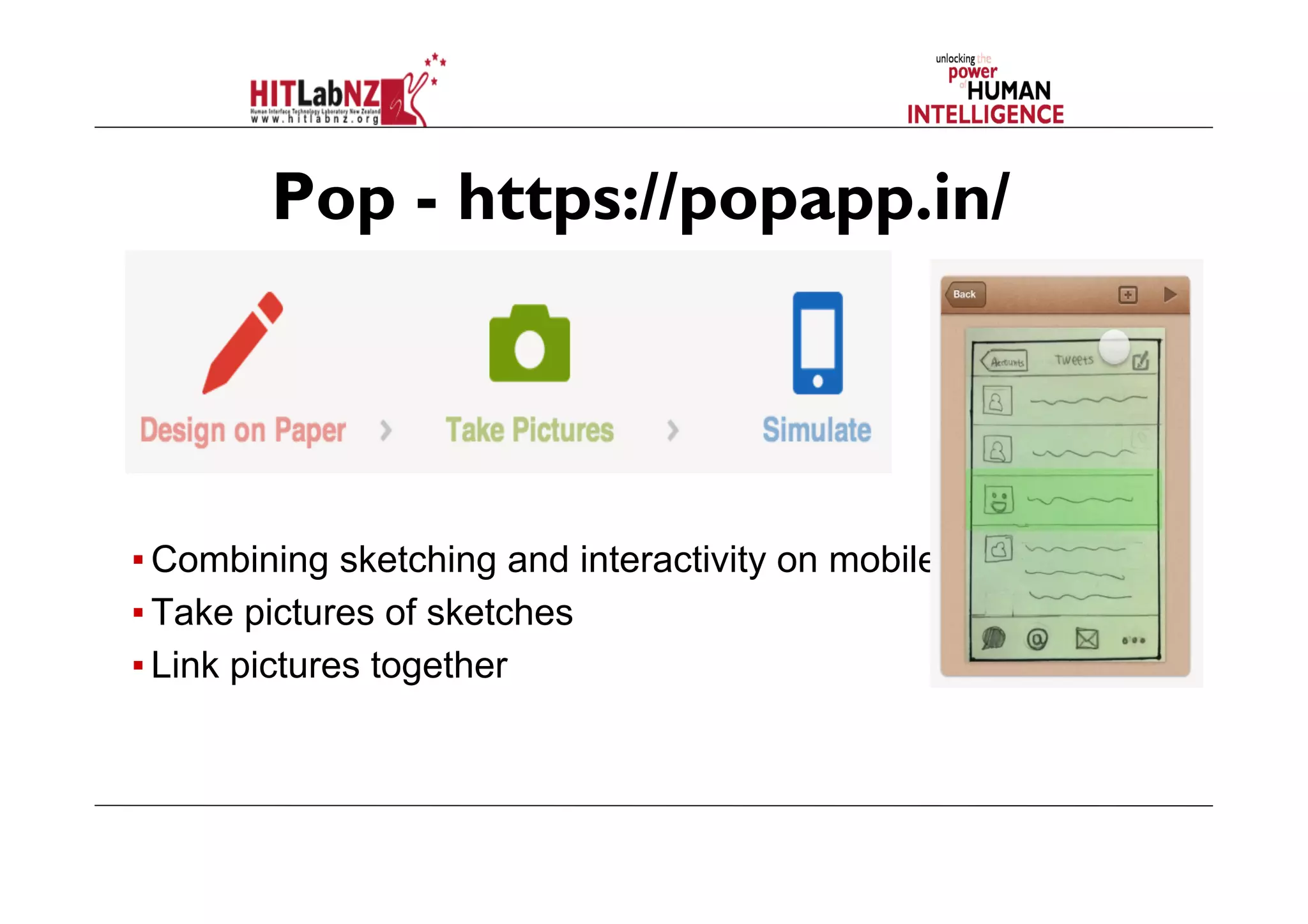

112. ● Pop - https://popapp.in/
▪ Combining sketching and interactivity on mobiles
▪ Take pictures of sketches
▪ Link pictures together

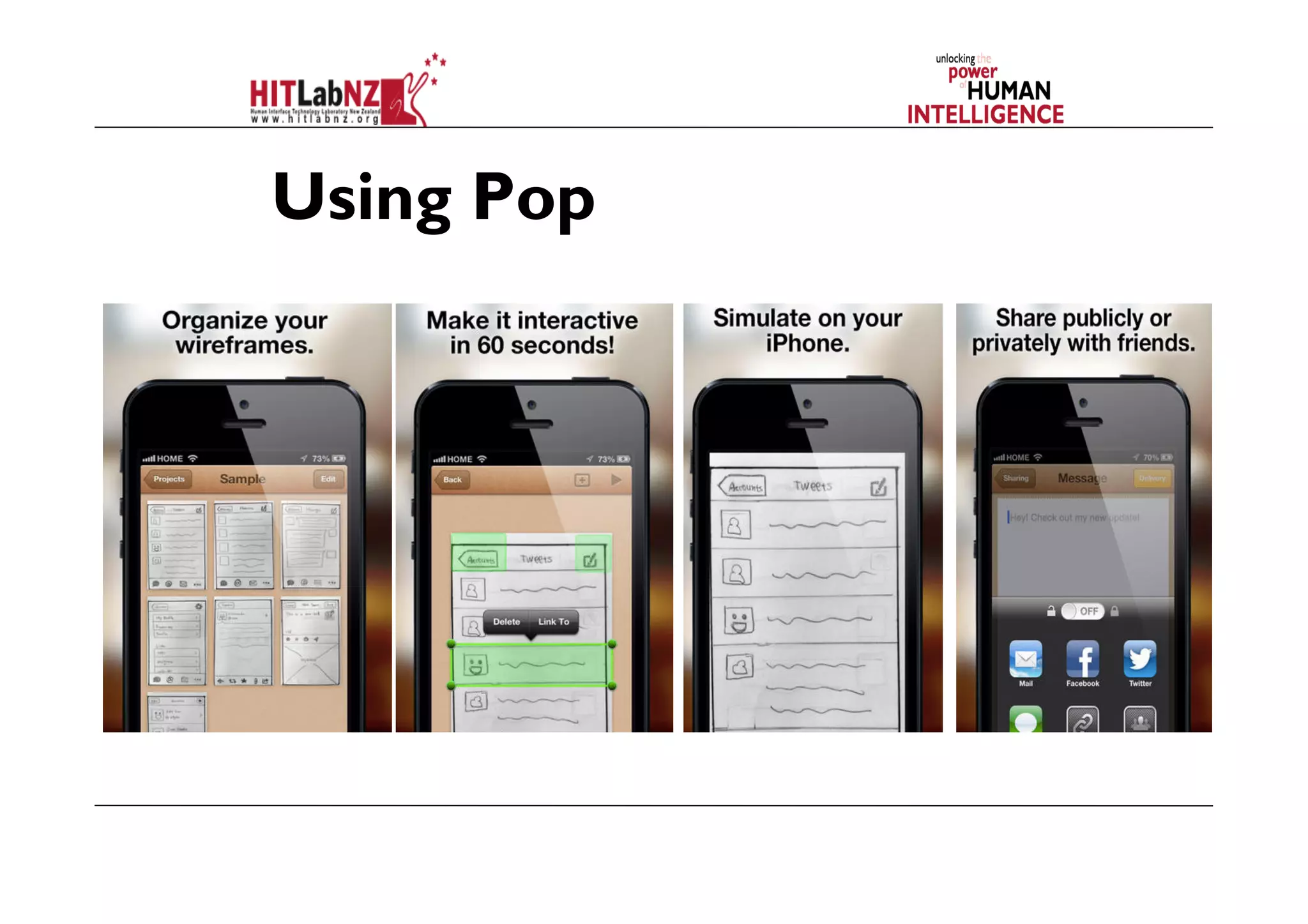

113. ● Using Pop

114. Interactive Wireframing
▪ Developing interactive interfaces/wireframes
▪ Transitions, user feedback, interface design
▪ Web based tools
▪ UXpin - http://www.uxpin.com/
▪ proto.io - http://www.proto.io/
▪ Native tools
▪ Justinmind - http://www.justinmind.com/
▪ Axure - http://www.axure.com/

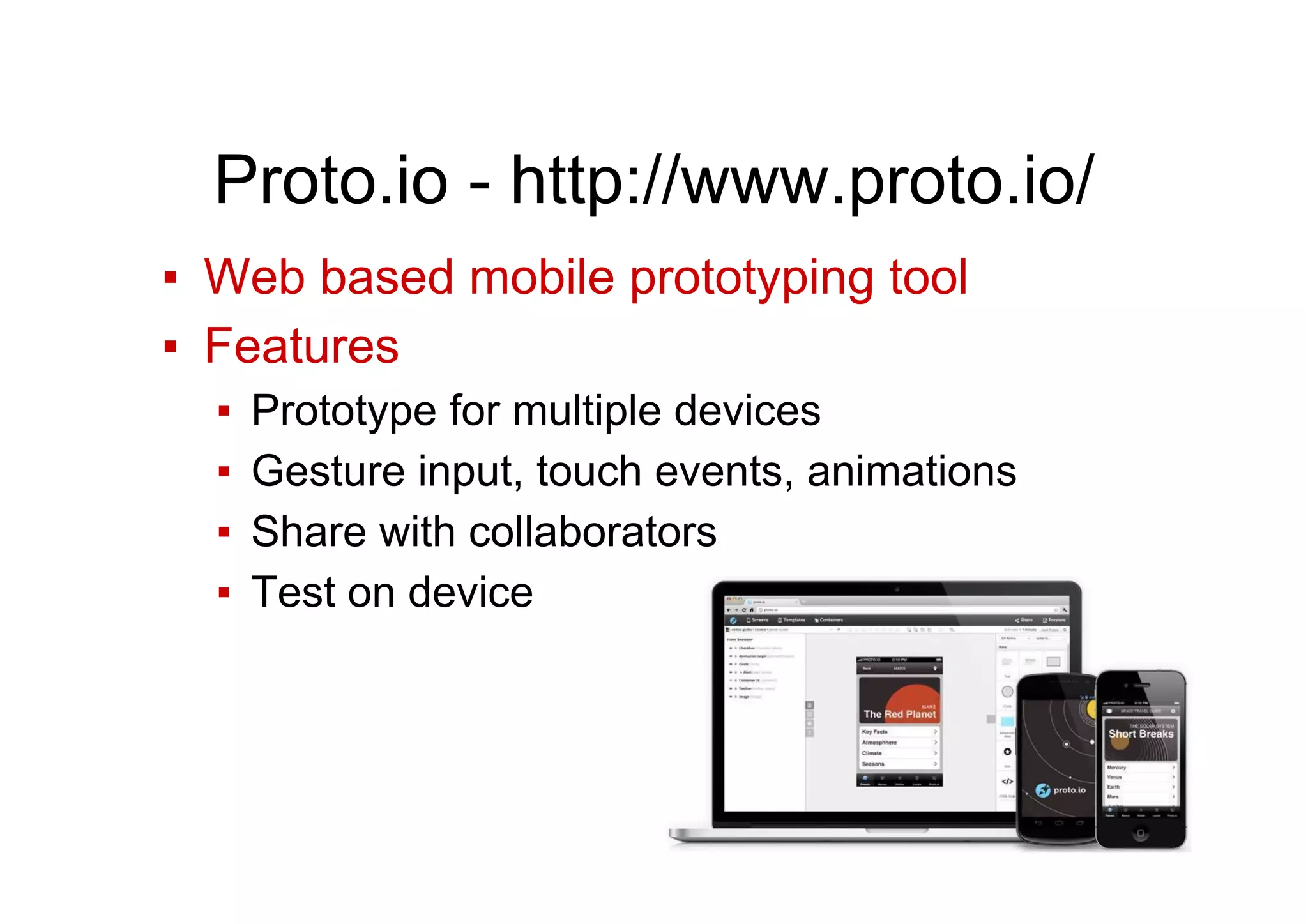

115. Proto.io - http://www.proto.io/
▪ Web based mobile prototyping tool
▪ Features
▪ Prototype for multiple devices
▪ Gesture input, touch events, animations
▪ Share with collaborators
▪ Test on device

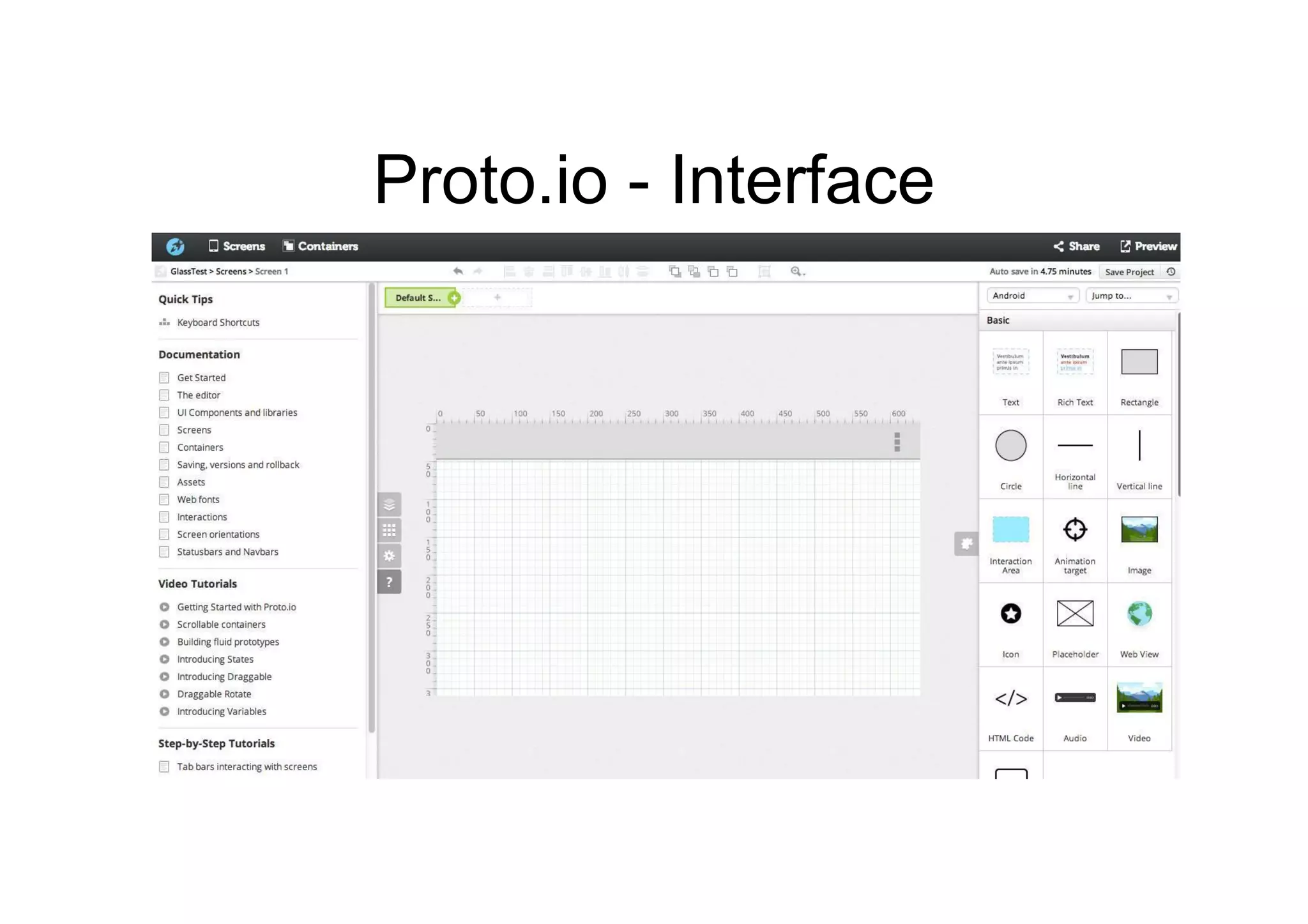

116. Proto.io - Interface

117. Demo: Building a Simple Flow

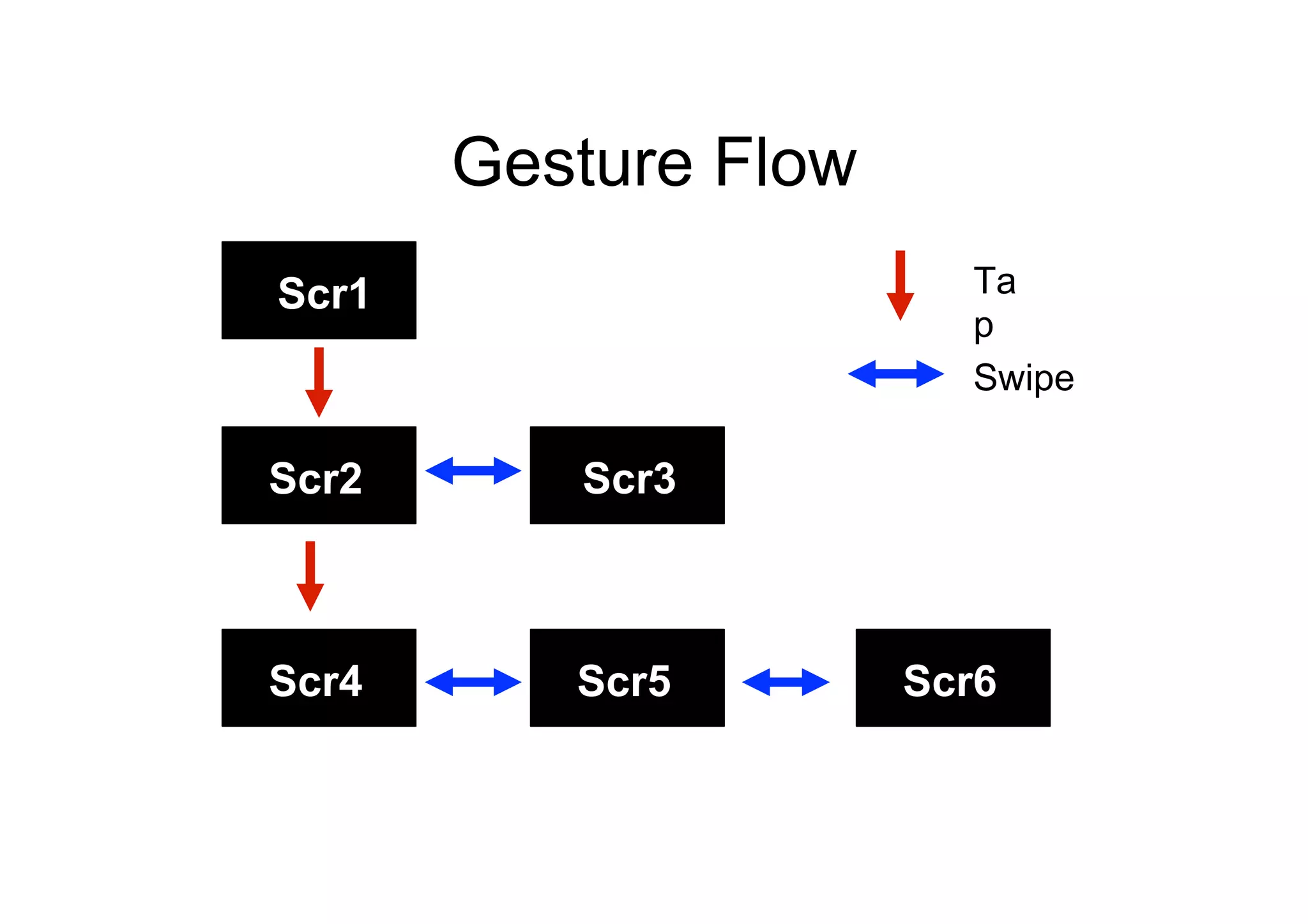

118. Gesture Flow
Scr1
Scr2 Scr3
Scr4 Scr5 Scr6
Ta
p
Swipe

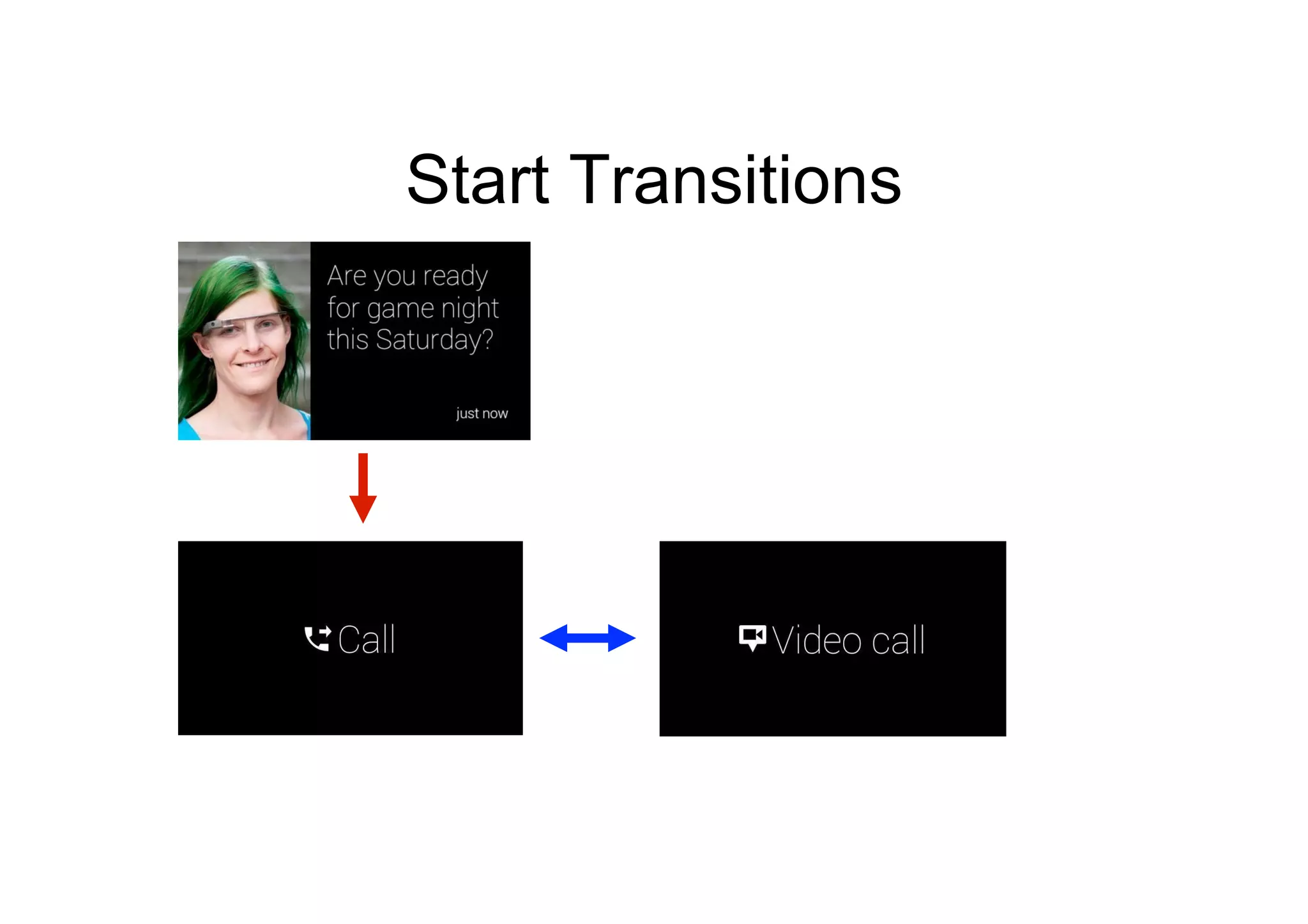

119. Start Transitions

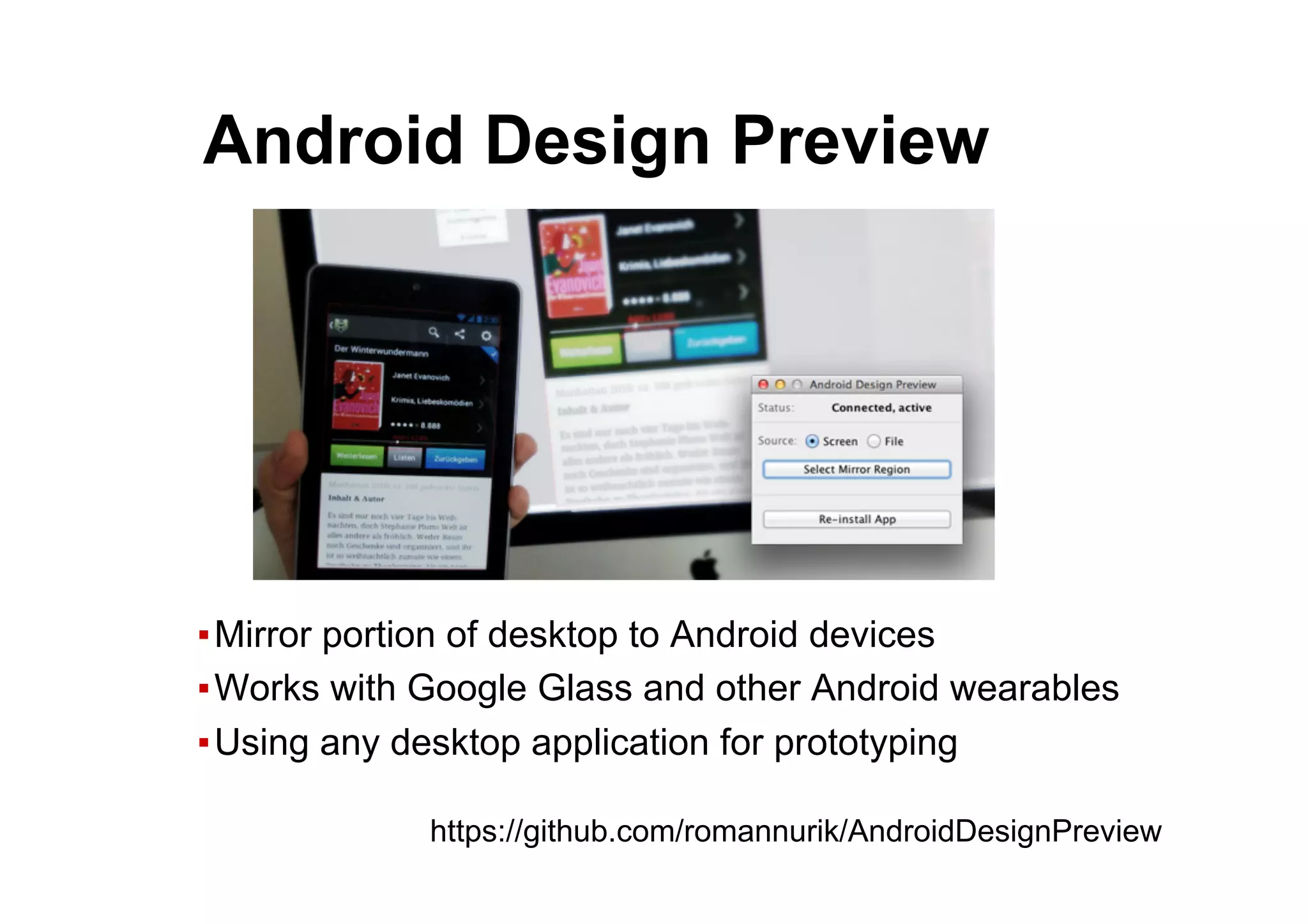

120. ● Android Design Preview
▪ Mirror portion of desktop to Android devices
▪ Works with Google Glass and other Android wearables
▪ Using any desktop application for prototyping
https://github.com/romannurik/AndroidDesignPreview

121. Wireframe Limitations
▪ Can’t deploy on Device
▪ No access to sensor data
▪ Camera, orientation sensor
▪ No multimedia playback
▪ Audio, video
▪ Simple transitions
▪ No conditional logic
▪ No networking

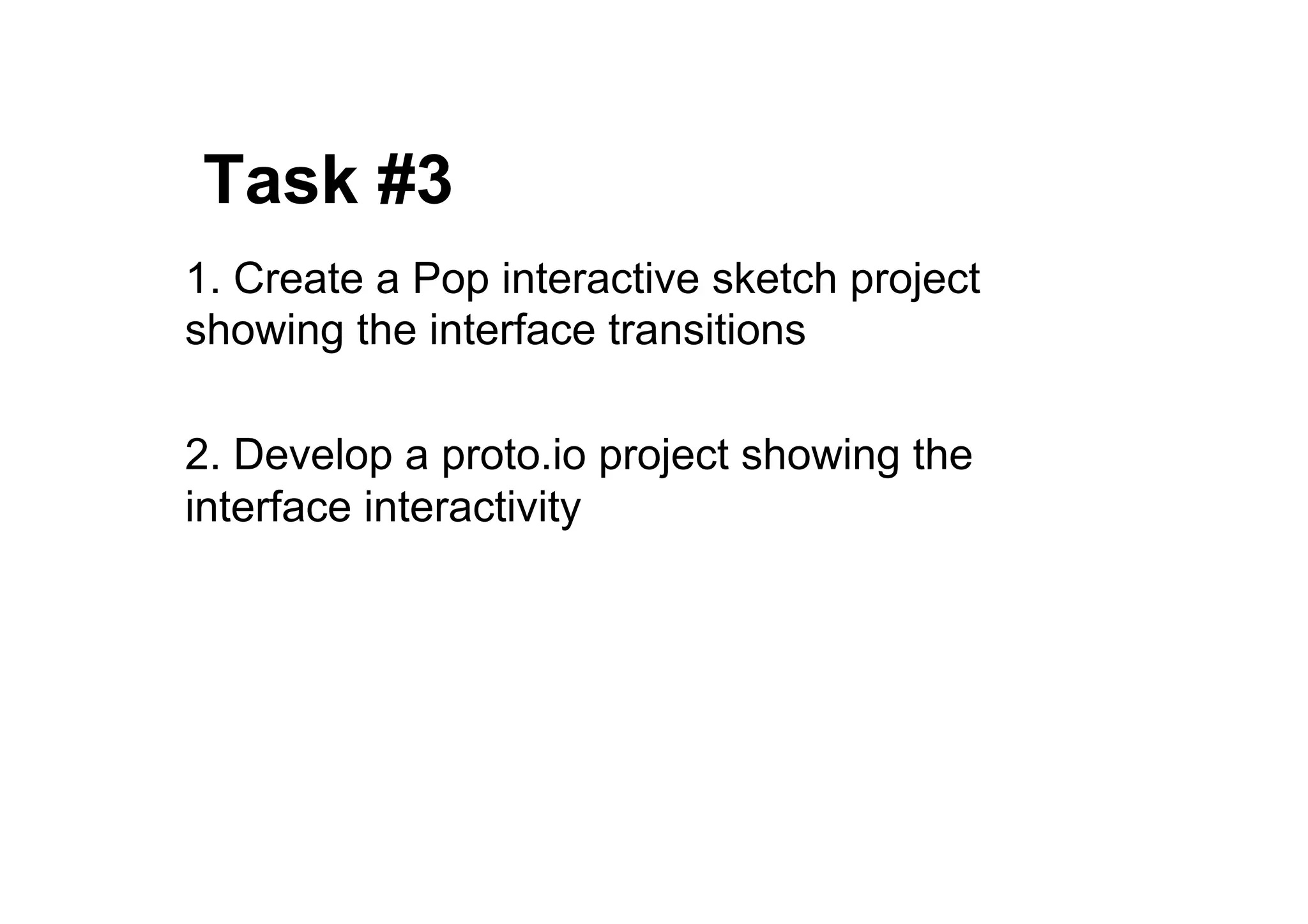

122. ● Task #3
1. Create a Pop interactive sketch project
showing the interface transitions
2. Develop a proto.io project showing the
interface interactivity

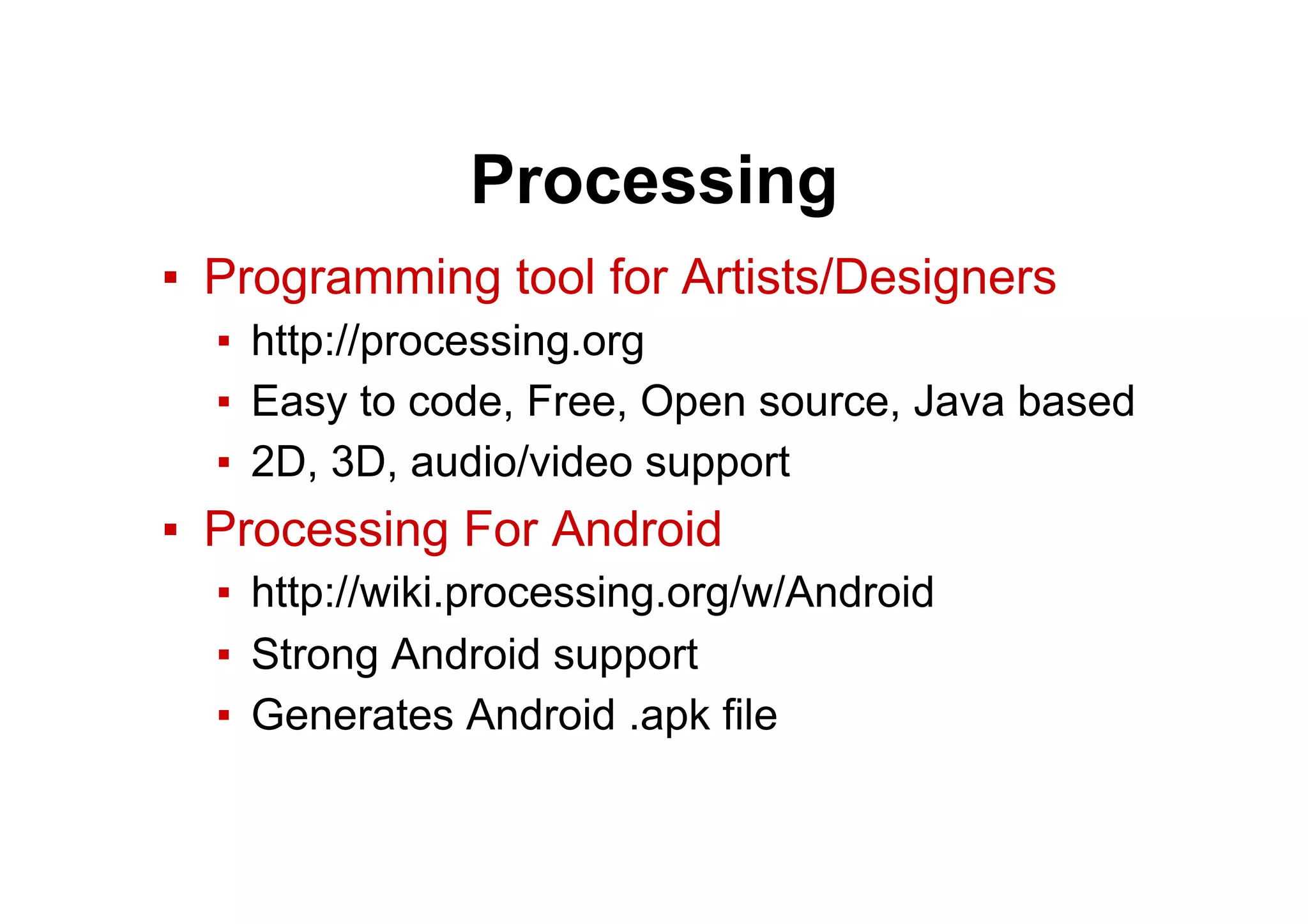

123. Processing
▪ Programming tool for Artists/Designers
▪ http://processing.org
▪ Easy to code, Free, Open source, Java based
▪ 2D, 3D, audio/video support
▪ Processing For Android
▪ http://wiki.processing.org/w/Android
▪ Strong Android support
▪ Generates Android .apk file

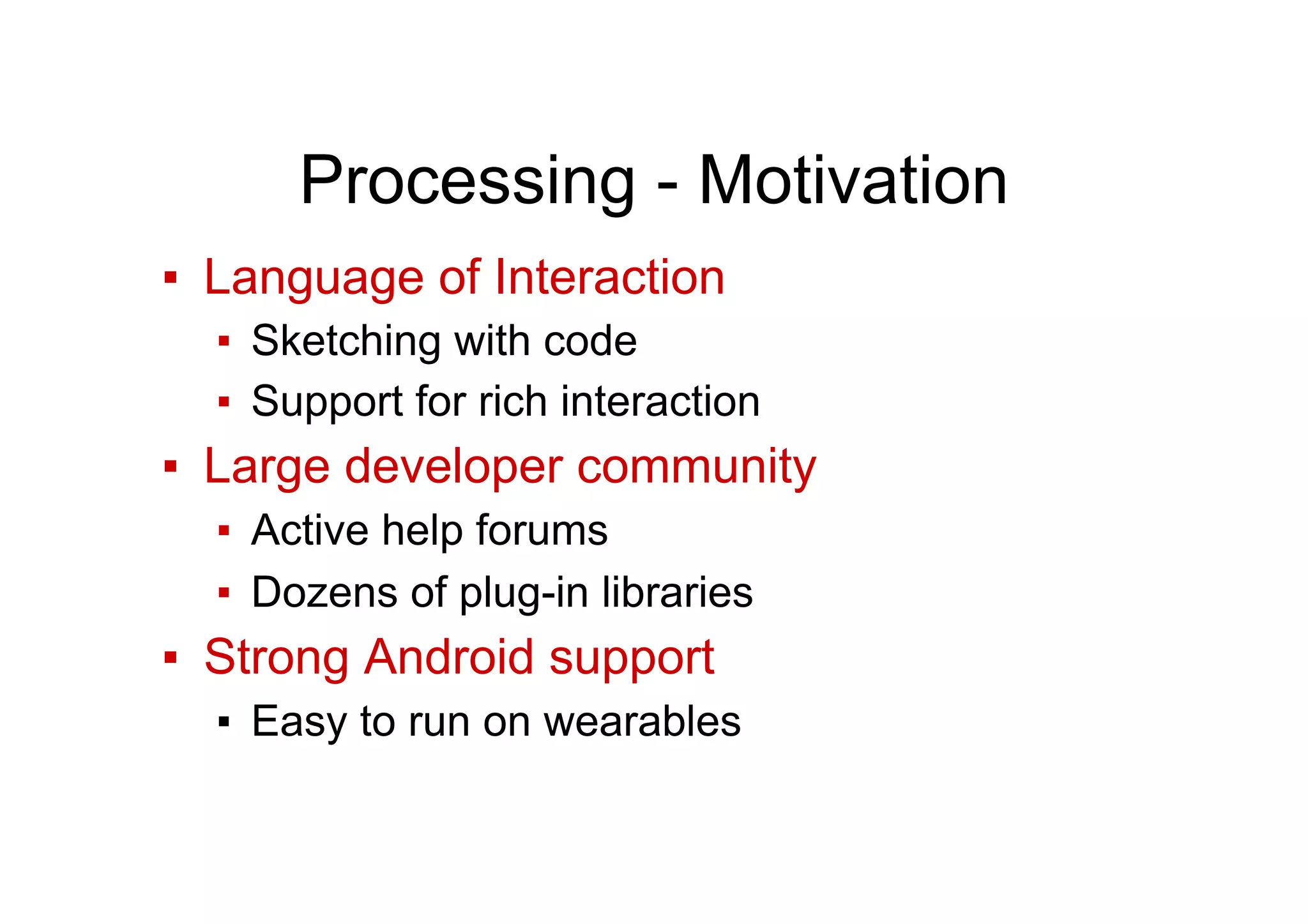

124. Processing - Motivation
▪ Language of Interaction
▪ Sketching with code
▪ Support for rich interaction
▪ Large developer community
▪ Active help forums
▪ Dozens of plug-in libraries
▪ Strong Android support
▪ Easy to run on wearables

125. http://processing.org/

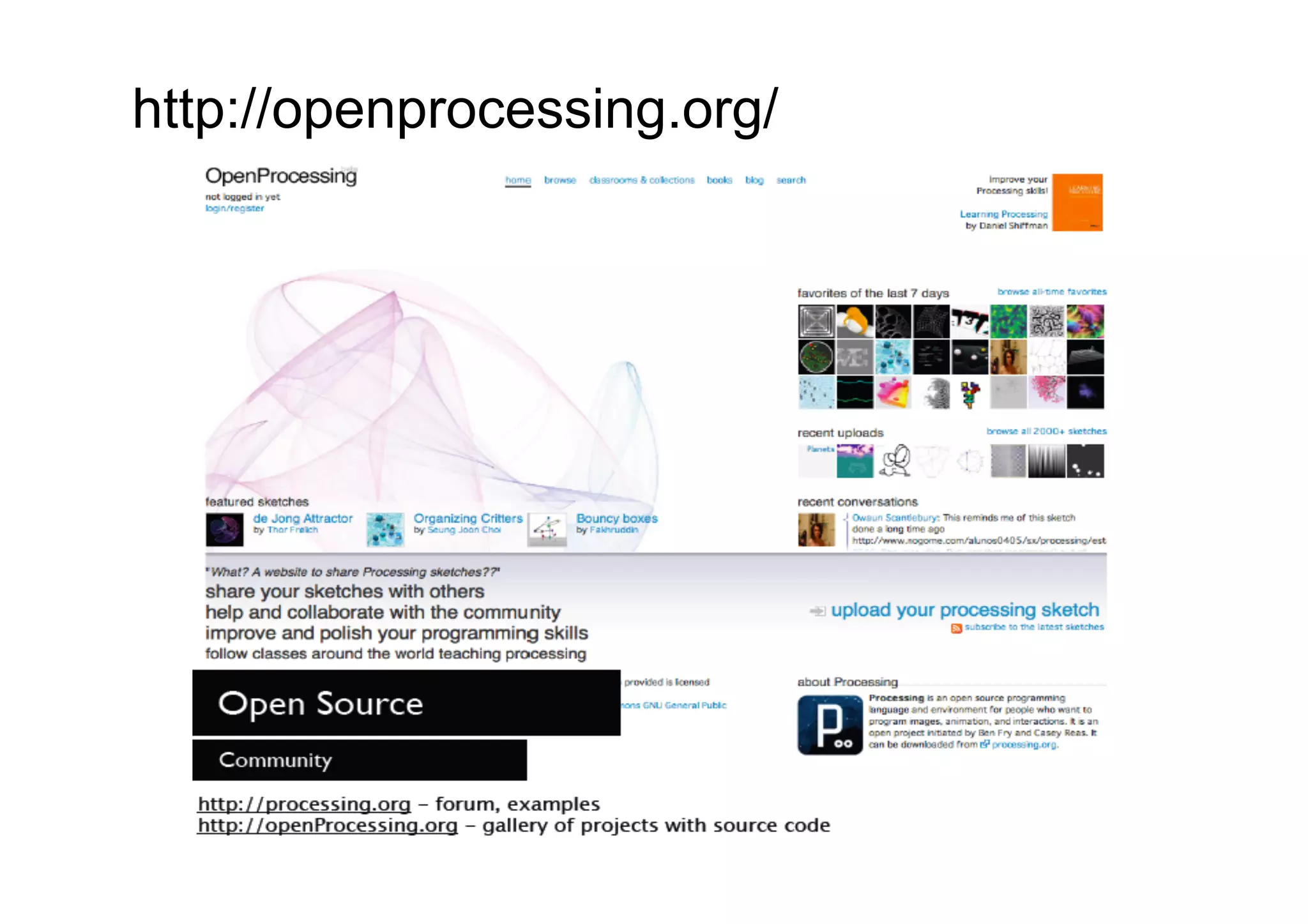

126. http://openprocessing.org/

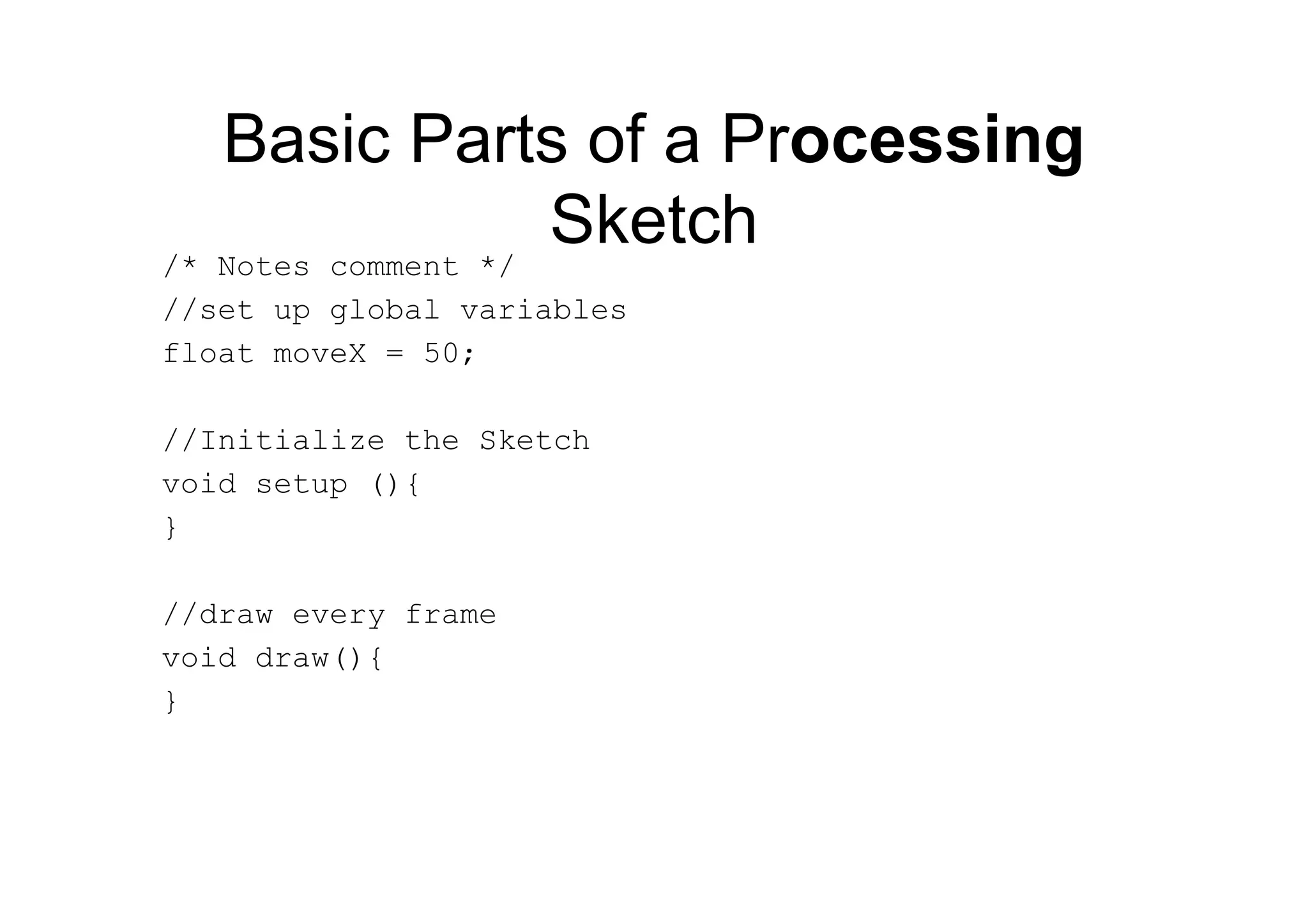

127. Basic Parts of a Processing
Sketch/* Notes comment */
//set up global variables
float moveX = 50;
//Initialize the Sketch
void setup (){
}
//draw every frame
void draw(){
}

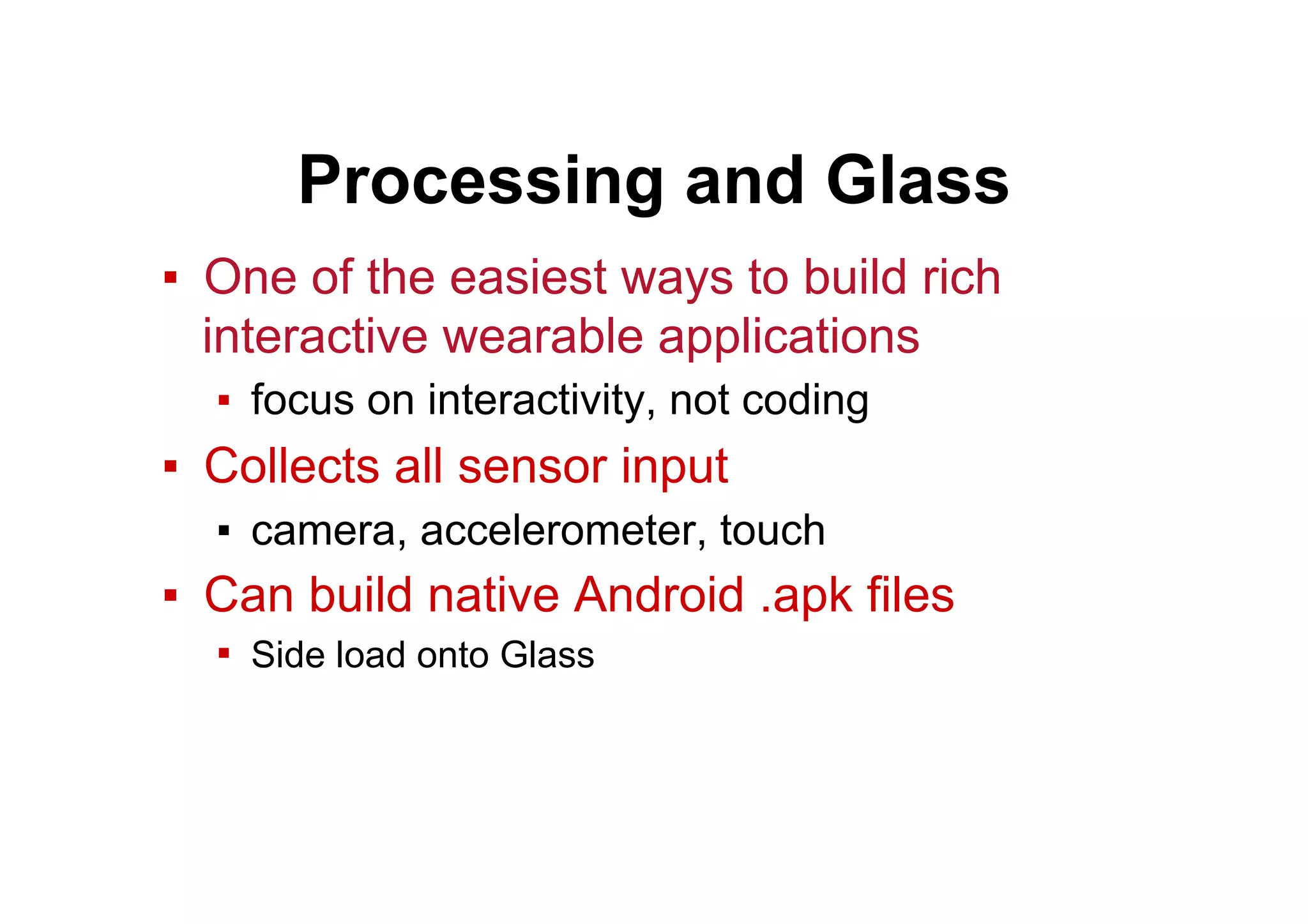

128. Processing and Glass
▪ One of the easiest ways to build rich
interactive wearable applications
▪ focus on interactivity, not coding
▪ Collects all sensor input
▪ camera, accelerometer, touch
▪ Can build native Android .apk files
▪ Side load onto Glass

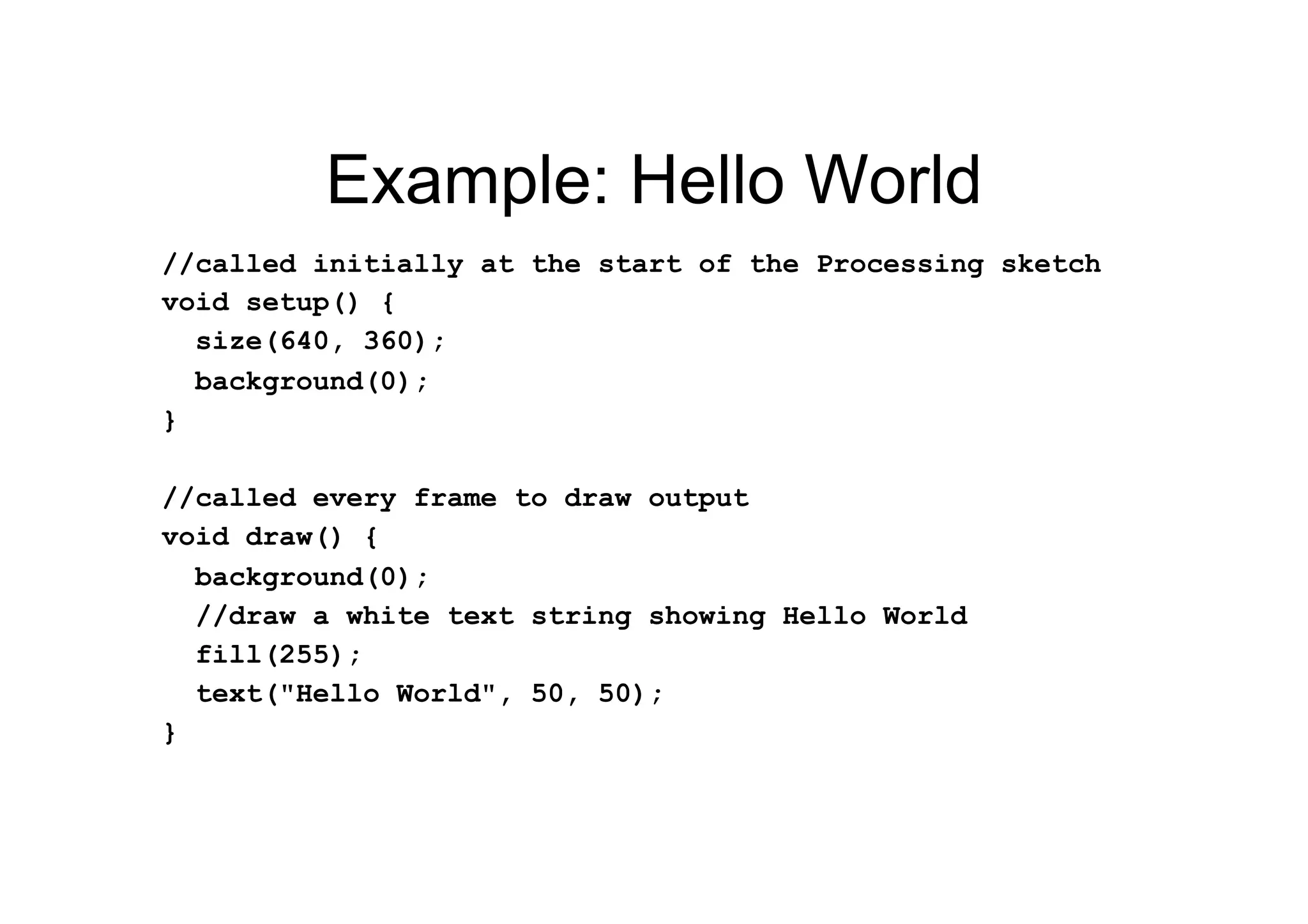

129. Example: Hello World
//called initially at the start of the Processing sketch
void setup() {
size(640, 360);
background(0);
}
//called every frame to draw output
void draw() {
background(0);
//draw a white text string showing Hello World
fill(255);
text("Hello World", 50, 50);
}

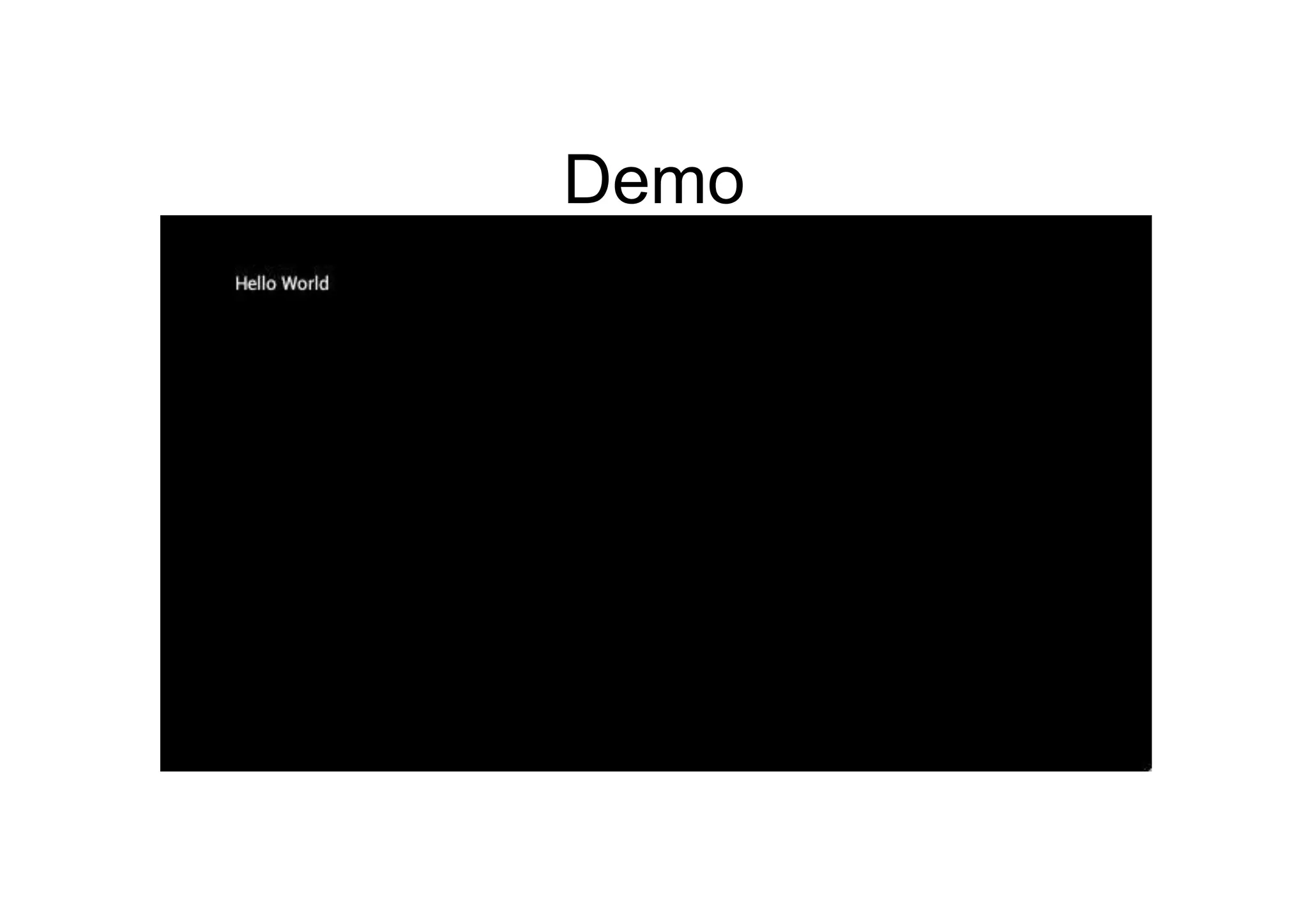

130. Demo

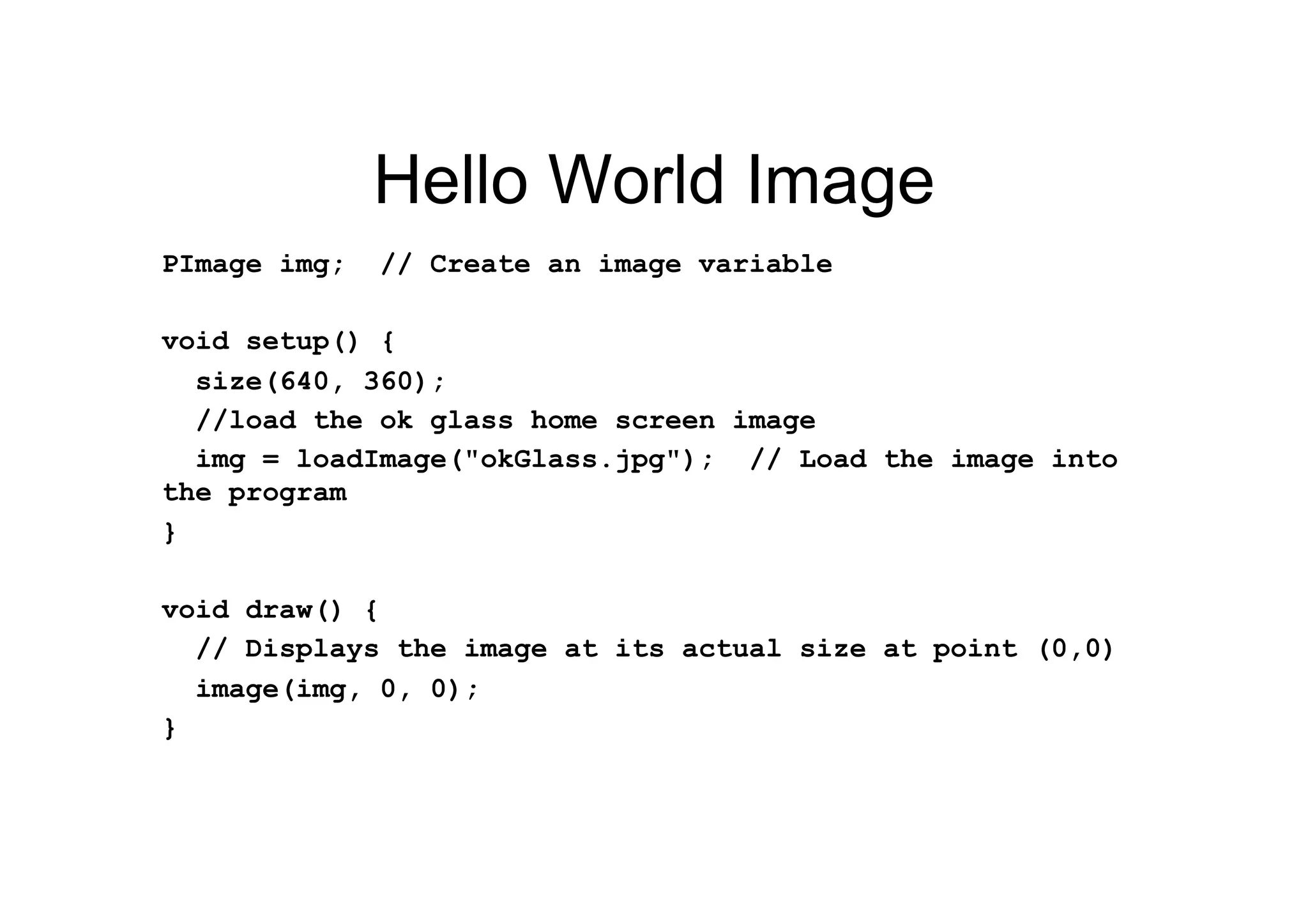

131. Hello World Image
PImage img; // Create an image variable
void setup() {
size(640, 360);
//load the ok glass home screen image
img = loadImage("okGlass.jpg"); // Load the image into
the program
}
void draw() {
// Displays the image at its actual size at point (0,0)
image(img, 0, 0);
}

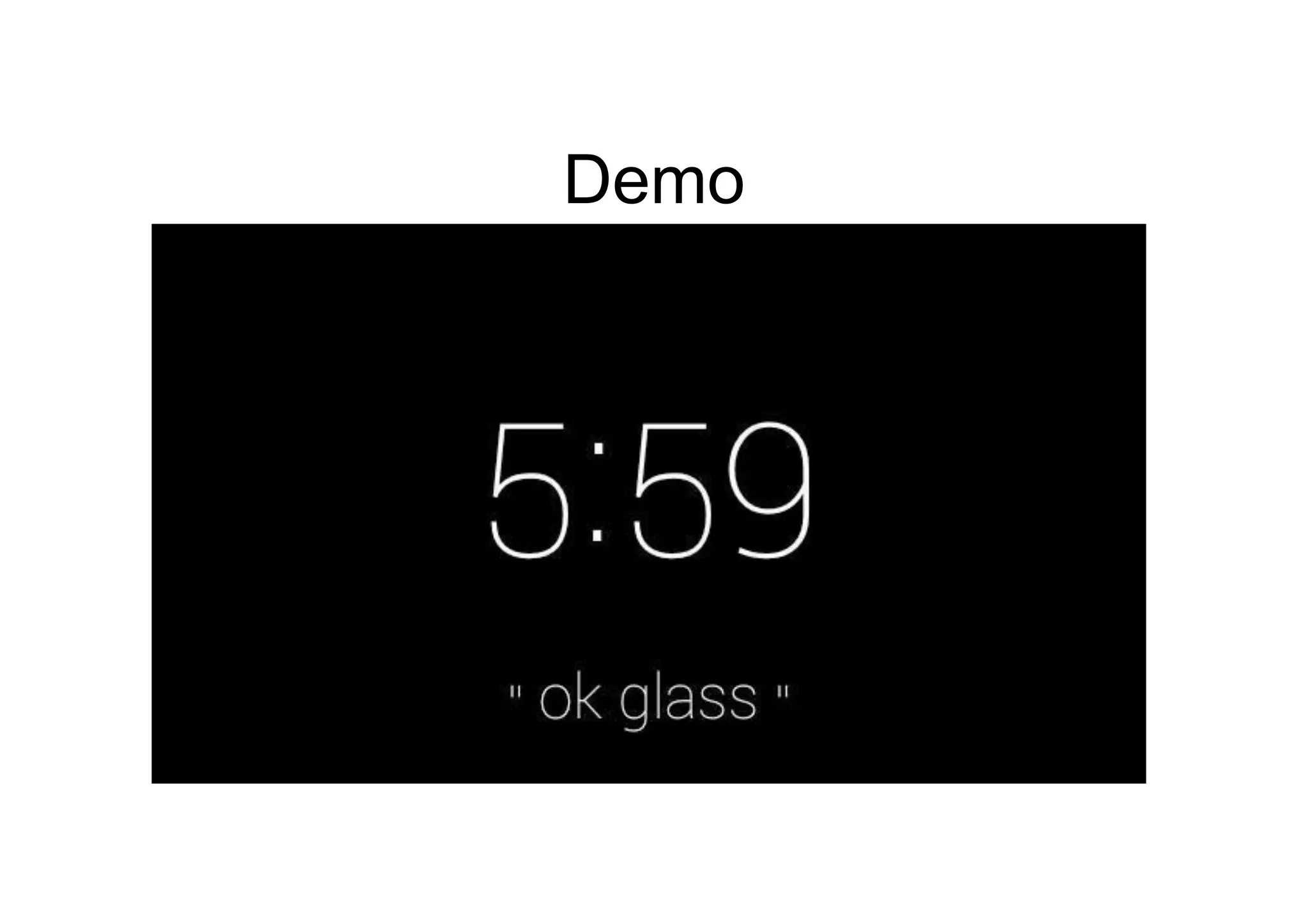

132. Demo

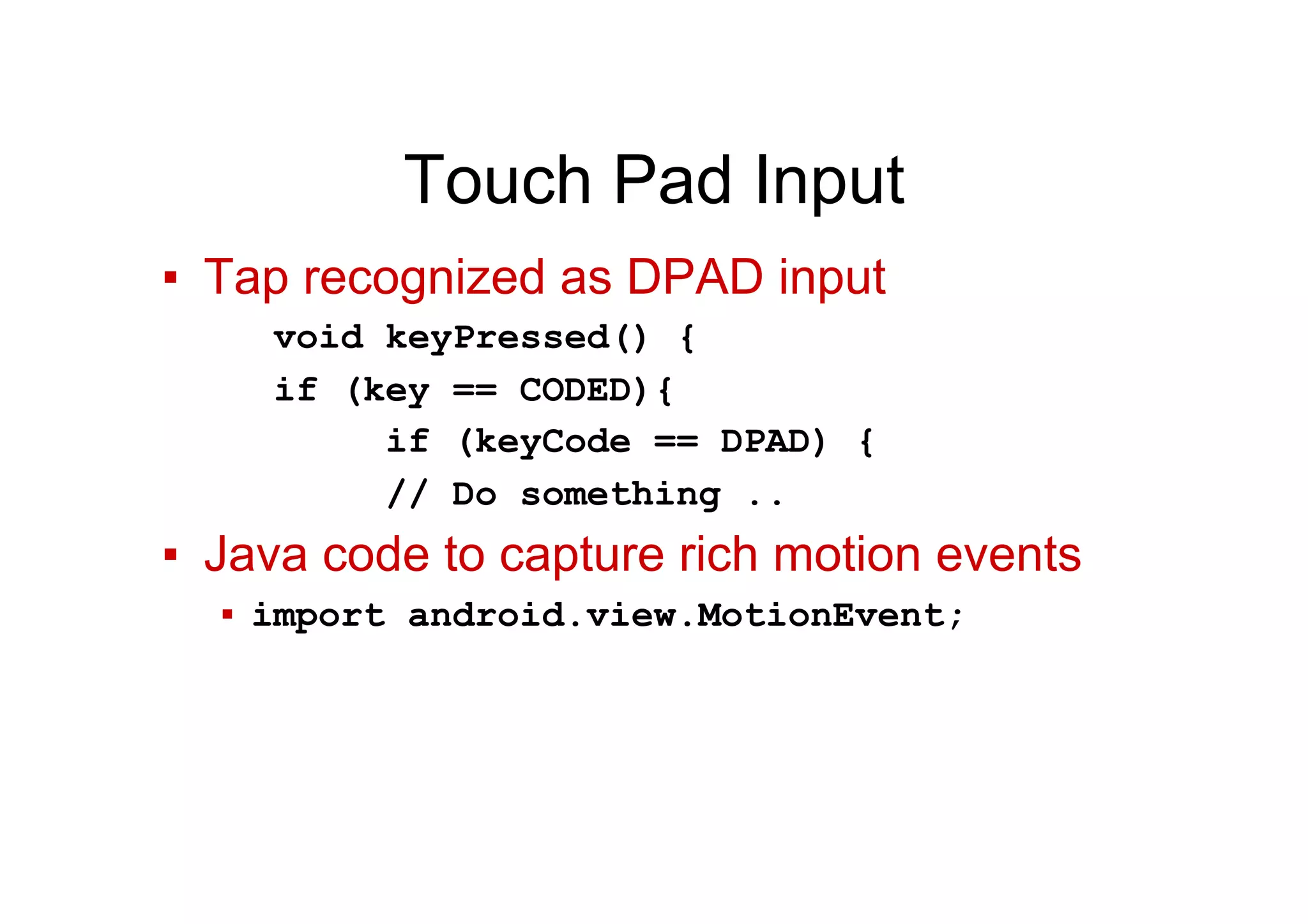

133. Touch Pad Input
▪ Tap recognized as DPAD input
void keyPressed() {
if (key == CODED){
if (keyCode == DPAD) {
// Do something ..
▪ Java code to capture rich motion events
▪ import android.view.MotionEvent;

134. Motion Event
//Glass Touch Events - reads from touch pad
public boolean dispatchGenericMotionEvent(MotionEvent event) {
float x = event.getX(); // get x/y coords
float y = event.getY();
int action = event.getActionMasked(); // get code for action
switch (action) { // let us know which action code shows up
case MotionEvent.ACTION_DOWN:
touchEvent = "DOWN";
fingerTouch = 1;
break;
case MotionEvent.ACTION_MOVE:
touchEvent = "MOVE";
xpos = myScreenWidth-x*touchPadScaleX;
ypos = y*touchPadScaleY;
break;

135. Demo

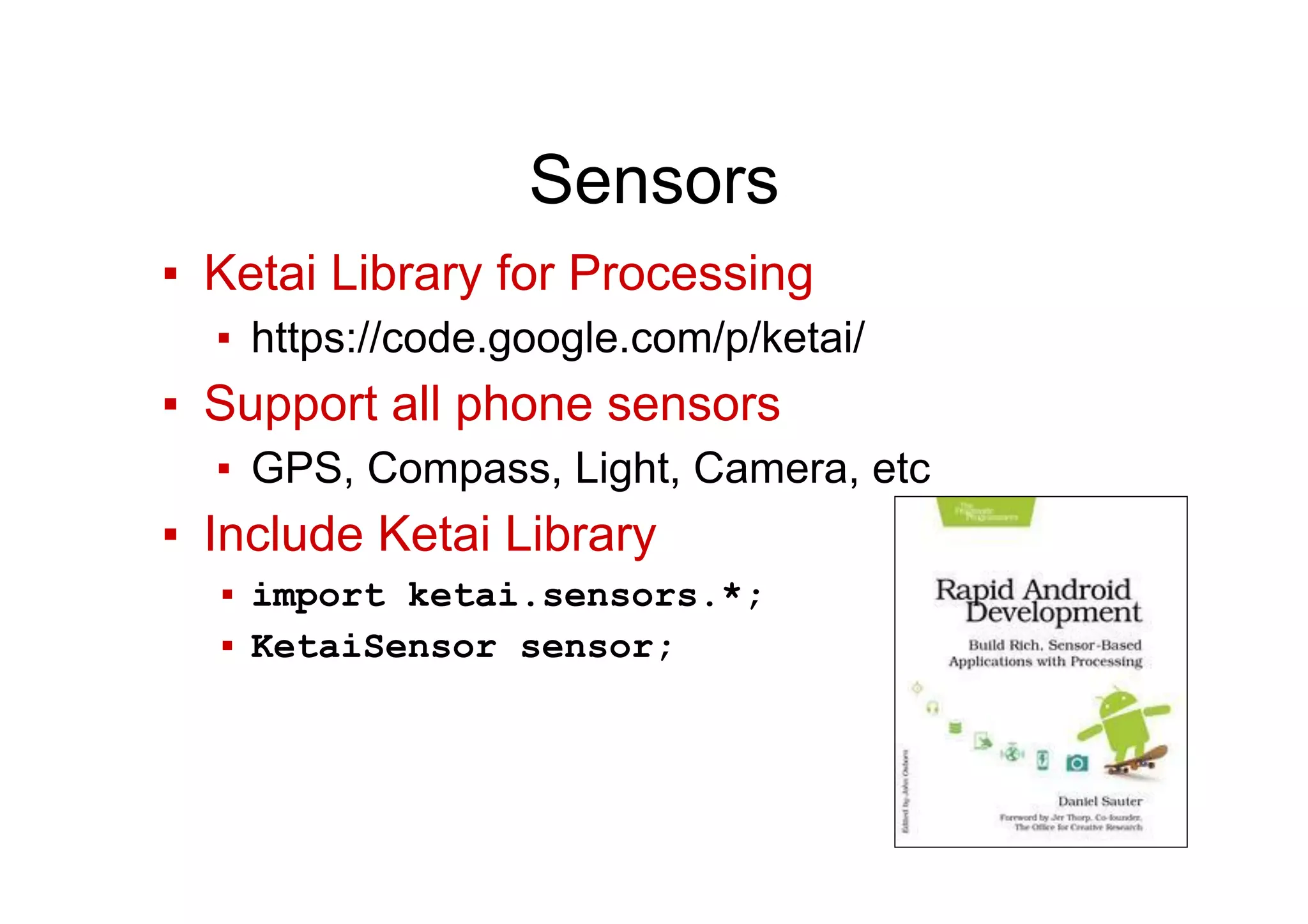

136. Sensors
▪ Ketai Library for Processing
▪ https://code.google.com/p/ketai/
▪ Support all phone sensors
▪ GPS, Compass, Light, Camera, etc
▪ Include Ketai Library
▪ import ketai.sensors.*;
▪ KetaiSensor sensor;

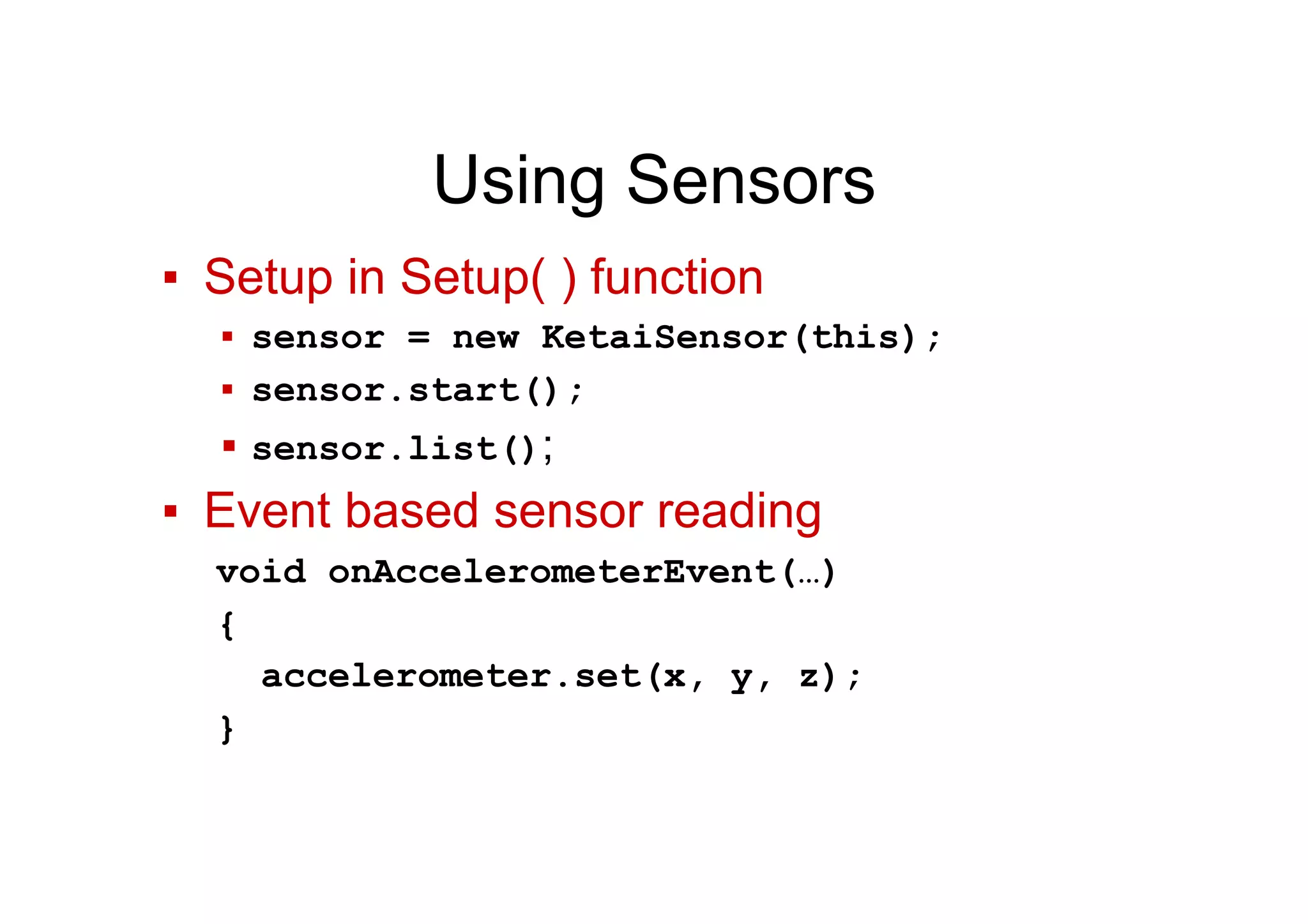

137. Using Sensors
▪ Setup in Setup( ) function
▪ sensor = new KetaiSensor(this);
▪ sensor.start();
▪ sensor.list();
▪ Event based sensor reading
void onAccelerometerEvent(…)
{
accelerometer.set(x, y, z);
}

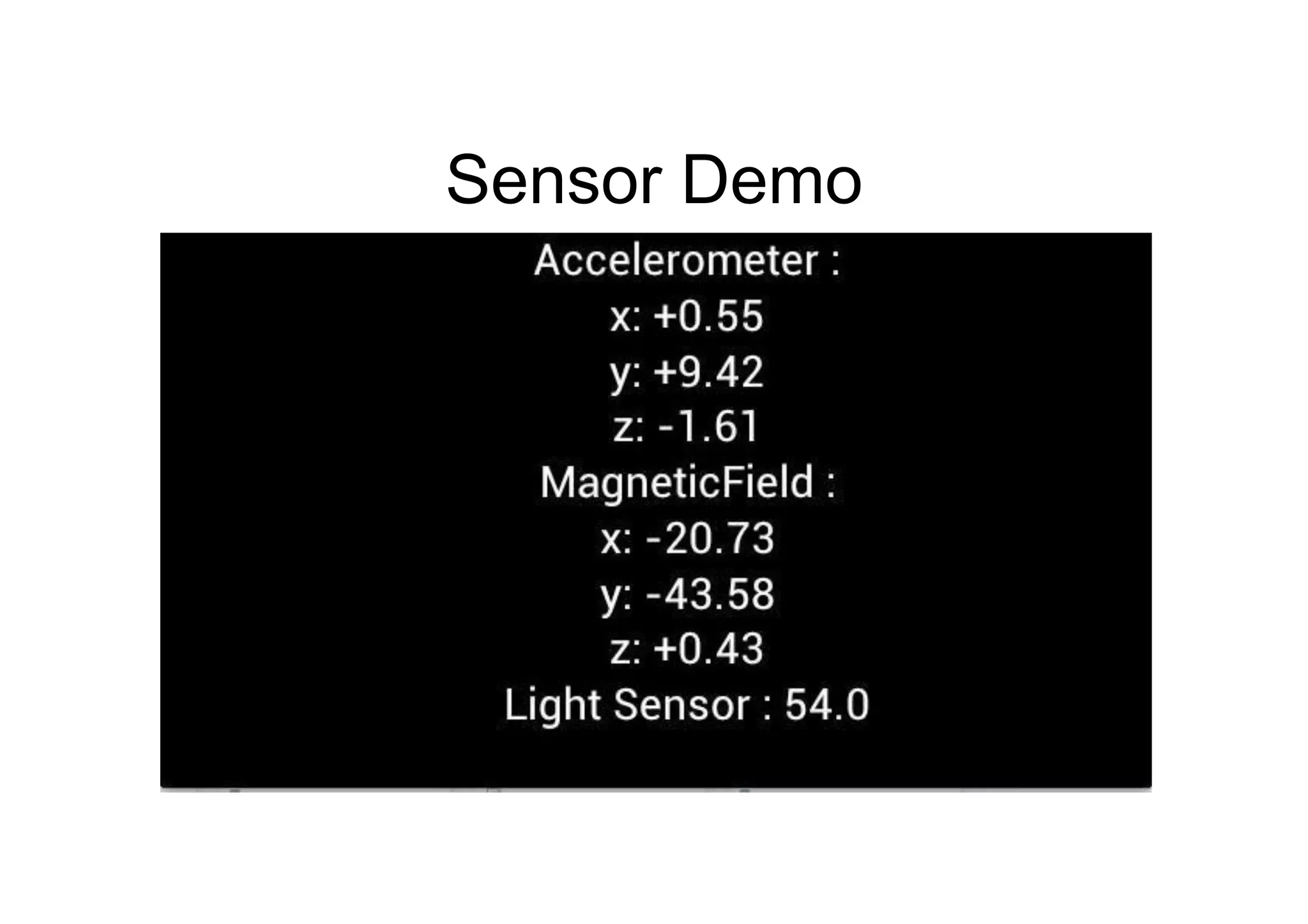

138. Sensor Demo

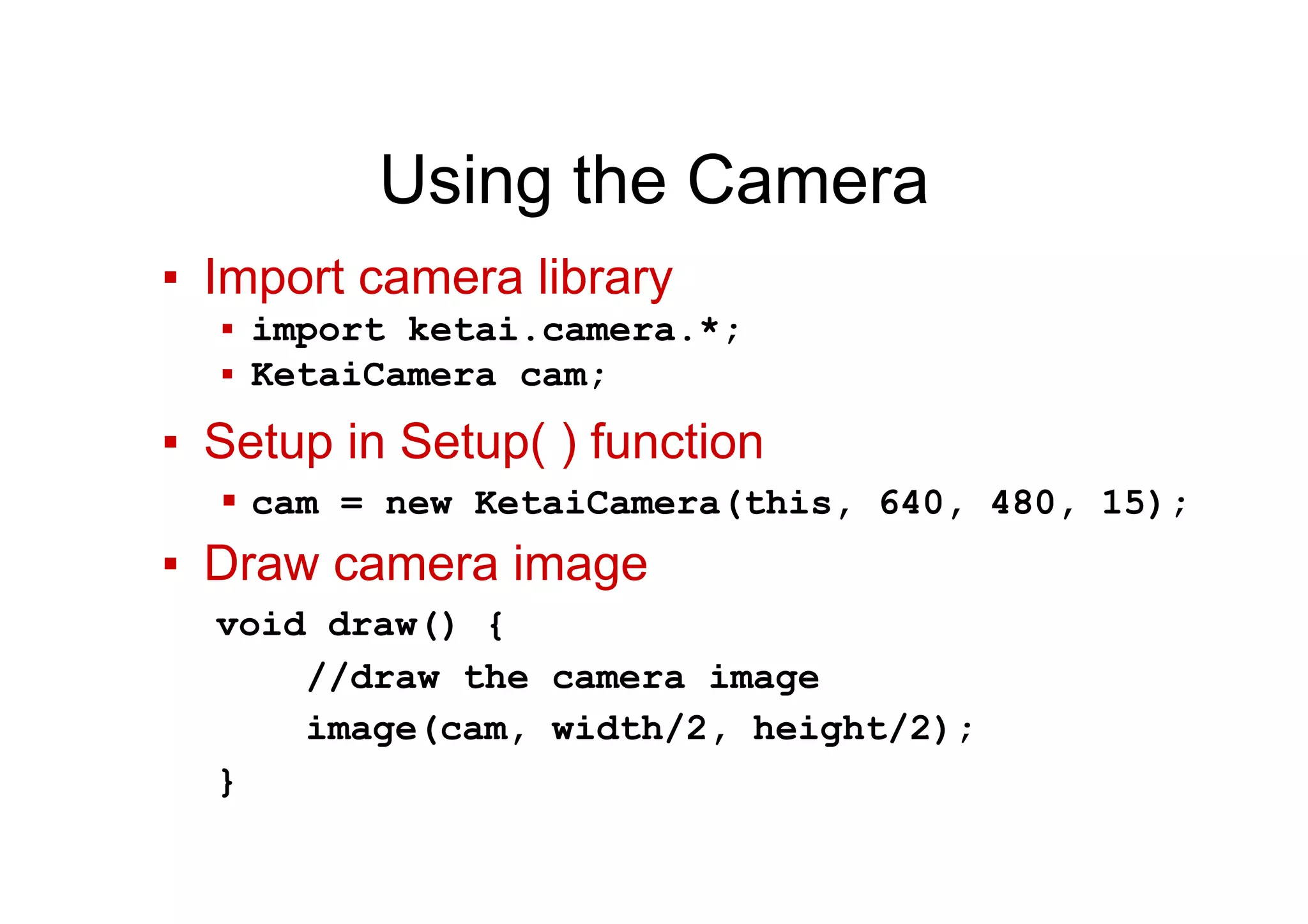

139. Using the Camera
▪ Import camera library
▪ import ketai.camera.*;
▪ KetaiCamera cam;
▪ Setup in Setup( ) function
▪ cam = new KetaiCamera(this, 640, 480, 15);
▪ Draw camera image
void draw() {
//draw the camera image
image(cam, width/2, height/2);
}

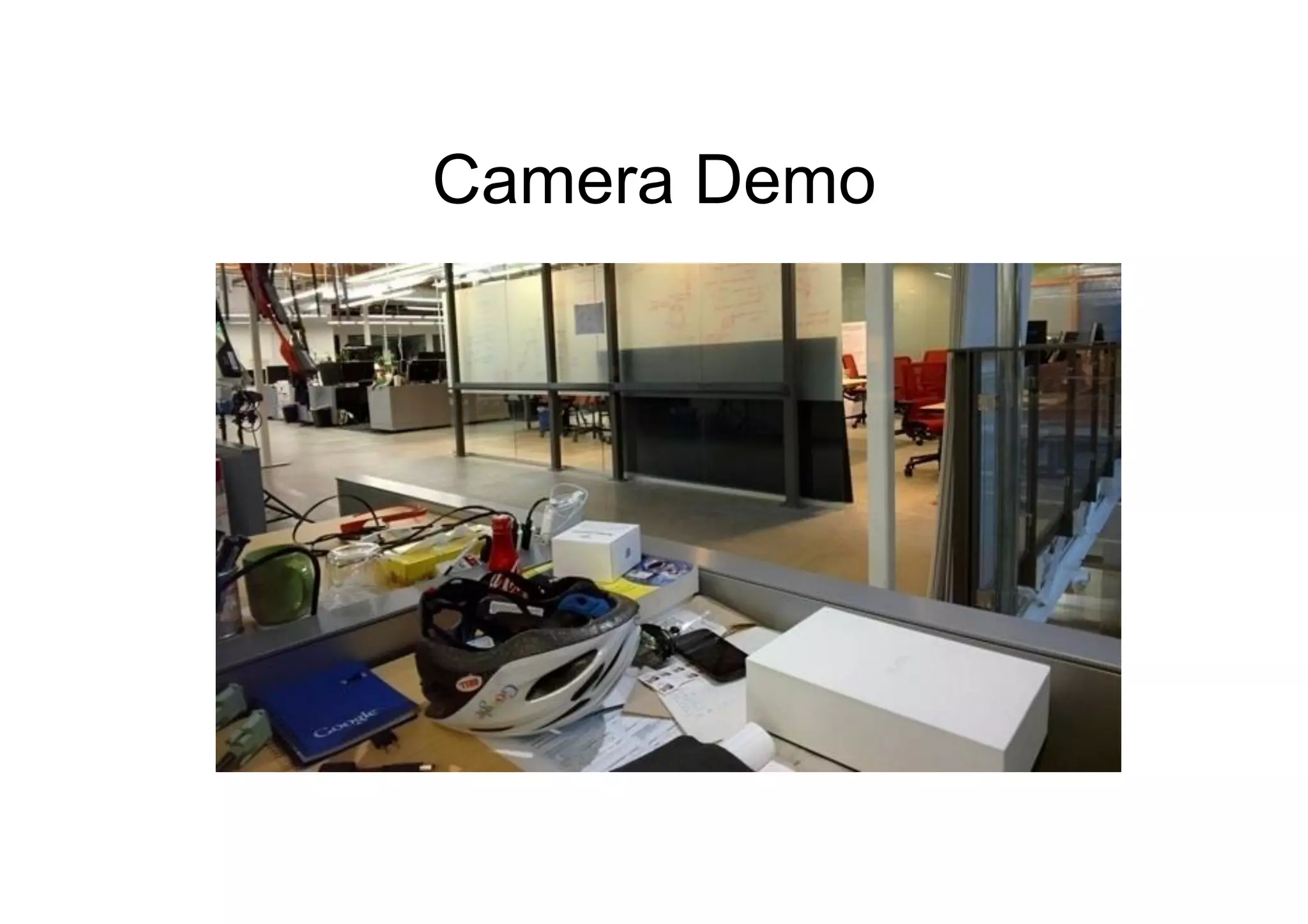

140. Camera Demo

141. WearScript
▪ JavaScript development for Glass
▪ http://www.wearscript.com/en/
▪ Script directory
▪ http://weariverse.com/

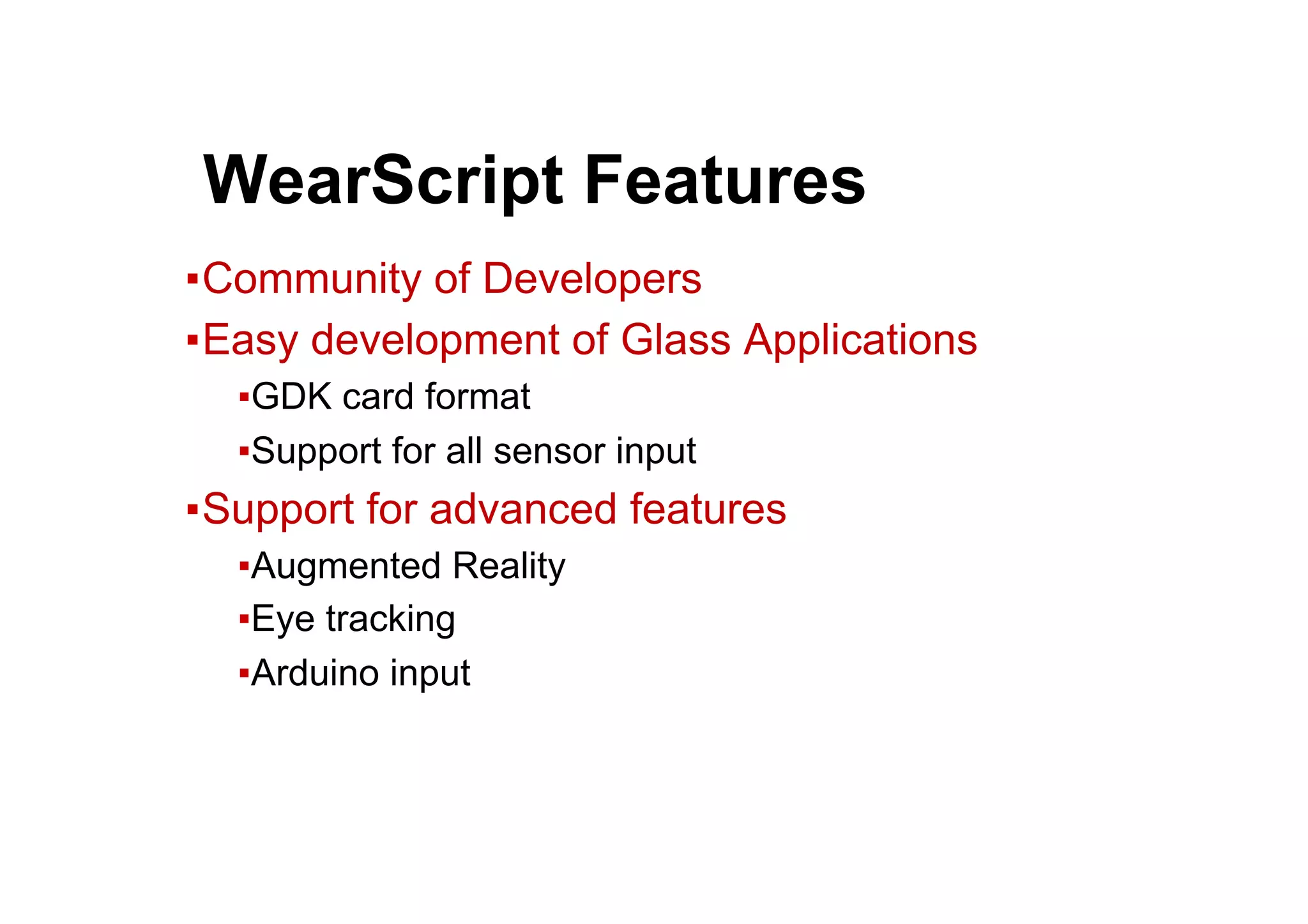

142. ● WearScript Features
▪ Community of Developers
▪ Easy development of Glass Applications
▪ GDK card format
▪ Support for all sensor input
▪ Support for advanced features
▪ Augmented Reality
▪ Eye tracking
▪ Arduino input

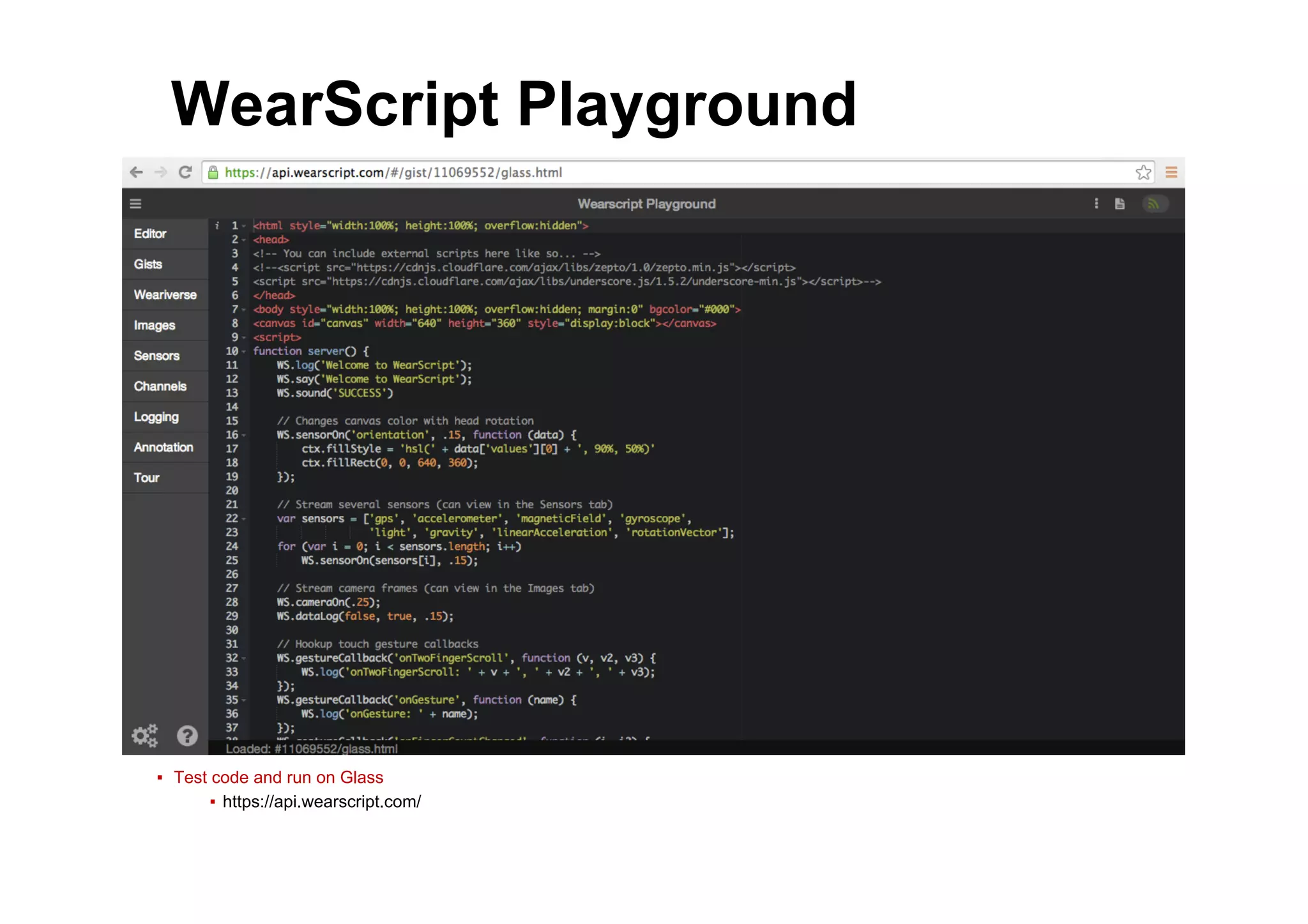

143. ● WearScript Playground
▪ Test code and run on Glass
▪ https://api.wearscript.com/

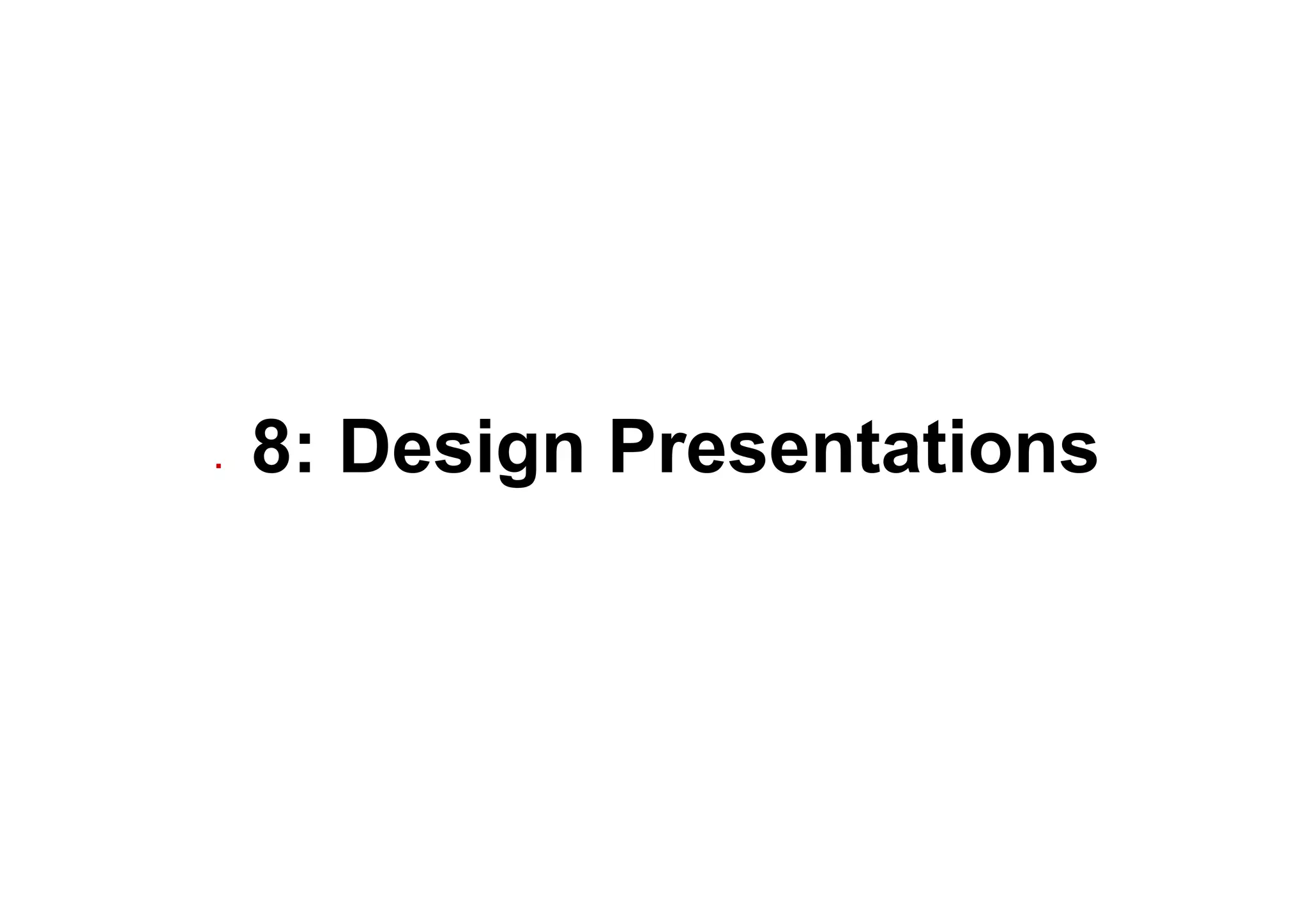

144. ▪ 8: Design Presentations

145. ▪ 9: Research Directions

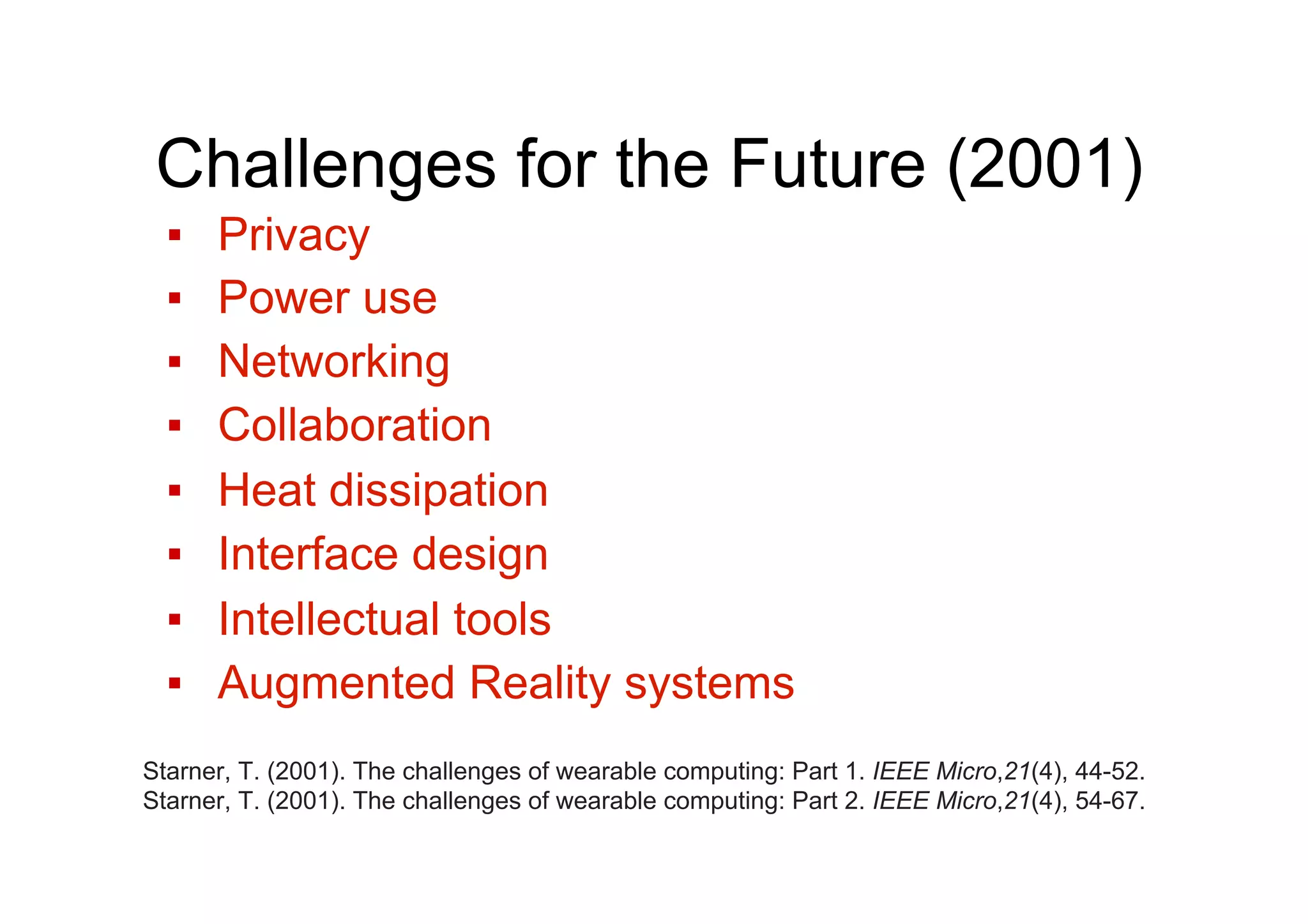

146. Challenges for the Future (2001)
▪ Privacy
▪ Power use
▪ Networking
▪ Collaboration
▪ Heat dissipation
▪ Interface design
▪ Intellectual tools
▪ Augmented Reality systems
Starner, T. (2001). The challenges of wearable computing: Part 1. IEEE Micro,21(4), 44-52.
Starner, T. (2001). The challenges of wearable computing: Part 2. IEEE Micro,21(4), 54-67.

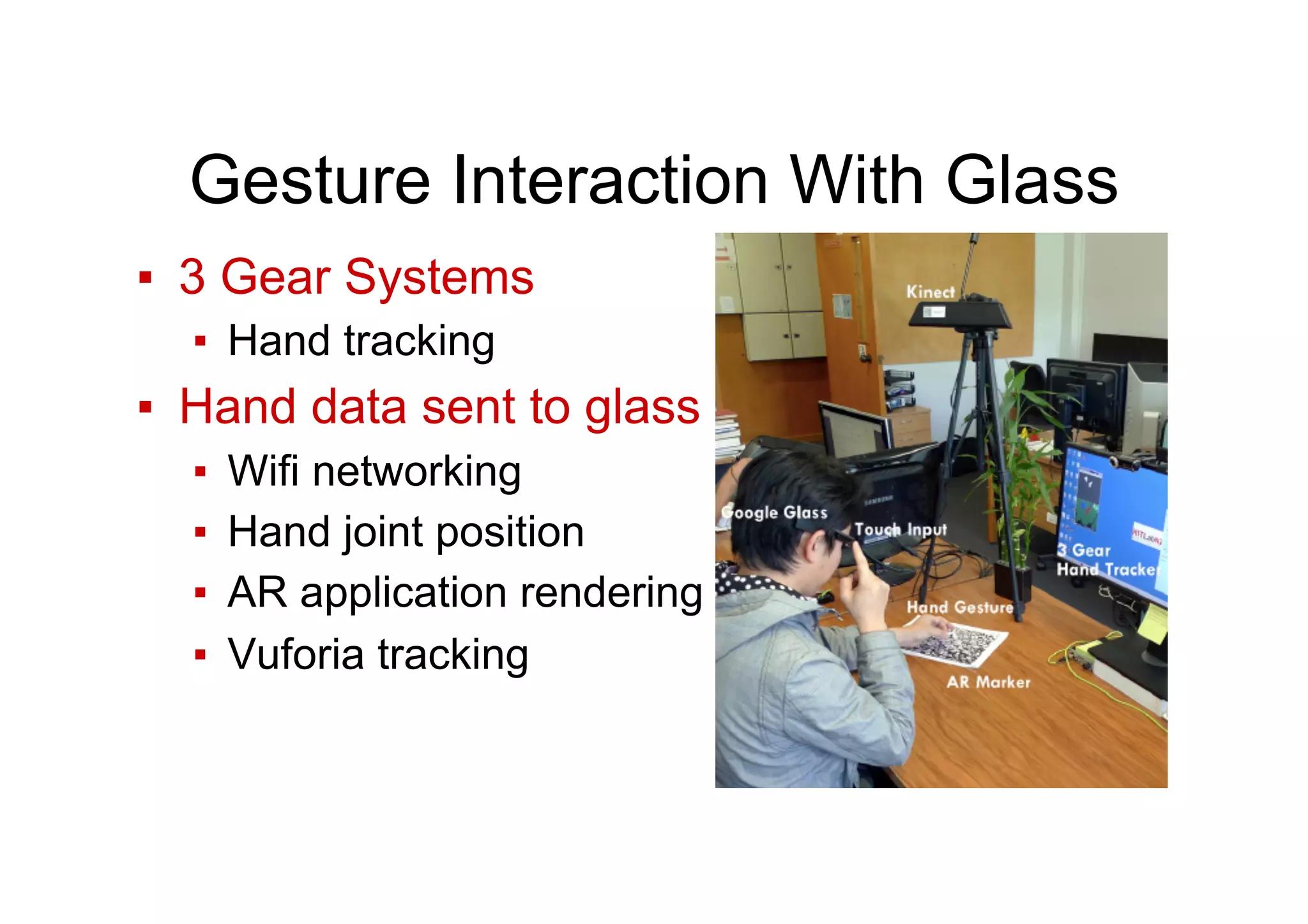

147. Gesture Interaction With Glass
▪ 3 Gear Systems
▪ Hand tracking
▪ Hand data sent to glass
▪ Wifi networking
▪ Hand joint position
▪ AR application rendering
▪ Vuforia tracking

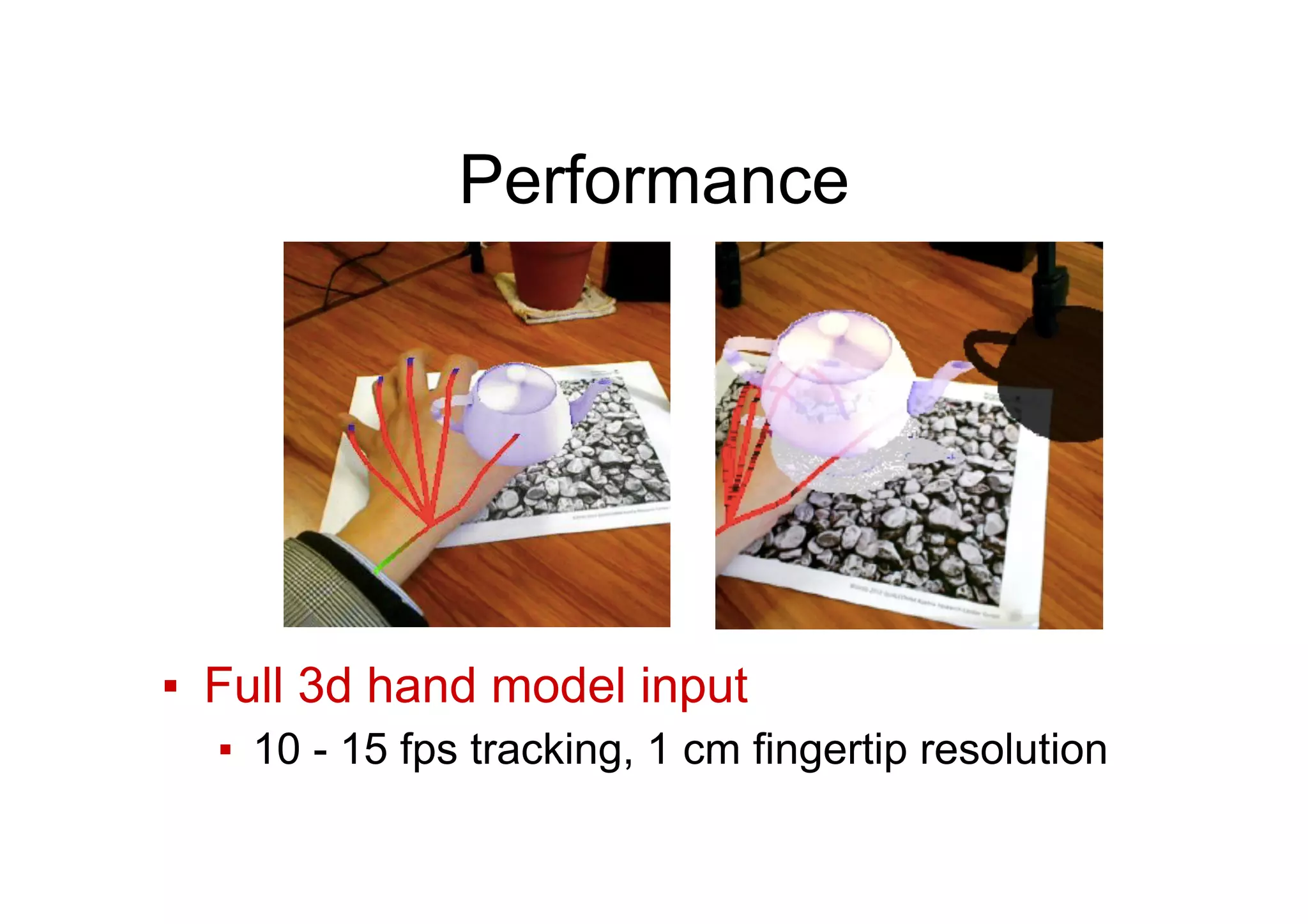

148. Performance
▪ Full 3d hand model input
▪ 10 - 15 fps tracking, 1 cm fingertip resolution

149. ● Meta Gesture Interaction
▪ Depth sensor + Stereo see-through
▪ https://www.spaceglasses.com/

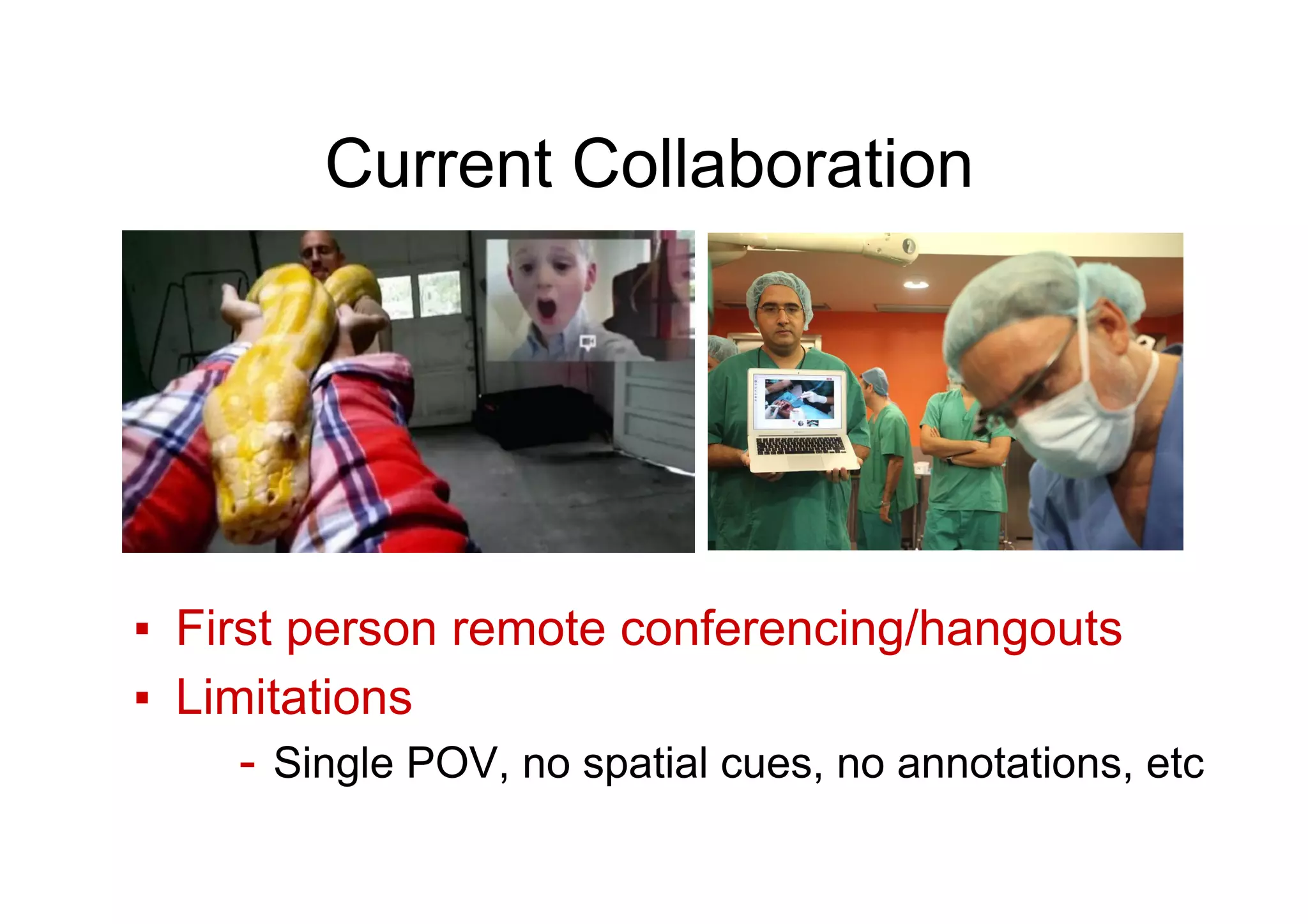

150. Current Collaboration
▪ First person remote conferencing/hangouts
▪ Limitations
- Single POV, no spatial cues, no annotations, etc

151. Sharing Space: Social Panoramas
▪ Capture and share social spaces in real time
▪ Enable remote people to feel like they’re with you

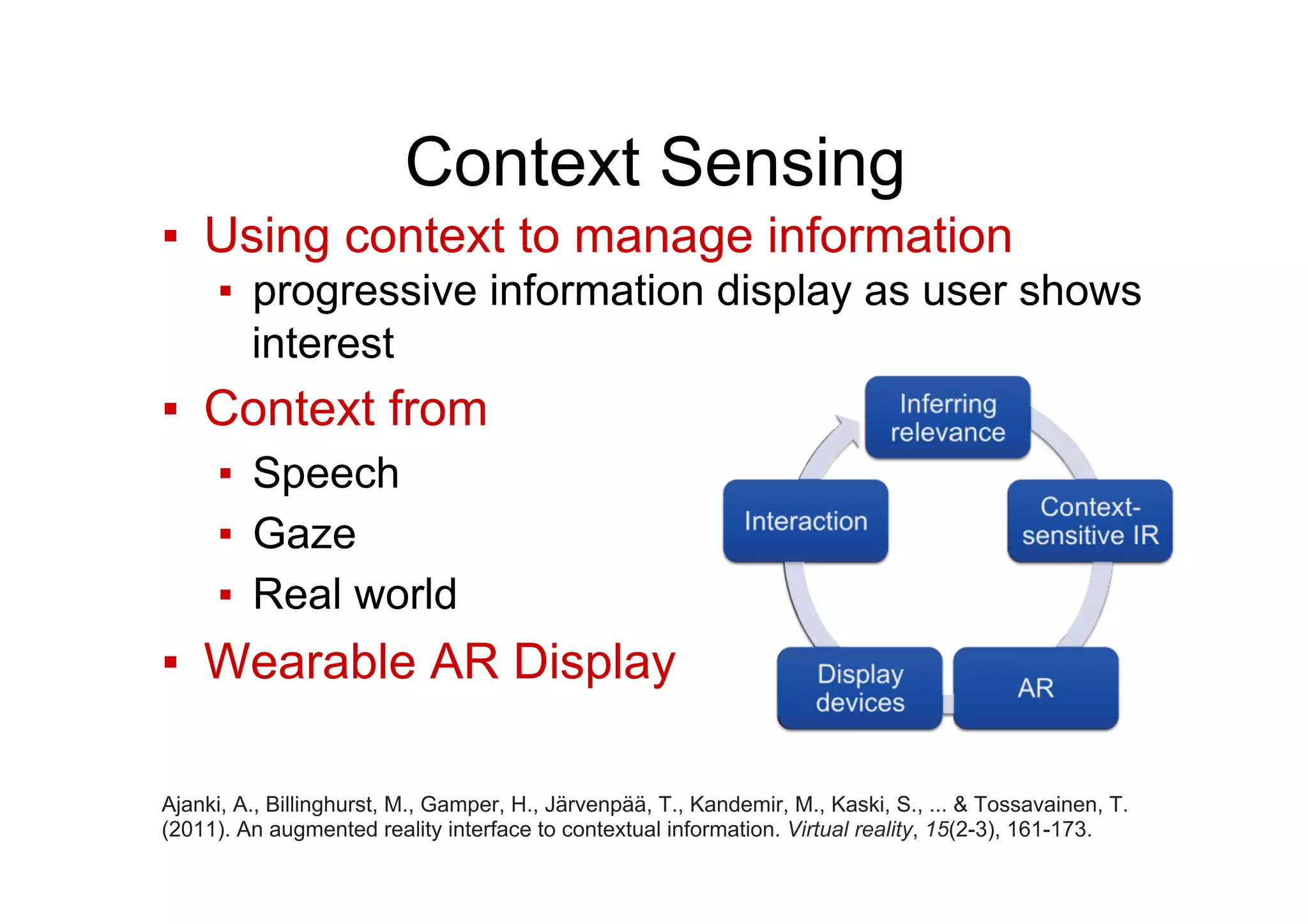

152. Context Sensing
▪ Using context to manage information
▪ progressive information display as user shows
interest
▪ Context from
▪ Speech
▪ Gaze
▪ Real world
▪ Wearable AR Display
Ajanki, A., Billinghurst, M., Gamper, H., Järvenpää, T., Kandemir, M., Kaski, S., ... & Tossavainen, T.
(2011). An augmented reality interface to contextual information. Virtual reality, 15(2-3), 161-173.

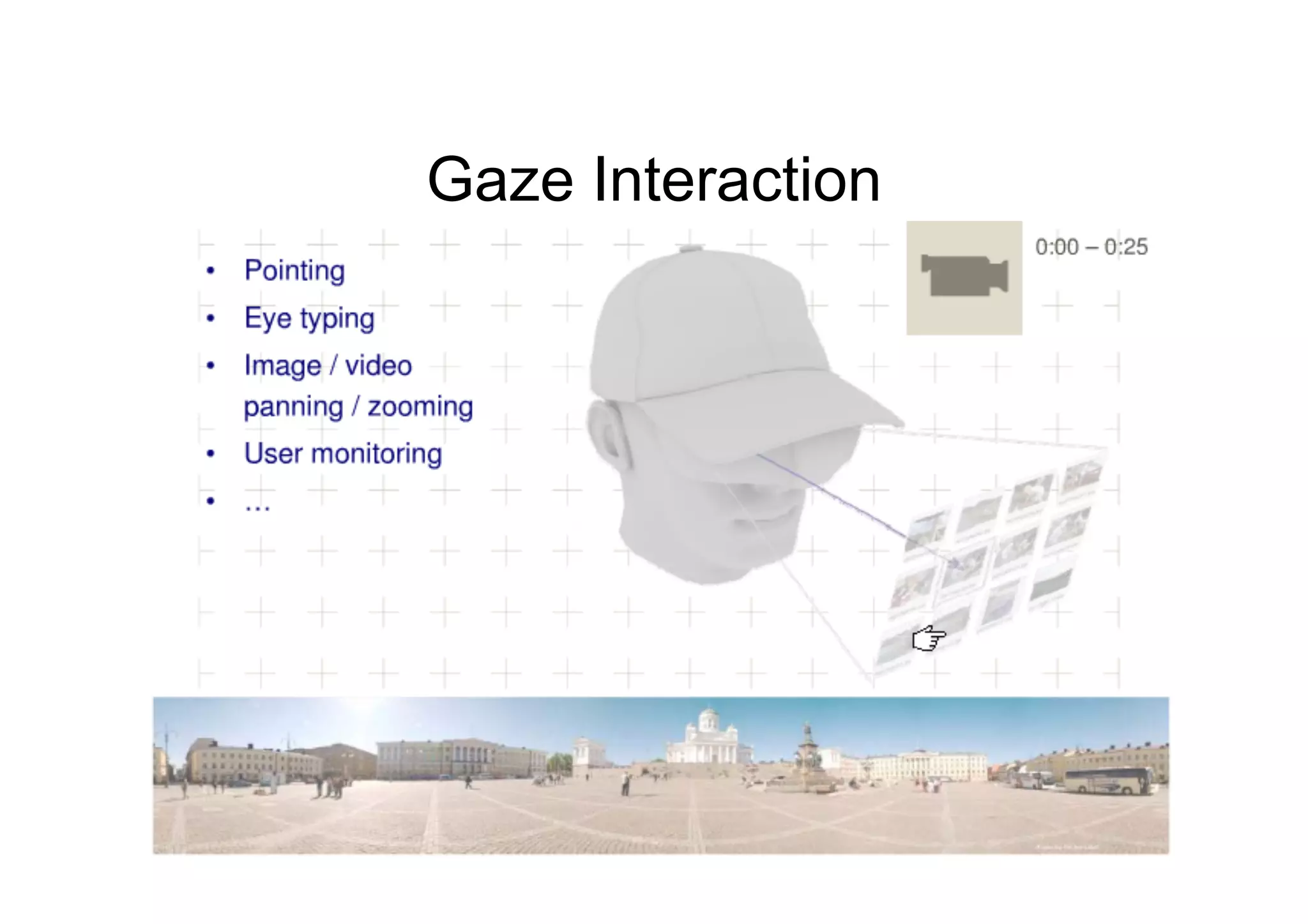

155. Gaze Interaction

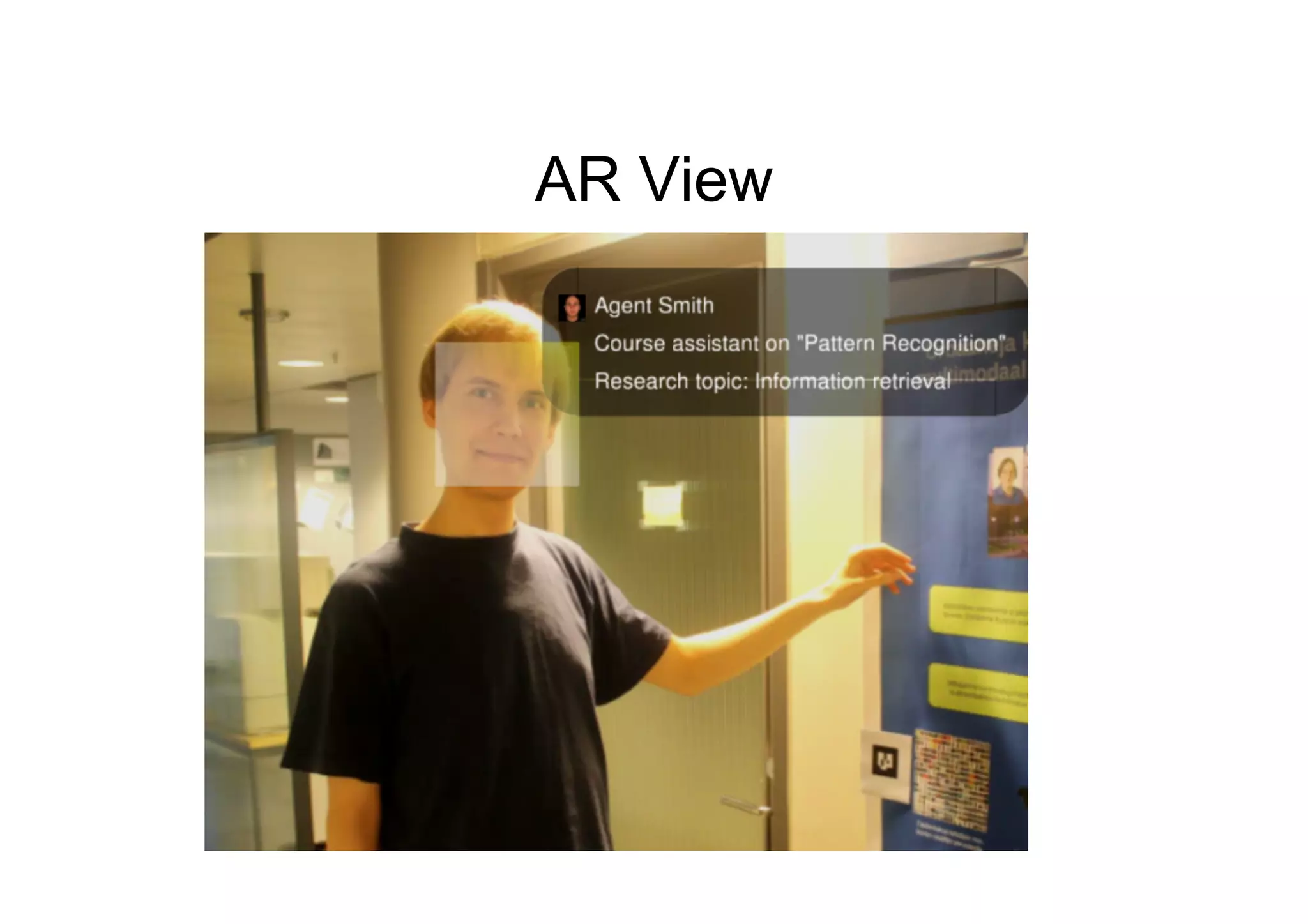

156. AR View

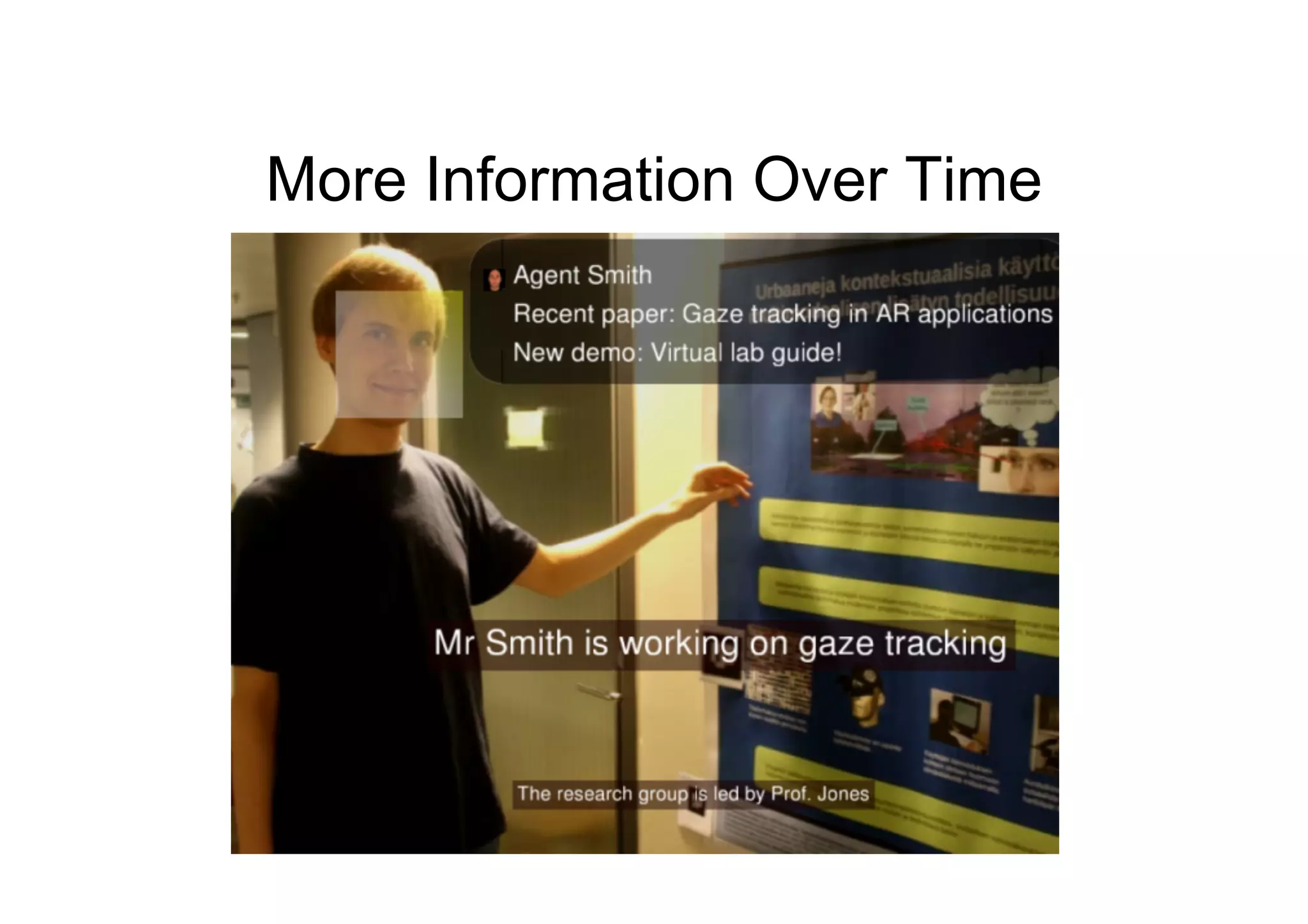

157. More Information Over Time

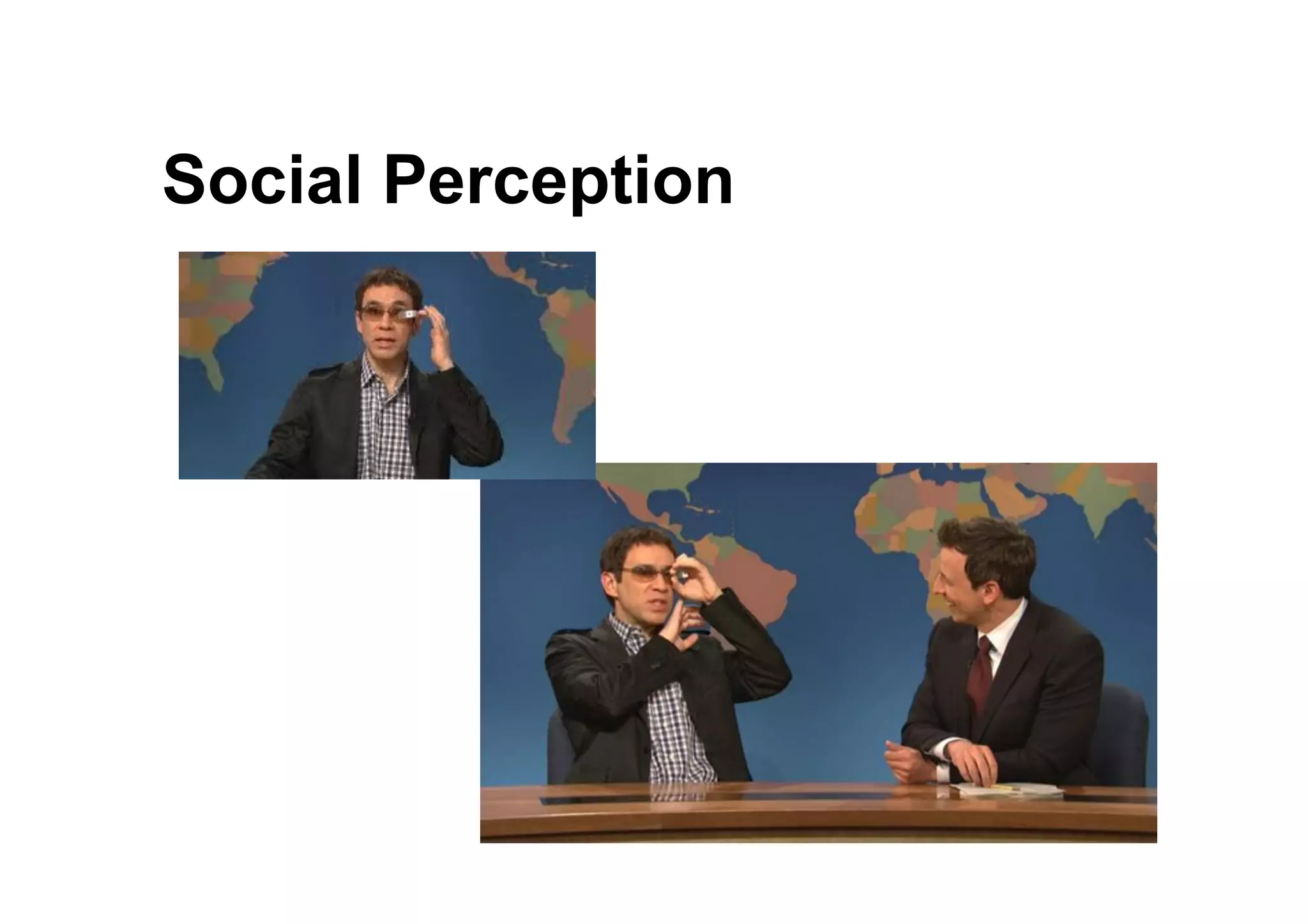

158. Social Perception

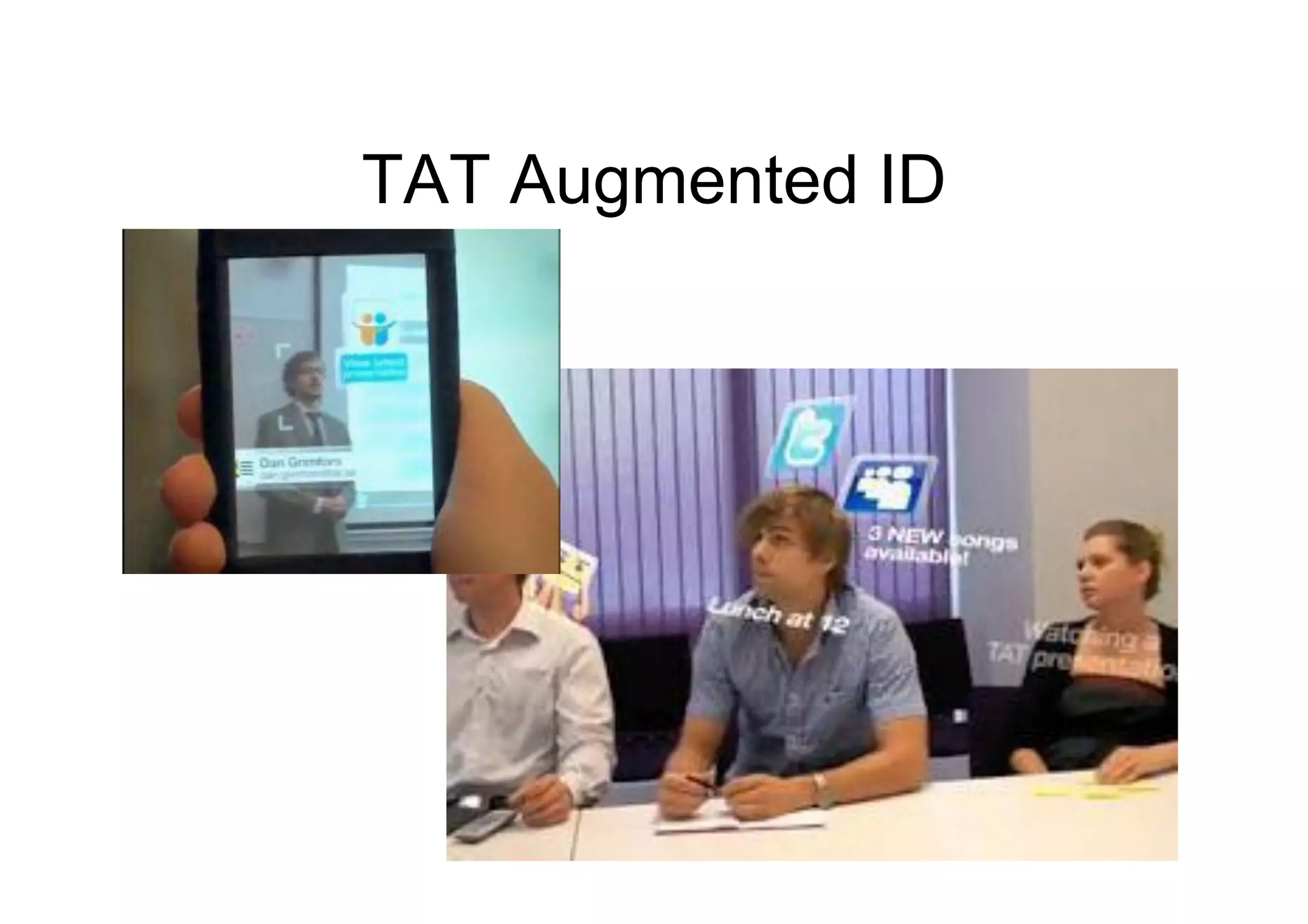

159. TAT Augmented ID

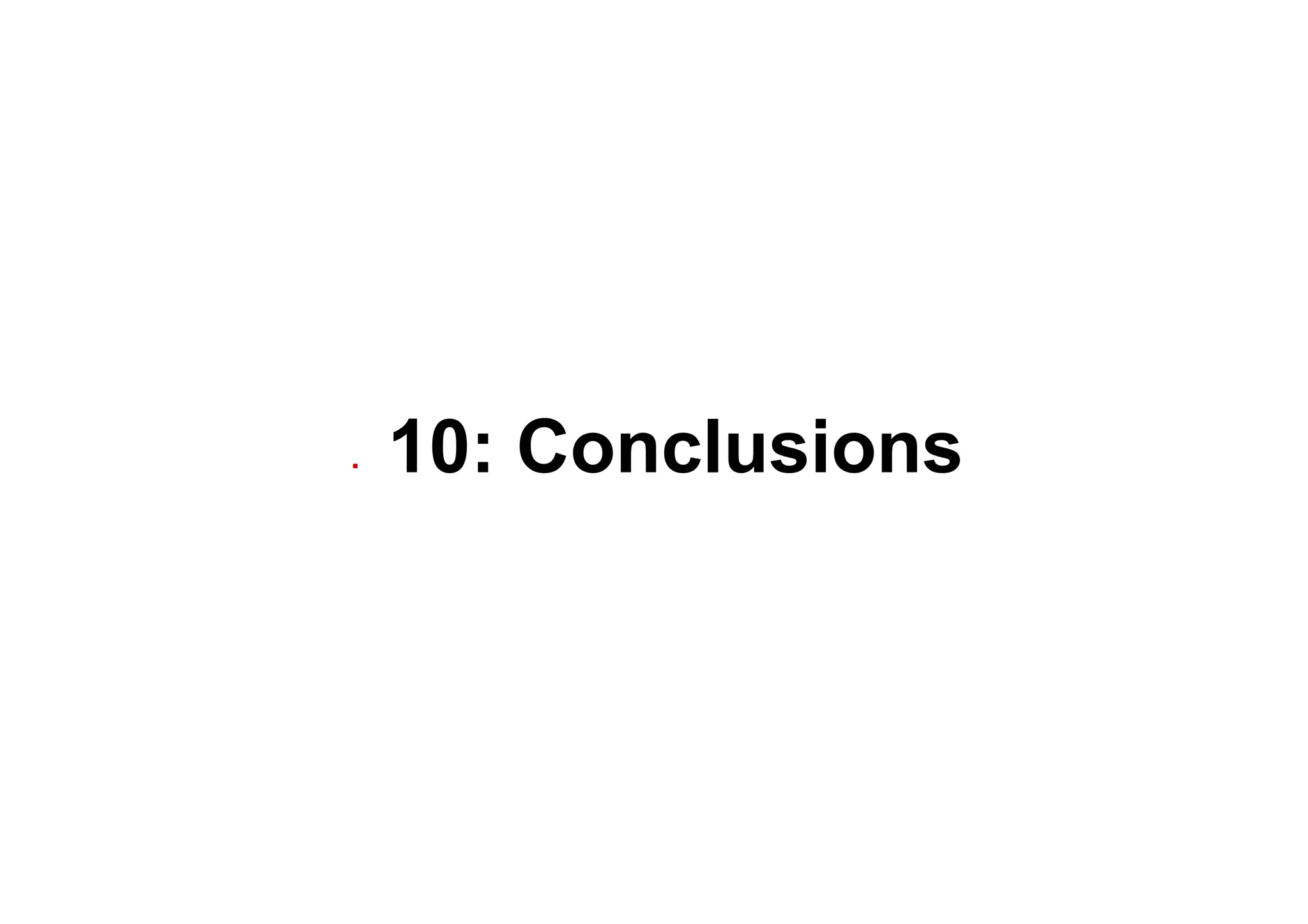

162. ▪ 10: Conclusions

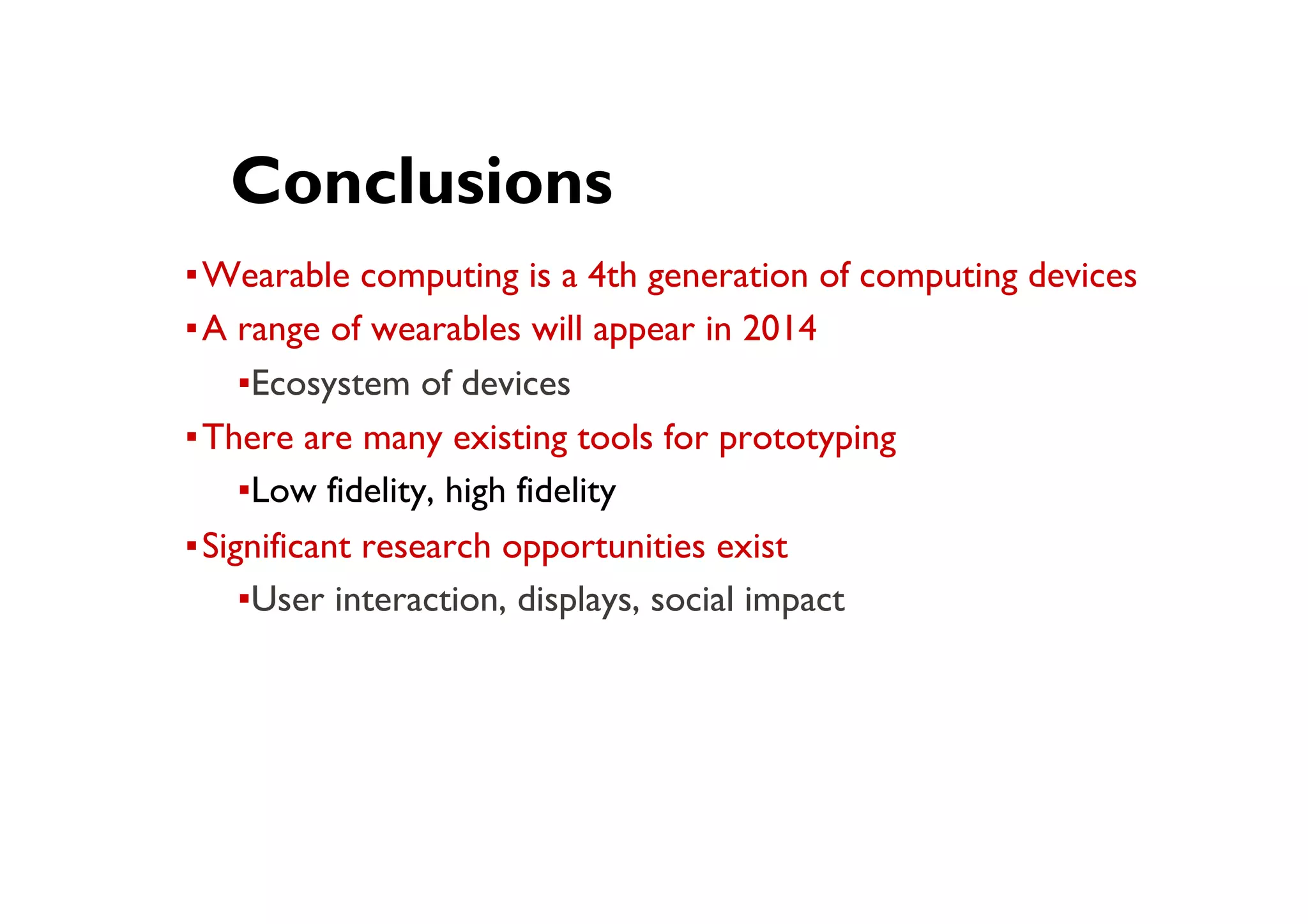

163. ● Conclusions
▪ Wearable computing is a 4th generation of computing devices
▪ A range of wearables will appear in 2014
▪ Ecosystem of devices
▪ There are many existing tools for prototyping
▪ Low fidelity, high fidelity
▪ Significant research opportunities exist
▪ User interaction, displays, social impact

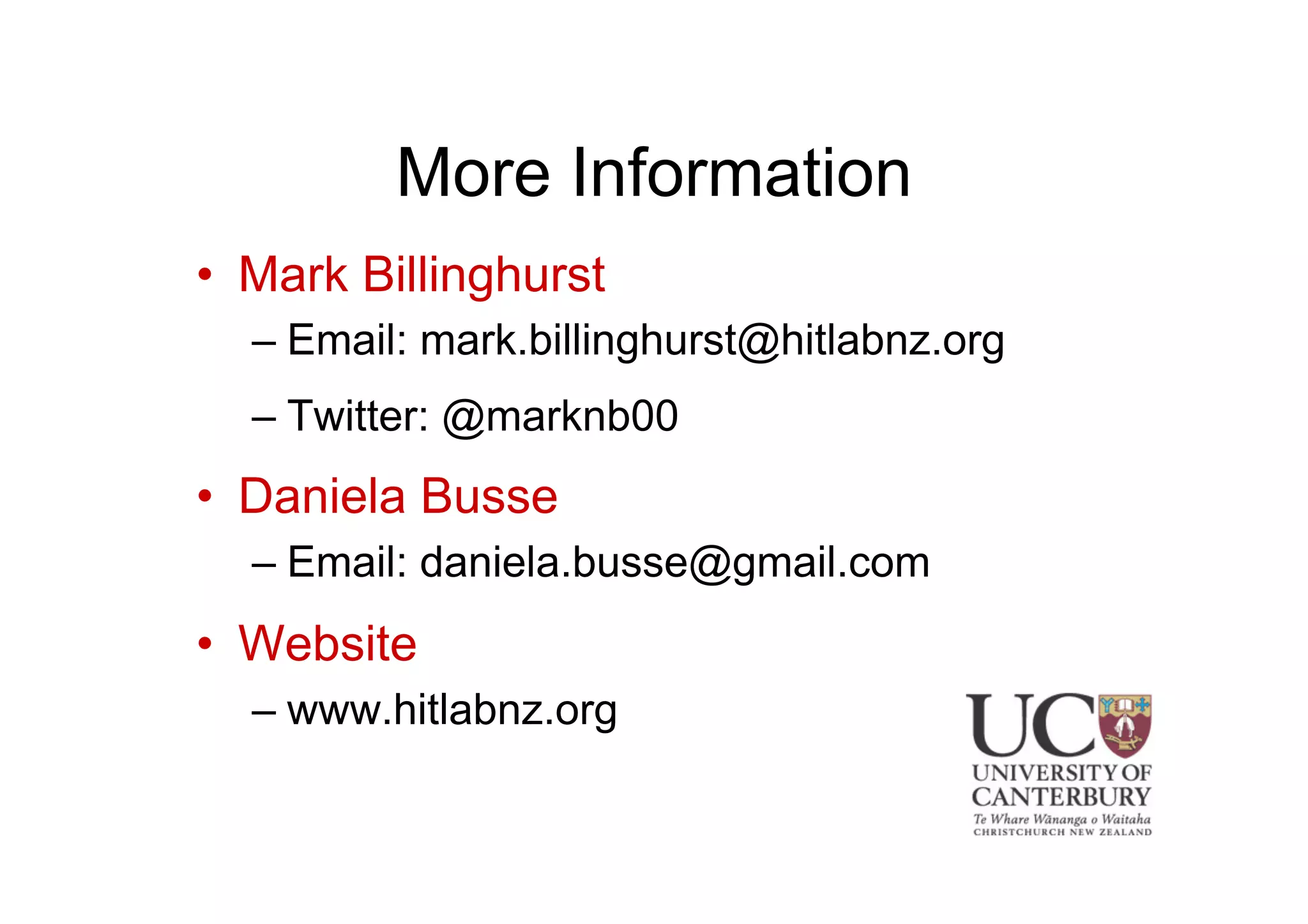

164. More Information
• Mark Billinghurst
– Email: mark.billinghurst@hitlabnz.org
– Twitter: @marknb00
• Daniela Busse
– Email: daniela.busse@gmail.com
• Website
– www.hitlabnz.org

165. ▪ 11: Resources

166. Glass Developer Resources
▪ Main Developer Website
▪ https://developers.google.com/glass/
▪ Glass Apps Developer Site
▪ http://glass-apps.org/glass-developer
▪ Google Design Guidelines Site
▪ https://developers.google.com/glass/design/
index?utm_source=tuicool
▪ Google Glass Emulator
▪ http://glass-apps.org/google-glass-emulator

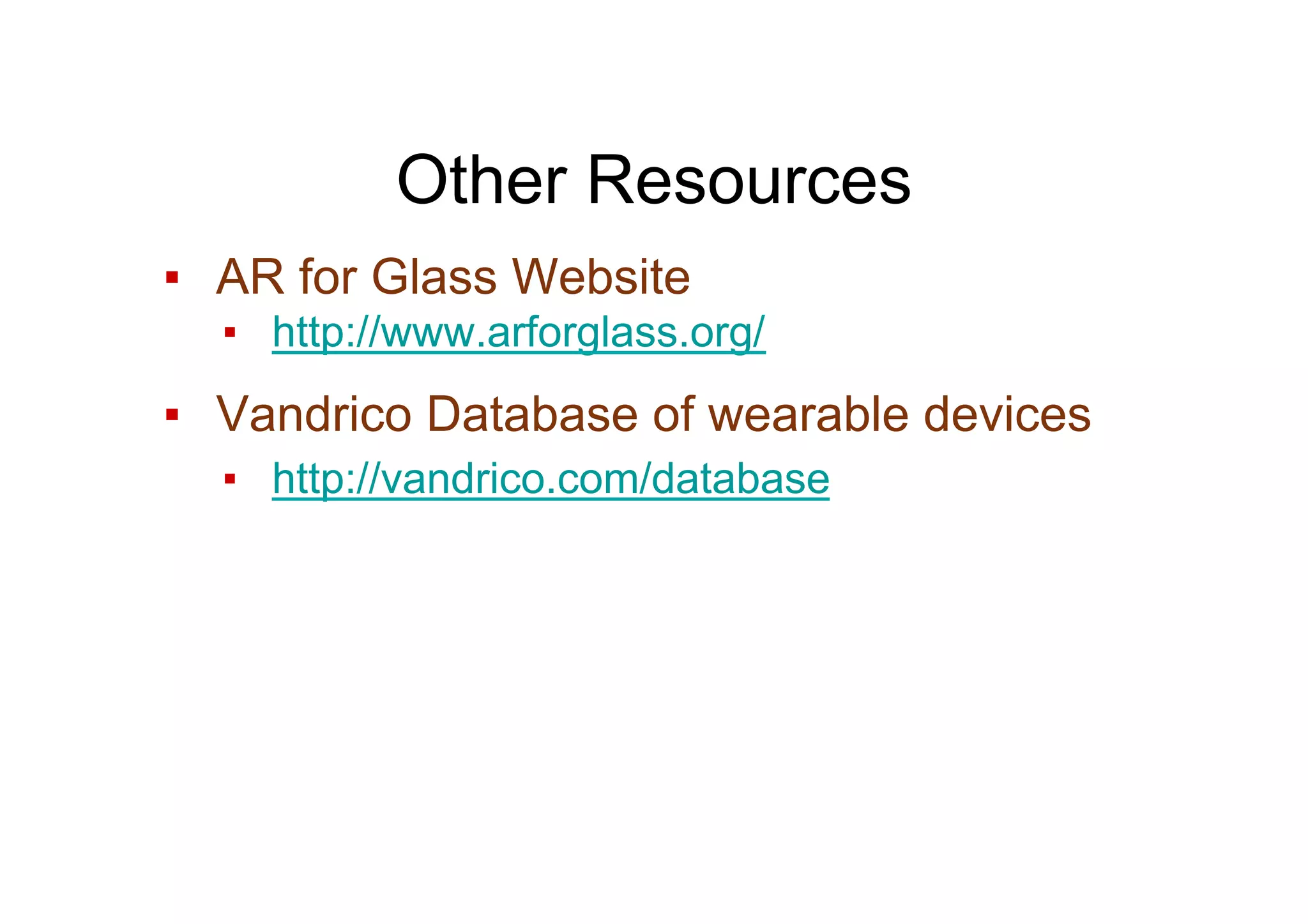

167. Other Resources
▪ AR for Glass Website
▪ http://www.arforglass.org/
▪ Vandrico Database of wearable devices
▪ http://vandrico.com/database

168. ● Glass UI Design Guidelines
▪ More guidelines
▪ https://developers.google.com/glass/design/index

169. Books
▪ Programming Google Glass
▪ Eric Redmond
▪ Rapid Android
Development: Build Rich,
Sensor-Based Applications
with Processing
▪ Daniel Sauter

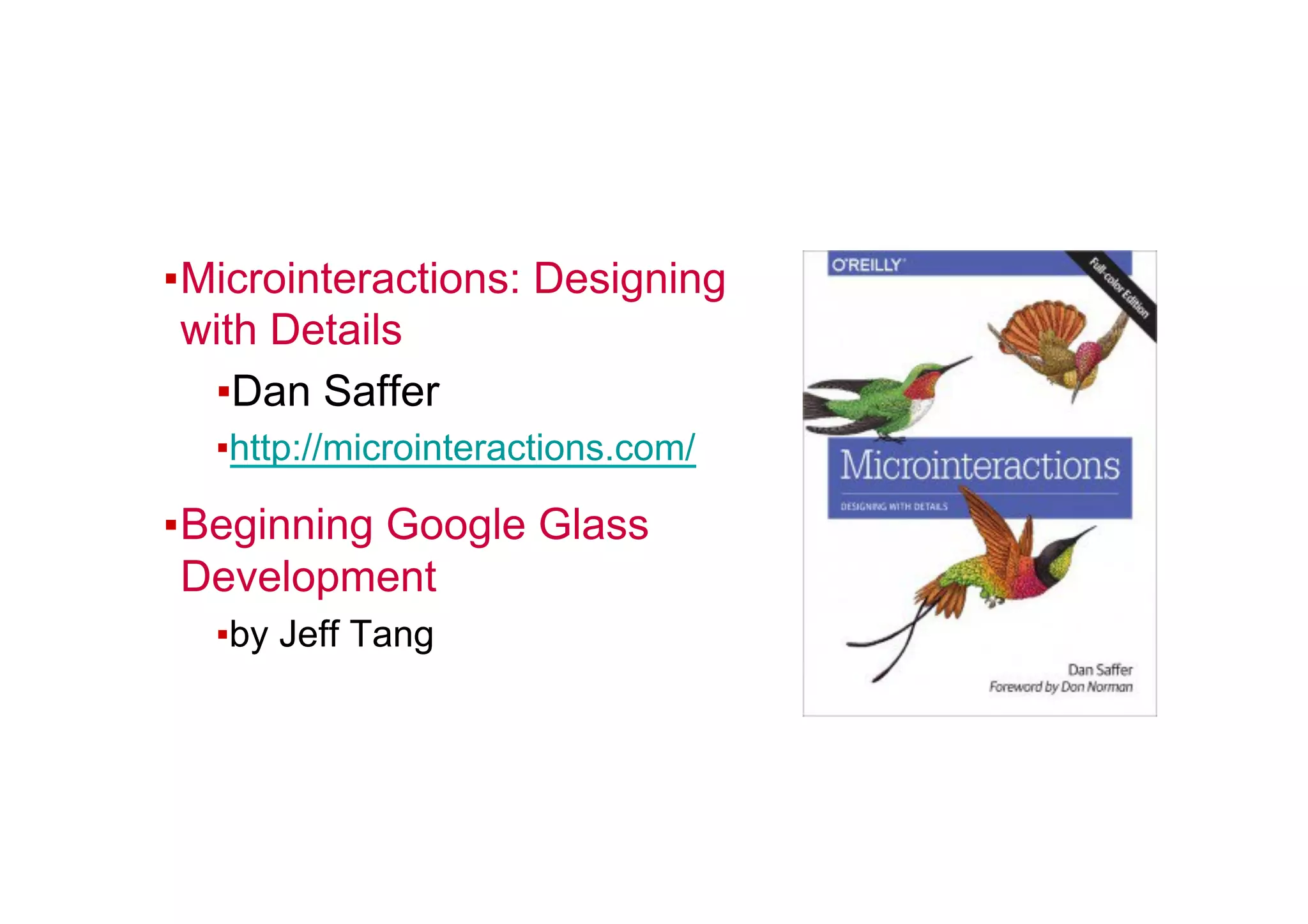

170. ▪ Microinteractions: Designing
with Details
▪ Dan Saffer
▪ http://microinteractions.com/
▪ Beginning Google Glass
Development
▪ by Jeff Tang
