This document outlines the basic principles of user-centered design (UCD). It discusses how UCD prioritizes users by putting them at the center of design decisions through iterative testing and research. The goal is to optimize the user experience. Key aspects of UCD include discovering user needs through research, defining concepts based on personas, designing prototypes, and evaluating designs through usability testing to identify problems and continually improve the design.

1. Principles of
interface design
BASIC PRINCIPLES OF
INTERFACE
DESIGN
http://afflatus.me/wp-content/uploads/2015/03/Digital_Menu-by-Cosmin-Capitanu.jpg

2. USER CENTERED DESIGN

3. User Centered Design is an iterative
methodology that puts the user at the
center of all design decisions
The ultimate goal of UCD is to optimize a user's
experience of a system, product, or process.
The philosophy is to “fail fast” to uncover problem areas earlier
using UCD methods instead of discovering the problems late in
development stages of the project.
What is UCD?

4. What is UCD?

5. Engeneering-driven design
History: designed what was
feasible and appropriate for
the system not what users
want and what was pleasure
for them.

6. UCD PRINCIPLES

7. UCD BENEFITS

8. ITERATIVE DESIGN
It is virtually impossible to design a
user interface that has no usability
problems from the start
Iteration = to step through one design version after
another. Conduct a usability evaluation (testing) for each
version and revise the next one based on findings.

9. ITERATIVE DESIGN
DesignDiscover Define

10. ITERATIVE DESIGN
Repeat as necessary
Design Prototype
Test & Evaluate

11. Design without analysis won’t solve
the right problem.
DISCOVER / RESEARCH
You need to know WHY they want to fire a gun.

12. Get know the users
User perspectives:
1. Needs and wants
2. Goals, motivations, triggers
3. Obstacles and limitations
4. Tasks, activities and behaviors
Understanding the perspective a user brings to a system
enables us to design that system to meet their needs.
DISCOVER / RESEARCH
5. Geography and language
6. Environment and gear
7. Work life and experience

13. How to do it?
(Qualitative methods)
• User interviews
• Focus Groups

14. Ethnographic
studiesRecommended Movie:
Kitchen stories

15. Learn from
NUMBERS
How to do it? (Quantitative)
Questionars / surveys
• Analytics
• Clickheat

16. Questionars

17. ANALYTICS
Google Analytics

18. CLICKHEAT

19. DEFINE / CONCEPT

20. clean up the messcreate personas
DEFINE / CONCEPT

21. Fictional characters based
on real user research
WHY CREATE THEM?
• We’re not always designing for ourselves
• Personas help us to prioritize the design consideration
• Build understanding and empathy - common shared
understanding of the user group
DEFINE / PERSONAS

25. Name and Intent
Goals
• From the user’s perspective (Wants and Needs)
Behaviors and attitudes
• How does this person make purchases,
approach the Internet, etc.
• What does this person think about your type of
services, product etc.
Scenarios
• Detailed situations where your site could help
PERSONA Ingredients

26. DESIGN!

27. DESIGN!
Sketch a lot of different ideas, FAST!
Then throw MOST of them away.
Look at the big picture first - people see the forest before the trees.

28. WIREFRAME
It states plainly and clearly what should go where.
It’s just like an architectural blueprint of a house.

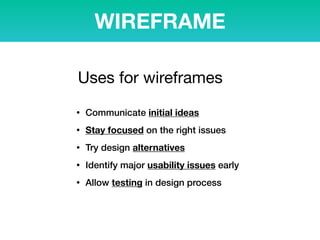

29. WIREFRAME
• Communicate initial ideas
• Stay focused on the right issues
• Try design alternatives
• Identify major usability issues early
• Allow testing in design process
Uses for wireframes

30. PROTOTYPE
Any time during design cycle
Early stages
• Fewer resources spent
• People are open to change
Late stages
• Require substantial work & resources
• People are more resistant to change
When to do prototyping

31. PROTOTYPE Evolution
LOW-FI MED-FI HI-FI

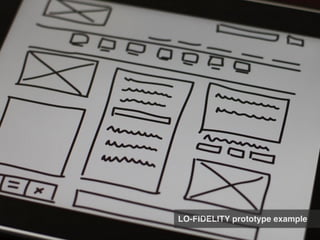

32. LO-FIDELITY prototype example

33. LO-FIDELITY prototype example

34. MID-FIDELITY prototype example

35. Prototyping using a software

37. Prototyping TOOLS
BALSAMIQ
http://balsamiq.com/
PROTOSHARE
http://www.protoshare.com
AXURE
http://www.axure.com
UX PIN
http://www.uxpin.com/
PROTO
http://www.proto.io
INVISION
http://www.invisonapp.com

38. Design Studio
A way to generate many ideas and
solutions to a problem quickly through
sketching, iteration, and critique.

39. Design Studio
Collaborative and iterative workshop
Place for active discussion
over the design

40. Design Studio
Why it works?
• Combination of solitary and group work
• Strict critique rules
• Ideas come from everyone and anywhere
• Brings the whole team together
• Speeds design
• Creates a shared understanding & ownership

41. Design Studio Flow
Round #1
Round #2
Round #3

42. Design Phase
Everyone
can DRAW
Don’t be afraid and shy!
SKETCHING shouldn’t be
perfect or pretty!

43. Critique Phase
Critique Phase:
YOU PRESENT,
team members critique
Green for Good ideas
Red for Bad ideas
? for “not sure” - needs
to be tested
TEAM CAN ASK: Why?
For whom? How? What?

44. PAPER Prototypes

45. TESTING Setup

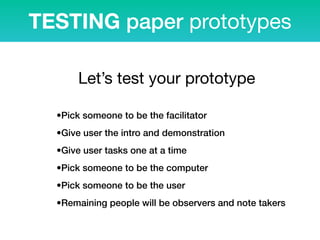

46. TESTING paper prototypes
•Pick someone to be the facilitator
•Give user the intro and demonstration
•Give user tasks one at a time
•Pick someone to be the computer
•Pick someone to be the user
•Remaining people will be observers and note takers
Let’s test your prototype

47. TESTING paper prototypes
•Stays neutral and quiet during the testing session
•Keeps neutral body language (poker face)
•No grunting, sighing, etc.
•No explaining
•Have the same person play computer in every session
The “computer”

48. https://www.youtube.com/watch?v=GrV2SZuRPv0
TESTING paper prototypes

49. https://www.youtube.com/watch?v=zJqiZrnJSuw
GAME PAPER PROTOTYPE

50. EVALUATE!
Make SURE the design WORKS
Evaluation is not about SUCCESS. It is about FAILURE.
Test EARLY and OFTEN!

51. USABILITY TESTING
is the technique that Lets you check whether the design works
for real users, diagnose problems and learn how to fix it.

52. STEP #1: Plan the test
• Sketch / Paper prototype
• HTML prototype
• Old design
• Competitor’s design
• Your own final website
EVERYTHING
What to test?

53. STEP #1: Plan the test
Recruit users
◦ Who is your target audience? - user profile
Why to test with real users?
Product managers, designer and developers are not typical users.

54. To identify a design's most important usability problems, testing
5 users is typically enough
STEP #1: Plan the test
How many users to test?

55. STEP #1: Plan the test
Tasks tips
1) Don’t use industry jargon
2) Ask specific questions to get specific answers
3) Ask about firsthand experiences
4) Define the timeline
You need to ask the right question in the right way.
You want results you can trust.

56. Prepare Environment
USABILITY LAB EXAMPLE

57. Usability LAB
USABILITY LAB EXAMPLE

58. Usability LAB
SIMPLE USABILITY LAB
EXAMPLE

59. Usability LAB
OBSERVERS ROOM

60. Usability LAB
the environment should be
as real as it is possible

61. Encourage participant to speak aloud
Don't rescue participants when they get stuck
Don't react negatively to mistakes
Avoid your body language and voice reactions
STEP #2: Run the test
Don’t make the user feel
guilty or dumb
Key properties of a usability professional: CURIOSITY & HUMILITY

62. Go through your notes and identify common problems
WRITE REPORT
• summarize your findings
• keep it simple
• focus just on fixing 2-3 things
STEP #3: Analyze findings

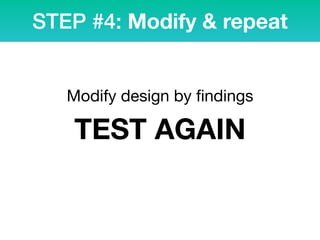

63. Modify design by findings
STEP #4: Modify & repeat
TEST AGAIN

64. Testing what’s obviously WRONG is a
WASTE of time and money.

65. Learn from FAILURE

66. More about Usability:
www.usability.gov
Design Patterns that work:
http://goodui.org
Free WebExpo conference speeches:
http://webexpo.cz/videa/en/
USEFUL LINKS
