The document discusses the importance of testing in machine learning (ML) and outlines the building blocks of an effective ML test suite. It emphasizes the challenges of non-determinism in ML processes and provides tips on ensuring reproducibility and managing variations in test results. Additionally, it highlights best practices for coding styles, automation with CI/CD, and the usage of ML pipelines to enhance experimentation and collaboration.

1. (Py)Testing the Limits of
Machine Learning
Rebecca Bilbro ⩓ Daniel Sollis ⩓ Patrick
Deziel

2. 01. Introduction
Why test ML?
02.
DIY Testing API
Building blocks of a good
ML test suite
03.
Non-Determinism
Keeping your head when
the models act up
04.
Experiment with Care
ML diagnostics for
experimental robustness
05.
Conclusion
Level up your ML game
with these testing tips &
tricks

3. Why test ML?
01

4. Do we
need to
test ML
code?
“Testing is for software,
not data science.”
“It’s a waste of time to
test experimental
research code.”
“We follow hypothesis-driven
development, not test-driven
development.”

5. Can we
test ML
code?
“Machine learning algorithms are non-deterministic,
so there’s no way to test them.”
“Our Jupyter notebooks
don’t support test runners.”
“Machine learning has too many
parameters to test them all.”

6. Bottom Line
If it’s going into a product,
it needs to be tested.

7. Building blocks
of a good ML
test suite
02

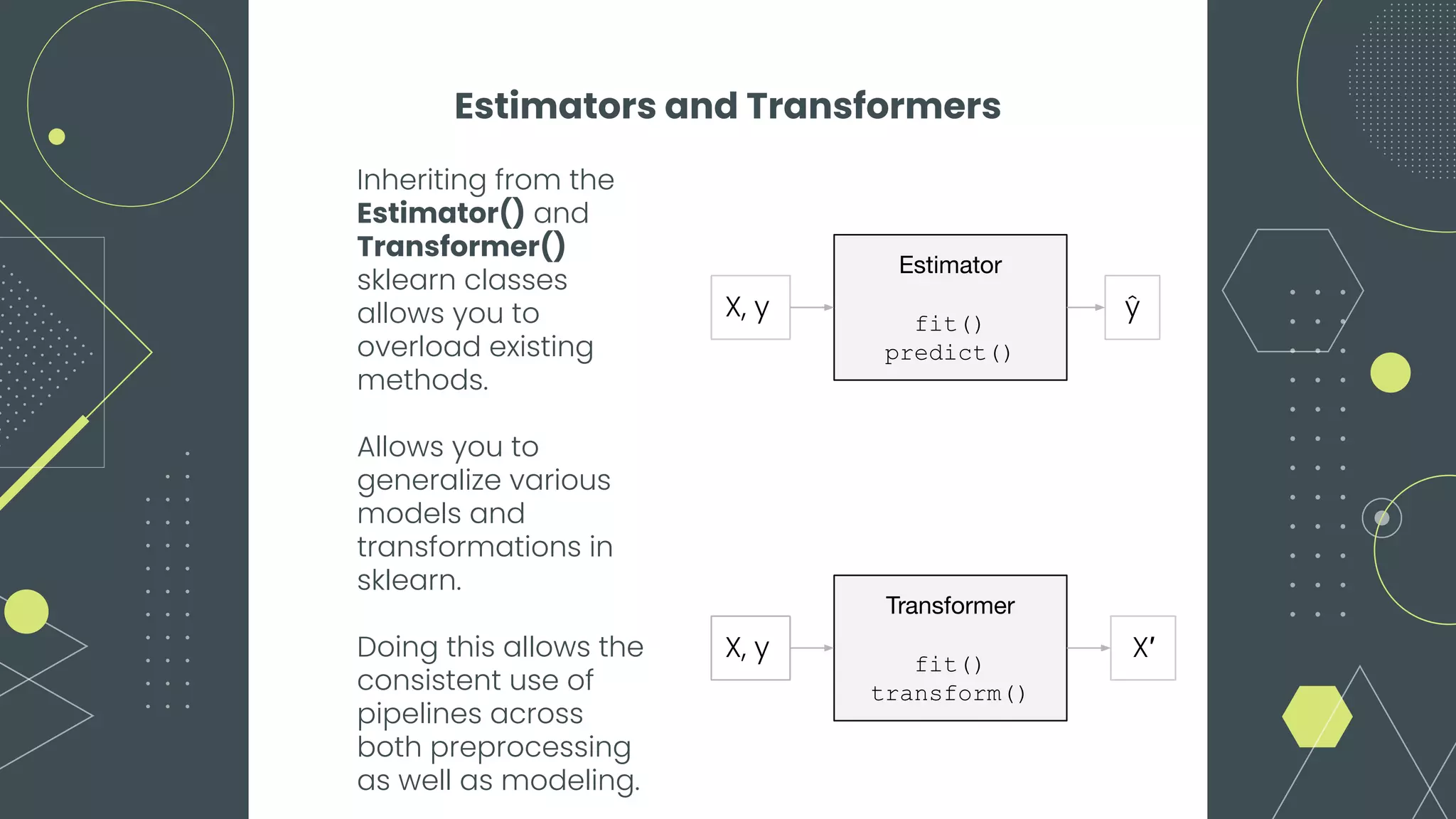

8. Estimators and Transformers
Inheriting from the
Estimator() and
Transformer()
sklearn classes
allows you to
overload existing
methods.
Allows you to
generalize various
models and
transformations in
sklearn.
Doing this allows the
consistent use of
pipelines across
both preprocessing
as well as modeling.
Transformer
fit()
transform()
Estimator
fit()
predict()
X, y
X, y
ŷ
X′

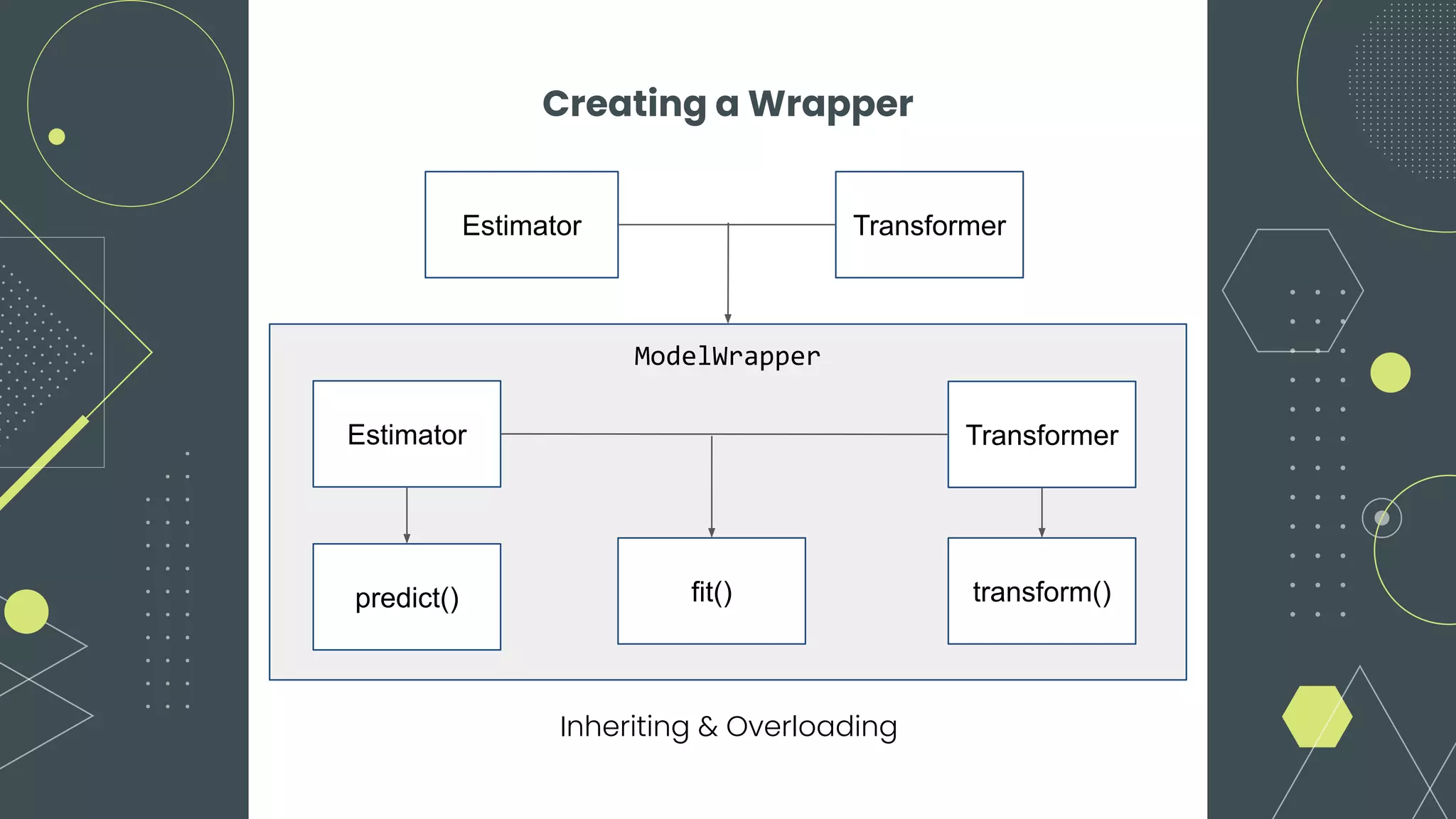

9. Creating a Wrapper
ModelWrapper
fit() transform()
predict()
Transformer
Estimator
Estimator Transformer
Inheriting & Overloading

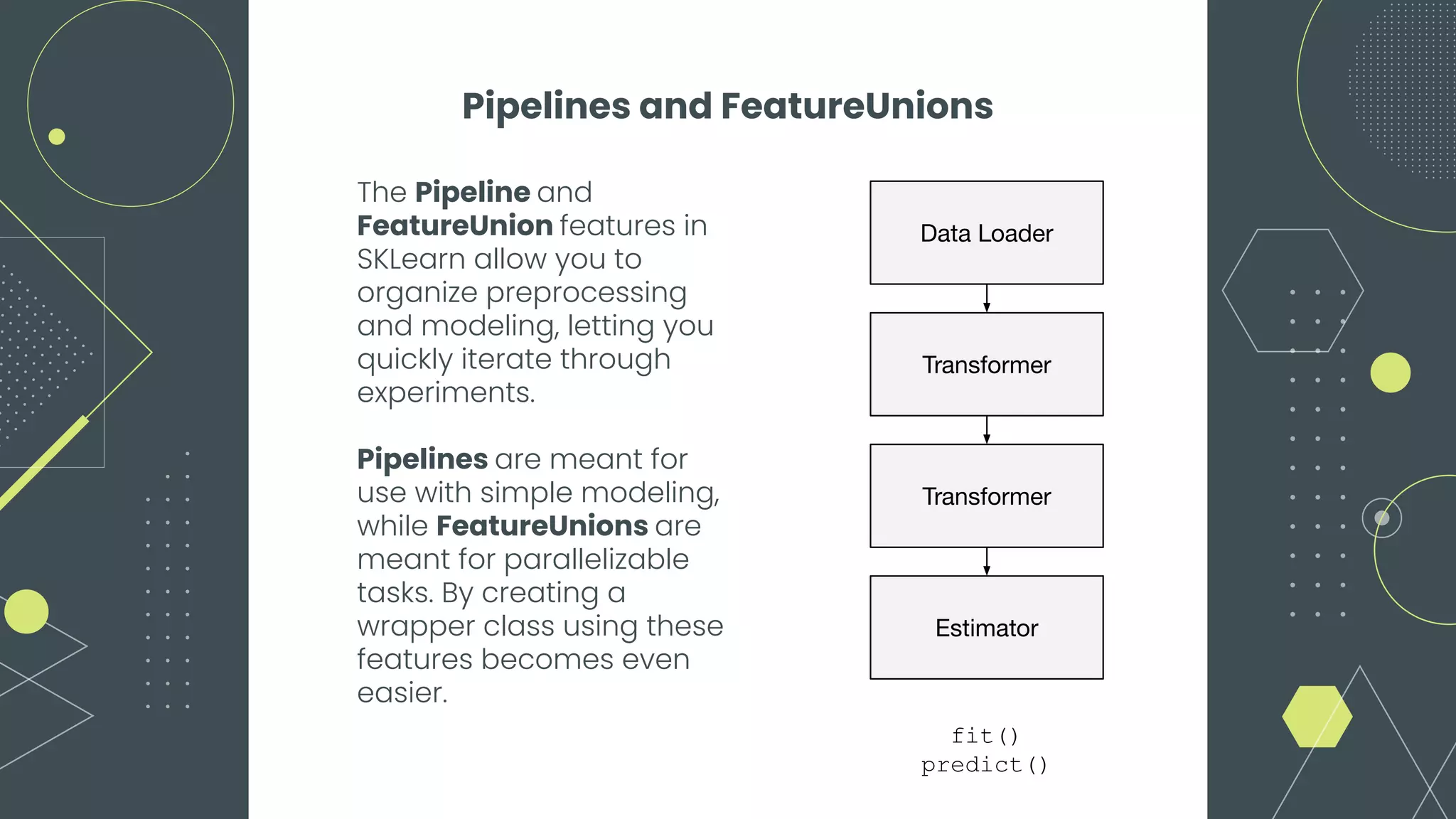

10. Pipelines and FeatureUnions
The Pipeline and
FeatureUnion features in
SKLearn allow you to
organize preprocessing
and modeling, letting you
quickly iterate through
experiments.
Pipelines are meant for
use with simple modeling,
while FeatureUnions are
meant for parallelizable
tasks. By creating a
wrapper class using these
features becomes even
easier.
Data Loader
Transformer
Transformer
Estimator
fit()
predict()

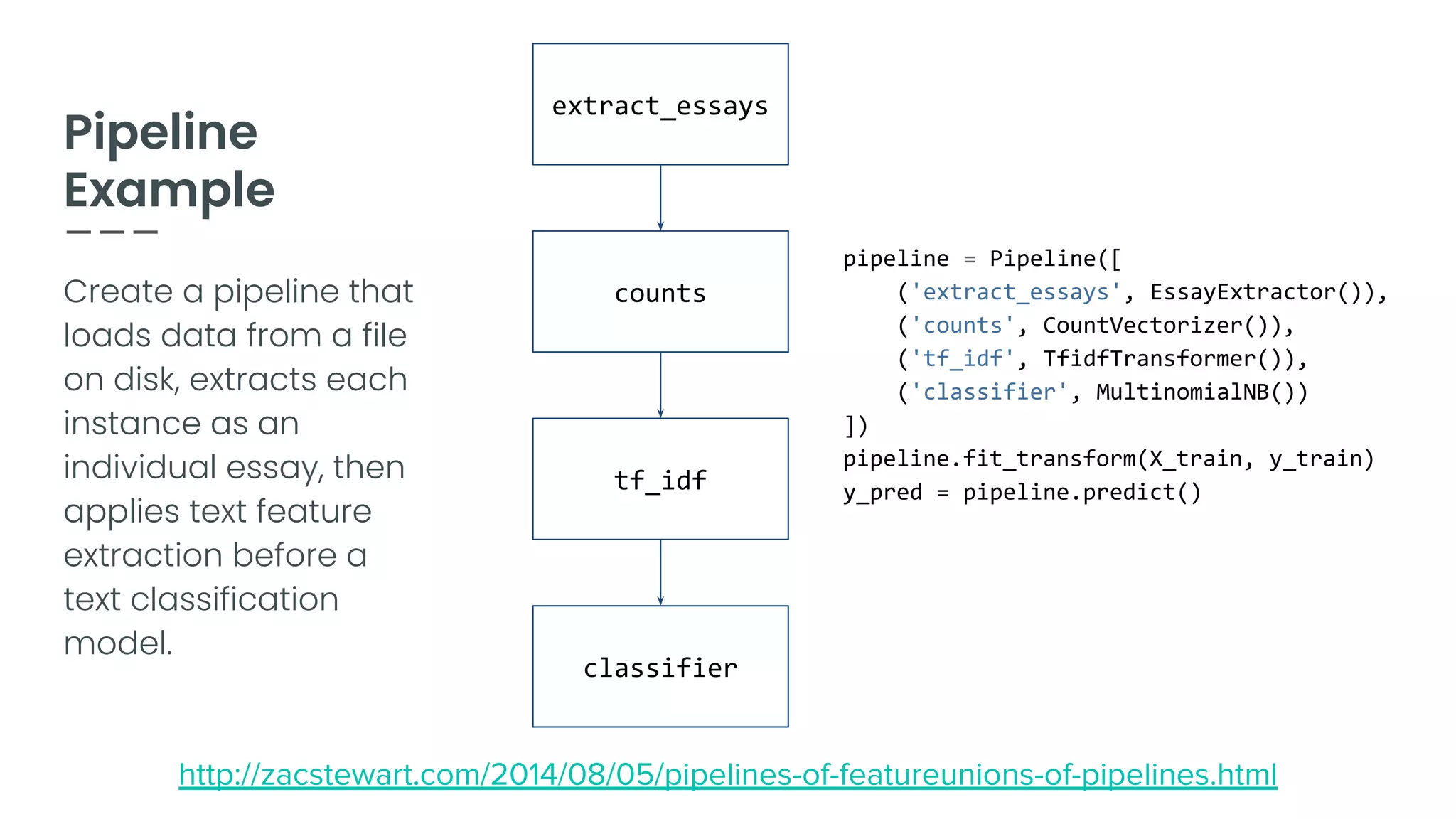

11. pipeline = Pipeline([
('extract_essays', EssayExtractor()),
('counts', CountVectorizer()),
('tf_idf', TfidfTransformer()),
('classifier', MultinomialNB())
])
pipeline.fit_transform(X_train, y_train)
y_pred = pipeline.predict()
Create a pipeline that
loads data from a file
on disk, extracts each
instance as an
individual essay, then
applies text feature
extraction before a
text classification
model.
Pipeline
Example
extract_essays
counts
tf_idf
classifier
http://zacstewart.com/2014/08/05/pipelines-of-featureunions-of-pipelines.html

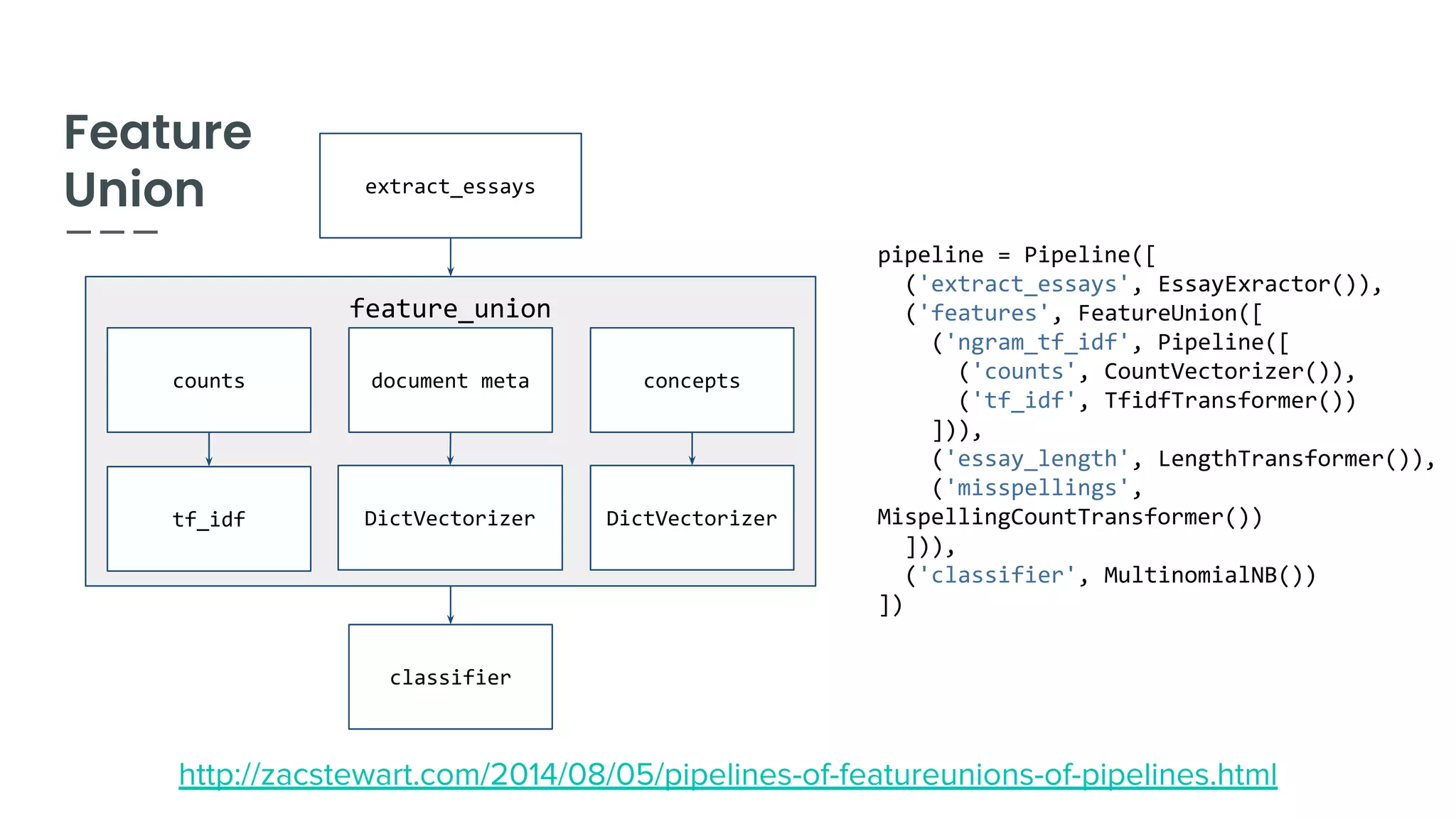

12. http://zacstewart.com/2014/08/05/pipelines-of-featureunions-of-pipelines.html
feature_union
extract_essays
counts
tf_idf
classifier
document meta concepts
DictVectorizer DictVectorizer
Feature
Union
pipeline = Pipeline([
('extract_essays', EssayExractor()),
('features', FeatureUnion([
('ngram_tf_idf', Pipeline([
('counts', CountVectorizer()),
('tf_idf', TfidfTransformer())
])),
('essay_length', LengthTransformer()),
('misspellings',
MispellingCountTransformer())
])),
('classifier', MultinomialNB())
])

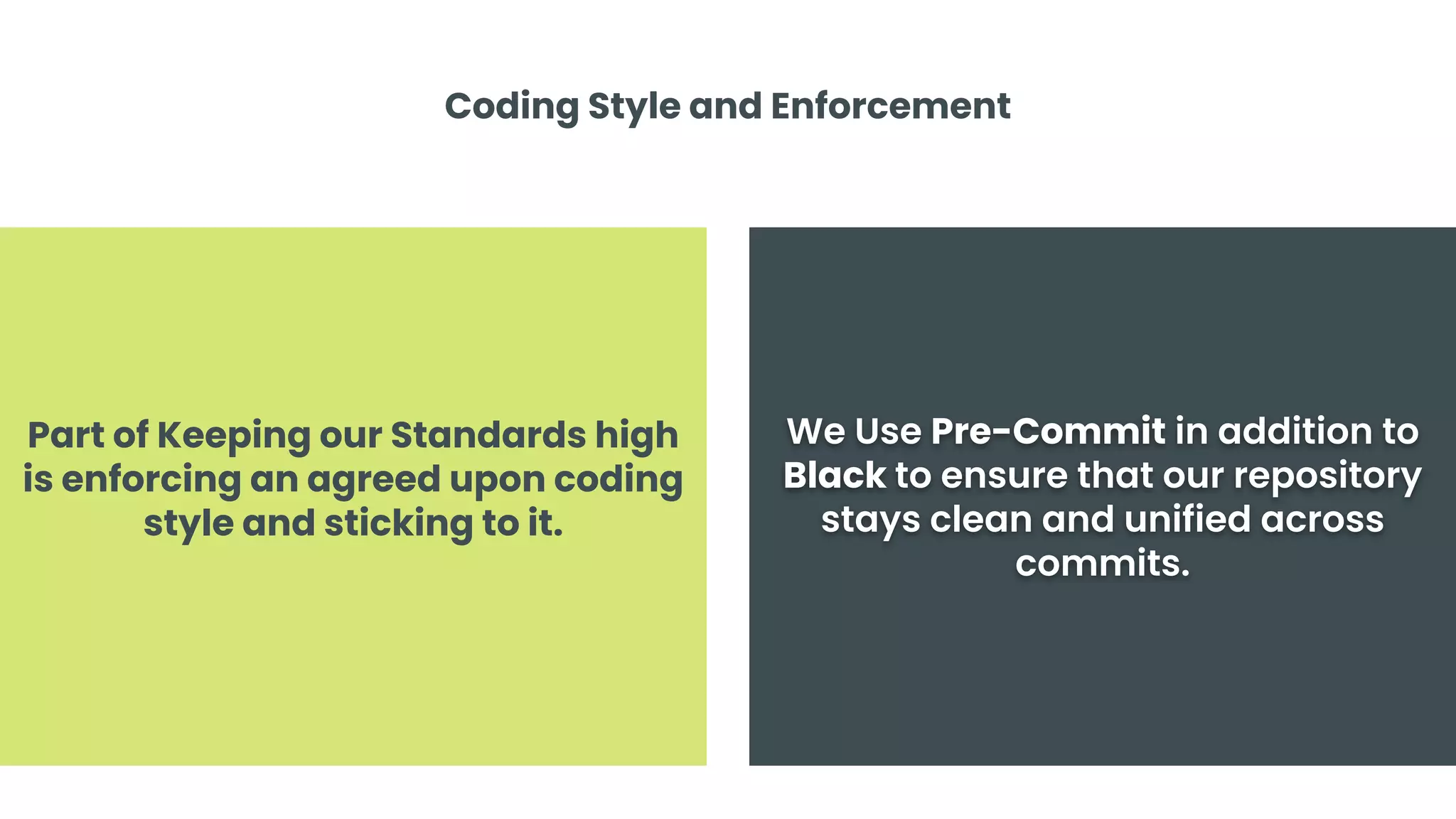

13. We Use Pre-Commit in addition to
Black to ensure that our repository
stays clean and unified across
commits.
Coding Style and Enforcement
Part of Keeping our Standards high
is enforcing an agreed upon coding
style and sticking to it.

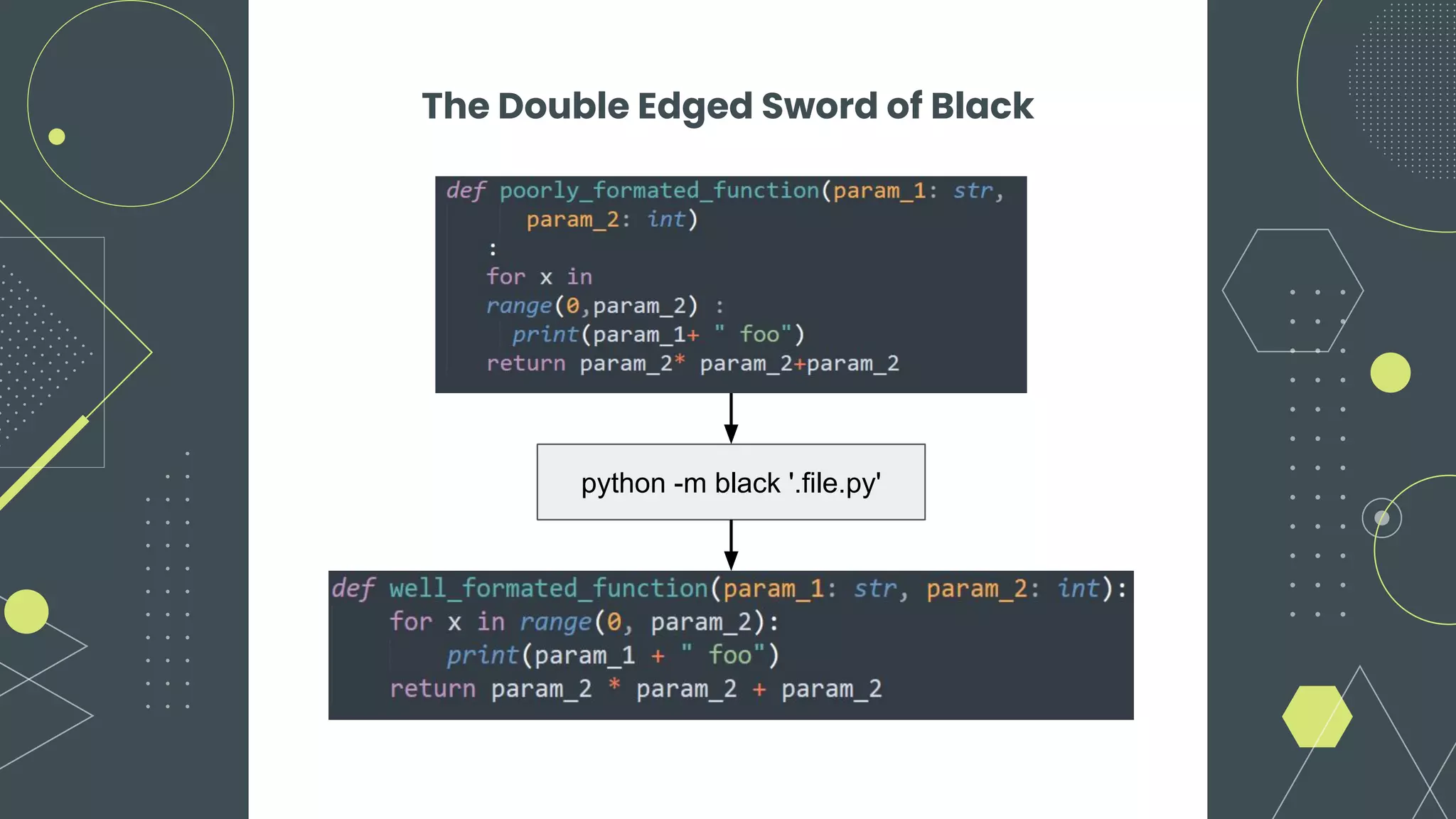

14. The Double Edged Sword of Black
python -m black '.file.py'

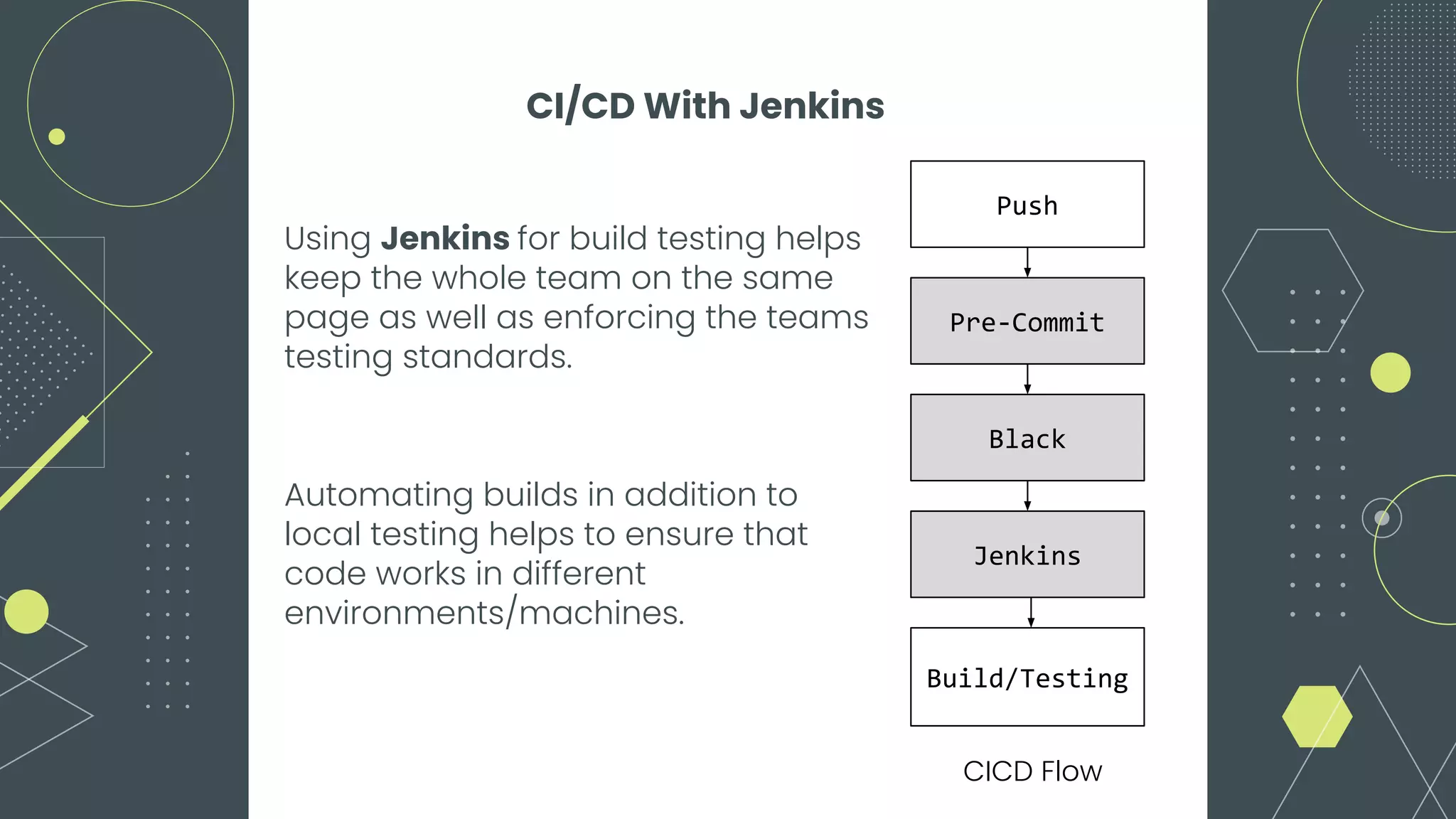

15. CI/CD With Jenkins
Using Jenkins for build testing helps
keep the whole team on the same
page as well as enforcing the teams
testing standards.
Automating builds in addition to
local testing helps to ensure that
code works in different
environments/machines.
Push
Pre-Commit
Black
Jenkins
Build/Testing
CICD Flow

16. Dealing with
Non-Determinism
03

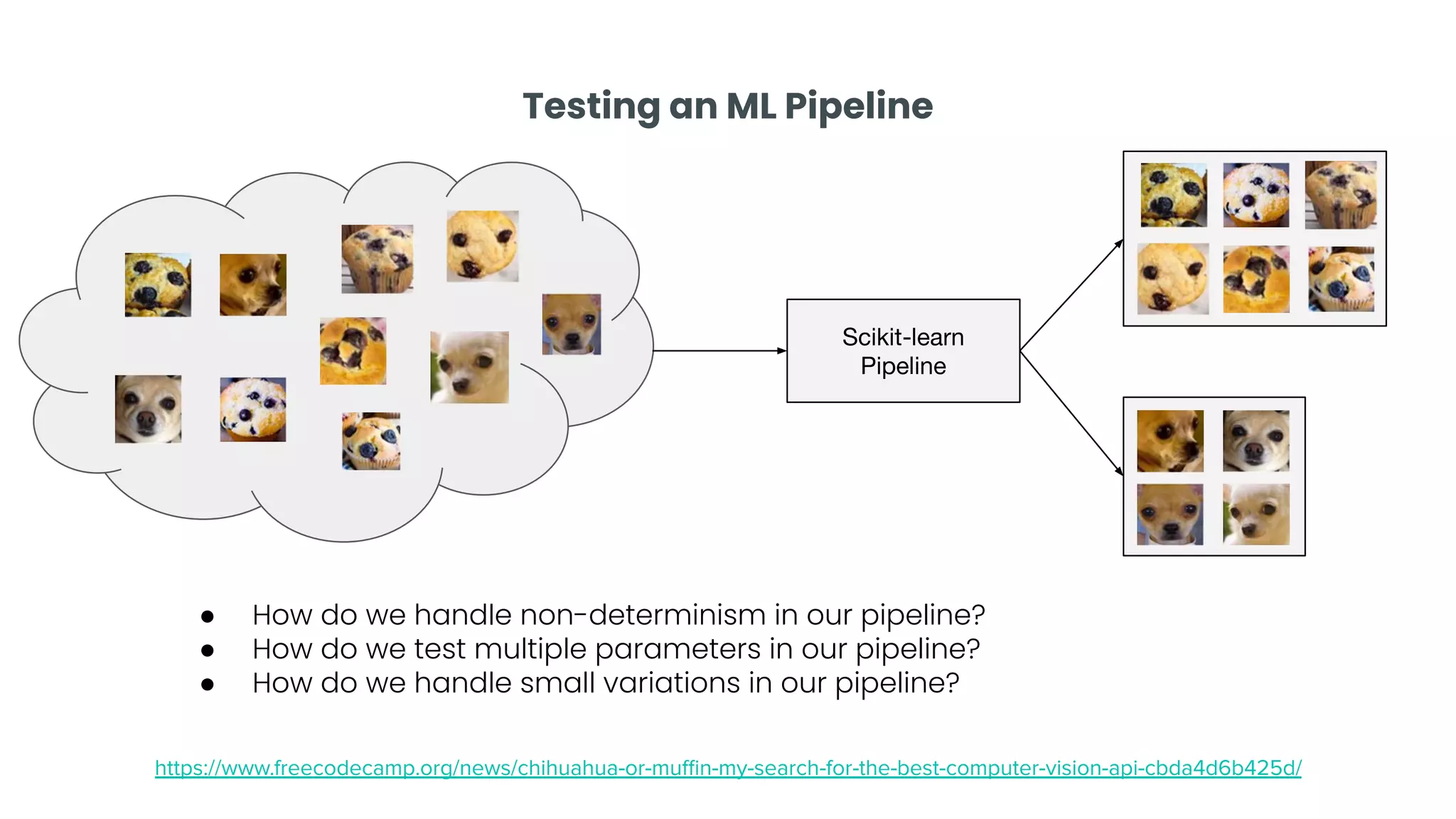

17. Testing an ML Pipeline
● How do we handle non-determinism in our pipeline?
● How do we test multiple parameters in our pipeline?
● How do we handle small variations in our pipeline?
Scikit-learn
Pipeline
https://www.freecodecamp.org/news/chihuahua-or-muffin-my-search-for-the-best-computer-vision-api-cbda4d6b425d/

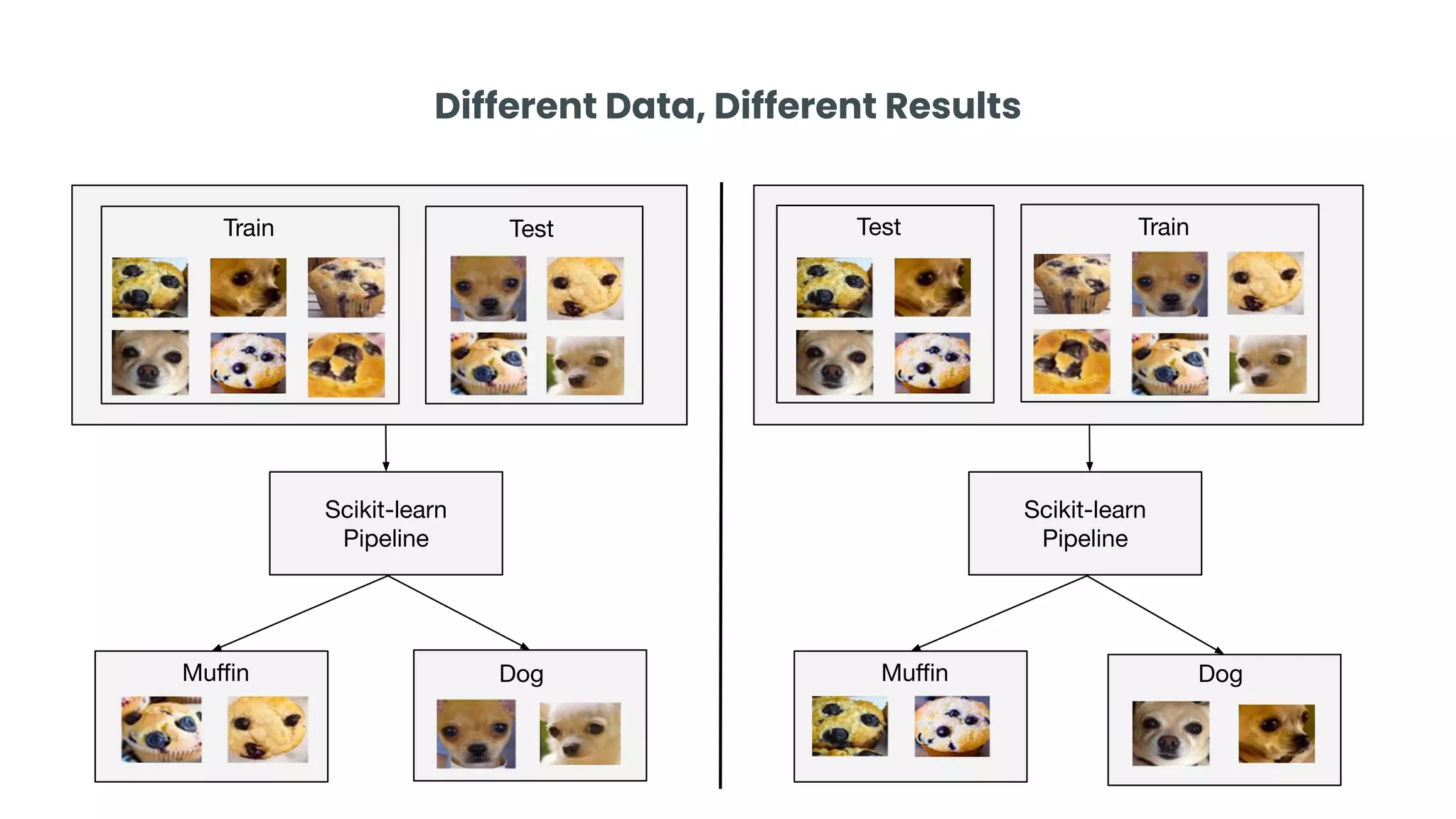

18. Different Data, Different Results
Scikit-learn
Pipeline
Muffin Dog
Scikit-learn
Pipeline
Muffin Dog
Train Test Test Train

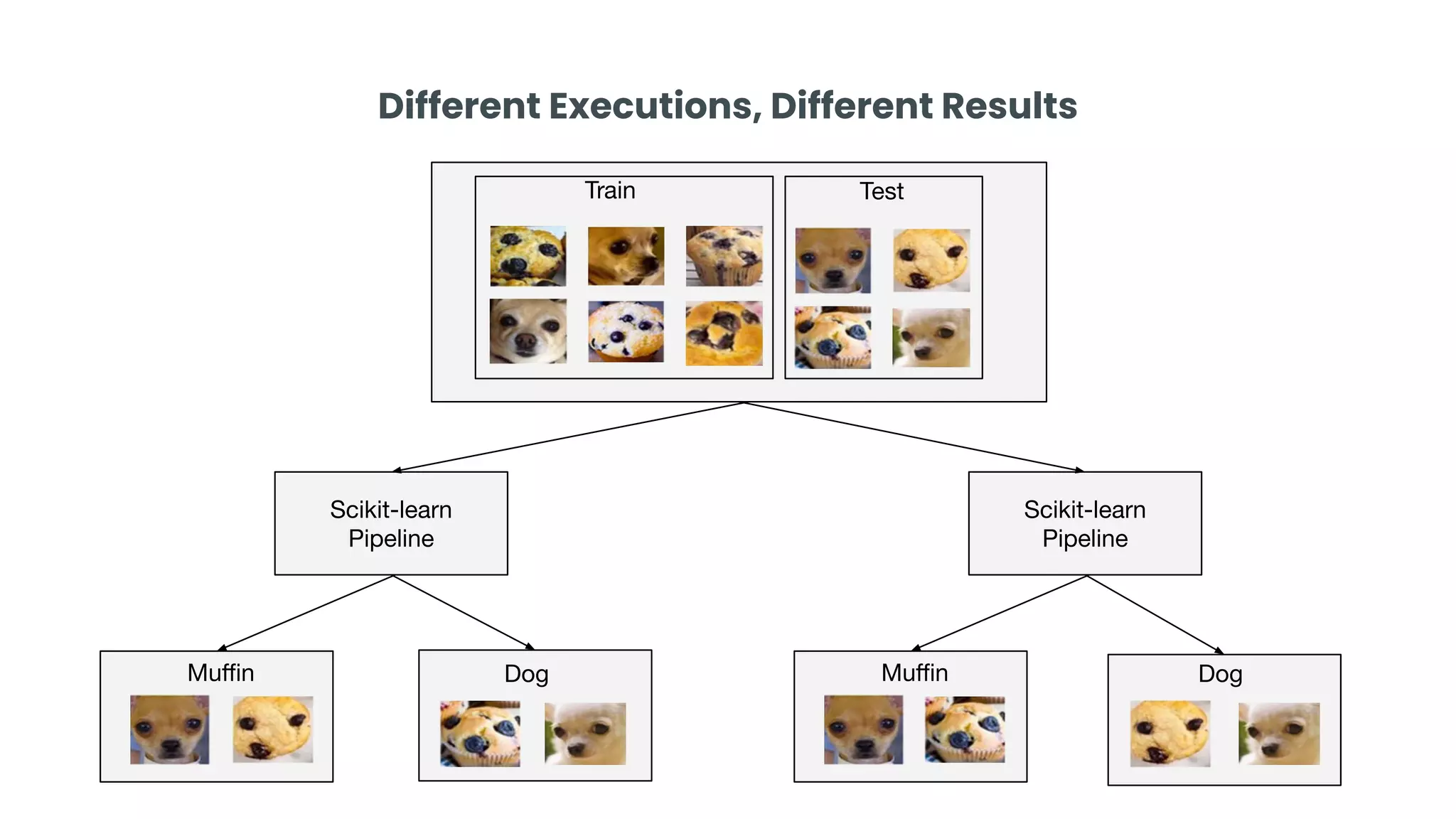

19. Different Executions, Different Results
Train Test
Scikit-learn
Pipeline
Muffin Dog
Scikit-learn
Pipeline
Muffin Dog

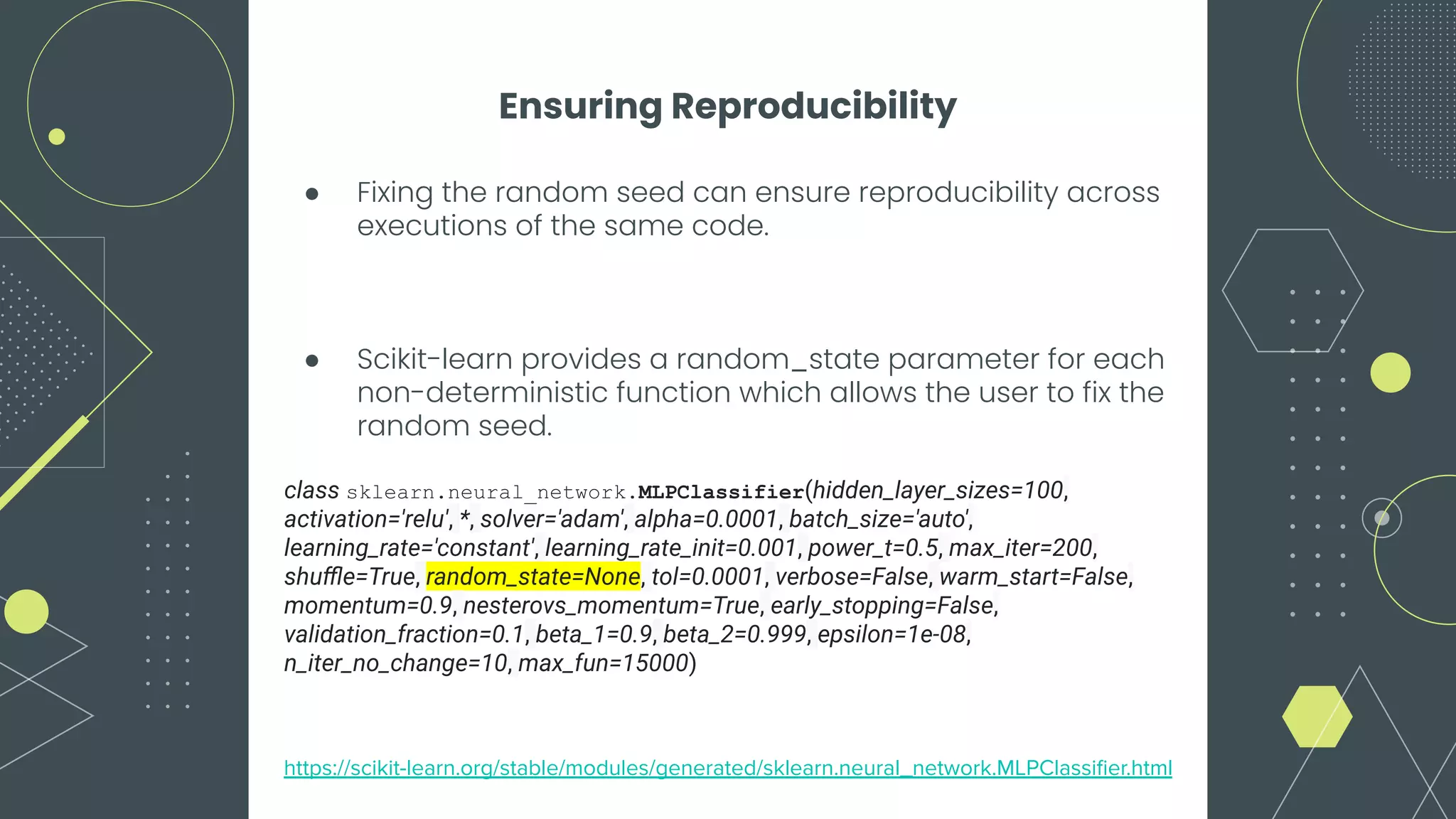

20. Ensuring Reproducibility
● Fixing the random seed can ensure reproducibility across
executions of the same code.
● Scikit-learn provides a random_state parameter for each
non-deterministic function which allows the user to fix the
random seed.
class sklearn.neural_network.MLPClassifier(hidden_layer_sizes=100,
activation='relu', *, solver='adam', alpha=0.0001, batch_size='auto',
learning_rate='constant', learning_rate_init=0.001, power_t=0.5, max_iter=200,
shuffle=True, random_state=None, tol=0.0001, verbose=False, warm_start=False,
momentum=0.9, nesterovs_momentum=True, early_stopping=False,
validation_fraction=0.1, beta_1=0.9, beta_2=0.999, epsilon=1e-08,
n_iter_no_change=10, max_fun=15000)
https://scikit-learn.org/stable/modules/generated/sklearn.neural_network.MLPClassifier.html

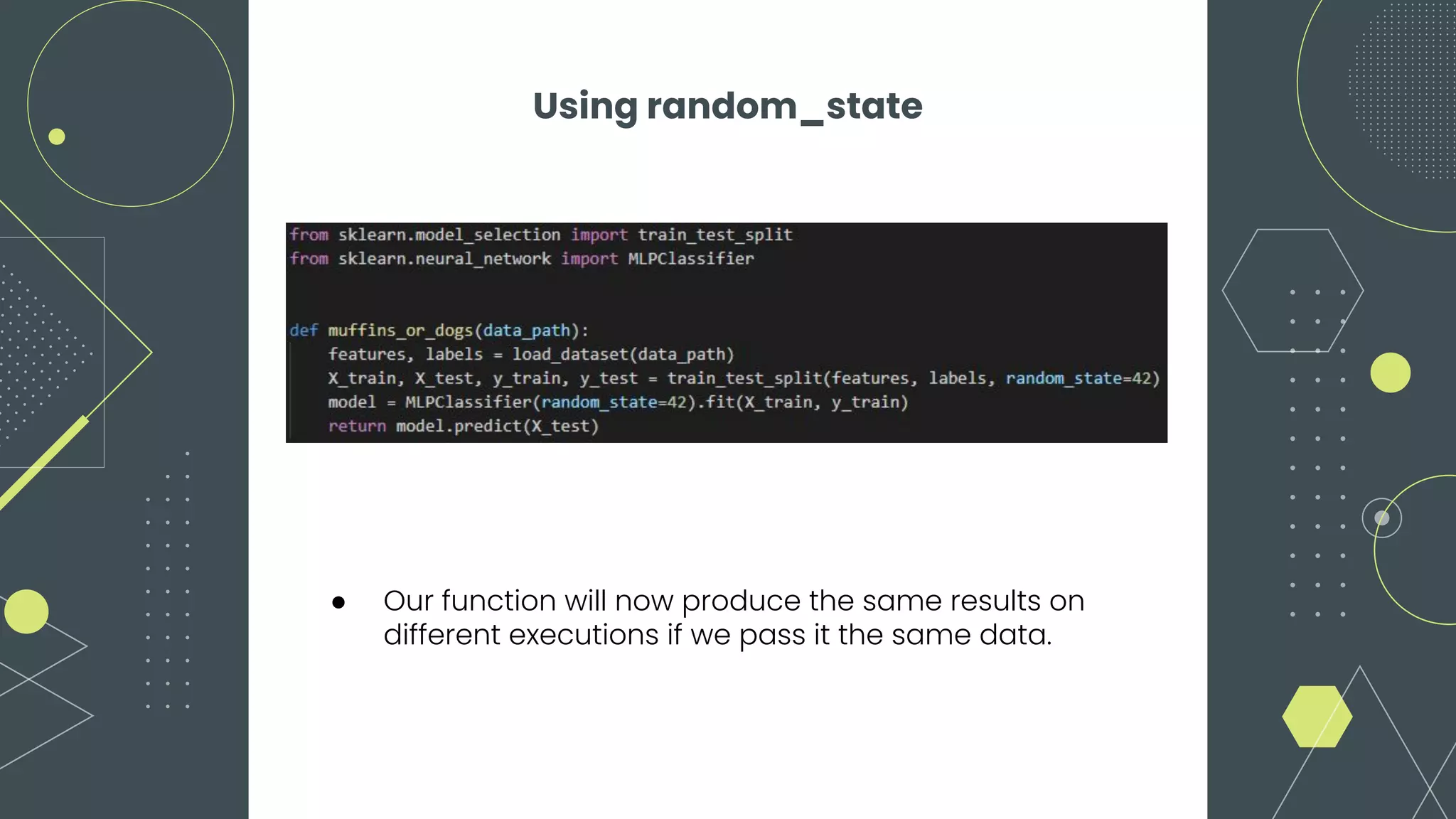

21. Using random_state
● Our function will now produce the same results on
different executions if we pass it the same data.

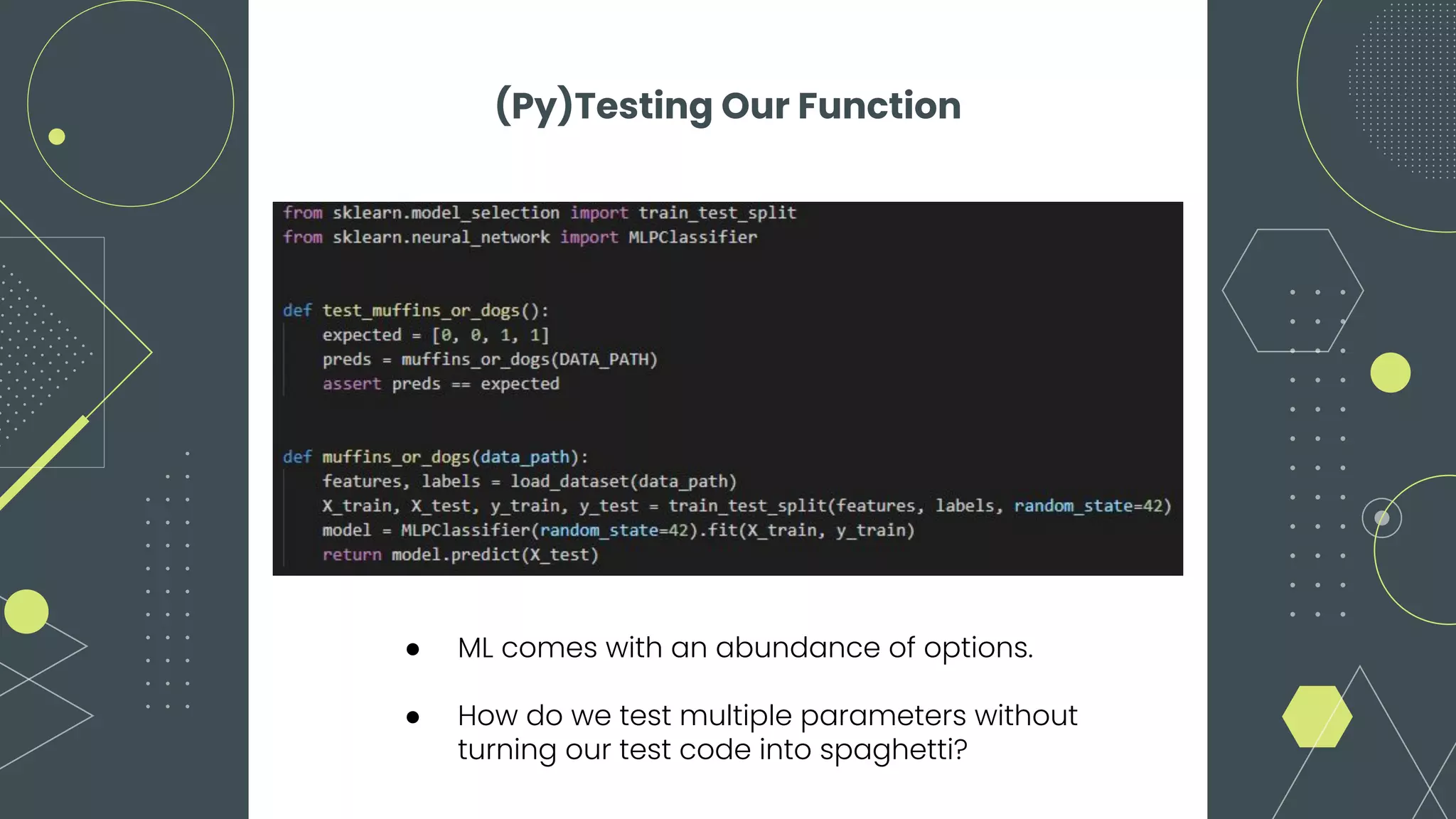

22. (Py)Testing Our Function
● ML comes with an abundance of options.
● How do we test multiple parameters without
turning our test code into spaghetti?

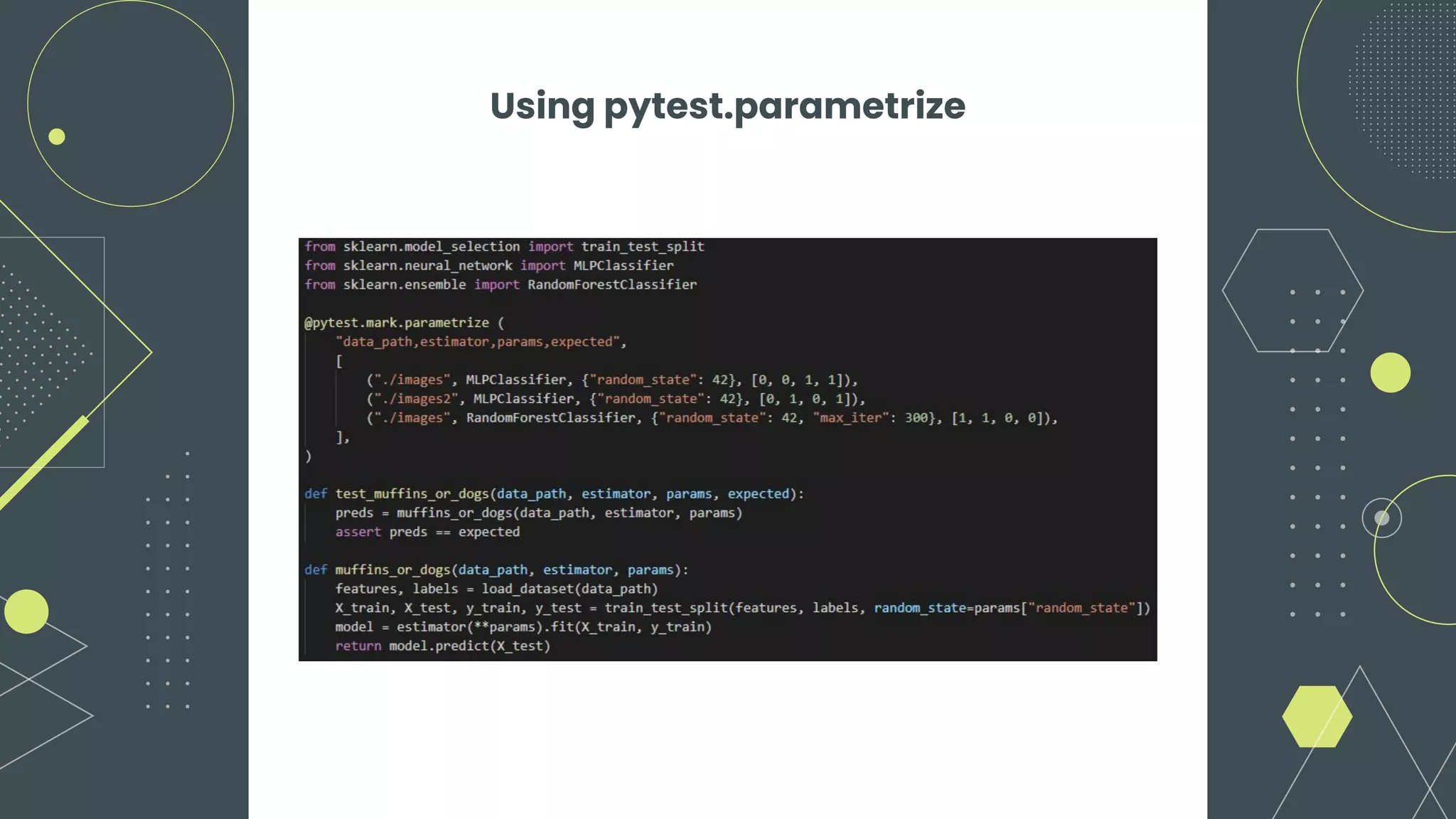

23. Using pytest.parametrize

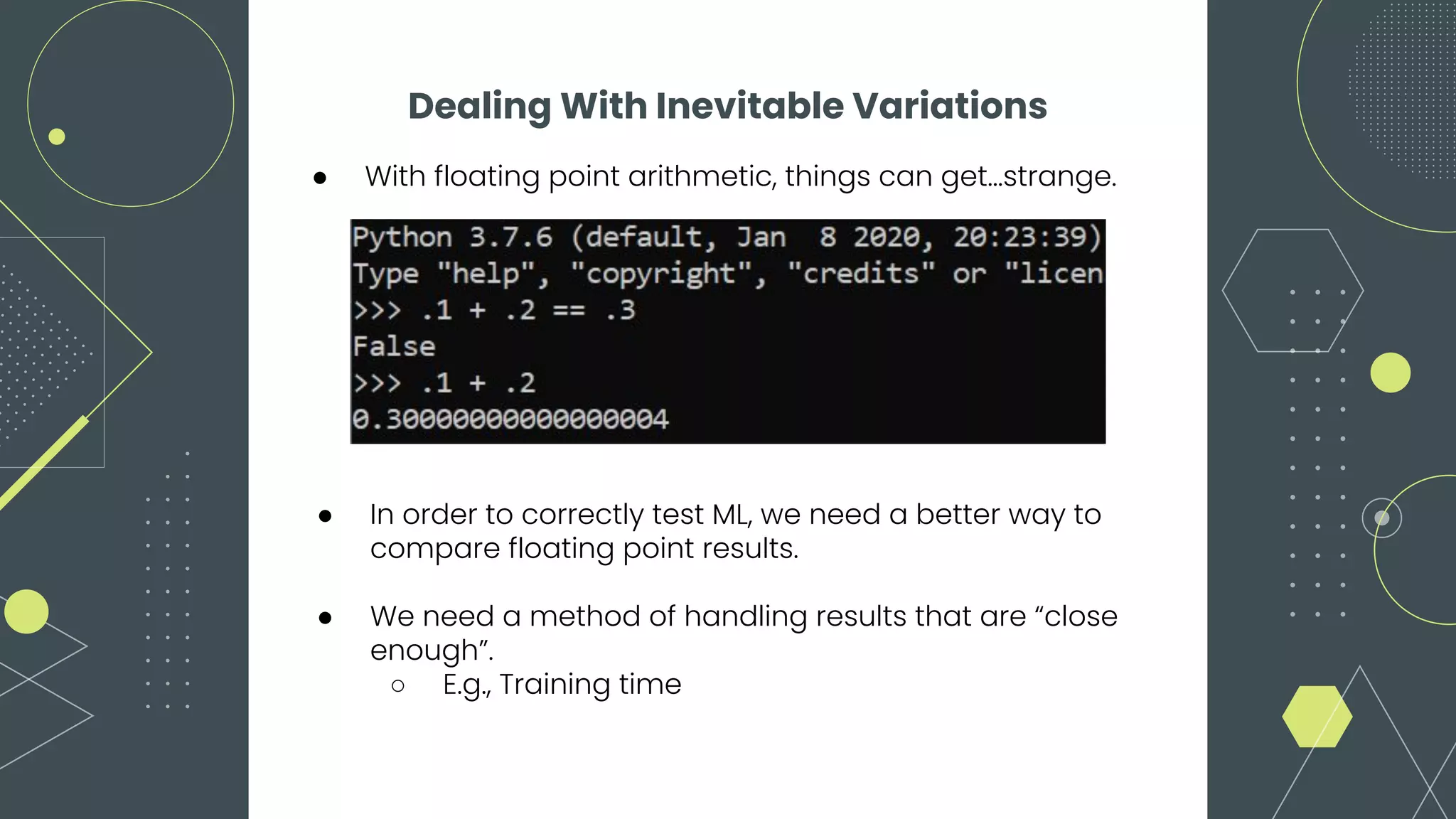

24. Dealing With Inevitable Variations
● With floating point arithmetic, things can get...strange.
● In order to correctly test ML, we need a better way to
compare floating point results.
● We need a method of handling results that are “close
enough”.
○ E.g., Training time

25. Using pytest.approx

26. Diagnostics for
Machine
Learning
04

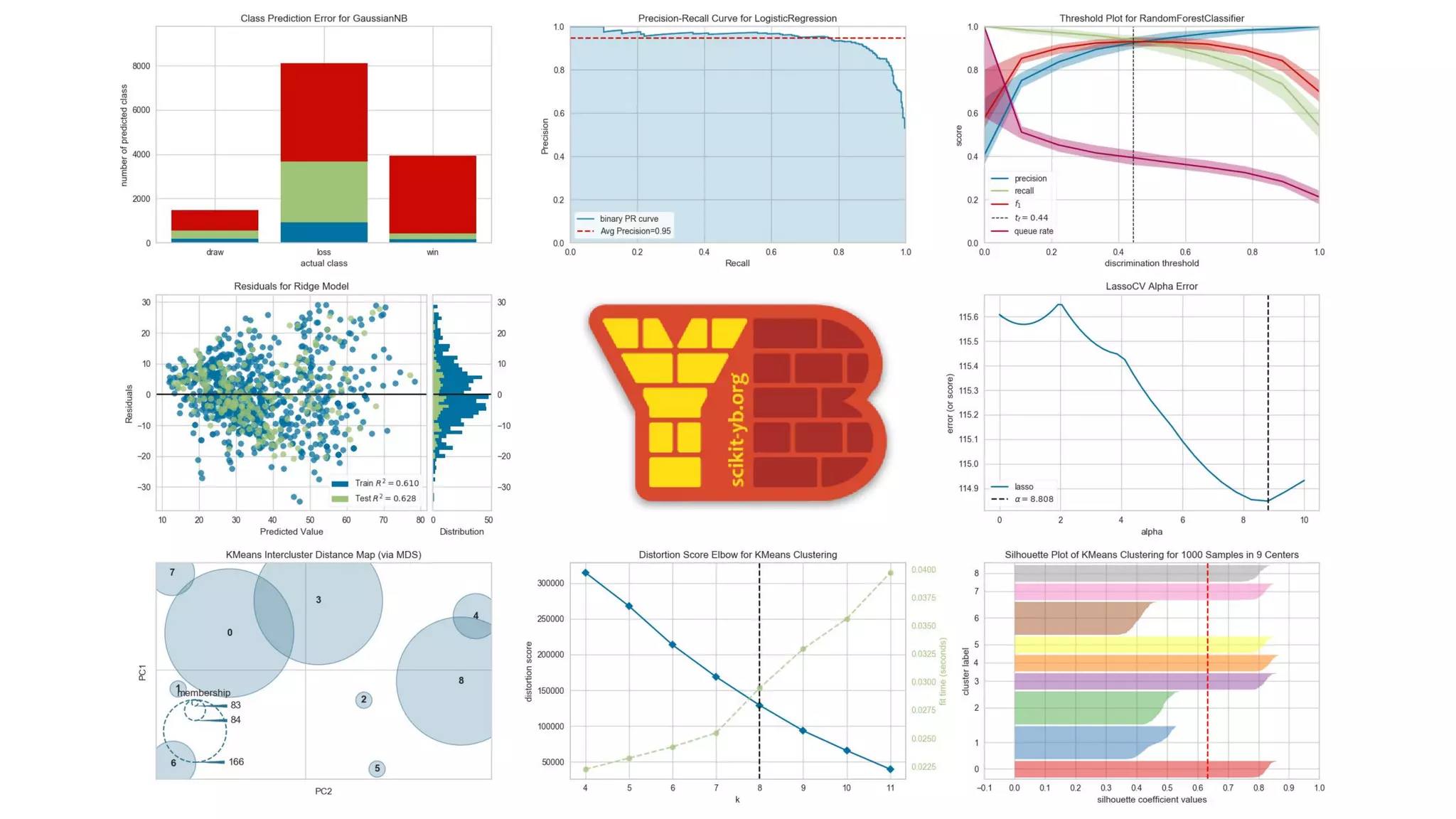

27. Engineering vs. Experimentation
What if it’s a false dichotomy?

29. Data Loader
Transformer(s)
Feature
Visualization
fit()
transform()
draw()
Data Loader
Transformer(s)
Estimator
Evaluation
Visualization
fit()
predict()
score()
draw()
The Yellowbrick API

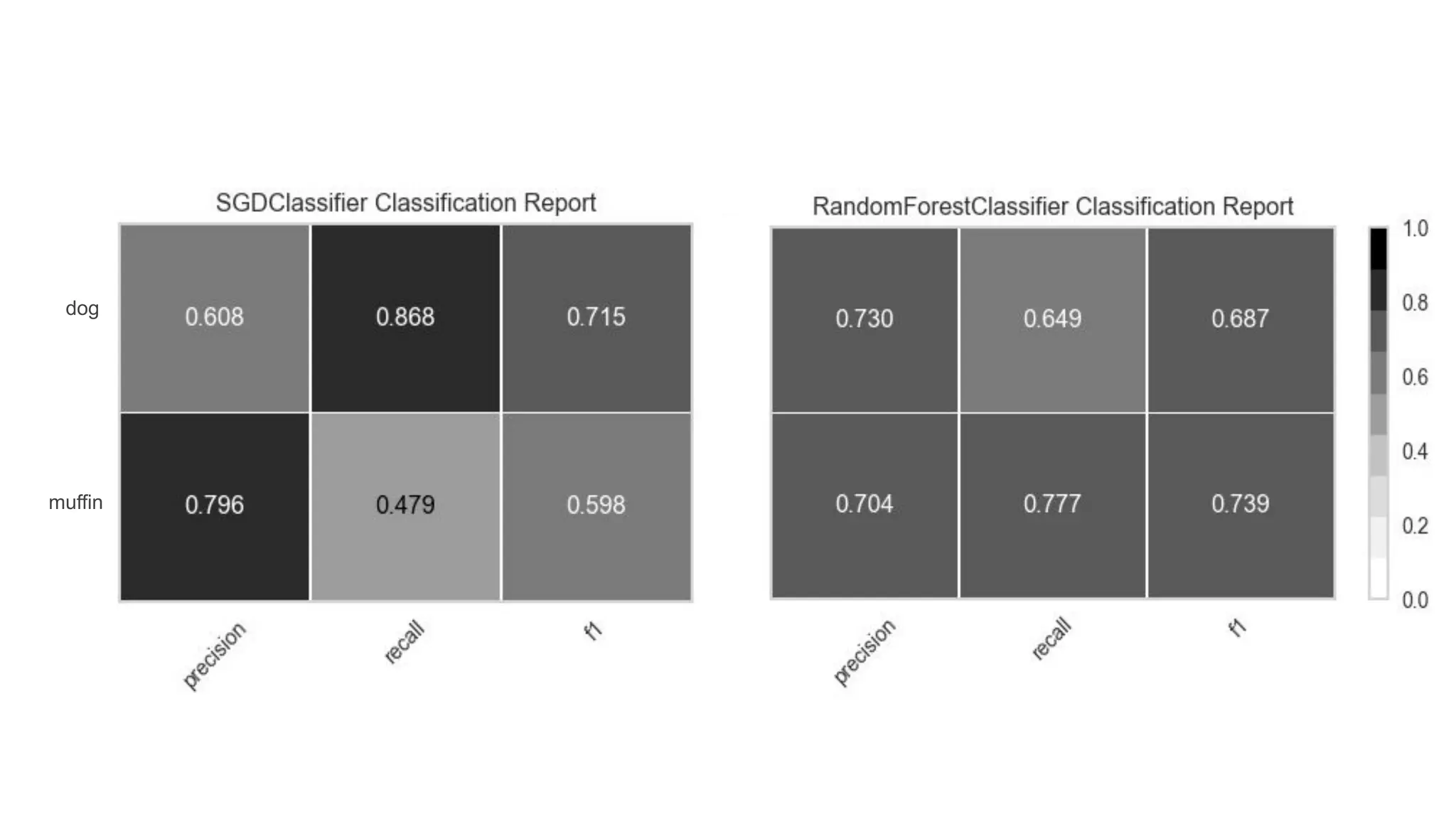

30. dog
muffin

31. import matplotlib.pyplot as plt
from sklearn.linear_model import SGDClassifier
from sklearn.ensemble import RandomForestClassifier
from yellowbrick.classifier import ClassificationReport
from sklearn.model_selection import train_test_split as tts
def muffins_or_dogs(X, y, model, classes=["dog", "muffin"]):
fig, ax = plt.subplots()
X_train, X_test, y_train, y_test = tts(X, y, random_state=38)
visualizer = ClassificationReport(
model, classes=classes, cmap="Greys", ax=ax,
support=True, show=False
)
visualizer.fit(X_train, y_train)
score = visualizer.score(X_test, y_test)
image_path = visualizer.estimator.__class__.__name__ + ".png"
visualizer.show(outpath=image_path)
return visualizer.estimator.predict(X_test)

32. Tips & Tricks
Leverage an ML API
Systematize tests by
wrapping open source ML
frameworks
Pipeline ML Steps
Chain ML steps to support
accuracy &
reproducibility
Drill into Fuzziness
Use parameterization &
approximation to deal with
non-determinism
Embrace Consistency
Adopt a team-wide
coding style to facilitate
collaboration
Befriend Small Robots
CI/CD helps flag test
regressions &
dependency changes
Experiment with Care
Use diagnostic tools
that don’t interfere
with testability
