1. PROTOCOL ARCHITECTURE
&
TCP/IP Layers Model
Toufique Ahmed Chandio
BE Computer System Engineering, ME Information Technology
Email: tofiqueahmed700@yahoo.com
1
2. Agenda / Topics
• The Need of Protocol and Architecture
• TCP/IP Protocol Architecture
• TCP Layers
• How TCP/IP Works on internet
2
3. Need of Protocols
When two or more devices connect in such a way that they can share any type of data
like files, folders. So for that, they must have some time of connection between both
devices. There must be a path between both computer either directly or may be via any
type of network. For that few things must be there to make successful exchange of data:
Both computer must be active and able to share data.
Both has the same configuration of communication
If PC one send some data, destination must to active to receive data or vice versa
The file must be in such format that destination will able to receive it and work on it as
per requirement.
It is very much clear from all statements for a successful exchange of data, every
PC must follow all above steps.
Rather we will implement all this logically on each device. The task is broken
into subtask, each will implement separately.
3
4. Need of Protocols
In protocol model, Modules(Subtask) arrange in vertical order and
each layer module perform separately with the coordination with
other layers.
Of course for this purpose, both machines has same layers
architecture to perform successful exchange of data.
The transfer of data is achieved by having peer(corresponding)
layers into a system. These layers communicate with a formatted
of blocks of data that obey some kind of set of rules, known as
“Protocols”.
The main features of Protocol will be in next slide.
4
5. Key Features of Protocol
• Syntax: Concerns the format of the data blocks
• Semantics: Includes control information for coordination and error
handling
• Timing: Includes speed matching and sequencing
In the result after the research and successful experiments of
packet switching by APRANET, TCP/IP was introduced.
5
6. Introduction about TCP/IP
TCP IP was introduced after the successful experiments of ARPA
APRANET, funded by US,
TCP IP has a collection of protocols that has been introduced by IAB
(Internet Activities Board).
In simple, TCP IP consist of three basic components:
1: Application
2: Computers
3: Network
6
7. TCP IP Layers
Keep in mind the concept of data exchange from one computer to
another. For this, TCP IP has 5 layers architecture as below given:
1: Physical Layer
2: Network Access Layer
3: Internet Layer
4: Host-to-Host or Transport Layer
5: Application Layer
7
8. Physical Layer
This Layer deals with physical connection between devices. It is
mainly deals with data transmission and medium by which data
transmits. It is usually concerned with specifying characteristics of
transmission medium, nature of signals, data rate and related
matters.
8
9. Network Access Layer
The network access layer is concerned with the exchange of data
between an end system (server, workstation, etc.) and the
network to which it is attached.
The computer that sends data must provide address with network
of destination so that network routes data to appropriate
destination. The specific software used at this layer depends on
the type of network to be used; different standards have been
developed for circuit switching, packet switching (e.g., frame
relay), LANs (e.g., Ethernet), and others.
The network access layer is concerned with access to and routing
data across a network for two end systems attached to the same
network.
9

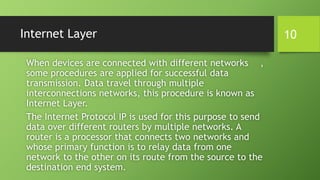

10. Internet Layer
When devices are connected with different networks ,
some procedures are applied for successful data
transmission. Data travel through multiple
interconnections networks, this procedure is known as
Internet Layer.
The Internet Protocol IP is used for this purpose to send
data over different routers by multiple networks. A
router is a processor that connects two networks and
whose primary function is to relay data from one
network to the other on its route from the source to the
destination end system.
10

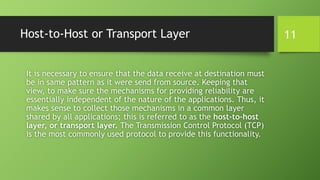

11. Host-to-Host or Transport Layer
It is necessary to ensure that the data receive at destination must
be in same pattern as it were send from source. Keeping that
view, to make sure the mechanisms for providing reliability are
essentially independent of the nature of the applications. Thus, it
makes sense to collect those mechanisms in a common layer
shared by all applications; this is referred to as the host-to-host
layer, or transport layer. The Transmission Control Protocol (TCP)
is the most commonly used protocol to provide this functionality.
11

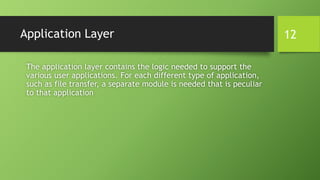

12. Application Layer
The application layer contains the logic needed to support the
various user applications. For each different type of application,
such as file transfer, a separate module is needed that is peculiar
to that application
12
